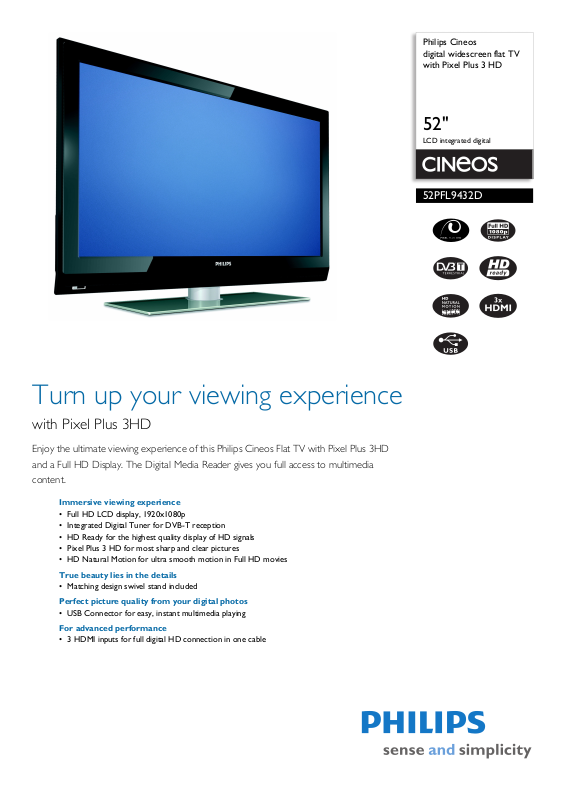

Page 1
Philips Cineos
digital widescreen flat TV
with Pixel Plus 3 HD
52"
LCD integrated digital
52PFL9432D
Turn up your viewing experience
with Pixel Plus 3HD
Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Pixel Plus 3HD
and a Full HD Display. The Digital Media Reader gives you full access to multimedia
content.
Immersive viewing experience
• Full HD LCD display, 1920x1080p
• Integrated Digital Tuner for DVB-T reception
• HD Ready for the highest quality display of HD signals
• Pixel Plus 3 HD for most sharp and clear pictures
• HD Natural Motion for ultra smooth motion in Full HD movies
True beauty lies in the details
• Matching design swivel stand included
Perfect picture quality from your digital photos
• USB Connector for easy, instant multimedia playing
For advanced performance
• 3 HDMI inputs for full digital HD connection in one cable
Page 2
Digital widescreen flat TV with Pixel Plus 3 HD
52" LCD integrated digital
Specifications
52PFL9432D/79
Picture/Display
• Aspect ratio: 16:9
• Brightness: 550 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic screen contrast: 8000:1
• Response time (typical): 6 (BEW equiv.) ms
• Viewing angle: 176º (H) / 176º (V)
• Diagonal screen size: 52 inch / 132 cm
• Display screen type: LCD Full HD W-UXGA Act.
matrix
• Panel resolution: 1920x1080p
• Color processing: 4 trillion colors (14bit RGB)
• Picture enhancement: Pixel Plus 3 HD, HD
Natural Motion, Dynamic contrast enhancement,
1080p 50/60Hz processing, 1080p 24/25/30Hz
processing, 3/2 - 2/2 motion pull down, 3D
Comb fi lter, Ac tive C on trol + Light se nsor, Ja gg ed
Line Suppression, Progressive Scan, Pulse Killer
Chip, Widescreen Plus, Double frame rate
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz
• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 24Hz, 25Hz, 30 Hz
1080p 50Hz, 60Hz
(AVL), Delta Volume per preset, Graphical User
Interface, On Screen Display, Program List,
Settings assistant Wizard, Side Control
• Electronic Program Guide: Now + Next EPG
• Remote Control: TV
• Remote control type: RC4350
• Screen Format Adjustments: unscaled (1080p dot
by dot), 4:3, 6 Widescreen Modes, Auto Format,
Movie expand 14:9, Movie expand 16:9, Subtitle
and Heading Shift, Super Zoom, Widescreen
• Picture in Picture: Text dual screen
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Program
information Line
• Firmware upgradeable: Firmware auto upgrade
wizard, Firmware upgradeable via USB
• Multimedia: Digital media reader (browser), USB
autobreak-in
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: MP3, Slideshow files (.alb),
JPEG Still pictures
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: DVB COFDM 2K/8K
• Video Playback: NTSC, SECAM, PAL
• DVB: DVB Terrestrial *
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Sca rt: Audio L/R, CVBS in/out, RGB, S-video
in
• Ext 3: YPbPr, Audio L/R in
• Ext 4: HDMI
• Ext 5: HDMI
• Ext 6: HDMI
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, USB
• Other connections: Analog audio Left/Right out,
S/PDIF out (coaxial)
Sound
• Output power (RMS): 2x8W
• Sound Enhancement: Digital Signal Processing,
Graphic Equaliser, Dynamic Bass Enhancement
• Sound System: Virtual Dolby Digital, BBE
Loudspeakers
• Built-in speakers: 4
• Loudspeaker types: Integrated woofers with
wOOx, Dome tweeter
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, PLL Digital
Tuning, Plug & Play
• Ease of Use: 4 favorite lists, Auto Volume Leveller
Power
• Ambient temperature: 5 °C to 35 °C
• Mains power: AC 200 - 240 V
• Power consumption: 307 W
• Standby power consumption: 0.8W
Accessories
• Included Accessories: Tabletop swivel stand, Wall
mounting bracket, RF antenna cable
Dimensions
• Color cabinet: High Gloss Black
• Set dimensions (W x H x D):
1290
x 835 x 116 mm
• Set dimensions with stand (H x D): 902 x 324 mm
• Product weight: 38.2 kg
• Product weight (+stand): 47.8 kg
• Weight incl. Packaging: 57.2 kg
• VESA wall mount compatible: 600 x 400 mm
•
Page 3
Digital widescreen flat TV with Pixel Plus 3 HD
52" LCD integrated digital
52PFL9432D/79
Product highlights
Full HD LCD display 1920x1080p
This dis pl ay ha s a re so lu ti on th at is ref er red to as Full H D.
The state-of-the-art LCD screen technology has the full
high-definition widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the best possible
picture quality for HD input signals with up to 1080 lines.
It produces brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors. This vibrant
and sharp image will provide you with an enhanced
viewing experience.
Integrated Digital DVB-T tuner
The integrated DVB-T tuner lets you receive Digital
Terrestrial TV to watch or record. This means you do not
need an additional set top box and also the additional
cables.
HD Ready
Enjoy the exceptional picture quality of High Definition
pict ures a nd be f ully p repared f or HD s ource s like HDTV
settop box or Blu-ray disc. HD Ready is a protected label
that offers picture quality beyond that of progressive
scan. It conforms to strict standards laid out by EICTA to
offer a HD screen that displays the benefits of resolution
and picture quality of a High Definition signal. It has a
universal connection for both analog YPbPr and
uncompressed Digital connection of DVI or HDMI,
supporting HDCP. It can display 720p, and 1080i signals
at 50 and 60Hz.
Pixel Plus 3 HD
Pi xe l Plus 3 HD of fers th e unique combination of ultimate
sharpness, natural detail, vivid colors and smooth natural
motion on all qualities of HD, standard TV signals and
multimedia content, for high definition displays. Each
pixel of the incoming picture is enhanced to better match
the surrounding pixels, resulting in a more natural
picture. Artifacts and noise in all sources from multimedia
to standard TV and also in highly compressed HD are
detected and reduced ensuring that the picture is clean
and razor sharp.
Bypacked swivel stand
For maximum freedom of placement, this high-quality
stand is designed specifically for this TV, and allows easy
placement of your Flat TV without drilling holes in the
wa ll. Enjoy t he b est vie win g an gle with th e co nve nie nce of
the 40 de gree s o f swivel (20 degrees each side). Invi si ble
cable management is included in the back. This stand fits
seamlessly on the matching accessory floorstand.
USB Multimedia Connector
The USB connector allows access to multimedia jpg, mp3
and alb files of most USB-sticks and most digital cameras
(U SB 1. 1 mem ory- class devi ce). Plug the US B int o the slot
at the side of the TV and access your photos or music
files. This makes you easily viewing and sharing your
photos and music.
3 HDMI inputs
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
ou tp ut res ol ution w it h the s ou rce de vi ce. Th e H DMI in pu t
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
With 3 HDMI inputs you can connect multiple HD
sources, for instance an HD settop box, and a Blu-ray
player. Your TV is fully prepared for the HD future.
Issue date 2008-07-04
Version: 6.0.9
12 NC: 8670 000 33438
EAN: 87 12581 36027 6
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
