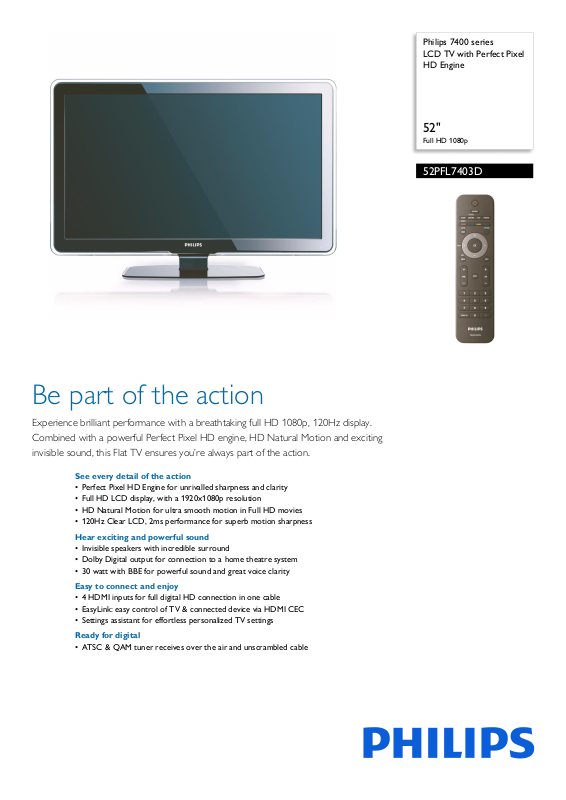

Page 1
Philips 7400 series
LCD TV with Perfect Pixel
HD Engine
52"
Full HD 1080p
52PFL7403D
Be part of the action
Experience brilliant performance with a breathtaking full HD 1080p, 120Hz display.
Combined with a powerful Perfect Pixel HD engine, HD Natural Motion and exciting
invisible sound, this Flat TV ensures you’re always part of the action.
See every detail of the action
• Perfect Pixel HD Engine for unrivalled sharpness and clarity
• Full HD LCD display, with a 1920x1080p resolution
• HD Natural Motion for ultra smooth motion in Full HD movies
• 120Hz Clear LCD, 2ms performance for superb motion sharpness
Hear exciting and powerful sound
• Invisible speakers with incredible surround
• Dolby Digital output for connection to a home theatre system
• 30 watt with BBE for powerful sound and great voice clarity
Easy to connect and enjoy
• 4 HDMI inputs for full digital HD connection in one cable
• EasyLink: easy control of TV & connected device via HDMI CEC
• Settings assistant for effortless personalized TV settings
Ready for digital
• ATSC & QAM tuner receives over the air and unscrambled cable
Page 2
52PFL7403D/27
LCD TV
52" Full HD 1080p
Highlights
Perfect Pixel HD Engine
Experience unrivalled sharpness and clarity
w
ith Perfect Pixel HD Engine. Each pixel of the
picture is enhanced to better match the
surrounding pixels, resulting in a more natural
picture. The result is a unique combination of
sharpness, natural detail, vivid colors superior
contrast and smooth natural motion whatever
you are watching. Clean and razor sharp
images result from artifact and noise detection
and reduction in all content sources - from
multimedia to standard TV.
Full HD LCD display 1920x1080p
The Full HD screen has the widescreen
resolutio
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
n of 1920 x 1080p. This is the highest
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
HD Natural Motion
Philips invented HD Natural Motion to
e
liminate juddering effects that are visible with
movie based picture content. HD Natural
Motion estimates motion in the picture and
corrects juddering movements in both
broadcast and recorded movie material (such
as DVD and Blu-ray Disc). The resulting
smooth motion reproduction and excellent
sharpness take the viewing experience to a
higher level. HD Natural Motion removes
judder from SD and HD pictures, including
1080p, for a motion performance that
surpasses the cinema!
120Hz Clear LCD (2ms)
120Hz Clear LCD creates extreme motion
sharpness for cle
ar and vibrant images even
with fast on-screen motion. The Double Frame
Rate Insertion works with a high 120Hz
refresh rate. It increases the sharpness of
motion reproduction to more than twice that
of conventional LCD, resulting in a response
time of 2 milliseconds (measured in Perceived
Blur-Edge-Width; BEW). This unique Philips
technology brings motion sharpness of LCD
displays to an unprecedented level.
EasyLink
EasyLink uses the HDMI CEC industry
standard proto
between connected devices and the TV. With
EasyLink only one remote control is needed to
operate main functionalities on your TV and
connected devices. EasyLink uses the standard
HDMI cable to transfer system commands. It
works between all electronic devices equipped
with HDMI CEC.
col to share functionality
Page 3
52PFL7403D/27
LCD TV
52" Full HD 1080p
Specifications
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 500 cd/m²
• Dynamic screen contrast: 33000:1
• Response time (typical): 2 ms
• Viewing angle: 160º (H) / 160º (V)
• Diagonal screen size: 52 inch / 132 cm
• Visible screen diagonal (inch): 52.04 inch
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2
n pull down, 3D Combfilter, Active Control
tio
mo
+ Light sensor, Dynamic contrast enhancement,
Progressive Scan, 120Hz LCD, HD Natural Motion
Supported Display Resolution
• Computer formats
olution Refresh rate
Res
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz
deo formats
• Vi
Res
olution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 60Hz
Sound
• Equalizer: 5-bands
• Output power (RMS): 30W
• Sound Enhancement: Incredible Surround
• Sound System: Dolby Digital (AC-3), BBE
Loudspeakers
• Built-in speakers: 4
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: On main display, Sleep Timer
• Ease of Installation: Autostore
• Ease of Use: 4 favorite lists, Au
(AVL), Channel list, Settings assistant Wizard, Side
Control
to
Volume Leveller
• Remote Control: TV
• Screen Format Adjustments: 4:3, Auto Format,
i
e expand 14:9, Movie expand 16:9, Super
Mov
Zoom, Widescreen, unscaled (1080p dot by dot)
Multimedia Applications
• Multimedia connections: USB memory class device
• Playback Formats: MP3, JPEG Still pictures
• Playback enhancement: Picture slidesho
w
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• TV system: ATSC, NTSC
•Video Playback: NTSC
• Cable: Unscrambled Digital Cable -QAM
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• AV 1: Audio L/R in, YPbPr
• AV 2: Audio L/R in, YPbPr
• AV 3: CVBS in, S-Video in
•HDMI 1: HDMI v1.3
•HDMI 2: HDMI v1.3
• HDMI 3: Analog audio L/R in, HDMI v1.3
• EasyLink (HDMI-CEC): One touch play, Power
st
standby
•Front / Side connections: HDMI
CVBS in, Audio L/R in, Headphone out, USB
• Audio Output - Digital: Coaxial (cinch)
stem info (menu language), System
atus, Sy
v1.3, S-vi
deo in,
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: 110-240V, 50-60Hz
• Power consumption: 350 W
• Standby power consumption: < 1 W
Dimensions
•Set dimensions (W x H x D):
1301.6 x 797.6 x 115.6 mm
• Set dimensions in inch (W x H x D):
4 x 31.40 x 4.55 inch
51.2
• Set dimensions with stand (W
x 868 x 325 mm
1301.6
•Set dimensions with stand in inch (W
51.24 x 34.17 x
• Weight incl. Packaging: 53.0 kg
• Weight incl. Packaging (lb): 116.84
• Product weight: 43.5 (with st
12.80 inch
x
and),
H x D):
x H x D):
38.0 (w/o
st
and) kg
• Product weight (lb): 95.9 (with stand), 83.8
it
hout stand)
(w
• Box dimensions in inch (W x H x D):
1 x 37.56 x 15.79 inch
55.7
• VESA wall mount compatible: 400 x 400 mm
Accessories
• Included Accessories: Tabletop swivel stand,
Power cord, Quick start guide, User Manual,
Registration card, Remote Control
•
Issue date 2019-06-28
Version: 4.0.59
12 NC: 8670 000 34373
UPC: 6 09585 14530 6
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
