Philips
Flat TV with Perfect Pixel
HD Engine

52"

LCD Full HD 1080p

52PFL7403D

222

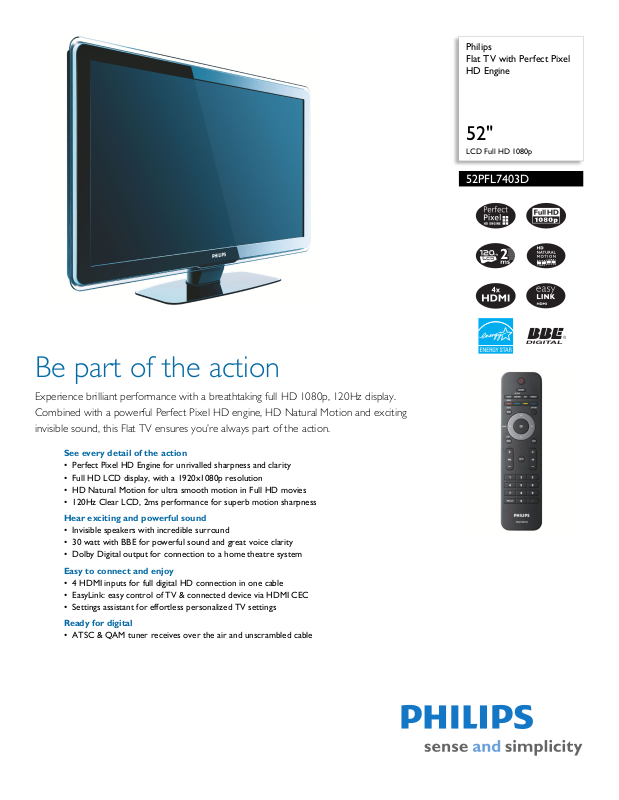

Be part of the action

Experience brilliant performance with a breathtaking full HD 1080p, 120Hz display.
Combined with a powerful Perfect Pixel HD engine, HD Natural Motion and exciting
invisible sound, this Flat TV ensures you’re always part of the action.

See every detail of the action

• Perfect Pixel HD Engine for unrivalled sharpness and clarity

• Full HD LCD display, with a 1920x1080p resolution

• HD Natural Motion for ultra smooth motion in Full HD movies

• 120Hz Clear LCD, 2ms performance for superb motion sharpness

Hear exciting and powerful sound

• Invisible speakers with incredible surround

• 30 watt with BBE for powerful sound and great voice clarity

• Dolby Digital output for connection to a home theatre system

Easy to connect and enjoy

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• Settings assistant for effortless personalized TV settings

Ready for digital

•ATSC & QAM tuner receives over the air and unscrambled cable

Flat TV with Perfect Pixel HD Engine

52" LCD Full HD 1080p

Specifications

52PFL7403D/27

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 33000:1

• Response time (typical): 2 ms

• Viewing angle: 160º (H) / 160º (V)

• Diagonal screen size: 52 inch / 132 cm

• Visible screen diagonal (inch): 52.04 inch

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2
motion pull down, 3D Combfilter, Active Control +
Light sensor, Dynamic contrast enhancement,
Progressive Scan, 120Hz LCD, HD Natural Motion

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz

• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 30W

• Sound Enhancement: Incredible Surround

• Sound System: Dolby Digital (AC-3), BBE

Loudspeakers

• Built-in speakers: 4

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sleep Timer

• Ease of Installation: Autostore

• Ease of Use: 4 favorite lists, Auto Volume Leveller
(AVL), Channel list, Settings assistant Wizard, Side
Control

• Remote Control: TV

• Screen Format Adjustments: 4:3, Auto Format,

Movie expand 14:9, Movie expand 16:9, Super
Zoom, Widescreen, unscaled (1080p dot by dot)

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: MP3, Slideshow files (.alb), JPEG
Still pictures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

• Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: CVBS in, S-Video in

• HDMI 1: HDMI v1.3

• HDMI 2: HDMI v1.3

• HDMI 3: Analog audio L/R in, HDMI v1.3

• HDMI-control (CEC features): One touch play,
Power status, System info (menu language), System
standby

• Front / Side connections: HDMI v1.3, S-video in,
CVBS in, Audio L/R in, Headphone out, USB

• Audio Output - Digital: Coaxial (cinch)

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 110-240V, 50-60Hz

• Power consumption: 350 W

• Standby power consumption: < 1 W

Dimensions

• Set dimensions in inch (W x H x D):

51.2

x 31.4 x 4.7 inch

• Set dimensions with stand in inch (W x H x D):

51.2

x 34.5 x 12.8 inch

• Weight incl. Packaging (lb): 112.83

• Product weight (lb): 101.4 (with stand), 83.8
(without stand)

• Box dimensions in inch (W x H x D):

55.7

x 37.6 x 15.8 inch

Accessories

• Included Accessories: Tabletop swivel stand, Power
cord, Quick start guide, User Manual, Registration
card, Remote Control

•

Flat TV with Perfect Pixel HD Engine

52" LCD Full HD 1080p

52PFL7403D/27

Product highlights

Perfect Pixel HD Engine

Perfect Pixel HD Engine offers the unique combination of
ultimate sharpness, natural detail, vivid colors and smooth
natural motion on all qualities of HD, standard TV signals
and multimedia content, for high definition displays. Each
pixel of the incoming picture is enhanced to better match
the surrounding pixels, resulting in a more natural picture.
Artifacts and noise in all sources from multimedia to
standard TV and also in highly compressed HD content are
detected and reduced ensuring that the picture is clean and
razor sharp.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolution of 1920
x 1080p. This is the highest resolution of HD sources for
the best possible picture quality. It is fully future proof as it
supports 1080p signals from all sources, including the most
recent like Blu-ray and advanced HD game consoles. The
signal processing is extensively upgraded to support this
much higher signal quality and resolution. It produces
brilliant flicker-free progressive scan pictures with superb
brightness and colors.

HD Natural Motion

Philips invented HD Natural Motion to eliminate juddering
effects that are visible with movie based picture content.
HD Natural Motion estimates motion in the picture and
corrects juddering movements in both broadcast and
recorded movie material (such as DVD and Blu-ray Disc).
The resulting smooth motion reproduction and excellent
sharpness take the viewing experience to a higher level.
HD Natural Motion removes judder from SD and HD
pictures, including 1080p, for a motion performance that
surpasses the cinema!

120Hz Clear LCD (2ms)

120Hz Clear LCD creates extreme motion sharpness for
clear and vibrant images even with fast on-screen motion.
The Double Frame Rate Insertion works with a high 120Hz
refresh rate. It increases the sharpness of motion
reproduction to more than twice that of conventional LCD,
resulting in a response time of 2 milliseconds (measured in
Perceived Blur-Edge-Width; BEW). This unique Philips
technology brings motion sharpness of LCD displays to an
unprecedented level.

EasyLink

EasyLink uses the HDMI CEC industry standard protocol to
share functionality between connected devices and the TV.
With EasyLink only one remote control is needed to
operate main functionalities on your TV and connected
devices. EasyLink uses the standard HDMI cable to
transfer system commands. It works between all electronic
devices equipped with HDMI CEC.

Issue date 2008-07-05

Version: 2.0.5

12 NC: 8670 000 34373
UPC: 6 09585 14530 6

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
