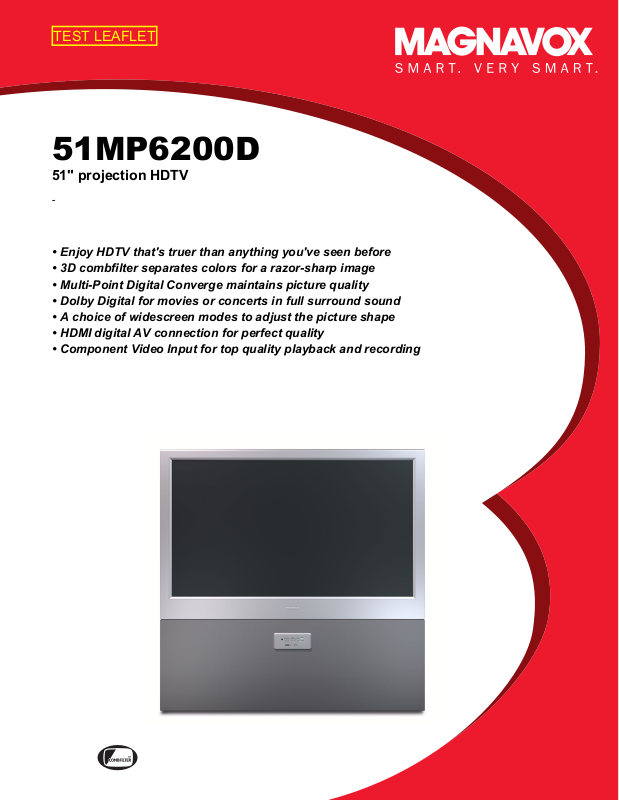

Philips 51MP6200D User Manual

TEST LEAFLET

51MP6200D

51" projection HDTV

-

• Enjoy HDTV that's truer than anything you've seen before

• 3D combfilter separates colors for a razor-sharp image

• Multi-Point Digital Converge maintains picture quality

• Dolby Digital for movies or concerts in full surround sound

• A choice of widescreen modes to adjust the picture shape

• HDMI digital AV connection for perfect quality

• Component Video Input for top quality playback and recording

TEST LEAFLET

51MP6200D/37

51" projection HDTV

Technical specifications

Picture/Display

Aspect ratio: 16:9, Widescreen
Visible screen diagonal (inch): 51 inch
Display screen type: CRT Rear Projection TV
Picture enhancement: Progressive Scan, Color,
Sharpness Adjustment, Tint, AutoPicture (5 modes),
Black stretch, Color Transient Improvement, Color
Temperature Adjustment, 3D Combfilter, Contrast
Plus, Luminance Transient Improver, Digital Noise
Reduction

Supported Display Resolution

Resolution Refresh rate
Video formats
1080i 60Hz

Sound

Output power (RMS): 2 x 10 W
Sound Enhancement: Auto Volume Leveller,
Balance, Treble and Bass Control, AutoSound (4
modes)
Sound System: Stereo, AC-3 Dolby Digital Decoding,
Virtual Dolby Surround

Convenience

Ease of Installation: Autostore
Ease of Use: Channel list
Remote control type: RCLU025
Remote Control: TV
Teletext: Closed Captioning Full Text
Screen Format Adjustments: 4:3 expand, Auto
Format, Widescreen, 4:3, Super Zoom, Subtitle
Zoom, Zoom 14:9, Zoom 16:9

Clock: On/Off event timer
On-Screen Display languages: French, American,
Spanish

Tuner/Reception/Transmission

TV system: ATSC, NTSC
Video Playback: NTSC
Aerial Input: 75 ohm F-type
Cable: Unscrambled Digital Cable -QAM

Connectivity

AV 1: CVBS in, HDMI, CVI
AV 2: CVBS, Component Video in
AV 3: CVBS in, S-Video Y/C
Front / Side connections: CVBS in, S-video in
Output rear: Audio L/R out
Audio Output - Digital: AC3 over S/PDIF (Optical)

Power

Consumption: 255 W
Standby power consumption: < 1 W
Mains power: AC 90-140V, 60Hz

Dimensions

Product dimension (WxDxH) inch: 49.02" x 23.03" x

49.33"
Product weight (lb): 151.8
Carton dimensions (WxDxH) inch: 52.44" x 26.73" x

51.57"
Weight incl. Packaging (lb): 168.3

HDTV

3D combfilter

A 3D combfilter is a device that performs field-by-field
comparisons of the television image to accurately
separate the color from the black-and-white
information. It separates brightness and color signals
better in the 3D domain to eliminate cross-color,
cross-luminance and dot-crawl distortion - all of which
detract from your viewing pleasure.

Multi-Point Digital Converge

Transporting a projection TV may cause its three
picture tubes to become misaligned. This can result in
noticeably poorer picture quality and color bleeding.
Multi-point digital convergence allow you to use the
remote control to adjust picture convergence
electronically at 35 points on the TV's screen using
the 'Convergence' section of the Picture menu. This
optimizes the picture from corner-to-corner to
minimize effects from natural or man-made magnetic
fields in the room where you locate your projection
TV. You always get the best possible picture.

Dolby Digital

Because Dolby Digital and DTS, the world's leading
digital multi-channel audio standards, make use of
the way the human ear naturally processes sound,
you experience superb quality surround sound audio
with realistic spatial cues.

Widescreen movie modes

Enhance your viewing experience with Widescreen
movie modes, which lets you choose the screen
format from various options. View your movie the way
it is meant to be.

HDMI

HDMI stands for High Definition Multimedia Interface.
It is a direct digital connection that can carry digital
HD video as well as digital multichannel audio. By
eliminating the conversion to analog signals it
delivers perfect picture and sound quality, completely
free from noise.

Component Video Input (YPbPr

Component Video is the highest quality
interconnection standard for analog video. It is
sharper than S-video and composite video. Philips
DVD recorders can record directly from component
video (such as YPbPr) sources including satellite
receivers

Date of issue 2006 08 09
Product Owner: Serene Teo
Version: 0.6

12 NC: 8670 000 23097
UPC: 0 37849 96787 4

Test leaflet, for internal use only!
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics
N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.

www.magnavox.com
