Philips 511EXP User Manual

EXP 511

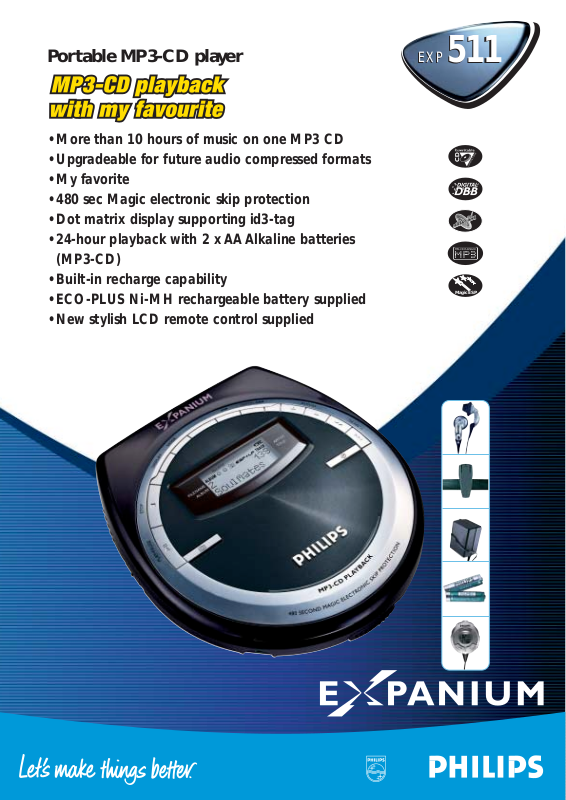

Portable MP3-CD player

• More than 10 hours of music on one MP3 CD

• Upgradeable for future audio compressed formats

• My favorite

• 480 sec Magic electronic skip protection

• Dot matrix display supporting id3-tag

• 24-hour playback with 2 x AA Alkaline batteries (MP3-CD)

• Built-in recharge capability

• ECO-PLUS Ni-MH rechargeable battery supplied

•New stylish LCD remote control supplied

Magic ESP

Standard product information Amplifier/ system

• Output power (headphone) 2 x 3mW RMS

• 1-Bit D/A convertor for pure sound reproduction

• Digital dynamic bass boost

• Rotary volume control

• S/N ratio (A weighted) >85 dB

•Frequency response 20 Hz - 20 kHz

• Audible feedback

CD player

• Supports the CD-ROM,CD-Recordable and CD-Rewritable in ISO-9660,Joliet format and UDF

• Playback possibility of 32,40,48, 56, 64,80, 96, 112,128, 160, 192,224, 256 and 320 Kbps per MP3 track

• Supports variable bit rate per track

• Supports CD’s that contains music tracks with mixed bit rates

• Supports id3-tag

• Shuffle album/ all,repeat one/ album/ all

• My favorite one/ album/ all

• Search forward/ backward in tracks

• Resume and hold

Electronic skip protection

• MP3-CD 480 seconds ESP at

128 Kbps

• Audio CD 200 seconds ESP

LCD display (Dot matrix)

• Indications for track & album number, time, CD functions,ESP and battery status

• Indications for song titles,artist name, album name and filename

Connections

• Headphone/ line out Stereo,3.5 mm

• DC in 4.0 mm,4.5V,centre ‘+’

Power supply

• Batteries 2 x 1.5V, type

AA/LR6/UM3 cell

• Battery playing time 24 hours (2 AA Alkaline ,

MP3-CD)

• Battery playing time 15 hours (2 AA Alkaline ,

CD)

• Automatic power switch-off

General

• Material High temperature

resistant plastic

•Weight 250g

•Product dimensions (mm) 130 L x 138 W x 28 H

• D-box dimensions (mm) 245 L x 140 W x 54 H

• Master carton dimensions (mm) 253 L x 172 W x 156 H

• Master carton quantity 3

Accessories

•AC/DC adapter

• Stereo in-ear headphone

• Belt-clip (detacheable)

• Rechargeable batteries

• LCD remote control

More than 10 hours of music on one MP3 CD

One MP3-CD can contain over 10 hours of music or more than 150 tracks.

Upgradeable for future audio compressed formats

Future proof technology allows user to upgrade the playback software to accommodate new audio compression codec.

My favorite

Stores up your favourite tracks for playing back.

480 second Magic electronic skip protection

Automatically stores up to 480 seconds of music at 128 Kbps (MP3 format) to prevent music interruptions caused by shocks.

Dot matrix display supporting id3-tag

Display that shows name of track,artist and album & track number for easy navigation.

24-hour playback with 2 x AA Alkaline batteries (MP3-CD)

Powersaving technology extends battery playing time to 24 hours with 2 regular LR6-size (AA) alkaline batteries.

Built-in recharge capability

Built-in recharge capability for ECO-PLUS Ni-MH batteries (batteries AY3362 included).

ECO-PLUS Ni-MH rechargeable battery supplied

Durable and environmental friendly rechargeable battery type which is quick and easy to c harge .

New stylish LCD remote control supplied

Allows easy and direct control to player’s function.

CD,CD-R and CD-rewritable compatible

Ensures that all CD’s including CD-Recordable and CD-Rewritable discs, made by any CD-Recorder,can be played.

Playback of MP3 (32-320 Kbps) and variable bitrate

Supports 32 upto 320 Kbps per MP3 track and variable bitrate per MP3 track.

Digital dynamic bass boost (2-step)

Enhances bass at low,mid and high volume, to give deep,rich sounds .

Compact disc audio player

Compact Disc technology that provides uncompressed superb digital sound quality.

Heat resistant body

Unique composite material enables the CD player to withstand very high temperature.

1-Bit D/A converter

Advanced digital conversion technology ensures crystal-clear sound.

Hold

Locks all buttons to prevent interruption of play or change of program settings.

Resume

Bookmark function that ensures the CD starts precisely from the point it was stopped.

Automatic power off

Automatically switches off the CD player at the end of a compact disc.

Album/ track - plus/ minus

Scrolls through albums and very fast through all songs.

CD next/ previous

Plays the next or previous track at the touch of a button.

Repeat one/ album/ all

Repeat the current track,the current album or the total CD.

Shuffle album/ all

Plays album or disc randomly,giving you each time a new sequence of tracks.

Audible feedback

Confirms any key-push with friendly beep to acknowledges that a command has been given.

www.philips.com www.audio.philips.com

Portable MP3-CD player

EXP 511
