PHILIPS 40PUG6909/77, 47PFG7109/77, 47PFG7109/78, 50PUG6900/78, 50PUG6909/77 Service manual & schematics

Colour Television Chassis

TPM14.3L

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9 Cable dressing (40" 6909 series) 9 Cable dressing (47" 7109 series) 10 Cable dressing (50" 6909 series) 10 Cable dressing (55" 7109 series) 11 Cable dressing (55" 7309 series) 11 Cable dressing (58" 6900 series) 12 Cable dressing (65" 6659 & 7459 series) 12

5. Service Modes, Error Codes, and Fault Finding 21

6. Alignments 30

7. Circuit Descriptions 33

8. IC Data Sheets 39

9. Block Diagrams Block diagram 6000 & 7000 series 47

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G6338 PSU A 715G6463 PSU 55 60-61 A 715G6405 PSU 62 67-68 A 715G6420 PSU 69 73-74 A 715G6432 PSU 75 76-77 A 715G6661 PSU 78 81-82 A 715G6555 PSU 83 86-87 B 715G6230 SSB 88 101-102 B 715G6779 SSB 103 116-117 J 715G6737 IR/LED Panel 118 119 E 715G6316 Keyboard control panel 120 121

11. Styling Sheets 6900 series 40" 122 7100 series 47" 123 6900 series 50" 124 7100 series 55" 125 7300 series 55" 126 6900 series 58" 127 6659 & 7459 series 65" 128

48 53-54

Published by CQZ/SC 1441 Quality Printed in the Netherlands Subject to modification EN 3122 785 19633

2014-Oct-10

2014 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM14.3L LA1.

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Revision List

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

.

• Chapter 4: Added figures 4-4 Cable dressing (55" 7109

series) and 4-7 Cable dressing (65" 6659 & 7459 series).

• Chapter 5: Updated table 5-2 Factory mode overview

.

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

• Chapter 7: Updated figure 7-3 Power Architecture table 7-1 Connector overview

.

and

.

• Chapter 10: Added circuit diagrams 10.3 A 715G6405

PSU, 10.4 A 715G6420 PSU and 10.5 A 715G6432 PSU.

• Chapter 11: Added styling sheets 11.4 7100 series 55" and 11.7 6659 & 7459 series 65"

.

Manual xxxx xxx xxxx.3

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 4: Added figures 4-1 Cable dressing (40" 6909

series), 4-3 Cable dressing (50" 6909 series) and 4-6 Cable dressing (58" 6900 series).

• Chapter 5: Updated table 5-2 Factory mode overview

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

• Chapter 7: Updated figure 7-3 Power Architecture table 7-1 Connector overview

• Chapter 8: Added sections 8-7 Internal block diagram and

pin configuration.

• Chapter 9: Updated figure 9.1 Block diagram 6000 & 7000

series.

Manual xxxx xxx xxxx.2

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 5: Updated table 5-2 Factory mode overview

.

• Chapter 10: Added circuit diagrams 10.6 A 715G6661

PSU, 10.7 A 715G6555 PSU, 10.9 B 715G6779 SSB and

10.10 J 715G6737 IR/LED Panel

• Chapter 11: Added styling sheets 11.1 6900 series 40"

11.3 6900 series 50"

2. Technical Specs, Diversity, and Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in back to

div.Table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and software & drivers.

.

and

.

,

and 11.6 6900 series 58".

Table 2-1 Described Model Numbers and Diversity

24 9 10 11

Mechanics

CTN

40PUG6909/77 2-1 4-1 4-14 4-15 9.1 10.6 - 10.9 10.10 10.11 11.1 47PFG7109/78 2-1 4-2 4-8 4-10 9.1 10.1 - 10.8 - 10.11 11.2 47PFG7109/77 2-1 4-2 4-8 4-10 9.1 10.1 - 10.8 - 10.11 11.2 50PUG6900/78 2-1 4-3 4-8 4-10 9.1 10.7 - 10.9 10.10 10.11 11.3 50PUG6909/77 2-1 4-3 4-14 4-15 9.1 10.7 - 10.9 10.10 10.11 11.3 55PFG7109/78 2-1 4-4 4-14 4-15 9.1 10.3 - 10.8 - 10.11 11.4 55PFG7309/78 2-1 4-5 4-8 4-10 9.1 10.2 - 10.8 - 10.11 11.5 55PFG7309/77 2-1 4-5 4-8 4-10 9.1 10.2 - 10.8 - 10.11 11.5 58PUG6900/78 2-1 4-6 4-14 4-15 9.1 - - 10.9 10.10 10.11 11.6 65PFG6659/78 2-1 4-7 4-8 4-10 9.1 10.4 10.5 10.8 - 10.11 11.7 65PFG7459/78 2-1 4-7 4-8 4-10 9.1 10.4 10.5 10.8 - 10.11 11.7

Connection Overview

Wire Dressing

Rear Cover Removal

SSB Removal

Schematics

Block Diagram

Power Supply

Power Supply 2

SSB

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

J (IR/LED)

E (Keyboard/Leading Edge)

Styling

2014-Oct-10

back to

div.Table

2.3 Connections

R

L

CVBS2

CVBS1

L

R

AUDIO IN

DVI

SPDIF

OUT

SERV.U

NETWORK

TV ANTENNA

75 W

HDMI 4

ARC

HDMI 3

ARC

HDMI1

ARC

HDMI2

ARC

USB 2

USB 1

SIDE CONNECTORS

REAR CONNECTORS

19630_001.eps

4

6

1

2 3

8

7

10

9

14

13

12

11

5

1 2 3 4

10000_022_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

Technical Specs, Diversity, and Connections

EN 3TPM14.3L LA 2.

2.3.1 Rear Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - RJ45: Ethernet

10000_025_090121.eps

Figure 2-2 Ethernet connector

1 -TD+ Transmit signal k

120320

2 -TD- Transmit signal k 3 -RD+ Receive signal j 4 -CT Centre Tap: DC level fixation 5 -CT Centre Tap: DC level fixation 6 -RD- Receive signal j 7 -GND Gnd H 8 -GND Gnd H

2 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

3 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 k jq

RMS

4 - EXT2: Video YPbPr - In, Audio - In

Gn - Video - CBVS2 1 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

back to

div.Table

5 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

2.3.2 Side Connections

6 - EXT2: Video YPbPr - In, Audio - In

Gn -Video - CBVS1 1 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

7 - USB1 2.0

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

8- USB2 2.0

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

/ 75  kq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

Figure 2-3 USB (type A)

Figure 2-4 USB (type A)

2014-Oct-10

EN 4 TPM14.3L LA2.

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

9- HDMI 3: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

10- HDMI 4: Digital Video - In, Digital Audio with ARC In/Out

11- HDMI 2: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-7 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel

Shield Gnd H

-

8

j

9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

12- HDMI 1: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-6 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

Figure 2-8 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

13- Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

14 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2014-Oct-10

back to

div.Table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div.Table

-9

), or pico-farads (p 10

. Select

EN 5TPM14.3L LA 3.

-6

),

-12

).

2014-Oct-10

EN 6 TPM14.3L LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2014-Oct-10

back to

div.Table

Precautions, Notes, and Abbreviation List

EN 7TPM14.3L LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate F requency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div.Table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19633_100.eps

CN9101

CN9301

CN700

CN4250

CN413

CN408

CN401

CN602

MAIN POWER SUPPLY

(1054)

A

LED DRIVER

(1055)

AD

SSB

(1053)

B

ECN700

ECN413

ECN401

ECN602

ECN401

ECN4250

ECN602

ECN408

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODEUL

W

WiFi01

RF4CE Module ASSY (1076)

IR/LED BOARD

(1056)

J

CN201

CN1

ECN700

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal (for 47"/55"7109 & 55"7309 series)

4.4 Assembly/Panel Removal (for 65"7459 & 6659 series)

4.5 Assembly/Panel Removal (for 40"/50"/58"6900 series)

4.1 Cable Dressing

Mechanical Instructions

4.6 Set Re-assembly

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 9TPM14.3L LA 4.

Figure 4-1 Cable dressing (40" 6909 series)

back to

div.Table

2014-Oct-10

EN 10 TPM14.3L LA4.

19630_100.eps

CN401

CN408

CN409

CN602

CN9301

CN4250

CN700

CN413

CN1404

MAIN POWER SUPPLY

(1054)

RF4CE Module ASSY (1076)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN700

ECN409

ECN602

ECN408

ECN401

ECN4250

ECN413

ECN602

ECN408

ECN409

ECN602

ECN401

LOUDSPEAKER

(1186)

WIFI Module

(WiFi01)

LOUDSPEAKER

(1185)

CN8101

KEYBOARD CONTROL

(1057)

E

CN01

AmbiLight

AL

(1063)

AL

AmbiLight

(1062)

ECN1404

EXA04

19633_101.eps

CN9101

CN9301

CN700

CN4250

CN413

CN408

CN401

CN602

MAIN POWER SUPPLY

(1054)

A

LED DRIVER

(1055)

AD

SSB

(1053)

B

ECN700

ECN413

ECN401

ECN602

ECN401

ECN602

ECN4250

ECN602

ECN408

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODEUL

W

WiFi01

RF4CE Module ASSY (1076)

IR/LED BOARD

(1056)

J

CN201

CN1

ECN9101

Mechanical Instructions

2014-Oct-10

Figure 4-2 Cable dressing (47" 7109 series)

Figure 4-3 Cable dressing (50" 6909 series)

back to

div.Table

Mechanical Instructions

19631_100.eps

AmbiLight

AL

(1063)

AL

AmbiLight

(1062)

CN401

CN408

CN409

CN602

CN9301

CN4250

CN700

CN1404

CN413

MAIN POWER SUPPLY

(1054)

RF4CE Module ASSY (1076)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN413

ECN700

ECN4205

ECN408

ECN4250

ECN1404

ECN4205

ECN602

ECN401

ECN409

ECN408

ECN409

ECN401

LOUDSPEAKER

(1186)

WIFI Module

(WiFi01)

LOUDSPEAKER

(1185)

CN8101

KEYBOARD CONTROL

(1057)

E

CN01

ECN401

ECN602

EXA04

19630_101.eps

CN401CN631

CN408

CN409

CN602

CN6004

CN9301

CN4250

CN700

CN1404

CN413

MAIN POWER SUPPLY

(1054)

RF4CE Module ASSY (1076)

A

IR/LED BOARD

(1056)

J

CAMERA MODULE SKYPE-TV (G1065)

SSB

(1053)

B

ECN700

ECN4250

ECN408

ECN602

ECN401

ECN6004

ECN413

ECN631

ECN409

ECN408

ECN409

ECN602

ECN401

LOUDSPEAKER

(1186)

WIFI Module

(WiFi01)

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)

CN8101

KEYBOARD CONTROL

(1057)

E

CN01

AmbiLight

AL

(1063)

AL

AmbiLight

(1062)

ECN1404

EXA04

EN 11TPM14.3L LA 4.

Figure 4-4 Cable dressing (55" 7109 series)

Figure 4-5 Cable dressing (55" 7309 series)

back to

div.Table

2014-Oct-10

EN 12 TPM14.3L LA4.

19633_102.eps

CN2

CN1

CN700

CN4250

CN413

CN408

CN401

CN602

MAIN POWER SUPPLY

(1054)

A

LED DRIVER

(1055)

AD

SSB

(1053)

B

ECN700

ECN413

ECN401

ECN602

ECN4250

ECN602

ECN408

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODEUL

W

WiFi01

RF4CE Module ASSY (1076)

IR/LED BOARD

(1056)

J

CN201

CN1

19631_101.eps

CN9101

CN8102

CN8101

CN9301

CN700

CN409

CN408

CN401

CN602

CN4250

MAIN POWER SUPPLY

(1054)

A

LED DRIVER

(1055)

AD

SSB

(1053)

B

ECN700

ECN413

EXA04

ECN1404

ECN409

ECN401

ECN602

ECN401

ECN4250

ECN602

ECN401

ECN408

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

KEYBOARD CONTROL

(1057)

E

CN01

WIFI MODEUL

W

WiFi01

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

CN1404

CN413

ECN408

ECN409

RF4CE Module ASSY (1076)

IR/LED BOARD

(1056)

J

Mechanical Instructions

Figure 4-6 Cable dressing (58" 6900 series)

2014-Oct-10

Figure 4-7 Cable dressing (65" 6659 & 7459 series)

div.Table

back to

Mechanical Instructions

19630_102.eps

2

3

2

22

2

1

3

EN 13TPM14.3L LA 4.

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal (for 47"/55"7109 & 55"7309 series)

Instructions below apply to the 47PFG7109/78, but will be similar for other 47"/55"7109 & 55"7309 series models.

4.3.1 Rear Cover

Refer to Figure 4-8 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to

Figure 4-8

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

4.3.2 AmbiLight Panel

Refer to Figure 4-9

1. Gently release the clamps and unplug the two connectors

2. Lift the AmbiLight panel from the rear cover. Make sure that

Figure 4-8 Rear cover removal

for details.

[2, 3] that secure the ambilight panels. Release the clips from the FFC connector that connect with the AmbiLight control panel [1].

wires and flat foils are not damaged while lifting the ambilight panel from the rear cover.

back to

div.Table

2014-Oct-10

EN 14 TPM14.3L LA4.

19630_104.eps

2

3

1

4

Mechanical Instructions

2

1

3

4.3.3 Small Signal Board (SSB)

Refer to Figure 4-10 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connectors that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] and the FFC connector [3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-10

for details.

19630_103.eps

Figure 4-9 Ambilight Panel removal

2014-Oct-10

Figure 4-10 SSB removal

back to

div.Table

Mechanical Instructions

EN 15TPM14.3L LA 4.

4.3.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.5 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.3.6 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.3.7 Stand bracket

4.4.1 Rear Cover

Refer to Figure 4-11 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to

Figure 4-11

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.8 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Remove fixation screw that secure the deco rear cover and take it out from the deco.

3. Unplug the connector from the IR/LED panel.

4. Gently release the double faced adhesive tape that pasted the panel and take it out from the deco.

When defective, replace the whole unit.

4.3.9 RF4CE module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the RF4CE module, getntly remove the module from the set.

When defective, replace the whole unit.

4.3.10 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, getntly remove the module from the set.

When defective, replace the whole unit.

4.3.11 LCD Panel

1. Unplug all the connector cables of the boards.

2. Gently take all the speakers out.

3. Lift the subframe with SSB, PSU, Keyboard, IR, RF4CE module, Ambilight, WIFI, panel from the LCD panel and put it aside.

Warning:Cause the panels of 47"/55"7109 & 55"7309 series are bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.4 Assembly/Panel Removal (for 65"7459 & 6659 series)

Instructions below apply to the 65PFG7459/78, but will be similar for 65PFG6659/78 model.

back to

div.Table

2014-Oct-10

EN 16 TPM14.3L LA4.

Mechanical Instructions

2

22

2

22

2

3

2

1

3

2

3

19631_102.eps

2

3

2

1

2

22

2

4.4.2 AmbiLight Panel

Refer to Figure 4-12

1. Gently release the clamps and unplug the two connectors [2, 3] that secure the ambilight panels. Release the clips from the FFC connector that connect with the AmbiLight control panel [1].

2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the ambilight panel from the rear cover.

for details.

Figure 4-11 Rear cover removal

2014-Oct-10

back to

div.Table

Mechanical Instructions

19631_103.eps

1

2

3

19631_104.eps

3

1

4

2

EN 17TPM14.3L LA 4.

Figure 4-12 Ambilight Panel removal

4.4.3 Small Signal Board (SSB)

Refer to Figure 4-13 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connectors that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] and the FFC connector [3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-13

for details.

Figure 4-13 SSB removal

back to

div.Table

2014-Oct-10

EN 18 TPM14.3L LA4.

Mechanical Instructions

4.4.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.4.5 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.4.6 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.4.7 Stand bracket

4.5 Assembl y/Panel Removal (for 40"/50 "/58"6900 series)

Instructions below apply to the 58PUG6900/78, but will be similar for other 40"/50"/58"6900 series models.

4.5.1 Rear Cover

Refer to Figure 4-14 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull

out the base assy from the set. Then remove the fixation screws [2], [3] and [4] that secure the rear cover. Refer to

Figure 4-14

2. Gently lift the rear cover from the TV. Make sure that wires

and cables are not damaged while lifting the rear cover from the set.

for details.

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.4.8 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Remove fixation screw that secure the deco rear cover and take it out from the deco.

3. Unplug the connector from the IR/LED panel.

4. Gently release the double faced adhesive tape that pasted the panel and take it out from the deco.

When defective, replace the whole unit.

4.4.9 RF4CE module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the RF4CE module, getntly remove the module from the set.

When defective, replace the whole unit.

4.4.10 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, getntly remove the module from the set.

When defective, replace the whole unit.

4.4.11 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the RF4CE module as earlier.

7. Remove the WIFI module as earlier.

8. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

9. Remove all other metal parts not belonging to the panel.

10. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

2014-Oct-10

back to

div.Table

Mechanical Instructions

19633_103.eps

1

M4 × 8

M3 × 6

1

2

4

2

1

3

33

Q3 × 8

3

M3 × 8

19633_104.eps

2

3

1

4

EN 19TPM14.3L LA 4.

Figure 4-14 Rear cover removal

4.5.2 Small Signal Board (SSB)

Refer to Figure 4-15 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] and the FFC connector [3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-15

for details.

Figure 4-15 SSB removal

back to

div.Table

2014-Oct-10

EN 20 TPM14.3L LA4.

Mechanical Instructions

4.5.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.5.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.5.5 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.5.6 Stand bracket

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-7

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

to

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.5.7 IR/LED Board

1. Remove the stand bracket as described earlier.

2. Gently release the clips that hold the board and take it out from the bezel.

3. Unplug both the connectors from the IR/LED board.

When defective, replace the whole unit.

4.5.8 RF4CE module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the RF4CE module, getntly remove the module from the set.

When defective, replace the whole unit.

4.5.9 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module, getntly remove the module from the set.

When defective, replace the whole unit.

4.5.10 LCD Panel

1. Unplug all the connector cables of the boards.

2. Gently take all the speakers out.

3. Lift the subframe with SSB, PSU, Keyboard, IR, RF4CE module, WIFI, panel from the LCD panel and put it aside.

Warning:Cause the panels of 40"/50"/58"6900 series are bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.6 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

2014-Oct-10

back to

div.Table

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in

2

C /UART level and can be used by a Service

2

C with help of

SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SAM and CSM. The screen will show: “AAAAAAB-XXX.YYY.MMM.TTT”, where:

• AAAAAA is the chassis name: QN142L.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• XXX is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 0- 255.

• YYY is the sub version number: this is updated with a minor change of specification (incompatible with the previous versions). Numbering will go from 0- 255.

• MMM is the number of the mandatory (upgrade) release in association with the area of the mandatory (upgrade) release. Numbering will go from 0 - 255.

• TTT bit 7 to 1 is the area of the mandatory (upgrade) release where 0 - none, 1 - Netflix, rest reserved.

• TTT bit 0 : 0 = development release, 1 = production release.

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062596” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in back to div.Table 6-3 value is accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

EN 21TPM14.3L LA 5.

. When the

back to

div.Table

2014-Oct-10

EN 22 TPM14.3L LA5.

Service Modes, Error Codes, and Fault Finding

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour e.g. 04969 This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “TPM1012E 1.027B” See paragraph Software Identification, Version, and Cluster for the software name

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “000 224 032 000 038 192 192

OP2 e.g. “159 255 127 061 011003 000

Clear Codes Press [OK] to clean the Error Codes

Options OP#1-OP#8 e.g. “032” Option code Alignments Warm R Gain To align the White Tone. See

NVM editor NVM editor NVM-editor will function as in the past: Address and Value

Upload to USB Channel List To upload several settings from the TV to an USB stick

Download from USB Channel List To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Upload t0 USB To upload several settings from the TV to an USB stick

NVM Copy Readable Info EDID Copy

NVM Copy EDID Copy

immediately

015”

000”

G Gain B Gain

count Stand-by hours.

definition.

possible. Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a det ailed description. Ten codes ar e possible.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3 Software Alignments i n the Alignments section for a detai led description

field is a decimal value via digit entry

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Menu/Home” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “Menu/Home screen” press “1999”, directly followed by the “Back” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

2014-Oct-10

back to

div.Table

Service Modes, Error Codes, and Fault Finding

EN 23TPM14.3L LA 5.

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture,

1 PANEL_ID see back to div.Table 6-3 Displays and changes the Panel ID with the left and right cursor; be careful

2 ERR Code: xxx xxx xxx xxx

xxx 3 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes. 4 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the

5 NVM VALUE 0 Displays the value at the NVM address of item 5 6 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 7 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB

8 NVM READ USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV

9 CLR_TEMP_R 255 255 249 255 249 255 Red colour temperature setting 10 CLR_TEMP_G 255 229 251 255 251 255 Green colour temperature setting 11 CLR_TEMP_B 255 249 253 255 253 255 Blue colour temperature setting 12 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SM PTE bar (colour bar), any

13 ADC_GAIN_R 0 Red ADC gain 14 ADC_GAIN_G 0 Green ADC gain 15 ADC_GAIN_B 0 Blue ADC gain 16 ADC_OFFSET_R 128 Red ADC offset 17 ADC_OFFSET_G 128 Green ADC offset 18 ADC_OFFSET_B 128 Blue ADC offset 19 VIRGING_MODE off Use this to return the set to virgin mode. Depends whether the set has been

20 E_Fuse on E-fuse mode 21 ORT_MODE off ORT mode 22 VGA_UART_SWITCH off - off off off off When switched “on” the VGA port can be used for UART logging. 23 DRMWARNING on Warning the data rights management 24 AGEING MODE off Use this for aging a new LCD panel 25 RESET_PBS_PWD Press OK Use this to reset the Child Lock 26 VIDEO_PWM_MEDIUM - 128 - - - - VIDEO PWM Medium value 27 VIDEO_PWM_MINIIMUN - 128 - - - - VIDEO PWM Mini mum value 28 VIDEO_PWM_MAXIMUN - 128 - - - - VIDEO PWM Maximum value 29 PWM_RATIO_BEST_PICT

URE 30 PWM_RATIO_STD_TOP - 128 - - - - PWM ratio standard top 31 PWM_RATIO_STD_BOTTOM-0----PWM ratio standard bott om

000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operatio n, according

-128----PWM ratio best picture

Description40" 47" 50" 55" 58" 65"

BL Dimming, Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

changing this, it can result in not correct displaying the screen!

to table 5-4 Error code table

correct NVM address

memory stick. The TV will write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settings are stored onto the USB stick and can be used to download onto another TV or other SSB. Uplo ading is of cour se only possibl e if the software i s running and if a picture is available. This method is created to be able to save the customer’s TV settings and to store them into another SSB.

will save the two files which were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

timing.

used already.

32 PWM_RATIO_BEST_PO

WER 33 VIDEO_STD_TH_HIGH - 128 - - - - VIDEO standard threshold high 34VIDEO_STD_TH_LOW-0----VIDEO standard threshold low 35 YPBPR_PHASE InValid Not available for this chassis 36AUD_GAIN_LINEIN000001Line-in audio gain 37 AUD_GAIN_HDMI -1 0 -1 -1 -1 -1 HDMI audio gain 38 AUD_GAIN_ATV 0 0 0 -1 0 0 Analogue TV audio gain 39 AUD_GAIN_DTV 0 0 0 -8 0 -8 Digital TV audio gain 40AUD_GAIN_USB 202223USB audio gain 41ESTICKER NVM1-9----ESTICKER value 42ESTICKER NVM2-0----ESTICKER value 43ESTICKER NVM3-117----ESTICKER value 44ESTICKER NVM4-46----ESTICKER value 45ESTICKER NVM5-0----ESTICKER value 46ESTICKER NVM6-0----ESTICKER value 47ESTICKER NVM7-0----ESTICKER value 48ESTICKER NVM8-0----ESTICKER value 49ESTICKER NVM9-0----ESTICKER value 50 ESTICKER NVM10 - 0 - - - - ESTICKER value 51 ESTICKER NVM11 - 16 - - - - ESTICKER value

-128----PWM ratio best po wer

back to

div.Table

2014-Oct-10

EN 24 TPM14.3L LA5.

Default value

Item Item value

52 ESTICKER NVM12 - 31 - - - - ESTICKER value 53 ESTICKER NVM13 - 19 - - - - ESTICKER value 54 ESTICKER NVM14 - 0 - - - - ESTICKER value 55 ESTICKER NVM15 - 0 - - - - ESTICKER value 56 ESTICKER NVM16 - 0 - - - - ESTICKER value 57 ESTICKER NVM17 - 0 - - - - ESTICKER value 58 ESTICKER NVM18 - 0 - - - - ESTICKER value 59 ESTICKER NVM19 - 0 - - - - ESTICKER value 60 ESTICKER NVM20 - 0 - - - - ESTICKER value 61 ESTICKER RESET - Press OK - - - - ESTICKER reset 62 DIM_LIB RESET Press OK Reset the Dimming 63 SRC_METER-RESET Press OK Reset the Source meter 64 AMBLIGHT RESET Press OK AMBLIGHT RESET 65 ACFG RESET Press OK REST ACFG 66 AQ_INDEX 8 11 9 6 9 5 Audio Quality index 67 AUDIO TEST MODE off Used for audio testing during production 68 AUDIO CHANNEL TYPE 2.1 Defines the installed speaker system 70 Audio SRS off - off off off off Audio SRS 71 Test Pattern Press OK - Press OK Press OK Press OK Press OK With the “left” and “right” keys of the remote control various test pat terns can be

72 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM 73 TCON_GAMMA_UPDATE - Invalid - Invalid - - TCON gamma update 74 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted

75 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 76 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB

77 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 78 PANEL FLI P off Flip panel 79 VGA_SOURCE off - off off off off Enable/Disable VGA source 80 HDMI3 on - on on on on Enable/Disable HDMI3 source 81 HDMI4 on - on on on on Enable/Disable HDMI4 source 82 USB2 on - on on on on Enable/Dis able USB2 source 83 USB3 off - off off off off Enable/Disable USB3 source 84 KEYBOARD CONFIG on - on on on on Enable/Disable HDMI3 source 85LIGHT SENEOR TUNING412222Light sensor 86LIGHT SENSOR TYPE100000Light sensor 87 TEMP SENSOR TYPE 4 - 4 4 4 4 Tempreture sensor 88AMBILIGHT_DRIVER222222Drive the Ambient light 89AMBILIGHT TYPE020707The type of Ambient light 90 LED TYP E 0 - 0 2 0 2 The type of LED 913D 3131333D on/off 92 SMALL SCREEEN off - off off off off Sm all screen 93 BLUETOOTH off - off off off off Bluetooth on/off 94 ARC TEST off - off off off off ARC Test on/off 95 EXIF_FACTORY Press OK Exits the Factory mode

Service Modes, Error Codes, and Fault Finding

Description40" 47" 50" 55" 58" 65"

chosen

USB memory stick

memory stick

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

2014-Oct-10

back to

div.Table

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is

Service Modes, Error Codes, and Fault Finding

replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4a Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.5 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.6 Display 12NC NVM read/write.

• 1.7 PSU 12NC NVM read/write.

• 1.8 RF4CE 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 Bootloader ID ID of Bootloader.

• 2.5 NVM version Detects and displays NVM version.

• 2.6 Flash ID ID of flash model.

• 2.7 e-UM version eDFU (help) version.

• 2.8 Channel Table Structure Version version of channel

table structure.

• 2.9 Error Codes Detects and displays errors.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item

for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or

HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control

address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access

Control address.

EN 25TPM14.3L LA 5.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control

transmitter.

• Press the POWER button on the remote control

transmitter.

P

ress the POWER button on the television set.

•

back to

div.Table

2014-Oct-10

EN 26 TPM14.3L LA5.

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

5.3 Stepwise Start-up

Service Modes, Error Codes, and Fault Finding

2014-Oct-10

Figure 5-1 Stepwise Start-up

back to

div.Table

Service Modes, Error Codes, and Fault Finding

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO

I2C SERVICE

CONNECTOR

TO TV

PC

HDMI I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

EN 27TPM14.3L LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

2

C or UART commands is necessary,

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

web site.

, it is

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM10.1x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.5.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3 Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

back to

div.Table

.

2014-Oct-10

EN 28 TPM14.3L LA5.

19080_207_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

Service Modes, Error Codes, and Fault Finding

• FUS_clustername_version.zip: Contains the “autorun.upg” which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended al ignments

19080_208_110324.eps

110324

CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW-upgrading of flash memories can be done via USB.

NVM-Editor in SAM NVM-editor will function as in the past: Ad dress and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” + “Panel code” Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

The main SW can be upgraded via the ZIP

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

19080_209_110324.eps

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

110324

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

•Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

2014-Oct-10

back to

div.Table

Service Modes, Error Codes, and Fault Finding

EN 29TPM14.3L LA 5.

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7 The Blinking LED Procedure

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V missing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.8.1 NVM Editor

.

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also back to div.Table 6-3

.

for

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options are set.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

5.8.9 Loudspeakers

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

5.8.10 Display option code

back to

div.Table

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

2014-Oct-10

EN 30 TPM14.3L LA6.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 M, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60  3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx:  0.003, dy:  0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in back to div.Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 40PUG6909/77 253 242 215

47PFG7109/78 255 218 205 47PFG7109/77 254 217 205 50PUG6900/78 253 242 215 50PUG6909/77 252 242 215 55PFG7109/78 250 230 208 55PFG7309/78 255 240 210 55PFG7309/77 253 241 210 58PUG6900/78 253 242 215 65PFG6659/78 253 242 215 65PFG7459/78 255 237 210

Cool (11000K) 40PUG6909/77 249 251 253

47PFG7109/78 255 225 240 47PFG7109/77 255 225 239 50PUG6900/78 249 251 253 50PUG6909/77 249 250 252 55PFG7109/78 247 245 245 55PFG7309/78 250 255 255 55PFG7309/77 248 255 254 58PUG6900/78 249 251 253 65PFG6659/78 250 252 245 65PFG7459/78 253 242 215

Colour temperature

Red Green Blue

2014-Oct-10

back to

div.Table

Alignments

EN 31TPM14.3L LA 6.

Colour temperature

Picture mode Screen size

Warm (6 500K) 40PUG6909/77 2 55 213 135

47PFG7109/78 255 200 123 47PFG7109/77 254 200 123 50PUG6900/78 255 213 135 50PUG6909/77 255 212 135 55PFG7109/78 255 190 121 55PFG7309/78 255 214 130 55PFG7309/77 253 212 129 58PUG6900/78 255 213 135 65PFG6659/78 246 203 131 65PFG7459/78 255 213 135

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5591 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display. Remark:

- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

2

C

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in back to div.Table 6-3 the Display Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

40PUG6909/77 V400DK1-KS1 C8 231 47PFG7109/78 TPT470H1-DUJSGK 3S2A 083 47PFG7109/77 TPT470H1-DUJSGK 3S2A 083 50PUG6900/78 V500DK2-KS1 C8 232 50PUG6909/77 V500DK2-KS1 C8 232 55PFG7109/78 TPT550H2-DUKSGK S1B 082 55PFG7309/78 TPT550J1-EUKFFK S1D 080 55PFG7309/77 TPT550J1-EUKFFK S1D 080 58PUG6900/78 V580DK2-KS1 C8 233 65PFG6659/78 TPT650LS-HQ01 SC1A 081 65PFG7459/78 TPT650LS-HQ01 SC1A 081

. After resetting

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”.

back to

div.Table

2014-Oct-10

EN 32 TPM14.3L LA6.

6.5.1 Reset of Repaired SSB

Instruction

After NVM replacement, reload MAC address via SAM menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM. If you are loading NVM with the ComPair tool, there is warning message displayed.

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement panel.

Alignments

2014-Oct-10

back to

div.Table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5591JVDJ

7.7 Ambilight

Circuit Descriptions

7.1 Introduction

The TPM14.3L LA is a new chassis launched in Europe in

2014. The whole range is covered by SCALER MT5591. The major deltas versus its predecessor support SBTVD/NTSC/PAL-M/PAL-N, with also multi-media, Ambilight, WIFI, Miracast, Smart TV, Light Sensor, CEC, Word Mark brightness functionality.

EN 33TPM14.3L LA 7.

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

The TPM14.3L LA chassis comes with the following stylings:

• series xxPFG66xx

• series xxPUG69xx

• series xxPFG71xx

• series xxPFG73xx

• series xxPFG74xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MT5591JVDJ HSBGA-758 TV Processor

• TUNER LATAM ST07WN-6A-E

• DEMODULATOR TC90537FG LQFP-48

• STA381BWTR 20W VQFN-48 for AUDIO Amplifier

• THGBM5G5AJBAIR 4GB P-VFBGA153 for EMMC IC

7.1.2 TPM14.3L LA Architecture Overview

For details about the chassis block diagrams refer to Figure 9.1

.

back to

div.Table

2014-Oct-10

EN 34 TPM14.3L LA7.

19630_200.eps

Headphone

NETWORK

DC/DC

ANALOG I/O

TUNER

MT5591

DDR

USB

HDMI

SERVICE

CONNECTOR

HDMI

SPDIF

OUT

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view) (for 47"/55"/65"7000 & 65"6000 series)

2014-Oct-10

back to

div.Table

Circuit Descriptions

19633_200.eps

Headphone

NETWORK

DC/DC

ANALOG I/O

TUNER

MT5591

DDR

USB

SERVICE

CONNECTOR

HDMI

SPDIF OUT

EN 35TPM14.3L LA 7.

Figure 7-2 SSB layout cells (top view) (for 40"/50"/58"6900 series)

back to

div.Table

2014-Oct-10

EN 36 TPM14.3L LA7.

19630_201.eps

Display power

Platform MTK5591

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN9901

DIM

+12V 12V-audio +24V/36V

12V

CN700

AMP

12V

CN8101 ( FOR 715G6338/715G6463/715G6405) CN8102 ( FOR 715G6432) CN9101 ( FOR 715G6661/15G6555)

7.2 Power Supply

Refer to figure Figure 7-3 for the power architecture of this platform.

Circuit Descriptions

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new panel must be ordered and the defective one must be returned, unless the main fuse of the panel is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the panels.

Important delta’s with the TPM14.3L LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +4V7-STANDBY (Stand-by mode only)

• +8V-STANDBY (Stand-by mode only)(for 40"/50"/58"6900 series)

• +12V (on-mode)

• +Vsnd (+24V) (audio power) (on-mode)

• +12V (audio power) (on-mode)(for 40"/50"/58"6900 series)

• +24V (bolt-on power) (on-mode)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

2014-Oct-10

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

Figure 7-3 Power Architecture

back to

div.Table

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

19630_202.eps

P12V

3.3V

AVDD3V3

DVD3V3

3V3SB

1.5V

DV1.2

5V_SW

5V_USB

PVDD

FB755

FB754

AMP STA381BWTR

Q754

Q752

U708 U702

U706

Q702

USB

U701

U705

Tuner

MTK5591

U707

U4254

DDR

Demond IC

EMMC

12V Audio

12V_AL

5V-STB

U4250

WIFI-VCC

EEPROM

MTK5591

+12V

5VSB

P12V

PANEL_VCCQ750

Table 7-1 Connector overview

Connector

40" 47" 50" 55" 65" Number CN9301 CN9101 CN9301 CN8101 CN9301 CN9101 CN9301 CN8101 CN9301 CN8101 CN9301 CN8102 Description to SSB to adpter to SSB to panel to SSB to adpter to SSB to panel to SSB to panel to SSB to panel Pin 14 14141214 1414 12 14 1214 12

1 DIM +24LED DIM VLED+ DIM +24VA DIM VLED_2_2 DIM VLED+ DIM VLED+ 2 ON/OFF +24LED ON/OFF n.c. ON/OFF +24VA ON/OFF n.c. ON/OFF n.c. ON/OFF n.c. 3 PS_ON +24LED PS_ON VLED_1 PS_ON +24VA PS_ON VLED1- PS_ON VLED_1 PS_ON VLED_14 n.c. +24LED 2D/3D VLED_1 2D/3D +24VA 2D/3D VLED1- 2D/3D VLED_1 2D/3D VLED_15 GND +24LED GND n.c. GND +24VA GND n.c. GND n.c. GND VLED_16 GND GND GND n.c. GND GND GND n.c. GND n.c. GND n.c. 7 GND GND GND n.c. GND GND GND n.c. GND n.c. GND n.c. 8 GND GND GND n.c. GND GND GND n.c. GND n.c. GND VLED_29 +12V_audio GND +12V VLED_2 +12V_audio GND +12V_audio n.c. +12V_audio VLED_2 +12V_audio VLED_210 +12V_audio GND +12V VLED_2 +12V_audio GND +12V_audio VLED_2_1 +12V_audio VLED_2 +12V_audio VLED_211 +12V BL ERR +12V n.c. +12V n.c. +12V VLED_2_1 +12V n.c. +12V n.c. 12 +12V ON/OFF +12V VLED+ +12V ON/OFF +12V VLED+ +12V VLED+ +12V VLED+ 13 +12V n.c. +12V - +12V n.c. +12V - +12V - +12V 14 +12V DIM +12V - +12V DIM +12V - +12V - +12V -

Circuit Descriptions

EN 37TPM14.3L LA 7.

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls

• +12V, input from the power supply for the panel common (active mode)

• +12V, input from the power supply for audio amplifier

• +1V2, core voltage supply for MT5591

• +1V5, supply voltage for DDR2 (diagram B03B)

• +3V3, general supply voltage

• +5V, supply voltage for USB

• +3V3-TUN, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB Power

• +3V3 from the power supply for the scaler IC MT5591

• +12V input from the Power supply for the Ambilight common.

• +1V2-DVBS, clean voltage for Demond IC channel decoder.

Figures gives a graphical representation of the DC/DC converters with its current consumptions:

Figure 7-4 DC/DC converters

back to

div.Table

2014-Oct-10

EN 38 TPM14.3L LA7.

IF

IF_AGC

RF_AGC

MT5591

IF_AGC

ST07WN-6A-E

I2C

I

2

C

19630_203.eps

IF

TS DATA

RF_AGC

MT5591

Demod

TC90537FG

IF_AGC

ST07WN-6A-E

I2C

IF-AGC

I

2

C

I

2

C

19630_204.eps

19630_205.eps

MT5591

HDMI1

HDMI2

HDMI SIDE

CN501

CN502 CN503

CN504

BRX

RX

I2C

Circuit Descriptions

7.4 Front-End Analogue and ISDB-T reception

7.4.1 Front-END Analogue part

The Front-End for Analogue tuner consist of the following key components:

• TUNER LATAM ST07WN-6A-E

• SCALER MT5591JVDJ HSBGA-758 TV Processor

Below find a block diagram of the front-end application for the front-end application for analogue part.

Figure 7-5 Front-End Analogue block diagram

7.4.2 Front-End ISDB-T reception DTV part

The Front-End for DVB-T2 DTV consist of the following key components:

• TUNER LATAM ST07WN-6A-E

• SCALER MT5591JVDJ HSBGA-758 TV Processor

• DEMODULATOR TC90537FG LQFP-48

Below find a block diagram of the front-end application for DVB-T2 DTV.

Figure 7-7 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input/ARC

• HDMI 2: HDMI input (TV digital interface support HDCP) with digital audio / PC DVI input

• HDMI side(TV digital interface support HDCP) with digital audio / PC DVI input

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

• HPD control

• Sync detection

• TMDS output control

• CEC control

7.6 Video and Audio Processing - MT5591JVDJ

The MT5591JVDJ is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Multi-standard digital video decoder (MPEG-2, H.264, MPEG-4)

• Integrated SBTVD/NTSC/PAL-M/PAL-N channel decoder

•

Integrated DVB-T/DVB-C/DVB-S channel decoder

• Integrated CI+

• 3D graphic support OpenGL ES 2.0

• A muti-standard video decoder

• HDMI 1.4a receiver with 3D support

• 2D/3D converter

• Rich formal audio codec

• True 120Hz/Full HD

• Local dimming (LED backlight)

7.5 HDMI

2014-Oct-10

Figure 7-6 Front-End DVB-T2 DTV block diagram

Refer to figure 7-7 HDMI input configuration for the application.

7.7 Ambilight

back to

div.Table

The MT5591JVDJ combines front-end video processing functions, such as ATSC,DVB-T/T2, DVB-C,DVB-S/S2 channel decoding, MPEG-2/H.264 decoding, analog video decode and HDMI reception, with advanced back-end video picture improvements. It also includes next generation Motion Accurate Picture Proc essing High flat panel screen resolutions and refresh rates are supported with formats including 1360 × 768 @ 60Hz and 1920 × 1080 @ 60Hz. The combination of Ethernet, CI+ and H.264 supports new TV experiences with IPTV and VOD. On top of that, the MT5591JVDJ family provides consumers with a true Full-HD 120Hz experience. It intergrates high-quality Full-HD ME/MC technology. Professional error-concealment provides stable, smooth and mosaic-free video quality.

For a functional diagram of the MT5591JVDJ, refer to Figure 8-1

• The power supply voltage 12V

• Ambilight will adjust the TV lights around according to the picture changing color and brightness in order to create a sense of the effect of be personally on the scene.

.

8. IC Data Sheets

19630_300.eps

Block diagram

NTSC/

PAL/

SECAM

ATD

TV

Decoder

TS

Demux

Dual Core ARM CA9

L2 Cache

Video

ADCx4

Video Input

De-

interlace

ATSC/

DVB-T/

DVB-C

DTD

HDMI Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS/VP6/VP8

Decoders

Audio Input

Audio

Demod

Audio

ADC

SPDIF

In

2D/3D

Grapihc

H.264

Encoder

LVDS/min-LVS/

V-by-One/

EPI

OD, TCON

MJC-FRC

2D/3D Converter

Post Processing

DDR3

Controller

OSD

scaler

PIP

Vplane

scaler

Audio DSP

Audio

I/F

Audio DAC

JTAG IrDA

PCR

I2C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog Serial Flash

NAND Flash

Servo ADC

SPDIF Out, I2S

ADAC L/R x 3

TS

Input

Tuner

Input

CVBS/YC

Input

Component

Analog Input

HDMI

Input

SIF

Audio Input

Panel

48/32-bit

DDR3

T8032

Smart

Card

CKGEN

8.1 Diagram 10-8-3 Peripheral, B03,MT5591JVDJ (IC U401-G)

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

IC Data Sheets

EN 39TPM14.3L LA 8.

Figure 8-1 Internal block diagram

back to

div.Table

2014-Oct-10

EN 40 TPM14.3L LA8.

19630_301.eps

Pinning information

7758 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A ARDQ24 ARDQ30 ARDQM2 ARDQS3 ARCLK1# ARDQ29 ARDQ20 ARDQ10 ARDQS1 ARCLK0# ARDQ13 ARDQ11

B ARDQ19 ARDQ17 ARDQ28

ARDQS3 #

ARCLK1 ARDQ25 ARDQ5 ARDQ8

ARDQS1 #

ARCLK0 ARDQ9 ARDQ0

C ARDQ21

RVREF_ C

ARDQ23 ARDQ26

ARDQS2 #

ARDQM3 ARDQ27 ARDQ18 ARDQ22 ARDQ3 ARDQ14 ARDQ12 DVSS

ARDQS0 #

ARDQM1 ARDQ15 ARDQ2

D BRDQ4 BRDQ6 BRCAS# BRCS# ARDQS2 DVSS ARDQ31 ARA12 ARDQ7 ARDQ1 ARA14 ARDQM0 DDRV ARDQS0 ARBA0 DVSS DDRV E BRDQ2 BRDQ0 BRODT BRBA2 BRA0 ARDQ16 DDRV ARA4 ARA11 ARRAS# ARA3 ARA9 ARA5 F BRDQ11 BRDQ9 BRDQ13 BRA9 DDRV ARBA1 ARA6 ARA8 ARODT ARCSX# ARA13 ARA2

G BRDQ15

BRRESE T

BRA13 BRA2 ARCKE ARA10 ARA1 DDRV ARCAS# ARCS#

ARRESE T

ARA7

H

BRDQS0 #

BRDQS0 BRDQM1 BRA7 DDRV

AVSS33_ MEMPLL

J BRCLK0# BRCLK0 BRA15 BRBA0

K BRDQS1

BRDQS1 #

DDRV BRWE# BRA3 BRA5

L BRDQM0 BRDQ12 DVSS BRRAS# BRA10 BRCKE DDRV VCCK VCCK VCCK VCCK VCCK VCCK VCCK M BRDQ10 BRDQ14 BRA4 BRBA1 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS N BRDQ3 BRDQ7 BRDQ1 BRDQ8 BRA1 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS P BRDQ5 BRA6 BRA8 BRA14 BRA11 BRA12 DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS R DDRV DDRV DDRV DDRV DDRV DDRV DDRV DDRV VCCK VCCK DVSS DVSS DVSS DVSS DVSS

T

REXT_V PLL

BE4P BE4N DDRV DDRV DDRV DDRV

VCC3IO_ C

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

U BE3P BE3N TCON3 TCON4 TCON9 TCON10 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

V BECKP BECKN BE2P BE2N

AVSS33_ LVDS

TCON6 TCON12 TCON5 TCON11 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

W BE1P BE1N TCON2 TCON8 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

Y BE0P BE0N BO4P BO4N

VCC3IO_ B

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

AA BO3P BO3N GPIO50 TCON0 TCON1

VCC3IO_ B

VCCK VCCK DVSS DVSS DVSS DVSS DVSS

AB BOCKP BOCKN BO2P BO2N GPIO54 TCON7 GPIO49 VCCK VCCK DVSS DVSS DVSS DVSS DVSS

AC BO1P BO1N

AVSS33_ LVDS

GPIO55 GPIO53 GPIO52 VCCK VCCK VCCK DVSS DVSS

AVSS33_ COM

AVSS33_ LD

DVSS

AD BO0P BO0N AE4P AE4N GPIO51 VCCK VCCK VCCK VCCK VCCK VCCK

AE AE3P AE3N

AVSS33_ LVDS

VCCK VCCK VCCK VCCK

AVSS33_ USB_P3

AVSS33_ ELDO

POR_BN D

OPCTRL 9

AF AECKP AECKN AE2P AE2N

AVSS12_ LVDS_3

VCCK VCCK VCCK VCCK AOMCLK OSDA1

PHYLED 1

LED_PW M1

OIRI

AG AE1P AE1N VCCK VCCK VCCK VCCK ALIN ASPDIF0 OSCL1 U1RX

LED_PW M0

OPCTRL 3

AH AE0P AE0N AO4P AO4N VCCK VCCK VCCK

AOSDAT A1

AOSDAT A4

OSCL0 OSDA0 U1TX U0RX U0TX

OPCTRL 7

AJ AO3P AO3N VCCK VCCK VCCK

AOSDAT A2

AOLRCK

AOSDAT A0

JTMS JTRST#

PHYLED 0

OPCTRL 2

AK AOCKP AOCKN AO2P AO2N VCCK VCCK VCCK

AOSDAT A3

AOBCK JTCK JTDI

STB_SDA OPCTRL4 AVSS12_

RGB

AL AO1P AO1N VCCK VCCK VCCK OPWM2 JTDO RXVP_1 TXVP_0 STB_SCL OPWRSB

OPCTRL 11

AVSS33_ VGA_ST B

AM AO0P AO0N

AVSS12_ LVDS_2

AVSS12_ LVDS_1

VCCK VCCK VCCK OPWM1 OPWM0

USB_DM _P3

RXVN_1 TXVN_0

OPCTRL 10

AVDD10_ LDO

AN

AVDD12_ LVDS_1

AVDD12_ LVDS_2

AVDD12_ LVDS_3

AVDD33_ LVDS

VCCK VCCK VCCK

AVDD33_ USB_P3

USB_DP_ P3

REXT

AVDD33_ ETH

AVDD10_ ELDO

AVDD33_ VGA_ST B

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

C

V

C

K

IC Data Sheets

2014-Oct-10

Figure 8-2 Pin configuration [1/2]

back to

div.Table

IC Data Sheets

19630_302.eps

Pinning information

118 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

DDRV

AVDD33_ MEMPLL

PDD5 PDD3 POCE0# PACLE SD_CMD GPIO26 GPIO1 GPIO3 GPIO5 AA

DDRV PDD6 PDD2 POOE# PAALE GPIO42 GPIO0 GPIO2 GPIO6 GPIO25 BB

ARDQ4 DDRV

FSRC_WR EMMC_C

LK

PDD7 PDD4 PDD0 PARB# SD_D3 SD_D1 GPIO47 GPIO28 GPIO4 GPIO7 GPIO12 GPIO24 CC

RVREF_A DDRV DDRV GPIO45

VCC3IO_ A

PDD1 POWE# POCE1# SD_D2 SD_D0 GPIO36 GPIO35 GPIO15 GPIO21 GPIO16 GPIO22 DD

ARDQ6 DDRV DDRV

VCC3IO_ A

SD_CLK GPIO44 GPIO34 GPIO27 GPIO23 GPIO8 GPIO19 GPIO20 EE

ARA0 DDRV DDRV GPIO48 GPIO10 GPIO11 GPIO9 GPIO13 GPIO17 GPIO14 GPIO18 FF

ARBA2 DDRV DDRV GPIO46 GPIO33 GPIO41 GPIO39 GPIO32 GPIO40 GG

ARWE#

AVSS33_ CPUPLL

GPIO37 GPIO30

USB_DP_ P0

USB_DM_ P0

H

MEMTP GPIO31 GPIO38 GPIO29

USB_DM_ P1

USB_DP_ P1

JJ

MEMTN DVSS DVSS

CI_TSDA TA0

SPI_CLE GPIO43

USB_DM_ P2

USB_DP_ P2

AVDD33_US B_P0P1P2

K

VCCK VCCK DVSS CI_INT IF_AGC

PVR_TSS YNC

SPI_CLK1

SPI_DAT A

SPI_CLK LL

DVSS DVSS DVSS DVSS DVSS

AVSS33_ USB_P1

PVR_TSV AL

RF_AGC

PVR_TSD ATA0

PVR_TSD ATA1

PVR_TSC LK

MM

DVSS DVSS DVSS DVSS DVSS OSDA2 OSCL2

CI_TSSY NC

CI_TSVAL DEMOD_

TSCLK

CI_TSCL K

N

DVSS DVSS DVSS DVSS DVSS

DEMOD_ TSDATA3

DEMOD_ TSVAL

DEMOD_ RST

AVDD12_H DMI_3_RX

AVDD12_H DMI_2_RX

P

DVSS DVSS DVSS DVSS DVSS VCCK

DEMOD_ TSDATA7

DEMOD_ TSDATA0

DEMOD_ TSDATA4

DEMOD_ TSSYNC

RR

DVSS DVSS DVSS DVSS DVSS

AVSS33_ HDMI_RX

DEMOD_ TSDATA1

DEMOD_ TSDATA2

HDMI_3_ RX_2

HDMI_3_ RX_2B

HDMI_3_ RX_1

HDMI_3_ RX_1B

T

DVSS DVSS DVSS DVSS DVSS

DEMOD_ TSDATA6

DEMOD_ TSDATA5

HDMI_3_ RX_0

HDMI_3_ RX_0B

UU

DVSS DVSS DVSS DVSS DVSS VCCK DVSS

HDMI_CE C

ASPDIF1

HDMI_3_ PWR5V

HDMI_3_ HPD

HDMI_3_ RX_C

HDMI_3_ RX_CB

VV

DVSS DVSS DVSS DVSS DVSS DVSS

AVSS33_ HDMI_RX

HDMI_3_ SDA

HDMI_3_ SCL

HDMI_2_ RX_2

HDMI_2_ RX_2B

HDMI_2_ RX_1

HDMI_2_ RX_1B

W

DVSS DVSS DVSS DVSS DVSS DVSS

HDMI_2_ SDA

HDMI_1_ PWR5V

HDMI_2_ RX_0

HDMI_2_ RX_0B

YY

DVSS DVSS DVSS DVSS DVSS DVSS

HDMI_2_ SCL

HDMI_1_ HPD

HDMI_2_ PWR5V

HDMI_2_ HPD

HDMI_2_ RX_C

HDMI_2_ RX_CB

AVDD12_H DMI_1_RX

AVDD12_H DMI_0_RX

AA

DVSS DVSS

AVSS33_ CVBS_1

DVSS

AVSS33_ CVBS_2

DVSS

HDMI_1_ SDA

HDMI_1_ SCL

AAB

DVSS

AVSS33_ VDAC_BG DVSS

AVSS33_ PLLGP

DVSS

AVSS33_ ADAC

AVSS33_ AADC

HDMI_0_ SDA

HDMI_0_ SCL

HDMI_1_ RX_2

HDMI_1_ RX_2B

HDMI_1_ RX_1

HDMI_1_ RX_1B

AC

DVSS

AVSS33_ HDMI_RX

ADIN3_S RV

HDMI_0_ HPD

HDMI_1_ RX_0

HDMI_1_ RX_0B

AAD

OPCTRL6

AVSS33_ VDAC

AVSS33_ HDMI_RX

ADIN2_S RV

HDMI_0_ PWR5V

HDMI_1_ RX_C

HDMI_1_ RX_CB

HDMI_0_ RX_2

HDMI_0_ RX_2B

AE

OPCTRL1

ADIN4_S RV

HDMI_0_ RX_1

HDMI_0_ RX_1B

AAF

OPCTRL8

VGA_SD A

ADIN6_S RV

HDMI_0_ RX_0

HDMI_0_ RX_0B

HDMI_0_ RX_C

HDMI_0_ RX_CB

AG

OPCTRL5 VGA_SCL

ADIN1_S RV

VDACX_ OUT

MPXP CVBS1P

AL2_ADA C

AVDD33_ HDMI

AH

OPCTRL0

ADIN0_S RV

VDACY_ OUT

CVBS_C OM

LOUTN

AL0_ADAC AR2_ADAC AR1_ADAC AVDD33_

AADC

AVDD33_ ADAC

AJ

HSYNC SOG

ORESET# ADIN5_S

RV

PB1P SOY0 CVBS0P CVBS3P LOUTP

AL1_ADAC AR0_ADA

C

AIN3_L_A ADC

AK

VSYNC BP RP COM1 PR1P PB0P PR0P

AVDD33_ PLL

AVSS12_ DEMOD

AVSS33_ DEMOD

AVSS33_XT AL_STB

AIN1_R_A ADC

AIN4_R_A ADC

AL

ADIN7_S RV

GP Y1P COM0 CVBS2P

AVDD33_ CVBS

ADCINP_ DEMOD

XTALO

AIN2_L_A ADC

AIN3_R_A ADC

AIN2_R_A ADC

AM

AVDD12_ RGB

COM SOY1 Y0P

AVDD33_ VIDEO

AVDD33_ DEMOD

ADCINN_ DEMOD

AVDD12_ DEMOD

XTALI

AVDD33_XT AL_STB

VMID_AA DC

AIN1_L_A ADC

AIN4_L_A ADC

AN

18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

Figure 8-3 Pin configuration [2/2]

back to

div.Table

EN 41TPM14.3L LA 8.

2014-Oct-10

EN 42 TPM14.3L LA8.

19630_303.eps

Pinning information

Pin Number Name Pin Number Name Pin Number Name Pin Number Name

A3 DAT0 C2 VDDi J10 Vcc N4 VccQ A4 DAT1 C4 VssQ K5 RST_n N5 VssQ A5 DAT2 C6 VccQ K8 Vss P3 VccQ B2 DAT3 E6 Vcc K9 Vcc P4 VssQ B3 DAT4 E7 Vss M4 VccQ P5 VccQ B4 DAT5 F5 Vcc M5 CMD P6 VssQ B5 DAT6 G5 Vss M6 CLK B6 DAT7 H10 Vss N2 VssQ

14

13

12

11

10

9

8

7

6

5

4

3

2

1

ABCDEFGHJKLMNP

index

Top View

NCNC NC NC NC NC NC NCNC NC NC NC NC

NCNC NC NC NC NC NCNC NC NC NC NC

NCNC NC NC NC NC NCNC NC NC NC

NC

NC NC NC

NC NC

RFU

NC NC NC

RFU

NC NC NC NC

RFU

NC

DAT7

DAT2

DAT1

DAT6

DAT5

DAT0 DAT4

DAT3

VccQ

VssQ

CLK

CMD

VccQ VccQ VssQ

VccQ

VssQ

VccQ

VssQ

NCNCNCNCNCNCNCNCNCNC

RFU

NCNCNCNCNCNCNCNCNCNCNC

VDDi

RST_n

RFURFU

Vss

Vcc

RFU

Vss

RFU RFU

Vss Vcc

RFU

Vcc

Vss

RFU

NC

IC Data Sheets

8.2 Diagram 10-8-3 Peripheral B03, THGBM5G5A1JBAIR (IC U4052)

2014-Oct-10

Figure 8-4 Internal block diagram and pin configuration

back to

div.Table

8.3 Diagram 10-8-6 Speaker/Headphone B06, STA381BWTR (IC U630)

19240_300_120221.eps

120224

Block diagram

Pinning information

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

VCC_REG

VSS_REG

OUT2B

GND2

VCC2

OUT2A

OUT1B

VCC1

GND1

OUT1A

VDD_REG

GND_REG

MCLK

AGNDPLL

VREGFILT

TWARNEXT/FFX4B

EAPD/FFX4A

FFX3B

FFX3A

GNDDIG1

VDDDIG1

VDD3V3CHP

CPP

GNDPSUB

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

F3X_FILT

F3XL

F3XR

LINEINL

LINEINR

LINEHPOUT_L

LINEHPOUT_R

GNDA

SOFTMUTE

VDD3V3

CPVSS

CPM

VDDDIG2

GNDDIG2

TESTMODESASCL

SDA

INTLINE

PWDN

RESET

SDI

LRCKI

BICKI

STA381BW

PWDN

TESTMODE

LRCKI

BICKI

4

Half

Bridges

OUT 1A OUT 1B OUT 2A OUT 2B

FFX3A FFX3B

MCLK

SDI

LINEINL

LINEINR

LINEHPOUT_L LINEHPOUT_R

SDA SCL

IIC

CPVSS

CPP

FFX4A FFX4B

GND_REG

SOFT_MUTE

2 x GND

2 x VCC

VDD_REG

GNDPSUB

2 x VDDDIG

2 x GNDDIG

VREGFILT

AGNDPLL

VCC_REG

VSS_REG

CPM

2.1 Channel

Audio Processor

STAudioFx

TM

STSpeakerSafe

TM

Parametric E Q

Volume

Bass and Treble

Speaker Compensation

Stereo Widening

SA

RESET

INTLINE

GNDA

Headphone

(2Vrms)

PLL

Negative

Charge

Pump

-3.3V

Control logic

&

Protections

REG_M3

VDD3V3CHP

F3X_FILT

FFX

TM

Modulator

Binary

Ter nary

F3XL F3XR

STA381BW

IC Data Sheets

EN 43TPM14.3L LA 8.

Figure 8-5 Internal block diagram and pin configuration

back to

div.Table

2014-Oct-10

EN 44 TPM14.3L LA8.

19480_304_130409.eps

130409

Block diagram

Pinning information

GF73509CT

SRCK

PBVAL

SRDT

SLOCK

RLOCK

RERR

SLPEN

GPIO2

GPIO1

GPIO0

VSS

VDDC

12 11 10 9 8 7 6 5 4 3 2 1 VSS 13 48 VDDS VDDS 14 47 VSS RSEORF 15 46 SDA

SBYTE 16 45 SCL SLADRS0 17 44 STSFLG0

AGCCNTI 18 43 STSFLG1 AGCCNTR 19 42 SYRSTN TNSCL 20 41 VPGM TNSDA 21 40 AINN Q XCKO 22 39 AINP Q XO 23 38 AINN I XI 24 37 AINP I 25 26 27 28 29 30 31 32 33 34 35 36

PLLVDD

PLLVSS

VDDC

CKI

SLADRS1

TSMD

VSS

VDDC

DCVDD

DCVSS

VREFL

VREFH

GF73509CT

Synchroni-za tion flag

TS output

Crystal

(reference clock

)

Tuner

AGC

control

IIC

control

Filter

AGC

ISIC

(unguarded pre/post echo suppression)

FFT

Control

Adaptive

interpolation

filter

Equalization

(With Doppler

Com

p

ensation

)

CSI

(Reliability

detection)

CVI

(CW interference

detection)

AGC control output

Tuner IIC

Clock PLL

Viterbi

decoding

Memory

Frequency

deinterleaving

RS

decoding

Error

detection

Output control

Layer

isolation

TMCC

demodulation

Interpolation

phase

Correction

Synchroni

zation

Demapping

CSI

processing

Bit deinterleaving

B

y

te deinterleavin

g

TS multiplex

FFT window

control

ADC ADC

IF input or IQ input

SW

External AGC input

Host IIC

Energy despreading

Demapping

CSI

processing

Demapping

CSI

processing

Modulation division

Quadrature

detection

AFC

Frequency

CPE

Pilot

extraction

Time

deinterleaving

IC Data Sheets

8.4 Diagram 10-8-12 ISDBT TUNER B12, TC90537FG (IC U4253)

2014-Oct-10

Figure 8-6 Internal block diagram and pin configuration

div.Table

back to

A

IC Data Sheets

19633_300.eps

Block diagram

Pinning information

8.5 Diagram 10-9-11 HDMI SW/CONNECTOR B11, SII9679CNUC (IC U713)

EN 45TPM14.3L LA 8.

VDD5V_IN

RPWR5V

SPI_MISO SPI_MOSI

SPI_CS0 SPI_CS1 SPI_CLK

HSIC_DAT

HSIC_STB

CBUS_HPD

LPSBV

DDC_Rx

RXCP/N

RX0P/N RX1P/N RX2P/N

LPSB

Clock (CoC)

HDMI/

MHL1,2,3

Receiver

SPI Master

SPI Slave

SPI Logic

HSIC PHY

CBUS

Control

1V8

Regulator

Rx DDC

Interface

Data (DoC)

1V2 Regulator

Rx HDCP Authentication

Logic

HDCP

Decryption

Engine

OSC

MCU

Video Data

Data

Tunneling

OTP

HDCP

Repeater

Logic

Video Data

Conversion

Logic

Audio Data

ISP

3V3

Regulator

Registers,

Configuration,

and Interrupt

Control Registers

Tx HDCP

Authentication

Logic

Tx HDCP

Encryption

Engine

Output

(SiI9394

Dongle Only)

Audio

Logic

Tx DDC

Interface

Local I2C

Slave Logic

CEC

Interface

(SiI9394

Dongle Only)

HDMI TMDS

Transmitter

VCC33OUT

Local I2C

CEC_A

RESETN GPIO0_CI2CA GPIO1_PSCTL GPIO2 GPIO3 GPIO4 GPIO5

INT MHL_CD TX_HPD

WAKEUP

DDC_Tx

TX2P/N TX1P/N TX0P/N TXCP/N

SD0_SPDIF WS SCK MCLK

XTALIN XTALOUT

1VDD33OUT 2VDD5V_IN 3RPWR5V 4CBUS 5CoC_GND 6AVDD10_DoC 7RXCN 8RXCP

9AVDD10 10VDD33 11RX0N 12RX0P 13RX1N 14RX1P 15RX2N 16RX2P 17AVDD10 18FVDD10 19VDDIO33

DSCL

DSDA

20

21 22 23 24

INT

GPIO0_CI2CA

LPSBV5V

GPIO1_PSCTL

NC

GPIO2

CEC_A

VDD10

MHL_CD

TMODE

SD0_SPDIF

VDD10

CSDA

SiI9394

WS

CSCL

TDSDA

Top View

28272625

CK S

MCLK

TDSCL

GPIO3

VDDIO33

64656667686970717273747576

GPIO4

SPI_MISO

SPI_MOSI

GPIO5

VDDIO33

SPI_CS1

RESETN

SPI_CS0

VDD10

SPI_CLK

60616263

LL P

D10_ D

AV

10 VDD

58

59

373635343332313029

38

NC

HSIC_VDD10

HSIC_VDD33

57 56 VDD12OUT 55 HSIC_GND 54

HSIC_STB

53

HSIC_DAT

52

MVDD10 XTAL_GND

51

XTAL_OUT

50

XTAL_IN

49

XTAL_VDD33

48

TX2P

47

TX2N

46

TX1P

45

TX1N

44

TX0P

43

TX0N

42

TXCP

41 40 TXCN 39 AVDD10_DP

TX_HPD

Figure 8-7 Internal block diagram and pin configuration

back to

div.Table

2014-Oct-10

EN 46 TPM14.3L LA8.

Personal Notes:

10000_012_090121

110

IC Data Sheets

2014-Oct-10

back to

div.Table

9. Block Diagrams

19630_400.eps

9.1 Block diagram 6000 & 7000 series

Block Diagrams

EN 47TPM14.3L LA 9.

2014-Oct-10

back to

div.table

Circuit Diagrams and PWB Layouts

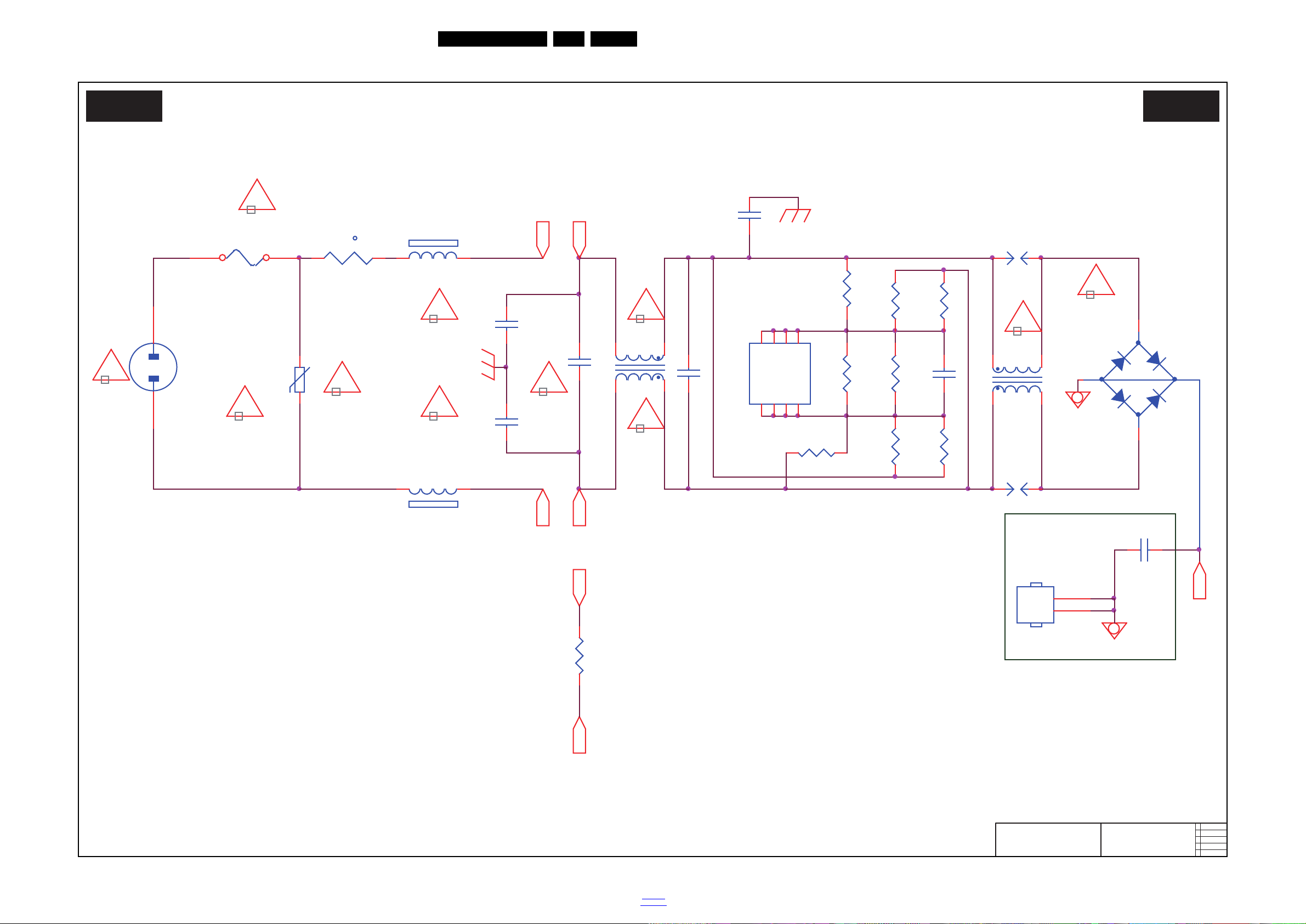

19610_500.eps

AC input

A01 A01

2013-10-18

715G6338

AC input

T5AH/250V

R9902 3.9MOHM +-5% 1/2W

C9903

100PF 250V

C9904

100PF 250V

1 2

HS9902

HEAT SINK

!

SG9901

NC

SG9902

NC

RV9901

680V

1

2

CN9901

SOCKET

COLDHOT

R9901 NC

R9903 NC

!

1 2

3

4

HS9901 HEAT SINK

C9902

100NF 305V

!

1

2

4

3

L9902 12mH

C9901

100NF 305V

1 2 3 4

F9901

FUSE

!

1 2

t

NR9901

2.5R

!

C9907 470pF 250V

C9908

NC

!

1

2

4

3

L9901 12mH

!

12

t

NR9902

2.5R

!

B

Vsin

A

B

!

2

1

3

4

-

+

BD9901

TS10K80-02

NC

1

D1

2

D1

3

NC

4

NC

5

D2

6

D2

7

NC

8

IC9901

NC

C9906

470pF 250V

C9905

470pF 250V

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6338 PSU

10-1-1 AC input

EN 48TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-1-2 LED Driver

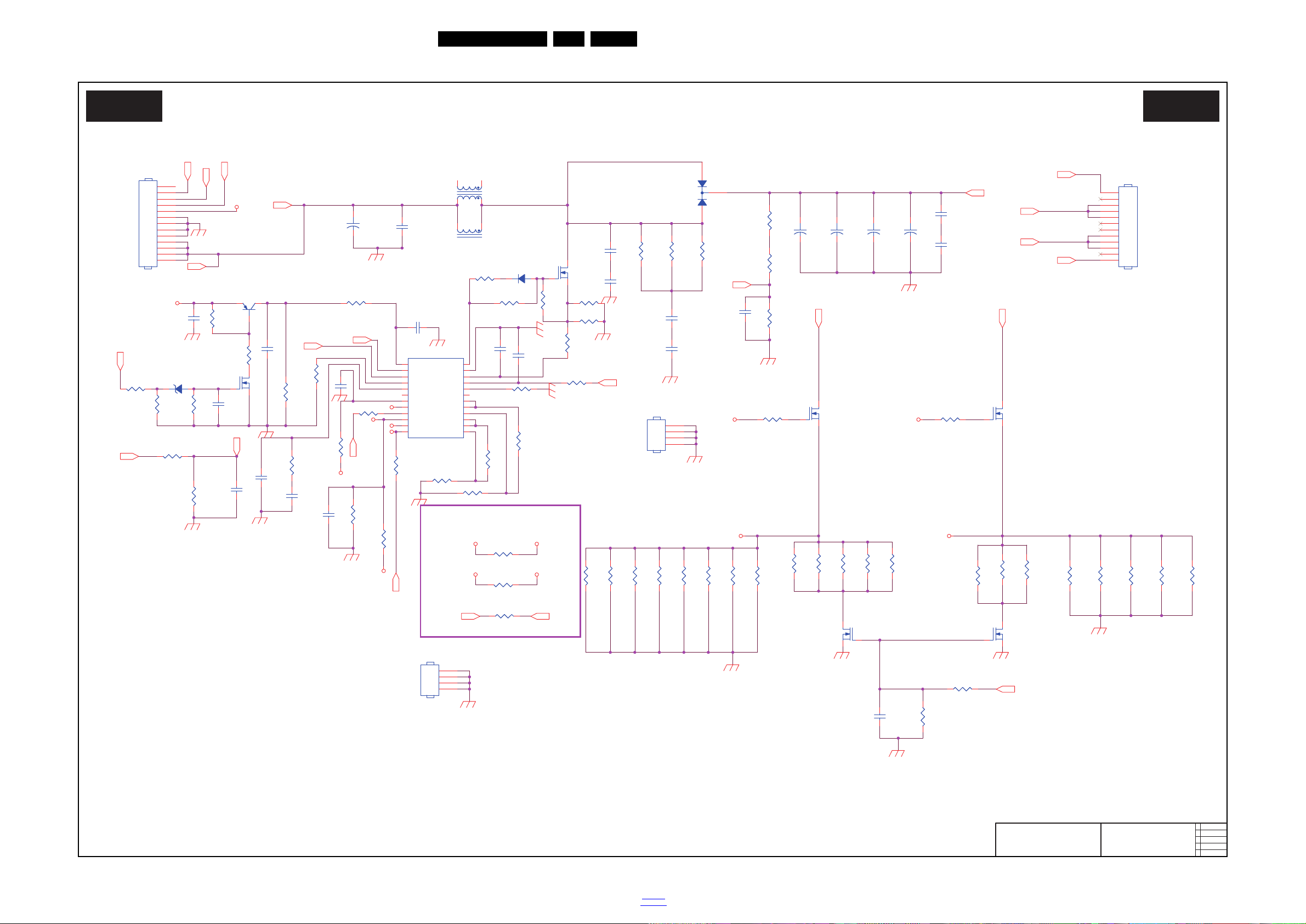

19610_501.eps

LED Driver

A02 A02

2013-10-18

715G6338

LED Driver

VLED+

R8107

510 OHM +-1 % 1/ 8W

R8121

100KOHM +- 1% 1/ 8W

C8107

1N 50V

R8124

100K 1/ 4W

S1

+

C8102

82uF 100V

G1

G2

+

C8103

82uF 100V

G1

R8148

0R051/8W

R8116 0R1 5% 2W

2

1

L8101

33uH

R8155

200K 1/8W

+36V/+24V

C8105

220nF50V

SENSE2

R8111

150K 1/4W +/- 1%

C8109

1UF 50V

C8108 100N 50V

R8106

10K 1/8W 1%

R8102 33 OHM

R8108

330K 1% 1/8W

OVP_L

R8112

150K 1/4W +/- 1%

C8110

100N 50V

R8113

10KOHM +-1% 1/8W

VLED_1

VLED_2

D8102

SS1060FL

R8135

10ohm +/ -1 % 1/8W

C8114

10N 50V

R8101

2.2 OHM 1/8W

C8104

220nF50V

R8103

10K 1% 1/8W

R8149

20K

R8145

0R68 1W 5%

R8104 0R1 5% 2W

R8105

1K 1/8W 1%

R8144

0R68 1W 5%

1 2

FB8103 BEAD

OVP_L

R8143

10K 1/8W 1%

R8142

100KOHM +-5% 1/ 8W

2D/3D

R8138

100K 1/ 8W 1%

C8144

100N 50V

R8136

20K OHM

Q8147 P5002CMG

1

GND806

GND

1

GND807

GND

DIM

1

GND801

GND

1 2

3

4

HS8101

HEAT SINK

R8147

0R68 1W 5%

R8146

0R68 1W 5%

1

GND804

GND

1

GND802

GND

C8131

1N 50V

1

GND805

GND

R8115

1M 1/8W 5%

C8106 100N 50 V

R8156

0R68 1W 5%

Q8143 MTBA5N10J3

Q8145 P5002CMG

R8157

0R68 1W 5%

R8109

100KOHM +-1% 1/8W

R8110

240K 1% 1/8W

Q8149 MTBA5N10J3

R8164 200K OHM

G2

SENSE2

12

FB8101

127R

VLED_1

1 2

3

4 5 6 7

8

9 10 11 12

CN8101 CONN

VLED_1

1 2

FB8102 BEAD

R8160

4.7R 1% R8161

4.7R 1%

R8139

10ohm 1%

C8143 100P 50V

+

C8101

330UF 5 0V

VLED+

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PAR L

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STAT U S

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

IC8101

LD7890GS

12

ZD8101

BZT52-B9V1_R1_00001

1

2

3

D8101 MBRF10100CT

C8132

100N 50 V

+36V/+24V

C8133

1N 50V

R8134

10K 1/4W

R8133 10K OHM +-5% 1/8W

R8137

20K OHM

ON/OFF

Q8101

P3710BTF

Q8102

PMBT3906

Q8103 2N7002K

1

GND803

GND

+12V

R8140

100K 1/ 8W 1%

R8120

240K 1% 1/8W

R8123

240K 1% 1/8W

S1

Circuit Diagrams and PWB Layouts

EN 49TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-1-3 LLC 36V

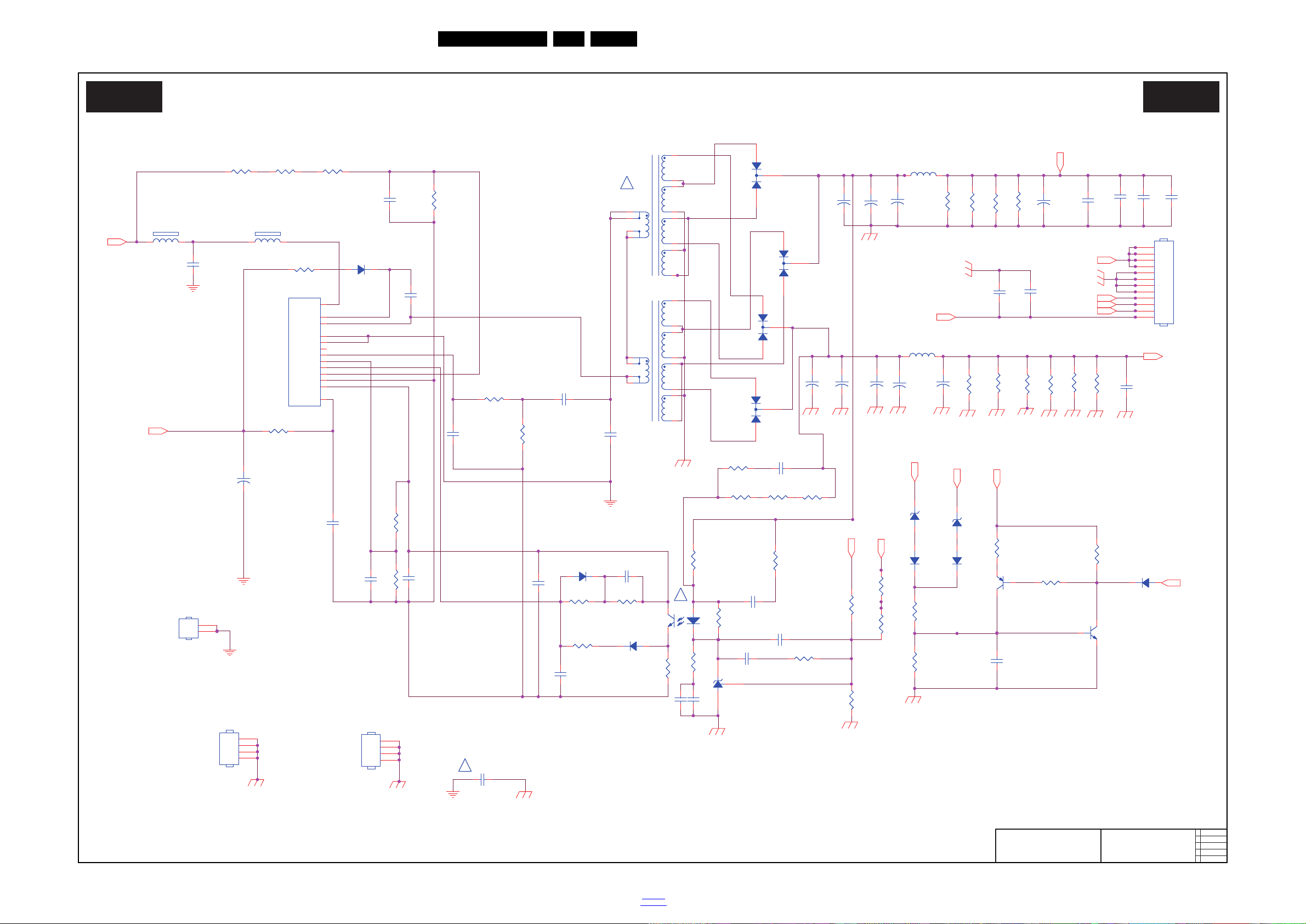

19610_502.eps

LLC 36V

A03 A03

2013-10-18

A

715G6338

LLC 36V

COLD

HOT

1 2

ZD9103 BZT52-B43

C9113

1uF

+

C9121

330UF 50V

+

C9122 NC

C9107 470pF 50V

L9102

1.1uH

R9113

91KOHM +-1% 1/8W

C9106

47pF

C9105

22nF

R9104 22K 1/8W 1%

R9137

0 OHM +-5% 1/8W C9109 4N7 50V

R9107

2.2R

C9108

1uF

D9105 UF1010G

C9104 1uF

C9102 100N 50V

R9125 1K 1/8W 1%

C9103

470NF 50V

C9125

100N 50V

R9128

2.4KOHM +-1% 1/8W

R9106 4R7 +-5% 1/ 8W

C9111 33N 50V

IC9103 AS431AN-E1

1

2

4

3

IC9102

PS2561DL1-1

R9126 4K7 1/8W 1%

+36V/+24V

R9123

100KOHM +-1% 1/8W

VCC_ON

R9120 2K4 +/-1% 1/ 8W

1 2

FB9101 BEAD

R9119 11K 1%

R9108 1K 1/8W 1%

C9101 10NF

R9121

12K 5% 1/4W

R9105

0.1R

B+

VCC

1

VREF

3

G

4

OV/U V

5

FB

6

DT/BF

7

IS

8

NC

9

S1

10

S2

11

HB

13

VCCH

14

D

16

IC9101

LCS700LG-TL

R9101

1MOHM +-1% 1/4W

R9124

2.4KOHM +-1% 1/8W

R9114

22KOHM +-1% 1/8W

R9102

1MOHM +-5% 1/2W

R9103

1MOHM +-5% 1/2W

R9127 43R 1%

C9127 1uF

C9128

1uF

1

2

3

D9104

FMEN-2308

C9117

2.2nF 50V

!

D9106

SS1060FL

C9126

2.2nF 50V

+36V/+24V

R9110

8.2K 1/4W

C9116

47nF 50V

R9109 120R 1%

R9111

150KOHM +-1% 1/ 8W

R9112

12K 1/8W

C9110

2.2U F 25V

R9115

3K 1/8W +/-1%

+

C9123

NC

1 2

HS9101

HEAT SINK

+36V/+24V

R9140 1K 1/8W 1%

OVP

+36V/+24V

Q9104 PMBS3904

C9133 100N 50V

Q9103 PMBS3906

R9139 100 OHM 1%

R9136

1K 1/8W 1%

R9138 1K 1/8W 1%

D9110

SS1060FL

D9108

SS1060FL

1 2

5 6

7

8

9

10

11

12

10

9

T9101

210uH

ON/OFF

R9122

12K 5% 1/4W

R9133

12K 5% 1/4 W

R9132

12K 5% 1/4 W

2D/3D

DIM

+12V

D9107 SS1060FL

R9129

2.4KOHM +-1% 1/8W

+

C9120

10UF 50V

1 2

3

4 5 6 7

8

9 10 11 12 13 14

CN9101 CONN

1 2

3

4

HS9109 HEAT SINK

Circuit Diagrams and PWB Layouts

EN 50TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-1-4 Main Power 12V

19610_503.eps

Main Power 12V

A04 A04

2013-10-18

A

715G6338

Main Power 12V

1 2

3

4

HS9302 HEAT SINK

1

2

ZD9303

NC/P6KE160AA0

1 2

3

4

HS9301 HEAT SINK

Q9332 PMBT3906

HOT

COLD

C9309

2N2 500V

D9301

SS1060FL

R9321

51 OHM 1/4W

R9331

10K OHM +-5% 1/ 8W

IC9342

AS431AN-E1

D9302 FR107

Q9301

TK13A65U

C9306

NC

Q9341

2N7002K

12

ZD9302 BZT52-B30

C9302 1NF

R9334 10K OHM

C9331

100N 50V

L9301 3UH

12

4

3

IC9341

PS2561DL1-1

D9303 FR107

12

ZD9301

BZT52-B30

C9310

2N2 500V

R9306

0.1R

+

C9311

470UF 2 5V

R9342 100K 1/ 8W 1%

!

R9307 100K 1/4W

1

2

3

4

5

6

7

9

10

T9301

POWER X'FMR/380GL32P133H00

+

C9320 47UF 50V

R9348

1K 1/8W 1%

1 2

ZD9340

BZT52-B16

R9333 10K 1/8W 1%

R9318 51 OHM 1/4W

R9345

6.2K OHM +-1% 1/8W

R9303

6.8K 1/4W

+

C9314 330UF25V

R9337

2Kohm 1/4W +/-5%

R9302

6.8K 1/4W

R9346 2Kohm 1/4W +/-5%

R9311

10 OHM

R9344

3.9K 1% 1/8W

R9315

470 OHM 1/4W

R9336 2Kohm 1/4W +/-5%

R9316

2.2 OHM 1/4W

R9314

0.27R

R9308 100K 1/4W

R9347

2.2KOHM +-1% 1/8W

+

C9332

10UF 5 0V

R9338

100K 1/8W 1%

R9312 51 OHM 1/4W

R9335 10K OHM +-5% 1/8W

R9332 330K 1% 1/8W

12

43

IC9331

PS2561DL1-1

C9304 1N 50V

R9341

10K OHM +-5% 1/ 8W

Q9331 2N7002K

R9301

6.8K 1/4W

C9301 10NF

C9315

100N 50V

+

C9312

470UF 25V

R9309 100K 1/4W

R9310 100K 1/4W

C9341 220N 50V

1 2

ZD9330

BZT52-B15

Q9333 BTC4672M3

C9305 470P 50V

D9331

SS1060FL

PS_ON

C9308 100N 50V

R9320 51 OHM 1/ 4W

2D/3D

+

C9313

470UF 25V

R9313 10KOHM

+

C9317

470UF 25V

+

C9318

470UF 25V

DV5

VCC

DV5

+12"V

VCC

ON/OFF

PS_ON

COLDHOT

B+

DIM

HOT COLD

OVP

R9324NCR9325

NC

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9301

LD7752B

R9305

NC/100KOHM +-5% 1/8W

VCC_ON

+12V

R9326 51 OHM 1/ 4W

R9327 51 OHM 1/4W

1

2

3

D9305 FME-220B

R9343

9.53KOH M +- 1 % 1/ 8W

1 2

FB9301 BEAD

1

2

3

D9306 FME-220B

R9322 51 OHM 1/4W

R9323

51 OHM 1/4W

+

C9307

10UF 50V

D9304 FR107

+

C9321

NC/ 470U F 25V

C9303 47nF 50V

R9319

51 OHM 1/4W

C9328 470pF 250V

!

C9316 1NF 250V

!

+12V_audio

2 4 6

8

10 12 14

1

3

5 7

9 11 13

CN9301 CONN

C9319 100N 50V

Circuit Diagrams and PWB Layouts

EN 51TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-1-5 PFC

19610_504.eps

PFC

A05 A05

2013-10-18

A

715G6338

PFC

C9808 100PF

Vsin

!

R9815

2.2R

R9809

10K 1/8W

B+

C9803 100N 50V

+

C9812

68uF 450V

D9801 IN5408G-04

D9805 IN5408G-04

1 2

L9802 BEAD

C9815

2.2NF

INV1COMP2RAMP

3

CS

4

ZCD

5

GND

6

OUT7VCC

8

IC9801

LD7591T

C9813 1UF 450V

!

Q9801

TK16A60W

VCC_ON

HOT COLD

D9802

MUR460-28

1 2

L9803 NC

C9814 470pF 250V

R9807

10 OHM 1/8W

R9808

75 OHM 1/8W

C9807 1N 50V

1 2

3

4

HS9801 HEAT SINK

R9813

10K 1/8W

R9810

470 OHM 1/4W

R9805 20K 1/4W

R9811

0.1R

C9801 1UF 450V

D9806

NC/FMNS-1106S

3

1

4

5

L9801

240UH

R9814

NC

C9809

100P 50V

1 2

FB9802 BEAD

R9812

27K 1/8W 1%

C9806 470NF 50V

R9806

3.3KOH M +- 1 % 1/ 8W

+

C9810

68uF 450V

+

C9811

68uF 450V

C9802 47P 50V

C9805

100N 50V

R9802

1MOHM +-1% 1/4W

R9803

1MOHM +-1% 1/4W

R9801 1MOHM +-1% 1/4W

R9804 19K1 +-1% 1/8W

D9803

SS1060FL

1 2

FB9803

BEAD

Circuit Diagrams and PWB Layouts

EN 52TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-1-6 Power layout top

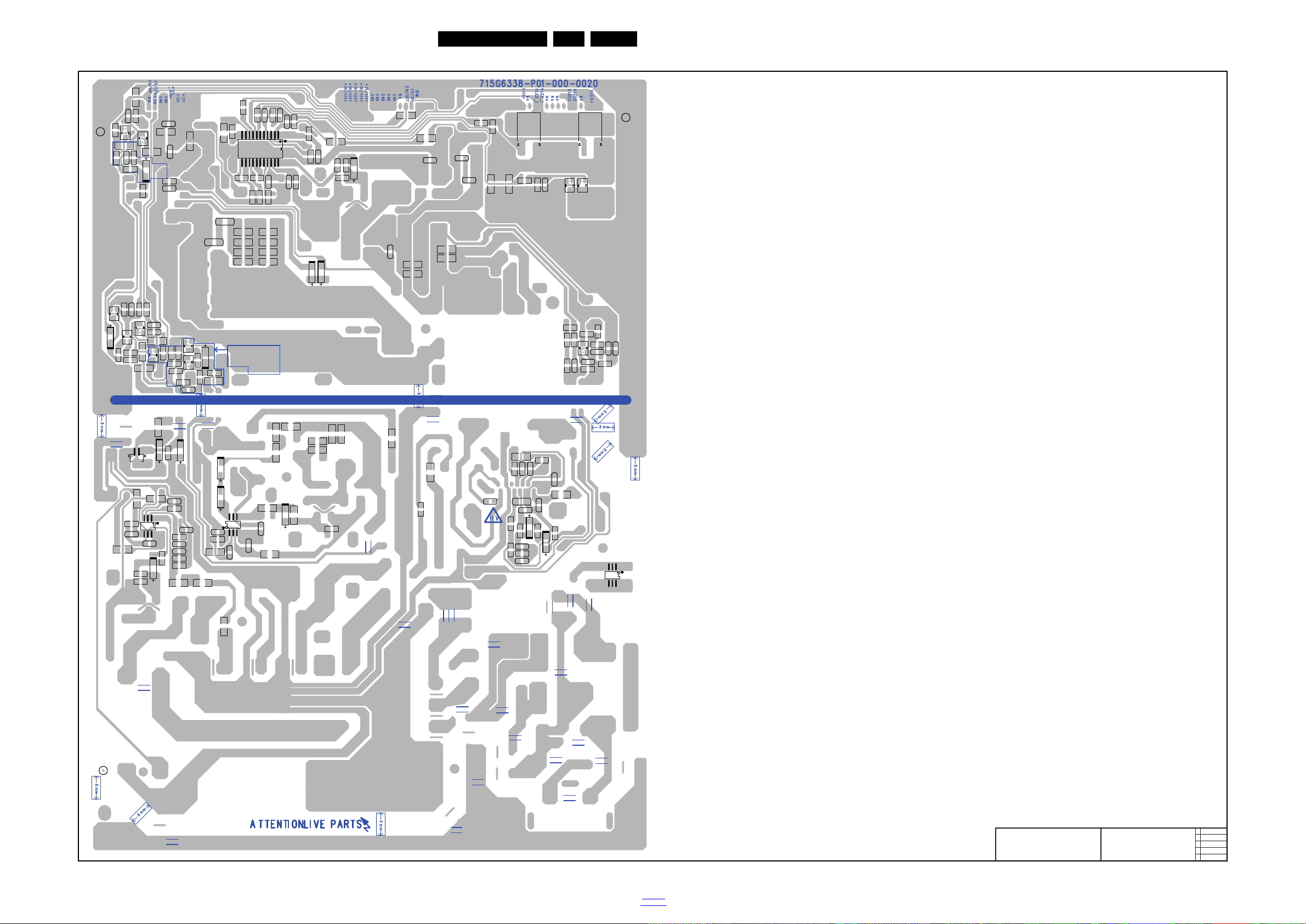

19610_505.eps

2013-10-18

A

715G6338

LAYOUT TOP

C9302

C9332

D9105

D9302

D9303

IC9102

IC9331

IC9341

R8104 R8116

R9314

T9301

ZD9303

J9128

J9120

J9130

J9134

J9143

J9144

J9127

J9124

J9138

J9125

J9129

J9111

J9136

J9122

C9120

C9307

D9304

J9115

J9119

R9103

R9102

J9103

J9104

J9121

J9102

J9137

D9802

D9801

D9805

J9140

J9133

J9145

J9135

J9117

J9109

J9110

J9141

J9107

J9131

J9139

J9118

J9108

J9113

J9114

J9126

J9105

J9123

J9132

J9148

J9142

J9146

SU2

SU5

SU4

SU1

J9147

J9101

SU3

R8144

R8145

R8146

R8147

R8156

R8157

HS1

HS2

HS3

H5

H10

H8

H7

H6

H9

H2

MH12

H11

GND1

BD9901

C8101

C9101

C9106

C9121

C9122

C9123

C9301

C9306

C9311

C9312

C9313

C9314

C9317

C9318

C9810C9811 C9812

C9907

C9908

CN8101

CN9901

D8101

D9104

D9305

D9306

F9901

FB9101

FB9802

HS9101

HS9301

HS9801

HS9901

IC9101

L8101

L9102

L9301

L9801

L9901

L9902

NR9901

NR9902

Q9301

Q9801

R9811

R9901

R9902

R9903

SG9901

SG9902

MH8

MH7

MH6

MH5

MH1

C9105

J9112

HS9109

HS9302

C9320

Q8101

MH4MH9

C8102

C8103

T9101

C9321

D9806

HS8101

MH11

RV9901

HS9902

R9105

R9306

C9814

L9803

FB9803

FB8101

C9328

MH10 MH3

C9316

C9808

C9815

L9802

FB9301

FB8102 FB8103

C9901

C9902

CN9101

C9905

C9906

C9903

C9904

CN9301

GND801

GND802 GND803 GND804

GND805

GND806GND807

C9801

C9813

Circuit Diagrams and PWB Layouts

EN 53TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-1-7 Power layout bottom

19610_506.eps

2013-10-18

A

715G6338

LAYOUT BOTTOM

C8104

C8105

C8106

C8107

C8108

C8109

C8110

C8114

C8131

C8143

C8144

C9102

C9103

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9125

C9126

C9127

C9128

C9133

C9303

C9304

C9305

C9308

C9309

C9310

C9315

C9319

C9331

C9341

C9802

C9803

C9805

C9806

C9807

C9809

R8102

R8103

R8107

R8108

R8110

R8111

R8112

R8113

R8115

R8133

R8140

R8142

R8148

R8149

R8124

R9104

R9106

R9107

R9108R9109

R9111

R9113

R9119

R9120

R9121 R9122

R9123

R9129

R9125

R9126

R9127

R9137

R9139

R9140

R9301

R9302R9303

R9305

R9307

R9308

R9309

R9310

R9311

R9312

R9313

R9315

R9316

R9318R9319 R9320

R9321

R9324

R9325

R9332

R9333

R9334

R9336

R9337

R9338

R9341

R9344

R9345

R9347

R9348

R9801

R9802R9803

R9804

R9805

R9806

R9807

R9808 R9809

R9810

R9812

R9813

R9814

JR8105

R9342

R8143

SE7

SE5

SE6

R9114

R9128

R9115

R9343

Q8145

Q8147

R8120

R8123

R9124

R9322

R9323

R9815

IC9801

IC9901

R8105

R8155

R8106

R8135

R9101

R9110

C9107

R9112

R9132 R9133

R9136

JR8100

R8109

R8121

R8161

R8160

R9335

R9346

R9138

R9331

R8101

R8164

C8132

C8133

C9113

R8136

R8137

R8138

R8139

Q8102

Q9103

Q9104

Q9332

Q8103

Q9331

Q9341

R8134

JR8102

IC9342

IC9103

Q8143

R9326

R9327

JR8106

JR8101

D8102

D9106

D9107

D9108

D9110

D9301

D9331

D9803

ZD9103

ZD9301ZD9302

ZD9330

ZD9340

IC9301

Q9333

IC8101

ZD8101

Q8149

Circuit Diagrams and PWB Layouts

EN 54TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10.2 A 715G6463 PSU

19630_507.eps

AC INPUT

A01 A01

2014-01-14

E

715G6463

AC INPUT

R9902 1MOHM +-5% 1/2W

C9903

470pF 250V

C9904

470pF 250V

!

RV9901

680V

CN9901

SOCKET

12

R9901 NC

R9903 NC

!

HS9901 HEAT SINK

1 2

3

4

C9902

470NF 305V

!

L9902 12mH

1

2

4

3

C9901

470NF 305V

!

F9901

FUSE

1 2 3 4

IC9901

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

!

t

NR9901

2.5R

12

!

C9907 470pF 250V

C9908

NC

!

C9905 220PF 250V

L9901 12mH

1

2

4

3

!

C9906 220PF 250V

!

t

NR9902

2.5R

12

!

B

Vsin

A

B

-

+

BD9901

KBJ1008G-FU

2

1

3

4

T5AH/250V

SG9902

NC

SG9901 NC

C9910 NC/220PF 250V

C9909 NC/220PF 250V

!

10-2-1 AC input

Circuit Diagrams and PWB Layouts

EN 55TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-2-2 LED DRIVER

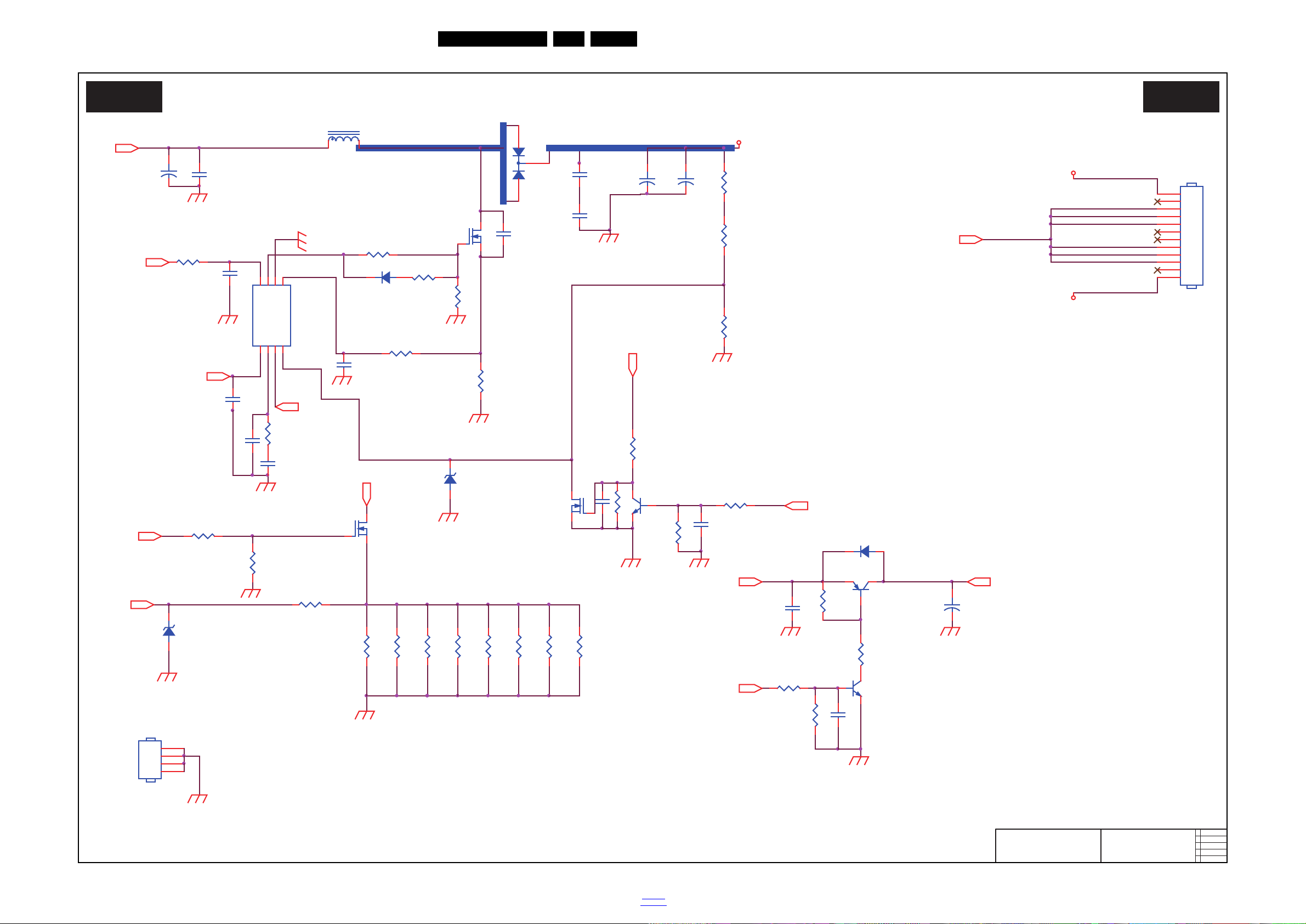

19630_508.eps

LED DRIVER

A02 A02

2014-1-14

E

715G6463

LED DRIVER

VLED_2_2

VLED+

R8107

510 OHM

C8107

1N 50V

S4

+

C8102

100UF 160V

HS8101 HEAT SINK

1 2

3

4

SENSE3

G3

ZD8101

BZT52-B9V1_R1_00001

12

G4

R8148

0R05OHM1/8W

R8116 0R1 5% 2W

L8101

33uH

2

1

R8155

200K 1/8W

+36V/+24V

C8105

220nF50V

R8111

150K 1/8W +/-1%

C8109

1uF

R8164

200K OHM

C8108 220nF50V

R8106

10K 1% 1/4W

R8102 33 OHM

R8108

330K 1/8W 1%

OVP_L

C8110

100N 50V

R8112

150K 1/8W +/-1%

VLED_1

R8113

7.5K OHM

VLED_2_1

D8102

SS1060FL

R8135

10ohm 1%

C8111 220nF50V

C8114

10N 50V

R8101

2.2 OHM 1/ 4W

R8131

10K OHM

R8103

10K 1% 1/8W

C8104

220nF50V

R8156

0.82OHM

R8157

NC/0.51OHM

R8149

20K +-5% 1/8W

R8145

NC/0.51OHM

R8104 0R1 5% 2W

R8105

1K

R8144 0.75R 1%

OVP_L

C8132

100N 50V

Q8102

PMBT3906

R8133

4.7K

C8131

100N 50V

R8143

NC/ 10K 1/ 8W 1%

R8142

NC/ 100KOH M +-5% 1/ 8W

2D/3D

R8136

30K OHM

Q8147 NC/P5002CMG

R8138

15K

ON/OFF DIM

C8120

220nF50V

R8115

2M +-5% 1/8W

R8134

4.7K

R8161

NC/ 0R 05 1/ 4W

C8106

100N 50V

Q8143

MTBB5N10L3

R8162

0R05 1/4W

Q8145 NC/P5002CMG

R8163

NC/ 0R 05 1/ 4W

R8132

300K

R8109

100K 1/8W

R8110

240K 1% 1/8W

Q8103 2N7002K

G4

R8120

240K 1% 1/8W

R8121

100K 1/8W

R8123

240K 1% 1/8W

R8124

100K 1/8W

VLED_1

CN8101

CONN

1 2

3

4 5 6 7

8

9 10 11 12

VLED_1

GND801

GND

1

GND

2

GND

3

C8144

NC/ 100N 50V

C8143

100P 50V

VLED+

IC8101

LD7890GS

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PARL

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STATUS

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

D8101 FME-210B

1

2

3

Q8149

MTBB5N10L3

Q8101

P8315ATF

GND804

GND

1

GND

2

GND

3

SENSE3

G3

+36V/+24V

C8133

1uF

GND803

GND

1

GND

2

GND

3

+12V

GND805

GND

1

GND

2

GND

3

R8160

NC/ 0. 75R 1%

GND806

GND

1

GND

2

GND

3

R8137

100K 1/8W

S4

Circuit Diagrams and PWB Layouts

EN 56TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-2-3 LLC 36V

19630_509.eps

LLC 36V

A03 A03

2014-1-14

E

715G6463

LLC 36V

+12V_audio

D9115

SS1060FL

ZD9104

BZT52-B16

1 2

ZD9105

BZT52-B30

1 2

C9136

220nF50V

+

C9121

NC/82uF 100V

+

C9122

82uF 100V

!

C9107 470pF 50V

L9102

1.1uH

R9113

124K 1%

C9106

47pF

C9105

22nF

R9104

20K 1/8W 1%

C9109 4N7 50V

R9107

2.2R

C9108

1uF

D9105 UF1010G

C9104 1uF

C9102 100N 50V

R9125 1K 1/8W 1%

C9103

330NF 50V

C9125

220nF50V

R9106 4R7 +-5% 1/8W

C9111 33N 50V

IC9103 AS431AN-E1

IC9102 PS2561DL1-1

12

43

R9126 4K7 1/8W 1%

+36V/+24V

R9123

1M OHM +-5% 1/8W

VCC_ON

R9120 2K4 +/-1% 1/8W

FB9101 BEAD

1 2

R9119 10K 1/8W 1%

R9108 1K 1/8W 1%

C9101 10NF

R9121

NC/15K 1/4W

R9105

0.1R

EMI

B+

IC9101

LCS701LG

VCC

1

VREF

3

G

4

OV/UV

5

FB

6

DT/BF

7

IS

8

NC

9

S1

10

S2

11

HB

13

VCCH

14

D

16

R9101

1M 1/4W 1%

R9124

3.6KOHM +-1% 1/8W

R9114

12K 1/8W

R9102

1M 1/4W 1%

R9103

1M 1/4W 1%

R9127 43R 1%

C9127

1uF

C9128

1uF

D9102

FME-220B

1

2

3

C9118 100PF 250V

C9117

2.2nF 50V

!

D9106

SS1060FL

D9107

SS1060FL

C9126

2.2nF 50V

+36V/+24V

R9110

8.2K 1/4W

C9116 47nF 50V

R9109 100R

R9111

150K

R9112

12K 1/4W

C9110

2.2UF 25V

R9115

3K 1/8W

+

C9123

82uF 100V

R9133

NC/15K 1/4W

R9132

NC/15K 1/4W

T9101

POWER X'FMR

1

4

5

6

7

8

9

10

11

12

R9135

20K 1/4W

R9134

20K 1/4W

C9135

NC/ 100N 50V

R9140 1K 1/8W 1%

+

C9120 10UF 50V

OVP

+36V/+24V

Q9104 PMBS3904

C9133 100N 50V

ZD9103

BZT52-B30

1 2

Q9103 PMBS3906

R9139 100 OHM 1/4W

R9136 1K 1/8W 1%

R9138 1K 1/4W

D9110

SS1060FL

R9137 0 OHM +-5% 1/8W

D9108

SS1060FL

C9119

1uF

+12V

+

C9129

470UF 25V

HS9101

HEAT SINK

1 2

+12V_audio

C9134

100N 50V

R9128

1.5K OHM

L9101 3UH

R9129

1.5K OHM

+

C9130

470UF 25V

D9101

FMW-2156

1

2

3

+

C9132 330UF25V

HS9102 HEAT SINK

1 2

3

4

+12V_audio

R9130

47K

R9122

NC/15K 1/4W

Circuit Diagrams and PWB Layouts

EN 57TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-2-4 MAIN POWER 12V

19630_510.eps

MAIN POWER 12V

A04 A04

2014-1-14

E

715G6463

MAIN POWER 12V

+

C9321

470UF 25V

HS9302 HEAT SINK

1 2

3

4

!

+

C9320 47UF 50V

HS9301 HEAT SINK

1 2

3

4

Q9332 PMBT3906

R9322 51 OHM 1/4W

R9323

51 OHM 1/4W

C9309

2N2 500V

D9301

SS1060FL

R9321

51 OHM 1/4W

R9331 10K 1/6W

IC9342

AS431AN-E1

D9302 FR107

Q9301

TK13A65U

C9306

NC

Q9341

2N7002K

ZD9302 BZT52-B30

12

C9302 1NF

R9334 10KOHM

C9331

100N 50V

L9301 3UH

IC9341

PS2561DL1-1

12

43

ZD9301 BZT52-B30

12

C9310

2N2 500V

R9306

0.1R

+

C9311

470UF 25V

CN9301 CONN

2 4 6

8

10 12 14

1

3

5 7

9 11 13

R9342 100K 1/8W 1%

R9307

100K 1/4W

+

C9307 10UF 50V

R9348

1K 1/8W 1%

ZD9340

BZT52-B16

1 2

R9333 10K 1/8W 1%

R9318 51 OHM 1/4W

R9345

6.2K OHM +-1% 1/8W

R9303

6.8K 1/4W

+

C9314 330UF25V

R9337

2Kohm 1/4W +/-5%

R9302

6.8K 1/4W

R9346

2KOHM +-1% 1/8W

R9311

10 OHM 1/8W

R9344

3.9K 1/8W

R9315

470 OHM 1/4W

R9336 2Kohm 1/4W +/-5%

R9316

2.2 OHM 1/4W

R9314

0.27R

R9308

100K 1/4W

R9347

2.2K

+

C9332

10UF 50V

R9338

100K 1/8W 1%

R9319

51 OHM 1/4W

R9312

22 OHM 1/8W

R9335 10K 1/4W

R9332 330K 1% 1/8W

IC9331

PS2561DL1-1

12

43

R9341

10K 1/8W 1%

C9304

10N 50V

Q9331 2N7002K

R9301

6.8K 1/4W

C9301

10NF 1KV

C9315

100N 50V

R9309 100K 1/4W

R9310

100K 1/4W

C9341 220N 50V

ZD9330

BZT52-B15

1 2

Q9333

BTC4672M3

PS_ON

D9331

SS1060FL

C9305 470P 50V

C9308 100N 50V

2D/3D

R9320 51 OHM 1/4W

+

C9313

470UF 25V

+

C9317

470UF 25V

R9313 10KOHM

+

C9318

470UF 25V

VCC

DV5

+12"V

DV5

VCC

+12"V

ON/OFF

PS_ON

B+

DIM

OVP

ZD9303

NC/P6KE160AA0

12

R9324NCR9325

NC

IC9301

LD7752B

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

R9305

NC/100KOHM +-5% 1/8W

VCC_ON

+12V

D9305 FME-220B

1

2

3

R9343

9.53KOHM +-1% 1/8W

D9306 FME-220B

1

2

3

C9303 47nF 50V

D9304 FR107

D9303

FR107

!

+12V_audio

T9301

1

2

3

4

5

6

7

9

10

Circuit Diagrams and PWB Layouts

EN 58TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-2-5 PFC

19630_511.eps

PFC

A05 A05

2014-1-14

E

715G6463

PFC

Vsin

!

R9815

2.2R

R9809

10K 1/8W

B+

C9803

100N 50V

+

C9812

68uF 450V

FB9801 BEAD

1 2

D9805

NC/SK510C

1 2

IC9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

Q9801

TK18A60V

VCC_ON

C9808 NC/10NF

D9804 IN5408G-04

D9802

FMNS-1106S

R9807

2.2 OH M 1/8W

R9808

33R 1/8W 5%

C9807 1N 50V

HS9801 HEAT SINK

1 2

3

4

R9813

10K 1/8W

R9810

470 OHM 1/4W

R9805

20K

R9811

0.2R

C9801 1UF 450V

R9820

0.2R

L9801

240uH

1

3 4

5

R9814 NC

C9809

100P 50V

R9812 27K 1/8W 1%

FB9802 BEAD

1 2

C9806 470NF 50V

+

C9810

68uF 450V

R9806

3.3KOH M +-1% 1/8W

+

C9811

68uF 450V

C9802

47P 50V

D9801 IN5408G-04

C9805

100N 50V

R9802

1M 1/4W 1%

R9803 1M 1/4W 1%

R9801 1M 1/4W 1%

R9804 19K1 +-1% 1/8W

D9803

SS1060FL

Circuit Diagrams and PWB Layouts

EN 59TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-2-6 Power layout top

19630_512.eps

2014-1-14

E

715G6463

Power layout top

C9302

C9332

D9105

D9302

D9303

D9304

D9801D9804

IC9102

IC9331

IC9341

R8104R8116

R8144

R8145

R8156

R8157

R9314

R9811

R9820

T9101

T9301

J937

J938

J936

J933

J930

J927

J934

J932

J931

J925

J926

J924

J922

J913

J923

J902

J903

J908

J901

J915

J911

J921

J935

J919

J928

J929

R8160

J906

J907

J905

J904

J918

J920

J910

J909

J914

J916

J912

J917

MH10

MH11

MH21

MH22

MH23

MH35

MH32

MH28

MH29

MH30

MH37

MH38

MH39

MH40

MH41

BD9901

C9101

C9105

C9106

C9118

C9120

C9121

C9122

C9123

C9129

C9130

C9132

C9306

C9307

C9311

C9313

C9314

C9317

C9318

C9320

C9321

C9808

C9810C9811C9812

C9903

C9904

C9905 C9906 C9907

C9908

CN8101

CN9901

D8101

D9101

D9305

D9306

D9802

F9901

FB9101

FB9801

FB9802

GND801

GND803

GND804

GND805

GND806

HS9101

HS9102

HS9301

HS9302

HS9801

HS9901

IC9101

L8101

L9101

L9102

L9301

L9901

L9902

NR9901

NR9902

Q8101

Q9301

Q9801

R9105

R9306

R9331

R9901

R9902

SG9901

SG9902

ZD9303

MH1

MH2

MH3

MH4

MH5

MH6

MH7

MH8

MH9

C9901

C9902

RV9901

C8102

C9909

C9910

D9102

HS8101

CN9301

R9903

L9801

C9301

C9801

Circuit Diagrams and PWB Layouts

EN 60TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-2-7 Power layout bottom

19630_513.eps

2014-1-14

E

715G6463

Power layout bottom

C8104

C8105

C8106

C8107

C8108

C8109

C8110

C8114

C8131

C8111

C8143

C8144

C9102

C9103

C9104

C9107

C9108

C9109

C9110

C9111

C9116

C9117

C9125

C9126

C9127

C9128

C9133

C9134

C9303

C9304

C9305

C9308

C9309

C9310

C9315

C9331

C9341

C9802

C9803

C9805

C9806

C9807

C9809

IC9103

IC9342

IC9801

IC9901

Q9103

Q9104

Q9331

Q9332

Q9341

R8101

R8102

R8103

R8105

R8106

R8107

R8108

R8109

R8110

R8111

R8113

R8133

R8120

R8121

R8123

R8124

R8131

R8132

R8135

R8142

R8134

R8155

R8164

R9101 R9102 R9103

R9104

R9106

R9107

R9108

R9109

R9110

R9111

R9113

R9114

R9115

R9119

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9127

R9128

R9129

R9130

R9132

R9133

R9134

R9135

R9136

R9137

R9138

R9140

R9301

R9302R9303

R9305

R9307R9308

R9309R9310

R9311

R9312

R9313

R9315

R9316

R9318

R9319

R9320 R9321

R9322

R9323

R9324

R9325

R9332

R9333

R9334

R9335

R9336

R9337

R9338

R9342

R9343

R9344

R9345

R9347

R9348

R9801

R9802

R9803

R9804

R9806

R9807

R9808

R9809

R9810

R9812

R9813

R9814

R9815

MH15

MH19

MH20

R9805

JR907

JR905

JR906

R9112

JR902

R9346

R9139

R9341

JR901

R8143

C9135

C8120

R8112

R8115 R8148

R8149

R8138

R8137

C8132

C8133

C9119

C9136

R8136

Q8102

Q8103

JR908

JR904

JR903

R8161

R8162

R8163

MH31

MH33

MH34

MH36

D8102

D9106

D9107

D9108

D9110

D9115

D9301

D9331

D9803

IC8101

IC9301

Q8143

Q8145 Q8147

Q8149

ZD9103

ZD9104

ZD9301

ZD9302

ZD9330

ZD9340

D9805

ZD8101

ZD9105

Q9333

Circuit Diagrams and PWB Layouts

EN 61TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10.3 A 715G6405 PSU

19640_500.eps

AC input

A01 A01

2013-11-20

3

715G6405

AC input

R9902 1MOH M +-5% 1/2W

C9903

220PF 250V

C9904

220PF 250V

SG9901 NC

SG9902 NC

!

RV9901 680V

12

CN9901

SOCKET

R9901 510k 1/ 2W

R9903 510k 1/ 2W

!

1 2 3 4

HS9901 HEAT SINK

C9902

470NF 275V

!

1

2

4

3

L9902

14mH

C9901

470NF 275V

!

1 2 3 4

F9901

FUSE

NC

1

D1

2

D1

3

NC

4

NC

5D26

D2

7

NC

8

IC9901

NC

!

1 2

t

NR9901

2R

! !

C9907

470pF 250V

C9908

NC/47PF

!

C9905 220PF 250V

1

2

4

3

L9901

14mH

!

C9906 220PF 250V

!

12

t

NR9902

2R

!

B

Vsin

A

B

2

1

3

4

-

+

BD9901

TS10K80-02

1 2

FB9903

BEAD

1 2

FB9901

BEAD

1 2

FB9902

BEAD

T5AH/250V

10-3-1 AC input

Circuit Diagrams and PWB Layouts

EN 62TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-3-2 LED Driver

19640_501.eps

A02 A02

2013-11-20

3

715G6405

LED Driver

VLED+_1

VLED+

R8107

510 OHM +-1% 1/8W

C8107

1N 50V

S4

+

C8102

82uF 100V

1 2 3 4

HS8101 HEAT SINK

+

C8103

82uF 100V

12

ZD8101

BZT52-B9V1_R1_00001

G4

R8148

0R05OHM1/8W

R8116 0R1 5% 2W

2

1

L8101

33uH

R8155

200K 1/8W

+36V/+24V

C8105

220nF50V

R8111

150K 1/8W +/-1%

C8109

1uF

R8164

200K OHM

C8108 100N 50V

R8106

10K 1% 1/4W

R8102 51 oHM 1 % 1 /8W

R8108

330K 1/8W 1%

OVP_L

C8110

100N 50V

R8112

150K 1/8W +/-1%

R8113

10KOHM +-1% 1/8W

VLED_1

VLED_2

D8102

SS1060FL

R8135

10ohm 1%

C8114

10N 50V

R8101

10 OHM 1/4W

R8131

10K OHM

R8103

10K 1% 1/8W

C8104

220nF50V

R8156

0.51R 1%

R8157

0.75R 1%

R8149

20K 1/4W

R8145

0.75 R 1%

R8104 0R1 5% 2W

R8105

1K

R8144 0.51R 1%

OVP_L

C8132

100N 50V

Q8102

PMBT3906

R8133

4.7K

C8131

100N 50V

R8143

10K 1/8W 1%

R8142

100KOH M +-5 % 1/ 8W

2D/3D

R8136

30K OHM

Q8147

P5002CMG

R8138

20K

ON/OFF DIM

R8115

2M +-5% 1/8W

R8134

4.7K 1/4W

R8161

0R05 1 /4W

C8106

100N 50V

Q8143

MTBB5N10L3

R8162

NC/0R05 1/4W

Q8145 P5002CMG

R8141

0R05 1/ 4W

R8132

300K

R8109

100K 1/8W

R8110

240K 1% 1/8W

Q8103 2N7002K

G4

R8120

240K 1% 1/8W

R8121

100K 1/8W

R8123

240K 1% 1/8W

R8124

100K 1/8W

VLED_1

1 2 3 4 5 6 7 8

9 10 11 12

CN8101 CONN

VLED_1

R8165

NC/0R05OHM1/8W

C8130

NC/47PF

C8150

470P 50V

R8166

NC/0R05OHM1/8W

1

GND801

GND

C8144

100N 50V

C8143

100P 50V

+

C8101

NC/ 330U F 50V

VLED+

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PARL

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STATUS

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

IC8101

LD7890GS

Q8144

NC/P3710BD

1

2

3

D8101 FMEN210A

Q8150 NC/P3710BD

Q8149

MTBB5N10L3

Q8101

P3710BTF

1

GND804

GND

1

GND803

GND

C8133

1N 50V

+36V/+24V

1

GND805

GND

+12V

R8160

NC/0.51R 1%

1

GND806

GND

R8137

10KOHM

S4

Circuit Diagrams and PWB Layouts

EN 63TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-3-3 LLC 36V

19640_502.eps

A03 A03

2013-11-20

3

715G6405

LLC 36V

1 2

ZD9105

NC/BZT52-B18

+12V_audio

D9115

SS1060FL

1 2

ZD9104

BZT52-B16

Max:36V

+

C9121

330UF 50V

+

C9122

330UF 50V

!

C9107 470pF 50V

L9102

1.1uH

R9113

124K 1%

C9106

47pF

C9105

22nF

R9104

20K 1/ 8W 1%

C9109 4N7 50V

R9107

2.2R

C9108

1uF

D9105

UF1010G

C9104 1uF

C9102 100N 50V

R9125 1K 1/8W 1%

C9103

330NF 50V

1 2

J955

NC/JUMPER

C9125

100N 50V

R9106

4R7 +- 5% 1 / 8 W

C9111 33N 50V

IC9103 AS431AN-E1

12

43

IC9102 PS2561DL1-1

R9126 4K7 1/8W 1%

+36V/+24V

R9123

1M5 1/8W 5%

VCC_ON

R9120 2K4 +/-1% 1/8W

1 2

FB9101

BEAD

R9119 10K 1/ 8W 1%

R9108

1K 1/8W 1%

C9101 10NF

R9121

NC/ 15K 1/4W

R9105

0.1R

B+

VCC

1

VREF

3

G

4

OV/UV

5

FB

6

DT/BF

7

IS

8

NC

9

S1

10

S2

11

HB

13

VCCH

14

D

16

IC9101

LCS701LG

R9101

1M 1/4W 1%

R9124

3.6KOHM +-1% 1/8W

R9114

12K 1/8W 1%

R9102

1M 1/4W 1%

R9103

1M 1/4W 1%

R9127 43R 1%

C9127

1uF

C9128

1uF

1

2

3

D9102

FME-210B

C9118 470pF 250V

C9117

2.2nF 50V

!

D9106

SS1060FL

D9107

SS1060FL

C9126

2.2nF 50V

+36V/+24V

R9110

8.2K 1/4W

C9116

47nF 50V

R9109

130R 1%

R9111

150K

R9112

12K 1/8W

C9110

2.2UF 25V

R9115

3K

+

C9123

330UF 50V

1 2

J952

JUMPER

R9133

NC/ 15K 1/4W

R9132

NC/ 15K 1/4W

1

4

5

6

7

8

9

10

11

12

T9101

POWER X 'FMR

R9135

15K 1/4W

R9134

15K 1/4W

R9160 NC/ 130R 1%

B+"

R9140 1K 1/8W 1%

+

C9120 10UF 50V

OVP

+36V/+24V

Q9104 PMBS3904

C9133 100N 50V

1

2

ZD9103

BZT52-B43

Q9103 PMBS3906

R9139 100 OHM 1%

R9136 1K 1/ 8W 1 %

R9138 1K 1/4W

D9110

SS1060FL

R9137 0 OHM +-5% 1/8W

D9108

SS1060FL

R9152

NC/1.5K OHM

R9150

1.5K OHM

R9153

NC/1.5K OHM

R9151

1.5K OHM

1 2

FB9102 NC/BEAD

R9131 NC/0.1R

+12V

C9119

1uF

+

C9129

470UF 25V

1 2

HS9101

HEAT SINK

+12V_audio

C9134

100N 50V

C9135

100N 50V

R9128

1.5K OHM

L9101 3UH

R9129

1.5K OHM

+

C9130

470UF 25V

1

2

3

D9101 FMW-2156

+

C9132

330UF25V

1 2 3 4

HS9102 HEAT SINK

+12V_audio

R9130

43K 1/8W 1%

R9122

NC/ 15K 1/4W

Circuit Diagrams and PWB Layouts

EN 64TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-3-4 Main Power 12V

19640_503.eps

Main Power 12V

A04 A04

2013-11-20

3

715G6405

Main Power 12V

+

C9321

NC/ 470U F 25V

1 2 3 4

HS9302 HEAT SINK

!

+

C9320 47UF 50V

1 2 3 4

HS9301 HEAT SINK

Q9332 PMBT3906

R9322 51 OHM 1/4W

R9323

51 OHM 1/4W

C9309

2N2 500V

D9301

SS1060FL

C9333

100P 50V

R9321

51 OHM 1/4W

R9331 10K 1/6W

IC9342

AS431AN-E1

D9302 FR107

Q9301

TK13A65U

C9306

NC/47PF

Q9341

2N7002K

12

ZD9302 BZT52-B30

C9302 1NF

R9334 10KOHM

C9331

100N 50V

L9301 3UH

12

43

IC9341

PS2561DL1-1

12

ZD9301 BZT52-B30

C9310

2N2 500V

R9306

0.1R

+

C9311

470UF 25V

2 4 6 8 10 12 14

1 3 5 7

9 11 13

CN9301

CONN

R9342 100K 1/8W 1%

R9307

100K 1/4W

+

C9307 10UF 50V

R9348

1K 1/8W 1%

1

2

ZD9340

BZT52-B16

R9333

10K 1/8W 1%

R9318 51 OHM 1/4W

R9345

6.2K O HM +-1% 1/ 8W

R9303

6.8K 1 / 4 W

+

C9314 330UF 25V

R9337

2Kohm 1/4W +/-5%

R9302

6.8K 1 / 4 W

R9346

2Kohm 1/4W +/-5%

R9311

10 OHM 1/ 8W

R9344

3.9K 1% 1/8W

R9315

470 OHM 1/ 4W

R9336 2Kohm 1/ 4W +/- 5%

R9316

2.2 OHM 1/4W

R9314

0.27R 2W

R9308 100K 1/4W

R9347

2.2K 1 / 4 W

+

C9332

10UF 50V

R9338

100K 1/8W 1%

R9319

51 OHM 1/4W

R9312 75 OHM +-1% 1/8W

R9335 10K 1/ 4W

R9332 330K 1% 1/ 8W

1

2

43

IC9331

PS2561DL1-1

R9341

10K 1/6W

C9304

1N 50V

Q9331 2N7002K

R9301

6.8K 1 / 4 W

C9301

10NF

C9315 100N 50V

+

C9312

470UF 25V

R9309 100K 1/4W

R9310

100K 1/4W

C9341 220N 50V

1 2

ZD9330

BZT52-B15

Q9333

BTC4672M3

D9331

SS1060FL

C9305

470P 50V

PS_ON

C9308 100N 50V

R9320 51 OHM 1/4W

2D/3D

+

C9313

470UF 25V

R9313 10KOHM

+

C9317

470UF 25V

+

C9318

470UF 25V

DV5

VCC

DV5

+12"V

VCC

ON/OFF

PS_ON

B+

DIM

OVP

1 2

FB9301

NC/BEAD

12

ZD9303

NC/P6KE160AA0

R9324NCR9325

NC

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9301

LD7752B

R9305

NC/ 100KOHM +-5% 1/8W

VCC_ON

+12V

1

2

3

D9305 FME-220B

!

C9330 1NF 25 0 V

R9343

9.53KOHM +-1% 1/8W

1

2

3

D9306 FME-220B

C9303 47nF 50V

D9304 FR107

D9303

FR107

!

+12V_audio

C9334 NC/ 470pF 50V

C9335

NC / 470p F 50V

C9336

470pF 50V

1

2

3

4

5

6

7

9

10

T9301

POWER X'FMR

Circuit Diagrams and PWB Layouts

EN 65TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-3-5 PFC

19640_504.eps

PFC

A05 A05

2013-11-20

3

715G6405

PFC

Vsin

!

R981 5

2.2R

R9809

10K 1/8W

B+

C9803

100N 50V

+

C9812

68uF 450V

1 2

FB9801 BEAD

INV

1

COMP

2

RAMP

3

CS

4

ZCD

5

GND

6

OUT

7

VCC

8

IC9801 LD7591T

Q9801

TK16A60W

VCC_ON

C9808 100PF

D9804 IN5408G-04

D9802

FMNS-1106S

R9807

10 OHM 1/8W

R9808

51 oH M 1% 1/8 W

C9807 1N 50V

1 2 3 4

HS9801 HEAT SIN K

R9813

10K 1/8W

R9810

470 OHM 1/4W

R9805 20K 1/4W

R9811

0.2R

C9801 1UF 450V

R9820

0.2R

1

3 4

5

L9801

240uH

R9814

NC

C9809 100P 50V

1 2

FB9802 BEAD

R9812 27K 1/8W 1%

C9806 470NF 50V

+

C9810

68uF 450V

R9806

2.4KOH M +-1% 1/8W

+

C9811

68uF 450V

C9802

47P 50V

D9801 IN5408G-04

C9805

100N 50V

R9802

1M 1/4W 1%

R9803 1M 1/4W 1%

R9801

1M 1/4W 1%

R9804

19K1 +-1% 1/8W

D9803

SS1060FL

Circuit Diagrams and PWB Layouts

EN 66TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-3-6 Power layout top

19640_505.eps

2013-11-22

A

715G6405

LAYOUT TOP

C9302

C9332

D9105

D9302

D9303

IC9102

IC9331

IC9341

R8104 R8116

R9314

ZD9303

D9304

J910

J909

J911

J912

J913

J914

R9331

J915

J922

J925

J936

J935

J934

J904

J937

J908

J905

J907

J906

J941

J924

J923

J951

J950

J940

SU6

SU3

SU2

T9101

R9811

R9820

D9801

D9804

J930

J931

J932

J919

R9341

J943

J949

J938

J921

J920

J916

J917

J918

J952

J939

T9301

SU1

SU5

J933

J926

J944

J942

J948

J947

J946

R8144 R8160 R8156

R8145 R8157

J901

J902

SU4

C9306

C8130

J953

J954

J929

J955

SU7

S2

S3

S4

S1

H1

S5S6

BD9901

C8101

C9101

C9106

C9121

C9122

C9123

C9301

C9311

C9312

C9313

C9314

C9317

C9318

C9810C9811 C9812

C9901

C9902

C9905

C9906

C9907

CN8101

CN9901

D8101

D9102

D9305

D9306

D9802

FB9101

FB9801

FB9802

HS9101

HS9301

HS9801

HS9901

IC9101

L8101

L9102

L9301

L9901

L9902

NR9901

NR9902

Q9301

MH6

MH5

MH4

MH3

MH1

C9105

HS9102

C9307

D9101

C9120

C9129

C9130

C9132

C9320

L9101

Q8101

C9321

F9901

HS9302

C8102 C8103

R9105

R9306

RV9901

CN9301

Q9801

L9801

MH2

C9808

FB9901

FB9902

R9902

SG9902

SG9901

C9801

C9330

C9903

C9904

C9118

FB9903

GND801

GND803 GND804

GND805

GND806

R9131

FB9301

FB9102

C9908

R9901

R9903

HS8101

Circuit Diagrams and PWB Layouts

EN 67TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-3-7 Power layout bottom

19640_506.eps

2013-11-22

A

715G6405

LAYOUT BOTTOM

C8104

C8105

C8106

C8107

C8108

C8109

C8110

C8114

C8131

C8143

C8144

C9102

C9103

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9125

C9126

C9127

C9128

C9133

C9303

C9304

C9305

C9308

C9309

C9310

C9315

C9134

C9331

C9341

C9802

C9803

C9805

C9806

C9807

C9809

IC9801

Q9103

Q9104

Q9331Q9332

Q9341

R8102

R8103

R8105

R8106

R8107

R8108

R8110

R8113

R8115

R8132

R8142

R8148

R9101 R9102

R9103

R9104

R9106

R9107

R9108

R9109

R9111

R9113

R9119 R9120

R9121

R9122

R9123

R9124

R9125

R9126 R9127

R9136

R9137

R9139

R9140

R9301

R9302

R9303

R9305

R9307R9308 R9309R9310

R9313

R9316

R9318 R9319

R9320 R9321

R9324

R9325

R9332R9333

R9335

R9336

R9337

R9338

R9344

R9345

R9348

R9801

R9802 R9803

R9804

R9805

R9806

R9807

R9808

R9809

R9810

R9812

R9813

R9814

IC9103

IC9342

R9342

R9138

R8101

R8143

R8120

R8123

R9130

R9128

R9129

R9132

R9133

R9134

R9135

R9322 R9323

R9815

RJ902

RJ904

R9312

R9311

R9315

R9334

RJ912

RJ911

RJ910

R9343

RJ907

R9346

R9110

C9107

R9114

R9112

R9115

RJ905

RJ906

RJ908

R8124

R8131

RJ913

R8121 R8109

R8135

R8111

R8161

F5

F6

F7

Q8145

Q8147

R8164

R9347

C9135

C8132

C8133

R8133

R8136

R8138

Q8102

Q8103

C9119

R8141

R8162

R8112

R8137

IC9901

R8149

R8134

R8155

R9150 R9151

R8165

R8166

C9333

R9160

R9152 R9153

C9334

C9335

C9336

C8150

D8102

D9106

D9107

D9108

D9110

D9301

D9331

D9803

IC8101

IC9301

Q9333

ZD9103

ZD9301

ZD9302

ZD9330

ZD9340

TEST1

ZD9104D9115

Q8143Q8149

ZD8101

Q8144

Q8150

ZD9105

Circuit Diagrams and PWB Layouts

EN 68TPM14.3L LA 10.

2014-Oct-10

back to

div.table

Circuit Diagrams and PWB Layouts

19612_500.eps

AC input

A01 A01

2013-12-12

3

715G6420

AC input

Vsin

B

A

B

!!

C9905 470PF 250V

!!

1 2

3

4

F9901

FUSE

F9901

FUSE

SG9903 DSPL-501N-A21F

!!

R9901 NC

1

2

4

3

L9901

New/12mH

L9901

New/12mH

2

1

3

4

-

+

BD9901

TS10P06G

-

+

BD9901

TS10P06G

SG9901 DSPL-501N-A21F

1

2

t

NR9901

1.5R

t

NR9901

1.5R

C9906 470PF 250V

!!

1 2

3

4

HS9901 HEAT SINK

!!

R9903 NC

!!

R9902 1MOHM +-5% 1/2WR9902 1MOHM +-5% 1/2W

1

2

t

NR9902

1.5R

t

NR9902

1.5R

NC1D12D13NC

4

NC

5

D2

6D27

NC

8

IC9901

NC

IC9901

NC

SG9904 NC

!!

C9901

470NF 275V

C9901

470NF 275V

!!

1

2

4

3

L9902

New/12mH

L9902

New/12mH

12

CN9901

SOCKET

CN9901

SOCKET

!!

1

2

t

NR9903

1.5R

t

NR9903

1.5R

!!

1

2

4

3

L9903

0.25mH L9903

0.25mH

!!

C9909

NC/470NF 275V

C9909

NC/470NF 275V

C9902

470NF 275V

C9902

470NF 275V

RV9901

680V

RV9901

680V

!!

SG9902

DSPL-501N-A21F

SG9902

DSPL-501N-A21F

C9904

100PF 250V

C9904

100PF 250V

!!

C9903

100PF 250V

C9903

100PF 250V

C9908

NC

C9908

NC

!!

EN 69TPM14.3L LA 10.

10.4 A 715G6420 PSU

10-4-1 AC input

2014-Oct-10

back to

div.table

10-4-2 PFC

19612_501.eps

PFC

A02 A02

2013-12-12

3

715G6420

PFC

B+Vsin

VCC_ON

R9812 30K 1/8W 1%

R9810

470 OHM 1/4W

R9810

470 OHM 1/4W

C9808 NC/47PF

+

C9811

68uF 450V

+

C9811

68uF 450V

R9811

0.15R

R9811

0.15R

R9808

33R 1/8W 5%

R9808

33R 1/8W 5%

1

3

5

4

L9801

170uH

L9801

170uH

C9803

100N 50V

C9803

100N 50V

+

C9812

68uF 450V

+

C9812

68uF 450V

R9807

10R 1/8W 5%

R9807

10R 1/8W 5%

R9809

10K 1/8W

R9809

10K 1/8W

+

C9804

10UF 50V

+

C9804

10UF 50V

1

2

FB9802 BEAD

C9805

100N 50V

C9805

100N 50V

R9816

0.15R

R9816

0.15R

!!

1 2

FB9801 BEAD

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT

7

VCC

8

IC9801

LD7591T

IC9801

LD7591T

R9814 NC

Q9801

TK20A60W

Q9801

TK20A60W

1 2

3

4

HS9801 HEAT SINK

R9802

1M 1% 1/4W

R9802

1M 1% 1/4W

C9802

47P 50V

C9802

47P 50V

D9802 FMNS-1106S

R9801

1M 1% 1/4W

R9801

1M 1% 1/4W

R9813

10K 1/8W

R9813

10K 1/8W

C9809

100P 50V

C9809

100P 50V

!!

C9807 1N 50V

R9803 1M 1% 1/4W

R9806 2K4 +/-1% 1/8W

R9804

19K1 +-1% 1/8W

R9804

19K1 +-1% 1/8W

+

C9810

68uF 450V+C9810

68uF 450V

1

2

D9801

SK810C

D9801

SK810C

C9806 470NF 50V

C9801

1UF 450V

C9801

1UF 450V

R9815

10 OHM 1/4W

R9815

10 OHM 1/4W

R9805 20K 1/4W

1

2

D9803 SS1060FL

Circuit Diagrams and PWB Layouts

EN 70TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-4-3 Main Power 12V

19612_502.eps

Main Power 12V

A03 A03

2013-12-12

3

715G6420

Main Power 12V

VCC

DV5

+12"V

DV5

VCC

+12"V

ON/OFF

PS_ON

B+

VCC_ON

PS_ON

DIM

+12V

OVP

+12V_audio

2D/3D

R9338

100K 1/8W 1%

R9338

100K 1/8W 1%

C9302 1NF

C9303 47nF 50V

1

GND1

GND

GND1

GND

R9305

NC/100KOHM

R9305

NC/100KOHM

+

C9307 47UF 50V

+

C9307 47UF 50V

R9344 3K65 +-1% 1/8W

D9304 1N4148

R9306

0.1R

R9306

0.1R

L9301 3UH

L9301

3UH

!!

C9309

2N2 500V

C9309

2N2 500V

1 2

FB9302 BEAD

R9334 10K OHM

R9319

100 OHM 1/4W

R9319

100 OHM 1/4W

D9302 FR107

Q9331 2N7002K

R9302

6.8K 1/4W

R9302

6.8K 1/4W

R9321

100 OHM 1/4W

R9321

100 OHM 1/4W

R9324NCR9324 NC

R9333 10K 1/8W 1%

R9315

220 OHM 1/4W

R9315

220 OHM 1/4W

C9331

100N 50V

C9331

100N 50V

R9341

10K OHM +-5% 1/8W

R9341

10K OHM +-5% 1/8W

D9303

FR107

D9303

FR107

R9335 10K 1/4W

12

ZD9302 BZT52-B30

R9325NCR9325 NC

R9312 75 OHM 1/4W

12

43

IC9341

PS2561DL1-1

IC9341

PS2561DL1-1

R9318 100 OHM 1/4W

R9313 10KOHM

R9307

100K 1/4W

R9307

100K 1/4W

R9337

2Kohm 1/4W +/-5%

R9337

2Kohm 1/4W +/-5%

1

GND4

GND

GND4

GND

R9303

6.8K 1/4W

R9303

6.8K 1/4W

Q9333 BTC4672M3

C9321

220N 50V

C9321

220N 50V

1

2

3

D9306 FME-220B

C9310

2N2 500V

C9310

2N2 500V

1 2

ZD9330

BZT52-B16

ZD9330

BZT52-B16

C9308 100N 50V

C9332

100N 50V

C9332

100N 50V

+

C9312

470UF 25V+C9312

470UF 25V

C9305 470PF 50V

!!

CT

1

COMP

2

CS

3

GND

4

OUT

5

VCC

6

HV

8

IC9301

LD7752B

IC9301

LD7752B

R9336 2Kohm 1/4W +/-5%

Q9332 PMBT3906

+

C9314 470UF 25V

+

C9314 470UF 25V

R9311

10 OHM

R9311

10 OHM

+

C9317

470UF 25V+C9317

470UF 25V

C9907 470PF 250V

1

GND5

GND

GND5

GND

12

ZD9303

NC/P6KE100A

ZD9303

NC/P6KE100A

1 2

3

4

HS9301 HEAT SINK

R9342 100K 1/8W 1%

12

D9301

SS1060FL

D9301

SS1060FL

1

2

3

D9305 FME-220B

1

GND3

GND

GND3

GND

R9348

1K 1/8W 1%

R9348

1K 1/8W 1%

+

C9311

470UF 25V+C9311

470UF 25V

R9316

10 OHM 1/4W

R9316

10 OHM 1/4W

C9316 1N 50V

12

43

IC9331

PS2561DL1-1

IC9331

PS2561DL1-1

C9306NCC9306

NC

C9333

100N 50V

C9333

100N 50V

R9314

0.27 OHM +-5% 2WS

R9314

0.27 OHM +-5% 2WS

2 4 6

8

10 12 14

1

3

5 7

9 11 13

CN9301 CONN

IC9342

AS431AN-E1

IC9342

AS431AN-E1

Q9341 2N7002K

R9320 100 OHM 1/4W

1

GND2

GND

GND2

GND

Q9301

TK13A65U

Q9301

TK13A65U

R9331

10K OHM

R9331

10K OHM

R9308 100K 1/4W

C9304 470PF 50V

1 2

FB9301

BEAD

FB9301

BEAD

R9343

9.1K 1%

R9343

9.1K 1%

R9332 330K 1% 1/8W

R9346

3.6K 1% 1/8W

R9346

3.6K 1% 1/8W

C9301 10NF

12

ZD9301

BZT52-B30

ZD9301

BZT52-B30

+

C9319 100UF 50V

+

C9319 100UF 50V

R9345

6.8KOHM +-1% 1/8W

R9345

6.8KOHM +-1% 1/8W

C9315

100N 50V

C9315

100N 50V

1 2

ZD9340

BZT52-B16

ZD9340

BZT52-B16

R9301

6.8K 1/4W

R9301

6.8K 1/4W

+

C9318

470UF 25V+C9318

470UF 25V

R9347

2.2K 1/8W

R9347

2.2K 1/8W

1 2

D9331

SS1060FL

D9331

SS1060FL

R9339

10K 1/8W 1%

R9339

10K 1/8W 1%

C9341 220N 50V

1

2

3

4

5

6

7

9

10

T9301

POWER X'FMR/380GL32P133H00

T9301

POWER X'FMR/380GL32P133H00

R9309 100K 1/4W

1 2

3

4

HS9302 HEAT SINK

+

C9313

470UF 25V+C9313

470UF 25V

!!

C9320

NC/1N 50V

C9320

NC/1N 50V

R9310

100K 1/4W

R9310

100K 1/4W

Circuit Diagrams and PWB Layouts

EN 71TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-4-4 LLC 36V

19612_503.eps

LLC 36V

A04 A04

2013-12-12

3

715G6420

LLC 36V

+36V

VCC_ON

B+

+36V

OVP

+12V

+12V_audio

+36V

+12V_audio

ON/OFF

DIM

+12V

+36V

2D/3D

4

12/11 Noise

Ⲩ䜨

R9120 2K4 +/-1% 1/8W

R9107

2.2R

R9107

2.2R

Q9103 PMBS3906

R9121 15K 1/4W

R9145 0R05OHM1/8W

R9112

12K 1/8W

R9112

12K 1/8W

R9142

3K 1/8W +/-1%

R9142

3K 1/8W +/-1%

C9101 10NF

1

2

3

D9102

FMEN-220A

D9102

FMEN-220A

+

C9136 330UF 50V

+

C9136 330UF 50V

1 2

ZD9103

BZT52-B43

ZD9103

BZT52-B43

C9118 1NF 250V

R9124

NC/3.6KOHM1/8W

R9124

NC/3.6KOHM1/8W

R9134

15K 1/4W

R9134 15K 1/4W

C9133 100N 50V

R9141 15K 1/4W

C9134

1uF

C9134

1uF

C9110 1uF

R9133

15K 1/4W

R9133

15K 1/4W

R9135

15K 1/4W

R9135

15K 1/4W

1

2

3

D9104

FME-220B

D9104

FME-220B

1 2

ZD9104

BZT52-B16

ZD9104

BZT52-B16

C9135

2.2nF 50V

C9135

2.2nF 50V

C9125

100N 50V

C9125

100N 50V

R9127 43R 1%

R9129

1.5K 1/4W

R9129

1.5K 1/4W

R9108 1K 1/8W 1%

C9127

1uF

C9127

1uF

L9101 3UH

1

2

3

D9101

FMEN-220A

D9101

FMEN-220A

1 2

5 6

7

8

9

10

11

12

10

9

T9101

210uH

T9101

210uH

C9103

330NF 50V

C9103

330NF 50V

R9106 4R7 1/4W 5%

R9119

10KOHM +-1% 1/8W

R9119

10KOHM +-1% 1/8W

C9108

1uF

C9108

1uF

R9114

12K 1/8W 5%

R9114

12K 1/8W 5%

R9136 1K 1/8W 1%

C9102 100N 50V

!!

1 2

3

4

HS9102 HEAT SINK

R9137 0 OHM +-5% 1/8W

R9139 100R 1%

D9108

SS1060FL

D9108

SS1060FL

D9105

UF1010G

D9105

UF1010G

C9117

2.2nF 50V

C9117

2.2nF 50V

R9110

8.2K 1/4W

R9110

8.2K 1/4W

R9102

1M 1% 1/4W

R9102

1M 1% 1/4W

!!

R9109

100 OHM +-1% 1/8W

R9109

100 OHM +-1% 1/8W

+

C9131

470UF 25V

+

C9131

470UF 25V

D9110

SS1060FL

D9110

SS1060FL

C9126

NC/2.2nF 50V

C9126

NC/2.2nF 50V

+

C9129

470UF 25V

+

C9129

470UF 25V

IC9103

AS431AN-E1

IC9103

AS431AN-E1

1 2

3

4

HS9103

HEAT SINK

HS9103

HEAT SINK

D9111

SS1060FL

D9111

SS1060FL

R9132

3K 1/8W +/-1%

R9132

3K 1/8W +/-1%

C9105 22nF

+

C9121

330UF 50V

+

C9121

330UF 50V

C9109 4N7 50V

1 2

5 6

7

8

9

10

11

12

10

9

T9102

210uH

T9102

210uH

C9107 470pF 50V

+

C9124

330UF 50V

+

C9124

330UF 50V

R9146

NC/1.5K 1/4W

R9146

NC/1.5K 1/4W

1 2

FB9101 BEAD

R9104

20K 1/8W 1%

R9104

20K 1/8W 1%

1 2

FB9102 BEAD

VCC

1

VREF

3

G

4

OV/UV

5

FB

6

DT/BF

7

IS

8

NC

9

S1

10

S2

11

HB

13

VCCH

14

D

16

IC9101 LCS703LG-TL

C9137

1uF

C9137

1uF

+

C9132 470UF 25V

+

C9132 470UF 25V

R9115

4.7K 1/8W

R9115

4.7K 1/8W

1

2

3

4

5

6

7

8

9

10

11

12

CN9101CN9101

C9141

330NF 50V

C9141

330NF 50V

R9143

4.3KOHM +-1% 1/8W

R9143

4.3KOHM +-1% 1/8W

R9144

1KOHM +-1% 1/8W

R9144

1KOHM +-1% 1/8W

+

C9123

330UF 50V

+

C9123

330UF 50V

R9140 1K 1/8W 1%

C9138

1uF

C9138

1uF

Q9104 PMBS3904

D9106

SS1060FL

D9106

SS1060FL

R9131 43K 1/8W 1%

R9123

1.5M OHM 1% 1/4W

R9123

1.5M OHM 1% 1/4W

C9140

220nF50V

C9140

220nF50V

C9112

1uF

C9112

1uF

C9139

1uF

C9139

1uF

R9122

15K 1/4W R9122

15K 1/4W

C9111 33nF 50V

R9101 1M 1% 1/4W

R9125 NC/1K 1/8W 1%

C9116 47nF 50V

R9138 1K 1/8W 1%

1

2

3

D9103

FME-220B D9103

FME-220B

1 2

HS9101

HEAT SINK

HS9101

HEAT SINK

+

C9120 10UF 50V

+

C9120 10UF 50V

R9111

150K 1/8W

R9111

150K 1/8W

+

C9122

330UF 50V

+

C9122

330UF 50V

D9107

SS1060FL

D9107

SS1060FL

L9102

1.1uH

L9102

1.1uH

12

43

IC9102 PC123X8YFZOF

C9104 1uF

R9126 4K7 1/8W 1%

R9128

1.5K 1/4W

R9128

1.5K 1/4W

R9103

1M 1% 1/4W

R9103

1M 1% 1/4W

C9106

47pF

C9106

47pF

R9147

NC/1.5K 1/4W

R9147

NC/1.5K 1/4W

!!

R9113

110K 1/8W +/-1%

R9113

110K 1/8W +/-1%

C9128

1uF

C9128

1uF

+

C9130

470UF 25V

+

C9130

470UF 25V

Circuit Diagrams and PWB Layouts

EN 72TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-4-5 Power layout top

19612 504.eps

2013-12-12

3

715G6420

LAYOUT TOP

C9302

D9105

D9302

D9303

D9304

IC9102

IC9331

IC9341

R9314

T9301

J955

J952

J949

J920

J922

J924

J934

J921

J923

J925

J927

J944

J943

J917

J947

J935

J940

J942

J945

J912

J911

J931

J918

J909

J910

J933

J908

J915

J928

J939

J919

J914

J929

J936

J902

J905

J904

J903

J958

J957

J948

J950

J956

J951

J906

J913

J932

J916

H1

H2

H3

H4

R9811 R9816

C9906

C9905

J954

J930

J953

J959

H5

H6

H7

J960

J961

J901

J926

SG903

SLT11

SLT1

SLT2

SLT3

SG907

SG1

SG3

SG4

SG6

SLT4

SG9

SG10

SG11

H902

H904

H907

H905

H903

H906

C9101

C9105

C9106

C9120

C9124

C9122

C9123

C9136

C9130

C9131

C9129

C9132

C9301

C9306

C9307

C9318

C9311

C9317

C9314

C9313

C9312

C9319

C9801

C9804

C9808

C9810 C9812C9811

C9901

C9902

C9908

CN9101

CN9901

D9101

D9102

D9103

D9104

D9306

D9305

D9802

F9901

FB9101

FB9802

HS9101

HS9103

HS9102

HS9301

IC9101

L9101

L9102

L9301

Q9301

Q9801

R9306

R9901

R9902

R9903

SG9901

SG9902

ZD9303

R9106

C9121

NR9901

NR9902

NR9903

L9903

C9909

HS9801

HS9302

HS9901

L9901

L9902

RV9901

T9101

T9102

FB9801

GND1

GND2

GND3

GND4

GND5

C9903

C9904

C9907

CN9301

FB9301

SG9904

SG9903

FB9102

L9801

C9118

FB9302

BD9901

Circuit Diagrams and PWB Layouts

EN 73TPM14.3L LA 10.

2014-Oct-10

back to

div.table

19612_505.eps

2013-12-12

3

715G6420

LAYOUT BOTTOM

SM905

C9102

C9103

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9125

C9126

C9128

C9127

C9133

C9134

C9135

C9303

C9304

C9305

C9308

C9309

C9310

C9315

C9331

C9341

C9802

C9803

C9805

C9806

C9807

C9809

IC9103

IC9342

IC9801

IC9901

Q9103

Q9104

Q9331

Q9332

Q9341

R9101

R9102

R9103

R9104

R9107

R9108 R9109

R9110

R9111

R9113

R9119

R9120

R9121 R9122

R9124

R9125

R9126

R9127

R9128

R9129

R9131

R9132

R9133

R9134

R9135

R9136

R9137

R9138

R9140

R9141

R9142

R9143

R9144

R9301R9302R9303

R9305

R9309

R9308 R9307 R9310

R9311

R9312

R9313

R9316

R9320

R9321R9318

R9319

R9324 R9325

R9331

R9332

R9333

R9334

R9335

R9336

R9337

R9338

R9341

R9342

R9343

R9344

R9345

R9346

R9347

R9348

R9801

R9802

R9803

R9804

R9805

R9806

R9807

R9808

R9809

R9810

R9812

R9813

R9814

R9815

JR905

JR904

JR903

JR901

R9139

C9107

R9115

R9114

R9315

SM1

SM2

R9123

C9137

C9138

C9139

R9145

C9112

JR902

R9112

C9320

C9321

C9332

C9333

R9339

C9316

R9146

R9147

JR907

JR906

C9141

C9140

SG5

SG8

SG7

D9106

D9107

D9108

D9110

D9111

D9301

D9331

D9803

IC9301

Q9333

ZD9103

ZD9104

ZD9301

ZD9302

ZD9330

ZD9340

D9801

10-4-6 Power layout bottom

Circuit Diagrams and PWB Layouts

EN 74TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10.5 A 715G6432 PSU

19612_506.eps

LED Driver

A01 A01

2013-12-12

3

715G6432

LED Driver

VLED_1-

VLED_2-

VLED+

DIM

ON/OFF

OVP_L

VLED_2-VLED_1-

VLED_1-

VLED_2-

+36V

VLED_1-

VLED_2-

ON/OFF

2D/3D

+36V

DIM

+36V

2D/3D

EN

SENSE2

S2

S1

G2

G1

G1 G2

G2

FB2

G2

S2

+12V

330K

+

C8101 470UF 50V

+

C8101 470UF 50V

R8134

10K OHM +-5% 1/8W

R8134

10K OHM +-5% 1/8W

R8139

100 OHM 1/4W

R8139

100 OHM 1/4W

R8144

2 OHM 1% 1/4W

R8144

2 OHM 1% 1/4W

R8166NCR8166 NC

1

2

3

4

5

6

7

8

9

10

11

12

13

CN8101

CONN

CN8101

CONN

R8151 100K 1/8W 1%R8151 100K 1/8W 1%

R8163NCR8163 NC

5

43

1

L8101

300uH

L8101

300uH

R8116 220K OHM 1%

C8115

1UF 50V

C8115

1UF 50V

+

C8107

270UF 100V

+

C8107

270UF 100V

R8103

10K 1% 1/8W

R8103

10K 1% 1/8W

C8144

100N 50V

C8144

100N 50V

R8104

0.1R 2W

R8104

0.1R 2W

R81073KR8107

3K

R81500oHM R81500oHM

C8111

470PF 50V

C8111

470PF 50V

R8172

1.2R 1%

R8172

1.2R 1%

R8117

100K 1/8W 1%

R8117

100K 1/8W 1%

R8162NCR8162

NC

R8149

20K +-5% 1/8W

R8149

20K +-5% 1/8W

R8102 33 OHM

R8112

150KOHM +-1% 1/8W

R8112

150KOHM +-1% 1/8W

Q8144NCQ8144 NC

R8145

2 OHM 1% 1/4W

R8145

2 OHM 1% 1/4W

1

2

L8102 90UH

C8109 1UFC8109 1UF

R8143

10K 1/8W 1%

R8143

10K 1/8W 1%

R8113

10.5K OHM 1% R8113

10.5K OHM 1%

R8133 15K 1% 1/8W

R8159NCR8159

NC

R8146

2 OHM 1% 1/4W

R8146

2 OHM 1% 1/4W

R8101

2.2 OHM 1/8W

R8101

2.2 OHM 1/8W

R8158

1.5R

R8158

1.5R

C8132

100N 50V

C8132

100N 50V

R8165NCR8165 NC

1 2

3

4 5 6 7

8

9 10 11 12

CN8102 CONN

C8116NCC8116 NC

R8138

100 OHM 1/4W

R8138

100 OHM 1/4W

1

2

3

D8101

MBRF10100CT

D8101

MBRF10100CT

R8147

2 OHM 1% 1/4W

R8147

2 OHM 1% 1/4W

R8106

10K 1% 1/4W

R8106

10K 1% 1/4W

C8141NCC8141

NC

R8152

0oHM

R8152

0oHM

C8145 1nF 50V

R8108

330K 1% 1/8W

R8108

330K 1% 1/8W

C8146 1nF 50V

+

C8106

270UF 100V

+

C8106

270UF 100V

R8114NCR8114

NC

R8168

2 OHM 1% 1/4W

R8168

2 OHM 1% 1/4W

R8136

300K

R8136

300K

Q8146NCQ8146 NC

Q8143 EMBA2N10A

R8161NCR8161

NC

R8118

0.1R 2W

R8118

0.1R 2W

R8109 100K 1/8W 1%

R8171

1.2R 1%

R8171

1.2R 1%

Q8103

2N7002K

Q8103

2N7002K

R8110 220K OHM 1%

R8119

100K 1/8W 1%

R8119

100K 1/8W 1%

R8153

220K OHM 1%

R8153

220K OHM 1%

R8148

0R051/8W

R8148

0R051/8W

R8155

200K 1/8W 1%

R8155

200K 1/8W 1%

R8160

1.5R

R8160

1.5R

C8114 2.2NF 50VC8114 2.2NF 50V

1 2

3

4

HS8101 HEAT SINK

R8170

1.5R

R8170

1.5R

R8169

1.5R

R8169

1.5R

R8157

1.5R

R8157

1.5R

C8142

100P 50V_NC

C8142

100P 50V_NC

C8143 100P 50VC8143 100P 50V

R8111

150KOHM +-1% 1/8W

R8111

150KOHM +-1% 1/8W

C8110 0.1uF 50VC8110 0.1uF 50V

C8104

220nF50V

C8104

220nF50V

R8164NCR8164 NC

Q8102

PMBT3906

Q8102

PMBT3906

R8156

1.8R

R8156

1.8R

C8133NC C8133NC

R8105

470R 1%

R8105

470R 1%

R8140

100 OHM 1/4W

R8140

100 OHM 1/4W

C8112 100N 50V

Q8145

EMB32N03J

Q8145

EMB32N03J

R8167NCR8167 NC

Q8101 EMD26N10F

C8103

220nF50V

C8103

220nF50V

C8117NCC8117 NC

R8137100K 1/8W 1% R8137100K 1/8W 1%

R8120

10K OHM +-5% 1/8W

R8120

10K OHM +-5% 1/8W

+

C8108

NC

+

C8108

NC

R8135

10ohm +/-1% 1/8W

R8135

10ohm +/-1% 1/8W

R8115

820K +-5% 1/8W

R8115

820K +-5% 1/8W

R8154NCR8154

NC

D8102

SS1060FL

D8102

SS1060FL

+

C8105

270UF 100V

+

C8105

270UF 100V

R8131

33K OHM 1%

R8131

33K OHM 1%

R8141

0R05 1/4W

R8141

0R05 1/4W

1 2

3

4

HS8102 HEAT SINK

C8131

100N 50V

C8131

100N 50V

R8142

100KOHM +-5% 1/8W

R8142

100KOHM +-5% 1/8W

R8132

20K +-5% 1/8W

R8132

20K +-5% 1/8W

12

ZD8101 BZT52-B9V1_R1_00001

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PAR L

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STATU S

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

IC8101

LD7890GS

IC8101

LD7890GS

C8134

100N 50V

C8134

100N 50V

10-5-1 LED Driver

Circuit Diagrams and PWB Layouts

EN 75TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-5-2 Power layout top

19612 507.eps

2013-12-12

3

715G6432

LAYOUT TOP

J8104

J8103

J8105

J8110

J8101

R8104

R8118

J8108

J8106

J8111

J8102

J8107

C8101

C8102

C8105

C8106

C8107

C8108

CN8102

D8101

HS8101

HS8102

L8101

MH1 MH2

MH3 MH4

MH5 MH6

CN8101

Q8101

L8102

Circuit Diagrams and PWB Layouts

EN 76TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-5-3 Power layout bottom

19612_508.eps

2013-12-12

3

715G6432

LAYOUT BOTTOM

R8101

R8102

R8103

R8105

R8106

R8107

R8108

R8109

R8110

R8112

R8113

R8114

R8115

R8116

R8117

R8131

R8132

R8133

R8134

R8135

R8136

R8137

R8141

R8142

R8143

R8144

R8145

R8146

R8147

R8148

R8149

R8150

R8151

R8152

R8153

R8154

R8155

R8156

R8157

R8158

R8159

R8160

R8161

R8162

R8163

R8164

R8165

R8166

R8167

R8168

MH18MH19

MH20

R8169

R8170

R8171

R8172

C8103C8104

C8109

C8110

C8111

C8112

C8114

C8115

C8131

C8132

C8133

C8134

C8141

C8142

C8143

C8144

C8145

R8138

R8139

R8140

R8119

R8111

C8116 C8117

C8146

Q8102

Q8103

Q8145

Q8146

IC8101

Q8143

Q8144

R8120

D8102

ZD8101

Circuit Diagrams and PWB Layouts

EN 77TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10.6 A 715G6661 PSU

19616_505.eps

AC input

A01 A01

2014-04-30

715G6661

AC input

C9902

1000PF

T5.0AH/250V

RV9901 680V

!

R9909

1M 1/2W

VXA

VXB

-

+

BD9901

KBJ608G-FUC

2

1

3

4

R9908

NC/510K

L9901 14mH

1

2

4

3

C9904

100PF 250V

R9905

NC

C9910

470pF 250V

F9901 FUSE

SG9902

NC

R9906

NC

R9904 NC

L9902 14mH

1

2

4

3

R9907 NC/510K

SG9901

NC

t

NR9901

2.5R

1 2

R9903

NC

FB9901BEAD

1 2

R9901

NC

C9905

470nF 275V

C9903

100PF 250V

IC9901

NC/CAP004DG-TL

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

C9906

470nF 275V

R9902 NC

FB9902 BEAD

12

C9901 NC

Vsin

VXA VXB

VXB

CN9901 SOCKET

12

VXA

!

HS9901

HEAT SINK

1 2

10-6-1 AC input

Circuit Diagrams and PWB Layouts

EN 78TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-6-2 PFC

19616_506.eps

PFC

A02 A02

2014-04-30

715G6661

PFC

D9801

S8KC

R9810

470 OHM 1/4W

R9808 0R15 5%

D9803 SS1060

12

Q9803

NC

C9804 47P 50V

C9817

47PF

R9822

NC

C9803 NC / 100N 50V

R9816

NC / 20K 1/8W 1%

R9815

200K 1/8W 1%

R9803

33R 1/8W 5%

R9817

NC / 5K1 +-5% 1/8W

R9802

10R 1/8W 5%

R9806

10K OHM +-5% 1/8W

R9820 NC

C9812 NC

+

C9815

68UF 450V

HV

R9823

NC

R9821 NC

C9801 1UF 450V

C9810

0.47UF 50V

R9811 0R05

C9818

47PF

C9811 1N 50V

IC9801 LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT

7

VCC

8

R9812 24K 1/8W 1%

Q9801

TK15A60U

R9804

1MOHM +-1% 1/4W

R9807

1MOHM +-1% 1/4W

R9818

18.7K 1/8W 1%

C9807

470P 50V

L9801

300uH

1

3 4

5

D9802 MUR460-28

R9819 NC

R9813 10K OHM +-5% 1/8W

R9814 4K7 +-5% 1/8W

C9809 47N 50V

FB9803

BEAD

1 2

Q9802 NC

C9806

100N 50V

R9809 750K 1%

FB9802

BEAD

1 2

+

C9814 68UF 450V

R9805

47K 1/4W

VCC_ON

Vsin

Circuit Diagrams and PWB Layouts

EN 79TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-6-3 Main Power

19616_507.eps

Main Power

A03 A03

2014-04-30

715G6661

Main Power

C9134 1N 50V

R9407 10K OHM

R9120

270K +-1% 1/8W

R9127

9.1K 1%

D9106

MBRF20100CT

1

2

3

R9119

NC

C9104

2.2NF

R9137 620K-NC

ZD9102

BZT52-B39

12

R9111 0R15 5%

C9133 1uF 50V

+

C9111

330UF 35V

C9119 100PF

R9101 100 OHM 1/4W

+

C9110

330UF 35V

C9141

2N2 50V

ZD9107

BZT52-B16

12

R9160 NC

R9121

5.23K 1% 1/8W

D9105 FMXA-2202S

1

2

3

R9162

2K 1/8W 5%

C9144 1NF-NC

Q9101 TK11A65D

C9911 1NF 250V

R9408 330K

C9126

100PF 500V

C9123

100N 50V

R9144

15K4 1/8W 1%

R9161 100 OHM 1/4W

R9152

20K 1/4W

R9124 2Kohm 1/4W +/-1%

R9142

0 OHM +-5% 1/8W

C9128 47N 50V

R9151

2K43 1/8W 1%

R9117

10K OHM

HS9101

HEAT SINK

1 2

3

4

ZD9401

BZT52-B16

1 2

IC9101 SSC1S311

FB/OLP

1

BD

2

NC

3

ST4DRV

5

OCP

6

VCC

7

GND

8

T9101

POWER X'FMR

7

10 12

5

4

3

2

1

9

6

11

8

IC9103 AS431AZTR-E1

R9122

10K OHM +-5% 1/8W

+

C9402

10UF 50V

R9109

1K OHM +-5% 1/8W

Q9401

BTC4672M3

C9142

2N2 50V

R9103 100 OHM 1/4W

R9163

120 OHM

R9132

150 OHM 1/4W

R9166 100 OHM 1/4W

R9136 NC

+

C9120

470UF 25V

R9125 5K1 +-5% 1/8W

R9110

13K 1/8W 1%

R9118 120 OHM

R9157 1K 2W

R9149

120 OHM

R9145 100 OHM 1/4W

ZD9104

BZT52-B30

1 2

R9134

10 OHM 1/4W

C9106

100N 50V

R9130 100 OHM 1/4W

C9118 220N 50V

R9106

22 OHM 1/4W

R9135

5.1 OHM 1/4W

+

C9135 470UF 25V

C9143

2N2 50V

R9153 330K +-1% 1/4W

R9146 100 OHM 1/4W

R9138

150 OHM 1/4W

R9131

200KOHM 1/8W +/-5%

L9104 3UH

R9129 3K65 +-1% 1/8W

R9159 NC

R9143

300K 1/8W

D9804

SS1060

12

HS9103

HEAT SINK

1 2

3

4

C9112

100N 50V

R9307 10K OHM

R9167 100 OHM 1/4W

R9402 2Kohm 1/4W +/-5%

+

C9108

330UF 35V

R9115

10K OHM

C9147

1uF

+

C9137 470UF 25V

IC9102

EL817M(X)

12

43

IC9151

PF8200AS

GND

1

GND

2

SS

3

FLAG4EN

5

ADJ

6

GATE

7

VCC

8

R9114

150 OHM 1/4W

Q9104

BTB1424AM3

R9107 10K OHM +-5% 1/8W

D9108 SS1060

1 2

C9130 NC

R9104 82K 2W

R9126

1K OHM +-5% 1/8W

C9138

100N 50V

R9164 100 OHM 1/4W

C9105

100N 50V

ZD9106

BZT52-B16

1 2

R9154 NC

C9125

1uF

D9103 PR1007

R9156 1K 2W

D9102 SS1060

12

R9308 10K 1/8W 1%

D9101

SARS01-V1

IC9106

AS431AN-E1

R9405

100K 1/8W 1%

C9127

100PF 500V

R9401

10K

D9107 MBRF20100CT

1

2

3

C9139

NC

R9113

150 OHM 1/4W

Q9107 P1604ETF

+

C9107 47UF 50V

C9131 1uF

ZD9105

BZT52-B39

12

R9116

10K OHM

ZD9101

BZT52-B30

1 2

C9403

100N 50V

R9147

120 OHM

R9112

10 OHM 1/4W

L9103 3UH

+

C9122

470UF 25V

R9139

150 OHM 1/4W

R9150

27K 1/8W 1%

Q9403 2N7002K

R9140

150 OHM 1/4W

C9114 1000PF

R9102 100 OHM 1/4W

R9141

100K

R9123 100K 1/8W 1%

R9178 10K 1/4W

+

C9109

330UF 35V

R9128

200K 1/4W

IC9401

EL817M(X)

12

43

Q9305 MMBT3906 PNP

ZD9103 BZT52-B36

1 2

HS9102

HEAT SINK

1 2

3

4

Q9103 2N7002K

CN9301 CONN

2 4 6

8

10 12 14

1

3

5 7

9 11 13

R9148

120 OHM

+

C9136 470UF 25V

C9113

10N 50V

L9102 3UH

C9103

330P 50V

R9165 100 OHM 1/4W

CN9101

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14

R9105 10 OHM 1/4W

+12V

+24VS12V

R9108 47K +-5% 1/8W

+12V

+24VS

+24LED

OVP

VCC_ON

VCC

PS_ON

+24VS

DV5

12V

DIM

PS_ON

+12V_audio

ON/OFF

+12V

NC

DV5

+12V_audio

DIM

ON/OFF

+24LED

DV5

BL ERR

HV

OVP

!

HV

FOR D9105 Q9107 FOR D9106 D9107FOR Q9101 Q9801

Circuit Diagrams and PWB Layouts

EN 80TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-6-4 Power layout top

19616_508.eps

2014-04-30

A

715G6661

LAYOUT TOP

C9402

D9103

IC9102

IC9103

IC9401

J914

J922

J920

J915

R9156

R9157

C9901

C9817

C9818

D9802

T9101

J904

J910

J903

J905

J902

J906

J901

J917

J918

J925

J921

J919

J913

J908

J907

J911

J926

C8121

J937

J932

D8120

D8121

C8510

J929

J933

J928

J938

J942

J927

J930

J941

J943

J909

J939

J936

J940

J931

J916

HW1

SU1

SU2

J912

MH45

MH43

MH44

SLT1

SLT2

SLT3

SLT4

SLT5

SLT6 SLT7

SLT8

SLT9

C9104

C9107

C9108

C9109

C9110

C9111

C9114

C9120

C9122

C9135

C9136

C9137

C9801

D9105

F9901

FB9902

Q9101

Q9107

Q9801

SCREW4

SCREW17

SG9901

SG9902

HS9101

HS9102

FB9901

FB9802

C9144

C9119

RV9901

L9902

C9903

C9904

C9911

NR9901

D9101

L9102

L9103

L9104

FB9803

R9907

R9908

C9910

L9901

R9104

R9111

R9808

D9106

D9107

CN9901

HS9901

SCREW3

SCREW8

SCREW9

SCREW10

C9902

CN9101

HS9103

SCREW12

SCREW13

SCREW7

SCREW2

SCREW5

C8101

Q8101

R8175

HS8101

C8112

C8117

L8101

IC8501IC8502

IC8503

IC8504

C8118

L8102

CN8501

L9801

BD9901

C9814C9815

FB8101

C9906

C9905

R9909

CN9301

Circuit Diagrams and PWB Layouts

EN 81TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-6-5 Power layout bottom

19616_509.eps

2014-04-30

A

715G6661

LAYOUT BOTTOM

C9126

C9127

JR903

JR904

JR906

JR905

SEN29

SEN31

C9133

IC9901

IC9151

IC9101

IC9801

JR901

JR907

R9821

R9112

R9113

R9114

R9115

R9116

R9117

R9118

R9130

R9135

R9139 R9140

R9401

R9804

R9805

R9807

R9809

R9810

R9901

R9902

R9903

R9178

R9307

R9105

R9106

R9402

R9152

R9407

R9141

R9904

R9905

R9820

R9822

R9906

R9147

R9148

R9149

R9811

R9154

R9153

R9159

R9160

R9163

R9134

R9124

R8532

Q9803

Q9305

Q9802

Q8501

Q8502

R9806

R9107

R9108

R9109

R9110

R9119

R9120

R9125

R9126

R9129

R9131

R9136R9143

R9144

R9408

R9802

R9803

R9812

R9813

R9814

R9405

R9308

R9816

R9817

R9150

R9151

R9162

R9818

R9137

R9815

R9819

R9142

R9823

R8516

R8530R8531

R8533

R8514

R8515

C9804

C9103

C9105

C9106

C9112

C9113

C9118

C9123

C9125

C9128

C9130

C9403

C9138

C9142

C9143

C9806

C9807

C9809

C9810

C9141

C9803

C9131

C9811

C9134

C9139

C9147

C9812

C8102

C8517

C8501

C8518

C8531

R9145

R9146

R9164

R9101

R9102

R9103

R9161

R9165

R9166

R9167

IC9106

Q9403

R9127

R9128

R9123

R9121

R9122

Q9103

SEN1

JR909

C8114

IC8103

JR916

R8154

R8155

R8156

R8176

R8161

C8115

R8141

R8144

R8148

R8157 R8158

R8163

R8147

R8145

R8501

R8504

R8507

R8509

R8510

R8511

R8512

R8502 R8503

R8505

R8506

R8508

R8521

R8522R8524

C8105

C8106

C8111

C8113

C8119

C8502

C8503

C8504

C8505

C8506

C8507

C8508

C8530

R8162

JR902

JR910

R9138

R9132

MH40MH39

MH41MH42

Q9104

Q9401

D9801

D9803

D9102

ZD9401

ZD9101

ZD9102

ZD9106

ZD9104

ZD9105

ZD9103

ZD9107

D9108

D8118

ZD8103

D8501

D9109

Circuit Diagrams and PWB Layouts

EN 82TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10.7 A 715G6555 PSU

Power circuit

A01 A01

2014-05-16

C

715G6555

Power circuit

!

D9310 FR107

C9956

1NF 250V

!

HS9901

HEAT SINK

1

2

3

4

F9901

FUSE

1 2

3 4

IC9801

LD7591T

INV

1

COMP

2

RAMP

3

CS4ZCD

5

GND

6

OUT

7

VCC

8

D9308

SS1060FL

C9910

470nF 275V

C9911

470nF 275V

GND3

GND

1

+12V

B1+

Q9803

PMBTA45

R9811

NC

Q9802 PBHV9050T

R9817 100KOHM +-5% 1/8W

24VA

VCC_ON

C9144 100N 50V

R9822

5K1 +-5% 1/8W

R9821

20K 1/8W 1%

R9140 1K 1/8W 1%

C9824 100N 50V

Q9103

PMBS3904

D9109 1N4148

ZD9101

GDZJ30B

1 2

R9350

1K 1/8W 1%

R9819 1MOHM +-1% 1/4W

R9351 2K 1/8W 1%

R9818 1MOHM +-1% 1/4W

Q9106 PMBT3906

ZD9102

GDZJ15B

1 2

R9820 1MOHM +-1% 1/4W

R9111

0 OHM +-5% 1/8W

R9139 100 OHM 1%

R9813

1MOHM +-1% 1/4W

R9143

NC

R9814

1MOHM +-1% 1/4W

R9812

1MOHM +-1% 1/4W

D9110 1N4148

D9111

SS1060FL

DV5

R9138

1K 1/8W 1%

+12V_audio

LLC OVP +12V

2D/3D

ON/OFF

PS_ON

CN9301 CONN

2 4 6

8

10 12 14

1

3

5 7

9 11 13

DIM

+12V

+12V_audio

!

R9901 1M 1/2W

!

! !

!

-

+

BD9901

KBJ1008G-FU

2

1

3

4

24VA

t

NR9901

2.5R

12

CN9101

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14

VCC_ON

C9330

100P 50V

C9809

0.47UF 50V

D9801

FMNS-1106S

FB9804 BEAD

1 2

R9903

NC/510k 1/2W

C9833

NC/47pF

+

C9803

68UF 450V

+

C9802

68UF 450V

C9171

1.5NF

+

C9801

68UF 450V

ON/OFF

+

C9316

470UF 25V

L9801

240uH

5

43

1

ZD9302 BZT52-B36

1 2

R9902

NC/510k 1/2W

Q9304 PMBT3906

C9309

2N2 500V

D9302

SS1060FL

R9802

10 OHM 1/8W

R9338

10K OHM

R9325

51 OHM 1/4W

IC9342

AS431AN-E1

C9302

NC

Q9301

TK13A65U

Q9302

2N7002K

C9303

2.2NF

R9341 10K 1/8W 1%

C9321 100N 50V

L9301 3UH

IC9341

EL817M(X)

12

43

D9305 FR107

ZD9301 BZT52-B36

1 2

C9310

2N2 500V

R9301

0.1R

+

C9311

470UF 25V

+

C9307 47UF 50V

R9340 10K 1/8W 1%

R9337

1K 1/8W 1%

ZD9304

BZT52-B16

1 2

R9332

6.2K OHM +-1% 1/8W

R9322 51 OHM 1/4W

R9809

2K 1/8W 1%

R9344

2Kohm 1/4W +/-5%

R9303

6.8K 1/4W

R9335

2K 1/8W 1%

R9320

51 OHM 1/4W

R9334 3K9 1/8W 1%

R9306

10R 1/8W 5%

R9343 2K 1/8W 5%

R9310

470R 1%

R9308

0.3R 2W

R9311

2R2 +-5% 1/4W

R9336 2K2 1/8W 5%

+

C9322

22UF 50V

R9323 51 OHM 1/4W

R9345

100K 1/8W 1%

R9307

51 oHM 1% 1/8W

R9342

10K OHM +-5% 1/8W

IC9302

EL817M(X)

12

43

R9339 330K 1% 1/8W

R9330

10K OHM +-5% 1/8W

R9321 51 OHM 1/4W

Q9303 2N7002K

C9304

10N 50V

R9302

6.8K 1/4W

C9301

10NF 1KV

+

C9312

470UF 25V

C9317

100N 50V

C9320 220N 50V

ZD9303

BZT52-B15

1 2

PS_ON

Q9305 BTC4672M3

D9309

SS1060FL

C9306 470P 50V

R9324 51 OHM 1/4W

C9308 100N 50V

+

C9313

470UF 25V+C9314

470UF 25V

R9309 10KOHM

+

C9315

NC

R9805 10K OHM +-5% 1/8W

VCC

DV5

CN905 NC/CONN

1

2

+

C9323

10UF 50V

+12V1

DV5

VCC

+12V1

LLC OVP

IC9301

LD7752B

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

R9305

NC

VCC_ON

+12V

D9306 FME-220B

1

2

3

R9333 9K53 1%

D9307 FME-220B

1

2

3

BOX

C9305 47nF 50V

!

FB9801 BEAD

1 2

FB9802

BEAD

1 2

ZD9305 NC/P6KE160AA0

12

R9808

20K 1/4W

FB9810 BEAD

1 2

C9909

47pF 250V

C9908 47pF 250V

C9907

220PF 250V

C9906

220PF 250V

R9816 NC

C9810 100P 50V

R9815 19K1 +-1% 1/8W

SG9904

NC/DSPL201M-A21F

R9331 330K 1% 1/8W

C9804

470PF1KV

R9804

0.2R

SG9905 NC/DSPL201M-A21F

FB9904

BEAD

1 2

L9901

12MH

124

3

FB9805

NC/BEAD

1 2

L9902

12MH

124

3

T9301

POWER X'FMR

1

2

3

4

5

6

7

9

10

CN901

SOCKET

1 2

!

t

NR9902

2.5R

12

C9815

1UF 450V

DIM

R9806

27K 1/8W 1%

C9806

100N 50V

C9805

47P 50V

ZD9801

BZT52-B16

1 2

Q9801

TK16A60W

ZD9802

BZT52-B16

1 2

R9807

330 OHM 1/4W

R9803

51 oHM 1% 1/8W

+

C9807

10UF 50V

R9810

10K 1/4W

C9812 NC/47pF

R9801

0.2R

C9814 1N 50V

B1+

FB9903

BEAD

12

IC9999

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

!

HS9301

HEAT SINK (Q9301)

1

2

3

4

C9955

470pF 250V

A

B

C9901 NC

CN9903

NC/CONN

L

1

N

2

R9312

NC/2.7 OHM 1/4W

D9804

SS1060FL

B

A

R9304

6.8K 1/4W

HS9302

HEAT SINK

1 2

3

4

D9802

S8KC

C9331

100P 50V

C9808 47N 50V

GND1

GND

1

D9301 FR107

HS9801

HEAT SINK

1 2

3

4

RV9901

680V

R9313

82K 2W

GND2

GND

1

10-7-1 Power circuit

Circuit Diagrams and PWB Layouts

EN 83TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-7-2 LLC Main Power

19616_501.eps

LLC Main Power

A02 A02

2014-05-16

C

715G6555

LLC Main Power

HS9102

HEAT SINK

3

4

1 2

R9145

20K 1/8W 1%

C9157 22nF

+

C9147 10UF 50V

R9161

19.1KOHM +-1% 1/8W

R9163 2K 1/8W 1%

C9912

470pF 250V

R9180 30KOHM +-1% 1/8W

R9175

1.5K 1/4W

R9171

5.1K 1/4W

C9170 100N 50V

D9117

SR560-MK23-C

1 2

!

C9151 1UF

C9153

1UF

R9151

10R 1/8W 5%

R9141

0.1R

+

C9164 330UF 35V

C9159

10nF

R9149

470OHM +-5% 1/8W

+

C9168 470UF 25V

+

C9163

470UF 25V

+

C9169 470UF 25V

R9172

5.1K 1/4W

R9173

5.1K 1/4W

R9153

10K 1/8W 1%

R9174

5.1K 1/4W

R9156

10K 1/8W 1%

C9152

10PF 3KV

R9176

1.5K 1/4W

R9158

6.2K OHM +-1% 1/8W

R9177

1.5K 1/4W

ZD9104

GDZJ15B

1 2

R9160

1K 1/8W 1%

R9148 NC

24V

ZD9105

GDZJ22B

1 2

R9144

1M5 1/4W 1%

R9146 2K43 1/8W 1%

C9150

2.2UF 25V

IC9106 EL817M(X)

12

43

D9113

SS1060FL

D9112

SS1060FL

L9105

5uH

R9101 200R 1/8W 1%

L9106

5uH

VBoot

B1+

C9156

100PF1KV

C9149 100N 50V

C9155 1N 50V

VBoot

D9115 FMEN-2308

1

2

3

C9165 100N 50V

IC9101

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

C9154 560P 50V

R9152

47OHM +-5% 1/8W

IC9107

AS431AN-E1

R9154

47OHM +-5% 1/8W

C9146

100N 50V

R9159

3.3K +-5%1/8W

D9114

UF4007

C9145

100N 50V

C9158 NC

C9166

1uF

C9348 100N 50V

C9148

4.7uF 10V

+12V_audio

R9147

470R 1%

+

C9161 330UF 35V

C9349 100N 50V

+

C9174 330UF 35V

+

C9172 330UF 35V

+

C9160 330UF 35V

R9142

1M5 1/4W 1%

R9150

1M5 1/4W 1%

24VA

24V

R9102

10R 1/8W 5%

Q9102 TK10A60D

Q9101 TK10A60D

R9103

10R 1/8W 5%

D9118

SR560-MK23-C

1 2

FB9833

BEAD

1 2

VCC_ON

FB9803

BEAD

1 2

T9101

830uH

1

4

5 6

7

8

9 10

11

12

FB9101

NC/BEAD

1 2

+12V_audio-1

HS9303

HEAT SINK (D9115)

1

2

3

4

+12V_audio

Circuit Diagrams and PWB Layouts

EN 84TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-7-3 LED Driver

19616_502.eps

LED Driver

A03 A03

2014-05-16

C

715G6555

LED Driver

Q8102 NC/MTBA5N10J3

R8107

NC/0R1 5% 3W

LED_a

C8130

NC/47PF

R8106

NC/10K OHM +-5% 1/8W

D8101 NC/FMWN-2308

1

2

3

+

C8107

NC/82uF 100V

R8123 NC/15K 1/8W 1%

R9119 NC/30K 1/4W

R8127

NC

Q8105 NC/PMBS3904

+

C8101

NC/330UF 35V

Q8101

NC/TK12A10K3

R8114 NC/100R 1%

+

C8118

NC/82uF 100V

Q8104 NC/PMBT3904

R8122

NC/100KOHM +-5% 1/8W

R8120

NC/1.2 OHM

CN8501

CONN

1

2

3

4

5

6

7

8

9

10

11

12

C8103

NC/1uF

C8104 NC/1nF 50V

D8102 NC/1N4148W

D8103 NC/1N4148W

Q8106 NC/PMBS3906

ZD8102

NC/BZT52-B22

1 2

HS9101

NC/HEAT SINK

1 2

3

4

R8112 NC/330K +-1% 1/4W

R8115

NC/1.2 OHM

R8103 NC/10K 1/10W 5%

R8117 NC/27K 1/8W 1%

R8129

NC/1oHM 1% 1/4W

C8113 NC/0.1uF 50V

ZD8101

NC/BZT52-B4V7

1 2

R8108

NC/330R 1/8W 5%

R8125

NC/1.2 OHM

R8105

NC/2R2 +-5% 1/8W

R8113 NC/1K OHM +-5% 1/8W

C8109

NC/470NF 50V

R8111 NC/10K OHM +-5% 1/8W

IC8101

NC/PF

䠗7903BS

DIMOUT1GM2FB3OVP/DIM

4

CS

5

GND

6

OUT7VCC

8

R8109 NC/10 OHM 1/4W

Q8103

NC/2N7002 R8110 NC/100R 1%

R8101 NC/10K OHM +-5% 1/8W

R8128

NC/1oHM 1% 1/4W

R8118

NC/1.2 OHM

R8121 NC/51K +-5% 1/8W

R8124 NC/10K 1/10W 5%

C8110 NC/1NF

C8114

NC/1uF

R8104

NC/22OHM +-5% 1/8W

C8106 NC/220nF50V

R8102 NC/47KOHM +-1% 1/8W

+

C8115 NC/22UF 50V

R8126

NC/1.2 OHM

C8112

NC/1nF

R8116 NC/330K +-1% 1/4W

FB

C8105 NC/0.1uF 50V

C8111 NC/100N 50V

DIMOUT

VCC_1

DIMOUT

VCC_1

FB

LED_a

+12V

DIM

ON/OFF

24VA

VLED+

C8108

NC/220nF50V

L8102

NC/33uH

2

1

C8120

NC/100P 50V

Circuit Diagrams and PWB Layouts

EN 85TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-7-4 Power layout top

19616_503.eps

2014-05-16

C

715G6555

LAYOUT TOP

SU5

SU1

SU7

SU3

SU6

SU4

SU2

SU8

SU9

S1

S2

S3

S4

S5

C9147

C9160

C9161

C9163

C9164

C9168

C9169

C9172

C9174

C9302

C9303

C9311

C9312

C9313

C9314

C9315

C9316

C9801 C9802 C9803

C9807

C9812

C9833

C9901

CN901

CN905

D9115

D9305

D9306

D9307

D9801

F9901

FB9804

HS9102

HS9302

HS9801

HS9901

IC9106

IC9302

IC9341

L9105

L9106

L9301

L9901

L9902

NR9901

NR9902

Q9101Q9102

Q9301

R9313

R9901

ZD9101

ZD9102

ZD9104

HS9301

D9310

J924

D9114

ZD9105

J905

FB9802

FB9801

J912

J913

J903

J901

J909

J914

J917

J916

J922

J921

D9109

D9110

J918

J919

R9141

J902

J915

J934

J928

J927

J920

MH11

MH10

MH9

MH6

MH5 MH8

MH7

MH4

MH2

J929

MH12

MH1

MH3

R9301

R9308

C9322

FB9810

GND1

GND2

GND3

FB9803

T9301

T9101

RV9901

J911

J930

J907

C9157

C9152

BD9901

L9801

CN9101

HS9303

C9323

C9307

R9801

SG9904

SG9905

CN9903

L8102

C8130

CN8501

D8101

C8115

C8101

C8107

C8118

R9902

R9903

R8107

R9804

Q8101

ZD9305

FB9903

FB9904

J904

FB9101

J906

J910

J908

FB9805

J926

J923

J931

J938

J939

J940

J936

C9906

C9907

C9912

C9955

C9908

C9909

C9815

C9910

C9911

C9171

C9156

C9804

C9301

D9301

Q9801

J935

J937

J941

J942

J943

HS9101

CN9301

D9117

D9118

J925

FB9833

Circuit Diagrams and PWB Layouts

EN 86TPM14.3L LA 10.

2014-Oct-10

back to

div.table

19616_504.eps

2014-05-16

C

715G6555

LAYOUT BOTTOM

C9144

C9145

C9146

C9148

C9149

C9150

C9151

C9153

C9154

C9155

C9158

C9159

C9165

C9166

C9170

C9304

C9305

C9306

C9308

C9309C9310

C9317

C9320

C9321

C9348

C9349

C9805

C9806

C9808 C9809

C9810

C9814

C9824

D9111

D9112D9113

D9302

D9308

D9309

D9804

IC9101

IC9342

Q9103

Q9106

Q9302

Q9303

Q9304

Q9305

Q9802

Q9803

R9101

R9102 R9103

R9111

R9140

R9142

R9143

R9144

R9145

R9146

R9148

R9149

R9150

R9151

R9152

R9153

R9154

R9156

R9160

R9161 R9163

R9171

R9172

R9173

R9174

R9175

R9176

R9177

R9180

R9302

R9303

R9304

R9305

R9306

R9307

R9309

R9311

R9312

R8118

R8120

R9320 R9321 R9322 R9323 R9324 R9325

R9330

R9331

R9332

R9334

R9337

R9339

R9340

R9341

R9343

R9344

R9345

R9350 R9351

R9802

R9803

R9805

R9808

R9809

R9810

R9811

R9812R9813

R9814

R9815 R9816

R9817

R9818

R9819 R9820

R9821

R9822

R8125

R8127

ZD9301

ZD9302

ZD9303

ZD9304

ZD9801

ZD9802

R9314

R9310

RJ902

R9807

R9806

RJ901

IC9999

R9336

R9335

R9138

R9139

R9342

R9333

R9338

F1F2

F3F4

IC9801

D9802

IC9301

C8104

C8112

C8103

C8105

C8106

C8108

C8109

C8110

C8111

C8113

C8114

C8120

C9330

C9331

R8103

R8124

R8101

R8102

R8104

R8105

R8106

R8108

R8111

R8113

R8117

R8121

R8122

R8123

R8109

R8112

R8115

R8116

R8126

R8128

R8129

R9119

D8102

D8103

ZD8101

ZD8102

IC8101

Q8104

Q8105

Q8106

Q8103

Q8102

IC9107

R8110

R9147

R9158

R9159

RJ903

RJ904

RJ905

R8114

10-7-5 Power layout bottom

Circuit Diagrams and PWB Layouts

EN 87TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10.8 B 715G6230 SSB

19630_514.eps

System Power 1

B01 B01

2013-12-11

C

715G6230

System Power 1

OPWRSB_PWR

OPWRSB_PWR Normal:High Stand_By:Low

TUNER VCC From +5V_SW

C749 10uF 10V

U705 AP1117D33G-13

VIN3VOUT

2

ADJ(GND)

1

+5V_SW +3V3_TUNER

DVDD3V3+5V_SW

1038_EN

+

C774

100UF 16V

R4022

NC/0R 05 1/ 16W

C723

1UF 10% 16V

R4275

0R05

R4277

0R05

R7137

0R051/8W

+12V_SKY PE

TP710

C765

NC/1nF 50V

+12V

R713

5.1K 1%

C734

10UF 6.3V 20%

FB704

120R 3A

1 2

R710

10K 1/16W 5%

R716

10K +-1% 1/16W

FB712

120R

1 2

C721 100NF 16V

C731

10UF 6.3V 20%

C732

10UF 6.3V 20%

C733

10UF 6.3V 20%

VCCK

C710

1UF 10% 16V

AVDD1V2

OPWRSB_PWR

1038_FB

1038_EN

C700

NC/10uF 6.3V

OPWRSB

R727

NC/22K 1/ 16W 5%

R715

1K 1/16W 5%

R701

100R 1/16W 5%

3V3SB

R754

6K8 1/10W 5%

R755

10K 1/16W 5%

R760

NC/10K 1/ 16W 5%

R756

10K 1/10W 5%

Q752 AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

C753

1UF 10% 16V

Q753 2N7002

+12VMain_12V

R757

5.1KOHM +-5% 1/10W

+

C701

100UF 16V

+

C755

220UF 16V

OPWRSB_PWR

OPWRSB_PWR Normal:High Stand_By:Low

R707

110R 1/10W 1%

TP703

R708

24R 1/10W 1%

DDRV

U707 AZ1084CS2-ADJ TRE1

ADJ/GN D

1

OUTPUT(TAB)

2

INPUT

3

DVDD3V3

TP701

R4288

0R051/8W

R4289

0R051/8W

+

C775

100UF 16V

R4280

NC/0R 051/8W

+12V_Audio

R700

10KOHM

TP705

R4279

0R051/8W

C768

NC/10UF 10V

TP700

INVERTER_ON_OFF: Normal: High Stand_By: Low

R412

10K 1/16W 5%

DVDD3V3DVDD3V3

BL-I-CTRL

R419

4K7 1/16W 5%

R420

4.7K1/16W

Q410 MMBT3904

BRIGHT_ADJ: Normal:Max:+3V3, Min:0V Stand_By:0V

DC POWER INPUT

TP702

OPWRSB: Normal: High Stand_by: Low

+12V_AL

+12V_AL 16

AVDD3V3

AU_12V

TP704

C719

NC/100N F 16V

TP706

Main_12V

STB_PW R

R4283

2.2K OHM 1%

OPWRSB_PWR

R4298

NC/0R051/8W

DDRV From DVDD3V3

R4287

0R051/8W

R712

0R05 1/16W

R7110

NC/4.7K1/16W

2D/3D_EN2D/3D_EN

FB705

120R 3A

1 2

R4297

0R051/8W

R4023

0R05 1/16W

VCCK

+5V_STB

U701

AZ1084CS2-3.3TR G1

VIN3VOUT

2

GND

1

1038_FB

R4284

0R051/8W

2D/3D_EN

2D/3D_EN 10,12Main_12V

INVERTER_ON _OFF

C712

10uF 16V

C767

10uF 16V

3V3SB by +5V_STB or STB_PWR

U702

AOZ1038DI 6A

PGND

1

VIN

2

AGND

3

FB4COMP

5

EN

6

NC

7

NC

8

LX

9

C769

NC/10UF 10V

R4276

0R05

C718 100NF 16V

C713

NC/100pF 50V

+12V_AL

C770

NC/10UF 10V

+

C778

100UF 16V

+12V

R4291

NC/0R 051/8W

TP711

3V3SB

R417

100R 1/10W 5%

BOOST_PW M

+

C725

100UF 16V

BRIGHT_ADJ

BOOST_PWM

FB715

NC/120R

1 2

C704

1nF 50V

R714

10K 1%

+12V

VCCK

Q706

NC/2N 7002

R724

NC/2K 1/ 16W 5%

CN700

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

(650KHz)

+5V_STB

FB710

120R 3A

1 2

Q705 NC/MMBT3904

Main_12V

R725

NC/10K 1/ 16W 5%

R723

NC/10K 1/ 16W 5%

R726

100K 1/16W 5%

C745

8.2NF 50V

3V3SB

L701

3.3UH

U708

TPS54428DDAR

EN

1

VFB

2

VREG5

3

SS4GND

5

SW

6

VBST

7

VIN

8

E-PAD

9

+5V_USB

L705

3.3UH

Main_12V

C709

1UF 10% 16V

C720

10uF 16V

C744 22P 50V

C743

100N 16V

C766 100N 16V

+12V to +5V_STB by OPWRSB

STB_PW R

C742

100N 16V

C737

10UF 10V

R739

124K 1%

R737

22.1K 1%

DVDD3V3 From +5V_SW

AU_12V

BL-I-CTRL

BL-I-CTRL 12

(450KHz)

2D/3D_EN

R706

22KOHM 1/10W

Q701 BC847C

R704

33K 1/10W 5%

C763

10UF 10V

R705

2K7 1/16W 5%

+5V_STB

C735

100NF 16V

C764

1UF 10% 16V

+5V_SW

Q702

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

+12V

+5V_USB

BRIGHT_ADJ

OPWRSB

+3V3_TUNER

DVDD3V3

+5V_USB6

INVERTER_ON _OFF

DDRV

OPWRSB5

GND 4,5,6,7,8,9,10,11,12,14,15,16

+5V_STB TO +5V_SW BY VCCK

BRIGHT_ADJ 10

INVERTER_ON _OFF 10

DVDD3V3 5, 6,8,10,12, 15,16 3V3SB5,6,8,10,12,14

+3V3_TUNER 15 AVDD3V3 5,6, 7,10,11,12, 14

AVDD1V2 7,10, 14

+12V 4,8

VCCK 5,12

+5V_SW

AVDD3V3

DDRV 11

+5V_SW 4, 6,7,10,14,15

AVDD1V2

3V3SB

VCCK

FB716

NC/120R

1 2

R717

NC/2R2 +-5% 1/8W

+5V_SW

C4310

10UF 6.3V 20%

R758

6K8 1/10W 5%

R761

10K 1/16W 5%

R762

10K 1/10W 5%

R763

NC/10K 1/ 16W 5%

+

C736

100UF 16V

Q754 AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

C756

1UF 10% 16V

Q755 2N7002

AU_12V

R764

5.1KOHM +-5% 1/10W

U706

AP1117D33G-13

VIN3VOUT

2

ADJ(GND)

1

+

C757

220UF 16V

ZD4001 NC/R LZ 7. 5B

12

10-8-1 System Power 1

Circuit Diagrams and PWB Layouts

EN 88TPM14.3L LA 10.

2014-Oct-10

back to

div.table

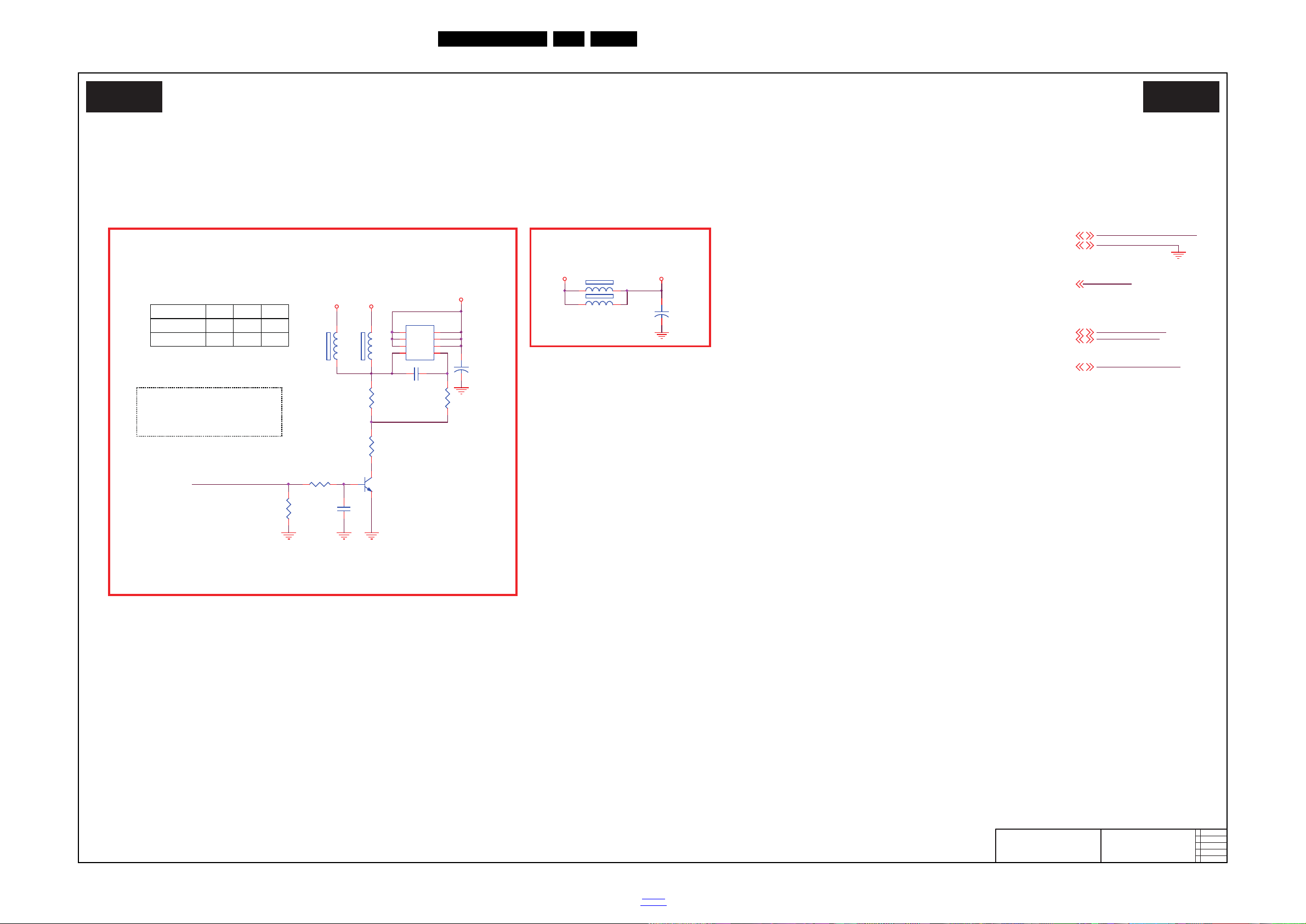

10-8-2 System Power 2

19630_515.eps

System Power 2

B02 B02

2014-1-14

C

715G6230

System Power 2

R753

6K8 1/10W 5%

FB751

NC/120R

1 2

FB754

120R

12

R750

10K 1/16W 5%

R759

10K 1/16W 5%

R752

10K 1/10W 5%

FB755

120R

1 2

Q750 AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

C750

1UF 10% 16V

C751

NC/4.7UF 10V

Q751 BC847C

FB750

120R

1 2

R751

5.1KOHM +-5% 1/10W

PANEL_VCC

+12V+5V_SW

+12V_Audio

PVDD

PANEL_VCC_ON/OFF12

GND3,5,6,7,8,9,10,11,12,14,15,16

DVDD3V33,5,6,8,10,12,15,16

PVDD8

+5V_SW3,6,7,10,14,15

+12V3,8

+

C752

220UF 16V

Panel VCC=12V or 5V

+

C762

220UF 25V

PA NE L_V CC ON/ OF F:(OP CTRL9) Normal:High Stand_By:Low

PANEL_VCC_ON/OFF

GND

PANEL_VCC_ON/OFF

Audio VCC= +12V

R751

5.1K 0R

Yes

NC

+12V +5V

PANEL VCC

FB750 FB751

DVDD3V3

PVDD

+5V_SW

+12V

Circuit Diagrams and PWB Layouts

EN 89TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-3 Peripheral

19630_516.eps

Peripheral

B03 B03

2014-1-14

C

715G6230

Peripheral

U4053

74HC4052PW

2Y0

1

2Y2

2

2-COM

3

2Y3

4

2Y1

5

INH

6

GND

7

GND8B

9

A

10

1Y3

11

1Y0

12

1-COM

13

1Y1

14

1Y2

15

VCC

16

RXD_RF4CE

U0TX

ORESET#

OSDA0

Reset IC

GND

SYS_EEPROM_WP OSCL0

OSDA0 OPCTRL3

OPWRSB

RESET_RF4CE#

OPCTRL7

OPCTRL712

RESET_RF4CE# OIRI

OIRI6

RESET_RF4CE#12

3V3SB

PACLE

CN413

CONN

1 2

3

4 5 6 7

8

910

TXD_R F4CE

R4061 10K 1/16W 5%

R4057 10K 1/16W 5%

R4053 10K 1/16W 5%

R4028

4K7 1/16W 5%

C4038

100NF 16V

C4045

NC/10U F 10V

R4054 10K 1/16W 5%

EMMC_CLK

R4056 10K 1/16W 5%

U0RX

VDDI

PDD4 PDD5 PDD6

H

HDMI function

Debug mode

H

B

PDD7

+12V L

A

R4060 10K 1/16W 5% DVDD3V3

CHANNEL

H

HDMI pin14

NC

HDMI0_SCL

DVDD3V3

ZD4000

RLZ9V1B

1 2

VDD_NAND

EMMC_RST#

HDMI_SCL0/RX

eMMC

HDMI_SDA0/TX

R4066

10K 1/16W 5%

R4065

40.2K 1/16W 1%

Q4000

MMBT3904

C4046 100N 16V

R4067

10K 1/16W 5%

+5V_STB

R4064

60.4K 1%

EMMC_ RST#

C4039

1uF 10V

DVDD3V3

R4063

NC/0R 05 1/ 16W

R4055 10K 1/16W 5%

C4044

100NF 16V

C4043

100NF 16V

R4059 10K 1/16W 5%

FB4000

120R/600mA

12

OSDA1

PAALE

C4034

10UF 10V

C4033

100NF 16V

PDD2

R4062 10K 1/16W 5%

C4035

10UF 10V

C4036

100NF 16V

C4037

100NF 16V

R4058 10K 1/16W 5%

POWE#

PDD3

OSCL1 OSDA1

OSCL16 OSDA16

PACLE

HDMI0_SCL HDMI0_SDA

HDMI0_SCL14 HDMI0_SDA14

AVDD33_VGA_STB

TP450 TP

POWE#

C4031

4U7 10V

POWE#

OSCL1

HDMI_SCL0/RX

HDMI_SCL0/RX14

R4033 4K7 1/ 16W 5%

RXD_RF4CE

3.3V IO Power

I2C Address "A0"

R4035 4K7 1/ 16W 5% R4036 4K7 1/ 16W 5%

VCCK

AVDD33_XTAL_STB

LED_PWM06,12

LED_PWM0 LED_PWM1

LED_PWM16,12

SYS_EEPROM_WP

UART_SEL

UART_SEL14

C4014 NC/47PF 50V

PDD7 PDD5

UART_SEL

PARB#

PDD6 PDD4

PDD3

POOE#

PDD2 PDD1

POCE1#

PDD0

DVDD3V3

NAND Flash

NAND 512MB

VDD_NAND

EMMC_CLK

HS401

HEAT SINK

1 2

OIRI

C4002

100NF 16V

3V3SB

D4001

NC/BAV99

3

1

2

C4005

8.2PF 50V

C4027

10UF 10V

R4040

18K 1%

C4011 100NF 16V

Core Power

RF4CE Int erface

C4022

1UF 10% 16V

U410

NC/AZ809ANSTR-E1

GND

1

RESET

2

Vcc

3

R4029

100R 1/16W 5%

C4008 100NF 16V

C4016 100NF 16V

CN412

PHONE JAC K

1

2

3

D4000

NC/BAV99

3

1

2

HDMI0_SDA

C4023

10UF 10V

EMMC_ RST#

EMMC_ RST#12

C4004

8.2PF 50V

U4052 THGBM5G5A1JBAIR

DAT0

A3

DAT1

A4

DAT2

A5

NC

A2

NC

B1

DAT3

B2

DAT4

B3

DAT5

B4

DAT6

B5

DAT7

B6

VDDI

C2

Vssq

C4

Vccq

C6

NC

C1

Vcc

E6

Vss

E7

NC

A7

NC

C3

Vcc

F5

NC

D2

Vss

G5

NC

G10

NC

G3

NC

H5

Vss

H10

NC

J5

Vcc

J10

RSTN

K5

NC

K1

NC

K2

Vss

K8

Vcc

K9

NC

K3

Vccq

M4

CMD

M5

CLK

M6

Vssq

N2

Vccq

N4

Vssq

N5

Vccq

P3

Vssq

P4

Vccq

P5

Vssq

P6

NC

P8

NC

N7

A1 index

D4

NC

A6

NC

D1

NCP2NCN6NC

P7

X40 00

27MHz

1

2 4

3

C4012 100NF 16V

R4009

4K7 1/16W 5%

C4003

NC/1uF 16V

U409

CAT24C128WI-GT3

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

R4027 4K7 1/16W 5%

C4013

10UF 10V

C4006

NC/4.7uF 10V

C4017 100NF 16V

C4015 100NF 16V

R4007

0R05 1/16W

C4010 100NF 16V

R4001

R4031

4K7 1/16W 5%

10K

R4001

NC/0R 05 1/ 16W

NC

E-Fuse

R4005

4K7 1/16W 5%

NC 0R

FSRC_WR

OIRI

C4024

4U7 10V

AVDD33_XTAL_STB

Internal POR

U4051 NC/TC58NVG2S0FTAI0

CLE

16

I/O0

29

R/B1

7

VSS

13

VDD12VDD

37

VSS

36

ALE

17

I/O1

30

I/O2

31

I/O3

32

I/O4

41

I/O5

42

I/O6

43

I/O7

44

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

NC

10

NC

11

NC

14

NC

15

NC

20

NC

21

NC

22

NC

23

NC24NC

25

NC

26

NC

27

NC

28

NC

33

NC

34

NC

35

NC

38

NC

39

NC

40

NC

45

NC

46

NC

47

NC

48

RE

8

CE1

9

WE

18

WP

19

DVDD3V3

R4026 4K7 1/16W 5%

MT5591JVDJ

U401G

JTCK

AK10

JTDI

AK11

JTDO

AL9

JTMS

AJ11

JTRST#

AJ12

OSDA0

AH11

OSCL0

AH10

OSDA1

AF11

OSCL1

AG11

XTALI

AN29

XTALO

AM29

AVDD33_XTAL_STB

AN30

AVSS33_XTAL_STB

AL29

AVDD33_VGA_STB

AN17

AVSS33_VGA_STB

AL17

AVSS33_PLLGP

AC21

AVDD10_LDO

AM17

U0TX

AH15

U0RX

AH14

U1RX

AG13

U1TX

AH13

POWE#

D24

POOE#

B25

POCE1#

D25

POCE0#

A25

PDD7

C22

PDD6

B22

PDD5

A22

PDD4

C23

PDD3

A23

PDD2

B23

PDD1

D23

PDD0

C24

PARB#

C25

PACLE

A26

PAALE

B26

OPWRSB

AL15

ORESET#

AK20

OIRI

AF17

FSRC_WR

C20

STB_SCL

AL14

STB_SDA

AK15

EMMC_CLK

C21

AVDD10_ELDO

AN16

AVSS33_CPUPLL

H21

AVDD33_PLL

AL26

POR_BND

AE14

3V3SB

DVDD3V3

JTRST# OSDA0

3V3SB

R4004 4K7 1/16W 5%

OXTALO

C4001

100NF 16V

OXTALI

AVDD33_VGA_STB

ORESET#

U0RX

U0TX

PACLE PAALE

POCE1#

R4032

4K7 1/16W 5%

PARB#

POOE#

POWE#

PDD0

PDD2

PDD3

R4011

4K7 1/10W 5%

PDD4

PDD6

PDD7

PDD1

PDD5

R4021

12K 1%

POCE0#

OPWRSB

AVSS33_XTAL_STB

AVSS33_VGA_STB

AVDD10_LDO

AVDD10_ELDO

R4030

100R 1/16W 5%

AVDD33_PLL

AVSS33_CPUPLL

OSCL0

AVSS33_PLLGP

External Reset

R4002

4K7 1/16W 5%

R4019

10K 1/16W 5%

R4019

C4009 100NF 16V

DVDD3V3

VCCK

R4010

4K7 1/10W 5%

R4037 4K7 1/ 16W 5% R4038 4K7 1/ 16W 5%

DVDD3V3

U0TX

AVDD3V33V3SB 3V3SB

DVDD3V3

3V3SB

DVDD3V3

3V3SB

OPWRSB3 SYS_EEPROM_WP12

OSCL08 OSDA08

GND3,4,6,7,8,9,10,11,12,14,15,16

OPCTRL312

3V3SB3,6,8,10,12,14

DVDD3V33,6,8,10,12,15,16

VCCK3,12 AVDD3V33,6,7,10,11,12,14

POWE#

OXTALO

27MHz CR YSTAL

OXTALI

Pin7 WP

OSCL0

SYSTEM EEPROM

LO = > Enable Write

HI = > Disable write

VCC3IO_AB

VCC3IO_AB3,6,8,10,12,15,16

AVDD3V3

R4034 4K7 1/ 16W 5%

R4043 10K 1/16W 5%

VCC3IO_C

C4311 100NF 16V

C4312 100NF 16V

C4313 100NF 16V

C4314 100NF 16V

HDMI_SDA0/TX

HDMI_SDA0/TX14

C4315 22UF 20% 6.3V

PAALE

U0RX

UART_SEL

UART_SEL14

R7111

10K 1/10W 5%

Analog Power

TXD_RF4CE

VCC3IO_C

VCC3IO_C3,6,8,10,12,15,16

Flash_WP#

AVDD33_PLL

R4017

10K 1/16W 5%

R4016

NC/10K 1/ 16W 5%

R4020

10K 1/16W 5%

R4013

NC/10K 1/ 16W 5%

R4015

10K 1/16W 5%

R4014

10K 1/16W 5%

LED_PWM1

LED_PWM0

3V3SB

OPCTRL7

1 1

1

STRAPPING

1

0 0 100

000

LED_PWM0 LED_PWM1 OPCTRL3STRAPPING

1

11

0

OPCTRL7

ICE mode + 27M + serial boot ICE mode + 27M + ROM to Nand boot ICE mode + 27M + ROM to eMMC boot from

eMMC pins (share pins w/s NAND) ICE mode + 27M + ROM to eMMC boot from SDIO pins

OPCTRL3

R4018

NC/10K 1/ 16W 5%

Circuit Diagrams and PWB Layouts

EN 90TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-4 Connector/USB

19630_517.eps

Connector/USB

B04 B04

2014-1-14

C

715G6230

Connector/USB

KEY_PAD0 12

LED_PWM0 5,12

LED_PWM0

GND 3,4,5,7,8,9,10,11,12,14,15,16

Light_Sensor 12

3V3SB 3,5,8,10,12,14

DVDD3V33,5,8,10,12,15,16

AVDD3V33,5,7,10,11,12,14

+5V_SW 3,4,7,10,14,15

+12V 3,4,8

Key1KEY_PAD0

TO KEY PAD BOARD

LED_PWM1

USB PORT 1

USB_DP_P1 USB_DM_P1

+5V_SW

+5V_USB 3

+5V_USB

AVDD3V3

USB_DP_P0

USB_DM_P0 12 USB_DP_P0 12

USB_DM_P0

3V3SB

LS_SDA

IR_RC

ZD4102 NC/MM3Z5V6B

LOGO

R4121 NC/100R 1/ 10W 5%

DVDD3V3

LED_PWM15,12

LED_PWM1

LS_SCL

Key1

KEY_PAD0

OSDA1

LOGO

ZD4101 NC/MM3Z5V6B

USB PORT 2

USB_DP_P2 USB_DM_P2

LS_SDA

Light_Sensor

USB_DP_P3 USB_DM_P3

USB_DP_P2 USB_DM_P2

USB_DP_P0 USB_DM_P0

AVDD33_USB_P0P1P2

R4122 NC/100R 1/ 10W 5%

AVSS33_USB_P1

AVDD33_USB_P3

USB_DP_P1 USB_DM_P1

AVSS33_USB_P3

MT5591JVDJ

U401I

USB_DP_P0

H32

USB_DM_P0

H33

USB_DP_P1

J32

USB_DM_P1

J31

USB_DP_P2

K32

USB_DM_P2

K31

USB_DP_P3

AN10

USB_DM_P3

AM10

AVDD33_USB_P0P1P2

K33

AVSS33_USB_P1

M25

AVSS33_USB_P3

AE11

AVDD33_USB_P3

AN8

LS_SCL

USB_DM_P3 USB_DP_P3

USB_DM_P3 12 USB_DP_P3 12

OIRI

Light_Sensor

LED_R: Enable (STANDBY) -> HIGH Disable -> OFF

LED_PWM0

TO IR/KEY BOARD

OSDA1 5

OSCL1 5

OSDA1

OSCL1

LED_R

R7106

100R 1/10W 5%

R7105

100R 1/10W 5%

OSCL1

OIRI5

OIRI

IR_RC

3D-IR-OUT

Gaming L/R_OUT

R7107

NC/ 10K 1/ 16W 5%

R7108

NC/ 10K 1/ 16W 5%

AVDD33_USB_P0P1P2

C4127

1UF 25V

DVDD3V3

C4126

100NF 16V

R4117

100R 1/10W 5%

AVDD3V3 AVDD3V3

AVDD33_USB_P3

C4128

100NF 16V

FB4102

220R/2000mA

1 2

1234

CN4101 USB CON N

1

2

3

4

65

R4115

NC/ 1K 1/ 16W 5%

CN401

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13

1415

Gaming

+5V_SW

+

C4108 100UF 16V

R4116

100R 1/10W 5%

R4114

100R 1/10W 5%

R4105 0R05 1/ 16W

t

TH4100 PTCR

1 2

R4104 0R05 1/ 16W

t

TH4101 PTCR

1 2

R4111 0R05 1/ 16W

C4106

0.1uF 50V

C4117

NC/ 100N 50V

R4112 0R05 1/ 16W

R4106

100R 1/10W 1%

R4102

100R 1/10W 1%

C4113

NC/ 100N 50V

R4101

NC/6.8K 1%

C4116

NC/ 10N 50V

FB4101

220R/2000mA

1 2

C4115 NC/10uF 6.3V

C4107

0.1uF 50V

R4100

6.8K 1%

L/R_OUT10

Gaming12

L/R_OUT

Gaming

1234

CN4100 USB CON N

1

2

3

4

65

+12V

+

C4111 100UF 16V

3V3SB

+5V_USB

DVDD3V3

+5V_USB

3V3SB

3D-IR-OUT

3D-IR-OUT10

DVDD3V3

Circuit Diagrams and PWB Layouts

EN 91TPM14.3L LA 10.

2014-Oct-10

back to

div.table

Circuit Diagrams and PWB Layouts

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

19630_518.eps

Audio/Video IO/SPDIF

B05 B05

2014-1-14

C

715G6230

Audio/Video IO/SPDIF

CV2_L_IN

CV2_R_IN

AU_DIN

DVI_R_IN DVI_L_IN

GND

AL0O AR0O

AOBCLK_D AOMCLK_D

AOSDATA0_D

AOLRCK_D

C603 100NF 16V

C631

10UF 10V

C600 100NF 16V

CVBS0PCV1_AV_IN

C601 100NF 16V

C628

NC/ 10N 50V

TP614 TP

C602 100NF 16V

R622

30Kohm 1/16W +/-5%

C630

10UF 10V

C608 1uF 10V

C629

NC/ 10N 50V

R621

30Kohm 1/16W +/-5%

TP603

TP

AVDD1V2

AVDD3V3

DVI_R_IN9 DVI_L_IN9

GND3,4,5,6,8,9,10,11,12,14,15,16

R7155

100R 1/16W 5%

C4317 22PF 50V

AL0O8 AR0O8

AOBCLK_D8 AOLRCK_D8 AOMCLK_D8 AOSDATA0_D8

AL1O

AR1O

ARC

TU_FAT_IN2+15 TU_FAT_IN2-15

OSCL215 OSDA215

IF_AGC15

AVDD1V2 3,10,14

AVDD3V33,5,6,10,11,12,14 ARC14

CVBS2P

AVDD12_DEMOD

Analog Power

AVDD33_VIDEO

AVDD33_DEMODAVDD12_RGB

R7122 N C / 0R 05 1/ 16WR7121 NC/0R05 1/16W

AVDD33_CVBS

AVDD1V2

SPDIF_OUT

+5V_SW

C613 100NF 16V

R606

33R 1/16W 5%

AL2O

AR2O

Analog Power

C612 1uF 10V

C614 10UF 10V

AVDD33_AADC

C611 NC/100NF 16V

AVDD33_ADAC

AVDD3V3

AVSS12_RGB

AVSS33_CVBS_1

AVDD12_RGB

AVDD33_VIDEO

ADCINP_DEMOD

CVBS2P

R7126

30Kohm 1/16W +/-5%

IF_AGC

TU_FAT_IN2+

AVSS33_DEMOD

C4305

10UF 10V

ADCINN_DEMOD

R7125

75 OHM +-5% 1/16W

AVDD33_DEMOD

AVSS33_VDAC_BG

CV2_R_IN

AVSS12_DEMOD

AVSS33_CVBS_2

---><---|>

CVBS2_R_IN

C4306

47PF 50V

C4309

NC/ 10N 50V

CV2_AV_IN

CVBS2_L_IN

R7123

100R 1/16W 5%

MT5591JVDJ

U401E

ADCINP_DEMOD

AM27

ADCINN_DEMOD

AN27

AVDD33_DEMOD

AN26

AVDD12_DEMOD

AN28

AVSS33_DEMOD

AL28

AVSS12_DEMOD

AL27

IF_AGC

L26

RF_AGC

M28

LOUTN

AJ27

LOUTP

AK27

OSCL2

N27

OSDA2

N26

CVBS3P

AK26

CVBS2P

AM25

CVBS1P

AH26

CVBS0P

AK25

CVBS_COM

AJ26

AVSS33_CVBS_1

AB20

HSYNC

AK18

VSYNC

AL18

RP

AL20

GP

AM20

BP

AL19

COM

AN20

SOG

AK19

VGA_SDA

AG22

VGA_SCL

AH22

COM1

AL21

PB1P

AK22

PR1P

AL22

Y1P

AM21

SOY1

AN21

COM0

AM23

PB0P

AL23

PR0P

AL24

Y0P

AN23

SOY0

AK23

VDACX_OUT

AH24

VDACY _OUT

AJ24

AVDD33_VIDEO

AN25

AVDD12_RGB

AN18

AVSS33_VDAC_BG

AC19

AVSS12_RGB

AK17

AVSS33_VDAC

AE20

AVSS33_CVBS_2

AB22

AVDD33_CVBS

AM26

CV2_L_IN

---><---|>

C4307

NC/ 10N 50V

R7124

30Kohm 1/16W +/-5%

C4304

47NF 16V

C4308

10UF 10V

OSCL2

RF_AGC

5135_REFCLKM

TU_FAT_IN2-

5135_REFCLKP

AVDD12_DEMOD

OSDA2

AVDD33_CVBS

CVBS_COM

CVBS0P

AVSS33_VDAC

CVBS1_R_IN

CVBS1_L_IN

CV1_R_IN

CV1_L_IN

---><---|>

R605 10K 1/16W

IF_AGC

C621

47NF 16V

CVBS1_L_IN

A

B

C

CN600

RCA JACK

2 1 4

3

6 5

7

CN6003 CONNNECTOR

GND

1

VCC

2

VIN3TH1

4

TH2

5

CV2_AV_IN

CVBS2_R_IN

Y

A

B

C

CN601

JACK

2 1 4

3

6 5

7

CVBS2_L_IN

W

R

AVDD3V3

TP601 TP

R603

51OHM 1/16W +/-5%

TP608 TP

R1011

100R 1/16W 5%

C606 1uF 10V

AOMCLK_D

AOLRCK_D

AOBCLK_D

VMID_AADC

AOSDATA1

Video

C610 100NF 16V

MT5591JVDJ

U401D

AVDD33_AADC

AJ32

AVSS33_AADC

AC24

VMID_AADC

AN31

MPXP

AH25

AR0_ADAC

AK30

AL0_ADAC

AJ29

AR1_ADAC

AJ31

AL1_ADAC

AK29

AR2_ADAC

AJ30

AL2_ADAC

AH28

AVSS33_ADAC

AC23

ALIN

AG9

ASPDIF0

AG10

ASPDIF1

V27

AOBCK

AK9

AOLRCK

AJ9

AOMCLK

AF10

AOSDATA4

AH9

AOSDATA3

AK8

AOSDATA2

AJ8

AOSDATA1

AH8

AOSDATA0

AJ10

AVDD33_ADAC

AJ33

AIN1_R_AADC

AL32

AIN1_L_AADC

AN32

AIN2_R_AADC

AM33

AIN2_L_AADC

AM31

AIN3_R_AADC

AM32

AIN3_L_AADC

AK33

AIN4_R_AADC

AL33

AIN4_L_AADC

AN33

AVDD33_ADAC

SPDIF_OUT

AOSDATA4 AOSDATA3 AOSDATA2

AL0O

AR0O

MPXP

AVSS33_AADC

AVDD33_AADC

CV1_R_IN

+5V_SW

AVSS33_ADAC

CV1_L_IN

DVI_L_IN

DVI_R_IN

AOSDATA0_D

+5V_SW 3,4,6,10,14,15

TP600 TP

TP604 TP TP605 TP TP606 TP TP607 TP

Audio

TP609 TP

C1009

47NF 16V

C1010

47PF 50V

R1012

75 OHM +-5% 1/16W

R604

51OHM 1/16W +/-5%

ARC

TP610 TP TP611 TP

C622

47PF 50V

CV1_AV_IN

R620 75 OHM +-5% 1/16W

C623

47PF 50V

CVBS1_R_IN

OSCL2 OSDA2

AIN4_R_IN AIN4_L_IN

R619 75 OHM +-5% 1/16W

TU_FAT_IN2+ TU_FAT_IN2-

C607 1uF 10V

TP602 TP

TP612TP

Y

R

W

TP613TP

EN 92TPM14.3L LA 10.

10-8-5 Audio/Vedio IO/SPDIF

2014-Oct-10

back to

div.table

10-8-6 Speaker/Headphone

19630_519.eps

Speaker/Headphone

B06 B06

2014-1-14

C

715G6230

Speaker/Headphone

Low Acti ve

CN631

CONN

1 2

3

45

+

C689 100UF 16V

R741

NC/0 OHM +-5% 1/8W

R742

NC/0 OHM +-5% 1/8W

R749

0 OHM +-5% 1/8W

+

C691

100UF 16V

L631

10UH

HS601

HEAT SINK

1

2

Heat sink

L632

10UH

L633 10UH

+

C692 100UF 16V

LRCLKI

LSPK-

R738 0 OHM +-5% 1/8W

RSPK+

C667

330PF 50V

PVDD

C6850.1uF 25V

DVDD3V3

C633 100NF 16V

C668 1nF 50V

FB633

120R

1 2

C675 68PF 50V

R650

100R 1/16W 5%

R644

10R 1/10W 5%

Q632 BC847C

AOSDATA0_D

C656

1uF 10V

C649

NC/1UF 50V

U630

STA381BWTR

F3X_FILT

13

F3XL

14

LINEIN R

17

LINEHPOU T_L

18

LINEHPOU T_R

19

GNDA

20

SOFTMU TE

21

VDD3V3

22

CPVSS

23

CPM

24

GNDPSUB

25

CPP

26

GNDDI G1

29

FFX3A

30

FFX3B

31

EAPD/FF X4B

32

TWARN/FFX4A

33

VREGFILT

34

AGNDPLL

35

BICKI37LRCKI38SDI39RESET40PWDN41INTLINE42SDA43SA45TESTMODE46GNDDI G247VDDDI G2

48

VSS_REG

2

OUT2B

3

GND2

4

VCC2

5

OUT2A

6

OUT1B

7

VCC1

8

GND1

9

OUT1A

10

VDD_REG

11

GND_REG

12

VCC_REG

1

LINEIN L

16

F3XR

15

MCLK

36

VDD3V3CHP

27

VDDIG1

28

SCL

44

E-Pad

49

C657 100NF 16V

C661

0.1uF 50V

C670 1uF 10V

R653

4K7 1/16W 5%

C636

22PF 50V

C660 1uF 10V

BICKI

C653

2.2UF 10V

R652

10K 1/16W 5%

R657

1K 1/16W 5%

C671 68PF 50V

R662 43K 1/16W

R661

18Kohm 1/16W +/ -1%

D631

BAS316

A1K

2

C669 330PF 50V

R641

33R

C640

22PF 50V

R637

43K 1/16W

C659 1nF 50V

R745

3.4K 1%

C663 1nF 50V

R746

3.4K 1%

C646

1nF 50V

R647

6.2 OHM 1/4W

CN602

CONN

1

2

3

4

5 6

C651 100NF 16V

R670 0R05 1/16W

R639

33R

PVDD

C639

22PF 50V

C673 1UF 50V

R669

10K 1/16W 5%

C6860.1uF 25V

R640

22 OHM 1/4W

AOBCLK_D

C682

0.1uF 25V

R645

6.2 OHM 1/4W

C641

22PF 50V

C647

1uF 10V

R654

NC/0R 05 1/ 10W

C6810.1uF 25V

WSPK+

C679

0.1uF 25V

C662 330PF 50V

C672 1UF 50V

PVDD

D630

BAS316

A

1

K

2

C632

100NF 16V

AR0O

R655 0R05 1/10W

AL0O

C638

0.1uF 50V

R660

100R 1/16W 5%

C683 0.1uF 25V

R638

6.2 OHM 1/4W

C654

0.1uF 50V

R658

100K 1/16W 5%

R642

33R

Q633 BC847C

R646

6.2 OHM 1/4W

C650

4.7UF 10% 10V

R643

10R 1/10W 5%

+

C642

220UF 16V

R651 100R 1/16W 5%

D632

BAS316

A1K

2

C643

0.1uF 50V

R635 16K 1%

Q631

BC857BW

1

23

C645

4.7UF 10% 10V

C658 100NF 16V

C665 1nF 50V

FB631

120R

1 2

R659

NC/4.7K1/16W

C680

0.1uF 25V

R663

18Kohm 1/16W +/ -1%

C664 1uF 10V

3V3SB

C655

1UF 50V

PVDD

R656 4K7 1/16W 5%

R649

33R

C684

0.1uF 25V

R636 16K 1%

R634 22 OHM 1/4W

C648

NC/330PF 50V

C674 1uF 10V

C637

100NF 16V

C652 330PF 50V

R7138

4.7K1/16W

R648 0R05 1/16W

DVDD3V3

3V3SB+12V

AUD_V33

AUD_V33HP

PVDD

AUD_V33

PWRDN-HP

AUD_V33HP DVDD3V3

AUD_V33

DVDD3V3

I2SAMP_RESET 12

DVDD3V3

AOLRCK_D 7

AOBCLK_D 7

AOMCLK_D 7

OSCL0 5

OSDA0 5

AOSDATA0_D 7

3V3SB 3, 5,6,10,12,14 DVDD3V33,5,6,10,12,15,16

GND 3,4,5,6,7,9, 10,11,12,14,15,16

AL0O 7 AR0O 7

+12V 3,4

PVDD4

HPOUTR

WSPK-

LRCLKI

PWRDN-HP

AR0O

AL0O

MCLK

I2S Input

OUT2A

SDI

I2C

BICKI

AMP_RESET

PWRDN

+

C690

100UF 16V

OUT1A

OUT1B

OSDA0

PVDD

C687

1UF 50V

C688

1UF 50V

HPOUTL

For EMI

HPOUTL

OUT2B

R743 NC/0 OHM +-5% 1/8W

HPOUTR

Mute CKT

Main Speak CKT

Anti-Pop CKT

AOSDATA0_D

I2SAMP_RESET

R740

0 OHM +-5% 1/8W

Sound R/L CKT

AMP_RESET

ZD4104

NC/MLVG0402

1 2

AOMCLK_D AOBCLK_D

OSDA0 OSCL0

MCLK

C666 330PF 50V

LSPK+

RSPK-

OSCL0

CN604

PHONEJAC K

1

2

3

AOLRCK_D

Ground in bottom si de need connector it togother, heat sink is also.

R736 NC/0 OHM +-5% 1/8W

I2SAMP_RESET

R747

3.4K 1%

R748

3.4K 1%

SDI

R744 NC/0 OHM +-5% 1/8W

+12V

ZD4103

NC/MLVG0402

1 2

AOLRCK_D

AOMCLK_D

R664 22 OHM 1/4W

PWRDN

L630

10UH

Circuit Diagrams and PWB Layouts

EN 93TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-7 DVI AUDIO IN

19630_520.eps

DVI AUDIO IN

B07 B07

2014-1-14

C

715G6230

DVI AUDIO IN

DVI_AudioRIN

DVI_L_IN

DVI_R_IN

DVI_AudioLIN

DVI_L_IN

DVI_R_IN

C1026 10NF 50V

C1027 10NF 50V

R1034

30Kohm 1/ 16W +/ -5%

C1025 1uF 10V

CN104

PHON E J AC K

1

2

3

R1033

30Kohm 1/ 16W +/ -5%

C1024 1uF 10V

GND3,4,5,6,7,8,10,11,12,14,15,16

DVI_L_IN7

DVI_R_IN7

DVI 1/2/3/4 Audio Input

GND

ZD4105

NC/MLVG0402

1 2

DVI_AudioLIN

ZD4106

NC/MLVG0402

1 2

DVI_AudioRIN

Circuit Diagrams and PWB Layouts

EN 94TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-8 LVDS

19630_521.eps

LVDS

B08 B08

2014-1-14

C

715G6230

LVDS

R402

NC/ 1K 1/ 10W 5%

R405

NC/ 2KOH M 1/10W

TP437TP

C

C400

NC/10uF 10V

R403

100R 1/10W 5%

R409

4K7 1/16W 5%

R406

1K 1/10W 5%

3V3SB

+5V_SW

DVDD3V3

DVDD3V3DVDD3V3

GND3,4,5,6,7,8,9,11,12,14,15,16

BL_DIMMING 12 BL_ON/OFF 12

BRIGHT_ADJ 3

INVERTER_ON_OFF 3

3V3SB 3,5,6,8,12,14

DVDD3V33,5,6,8,12,15,16

AVDD3V33,5,6,7,11,12,14

AVDD1V23,7,14

+5V_SW 3,4,6,7,14,15

TP438 TP

DVDD3V3

OSDA1

R432

NC/ 0R 05 1/ 16W

TP439TP

TEMP_SEL0

LVDSTX_BOCKN

LVDSTX_BO2P

LVDSTX_BO3P

LVDSTX_BO3N

LVDSTX_BOCKP

LVDSTX_BO0P

LVDSTX_BO0N

LVDSTX_BO2N

LVDSTX_BO1P

LVDSTX_BO1N

LVDSTX_BE1P

LVDSTX_BE0P

LVDSTX_BE0N

LVDSTX_BECKP

LVDSTX_BECKN

LVDSTX_BE3P

LVDSTX_BE2P

LVDSTX_BE2N

LVDSTX_BO4P

LVDSTX_BE4P

LVDSTX_BE4N

LVDSTX_BE3N

LVDSTX_BO4N

TP440 TP

C403 100NF 16V

TP441 TP TP442 TP

TP454 TP

GPIO_PW_EN

TEMP_SEL1

TP455 TP

TP443 TP

OPC_EN

INVERTER_ON_OFF BL_DIMMING

TP456 TP

BL_ON/OFF

BRIGHT_ADJ

TP444 TP

LVDSTX_BE1N

GND

TP445 TP TP446 TP

TCON6

TP447 TP

TP457 TP

C407 NC/1uF 10V

+5V_SW

TP458 TP

PCID_EN

L/R_OUT

CN408 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

52

51

53

54

55

56

57

58

59

60 61

LVDSTX_AO0N

TP413 TP TP414 TP TP415 TP

R411

NC/ 10K 1/ 8W

TP416 TP

DVDD3V3

TP417 TP TP418 TP

R415

NC/ 0R 05 1/ 16W

R414

NC/ 47K 1/ 16W 5%

TP419 TP

Panel_12V

TP420 TP TP421 TP

TP423 TP

BIT_SEL

TP422 TP

C402 NC/10uF 16V

TP459 TP

TP401 TP TP403 TP

TP402 TP

DVDD3V3

TP404 TP

R418

NC/ 0R 05 1/ 16W

TP405 TP

R413

NC/ 47K 1/ 16W 5%

FB401

120R

1 2

FB400

120R

1 2

TP400 TP

TP406 TP

LVDSTX_AO2P

LVDSTX_AO2N

LVDSTX_AO4N LVDSTX_AO4P

TP410 TP

LVDSTX_AOCKN LVDSTX_AOCKP

LVDSTX_AO3N LVDSTX_AO3P

LVDSTX_AE0N LVDSTX_AE0P LVDSTX_AE1N LVDSTX_AE1P LVDSTX_AE2N LVDSTX_AE2P

DVDD3V3

LVDSTX_AE3P LVDSTX_AE4N LVDSTX_AE4P

LVDSTX_AE3N

LVDSTX_AECKN LVDSTX_AECKP

LVDSTX_AO0P LVDSTX_AO1N LVDSTX_AO1P

TP407 TP

TP411 TP

LVDS OUTPUT

TP408 TP

PANEL_VCC

TP412 TP

DVDD3V3

TP409 TP

R416

NC/ 0R 05 1/ 16W

R410

NC/ 47K 1/ 16W 5%

TP460 TP

TCON7

POWER_OK

POWER_OK12

LVDS_SEL

R407

NC/100R 1/10W 5%

EXT_PWM-IN

C408

10UF 10V

AVDD3V3

TEMP_SEL_0 TEMP_SEL_1

L/R_OUTPUT

L/R_OUTPUT12

L/R_OUT

L/R_OUT6

TP461 TP

2D/3D_EN

2D/3D_EN3,12

EXT_PW M-I N

REXT_VPLL

TCON8

POWER_OK

R426 NC/0R 05 1/ 16W

AVDD33_LVDS

MT5591JVDJ

U401C

TCON0

AA8

TCON1

AA9

TCON2

W6

TCON3

U6

TCON4

U7

TCON5

V8

TCON6

V6

TCON7

AB7

TCON8

W9

TCON9

U8

TCON10

U9

TCON11

V9

TCON12

V7

AVDD12_LVDS_1

AN1

AVDD12_LVDS_2

AN2

AVDD12_LVDS_3

AN3

AVDD33_LVDS

AN4

AVSS12_LVDS_1

AM4

AVSS12_LVDS_2

AM3

AVSS12_LVDS_3

AF5

AVSS33_LVDS

AE5

REXT_VPLL

T1

BE0P

Y1

BE0N

Y2

BE1P

W3

BE1N

W4

BE2P

V3

BE2N

V4

BECKP

V1

BECKN

V2

BE3P

U3

BE3N

U4

BE4P

T3

BE4N

T4

BO0P

AD1

BO0N

AD2

BO1P

AC3

BO1N

AC4

BO2P

AB3

BO2N

AB4

BOCKP

AB1

BOCKN

AB2

BO3P

AA3

BO3N

AA4

BO4P

Y3

BO4N

Y4

AE0P

AH1

AE0N

AH2

AE1P

AG3

AE1N

AG4

AE2P

AF3

AE2N

AF4

AECKP

AF1

AECKN

AF2

AE3P

AE3

AE3N

AE4

AE4P

AD3

AE4N

AD4

AO0P

AM1

AO0N

AM2

AO1P

AL3

AO1N

AL4

AO2P

AK3

AO2N

AK4

AOCKP

AK1

AOCKN

AK2

AO3P

AJ3

AO3N

AJ4

AO4P

AH3

AO4N

AH4

AVSS33_LVDS

AC5

AVSS33_LVDS

V5

AVSS33_LVDS

AVSS12_LVSD_3

AVSS12_LVDS_2

AVSS12_LVDS_1

LVDSTX_BE0N

LVDSTX_AE1P LVDSTX_AE1N

LVDSTX_AE0P

LVDSTX_AO4P LVDSTX_AO4N

LVDSTX_AO3P LVDSTX_AO3N

LVDSTX_AOCKN

LVDSTX_AOCKP

LVDSTX_AO2P LVDSTX_AO2N

LVDSTX_AO1P LVDSTX_AO1N

LVDSTX_AO0P LVDSTX_AO0N

LVDSTX_AE4P

LVDSTX_AE0N

LVDSTX_AE4N

LVDSTX_AE3P LVDSTX_AE3N

LVDSTX_AECKP LVDSTX_AECKN

LVDSTX_AE2P LVDSTX_AE2N

LVDSTX_BE1P LVDSTX_BE1N

LVDSTX_BE0P

LVDSTX_BO4P LVDSTX_BO4N

LVDSTX_BO3P LVDSTX_BO3N

LVDSTX_BOCKN

LVDSTX_BOCKP

LVDSTX_BO2P LVDSTX_BO2N

LVDSTX_BO1P LVDSTX_BO1N

LVDSTX_BO0P LVDSTX_BO0N

LVDSTX_BE4P LVDSTX_BE4N

LVDSTX_BE3P LVDSTX_BE3N

LVDSTX_BECKP LVDSTX_BECKN

LVDSTX_BE2P LVDSTX_BE2N

AVDD12_LVDS_3

AVSS33_LVDS

AVDD12_LVDS_2

AVDD12_LVDS_1

AVSS33_LVDS

C405 1uF 10V

TP452 TP

OPC

TP808 TP

OPC_EN

C404 100NF 16V

TP424 TP

AVDD1V2

GPIO 43

TEMP_SEL0

DVDD3V3

R7129

100R 1/10W 5%

TP425 TP

R7127

3K3 1/16W 5%

BL_DIMMING( P WM for BRI GHT_ADJ): Max: 0V Min : +3V3

BRIGHT_ADJ

DC

PWM

100R

10K

BL_DIMMING

N/C

10U

RC

N/C

2K

RB

1K

BRIGHT_ADJ

BL_ON/OFF

TEMP_SEL_0

INVERTER _ON_OFF

RA

INVERTER_ON_OFF

3V3

5V

TEMP_SEL_1

R7128

3K3 1/16W 5%

TEMP_SEL1

DVDD3V3

R7130

100R 1/10W 5%

INVERTER ON/OFF

L/R_OUT

BRIGHT ADJUST

L/R_OUTPUT

R7132

NC/ 0R 05 1/ 16W

C406 1uF 10V

TP426 TP

2D/3D_ENABLE

BL_ON/OFF: Inverter on: Low Inverter off: High

R

R7133

100R 1/10W 5%

2D/3D_EN

DVDD3V3

RA RB

R7131

3K3 1/16W 5%

R424

24K 1%

VBO_PW_EN

2D/3D_ENABLE

TP427 TP

R429 NC/0R 05 1/ 16W

TP428 TP

TP451 TP

R4294

NC/ 220K 1/ 16W 5%

CN409

CONN 41P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48 49

50

51

3V3SB

TP429 TP

TCON2

R4295

220K 1/16W 5%

TP430TP

2D/3D SETUP

FRC_Reset

TP811 TP

TP431TP

TP812 TP

OSCL1

OSCL13,12

AVDD12_LVDS_1

LVDS_SEL

LVDS_SEL12

AVDD1V2

AVDD3V3

TP432TP

AVDD12_LVDS_3 AVDD12_LVDS_2

Analog Power

AVDD33_LVDS

TP433 TP

DVDD3V3

R431

NC/ 47K 1/ 16W 5%

R430

NC/ 0R 05 1/ 16W

OPC

R4296

220K 1/16W 5%

TP434TP

TP453 TP

TP435TP

TCON3

OSCL1

OSDA1

OSDA13,12

TP436TP

Q400 MMBT3904

R404

4K7 1/16W 5%

R400

4.7K1/16W

Q401

MMBT3904

R443

1K 1/10W 5%

C401

NC/10uF 10V

R408

4.7K1/16W

Circuit Diagrams and PWB Layouts

EN 95TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-9 DRAM Interface

19630_522.eps

DRAM Interface

B09 B09

2014-1-14

C

715G6230

DRAM Interface

A_RDQ8ARDQ8 A_RDQ14ARDQ14

A_RDQS0#ARDQS0#

A_RDQS0ARDQS0

R4168

240 OHM +-5% 1/16W

A_RCLK1#ARCLK1#

A_RDQS3#ARDQS3#

A_RDQS2#ARDQS2#

A_RCLK1AR CLK1

A_RDQS3ARDQS3 A_RDQS2ARDQS2

A_RDQM3ARDQM3

A_RDQ22ARDQ22

A_RDQ27ARDQ27

A_RDQ29ARDQ29

A_RDQ20ARDQ20

A_RDQ18ARDQ18

A_RDQ25ARDQ25

A_RDQ31ARDQ31

A_RDQ16ARDQ16

ARDQM1 A_RDQM1

ARDQ26 A_RDQ26

A_RDQM2ARDQM2

ARDQ24 A_RDQ24

A_RDQ12ARDQ12A_RDQ30ARDQ30

A_RCLK0#ARCLK0#

A_RDQ17ARDQ17

A_RDQ19ARDQ19

A_RDQ23ARDQ23

C4167 100NF 16V

C4169 100NF 16V

C4168 100NF 16V

C4166

10UF 10V

R4156

100R 1/16W 5%

C4172

100NF 16V

C4164 100NF 16V

C4193

100NF 16V

ARCLK1_D

C4163 100NF 16V

C4191 100NF 16V

ARCLK0#_D

ARCLK1#_D

ARCLK0_D

Differential Clock

R4160

1Kohm 1/16W +/-1%

C4157 100NF 16V

C4179 100NF 16V

C4216

100NF 16V

C4207

100NF 16V

C4195 100NF 16V

C4213

100NF 16V

C4210 100NF 16V

C4212 100NF 16V

C4211 100NF 16V

C4214 100NF 16V

C4185 100NF 16V

R4170

1Kohm 1/16W +/-1%

R4167

240 OHM +-5% 1/16W

C4218

100NF 16V

A_RDQS3 A_RDQS3#

B_RDQS0 B_RDQS0#

R4155

1Kohm 1/16W +/-1%

R4176

1Kohm 1/16W +/-1%

C4219 100NF 16V

B_RVREF6B_RVREF5

DDR3#3 Ref Volt.

BRCLK0_D

B_RCLK0# BRCLK0#_D

B_RCLK0

Damping and Termination for CL K

R4192

100R 1/16W 5%

C4171 100NF 16V

C4192 100NF 16V

DRAM#3 Bypass Cap

R4177

1Kohm 1/16W +/-1%

C4180 100NF 16V

B_RDQM0

BRBA0 BRBA2

BRBA1

BRA1

U404 K4B2G1646E-BCK00DT

NC = J1,J9,L1,L9

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

R4175

240 OHM +-5% 1/16W

BRA2 BRA3

BRA0

BRA4 BRA5

R4171

1Kohm 1/16W +/-1%

BRA6 BRA7 BRA8 BRA9 BRA10 BRA11 BRA12

B_RDQ1 B_RDQ2 B_RDQ3 B_RDQ4 B_RDQ5 B_RDQ6 B_RDQ7 B_RDQ8 B_RDQ9 B_RDQ10 B_RDQ11 B_RDQ12 B_RDQ13 B_RDQ14

B_RDQ0

B_RDQ15

BRA15

BRRESET

A_ZQ3

BRA14

BRWE#

BRRAS#

BRCS#

BRCAS#

C4222 100NF 16V

BRODT

BRCKE

BRA13

B_RVREF6

B_RVREF5

DDRV

DDRV DDRV

DDRV

B_RDQM1

BRCLK0_D BRCLK0#_D

DDRV

RVREF_C

[ RESERVE ]

Main Chip Ref Voltage.

B_RDQM0BRDQM0 B_RDQM1BRDQM1

B_RDQ12BRDQ12

BRDQ14 B_RDQ14

BRDQ8 B_R DQ8

BRDQ1 B_RDQ1

BRDQ7 B_RDQ7

BRDQ10 B_RDQ10

BRDQ3 B_R DQ3

BRDQ5 B_RDQ5

BRDQ6 B_RDQ6

BRDQ9 B_RDQ9

BRDQ0 B_RDQ0

BRDQ15 B_RDQ15

BRDQ2 B_RDQ2 BRDQ4 B_RDQ4

BRDQ13 B_RDQ13 BRDQ11 B_RDQ11

BRDQS0B_RDQS0

BRDQS1B_RDQS1

BRCLK0 B_RCLK0 BRCLK0# B_RCLK0#

BRDQS1# B_RD QS1#

BRDQS0# B_RD QS0#

C4220 100NF 16V

AVDD3V3

DDRV

AVDD33_MEMPLL

DDRVDDRV DDRV

RVREF_A

AVDD33_MEMPLL

DDRV

A_RVREF4A_RVREF1

DDR3#1 Ref Volt.

A_RVREF3

AV3V3_MEMPLL

A_RVREF2

B_RDQS1 B_RDQS1#

DRAM#2 Bypass Cap

TP448 TP

DRAM#1 Bypass Cap

DDR3#2 Ref Volt.

Main Chip Ref Voltage.

GND 3,4,5,6,7,8,9,10,12,14,15, 16

AVDD3V33,5,6,7,10,12,14

DDRV 3

R4151

1Kohm 1/16W +/-1%

+

C4189

100UF 16V

R4150

1Kohm 1/16W +/-1%

DDR3#3-128Mx16-1600MHz

R4166

1Kohm 1/16W +/-1%

R4159

1Kohm 1/16W +/-1%

TP449 TP

C4183

NC/4.7U F 10% 10V

C4221 100NF 16V

C4170 100NF 16V

C4159 100NF 16V

C4174

100NF 16V

C4181 100NF 16V

R4178

1Kohm 1/16W +/-1%

C4178 1UF 10% 16V

C4197 100NF 16V

C4223 100NF 16V

Main Chip DE-CAP.

C4177

10UF 10V

DDRV

AVDD3V3

MT5591JVDJ

U401B

RVREF_C

C2

BRCLK0

J2

BRCLK0#

J1

BRCKE

L6

BRODT

E3

BRRAS#

L4

BRCAS#

D3

BRCS#

D4

BRBA0

J4

BRBA1

M6

BRBA2

E4

BRWE#

K4

BRA14

P4

BRA13

G5

BRA12

P6

BRA11

P5

BRA10

L5

BRA9

F4

BRA8

P3

BRA7

H4

BRA6

P2

BRA5

K6

BRA4

M5

BRA3

K5

BRA2

G6

BRA1

N5

BRA0

E5

BRA15

J3

DDRV

B19

DDRV

C19

DDRV

D19

DDRV

E19

DDRV

F19

DDRV

G19

DDRV

F5

DDRV

H5

DDRV

N8

DDRV

P8

DDRV

E8

DDRV

G11

BRDQM0

L1

BRDQS0

H2

BRDQS0#

H1

BRDQ0

E2

BRDQ1

N3

BRDQ2

E1

BRDQ3

N1

BRDQ4

D1

BRDQ5

P1

BRDQ6

D2

BRDQ7

N2

BRDQM1

H3

BRDQS1

K1

BRDQS1#

K2

BRDQ8

N4

BRDQ9

F2

BRDQ10

M3

BRDQ11

F1

BRDQ12

L2

BRDQ13

F3

BRDQ14

M4

BRDQ15

G3

BRRESET

G4

DDRV

D13

DDRV

D20

DDRV

E20

DDRV

F20

DDRV

G20

DDRV

R7

DDRV

R8

DDRV

T6

DDRV

T5

DDRV

T7

DDRV

T8

BRRESET

BRWE#

BRBA0 BRBA2

BRBA1

C4173

100NF 16V

C4186 1UF 10% 16V

BRCAS#

BRA14

BRA2 BRA1

DDRV

C4206

100NF 16V R4152

100R 1/16W 5%

BRA3

BRA10 BRA9

BRA6

BRA12

BRA8

BRA4

BRA7

BRA13 BRA11

BRA5

BRA0

BRA15

BRCKE

BRDQS1

BRDQS0

BRDQM0

BRDQM1

BRDQS0#

BRDQS1#

BRDQ13

BRDQ8

BRDQ12

DDRV

BRDQ15

BRDQ11

BRDQ10

BRDQ14

BRDQ9

BRDQ2

BRDQ6

BRDQ5

BRDQ0

BRDQ4

BRDQ1 BRDQ3

BRDQ7

RVREF_C

BRCLK0#

BRCLK0

BRODT BRRAS#

BRCS#

C4224 100NF 16V

C4209

4.7UF 10% 10V

U402 K4B4G1646B-HCK0

NC = J1,J 9, L1, L9

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

ARA1 ARA2 ARA3

DDRV

ARA0

ARA4 ARA5 ARA6 ARA7 ARA8 ARA9 ARA10 ARA11 ARA12

ARCKE

ARWE#

ARODT

ARCSX# ARRAS#

ARCAS#

ARA13

ARBA1 ARBA2

ARBA0

ARA14A_RDQ8 A_RDQ9 A_RDQ10 A_RDQ11 A_RDQ12 A_RDQ13 A_RDQ14 A_RDQ15

A_RDQ0

A_RDQS1 A_RDQS1#

A_RDQS0#

A_RDQS0

A_RDQM0 A_RDQM1

A_RDQ1 A_RDQ2 A_RDQ3 A_RDQ4 A_RDQ5 A_RDQ6 A_RDQ7

ARRESET

A_RVREF3

A_RVREF4

A_ZQ2

ARRESET

A_RVREF2

A_RVREF1

A_ZQ1

ARCLK1_D

ARCLK1#_D

ARCLK0_D ARCLK0#_D

ARCKE

ARWE#

ARODT

ARCS#

ARBA2

ARBA1

ARBA0

ARA1 ARA2 ARA3

ARA0

ARA4 ARA5 ARA6 ARA7 ARA8

ARA13

ARA9 ARA10 ARA11 ARA12

ARA14

ARRAS# ARCAS#

A_RDQ16 A_RDQ17 A_RDQ18 A_RDQ19 A_RDQ20 A_RDQ21

DDR3#2-256Mx16-1600MHzDDR3#1-256Mx16-1600MHz

A_RDQ22 A_RDQ23 A_RDQ24

A_RDQM2 A_RDQM3

A_RDQ25 A_RDQ26 A_RDQ27 A_RDQ28 A_RDQ29 A_RDQ30 A_RDQ31

U403 K4B4G1646B-HCK0

NC = J1,J9,L1,L9

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

C4175

100NF 16V

C4182 100NF 16V

R4164

1Kohm 1/16W +/-1%

C4215 100NF 16V

C4162 100NF 16V

C4161 100NF 16V

C4160

10UF 10V

ARRESET

ARCLK1 ARCLK1#

ARCLK0 ARCLK0#

ARBA2

ARCKE

ARA10

ARA1

ARA5

ARA9

ARA12

ARA7

ARCAS#

ARA11

ARA8

ARA2

ARA13

ARA6

ARA0

ARA4

ARRAS#

ARODT

ARCS#

MRMTN

MRMTP

MT5591JVDJ

U401A

DDRV

R1

DDRV

R2

DDRV

R3

DDRV

R4

DDRV

R5

DDRV

K3

DDRV

R6

DDRV

L8

DDRV

M8

DDRV

D17

DDRV

A19

MEMTP

J22

MEMTN

K22

RVREF_A

D18

ARCKE

G8

ARCLK1

B5

ARCLK1#

A5

ARCLK0

B14

ARCLK0#

A14

ARODT

F13

ARRAS#

E13

ARCAS#

G13

ARCS#

G15

ARWE#

H18

ARRESET

G16

ARBA0

D15

ARBA1

F9

ARBA2

G18

ARCSX#

F15

ARA14

D11

ARA13

F16

ARA12

D8

ARA11

E11

ARA10

G9

ARA9

E16

ARA8

F11

ARA7

G17

ARA6

F10

ARA5

E17

ARA4

E10

ARA3

E15

ARA2

F17

ARA1

G10

ARA0

F18

ARDQM0

D12

ARDQS0

D14

ARDQS0#

C14

ARDQ0

B17

ARDQ1

D10

ARDQ2

C17

ARDQ3

C10

ARDQ4

C18

ARDQ5

B9

ARDQ6

E18

ARDQ7

D9

ARDQM1

C15

ARDQS1

A13

ARDQS1#

B13

ARDQ8

B11

ARDQ9

B16

ARDQ10

A11

ARDQ11

A17

ARDQ12

C12

ARDQ13

A16

ARDQ14

C11

ARDQ15

C16

ARDQM2

A3

ARDQS2

D5

ARDQS2#

C5

ARDQ16

E7

ARDQ17

B2

ARDQ18

C8

ARDQ19

B1

ARDQ20

A9

ARDQ21

C1

ARDQ22

C9

ARDQ23

C3

ARDQM3

C6

ARDQS3

A4

ARDQS3#

B4

ARDQ24

A1

ARDQ25

B7

ARDQ26

C4

ARDQ27

C7

ARDQ28

B3

ARDQ29

A7

ARDQ30

A2

ARDQ31

D7

AVDD33_MEMPLL

A20

AVSS33_MEMPLL

H9

ARWE#

ARA3

DDRV

ARA14

ARCSX#

RVREF_A

ARBA0 ARBA1

ARDQ20 ARDQ21

ARDQ3

ARDQ22

ARDQ4

ARDQ30 ARDQ31

ARDQ23

ARDQ5 ARDQ6

ARDQ9

ARDQ7

ARDQ25

C4155

100NF 16V

R4165

1Kohm 1/16W +/-1%

ARDQ16

ARDQ10

ARDQS2

ARDQS3

ARDQM3

ARDQM2

ARDQS3#

ARDQS2#

ARDQS0#

ARDQS1#

ARDQS1

ARDQ11

ARDQM1

ARDQM0 ARDQS0

ARDQ0

AVDD33_MEMPLL AVSS33_MEMPLL

ARDQ12 ARDQ13 ARDQ14

R4161

1Kohm 1/16W +/-1%

ARDQ15

ARDQ26

ARDQ17

ARDQ1 ARDQ2

ARDQ8

ARDQ24

ARDQ18

ARDQ28 ARDQ29

ARDQ27

ARDQ19

C4156 100NF 16V

R4162

1Kohm 1/16W +/-1%

A_RDQS2 A_RDQS2#

C4194

100NF 16V

DDRV

C4184 100NF 16V

A_RCLK1

A_RCLK0

A_RCLK1#

A_RCLK0#

C4153 1UF 10% 16V

C4201 100NF 16V

R4163

1Kohm 1/16W +/-1%

C4158 100NF 16V

C4188 100NF 16V

A_RCLK0AR CLK0A_RDQM0AR DQM0

A_RDQ21ARDQ21

A_RDQS1ARDQS1

A_RDQS1#ARDQS1#

A_RDQ28ARDQ28

ARDQ6 A_R DQ6

ARDQ13 A_RDQ13 ARDQ11 A_RDQ11

ARDQ15 A_RDQ15

ARDQ2 A_R DQ2 ARDQ4 A_R DQ4

ARDQ9 A_R DQ9

ARDQ0 A_R DQ0

A_RDQ1ARDQ1

A_RDQ3ARDQ3

A_RDQ5ARDQ5

A_RDQ10ARDQ10

A_RDQ7ARDQ7

+

C4208

NC/100UF 16V

Circuit Diagrams and PWB Layouts

EN 96TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-10 MII/GPIO/ServAD

19630_523.eps

MII/GPIO/SERVAD

B10 B10

2014-1-14

C

715G6230

MII/GPIO/SERVAD

MT5591JVDJ

U401H

GPIO0

B30

GPIO1

A31

GPIO2

B31

GPIO3

A32

GPIO4

C30

GPIO5

A33

GPIO6

B32

GPIO7

C31

GPIO8

E30

GPIO9

F29

GPIO10

F27

GPIO11

F28

GPIO12

C32

GPIO13

F30

GPIO14

F32

GPIO15

D30

GPIO16

D32

GPIO17

F31

GPIO18

F33

GPIO19

E31

GPIO20

E32

GPIO21

D31

GPIO22

D33

GPIO23

E29

GPIO24

C33

GPIO25

B33

GPIO26

A30

GPIO27

E28

GPIO28

C29

GPIO29

J28

GPIO30

H29

GPIO31

J26

GPIO32

G30

GPIO33

G27

GPIO34

E27

GPIO35

D29

GPIO36

D28

GPIO37

H28

GPIO38

J27

GPIO39

G29

OPCTRL0

AJ19

OPCTRL1

AF19

OPCTRL2

AJ17

OPCTRL3

AG17

OPCTRL4

AK16

OPCTRL5

AH19

OPCTRL6

AE19

OPCTRL7

AH17

ADIN0_SRV

AJ23

ADIN1_SRV

AH23

ADIN2_SRV

AE28

ADIN3_SRV

AD28

ADIN4_SRV

AF22

ADIN5_SRV

AK21

ADIN6_SRV

AG24

ADIN7_SRV

AM18

DEMOD_RST

P30

DEMOD_TSCLK

N32

DEMOD_TSDATA0

R27

DEMOD_TSDATA1

T26

DEMOD_TSDATA2

T27

DEMOD_TSDATA3

P26

DEMOD_TSDATA4

R28

DEMOD_TSDATA5

U27

DEMOD_TSDATA6

U26

DEMOD_TSDATA7

R26

DEMOD_TSSYNC

R29

DEMOD_TSVAL

P27

CI_INT

L25

CI_TSCLK

N33

CI_TSDATA0

K26

CI_TSSYNC

N30

CI_TSVAL

N31

PVR_TSCLK

M31

PVR_TSVAL

M27

PVR_TSSYNC

L27

PVR_TSDATA0

M29

PVR_TSDATA1

M30

SPI_CLK1

L30

SPI_CLK

L33

SPI_DATA

L32

SPI_CLE

K27

OPWM2

AL8

OPWM1

AM8

OPWM0

AM9

SD_D0

D27

SD_D1

C27

SD_D2

D26

SD_D3

C26

SD_CMD

A28

SD_CLK

E24

LED_PWM1

AF15

LED_PWM0

AG15

GPIO40

G31

GPIO41

G28

GPIO42

B28

GPIO43

K28

GPIO44

E25

GPIO45

D21

GPIO46

G23

GPIO47

C28

GPIO48

F24

GPIO49

AB8

GPIO50

AA7

GPIO51

AD6

GPIO52

AC8

GPIO53

AC7

GPIO54

AB6

GPIO55

AC6

OPCTRL8

AG19

OPCTRL9

AE17

OPCTRL10

AM16

OPCTRL11

AL16

ARC1_EN

POWER_OK

Light_Sensor Temp_out

DEMOD_TS0

SKYPE_PWR _ENSKYPE_PWR_ENARC3_EN

I2SAMP_RESET

3D-IR-OUT

L/R_OUTPUT

LED_PWM1

ARC2_EN

Gaming 2D/3D_EN SYS_EEPROM_WP

LVDS_SEL

I2C Thernal Sensor

SD_D3

AMBIL_SPI_DO AMBIL_SPI_CLK

SD_D1

RESET_RF4CE#

OPCTRL3

AVDD33_ETH

DVDD3V3

BL-I-CTRL

SD_CMD

BL_D IMMIN G

C4254

100NF 16V

R4255

NC/0R 05 1/ 16W

DEMOD_RST

AVDD3V3 3V3SB

R4254

0R05 1/16W

TP471

2D/3D_EN

2D/3D_EN3,10

12V_DET12V_DET

+5V_SW

+5V_SW 3,4,7,10,14, 15

R7141 0R05 1/ 16W

DVDD3V3

EMMC_ RST#

R7144

22K 1/16W 1%

Gaming

Gaming6

L/R_OUTPUT

L/R_OUTPUT10

R4281

47R 1/16W 5%

BL_ON/OFF

R7149

10K 1/10W 5%

R7154

NC/10K 1/ 10W 5%

LM75-A2

DVDD3V3

R7146

100K 1%

3D-IR-OUT

3D-IR-OUT6

BL_DIMMING

BL_ON/OFF

TP747 TP748 TP749 TP750 TP751

TP809

V/T

ARC1_EN

ARC1_EN14

CN6004

CONN

1

2

3

4

5

6

7

8

9 10

R4253

24K 1%

TP472

+12V_SKY PE

R4270 47R 1/16W 5%

SKYPE_VCC

R7140 NC/0R 05 1/ 16W

OPCTRL7

OPCTRL75

R7136

0R051/8W

+5V_SW

R7135

NC/0R 051/8W

DEMOD_TSSYNC15

R7147

NC/10K 1/ 10W 5%

12V drop detect

WoWLAN_IRQ

R4262

4K7 1/16W 5%

SKYPE_OCP : Disable : Low

LVDS_SEL

LVDS_SEL 10

DEMOD_TSVALID15

LED_PWM1

R7145

0R05 1/16W

R7152

10K 1/10W 5%

TP753

TP752 TP754

TP755 TP756 TP757 TP758 TP759 TP760

TP763

TP762

TP761

TP767

TP765

TP771 TP773

TP764

LED_PWM05,6

TP769

LED_PWM0

BL-I-CTRL

BL-I-CTRL 3

TP777

TP776

TP775

TP810

TP780

TP779

PANEL_VCC_ON /OFF

TP782 TP783

TP778

TP781

TP786

TP785

TP784

TP789

TP788

TP791

R4266

NC/10K 1/ 10W 5%

R7150

100R 1/16W 5%

TP792

R4267

10K 1/10W 5%

OSDA0

3V3SB

TP787

TP790

TP796

TP794

TP793

TP797

TP795

TP798

TP801 TP802

TP804

TP766 TP768 TP770 TP772 TP774

I2SAMP_RESET

RESET_RF4CE#

TP473

R4271 47R 1/16W 5%

USB_DM_P3 USB_DP_P3

USB_DM_P36 USB_DP_P36

LM75-A1

3V3SB

Wi-Fi_PWR_EN

USB_DM_P0

USB_DM_P06

USB_DP_P0

USB_DP_P06

R4272 47R 1/16W 5%

R4274 47R 1/16W 5%

AMBIL_SPI_CLK

AMBIL_SPI_CLK 16

VCC3IO_AB VCC3IO_C

VCC3IO_AB3,5,6,8,10,15,16 VCC3IO_C3,5,6,8,10,15,16

PHYLED 0

PHYLED 1

R7120

4K7 1/16W 5%

MT5591JVDJ

U401L

VCCK

L11

VCCK

N12

VCCK

P12

VCCK

AG5

VCCK

AH5

VCCK

AJ5

VCCK

AK5

VCCK

AL5

VCCK

AM5

VCCK

AN5

VCCK

AK6

VCCK

AL6

VCCK

AM6

VCCK

AN6

VCC3IO_C

T9

VCC3IO_B

Y10

VCC3IO_B

AA10

VCC3IO_A

D22

VCC3IO_A

E22

VCCK

M11

VCCK

N11

VCCK

P11

VCCK

R11

VCCK

M12

VCCK

R12

VCCK

L13

VCCK

L14

VCCK

L15

VCCK

AF6

VCCK

AG6

VCCK

AH6

VCCK

AJ6

VCCK

AE7

VCCK

AF7

VCCK

AG7

VCCK

AD8

VCCK

AE8

VCCK

AF8

VCCK

AE9

VCCK

AC10

VCCK

AD10

VCCK

AD11

VCCK

AE10

VCCK

AF9

VCCK

AG8

VCCK

AH7

VCCK

AJ7

VCCK

AK7

VCCK

AL7

VCCK

AM7

VCCK

AN7

VCCK

L16

VCCK

L17

VCCK

L18

VCCK

L19

VCCK

T11

VCCK

U11

VCCK

V11

VCCK

W11

VCCK

Y11

VCCK

AA11

VCCK

AB11

VCCK

AC11

VCCK

V12

VCCK

U12

VCCK

T12

VCCK

W12

VCCK

L12

VCCK

R23

VCCK

V23

VCCK

AD13

VCCK

AD17

VCCK

AD14

VCCK

Y12

VCCK

AB12

VCCK

AA12

VCCK

AC12

VCCK VCCK

VCC3IO_C VCC3IO_AB

Q4002

BC857BW

1

23

3V3SB

LM75-A2

MT5591JVDJ

U401K

DVSS

AC18

DVSS

AB21

DVSS

AB14

DVSS

N13

DVSS

P13

DVSS

R13

DVSS

T13

DVSS

U13

DVSS

V13

DVSS

W13

DVSS

Y13

DVSS

P18

DVSS

N14

DVSS

P14

DVSS

R14

DVSS

T14

DVSS

U14

DVSS

V14

DVSS

W14

DVSS

Y14

DVSS

R18

DVSS

N15

DVSS

P15

DVSS

R15

DVSS

T15

DVSS

U15

DVSS

V15

DVSS

W15

DVSS

Y15

DVSS

AA15

DVSS

AB15

DVSS

T18

DVSS

R16

DVSS

T16

DVSS

U16

DVSS

V16

DVSS

W16

DVSS

Y16

DVSS

AA16

DVSS

AB16

DVSS

R17

DVSS

T17

DVSS

U17

DVSS

V17

DVSS

Y17

DVSS

N16

DVSS

V18

DVSS

Y18

DVSS

P16

DVSS

V19

DVSS

Y19

DVSS

W17

DVSS

AA17

DVSS

AB17

DVSS

N19

DVSS

U18

DVSS

W18

DVSS

AA18

DVSS

AB18

DVSS

N17

DVSS

U19

DVSS

W19

DVSS

P17

DVSS

P19

DVSS

N18

DVSS

U20

DVSS

V20

DVSS

W20

DVSS

Y20

DVSS

AA20

DVSS

R19

DVSS

T19

DVSS

M20

DVSS

N20

DVSS

U21

DVSS

V21

DVSS

W21

DVSS

Y21

DVSS

AA21

DVSS

P20

DVSS

R20

DVSS

T20

DVSS

U22

DVSS

V22

DVSS

W22

DVSS

Y22

DVSS

AA22

DVSS

N21

DVSS

P21

DVSS

R21

DVSS

T21

DVSS

M22

DVSS

N22

DVSS

P22

DVSS

R22

DVSS

T22

DVSS

M21

DVSS

AC17

DVSS

AA19

DVSS

M13

DVSS

M14

DVSS

M15

DVSS

AA13

DVSS

AB13

DVSS

AA14

DVSS

AB19

DVSS

D6

DVSS

L3

DVSS

D16

DVSS

AC14

DVSS

C13

DVSS

M16

DVSS

AC13

DVSS

AC20

DVSS

AC22

DVSS

AD20

DVSS

Y23

DVSS

K24

DVSS

K25

DVSS

L24

DVSS

AA23

DVSS

AB23

DVSS

M17

DVSS

M18

DVSS

M19

DVSS

V24

DVSS

W23

TP482

VCC3IO_B VCC3IO_A

VCC3IO_C

TP806

TP805

TP807

12V_DET

CN4252

RJ45 CONN

TCT P1

1

TD+ P 2

2

TD- P 3

3

RD+ P4

4

RD- P5

5

RCT P6

6

TH1

7

TH2

8

C4263

0.1uF 25V

C4260

0.1uF 25V

OPCTRL7

OPCTRL35

SYS_EEPROM_WP5 BL_DIMMING10

BL_ON/OFF10

TP468

DEMOD_TSCLK

OSDA05,8 OSCL05,8

C4258 10NF 50V

TP484

C4262

10NF 50V

DEMOD_RST

DEMOD_RST15

OPCTRL75

C4259 10NF 50V

OPCTRL3

OSCL0

OSDA0

BL_DIMMING BL_ON/OFF

DEMOD_TSSYNC

SYS_EEPROM_WP

DEMOD_TSCLK15

C4261

100NF 16V

AVDD3V33,5,6,7,10,11,14

GND3,4,5,6,7,8,9,10,11,14,15,16

PANEL_VCC_ON /OFF4

SYS_EEPROM_WP5

Light_Sensor

KEY_PAD06

BL_DIMMING10

BL_ON/OFF10

I2SAMP_RESET8

TXVP TXVN

RJ45

SEPARATE GROUND

SYS_EEPROM_WP

RXVP

OPCTRL35

Light_Sensor6

RESET_RF4CE#5

RXVN

DVDD3V33,5,6,8,10,15,16

BL_ON/OFF10

AMBIL_SPI_DO 16

3V3SB3,5,6,8,10,14

Main_12V

DEMOD_TS015

U4251

NC/LM75BDP

SDA

1

SCL

2

OS

3

VSS4A2

5

A1

6

A0

7

VCC

8

TP486TP

Temp _out

Temp _out16

SKYPE_PWR _EN

SKYPE_VCC

3V3SB

FB4251

120R 3A

1 2

USB_DP_P0

SKYPE_PWR_EN : Enable : High Disable : Low

R7079 0R05 1/16W

U4252

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

USB_DM_P0

C4272 10UF 10V

SKYPE Pow er C o n trol

C427410UF 10V

DVDD3V3

R7082

4K7 1/16W 5%

C4271

1UF 10% 16V

R7080

10K 1/16W 5%

C4273100N F 16V

Wi-F i Power C o n trol

R7081

4K7 1/16W 5%

Wi-Fi_PWR _EN

3V3SB

Wi-Fi_OCP

SKYPE_OCP

USB_DM_P3

POWER_OK

Wi-Fi_PWR_EN : Enable : High Disable : Low

R7078 0R05 1/16W

USB_DP_P3

POWER_OK10

Wi-Fi_OCP : Disable : Low

U4250

APL3511CBI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

C4251

1UF 10% 16V

R4252

4K7 1/16W 5%

CN4250

CONN

1

2

3

4

5

6

7 8

FB4250

120R

1 2

R4251

4K7 1/16W 5%

R4265 0R05 1/16W

C4253100N F 16V

R4264 0R05 1/16W

R4250

10K 1/16W 5%

C425010UF 10V

C4252 10UF 10V

R7142

2.2K1/16W

3V3SB

Wi-Fi_VCC

WoWLAN_IRQ

DEMOD_TSCLK

DEMOD_TSVALID

DEMOD_TSSYNC

DEMOD_TS0

DEMOD_TSVALID

LED_PWM1

LED_PWM15,6

EMMC_ RST#

EMMC_RST#5

TP487TP

KEY_PAD0

R7151 100R 1/16W 5%

LM75-A0

TP470

RXVN

AVSS33_ELDO

AVSS33_COM

REXT

TXVN

MT5591JVDJ

U401J

TXVP_0

AL13

TXVN_0

AM13

RXVN_1

AM12

RXVP_1

AL12

PHYLED 1

AF13

PHYLED 0

AJ13

REXT

AN12

AVDD33_ETH

AN14

AVSS33_LD

AC16

AVSS33_COM

AC15

AVSS33_ELDO

AE13

TXVP

AVDD33_ETH

RXVP

AVSS33_LD

R7148

NC/10K 1/ 10W 5%

R7153

10K 1/10W 5%

LM75-A1

DVDD3V3

OSCL0

ARC3_EN ARC4_EN

ARC3_EN14 ARC4_EN14

ARC2_EN

ARC2_EN14

R7143

1.5K 1%

AMBIL_SPI_DO

R4273 0R05 1/16W

AVDD3V3

OPCTRL3

OPCTRL7

LED_PWM0

SD_CLK

BL_ON/OFF

PANEL_VCC_ON /OFF

3V3SB

ARC4_EN

KEY_PAD0

VCCK

VCCK3,5

C4316

100NF 16V

Circuit Diagrams and PWB Layouts

EN 97TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-11 HDMI SW/CONNECTOR

19630_524.eps

HDMI SW/CONNECTOR

B11 B11

2014-1-14

C

715G6230

HDMI SW/CONNECTOR

RX3_1RX3_0+

RX3_0-

RX3_2+

HDMI 4 INPUT (SIDE)

RX3_C+

U514 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

ZD504NC/PDZ 24B

12

R542910R

U515 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R543

75 OHM +-5% 1/16W

R545 100R 1/16W 5%

R546 100R 1/16W 5%

U516 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D511BAS316

A

1

K

2

R547470K 1/16W 5%

HDMI 3 ESD PROTECTER

C511100NF 16V

SCL_3 SDA_3

PWR5V_3

------><-------

HPD3

R565

NC/0R05 1/ 16W

R566

4K7 1/16W 5%

HDMI3_SCL

U517 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R567

0R05 1/16W

HDMI3_SDA

ARC

U518 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U519 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

RX3_2-

CEC_3

RX3_C-

ARC3_HDMI

ARC4_EN

HDMI 1 ESD PROTECTER

R568

180ohm 1/16W +/-5%

R569

NC/0R05 1/16W

C517

1uF 10V

UART_SEL

UART_SEL5

U526

74LVC1G125GV

24

5

1

3

DVDD3V3

R570

100K 1/16W 5%

R571

82R

DVDD3V3

HDMI0_SDA

HDMI0_SDA5

R428

10K 1/16W 5%

ARC3_EN12

ARC3_EN

HDMI 2 INPUT

RX0_C-

RX0_2-

RX0_2+ RX0_C+

RX0_0+

RX0_1-

RX0_1+

RX0_0-

AVDD12_HDMI_0_RX

GND

PWR5V_2

CEC_2

PWR5V_2

SCL_2 SDA_2

RX2_2-

RX2_2+

CEC_2

SCL_2 SDA_2

RX2_1+ RX2_1-

RX2_2+ RX2_2-

RX2_1+ RX2_1-

RX2_0+ RX2_0-

RX2_C+ RX2_C-

RX2_0+ RX2_0-

RX2_C+ RX2_C-

AVDD3V3

R552

NC/0R05 1/ 16W

C506100NF 16V

U513 NC/RClamp0524P. TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

TP510 TP

R516 100R 1/ 16W 5%

U510 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

ARC2_HDMI

R513

75 OHM +-5% 1/16W

ZD502NC/PDZ24B

12

R511

75 OHM +-5% 1/16W

ZD503NC/PDZ24B

12

ZD501NC/PDZ24B

12

R538

0R05 1/16W

R536

4K7 1/16W 5%

RX3_C-

RX3_2-

Audio Return Channel (ARC)

ARC

RX3_2+ RX3_C+

RX3_0-

RX3_0+

RX3_1-

RX3_1+

ARC disable

H

ARC_EN

L

ARC enable

UART_SEL

CN501

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

ARC1_EN

ARC4_EN

ARC4_EN12

C513 100NF 16V

R523910R

R522

75 OHM +-5% 1/16W

R531 100R 1/ 16W 5%

C500 100NF 16V

D505BAS316

A

1

K

2

R504 100R 1/16W 5%

R526 100R 1/16W 5%

D510BAS316

A

1

K

2

C504100NF 16V

D508BAS316

A

1

K

2

TP511 TP

R530470K 1/16W 5%

R505 100R 1/16W 5%

R533

180ohm 1/16W +/-5%

R509470K 1/16W 5%

R510910R

R537

NC/0R05 1/ 16W

C508

1uF 10V

U512

74LVC1G125GV

24

5

1

3

R521470K 1/ 16W 5%

AVDD1V2

R534

100K 1/16W 5%

R535

82R

U511 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

C509100NF 16V

C502 100NF 16V

R517910R

R515 100R 1/ 16W 5%

DVDD3V3

HPD0

Q4001

2N7002

AVDD1V2

AVDD3V3

AVDD1V2

TP512 TP

SCL_0

AVDD3V33,5,6,7, 10,11,12

SDA_0

ARC1_EN12

GND3,4,5,6,7,8,9,10,11,12,15,16

AVDD1V23,7,10

PWR5V_0

ARC7

+5V_SW3,4,6,7,10,15

PWR5V_0

HPD0

R574

47K 1/16W 5%

Y

ARC

TP513 TP

Q402

MMBT3904

R575

47K 1/16W 5%

Q404

MMBT3904

3V3SB

Q405 MMBT3904

R576

47K 1/16W 5%

HPD1

N

CN502

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

PWR5V_1

CEC_1

SCL_1 SDA_1

PWR5V_1

RX1_2+ RX1_2-

RX1_1+ RX1_1-

CEC_1

SCL_1 SDA_1

RX1_2+ RX1_2-

RX1_1+ RX1_1-

RX1_0+ RX1_0-

RX1_C+ RX1_C-

RX1_0+ RX1_0-

RX1_C+ RX1_C-

SCL_1 SDA_1

------><-------

PWR5V_1

RX1_2+ RX1_2-

RX1_1+ RX1_1-

RX1_0+ RX1_0-

RX1_C+

RX1_CCEC_1

PWR5V_1

HDMI1_SDA

3V3SB

CN503

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R577

47K 1/16W 5%

Q406

MMBT3904

3V3SB

Q407 MMBT3904

Q403 MMBT3904

R578

47K 1/16W 5%

HPD2

AVDD12_HDMI_0_R X AVD D12_HDMI_1_RXAVDD33_HDMI

Analog Power

AVDD12_HDMI_2_RX AVDD12_HDMI_3_RX

PWR5V_3

CEC_3

SCL_3 SDA_3

PWR5V_0

CEC_0

RX3_2+

RX3_2-

RX3_1+

RX3_1-

RX3_0+

SCL_0

PWR5V_0

SDA_0

RX0_2RX0_1+

RX3_0-

RX3_C+

RX3_C-

RX0_2+

CEC_0

SCL_0 SDA_0

RX0_1-

RX0_2+ RX0_2-

RX0_1+ RX0_1-

RX0_0+ RX0_0-

RX0_C+ RX0_C-

RX0_0+ RX0_0-

RX0_C+ RX0_C-

HDMI0_SCL5

HDMI0_SCL

+5V_SW

SCL_2 SDA_2

PWR5V_2

------><-------

R553

NC/0R05 1/ 16W

HPD2

R550

4K7 1/16W 5%

R551

0R05 1/16W

ARCARC1_HDMI

ARC2_EN

R554

180ohm 1/16W +/-5%

R555

NC/0R05 1/16W

C515

1uF 10V

U524

74LVC1G125GV

24

5

1

3

R556

100K 1/16W 5%

DVDD3V3

R557

82R

DVDD3V3

R573

47K 1/16W 5%

HDMI3_SCL

R711247K 1/16W 5%

HDMI 3 INPUT (SIDE)

R711347K 1/16W 5%

HDMI_SCL0/RX HDMI_SDA0/TX

R539

NC/0R05 1/16W

PWR5V_0

HPD1

UART_SEL

HDMI 2 ESD PROTECTER

R7114

47K 1/16W 5%

R711647K 1/16W 5%

R7115

47K 1/16W 5%

R711747K 1/16W 5%

R711847K 1/16W 5% R711947K 1/16W 5%

U521 NC/RClamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U522 NC/RClamp0524P. TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U523 NC/RClamp0524P. TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

HDMI 4 ESD PROTECTER

PWR5V_3

CEC_3

SCL_3 SDA_3

RX3_2+ RX3_2-

RX3_1+ RX3_1-

RX3_0+

HDMI1_SCL

DVDD3V3

DVDD3V33,5,6,8,10,12

RX3_0- RX3_C+

RX3_C-

PWR5V_1

HDMI2_SCL HDMI2_SDA

PWR5V_2

PWR5V_3

+5V_SW

eMMC NAND

R428/Q4001

R539

NY

R503 0R05 1/16W

R502

0R05 1/16W

R572 0R05 1/16W

CEC_3

CEC_2

R500

0R05 1/16W

HDMI_CEC

CEC_0 CEC_1

HDMI-CEC

HDMI3_SDA

HDMI_SCL0/RX HDMI_SDA0/TX

HDMI_SCL0/RX5 HDMI_SDA0/TX5

R579

47K 1/16W 5%

Q408

MMBT3904

3V3SB

Q409 MMBT3904

R580

47K 1/16W 5%

HPD3

HDMI0_SCL

HDMI0_SDA

HDMI1_PWR5V

HDMI0_PWR5V

HDMI3_PWR5V

HDMI2_PWR5V

ARC3_HDMI

RX1_C-

RX1_2-

RX1_2+ RX1_C+

R558

NC/0R05 1/ 16W

RX1_0-

RX1_0+

RX1_1-

RX1_1+

R559

4K7 1/16W 5%

R560

0R05 1/16W

HDMI_CEC

HDMI2_SCL

HDMI2_SDA

ARC

HDMI1_SCL

HDMI1_SDA

AVDD12_HDMI_1_RX AVDD12_HDMI_2_RX

AVSS33_HDMI_RX

AVSS33_HDMI_RX AVSS33_HDMI_RX

AVDD33_HDMI

AVSS33_HDMI_RX

HPD2

ARC2_HDMI

HPD1

ARC3_EN

R561

180ohm 1/16W +/-5%

R562

NC/0R05 1/16W

U525

74LVC1G125GV

24

5

1

3

C516

1uF 10V

R563

100K 1/16W 5%

R564

82R

DVDD3V3

MT5591JVDJ

U401F

HDMI_CEC

V26

HDMI_0_SCL

AC27

HDMI_1_SCL

AB27

HDMI_2_SCL

AA26

HDMI_3_SCL

W27

HDMI_0_SDA

AC26

HDMI_1_SDA

AB26

HDMI_2_SDA

Y26

HDMI_3_SDA

W26

HDMI_0_PWR5V

AE29

HDMI_1_PWR5V

Y27

HDMI_2_PWR5V

AA28

HDMI_3_PWR5V

V28

HDMI_0_HPD

AD29

HDMI_1_HPD

AA27

HDMI_2_HPD

AA29

HDMI_3_HPD

V29

AVDD12_HDMI_1_RX

AA32

AVDD12_HDMI_2_RX

P33

AVDD12_HDMI_3_R X

P32

AVSS33_HDMI_RX

T25

AVSS33_HDMI_RX

W25

AVSS33_HDMI_RX

AD27

HDMI_0_RX_0

AG30

HDMI_0_RX_0B

AG31

HDMI_0_RX_1

AF30

HDMI_0_RX_1B

AF31

HDMI_0_RX_2

AE32

HDMI_0_RX_2B

AE33

HDMI_0_RX_C

AG32

HDMI_0_RX_CB

AG33

HDMI_1_RX_0

AD30

HDMI_1_RX_0B

AD31

HDMI_1_RX_1

AC32

HDMI_1_RX_1B

AC33

HDMI_1_RX_2

AC30

HDMI_1_RX_2B

AC31

HDMI_1_RX_C

AE30

HDMI_1_RX_CB

AE31

HDMI_2_RX_0

Y30

HDMI_2_RX_0B

Y31

HDMI_2_RX_1

W32

HDMI_2_RX_1B

W33

HDMI_2_RX_2

W30

HDMI_2_RX_2B

W31

HDMI_2_RX_C

AA30

HDMI_2_RX_CB

AA31

HDMI_3_RX_0

U30

HDMI_3_RX_0B

U31

HDMI_3_RX_1

T32

HDMI_3_RX_1B

T33

HDMI_3_RX_2

T30

HDMI_3_RX_2B

T31

HDMI_3_RX_C

V30

HDMI_3_RX_CB

V31

AVDD33_HDMI

AH33

AVSS33_HDMI_RX

AE27

AVDD12_HDMI_0_RX

AA33

HPD3

from Scaler GPIO

HPD0

AVDD12_HDMI_3_RX

ARC2_EN12

ARC2_EN

ARC1_EN

3V3SB

3V3SB 3,5,6,8,10,12

from Scaler ARC

HDMI 1 INPUT

RX2_2+ RX2_2-

RX2_1+ RX2_1-

RX2_0+

RX2_0-

RX2_C+ RX2_C-

CEC_2

RX0_2+ RX0_2-

RX0_1+ RX0_1-

RX0_0+ RX0_0-

RX0_C+

RX0_CCEC_0

RX2_C-

RX2_2-

RX2_2+ RX2_C+

RX2_0-

RX2_0+

RX2_1-

RX2_1+

ARC1_HDMI

RX3_1+

CN504

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

Circuit Diagrams and PWB Layouts

EN 98TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-12 ISDBT TUNER

19630_525.eps

ISDBT TUNER

B12 B12

2014-1-14

C

715G6230

ISDBT TUNER

C4279

10NF 50V

TP733

C4301 27P 50V

U1300

NC/G552B1TA1U

VOUT

1

GND

2

FLAG

3

ON/ON

4

VIN

5

C4295

100NF 16V

TP744

TP717

C4284 10UF 6.3V X5R +-20%

R1316

3K3 1/16W 5%

C1325

33PF 50V

R7083

0R05 OHM

R1336 0R05 1/16W

C4291 100NF 16V

TP723

TP736

+3V3_TUNER

+5V_SW

IF BPF

+5V_SW

GND_TunerGN D_Tuner

+3V3_TUNER

+3.3VD

+3.3VD+3.3VD

+3.3VD

+1V2

DVDD3V3 +1V2

DVDD3V3+3.3VD

TU_FAT_IN2-7

TU_FAT_IN2+7

IF_AGC7

OSDA05,8

OSCL27

OSDA27

GND3,4,5,6,7,8,9,10,11,12,14, 16

DVDD3V33,5,6,8,10,12,16

+3V3_TUNER3

OSCL05, 8

DEMOD_TSVALID12

DEMOD_TSSYNC12

AVDD1V23,7,10, 14

+5V_SW3,4,6,7,10,14

DEMOD_TS012

DEMOD_TSCLK12

DEMOD_RST12

+5V_ANT

DEM_RESET

TS_S2_CLK

TS_S2_DQ0

TUNER

TU_F AT_I N2+

TU_F AT_I N2-

TS_S2_VALTS_S2_VAL

SBYTE_ORR

TS_S2_SYNC

DEMOD_RST

FB1022 120R 3A

1 2

FB1023

120R 3A

1 2

XT_O XT_I

DEMOD_IFP DEMOD_IFN

C1072

1uF 10V

GND_Tuner

From MT5591 DEMOD_RESET

R1082

1K

R1081

1K

TUNE R_SCL

TUNE R_SDA

R1083 NC 200R 1/16W 1%

GND_TunerGND_Tuner

GND_Tuner

T_IF AGC

DIF_OUT_P DIF_OUT_N

D_IF_AGC

R7139

0R05 OHM

T_IF AGC

TP238

IF_AGC

DEMOD POWER

DIF_OUT_N

DIF_OUT_P

OSDA2

+3V3_TUNER

DEMOD_SDA DEMOD_SCL

SLADRS1

SRCK_ORR

PBVAL_ORR SRDT_ORR

ISDB_T Demodulator

SLADRS0

D_IF_AGC

AGCCNTI

OSDA0 OSCL0

SLADRS1

TO TUNER

DEMOD_TSVALID

DEMOD_TSSYNC DEMOD_TSCLK

OSCL2

R7156 0R05 OHM R7157 0R05 OHM

GND_Tuner

IF_AGC

OSCL2

OSDA2

TU_FAT_IN2-

TU_FAT_IN2+

ISDB-T TUNER & Demodulator CIRCUIT

AGC

I2C

+5V_ANT

DEMOD

DEMOD_RESET: Reset : Low Normal : High

DEMOD_TS0TS_S2_DQ0

TS_S2_SYNC DEMOD_TSSYNC TS_S2_CLK DEMOD_TSCLK

TS_S2_VAL DEMOD_TSVALID

DEMOD

TU_SDA

TU_SCL

SLADRS0

DVDD3V3

DEMOD_TS0

TO Demod

GND_Tuner

DEM_RESET

C1071

1uF 10V

C1067 47pF 50V

C1068 47pF 50V

From MT5591

OSDA2

OSCL2

C1065

1uF 10V

AVDD1V2

C1066

1uF 10V

DEMOD_IFN

DEMOD_SCL

DEMOD_IFP

TUNE R_SDA

DEMOD_SDA

TUNE R_SCL

TU_SDA

TP731

C4285 100NF 16V

FB4260

120R

12

TP746

C4296

100NF 16V

C4299

10UF 6.3V X5R +-20%

TP725

C4293

10UF 6.3V X5R +-20%

RP4252

33 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

FB4253 120R 3A

12

C4275 100NF 16V

C4280 1uF 10V

C4289 10UF 6.3V X5R +-20%

TP721

R7087 10K 1/10W

TP730

R7096

1.2K

R7095

1M 1/10W 5%

R7104 NC 10K 1/16W 5%

TP713

R7088

NC/ 10K+-5%1/16W

C4283

100NF 16V

R1338

0R05 1/16W

C4276

100NF 16V

TU_SCL

R1313

33R 1/10W 5%

C4294 100NF 16V

C0402

TP724

TP729 FB4255 120R 3A

12

R7098 100R

TP732

t

TH1300 NC/PTCR

1 2

TP740

R1335 0R05 1/16W

TP742

R7089

NC/ 10K+-5%1/16W

FB4254 120R 3A

12

RESET CIRCUIT

C4281

1nF 50V

C4282 470PF 50V

TP727

TU101

ST07WN-6A-E

ANT1NC

2

3.3V

5

NC8IF_N10IF_P

11

SDA3SCL4NC6NC7IF_AGC

9

TH112TH213TH314TH4

15

C4287

100NF 16V

C4288 100NF 16V

R1326 NC/0R05 1/16W

TP712

TP726

TP739

R7090

10K 1/16W 5%

DEMOD_RST

R1308

33R 1/16W 5%

TU NER 5V

C4302 27P 50V

R7085 0R05 OHM

R7094

47K 1/16W

C4292

100NF 16V

FB4257

120R 3A

1 2

TP737

TP728

TP719

R7091

10K 1/16W 5%

R1303

100R 1/16W 5%

FB4259 120R

12

R1309

100R 1/16W 5%

TP714

C4297

100NF 16V

TP734

R7103

4.7K 1/16W

R1302

33R 1/16W 5%

X4001

16MHZ

1243

TP743

FB4256

120R

1 2

R1320

3K3 1/16W 5%

C4303

10NF 50V

C1333

NC/100N 16V

C4300

100NF 16V

R7086 0R05 OHM

U4254

VI3VO

2

GND

1

4

TP738

R7101 10K 1/16W 5%

C4278

100NF 16V

C4286 NC 10PF 50V

R7102

4.7K 1/16W

R7093 NC 0R05 OHM

TP716

C4277

1nF 50V

TP745

R7092 20K OHM 1/16W 1%

TP735

TP720

R7100 100R

1.2V

U4253

TC905 37FG

VSS

47

VDDS

14

GPIO1

4

GPIO2

5

SBYTE

16

AGCCNT1

18

XO

23

SLADRS1

29

PLLVSS

26

SYRSTN42VPGM

41

VDDC

32

ADCVSS

34

VREFH

36

STSFLG143SCL

45

VSS

31

ADCVDD

33

TNSCL

20

TNSDA

21

AINN Q40AINN I38AINP I

37

STSFLG044SDA

46

RSEORF

15

XI

24

VREFL

35

AINP Q

39

SLADRS0

17

CKI

28

VDDC

1

VSS

13

SRCK

12

PBVAL

11

SRDT

10

SLOCK

9

RLOCK

8

RERR

7

SLPEN

6

VDDS

48

VSS

2

GPIO0

3

AGCCNTR

19

XCKO

22

PLLVDD

25

VDDC

27

TSMD

30

TP722

C1334

NC/100N 16V

FB4258 120R 3A

12

XTAL

TP715

C4298 100NF 16V

R7099 100R

TP741

R7097

0R05 OHM

R1325 NC/0R05 1/16W

R7084

0R05 OHM

R1311N C / 4K7 1/ 16W 5%

C1326

33PF 50V

C4290

10UF 6.3V X5R +-20%

Circuit Diagrams and PWB Layouts

EN 99TPM14.3L LA 10.

2014-Oct-10

back to

div.table

10-8-13 AMBIENT LIGHT

19630_526.eps

AMBIENT LIGHT

B13 B13

2014-1-14

C

715G6230

AMBIENT LIGHT

AMBIL_SPI_DO

AMBIL_SPI_CLK

R1401

0R05 1/ 16W

+12V_AL

R1403

0R05 1/ 16W

C1405

NC / 22PF 50V

Temp_out AMBIL_SPI_CLK

R1402

0R05 1/ 16W

C1400 10UF 16V

FB1402

120R

1 2

C1401 100NF 16V

+

C1402

NC / 100U F 16V

CN1404

CONN

1 2

3

4 5 6 7

8

9 10 11 12

14 15 16 17 18 19 20 21 22 23 24 25 26

2728

13

DVDD3V3

+12V_AL

C1403

1UF 10% 16V

GND3,4,5,6,7,8,9,10,11,12,14,15

DVDD3V33,5,6,8,10,12,15

+12V_AL3

AMBIL_SPI_DO 12

AMBIL_SPI_CLK 12

Temp_out

Temp_out12

AMBIL_SPI_DO

DVDD3V3

C1404

NC / 22PF 50V

GND

Circuit Diagrams and PWB Layouts

EN 100TPM14.3L LA 10.

2014-Oct-10

back to

div.table

PHILIPS 40PUG6909/77, 47PFG7109/77, 47PFG7109/78, 50PUG6900/78, 50PUG6909/77 Service manual & schematics

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents Page Contents Page

1. Revision List

2. Technical Specs, Diversity, and Connections

2.1 Technical Specifications

2.2 Directions for Use

Table 2-1 Described Model Numbers and Diversity

2.3 Connections

2.3.1 Rear Connections

Figure 2-1 Connection overview

1 - RJ45: Ethernet

Figure 2-2 Ethernet connector

2 - Service / UART

3 - Audio - In: Left / Right, VGA

4 - EXT2: Video YPbPr - In, Audio - In

5 - Cinch: Digital Audio - Out

2.3.2 Side Connections

6 - EXT2: Video YPbPr - In, Audio - In

7 - USB1 2.0

8- USB2 2.0

Figure 2-3 USB (type A)

Figure 2-4 USB (type A)

9- HDMI 3: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-5 HDMI (type A) connector

Figure 2-7 HDMI (type A) connector

Figure 2-6 HDMI (type A) connector

Figure 2-8 HDMI (type A) connector

13- Head phone (Output)

14 - TV ANTENNA - In

2.4 Chassis Overview

3. Precautions, Notes, and Abbreviation List

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.3.1 General

3.3.2 Schematic Notes

3.3.3 Spare Parts

3.3.4 BGA (Ball Grid Array) ICs

Introduction

BGA Temperature Profiles

3.3.5 Lead-free Soldering

3.3.6 Alternative BOM identification

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

3.3.8 Practical Service Precautions

3.4 Abbreviation List

4. Mechanical Instructions

4.1 Cable Dressing

Figure 4-1 Cable dressing (40" 6909 series)

Figure 4-2 Cable dressing (47" 7109 series)

Figure 4-3 Cable dressing (50" 6909 series)

Figure 4-4 Cable dressing (55" 7109 series)

Figure 4-5 Cable dressing (55" 7309 series)

Figure 4-6 Cable dressing (58" 6900 series)

Figure 4-7 Cable dressing (65" 6659 & 7459 series)

4.2 Service Positions

4.3 Assembly/Panel Removal (for 47"/55"7109 & 55"7309 series)

4.3.1 Rear Cover

4.3.2 AmbiLight Panel

Figure 4-8 Rear cover removal

4.3.3 Small Signal Board (SSB)

Figure 4-9 Ambilight Panel removal

Figure 4-10 SSB removal

4.3.4 Power Supply Unit (PSU)

4.3.5 Speakers

4.3.6 Keyboard Control unit

4.3.7 Stand bracket

4.4.1 Rear Cover

4.3.8 IR/LED Panel

4.3.9 RF4CE module

4.3.10 WIFI module

4.3.11 LCD Panel

4.4 Assembly/Panel Removal (for 65"7459 & 6659 series)

4.4.2 AmbiLight Panel

Figure 4-11 Rear cover removal

Figure 4-12 Ambilight Panel removal

4.4.3 Small Signal Board (SSB)
