Philips 50PF9630A-96, 42PF9730A-37, 50PF9630A-37, 42PF9630A-96 User Manual

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don’t miss out. Complete and return your Product Registration Card at once to ensure:

Return your Warranty Registration card today to

ensure you receive all the benefits you’re entitled to

For Customer Use

Enter below the Serial No., which is located on the rear of the cabinet. Retain this information for future reference.

Model No. __________________________ Serial No. __________________________

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today.We’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly, you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a PHILIPS product.

P.S. To get the most from your PHILIPS purchase, be

sure to complete and return your Product Registration Card at once.

Know these

safety symbols

This “bolt of lightning” indicates

uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention

to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING:To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION :Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

* Proof of Purchase

Returning the enclosed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service.

* Product Safety Notification

By registering your product you’ll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

* Additional Benefits of Product Ownership

Registering your product guarantees that you’ll receive all of the privileges to which you’re entitled, including special moneysaving offers.

Visit our World Wide Web Site at www.usasupport.philips.com

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong.The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

16.Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17.Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

• Do not compromise these design standards by applying

excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing

electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18.Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

19.Pow er Lines - An outdoor antenna should be located away from power lines.

20.Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

21.Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. a) Warning:To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases should not be placed on this apparatus.

22.Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and - alignment as

marked on the unit.

• Do not mix batteries (old and new or carbon and alkaline,

etc.)

• Remove batteries when the unit is not used for a long time.

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Note to the CATV system installer: this reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (

NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H )

ELECTRIC SERVICE EQUIPMENT

Contents

Digital Cable TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Buttons on the right of the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

My Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Use of the remote control RC4318 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

To use the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Introduction 9 How to navigate through the Settings menus 9

Demo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Select the menu language 10 Store TV channels 10 Weak channel installation 11 Software upgrade 11

Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Preferences 12 Source 16 Clock 17

CableCARD applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

TV menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Picture menu 19 Sound menu 21 Features menu 22 Ambilight menu 23 Channels menu 24

Multimedia browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Viewing content from a Memory card / USB device 27 Multimedia Browser menu 28

Connect Accessory Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Recorder (vcr-dvd+rw) 30 Recorder and other A/V devices 31 Recorder and cable box with RF output 32 Recorder and Satellite Receiver / cable box with AV outputs 33 Satellite Receiver / cable box with AV outputs 33 DVD Player or other accessory digital source devices 34 Digital Surround receiver 35 HDMI (High Definition Multimedia Interface) connectors 35

Side connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

To select connected devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Record with your recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Record a TV program 37 Record a program from monitor out 37

Audio- and video equipment buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Setting the remote control to work accessory devices . . . . . . . . . . . . . 39

Code setup 39 To cancel the selected mode 39

Learnable remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

To put the remote control function buttons back to the factory mode 42

Before Calling Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Annex 1 - Philips TV software upgrade with portable memory . . . . . . . 46

Annex 2 - Philips TV Slideshow Format with background music . . . . . . 48

Annex 3 - Philips TV - Portable Memory and USB . . . . . . . . . . . . . . . . 50

R End of life directives

Philips is paying a lot of attention to producing environmentally-friendly in green focal areas. Your new TV contains materials which can be recycled and reused. At the end of its life specialized companies can dismantle the discarded TV to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old TV according to local regulations.

Help?

If this instruction manual does not give an answer or if ‘Before Calling Ser vice’ does not solve your TV problem, you can call your Local Philips Customer or Service Centre. See the supplied Worldwide guarantee booklet. Please, have the Model and Serial number which you can find at the back of your television set or on the packaging, ready, before calling the Philips helpline 1-888-PHILIPS (744-5477)

Model: 42PF9630A/37

50PF9630A/37 42PF9730A/37 42PF9630A/96 50PF9630A/96

Serial No: .................................................

Care of the screen

See Tips, p. 44.

* CableCARD™ is a trademark of Cable Television Laboratories, Inc.

Do not insert the power plug in a wall socket or hang the TV to the wall before all connections are made.

& Place the TV on a solid surface or place the TV on the supplied stand.

For the mounting instructions of the stand, see the separate leaflet supplied. For ventilation, leave at least 4” to 6” free all around the TV. Do not place the TV on a carpet.To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed in the vicinity. Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

Mounting the TV on the wall

This TV provides the VESA mounting interface (not supplied) and is VESA compatible with the 4 supplied VESA studs to be inserted in the back of the TV.

Caution: Installing the TV requires special skill that should only be

performed by qualified personnel.You should not attempt to do the work yourself. Philips bears no responsibility for improper mounting or mounting that results in accident or injury. Make sure that the wall mount is being fixed securely enough so that it meets safety standards.

Preparation

Your new TV is provided with a special slot called a CableCARD™ which means that you do not need a separate set top box to receive digital cable SDTV and HDTV programs. However it is still possible to connect a set top box to your TV. The CableCARD, which will be available from your cable system operator, is designed only for that particular digital cable TV system. If you need to get digital cable TV from a different system, simple swap your old CableCARD for a new one. Cable systems can provide a wide range of digital TV programs and even specialized digital audio channels. Cable TV systems can offer many local-interest channels you won’t see off-air or from a satellite broadcast. Examples include local school and community access channels.

CableCARD™ *

A CableCARD is a removable card distributed by cable companies, that is inserted into the CableCARD slot at the bottom of your television. CableCARD allows you to tune digital and high definition scrambled or encrypted cable channels through the cable antenna. Consult your cable company on the availability of CableCARD. The CableCARD is required to receive premium digital TV channels and services (where available) through the cable. A CableCARD functionality includes conditional access and copy protection. See settings menu, CableCARD applications, p. 18.

Note: Do not insert a PCMCIA card into the CableCARD slot.

Digital Cable TV

Cable CARD INTERFACE 1394

Watching Cable TV programs that don’t require the cable box

Since you’ve connected the cable TV signal directly to the TV’s tuner, you can also watch the unscrambled programs by simply tuning to the desired channel.You must first use Autoprogram, however, to store channels in the TV’s memory. See page 10.

Note:This connection will supply stereo sound to the TV if it is being broadcast by the station you are watching.

ANTENNACABLE /

CABLE

HDMI 1 HDMI 2

CABLE / ANTENNA

STB

OUT

OUTPUT

TO TV

CABLE

LPrH

RPbV

DIGITAL AUDIO IN

S-VIDEO

AV2

AV3

MONITOR OUT

AV1

VIDEO IR OUT

DIGITAL AUDIO OUT

VIDEO

CABLE / ANTENNA

VIDEO

SIGNAL

SPLITTER

STB

OUTIN

CABLE

AV2 : L + R + VIDEO

é Basic connections to the TV

Your integrated digital TV automatically decodes and displays the four basic DTV picture resolution standards.

- SDTV (Standard Definition TV) are broadcast as 480i (480-line interlaced) or 480p (480-line progressive scan) video.

- HDTV (High-Definition TV) are broadcast either in the 1080i or 720p formats, always with a widescreen picture.

Note: Progressive scan video (p) is more like that you see in a movie theater. Images are much more distinct and free of flicker, and motion is smoother.

Next to analog NTSC broadcast reception, your TV has an integrated High Definition TV tuner which receives, decodes and displays terrestrial ATSC and unscrambled cable (QAM) signals. HDTV quality is only reproduced when a broadcaster or cable provider broadcasts HDTV signals.

Note: Ask your broadcaster or cable box provider to transmit/enable HD content to your home, and possibly upgrade to a CableCard for the decription of HD signals.

There are 2 ways to get HDTV content:

- via cable,

- via antenna.

Note:This drawing is used wherever you can connect cable or antenna.

- Cable TV

Connect the cable TV signal to the

CABLE/ANTENNA 75 Ω x jack at

the bottom of the TV. See page 10 for details on using Autoprogram to store channels in the TV’s memory.

Note: this connection will supply stereo sound to the TV if it is being broadcast by the station you are watching.

- Cable box with

RF IN/OUT

• Connect the incoming cable TV signal to the cable IN jack 1 on the

back of the cable box.

• Connect a coaxial cable (not supplied) from the

TO TV jack on the

back of the cable box to the

CABLE/ANTENNA 75 Ω x jack 2 at

the bottom of the TV.

Note:Your cable box may have a different label for the

TO TV jack, such as

OUTPUT or OUT.

• Set the

OUTPUT CH switch 3 of the cable box to CH 3 or 4

(whichever is correct for your cable box), then tune the TV to the corresponding channel. Once tuned, change channels at the cable box, not the TV.

Note:This connection will not supply stereo sound to the TV.The reason is that the RF output on a cable box - labeled

TO TV , OUT or OUTPUT for example -

will not send a stereo signal to the tuner (VHF/UHF) input on a TV.

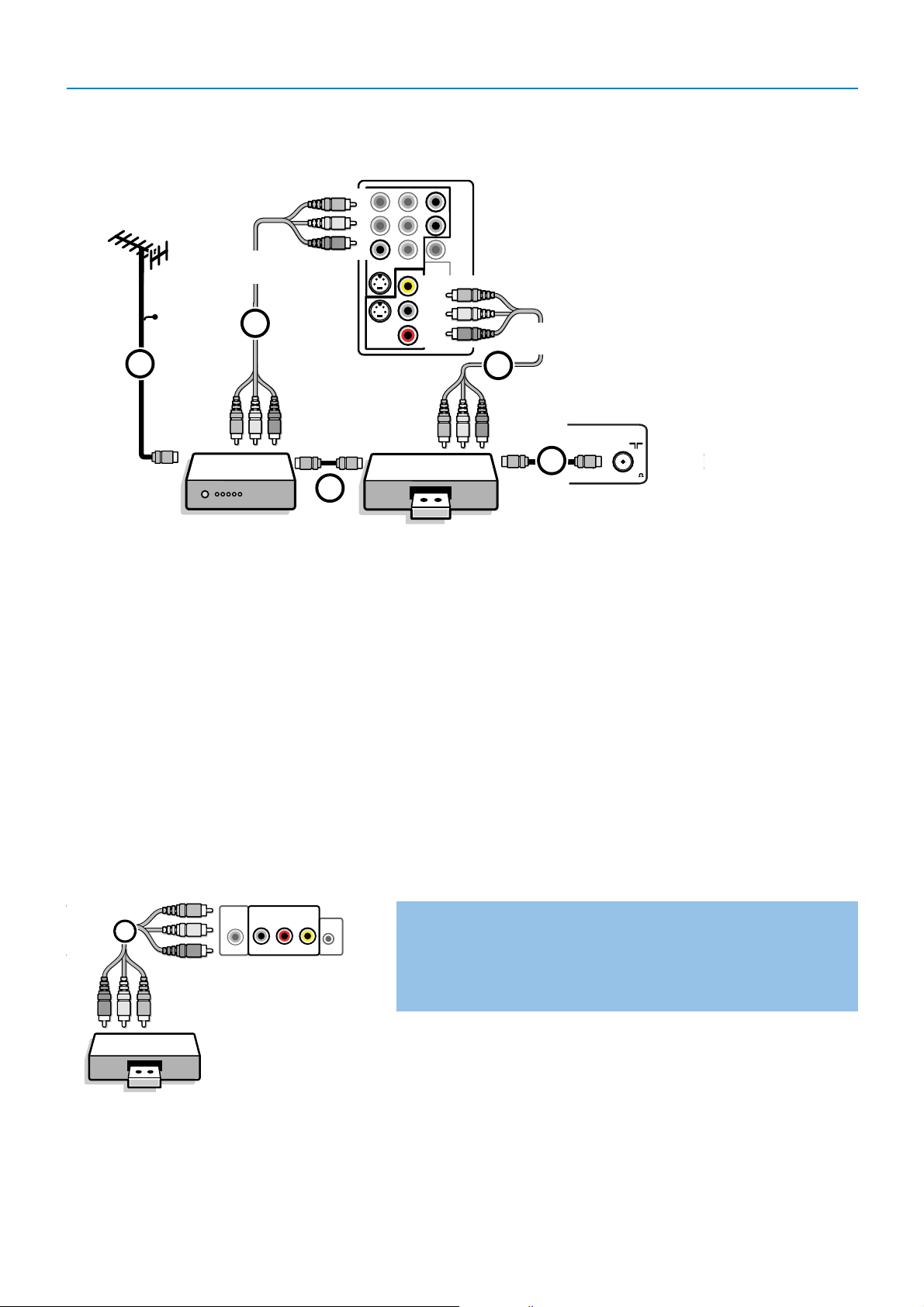

- Cable box with A/V outputs

• Connect the incoming cable TV signal 1 to a signal splitter (not

supplied).The signal splitter enables you to avoid having to use the TO TV jack on the back of the cable box.This jack will not supply stereo sound to the TV.

Note:Your cable box may have a different label for the

TO TV jack, such as

OUTPUT or OUT.

• Connect a coaxial cable (not supplied) to a connector on the signal

splitter and to the

CABLE/ANTENNA 75 Ω x jack 2 on the TV.

• Connect another coaxial cable (not supplied) to a connector on the

signal splitter and to the cable

IN jack 3 on the back of the cable

box.

• Connect A/V cables (not supplied) to the

VIDEO and AUDIO L and R

outputs on the back of the cable box and to the AV2 video (labeled

VIDEO) and AUDIO (labeled L and R) jacks 4 on the back of the TV.

•To view programs from your cable box, first press the AV+ button on

the remote control.

•Press the cursor down or up buttons until the

AV2 signal source is

selected.

•Press the

OK button to confirm your selection. The AV 2 input source

becomes current for the viewing of cable TV programs through your cable box.

Note: If your cable box Audio/Video outputs will not supply video and stereo audio to the TV, you will need to make the connection shown above in the example “Cable box with

RF IN/OUT”.

First time installation

Note: The first time (and only the first time) you turn on your set you see an installation introduction screen. The Installation procedure consists of a series of screens that guide you through the process.

& After an introduction screen, you are asked to select a language of the TV’s on-screen-menus. (The text of the header and the info on screen

continuously change language.)

é Press the cursor up/down to highlight your language. “ Press the OK button. ‘ Follow the on-screen instructions to proceed.

Note: Once you completed the initial installation procedure you can access the screens from the Settings menu. See p. 10.

ANTENNACABLE /

CABLE

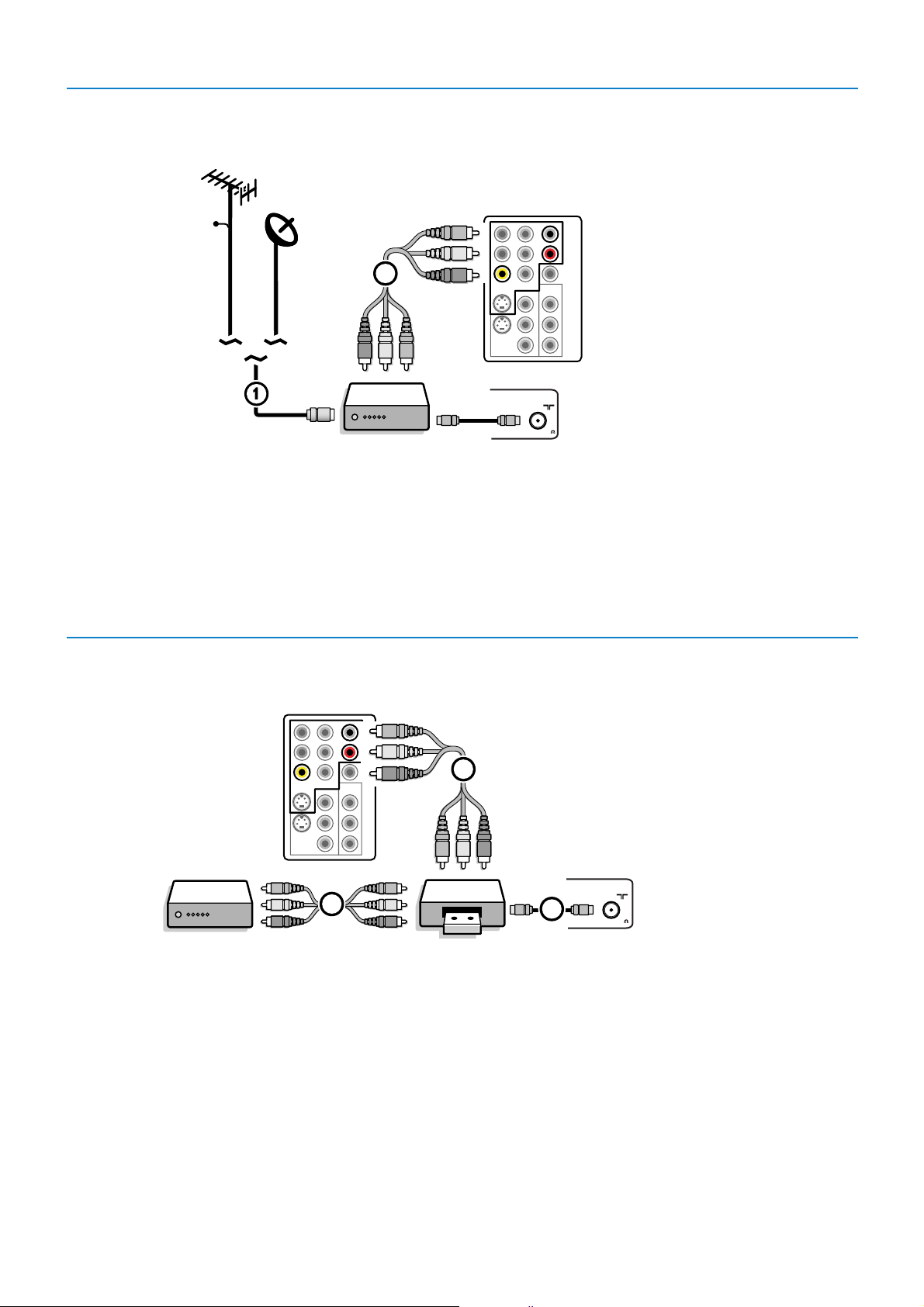

- Cable box with S-Video, component video (YPbPr) or HDMI connectors

See Connect Accessory Devices, p. 32-33.

- Antenna

Via antenna you can watch whatever DTV programs being broadcast in your area for free. If you’re not sure what HDTV programming is available in your area, contact your local content provider or your local electronics store retailer. Broadcasters are in the middle of a transition from analog to digital TV. This means that a given broadcaster will have two channels on the air, one analog and one digital.

Connect the incoming antenna signal to the

CABLE/ANTENNA 75 Ω x

jack at the bottom of the TV. See page 10 for details on using Autoprogram to store channels in the TV’s memory.

Note:This connection will supply stereo sound to the TV if it is being broadcast by the station you are watching.

- Direct Broadcast Satellite (DBS)

Satellite systems offer many of the same premium channels as cable systems, and often at a lower price.To get these channels, you’ll need to install a small dish antenna outside. There are 2 main DBS systems: DirecTV & DishNetwork.These systems require separate, proprietary set top receiver boxes to decode their signals and send them to your digital TV set.These boxes may include a digital TV tuner for off-air DTV broadcasts. Satellite broadcasters also provide major local channels, depending on the market in which you live. DBS also provides service in areas not covered by cable because they are in rural areas or other areas not passed by a cable line. DBS also allows you to watch pay-per-view events.

“ Before installing your TV or before hanging it on the wall, first connect your

accessory devices, see p. 29.

‘ Refer to the bottom of the set for the correct operation voltage. Insert the

power cord in the wall socket. Consult your local dealer if your mains supply is different. To prevent damaging the mains (AC) cord which could cause a fire or electric shock, do not place the TV on the cord.

( Remote control:

Insert the 2 batteries supplied (Type R6-1,5V).

The batteries supplied do not contain the heavy metals mercury and cadmium. Please check on how to dispose of exhausted batteries according to local regulations.

§ Turn the TV on:

Press the power switch B at the right side of the TV. An indicator on the front of the TV lights up. Press the

+CH/PAGE- buttons or the POWER button on the remote

control.

VOLUME

PROGRAM/CHANNELMENU POWER

The My Content menu (and the underlying Multimedia content browser) is intended to contain all content, services, applications you are interested to consume.

& Press the = button to activate. é Press the cursor up/down to move the highlight up and down in the list of

menu items.

“ Press the cursor right to go deeper into the structure.

•Television:

TV channels leading to the list of TV channels; the left panel will contain

the analog channel numbers, the one-part channel numbers and the major channel numbers in case of two-part digital channels.The right panel will contain the available subchannels associated with the major channel that is currently highlighted on the left panel. If there are no subchannels associated with the currently selected channel in the left panel, the right panel will remain empty.

• Multimedia:

Contains the locally connected devices on which content (pictures, audio files) is stored. See Multimedia browser, p. 27.

My Content

Should your remote be lost or broken you can still change some of the basic settings with the buttons on the right side of your TV. Press the power switch B to switch the TV on.

Press:

• the + VOLUME - buttons to adjust the volume;

• the

+ PROGRAM/CHANNEL - buttons to select the TV channels or sources.

The

MENU button can be used to summon the Settings menu without the

remote control.

Use:

• the

+ VOLUME - buttons and the + PROGRAM/CHANNEL - buttons to

select menu items in the directions as shown;

• the

MENU button to confirm your selection.

Note: When activated via the

MENU button on the right side of the TV, only Exit lets you

dismiss the menu. Navigate to

Exit and press the MENU button.

Buttons on the right of the TV

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

✓

MODEON/OFF

Ambilight

DVD/R CBL TV VCR AUX

PIPMENU

123

456

789

‡

†

A/CH

VIEW

- FAVORITES -

FORMAT

INFO

SELECT GUIDE

DEMO CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

AV+

POWER

SCREEN

SWIVEL

POWER

Press to turn on/off the TV from or to standby mode.

The TV is never powered off completely unless it is physically unplugged.

Note: For most buttons pressing a button once will activate the function. Pressing a second time will de-activate it. When a button enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list. The list will be removed automatically after 6 seconds or press

OK to remove immediately.

DVD/R CBL TV VCR AUX

Press the SELECT button repeatedly to select one of the system modes in which the remote control can be used. If no action is being undertaken within 60 seconds, the remote control returns to TV mode. After an action in the selected system mode the remote control will remain in this mode for 60 seconds and will then return to TV mode.

A/CH

Press to alternate between the currently viewed channel and the previously viewed channel.

DEMO Demo on/off

See p. 9.

CLOCK on/off

Time display (for max. 10 minutes)

Color buttons

When functions are attached to the color buttons, the color buttons are shown on screen.

MY CONTENT

Press to display the My Content menu on or off, see p. 5.

SWIVEL no function

OK - to activate a setting

- to display the list of channels stored (according to the selection made in the Installation mode - Antenna or Cable, p. 10.)

- starts playing content in the Home Network Browser application, p. 28.

MENU Settings menu on/off. See p. 9.

VOL Volume

Press + or - to adjust the volume.

MUTE

Interrupt the sound or restore it.

GUIDE no function

INFO

Display information: Press to display (when available) information about the selected TV channel and program or accessory device.

Cursor buttons

Press the cursor buttons up/down, left/right to navigate through the menus.

Note: If necessary, you can adjust the picture position to the center of the screen with the cursor keys.

PIP HDMI Dual screen/PIP See p. 12.

To watch a broadcast and a HDMI source simultaneously.

CH/PAGE

Channel selection

-To browse through the TV channels or sources stored in the preferred channel list (see p. 26).

-To select between Antenna or Cable TV channels, first make your selection in the Settings menu, see p. 10.

Note:You don’t have to start the installation again once you have searched for and stored the available TV channels.

AV+ Press repeatedly to select AV1, AV2,

AV3 , HDMI1, HDMI2, Side or TV

channels

when in TV mode, according to where you connected the accessory devices (p. 37).

Alphanumeric buttons

To select a TV channel. See p. 8.

- Type the dash (-) for digital channels.

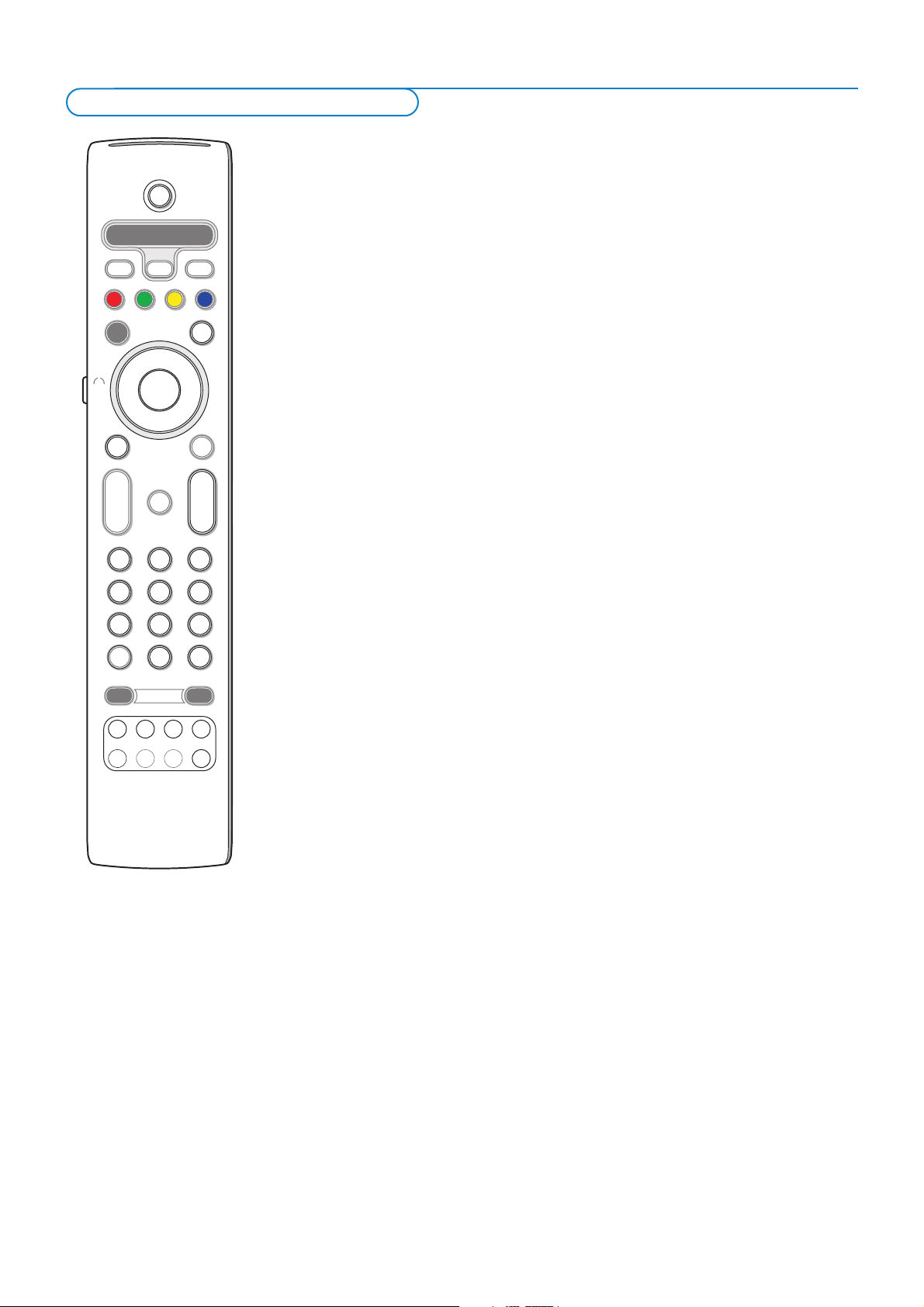

Use of the remote control RC4318

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

✓

MODEON/OFF

Ambilight

DVD/R CBL TV VCR AUX

PIPMENU

123

456

789

‡

†

A/CH

VIEW

- FAVORITES -

FORMAT

INFO

SELECT GUIDE

DEMO CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

AV+

POWER

SCREEN

SWIVEL

FORMAT

Press this button to summon a list of available display formats (depending on the receiving signal).This lets you choose the display format of your preference. Press this button repeatedly to select another picture format: Automatic, Super zoom, 4:3, Movie expand 14:9, Movie expand 16:9, 16:9 subtitle or Wide screen.

Automatic makes the picture fill the screen as much as possible. Super zoom removes the black bars on the sides of 4:3 programs with minimal distortion. When in Movie expand 14:9, Movie expand 16:9 or Super zoom picture format, you can make subtitles visible with the cursor up/down.

Note: With HD sources not all screen formats will be available.

FAVORITES

• VIEW To display a list of all channels marked as favorite (incl. subchannels).

• ✓ To add or remove a channel in the favorite list of TV channels.

AMBILIGHT

• ON/OFF Press to switch Ambilight On or Off. For the Ambilight settings, see TV menus, Ambilight, p. 23.

•

MODE

Press this button repeatedly to toggle through the Ambilight modes.

®Ò‡†ºπ

• Audio and Video equipment buttons. See p. 38.

• Multimedia browser functional buttons. See p. 28.

® no function

Automatic Super zoom 4:3 Movie expand 14:9

Movie expand 16:9 16:9 subtitle Wide screen

Alphanumeric buttons on the remote control

The alphanumeric buttons on the remote control can be used to enter digits and text. Multi-tap entry can be used to enter alphanumeric information when necessary. The characters displayed are dependent on the language selected in the Installation menu. See p. 8. Text is entered similar to the method used for entering text messages on a cellular phone. When a letter or number has been entered, the cursor automatically advances to the next character position after the specified time out or by pressing the cursor right.

Also the cursor up/down can be used to enter alphanumeric information. When finished, press the

OK button to confirm the entry.

Move to the left panel.

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

✓

MODEON/OFF

Ambilight

DVD/R CBL TV VCR AUX

PIPMENU

123

456

789

‡

†

A/CH

VIEW

- FAVORITES -

FORMAT

INFO

SELECT GUIDE

DEMO CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

AV+

POWER

SCREEN

SWIVEL

1 <space> Ò - 1 <space> Ò - 1 (etc.) 2abcAB C2 abc(etc.) 3def DE F3def (etc.) 4ghi GHI4ghi (etc.) 5jkl JKL5jkl(etc.) 6mnoMNO6mno(etc.) 7 pqrs PQRS7pqr s(etc.) 8tuvTUV8tuv(etc.) 9wxyzWXYZ9 wx yz(etc.)

0.@0.@ 0(etc.)

RC button Default Multi-tap Alphanumeric entry order

RC_CURSOR_UP a b c d . ..A B C D ... 1 2 3 ...0 <space> _ - . @ RC_CURSOR_DOWN @ . - _ <space> 0 9 8 7 ... Z Y X ... z y x ... c b a

Button Default

RC_CURSOR_UP/RC_CURSOR_DOWN

Alphanumeric

Entry Order

The Demo menu allows the user to get an idea of the features that are part of the television.

& Select Demo in the Settings menu and press the cursor right. é Highlight a desired demo with the cursor up/down. “ Press OK to start playing the highlighted demo. ‘ Press the red color button to exit the demo and to return to TV mode.

Note:The selected demo is played once.

The demos require no user interaction except for starting the demo.

Demo

How to navigate through the Settings menus

The Settings menu allows you to access and change settings and preferences.

•Press the

MENU button on the remote control to summon the Settings

menu.

- On the left panel the highlight can be set on a menu item with the cursor up/down. The right panel shows the content of the highlighted menu item in the left panel.

Note: Sometimes not all the menu items are visible on the screen. Use the cursor down to reveal all items.

- Use the cursor right to enter the right panel. The content of the right panel is moved to the left panel and the right panel shows the content of the newly highlighted item in the left panel.

Note: In some cases it is important that the picture can be watched while adjusting the settings. This means that when the highlight is on the right side panel, the other menu items hide away.When the cursor left is pressed again, the hidden menu items re-appear and the highlight moves to the left panel.

•Press the cursor left to go one menu level up again.

-Press the

OK button on the highlighted item to activate and to dismiss

the menu.

-Press the

MENU button again to exit the Settings menu.

Note:The menu is also dismissed by pressing one of the color buttons (if present) referring to certain actions which may be executed.

Introduction

A lot of guiding instructions, help texts and messages will be displayed on your TV when using the menus or when trying to execute an action. Please, follow the instructions and read the help text which are being displayed on the specific item highlighted. The color buttons refer to different actions which may be executed depending on the activated device. Press the corresponding color button on the remote control to perform the required action.

To use the menus

Notes:

• When you have locked TV channels while initiating autoprogram, a message appears asking to enter your PIN code in order to complete autoprogramming.

•ATSC channel information is updated automatically when the TV is in standby (after 3 minutes and every 3 hours thereafter).

• When interrupted, the updated channel information is retained as well as the not yet updated old channel information.

•Background autoprogramming occurs only when the TV is turned on.

• Channel information of an ATSC channel is updated only for the ATSC channel currently tuned.

• If an NTSC channel is tuned, then in Background Autoprogramming the TV shall scan all the possible ATSC frequencies and update information.

•Weak channel installation This allows you to manually tune weak ATSC channels in order to adjust the antenna and thus optimize signal quality for that channel. (See Installation menu, Weak channel installation, p. 11.)

• Once you have searched for as well the available Antenna as well as the Cable TV channels, they are stored in the memory.

& Select Autoprogram in the Installation menu. é Use the cursor right to enter the Autoprogram menu. “ Press the OK button. ‘ Select Cable or Antenna in the Installation mode.

When

Antenna is selected, the TV will detect antenna signals and will

search for antenna TV (NTSC and ATSC) channels available in your local area. When

Cable is selected, the TV will detect cable company supplied signals

and will search for cable TV (NTSC, ATSC, QAM modulated) channels available in your area. Make sure that registration with your cable TV provider and connection of equipment are completed.

( Press the green button “Next” on the remote control.

Note: All channels must be unlocked in order to autoprogram. If requested, enter your PIN code to unlock all channels. See Menu preferences in the Settings, TV menu, p. 15.

§ Press the green button “Start” to start autoprogramming.The menu screen

disappears and the progress of autoprogramming is displayed. The progress bar indicates the number of analog and digital TV channels found. (Also digital channels via CableCARD are being programmed. First refer to the CableCARD settings, see p. 18).

When Autoprogramming is complete, a message appears confirming the completion and the TV switches to the first installed TV channel.

Store TV channels

& Press the MENU button on the remote control. é Use the cursor down to select Installation in the Settings menu. “ Use the cursor right to enter the Installation menu. ‘ Select Language and enter the list of available languages with the cursor

right.

( Select your language with the cursor up/down and press the OK button to

confirm you selection.

§ Proceed with the Installation menu.

Select the menu language

Installation

Note: Digital Channel selection delay

Due to the tuning complexity of subchannel digital programming, the time to select and view a digital channel may take slightly longer than what the viewer is normally accustomed to (as compared to analog channel programs). Digital channel broadcasts contain program and system data information that must be processed before the channel selection can be displayed.

Channel tuning

Available channels:

- Cable (analog NTSC or digital QAM): max. from 1 to 135

-Terrestrial (analog NTSC or digital ATSC): max. from 2 to 69 If a tuned channel is not yet in the master channel map, the TV will attempt to tune the channel and it will be added to the map. If the channel is not acquired, a message will appear that the channel is not available.

When you tune an audio-only digital subchannel, a display appears with the message

Audio only.

Note: Subchannel selections

The new standards employed with digital broadcasting make it possible to receive multiple program channels under a single major channel number which can be selected by pressing the digit remote control direct-acces channel number entry.

Important:

After the installation of the TV channels has been done, always make a selection in the Installation menu between Antenna or Cable whether you want to watch Antenna TV channels or Cable TV channels. If you make use of a signal splitter do not forget to put the switch in the corresponding position.

Weak channel installation

This enables you to do a weak ATSC digital channel installation. This is only available for TV channels installed via an antenna connection (see p. 4).

& Select a channel in the channel list (in the antenna mode). é The signal strength is displayed and updated continuously as you rotate the

antenna.

Software upgrade

This menu allows you to upgrade your TV software using a USB/Portable Memory device.

USB/Portable Memory upgrade

It is possible to initiate an upgrade procedure from a USB or Portable Memory device.The memory device must be filled with the appropriate upgrade image (and structure) which can be found on the www.philips.com/support website. How to upload a new software version on your portable memory device, see Annex 1, p. 46.

Notes: PIP format: PC formats via HDMI will always be displayed full screen.

This menu is used to control the settings of special TV functions, features and accessory devices.

The

Preferences menu allows you to change settings that will typically be

accessed only occasionally. The

Source menu allows you to select a source.

The

Clock menu allows you to use your TV as a clock.This setup is necessary

for the correct working of the Lock after feature.

Preferences

& Press the MENU button. é Select Setup with the cursor down and press the cursor right to select the

Preferences menu.

“ Press the cursor right again to select Picture/sound preferences. ‘ Press the cursor right once more to enter the Picture/sound preferences

menu.

Picture/sound preferences

PIP format

This menu allows you to select the preferred format (PIP or Dual screen) which can then be displayed toggling the

PIP button on the remote control

On or Off.

& Select PIP format. é Press the cursor right. “ Select PIP or Dual screen with the cursor up/down.

Now, when the

PIP button on the remote control is pressed and when

PIP is selected, the TV shows a full screen of video with a pip window of

video on top of it.

Dual screen is selected, the TV splits the screen into two equally sized

screens.

‘ Press the cursor left/right to highlight the PIP window or the left/right

screen in Dual screen.

( Press the -CH/PAGE+ button to change the broadcast channel or the AV+

button to change the HDMI source in the highlighted screen.

Note: Audio only plays from the main, when PIP has been selected, or the left screen, when Dual screen has been selected.

Define the position of the PIP screen

& Press the cursor right to highlight the PIP screen. é Press the red color button on the remote control to select Position.

Note: If no action has been undertaken, the function buttons at the bottom of the screen will disappear after a few seconds.

“ Use the cursor keys to define the position of the PIP screen.

Auto surround

Sometimes the broadcaster transmits special signals for Surround sound encoded programs.The TV automatically switches to the best surround sound mode when

Auto surround is switched On.

Setup menu

Remind: Dual screen/PIP functionality, also called HDMI PIP, is a function used to watch a broadcast and a HDMI source simultaneously.

• A broadcast can be analog or digital, cable or antenna.

• An external HDMI device (DVD, DVD-R, Set Top Box,A/V receiver,...) must be connected to HDMI1 or HDMI2.

Note:The captions do not always use correct spelling and grammar. Not all TV programs and product commercials are made for broadcast with Closed Caption informations included. Refer to your area’s TV program listings for the TV channels and times of Closed Caption shows.The captioned programs are usually noted in the TV listings with service marks such as ‘CC’.

Features preferences

Caption service

This allows you to select the Closed Captions service levels of analog broadcasting to be displayed.

Closed Captioning allows you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, this feature uses on-screen ‘text boxes’ to show dialogue and conversations while the TV program is in progress. Captions will appear on the screen during captioned broadcasts.

& Select Captions service. é Press the cursor right. “ Select the desired Caption service:

•

CC 1, 2, 3 or 4

Dialogue (and descriptions) for the action on the captioned TV program shows on screen. Usually

CC 1 is the most used. CC 2 may be used for alternate languages

if they are being transmitted.

•

T 1, 2, 3 or 4

Often used for channel guide, schedules, bulletin board information for Closed Captions programs, news, weather informations or stock market reports. Not all Caption services are necessarily being used by a TV channel during the transmission of a Closed Caption program.

‘ See Closed Caption in the TV, Features menu, see p. 22, to turn the Caption

service On or Off.

Note:This television provides display of television closed captioning conforming with the EIA-608 standard and in accordance with Sections 15.119 of the FCC rules.

Digital caption service

This allows you to configure the way you choose to view the digital captioning. Select one of the digital service channels made available by the caption provider. There are 6 standard services. Service 1 is designated as the Primary Caption Service. This service contains the verbatim, or near-verbatim captions for the primary language being spoken in the accompanying program audio. Service 2 is designated as the Secondary Language Service.This service contains captions in a secondary language which are translations of the captions in the primary Caption Service. The other service subchannels are not pre-assigned. It is up to the discretion of the individual caption provider to utilize the remaining service channels.

Digital caption options

This allows you to modify how digital captions are displayed on your TV. Select from the following options to change the visual characteristics of your TV’s digital captioning.

•

Reset to default

Select this option to reset the digital caption options back to the captions provider default settings. Press the

OK button to confirm.

•

Size

Select this option to select the size of caption display according to your own preference. Select

Default (Automatic), Small, Standard or Large and press the

OK button to confirm.

•

Style

Select this option to select the font style of caption display according to your own preference. Select

Default, Monospaced serif, Serif, Monospaced sans serif, Sans

serif

, Casual, Cursive or Small caps.

•

Te x t

Select this option to select the text color or the opacity of the text box of caption display according to your own preference. Select a color and one of the opacity options.

•

Background

Select this option to select the character background color or one of the background opacity options of caption display according to your own preference. Select a color and one of the opacity options.

Note: Emergency Alert Signalling is not possible:

- when content browsing;

- with analogue video sources.

Notes:

-You always have the possibility to remove the message from the screen.

- The message display will overlap whatever menu element or other message is on the screen.

Important: you have forgotten your PIN!

& Select Change PIN in the Menu preferences

menu and press the cursor right.

é Press the cursor right to enter the overriding

PIN code

0-7-1-1.

“ Press the cursor again and enter a new personal

4-digit PIN code.The previous code is erased an the new PIN-code is stored.

Menu preferences

OSD

& Select OSD. é Press the cursor right to select Normal or Minimum.

Normal to activate the continuous display of the channel number (for max.

10 minutes) and extended display of TV channel and program information on screen. E.g. information on the main or auxiliary program, input signal quality of connected accessory devices, the display format, sound mode, availability of Closed Caption service, the audio language, the rating, sleeptimer setup.

Minimum to activate the display of reduced channel information.

Note: When Closed Captions is switched on, continuous display of the channel number and clock is not possible.

Show emergency alerts (EAS)

This allows you to select the alert priority level of the information disseminated by the cable operator. The standard SCTE18 defines an Emergency Alert signalling method for use by cable TV systems to signal emergencies to digital devices such as digital set-top boxes, digital TVs and digital VCRs. The Emergency alert signalling scheme defined in the standard allows a cable operator to disseminate emergency alert information related to state and local-level emergencies and warnings in a cost-effective and efficient way, while minimizing disruption of programming. An Emergency alert message will have one of the following priorities:

Low,

Medium, High or Maximum.

The Emergency alert message with priority

High or Maximum will always

be presented.

Low or Medium will be present or ignored depending on

the selected setting.

Important: When the TV clock is undefined (See Setup menu, Clock, p. 17), the Emergency Alerts will be ignored.

The Emergency Alert message display will contain following information:

- The Emergency Alert text

- The start time + date

- The end time + date.

& Select Show Emergency Alerts in the Menu preferences menu. é Press the cursor right and select one of the Emergency alerts options:

Always, when you always want the Emergency alert messages to be

displayed when available;

Skip low priority, when you want the messages with low level to be

ignored;

Skip low/medium priority, when you only want the messages with high

priority to be displayed.

Set/Change PIN

& Select Set or Change PIN with the cursor down. é If no PIN-code exists yet, the menu item is set to Set PIN.Follow the

instructions on screen. If a PIN-code has previously been entered, the menu item is set to

Change

.Follow the instructions on screen.

All number combinations from 0000 tot 9999 are valid numbers.

“ The Features preferences menu reappears with a message confirming

that the PIN has been created.

Reset AV settings

This function allows you to reset most of the picture and sound settings to their predefined factory states.

& Select Reset AV settings with the cursor down. é Press the cursor right. “ Press the OK button to erase settings and reset them to their default

values.

Source

This menu allows you to identify the accessory devices you have connected to the external inputs/outputs.

& Select Source in the Setup menu. é Press the cursor right. “ Select the input to which the accessory device is connected. ‘ Press the cursor right again to enter the list of types of devices connected

to the selected input.

( Select the accessory device with the cursor up/down.

When you select

AV1 , AV2 , AV3 , HDMI1, HDMI2, Side or Digital Audio

,a list appears allowing you to identify which type of accessory device is attached to this input.The TV detects the presence of the connected device and the signal is routed appropriately. Once you have selected the source type, e.g. DVD, this source will automatically be selected when your remote control is in DVD mode, see p. 6, and when you press the

AV+ button on the remote control.

Digital Audio

Select Digital Audio In when the TV expects digital audio for a connected device to come from a Digital audio input. Make your selection of the source to which the device with digital audio input has been connected.

In addition to accepting audio input via Digital Audio In, the TV can output Digital audio via the

DIGITAL AUDIO OUT connector to an external

amplifier or receiver. If your amplifier or receiver has a matching connector for Digital Audio In, you can connect it with a single cable to the TV’s

DIGITAL AUDIO OUT.

See Connect Accessory Devices, Digital Surround Receiver, p. 35.

Most of the TV channels are not transmitting clock information.There are few cable channels but they are at the end of the channel ring.There is no clock transmission in antenna channels. In such cases either clock extraction is taking a long time or there is no clock.

Clock

This allows you to use your TV as a clock.

Note: Adjusting the clock is necessar y for the correct working of Instant record (See use of the remote control, p. 7) and Lock after (See TV settings, Channels, p. 24) features.

Auto clock mode

& Select Clock in the Setup menu. é Press the cursor right to select the Auto clock mode. “ Press the cursor right to instruct the TV to get the time automatically or

manually.

Auto clock channel

(only available when Auto clock mode is set to Automatic)

With the cursor buttons, select the channel number where time can be found by the TV. Typically time can be found on PBS as well as some other channels.

Time - Day

(only available when Auto clock mode is set to Manual)

With the cursor buttons, select and enter the correct time and day. If

Auto clock mode Manual has been selected, and no clock search has

been done, the system will keep the entered time and day.

Time zone

(only available when Auto clock mode is set to Automatic)

This function allows you to select your local time zone. Broadcasted time information will correct the clock display for your local time.

& Select Time zone with the cursor down. é Press the cursor right to select your local time zone.

Daylight saving

(only available when Auto clock mode is set to Automatic)

Daylight saving time is automatically set by specially broadcasted signals. This menu item allows you to disable the automatic setting of daylight saving time.This is useful if you live in an area or state where daylight saving is not applied, but you receive channels from other areas where daylight saving signals are broadcasted.

& Select Daylight saving with the cursor down. é Press the cursor right to select Automatic for automatic clock correction

for daylight saving time, based on specially broadcasted signals.

“ Select Off to disable automatic clock correction based on the specially

broadcasted signals.

Inserting your CableCARD

& Gently push the card, the bottom side facing the

front of your TV, into the slot with one hand.

é Push the card with your two thumbs until it locks

into place.

Removing your CableCARD

& Turn off the TV. é Pull the CableCARD straight out of the slot with

both hands.

A CableCARD is a removable card distributed by cable companies, that is inserted into the CableCARD slot at the bottom of your television. See CableCARD, p. 2. It enables you to decode digitally encrypted, or scrambled content delivered from the cable system. CableCARD functionality includes conditional access and copy protection.

To r eceive the features/applications offered by your cable company, you may have to subscribe to those services. Contact your cable company regarding availability of the CableCARD. You may also be able to order call-ahead pay per view events.

Note: do not insert a PCMCIA card into the CableCARD interface slot.

& Insert your CableCARD. é Select CableCARD applications in the Settings menu. “ Press the cursor right to enter the list of available CableCARD applications

offered by the cable provider.

‘ A CableCARD application is initiated when you select an application item

and when you press the

OK button to activate it.

( Follow the messages displayed on screen.

The messages will remain on screen until the

OK button or the

corresponding color button is pressed.

Conditional access

When having selected

Conditional access, the TV will display messages

related to the conditional access functionality of CableCARD.They will indicate the status (possible or not) of descrambling of the selected program.

Copy protection

The displayed messages will be related to Copy control information.

Remark: When a CableCARD is inserted, the channel list might be different.

CableCARD applications

Press the MENU button on the remote control to summon the Settings menu. The TV menu gives you an overview of the menus you can select.

Note: Depending on the input signal, one or more menu items may not be selectable.

Picture menu

Note: Some menu items are not available in case of HD sources.

& Press the cursor right to select Picture. é Press the cursor right again to enter the Picture menu. “ Select the menu items with the cursor up/down. ‘ Adjust the settings with the cursor left/right or enter the list of submenu

items with the cursor right. Select a submenu item with the cursor up/down.

Auto picture

Select

Auto picture to display a list of predefined picture settings, each

corresponding with specific factory settings.

Personal refers to the personal preference settings of picture in the

picture menu.

Note:This Philips TV has been set at the factory to look best in bright store environments which typically use fluorescent lighting. As your home will likely not be as well lit as a store, we recommend that you cycle through the various auto picture modes to find the one that best suits your own viewing conditions. Most consumers will find that

Natural is the correct choice.

Contrast

This will adjust the intensity of bright parts in the picture but keep the dark parts unchanged.

Brightness

This will adjust the light output of the complete picture, which will mainly affect the darker areas of the picture.

Color

This will adjust the saturation level of the colors to suit your personal preference.

Sharpness

This will adjust the sharpness of fine details in the picture.

Color temperature

This will increase or decrease

War m (red) and Cool (blue) colors to suit

personal preferences. Select

Cool to give the white colors a blue tint, Normal to give the white

colors a neutral tint,

War m to give the white colors a red tint.

Digital processing

• Standard = line doubling eliminates the flicker.

•

Pixel Plus = for everyday viewing. Pixel Plus is the most ideal setting, as it

fully processes the image to make every single pixel the best it can be, improving contrast, sharpness, picture depth, and color reproduction and brilliance from every source, including High Definition.

Standard mode is recommended only for very noisy or poorly mastered

sources or for those who find the smoothness of Pixel Plus (which eliminates judder in the picture) unsettling.

TV menu

Dynamic contrast

Automatically makes the contrast in the darker and the brighter picture areas more noticeable as the image on the screen changes. Normally select Medium. It may be preferred to select Minimum,

Maximum or Off.

& Press the cursor right to enter the list. é Select one of the settings with the cursor up/down. “ Press the cursor left to return to the picture menu.

DNR (Digital Noise Reduction)

Automatically filters out and reduces the image noise and improves picture quality when receiving weak video signals.

& Press the cursor right to enter the list. é Select Off, Minimum, Medium or Maximum according to the image

noise.

“ Press the cursor left to return to the picture menu.

Color enhancement

When activated, this feature automatically controls green enhancement and blue stretch. It makes the colors more vivid.

& Press the cursor right. é Select On or Off in order to activate/de-activate Color enhancement with

the cursor right.

Tint

Allows you to select the color mix (hue) of the picture.

Picture format

This menu item performs the same as the

SCREEN FORMAT button on

the remote control. See Use of the remote control, p. 7.

Active Control

The TV continuously measures and corrects all incoming signals in order to provide the best picture possible. It also uses a sensor which monitors the ambient light conditions in the room and adjusts key picture settings for best viewing. When Active Control is set to Maximum, the brightness of the Ambilight shall be influenced by the light sensor.

& Select Active Control. é Press the cursor right to enter the list of Active Control values. “ Press the cursor up/down to select the Active Control values Off,

Minimum, Medium or Maximum.

The picture settings are being optimized continuously.Those menu items can not be selected.

‘ Press the OK button or wait for the time out to dismiss the Active Control

display.

Manufactured under license from Dolby Laboratories. ‘Dolby’ ‘Pro Logic’ and the double-D symbol are trademarks of Dolby Laboratories.

Sound menu

& Select Sound in the TV Settings menu. é Press the cursor right to enter the sound menu. “ Select the menu items with the cursor up/down and adjust the settings

with the cursor left/right. Remember, control settings are at normal mid-range levels when the bar scale is entered.

Auto sound

Select

Auto sound to display a list of predefined sound settings, each

corresponding with specific factory settings of Treble and Bass.

& Press the cursor right to enter the list. é Press the cursor up/down to select a predefined sound setting.

Personal refers to the personal preference settings of sound in the sound

menu.

Note:The moment you are in a predefined Auto sound setting and you modify a setting in the Sound menu, all values of the menu will overwrite the previously made personal setting.

Volume

This will adjust the sound output level.

Balance

This will adjust the output of the right and left speakers to obtain the best stereo reproduction for your listening position.

Headphone volume

This controls the level of sound through the headphones.

Sound mode

This selects the modes for more spatial or surround sound reproduction dependent on the broadcast signals or signals from external inputs received.

Alternate audio

(only selectable with analog broadcast signals)

This gives you the possibility to swap between the Main and Second audio Program (SAP) when it is available.

Digital Audio language

(only selectable with digital broadcast signals)

This allows you to select your language preference in case of multilingual audio track programs if available with digital broadcast signal.

Note:The default language for the digital channels is the installed menu language.

Mono/Stereo

This selects, per TV channel, Mono or Stereo sound when analog stereo broadcasts are available.

AVL (Automatic Volume Leveler) (only available with analog broadcast and non-Digital signals)

This automatically reduces the volume differences between channels and programs, providing a more constant overall level.This will also reduce the dynamics of sound.

Delta volume

This allows you to correct for any permanent volume differences between TV channels or external sources.

Features menu

& Select Features in the TV Settings menu. é Press the cursor right to enter the Features menu. “ Select the menu items with the cursor up/down and adjust the settings

with the cursor left/right.

Closed captions

This displays the transmitted CC- or CS-text on the screen according to your chosen CC or CS service in the Setup, Features preferences menu, p. 14.This text can either be permanently displayed (assuming that the service is available in the broadcast) or only when mute is active.

& Press the cursor right after having selected Closed captions. é Select On, Off or On during mute.

Sleeptimer

This sets a time period after which the TV automatically turns to standby.

& Select Sleeptimer. é Press the cursor right. “ Select a value with the cursor up/down.The list will have values from 0 to

180 minutes.

You can always turn off your TV earlier or select another time set.

Auto Color modes:

•

Personal: Select any color or hue to match to your personal taste, e.g.

your interior, the program content (sports, movie, etc.), the mood you are in, etc.

•

Warm white:The color is matched to that of most normal lightbulbs.

Select this setting if you want the Ambilight to fit best with normal living room lighting.

•

Cool white:The color is matched to that of normal daylight (6500K).

Select this setting if you prefer more cool lighting.

Note: the 6500 K is the SMPTE recommended setting for ambient backlighting of displays.

•

Blue:The blue color is preferred by most consumers to create a cool,

modern and /or mystical atmosphere. Select this setting according to your personal taste or mood.

Ambilight menu

Ambilight is an innovative lighting concept using light with fully adjustable colors at the back of the TV to enhance the viewing experience. Analysis of the picture content adapts the colors continuously, or the lights can be set to any fixed color and many shades of white.Ambilight creates the ideal viewing environment for your TV resulting in improved relaxed viewing, improved perceived picture detail, contrast and color.

& Select Ambilight in the TV menu. é Press the cursor right to enter the Ambilight menu. “ Select Ambilight and press the cursor right to select Off or On.

•

Off: will switch off the ambient lights and downlight all other menu items.

•

On: the ambient lights will be on. Refine the light settings in the menus

below.

‘ Select Brightness to adjust the light output of the ambient lights. ( Select Mode and press the cursor right to select Color, Ambience,

Relaxed, Movie or Action.

•

Color: this will show constant light according to the settings in the

Ambilight color menu. See below.

• The options

Ambience, Relaxed, Movie and Action will dynamically

match brightness and color to the screen content. The mode selection made will effect the speed and/or saturation and/or intensity which determines the viewing impression. E.g. in

Relaxed mode, the rate of brightness and color change is smoothly

and soft which gives you a more immersive yet relaxed viewing.

Ambience is the rate of brightness and color change as predefined in the

factory.

Movie will influence the perception of a movie whereas Action mode will

influence the dynamic impression.

Notes:

- The rate of change is limited, as not to cause uncomfortable sensations.

- According to the selection made, some Ambilight menu items will be downlighted

and can not be selected.

§ In case Color has been selected in the Mode menu:

• Select

Color in the Ambilight menu and press the cursor right.

• Select

Auto Color and press the cursor right again to select Personal,

Warm white, Cool white or Blue.

• Select

Palette to select the general color of the light.

• Select

Saturation to adjust the colorfulness of the light.

Note: Adjusting the Palette and/or Saturation settings will set the color mode to Personal.

Note: Infrared interference on external devices:

To avoid bad infrared remote control reception, place your external devices out of sight of the ambient lights of your TV set. Ambilight does not function well when the room temperature is less than 59°F/15°C.

Channels menu

This menu can control special functions for the TV channels.

& Select Channels

in the TV settings menu with the cursor up/down.

é Press the cursor right to enter the channels menu. “ Press the cursor up/down to select a channels menu item.

Lock after

Note: Lock after is only selectable if time and date are known. See Setup, Clock menu, p. 17.

This allows you to prevent the viewing of the selected channel after a selectable time delay. Locked channels can still be tuned, but the picture is blanked and the audio is muted.

& Press the cursor right and select Timer On or Off.

When set to

On this allows you to set the clock.

When having selected

Timer On,you will be summoned to enter your PIN

(See Set/Change PIN, p. 15). Follow the instructions on screen.

é Select Time and press the cursor right.This allows you to set the time

after which the lock is set.

“ Select AM or PM to select the correct period of the day. ‘ Enter the time with the digit or the cursor buttons.

Channel lock

This allows you to completely lock a certain TV channel or external source. Select the channels or subchannels you want to lock.

TV ratings lock

Your TV is equipped with a V-chip. This allows you to control access to individual programs based on their movie and TV ratings.All settings apply to all AV inputs, except HDMI.The program content advisory data are sent by the broadcaster or program provider.

& Select TV ratings lock with the cursor down. A list appears, showing the

age-based TV ratings and a corresponding content-based ratings list.

é Press the cursor right to enter the list. “ Select an age-based TV rating with the cursor up/down, and enter, if

present, the list with content-based ratings with the cursor right, and select one content-based rating.

‘ Press OK to activate/de-activate the selected rating.You are asked to enter

your PIN-code (see Set/Change PIN, p. 15). If the code is correct, the TV ratings lock menu reappears.

( Select another content-based rating if you like and press OK again.

You need only enter your PIN-code once while the menu is active. You can lock/unlock any number of ratings on the list without re-entering your code.

Each ratings item has a box-graphic in front of it to indicate whether or not programs carrying that rating are currently locked:

• a yellow-colored box: all items in the contents-based list are locked as well;

• a blue-colored box: the item is unselected;

• a half blue, half yellow-colored box: some content-based ratings are selected/unselected.

When All has been selected, all items in the age-based and in the contentsbased lists are locked. If, while

All is selected, any other item, either an age-based or content-based

item, is unselected, then All is automatically unselected.

No rating is the selection for items that either have no rating information or

have a rating of None. Both will be locked. When an item on the age-based list is selected, all items below that item of the same group are locked as well. When you select a content-based rating, all identical content-based ratings in the younger age-based categories are also selected.

Age-based Rating Content-based Rating

All none None none TV-Y none TV-Y7 (FV) Fantasy Violence TV-G none TV-PG (D) Dialog

(L) Language (S) Sex (V) Violence

TV-14 (D) Dialog

(L) Language (S) Sex (V) Violence

TV-MA (L) Language

(S) Sex (V) Violence

TV-Y

appropriate for children of all ages with themes and elements suitable for children aged 2-6

TV-Y7

programs designed for children age 7 and older

TV-Y7-FV

programs include fantasy violence more intense than other programs in

the TV-Y7 category

TV-G

programs suitable for all ages.These programs contain little or no violence, no strong language and little or no sexual dialogue or situations

TV-PG

programs contain elements that some parents may find unsuitable for younger children and which may need parental guidance. The program may contain moderate violence, sexual dialogue and/or situations and some strong language.

TV-14

programs contain elements that may not be suitable for children under 14 years of age.These programs include one or more of the following: intense violence, intense sexual situations, suggestive dialogue and strong language.

TV-MA

programs are designed to be viewed by adults and may be unsuitable for children under the age of 17.These programs may contain graphic violence, explicit sexual activity and/or crude or indecent language.

Movie Ratings Lock

This function allows you to control access to individual movies based on their MPAA ratings (Motion Picture Association of America).

& Select Movie ratings lock with the cursor down.

A list appears, showing all valid MPAA content ratings.

é Press the cursor right to enter the list.

You are asked to enter your code. (See Set/Change PIN, p. 15.) If the code is correct, the Movie ratings lock menu reappears.

“ Select a movie rating with the cursor up/down. ‘ Press OK to activate/de-activate the selected rating.

Each rating item has a box-graphic in front of it to indicate whether or not programs carrying that rating are currently locked:

• a yellow-colored box: movies with this rating are locked;

• a blue-colored box: movies with this rating are unlocked.

When

All has been selected, all items on the movie ratings list become

selected. (All movies are locked.) If, while

All is selected, any other item is unselected, then All is automatically

unselected. When

NR has been selected, no other item is selected.

When any other item has been selected, all ratings below are selected as well, thus all movies with those ratings will be locked.

Preferred channels

A channel, when installed, is marked as preferred by default and added to the channel list.This feature provides the ability to remove a channel number from the channel list.

& Select Preferred channels with the cursor down. é Press the cursor right to enter a list with all stored channel numbers. “ Select the channel you want to remove with the cursor down. ‘ Press OK. ( Repeat to remove other channels.

NR not rated

G movies with a mild content, suitable for all ages

PG movies for which parental guidance is recommended.They may contain a

few racy or violent scenes or maybe some bad language

PG-13movies for which parental guidance may be recommended if under age 13

R restricted. The movies usually contain offensive sex or bad language and

may be unsuitable for children under the age of 17. Parental guidance or permission needed.

NC-17 even with parental permission, forbidden under age 17. More offensive

sex, violence or bad language.

X movies which generally focus on sex, violence and/or bad language.Also

known as pornography.

Multimedia browser lets you display pictures or play audio files stored on a USB device or a memory card. The Multimedia browser application is invoked from the My Content menu (press the = button) by selecting a device and pressing the cursor right.

Notes:

- Following types of memory cards can be read: Compact Flash I & II, Memory Stick, Memory Stick PRO, SD Card, Smart Media, Micro Drive, MultiMedia Card.

- Following file formats can be reproduced:

• For pictures: JPEG

• For audio: MP3, MP3 Pro

- Only FAT/DOS-formatted memor y devices are supported.

- If your digital camera is not supported, try one of the following solutions:

• Make sure your camera is switched on and verify if its configuration settings are

correct (see the manual of your camera).

• Remove the memory card from your camera and insert it in the memory card

slot. Refer to www.philips.com/support for more information.

- Philips cannot be responsible if your USB device or memory card is not supported.

Card data protection

• Do not remove the card/USB device when the content is being read or when browsing. Such action may damage the memory card/USB device.

• Do not touch the terminals on the back of the card.

•Always insert a card in the correct direction. Failure to do so may result in damage to the card and the unit.

• Do not subject the card to excessive pressure or strong impacts.

• Malfunctions of the unit or card may result in data loss or damage to the card.

• Philips shall not accept any liability for damage or loss of stored data.

Warning:

Memory cards can be swallowed by young children. Do not allow children to handle memory cards. Please, remove the memory card immediately after use.

Compact Flash I & II /

Micro Drive

Memory Stick

Smart Media

Card

MultiMedia Card /

SD Card

Viewing content from a Memory card / USB device

Inserting a memory card / USB device

Note: Memory cards or USB devices are not supplied with this TV.

Insert a memory card in one of the cardslots at the right side of the TV. Insert it to be clicked in. In case of a memory stick or a digital camera, connect it to one of the USB2.0 connectors. When a memory card or a USB device is inserted, the Multimedia menu is displayed automatically, see further.

Note: If your USB device does not fit into the USB connector at the side, use an USB extend cable to connect the USB device to the USB port. Ask your dealer.

Removing the memory card / USB device

& First switch off the My Content menu.To do so, navigate to the Multimedia

browser menu and press the = button to exit the menu.

é Remove the memory card/USB device.

Multimedia browser

Following icons may appear:

folder

pictures

music

self made playlist/album

Function buttons at the bottom of the screen

Details to display a description of the selected file or

directory;

Transitions to select if a transition during a slide show should

be applied;

Slide time to select the duration a picture will be displayed in

a slide show;

Rotate to rotate a picture; Repeat one/all to repeat the playback of a music file; Shuffle to shuffle music collections in a random way;

Other function buttons on the remote control

‡ to stop displaying content; º to pause displaying content; π to play a single file, start a slide show, playback of a

folder or other collection.

Notes:

•Your TV supports slide shows with

background music. See Annex 2, p. 48.

• The playback will continue to play even if temporarily switched to browser screens. The audio will be stopped when another song starts playing, or when the end has been reached.

• Progressive JPEG files are not supported.

• The length of the files should not exceed 128 characters.

• Do not use a dot “.” in folder naming.

• More technical remarks can be found in Annex 3, p. 50.

Multimedia Browser menu

& Insert a USB device or memory card. é Select the USB device or memory card under Multimedia with the cursor

up/down. The Multimedia browser will allow the user to browse content stored on the inserted USB device or memory card. Press the cursor right.

“ The 2-panel browser will be shown with the left panel containing the

content types (Music, Picture). The right panel will display the content that is available of the selected content type.

‘ Press the cursor up/down to select a content type and press the cursor

right to enter the content.

( Press the cursor up/down to select a file or a directory.

Note: Press the green color button to display all the image files in the current directory as thumbnails when browsing pictures. Press the green button again to display the image files in a list.

§ In case a file is selected, press the OK button to display a picture file or to

play an audio file. In case a directory, album or playlist is selected, press the cursor right to enter the content or press the

OK button to start a slide show or a

playback of the files present in the directory, album or playlist.

è Press the cursor left to keep music playing and switch back to the

Multimedia menu.

! Press one of the color buttons on the remote control to perform the

corresponding function mentioned at the bottom of the screen. The blue color button can be used to let the color re-appear.

ç To stop playing content, press the ‡ button on the remote control.

There is a wide range of audio and video devices that can be connected to your TV.The following connection diagrams show you how to connect them to the TV.

AV1 can handle YPbPr, S-VIDEO, RGB + HV or VIDEO and L/R Audio, AV2 VIDEO or S-VIDEO and L/R Audio, AV3 YPbPr and Digital Audio,

Side VIDEO or S-VIDEO and L/R Audio.

LPrH

RPbV

DIGITAL AUDIO IN

PbL

S-VIDEO

AV2

AV3

AV1

VIDEO

Cable CARD INTERFACE HDMI HDMI

ANTENNA

CABLE /

Cable CARD INTERFACE HDMI HDMI

ANTENNA

CABLE /

LPrH

RPbV

PbL

S-VIDEO

AV2

AV3

MONITOR OUT

AV1

VIDEO

IR OUT

VIDEO

DIGITAL AUDIO

OUT

VIDEO

DIGITAL AUDIO IN

MONITOR OUT

VIDEO

IR OUT

DIGITAL AUDIO OUT

Connect Accessory Devices

CABLE / ANTENNA

LPrH

RPbV

DIGITAL AUDIO IN

S-VIDEO

AV2

AV3

AV1

VIDEO

MONITOR OUT

VIDEO IR OUT

DIGITAL AUDIO

OUT

CABLE

RECORDER

OUT IN

OUT

AV2 :

L + R + VIDEO

Note: Do not place your recorder too close to the screen as some recorders may be susceptible for signals from the display. Keep a minimum distance of 20” from the screen.

& Connect the RF Antenna or Cable TV cable (eventually via an optional two-way signal splitter and/or Cable TV converter box) 1 to

the

RF IN socket of your recorder.

é Connect another RF cable 2 from the output OUT of your recorder to the TV’s CABLE/ANTENNA 75 Ω x jack. “ Better playback quality can be obtained if you also connect the Video,Audio Left and Right (only for stereo devices) AV cables 3 to

the

VIDEO, AUDIO L and R input jacks of AV2 .

If your recorder has an S-VHS video jack:

For improved picture quality, connect an S-video cable with the

S-VIDEO input instead of connecting the recorder to the VIDEO

jack of AV2 . S-Video does not provide audio, so audio cables must still be connected to provide sound.

Recorder (VCR-DVD +RW)

PrH

PbV

DIGITAL AUDIO IN

S-VIDEO

AV3

AV2

AV1

VIDEO

HDMI 1 HDMI 2

DIG AUDIO OUT

CABLE / ANTENNA

RECORDER

OUTIN

CABLE

OUTIN

VIDEO

L/Mono

VIDEO

L/Mono

AV1 : L + R + VIDEO

AV2 :

L + R + VIDEO

HDMI 1 HDMI 2 C ABLE

RF IN

IR OUT

DIGITAL AUDIO

OUT

MONITOR OUT

VIDEO

RECORDER

OUTIN

VIDEO

L/Mono

The

MONITOR OUT

connector can be used for a daisy chaining or to

record programs from your TV 6. Only when a recorder is connected to

MONITOR OUT it is possible to record an analog program from your TV.

See Record with your recorder, p. 37.

& Connect the RF antenna cable 1 of the RF IN socket of your other AV device. é Connect the RF output of the AV device to the RF input of the recorder 2. “ Connect another RF cable 4 from the output OUT of your recorder to the TV’s input CABLE/ANTENNA 75 Ω x jack. ‘ To obtain better quality, also connect the Video or S-Video,Audio left and Audio right cables of both devices to AV1 (VIDEO or S-

VIDEO, AUDIO L and R,) 3 and to AV2 (VIDEO or S-VIDEO, AUDIO L and R) 5.

Notes:

- In case of mono equipment, only the left loudspeaker reproduces sound. Use a mono to stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

- When using the

S-VIDEO connector do not connect any device to the AV2 VIDEO or AV1 VIDEO input.

Recorder and other A/V devices

NETWORKACE HDMI 1 HDMI 2

LPrH

RPbV

DIGITAL AUDIO IN

S-VIDEO

AV2

AV3

AV1

VIDEO

MONITOR OUT

VIDEO IR OUT

DIGITAL AUDIO

OUT

CABLE / ANTENNA

CABLE

STB RECORDER

OUTIN

SIGNAL

SPLITTER

AV2 :

L + R + VIDEO

& Use an optional signal splitter. é Connect one of the cable TV signal splitter outputs 1 to the cable box’s IN jack. “ Connect the other cable TV signal splitter output 2 to the CABLE/ANTENNA 75 Ω x plug on the bottom of the TV. ‘ Connect the cable box’s OUT jack 3 to the recorders RF IN socket. ( Connect the Video, Audio Left and Right (only for stereo sound) recorder AV cables 4 to the VIDEO, audio L and R input AV2

jacks on the TV.

Recorder and cable box with RF output

PrH

PbV

DIG AUDIO IN

S-VIDEO

AV2

AV3

AV1

VIDEO

AV1

AV1 : L + R + VIDEO

RECORDER

OUT

OUTIN

VIDEO

L/Mono

OUT

STB

OUT

CABLE / ANTENNA

PrH

PbV

DIGITAL AUDIO IN

S-VIDEO

AV2

AV3

AV1

VIDEO

AV1

STB

CABLE

OUT

VIDEO

L/Mono

CABLE / ANTENNA

AV1 :

L + R + VIDEO

& Connect the RF Antenna or Cable TV cable as described above. é Connect the AV cables 1 to the satellite receiver’s or cable box’s AV OUT jacks and to the recorder’s AV IN jacks. “ Connect the recorder’s AV OUT jacks 2 to the TV’s AV1 jacks as described above. ‘ Connect another RF cable 3 from the output out of your recorder to the TV’s input CABLE/ANTENNA x jack.

& Connect the satellite antenna cable or the Cable TV cable 1 to the satellite receiver’s or cable box’s IN jack. é Connect the Video,Audio left and right AV cables 2 to the VIDEO, L and R audio input jacks of AV1.

If your satellite receiver or cable box has an S-Video jack:

For improved picture quality, connect an S-Video cable to the S-VIDEO input instead of connecting the satellite receiver or cable box to the

VIDEO jack.

Connect the audio cables to the device’s

AUDIO L and R jacks and to the L and R audio AV1 jacks on the TV.

Satellite Receiver / cable box with AV outputs

Recorder and Satellite Receiver / cable box with AV outputs

LPr

RPb

S-VIDEO

AV2

AV3

AV1

VIDEO

AV1

AV3

DVD / STB

DIGITAL

AUDIO

AV1/AV3 :

YPbPr

AV1 : L + R

LPrH

RPbV

DIGITAL AUDIO IN

S-VIDEO

AV2

AV3

VIDEO

DVD / STB

AV1 : H + V

AV1 :

L + R

AV1 : YPbPr

AV1

PrH

PbV

DIGITAL AUDIO IN

S-VIDEO

AV2

AV3

AV1

VIDEO

AV1

AV2

DVD / STB

AV1/AV2 :

S-VIDEO

AV1/AV2 :

L + R

DVD Player or other accessory digital source devices

Devices with Component Video Output Connectors (YPbPr)

This TV is capable of displaying 1080i, 720p and 480p DTV signals when connected to a DTV tuner Set Top Box. Select the output of the Set Top Box to either 1080i, 720p or 480p.A DTV signal must be available in your area.

& Connect the three separate component video cables 1 to the device

having component video outputs (YPbPr), such as Set Top Boxes, DVDplayers, laser-disc players, videogame players, satellite receivers or other equipment, and to the

Y, Pb and Pr jacks of AV 1 or AV3 on the TV.

• Connect to the Y, Pb and Pr jacks of AV 1 in case of devices with analog audio signals.

• Connect to the

Y, Pb and Pr jacks of AV 3 in case of devices with digital

audio signals.

é In case of a device with digital audio, connect the audio cable 2 to the

DIGITAL AUDIO OUT of the device and to the DIG. AUDIO IN of the TV

or to your Home Cinema system. In case of a device with analog audio, connect the audio cable to the device’s

AUDIO L and R 3 jacks and the L and R audio jacks of AV 1.

Devices with RGB output

& Connect the device with RGB output with separate Horizontal and Vertical

sync to the

Pr/R Pb/B Y/G input 1 jacks and to the H and V jacks of AV 1

é Connect the audio cables to the L and R AUDIO jacks of AV1 3.

Devices with an S-Video connector

& Connect an S-Video cable to the AV1 or AV2 S-VIDEO input 1.

Note: When using the

S-VIDEO connector do not connect any device to the AV

VIDEO input that you are using.

é Connect the audio cables to the device’s AUDIO L and R jacks and to the

L and R audio AV1 or AV2 jacks 2 on the TV accordingly to where you

connected the S-Video cable.

Notes

- If necessary, you can adjust the picture position to the center of the screen with the cursor keys.

- The labels for the component video sockets may differ depending on the DVD player or the device connected. Although the abbreviations may vary, the letters B and R stand for the blue and red component signals, respectively, and Y indicates the luminance signal. Refer to the DVD player’s or devices instructions for use for definitions and connection details.

- This television is designed to accept high definition signal standards 480p, 720p and 1080i as specified by the Electronic Industries Association standard EIA770.3. Digital devices from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.

- Due to possible digital image distortion when displaying signals from connected digital equipment, automatically the Auto picture setting

Soft is selected, if you

selected Digital STB in the Source menu. See Picture menu, Auto picture, p. 19. Changing this setting during reviewing will not be stored as

Personal setting after

switch off.

Warning: in case you notice scrolling images, wrong colors or no color, no picture, or

even combinations of these on your screen, check if the connections are done in the correct way or move your digital device further away from your TV.

HDMI HDMI

CABLE / ANTENNA

HDMI

DVI

DIGITAL AUDIO IN

MONITOR OUT

VIDEO IR OUT

DIGITAL AUDIO

OUT

HDMI HDMI

CABLE / ANTENNA

PrH

PbV

S-VIDEO

AV2

AV3

AV1

VIDEO

DIGITAL AUDIO IN

DIGITAL AUDIO OUT

MONITOR OUT

VIDEO IR OUT

DIGITAL AUDIO

OUT

Connect a Digital MultiChannel Surround receiver to the DIGITAL AUDIO OUT connector at the bottom of the TV.

HDMI is the leading new standard for Digital video and audio interconnection.To the

HDMI connector you can connect HDMI devices

such as a Set Top Box or compatible DVD-R or DVD player with HDMI, or DVI-equipped devices like a computer. So you can display high-definition pictures on this TV in the digital form.

Note: If the accessory device has DVI output only, use a DVI to HDMI adapter cable to connect to the

HDMI connector. (Then also connect the audio cable to

DIGITAL AUDIO IN.)

& Connect your HDMI device with one of the HDMI connectors. é Select the connected digital device in the Setup, Source menu, p. 16.

The

HDMI IN connectors allow the following TV and monitor display

modes:

HD Standard Definition TV (SDTV) 640/720 x 480i

Enhanced Definition TV (EDTV) 640/720 x 480p

High Definition TV (HDTV) 1920x1080i

1280x720p

PC VGA 640x480 60 Hz

SVGA 800x600 60 Hz XGA 1280x768 60 Hz

Notes:

- If necessary, you can adjust the picture position to the center of the screen with the cursor keys.

- Due to legal requirements, it is possible that with certain copy protected PCM audio qualities from a device connected to the

HDMI input, the DIGITAL

AUDIO OUTPUT signal is muted.

-Your TV supports HDCP (High-bandwidth Digital Content Protection).This is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (DVD, PC, etc.) and your TV. Content is encrypted at the source device to prevent unauthorized copies from being made.

-Proper working is only guaranteed with HDMI compliant consumer products.

- Digital devices from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.

- In case no signal is detected from your HDMI device, turn off the HDMI device and then on again. To get an optimal viewing, it is advised to turn your DVD player to one of the following TV display standards: 1920x1080i, 1280x720p, 720x480i or 720x480p.

HDMI (High Definition Multimedia Interface) connectors

Digital Surround receiver

Camera, Camcorder, Game

& Connect your camera, camcorder or game as shown.

é Connect to VIDEO 2 and AUDIO L 3 for mono equipment. For stereo equipment also connect AUDIO R 3.

S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cables with the

S-VIDEO input 1 and AUDIO inputs 3.

Do not connect cable 1 and 2 at the same time. This may cause picture distortion !

Headphone

& Insert the plug into the headphone socket L as shown.

é Press the MUTE button on the remote control to switch off the internal loudspeakers of the TV.

The headphone impedance must be between 8 and 4000 Ohm.The headphone socket has a 3.5 mm jack.

In the Sound menu select

Headphone volume to adjust the headphone volume.

Side connections

✓

MODEON/OFF

Ambilight

789

‡

†

- FAVORITES -

FORMAT VIEW

AV+

SCREEN

Record a TV program

You can record a TV program using your recorders tuner without affecting your TV.

& Select the channel number on your recorder.

é Set your recorder to record.

See the handbook for your recorder.

Switching channel numbers on your TV does not disturb recording !

Record a program from

MONITOR OUT

You can record a program on your recorder from the TV tuner via MONITOR OUT.

& Select the correct channel on your TV and the correct input on your recorder.

é Set your recorder to record.

Do not switch channels or turn off your TV when you are recording through

MONITOR OUT.

Notes:

- When a TV channel or AV source is blocked because of a rating set via the Channels menu (see p. 24), also the record output picture and sound are muted.

- In case of an analog copy protected recording the audio outputs are

not muted.

Record with your recorder

& Press the AV+ button repeatedly or select Source in the Settings menu

(see p. 16) to select

AV1 , AV2 , AV3 , HDMI1, HDMI2, Side or TV, according

to where you connected your devices.

é Press the cursor up/down. “ Press OK.

To select connected devices

✓

MODEON/OFF

Ambilight

DVD/R CBL TV VCR AUX

PIPMENU

123

456

789

‡

†

A/CH

- FAVORITES -

FORMAT VIEW

INFO

SELECT GUIDE

DEMO CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

AV+

POWER

SCREEN

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

SWIVEL

POWER to switch to standby

º for pause, ® for record, Ò for rewind (

VCR, CD);

search down (

DVD , AMP)

‡ for stop, π for play, † for fast forward (

VCR, CD);

search up (

DVD/AMP) INFO display information MENU to switch the menu on or off

- CH + for chapter, channel, track

selection

0 to 9 digit entry,

- tape index (

VCR),

select a DVD chapter, select a frequency (

AMP)

cursor up/down

to select the next or the previous disc (CD)

cursor left/right

to select the previous or following track (

CD)

Expert mode

When you do not want the remote to go back to TV mode, and to stay in the mode selected, proceed as follows:

& Select TV mode with the SELECT button. é Press the SELECT button again simultaneously with the OK button for at

least 2 seconds.

“ Select the desired mode with the SELECT button.

The remote will not go back to TV mode from now on and will remain in the mode selected.To go back to the default setting of the remote (TV mode) repeat what is explained above, selecting the TV mode.

Note: LED behavior

- If the LED blinks

once after pressing the SELECT button simultaneously with the OK

button for at least 2 seconds, the remote control is in Expert mode and the remote control remains in the mode selected.

- If the LED blinks

4 times after pressing the SELECT button with the OK button for

at least 2 seconds, the remote control is in

Normal mode and the remote control

returns to TV mode after 60 seconds.

Direct selection of a connected device

When the remote is in

TV Expert mode you may directly select a connected

device in the following way: Press the

AV+ button:

-followed by digit ‘

1’ to select the device connected to AV1 .

-followed by digit ‘

2’ to select the device connected to AV2 .

-followed by digit ‘

3’ to select the device connected to AV3 .

-followed by digit ‘

4’ to select the device connected to HDMI1.

-followed by digit ‘

5’ to select the device connected to HDMI2.

-followed by digit ‘

0’ to select the device connected to the side.

Note: Make sure your device is turned on.

Notes:

- If no action is being undertaken within 60 seconds, the remote control returns to TV mode.

- After an action in the selected system mode, the remote control will remain in this mode for 60 seconds and will then return to TV mode or press the

SELECT button to

return to TV mode immediately.

Most of the audio and video equipment from our range of products can be operated with the remote control of your TV.

Normal mode

Press one of the buttons after you pressed the

SELECT button repeatedly

according to the equipment you want to operate with this remote control. See Use of the remote control, p. 6.

Audio- and video equipment buttons

Your TV remote control gives you the opportunity to control all your accessory devices with one single remote control. This can be done by selecting the correct brand and type out of the list of Direct Entry codes for accessory devices. Press the

SELECT button repeatedly to select DVD/R, CBL (SAT), VCR or AUX (CDR) according to the accessory device you want to

operate with this remote control. See Use of the Remote control, p. 6. If the function buttons on the remote control also work the selected accessory device, then the remote is ready and no further steps are needed.

If the function buttons do not work with the selected accessory device, according to the device(s) you own, you may make your remote control ready for them by a direct entry code. Proceed as following.

DVD/R CBL TV VCR AUX

PIPMENU

123

A/CH

INFO

SELECT GUIDE

DEMO CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

POWER

JKLGHI MNO

ABC DEF

SWIVEL

Code setup

& Press the SELECT button repeatedly to select your source according to

the accessory device you want to operate with this remote control.

é Press the SELECT and POWER button at the same time for longer than 4

seconds.The selected mode LED will lit constantly.

“ Input the digit code for the type and brand of accessory device.

The codes are listed on page 40.

‘ The selected mode LED will blink fast for 5 seconds as a confirmation you

entered a correct code.The remote will go back to the last selected mode. If you entered a wrong code the mode LED will stay on for 2 seconds. Redo step

“.

( Now you will try to use the TV remote with the accessory device. Press

the

SELECT button repeatedly to select the desired mode.

The selected mode LED will stay on for 2 seconds and then begin blinking. The blinking means that the remote is in the accessory mode you have selected.

§ Within 60 seconds from the time the blinking starts, point the remote

toward the accessory device and press the

POWER button. If the device

does not respond to the

POWER command, follow the steps for

programming the remote again using a different setup code for the type and brand of accessory device you wish to operate. Refer again to the code list on page 40. If no more codes are listed for the type and brand of accessory device, the remote likely will not operate your particular model of accessory device.

Notes:

-Your TV remote is not necessarily capable of being programmed to operate all models of the brands of accessory devices listed on page 40.You may want to try the programming process again.Try using the number(s) that are listed for your type and brand of device to be sure you did not make a mistake in inputting the digits during your first attempt at programming.

- If the remote control is in one of the accessory modes (a mode light is flashing) — DVD/R, CBL, TV,VCR or AUX — and you don’t press any of the remote buttons for sixty seconds, a “time-out” occurs, returning the remote to TV mode.

To cancel the selected mode

Press the SELECT button for 2 seconds. The remote control will return to TV mode.

Setting the remote control to work accessory devices

Cable Box

ABC . . . . . . . . . . . . . . . . . . . . . . 008, 009

GE . . . . . . . . . . . . . . . . . . . . . . . 008, 009

General Instrument . . . . . . . 004, 009, 011

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . 009

Jerrold . . . . . . . . . . . . . . . . . . . . 009, 011

Motorola . . . . . . . . . . . 005, 006, 007, 015

Philips . . . . . . . . . . . . . . . . . . . . . . . . 000

Pioneer . . . . . . . . . . . . . . . . . . . . . . . 001

Proscan. . . . . . . . . . . . . . . . . . . . 008, 009

RCA . . . . . . . . . . . . . . . . . . . . . . . . . 011

Scientific Atlanta . . . . . 003, 010, 012, 013

Signature . . . . . . . . . . . . . . . . . . . . . . 009

Sony. . . . . . . . . . . . . . . . . . . . . . . . . . 002

Time Warner . . . . . . . . . . . . . . . . . . . 014

Bose . . . . . . . . . . . . . . . . . . . . . . . . . 012

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . 001

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . 004

Kenwood . . . . . . . . . . . . . . . . . . . . . . 002

Panasonic . . . . . . . . . . . . . . . . . . . . . . 005

Philips . . . . . . . . . . . . . . . . . . . . . . . . 000

Pioneer . . . . . . . . . . . . . . . . . . . . . . . 011

Samsung. . . . . . . . . . . . . . . . . . . . . . . 006

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . 007

Sony. . . . . . . . . . . . . . . . . . . . . . . . . . 008

Technics . . . . . . . . . . . . . . . . . . . . . . . 009

Thomson . . . . . . . . . . . . . . . . . . . . . . 003

Yamaha . . . . . . . . . . . . . . . . . . . . . . . 010

Digital Video Disc (DVD)

Apex . . . . . . . . . . . . . . . . . . . . . . 001, 002

Bose . . . . . . . . . . . . . . . . . . . . . . . . . . 050

Daewoo . . . . . . . . . . . . . . . . . . . . . . . 029

Denon . . . . . . . . . . . . . . . . . . . . . . . . 030

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . 031

Go Video . . . . . . . . . . . . . . . . . . . . . . 018

Harman Kardon . . . . . . . . . . . . . . . . . 032

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . 033

JVC . . . . . . . . . . . . . . . . . . . . . . . 016, 021

Kenwood . . . . . . . . . . . . . . . . . . . . . . 034

Koss . . . . . . . . . . . . . . . . . . . . . . . . . . 035

Magnavox . . . . . . . . . . . . . . . . . . . . . . 036

Mitsubishi . . . . . . . . . . . . . . . . . . . . . . 037

NAD . . . . . . . . . . . . . . . . . . . . . . . . . 052

Norcent . . . . . . . . . . . . . . . . . . . . . . . 049

Onkyo . . . . . . . . . . . . . . . . . . . . . . . . 038

Panasonic . . . . . . . . . . . . . . . . . . 003, 004

Philips . . . . . . . . . . . . . . . . . . . . . . . . . 000

Pioneer. . . . . . . . . . . . . . . . . . . . . . . . 039

Proscan. . . . . . . . . . . . . . . . . . . . . . . . 040

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . 022

Samsung . . . . . . . . . . . . . . . 010, 012, 023

Sanyo . . . . . . . . . . . . . . . . . . . . . . . . . 013

Sharp. . . . . . . . . . . . . . . . . . . . . . 014, 041

Sony. . . . 005, 006, 007, 008, 011, 017, 019,

. . . . . . . . . . . . . . . . . . . . . . 024, 025, 026

Technics . . . . . . . . . . . . . . . . . . . . . . . 043

Toshiba . . . . . . . . . . . . . . . . . . . . 009, 020

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . 044

Zenith . . . . . . . . . . . . . . . . . . . . . . . . 015

DVR

Philips . . . . . . . . . . . . . . . . . . . . . 016, 020

RCA . . . . . . . . . . . . . . . . . . . . . . . . . 021

RePlay . . . . . . . . . . . . . . . . . . . . . . . . 017

Sony . . . . . . . . . . . . . . . . . . 018, 022, 023

Zenith . . . . . . . . . . . . . . . . . . . . . . . . 031

DVD/VCR Combo

Go Video . . . . . . . . . . . . . . . . . . . . . . 018

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . 016

Samsung. . . . . . . . . . . . . . . . . . . . . . . 012

Sanyo . . . . . . . . . . . . . . . . . . . . . . . . . 013

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . 014

Sony . . . . . . . . . . . . . . . . . . . . . . 017, 019

Zenith . . . . . . . . . . . . . . . . . . . . . . . . 015

Satellite Receiver

Directtv . . . . . . . . . . . . . . . . . . . . . . . 027

Dish Network . . . . . . . . . . . . . . . . . . 024

Express Vu . . . . . . . . . . . . . . . . . . . . . 041

GE . . . . . . . . . . . . . . . . . . . . . . . 043, 044

Hughes . . . . . . . . . . . . . . . . . . . . . . . 032

Mitsubishi. . . . . . . . . . . . . . . . . . . . . . 028

Panasonic . . . . . . . . . . . . . . . . . . 030, 033

Philips . . . . . . . . . . . . . . . . . . . . . 020, 026

Proscan. . . . . . . . . . . . . . . . . . . . 043, 044

RCA . . . . . . . . . . . . . . 021, 034, 043, 044

Samsung . . . . . . . . . . . . . . . . . . . 025, 035

Sony . . . . . . . . . . 022, 023, 036, 037, 038

Star Choice . . . . . . . . . . . . . . . . . . . . 042

Toshiba . . . . . . . . . . . . . . . . . . . . . . . 039

Zenith . . . . . . . . . . . . . . . . . . . . . . . . 031

VCR

Admiral . . . . . . . . . . . . . . . . . . . . . . . 022

Akai . . . . . . . . . . . . . . . . . . . . . . 023, 028

Carver . . . . . . . . . . . . . . . . . . . . . . . . 003

Craig . . . . . . . . . . . . . . . . . . . . . . . . . 002

Curtis Mathes . . . . . . . . . . . . . . . . . . 004

Daewoo. . . . . . . . . . . . . . . . . . . . . . . 001

Daytron . . . . . . . . . . . . . . . . . . . . . . . 001

Dimensia . . . . . . . . . . . . . . . . . . . . . . 004

Fisher . . . . . . . . . . . . . . . . . . . . . . . . 002

Fuji. . . . . . . . . . . . . . . . . . . . . . . . . . . 028

GE. . . . . . . . . . . . . . . . . . . . 004, 026, 027

Go Video . . . . . . . . . . . . . . . . . . 005, 018

Harman/Kardon . . . . . . . . . . . . . . . . . 003

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . 006

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . 016

Lloyds . . . . . . . . . . . . . . . . . . . . . . . . 002

Magnasonic . . . . . . . . . . . . . . . . . . . . 001

Magnavox . . . . . . . . . . . . . . . . . . 003, 029

Marantz . . . . . . . . . . . . . . . . . . . . . . . 003

Memorex . . . . . . . . . . . . . . . 002, 007, 022

Mitsubishi. . . . . . . . . . . . . . . 008, 009, 011

Montgomery Ward . . . . . . . . . . . . . . . 022

Motorola . . . . . . . . . . . . . . . . . . . . . . 022

Optimus . . . . . . . . . . . . . . . . . . . . . . . 022

Panasonic . . . . . . . . . . . . . . . 002, 010, 021

Philips . . . . . . . . . . . . . . . . . . . . . 000, 003

Proscan . . . . . . . . . . . . . . . . 004, 026, 027

Quasar . . . . . . . . . . . . . . . . . . . . . . . . 021

Radio Shack . . . . . . . . . . . . . . . . . . . . 022

RCA . . . . . . . . . . . . . . . 004, 021, 026, 027

Realistic. . . . . . . . . . . . . . . . . . . . 002, 022

Samsung . . . . . . . . . . . . . . . . . . . . . . . 012

Sanyo . . . . . . . . . . . . . . . . . . . . . . . . . 002

Sears. . . . . . . . . . . . . . . . . . . . . . . . . . 002

Sharp. . . . . . . . . . . . . . . . . . . . . . . . . 022

Shintom . . . . . . . . . . . . . . . . . . . . . . . 028

Signature. . . . . . . . . . . . . . . . . . . . . . . 022

Sony. . . . . . . . 017, 019, 020, 023, 024, 028

Sylvania. . . . . . . . . . . . . . . . . . . . . . . . 003

Symphonic . . . . . . . . . . . . . . . . . . . . . 002

Toshiba. . . . . . . . . . . . . . . . . 001, 002, 025

Wards. . . . . . . . . . . . . . . . . 002, 003, 022

Zenith . . . . . . . . . . . . . . . . . . . . . . . . 028

TV/VCR

Action . . . . . . . . . . . . . . . . . . . . . . . . 001

Precision . . . . . . . . . . . . . . . . . . . . . . 001

Realistic . . . . . . . . . . . . . . . . . . . . . . . 002

Remote Control Direct Entry Codes for Accessory Devices

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio or television technician for help.

Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Philips Consumer Electronics may void the user’s authority to operate the equipment.

Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Regulatory Notices - Federal Communications Commission Notice

Your TV remote control supports a learnable function which makes it possible to read out codes coming from another remote control from devices from another brand. This makes it possible to use only one remote control to control all your other connected devices. For the following devices the highlighted buttons are programmable.

Note:You can put whatever function of your other device remote under one of the highlighted buttons.

& Press the SELECT button of your TV remote control repeatedly to select your destination source (e.g. DVD,VCR,...). é Press the OK button and the POWER button simultaneously for at least 4 seconds.

The LED of the selected source on your TV remote control will light up constantly.

“ Press a valid destination button on your TV remote control under which you want to copy a certain function from the remote

control of the selected external device.

‘ Place both remote controls face to face so that the infrared signals can be exchanged. ( Press for about 2 seconds on the remote control of your external device the function button you want to be learned by your TV

remote control. The LED of the selected source on your TV remote control is blanked during the capture of the signal. When the function is copied, the LED is lit again.

§ Repeat steps “ to ( again to copy other functions. è To e xit the learnable mode:

Press the button at the side of your TV remote control for about 2 seconds. Your remote control will remain the last selected mode.

Note: If a code from the remote control of your external device is not recognized by the TV remote control, the LED of the selected source will blink for a few seconds.This means that the code transfer did not succeed.

✓

MODEON/OFF

Ambilight

DVD/R CBL TV VCR AUX

PIPMENU

123

456

789

‡

†

A/CH

- FAVORITES -

FORMAT VIEW

INFO

SELECT GUIDE

DEMO CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

AV+

POWER

SCREEN

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

SWIVEL

✓

MODEON/OFF

Ambilight

DVD/R CBL TV VCR AUX

PIPMENU

123

456

789

‡

†

A/CH

- FAVORITES -

FORMAT VIEW

INFO

SELECT GUIDE

DEMO

CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

AV+

POWER

SCREEN

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

SWIVEL

✓

MODEON/OFF

Ambilight

DVD/R CBL TV VCR AUX

PIPMENU

123

456

789

‡

†

A/CH

- FAVORITES -

FORMAT VIEW

INFO

SELECT GUIDE

DEMO CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

AV+

POWER

SCREEN

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

SWIVEL

✓

MODEON/OFF

Ambilight

DVD/R CBL TV VCR AUX

PIPMENU

123

456

789

‡

†

A/CH

- FAVORITES -

FORMAT VIEW

INFO

SELECT GUIDE

DEMO CLOCK

MY CONTENT

VOL

CH/

PAGE

MUTE

AV+

POWER

SCREEN

TUVPQRS WXYZ

JKLGHI MNO

ABC DEF

SWIVEL

DVD /R CBL VCR AUX

Learnable remote control

To put the remote control function buttons back to the factory mode

& Press the SELECT button repeatedly to select TV mode. é Press the OK button and the MUTE button simultaneously for at least 5 seconds.

All the

SELECT LEDS will light up.

“ Press the SELECT button

• 1x:

DVD/R is lit up

• 2x:

CBL is lit up

• 3x:

VCR is lit up

• 4x:

AUX is lit up

• 5x:

DVD/R, CBL, VCR, AUX are lit up.

‘ Press the OK button when one or all mode LEDS are lit.

The function buttons which were ‘learned’ will be erased or from the selected destination source or from all the external devices at once.

All the buttons from the TV remote control will have their factory function again.

Symptoms Items to Check and Actions to follow

“Ghost” or

• This may be caused by obstruction to the antenna due to high rise buildings or hills.

double images Using a highly directional antenna may improve the picture.

No power • Check that the TV’s AC power cord is plugged into the mains socket.

• Unplug the television, wait for 60 seconds. Then re-insert plug into the mains socket and turn on the television again.

No picture • Check antenna connections at the bottom of the TV to see if they are properly connected to the TV.

•Possible broadcast station trouble.Try another channel.

• Adjust the contrast and brightness settings. Try another auto picture setting.

• Check the Closed Captions control. Some TEXT modes could block the screen.

• Check if you selected the correct AV source.

No picture and •Your TV has a protective mode in case there is too much heat build-up. power switched on Check the clearance around the vents of the device to be certain there are no blocking walls or cabinets

which would limit the air flow.

Picture position When displaying a High Definition signal from the YPbPr inputs or HDMI input, if necessary, you can adjust adjustment the picture position to the center of the screen with the cursor left/right or up/down buttons on the

remote control.This may be needed due to slight differences in output signals from different brands and types of HD sources boxes.

Notes: Most High Definition receiver boxes also have picture-positioning controls in their menu systems. If the TV cursor controls run out of range before the picture is correctly positioned, the receiver box controls will need to be adjusted.

No photo, music • Check if the source complies with a supported code. or video play or in poor quality only

No sound

• Increase the VOLUME.

• Check that the TV is not muted, press the mute button on the remote control.

• When no signal is detected, the TV automatically switches off the sound. This is proper operation and does not indicate a malfunction.

Good sound but poor • Adjust the contrast, color, tint and brightness setting. color or no picture Tr y another auto picture setting.

Snowish picture • Check the antenna connection. and noise

Television not

• Check whether the batteries are working. Replace if necessary.

responding to • Clean the remote control sensor lens on the monitor. remote control • Operating range between TV and the remote control should not be > 240”.

•You can still use the buttons on top of your TV.

• Check if the remote control is in the correct mode.

Control of • The infrared signals of the screen may influence the reception sensibility of other peripherals accessory devices Solution: replace the batteries of the remote control of other devices.

E.g. keep away a wireless headphone from within a radius of 50”.

No stable or not Check if you have selected the correct VGA mode in your PC. synchronized VGA See HDMI connectors, p. 35. picture

If your problem is not solved

Turn your TV off and then on again once.

Never attempt to repair a defective TV yourself.

Check with your dealer or call a TV technician.

Telephone number Philips Customer

Care Center: 1-888-PHILIPS (744-5477)

Please, have the Model and Product number which you can find at the back of your television set ready, before calling.

Before Calling Service

Care of the screen

Do not touch, push or rub or strike the screen with anything hard as this may scratch, mar or damage the screen permanently. And please do not rub with dust clothes with chemical treatment. Do not touch the surface with bare hands or greasy cloth (some cosmetics are detrimental to the screen). Unplug the TV before cleaning the screen. When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks. Do not use acetone, toluene and alcohol because they cause chemical damage. Do not use liquid cleaners or aerosol cleaners.Wipe off saliva or water drops as soon as possible.Their long time contact with the screen causes deformations and color fading.

Plasma display characteristics

This Plasma display is designed to be used at altitudes up to 6562 ft above sea level (and/or local air pressure equal or above 800 hPa). Operating this set at higher altitude (lower air pressure) is possible. However, at high altitudes (or local air pressure equal or below 800 hPa) the picture on this display may become unstable and picture performance can deteriorate. In addition, the plasma display may produce a humming sound in these conditions. These possible adverse effects relate to the altitude and are common of all plasma displays. Once the set is brought below aprox 6562 ft (and/or local air pressure equal or above 800 hPa) its function will most likely return to normal. Note:Transportation at high altitudes has no negative effect on the set or picture performance.

How to dispose of batteries?

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless in many areas batteries may not be disposed of with your household waste. Please ensure you dispose of batteries according to local regulations.

Standby

Your TV consumes energy in the standby mode. Energy consumption contributes to air and water pollution.

Energy Star Compliance

No CableCARD installed: 1 W. With CableCARD installed: 15 W.

After improper shutdown

If your TV has been shutdown in an improper way (e.g. power drop, power cord plug out), starting up the TV again will take a longer time than usual.

Miscellaneous

See Extras, Specifications on this CD.

Warning concerning stationary images on the TV screen (only for PDP Displays)

A characteristic of Plasma Display Panels is that displaying the same image for a long time can cause a permanent after-image to remain on the screen.This is called phosphor burn in. Normal use of the TV should involve the showing of pictures that contain constantly moving and changing images that fill the screen.

Examples of stationary images (this is not an all-inclusive list, you may encounter others in your viewing):

•

TV and DVD menus: listings of DVD disk content;

• Black bars: when black bars appear at the left and right side of the screen, it is recommended to change to a picture format so that the picture fills the entire screen;

•

PIP and Multipip: do not view for long periods of time using the PIP function or Multipip function;

• TV channel logo:present a problem if they are bright and stationary. Moving or low-contrast graphics are less likely to cause uneven aging of the screen;

•

Stock market stickers:presented at the bottom of the TV screen;

• Shopping channel logos and pricing displays: bright and shown constantly or repeatedly in the same location on the TV screen. Examples of still pictures also include logos, computer images, time display, teletext and images displayed in 4:3 mode, static images or characters, etc.

Notes:

- reduce contrast and brightness when viewing

- once burn-in occurs it will never disappear completely.

Tips

1080i

Provides 1080 lines of resolution. Displays images using interlaced scanning. 1080i is one of the formats used by HDTV (via HDMI,YPbPr, 1394...).

720p

Displays images using progressive scanning.

CS Caption Service

DCC Digital Closed Caption

DNS

The Domain Name System is a distributed internet directory service. DNS is used mostly to translate between domain names and IP addresses, and to control e-mail delivery.

DTV

A new technology for transmitting and receiving broadcast television signals. DTV provides higher resolution and improved sound quality over analog television.

DV Digital Video (from a camera)

DVB Digital Video Broadcast

DVCR Digital Video Recorder.

EAS

Emergency Alert System Method for use by cable TV systems to signal emergencies to digital terminal devices such as digital STV, digital TV receivers and digital VCRs. It allows a cable operator to disseminate emergency alert information related to state and local-level emergencies and warnings.

NTSC Analog signals

PBS Public Broadcast System

POD

(Cable Card) Point Of Deployment (module) (process scrambled information)

Glossary

Your TV is equipped with a Kensington Security Slot, to prevent it from getting stolen. An anti-theft Kensington lock has to be purchased separately. The Kensington lock is a plastic-coated steel cable with a lock. One end has to be fixed to the opening of the TV and locked with a special key.The other end is attached to a fixed point.

® Kensington and MicroSaver are registered US trademarks of ACCO World Corporation with issued registrations and pending applications in other countries throughout the world. All other registered and unregistered trademarks are the property of their respective owners.

Kensington Security Slot (if present)

Introduction

Philips offers software upgrade capability for your TV using portable memory. After you have completed a software upgrade, your TV will typically perform better. What improvements are made depends on the upgrade software you are using as well as the software your TV contained before the upgrade. You can execute the software upgrade procedure yourself. Be aware that the content of this document is addressing technical or software skilled users.

Preparing a portable memory for software upgrade

For the procedure you will require:

• A personal computer with web browsing capability.

• An archive utility that supports the ZIP-format (e.g. WinZip for Windows or StuffIt for Mac OS.

• A preferably empty USB memory stick or memory card (if available). Supported memory cards (if available): CompactFlash Card Type I & II, IBM Microdrive, Memory Stick, SecureDigital Card / Mini SD Card, SmartMedia Card, MultiMedia Card.

Note: Only FAT/DOS-formatted portable memory is supported.

New software can be obtained from your dealer or can be downloaded from the www.philips.com/support website:

& Go to www.philips.com/support using the web browser on your PC. é Follow the procedure to find the information and the software related to

your TV.

“ Select the latest software upgrade file and download it to your PC. ‘ Decompress the ZIP-file and copy the file “autorun.upg” to the root

directory of the USB portable memory.

Note: Only use software upgrades that can be found on the www.philips.com/support web site.

Verifying the version of the TV software

Before starting the software upgrade procedure, it is advised to check what the current TV software is.

& Select Software Upgrade in the Installation menu. é Press the cursor right.

The Software Upgrade menu moves to the left panel.

“ Select Current Software Info to observe the version and the description

of the current software.

Annex 1 -

Philips TV software upgrade with portable memory

Manual software upgrade procedure

For a manual software upgrade copy the “autorun.upg” file in a directory called “Upgrades” located in the root of the USB portable memory.

& Insert the portable memory that contains the downloaded software

upgrade.

é Select Software Upgrade in the Installation menu. Go to Local

upgrades/applications

. The TV will list all compatible images available on the USB portable memory and display the data for each selected upgrade image.

“ Select the correct upgrade image and press the red color button to start

the upgrade. Your TV will restart and will automatically go to the upgrade mode. After a few seconds it will display the status of the upgrade procedure.

Warning:

If you try to upgrade to a software version equal or lower than the current version, a confirmation will be asked. Downgrading to older software should only be done in case of real necessity.

‘ When the software upgrade was successful, remove the USB portable

memory and restart your TV with the

POWER button on your remote

control. Your TV will start up with the new software.

Automatic software upgrade procedure

& Power off your TV and remove all memory devices. é Insert the USB portable memory that contains the downloaded software

upgrade.

“ Switch on your TV with the POWER button on your remote control. ‘ At startup the TV will scan the USB portable memory until it finds the

update content.The TV will automatically go to the upgrade mode. After a few seconds it will display the status of the upgrade procedure.

Warning:

• You are not allowed to remove the USB portable memor y during the software

upgrade procedure!

• In case of a power drop during the upgrade procedure, don’t remove the USB

portable memory from the TV.The TV will continue the upgrade as soon as the power comes back.

• If you try to upgrade to a software version lower than the current version, a

confirmation will be asked. Downgrading to older software should only be done in case of real necessity.

• If an error occurs during the upgrade you should retr y the procedure or contact

your dealer.

( When the software upgrade was successful, remove the USB portable

memory and restart your TV with the

POWER button on your remote

control. Your TV will start up with the new software.

Note: Once the upgrade is finished use your PC to remove the TV software from your USB portable memory.

<?xml version="1.0" encoding="ISO-885h9-1" ?> <philips-slideshow version="1.0" >

<title>Title of the slideshow</title> <audio>audio_url</audio> <slide-duration>30</slide-duration> <slides>

<slide>slide_1_url</slide> <slide>slide_2_url</slide> <slide>slide_3_url</slide> <slide>slide_4_url</slide> <slide>slide_5_url</slide> <slide>slide_6_url</slide> ... <slide>slide_N-1_url</slide> <slide>slide_N_url</slide>

</slides>

</philips-slideshow>

Notes:

- The latest version of this document can be found on the Philips support website (www.philips.com/support). Use the type number of your TV (e.g. 42PF9630A/37) to find this documentation and other related files.

- Philips can’t be held responsible for any problems that may occur as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.

Introduction

This document explains how to make a Philips slideshow file with background audio. Be aware that the content of this document is addressing technical or software skilled users. To start the slideshow open the slideshow file in the Multimedia browser of your TV.

& Press the = button on the remote control after having inserted a memory card or USB device and switched on the

TV.

é Go to where you stored the slideshow file (.alb) on your portable memory. “ Select the slideshow file and press the OK button to start the slide show. ‘ To stop a slide show, press the ‡ button.

General Rules

• The slideshow will use plain ASCII XML syntax to allow the creation and editing of the slideshow files using simple tools.

• All references to network content must be based on the global address of the content.

• Content on a Portable Memory (PM) doesn't have a global address; as a result content from a PM can never be referenced from a slideshow not stored on the PM itself.

•To maintain portability, a slideshow stored on a PM should ONLY reference content on the same PM. Referencing global addresses can result in inconsistencies if the PM is used on a non-networked CE device. The latter is however not forbidden, it is only a recommendation.

• It is preferable that URL’s referencing PM content are based on a relative path starting from the directory where the slideshow is stored. This path includes the device or drive name of the PM. An absolute path to content will also be supported.

-relative path: pictures\test1.jpg, tamper.jpg, ..\new\bird.jpg, …

- absolute path: USB1:\pictures1\foo_bar.jpg, C:\f1.jpg, \organization.jpg, …

General Format

The format and syntax below will be used to create the slideshow file (simple ascii text) with the extension .alb (.ALB) Examples: slshow1.alb, summer_holiday_2004.ALB, test.alb, … The following syntax should be used to create the text file:

Annex 2 - Philips TV Slideshow Format with background music

Ta g Name

philips-slideshow

title

audio

slide-duration

slides

slide

Use

mandatory

optional

mandatory

optional

Description

Philips slideshow signature including the version.

The title of the playlist.

The audio-URL following this tag will define the music playing in the background during the slideshow. A single song or playlist (.m3u & .pls) are the only valid audio references. Other reference will not result in any audio playback. If a single song is referenced the song will be repeated forever. If a playlist is referenced the playlist will be played in sequence with a repeat at the end of the playlist.

The default display time (in 0,1 second) of a slide. The TV application isn’t obliged to support this tag. The TV application can force the use of one or multiple predefined display times.

Identifies the slides to show.

Identifies the URL of the individual slide.

<?xml version="1.0" encoding="ISO-885h9-1" ?> <philips-slideshow version="1.0" >

<title>Philips AlbumFile</title> <audio>Music\Nature.mp3</audio> <slide-duration>50</slide-duration> <slides>

<slide>Images\Image01.jpg</slide> <slide>Images\Image02.jpg</slide> <slide>Images\Image03.jpg</slide> <slide>Images\Image04.jpg</slide> <slide>Images\Image05.jpg</slide> <slide>Images\Image06.jpg</slide> <slide>Images\Image07.jpg</slide> <slide>Images\Image08.jpg</slide> <slide>Images\Image09.jpg</slide> <slide>Images\Image10.jpg</slide> <slide>Images\Image11.jpg</slide> <slide>Images\Image12.jpg</slide>

</slides>

</philips-slideshow>

Examples:

See on this CD in the directory Files/Slideshw/....

Copy the directory with the slideshow files to your portable memory.

Supported XML-tags

The following table gives a description of the XML syntax.

Notes:

-The latest version of this document can be found on the Philips support website (www.philips.com/support).

- The software of your TV is upgradeable. If you have problems first check if you have the latest software installed on your TV. The latest software, together with instructions, can be found on the Philips support website. Use the type number of your TV (e.g. 42PF9630A/37) to find this documentation and other related files.

- Philips can’t be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.

Digital Content Issues

• Only FAT (DOS) formatted (initialized) portable memory is supported. Errors in this formatting can result in unreadable

content. If such problems appear try to re-format the card. Be aware that formatting the card will also delete all the content on it (pictures, music, …).

• The following file types are supported: .jpg, .jpeg, .mp3, .alb, .m3u and .pls.

• Only linear JPEG picture formats are supported. Progressive JPEG encodings are not supported.

• The length of a filename or directory name is limited to the length specified by the FAT12/16/32 file systems.

• Max. levels of nested directories is 19.

•Never use the supported file type extensions (.jpg, .jpeg, .mp3, .alb, .m3u and .pls) as extensions for directories as these

directories will be treated as corrupted files.

• The MP3 decoder does not support MPEG1 Layer 1 or Layer 2 playback.

• MP3 Pro files can be played with normal MP3 quality.

• The access and response time of the content on a device can differ depending on the type or brand of the device.

• The access and response time of the content on a device will decrease the more unsupported or corrupted files are on

the device.

Portable Memory Issues

• The following memory cards* are supported by the digital media reader:

- CompactFlash Card (Type I & II) (CF)

- IBM Microdrive

- Memory Stick + Memory Stick Pro

- SecureDigital Card (SD)

- SmartMedia Card (SM)

- MultiMedia Card (MMC)

• XD cards are supported through an external XD compatible card reader (not supplied with the TV) connected to the USB

connector. The same holds for other future memory cards.

• Do not apply excessive force when inserting a memory card into the digital media reader. If the memory card doesn’t fit

or isn’t detected by the TV, try to flip over the card and re-insert it.

• When inserting multiple cards at the same time some card combinations will work. It is however recommended to insert

maximum one memory card at the same time.

* Trademarks and trade names belong to their respective owners.

Digital Camera Issues

If a USB connection between your digital camera and the TV isn’t working, you can try the solutions below to resolve your problem.

• Make sure your digital camera is switched on and verify if the configuration of your digital camera is correct (see the

manual of your digital camera for more information).

• Some digital cameras allow you to switch off the USB interface. Make sure that the USB interface is switched on before

connecting to the TV.

• Remove the memory card from your digital camera and insert it directly into the digital media reader on the right side of

your TV.

• If you have a digital camera with only internal memory (no removable memory) you can try to copy the content manually

to a memory card or a USB memory device (e.g. Philips

KEY product) using a personal computer.

• Some digital cameras allow you to switch between PTP (Picture Transfer Protocol) or “PC Link” and USB Mass Storage or

“PC Drive”. Make sure that you select USB Mass Storage or “PC Drive” on your digital camera.

• If your camera supports different interface settings be sure to try them one by one or contact the reseller of your camera

to find out the correct setting.

Annex 3 - Philips TV - Portable Memory and USB

USB Memory Device Issues

•Devices connected to the USB port of your TV must be “Mass Storage Class” compliant. If your device (digital camera. MP3 player, portable harddisk, …) is not “Mass Storage Class” compliant it will not be detected by the content browser of the TV.

• The following subsets of the Mass Storage Class specification are supported:

- The implementation of the TV is based on the “Universal Serial Bus Mass Storage Class Specification Overview” (v1.2,

June 23, 2003) including all documents referenced by the document. The document can be found on the USB standardisation website (www.usb.org).

- Full support of the USB Mass Storage Class Bulk-Only Transport (bInterfaceProtocol = 50h).

- Full support of SubClass Code = 05h; SFF-8070i spec.

- Full support of SubClass Code = 06h; SCSI transparent command set.

•For large USB memory devices, when you are in the Content Browser, it may take a long time before you can access your files.

• When using a USB portable harddisk: Due to the high power consumption of the harddisk, it is advised to use the external power supply of the portable harddisk to guarantee proper working under all conditions.

PHILIPS CONSUMER ELECTRONICS warrants this product

against defect in material or workmanship, subject to any conditions set forth as follows:

PROOF OF PURCHASE:

You must have proof of the date of purchase to receive warranted repair on the product.A sales receipt or other document showing the product and the date that you purchased the product as well as the authorized retailer included, is considered such proof.

COVERAGE:

(If this product is determined to be defective)

LABOR: For a period of one (1) year from the date of purchase, Philips will repair or replace the product, as its option, at no charge, or pay the labor charges to any Philips authorized repair facility. After the period of one (1) year, Philips will no longer be responsible for charges incurred.

PARTS: For a period of one (1) year from the date of purchase, Philips will supply, at no charge, new or rebuilt replacement parts in exchange for defective parts, through a Philips authorized service center.

Note: If Philips is unable to provide service in your area, receipt of the paid service can be submitted for consideration of adjustment or full reimbursement at Philips discretion.

EXCLUDED FROM WARRANTY COVERAGE

Your warranty does not cover:

• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the products.

•Product repair and/or part replacement because of improper installation, connections to improper voltage supply, abuse, neglect, misuse, accident, unauthorized repair or other cause not within the control of Philips.

•A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• Damage occurring to product during shipping when improperly packaged or cost associated with packaging.

•Product lost in shipment and no signature verification of receipt can be provided.

•A product used for commercial or institutional purposes (including but not limited to rental purposes);

•Product sold AS IS or RENEWED.

CARRY-IN / SHIP-IN WARRANTY

For Carry-In warranty repair, take the product to a Philips authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. For Ship-In warranty repair, ship the product to a Philips authorized service center for repair in its original carton and packing material. If you do not have the original carton or packing material, have your product professional packed for shipping. Ship product via a traceable carrier. When it is necessary for you to ship the product to Philips for repair, you will pay the shipping cost for shipment to Philips. Philips will pay the shipping costs when returning the product to you.

TO OBTAIN WARRANTY SERVICE IN THE U.S.A.,

PUERTO RICO, OR U.S.VIRGIN ISLANDS......

Contact Philips Customer Care Center at

1-888-PHILIPS (1-888-744-5477).

TO OBTAIN WARRANTY SERVICE IN CANADA...

1-800-661-6162 (French speaking) 1-888-PHILIPS (1-888-744-5477) (English or Spanish speaking)

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some stated do not allow the exclusions or imitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition, if you enter into a service contract agreement with the PHILIPS partnership within ninety (90) days of the date of sale, the limitation on how long an implied warranty lasts does not apply.

PHILIPS LIMITED WARRANTY

Philips, P.O. Box 671539, Marietta, GA. 30006-0026

One (1) Year Free Labor and Parts Repair

This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province.

Philips 50PF9630A-96, 42PF9730A-37, 50PF9630A-37, 42PF9630A-96 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
