Philips 49BDL5055P SPECIFICATIONS

Download

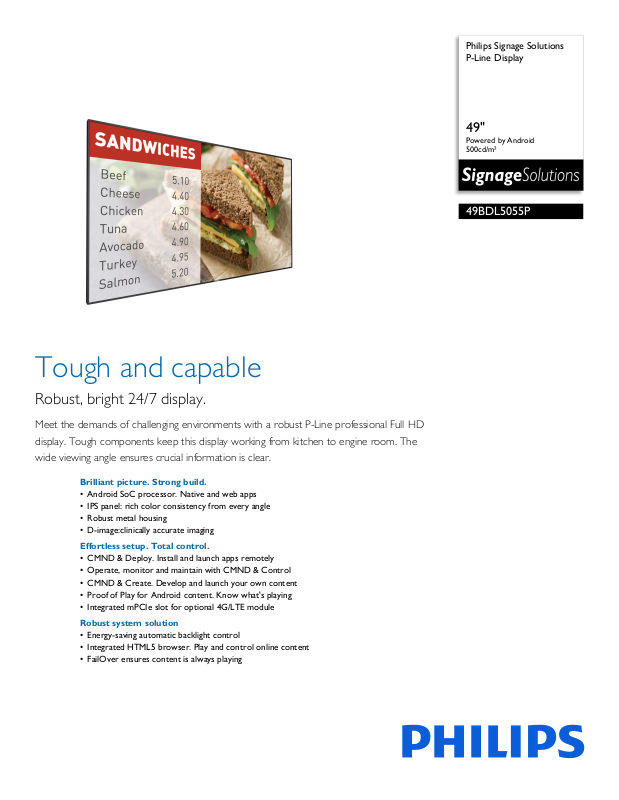

Page 1

Philips Signage Solutions P-Line Display

49"

49BDL5055P

Tough and capable

Robust, bright 24/7 display.

Meet the demands of challenging environments with a robust P-Line professional Full HD display. Tough components keep this display working from kitchen to engine room. The wide viewing angle ensures crucial information is clear.

Brilliant picture. Strong build.

• Android SoC processor. Native and web apps

• IPS panel: rich color consistency from every angle

• Robust metal housing

• D-image:clinically accurate imaging

Effortless setup. Total control.

• CMND & Deploy. Install and launch apps remotely

• Operate, monitor and maintain with CMND & Control

• CMND & Create. Develop and launch your own content

• Proof of Play for Android content. Know what's playing

• Integrated mPCIe slot for optional 4G/LTE module

Robust system solution

• Energy-saving automatic backlight control

• Integrated HTML5 browser. Play and control online content

• FailOver ensures content is always playing

Page 2

49BDL5055P/00

P-Line Display

49" Powered by Android, 500cd/m²

Highlights

Control your display via an Internet connection. Androidare optimized for native Android apps, and you can install web apps directly to the display too. A new Android OS ensures the software is kept secure and remain to the latest specification for longer.

D-image

This Philips Professional Display is factorycalibrated to meet clinical compliance standards for greyscale performance. The optimal image achieved by the display can be used to review medical images in consultation rooms or lecture theatres.

CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs

powered Philips Professional Displays

and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

CMND & Deploy

Quickly install and launch any app-even when y

ou're off-site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan the QR code, log in to the store, and click on the app you want to install. The app is automatically downloaded and launched.

Integrated mPCIe slot

Easily connect 4G/LTE modules to your Philips p

rofessional display. The integrated mPCIe slot enables your display to communicate with other

devices that share the same wireless connectivity. Invaluable if you're installing displays in locations such as banks or government buildings, where you cannot get onto the local network.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

OPS slot

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Page 3

49BDL5055P/00

P-Line Display

49" Powered by Android, 500cd/m²

Specifications

Picture/Display

• Diagonal screen size: 48.5 inch / 123.2 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1300:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 8 ms

• Pixel pitch: 0.55926 x 0.55926 mm

• Display colors: 1.07 billion

• Viewing angle (H / V): 178 / 178 degree

• Operating system: Android 5.1.1

Connectivity

• Video input: Display Port1.2 (x1), DVI-I (x 1), HDMI

1.4 (x2), USB 2.0 (x2), USB 2.0 (x1)

• Video output: DisplayPort (x1), DVI-I (x1)

• Audio input: 3.5 mm jack

• Audio output: 3.5mm jack

• Other connections: OPS, Micro SD (x1), Micro SB(type B)x1

• Optional WiFi functionality: requires WiFi module

ternal antennas

and ex

• External control: RJ45, RS232C

IR (in/out) 3.5 mm jack

(in/out) 2.5 mm jack,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 1024 x 768 60, 75Hz 1280 x 1024 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1360 x 768 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 640 x 480 60, 72, 75Hz 720 x 400 70Hz 800 x 600 60, 75Hz

deo formats

• Vi

Resolution Refresh rate 1080i 25, 30Hz 1080p 50, 60Hz 480I 30Hz 480p 60Hz 576i 25Hz

576p 50Hz 720p 50, 60Hz

Dimensions

• Set dimensions (W x H x D):

1092.8 x 623.0 x 56.8 mm

• Set dimensions in inch (W x H x D):

43.0 x 24.5 x 2.3 inch

• Bezel width: 6.5 mm

• Product weight (lb): 41.9 lb

• Product weight: 19.0 kg

• VESA Mount: 400 x 400 mm, M6

Convenience

• Placement: Landscape, Portrait

• Tiled Matrix: Up to 15 x 15

• Keyboard control: Hidden, Lockable

• Signal loop through: IR Loopthrough, DisplayPort, , RS232, VGA

DVI

• Network controllable: RJ45, HDMI (One Wire),

RS23

• Energy saving functions: Smart Power

• Screen saving functions: Pixel Shift, Low Bright

• Ease of installation: AC Out

Handles

• Other convenience: G sensor

, Smart Insert, Carrying

Power

• Standby power consumption: <0.5 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (Typical): 95 W

• Consumption (EPA 7.0): 82.08 W

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80(operation),5 -

torage) %

95(s

• Altitude: 0 ~ 3000 m

• MTBF: 60,000 hour(s)

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included accessories: Batteries for remote control,

Quick start guide, Remote Control, AC Power

Cord, RS232 cable

• Included Accessories: Edge Alignment K Philips logo, Thumbscrew (8pcs), Edge Alignment Kit (1 )-2pcs, RS232 daisy-chain cable, Wifi Antennas (2 pcs)

• Stand: BM04642/00(Optional)

it (2)-1pcs,

Multimedia Applications

• USB Playback Audio: AAC, M4A, MP1, MP2, MP3, WMA

• USB Playback Picture: BMP, GIF, JPEG, JPG, PNG

• USB Playback Video: 3GP, AVI MOV, MP4, MPG, TS, VOB, WEBM

, DAT, FLV, MKV,

Miscellaneous

• On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: EnergySt Class B, CCC, BSMI, CB, VCCI, CECP, EAC, PSB, EMF, UL/cUL

• Warranty: 3 year warranty

ar 7.0, CE, FCC,

Internal Player

• CPU: Octacore Cortex A53 1.5GHz

• GPU: PowerV

• Memory: 2GB DDR3

• Storage: 16GB EMMC

•

R SGX6110

Issue date 2020-11-04

Version: 10.1.1

12 NC: 8670 001 41453 EAN: 87 12581 74218 8

Specifications are subject t Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

o change without notice.
