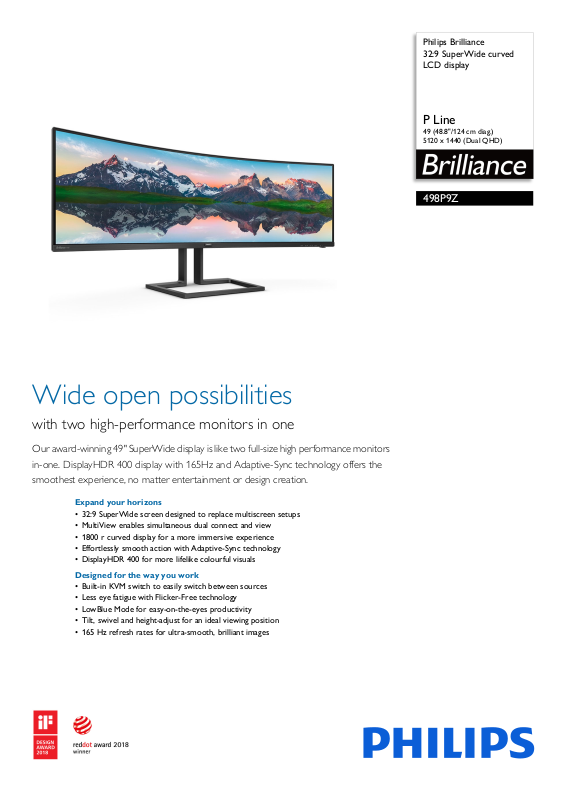

Page 1
Philips Brilliance
32:9 SuperWide curved
LCD display
P Line
49 (48.8"/124 cm diag.)
5120 x 1440 (Dual QHD)
498P9Z
Wide open possibilities
with two high-performance monitors in one
Our award-winning 49" SuperWide display is like two full-size high performance monitors
in-one. DisplayHDR 400 display with 165Hz and Adaptive-Sync technology offers the
smoothest experience, no matter entertainment or design creation.
Expand your horizons
• 32:9 SuperWide screen designed to replace multiscreen setups
• MultiView enables simultaneous dual connect and view
• 1800 r curved display for a more immersive experience
• Effortlessly smooth action with Adaptive-Sync technology
• DisplayHDR 400 for more lifelike colourful visuals
Designed for the way you work
• Built-in KVM switch to easily switch between sources
• Less eye fatigue with Flicker-Free technology
• LowBlue Mode for easy-on-the-eyes productivity
• Tilt, swivel and height-adjust for an ideal viewing position
• 165 Hz refresh rates for ultra-smooth, brilliant images
Page 2
498P9Z/01
32:9 SuperWide curved LCD display
P Line 49 (48.8"/124 cm diag.), 5120 x 1440 (Dual QHD)
Highlights
32:9 SuperWide
32:9 SuperWide 49" screen with 5120 x 1440
resolution is designed to replace multiscreen
setups for a massive wide view. It's like having
two 27" 16:9 Quad HD displays side by side.
SuperWide monitors offer the screen area of
dual monitors without the complicated setup.
MultiView technology
With the ultra-high resolution Philips
Mul
tiView display, you can now experience a
world of connectivity. MultiView enables active
dual connect and view so that you can work
with multiple devices like a PC and notebook
simultaneously, for complex multitasking.
DisplayHDR 400
VESA-certified DisplayHDR 400 delivers a
significant step up from normal SDR displays.
Unlike, other "HDR-compatible" screens, true
DisplayHDR 400 produces astonishing
brightness, contrast and colours. With global
dimming and peak brightness up to 400 nits,
i
mages come to life with notable highlights
while featuring deeper, more nuanced blacks. It
renders a fuller palette of rich new colours,
delivering a visual experience that engages
your senses.
MultiClient Integrated KVM
flicker on their screen which causes eye
fatigue. Philips Flicker-Free technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
LowBlue Mode
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave-length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, the Philips LowBlue Mode
setting uses a smart software technology to
reduce harmful shortwave blue light.
1800 r Curved display
Innovative curved display offers less image
dist
ortion, a wider field of view, reduced glare
and more comfort for your eyes.
Adaptive-Sync technology
Gaming shouldn't be a choice between choppy
gameplay or broken frames. Get fluid, artefactfree performance at virtually any frame rate
with Adaptive-Sync technology, smooth quick
refresh and ultra-fast response time.
With the MultiClient Integrated KVM switch,
you can control two separate PCs with one
monitor-keyboard-mouse setup. A convenient
button allows you to quickly switch between
sources. Handy with setups that require dual
PC computing power or sharing one large
monitor to show two different PCs.
Flicker-Free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
iF Design
iF DESIGN AWARD is a
se
al of quality for
exceptional design and a
symbol that consumers
can trust.
The Philips Brilliance 49" SuperWide
Curved Monitor offers the ultimate in
picture fidelity and screen format and
maximises user functionality
Red Dot
Red Dot stands for belonging to the best
in design and business.
The task of placing this large screen on a
stand w
ith a similar presence is met in an
exemplary manner. The result is a
monitor appearing as an artistic entity
Page 3
498P9Z/01
32:9 SuperWide curved LCD display
P Line 49 (48.8"/124 cm diag.), 5120 x 1440 (Dual QHD)
Specifications
Picture/Display
• LCD panel type: VA LCD
• Backlight type: W-LED system
• Panel Size: 48.8"/124 cm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Effective viewing area: 1191.936 (H) x 335.232 (V)
mm at a 18
00R curvature*
• Aspect ratio: 32:9
• Maximum resolution: HDMI: 5120 x 1440 @ 75
DP: 5120 x 1440 @ 165 Hz*
Hz;
• Pixel Density: 109 PPI
• Response time (typical): 4 ms (Grey to Grey)*
• Brightness: 550 cd/m²
• Contrast ratio (typical): 3000:1
• SmartContrast:
80,000,000:1
• Pixel pitch: 0.233 x 0.233 mm
• Viewing angle: 178º (H)/178º (V),
@ C/R > 10
• Flicker-free
• Picture enhancement: SmartImage
• Display colours: 16.7 M
• Colour gamut (min.): DCI-P3 91%*
• Colour gamut (typical): NTSC 100%*, sRGB
2%*, Adobe RGB 89%*
12
• HDR: DisplayHDR 400 certified
• Scanning Frequency: HDMI: 30–200 kHz (H) /
–120 Hz (V); DP: 30–250 kHz (H) / 48–165 Hz
48
(V)
• SmartUniformity: 93 ~ 105%
•Delta E: < 2
•sRGB
•LowBlue Mode
•EasyRead
• Adaptive sync
Connectivity
• Signal Input: DisplayPort 1.4 x 1, HDMI 2.0 x 3
• HDCP: HDCP 2.2 (HDMI / DP)
• USB:: USB 3.2 x 2 (upstream), USB 3.2 x 4
stream with x 1 fast charge B.C 1.2)
(down
• Sync Input: Separate Sync
• Audio (In/Out): Audio out
Convenience
• Built-in Speakers: 5 W x 2
• MultiView: PBP (2 x devices)
•KVM
• User convenience: SmartImage, Input, User, Menu,
r On/Off
Powe
• Control software: SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
Stand
• Height adjustment: 130 mm
•Swivel: -/+ 20 degree
• Tilt: -5~15 degree
Power
• ECO mode: 46.2 W (typ.)
• On mode: 51.4 W (typ.) (EnergyStar test method)
• Standby mode: 0.4 W (typ.)
• Off mode: Zero watts with Zero switch
• Energy Label Class: G
• Power LED indicator: Operation - White, Standby
mode - White (f
lashing)
• Power supply: Built-in, 100–240 VAC, 50–60 Hz
Dimensions
• Product with stand (max height): 1194 x 568 x
303 mm
• Product without stand (mm): 1194 x 369 x
6 mm
15
• Packaging in mm (W x H x D): 1308 x 384 x
3 mm
55
Weight
• Product with stand (kg): 15.20 kg
• Product without stand (kg): 10.90 kg
• Product with packaging (kg): 21.50 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000
ft (3658 m), Non-
operation: +40,000 ft (12,192 m)
• MTBF (demonstrated): 70,000 hrs (excluded
klight)
bac
Sustainability
• Environmental and energy: EnergyStar 8.0,
EPEAT*, TCO Certified, RoHS
• Recyclable packaging material: 100 %
• Post-consumer recycled plastic: 35%
• Specific Substances: PVC/BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: cETLus, CB, TUV/GS, TUV
Ergo, SEMKO, CU-EAC, EAEU RoHS, RCM, MEPS,
KC, KCC, CCC, CECP, CEL, BSMI, CE Mark, FCC
Class B, ICES-003
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
What's in the box?
• Monitor with stand
• Cables: HDMI cable, DP cable, Power cable
•User Documentation
•
Issue date 2022-04-21
Version: 3.2.1
12 NC: 8670 001 76153
EAN: 87 12581 77731 9
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Radius of the arc of the display curvature in mm
* The maximum resolution works for DP input only.
* Response time value equal to SmartResponse
* BT. 709 / DCI-P3 Coverage based on CIE1976
* NTSC Area based on CIE 1976
* sRGB Area based on CIE1931
* Adobe RGB Coverage based on CIE 1976
* Activities such as screen sharing and online streaming over the
Internet can impact your network performance. Your hardware and
network bandwidth will determine the overall audio and video
quality.
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
* The monitor may look different from feature images.
