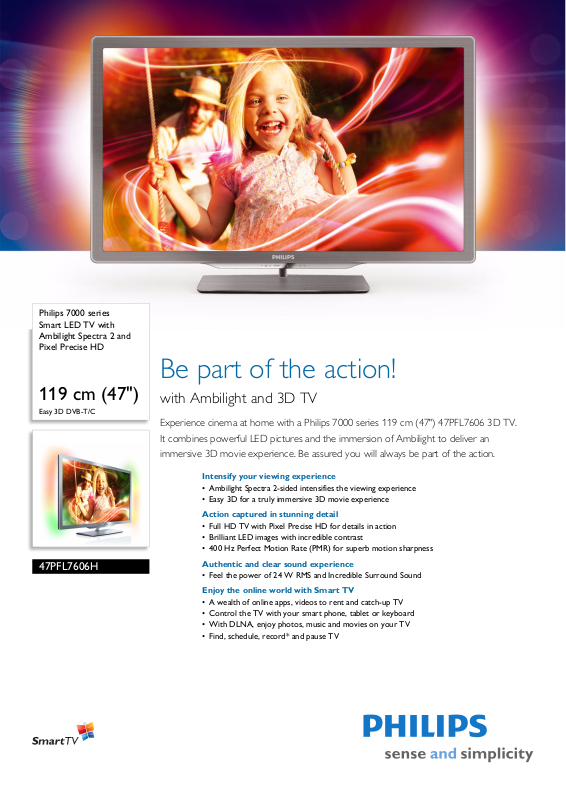

Page 1
Philips 7000 series
Smart LED TV with
Ambilight Spectra 2 and
Pixel Precise HD
Be part of the action!
119 cm (47")
Easy 3D DVB-T/C
47PFL7606H
with Ambilight and 3D TV
Experience cinema at home with a Philips 7000 series 119 cm (47") 47PFL7606 3D TV.
It combines powerful LED pictures and the immersion of Ambilight to deliver an
immersive 3D movie experience. Be assured you will always be part of the action.
Intensify your viewing experience
• Ambilight Spectra 2-sided intensifies the viewing experience
• Easy 3D for a truly immersive 3D movie experience
Action captured in stunning detail
• Full HD TV with Pixel Precise HD for details in action
• Brilliant LED images with incredible contrast
• 400 Hz Perfect Motion Rate (PMR) for superb motion sharpness
Authentic and clear sound experience
• Feel the power of 24 W RMS and Incredible Surround Sound
Enjoy the online world with Smart TV
• A wealth of online apps, videos to rent and catch-up TV
• Control the TV with your smart phone, tablet or keyboard
• With DLNA, enjoy photos, music and movies on your TV
• Find, schedule, record* and pause TV
Page 2
Smart LED TV with Ambilight Spectra 2 and Pixel Precise HD
Full HD
LED
Perfect Motion Rate
119 cm (47") Easy 3D DVB-T/C
Highlights
47PFL7606H/12
Ambilight Spectra 2
Add a new dimension to your viewing
experience with Ambilight Spectra 2. This
patented Philips technology enlarges the
screen by projecting a glow of light from 2
sides of the back of the TV screen onto the
surrounding wall. Ambilight automatically
adjusts the colour and brightness of the light to
match the TV picture. Thanks to the walladaptive function, the colour of the light is
perfect, regardless of your wall colour.
Easy 3D
picture quality whether you are watching a
video from the Internet or good quality Blu-ray
movies.
Full HD LED TV
The most advanced LED lighting technology in
this Full HD LED TV combines an eye-catching
minimalistic design with stunning image quality
as well as the lowest power consumption in its
category. On top of that, LED lighting
technology does not contain any hazardous
materials. Thus, with LED backlights you can
enjoy low power consumption, high
brightness, incredible contrast, sharpness and
vibrant colours.
24 W RMS Incredible Surround Sound
Feel the power of the music's beat and the real
at
mosphere of the movies. The powerful 24 W
RMS
(2 x 12 W RMS) amplifiers create a
l
ifelike sound stage. Incredible Surround allows
you to experience total surround with greater
depth and width of sound, which complements
the rich viewing experience.
Energy
For many years Philips has pro-actively been
w
orking on energy efficiency. As a result, most
Philips products have achieved green energy
labels. The greener the label, the lower the
energy consumption, the lower your energy
bill and the friendlier for the environment.
Easy 3D ensures you get long hours of comfort
while watching 3D thanks to the flicker-free,
low ghosting performance. The compatible 3D
glasses are lightweight and do not require
batteries. Enjoy 3D easily at home today!
Pixel Precise HD
Pixel Precise HD builds on the award winning
Pixel
Plus foundation. It brings the high
definition picture quality to the next level with
4 trillion colours. With Super Resolution, Pixel
Precise HD now brings you the best HD TV
400 Hz Perfect Motion Rate
400 Hz Perfect Motion Rate (PMR) creates
extreme motion sharpness for clear and
vibrant images in fast action movies. The new
Philips PMR standard shows the combined
visible effect of the fastest panel refresh rate,
HD Natural Motion and unique processing
formula, for unprecedented motion sharpness.
Smart TV
Smart TV for a simpler TV experience in
fo
ur areas. Net TV lets you rent films,
watch catch-up TV and enjoy social media.
Control your TV with your Smartphone
or tablet. Use SimplyShare to enjoy
multimedia content from your computer,
phone and tablet on your TV. Record
your TV programmes easily without
additional bulky devices.
Page 3
Smart LED TV with Ambilight Spectra 2 and Pixel Precise HD
REAR CONNECTORS
BOTTOM REAR CONNECTORS
SIDE CONNECTORS
EXT 1
(RGB/CVBS)
119 cm (47") Easy 3D DVB-T/C
Specifications
47PFL7606H/12
Ambilight
• Ambilight Version: 2 sided
• Ambilight Features: Wall colo
light mode
ur adaptive, Lounge
Picture/Display
• Display: edge LED backlight
• Diagonal screen size: 47 inch / 119 cm
• Panel resolution: 1920 x 1080p
• 3D: Easy3D*
• Aspect ratio: 16:9
• Brightness: 450 cd/m²
• Peak Luminance ratio: 65 %
• Dynamic screen contrast: 500,000:1
• Response time (typical): 2 ms
• Picture enhancement: Pixel precise HD, HD
u
ral Motion, Active Control + Light sensor,
Nat
Super Resolution, 400 Hz Perfect Motion Rate
Sound
• Output power (RMS): 24 W (2 x 12 W)
• Sound Enhancement: Auto Vo
Sound, Incredible Surround, Treble and Bass
Control
lume Leveller, Clear
Smart TV Applications
• Control: MyRemote app (iOS & Android), USB
Keyboard and Mouse support
• SimplyShare: DLNA media browser, USB media
ser
brow
• Net TV: Catch-up TV, Online Video shops, Open
rnet browser, Online apps
Inte
• Programme: Pause TV, USB recording
Connectivity
• Number of HDMI connections: 4
• HDMI features: 3D, Audio Return Channel
• EasyLink (HDMI-CEC): Remote control pass-
gh, System audio control, System standby,
throu
Plug and play add to Homescreen, Auto subtitle
shift (Philips), Pixel Plus link (Philips), One touch
play
• Number of components in (YPbPr): 1
•Number of scarts (RGB/CVBS): 1
• Number of USBs: 2
• Other connections: Antenna IEC75, Common
rface Plus (CI+), Ethernet-LAN RJ-45, SD card
te
In
slot (Videostore), Digital audio out (optical), PC-in
VGA + Audio L/R in, Headphone out, Service
connector
• Wireless connections: Wireless LAN ready
Multimedia Applications
• Video Playback Formats: Codec support:,
Containers: AVI, MKV, H264/MPEG-4 AVC,
MPEG-1, MPEG-2, MPEG-4, WMV9/VC1
• Music Playback Formats: AAC, MP3, WMA (v2 up
v
9.2)
to
• Picture Playback Formats: JPEG
• Net TV: Included
Supported Display Resolution
• Computer inputs: up to 1920 x 1080 @ 60 Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to 1920 x
1080p
Convenience
• PC network link: DLNA 1.5 certified
• Electronic Programme Guide
Programme Guide*
• Ease of Installation: Auto detect Philips devic
Channel installation wizard, Device connection
wizard, Network installation wizard, Settings
assistant wizard
• Ease of Use: One-stop Ho
User manual, Touch control buttons
• Screen Format Adjustments: Autofill, Autozoom,
Movie expa
nd 16:9, Super Zoom, Unscaled,
Widescreen
• Signal strength indication
• Teletext: 1200-page Hypertext
• Firmware upgradeable: Firmware auto upgrade
wizar
d, Firmwar
e upgradeable via USB, Online
firmware upgrade
: 8-day Electronic
me bu
tton, On-screen
es,
Tuner/Reception/Transmission
• Digital TV: DVB-C MPEG2*, DVB-C MPEG4*,
DVB-T MPEG2*, DVB-T MPEG4*
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: AC 220 - 240 V 50/60 Hz
• Ambient temperature: 5°C to 40°C
• Energy Label Class: A+
• EU Energy Label power: 62 W
• Annual energy consumption: 91 kW·h
• Standby power consumption: < 0.15 W
• Power Saving Features: 0 Watt Power-off switch,
switch-off timer, Eco mode, Eco settings
to
Au
menu, Light sensor, Picture mute (for radio)
• Presence of lead: Yes*
• Off mode power consumption: < 0.01 W
• Annual stby energy consumption: 1.1* kW·h
Dimensions
•Box dimensions (W x H x D):
1192 x 780 x 158 mm
• Set dimensions (W x H x D): 1101 x 663 x 38 mm
• Set dimensions with stand (W x H x D):
01
715 x 299 mm
x
11
• Product weight: 18.6 kg
• Product weight (+stand): 21.4 kg
• Compatible wall mount: 400 x 400 mm
Accessories
• Included accessories: Power cord, Remote
Control, 2 x AAA Batteries, 2 x 3D Glasses, 2 x
cleaning cloth bags, Tabletop swivel stand, Quick
start guide, 3D Health Guide, Legal and safety
brochure, Warranty Leaflet
• Optional accessories: 3D glasses PTA416,
Wireless USB adap
•
te
r (PTA01)
Issue date 2012-08-14
Version: 11.3.9
12 NC: 8670 000 72112
EAN: 87 12581 58277 7
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
* Net TV: Visit www.philips.com/smarttv to discover the services
available in your country.
* Parents should monitor their children during 3D viewing and ensure
th
ey do not experience any discomfort as mentioned above.
Watching 3D is not recommended for children under 6 years of age
as their visual system is not fully developed yet.
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscription are required.
Contact your operator for more information.
* Using the integrated digital TV tuner will help to save energy
* 8 days EPG, service not available in all countries
* USB recording is only possible for digital channels covered by the TV
IP bases Electronic Programme Guide (country and channel
restrictions may apply); recordings may be limited by broadcast copy
protection (CI+). An Internet connection is required.
* Energy consumption in kWh per year based on the power
consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the
television is used.
* Using the ZERO power off switch will reduce standby energy
consumption to 0
* This television contains lead only in certain parts or components
where no technology alternatives exist in accordance with existing
exemption clauses under the RoHS Directive.
* USB keyboard and mouse is supported via software update
