Philips 47PFL7404H/60 Specification Sheet

Download

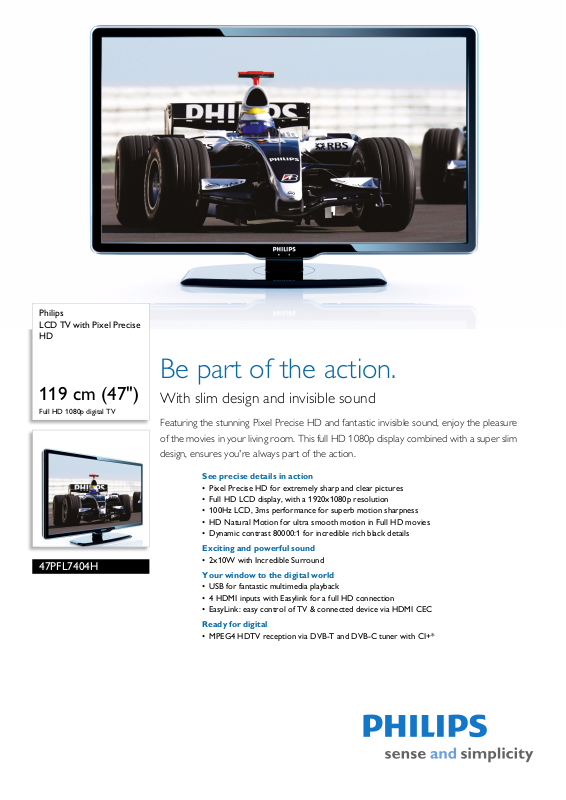

Page 1

Philips LCD TV with Pixel Precise HD

Be part of the action.

119 cm (47")

Full HD 1080p digital TV

47PFL7404H

With slim design and invisible sound

Featuring the stunning Pixel Precise HD and fantastic invisible sound, enjoy the pleasure of the movies in your living room. This full HD 1080p display combined with a super slim design, ensures you're always part of the action.

See precise details in action

• Pixel Precise HD for extremely sharp and clear pictures

• Full HD LCD display, with a 1920x1080p resolution

• 100Hz LCD, 3ms performance for superb motion sharpness

• HD Natural Motion for ultra smooth motion in Full HD movies

• Dynamic contrast 80000:1 for incredible rich black details

Exciting and powerful sound

• 2x10W with Incredible Surround

Your window to the digital world

• USB for fantastic multimedia playback

• 4 HDMI inputs with Easylink for a full HD connection

• EasyLink: easy control of TV & connected device via HDMI CEC

Ready for digital

• MPEG4 HDTV reception via DVB-T and DVB-C tuner with CI+*

Page 2

LCD TV with Pixel Precise HD

with

119 cm (47") Full HD 1080p digital TV

Highlights

47PFL7404H/60

Pixel Precise HD

Pixel Precise HD builds on the award winning Pixel

Plus foundation. It brings the picture quality to the next level with 4 trillion colours with HD Natural Motion making all your movies fluently moving and razor sharp. Thanks to Pixel Precise 100Hz LCD, you are buying the fastest LCD TV's in the category with 3ms response time delivering extreme motion sharpness for all your movies and sports.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolutio resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

100Hz LCD (3ms)

100Hz LCD creates extreme motion s with fast on-screen motion. The Double Frame Rate Insertion works with a high 100Hz refresh rate. It increases the sharpness of

n of 1920 x 1080p. This is the highest

harpness for clear and vibrant images even

motion reproduction to more than twice that of conventional LCD, resulting in a performance with a response time of 3 milliseconds (measured in Perceived BlurEdge-Width; BEW). This unique Philips technology brings motion sharpness of LCD displays to an unprecedented level.

HD Natural Motion

Philips invented HD Natural Motion to minimize movie based picture content. The award winning algorithm estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

2x10W with Incredible Surround

An invisible sound system that blends perfectly w Surround allows you to experience total surround with greater depth and width of sound. It gives a clear and spacious sound stage complementary to the rich viewing experience.

USB (multimedia)

The USB connector allows access to jpeg ph USB-sticks (USB memory-class device). Plug

juddering effects that are visible with

ith the design of the cabinet. The Incredible

otos, mp3 music and video files of most

the USB into the slot at the side of the TV and access the multimedia content using the easy on screen content browser. You can now view and share your videos, photos and music.

4 HDMI inputs with EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With Easylink only one remote control is needed to operate main functionalities on your TV and connected devices. HDMI makes an uncompressed digital RGB connection from the source to the screen for the ultimate picture quality. HDMI uses HDCP copy protection. With 3 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and Game Console or Digital Camcorder.

MPEG4 DVB-T/C tuner with CI+*

HDTV allows you to watch TV in the best p

ossible picture and sound quality, without additional set-top box. Thanks to the built in tuner that supports DVB-Terrestrial and DVBCable signals for both MPEG-2 and MPEG-4 formats, you receive high definition TV programs in exceptional quality. Moreover, with Common Interface Plus (CI+) you benefit from premium high definition content directly on your TV.

col to share functionality

Page 3

LCD TV with Pixel Precise HD

EXT 2

(RGB/CVBS)

EXT 1

(RGB/CVBS)

SPDIF OUT

AUDIO

VGA

TV ANTENNA

HDMI 3

AUDIO IN: LEFT / RIGHT HDMI 1 / DVI HDMI 2 / DVI HDMI 3 / DVI

VGA

EXT 3

HDMI 2 HDMI 1

OUT

119 cm (47") Full HD 1080p digital TV

Specifications

47PFL7404H/60

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 80000:1

• Response time (typical): 3 ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 47 inch / 119 cm

• Display screen type: LCD Full HD W-UXGA Act. ix

mat

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel precise HD, 3/2 - 2/2

tio

n pull down, 3D Combfilter, Active Control

mo + Light sensor, Digital Noise Reduction, Dynamic contrast enhancement, Luminance Transient Improver, Progressive scan, 2D/3D noise reduction, 100Hz LCD, HD Natural Motion

• Screen enhancement: Anti-Reflection coated

• Color processing: 4 trillion colors (14bit RGB)

• Color cabinet: High gloss b

lack deco

front with

black cabinet

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 25, 30, 50, 60Hz

Sound

• Output power (RMS): 2 x 10W

• Sound Enhancement: Incredible Surround, Treble and Bass C

• Sound System: Nicam Stereo

ontrol

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer

• Ease of Installation: Auto Program Naming, ic Channel Install(ACI), Automatic Tuning

Automat System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug & Play

• Ease of Use: Auto Volume Leveller (AVL), Delta

lume per preset, Program List, Settings assistant

V Wizard, One-stop Home button, Favorite program selection

• Electronic Program Guide: Now + Next EPG, 8day

onic Program Guide*

Elect

• Remote Control: TV

• Remote control type: RC PF03E09B

• Screen Format Adjustments: Auto Format, Movie

pand 16:9, Super Zoom, Widescreen, unscaled

e (1080p dot by dot)

• Teletext: 1000 page Smart Text

• Firmware upgradeable: Firmware auto upgrade

, Firmware upgradeable via USB

wizar

• Multimedia: USB media browser

• Smart mode: Game, Cinema, Pe

rsonal, En

ergy

saving, Standard, Vivid

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, LPCM, JPEG Still pictures,

MPEG1, MPEG2

, H.264/MPEG-4 AVC

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB-T MPEG4*, DVB-C MPEG4*

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in, RGB

• Ext 2 Scart: Audio L/R, CVBS in, RGB

• Ext 3: YPbPr, Audio L/R in

•Front / Side connections: HDMI

CVBS in, Audio L/R in, Headphone Out, USB

• Other connections: Analog audio Left/Right out,

udio in, PC-In VGA, S/PDIF out (coaxial),

PC A Common Interface Plus (CI+), Common Interface

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

v1.3, S-vi

deo in,

DMI 3: HDMI v1.3

•H

• EasyLink (HDMI-CEC): One touch play, Remote ntrol pass-through, System audio control,

c System standby

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: 220 - 240V, 50Hz

• Power consumption: 245 W

• Standby power consumption: 0.15 W

Dimensions

• Set dimensions (W x H x D): 1106 x 666 x 92 mm

• Set dimensions with stand (W x H x D):

309 mm

x 717 x

1106

• Weight incl. Packaging: 33.1 kg

• Product weight: 20.1 kg

• Product weight (+stand): 25.3 kg

•Box dimensions (W x H x D): 49

x 746 x 266 mm

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included accessories: Tabletop swivel stand, Power

cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

Issue date 2012-01-19

Version: 5.4.6

12 NC: 8670 000 49547 EAN: 87 12581 46353 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* DVB-T, supported in selected countries only * DVB-C in selected countries and for selected operators only. Most

up to date information is available on the type plate of the TV.
