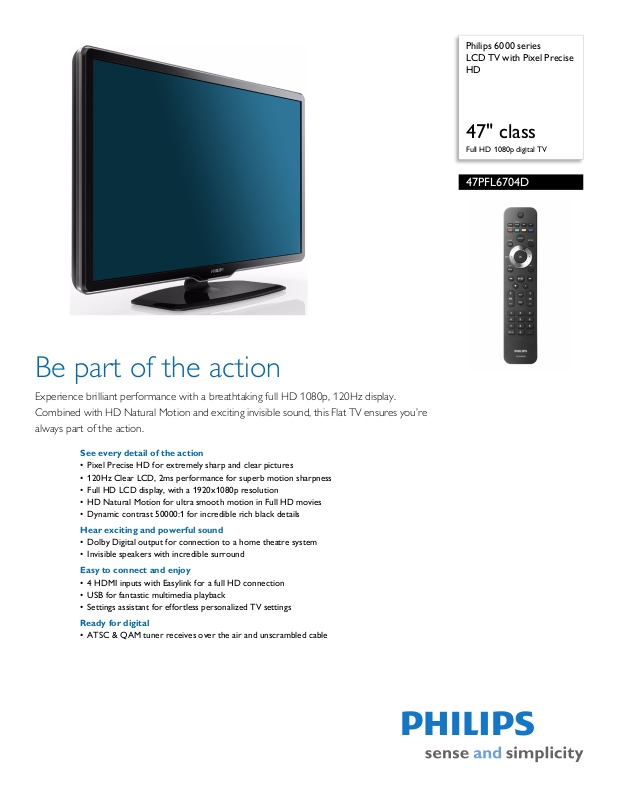

Philips 6000 series LCD TV with Pixel Precise HD

47" class

Full HD 1080p digital TV

47PFL6704D

Be part of the action

Experience brilliant performance with a breathtaking full HD 1080p, 120Hz display. Combined with HD Natural Motion and exciting invisible sound, this Flat TV ensures you’re always part of the action.

See every detail of the action

• Pixel Precise HD for extremely sharp and clear pictures

• 120Hz Clear LCD, 2ms performance for superb motion sharpness

• Full HD LCD display, with a 1920x1080p resolution

• HD Natural Motion for ultra smooth motion in Full HD movies

• Dynamic contrast 50000:1 for incredible rich black details

Hear exciting and powerful sound

• Dolby Digital output for connection to a home theatre system

• Invisible speakers with incredible surround

Easy to connect and enjoy

• 4 HDMI inputs with Easylink for a full HD connection

• USB for fantastic multimedia playback

• Settings assistant for effortless personalized TV settings

Ready for digital

• ATSC & QAM tuner receives over the air and unscrambled cable

Page 2

LCD TV with Pixel Precise HD

with

47" class Full HD 1080p digital TV

Highlights

47PFL6704D/F7

Pixel Precise HD

Pixel Precise HD builds on the award winning Pixel

Plus foundation. It brings picture quality to the next level with 69 billion colors and HD Natural Motion, making all your movies fluent moving and razor sharp. Thanks to the Pixel Precise 120Hz LCD, you are buying the fastest LCD TV's in the category with 2ms response time delivering extreme motion sharpness for all your movies and sports.

120Hz Clear LCD (2ms)

120Hz Clear LCD creates extreme motion sharpn

ess for clear and vibrant images even with fast on-screen motion. The Double Frame Rate Insertion works with a high 120Hz refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a response time of 2 milliseconds (measured in Perceived BlurEdge-Width; BEW). This unique Philips technology brings motion sharpness of LCD displays to an unprecedented level.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolution of 1920 x 1080p. This is the highest resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

HD Natural Motion

Philips invented HD Natural Motion to eliminate j

uddering effects that are visible with movie based picture content. HD Natural Motion estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Bluray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level. HD Natural

Motion removes judder from SD and HD pictures, including 1080p, for a motion performance that surpasses the cinema!

Dolby Digital output

Dolby Digital output for connection to a home theatre s

4 HDMI inputs with EasyLink

EasyLink uses the HDMI CEC industry standard pro connected devices and the TV. With Easylink only one remote control is needed to operate main functionalities on your TV and connected devices. HDMI makes an uncompressed digital RGB connection from the source to the screen for the ultimate picture quality. HDMI uses HDCP copy protection. With 3 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and Game Console or Digital Camcorder.

USB (multimedia)

The USB connector allows access to jpeg photo sticks (USB memory-class device). Plug the USB into the slot at the side of the TV and access the multimedia content using the easy on screen content browser. You can now view and share your videos, photos and music.

ystem

tocol to share functionality between

s, mp3 music and video files of most USB-

Page 3

LCD TV with Pixel Precise HD

47" class Full HD 1080p digital TV

Specifications

47PFL6704D/F7

Picture/Display

• Aspect ratio: Widescreen

• Viewing angle: 178º (H) / 178º (V)

• Brightness: 500 cd/m²

• Panel resolution: 1920x1080p

• Dynamic screen contrast: 50000:1

• Response time (typical): 2 ms

• Diagonal screen size: 47 inch / 119 cm

• Picture enhancement: Pixel precise HD, HD Natural tion, 3/2 - 2/2 motion pull down, 3D Combfilter,

Mo Active Control + Light sensor, Dynamic contrast enhancement, Progressive Scan, 120Hz LCD

• Visible screen diagonal (inch): 46.96 inch

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1920 x 1080 60Hz

deo formats

• Vi

Resolution Refresh rate 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz 1080p 60Hz

Sound

• Equalizer: 5-bands

• Sound Enhancement: Incredible Surround

• Output power (RMS): 20W

• Sound System: Dolby Digital (AC-3), Stereo, SAP

Loudspeakers

• Built-in speakers: 2

• Ease of Use: 4 favorite lists, Auto Volume Leveller L), Channel list, Settings assistant Wizard, Side

(AV Control

• Remote Control: TV

• Screen Format Adjustments: 4:3, Auto Format,

vie expand 14:9, Movie expand 16:9, Super

Mo Zoom, Widescreen, unscaled (1080p dot by dot)

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: MP3, JPEG Still pictures, DivX

X 5, MPEG2, XviD, H.264/MPEG-4 AVC

3.11, Div

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

• Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

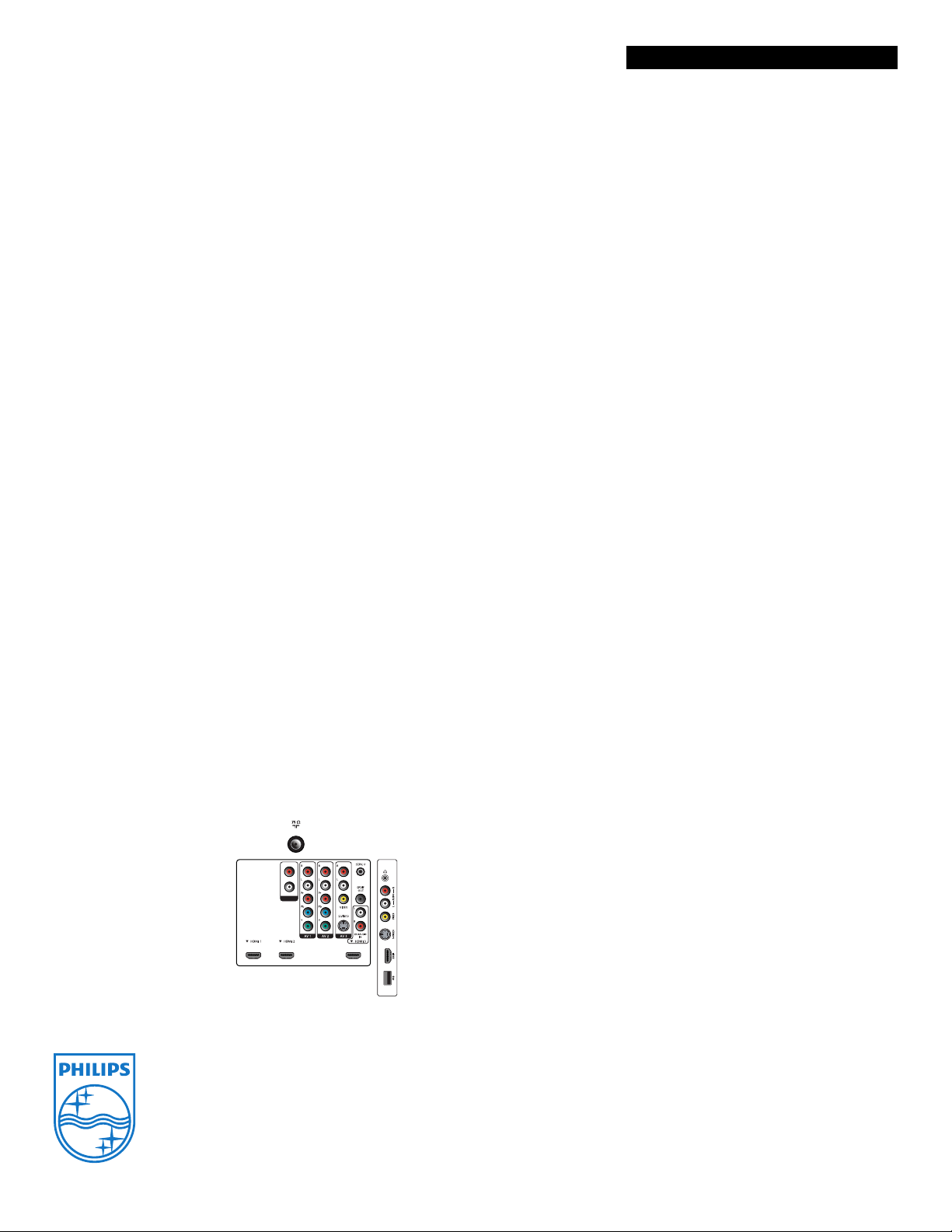

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• HDMI 3: Analog audio L/R in, HDMI v1.3

• Audio Output - Digital: Coaxial (cinch)

• Other connections: Analog audio Left/Right out

• EasyLink (HDMI-CEC): One touch play, Power

atus, System info (menu language), Remote control

st pass-through, System audio control, System standby

•Front / Side connections: HDMI v

CVBS in, Audio L/R in, Headphone out, USB

1.3, S-video in,

Power

• Ambient temperature: 0 °C to 35 °C

• Mains power: 110-240V, 50-60Hz

• Power consumption: 280 W

• Standby power consumption: < 0.15 W

• Set dimensions with stand in inch (W x H x D): .56 x 28.24 x 12.17 inch

• Weight incl. Packaging (lb): 62.61

• Product weight (lb): 44.09

• Product weight (+stand) (lb): 53.57 lb

• Box dimensions in inch (W x H x D): .11 x 29.37 x 10.47 inch

Accessories

• Included Accessories: Tabletop swivel stand, Power

cord, Quick start guide, User Manual, Registration card, Remote Control

•

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sleep Timer

• Ease of Installation: Autostore

TV ANTENNA

L/R OUT

Issue date 2009-08-11

Version: 1.8.3

12 NC: 8670 000 53254 UPC: 6 09585 17245 6

Dimensions

• Set dimensions in inch (W x H x D):

43.56 x 26.20 x 3.60 inch

• VESA wall mount compatible: 400 x 400 mm

Specifications are subject t Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

o change without notice.
