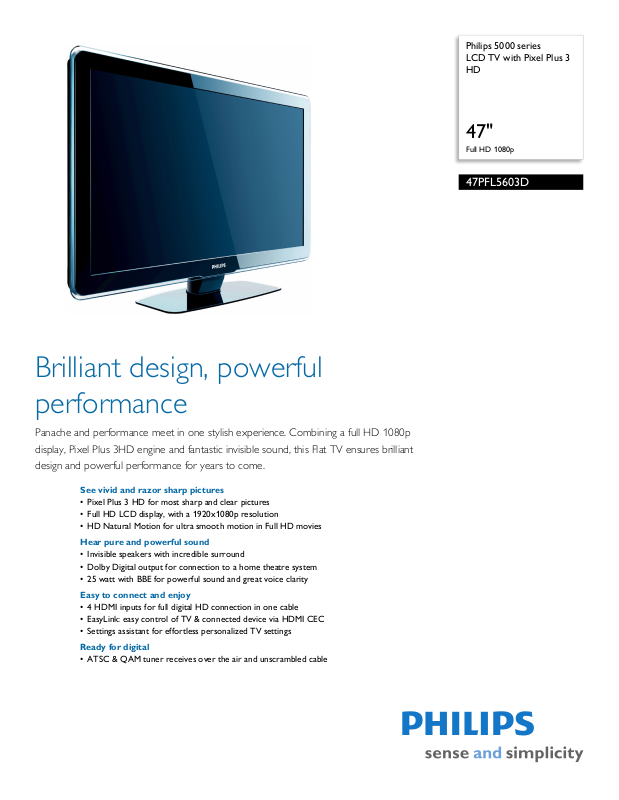

Philips 5000 series LCD TV with Pixel Plus 3 HD

47"

Full HD 1080p

47PFL5603D

Brilliant design, powerful performance

Panache and performance meet in one stylish experience. Combining a full HD 1080p display, Pixel Plus 3HD engine and fantastic invisible sound, this Flat TV ensures brilliant design and powerful performance for years to come.

See vivid and razor sharp pictures

• Pixel Plus 3 HD for most sharp and clear pictures

• Full HD LCD display, with a 1920x1080p resolution

• HD Natural Motion for ultra smooth motion in Full HD movies

Hear pure and powerful sound

• Invisible speakers with incredible surround

• Dolby Digital output for connection to a home theatre system

• 25 watt with BBE for powerful sound and great voice clarity

Easy to connect and enjoy

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• Settings assistant for effortless personalized TV settings

Ready for digital

• ATSC & QAM tuner receives over the air and unscrambled cable

Page 2

LCD TV with Pixel Plus 3 HD

47" Full HD 1080p

Highlights

47PFL5603D/F7

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination of ul

timate sharpness, natural detail, vivid colors and smooth natural motion on all qualities of HD, standard TV signals and multimedia content, for high definition displays. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts and noise in all sources from multimedia to standard TV and also in highly compressed HD are detected and reduced ensuring that the picture is clean and razor sharp.

Full HD LCD display 1920x1080p

resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

HD Natural Motion

Philips invented HD Natural Motion to eliminate j

uddering effects that are visible with movie based picture content. HD Natural Motion estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Bluray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level. HD Natural Motion removes judder from SD and HD pictures, including 1080p, for a motion performance that surpasses the cinema!

Invisible speakers

An invisible sound system that blends perfectly with

the design of the cabinet. The Incredible Surround allows you to experience total surround with greater depth and width of sound. It gives a clear and spacious sound stage complementary to the rich viewing experience.

EasyLink

EasyLink uses the HDMI CEC industry standard pro

tocol to share functionality between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

The Full HD screen has the widescreen resolution of 1920 x 1080p. This is the highest

Page 3

LCD TV with Pixel Plus 3 HD

47" Full HD 1080p

Specifications

47PFL5603D/F7

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 29000:1

• Response time (typical): 5 ms

• Viewing angle: 178º (H) / 178º (V)

• Diagonal screen size: 47 inch / 119 cm

• Visible screen diagonal (inch): 46.96 inch

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2 tion pull down, 3D Combfilter, Active Control +

mo Light sensor, Dynamic contrast enhancement, Progressive Scan, HD Natural Motion

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1920 x 1080i 60Hz 1920 x 1080p 60Hz

deo formats

• Vi

Resolution Refresh rate 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz 1080p 60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 25W

• Sound Enhancement: Incredible Surround

• Sound System: Dolby Digital (AC-3), BBE

Loudspeakers

• Built-in speakers: 4

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sleep Timer

• Ease of Installation: Autostore

• Ease of Use: 4 favorite lists, Auto Volume Leveller L), Channel list, Settings assistant Wizard, Side

(AV Control

• Remote Control: TV

• Screen Format Adjustments: 4:3, Auto Format,

vie expand 14:9, Movie expand 16:9, Super

Mo Zoom, Widescreen, unscaled (1080p dot by dot)

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: MP3, JPEG Still pictures

• Playback enhancement: Picture slideshow

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

• Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

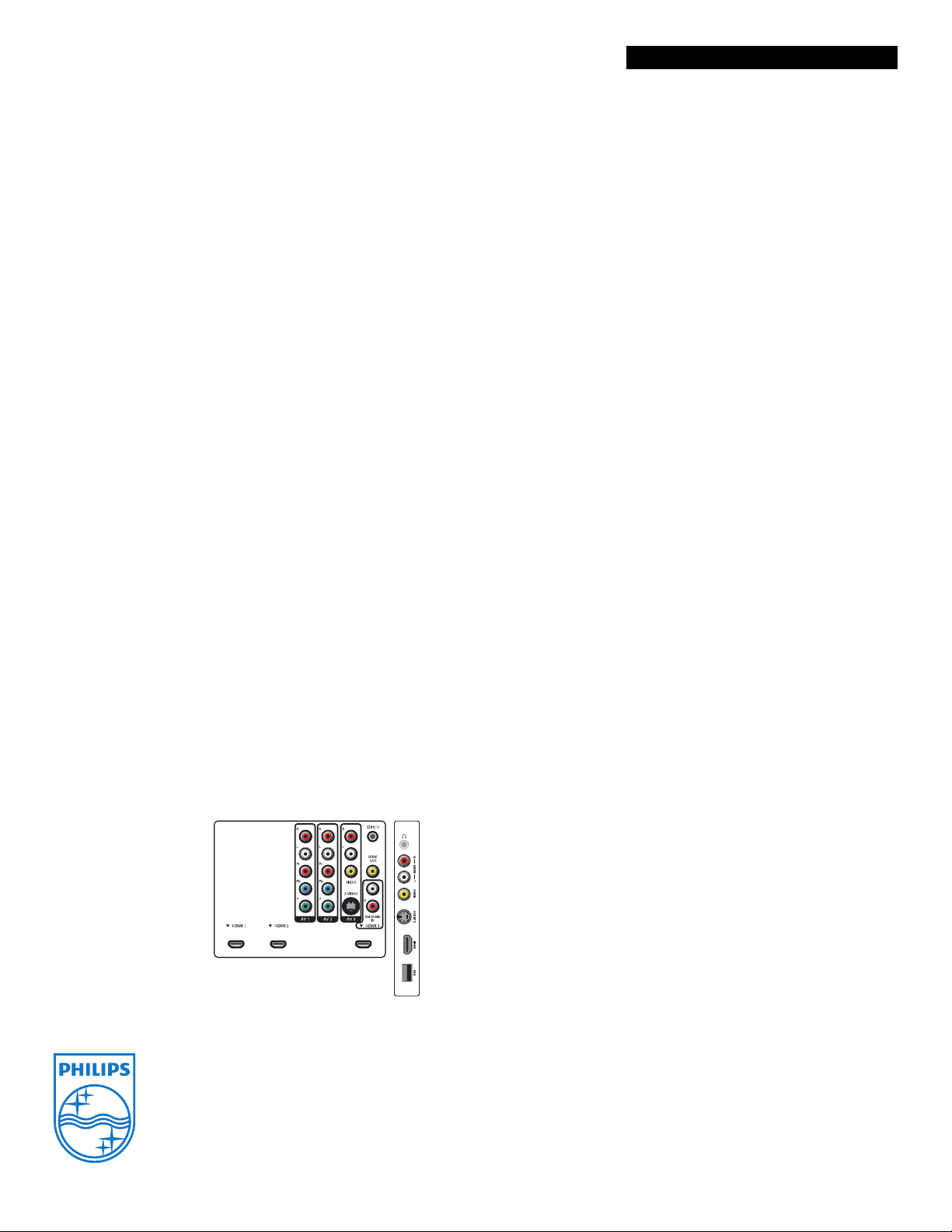

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: CVBS in, S-Video in

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• HDMI 3: Analog audio L/R in, HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, Power

System info (menu language), System standby

status,

• Front / Side connections: HDMI, S-video in, CVBS in,

o L/R in, Headphone out, USB

Audi

• Audio Output - Digital: Coaxial (cinch)

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 110-240V, 50-60Hz

• Power consumption: 280 W

• Standby power consumption: < 1 W

Dimensions

• Set dimensions in inch (W x H x D):

45.79 x 28.03 x 4.09 inch

• Set dimensions with stand in inch (W x H x D):

45.79 x 30.94 x 12.8 inch

• Weight incl. Packaging (lb): 92.59

• Product weight (lb): 77.16 (with stand), 60.63 (without stand)

• Box dimensions in inch (W x H x D):

.67 x 34.76 x 15.39 inch

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included Accessories: Tabletop swivel stand, Power cord, Quick start guide, User Manual, Registration card, Remote Control

•

Issue date 2009-08-14

Version: 2.0.58

12 NC: 8670 000 47379 UPC: 6 09585 16233 4

Specifications are subject t Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
