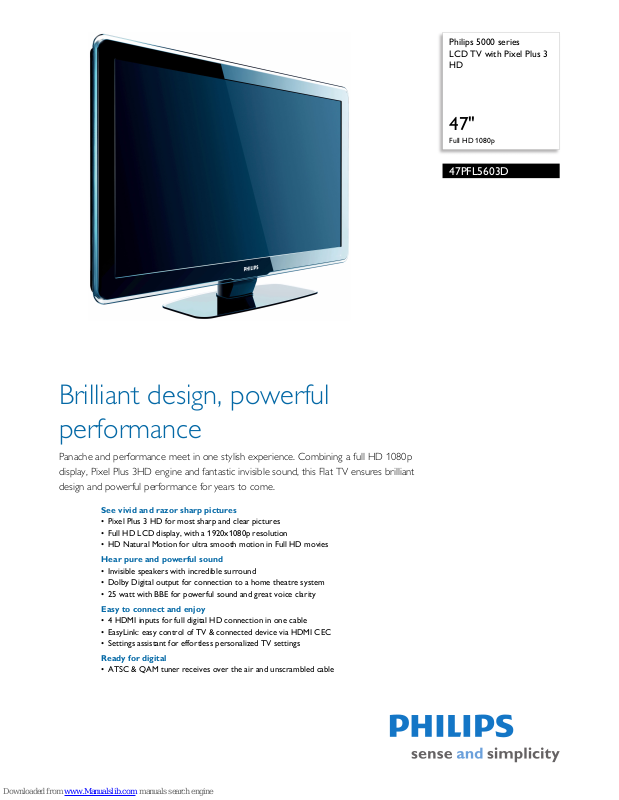

Page 1
Philips 5000 series
LCD TV with Pixel Plus 3
HD
47"
Full HD 1080p
47PFL5603D
Brilliant design, powerful
performance
Panache and performance meet in one stylish experience. Combining a full HD 1080p
display, Pixel Plus 3HD engine and fantastic invisible sound, this Flat TV ensures brilliant
design and powerful performance for years to come.
See vivid and razor sharp pictures
• Pixel Plus 3 HD for most sharp and clear pictures
• Full HD LCD display, with a 1920x1080p resolution
• HD Natural Motion for ultra smooth motion in Full HD movies
Hear pure and powerful sound
• Invisible speakers with incredible surround
• Dolby Digital output for connection to a home theatre system
• 25 watt with BBE for powerful sound and great voice clarity
Easy to connect and enjoy
• 4 HDMI inputs for full digital HD connection in one cable
• EasyLink: easy control of TV & connected device via HDMI CEC
• Settings assistant for effortless personalized TV settings
Ready for digital
• ATSC & QAM tuner receives over the air and unscrambled cable
Page 2
47PFL5603D/F7
Highlights
LCD TV with Pixel Plus 3 HD
47" Full HD 1080p
Pixel Plus 3 HD
Pixel Plus 3 HD offers the unique combination
o
f ultimate sharpness, natural detail, vivid
colors and smooth natural motion on all
qualities of HD, standard TV signals and
multimedia content, for high definition displays.
Each pixel of the incoming picture is enhanced
to better match the surrounding pixels,
resulting in a more natural picture. Artifacts
and noise in all sources from multimedia to
standard TV and also in highly compressed HD
are detected and reduced ensuring that the
picture is clean and razor sharp.
Full HD LCD display 1920x1080p
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
HD Natural Motion
Philips invented HD Natural Motion to
e
liminate juddering effects that are visible with
movie based picture content. HD Natural
Motion estimates motion in the picture and
corrects juddering movements in both
broadcast and recorded movie material (such
as DVD and Blu-ray Disc). The resulting
smooth motion reproduction and excellent
sharpness take the viewing experience to a
higher level. HD Natural Motion removes
judder from SD and HD pictures, including
1080p, for a motion performance that
surpasses the cinema!
Invisible speakers
An invisible sound system that blends perfectly
w
ith the design of the cabinet. The Incredible
Surround allows you to experience total
surround with greater depth and width of
sound. It gives a clear and spacious sound stage
complementary to the rich viewing experience.
EasyLink
EasyLink uses the HDMI CEC industry
standard proto
col to share functionality
between connected devices and the TV. With
EasyLink only one remote control is needed to
operate main functionalities on your TV and
connected devices. EasyLink uses the standard
HDMI cable to transfer system commands. It
works between all electronic devices equipped
with HDMI CEC.
Page 3
Issue date 2009-12-14
Version: 2.0.58
12 NC: 8670 000 47379
UPC: 6 09585 16233 4
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
47PFL5603D/F7
Specifications
LCD TV with Pixel Plus 3 HD
47" Full HD 1080p
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 500 cd/m²
• Dynamic screen contrast: 29000:1
• Response time (typical): 5 ms
• Viewing angle: 178º (H) / 178º (V)
• Diagonal screen size: 47 inch / 119 cm
• Visible screen diagonal (inch): 46.96 inch
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2
mo
tio
n pull down, 3D Combfilter, Active Control
+ Light sensor, Dynamic contrast enhancement,
Progressive scan, HD Natural Motion
Supported Display Resolution
• Co
mputer formats
Res
olution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 1024 60
Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz
• Vi
deo formats
Res
olution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 60Hz
Sound
• Equalizer: 5-bands
• Output power (RMS): 25W
• Sound Enhancement: Incredible Surround
• Sound System: Dolby Digital (AC-3), BBE
Loudspeakers
• Built-in speakers: 4
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: On main display, Sleep Timer
• Ease of Installation: Autostore
• Ease of Use: 4 favorite lists, Au
to
Volume Leveller
(AVL), Channel list, Settings assistant Wizard, Side
Control
• Remote Control: TV
• Screen Format Adjustments: 4:3, Auto Format,
Mov
i
e expand 14:9, Movie expand 16:9, Super
Zoom, Widescreen, unscaled (1080p dot by dot)
Multimedia Applications
• Multimedia connections: USB memory class device
• Playback Formats: MP3, JPEG Still pictures
• Playback enhancement: Picture slidesho
w
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• TV system: ATSC, NTSC
•Video Playback: NTSC
• Cable: Unscrambled Digital Cable -QAM
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• AV 1: Audio L/R in, YPbPr
• AV 2: Audio L/R in, YPbPr
• AV 3: CVBS in, S-Video in
•HDMI 1: HDMI v1.3
•HDMI 2: HDMI v1.3
• HDMI 3: Analog audio L/R in, HDMI v1.3
• EasyLink (HDMI-CEC): One touch play, Power
st
atus, Sy
stem info (menu language), System
standby
• Front / Side connections: HDMI, S-video in, CVBS
in, Audio L
/
R in, Headphone out, USB
• Audio Output - Digital: Coaxial (cinch)
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: 110-240V, 50-60Hz
• Power consumption: 280 W
• Standby power consumption: < 1 W
Dimensions
• Set dimensions in inch (W x H x D):
45.79 x 28.03 x 4.09 inch
•Set dimensions with stand in inch (W
x H x D):
45.79 x 30.94 x 12.8 inch
• Weight incl. Packaging (lb): 92.59
•
Product weight (lb): 77.16 (with stand), 60.63
(w
it
hout stand)
• Box dimensions in inch (W x H x D):
50.6
7 x 34.76 x 15.39 inch
• VESA wall mount compatible: 400 x 400 mm
Accessories
• Included accessories: Tabletop swivel stand, Power
cord, Quick start guide, User Manual, Registration
card, Remote Control
•
