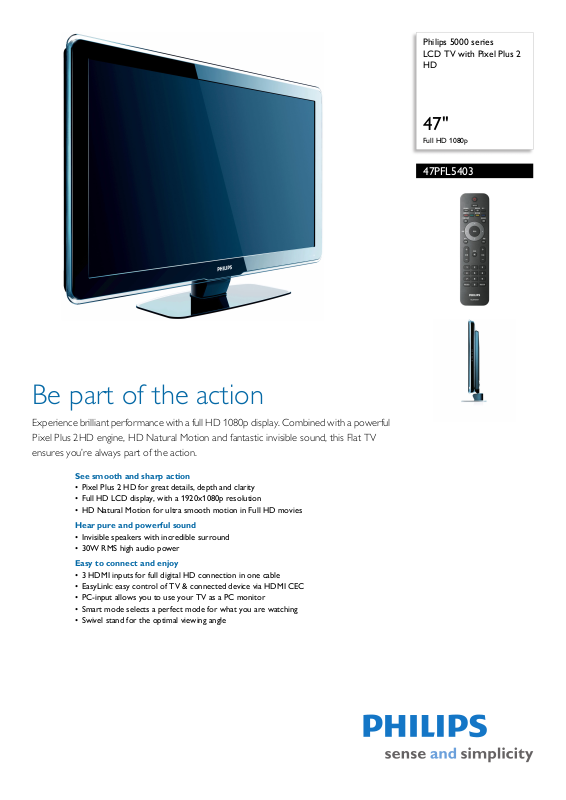

Page 1

Philips 5000 series LCD TV with Pixel Plus 2 HD

47"

Full HD 1080p

47PFL5403

Be part of the action

Experience brilliant performance with a full HD 1080p display. Combined with a powerful Pixel Plus 2HD engine, HD Natural Motion and fantastic invisible sound, this Flat TV ensures you’re always part of the action.

See smooth and sharp action

• Pixel Plus 2 HD for great details, depth and clarity

• Full HD LCD display, with a 1920x1080p resolution

• HD Natural Motion for ultra smooth motion in Full HD movies

Hear pure and powerful sound

• Invisible speakers with incredible surround

• 30W RMS high audio power

Easy to connect and enjoy

• 3 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• PC-input allows you to use your TV as a PC monitor

• Smart mode selects a perfect mode for what you are watching

• Swivel stand for the optimal viewing angle

Page 2

LCD TV with Pixel Plus 2 HD

47" Full HD 1080p

Highlights

47PFL5403/93

Pixel Plus 2 HD

Pixel Plus 2 HD offers the unique combination of ultimate sharpness, natural detail, increased depth, vivid colors and smooth and natural motion from standard TV, High Definition signals and multimedia sources. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts in compressed multimedia content are detected and reduced, ensuring that the picture is clean and razor sharp. Digital noise reduction ensures that the picture is perfectly smooth yet razor sharp.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolution of 1920 x 1080p. This is the highest resolution of HD sources for the best possible picture quality. It is fully future proof as it

supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

HD Natural Motion

Philips invented HD Natural Motion to e

liminate juddering effects that are visible with movie based picture content. HD Natural Motion estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level. HD Natural Motion removes judder from SD and HD pictures, including 1080p, for a motion performance that surpasses the cinema!

Invisible speakers

An invisible sound system that blends perfectly w

ith the design of the cabinet. The Incredible Surround allows you to experience total surround with greater depth and width of sound. It gives a clear and spacious sound stage complementary to the rich viewing experience.

3 HDMI inputs

HDMI makes an uncompressed digital RGB conne

ction from the source to the screen for

the ultimate picture quality. HDMI intelligently

communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources and includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and game console or digital Camcorder. Your TV is fully prepared for the HD future.

EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

Smart mode

The optimum picture and sound depends on v

arious aspects like the video source, content type, surroundings of the room, type of display device etc. Smart Mode has predefined picture and sound settings conveniently preset by the way you use your TV. The ‘Personal’ setting, allows you to define the picture settings according to your preference, store it and gain easy access for future selection. All these conveniently built into your TV for optimal settings.

col to share functionality

Page 3

LCD TV with Pixel Plus 2 HD

47" Full HD 1080p

Specifications

47PFL5403/93

Picture/Display

• Aspect ratio: Widescreen

• Diagonal screen size: 47 inch / 119 cm

• Display screen type: LCD Full HD W-UXGA Act. rix

mat

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus 2 HD, 3D

ombfilter, Active Control + Light sensor,

C Contrast Plus, Digital Noise Reduction, Jagged Line Suppression, Luminance Transient Improver, Progressive Scan, HD Natural Motion

• Screen enhancement: Anti-Reflection coated

reen

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 72, 75, 85Hz 720 x 400 70Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz 1280 x 768 60Hz 1280 x 1024 60Hz

deo formats

• Vi

Resolution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 50, 60Hz 1080p 24, 25, 30Hz

Sound

• Equalizer: 7-bands

• Output power (RMS): 30W

• Sound Enhancement: Auto Volume Leveller, phic Equaliser, Incredible Surround

Gra

• Sound System: Mono, Stereo, BBE

• Ease of Installation: Autostore, Fine Tuning, gram Name, Sorting

Pro

• Ease of Use: 8 channel smart

surf list, Auto Volume

Leveller (AVL), Program List, Side Control

• On-Screen Display languages

: English, Simplified

Chinese

• Remote Control: TV

• Remote control type: PF03A08B

• Screen Format Adjustments: 4:3, Movie expand

9, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

• Signal strength indication

• Smart mode: Game, Movie, Personal, Power saver,

ndard, Vivid

Sta

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G,

SECAM D/K

• Video Playback: NTSC, SECAM, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 99

•Tuner Display: PLL

PAL D/K, SECAM B/G,

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, CVBS in

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

o (menu language), System standby

inf

•Front / Side connections: Audio

L/R in, CVBS in,

Headphone out, S-video in, HDMI v1.3

• Other connections: PC-in VGA + Audio L/R in

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 220-240V, 50/60Hz

• Power consumption: 260 W

• Standby power consumption: (typical) <0.15W

•Box dimensions (W x H x D): 07 x 898 x 391 mm

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included Accessories: Tabletop swivel stand,

Power cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sle Timer

• Connection Enhancement: Easy link

ep Timer, Wake Up

SERV. C

75X

TV ANTENNA

Issue date 2009-09-05

Version: 2.0.61

12 NC: 8670 000 34739 EAN: 87 12581 37164 7

Dimensions

•Set dimensions (W x H x D): 1163 x 712 x 104 mm

• Set dimensions with stand (W x H x D):

63 x 786 x 325 mm

• Weight incl. Packaging: 40 kg

• Product weight: 26 kg

• Product weight (+stand): 33.5

HDMI 2

HDMI 1

AUDIO IN VGA

VIDEO

LRL

CVI AV INAV OU T

VIDEO

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
