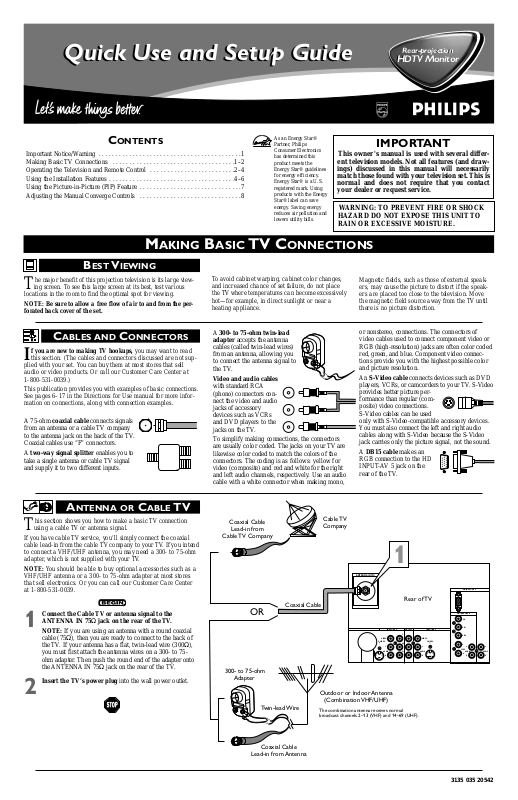

his section shows you how to make a basic TV connection

using a cable TV or antenna signal.

If you have cable TV service, you’ll simply connect the coaxial
cable lead-in from the cable TV company to your TV. If you intend
to connect a VHF/UHF antenna, you may need a 300- to 75-ohm
adapter, which is not supplied with your TV.

NOTE: You should be able to buy optional accessories such as a
VHF/UHF antenna or a 300- to 75-ohm adapter at most stores
that sell electronics. Or you can call our Customer Care Center
at 1-800-531-0039.

1

Connect the Cable TV or antenna signal to the
ANTENNA IN 75Ω jack on the rear of the TV.

NOTE: If you are using an antenna with a round coaxial

cable (75Ω), then you are ready to connect to the back of
the TV. If your antenna has a flat, twin-lead wire (300Ω),
you must first attach the antenna wires on a 300- to 75­ohm adapter. Then push the round end of the adapter onto
the ANTENNA IN 75Ω jack on the rear of the TV.

2

Insert the TV’s power plug into the wall power outlet.

3135 035 20542

Rear-projection

HDTV Monitor

Rear-projection

HDTV Monitor

Quick Use and Setup Guide

Quick Use and Setup Guide

MAKING BASIC TV CONNECTIONS

Twin-lead Wire

300- to 75-ohm

Adapter

OR

Coaxial Cable

Lead-in from Antenna

Cable TV

Company

Rear of TV

Coaxial Cable

Coaxial Cable

Lead-in from

Cable TV Company

Outdoor or Indoor Antenna

(Combination VHF/UHF)

The combination antenna receives normal
broadcast channels 2–13 (VHF) and 14–69 (UHF).

ANTENNA IN 75Ω

INPUT-AV 1

OUTPUT

INPUT-AV 2

HD INPUT-AV 4

HD INPUT-AV 5

VIDEO

AUDIO

S-VIDEO

L

R

Y

Pb

Pr

VIDEO

AUDIO

L

R

S-VIDEO

B/Pb

V

H

SYNC

AUDIO

L

R

AUDIO

L

R

R/Pr

G/Y

1

C

ONTENTS

Important Notice/Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Making Basic TV Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2

Operating the Television and Remote Control . . . . . . . . . . . . . . . . . . . . . . . . .2–4

Using the Installation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–6

Using the Picture-in-Picture (PIP) Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Adjusting the Manual Converge Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

IMPORTANT

This owner's manual is used with several differ­ent television models. Not all features (and draw­ings) discussed in this manual will necessarily
match those found with your television set. This is
normal and does not require that you contact
your dealer or request service.

ANTENNA OR CABLE TV

B

EST VIEWING

T

he major benefit of this projection television is its large view-

ing screen. To see this large screen at its best, test various

locations in the room to find the optimal spot for viewing.

NOTE: Be sure to allow a free flow of air to and from the per­forated back cover of the set.

To avoid cabinet warping, cabinet color changes,
and increased chance of set failure, do not place
the TV where temperatures can become excessively
hot—for example, in direct sunlight or near a
heating appliance.

Magnetic fields, such as those of external speak­ers, may cause the picture to distort if the speak­ers are placed too close to the television. Move
the magnetic field source away from the TV until
there is no picture distortion.

CABLES AND CONNECTORS

I

f you are new to making TV hookups, you may want to read

this section. (The cables and connectors discussed are not sup­plied with your set. You can buy them at most stores that sell
audio or video products. Or call our Customer Care Center at
1-800-531-0039.)

This publication provides you with examples of basic connections.
See pages 6–17 in the Directions for Use manual for more infor­mation on connections, along with connection examples.

A 75-ohm coaxial cable connects signals
from an antenna or a cable TV company
to the antenna jack on the back of the TV.
Coaxial cables use “F” connectors.

A two-way signal splitter enables you to
take a single antenna or cable TV signal
and supply it to two different inputs.

A 300- to 75-ohm twin-lead
adapter accepts the antenna
cables (called twin-lead wires)
from an antenna, allowing you
to connect the antenna signal to
the TV.

Video and audio cables

with standard RCA
(phono) connectors con­nect the video and audio
jacks of accessory
devices such as VCRs
and DVD players to the
jacks on the TV.

To simplify making connections, the connectors
are usually color coded. The jacks on your TV are
likewise color coded to match the colors of the
connectors. The coding is as follows: yellow for
video (composite) and red and white for the right
and left audio channels, respectively. Use an audio
cable with a white connector when making mono,

or nonstereo, connections. The connectors of
video cables used to connect component video or
RGB (high-resolution) jacks are often color coded
red, green, and blue. Component video connec­tions provide you with the highest possible color
and picture resolution.

An S-Video cable connects devices such as DVD
players, VCRs, or camcorders to your TV. S-Video
provides better picture per­formance than regular (com­posite) video connections.
S-Video cables can be used
only with S-Video-compatible accessory devices.
You must also connect the left and right audio
cables along with S-Video because the S-Video
jack carries only the picture signal, not the sound.

A DB15 cable makes an
RGB connection to the HD
INPUT-AV 5 jack on the
rear of the TV.

As an Energy Star®
Partner, Philips
Consumer Electronics
has determined this
product meets the
Energy Star® guidelines
for energy efficiency.
Energy Star® is a U.S.
registered mark. Using
products with the Energy
Star® label can save
energy. Saving energy
reduces air pollution and
lowers utility bills.

WARNING: TO PREVENT FIRE OR SHOCK
HAZARD DO NOT EXPOSE THIS UNIT TO
RAIN OR EXCESSIVE MOISTURE.

U

SING THE TV BUTTONS

S

hould your remote control be lost or broken, you can still

change some of the basic picture and sound settings with the
buttons on the TV. Follow the steps below to familiarize yourself
with the functions of the TV buttons.

1

Press POWER/STANDBY to turn the TV on (or off).
Allow about 10 seconds for the TV to power on.

2

Press the VOL(ume) + or – buttons to decrease or
increase the sound level.

Press the VOL(ume) + and – buttons simultaneously to dis­play the onscreen menu. After the menu appears, use these
buttons to enter submenus and make selections or adjust­ments. (Use the CH[annel] Up and Down buttons to move
up and down in the menu or submenus.) Press both
VOL(ume) buttons simultaneously to back out of the
onscreen menus.

3

Press SOURCE SELECT to choose from among the sig­nal inputs you have connected to the TV.

4

Press the CH(annel) Up and Down buttons to select TV
channels.

O

PERATING THE

TELEVISION AND R

EMOTE CONTROL

TELEVISION

R

EMOTE CONTROL

MAKING BASIC TV CONNECTIONS (CONTINUED)

F

ollow the steps below to connect a cable converter box to
your TV.

To make the connections in this example, you will need one coaxi­al cable (75Ω).

NOTE: The coaxial cable is not supplied with your TV. You should be
able to buy one at most stores that sell electronics. Or you can call our
Customer Care Center at 1-800-531-0039.

1

Connect your cable TV signal to the INPUT jack on the
back of the cable converter box.

2

Connect a coaxial cable from the OUTPUT jack on the
back of the cable converter box to the ANTENNAIN 75Ω
jack on the rear of the TV.

3

Insert the TV’s power plug into the wall socket.

INSTALLING BATTERIES

T

o load the supplied batteries into the remote, follow these

steps.

1

Gently press and hold the indention on the back of the
remote and slide the battery cover off the remote.

2

Place the two “AA” size batteries in the remote’s bat­tery case. Ensure that the (+) and (–) ends of the batteries

line up correctly with the (+) and (–) inside the case.

3

Slide the battery cover back into place.

POINTING THE REMOTE

Press the TV mode button on the remote to ensure that the
remote sends its commands to the TV. When operating the remote
control, point the remote toward the remote sensor window on the
TV.

To prevent battery leakage that
may result in injury to you or dam­age to the remote control:

• Install ALL batteries correctly, + and –,
as marked on the unit.

• Do not mix batteries (OLD and NEW
or CARBON and ALKALINE, etc.)

• Remove batteries when the remote
control is not used for a long time.

Do not take apart, heat, or put bat­teries in fire.

Remote Sensor

Window

CABLE CONVERTER BOXES

You can set up your TV remote control to work with accessory
devices such as VCRs, DVD players, and cable converter boxes.
See pages 18–23 in the Directions for Use manual.

cc

C

HECK IT OUT

2

BATTERY USAGE CAUTION

• Be sure to point the remote toward the

sensor window on the TV or accessory
device you are using the remote to
operate.

• Press the correct mode button for the

device you want to operate: TV, VCR,
ACC (for accessories other than VCRs).

• Be within about 30 feet (10 meters) of

the TV or accessory device you are
using the remote to operate.

• Avoid dropping the remote on hard sur-

faces.

• Do not use harsh chemicals to clean the

remote. Use only a soft, lightly mois­tened cloth.

H

ELPFUL HINTS

Power Standby

Button

You can press any of the buttons on
the front of the TV to turn the TV on,
but you must press the Power/Standby
button to turn the set off.

HELPFUL HINT

Coaxial Cable

Lead-in from

Cable TV Company

Cable

Converter

Box

INPUT

OUTPUT

1

Coaxial Cable

(Not Supplied)

ANTENNA IN 75Ω

S-VIDEO

VIDEO

L

AUDIO

R

2

INPUT-AV 1

Rear of TV

OUTPUT

Y

Pb

Pr

HD INPUT-AV 5

HD INPUT-AV 4

G/Y

INPUT-AV 2

VIDEO

S-VIDEO

L

AUDIO

R

R/Pr

B/Pb

V

L

SYNC

H

L

AUDIO

AUDIO

R

R

-

A

VOLUME

MENU

+

A

?

CHANNEL

>

VOLUME

CHANNEL

-

+

A

A

?

MENU

SOURCE

SELECT

SOURCE

>

SELECT

POWER

ACC

TV

VCR

ACTIVE

SWAP PIP CH

FREEZE

CONTROL

DN

UP


SOUND

R

E

W

O

P

TV

ACC

E

Z

E

E

E

VCR

R

IV

F

T

C

L

A

O

R

T

N

O

C

TV

K

O

H

C

IP

P

P

UP

U

P

I

U

P

A

W

N

S

D

DN

N

D

D

N

U

O

S

P

/

S

U

T

A

T

S

IT

X

E

TV MODE

Button

O

V

VCR

E

R

U

T

C

/

U

N

E

M

T

C

E

L

E

S

MUTE

L

1

1

4

4

ACC

CH

3

3

2

2

6

6

5

5

9

9

8

8

SURF

7

7

TV/VCR

H

/C

A

H

/C

A

CC

0

0

IP

P

N

IO

IT

S

O

P

Power

Press to turn the TV on or off.

Active Control™

Measures and corrects all incoming signals to provide the
best picture-quality settings. (See page 56 in the Directions
for Use manual.) Press to turn Active Control™ on or off.
When Active Control™ is on, it automatically and continu­ously controls Sharpness and Noise Reduction settings.


Press to select an AutoPicture™ control. Choose from four
factory-set controls—Movies, Sports, Weak Signal, and
Multimedia—and a PERSONAL control that you set
according to your own preferences through the onscreen
Picture menu. (See page 26 in the Directions for Use manu­al.) The four factory-set controls will enhance the TV picture
according to the particular type of program you are watch­ing. It may also be used to enhance pictures with weak sig­nals.

Menu/Select

Press to display the onscreen menu. Press to return to a
higher menu level.

Channel +/–

Press to select channels in ascending or descending order or
cycle through the signal inputs.

Mute

Press to turn the TV sound off. To restore the sound to its
previous level, press the button again. (See pages 17 and 53
in the Directions for Use manual.)

Surf

Press to select previously entered channels. With the TV’s
AutoSurf™ control, you can place up to 10 favorite chan­nels or sources in memory. Then by pressing the Surf but­ton, you can quickly view the selected channels. (See page
27 in the Directions for Use manual that came with the TV
to learn how to select a series of your favorite channels
using the Surf button.)

Format

Press to select a picture-format mode for a video source con­nected to the ANTENNA, AV1, CVI, AV2, or A V3 (side
panel) inputs. Each press of the button selects a different
mode—4:3, EXPAND 4:3, PANORAMA, WIDE SCREEN,
or AUTO. Control the picture format of a video source con­nected to the HD inputs (AV4 or AV5) with the HD set-top
box or progressive-scan-capable DVD player providing the
video source.

Sleep

Press to set the TV to automatically turn itself off after a
period of time. Choose 15, 30, 45, 60, 90, 120, 180, or 240
minutes before the TV will automatically turn off. (See page
29 in the Directions for Use manual.)

Program List

Press to display a list of channel numbers and their names.
(See the “Tuner Mode,” “Auto Program,” “Channel Edit,”
and “Name” sections on pages 4–6 in this guide for setup.)
Each channel will appear as a selectable menu item. The
current channel will be highlighted as default. Five channels
will be listed on screen at one time. Press the Cursor Ring
up or down to scroll the list and and highlight a channel.
Press the Cursor Ring right to tune to the highlighted chan­nel. Channels marked “Skipped” in the Channel Edit control
will not appear in the list. Each channel that is being
blocked by AutoLock™ will appear with a padlock icon to
indicate that the channel is not viewable. (See page 28 in the
Directions for Use manual.)

Dolby V

Press to select various factory surround sound listening
modes.

Dolby* Virtual (Virtual Dolby Surround) (with Virtual
Dolby Surround signals)

Dolby Virtual uses two speakers to simulate the surround effect
produced by a multichannel system.

Incredible Surround™

• In Stereo sound mode—when Incredible Surround™ is turned

on—it seems as though the loudspeakers are spread farther apart
from each another.

• In Mono sound mode—when Incredible Surround™ is turned

on—enables you to hear a spatial sound effect.

(See page 35 in the Directions for Use manual.)

VCR control buttons

Press to pause, rewind, stop, play, or fast forward a video­tape.

TV • VCR • ACC

(Mode buttons) Press to send remote signals to either the
TV, VCRs, or other accessory devices such as cable TV con­verters, satellite receivers, DVDs, or laser disc players. (You
may need to program the remote to work accessory devices.
See pages 18–23 in the Directions for Use manual that came
with your TV.)

PIP buttons: SWAP, PIP CH DN/UP, FREEZE

Press to operate the Picture-in-Picture (PIP) features. See
page 7 in this publication for more information on using
these buttons.

Sound

Press to select an AutoSound™ control. (See page 25 in the
Directions for Use manual.) Choose from three factory-set
controls—Voice, Music, and Theatre—and a Personal con­trol that you set according to your own preferences through
the onscreen Sound menu. The three factory-set controls
will tailor the TV sound so as to enhance the type of pro­gram you are watching.

Status/Exit

Pressing the button once shows the current channel number,
name (if set), time (if set), Sleep Timer setting, and sound
setting (stereo, mono, SAP, or mute). Pressing the button
twice shows the current AutoLock™ settings. Pressing the
button once when an onscreen display is showing removes
the onscreen display.

Cursor Ring

Up/Down: allows you to select the next or previous menu
item in the menu. Left/Right: allows you to access the sub­menus and adjust the settings. When no onscreen displays or
menus are present, use the Cursor Ring Left/Right to select
a picture format for a video source connected to the
ANTENNA, AV1, CVI, AV2, or AV3 (side panel inputs) on
the TV.

Volume +/–

Press to adjust the TV sound level.

Number Buttons

Press to select TV channels. When selecting single-digit
channels, press the number of the desired channel. The TV
will pause for a few seconds and then tune to the selected
channel.

TV/VCR

Press while in VCR mode to view the playback of a video­tape. Press again to return to TV mode.

A/CH

Press to alternate between the currently viewed channel and
the previously viewed channel.

Rec

¶¶

Press this button simultaneously with the 3 button when in
VCR mode to record.

SAP

Press to select between main sound and SAP (Second Audio
Program) when you tune to a program offering SAP. (See
page 37 in the Directions for Use manual.)

AV

Press repeatedly to select the different signal sources con­nected to the TV: TV, AV1, CVI, AV2, AV3 (side jack
panel), AV4 and AV5. (See page 24 in the Directions for Use
manual.)

Clock

Press to access the onscreen Timer menu, where you can set
the time for the TV’s clock or set the TV’s Timer features,
such as channel switch over, power on set, and power off
set. (See page 6 in this publication for setting the time man­ually. See pages 39–43 in the Directions for Use manual for
information on using the TV’s Timer feature.)

Position

Press to move the PIP picture to any of the four corners of
the screen.

Back Light button

Press to light the buttons on the remote control.

PIP

Press to turn PIP (picture-in-picture) on or off or control the
size of the PIP window. (See page 7 in this publication for
more information on PIP.)

R

EMOTE C

ONTROL

O

PERATING THE

T

ELEVISION AND

REMOTE CONTROL (CONTINUED)

Active Control, AutoPicture, AutoSound, AutoSurf, and Incredible Surround are trademarks of Philips Consumer Electronics North America. Copyright 2001 Philips Consumer Electronics.
*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

3

POWER

ACC

TV

VCR

ACTIVE

SWAP PIP CH

FREEZE

CONTROL

DN

UP


SOUND

TV

SWAP PIP CH

SOUND

STATUS/

EXIT

VOL

TV/VCR

A/CH

ITR/

RECORD

POWER

ACTIVE

CONTROL

ACC

FREEZE


MENU/

SELECT

CH

VCR

DN

UP

MUTE

213
546
879

SURF

REC •

SAP

HOME
VIDEO

0

FORMAT

HOME

MOVIES

PIP ON/OFF

SLEEP

PROG.LISTDOLBY VAV

PERSONAL

PIPPOSITION

SURF

4

TUNER MODE

USING THE INSTALLATION FEATURES

LANGUAGE

S

et the TUNER MODE control accor ding to the type of signal you have
connected to the TV—ANTENNA or CABLE. If you select AUT O, the

TV will automatically detect the type of signal you have connected.

1

Press the MENU/SELECT button. The onscreen menu
appears. Press the CURSOR RING DOWN repeatedly until
INSTALL is highlighted.

2

Press the CURSOR RING RIGHT to enter the INSTALL
submenu. Then press the CURSOR RING DOWN once to
highlight TUNER MODE.

3

Press the CURSOR RING RIGHT to highlight the
TUNER MODE options list.

4

Press the CURSOR RING DOWN or UP repeatedly until
you select the option that matches your signal connection,
CABLE or ANTENNA. If you want the TV to determine
the type of signal, select AUTO. (You have selected an
option when the dot and triangle are next to the option.)

5

Press the STATUS/EXIT button to exit the menu.

6

Proceed to the section on “Auto Program.”

T

he menu LANGUAGE control enables you to set the TV’s

onscreen menu and onscreen displays to be shown in English,
French, or Spanish. Follow the steps in this section to set the con­trol.

1

Press the MENU/SELECT button. The onscreen menu
appears.

2

Press the CURSOR RING DOWN repeatedly until
INSTALL is highlighted. Then press the CURSOR RING
RIGHT to enter the INSTALL submenu.

3

Press the CURSOR RING RIGHT again to highlight the
menu LANGUAGE options list.

4

Press the CURSOR RING DOWN or UP to select your
menu language.

Instantaneously, the onscreen displays appear in the lan­guage that you choose.

5

Press the STATUS/EXIT button to exit the menus.

H

ELPFUL

HINT

The LANGUAGE con­trol makes only the
TV’s onscreen menu
items appear in English,
French, or Spanish text.
The control does not
change the language of
Closed Captioning (CC)
text that may be included
with programs.

H

ELPFUL HINT

If you select the Tuner
Mode option that
matches your signal
source rather than
AUTO, the time
required for AUTO
PROGRAM to store
channels to the TV’s
memory can be reduced.

R

EMOTE C

ONTROL

(CONT’D)

O

PERATING THE

T

ELEVISION AND

REMOTE CONTROL (CONTINUED)

ADJUSTING OR SETTING MENU OPTIONS

A

menu is simply a list of options. You can adjust or set your

TV’s onscreen menu options by pressing buttons on the remote
control. The following steps will familiarize you with how to use
the remote control with the onscreen menu.

1

Press the TV mode button to ensure that the remote con­trol is in TV mode.

2

Press the MENU/SELECT button to bring the menu to
the screen. Then, as necessary, press the CURSOR RING
DOWN or UP to highlight a menu option. Press the CUR­SOR RING RIGHT to enter the submenu for the option.

3

Within the submenu, press the CURSOR RING DOWN
or UP to highlight an option.

Based on the submenu you are in, you can press the CUR­SOR RING RIGHT or LEFT to make an adjustment, select
a setting, or enter a list or another submenu.
You can return to the submenu from a list by pressing the
CURSOR RING LEFT.
To go from a submenu to the previous menu, highlight the
option at the top of the screen and press the CURSOR
RING UP. You can also press MENU/SELECT to return to
the previous menu.
Press STATUS/EXIT to exit the menu.

HELPFUL HINTS

• If you don’t press
any remote buttons,
the menu will auto­matically disappear
after about 20 sec­onds. To bring the
menu back, press
MENU/SELECT .

• Sometimes not all
the menu items are
visible on the
screen. If more
items exist in the
menu, a cursor
arrow will appear.
Also, a bullet will
appear for each
remaining item, up
to a maximum of
three. This will help
you determine how
many items are left
in the menu. Keep
pressing the CUR­SOR RING
DOWN until you
display all items.

• Should your remote
become lost or oth­erwise unavailable
for use, you can use
the buttons on the
front of the TV to
access the onscreen
menu and make
adjustments or set­tings. See page 2.

POWER

ACC

TV

VCR

ACTIVE

SWAP PIP CH

FREEZE

CONTROL

DN

UP


SOUND

MENU


SOUND

FEATURES
INSTALL

TREBLE
BASS
BALANCE
AVL
INCR . SURROUND

POWER

1

SWAP PIP CH

SOUND

STATUS/

EXIT

VOL

TV

DN

ACC

VCR

ACTIVE

FREEZE

CONTROL

UP


MUTE

3

213
546
879

TV/VCR

A/CH

POSITION

Go from one submenu
to another and make
settings or adjustments.

SURF

0

PIP

MENU/
SELECT

SOUND SUBMENU

SOUND

TREBLE 30

BASS
BALANCE
AVL
INCR . SURROUND

Make adjustments
or selections
within a submenu.

SOUND

BALANCE
AVL
INCR . SURROUND
HEADPHONE

STEREO MONO

OR

STEREO STEREO

INSTALL SUBMENU

CH

2

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM

CHANNEL EDIT

AutoChron

AV3
AV4
1
2
3

Also from a Submenu, enter
a list to make selections.

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

AV3
AV4
1
2
3

FEATURES SUBMENU

FEATURES

TIMER

AutoLock
PIP
CLOSED CAP
FORMAT

TIME
START TIME
STOP TIME
CHANNEL
ACTIVATE

TIMER SUBMENU

FEATURES

TIMER

TIME 8:06 PM

START TIME
STOP TIME
CHANNEL
ACTIVATE

LANGUAGE


TUNER MODE

SOUND

AUTO PROGRAM

FEATURES

CHANNEL EDIT

INSTALL

AutoChron

5

SOUND
FEATURES

INSTALL

SWAP PIP CH

SOUND

STATUS/

EXIT

VOL

2,4

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

TV

VCR

ACTIVE

CONTROL

DN

UP

MUTE

213
546

POWER

ACC

FREEZE


MENU/

SELECT

CH

3

1

INSTALL

LANGUAGE

TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

INSTALLATION

LANGUE
TUNER MODE
PROGRAM.AUTO
CHANGER CANAL
AutoChron

OR

French

ENGLISH
FRANCAIS
ESPAÑOL

ENGLISH
FRANCAIS
ESPANOL

FRANCAIS
ESPAÑOL
ENGLISH

Make your selection

˜

and instantaneously
the onscreen display
appears in the
language you chose.

INSTALAR

IDIOMA
SINTONIZADOR

OR

AUTO PROG
EDITAR CANAL
AutoChron

Spanish

.

ESPAÑOL
ENGLISH
FRANCAIS

LANGUAGE


TUNER MODE

SOUND

AUTO PROGRAM

FEATURES

CHANNEL EDIT

INSTALL

AutoChron

5

INSTALL

LANGUAGE

TUNER MODE

AUTO PROGRAM
CHANNEL EDIT
AutoChron

STATUS/

VOL

TV

VCR

SWAP PIP CH

DN

UP

SOUND

EXIT

MUTE

4

213
546
879

TV/VCR

A/CH

ACTIVE

CONTROL

CABLE
ANTENNA
AUTO

POWER

ACC

FREEZE


MENU/
SELECT

SURF

2,3

CH

1

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

CABLE
ANTENNA
AUTO

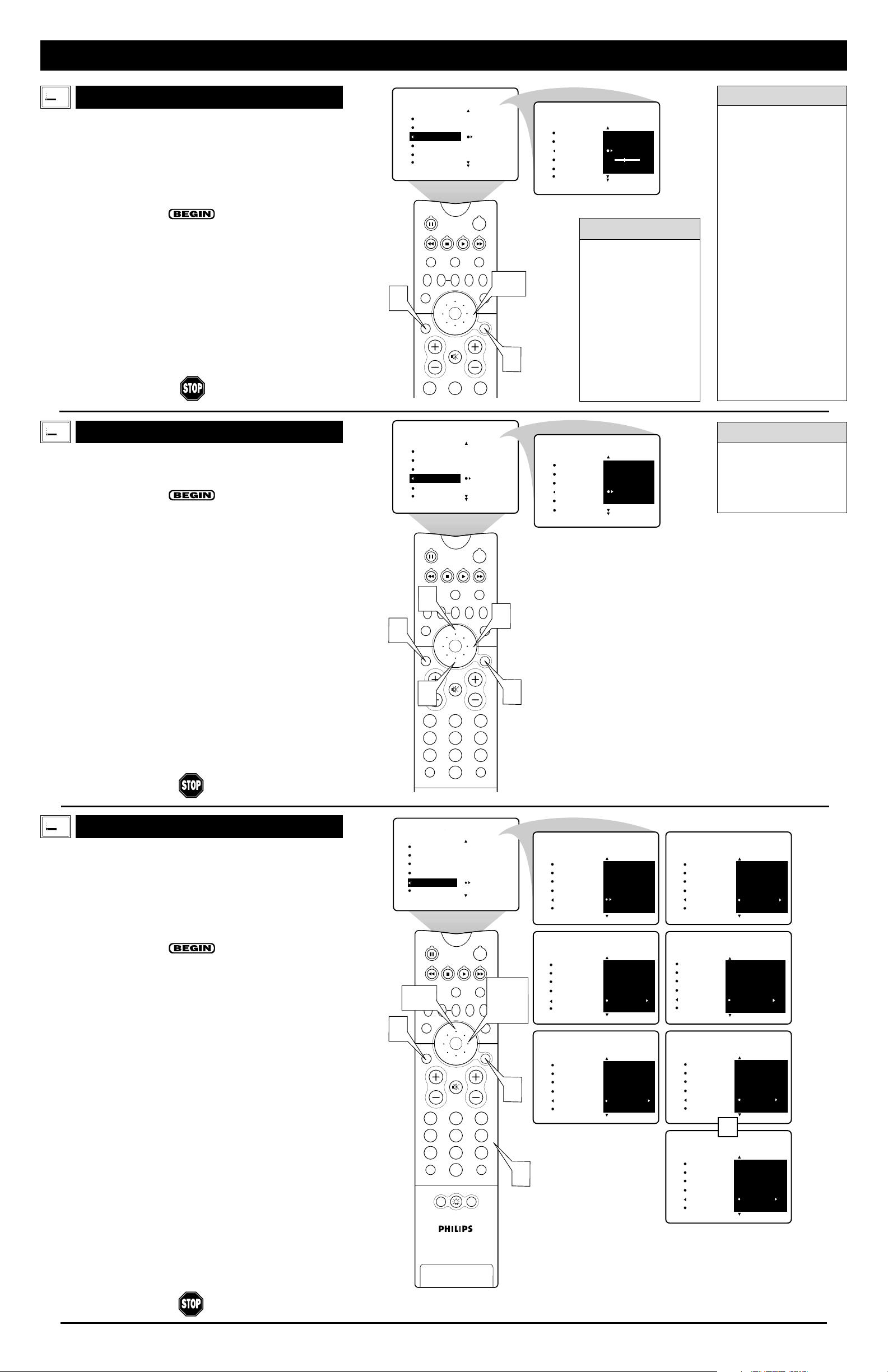

SETTING TIME AUTOMATICALLY

The steps in this section tell you how to set AutoChron™ to
download the time from your PBS station to your TV. After suc­cessful setup, AutoChron™ will automatically maintain the cor­rect time using your PBS station until you set the time manually.

1

Press the MENU/SELECT button. The onscreen menu
appears. Then press the CURSOR RING DOWNrepeatedly
until INSTALL is highlighted.

2

Press the CURSOR RING RIGHTto enter the INSTALL
submenu. Then press the CURSOR RING DOWN repeated-

ly until AutoChron is highlighted.

3

Press the CURSOR RING RIGHTto enter the AutoChron
SET TIME area.

4

Press the CURSOR RING RIGHTagain to select AUTO.
Within a few seconds, a menu containing the time-zone
options appears.

5

If necessary, press the CURSOR RING UPor DOWN to
highlight your correct time zone. Then press the CURSOR
RING RIGHT. Within a few seconds, the option of Daylight
Savings Time appears on screen.

6

If the Daylight Savings Time option you want to select is
not highlighted, press the CURSOR RING UPor DOWN

to highlight the option. Then press the CURSOR RING
RIGHT to activate your selection.

7

Press the number buttons on your remote to enter the chan­nel number for your PBS station (02, 15, or 121, for exam­ple). Wait until the TV completes its search. If the time was
not found, you will need to locate the correct channel number
for your PBS station and input that number.

8

Press the STATUS/EXIT button to exit the menu.

5

U

SING THE

INSTALLATION

FEATURES (CONTINUED)

AutoChron

CHANNEL

EDIT

The message shown to
the right indicates that
AutoChron™ is not
finding a PBS station at
the channel you input.
Check the channel
number for your PBS
station.You will need to
input the correct num­ber for the time to be
found.

T

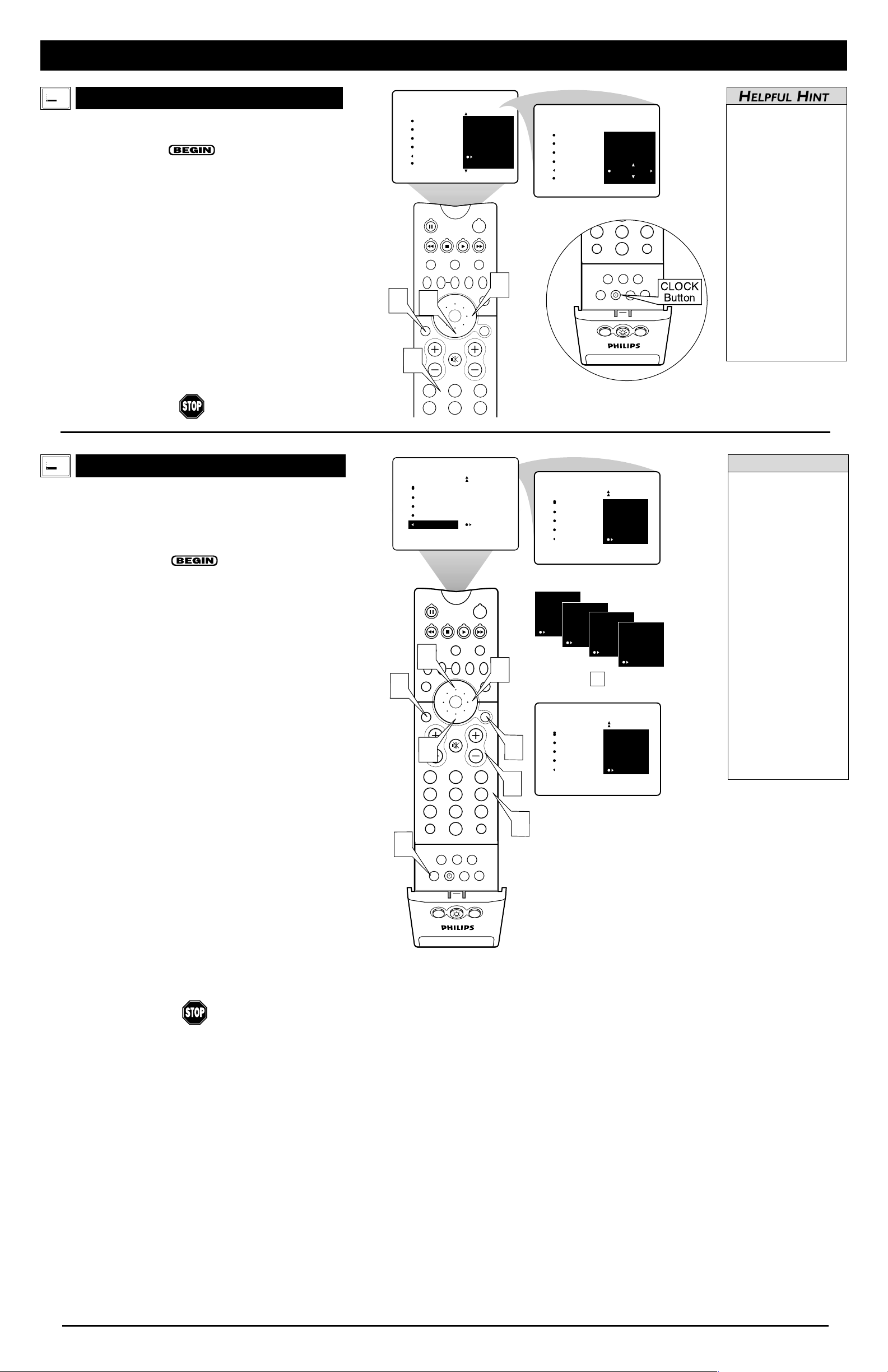

his feature allows you to edit or skip channels from the channel

list that have bad or weak signals or channels you do not want

to watch.

1

Press the MENU/SELECT button. The onscreen menu
appears. Then press the CURSOR RING DOWN repeatedly
until INSTALL is highlighted. Press the CURSOR RING
right to enter the INSTALL submenu.

2

Press the CURSOR RINGDOWN repeatedly until CHAN-
NEL EDIT is highlighted. Then press the CURSOR RING
RIGHT or LEFT to access the CHANNEL EDIT list.

3

Press the CURSOR RING UPor DOWN to scroll through
the list of channels. Or press the NUMBER buttons on your
remote control to select a specific channel.

4

With the channel you want to edit selected, press the
CURSOR RING RIGHT to mark the channel as SKIPPED.

(Channels you mark SKIPPED will not appear when you use
the CH[annel] +/– buttons to change channels while watching
TV.)

When you want to add a channel that has been marked
SKIPPED, press the CURSOR RING UPor DOWN to high­light the channel. Then press the CURSOR RING RIGHTto
remove the word SKIPPED.

5

Press the STATUS/EXIT button to exit the menu.

Channels that Auto
Program (see page 5)
determined not to contain
active broadcast signals are
marked SKIPPED.

HELPFUL HINT

A

utoChron™ gives you the option of setting the time manually or
automatically.

T

he AUTO PROGRAM feature will scan for channels with

active broadcast signals and store those channels in the TV’s
memory. It will tune up to 69 channels for antenna, and up to 125
channels for cable. After you run AUTO PROGRAM, you can use
the CH(annel) +/– buttons to quickly and easily select stations.
You can also press the PROG. LIST (Program List) button on
your remote to see a list of the channels.

1

Press the MENU/SELECT button. The onscreen menu
appears. Then press the CURSOR RING DOWN repeated­ly until INSTALL is highlighted.

2

Press the CURSOR RING RIGHTto enter the INSTALL
submenu. Then press the CURSOR RING DOWNrepeatedly
until AUTO PROGRAM is highlighted.

3

Press the CURSOR RING RIGHT to begin the automatic
search for channels. The progress of autoprogramming is dis­played.

4

When the programming is done, press the STATUS EXIT
button to exit the menu.

After you’ve run AUTO
PROGRAM, check the
results. Press the
CH(annel) +/– buttons on
your remote to cycle
through your available
channels. Or press the
PROG. LIST button to
show a list of the channels
and tune to them. See
page 28 in the Directions
for Use manual for more
on Program List.

cc

C

HECK

IT OUT

AUTO

P

ROGRAM

HELPFUL HINTS

• Philips strongly recom­mends that you run Auto
Program. Otherwise, the
TV may not tune the chan­nels properly, resulting in
improper pictures.

• If you change signal
sources—to a new cable
company or from antenna
to cable, for example—be
sure that Tuner Mode is
properly set for the new
source. Then run Auto
Program again. This will
ensure that the channels
are correctly stored in the
TV’s memory.

• If you have made
AutoLock™ settings,
remember that you must
remove any channel blocks
before Auto Program will
work.(See pages 44–52 in
the Directions for Use
manual.)

LANGUAGE


TUNER MODE

SOUND

AUTO PROGRAM

FEATURES

CHANNEL EDIT

INSTALL

AutoChron

4

INSTALL

LANGUAGE
TUNER MODE

AUTO PROGRAM

CHANNEL EDIT
AutoChron

STATUS/

VOL

TV

SWAP PIP CH

SOUND

EXIT

INSTALL

SEARCH

POWER

ACC

VCR

ACTIVE

FREEZE

CONTROL

DN

UP

MUTE

213


MENU/

SELECT

2,3

CH

1

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

CABLE
PLEASE WAIT

CHANNEL 12

LANGUAGE


TUNER MODE

SOUND

AUTO PROGRAM

FEATURES

CHANNEL EDIT

INSTALL

AutoChron

5

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM

CHANNEL EDIT

AutoChron

3

STATUS/

EXIT

VOL

2

TV

VCR

SWAP PIP CH

DN

UP

SOUND

MUTE

213
546
879

TV/VCR

A/CH

0

ACTIVE

CONTROL

AV3
AV4
1
2
3

POWER

ACC

FREEZE

4


MENU/

SELECT

CH

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

AV3
AV4
1
2 SKIPPED
3

1

SURF

LANGUAGE


TUNER MODE

SOUND

AUTO PROGRAM

FEATURES

CHANNEL EDIT

INSTALL

AutoChron

8

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT

AutoChron

5, 6

SOUND

STATUS/

EXIT

VOL

TV

VCR

SWAP PIP CH

TV/VCR

A/CH

CONTROL

DN

UP

MUTE

213
546
879
0

POSITION

ACTIVE

PIP

SET TIME

AUTO
MANUAL

POWER

ACC

FREEZE


MENU/

SELECT

SURF

CH

2,3,

4

1

7

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

SET TIME

AUTO
MANUAL

DAYLIGHT
SAVING TIME?

YES
NO

SEARCH FOR
TIME

PLEASE WAIT
15 PBS

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

SEARCH FOR
TIME

ENTER CHANNEL
02 PBS

OR

TIME ZONE?

CENTRAL
MOUNTAIN
PACIFIC

SEARCH FOR
TIME
TIME FOUND
END: PRESS STATUS
11:15 AM

SEARCH FOR
TIME
TIME NOT FOUND
RE-ENTER CHANNEL
15 PBS

T

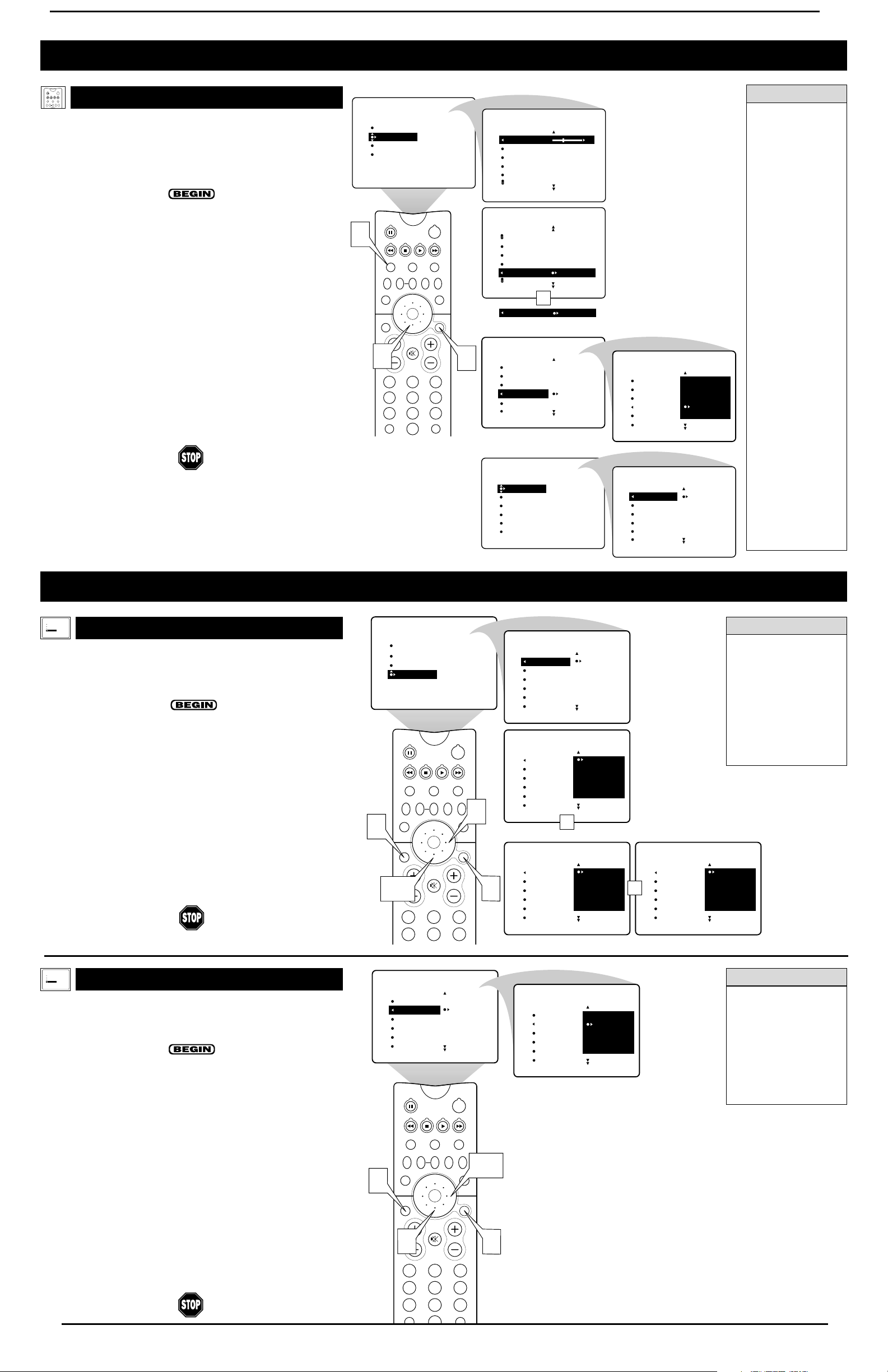

he channel NAME feature allows you to list the “call” letters

of your favorite stations beside their channel numbers when
they appear on the screen. The TV has in memory a list of the 50
most popular channel names (NBC, ABC, or FOX, for example).
You also can enter a custom name (up to five characters).

1

Press the NUMBER buttons, the CH(annel) +/– buttons,
or the AV button to select a TV channel or input source to

which you want to assign a name or whose name you want
to modify.

2

Press the MENU/SELECT button. The onscreen menu
appears. Then press the CURSOR RING DOWN repeated­ly until INSTALL is highlighted. Press the CURSOR RING
RIGHT to enter the INSTALL submenu.

3

Press the CURSOR RING DOWN repeatedly until the
NAME control is highlighted. Then press the CURSOR
RING RIGHT to highlight the NAME options area.

4

At this point you can choose between options of creating a
personal name for the channel or selecting a preset one
from a list.

To create your own personal name for the channel or
change a personal name you created previously, press
the CURSOR RING RIGHT. Then press the CURSOR

RING UP or DOWN to select the first character of the
name. You can input up to five characters for the name.
When finished, press the MENU/SELECT button.

Or
To choose from the list of preset names, press the CUR-

SOR RING UP or DOWN to highlight your choice for the

channel name. Press the CURSOR RING RIGHT to select
the name. Then press the MENU/SELECT button.

5

Press the STATUS/EXIT button to exit the menu.
When you press the STATUS/EXIT button when no

onscreen display is present or change to the channel you’ve
named, the name will appear on screen next to the channel
number or signal source name.

6

PIP ON/OFF

213
546
879
0

TV

SWAP PIP CH

DN

UP

ACTIVE

CONTROL

FREEZE

SOUND

MUTE

SURF

A/CH

POWER


STATUS/

EXIT

SURF

ITR/

RECORD

HOME
VIDEO

HOME

MOVIES

PERSONAL

SLEEP

REC •

PIPPOSITION

VCR

ACC

MENU/
SELECT

VOL

CH

TV/VCR

FORMAT

SAP

PROG.LISTDOLBY VAV

INSTALL

TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

NAME PERSONAL

INSTALL

TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron
NAME

PERSONAL

WX-

WXY-

WXYZ-

WXYZ3

4

2

1

3

5

4

1

1

Create your own personal name
for a channel.

OR

Choose from a list of preset options.

INSTALL

USA
VH
WGN
WOR
WTHR

TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron
NAME

U

SING THE

INSTALLATION

FEATURES (CONTINUED)

N

AME

HELPFUL HINTS

• The five PERSONAL
name characters you
can input may be let­ters, a dash, or the
numbers 0 through 9.

• If you begin inputting
a personal name or
changing an existing
one and decide you’d
rather select a name
from the preset list,
press the
MENU/SELECT but­ton. This will return
you to the INSTALL
submenu, with NAME
highlighted. Simply
press the CURSOR
RING RIGHT to high­light the NAME
options area again and
choose a preset name
as explained in step 4
to the left.

AutoChron (cont’d)

SETTING TIME MANUALLY

1

Follow steps 1–3 in the section “Setting Time
Automatically” on page 5, then press the CURSOR
RING DOWN to highlight MANUAL and CURSOR

RING RIGHT to enter the MANUAL time input area.

2

Use the number buttons on your remote control to input
the first digit for the time. You can also press the CURSOR
RING UP or DOWN to select a digit. Press the CURSOR
RING RIGHT to move to the next digit input slot and input
the time.

If you should need to change a number you have input, you
can cursor left or right to the digit input slot to make the
correction.

3

After you have input the time, press the CURSOR
RING RIGHT to enter the AM/PM area. Then press the

CURSOR RING UP or DOWN to select AM or PM.

4

Press the STATUS/EXIT button to exit the menu.

PIP ON/OFF

879
0

SURF

A/CH

SURF

ITR/

RECORD

HOME
VIDEO

HOME

MOVIES

PERSONAL

SLEEP

REC •

PIPPOSITION

TV/VCR

FORMAT

SAP

PROG.LISTDOLBY VAV

CLOCK

Button

HELPFUL HINTS

• The CLOCK button
\ on your remote
provides another way
in which you can set
the TV’s clock manu­ally.

• After setting the
clock, you will be
able to access the
time by pressing the
STATUS/EXIT but­ton. Or you can view
the time constantly in
the upper right-hand
corner of the screen
by turning the DIS­PLAY control on (see
page 40 in the

Directions for Use

manual).

LANGUAGE


TUNER MODE

SOUND

AUTO PROGRAM

FEATURES

CHANNEL EDIT

INSTALL

AutoChron

INSTALL

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

TV

SWAP PIP CH

SOUND

4

1

STATUS/

EXIT

VOL

2

INSTALL

SET TIME

AUTO
MANUAL

POWER

ACC

VCR

ACTIVE

FREEZE

CONTROL

DN

UP

MUTE


MENU/

SELECT

3

CH

LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
AutoChron

ENTER TIME

11:00 AM

LANGUAGE


TUNER MODE

SOUND

AUTO PROGRAM

FEATURES

CHANNEL EDIT

INSTALL

AutoChron

213
546

T

he Picture-in-Picture (PIP) TINT control allows you to adjust

the PIP picture to obtain natural skin tones.

1

Press the MENU/SELECT button. The onscreen menu
appears. Then press the CURSOR RING DOWN twice to
highlight FEATURES.

2

Press the CURSOR RING RIGHT to enter the FEA­TURES submenu. Then press the CURSOR RING DOWN
repeatedly until the PIP item is highlighted. Press the CUR­SOR RING RIGHT to enter the PIPsubmenu.

3

Press the CURSOR RING RIGHTor LEFT to adjust the
TINT to the desired level.

4

Press the STATUS/EXIT button to exit the menu.

U

sing the PIP buttons on the remote, you can move the PIP

window around and swap it with the main screen. You can
also freeze the PIP window picture. Perform the steps below to
practice using the PIP buttons.

1

Press the PIP on/off button to show the PIP window. The
window appears in a corner of the TV screen. Press the
PIP on/off button again to reduce the PIP window size,
and a third time to remove the PIP window from the
screen. Press the PIP on/off button again to show the PIP
window.

2

Press the PIP CH DN/UPbuttons to tune to channels in
the PIP window.

If you press and hold the PIP CH UP button for three sec­onds, the set will automatically perform a forward scan for
channels. Press and hold the PIP CH DN button for three
seconds, and the set will automatically perform a back­ward scan for channels. Auto scanning will stop if you
press any key, and it will also stop upon reaching the
channel at which scanning began.

3

Press the PIP POSITION button to move the PIPwin­dow from corner to corner on the TV screen.

4

With PIP on the TV screen, press the SWAP button to
swap the main and PIP pictures. Press SWAP again to
swap the pictures back.

NOTE: The CVI source is not accessible in the PIP win­dow, so it cannot be swapped between the main screen and
PIP.

5

Press the FREEZE button to stop motion within the PIP
window.

The FREEZE button allows you plenty of time to write
down onscreen information such as phone numbers or
addresses.

6

Press the PIP on/off button, multiple times if necessary,
to remove the PIP window from the screen.

7

ADJUSTING PIP TINT

U

SING THE


-

IN-PICTURE (PIP) FEATURE

USING THE PIP BUTTONS

To prevent uneven picture-tube aging, do not leave stationary images
on screen for extended periods of time. Vary your picture viewing.
See page 60 in the Directions for Use manual.

WARNING

H

ELPFUL HINT

When you press the PIP on/off
button to show the PIP win­dow, the window will appear
where it was located the last
time it was displayed.

PIP Window

Main Screen

P

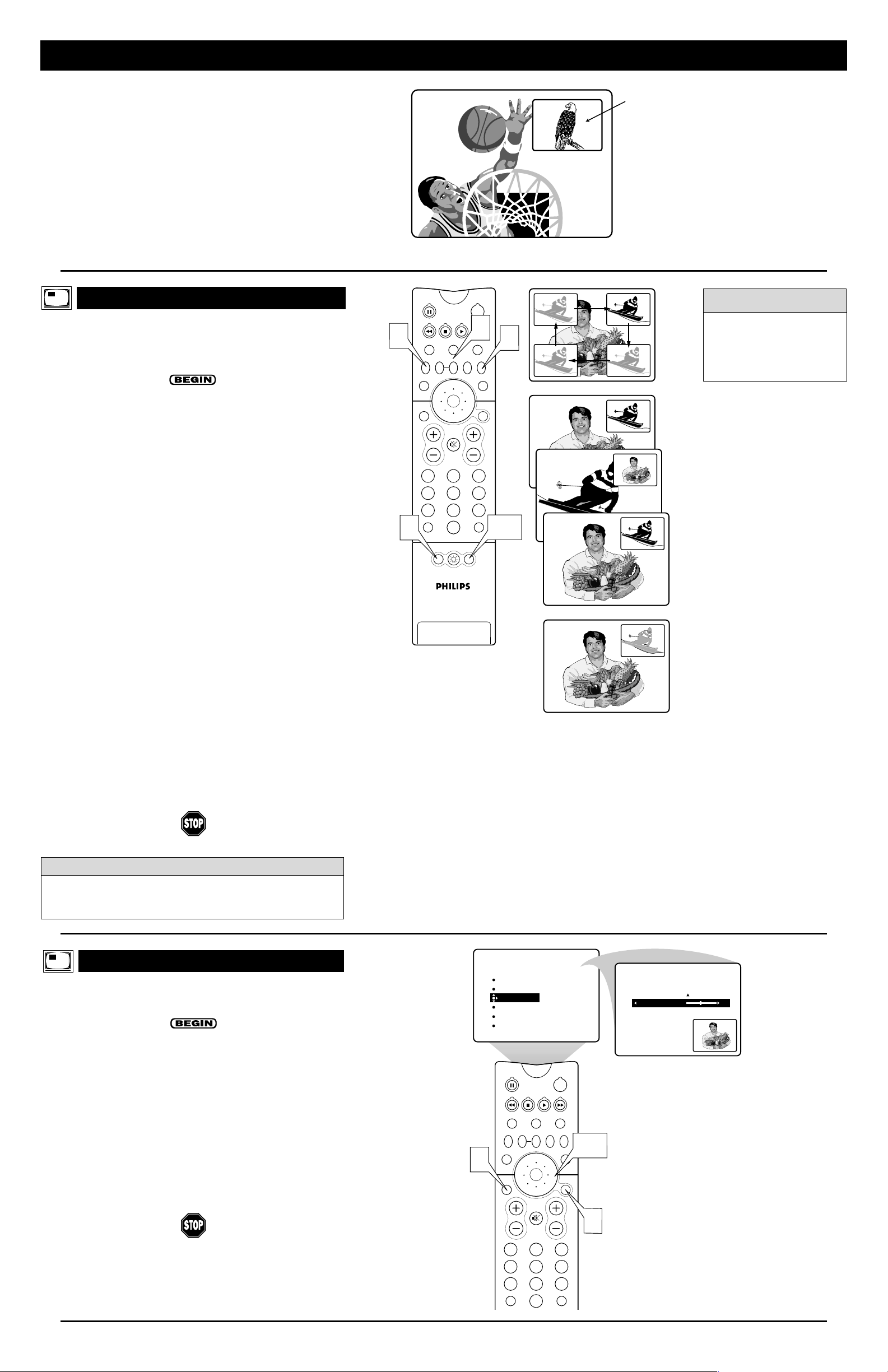

icture-In-Picture (PIP) is the showing of two pictures on the

TV screen at the same time—one main screen picture and one
small picture, or PIP. Because your set has two tuners, you can
enjoy all the benefits of PIP without using a VCR as a second
tuner for your PIP picture. Tune to your favorite show on the main
screen with tuner one while scanning other channels with tuner
two in the PIP window. Also view the AV1, AV2, or AV3 sources in
the PIP window. NOTE: CVI cannot be displayed in the PIP win­dow, and AV4 and AV5 do not function with PIP. For information
on connecting accessory devices to the AV inputs, see the
Directions for Use manual that came with your set. Connection
information begins on page 6.

4

3

TV

SWAP PIP CH

SOUND

STATUS/

EXIT

VOL

TV/VCR

A/CH

POWER

2

ACC

VCR

ACTIVE

FREEZE

CONTROL

DN

UP


MENU/

SELECT

MUTE

213
546
879

SURF

0

POSITION

PIP

CH

1,6

5

POSITION

FREEZE

SWAP

Ski Vacations

P.O. Box 55512

Anytown, USA 87654

1-800-555-1212

4

FEATURES

TIMER
AutoLock

PIP

CLOSED CAP
FORMAT

STATUS/

TV

SWAP PIP CH

SOUND

EXIT

TINT

POWER

ACC

VCR

ACTIVE

FREEZE

CONTROL

DN

UP


MENU/
SELECT

2,3

FEATURES

PIP

TINT 44

VOL

MUTE

CH

1

213
546
879

TV/VCR

A/CH

SURF

0

8

A

DJUSTING THE

MANUAL

CONVERGE CONTROLS

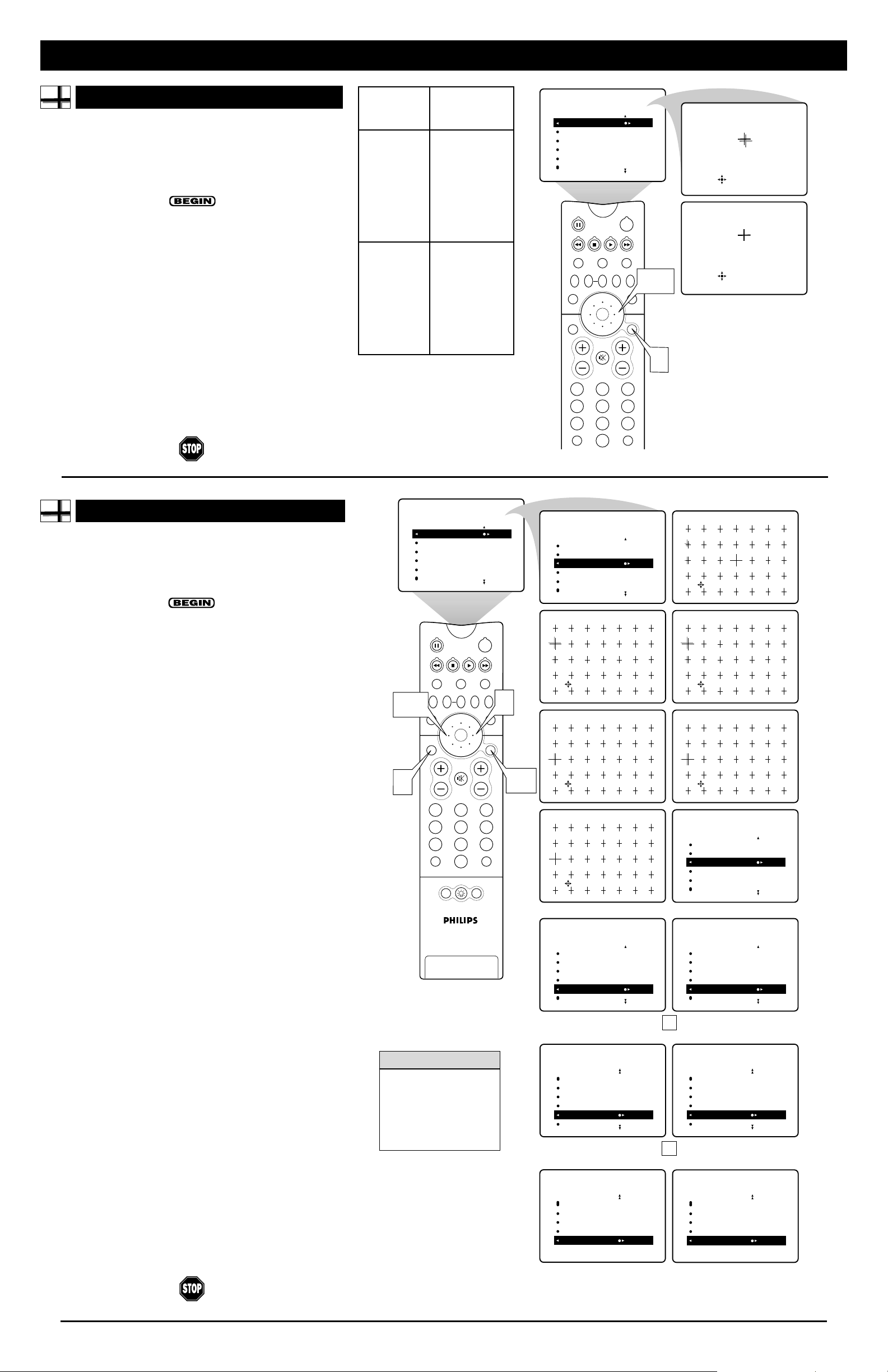

CONVERGE RED/BLUE

C

onvergence is the correct lining up of the red and blue light paths

on the TV scr een. If the paths don’t line up, color fringes will appear

around objects on screen. If no color fringes show, then no convergence
adjustments are necessary. NOTE: Allow the TVto warm up 20 minutes
before adjusting convergence. See the chart to the right for guidance as
to which convergence controls to use.

1

Press the MENU/SELECT button. The menu appears. Press
the CURSOR RING RIGHT to enter the PICTURE submenu.
Then press the CURSOR RING DOWN until MANUAL
CONVERGE is highlighted.

2

Press the CURSOR RING RIGHTto enter the MANUAL
CONVERGE submenu. If you want to adjust the Red
Convergence, press the CURSOR RING RIGHTto enter the
adjust mode. If you want to adjust the Blue Convergence,
press the CURSOR RING DOWN to highlight CONVERGE
BLUE, then press the CURSOR RING RIGHT to enter adjust
mode.

3

In adjust mode, press the CURSOR RING RIGHT, LEFT,
UP, or DOWN to adjust the cross hair until the color outline

around it is gone. (The adjustment is automatically saved in
the TV’s memory.) To return to the MANUAL CONVERGE
menu, press the MENU/SELECT button. To exit the onscreen
display, press the STATUS/EXIT button.

MULTIPOINT RED/BLUE

T

he Multipoint Red/Blue Convergence controls enable you to adjust

the convergence at specific points on the TV screen.

NOTE: The onscreen display will leave the screen after 20 seconds of
inactivity. If this happens, simply press the MENU/SELECT button to
bring the MANUAL CONVERGE submenu back.

1

Press the MENU/SELECT button. The menu appears.
Press the CURSOR RING RIGHT to enter the PICTURE
menu. Then press the CURSOR RING DOWN until MAN­UAL CONVERGE is highlighted.

2

Press the CURSOR RING RIGHT to enter the MANU­AL CONVERGE submenu. Press the CURSOR RING
DOWN until MULTIPOINT RED or MULTIPOINT BLUE
is highlighted. Then press the CURSOR RING LEFT or
RIGHT to enter Navigate mode.

3

Press the CURSOR RING LEFT, RIGHT, UP, or
DOWN to move to a cross hair that has a color outline.

Then press the STATUS/EXIT button to enter adjust mode.

4

Press the CURSOR RING LEFT, RIGHT, UP, or
DOWN to adjust the cross hair image until the color out-

line is gone.Then press the STATUS/EXIT button to return
to NAVIGATE mode. Repeat steps 3 and 4 until all mis­aligned cross images have been adjusted.

5

After making your adjustments, you must store them in
the TV’s memory using SAVE MULTIPOINT.
NOTE: If you are not satisfied with the adjustments you

just made and want to start over, you can use the UNDO
MULTIPOINT control. This control allows you to undo the
adjustments, but it will work only if you use it before sav­ing.

To save your multipoint adjustments, press the
MENU/SELECT button. This returns you to the MANU-

AL CONVERGE menu. Press the CURSOR RING DOWN
until SAVE MULTIPOINT is highlighted. Then press the
CURSOR RING LEFT or RIGHT to store your adjust­ments in the TV’s memory.

OR
To undo the multipoint adjustments you just made,

press the MENU/SELECT button. This returns you to

the MANUAL CONVERGE menu. Press the CURSOR
RING DOWN until UNDO MULTIPOINT is highlighted.
Press the CURSOR RING LEFT or RIGHT to undo the
adjustments. Press the CURSOR RING UP until MULTI­POINT RED or MULTIPOINT BLUE is highlighted. Press
the CURSOR RING LEFT or RIGHT to enter Navigate
mode. Then Follow steps 3–5 above to make your adjust­ments again.

OR
To restore the TV’s convergence to factory settings,

press the MENU/SELECT button. This returns you to

the MANUAL CONVERGE menu. Press the CURSOR
RING DOWN until RESTORE FACTORY is highlighted.
Then press the CURSOR RING LEFT or RIGHT to restore
the TV’s convergence to factory settings.

6

Press the STATUS/EXIT button to exit the submenu.

CONVERGE RED

CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT

MANUAL CONVERGE

É

▲

▲

CONVERGE RED
CONVERGE BLUE

MULTIPOINT RED

MULTIPOINT BLUE
SAVE MULTIPOINT

MANUAL CONVERGE

to Navigate Exit to Adjust

PIP

213
546
879
0

TV

SWAP PIP CH

DN

UP

FREEZE

SOUND

MUTE

SURF

A/CH

POWER


STATUS/

EXIT

POSITION

VCR

ACC

MENU/
SELECT

VOL

CH

TV/VCR

ACTIVE

CONTROL

1,5

3,4

to Navigate Exit to Adjust

to Adjust Exit to Navigate

to Navigate Exit to Adjust

to Adjust Exit to Navigate

to Adjust Exit to Navigate

É

▲

▲

CONVERGE RED
CONVERGE BLUE

MULTIPOINT RED

MULTIPOINT BLUE
SAVE MULTIPOINT

MANUAL CONVERGE

▲

CONVERGE RED
CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE

SAVE MULTIPOINT

MANUAL CONVERGE

SAVE MULTIPOINT

▲

CONVERGE RED
CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE

SAVE MULTIPOINT STORED

MANUAL CONVERGE

OR

▲

CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT

UNDO MULTIPOINT

MANUAL CONVERGE

UNDO MULTIPOINT

▲

CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT

UNDO MULTIPOINT RESTORED

MANUAL CONVERGE

OR

RESTORE FACTORY

▲

MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT
UNDO MULTIPOINT

RESTORE FACTORY RESTORED

MANUAL CONVERGE

▲

MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT
UNDO MULTIPOINT

RESTORE FACTORY

MANUAL CONVERGE

6

2

HELPFUL HINT

If you should experi­ence a power outage
before saving your mul­tipoint-convergence set­tings, your settings will
be lost.

suoiraV

segami

suoiraV

segami

neercS

ecnaraeppanoitcA

tuohguorht

eritneeht

evaherutcip

.seniltuoder

tuohguorht

eritneeht

evaherutcip

.seniltuoeulb

MANUAL CONVERGE

CONVERGE RED

ehttsujdA

EGREVNOC

.lortnocDER

derynafinehT

CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT

Converge Red

,niamerseniltuo

ehttsujda

POWER

TNIOPITLUM
.lortnocDER

ehttsujdA

EGREVNOC

.lortnocEULB

eulbynafinehT

TV

SWAP PIP CH

SOUND

DN

ACC

VCR

ACTIVE

FREEZE

CONTROL

UP


2,3

Converge Red

,niamerseniltuo

ehttsujda

STATUS/

EXIT

MENU/

SELECT

TNIOPITLUM

.lortnocEULB

VOL

MUTE

213
546
879

TV/VCR

A/CH

0

CH

1

SURF
