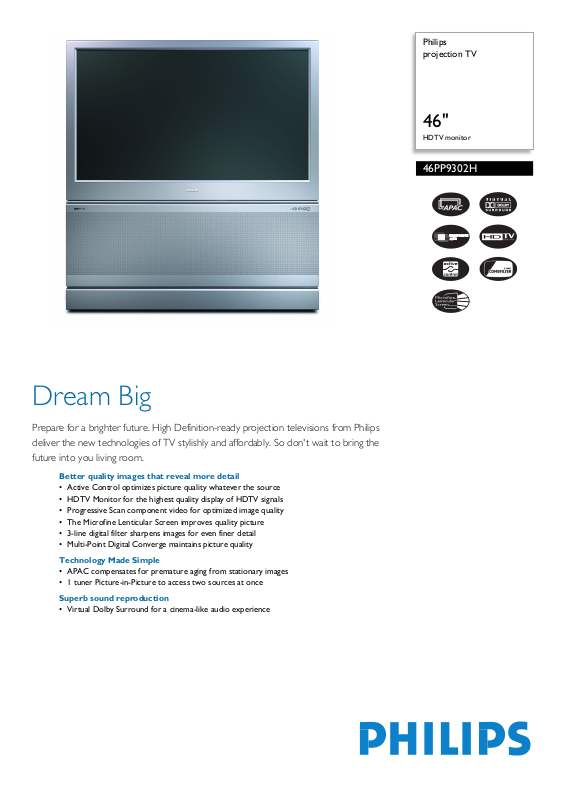

Philips
projection TV
46"
HDTV monitor
46PP9302H
Dream Big
Prepare for a brighter future. High Definition-ready projection televisions from Philips
deliver the new technologies of TV stylishly and affordably. So don't wait to bring the
future into you living room.
Better quality images that reveal more detail
• Active Control optimizes picture quality whatever the source
• HDTV Monitor for the highest quality display of HDTV signals
• Progressive Scan component video for optimized image quality
• The Microfine Lenticular Screen improves quality picture
• 3-line digital filter sharpens images for even finer detail
• Multi-Point Digital Converge maintains picture quality
Technology Made Simple
• APAC compensates for premature aging from stationary images
• 1 tuner Picture-in-Picture to access two sources at once
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Page 2
For preview purpose only
projection TV
46" HDTV monitor
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 16:9
• Size (inch): 46 inch
• Display technology: CRT, 7" liquid cooled,
Projection TV
• Picture enhancement: Active Control, APAC,
Progressive Scan, Dynamic Contrast, Digital
Noise Reduction, Black stretch, Sharpness
Adjustment, Temperature, Tint, Color
• Screen enhancement: High Contrast, Anti ageing
circuit
• Viewing angle (H / V): 160 / 30 degree
Supported Display Resolution
• Video formats
Resolution Refresh rate
1080i 60Hz
480p 60Hz
480i 60Hz
Adaptation, Auto Picture Modes, Auto Sound
Modes
• OSD Languages: English, Spanish, French
• Display Controls: Multi-Point Convergence,
Single-Point Convergence
Tuner/Reception/Transmission
• TV system: NTSC
• Aerial Input: 75 ohm F-type
Connectivity
• AV 1: YPbPr, S-Video, CVBS in, Audio L/R in,
480i 60Hz
• AV 2: S-Video, CVBS, Audio L/R in, 480i 60Hz
• AV 3: Side, S-Video Y/C, CVBS in, Audio L/R in,
480i 60Hz, Headphones out
• AV 4: YPbPr, RGB+H/V, Audio L/R in, 1080i
60Hz, 480p 60Hz
• AV 5: Audio L/R in, DB15, RGB+H/V
• Output rear: CVBS monitor out, Audio L/R out
Sound
• Sound Enhancement: Auto Volume Leveller,
Treble and Bass Control, Balance
• Sound System: Virtual Dolby Surround,
Incredible Surround, Stereo
• Output power (RMS): 20W RMS (50Hz-10kHz
at 5% THD)
• Bass enhancement: Bass Boost
• Speaker diameter: 4" x 6"
• Type: 2 Full Range Oval
Convenience
• Ease of Use: Channel list, Picture Freeze
• Picture in Picture: 1 tuner PIP
• Remote control: Universal 3 Device, Batteries
• Screen Format Adjustments: Auto Format,
Widescreen, Panoramic, 4:3 expand, 4:3
• Languages in manual: English
• Convenience Enhancements: Auto Program,
AutoChron (automatic clock), Vchip and
parental lock, Closed Captioning (analog), On
Timer, Sleep Timer, Auto Aspect Ratio
Power
• Mains power: AC 110V/120V, 60Hz
• Complies with: Energy Star
• Consumption: 180W (Typical)
Dimensions
• Product dimension (WxDxH) inch: 44.5" x 23.5"
x 52.6"
• Product dimensions (WxDxH): 113cm x 60cm x
134cm
• Product weight: 80 kg
• Product weight (lb): 176
• Carton dimensions (WxDxH): 125cm x 71cm x
142cm
• Carton dimensions (WxDxH) inch: 49.0" x 28.0"
x 55.4"
• Weight incl. Packaging: 91.0 kg
• Weight incl. Packaging (lb): 200
• Temperature range (operation): +32°F to 105°F
(0° C to 40° C)
• Housing: With Handgrip
•
46PP9302H/17
Active Control
Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture
setting over 3,000 times per minute, Active Control Plus
ensures that the viewing experience is optimized.
HDTV Monitor
HDTV is the latest and best television signal available.
It produces picture quality more than twice that of
traditional analog broadcasts. In order to effectively
maximize the HDTV signal, a television must
incorporate advanced signal input connectivity
Progressive Scan
Progressive Scan doubles the vertical resolution of the
image resulting in a noticeably sharper picture. Instead
of se nding a fi eld compr ising the odd lines to the screen
first, followed by the field with the even lines, both fields
are written at one time. A full image is created
instantaneously, using the maximum resolution. At such
a speed, your eye perceives a sharper picture with no
line structure.
Microfine Lenticular Screen
The ridges on the Lenticular Screen, which is found on
th e fr ont of a ll pr oje cti ng T Vs, act a s a l ens to d efi ne t he
light distribution in the horizontal and vertical directions.
By controlling the horizontal and vertical distribution of
the light, optimum performance is achieved because all
light is directed towards the area of the desired viewing
positions. The closer together the ridges are on the
Lenticular Screen (the finer the pitch), the better the
picture will be. A Microfine Lenticular Screen results in
a wider viewing angle and more accurate and balanced
color.
3 Line Digital Comb Filter
A digital comb filter separates chrominance (color) from
luminance (brightness) information in the video signal
for independent processing to improve picture
resolution and minimize distortion. You'll enjoy a picture
with even finer detail.
Multi-Point Digital Converge
Transporting a projection TV may cause its three picture
tubes to become misaligned. This can result in
noticeably poorer picture quality and color bleeding.
Multi-point digital convergence allow you to use the
remote control to adjust picture convergence
electronically at 35 points on the TV's screen using the
'Convergence' section of the Picture menu. This
optimizes the picture from corner-to-corner to minimize
effects from natural or man-made magnetic fields in the
room where you locate your projection TV. You always
get the best possible picture.
APAC
Automatic Phosphor Aging Compensation (APAC) is a
Philips technology that is designed to help reduce the
chances of image retention on a television screen. It
prolongs the life of your TV's tube.
1 Tuner Picture in Picture
Wi th 1 tun er Pi ctu re- in-P ict ure , yo u can vie w vi deo from
an external source in a small window on your screen.
Date of issue 2006-07-07
Version: 1.0
12 NC: 8670 000 19938
UPC: 0 37849 93954 3
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed
in your television experience.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
