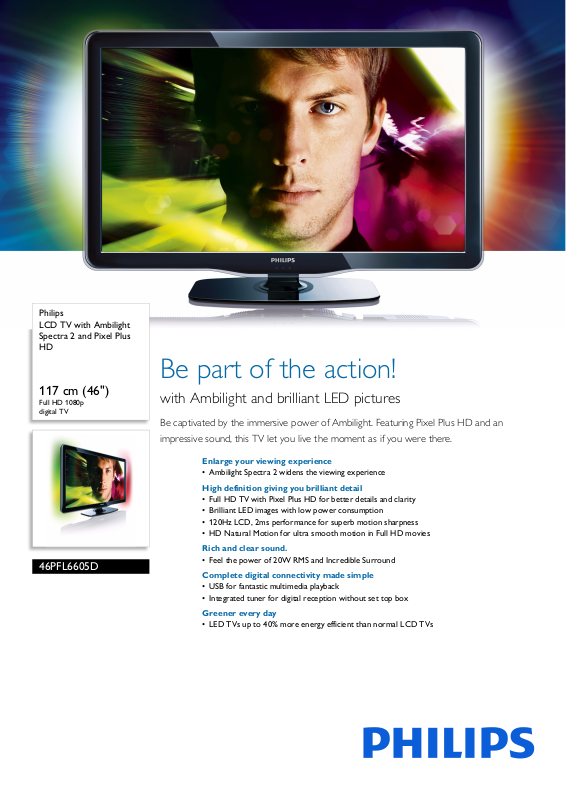

Page 1
Philips
LCD TV with Ambilight
Spectra 2 and Pixel Plus
HD
Be part of the action!
117 cm (46")
Full HD 1080p
digital TV
46PFL6605D
with Ambilight and brilliant LED pictures
Be captivated by the immersive power of Ambilight. Featuring Pixel Plus HD and an
impressive sound, this TV let you live the moment as if you were there.
Enlarge your viewing experience
• Ambilight Spectra 2 widens the viewing experience
High definition giving you brilliant detail
• Full HD TV with Pixel Plus HD for better details and clarity
• Brilliant LED images with low power consumption
• 120Hz LCD, 2ms performance for superb motion sharpness
• HD Natural Motion for ultra smooth motion in Full HD movies
Rich and clear sound.
• Feel the power of 20W RMS and Incredible Surround
Complete digital connectivity made simple
• USB for fantastic multimedia playback
• Integrated tuner for digital reception without set top box
Greener every day
• LED TVs up to 40% more energy efficient than normal LCD TVs
Page 2
LCD TV with Ambilight Spectra 2 and Pixel Plus HD
117 cm (46") Full HD 1080p, digital TV
Highlights
46PFL6605D/77
Ambilight Spectra 2
Add a new dimension to your viewing
experience with Ambilight Spectra 2. This
patented Philips technology enlarges the
screen by projecting a glow of light, on 2 sides
of the TV, from the back of the screen onto the
surrounding wall. Ambilight adjusts
automatically the colour and brightness of the
light to match the picture, creating an
immersive viewing experience. With Ambilight
Spectra 2 movies truly come to life!
Pixel Plus HD
Pixel Plus HD offers the unique combination of
ul
timate sharpness, natural detail, vivid colors,
and smooth natural motion. Artifacts and noise
in any sources from multimedia to standard
definition TV and also in highly compressed
HD are detected and reduced, ensuring that
the picture is clear and razor-sharp.
LED
The most advanced LED lighting technology in
this TV combines an eye-catching minimalistic
design with stunning image quality as well as
the lowest power consumption in its category.
On top of that, LED lighting technology does
not contain any hazardous materials. Thus,
with LED backlight you can enjoy low power
consumption, high brightness, incredible
contrast, sharpness and vibrant colors.
120Hz LCD, 2ms response time
120Hz LCD creates extreme motion
sharpness. The Doub
increases the sharpness of motion
reproduction to more than twice that of
conventional LCD, resulting in a performance
with a response time of 2 milliseconds. Now
you can enjoy clear images even with fast onscreen motion.
HD Natural Motion
Philips invented HD Natural Motion to
minimize juddering effects that are visible with
movie based picture content. The award
winning algorithm estimates motion in the
picture and corrects juddering movements in
both broadcast and recorded movie material
(such as DVD and Blu-ray Disc). The resulting
smooth motion reproduction and excellent
sharpness take the viewing experience to a
higher level.
20W RMS Incredible Surround
Feel the power of the music beat and the
at
mosphere of the movies. The powerful 20W
RMS (2x10W RMS) amplifiers create a lifelike
le Frame Rate Insertion
sound stage. Incredible Surround allows you to
experience total surround with greater depth
and width of sound complementary to the rich
viewing experience.
USB (multimedia)
The USB connector allows access to jpeg
photos, mp3 music and video files of most
USB-sticks (USB memory-class device). Plug
the USB into the slot at the side of the TV and
access the multimedia content using the easy
on screen content browser. You can now view
and share your videos, photos and music.
Integrated DTV Tuner
The integrated digital tuner lets you receive
digit
al cable and terrestrial TV without an
additional set top box. Enjoy quality TV clutter
free.
Energy efficient LED
Using the latest LED backlight technology,
LED-ba
cklit TVs are a more sustainable choice,
with a longer life and far lower energy
consumption than plasmas and conventional
LCD TVs. Unlike CCFL backlights, LEDs do
not use mercury in their manufacture. In
addition, Philips TV designs have constantly
improved, resulting in higher material
efficiency and reduced energy usage without
compromising on safety and well-being.
x3
Page 3
REAR CONNECTORS
BOTTOM REAR CONNECTORS
SIDE CONNECTORS
LCD TV with Ambilight Spectra 2 and Pixel Plus HD
117 cm (46") Full HD 1080p, digital TV
Specifications
46PFL6605D/77
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 450 cd/m²
• Response time (typical): 2 ms
• Viewing angle: 176º (H) / 176º (V)
• Diagonal screen size: 46 inch / 117 cm
• Display screen type: LCD Full HD W-UXGA Act.
r
ix
mat
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel Plus HD, 3/2 - 2/2
tio
n pull down, 3D Combfilter, Active Control
mo
+ Light sensor, Color Enhancement, Jagged Line
Suppression, Luminance Transient Improver, 2D/
3D noise reduction, 1080p 24/25/30Hz processing,
1080p 50/60Hz processing, 120Hz LCD, HD
Natural Motion
Supported Display Resolution
• Computer formats
Res
olution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1920 x 1080 60Hz
deo formats
• Vi
olution Refresh rate
Res
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 24, 25, 30, 50, 60Hz
Sound
• Output power (RMS): 20W
• Sound Enhancement: Auto Volume Leveller,
credible Surround, Smart Sound, Treble and Bass
In
Control
• Sound System: Mono, Stereo, SAP
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Sleep Timer
• Ease of Installation: Autostore, PLL Digital Tuning,
ram Name
Prog
• Ease of Use: Auto Volume Leve
ller (AVL), Channel
list, Settings assistant Wizard, Side Control, Smart
Picture, Smart Sound, Closed Captioning Full Text,
EasyLink, Favorite program selection, One-stop
Home button
• Electronic Program Guide: Now + Next EPG, 7
day Electronic Progr
• On-Screen Display languages: English, Portuguese,
h
Spanis
• Remote Control: TV
• Screen Format Adjustments: Auto Format, Movie
x
pand 16:9, Super Zoom, Widescreen, unscaled
e
(1080p dot by dot)
• Signal strength indication
• Firmware upgradeable: Firmware upgradeable via
B
US
•
Multimedia: USB media browser
am Gu
ide
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: MP3, JPEG Still pictures, MPEG4
• Playback enhancement: Picture slidesho
w
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• TV system: NTSC M, PAL N, PAL M, SATVD
• Video Playback: NTSC, PAL (all versions)
Connectivity
• AV 1: Audio L/R in, YPbPr
• AV 2: Audio L/R in, YPbPr
• AV 3: Audio L/R in, CVBS in
•HDMI 1: HDMI v1.3
•HDMI 2: HDMI v1.3
•Front / Side connections: HDMI
•
Other connections: PC-in VGA + Audio L/R in, S/
PDIF out (coa
• EasyLink (HDMI-CEC): One touch play, EasyLink,
Remot
control, System standby
xial)
e control pass-through, System audio
v1.3, USB
Power
• Ambient temperature: 5 °C to 35 °C
• Mains power: 110-240V, 50/60Hz
• Power consumption: 150 W
• Standby power consumption: 0.15 (typical)
Dimensions
• Set dimensions (W x H x D): 1122 x 685 x 87 mm
• Set dimensions with stand (W x H x D):
22 x 731 x 268 mm
11
• Weight incl. Packaging: 26.4 kg
• Product weight: 17.9
• Product weight (+stand): 21.3 kg
•Box dimensions (W x H x D):
x 773 x 198 mm
1349
• VESA wall mount compatible: adjustable 300x300
kg
Accessories
• Included accessories: Tabletop swivel stand, Quick
start guide, User Manual, Remote Control, 2 x
AAA Batteries
• User Manual: Spanish
•
Issue date 2014-02-13
Version: 1.5.4
12 NC: 8670 000 60108
EAN: 87 12581 52626 9
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
