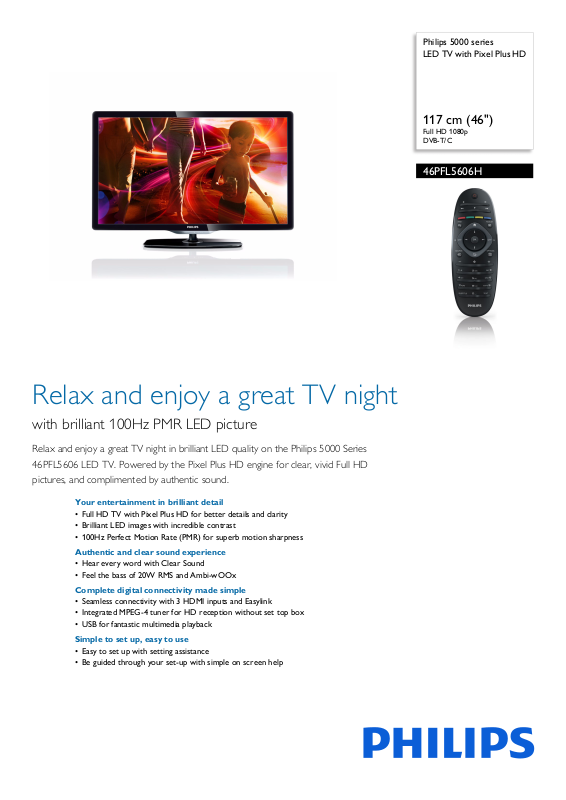

Page 1
Philips 5000 series
LED TV with Pixel Plus HD
117 cm (46")
Full HD 1080p
DVB-T/C
46PFL5606H
Relax and enjoy a great TV night
with brilliant 100Hz PMR LED picture
Relax and enjoy a great TV night in brilliant LED quality on the Philips 5000 Series
46PFL5606 LED TV. Powered by the Pixel Plus HD engine for clear, vivid Full HD
pictures, and complimented by authentic sound.
Your entertainment in brilliant detail
• Full HD TV with Pixel Plus HD for better details and clarity
• Brilliant LED images with incredible contrast
• 100Hz Perfect Motion Rate (PMR) for superb motion sharpness
Authentic and clear sound experience
• Hear every word with Clear Sound
• Feel the bass of 20W RMS and Ambi-wOOx
Complete digital connectivity made simple
• Seamless connectivity with 3 HDMI inputs and Easylink
• Integrated MPEG-4 tuner for HD reception without set top box
• USB for fantastic multimedia playback
Simple to set up, easy to use
• Easy to set up with setting assistance
• Be guided through your set-up with simple on screen help
Page 2
46PFL5606H/60
LED TV
117 cm (46") Full HD 1080p, DVB-T/C
Highlights
Pixel Plus HD
Pixel Plus HD offers the unique combination of
ul
timate sharpness, natural detail, vivid colors,
and smooth natural motion. Artifacts and noise
in any sources from multimedia to standard
definition TV and also in highly compressed
HD are detected and reduced, ensuring that
the picture is clear and razor-sharp.
Full HD LED TV
The most advanced LED lighting technology in
this Full HD LED TV combines an eye-catching
minimalistic design with stunning image quality
as well as the lowest power consumption in its
category. On top of that, LED lighting
technology does not contain any hazardous
materials. Thus, with LED backlight you can
enjoy low power consumption, high
brightness, incredible contrast, sharpness and
vibrant colors.
100Hz Perfect Motion Rate
Clear Sound
Clear Sound is an innovative audio technology
that significantly increases the
comprehensibility of the voice, whether
spoken or sung. It ensures you hear every
word, so you can enjoy what you're watching
to the fullest.
20W RMS Ambi-wOOx
Feel the power of the new Philips Ambi-wOOx
technology. It creates a superior bass and
sound experience by capturing and enhancing
low frequency bass. Ambi-wOOx also projects
the sound to better occupy the ambient space
of the room. With the powerful 20W RMS
speakers, Ambi-wOOx creates a lifelike sound
stage complementary to the rich viewing
experience.
uncompressed signals, ensuring the highest
quality from source to screen. Together with
Philips Easylink, you need only one remote
control to perform most operations on your
TV, DVD, BluRay, set top box or home theatre
system.
USB (multimedia)
The USB connector allows access to jpeg
photos, mp3 music and video files of most
USB-sticks (USB memory-class device). Plug
the USB into the slot at the side of the TV and
access the multimedia content using the easy
on screen content browser. You can now view
and share your videos, photos and music.
Integrated DVB tuner MPEG-4
The integrated digital tuner lets you receive
digit
al cable and terrestrial TV without an
additional set top box. Enjoy quality TV clutter
free.
Easy to set up
Combining the refresh rate of the panel and
unique image processing, Perfect Motion Rate
(PMR) creates extreme motion sharpness for
clear and vibrant images even with fast onscreen motion.
3 HDMI inputs with Easylink
This TV is easy to setup with the step by step
setting assistant. The assistant shows a few
screens with easy to choose options to select
the essential settings. The TV performance is
set to the your personal preference without
difficult terms or settings, and this very quickly.
HDMI is a single cable to carry both picture
and audio signals from your devices to your
TV, avoiding cable clutter. It carries
Page 3
46PFL5606H/60
LED TV
117 cm (46") Full HD 1080p, DVB-T/C
Specifications
Picture/Display
• Display: edge LED backlight
• Diagonal screen size: 46 inch / 117 cm
• Panel resolution: 1920x1080p
• Aspect ratio: 16:9
• Brightness: 400 cd/m²
• Dynamic screen contrast: 500.000:1
• Response time (typical): 2 ms
• Picture enhancement: Pixel Plus HD, Active
rol + Light sensor, 100 Hz Perfect Motion
nt
Co
Rate
Sound
• Output power (RMS): 20W (2 x 10W)
• Sound Enhancement: AmbiwOOx, Auto Volume
ller, Clear Sound, Incredible Surround, Treble
Leve
and Bass Control
Connectivity
• Number of HDMI connections: 3
•HDMI features: Audio Re
• EasyLink (HDMI-CEC): Remote control pass-
gh, System audio control, System standby,
throu
Pixel Plus link (Philips), One touch play, System info
(menu language)
• Number of component in (YPbPr): 1
•Number of scarts (RGB/CVBS): 1
• Number of USBs: 1
• Other connections: Antenna IEC75, Common
terface Plus (CI+), Digital audio out (coaxial), PC-
n
I
in VGA + Audio L/R in, Headphone out
turn Channel
Multimedia Applications
• Multimedia connections: USB
• Video Playback Formats: H264/MPEG-4 AVC,
, MPEG-2, MPEG-4
MPEG-1
• Music Playback Formats: MP3
• Picture Playback Formats: JPEG
Supported Display Resolution
• Computer inputs: up to 1920x1080 @ 60Hz
• Video inputs: 24, 25, 30, 50, 60 Hz, up to
1080p
1920x
Convenience
• Electronic Program Guide: 8 day Electronic
Program Guide
• Ease of Installation: Channel installation wizard,
Device
connection wizard, Settings assistant
wizard
• Ease of Use: One-stop Home button, Onscreen
manu
User
al, Touch control buttons
• Screen Format Adjustments: 4:3, Autofill,
zoom, Movie expand 14:9, Movie expand
Auto
16:9, Subtitle Zoom, Super Zoom, Unscaled,
Widescreen
• Teletext: 1000 page Smart Text
• Firmware upgradeable: Firmware auto upgrade
d
, Firmware upgradeable via USB
wizar
Tuner/Reception/Transmission
• Digital TV: DVB-C MPEG2*, DVB-C MPEG4*,
DVB-T MPEG2*, DVB-T MPEG4*
• Video Playback: NTSC, PAL, SECAM
Power
• Mains power: 220-240V~; 50-60Hz
• Ambient temperature: 5 °C to 35 °C
• Eu Energy Label power: 56 W
• Annual energy consumption: 82 kW·h
• Standby power consumption: < 0.15 W
• Off mode power consumption: 0.01 W
• Power Saving Features: 0 Watt Power-off switch,
ode, Eco settings menu, Light sensor, Picture
o m
Ec
mute (for radio)
• Presence of lead: Yes*
Dimensions
•Box dimensions (W x H x D):
1324 x 773 x 198 mm
•Set dimensions (W x H x D):
x 653 x 39.9 mm
1081
• Set dimensions with stand (W x H x D):
x 705 x 265 mm
1081
• Product weight: 16.4 kg
• Product weight (+stand): 20 kg
• Compatible wall mount: 400 x 400mm
Accessories
• Included accessories: Power cord, Remote
Control, 2 x AAA Batteries, Tabletop swivel stand,
User Manual, Quick start guide, Legal and safety
brochure, Warranty Leaflet, Software declaration
•
Issue date 2019-06-22
Version: 4.1.3
12 NC: 8670 000 70418
EAN: 87 12581 57631 8
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* The TV supports DVB reception for 'Free to air' broadcast. Specific
DVB operators may not be supported. An up to date list can be
found in the FAQ section of the Philips support website. For some
operators Conditional Access and subscripction are required.
Contact your operator for more information.
* 8 days EPG, service not available in all countries
* Energy consumption in kWh per year, based on the power
consumption of the televi
days. The actual energy consumption will depend on how the
television is used.
* This television contains lead only in certain parts or components
where no technology alternatives exist in accordance with existing
exemption clauses under the RoHS Directive.
sion operating 4 hours per day for 365
