Philips 44PL9523, 55PL9223, 55PL9523 User Manual

3135 035 21303

44PL9523 55PL9523 55PL9223

Refer to the Quick Use and Setup Guide (supplied with your TV) for information on basic connections, remote control button descriptions, on-screen menu language, and Autoprogram.

Highlights

• Liquid-crystal-on-silicon (LCOS) High-definition Imaging

• High-resolution Display—1280 x 720 pixels

Features

• Digital Natural Motion™

• Active Control™—analyzes and adjusts incoming signal

• Two-tuner, Double-window PIP (Picture-in-Picture)

• Dolby

Virtual Surround, 40-watt RMS

• 3D Y/C Comb Filter

• HD Component and DVI Input

• Center Channel Audio Input

• Side AV Convenience Jacks

• Matching stand and swivel available

04/06/04

HDTV Monitor

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once to ensure:

Return your Product Registration Card today

to get the very most from your purchase.

Visit our World Wide Web Site at http://www.philips.com

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today.We’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly, you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a PHILIPS product.

P.S. To get the most from your PHILIPS purchase, be sure to complete and return your Product Registration Card at once.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No.__________________________ Serial No. ________________________

Know these

safetysymbols

This “bolt of lightning” indicates unin-

sulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls atten-

tion to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

*Proof of Purchase

Returning the enclosed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service.

*Product Safety Notification

By registering your product, you'll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

*Additional Benefits of Product Ownership

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance

with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particu-

larly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the app-

aratus. When a cart is used, use caution when moving

the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead and mercury. Disposal of these

materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org

16. Damage Requiring Service - The appliance should be serviced

by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the appli-

ance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Wall or Ceiling Mounting - The appliance should be mounted to

a wall or ceiling only as recommended by the manufacturer.

19. Power Lines - An outdoor antenna should be located away from

power lines.

20. Outdoor Antenna Grounding - If an outside antenna is connected to

the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 701984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure below.

21. Object and Liquid Entry - Care should be taken so that objects

do not fall and liquids are not spilled into the enclosure through openings.

a) Warning: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

22. Battery Usage CAUTION - To prevent battery leakage that may

result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and - aligned as marked on the unit.

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries when the unit is not used for a long time.

Example of Antenna Grounding as per NEC - National Electric Code

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC

that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

(NEC SECTION 810-20)

Contents

INTRODUCTION

Welcome/Registration of Your TV . . . . . . . . . . . . . . . . .2

Safety/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

CONNECTING ACCESSORY DEVICES

YOUR TV

Information about TV Signals . . . . . . . . . . . . . . . . . . . . . . . .6

Descriptions of Jacks, Cables, and Connectors . . . . . . . . . . .7

Panel Jack Compatibility Information . . . . . . . . . . . . . . . . . .8

Pre-connection Recommendations . . . . . . . . . . . . . . . . . . .9

Connecting a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connecting a VCR and Cable Box . . . . . . . . . . . . . . . . . . .11

Connecting an S-Video Device . . . . . . . . . . . . . . . . . . . . .12

Connecting a Standard DVD Player . . . . . . . . . . . . . . . . . .13

Connecting a Progressive-scan DVD Player . . . . . . . . . . . .14

Connecting an HD Satellite Receiver to YPbPr . . . . . . . . .15

Connecting an HD Satellite Receiver to DVI . . . . . . . . . . .16

Connecting Surround Sound Equipment . . . . . . . . . . . . . .17

Connecting to the Side Inputs:Video Game System . . . . . .18

Labeling the Audio/Video Input Sources . . . . . . . . . . . . . . .19

USING THE REMOTE CONTROL

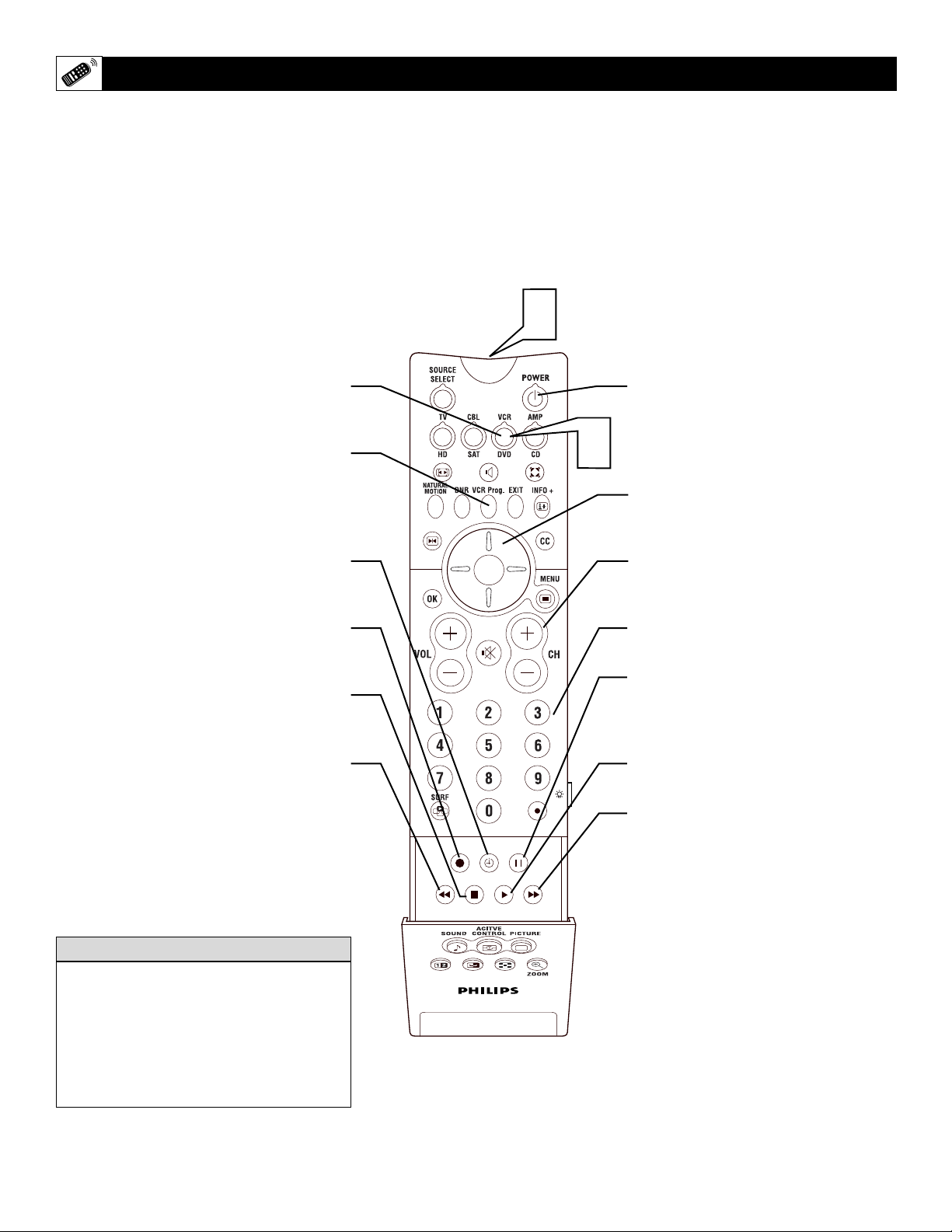

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . .20–21

Programming the Remote Control . . . . . . . . . . . . . . . .22–23

Setup Codes for Accessory Devices . . . . . . . . . . . . . . .24–25

Using the TV Remote’s VCR-specific Buttons . . . . . . . . . . .26

Using Active Control™ Plus . . . . . . . . . . . . . . . . . . . . . . .27

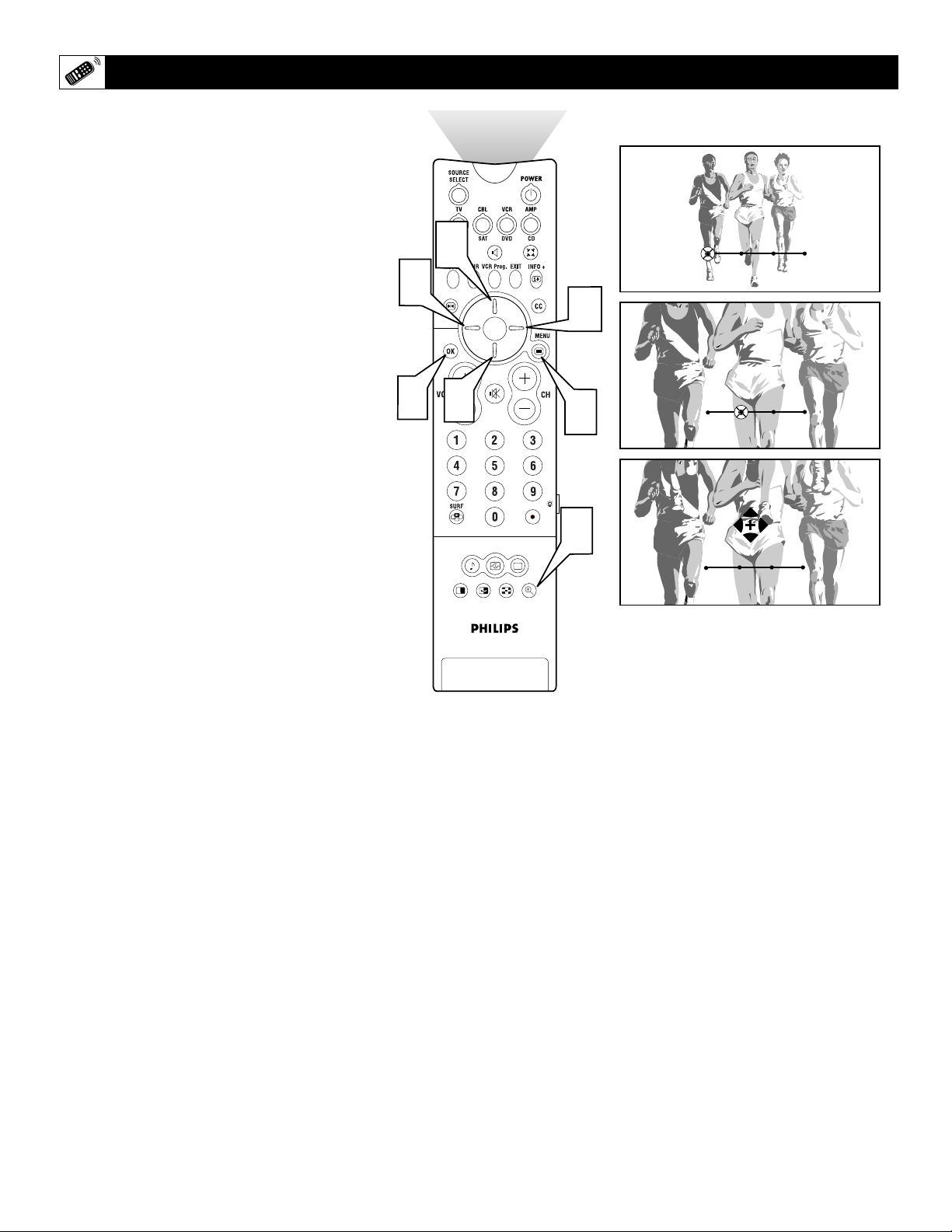

Using the Zoom Control . . . . . . . . . . . . . . . . . . . . . . . . . .28

SING THE ON-SCREEN MENUS


Adjusting/Setting the Picture Controls . . . . . . . . . . . . . . . .29

Selecting a Digital Processing Option . . . . . . . . . . . . . . . . .30

Selecting a Dynamic Contrast Option . . . . . . . . . . . . . . . .31

Selecting a DNR (Dynamic Noise Reduction) Option . . . .32

Turning on Color Enhancement . . . . . . . . . . . . . . . . . . . . .33

Selecting an AutoPicture™ Option . . . . . . . . . . . . . . . . . .34

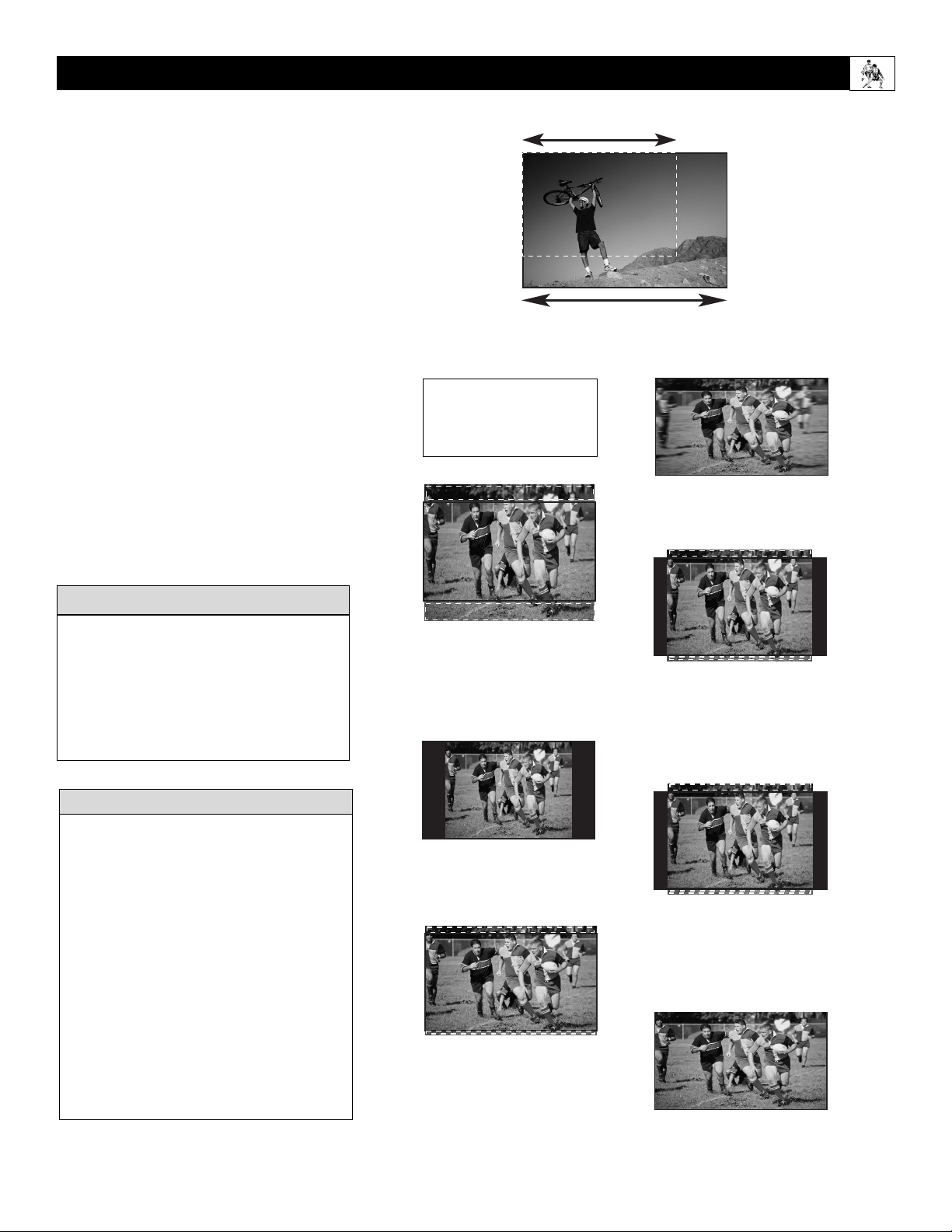

Selecting a Picture Format Option . . . . . . . . . . . . . . . .35–36

SOUND

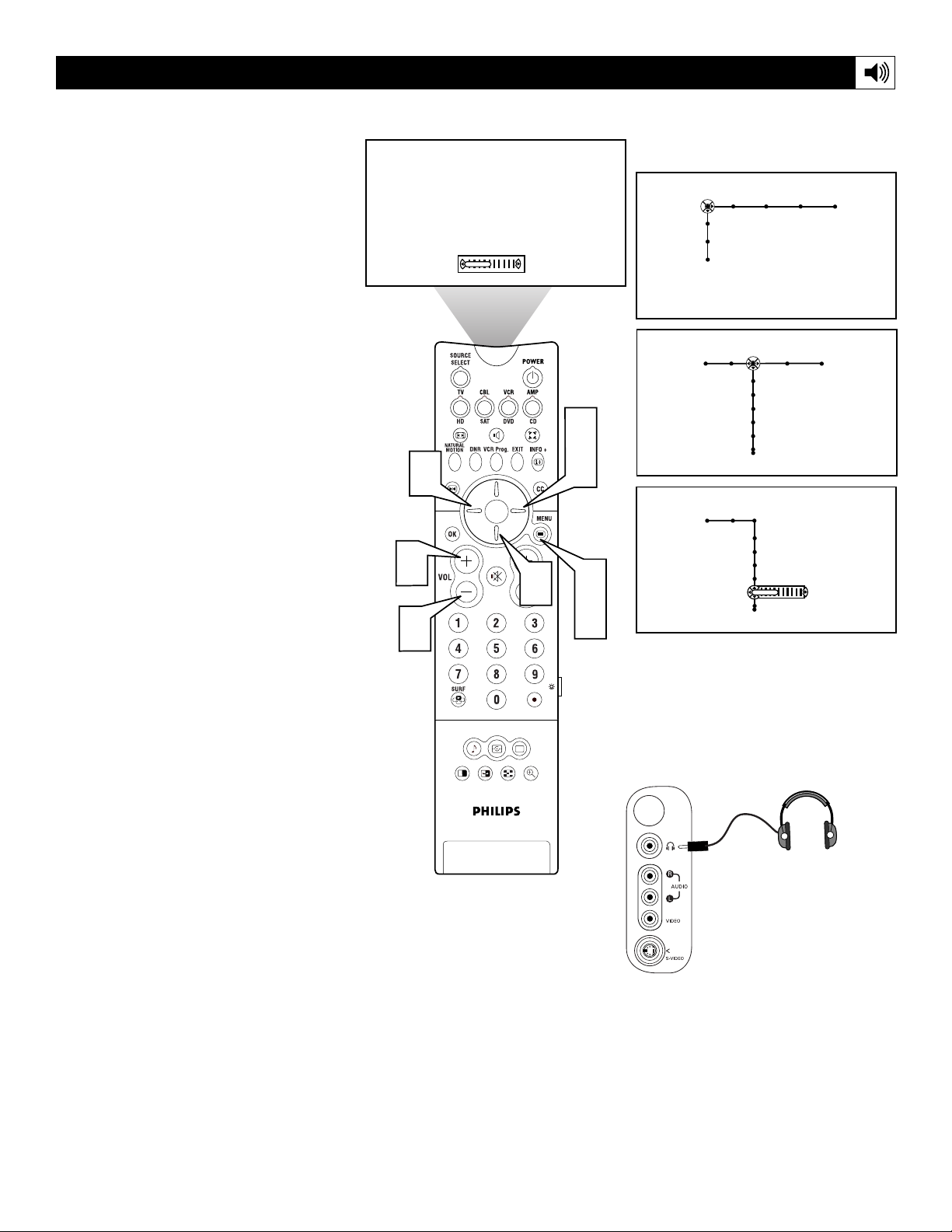

Adjusting the TV and Headphone Volume . . . . . . . . . . . . .37

Selecting a TV Equalizer Option . . . . . . . . . . . . . . . . . . . . .38

Adjusting TV Speaker Balance . . . . . . . . . . . . . . . . . . . . . .39

Turning Loudness on or off . . . . . . . . . . . . . . . . . . . . . . . .40

Selecting a Sound Mode Option . . . . . . . . . . . . . . . . . . . .41

Using Alternate Audio (SAP) . . . . . . . . . . . . . . . . . . . . . . .42

Setting the TV for Stereo Programming . . . . . . . . . . . . . . .43

Turning the AVL (Audio Volume Leveler) on or off . . . . . .44

Adjusting the Delta Volume . . . . . . . . . . . . . . . . . . . . . . . .45

Selecting an AutoSound™ Option . . . . . . . . . . . . . . . . . . .46

FEATURES

Using Closed Captioning . . . . . . . . . . . . . . . . . . . . . . . . . .47

Setting the Sleeptimer . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

CHANNELS

Using the Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Removing Channels from the Channel List . . . . . . . . . . . .51

Using Lock Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Using Lock After . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Blocking Programming Based on TV Ratings . . . . . . . . . . .54

Blocking Programming Based on Movie Ratings . . . . . . . . .55

Turning the Antenna Attenuator on or off . . . . . . . . . . . . .56

GENERAL

Turning the Menu Background on or off . . . . . . . . . . . . . .57

Using Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

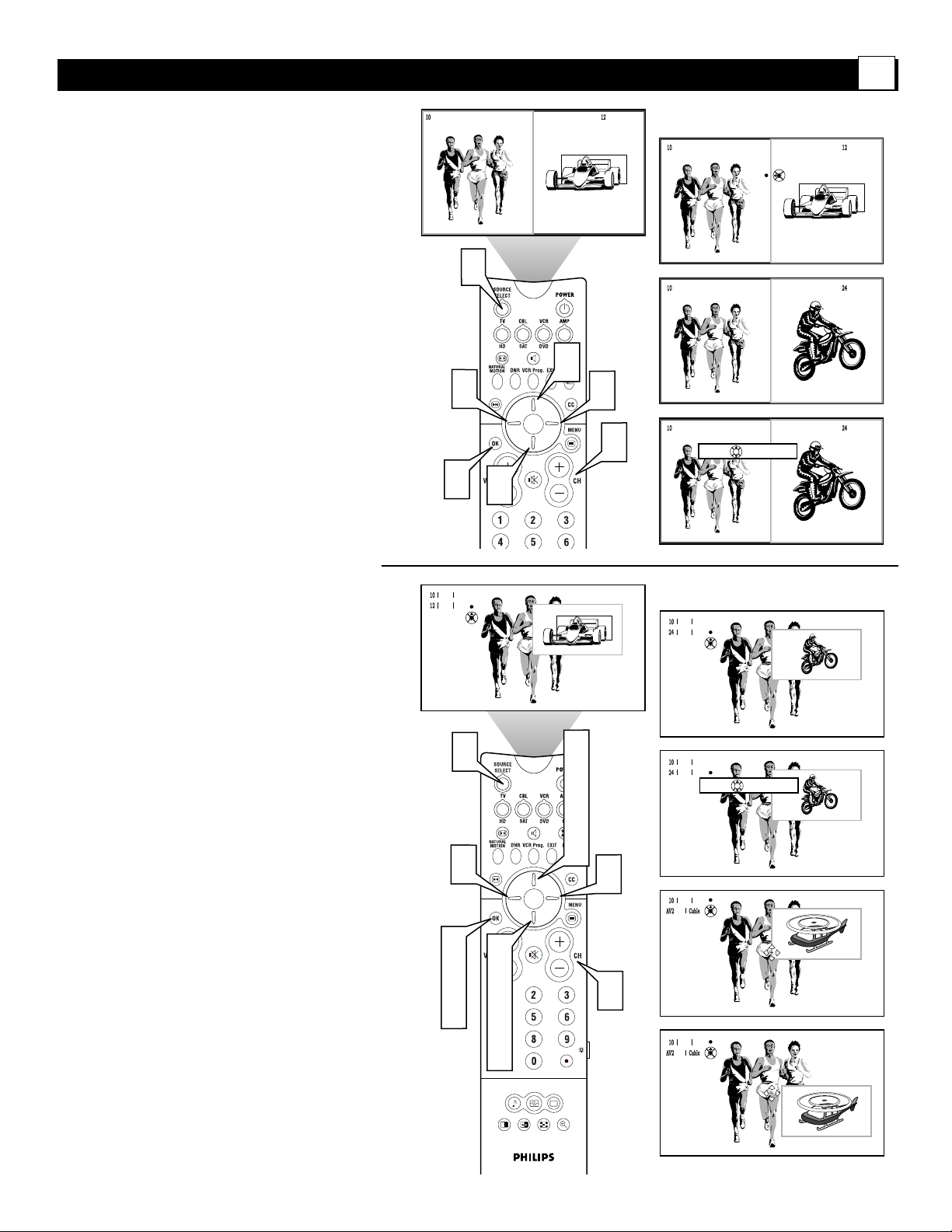

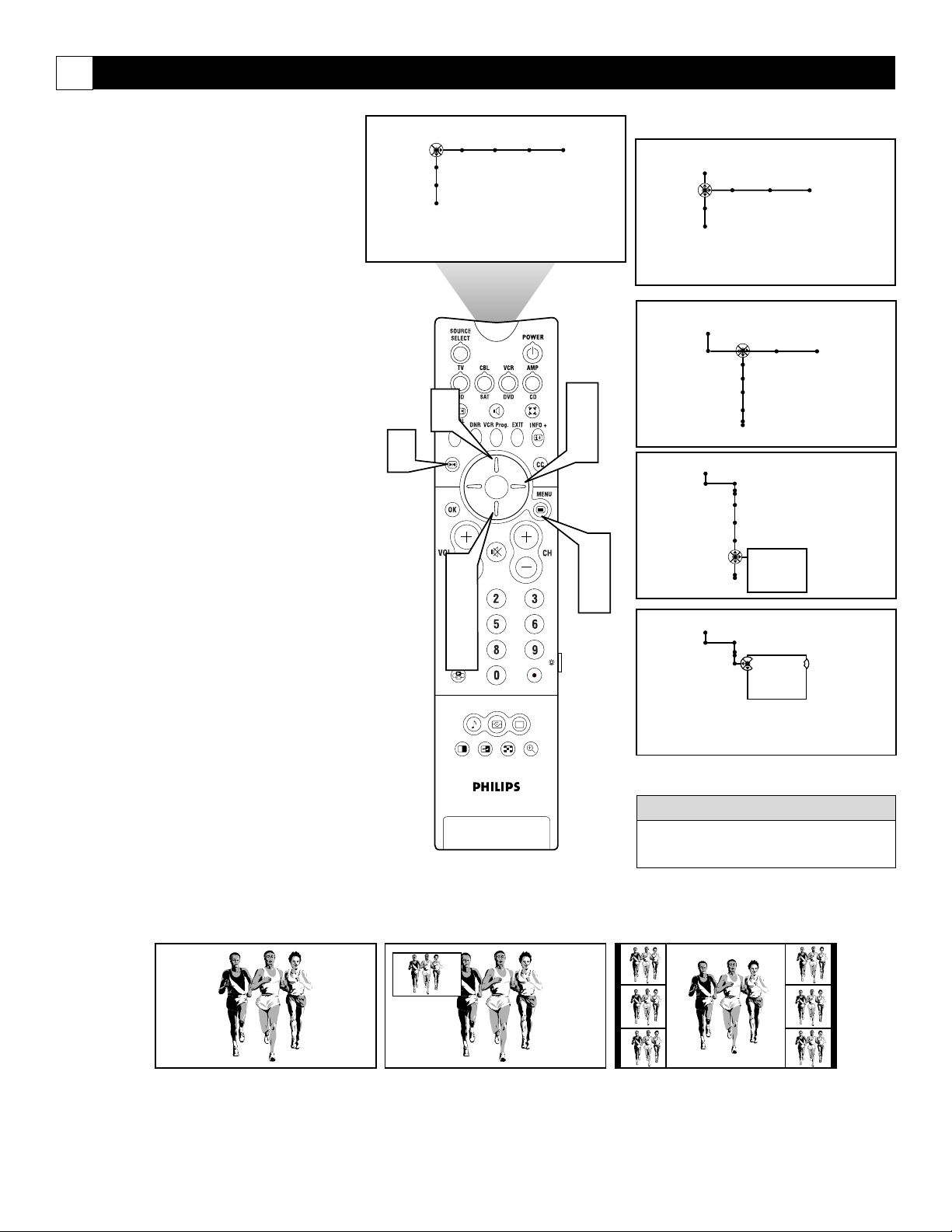

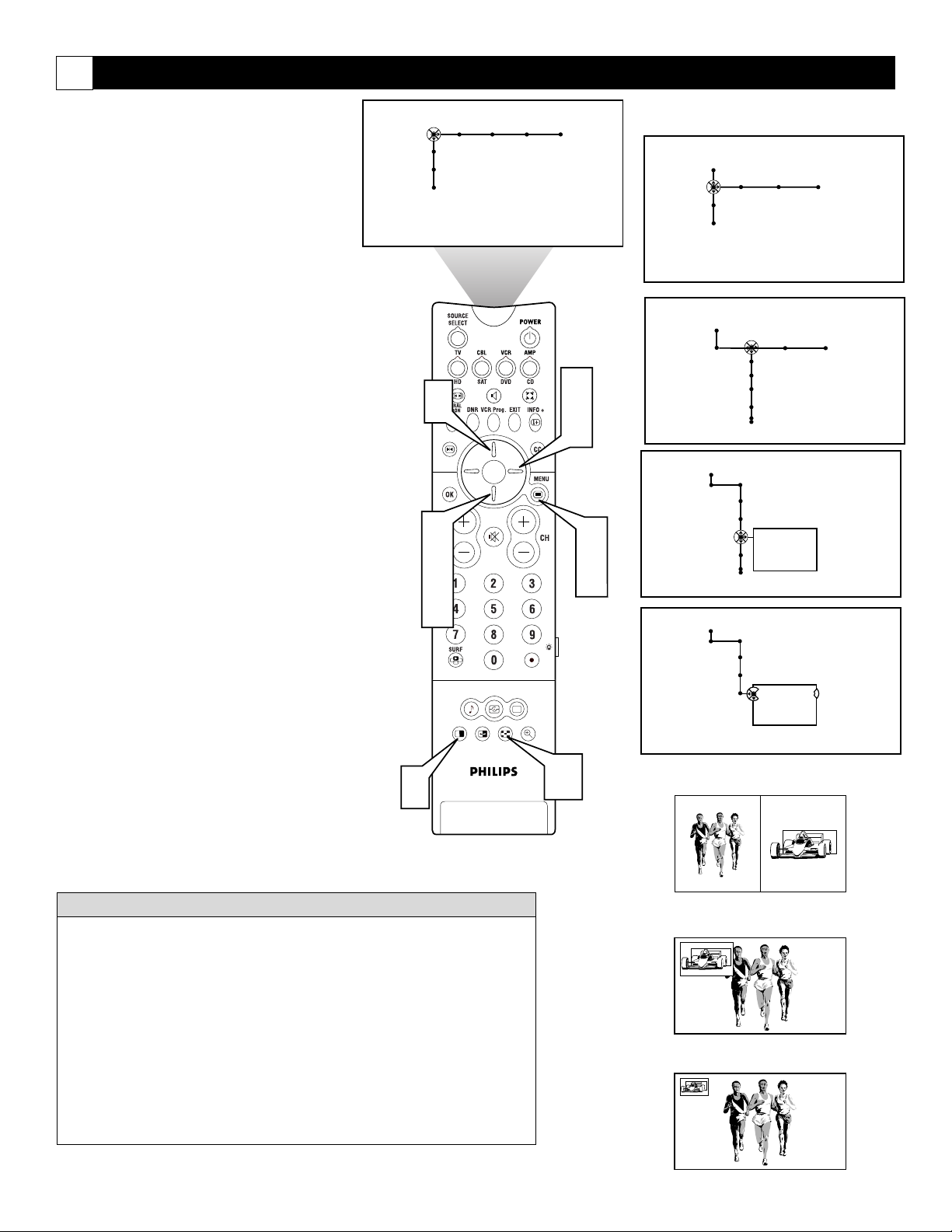

Using Dual Screen and PIP . . . . . . . . . . . . . . . . . . . . . . . . .59

Changing Channels or Input Sources in Dual Screen/PIP . .60

Selecting a Picture Freeze Option . . . . . . . . . . . . . . . . . . .61

Resetting the Audio/Video Settings to Factory

Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Selecting an On-screen Display Option . . . . . . . . . . . . . . .63

Selecting a Time Zone and Setting the Daylight

Savings Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Setting up or Changing a PIN (Personal

Identification Number) . . . . . . . . . . . . . . . . . . . . . . . . . .63

Setting the Subwoofer Control . . . . . . . . . . . . . . . . . . . . .64

Setting the Clock–Autoclock Mode . . . . . . . . . . . . . . . . . .65

Setting the Clock manually . . . . . . . . . . . . . . . . . . . . . . . .66

Selecting a Timezone and Setting the Daylight Savings Control . . .67 Using Installation Features: Language and Autoprogram . . .68

ADDITIONAL INFORMATION

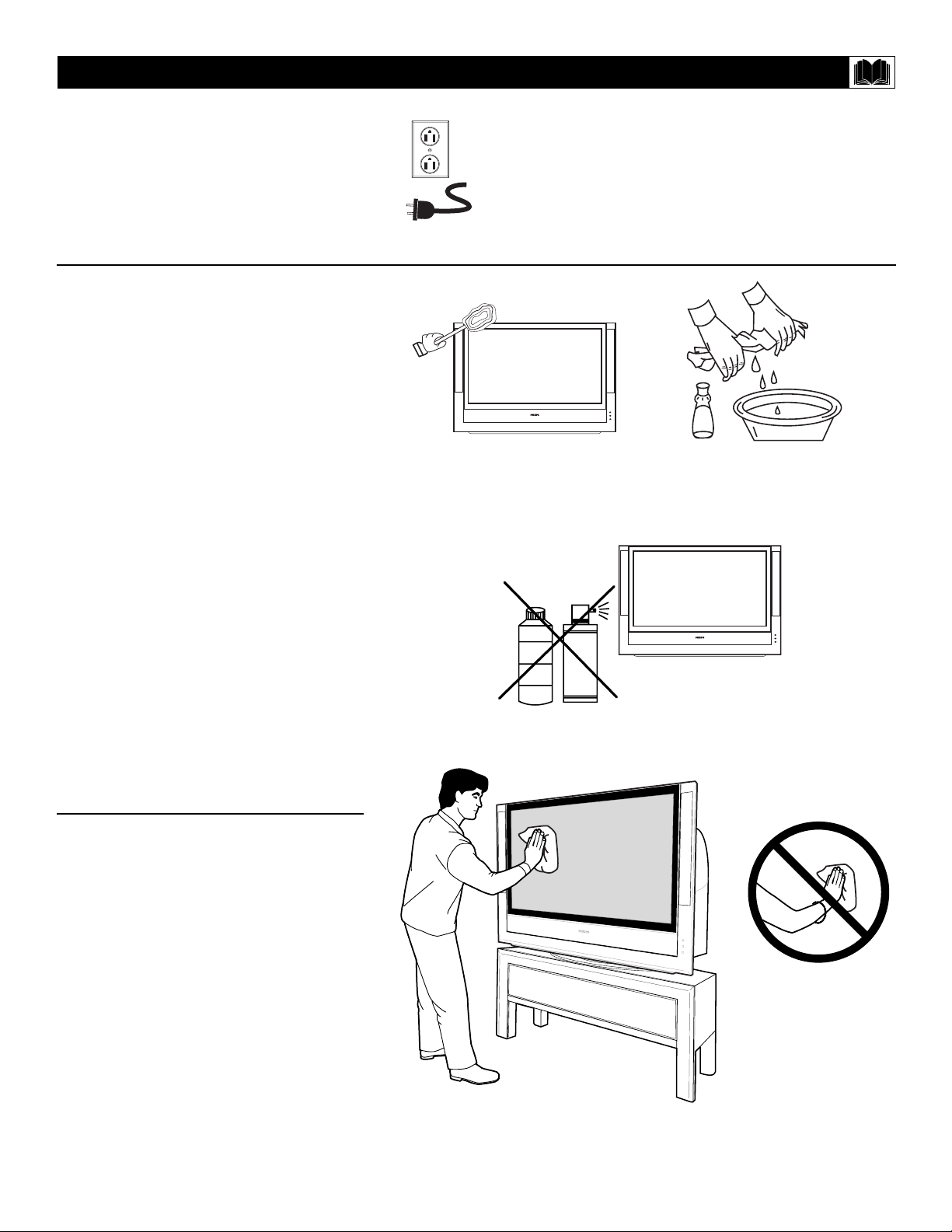

Cleaning the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

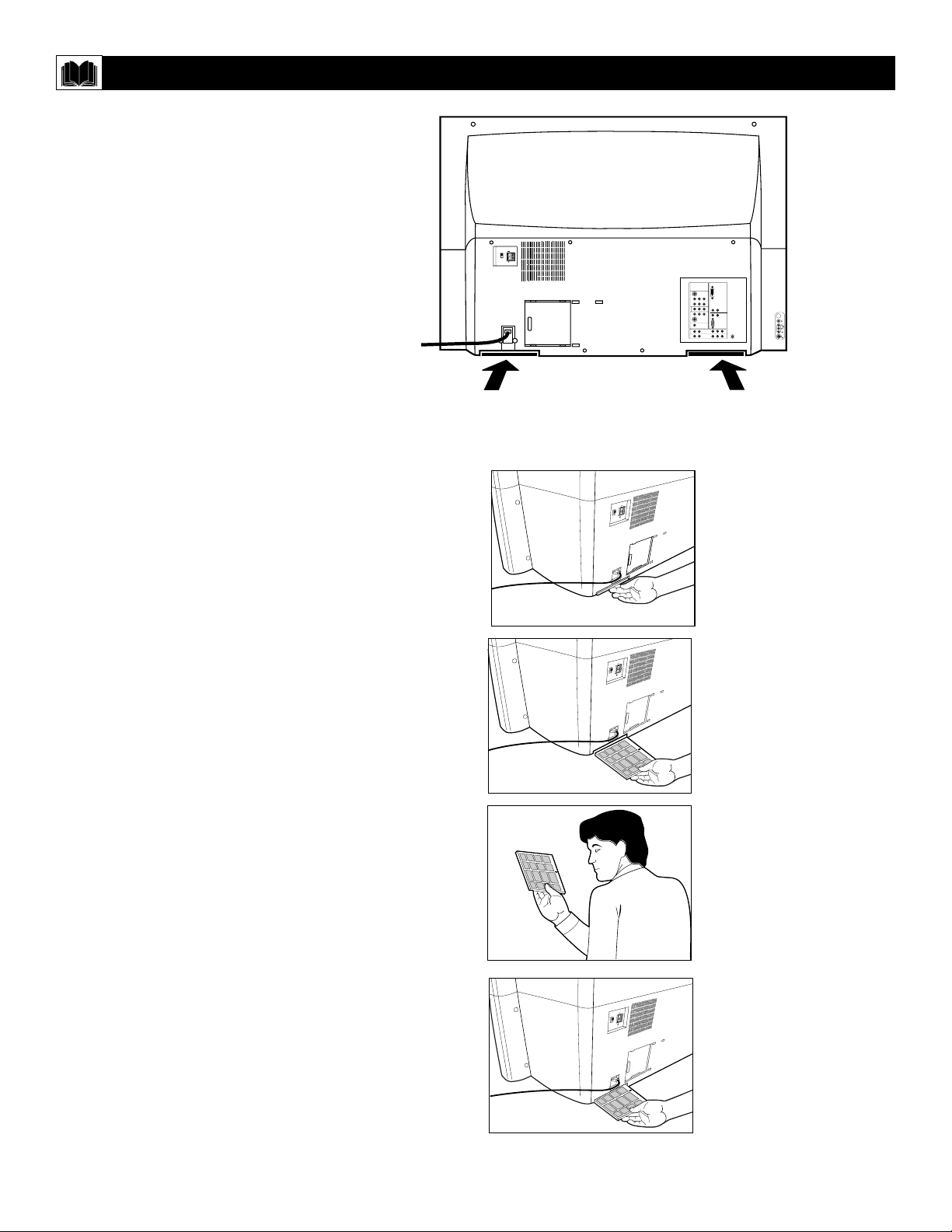

Cleaning or Replacing the Filters . . . . . . . . . . . . . . . . . . . .70

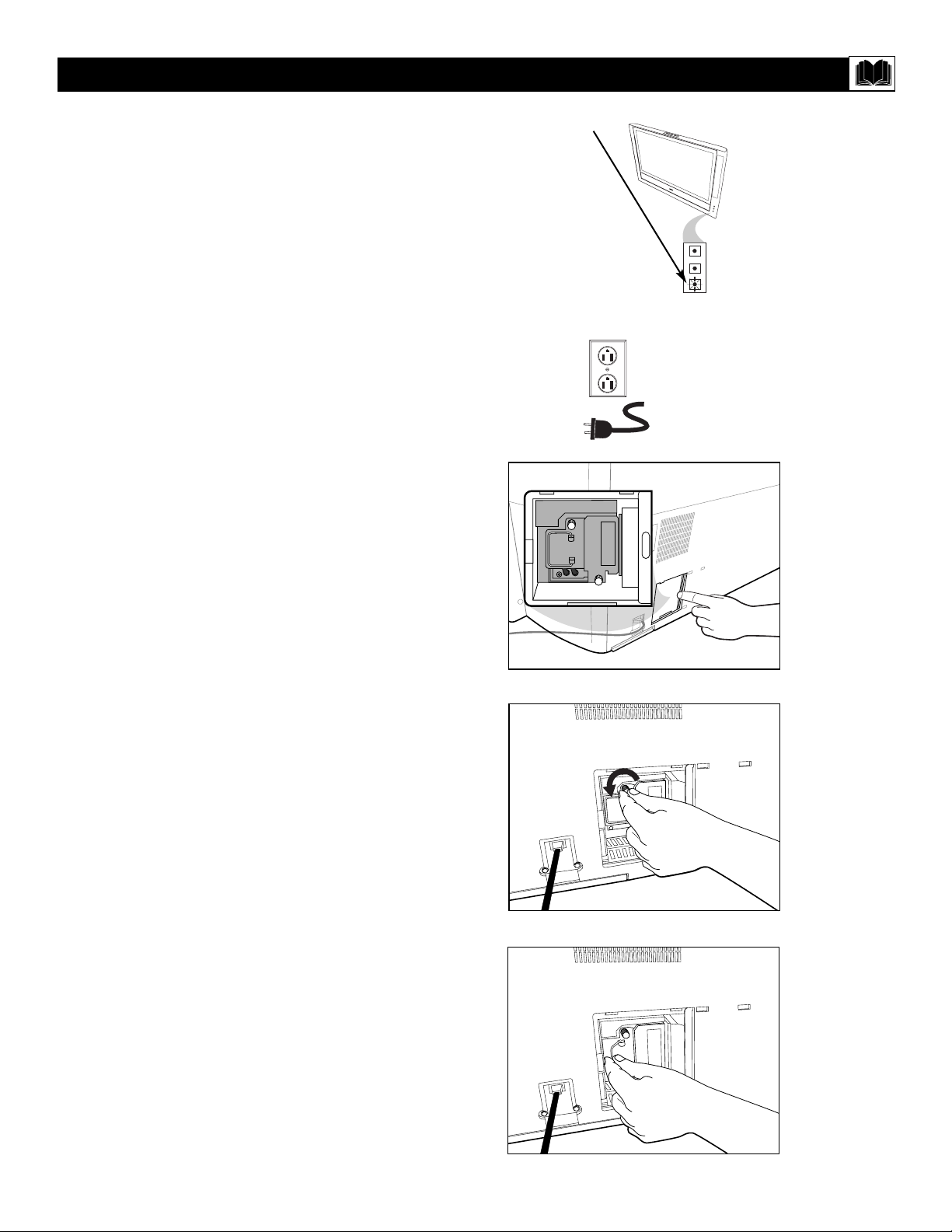

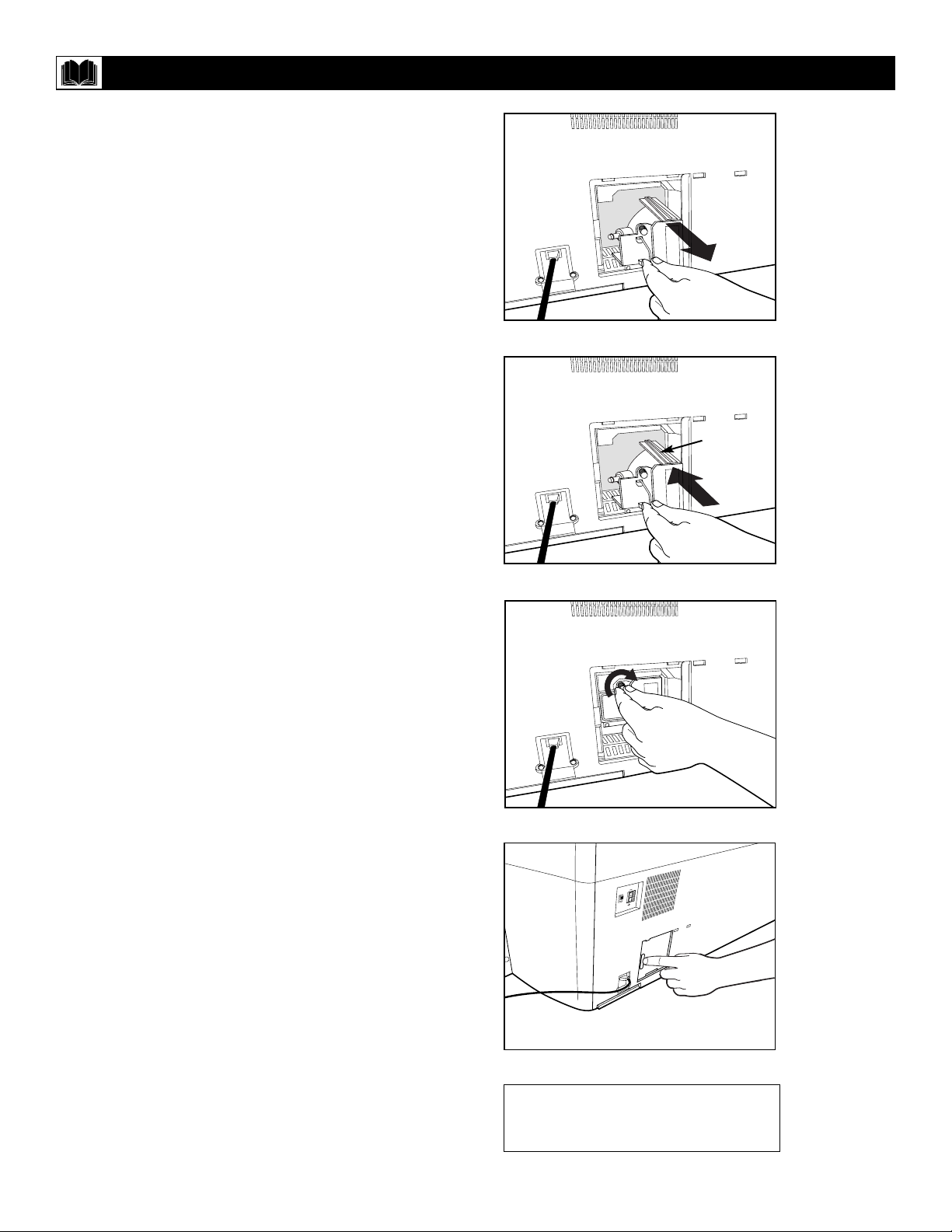

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . .71–72

Resetting the Lamp’s Lifetime Counter . . . . . . . . . . . . . . .73

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74–75

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Features

Compact design with low weight

The unique Philips single-panel liquid-crystal-on-silicon (LCOS) technology allows for a large screen TV with a very low depth and low weight. This TV will find a place in any living room without occupying a large area, and it can be easily handled by two persons.

Philips Single-panel LCOS Imaging System

The Philips single-panel LCOS technology produces unmatched high-resolution and flicker-free video with superb brightness. This technology enables a large-screen-size TV with low weight and shallow depth without any concerns for convergence or image retention.

Digital Natural Motion™

Digital Natural Motion™ offers razor-sharp reproduction of movement and motion. Its unique and highly advanced processing calculates motion trajectories of moving picture elements. It corrects jerky movement from both studio programs or movie material.

Digital CrystalClear™

Digital CrystalClear™—with Dynamic Contrast, comb filter, 9-bit processing, luminance enhancements, and color enhancements—offers a crisp and natural picture from any type or quality of source. The comb filter supports the picture demands of DVD players and other advanced high-resolution video sources.

ActiveControl™ Plus

Active Control™ Plus automatically analyzes the incoming signals from the Tuner, AV1, AV2, and Side video inputs 50 times per second and adjusts key picture settings. In addition to measuring picture noise, this feature uses an ambient light sensor to adjust the picture settings according to viewing conditions in the room.

Dolby* Virtual Surround

Dolby processing circuitry provides an enhanced cinema surround sound effect without the need for rear speakers.

Double-window,Two-Tuner PIP

Your TV features double-window, two-tuner PIP with second tuner double window. The TV also has single PIP (free positioning), as well as threefold and sixfold side PIPs. In addition, you get photo finish, freeze Main, and freeze PIP. Replay lets you play back the previous few seconds in a PIP screen—if you missed the action, replay it as much as you want.

Audio/Video (A/V) Jack Panel

The A/V jack panel allows direct connections with VCRs, DVDs, high-definition receivers, or other devices, providing quality TV picture and sound playback.

Audio Volume Leveler (AVL) Control

AVL keeps the TV sound at an even level. Peaks and valleys that occur at commercial breaks or during program changes are reduced, providing a more consistent, comfortable sound.

V-Chip (with Channel Lock)

The V-Chip feature (with Channel Lock) will allow you to block the viewing of channels or programs with certain ratings, and thus prevent your children from watching inappropriate materials.

Autoprogramming

The TV’s Autoprogram feature scans (when activated) for all available channels from regular antenna or cable signals and stores active broadcast stations in the TV’s memory.

Surf Button

Philips Auto Surf™ allows you to easily switch between only the channels that are of interest to you. Surf allows two-channel surfing or nine-channel surfing.

As an Energy Star® Partner, Philips Consumer Electronics has determined this product meets the

Energy Star® guidelines for energy efficiency. Energy Star® is a U.S. registered mark. Using products with the Energy Star® label can save energy. Saving energy reduces air pollution and lowers utility bills.

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Active Control, AutoPicture, AutoSound, AutoSurf, Cineos, Digital Natural Motion, and Pixel Plus are trademarks of Philips Consumer Electronics. Copyright 2003 Philips Consumer Electronics. All rights reserved.

Items Included with This TV

Your new television and its packing contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts that need to be properly disposed of. Your product also uses batteries that should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste. When you replace your existing equipment, please find out about the local regulations regarding disposal of your old television, batteries, and packing materials.

End-of-Life Disposal

As you unpack your TV, please note the included items:

• Quick Use and Setup Guide to help you set up your new TV.

• Directions for Use manual—contains information on safety, set maintenance, Factory Service Center locations, and product warranty

• Warranty Registration Card

• Remote Control (with supplied batteries).

Please take a few minutes to complete your registration card. The serial number for the TV is on the rear of the set. For your future reference, please write down the serial and model number of this television in the space provided on the warranty page at the back of this manual. (In the unlikely event you should need to place a service call, these numbers will be needed.)

Your High-definition-ready Set

Over the Air

Satellite

Cable

High-definition television offers a picture with unprecedented crispness and clarity. The TV broadcast industry is moving toward high definition as

the signal standard. Currently, the number of programs being broadcast in high definition is limited, but this is changing. To view high-definition programs on your TV, you will need to connect a satellite receiver, cable box, or set-top box that can decode HD signals.

Resolution information

Image resolutions are commonly referred to by a number followed by a letter: 480i, 480p, 720p and 1080i. The number in each format refers to the number of lines of resolution, so for example both 480i and 480p offer 480 lines of resolution. The "i" or "p" refers to whether the signal is displayed using respectively interlaced or progressive scan. Interlaced scan breaks each frame of video into 2 fields, one made up of even lines and one made up of odd lines. The image is reproduced by drawing all odd lines first (1,3,5,…479) than all the even ones (2,4,6,….,480). Progressive scan, on the other hand reproduces an image by drawing all lines in succession 1,2,3,4,….480).

Interlaced Scan

Progressive Scan

Information about TV Signals

Cable TV Company

Analog

Signal

Satellite TV

Company

Digital

Signal

Telephone Line

Cable TV Signal (Analog)

Satellite

Dish

at Your

Home

Antenna

at Your

Home

Satellites

For Direct Connection

to Your TV or to a

Cable Box, VCR, or

Satellite Receiver

Satellite

Receiver

at Your

Home

DVD619 DVD/CD PLAYER

STOP

OPEN/CLOSE

GUIDE

POWER

SELECT

INFO

HIGH DEFINITION

STANDBY-ON

POWER

Odd lines Even Lines

PLAY PAUSE

PREV NEXT

Lines in succession

Descriptions of Jacks, Cables, and Connectors

This page contains descriptions and illustrations of jacks, cables, and connectors you might use in making connections. The cables and connectors are not supplied with your TV, but you can purchase at your electronics dealer. Or you can order them by calling our Customer Care Center at 1-800-531-0039.

Antenna RF Jack

Cable Used: RF

Coaxial (75Ω)

Push-on Type Cable

Screw-on Type Cable

Signal Splitter

Cables Used: RF

Coaxial (75Ω)

Video (Composite) Jack

Cable Used:Video with RCA-type Phono Plugs

S-VIDEO Jack

Cable Used: S-Video

Component Video Jacks

Cables Used: Component

Video with RCA-type

Phono Plugs

Component Video Input Jacks Cables used: component video with RCA-type phono plugs

Allow you to connect accessory devices such as DVD players. Separating the video into three signals, these inputs provide excellent quality. Accepts 480i, 480p, 720p, 1080i. Be sure to connect the left and right audio cables, because the Y, Pb, Pr jacks receive only the picture signal.

NOTE: See the “Helpful Hint” on page 13 for more information.

S-Video Input Jacks Cable used: S-Video

Provide a higher quality picture than the Video (composite) jacks because the color part of the picture is separated from the black and white portion. Be sure to connect the left and right audio cables, because the S-Video jacks receive only the picture signal.

VGA/HD15 Jack

Cable Used: HD DB15

RGB+HV Input Connector Cable used: HD DB15

Allows you to connect equipment with RGB or VGA output.

Video (called “CVBS” or “compos- ite”) Input Jack Cable used: Video with RCA-type phono plugs

Provide better picture performance than the antenna RF input. Be sure to connect the audio cables, because the video jacks receive only the picture signal.

Your TV also has a monitor output (“MON OUT”) video (“V”) jack. Use a video cable with RCA-type phono plug to make connections.

Tuner (RF) Input Jack Cables used: RF coaxial cable (75Ω)

Allows you to connect an antenna, cable TV, or components having RF outputs to the antenna input on the TV. RF coaxial cables are available in push-on or screw-on type.

Audio Input Jacks Cables used:Audio with RCA-type phono plugs

Provide sound for the video inputs. If your accessory device has only one output for audio, connect it to the left (color coded white) audio jack on the TV.

Your TV also has monitor output (“MON OUT”) audio (“L” and “R”) jacks and a subwoofer output jack. Use Audio cables with RCA-type phono plugs to make connections.

Audio Jacks

Cables Used:Audio

with RCA-type

Phono Plugs

Signal Splitter

Allows you to route an antenna or cable TV signal to two inputs.

3.5mm Stereo Mini Phone Plug to RCA Jack Adapter

Allows a connection between the

3.5mm stereo audio out jack on a computer and the left and right audio inputs on the television. Connect A/V cables with RCA-type phono plugs to the adapter, then to the TV.

3.5mm Stereo Mini Phone Plug to RCA Jack Adapter

300- to 75-ohm

Twin-lead Adapter

300- to 75-ohm Twin-lead Adapter

Accepts twin-lead wires from an antenna and allows connection to the antenna input on the TV. If your antenna is already equipped with an RF coaxial cable you will not need this adapter.

Center Channel Amp Speaker Terminals (+ and –)

Allow a connection from a surround sound receiver. Set the EXT/INT switch to EXT to use the TV speakers as the center speakers in a surround sound arrangement.

Center Channel Amp Speaker Terminals (for the connection

of speaker wires)

DVI-D Jack

Cables Used: DVI-D

DVI-D Input Connector Cable used: DVI-D

This jack works only with DVI TMDS (Transition Minimized Differential Signaling) digital video. Allows encrypted transmissions of uncompressed digital content. The DVI-D jack used in this product is not for computer connections.

DVI

Pr Pb Y

TUNER

S-VIDEO

RGB+HV

INT

EXT

Panel Jack Compatibility Information

Speaker Terminals and EXT(ernal)/INT(ernal) Speaker Switch Located on the Back Left Side of the TV

Jack Panel Located on the Left Side of the TV

CENTER CHANNEL AMP INPUT Click-fit Terminals

Provides speaker-wire input terminals for connection of an external home-cinema surround-sound system amplifier. For this use, set the switch to “EXT,” and the TV speakers become the center speakers for the home-cinema surroundsound system. NOTE: If no audio is heard from the set, check to make sure the Center Channel Amp switch is in the INT position. This switch should be in the EXT position only when an external center channel input is connected to the Click-fit Terminals.

SIDE JACK PANEL Signals accepted: Analog NTSC

(480i). Inputs available: S-Video (Y/C) and CVBS, plus audio left and right. Output available: Headphone. Only one of the inputs can be used at a time. Select the Side source, and the TV detects the input to which you have connected. Connections must be made to the audio inputs for sound.

Definitions: NTSC—National Television System Committee. CVBS—labeled “V,” provides a small step up in quality from the Tuner (RF) input. Called

Composite Video. S-Video (Y/C)—provides better picture quality than CVBS. Separates the signal into color and

brightness. YPbPr—provides the best quality video signal. Called Component Video Input, the signal is

split into three parts, two color and one brightness.

AV 1 Input Jacks Signals accepted: NTSC (480i). Inputs available: YPbPr, S-Video (Y/C), and

CVBS, plus audio left and right.

Use only one of the video signal inputs at a time.

If you should forget and have more than one type of signal connected, the set will automatically show the one of better quality: CVBS—good, S-Video—better, and YPbPr—best. For sound, connections must be made to the AV1 audio inputs.

MON OUT Output Jacks

Provide video and audio output signals from all TV when those sources are being viewed on the main screen. Output from the audio L/R jacks is at a fixed volume level; changing the TV volume does not affect them. Adjust the volume at your external home cinema system.

AV 2 Input Jacks Signals accepted: NTSC (480i). Inputs available: S-Video (Y/C) and CVBS, plus

audio left and right.

Use only one of the video signal inputs at a time.

If you should forget and have both types of signal connected, the set will automatically show the S-Video, since it is of better quality than CVBS. For sound, connections must be made to the AV2 audio inputs.

SUB OUT Output Jack

Provides a signal to an external powered subwoofer.

AV3 Input Jacks Signals accepted: NTSC (480i), 480p, 720p, and

1080i, plus audio left and right. Inputs available: YPbPr, plus audio. For sound, connections must be made to the AV3 audio inputs.

AV4 Input Jacks Signals accepted: NTSC (480i), 480p, 720p, and

1080i, plus audio left and right. Inputs available: YPbPr, plus audio. For sound, connections must be made to the AV4 audio inputs.

TUNER Input Jack Signals accepted: RF modulated NTSC. Inputs available: 75Ω RF coaxial.

AV5 Input Connector Signals accepted: NTSC (480i), 480p, 720p, 1080i

and VG plus audio left and right. Inputs available: RGB+HV. For sound, connections must be made to the AV5 audio inputs.

AV6 Input Connector Signals accepted: Digital only (TMDS [Transition Minimized Differential Signaling] encoded, uncom-

pressed); DVI 480i, 480p, 720p, and 1080i, plus audio left and right. Inputs available: DVI TMDS, plus audio. For sound, connections must be made to the AV6 audio inputs. Intended use of the input: digital set-top boxes and inputs from other digital video devices.

NOTE: This DVI jack is not for computer connections. VGA cannot be connected.

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

S-VIDEO

RLV

DVI

Pr Pb Y

OUT

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

AV5 AV6

RGB+HV

Pr Pb Y

TUNER

Pre-connection Recommendations

Positioning the TV

Before connecting accessory devices—VCR, DVD player, or HD satellite receiver, for example—please keep the following in mind:

• Place the TV on a flat surface. An unlevel surface may adversely affect picture performance.

• Do not place the TV on shag carpet or any surface that will block the ventilation openings at the bottom of the set. Blockage will cause the TV to overheat and shut down.

• Allow 4 to 6 inches of space behind the TV for ventilation.

• An optional swivel and an optional stand are available for use with your TV. See your electronics dealer.

• Test various locations in the room to find the optimal spot to locate the set for best viewing.

• Do not place the TV in direct sunlight or near a heating appliance.

• Do not expose the TV to rain or moisture.

• To prevent any unsafe situations, do not place objects on top of the TV.

Providing Protection Against Power Surges

• Connect all accessory devices before you plug any of their power cords into the wall outlet or power strip. NEVER plug your TV into an outlet that is controlled by a wall switch.

• Turn off the TV and/or accessory devices before you connect or disconnect any cables.

• Ensure that all antennas and cables are properly grounded. See page 3, “Important Safety Instructions.”

Protecting Accessory Devices from Overheating

• Arrange accessory devices so that air can circulate freely around them.

• Don’t stack the accessory devices. Arrange them to allow for good ventilation. The optional Philips stand provides enough room for two accessory devices, side by side.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from it will not flow around other components.

Connecting Cables

Be sure to insert each cable firmly into the correct jack.

Using the Connection Examples in This Manual

The accessory device jack panels shown are for example purpose only. The jack panels on your accessory devices may look different. Also, note that connections can be made in various ways. The examples are presented only as guides.

Allow 4 to 6 inches behind the TV for ventilation.

Place the TV on a flat surface.

Do not place the TV on a surface that will block the air filters located underneath the set.

Situate the TV where it will not be exposed to heat or moisture.

For safety, do not set objects on top of the TV.

Optional Swivel

Optional Stand

DVD619 DVD/CD PLAYER

GUIDE

POWER

SELECT

INFO

HIGH DEFINITION

STANDBY-ON

STOP

OPEN/CLOSE

PLAY PAUSE

PREV NEXT

Connecting a VCR

Back of TV

Incoming Cable TV

or Antenna Signal

Back of VCR

(example only)

Connect the incoming antenna or cable TV signal to the ANT IN jack on the back of the VCR.

Using a coaxial cable, connect to the OUT jack on the back of the VCR and to the TUNER jack on the back of the TV.

Using A/V cables, connect from the AUDIO and VIDEO OUT jacks on the back of the VCR to the corresponding AV2 audio (L and R) and video (V) jacks on the back of the TV.

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV2 input source.

Press the OK button to confirm your choice. The set is now switched to the AV2 input source for the viewing of programs from the VCR.

NOTE: Since you’ve connected the cable TV signal directly to the TV’s tuner (step 2 above), you can watch the unscrambled programs by simply tuning to the desired channel. To store channels in the TV’s memory, you must use Autoprogram, which you can access through “Install” in the TV’s on-screen menu. See the Autoprogram section in the Quick Use and Setup Guide that came with the TV. If you use Autoprogram, you can select channels by pressing the CH + or – buttons on the TV remote control (in TV mode). Otherwise, you must press the digit (number) buttons to tune directly to the channel you desire.

Color Coding Used on Jacks and Plugs to simplify connections: Yellow: Video (Composite Video) Red: Right Audio White: Left Audio.

HELPFUL HINT

Source

SERVICE 1

DVI

AV5 AV6

RGB+HV

Pr Pb Y

AUDIO

ANT

OUT

VIDEO

CH3 CH4

OUT

TUNER

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

TV AV1:Other

AV2:Other AV3:Other AV4:Other AV5:Other AV6:Other SIDE

:Other

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Connecting a VCR and Cable Box

Back of TV

Incoming

Cable TV

Signal

Back of VCR

(example only)

Back of Cable Box (example only)

Signal

Splitter

NOTE: A cable box with AUDIO OUT jacks such as the one used in the example on this page might pass stereo sound to the TV. Check with your cable TV company. The RF jack output jack on a cable box (commonly labeled “OUT TO TV,” “OUTPUT,” or “OUT”) will not pass stereo sound to your TV.

Connect the incoming cable TV signal to a two-way signal splitter. The signal splitter enables you to route the cable signal to the TV without using the OUT TO TV jack on the cable box, which will not pass stereo sound to the TV.

Using a coaxial cable, connect to one of the connectors on the signal splitter and to the TUNER jack on the back of the TV.

Using a coaxial cable, connect to the other connector on the signal splitter and to the CABLE IN jack on the back of the cable box.

Using Audio/Video cables, connect to the AUDIO and VIDEO OUT jacks on the back of the cable box and to the corresponding AUDIO and VIDEO IN jacks on the back of the VCR.

Using Audio/Video cables, connect to the AUDIO and VIDEO OUT jacks on the back of the VCR and to the corresponding AV2 audio (L and R) and video (V) input jacks on the back of the TV.

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV2 input source.

Press the OK button to confirm your choice. The set is now switched to the AV2 input source for the viewing of programs from the cable box or the VCR.

Color Coding Used on Jacks and Plugs to simplify connections: Yellow: Video (Composite Video) Red: Right Audio White: Left Audio.

HELPFUL HINT

Source

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

AV5 AV6

DVI

RGB+HV

Pr Pb Y

TUNER

AUDIO

ANT

OUT

VIDEO

CH3 CH4

OUT

TV AV1:Other

AV2:Other AV3:Other AV4:Other AV5:Other AV6:Other SIDE

:Other

OUTPUT

CABLE

3 4

TO TV

VIDEO

OUT

AUDIO

OUT

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Connecting an S-Video Device

Back of Standard S-Video Device

(example only)

Back of TV

Using an S-Video cable, connect to the S-Video output on the back of the S-Video device and to the AV2 SVIDEO input.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the S-Video device and to the corresponding AV2 audio inputs (L and R).

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV2 input source.

Press the OK button to confirm your choice. The set is now switched to the AV2 input source for the viewing of programs from the S-Video device.

To simplify making connections, the connectors on audio and video cables are often color coded to match the colors on TV jacks, red for right, and white for left.

HELPFUL HINT

Source

TV AV1:Other AV2:Other AV3:Other AV4:Other AV5:Other AV6:Other SIDE

:Other

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/ HD INPUTS

DVI

AV5 AV6

RGB+HV

Pr Pb Y

L R

AUDIO OUT

TUNER

VIDEO

ANT/CABLE

OUT

Pr Pb Y

S-VIDEO

OUT

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Connecting a Standard DVD Player

Back of TV

Back of Standard DVD Player

(example only)

Using Component Video cables, connect to the YPbPr jacks on the back of the standard DVD player and to the AV1 YPbPr jacks on the back of the TV.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the DVD player and to the corresponding AV1 audio (L and R) jacks on the back of the TV.

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV1 input source.

Press the OK button to confirm your choice. The set is now switched to the AV1 input source for the viewing of programs from the DVD player.

• If you do not know whether your DVD player is standard or progressive scan, you can connect it to either AV3 or AV4, and the TV will automatically determine the type of output.

• To simplify making connections, the connectors on audio and video cables are often color coded to match the colors on TV jacks: green for Y, blue for Pb, and red for Pr; also red for right audio, and white for left audio.

• The names for the component video jacks may differ depending on the DVD player or accessory digital source equipment used. For example, besides YPbPr, you may see R-Y/B-Y/Y; or CrCbY. Although abbreviations and terms may vary, the letters B and R stand for the blue and red color component signal connectors, respectively, and Y indicates the luminance signal. If necessary, refer to the user manual for your DVD or digital accessory for more information.

• If you experience difficulties receiving sound with a DVD disc, check the sound settings through the DVD disc’s menu.

HELPFUL HINTS

Source

1 2

TV AV1:Other

AV2:Other AV3:Other AV4:Other AV5:Other AV6:Other SIDE

ACITVE

CONTROL

SOUND PICTURE

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

PCM-MPEG2-Dolby Digital-DTS

COAXIAL

:Other

ZOOM

DIGITAL AUDIO OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

SUB WF OUT

OPT OUT

DVI

AV5 AV6

RGB+HV

Pr Pb Y

AUDIO OUT

DVD619 DVD/CD PLAYER

STANDBY-ON

TUNER

PR/C

(CVBS)

VIDEO OUT

B/CB

VIDEO OUT

OPEN/CLOSE

(Y/C)

S-VIDEO OUT

STOP

PREV NEXT

PLAY PAUSE

Using Component Video cables, connect to the YPbPr jacks on the back of the progressive-scan DVD player and to the AV3 YPbPr jacks on the back of the TV.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the DVD player and to the corresponding AV3 audio (L and R) jacks on the back of the TV.

If your DVD player has an I/P switch on the back, be sure it is set to the “P” position for progressive-scan mode. NOTE: Some DVD players have an I/P switch on the back, while others may allow the user to change the mode by pressing a button on the DVD player’s remote control or by using the DVD player’s on-screen menu. Also, some DVD players have dedicated progressive-scan output jacks that are labeled as such and require no switching by the user. See the user manual for your DVD player for more information on placing the player in progressive-scan mode.

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV3 input source.

Press the OK button to confirm your choice. The set is now switched to the AV3 input source for the viewing of programs from the DVD player.

Connecting a Progressive-scan DVD Player

Back of TV

Back of Progressive-

scan DVD Player

(example only)

• If you experience difficulties receiving sound with a DVD disc, check the sound settings through the DVD disc’s menu.

HELPFUL HINTS

Inputs AV3–AV6 allow horizontal and vertical picture panning using the Cursor Left, Right, Up, and Down buttons. The Side input allows vertical picture panning; left and right panning with the Side input is possible when the input has been labeled “Game.” See pages 18 and 19 for details on side panel connections and source labeling.

HELPFUL HINT

Source

SERVICE 1

S-VIDEO

RLV

AV1MONSUB OUT AV2AV3AV4

Pr Pb Y

OUT

S-VIDEO

STANDARD/ HD INPUTS

VIDEO OUT

VIDEO

SELECT

DVI

AV5 AV6

RGB+HV

Pr Pb Y

TUNER

AUDIO OUT

2CH

BITSTREAM

/PCM

OPTICAL

COAXIAL

DIGITAL

AC IN ~

DVD619 DVD/CD PLAYER

--AV2:Other

AV3:Other AV4:Other AV5:Other AV6:Other SIDE

:Other

STANDBY-ON

OPEN/CLOSE

PLAY PAUSE

STOP

PREV NEXT

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Using Component Video cables, connect to the YPbPr jacks on the back of the HD satellite receiver and to the corresponding AV4 YPbPr jacks on the back of the TV.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the HD satellite receiver and to the corresponding AV4 audio (L and R) jacks on the back of the TV.

Refer to the user manual for the HD satellite receiver to complete the connections to the HD satellite receiver and to use the HD satellite receiver’s on-screen setup menus.

After completing HD satellite receiver connections and setup through the onscreen setup menus, press the Source Select button on the TV remote to access the Source list.

Press the Cursor Up or Down button to select the AV4 input source.

Press the OK button to confirm your choice. The set is now switched to the AV4 input source for the viewing of programs from the HD satellite receiver.

Connecting an HD Satellite Receiver to YPbPr

Back of TV

Back of HD

Receiver

(example only)

• Inputs AV3–AV6 allow horizontal and vertical picture panning using the Cursor Left, Right, Up, and Down buttons. The Side input allows vertical picture panning; left and right panning with the Side input is possible when the input has been labeled “Game.” See pages 18 and 19 for details on side panel connections and source labeling.

HELPFUL HINTS

Source

REMOTEPHONE JACK

--AV3:Other AV4:Other AV5:Other AV6:Other SIDE:Other

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

AUDIO

VIDEOVIDEO

CONTROL

VCR

S-VIDEO

AV5 AV6

HIGH DEFINITION

DVI

RGB+HV

Pr Pb Y

DIGITAL

AUDIO OUT

POWER

SELECT

TUNER

OUT TO TV

CH 3 CH 4

IN FROM ANT SATELLITE IN

GUIDE

POWER

INFO

ACITVE

CONTROL

SOUND PICTURE

1 2

User Manual

for

HD Satellite

Receiver

ZOOM

Using a DVI cable, connect to the DVI jack on the back of the HD satellite receiver and to the corresponding AV6 DVI jack on the back of the TV.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the HD satellite receiver and to the corresponding AV6 audio (L and R) jacks on the back of the TV.

Refer to the user manual for the HD satellite receiver to complete the connections to the HD satellite receiver and to use the HD satellite receiver’s on-screen setup menus.

After completing HD satellite receiver connections and setup through the onscreen setup menus, press the Source Select button on the TV remote to access the Source list.

Press the Cursor Up or Down button to select the AV6 input source.

Press the OK button to confirm your choice. The set is now switched to the AV6 input source for the viewing of programs from the HD satellite receiver.

Connecting an HD Satellite Receiver to DVI

Back of TV

Back of HD satellite receiver

(example only)

• To simplify making connections, the connectors on audio cables are often color coded to match the colors on TV jacks: red for right audio, and white for left audio.

• Because DVI is such new technology, the electronics industry is still working toward a decision on one standard. Philips testing has determined that compatibility issues exist with respect to a limited number of high-definition receivers when they are connected to the DVI input on this television. If you should experience difficulties, please contact our Customer Care Center at 1800-531-0039.

HELPFUL HINTS

AIR IN

SATELLITE IN

DIGITAL OUT

CABLE IN

Source

DOLBY

(OPTICAL)

--AV5:Other AV6:Other SIDE:Other

RESOLUTION SELECT

1080i 720p 480p/i

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

ACCESS CARD

DVI/HDCP OUT

DVI

AV5 AV6

RGB+HV

Pr Pb Y

DTV OUTPUT SELECT

RGB/Y PB P

DVI

RGB OUT

TV OUT

TUNER

VIDEO OUT

AUDIO OUT

3 4

DOLBY

COMPONENT

DIGITAL

OUT

(COAXIAL)

AUDIO

LISTED

VCR

E207602

CONTROL

7H74

AUDIO/VIDEO PRODUCT

TEL LINE

S-VIDEO

ACITVE

CONTROL

SOUND PICTURE

1 2

User Manual

for

ZOOM

HD Satellite

Receiver

Using speaker wires, connect to the Center Speaker output terminals (+, –) on the back of the surround sound receiver and to the corresponding (+, –) CENTER CHANNEL AMP terminals on the back of the TV.

Set the CENTER CHANNEL AMP INPUT switch to EXT. This allows the TV cabinet speakers to be used as the center speakers in a surround sound arrangement.

Using Stereo Audio cables, connect to the MON OUT L and R jacks on the back of the TV and to the corresponding TV IN jacks on the back of the receiver.

Using an Audio cable, connect to the SUB OUT jack on the back of the TV and to the Audio Input jack on the back of a powered subwoofer.

Using speaker wires, connect to the R and L Front Speakers terminals and to the corresponding terminals on the backs of the front speakers.

Using speaker wires, connect to the Surround Speakers terminals (+, –) on the back of the receiver and to the corresponding terminals (+, –) on the back of the surround speakers.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select “General.”

Press the Cursor Down button repeatedly until “Subwoofer” is selected.

Press the Cursor Right or Left button to select “Yes.”

Connecting Surround Sound Equipment

Back of TV

Back of Receiver

(example only)

Surround

(Back)

Speakers

Front

Speakers

Powered

Subwoofer

“Yes” must be activated for the Subwoofer menu selection before the SUB OUT jack will supply output. This is because the subwoofer’s low frequencies are redirected to the main TV speakers when “No” is selected.

ELPFUL HINT

To simplify making connections, the connectors on audio cables are often color coded to match the colors on TV jacks: red for right audio, and white for left audio.

ELPFUL HINT

SERVICE 1

DVI

S-VIDEO

RLV

AV1MONSUB OUT AV2AV3AV4

Pr Pb Y

OUT

S-VIDEO

AV5 AV6

RGB+HV

Pr Pb Y

STANDARD/ HD INPUTS

TUNER

Pr Pb Y STANDARD/ HD INPUTS

SERVICE 1

S-VIDEO

RLV

AV1MONSUB OUT AV2AV3AV4

Pr Pb Y

OUT

S-VIDEO

Audio Input

180

Phase

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

DVI

AV5 AV6

RGB+HV

Pr Pb Y

TUNER

6 8

Settings

Daylight saving

Change PIN

Subwoofer

Lamp rating

Lamp replaced

General

No • Yes

7 9

General

Settings

Daylight saving

Change PIN

Subwoofer

Lamp rating

Lamp replaced

Yes • No

Connecting to the Side Inputs: Video Game System

Panel on

Side of

Back of Game System

(example only)

You can label the Side Audio/Video input source “Game” if you would like. See page 19 for details on labeling.

• To simplify making connections, the connectors on audio and video cables are often color coded to match the colors on TV jacks: yellow for video (composite), red for right audio, and white for left audio.

HELPFUL HINTS

Using the Audio/Video cable supplied with your video game system, connect to the back of the game system and to the corresponding S-VIDEO and AUDIO (L and R) jacks in the Side panel of the TV.

NOTE: If your game system cable does not have an S-Video plug, you can instead make a regular Video connection.

Press the Source button on the TV remote control to access the Source list.

Press the Cursor Up or Down button to select the Side input source.

Press the OK button to confirm your choice. The set is now switched to the Side input source for the viewing of your video game system.

The side panel is also convenient for connecting equipment such as camcorders or cameras. If the equipment has an S-Video output jack, it is the suggested one to use for your connection to receive the best picture. Otherwise, you can make a regular Video connection. You must also make an audio connection (L and R for stereo or L for mono) to receive sound. Neither an S-Video or Video cable carries a sound signal.

Camcorder

--AV6:Other

Source

SIDE:Other

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

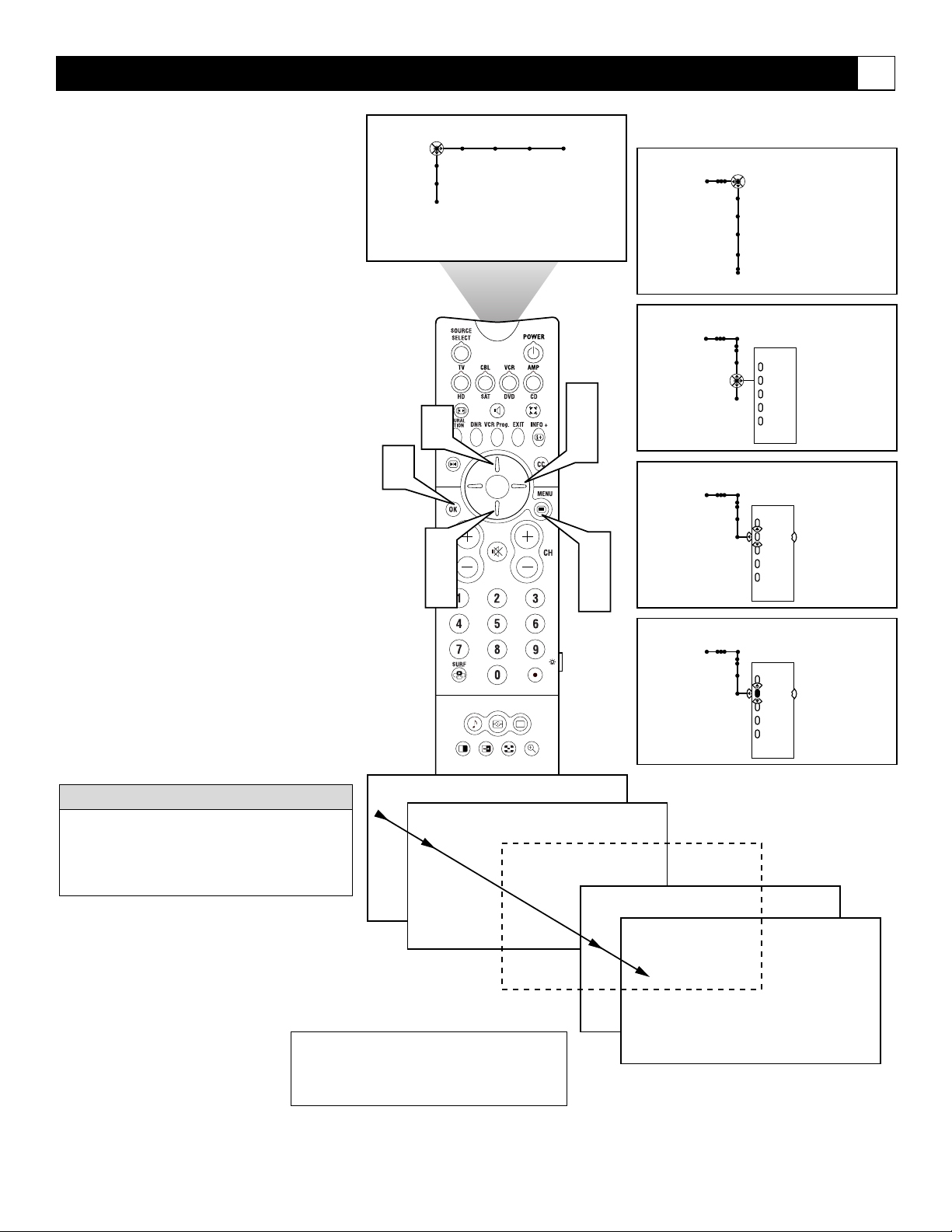

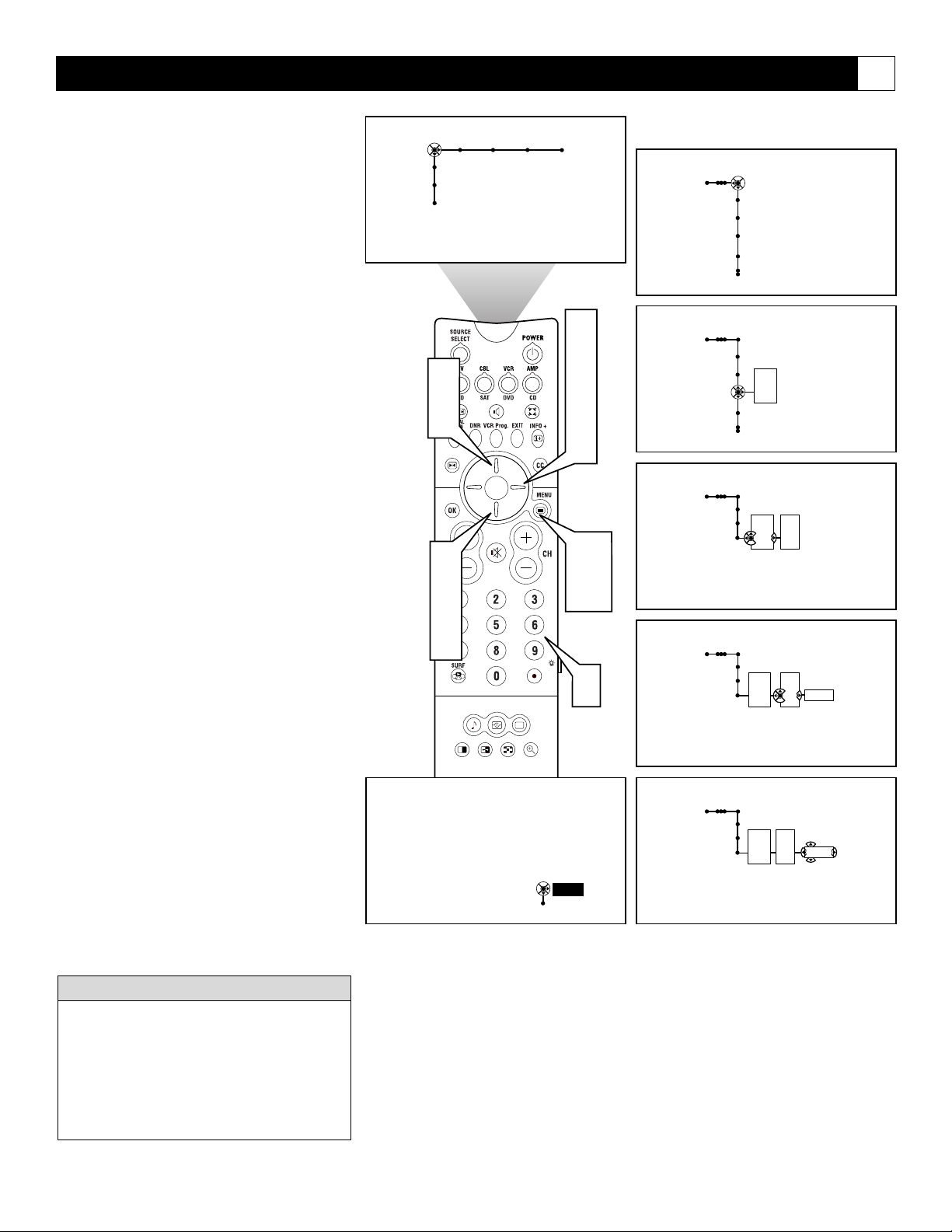

Labeling the Audio/Video Input Sources

You can label all the external Audio/Video input sources—AV1, AV2, AV3, AV4, AV5, AV6, and Side—according to the type of accessory device you have connected to each input.

After labeling, you can use the Source Select button to cycle through and select your desired source. The labels will appear alongside the channel indicator when you select the AV input sources.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button repeatedly to select the “Source” menu.

Press the Cursor Down button repeatedly to select any of the AV Inputs— AV1, AV2, AV3, AV4, AV5, AV6, or Side. A list of labels will appear next to the selected AV input.

Press the Cursor Right button to enter the list.

Press the Cursor Up or Down button to scroll and select one of the labels in the list.

Press the Menu button on the remote control to remove the on-screen menu from the TV screen.

Press the Source Select button on the remote control to display the list of AV inputs and their labels.

This is just a sample of what the labeling might look like. Your Source Labels will depend on the options you choose to label the AV inputs.

Settings

Demo

Install

Picture Sound Features Channels

3 5

Settings

Demo

Install

AV1

AV2

AV3

AV4

AV1 AV2 AV3 AV4

General Clock Source

Source

--Other

4 6

ACITVE

CONTROL

SOUND PICTURE

1 2

TV AV1:DVD AV2:Recorder AV3:SAT AV4:HD AV5:Other AV6:HD

Source

SIDE:Camera

ZOOM

Settings

Source

--Other

AV1

Source

---

AV1

DVD SAT Recorder PVR Other

Source Select

Press to display a list of input source options—TV, AV1, AV2, AV3–AV6, or Side. Use the Cursor Up/Down buttons to select the an item, then press the OK button to confirm. The source becomes active on the TV screen.

Mode ( TV, CBL,VCR,AMP, HD, SAT, DVD, or CD)

Press one of these buttons to use the remote control in the TV, CBL, VCR, or AMP mode as indicated above the button. A green indicator lights up. Press the same button again more than 1 second to use the remote control in the mode indicated below the button (HD, SAT, DVD, or CD). A red indicator lights up. Press the button again more than 1 second to return to the function named above the button. (See pages 22–23 in the Directions for Use.)

Picture Format

Press to display a list of available picture formats. Press this button repeatedly to select another picture format. Choose from Automatic, Super zoom, Panoramic, 4:3, Movie expand 14:9, Movie expand 16:9, 16:9 subtitle, and Wide screen. (See pages 35–36 in the Directions for Use.)

NOTES:

• With AV3–AV6 connections, the Automatic picture format option is not available.

• In Dual-screen mode, press the Picture Format button to switch between a full or 4:3 letterbox picture format.

Natural Motion™

This button is not applicable to the Cineos Television. Select the Digital Natural Motion™ option through the on-screen menu. (See page 30 in the Directions for Use.)

Freeze Format

Pressing will apply one of the Freeze modes.

NOTE: The Freeze mode must be set using the TV’s on-screen menu. Freeze mode stops action in the main screen. Sound will continue to be

heard. Press again to resume normal viewing. Replay mode displays a few seconds of stored video in the PIP window. Photo Finish mode displays six stored frames from the picture. Continuing to hold the Freeze Format button down will cycle the TV through the Freeze modes: Freeze, Replay, and Photo Finish. (See page 61 in the Directions for Use.)

DNR (Dynamic Noise Reduction)

Press this button repeatedly to select Off, Minimum, Medium, or Maximum. (See page 32 in the Directions for Use.)

Press to activate your choice or to confirm settings when in the menus.

Volume (VOL)

Press + or – to adjust the volume.

Mute

Press to interrupt or restore sound.

Surf (AutoSurf™)

If you set the Surf control in the TV’s on-screen menu to two channels, this button will allow you to toggle between the current channel and the last viewed channel. If you choose the nine-channel Surf, pressing this button allows you to add and scroll up to nine of your favorite channels. (See page 58 in the Directions for Use.)

VCR/DVD

When the remote is in the VCR or DVD mode, these buttons will allow you start a recording (

●), rewind a tape (), stop the playback of a

tape (

■), play a videotape (), fastforward a videotape (), use the

VCR timer (

y), or pause the playback of a videotape (❙ ❙)

. (See page 26

in the Directions for Use.)

Sound (AutoSound™)

Press to select the next item in the AutoSound™ menu. The factory-set options are Speech, Music, Movies, and Multimedia, each corresponding with specific settings of treble and bass. You can also select the Personal option, which is based on the adjustments you make through the Sound menu. (See page 46 in the Directions for Use.)

REMOTE CONTROL BUTTONS

MultiPIP

The first press of this button displays PIP3 (the default option). A long press of the button cycles through PIP3 and PIP6. Another press turns PIP off.

PIP Swap

Press to swap the main picture with the PIP window picture, or to swap the left and right screens when in Dual Screen PIP mode. Press again to restore pictures to their original position.

Dual Screen/PIP

Press to turn the PIP dual screen on or off.Press and hold the button to cycle through the Dual Screen/PIP options. (See pages 58–59 in the Directions for Use.)

ACITVE

CONTROL

SOUND PICTURE

ZOOM

Power–Standby

Press to turn the TV on or off. NOTE: The TV is never powered off completely unless it is unplugged.

Alternate Audio

When you tune to a channel where SAP (Second Audio Program) is available, you can toggle between Main and SAP. If not available, only Main can be selected. (See page 42 in the Directions for Use.)

Surround Sound

Press to toggle the sound modes Incredible Surround™ and Dolby* Virtual. (See page 41 in the Directions for Use.)

VCR Prog (functional only in VCR mode)

Many VCRs have an automatic programming function. If your VCR has this function, the universal code set will assign it to this function. (See page 26 in the Directions for Use.)

INFO +

Press to display (when available) information about the current channel, program, source, number or name, local time, CC availability, SAP availability, program ratings, display format, sound mode, and remaining length of a Sleeptimer setting.

EXIT

Press this button to exit the menus provided by universal devices such as VCRs, satellite receivers, DVD players, and so forth.

CC (Closed Captioning)

Press to select On, Off, or On with Mute. (See page 47 in the Directions for Use.)

Cursor Up, Down, Right, and Left

Use to navigate the on-screen menu and make control adjustments or settings. Additionally, use these buttons to pan the screen up or down to show any

excluded parts of the picture. Left or right panning is possible with the Side input source when “Game” is selected as the type of source for the Side input. (See page 18 in the Directions for Use manual.)

Also use with the Dual Screen/PIP feature to select a screen or reposition a PIP screen.

Press to display the TV’s on-screen menu or to turn it off.

CH (Channel Selection)

Press to browse through the TV channels.

Digit (Number Buttons)

Press to directly access a specific TV channel. For a two- or three-digit channel, enter all numbers. Press a single-digit button and hold for 1 second to directly access a single-digit channel. These buttons can also be used to enter values in certain on-screen menu controls.

Backlight

Press this button on the right side of the remote control. The backlighting of the buttons VOL, CH,

H, and the digit buttons stays on for 5 seconds after

pressing the button.

Picture (AutoPicture™)

Press to select the next item in the AutoPicture™ menu. The factory-set options are Rich, Natural, Soft, Multimedia, and Eco, each corresponding with specific factory settings of Contrast, Color, Sharpness, DNR, Dynamic Contrast, and Color enhancements. You can also select the Personal option, which is based on the adjustments or settings you make through the Picture menu. (See page 34 in the Directions for Use.)

Zoom

NOTE: Zooming is disabled in Dual Screen mode. Press the Zoom button to activate the zoom function. Press the OK button repeatedly to select one of the zoom magnifications (1x, 4x, 9x, or 16x). Additionally, you can shift the selected zoom window over the screen with the Cursor Up, Down, Left, or Right buttons. The zoom window is reset after selecting another TV channel, another picture format, or when another display format is selected automatically. Press the Zoom button again to turn off the zoom function. (See page 28 in the Directions for Use.)

Active Control™ Plus

NOTE: Active Control™ Plus is not available for use with the AV3, AV4, AV5, and AV6 input sources. Press to toggle the options Off, Minimum, Medium, and Maximum. Maximum is the recommended option. (See page 27 in the Directions for Use.)

Active Control, AutoPicture, AutoSound, AutoSurf, Incredible Surround, and Natural Motion are trademarks of Philips Consumer Electronics. Copyright 2003 Philips Consumer Electronics. All rights reserved.

REMOTE CONTROL BUTTONS

ACITVE

CONTROL

SOUND PICTURE

ZOOM

PROGRAMMING THE TV REMOTE TO OPERATE ACCESSORY DEVICES

The remote control supplied with your television may also work with a variety of infrared-controlled accessory devices such as cable boxes, VCRs, amplifiers, HD satellite receivers, satellite receivers, DVD players, and CD players.

Press the CBL, VCR, AMP, HD, SAT, DVD, or CD Mode button, depending on the type of accessory device you want to operate. If the function buttons—Play, CH + or –, Stop, for example—on the remote control work the device, the remote is ready to use and no further steps are required. If the remote does not work with the accessory device, proceed to step 2.

Using the Code Entry Method

Please look up the code(s) for your brand of accessory device (listed on pages 24–25) before you begin the next few steps.

Press the desired Mode button that corresponds to the type of device you wish to operate—CBL, VCR, AMP, HD, SAT, DVD, or CD. A green light will indicate the mode labeled on the top of the button, while a red light will indicate the mode labeled on the bottom of the button. If needed, hold the button down and the light will toggle between the green and red settings.

Press and hold the 1 and 3 Digit (Number) buttons at the same time until the Backlight and selected Mode buttons light up. Then release both buttons.

Within 30 seconds of completing step 3 and using the Digit (Number) buttons, enter the four-digit code from pages 24–25 for your brand of device. Several codes may be listed for your brand, so you may need to try them all before the remote will operate the device.

If a valid code number has been entered, the Backlight and Mode buttons will turn off and then blink twice. The remote control will assign that code number to the mode selected.

Try the function buttons to see if the remote will operate your accessory device.

If yes, no other steps are required.

If no, try the procedure again with another code number listed by your brand. Several attempts may be needed to complete all code numbers.

If none of the codes work, please refer to page 23 to try the Auto Search Method.

CBL

VCR

DVD

SAT

AMP

STANDBY-ON

HIGH DEFINITION

POWER

SELECT

DVD619 DVD/CD PLAYER

GUIDE

POWER

INFO

OPEN/CLOSE

PLAY PAUSE

STOP

PREV NEXT

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

The Auto Search Method of programming the remote control can take several minutes to complete. So before starting, it is recommended that you sit in a comfortable position at least six feet from the accessory device. You will have to hold the remote so that it is pointed at the front of the device for the entire time the search is taking place.

Turn the accessory device on using the device’s power button.

Press and hold the 1 and 3 Digit (Number) buttons at the same time until the Backlight and selected Mode buttons light up. Then release both buttons.

Press and release the red POWER button on the remote control. The Backlight buttons and the selected Mode button will turn off.

The remote will start the Auto Search of all available codes, sending a command to channel up. The backlight will blink after each code is tried. For devices such as DVD or CD players, insert a disc and press PLAY on the device. The remote control will send a command to switch to the next track. Switch AV receivers to the tuner function.

IMPORTANT: Watch the channel indicator of your accessory device closely. Once the right code is found, the channels on your device will start to scan up.

Press and release the red POWER button on the remote control as soon as the channels start to change. The Backlight buttons and selected Mode button will blink twice to indicate the Auto Search code setup is complete.

NOTE: If any other buttons are pressed during the procedure, the Auto Search will end.

Remember, Auto Search can take several minutes to complete, so please be patient.

PROGRAMMING THE TV REMOTE TO OPERATE ACCESSORY DEVICES

HIGH DEFINITION

POWER

GUIDE

SELECT

POWER

INFO

ACITVE

CONTROL

SOUND PICTURE

1 2

4 5

ZOOM

ETUP CODES FOR

ACCESSORY DEVICES

Amplifier

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . . .0433

Carver . . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Curtis Mathes . . . . . . . . . . . . . . . . . . . . .0327

Denon . . . . . . . . . . . . . . . . . . . . . . . . . . .0187

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0105

Harman/Kardon . . . . . . . . . . . . . . . . . . . .0919

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0358

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Magnavox . . . . . . . . . . . . . . . . . . . . . . . .0296

Marantz . . . . . . . . . . . . . . . . . . . . .0296, 0348

Nakamichi . . . . . . . . . . . . . . . . . . . . . . . .0348

Optimus . . . . . . . . . . . . . . . . . . . . . . . . . .0422

Panasonic . . . . . . . . . . . . . . . . . . . . . . . .0335

Philips . . . . . . . . . . . . . . . . . . . . . .0296, 0919

Pioneer . . . . . . . . . . . . . . . . . . . . .0040, 0327

Realistic . . . . . . . . . . . . . . . . . . . . . . . . .0422

Sansui . . . . . . . . . . . . . . . . . . . . . . . . . . .0348

Sony . . . . . . . . . . . . . . . . . . . . . . .0716, 0247

Soundesign . . . . . . . . . . . . . . . . . . . . . . .0105

Technics . . . . . . . . . . . . . . . . . . . . . . . . .0335

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . . .0358

Wards . . . . . . . . . . . . . . . . . . . . . .0040, 0105

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . . .0381

Cable Box

ABC . . . . . . . . .0030, 0028, 0034, 0035, 0038,

. . . . . . . . . . . . . . . . . . . . . .0040, 0041, 0044

Allegro . . . . . . . . . . . . . . . . . . . . . .0180, 0342

Americast . . . . . . . . . . . . . . . . . . . . . . . .0926

Antronix . . . . . . . . . . . . . . . . . . . . . . . . . .0049

Archer . . . . . . . . . . . . . . . . .0049, 0180, 0824

Belcor . . . . . . . . . . . . . . . . . . . . . . . . . . .0083

Bell & Howell . . . . . . . . . . . . . . . . . . . . . .0041

Cable Star . . . . . . . . . . . . . . . . . . . . . . . .0083

Cabletenna . . . . . . . . . . . . . . . . . . . . . . .0049

Cableview . . . . . . . . . . . . . . . . . . . . . . . .0049

Century . . . . . . . . . . . . . . . . . . . . . . . . . .0180

Citizen . . . . . . . . . . . . . . . . . . . . . .0180, 0342

Colour Voice . . . . . . . . . . . . . . . . . . . . . .0052

Comtronics . . . . . . . . . . . . . . . . . . . . . . .0067

Contec . . . . . . . . . . . . . . . . . . . . . . . . . .0046

Eastern . . . . . . . . . . . . . . . . . . . . . . . . . .0029

Emerson . . . . . . . . . . . . . . . . . . . . . . . . .0824

Everquest . . . . . . . . . . . . . . . . . . .0042, 0067

Focus . . . . . . . . . . . . . . . . . . . . . . . . . . .0427

GC Electronics . . . . . . . . . . . . . . . . . . . .0083

Garrard . . . . . . . . . . . . . . . . . . . . . . . . . .0180

Gemini . . . . . . . . . . . . . . . . . . . . . . . . . .0042

General Instrument . . .0303, 0503, 0038, 0837

GoldStar . . . . . . . . . . . . . . . . . . . .0067, 0171

Goodmind . . . . . . . . . . . . . . . . . . . . . . . .0824

Hamlin . . . . . . . . . . . .0047, 0036, 0286, 0061

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . . .0038

Hytex . . . . . . . . . . . . . . . . . . . . . . . . . . . .0034

Jasco . . . . . . . . . . . . . . . . . .0042, 0180, 0342

Jerrold . . . . . . . . . . . .0030, 0039, 0303, 0041,

. . . . . . . . . . . . . . . . .0038, 0503, 0042, 0837

Memorex . . . . . . . . . . . . . . . . . . . . . . . . .0027

Movie Time . . . . . . . . . . . . . . . . . . . . . . .0090

NSC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0090

Oak . . . . . . . . . . . . . . . . . . . . . . . .0046, 0034

Optimus . . . . . . . . . . . . . . . . . . . . . . . . . .0048

Panasonic . . . . . . . . . . . . . .0048, 0134, 0027

Paragon . . . . . . . . . . . . . . . . . . . . . . . . .0027

Philips . . . . . . . . . . . . . . . . . . . . . .0052, 0180

Pioneer . . . . . . . . . . . . . . . .0171, 0560, 0904

Popular Mechanics . . . . . . . . . . . . . . . . .0427

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . .0027

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . .0048

Radio Shack . . . . . . . .0042, 0342, 0910, 0824

Recoton . . . . . . . . . . . . . . . . . . . . . . . . . .0427

Regal . . . . . . . . . . . . . . . . . . . . . . .0047, 0286

Regency . . . . . . . . . . . . . . . . . . . . . . . . .0029

Rembrandt . . . . . . . . . . . . . . . . . . . . . . .0038

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

SL Marx . . . . . . . . . . . . . . . . . . . . . . . . . .0067

Samsung . . . . . . . . . . . . . . . . . . . .0067, 0171

Scientific Atlanta . . . . .0035, 0044, 0504, 0904

Signal . . . . . . . . . . . . . . . . . . . . . .0042, 0067

Signature . . . . . . . . . . . . . . . . . . . . . . . . .0038

Sprucer . . . . . . . . . . . . . . . . . . . . . . . . . .0048

Starcom . . . . . . . . . . . . . . . . . . . . .0030, 0042

Stargate . . . . . . . . . . . . . . . .0067, 0042, 0824

Starquest . . . . . . . . . . . . . . . . . . . . . . . . .0042

Sylvania . . . . . . . . . . . . . . . . . . . . . . . . .0028

TV86 . . . . . . . . . . . . . . . . . . . . . . . . . . . .0090

Tandy . . . . . . . . . . . . . . . . . . . . . . . . . . .0285

Teleview . . . . . . . . . . . . . . . . . . . . . . . . .0067

Texscan . . . . . . . . . . . . . . . . . . . . . . . . . .0028

Tocom . . . . . . . . . . . . . . . . . . . . . .0039, 0040

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Tusa . . . . . . . . . . . . . . . . . . . . . . . . . . . .0042

Unika . . . . . . . . . . . . . . . . . . . . . . .0180, 0049

United Artists . . . . . . . . . . . . . . . . . . . . . .0034

Universal . . . . . . . . . .0049, 0083, 0180, 0218

Viewstar . . . . . . . . . . . . . . . . . . . . .0285, 0090

Zenith . . . . . . . . . . . . . . . . . .0027, 0552, 0926

Zentek . . . . . . . . . . . . . . . . . . . . . . . . . . .0427

CD Player

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

Burmester . . . . . . . . . . . . . . . . . . . . . . . .0447

California Audio Labs . . . . . . . . . . . . . . . .0056

Carver . . . . . . . . . . . . . . . . .0184, 0206, 0464

DKK . . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Denon . . . . . . . . . . . . . . . . . . . . . .0030, 0900

Emerson . . . . . . . . . . . . . . . . . . . . . . . . .0332

Fisher . . . . . . . . . . . . . . . . . . . . . .0201, 0206

Garrard . . . . . . . . . . . . . . . . . . . . .0420, 0447

Genexxa . . . . . . . . . . . . . . . . . . . .0059, 0332

Harman/Kardon . . . . . . . . . . . . . . .0200, 0184

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . . .0059

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Kenwood . . . . . . . . . .0055, 0217, 0853, 0064,

. . . . . . . . . . . . . . . . . . . . . . . . . . .0653, 0708

Krell . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0332

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

MCS . . . . . . . . . . . . . . . . . . . . . . . . . . . .0056

MTC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0447

Magnavox . . . . . . . . . . . . . . . . . . .0184, 0332

Marantz . . . . . . . . . . . . . . . .0184, 0056, 0207

Mission . . . . . . . . . . . . . . . . . . . . . . . . . .0184

NSM . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

Nikko . . . . . . . . . . . . . . . . . . . . . . . . . . . .0201

Onkyo . . . . . . . . . . . . . . . . . . . . . .0128, 0895

Optimus . . . . . . . . . . .0447, 0059, 0206, 0495,

. . . . . . . . . . . . .0464, 0332, 0027, 0064, 0172

Panasonic . . . . . . . . . . . . . . . . . . .0056, 0330

Parasound . . . . . . . . . . . . . . . . . . . . . . . .0447

Philips . . . . . . . . . . . . . . . . . . . . . .0184, 0653

Pioneer . . . . . . . . . . . .0059, 0495, 0271, 0332

Proton . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

QED . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . .0056

RCA . . . . . . . . . . . . . .0080, 0332, 0206, 0791

Realistic . . . . . . . . . . . . . . . .0206, 0207, 0447

Rotel . . . . . . . . . . . . . . . . . . . . . . .0184, 0447

SAE . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

Sansui . . . . . . . . . . . . . . . . . . . . . .0184, 0332

Sanyo . . . . . . . . . . . . . . . . . . . . . . . . . . .0206

Scott . . . . . . . . . . . . . . . . . . . . . . . . . . . .0332

Sears . . . . . . . . . . . . . . . . . . . . . . . . . . .0332

Sharp . . . . . . . . . . . . . . . . . .0064, 0207, 0888

Sherwood . . . . . . . . . . . . . . . . . . . . . . . .0207

Sony . . . . . . . . . . . . . . . . . .0027, 0212, 0517

Soundesign . . . . . . . . . . . . . . . . . . . . . . .0172

Tascam . . . . . . . . . . . . . . . . . . . . . . . . . .0447

Teac . . . . . . . . . . . . . .0420, 0447, 0201, 0207

Technics . . . . . . . . . . . . . . . . . . . .0330, 0056

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Wards . . . . . . . . . . . . . . . . . . . . . .0080, 0184

Yamaha . . . . . . . . . . . . . . . . . . . . .0214, 0063

Yorx . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0488

Surround Sound Receiver

ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0558

Adcom . . . . . . . . . . . . . . . . . . . . . . . . . . .0643

Aiwa . . . . . . . . . . . . . .0148, 0432, 0185, 0216

Akai . . . . . . . . . . . . . . . . . . . . . . . .0251, 0103

Capetronic . . . . . . . . . . . . . . . . . . . . . . . .0558

Carver . . . . . . . . . . . .0035, 0216, 0387, 0069

Casio . . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Clarinette . . . . . . . . . . . . . . . . . . . . . . . . .0222

Curtis Mathes . . . . . . . . . . . . . . . . . . . . .0107

Denon . . . . . . . . . . . . . . . . .0031, 0798, 0300

Emerson . . . . . . . . . . . . . . . . . . . . . . . . .0451

Fisher . . . . . . . . . . . . . . . . . .0069, 0246, 0387

Garrard . . . . . . . . . . . . . . . . . . . . .0451, 0490

Harman/Kardon . . . . . . . . . .0137, 0216, 0918

Inkel . . . . . . . . . . . . . . . . . . . . . . . . . . . .0089

JBL . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0137

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0101

Kenwood . . . . . . . . . .0054, 0341, 0104, 0069,

. . . . . . . . . . . . . . . . . . . . . . . . . . .0213, 0340

Koss . . . . . . . . . . . . . . . . . . . . . . . . . . . .0451

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0208

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0216

Lloyd's . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

MCS . . . . . . . . . . . . . . . . . . . . . . .0066, 0373

Magnavox . . . . .0216, 0418, 0558, 0155, 0222

Marantz . . . . . . . . . . . . . . . .0216, 0155, 0066

Modulaire . . . . . . . . . . . . . . . . . . . . . . . .0222

NAD . . . . . . . . . . . . . . . . . . . . . . . . . . . .0347

NEC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0262

Nakamichi . . . . . . . . . . . . . . . . . . .0374, 0124

Onkyo . . . . . . . . . . . . . . . . .0162, 0407, 0127

Optimus . . . . . . . . . . .0208, 0204, 0213, 0246,

. . . . . . . . . . . . .0558, 0765, 0828, 0069, 0697

Panasonic . . . . . . . . . . . . . .0066, 0336, 0545

Penney . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Philips . . . . . . . . . . . . . . . . . . . . . .0216, 0418

Pioneer . . . . . . .0107, 0041, 0177, 0558, 0657

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . .0066

RCA . . . . . . . . .0081, 0373, 0558, 0387, 0557

Realistic . . . . . . . . . . . . . . .0208, 0222, 0190

Sansui . . . . . . . . . . . . . . . . .0216, 0220, 0373

Sanyo . . . . . . . . . . . . . . . . . . . . . .0246, 0828

Scott . . . . . . . . . . . . . . . . . . . . . . .0190, 0349

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . .0213

Sherwood . . . . . . . . . . . . . . .0529, 0518, 0089

Sony . . . . . . . . . . . . . . . . . .0185, 0195, 0501

Soundesign . . . . . . . . . . . . . . . . . . . . . . .0697

Teac . . . . . . . . . . . . . . . . . . . . . . .0490, 0190

Technics . . . . . . . . . . .0336, 0066, 0235, 0545

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . . .0101

Wards . . . . . . . .0081, 0041, 0107, 0185, 0216

Yamaha . . . . . . . . . . . . . . . . . . . . .0203, 0213

Yorx . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Zenith . . . . . . . . . . . . . . . . . . . . . . . . . . .0884
