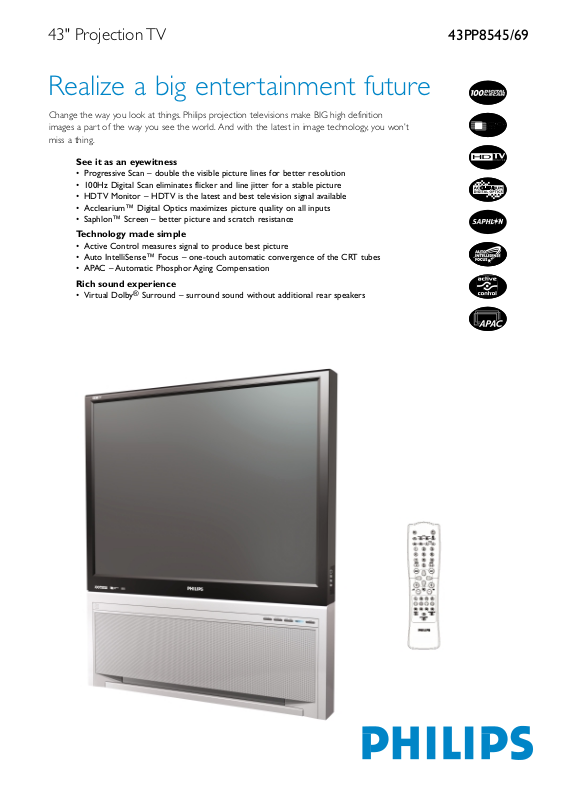

43" Projection TV
See it as an eyewitness
• Progressive Scan – double the visible picture lines for better resolution
• 100Hz Digital Scan eliminates flicker and line jitter for a stable picture
• HDTV Monitor – HDTV is the latest and best television signal available
• Acclearium™ Digital Optics maximizes picture quality on all inputs
• Saphlon™ Screen – better picture and scratch resistance
Technology made simple
• Active Control measures signal to produce best picture
• Auto IntelliSense™ Focus – one-touch automatic convergence of the CRT tubes
• APAC – Automatic Phosphor Aging Compensation
Rich sound experience
• Virtual Dolby®Surround – surround sound without additional rear speakers
Realize a big entertainment future
Change the way you look at things. Philips projection televisions make BIG high definition
images a part of the way you see the world. And with the latest in image technology, you won’t
miss a thing.
43PP8545/69
Picture/Display
• Aspect Ratio: 4:3
• Display Technolog y: Projection TV, CRT, 7"
liquid cooled
• Picture Enhancement: Acclearium Digital
Optics,Active Control,APAC,Auto
Intellisense, Black Stretch, Blue Stretch,
Digital Comb Filter, Color Temperature,
Digital Crystal Clear,Digital Noise Reduction,
Dynamic Contrast, Progressive Scan, 100Hz
Digital Scan
• Screen Enhancements: Saphlon Screen,AntiAging Circuit,Anti-Reflection, High Brightness,
High Contrast
• Size: 43"
Supported Display Resolution
• Computer Formats: 640 x 480, 60Hz
• Video Formats: 480i 60Hz, 480p 60Hz, 576i
50Hz, 576p 50Hz, 1080i 60Hz
Sound
• Bass Enhancement: Bass Boost
• Output Power (RMS): 30 watt RMS
(50Hz-10kHz at 5% THD)
• Sound Enhancement: Automatic
Volume Leveler
• Speaker Size: 4"x6"
• Speaker Number: 2
• Speaker Type: full range oval
Tuner/Reception
• Aerial Input: 75 Ohm IEC-Type
• Auto Store:Yes
• Standards: NTSC M (3.58-4.5), NTSC (4.43-
5.5), PAL B/G, PAL D/K, PAL I, SECAM B/G,
SECAM D/K, SECAM K1
Connectivity
• AV1: 480i 60Hz, 576i 50Hz, CVBS in,YPbPr,
Audio L/R in
• AV2: 480i 60Hz, 576i 50Hz, CVBS in, S-Video
Y/C,Audio L/R in
• AV3: Side, 480i 60Hz, 576i 50Hz, CVBS in,
S-Video Y/C, Audio L/R in, Headphone out
• AV4: 1080i 60Hz, 480p 60Hz, 576p 50Hz,
YPbPr, RGB+H/V
• AV5: 1080i 60Hz, 480p 60Hz, 576p 50Hz,
DB15, RGB+H/V
• Output Rear: Subwoofer out, CVBS out,
Audio L/R out
Convenience
• Child Protection: Child Lock, Parental Control
• Clock Functions: Clock, Sleep Timer
• Convenience Enhancements: Auto Program,
Auto Picture Modes,Auto Sound Modes
• Menu Languages: Chinese-Simplified,
English, Malay
• Picture Functions: Freeze
• Teletext: 100 page Easytext
• Remote Control: RCS82D, Batteries
Dimensions
• Product Dimensions (WxHxD): 96 cm x
115 cm x 53 cm
• Product Weight: 57 kg
• Carton Dimensions: 106 cm x 125 cm x
62 cm
• Weight incl. Packaging:65 kg
Power
• Complies with Energy Star, less than
1 watt standby
• Mains Power: 90-276V, 50/60Hz
• Power Consumption: 180 watts average
Technical specifications
43PP8545/69
Product highlights
100Hz Digital Scan
Conventional TV creates a picture by scanning 50 times
per second (50Hz).This frequency can be detected by
the human eye in the form of a field flickering picture.
100Hz sets scan 100 times per second, eliminating
the field flickering.
Progressive Scan
A picture frame consists of two fields: the field with the
odd lines (field A) and the field with the even lines
(field B). Instead of sending field A to the screen first,
followed by field B, the fields A and B are written at
one time. In one second,a full image is created using
the maximum resolution. At this speed, the human eye
perceives a sharper picture with no line structure.
HDTV Monitor
HDTV Display Capability (1080i). HDTV
monitors enable you to view high-definition or
enhanced-definition TV programming in the 1080i or
480p signal format. In order to do so,the TV must be
connected via its component video or RGB inputs to a
set-top box, which is set to operate in the DTV mode.
A DTV signal must be present in your area and the
set-top box must be tuned to the proper channel. An
external over-the-air antenna may be required. Another
option is HDTV broadcast satellite service. Stunning
realism in both picture and sound are delivered!
Acclearium™ Digital Optics
Philips micro phosphor CRTs feature improved optics
for sharper, more detailed images and enhanced green
phosphor, which creates deeper,more natural colors.
Hybrid projection lenses work in concert with each
CRT to improve focus and correct optical errors,
removing distortion and creating a crisp picture to the
edge of the screen.The lenticular screen has nearly
one-third finer pitch (.515mm) than traditional screens
improving picture detail and resolution.The Philips
Wideband Video Amplifier reproduces the highest
visible bandwidth in its class—resulting in
significantly more picture detail in pure HD.
Saphlon™ Screen
Saphlon™ Screen technology is built with
materials and processes that deliver more brightness
and picture contrast. It guards against most scratches
and fingerprints and eliminates the glare associated
with a separate protective screen.
Auto IntelliSense™ Focus
Sensors in the TV scan a predefined test pattern and
readjust the signal on the CRTs to assure that red,
green and blue are well aligned.
Active Control
With over 3,000 picture adjustments per minute,
this 'proactive control system' continuously analyzes
incoming video signal qualities for Dynamic Noise
Reduction and sharpness and then automatically
corrects them to be like the settings you previously
selected in the picture menu.
APAC
APAC is designed to minimize the effects of image
retention from stationary images on the screen.
Because both analog sources (cable TV and DVD) and
digital sources (HD and progressive scan DVD) have
different aspect ratios (4:3, 16:9, 21:9, etc.), the picture
on a digital television may have black bars on the sides
or top and bottom.When black bars are detected in
either the 4:3 or 16:9 viewing mode,APAC automatically
shifts the television picture pixel-by-pixel, just enough to
soften image retention.APAC works in both the analog
and digital modes, so it provides excellent protection.
Date of issue 2004-02-25
Printed in China 2004-02-25
Trademarks are property of Philips Consumer
Electronics. Dolby Virtual is manufactured under
license from Dolby Laboratories.“Dolby” and
the double D symbols are trademarks of
Dolby Laboratories.
Specifications are subject to change without notice.
Trademarks owned by Royal Philips Electronics.
2004 © Royal Philips Electronics - All rights reserved.
www.philips.com
EAN 87 10895 82151 3
