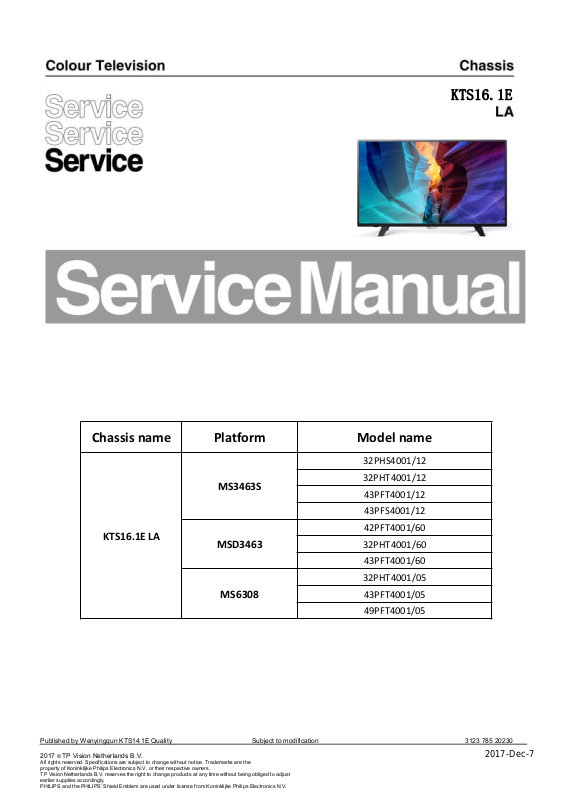

Philips 43PFT4001 Schematic

KTS16.1E

Chassis name Platform Model name

32PHS4001/12

MS3463S

KTS16.1E LA

MSD3463

MS6308

32PHT4001/12

43PFT4001/12

43PFS4001/12

42PFT4001/60

32PHT4001/60

43PFT4001/60

32PHT4001/05

43PFT4001/05

49PFT4001/05

Published by Wenyingqun KTS14.1E Quality Subject to modification 3123 785 20230

2017 © TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks a re the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves th e right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from K oninklijke Philips Electronics N.V.

2017-Dec-7

1.P r o du ct in f o r am ti on …… … . …… … … … … … … … … … … … … … … … … … …… … … …… …… … … …… … 3

2. C o n n e c ti on s ov e r v i e w … … . . … . . … .. …… … … … … . . … … … … … …… … … … … … … … … … … … … … … … 7

C o n n e c t i o n s o v e r v i e w ( 3 2 " 3 2 P H S 4 0 0 1 / 1 2 & 32 P H T 4 0 0 1 / 1 2 ) … … … … … … … … … … … … … 7

C o n n e c t i o n s o v e r v i e w ( 4 3 " 4 3 P F T 4 0 0 1 / 1 2 & 4 3 P F S 4 0 0 1 / 1 2 ) … … … … … … … … … … … … … 8

Conne ction s overv iew (32" 32 PHT4001/60 & 42" 42PFT 4001/60 & 43" 43PFT4001/ 60)…… … …………… … 9

C o n n e c t i o n s o v e r v i e w ( 3 2 " 3 2 P H T 4 0 0 1 / 0 5 ) … … … … … … … … … … … … … … … … … … … … … … 10

C o n n e c t i o n s o v e r v i e w ( 4 3 " 4 3 P F T 4 0 0 1 / 0 5 & 4 9 " 4 9 P F T 4 0 0 1 / 0 5 ) … … … … … … … … … … … … … 11

3.M ec ha n i c a l In s t r u c ti on s … …… …… …… . … … … … … … … … … … … … … … … … … … … … … … … … … … . 12

Ca b l e d r e s s i n g ( 3 2 " 3 2 P H S 4 0 0 1 / 1 2 & 3 2 P H T 4 0 0 1 / 1 2 ) … … … … … … … … … … … … … … … … … … … 12

Cab l e d r es s in g (43 " 43 P FT 4 00 1 /1 2 & 43 P FS 4 0 0 1 / 1 2 ) ……… …… … …… …… … …… … … … …… … … … 13

Ca b l e d r e s s i n g ( 3 2 " 3 2 P H T4 0 0 1 / 6 0 & 42 " 42 P F T4 0 0 1 / 6 0 & 43 " 43 P F T4 0 0 1 /6 0 )… …… … … … … … 14

C a b l e d r e s s i n g ( 3 2 " 3 2 P H T 4 0 0 1 / 0 5 ) … … … … … … … … … … … … … … … … … … … … … … … 15

C a b l e d r e s s i n g ( 4 3 " 4 3 P F T 4 0 0 1 / 0 5 & 4 9 " 4 9 P F T 4 0 0 1 / 0 5 ) … … … … … … … … 16

A s s e m b l y / P a n e l R e m o v a l … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 17

4. F ac t o r y M od es …… …… … . …… … … … … .… … … … … … … . …… … … …… …… …… … … … … … … … . …. 1 9

F a c t o r y M o d e s ( f o r 3 2 P H T 4 0 0 1 / 6 0 & 4 2 P F T 4 0 0 1 / 6 0 & 43 P F T 4 0 0 1 / 6 0 ) … … … … … … … … . … . 1 9

Factory Modes(for 32PHS4001/12 & 32PHT4001/12 & 43PFT4001/12 & 43PFS4001/12)………………………….….20

F a c t o r y Mo d e s ( f o r 3 2 P H T 4 0 0 1 / 0 5 & 4 3 P F T 4 0 0 1 / 0 5 & 49 P F T 4 0 0 1 / 0 5 ) … … … … … … … … … . … . 3 0

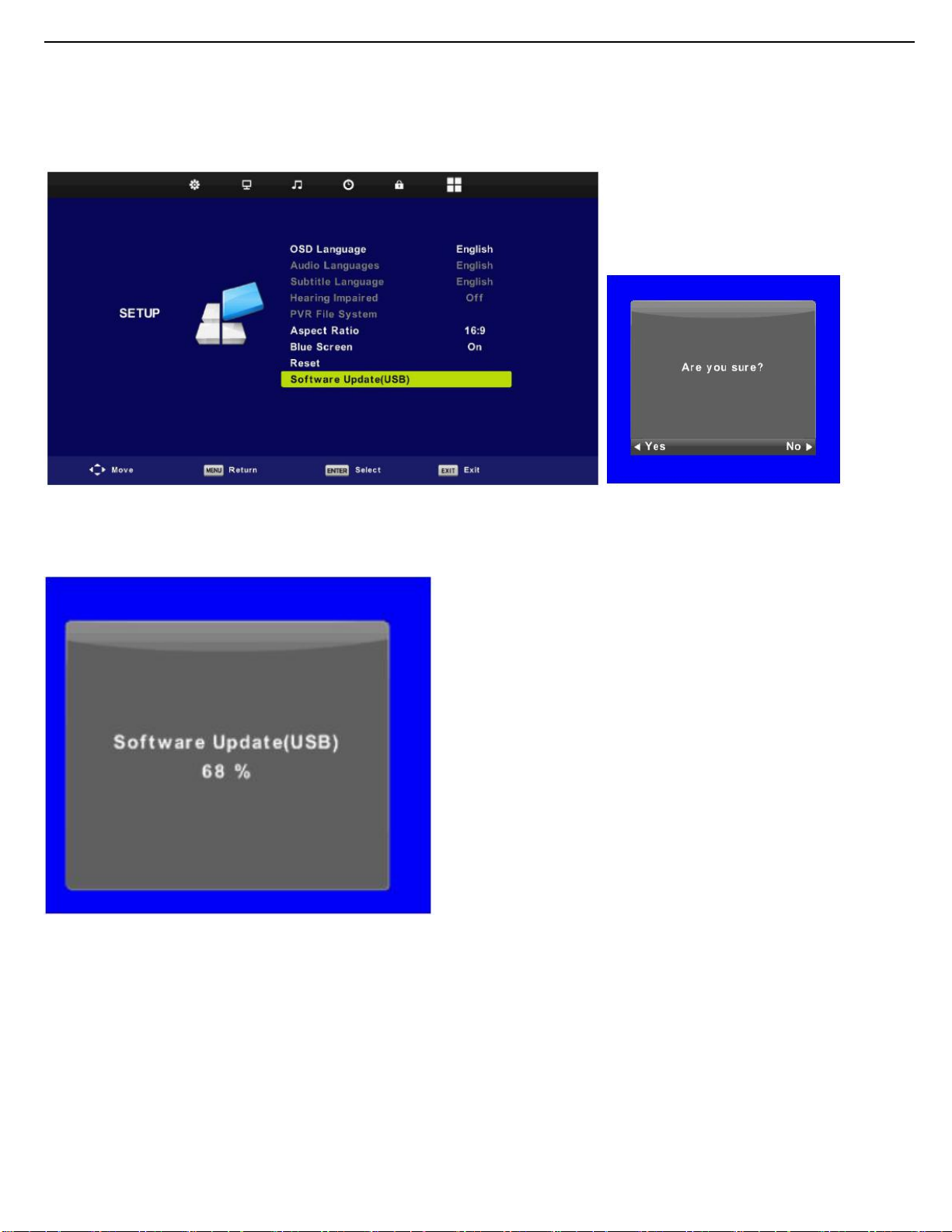

5 . S o f t w a r e u p g r a d i n g a n d P a n e l C o d e … … … . . . … … … … … … … … … … … … … … … … … . . 3 5

So f t w a r e u p gr a d i n g ( f o r 3 2 P H T 4 0 0 1 / 6 0 & 4 2 P F T 4 0 0 1 / 6 0 & 43 P F T 4 0 0 1 / 6 0 ) … … … … … … … … … . . 35

Software upgrading(for 32PHS4001/12 & 32PHT4001/12 & 43PFT4001/12 & 43PFS4001/12)……………………..35

S o f t w a r e u p g r a d i n g ( f o r 3 2 P H T 4 0 0 1 / 0 5 & 4 3 P F T 4 0 0 1 / 0 5 & 4 9 P F T 4 0 0 1 / 0 5 ) … … … … … . . 3 7

P a n e l C o d e … … … . . . … … … … … … . . . … … … … … … . . . … … … … … … … … … … … … … … … … … . . 3 7

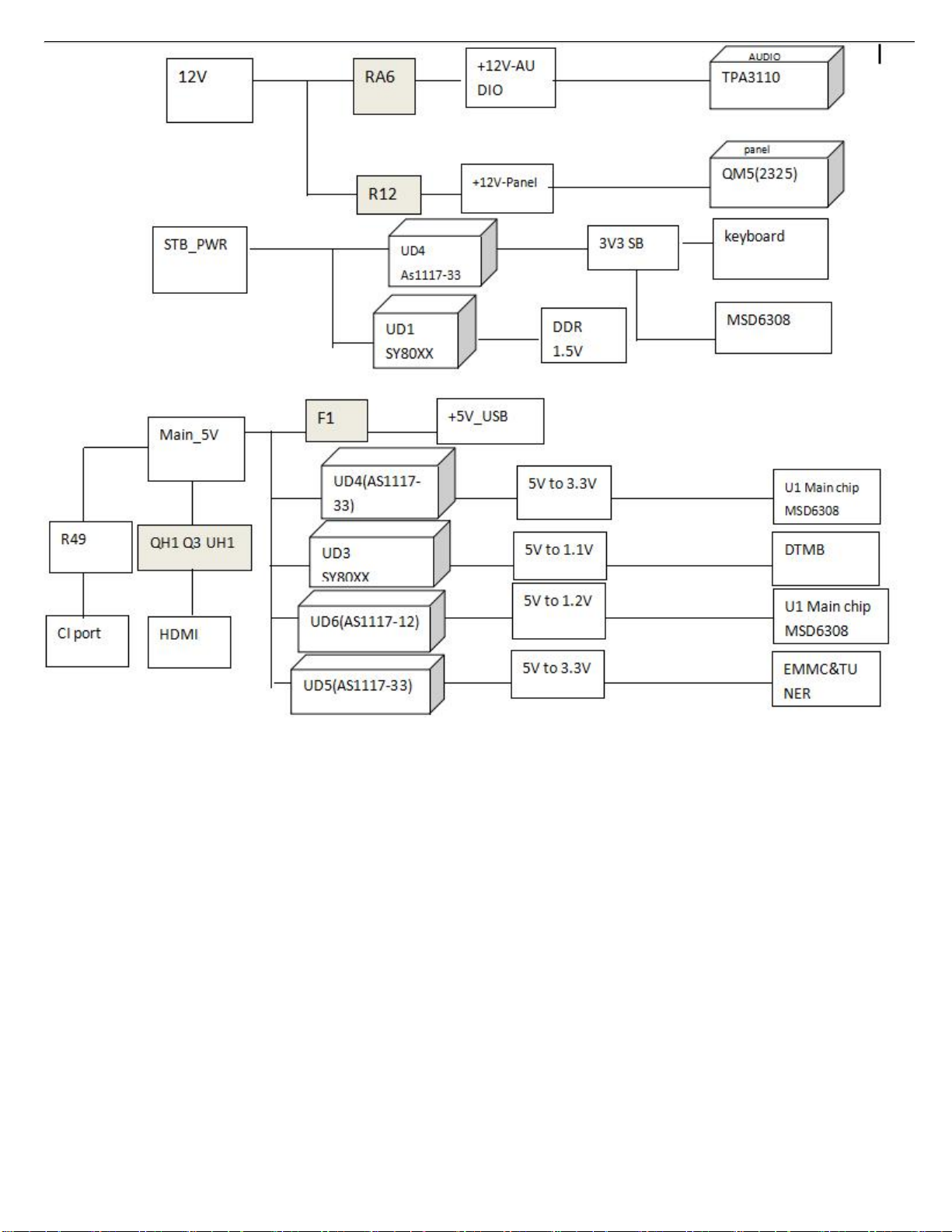

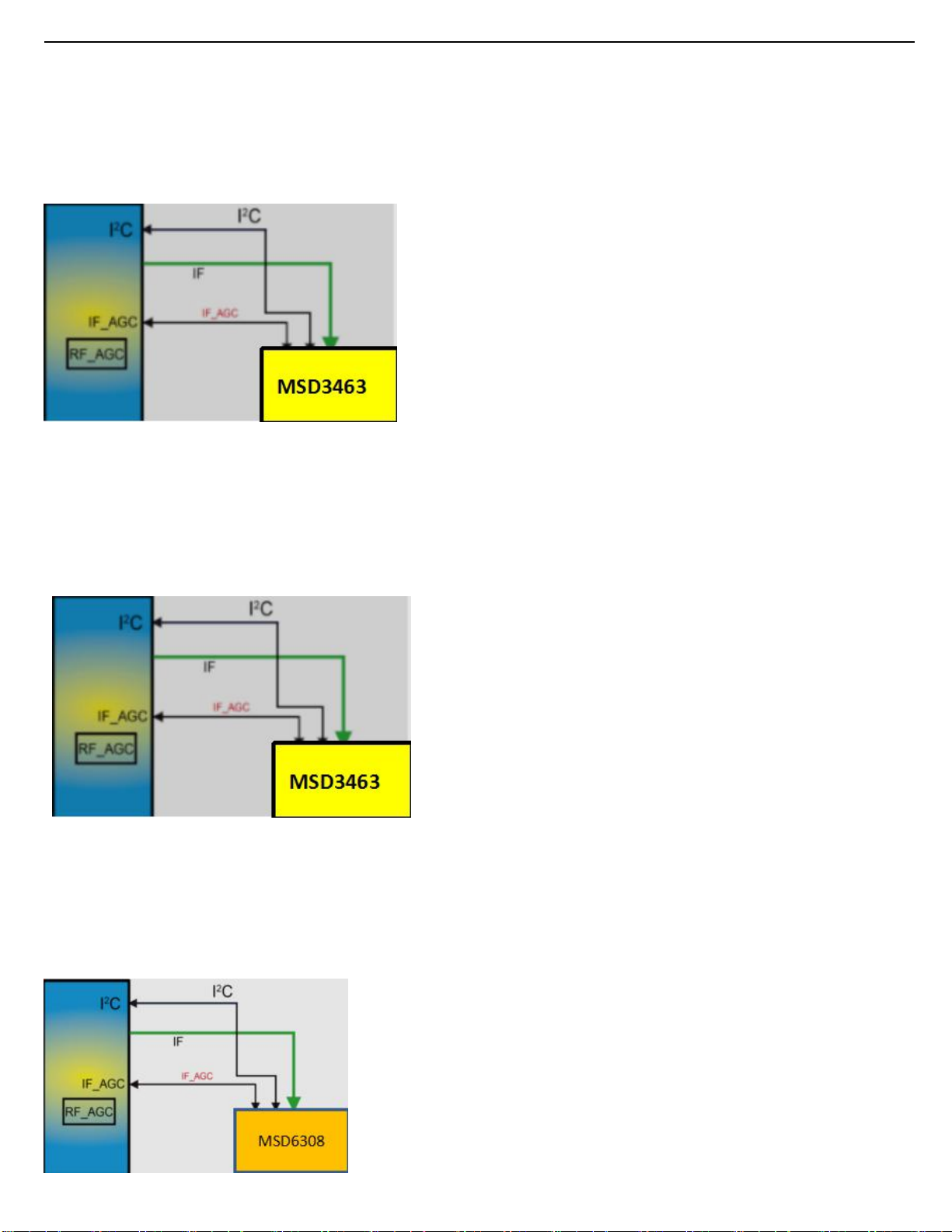

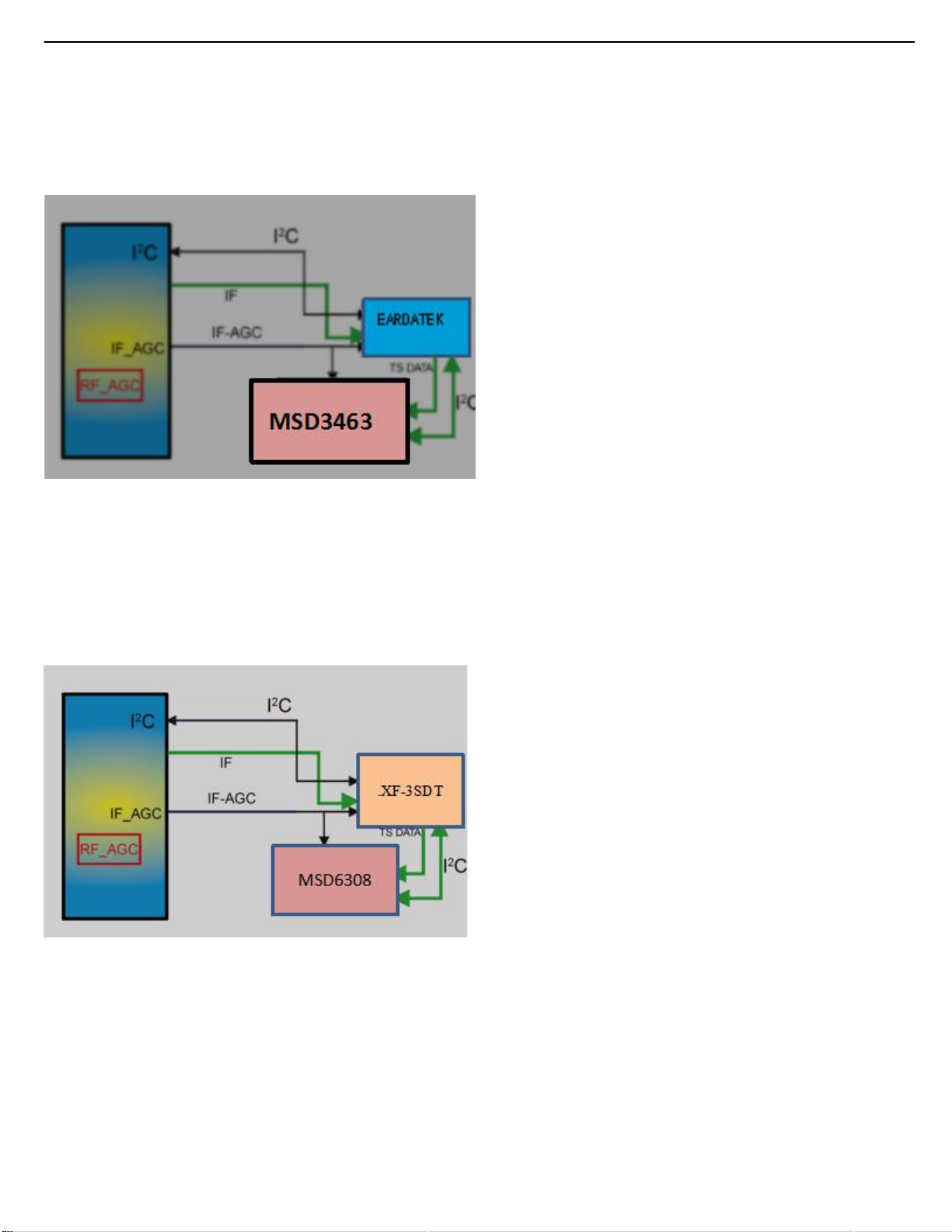

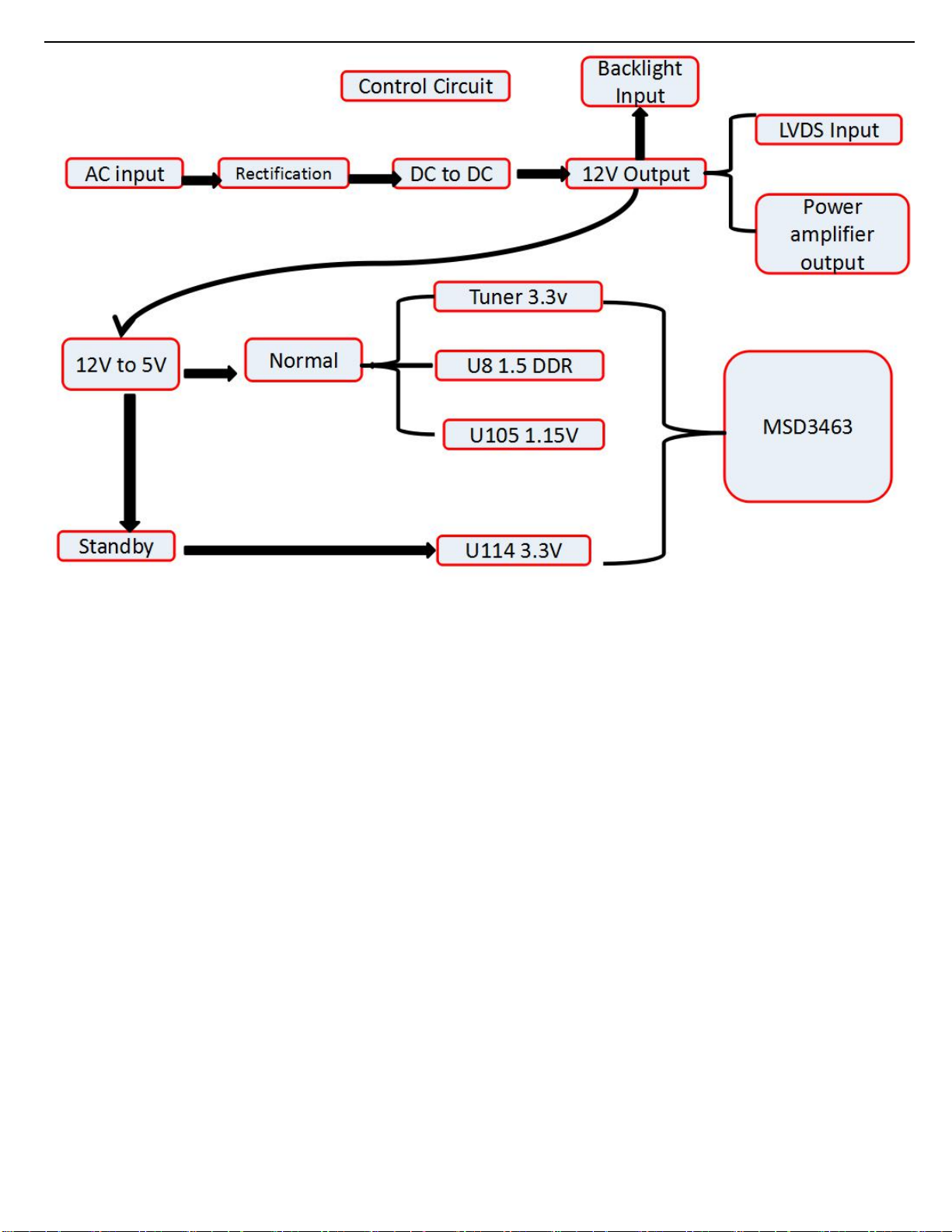

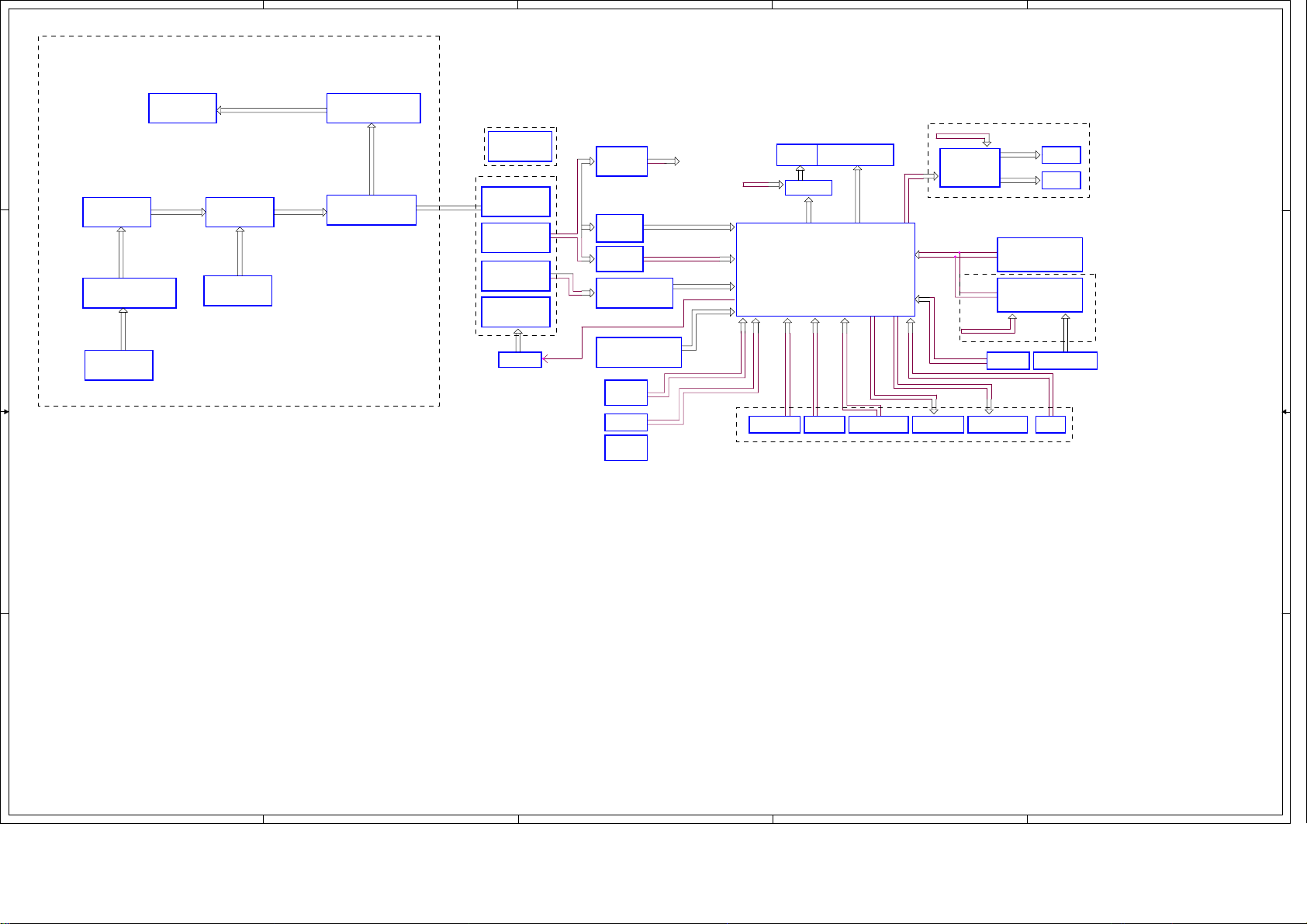

6.C ir c u i t D es cr i p t i o n s … . . … … … … … … … …… . … … … … … … … … … … … … … … … … … … …… … … … … 3 8

7.I C D a t a Sh ee t … … . . . …… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . …. . 5 7

8.C i r cu i t Di a g r am s … … … …… .. . … …… …… … … …… … … … … … … … … … … … … … … … … … …… … … . 6 1

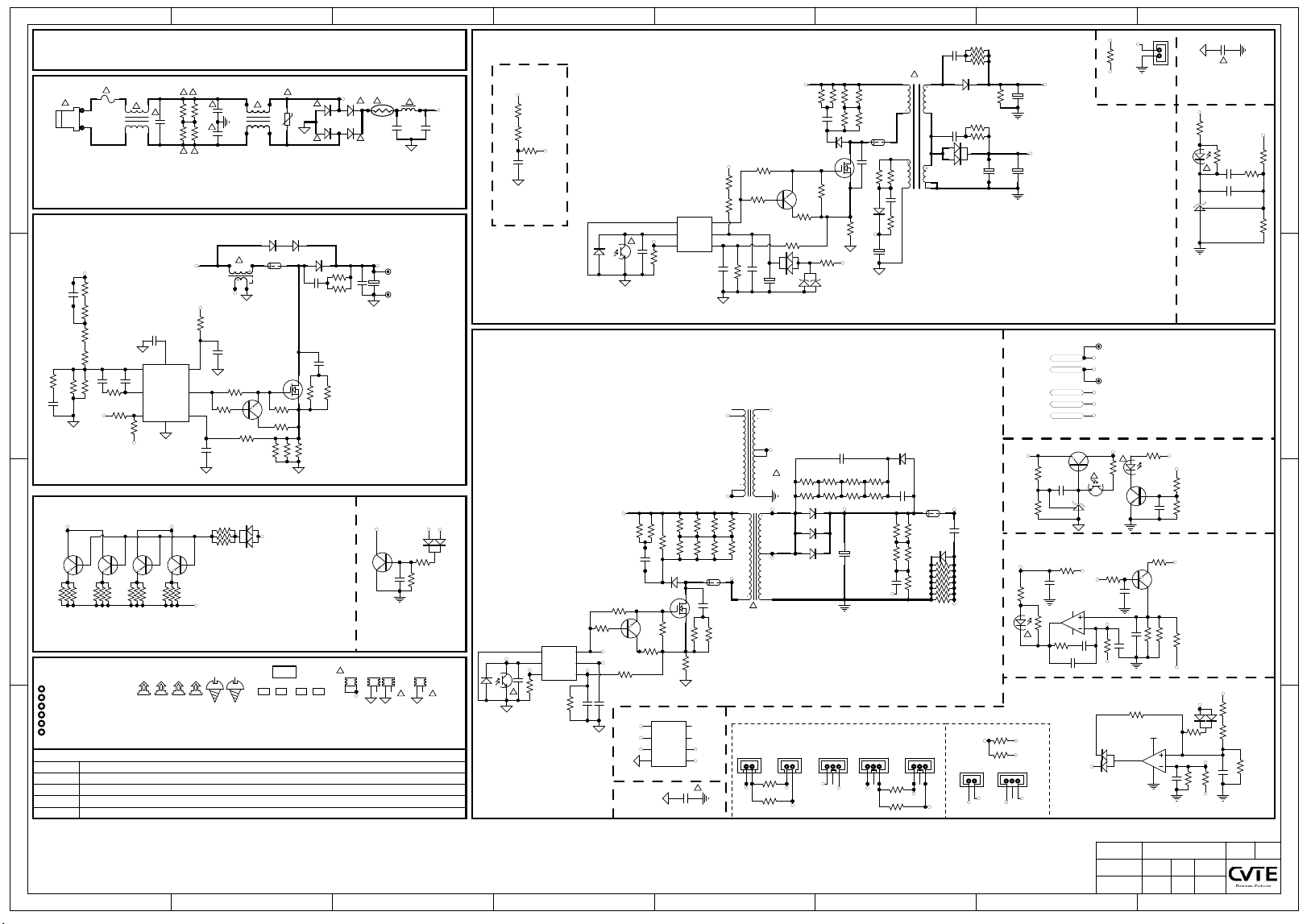

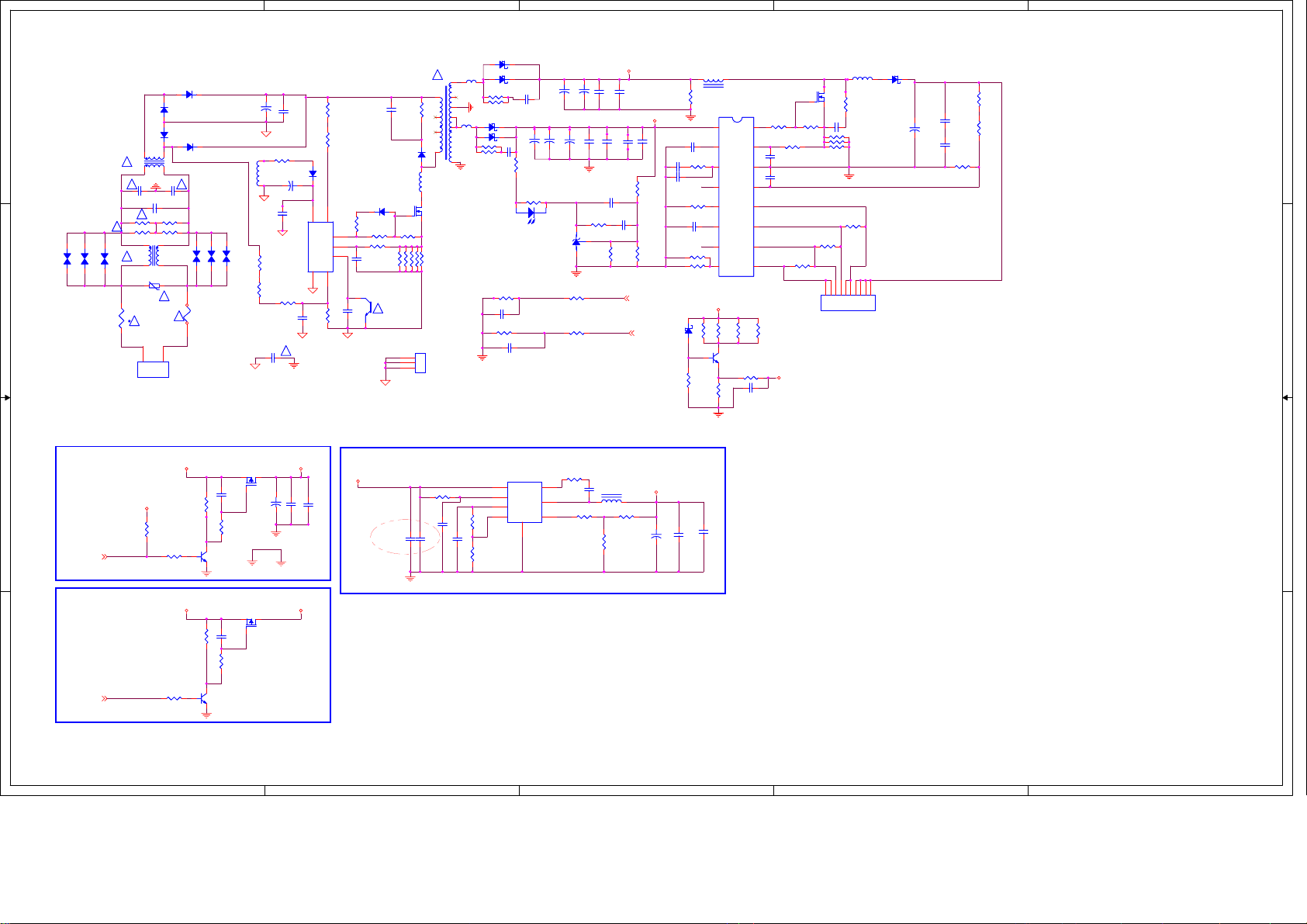

Powerboard Circuit Diagrams……………...……………………………………………………………………………….61

4 3 P F T 4 0 0 1 / 0 5 … … … … … . . . … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . 6 1

4 9 P F T 4 0 0 1 / 0 5 … … … … … . . . … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . 6 2

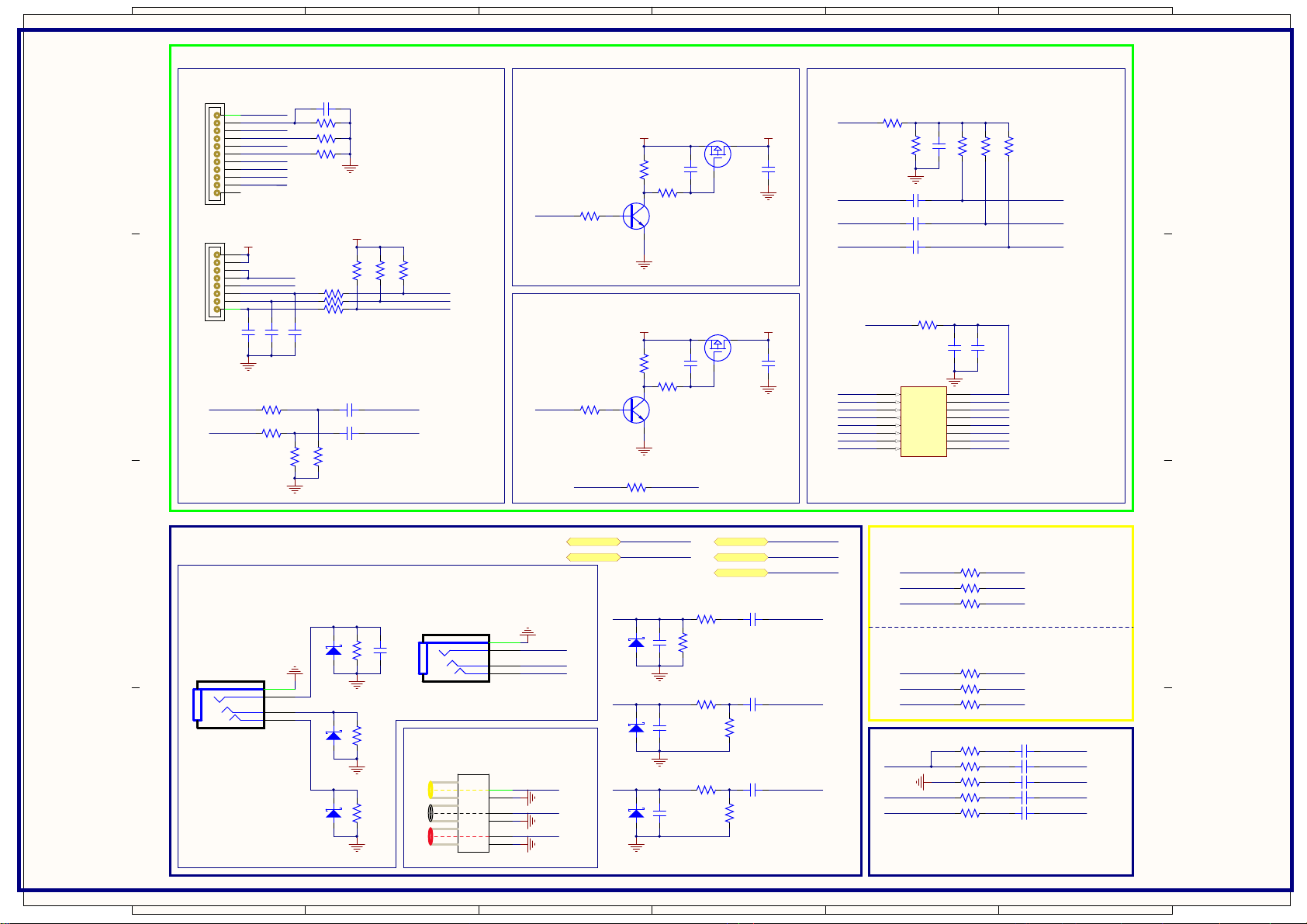

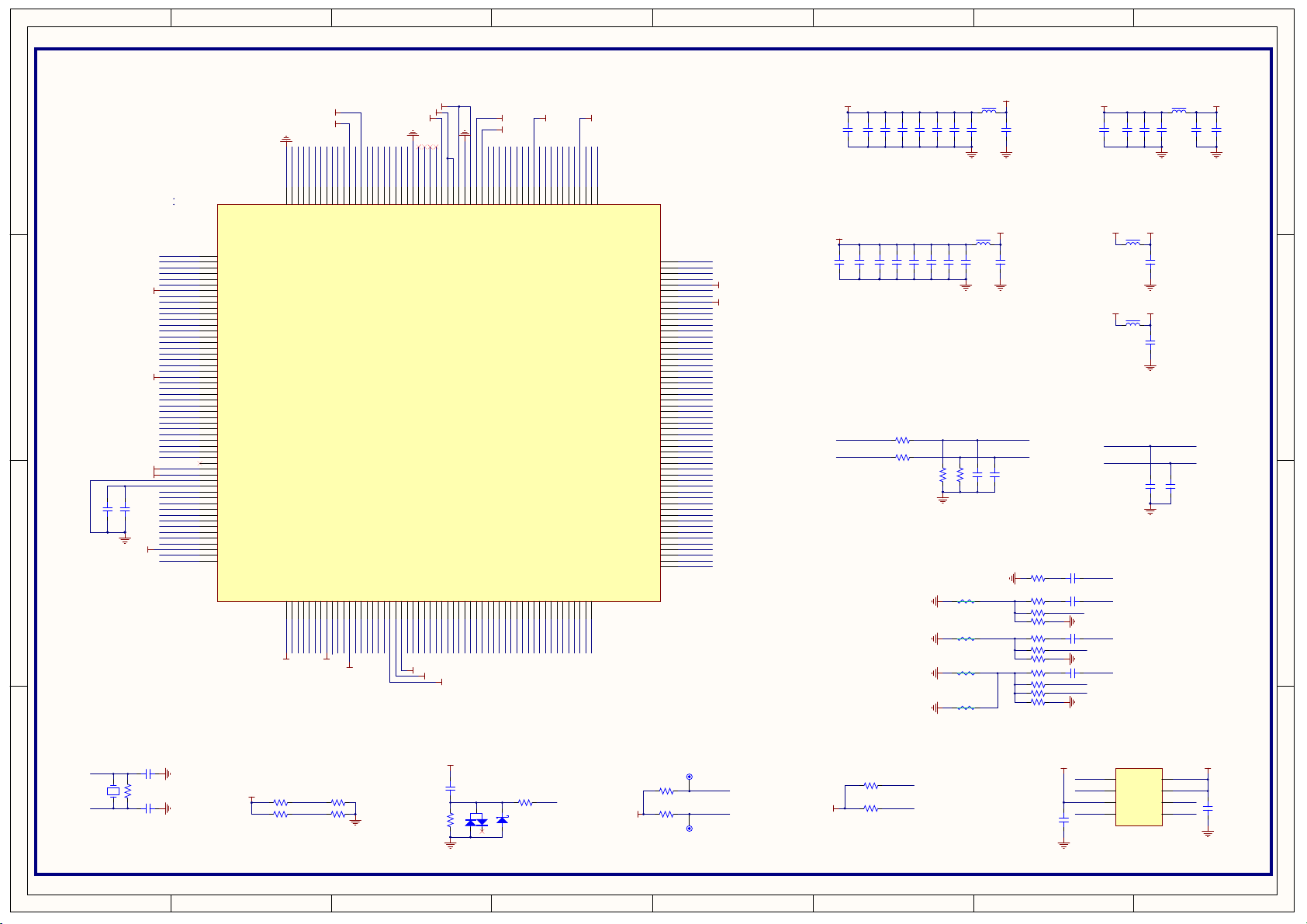

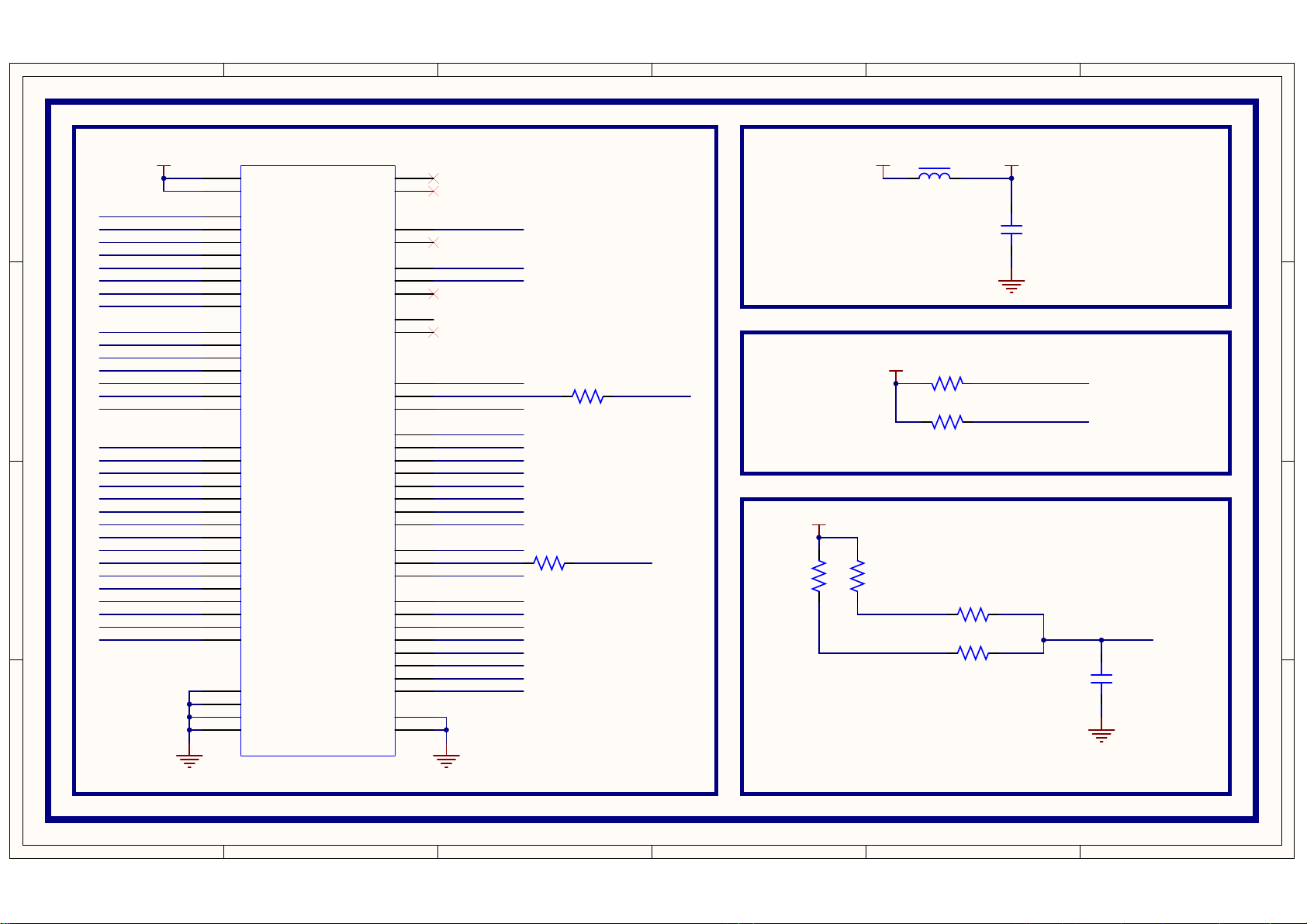

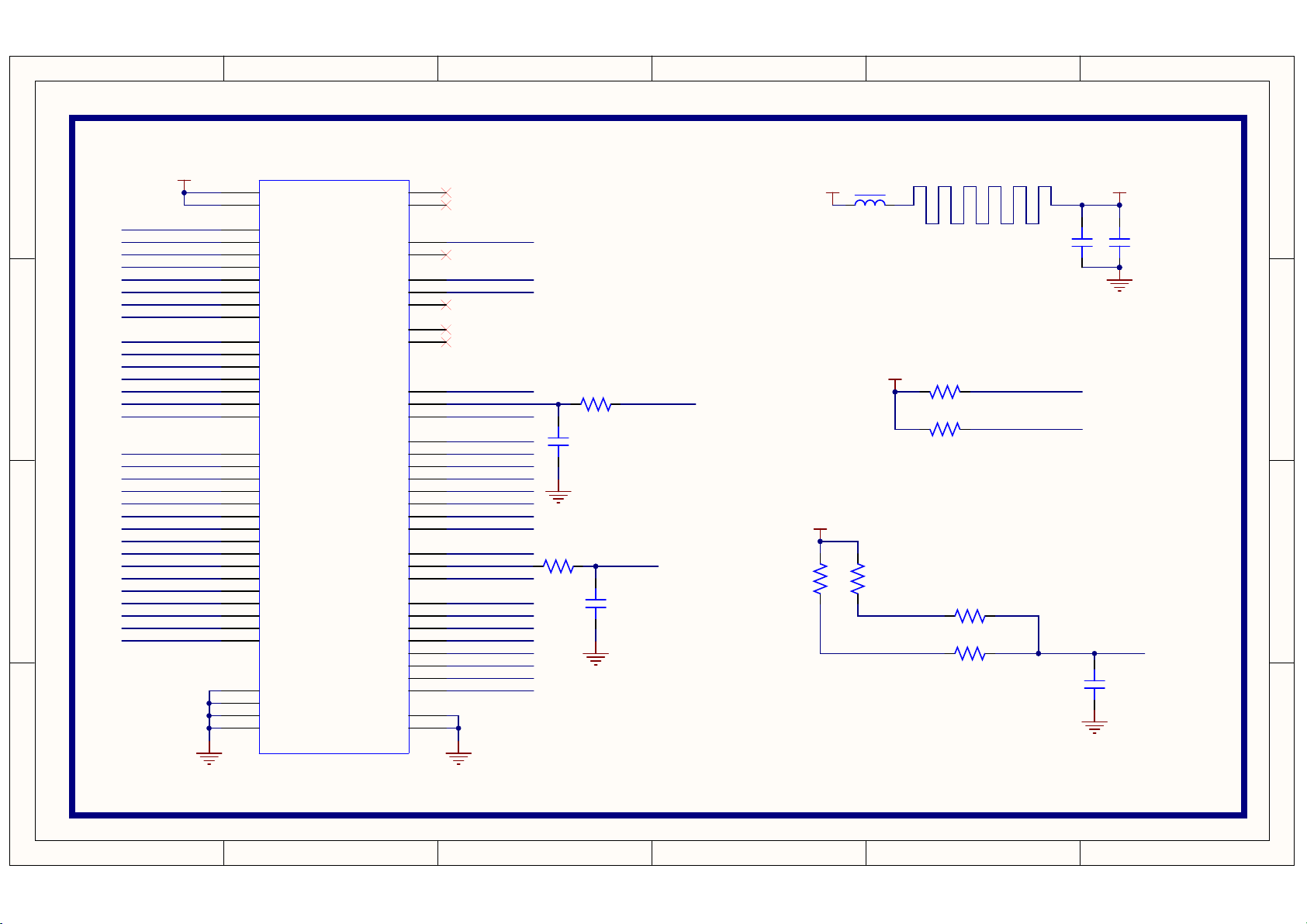

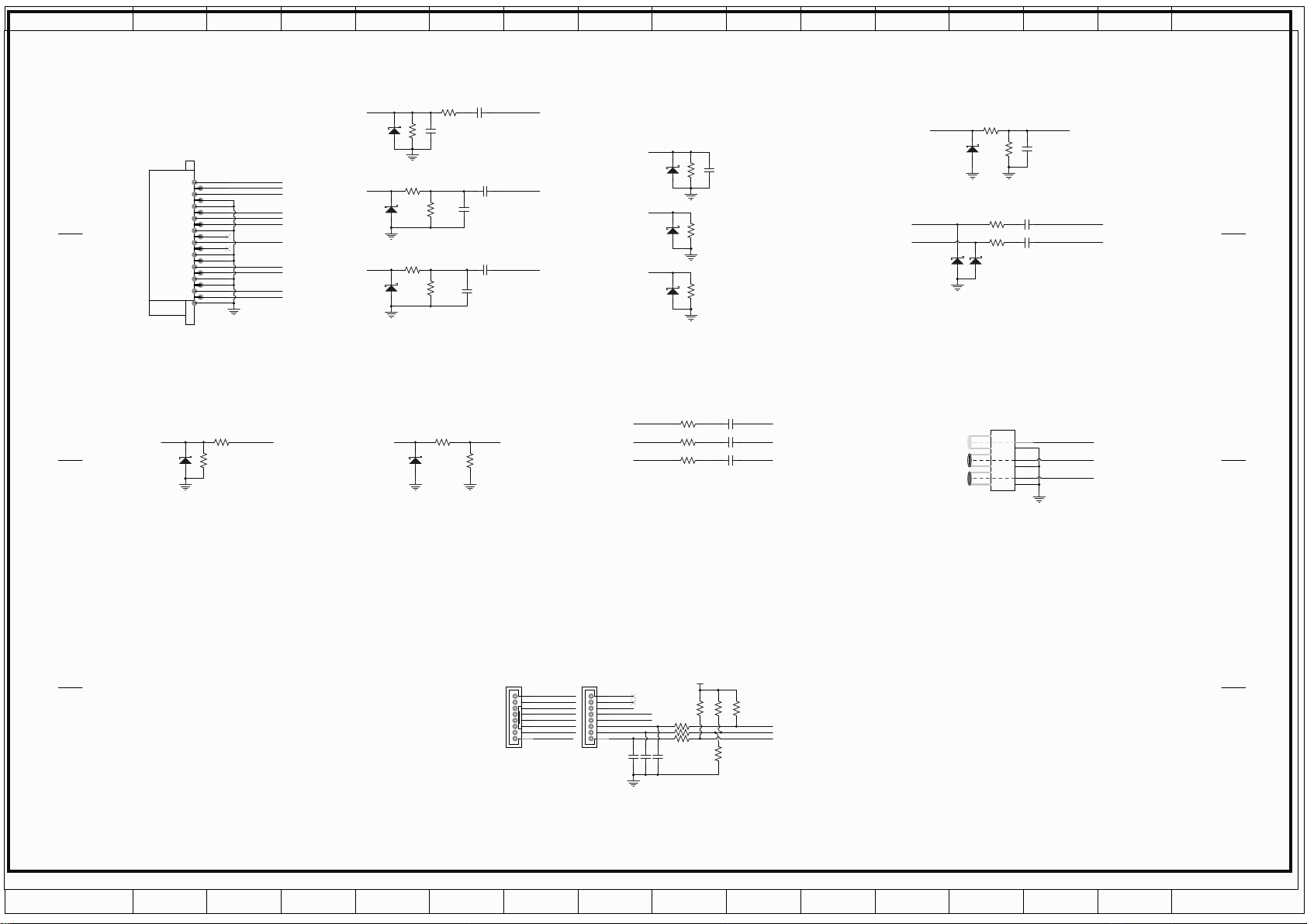

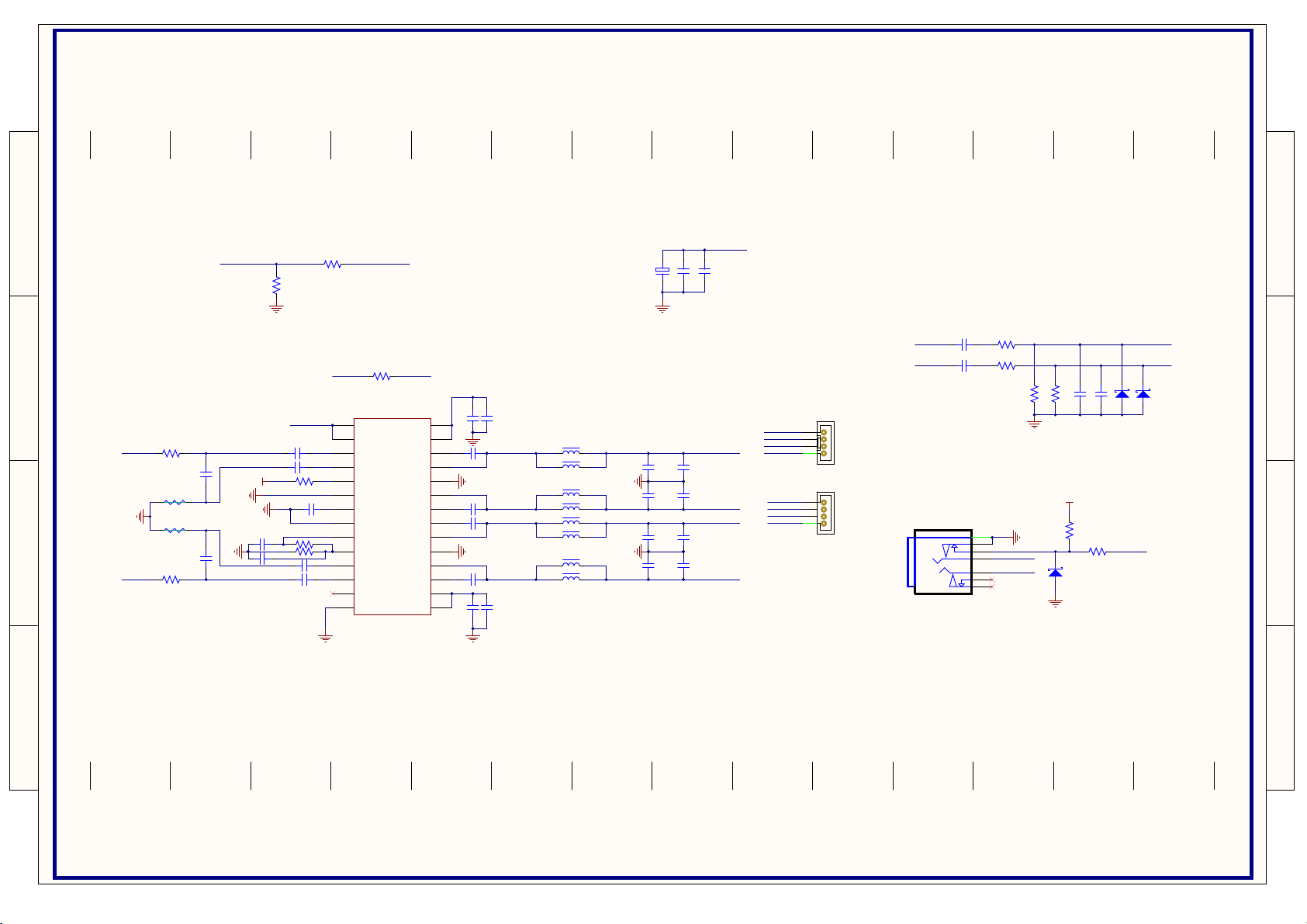

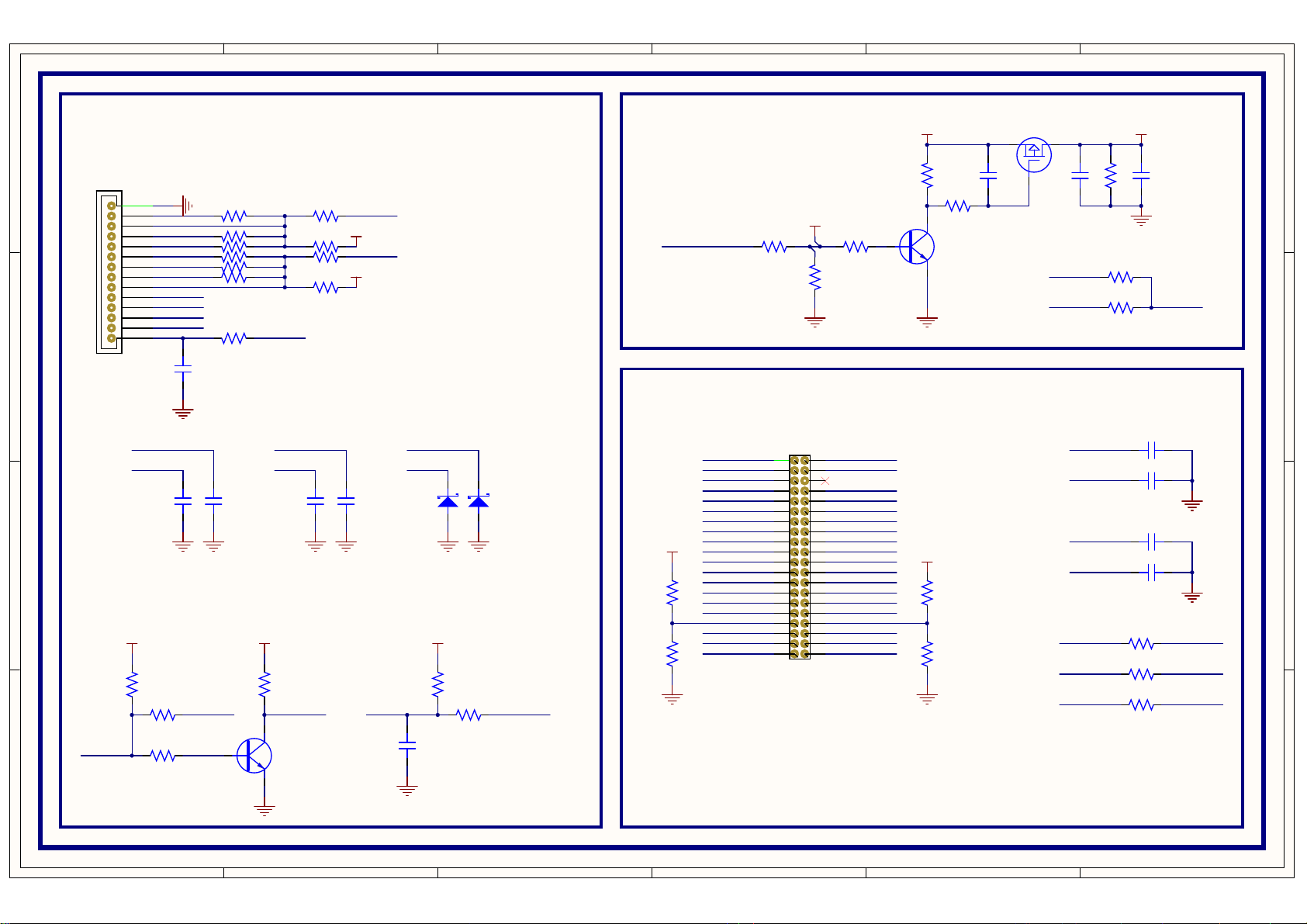

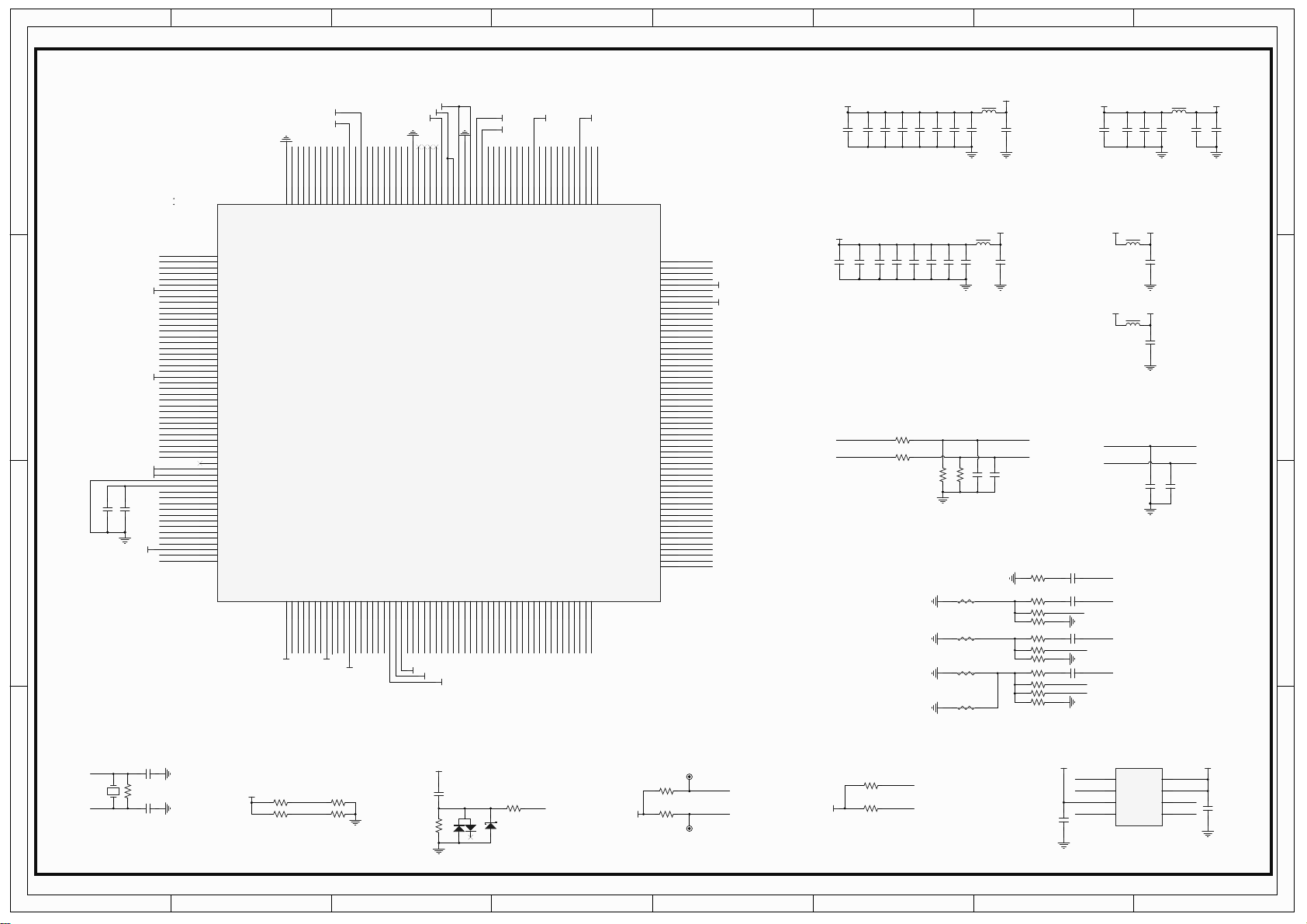

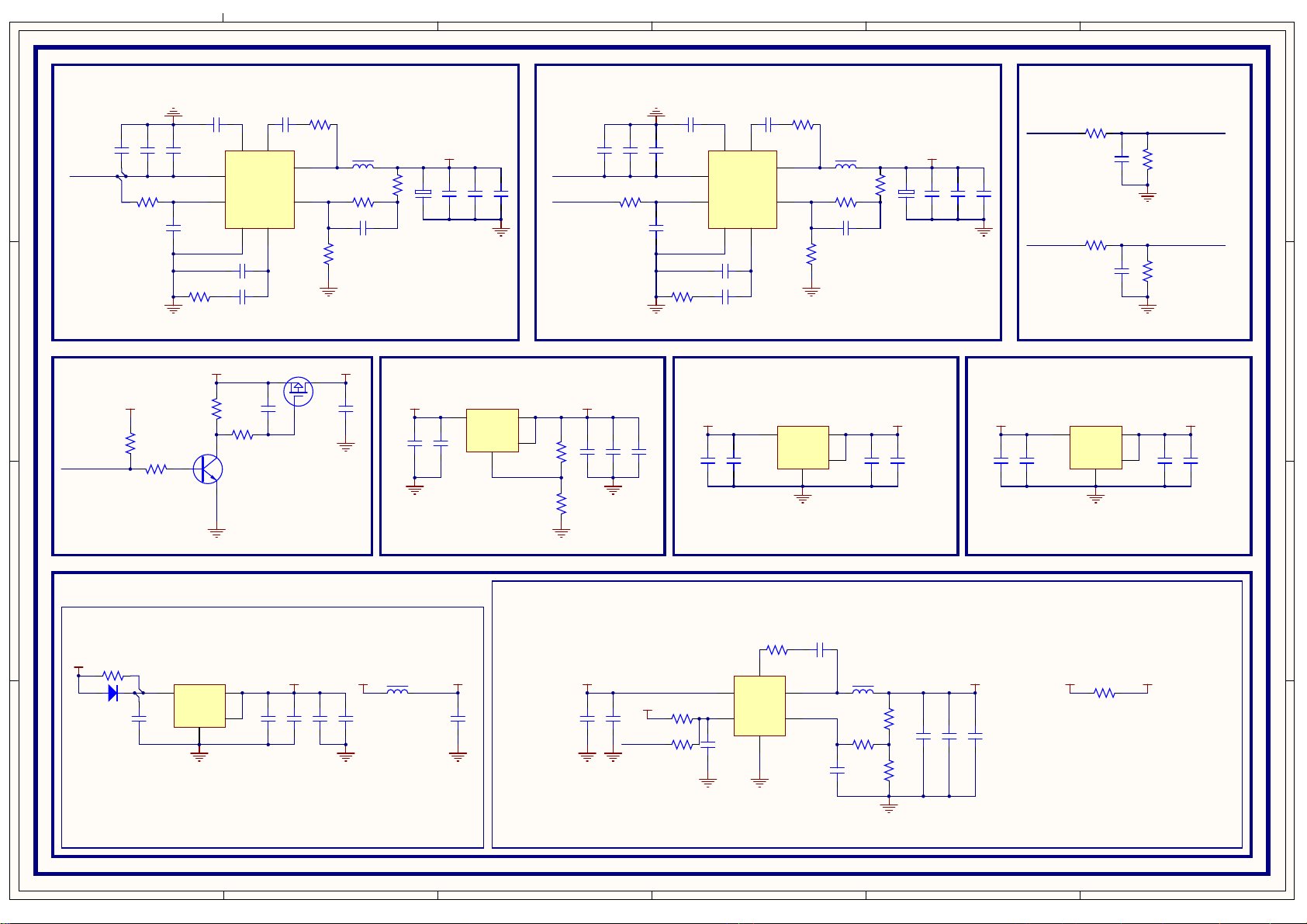

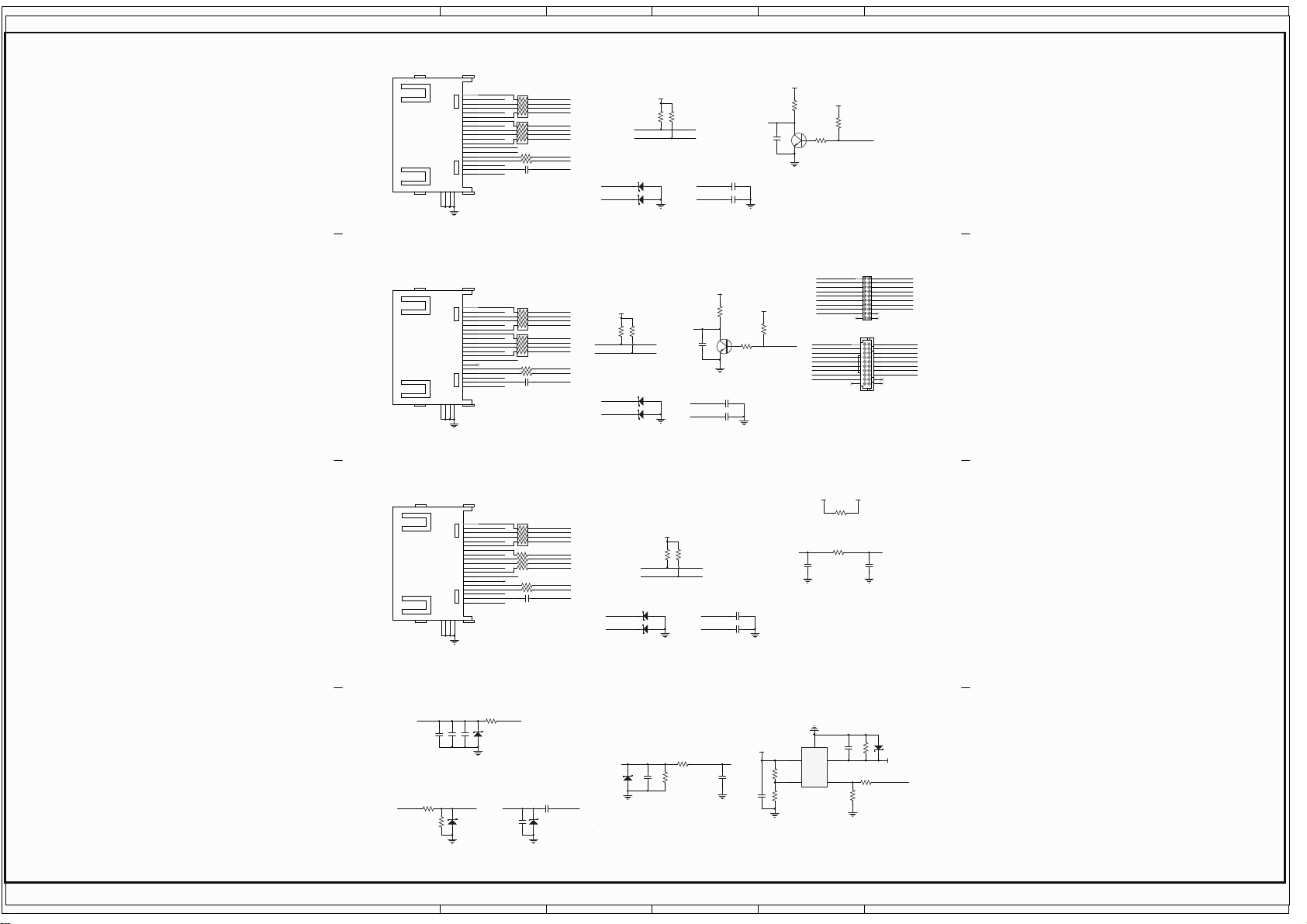

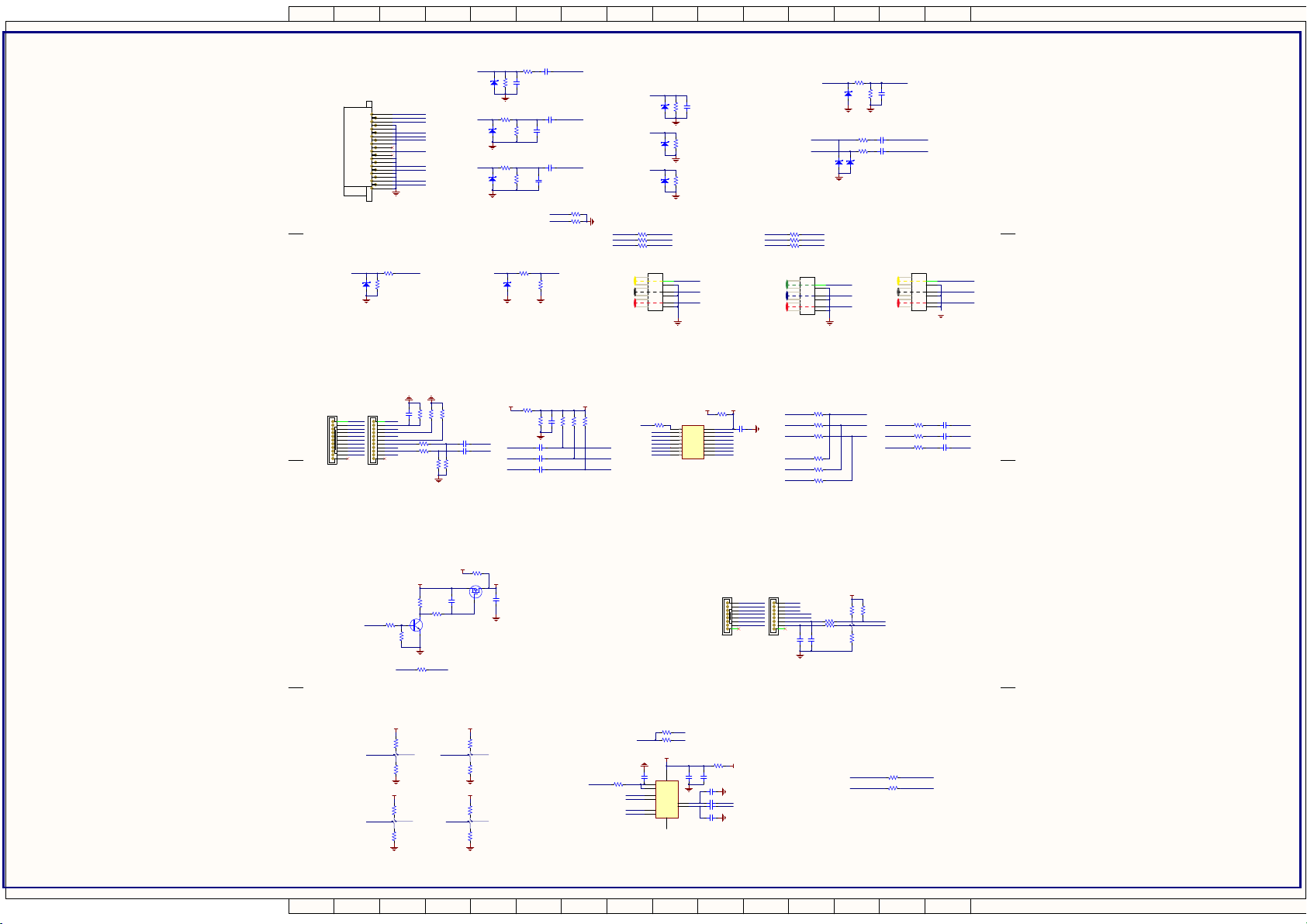

Mainboard Circuit Diagrams……………...……………………………………………………………………………….63

MS3 4 6 3 S. P B 8 01 ( 3 2P HS 4 0 0 1/ 1 2 & 3 2 P H T4 0 0 1 /1 2 ) … …… … … … …… …… … …… …… … … … … … …6 3

MS3 46 3S . P C 8 2 1 ( 43 P F T 4 0 0 1 /1 2 & 43 P F S 4 0 0 1 / 12 )… … … … … … … … … … … … … … … … … … … … … 73

MS D 3463GSA - T 8C1 (3 2 PHT40 0 1 / 60& 42 PFT400 1 / 6 0 &4 3 PFT4001 / 6 0 )…… … ………… … … ………… 8 3

M S 6 3 0 8 . P 8 3 ( 3 2 P H T 4 0 0 1 / 0 5 ) … … … … … … … … … … … … … … … … … … … … … … … … … … 9 2

MS63 08.702 (43PFT400 1/05 & 49PFT400 1/05 )………………………………………………… ………… ………10

9.S ty li n g Sh e e t …… … … … … . … … … …… …… … . …… … … …… … … …… …… …… … … …… …… … … … . .

32 P H S 4 0 0 1 / 1 2 . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32 P H T 4 0 0 1 / 1 2 .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

4 3 P F T 4 0 0 1 / 1 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 3 P F S 4 0 0 1 / 1 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32 P H T 4 0 0 1 / 6 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42 P F T 4 0 0 1 / 6 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43 P F T 4 0 0 1 / 6 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 2 P H T 4 0 0 1 / 0 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43 P F T 4 0 0 1 / 0 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49 P F T 4 0 0 1 / 0 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

116

117

118

119

120

121

122

123

124

125

Product information

Product information is subject to change without notice. For detailed product information，please visit www.philips.com/support

Display Type

Diagonal screen size

•32PHS4001/12 & 32PHT4001/12 & 32PHT4001/60 & 32PHT4001/05: 31.5 inch /80CM HD

•42PFT4001/60: 41.6 inch/105.6CM FHD

•43PFT4001/12 & 43PFS4001/12 & 43PFT4001/60 & 43PFT4001/05: 42.5 inch/108CM FHD

•49PFT4001/05: 48.5 inch/123CM FHD

Display resolution

•32PHS4001/12 & 32PHT4001/12 & 32PHT4001/60 & 32PHT4001/05: 1366*768

•43PFT4001/12 & 43PFS4001/12 & 42PFT4001/60 & 43PFT4001/60 & 43PFT4001/05 & 49PFT4001/05: 1920*1080p

Input resolution

Video formats Resolution — Refresh rate

• 480i, 480p,576i, 576p,720p,1080i,1080p

Computer formats Resolutions (amongst others)

32PHS4001/12 32PHT4001/12 32PHT4001/60 32PHT4001/05

• 720*400@70HZ

• 640*480@60HZ

• 800*600@60HZ

• 1024*768@60HZ

• 1360*768@60HZ

43PFT4001/12 43PFS4001/12 42PFT4001/60 43PFT4001/60 43PFT4001/05 49PFT4001/05

• 720*400@70HZ

• 640*480@60HZ

• 800*600@60HZ

• 1024*768@60HZ

• 1360*768@60HZ

• 1280*720@60HZ

• 1280*960@60HZ

• 1280*1024@60HZ

• 1600*900@60HZ

• 1920*1080@60HZ

Dimensions and Weights

32PHS4001/12 32PHT4001/12 32PHT4001/60 32PHT4001/05

• Without TV stand: Width 732 mm - Height 430 mm - Depth 76 mm - Weight 4.4kg

• with TV stand:

Width 732 mm - Height 474 mm - Depth 193 mm - Weight 4.5 kg

42PFT4001/60

• Without TV stand: Width 946 mm - Height 553mm - Depth 78 mm - Weight 8.3 kg

• with TV stand:

Width 946 mm - Height 600 mm - Depth 214 mm - Weight 8.5kg

43PFT4001/12 43PFS4001/12 43PFT4001/60 43PFT4001/05

• Without TV stand: Width 970 mm - Height564 mm - Depth 75 mm - Weight 8.3 kg

• with TV stand: Width 970 mm - Height 614 mm - Depth 219 mm - Weight 8.5 kg

49PFT4001/05

• Without TV stand: Width 1102 mm - Height 639 mm - Depth 82 mm - Weight 9.6 kg

• with TV stand: Width 1102 mm - Height 696 mm - Depth 258 mm - Weight 10 kg

Connectivity

32PHS4001/12 32PHT4001/12 43PFT4001/12 43PFS4001/12

Number of HDMI connections 3

HDMI 1 Up to 1080p 60Hz (down)

HDMI 2 Up to 1080p 60Hz (side)

HDMI 3 Up to 1080p 60Hz (side)

HDMI 4 -

HDCP Support Version 1.4

HDMI/DVI Yes

HDMI ARC HDMI 1

Remote Control Pass-Through,

EasyLink (HDMI-CEC)

System Audio Control,

System Standby,

One Touch Play

Number of USBs: USB2.0 (1x side)

FAT/FAT32

USB Harddisk Format (Power)

NTFS (read only)

500mA

Number of scarts (RGB/CVBS): -

Number of component in (YPbPr): 1x side(mini)

CVBS (EU/Latam) Connections 1x down

Audio L/R in 1x share with CVBS

CI+ slots 1x side

Antenna 1x IEC down

Satellite (for K&S only) 1x F-type down

VGA 1x down

VGA/DVI Audio Input 1x PC AUDIO IN

Digital audio out (SPDIF) 1x side (OPTICAL)

Headphone 1x (mini jack) side

Ethernet-LAN RJ-45 -

Service Connector -

MHL (HDMI+power+return channel) HDMI3

32PHT4001/60 42PFT4001/60 43PFT4001/60 32PHT4001/05 43PFT4001/05 49PFT4001/05

Number of HDMI connections 3

HDMI 1 Up to 1080p 60Hz (DOWN)

HDMI 2 Up to 1080p 60Hz (DOWN)

HDMI 3 Up to 1080p 60Hz (DOWN)

HDMI 4 -

HDCP Support Version 1.4

HDMI/DVI N/A

HDMI ARC HDMI 3

EasyLink (HDMI-CEC) Yes

Number of USBs: USB2.0 (2x side)

FAT/FAT32

USB Harddisk Format (Power)

NTFS (read only)

500mA

Number of scarts (RGB/CVBS): -

Number of component in (YPbPr): 1x side(mini)

CVBS (EU/Latam) Connections 1x down

Audio L/R in 1x share with CVBS

CI+ slots 1x side

Antenna 1x IEC down

Satellite (for K&S only) N/A

VGA 1x down

VGA/DVI Audio Input 1x PC AUDIO IN

Digital audio out (SPDIF) 1x side (coxial)

Headphone 1x (mini jack) side

Ethernet-LAN RJ-45 -

Service Connector Via VGA

MHL (HDMI+power+return channel) HDMI1

Sound

Sound (Internal)

Output Power (10% THD) RMS 16W

Speaker configuration 8W+8W

Speaker system 2.0

Speaker type Downfiring --Open speaker

Sound Feature (Smart Stereo, Double/Triple ring technology, Natural Sound, Visible Front Firing

Sound)

Sound Enhancement (Incredible Surround/Clear Sound, AVL, Dynamic Bass, Smart Sound)

Bass/Treble/Balance/AVL/Surround sound

Auto Volume Levelier / Auto Volume Levelier + AVL

Bass (Bass control/DBE/Ultra Bass/Ultra Bass II) -

DTS Studio Sound (DTS or No DTS) -

Wireless Sound Interface (Kleernet dongle on optical out)

Dolby Digital DecoderType DD/DD+

Dolby ATMOS Ready (EAC3 pass through via ARC)

DTS 2.0+ Digital out -

Multimedia

32PHS4001/12 32PHT4001/12 43PFT4001/12 43PFS4001/12

Video Playback Formats

AVI, MKV, H.264, MPEG-1, MPEG-2,

MPEG-4, HEVC, FLV

Subtitles Formats Support SRT, SMI, SSA, SUB, ASS, TXT

Music Playback Formats MP3, AC3, AAC

Picture Playback Formats JPEG, PNG, BMP

32PHT4001/60 42PFT4001/60 43PFT4001/60 32PHT4001/05 43PFT4001/05 49PFT4001/05

Video Playback Formats

Subtitles Formats Support

Music Playback Formats MP3/AAC/M4A

Picture Playback Formats JPEG, PNG, BMP

Power

Product specifications are subject to change without notice. For more specification details of this product, see www.philips.com/support Power

• Mains power : AC 111-212V 50/60Hz

• Standby Energy Consumption:≤0.5W

• Ambient temperature : 5°C to 40°C

MJPEG/MPEG-1/MPEG-2/MPEG-4

/H.265

SRT、ASS

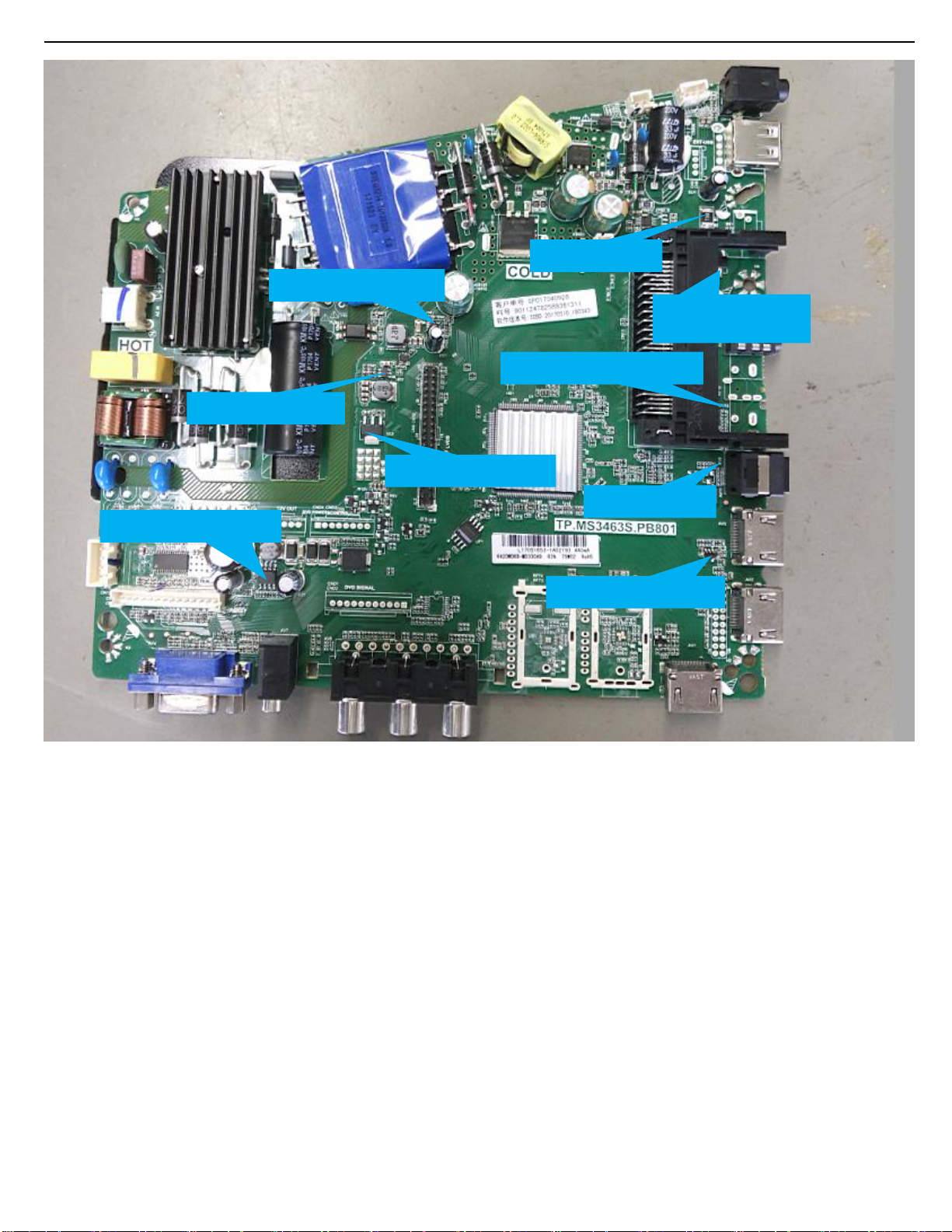

Connections Overview

Back light

CNB807

CN14

Earphone

CNB1

AC-Input

CN3 LVDS

AV7

PC_AUDIO

AV16 AV1-IN

Back light

CNB808

CN11

CI port

ANT

TUNER

AV5 USB

AV13 AV2/YPB PR

AV11 Optical port

AV3

HDMI(MHL)

AV2

HDMI

AV4 VGA

AV1

HDMI

For(32” 32PHS4001/12 & 32PHT4001/12)

CNB1

AC-Input

Back light

CNB803

Back light

CNB801

CN11

CI port

CN14

Earphone

AV5 USB

AV13 AV2/YPB PR

AV4 VGA

CN3 LVDS

AV7

PC_AUDIO

AV16 AV1-IN

For(43” 43PFT4001/12 & 43PFS4001/12)

MSD3463

ANT

TUNER

AV9 Optical port

AV3

HDMI(MHL)

AV2

HDMI

AV1

HDMI

For 32PHT4001/60 & 42PFT4001/60 & 43PFT4001/60

CN29

AMP power

CN27 INVERTER

CN26

Main power

CN1 LVDS

CN22

CI port

RESET_KEY

CN20 USB

CN9 AV_IN

CN8 YPBPR

CN5

HDMI(MHL)

CN31

Network

CN23 Optical port

CN3

HDMI

CN19

CN4

HDMI

For(43PFT4001/05 & 49PFT4001/05)

VGA

CN21

PC_AUDIO

CN12

EARPHONE

ANT1

TUNER

For (32PHT4001/05)

3. Mechanical Instructions

3.1 Cable dressing

CNB807

CNB808

CNB1

CN3

CN13

CN16

CNK1&CN K6

Serial no part description function 1 Backlight wire Connect to CNB807 2 Backlight wire Connect to CNB808 3 Power wire Connect to CNB1 4 LVDS wire CN3 to T-CON board 5 Speaker wire CN13 to speaker (yellow black wire) 6 Speaker wire CN16 to speaker (red black wire) 7 two-terminal wire CNK1&CNK6 to KEY board&IR&LED

For(32” 32PHS4001/12 & 32PHT4001/12)

CNB803

CNB801

CNB1

CNA1 CNA3

CN3

CNK1 CNK6

Serial no part description function

1 Backlight wire Connect to CNB803 2 Backlight wire Connect to CNB801 3 Power wire Connect to CNB1 4 LVDS wire CN3 to T-CON board 5 Speaker wire CAN1 to speaker (yellow black wire) 6 Speaker wire CAN3 to speaker (red black wire) 7 two-terminal wire CNK1&CNK6 to KEY board&IR&LED

Cable dressing For(43” 43PFT4001/12 & 43PFS4001/12)

Serial no

)

art description function 1 Backlight wire Connect to PJ2 2 Power wire Connect to PCN105 3 LVDS wire Cn401 to T-CON board 4 Speaker wire CN203 to speaker(yellow black wire 5 Speaker wire CN201 to speaker(red black wire 6 two-terminal wire CN104 to IR board 7 two-terminal wire IR Board to key board

Cable dressing (For 32PHT4001/60 & 42PFT4001/60 & 43PFT4001/60)

)

CN102

CN26

CN101

CN105

CN7

CN29

CN18

CN104

Serial no 1 Back light wire Connect to CN105 2 ON&OFF Back light wire Connect CN104 to CN27 3 Power wire Connect to CN101 4 LVDS wire CN1 to T-CON board 5 Speaker wire CN18 to speaker(yellow black wire 6 Speaker wire CN18 to speaker(red black wire 7 two-terminal wire CN7 to KEY board&IR&LED 8 three-terminal wire CN102 to CN26&CN29(Supply power)

art description function

Cable dressing For(43PFT4001/05 & 49PFT4001/05)

CN1

CNB802

CNB1

CN1

CN7

CN18

Serial no part description function 1 Power wire Connect to CNB1 2 Back light wire Connect to CNB802 3 Speaker wire CN18 to speaker (yellow black wire) 4 Speaker wire CN18 to speaker (red black wire) 5 LVDS wire CN1 to T-CON board 6 two-terminal wire CN7 to KEY board&IR&LED

Cable dressing For(32PHT4001/05)

3.2 Assembly/Panel Removal

1. Unplug the connector from the SSB.

2. Remove all the fixation screws(5) ,from the IR board control unit. then Remove the fixation screws(6), the IR board control unit.

1. Remove fixation screws [2] [3] and [4] that secure the back cover..

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

3. Remove fixation screws[2] [3] and [4] that secure the back cover.unplug connectors

3.2.1 Stand removal

1. Remove the fixation screws [1] 4pcs ,that secure the stand

2. Take the stand bracket out from the set.

3.2.2 IR board &key board

Caution: be careful, as these are very fragile connectors!

When defective, replace the whole unit

3.2.3 Rear Cover

Warning: Disconnect the mains power cord before removing the rear cover.

1. Gently unplug all connectors from the PSU.

1. Remove all fixation screws from the PSU.

The PSU can be taken out of the set now.

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

Take the speakers out.

3. Remove the SSB as described earlier.

3. Remove the keyboard control panel as described earlier.

Remove the stand bracket as described earlier.

Remove the IR/LED as described earlier.

Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

For(50PFS4012/12;32PHS4012/12;42PFS4012/12;43PFS4012/12)

3.2.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in

damaging the PSU.

3.2.5 Speakers

When defective, replace the both units.

3.2. LCD Panel

2. Remove the PSU as described earlier.

When defective, replace the whole unit.

4. Service Modes

Factory Mode

 To perform extended alignments.

yadj

Press the following key sequence on a standard RC transmitter: “1999” directly followed by MENU,

Purpose

4.1 For 32PHT4001/60 & 42PFT4001/60 & 43PFT4001/60

Primary menu Secondary menu Value,remark

ADC ADJUST

PICTURE MODE

W/B ADJUST

SSC SETTING

Special set 2HOUR OFF 2hours power off enable

VIF Vif 1 Vif set

Qmap adjsut PQ settin PEQ PEQsettin OverScan Overscan_resolution Reselution select

other Test pattern

MDOE VGA,YPBPR,Selection R-GAIN G-GAIN B-GAIN R-OFFSET G-OFFSET B-OFFSET AUTO ADC ADC automaticall In

ut Source Source Selection MODE Dynamic/Standard/Sotf/User BRIGHTNESS BRIGHTNESS CONTRAST CONTRAST COLOR COLOR SHARPNESS SHARPNESS TINT TINT

all No function

Co In

ut source Source Selection TEMPERATURE Cool, Standard, Warm R-GAIN G-GAIN B-GAIN R-OFFSET G-OFFSET B-OFFSET

all No function

Co MIU Enable DDR spectrum enable

MIU0 Span Exhibition frequentlywide MIU Step Spread spectrum step LVDS enable LVDS spectrum enable LVDS Span Exhibition frequentlywide LVDS Step Spread spectrum step LVDS swin

WDT Watch dogon/off White pattern White pattern selection Restore user default Factoryreset PVR_RECORDALL PVR Record on/off Power Power mode selection Mirror Mirror function selection Ageingmode Ageingmode enable

Vif 2 Vif set Vif 3 Vif set

Overscan_hsize Adjust overscan H size Overscan_hposition Adjust overscan H position Overscan_vsize Adjust overscan V size Overscan_vposition Adjust overscal V position

Front-end gain adjustment

Clamp level adjustment

ust

White level adjustment

Black level adjustment

LVDS swin

UART DEBUG DEBUG ON/OFF

HDMI CEC/ARC CEC/ARC ON/OFF Backlight Adjust backlight

CI+ keyusb upgrade CI+ keyusb upgrade SW information SW information

MODE Feature Selection OSD 0

Non-linear

OSD 25 OSD 50 OSD 75 OSD 100

Channel table1 KTC factoryFrequecytable set CI factorysettin

No function

Channel table2 KTC factoryFrequecytable set Channel dvbt KTC factory Frequecy table set

4.2 For 32PHS4001/12 & 32PHT4001/12 & 43PFT4001/12 & 43PFS4001/12

4.2.1 Introduction

Curve adjustment

4.2.2 ADC Adjust&White Balance Auto Adjust

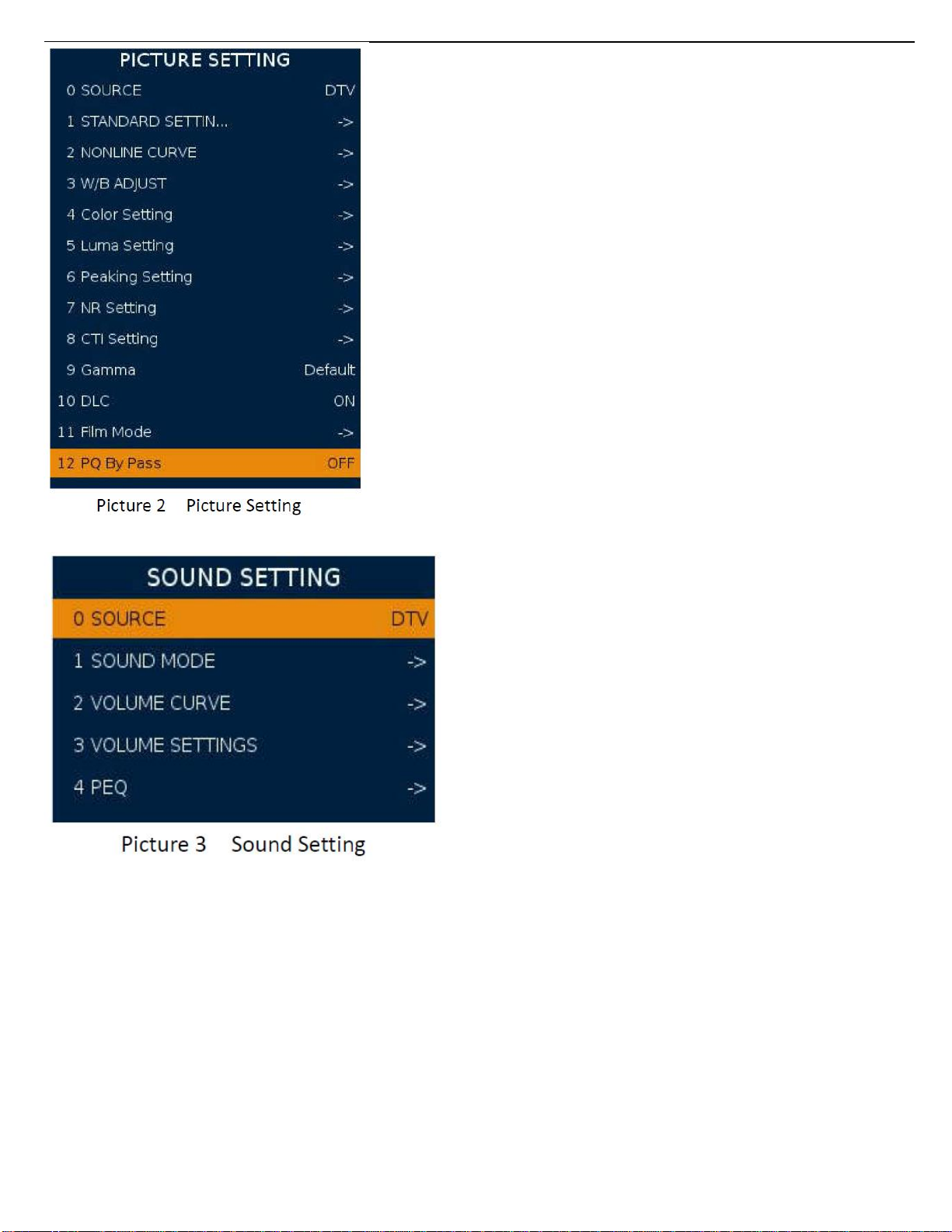

4.2.3 PICTURE

4.2.3.1 PICTURE MODE

4.2.3.2 PICTURE CURVE

4.2.3.2.1 Contrast

4.2.3.3 WB ADJUST

4.2.3.4 OVERSCAN

4.2.3.5 PQ ADVANCED

4.2.4. SOUND

4.2.4.1 SOUND MODE

4.2.4.2 VOLUME CURVE

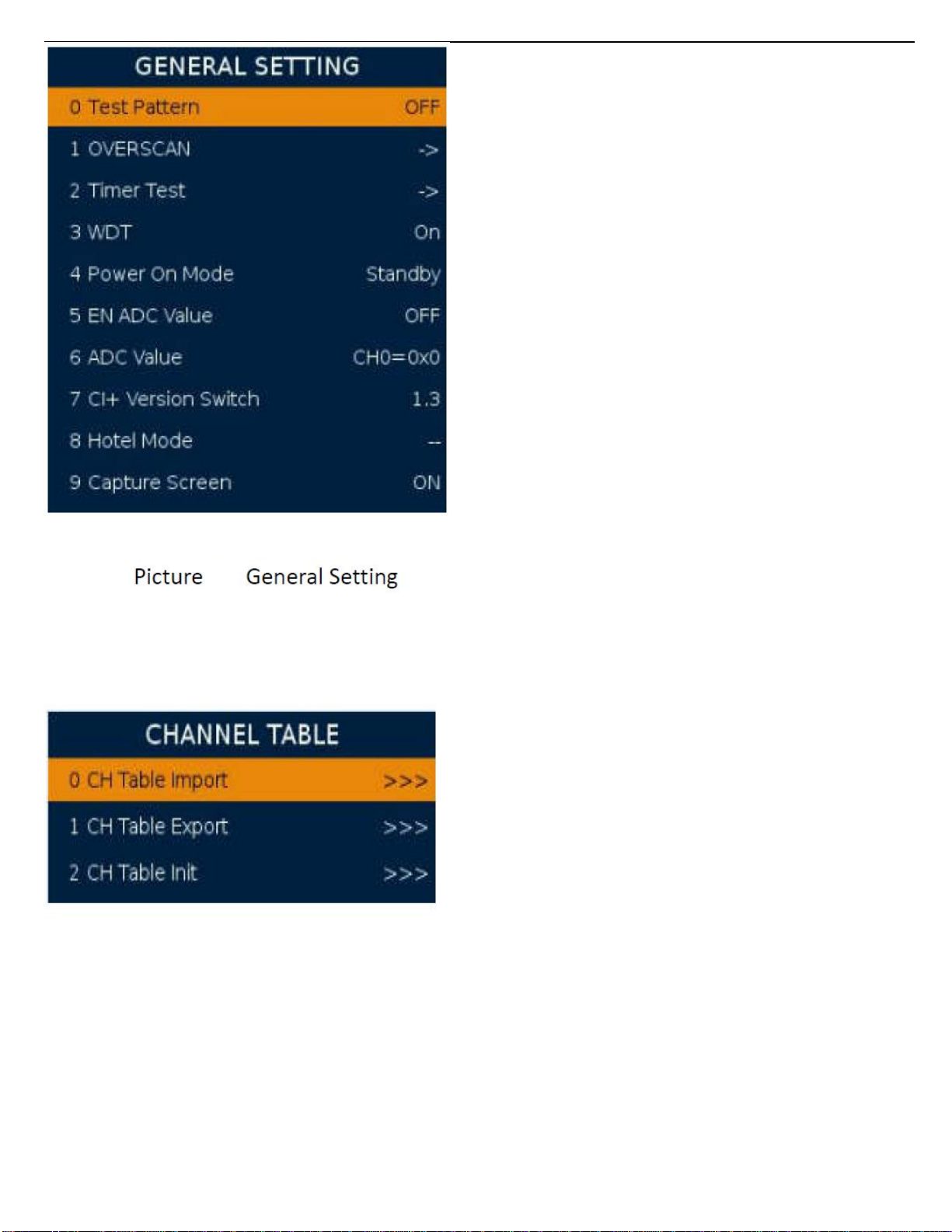

4.2.5 GENERAL SETTING

4.2.6 DEBUG

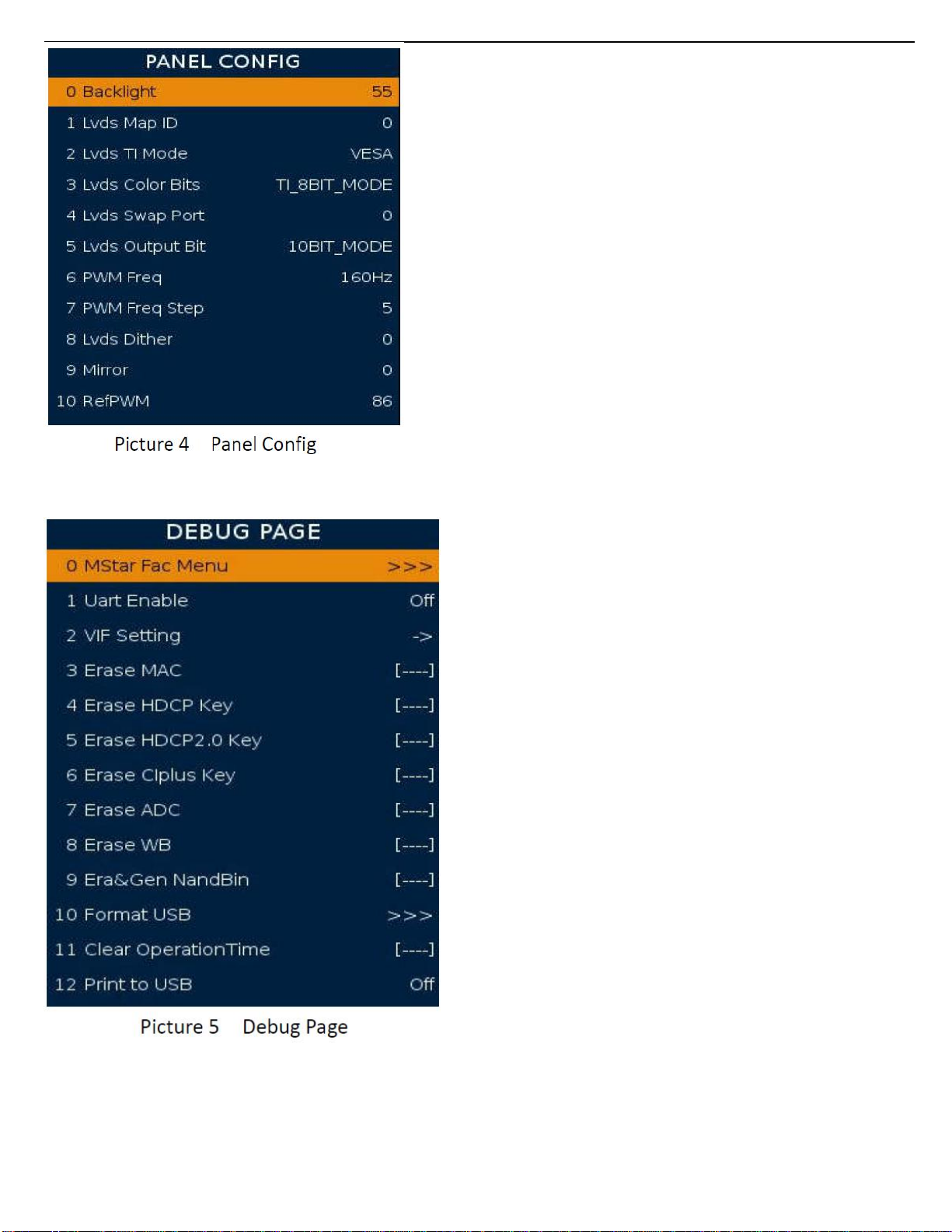

4.2.7 PANEL SETTING

4.2.8 EMCSETTING

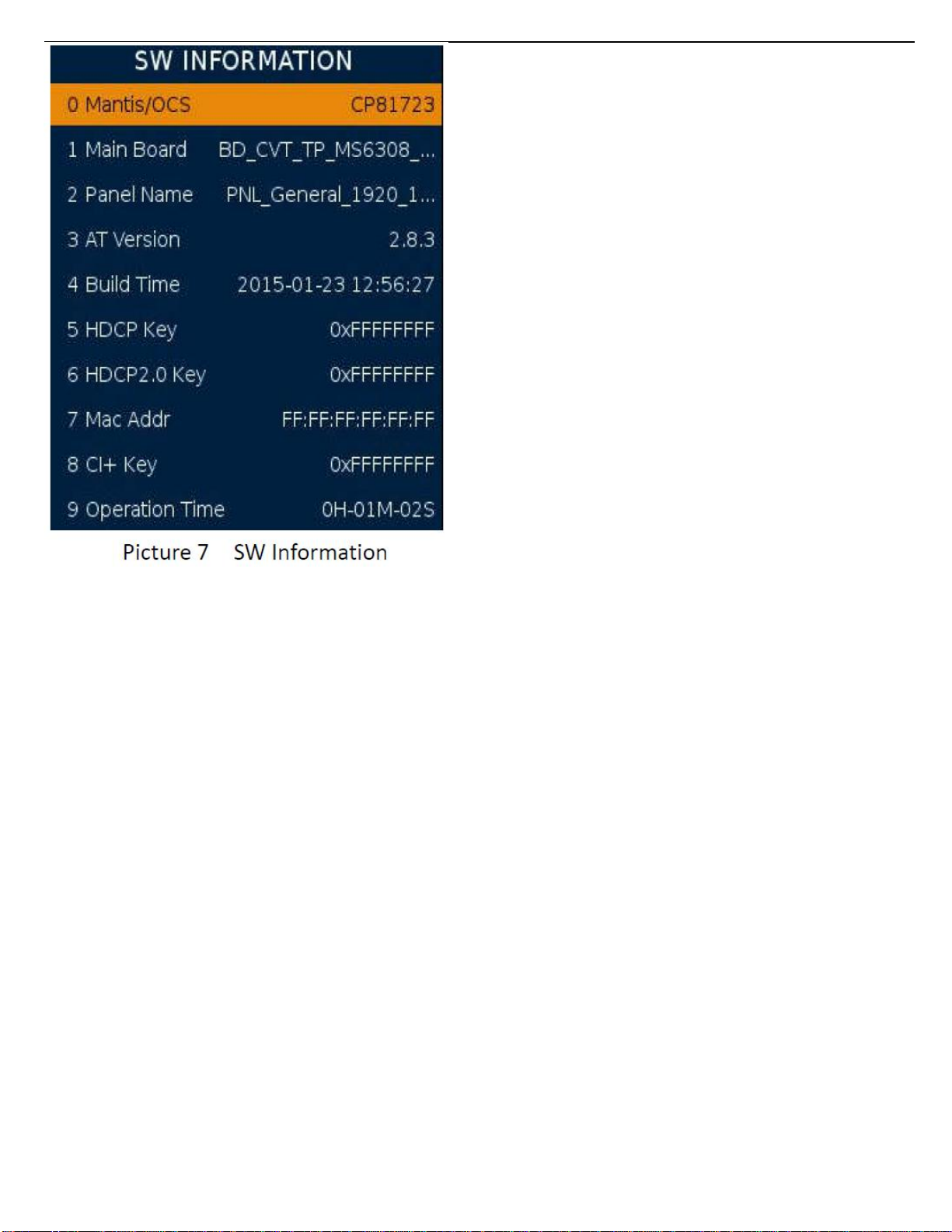

4.2.9 SYSTEM INFO

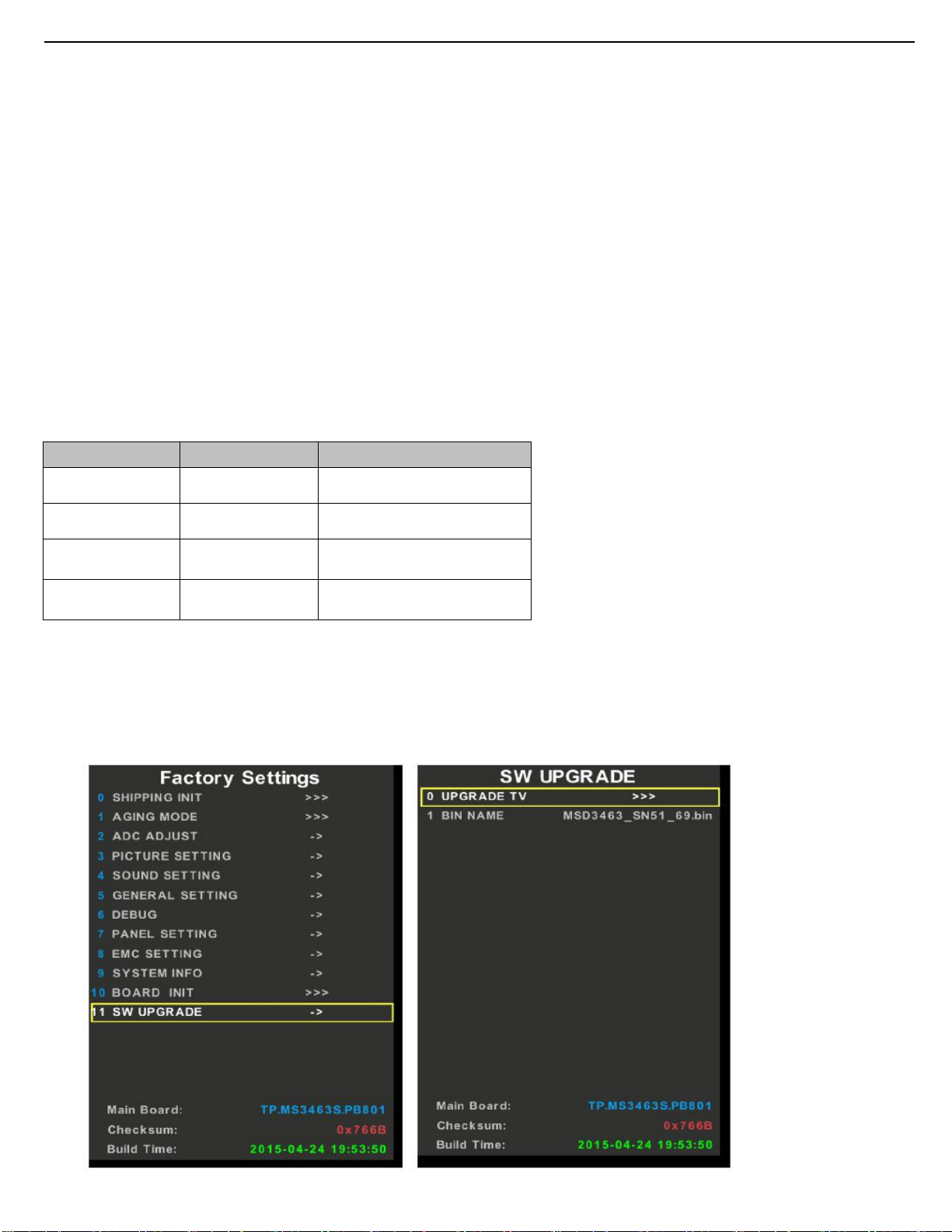

4.2.10 SW UPGRADE

4.3 For 32PHT4001/05 & 43PFT4001/05 & 49PFT4001/05

Factory Init All

Initialize TV. Restore to factory configures.

BURNNG MODE

Aging mode. For test panel. If it’s in operation, use key board “power” to quit.

ADC SETTING

It’s for adjusting the YPBPR and PC color. Press key “right” or “ok” to enter the subpage.

ADC Mode : Display current input source and resolution ADC Auto Adjust : Start to auto color to get ADC value . [ADC]R-Gain : Display current ADC R value . [ADC]R-Offset : Display current ADC R offset value.

+ 95 hidden pages
