All rights reserved. Secifications are subject to change without notice. Trademarks are the
roerty of Koninklijke hilis Electronics N.V. or their resective o wners.
T Vision Netherlands B.V. rese rves the right to change ro ducts at any time without being obliged to adjust
earlier sulies accordingly.
HILIS and the HILIS’ Sh ield Emblem are used under licen se from Koninklijke hilis Electronics N.V.
• without TV stand:
Width 960mm @Height 565mm @Deth 77mm @Weight 7.8kg
• with TV stand:
Width 960mm @Height 614mm @Deth219 mm @Weight 8kg
Connectivity
Page 4
4
RJ45
NA
DLNA/ Certification
NA
WiFi
NA
EasyLink (HDMI-CEC)
YES
Antenna Tuner /Satellite tuner
Antenna Tuner(down)
Wireless connections
N/A
Wi-Fi Band Concurrent
N/A
Bluetooth for subwoofer/RC (do not claim
commercially)
N/A
MHL(Version )
HDMI-1
Sound
Mono/Stereo/Virtual Surround
Mono/Stereo/Virtual Surround
Outut ower (10% THD) RMS (RMS Watts)
12W
Seaker configuration
6W+6W
Seaker system (Number of on board Seakers )
2.0
Seaker tye
built-in(normal)
Auto Volume Levelier / Auto Volume Levelier +
N/A
Dolby Digital DecoderTye(DD/DD+)
DD
DTS Studio Sound
N/A
DTS 2.0+ Digital out
N/A
SL (>= 84dB @ 2m)
78dB @ 2m
Acoustic frequence range
160~8K HZ<=16dB
Video layback Formats
MEG-2/MEG-4 H.264
Subtitles Formats Suort
SRT、ASS
Music layback Formats
M3,AAC
icture layback Formats
JPEG、BMP、PNG
ause TV/USB recording (VR)
YES
Time shift
YES
I/O
NA
USB
USB2.0(*1)
USB Harddisk Format (ower)
FAT/NTFS (500mA)
Multimedia
ower
roduct secifications are subject to change without
notice. For more secification details of this roduct,
see www.hilis.com/suort
ower
• Mains ower : AC 100-240V 50/60Hz
• Standby Energy Consumtion:≤0.5W
• Ambient temerature : 5°C to 40°C
Page 5
5
2.

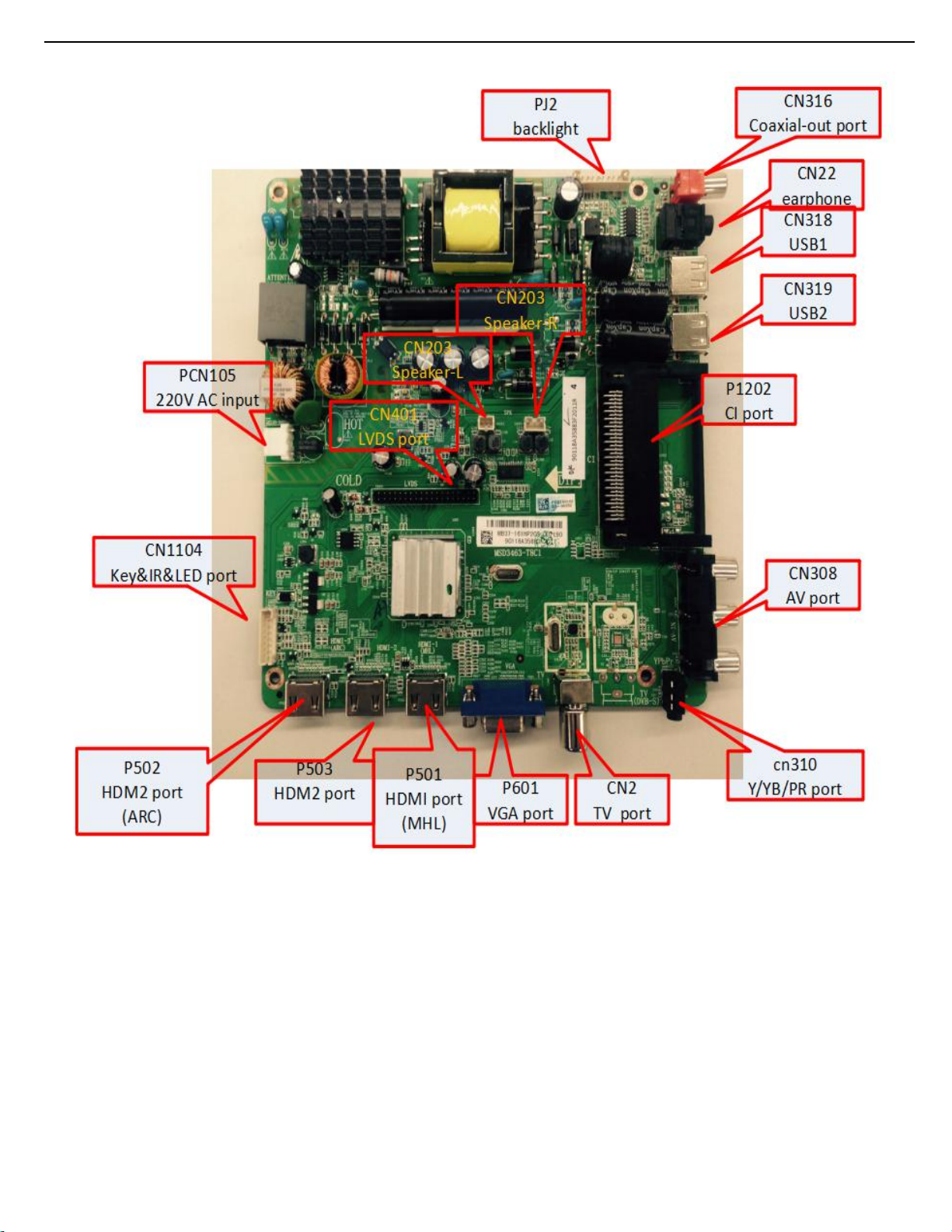

Connections Overview
Page 6
6
3. Mechanical Instructions
Serial no
art descrition
function
KW16
Backlight wire
Connect to J2
KW01
ower wire
Connect to CN1
KW02
LVDS wire
CN401 to T-CON board
KW12
Seaker wire
CN203 to seaker (yellow black wire)
KW11
Seaker wire
CN201 to seaker (red black wire)
KW05
two-terminal wire
CN104 to IR board
KW09
two-terminal wire
IR board to key board
J2
KW09
KW16
KW05
CN203
KW11
KW12
KW01
CN104
CN401
CN201
KW02
CN1
3.1 Cable Dressing
Cable dressing (43”5250S series)
Page 7
7

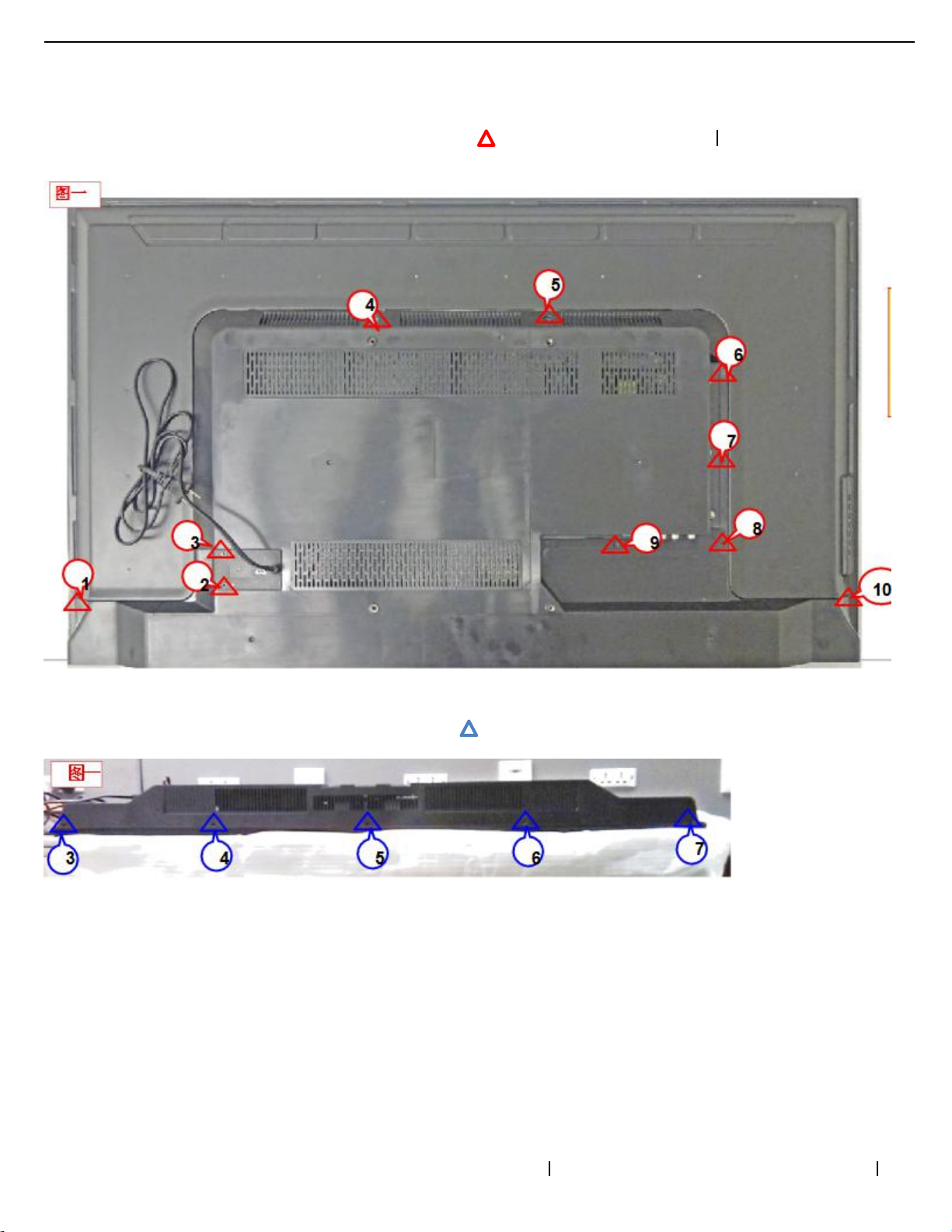

3.2 Assembly/anel Removal
Take off screws on 1to 10
Ф3×6mm with electric screwdriver.Figure 1:
3.2.1 isassemble Back Cover-1
3.2.2isassemble Back Cover-2
Take off screws on 3 to7 Ф3×10mm with electric screwdriver.Figure 1:
3.2.3
Disassemble Back Cover-2

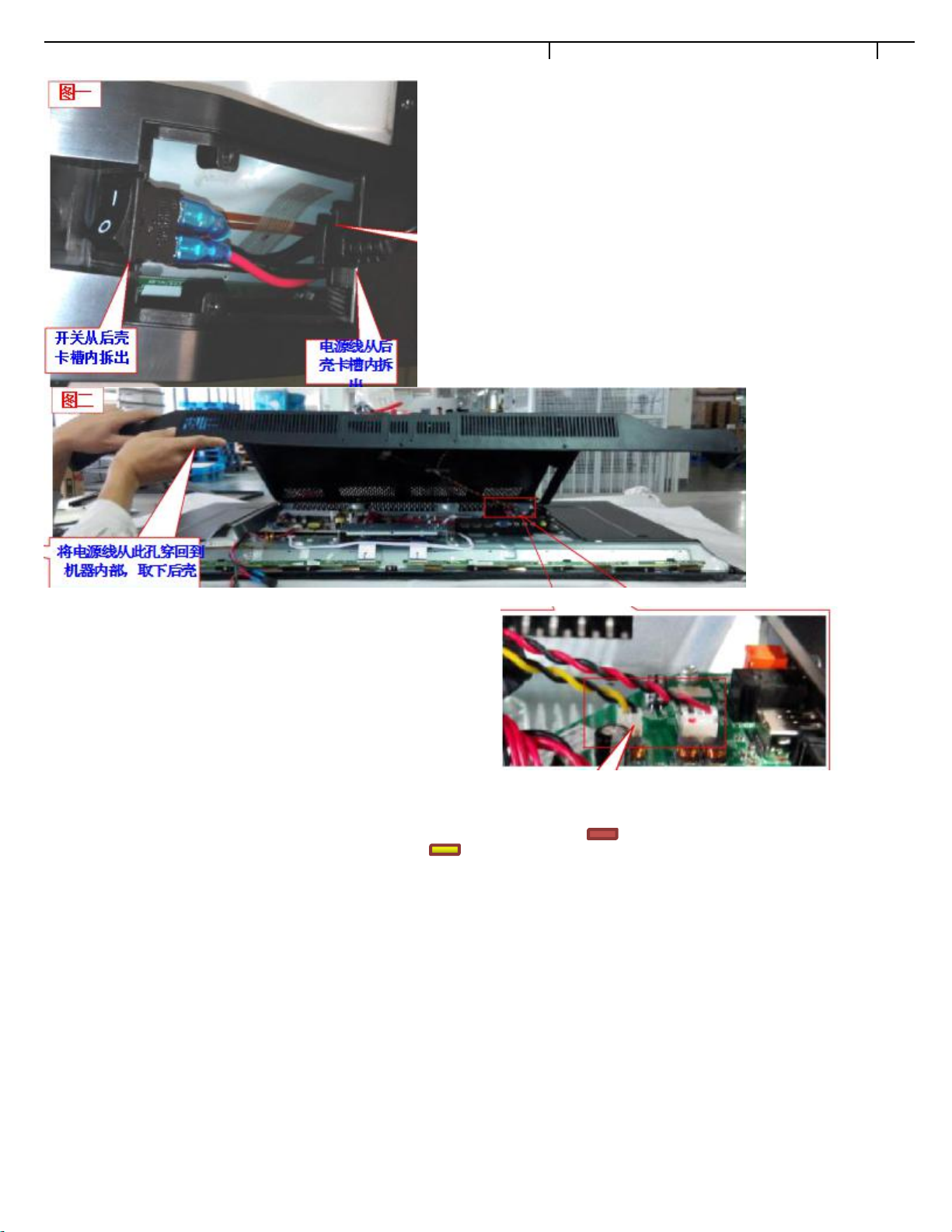

Warning: Disconnect the mains ower cord before removing the rear cover.
1.Unlug ower cord from the back cover.Figure:1
2.Use diagonal liers to cut off cable tie. Do not damage wires. Figure:2
3.Unlug Remote Cotnrol wire and seaker wire terminals from motherboard.Figure:2
Page 8
8

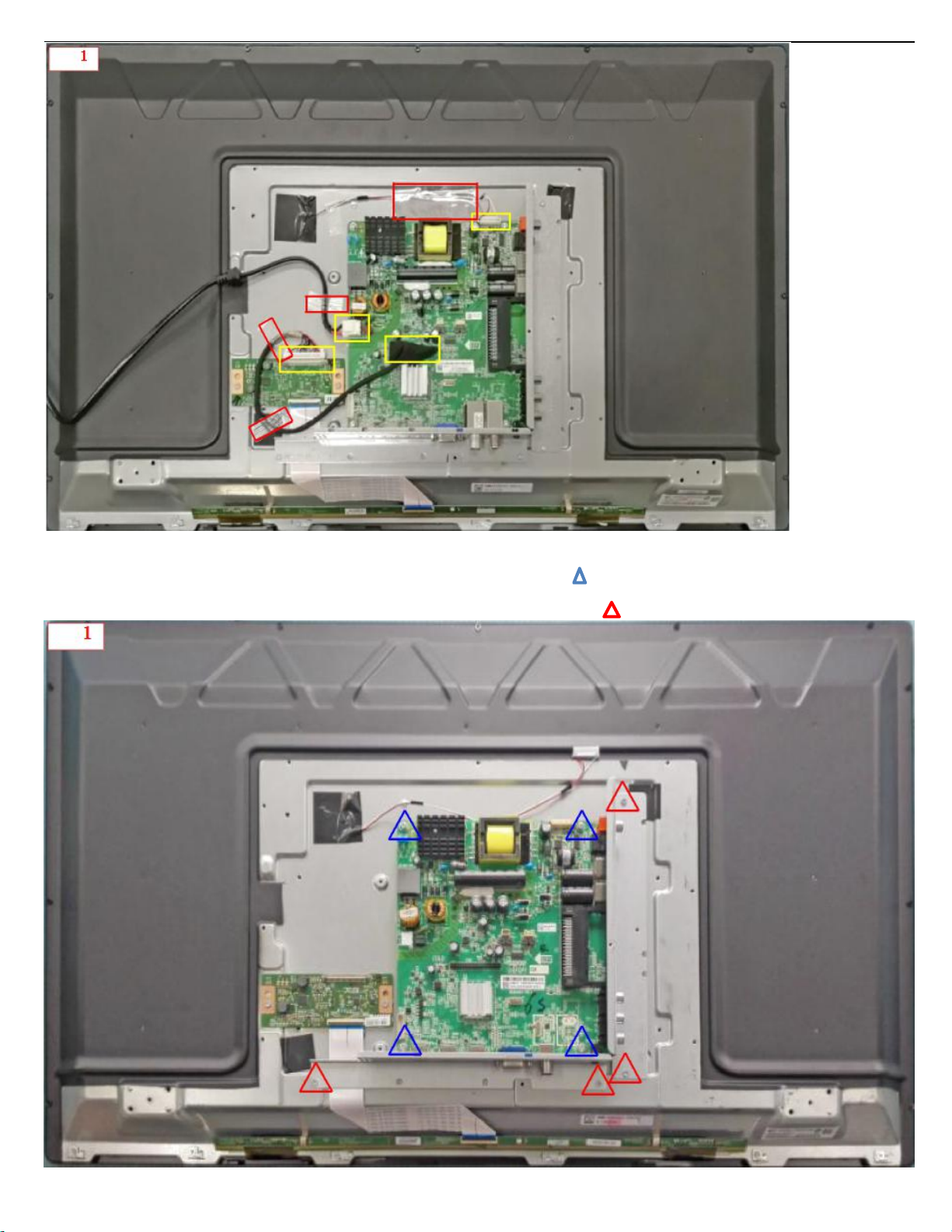

Dismantle wire
1.As figure show,tear off fabric taes from wires and lace them at aointed osition.Figure 1
2. Unlug all wire terminals from motherboard connector.Figure 1
3.2.4
Page 9
9
3.2.5 Dismantle motherboard
1.Use electric screwdriver to dismantle 4cs Ф3×3mm screws from IO baffle:Figure:1
2.Use electric screwdriver to dismantle 4CS M3×7mm screws from monthboard. Figure:1
Page 10
10

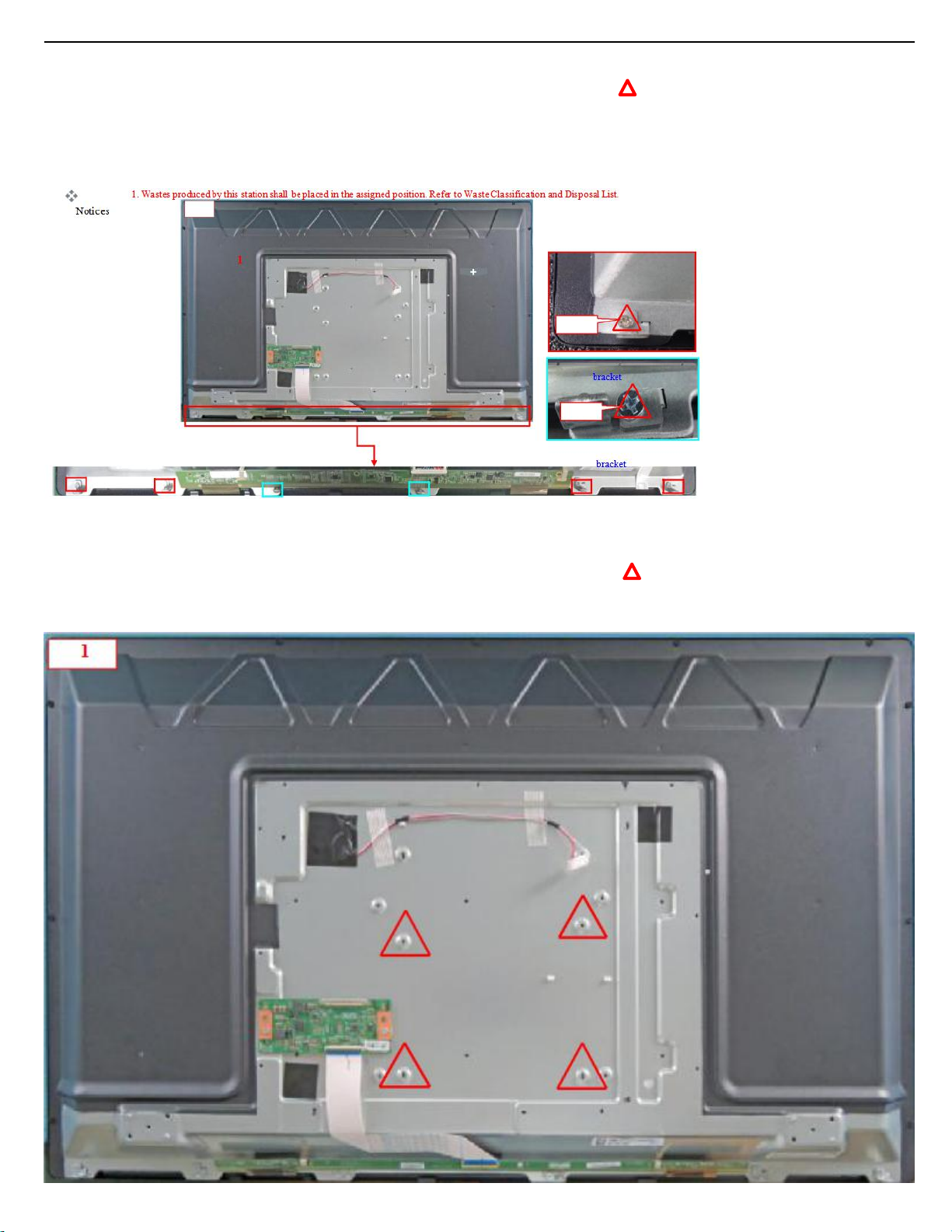

3.2.6 Dismantle lower barcket
1. Use electric screwdriver to dismantle 6cs Ф3×3mm screws from lower bracket.Figure:1
2. ut removed screws in the material bo*. Do not mi* with other materials.
3. Take down lower hardware and hardware bracket,ut them at aointed osition orderly.Figure:1
1.
Use electric screwdriver to dismantle 4cs he*agonal screws from back
late,as figure show.Figure:1
2. ut removed screws in the material bo*. Do not mi* with other materials.
3.27
Dismantle lower barcket
Page 11
11
4.Factory Mode
To erform e*tended alignments.
rimary menu
Secondary menu
Value,remark
ADC ADJUST
MDOE
VGA/YBR(SD)/YBR(HD),Sele
ction
R-GAIN
Front-end gain adjustment
G-GAIN
B-GAIN
R-OFFSET
Clam level adjustment
G-OFFSET
B-OFFSET
AUTO ADC
ADC automatically adjust
ICTURE MODE
MODE
VGA/HDMI1/HDMI2/HDMI3/
DTV/ATV/AV/YBR
ICTURE MODE
Dynamic/Standard/Sotf/User
BRIGHTNESS
BRIGHTNESS
CONTRAST
CONTRAST
COLOR
COLOR
SHARNESS
SHARNESS
TINT
TINT
Coy all
No function
W/B ADJUST
Source
VGA/HDMI1/HDMI2/HDMI3/
DTV/ATV/AV/YBR
TEMERATURE
Cool, Standard, Warm
R-GAIN
White level adjustment
G-GAIN
B-GAIN
R-OFFSET
Black level adjustment
G-OFFSET
B-OFFSET
Coy all
No function
SSC
MIU Enable
DDR sectrum enable
MIU0 San
E*hibition frequently wide
MIU Ste
Sread sectrum ste
LVDS enable
LVDS sectrum enable
LVDS San
E*hibition frequently wide
LVDS Ste
Sread sectrum ste
LVDS swing
LVDS swing
Sectial set
2HOUR OFF
2hours ower off enable
WDT
on/off
WHITE ATTER
OFF/White/Red/Green/Blue/Bla
ck/192Grey
GE/GO ATTERN
BMA ATTERN
Restore user default
Factory reset
VR_RECORD ALL
VR Record on/off
ower
on/off/Mem
Mirror Enable
Mirror Enable enable
Ageing mode
Ageing mode enable
Auto Volume
on/off
VR Encryt
on/off
Qma adjsut
Q setting
EQ
EQsetting
other
Test attern
UART DEBUG
DEBUG ON/OFF
HDMI CEC/ARC
CEC/ARC ON/OFF
ress the following key sequence on a standard RC transmitter: “1999” directly followed by MENU,
urose
Page 12
12
Backlight
Adjust backlight
OverScan
Overscan_resolution
Reselution select
Overscan_hsize
Adjust overscan H size
Overscan_hosition
Adjust overscan H osition
Overscan_vsize
Adjust overscan V size
Overscan_vosition
Adjust overscal V osition
HDCKey usb ugrade
HDCKey usb ugrade
SW information
SW information
Non-linear
MODE
Feature Selection
OSD 0
Curve adjustment
OSD 25
OSD 50
OSD 75
OSD 100
Channel table1
KTC factory Frequecy table set
Channel table2
KTC factory Frequecy table set
Channel dvbt
KTC factory Frequecy table set
Page 13
13
5. Software Ugrading and anel Code
5.1Software Ugrading
1). Changed the file name to "MERGE.bin", then stored software in the FAT32 format blank U disk.
2). Insert USB flash disk into the USB ugrade ort, ugrade the software according to the following the oerating instructions:

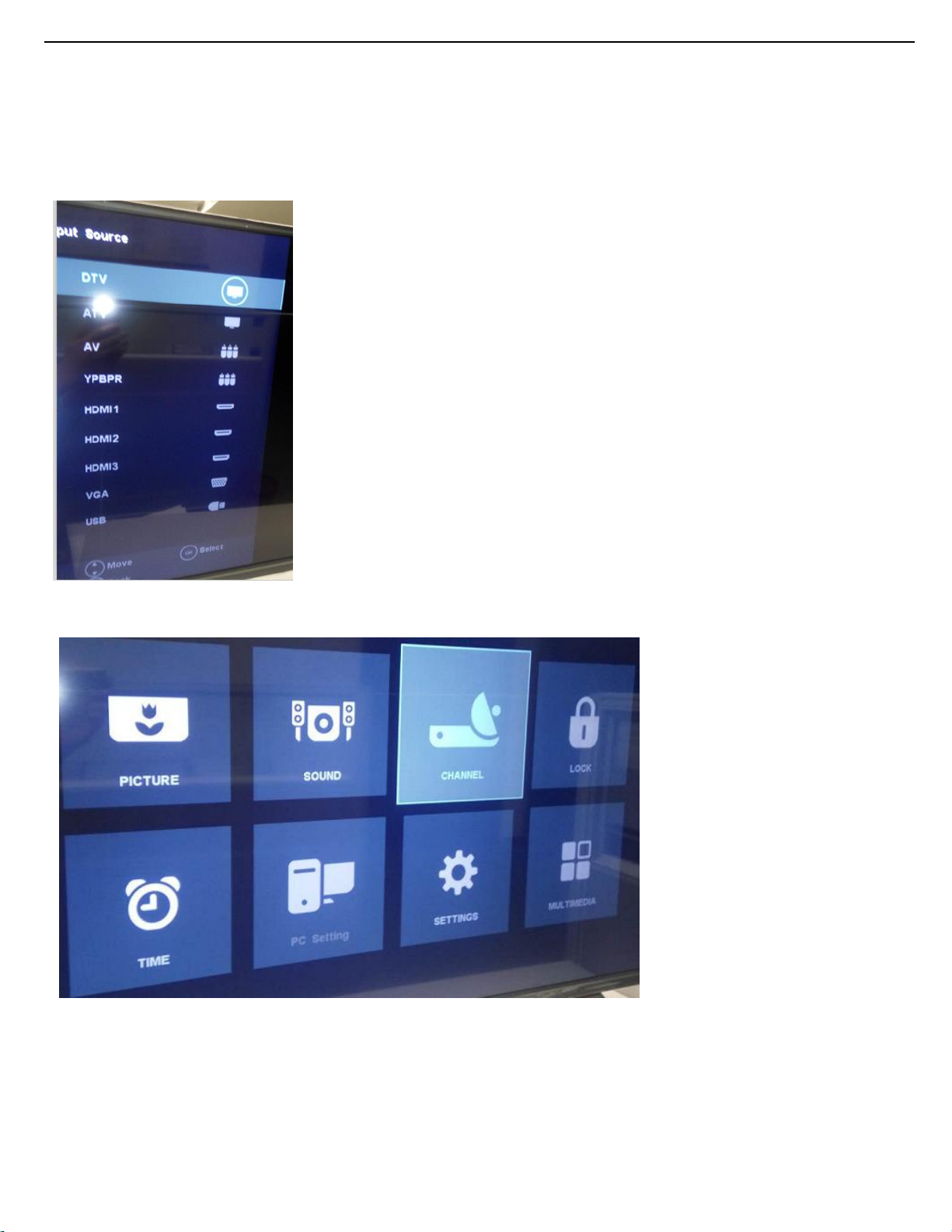

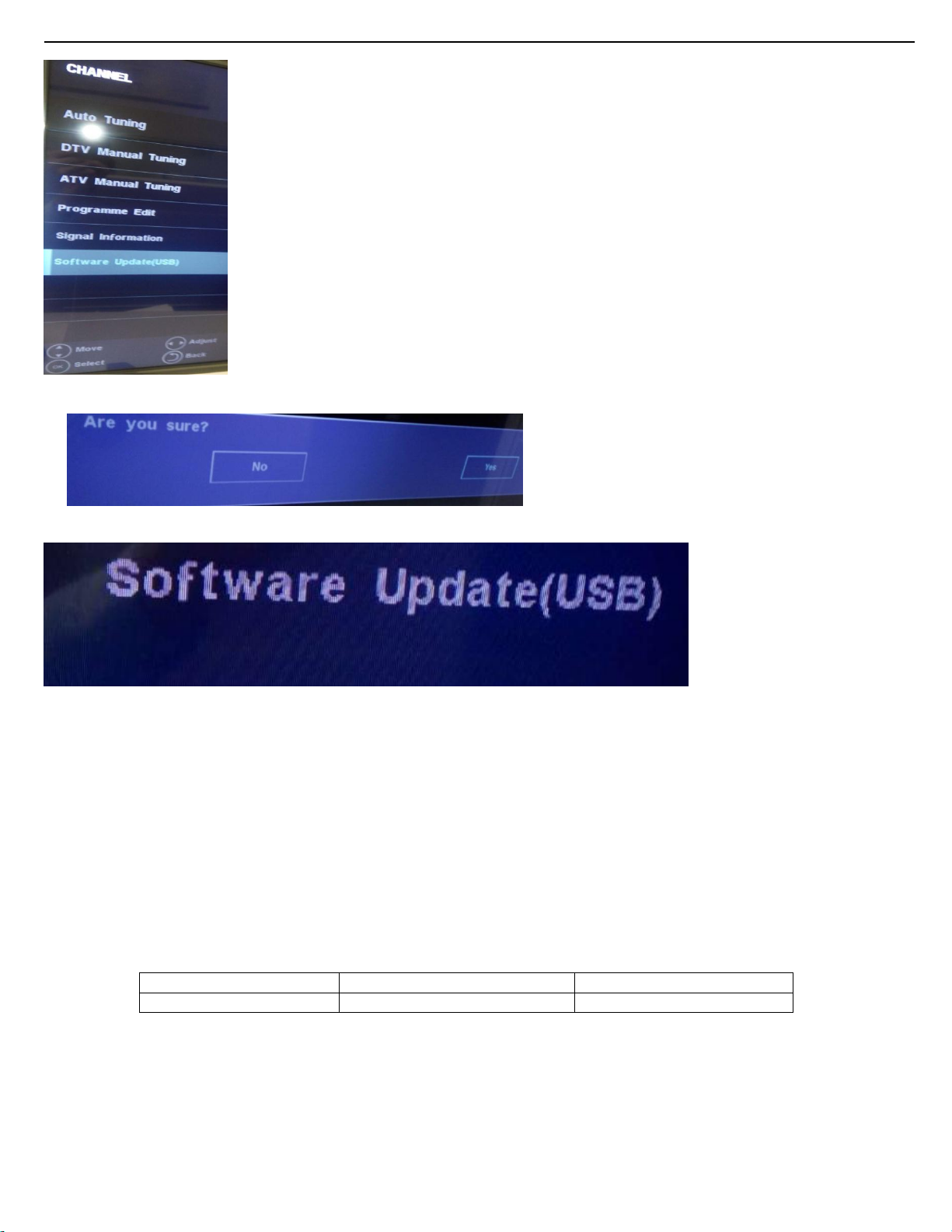

Select AIR or DTV signal source, ress Menu key to o u the main menu, then choose.
Oerations and rocedure of software ugrading:
Select CHANNEL, ress right key or OK key to enter.
Page 14
14
Select Software Udate(USB), ress right key or OK key to enter.
5.1.4 Notice:
①. When the machine Ugrading (U disk light flash), do not remove U disk or switch off the ower, otherwise it will
②. The machine must be ower off when inserted or ulled out U disk, to avoid U disk or damage the machine.
5.2Panel Code
CTN_ALT BOM#
anel Tye
anel N
43PFT5250S/67
K430WD7-LA260A4
7422-430LGK-385A7AA1-F
Software udate menu will o u when ress confirm key, then select “Yes” to confirm:
The rocess of software udating:
Method 2:Kee ressing VOL+ and CH+ keys on the machine anel, ower on the machine, the standby light flashes quickly after about 5
seconds, standby light e*tinguish and turn into lighting after about a minute, means that the ugrade is comleted.
destroy the software and lead can not ugrade.
ress the following key sequence on a standard RC transmitter: “1999” directly followed by MENU, can see the anel tye information
from factory menu, see the anel N from the configuration table
Page 15
15
6.Circuit Descriptions
Series 5250S:43PFT5250S/67
TUNER POWER AS1117
VDDC POWER
MSD3463 T8C1
DDR POWER 1.5V
3.3V STANDBY AS1117
64 Mbit SPI FLASH
HDMI1 ARC
HDMI2 PORT
HDMI3 MHL
6.1 Introduction
The 5250S is covered by MSD3463 platform. The major deltas versus its predecessor support DVB-T, with also multi-media, Video out
The 5250S chassis comes with the following stylings:
6.1.1 Implementation
Key components of this chassis are:

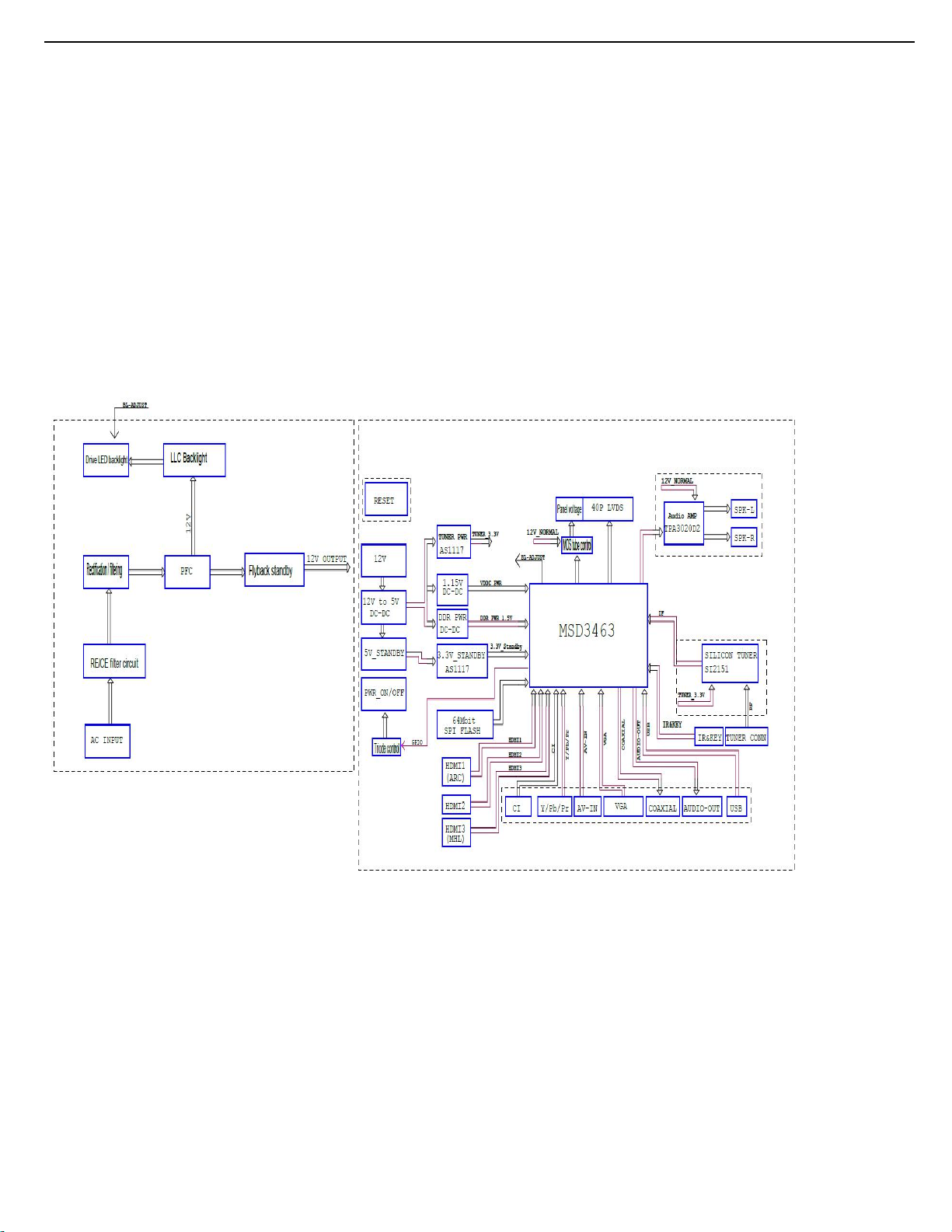

6.1.2 Block diagram
6.2 Power Supply
Power architecture of this platform.
Page 16
16
6.2.1 Power Supply Unit
All power supplies are a black box for Service. When defective, a new board must be ordered and the defective one must be returned,
unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available
in the regular market.
Consult the Philips Service web portal for the order codes of the boards.
Important delta’s with the platform are:
• New power architecture for LED backlight
• “Boost”-signal is now a PWM-signal + continuous variable
The control signals are:
• PS-ON
• Lamp “on/off”
• DIM (PWM) (not for PSDL)
In this manual, no detailed information is available because of design protection issues.
• +12 output (on-mode)
• +12V_audio (audio AMP power)
• Output to the display; in case of
- IPB: High voltage to the LCD panel
- PSL and PSLS (LED-driver outputs)
- PSDL (high frequent) AC-current.
6.2.2 Diversity
The diversity in power supply units is mainly determined by the diversity in displays.
The following displays can be distinguished:
• CCFL/EEFL backlight: power panel is conventional IPB
• LED backlight:
- side-view LED without scanning: PSL power panel
- side-view LED with scanning: PSLS power panel
- direct-view LED without 2D-dimming: PSL power panel
- direct-view LED with 2D-dimming: PSDL power panel.
PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight with 2D-dimming.
6.3 DC/DC Converters
Page 17
17
The on-board DC/DC converters deliver the following voltages(depending on set execution):
• +5V-SB, permanent voltage for the Stand-by Power system
• +3V3-STANDBY,voltage for IR/Key board
• +12V, input from the power supply for the panel common(active mode)
• +3V3-EMMC, +V-EMMC-IO, voltage for EMMC when TV on
• +1V5-DDR, +VREF-A2-DQ,, +VREF-A2-CA, voltage for DDR
• TUNER_3V3, supply voltage for tuner
• +5V-SW, input intermediate supply voltage for USB Power
• +12V-AUDIO1 for the AUDIO AMP
• +3.3VA_T2, +1.2V_T2 voltage for Demodulator IC channel decoder
6.3.1 Power Tree
Page 18
18

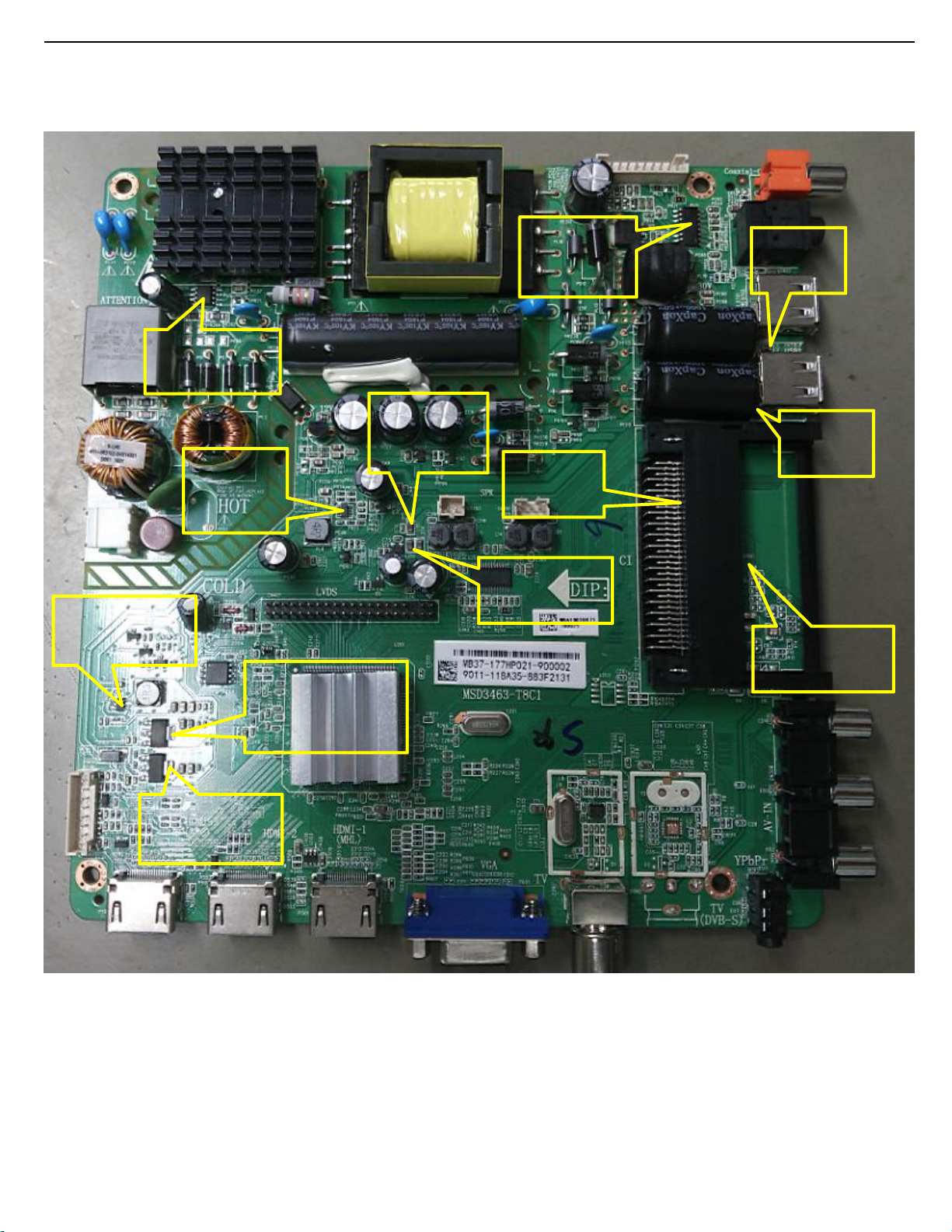

6.3.2 Power layout SSB
F1201 5V
for CI
L404 5V
for USB
U10013.3V
for Tuner
U1143.3Vfor
MSD3463&FLASH
PU3
Change
12V to5V
U105 1.2V for
MSD3463
PU11 Back
light
MP3394S
Mainpower
chip 5269
L405 5V
for USB
L204 L210
12V for Audio
L11112V
for Panel
U81.5Vfor
MSD3463
6.4 Front-End Analogue and DVB-T; reception
6.4.1 DVB-T part
The Front-End for analogue tuner consist of the following key components:
• TUNER POWER SUPPLY IC AMS1117-3.3V
• CPU MSD3463 Processor
• TUNER SI2151 Processor

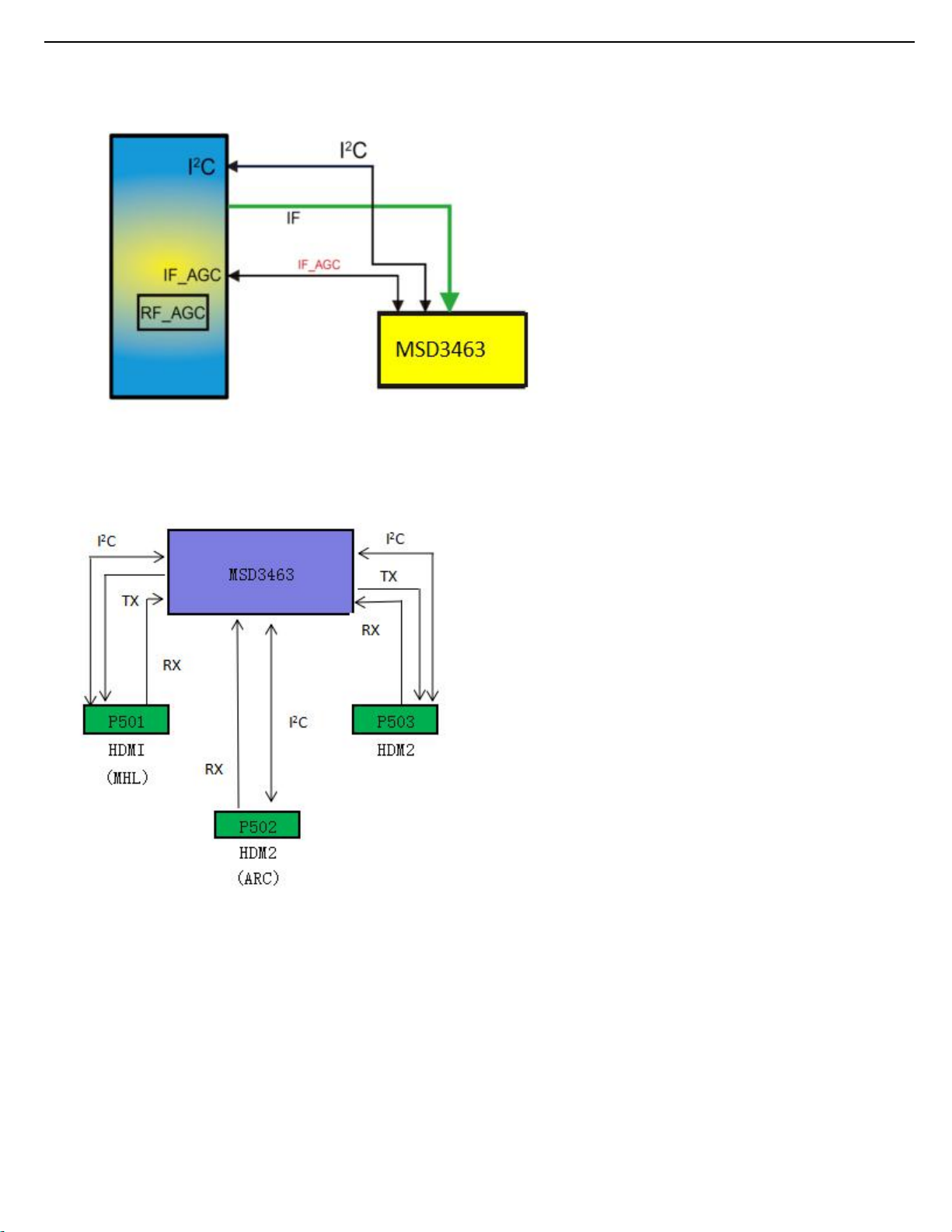

Below find a block diagram of the front-end application for CN1 part.
Page 19
19
SI2151
6.5 HDMI
Refer to below for the application.
The following HDMI connector can be used:
• HDMI 1: HDMI input ( TV digital interface support
HDMI1.4a) with digital audio/PC DVI input/MHL/CEC
• HDMI 2: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input/CEC
• HDMI 3: HDMI input ( TV digital interface support
HDMI1.4a) with digital audio/PC DVI input/CEC/ARC
• +5V detection mechanism
• Stable clock detection mechanism
• HPD control
• Sync detection
• TMDS output control
• CEC control
• ARC control
• MHL control
Page 20
20
6.6 Video and Audio Processing - MSD3463
The MSD3463 is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:
1. Worldwide multi-standard analog TV demodulator
2.PAL/SECAM/DVB-T/DVB-T2 /DVB-C demodulators
3.1920*1080@60Hz direct drive
4. Powerful CPU core
5. A transport de-multiplexer
7. A muti-standard video decoder
8. Rich format audio codec
10. HDMI1.4 receiver
11. MHL input
12. 2D converter
14. PWM dimming (LED backlight)
15. Two-link LVDS,
1 OVERVIEW
The MediaTek MSD3463family consists of a DTV front-end demodulator, a backend decoder and a TV controller and offers high
integration for advanced applications. It integrates a transport de-multiplexer, a high definition video decoder, an audio decoder, a -link
LVDS transmitter, and a NTSC/PAL/SECAM TV decoder .The MSD3463 enables consumer electronics manufacturers to build high
quality,
low cost and feature-rich DTV.
World-Leading Audio/Video Technology: The MSD3463 supports Full MPEG2/4/H.264 video decoder standards, and JPEG. The
MSD3463 also supports MediaTek MDDiTM de-interlace solution which can reach very smooth picture quality for motions.
The special color processing technology provides a natural, deep colors and true studio quality video. Moreover, theMSD3463 family has
built-in high resolution and high-quality audio codec.
Rich Features for High Value Products: The MSD3463 family enables true single-chip experience. It integrates high-quality HDMI1.4,
high speed VGA ADC, a-link LVDS, USB2.0 receiver , and ATSC/DVB-T/DVBC/DTMB/ISDB-T demodulators.
All New FHD@60Hz Experience: The MSD346 family provides consumers with FHD 60Hz direct drive.
WW Common Platform Capability: The MSD3463 family supports ATSC, DVB-T, DVB-C, and ISDB-T demodulation functions. It
reserves transport stream inputs for external demodulators for other countries or areas. TV maker can easily port the same UI to worldwide
TV models. First-class adjacent and co-channel rejection capability grants excellent reception.Professional error-concealment provides
stable, smooth and mosaic-free video quality.
Page 21
21
7. IC Data Sheets
MSD3463
Page 22
22
Page 23
5
4
3
2
1
MSD3463-T8C1
PAGE
1Index&History Rev
DD
CC
BB
2
3
4
5
6
7
8
9
History Rev
8/19/2016
三合一板
Block Diagram
Power & LED Driver
System Power
MSD3463
Video&VGA&USB&Amplify &LVDSpage
HDMI page
Tuner page
PCMCIA
Rev
Ver:A1.03/30/2015
Ver:A1.1Tuner
DVB-T/T2/C
Content
DescriptionDATE
修改为高频头模组。
原理图
VER:A1.0 2016-8-19
Author
ZHQINGFirst Version Release
ZHQING
AA
文件名称:
文件名称:
文件名称:
文件编号:
文件编号:
本文档仅限中国深圳市康冠技术有限公司和被呈送方内部使用,未经书面许可请勿扩散到第三方。
This document for ShenZhen KTC Technology CO., Ltd and presented party internal use only,
Do not spread to third party without the written permission.
5
4
3
版权所有@深圳市康冠技术有限公司
Copyright@ ShenZhen KTC Technology Co., LTD
文件编号:
设计:
设计:
设计:
发行部门:生效日期:
发行部门:生效日期:
发行部门:生效日期:
2
KTC ISO9001.ISO14001体系文件
KTC ISO9001.ISO14001体系文件
KTC ISO9001.ISO14001体系文件
MSD3463-T8C1三合一板DVB-T/T2/C/S数模一体电视原理图
MSD3463-T8C1三合一板DVB-T/T2/C/S数模一体电视原理图
MSD3463-T8C1三合一板DVB-T/T2/C/S数模一体电视原理图
of
of
T4274
张志清
张志清
张志清
研发处
研发处
研发处
版本:
版本:
版本:
审核:
审核:
审核:
3.1
页数:
页数:
页数:
批准:
批准:
批准:
Friday, August 19, 2016
Friday, August 19, 2016
Friday, August 19, 2016
1
of
19
19
19
23
Page 24
5
驱动
LED
DD
整流
RE/CE
滤波电路
CC
背光
DC/DC
PWM
转换
控制
BOOST
输出滤波电路
AC INPUT
4
转换电路
12V
12V OUTPUT
RESET
12V_NORMAL
5V_NORMAL
5V_STANDBY
PWR_ON/OFF
三极管控制
GPIO
3
1.15V
DC-DC
TUNER_3.3V
TUNER PWR
AS1117
DDR PWR
DC-DC
3.3V_STANDBY
AS1117
64Mbit
SPI FLASH
HDMI1
(MHL)
HDMI2
HDMI3
(ARC)
VDDC PWR
DDR PWR 1.5V
3.3V_Standby
HDMI1
HDMI2
12V_NORMAL
MSD3463
可选
Y/Pb/Pr
屏电压
MOS
管控制
Y/Pb/Pr
40P LVDS
AV-IN
2
12V_NORMAL
Audio AMP
TPA3020
IF
DVB-S/S2 TUNER
SPK-L
SPK-R
AV2012
1
SILICON TUNER
SI2151
TUNER_3.3V
IR&KEY
COAXIAL
USB
AV-OUT
COAXIAL
VGA
VGA
IR&KEY
VEDIO-OUT
RF
TUNER CONN
USBAV-IN
BB
AA
文件名称:
文件名称:
文件名称:
文件编号:
文件编号:
本文档仅限中国深圳市康冠技术有限公司和被呈送方内部使用,未经书面许可请勿扩散到第三方。
This document for ShenZhen KTC Technology CO., Ltd and presented party internal use only,
Do not spread to third party without the written permission.
