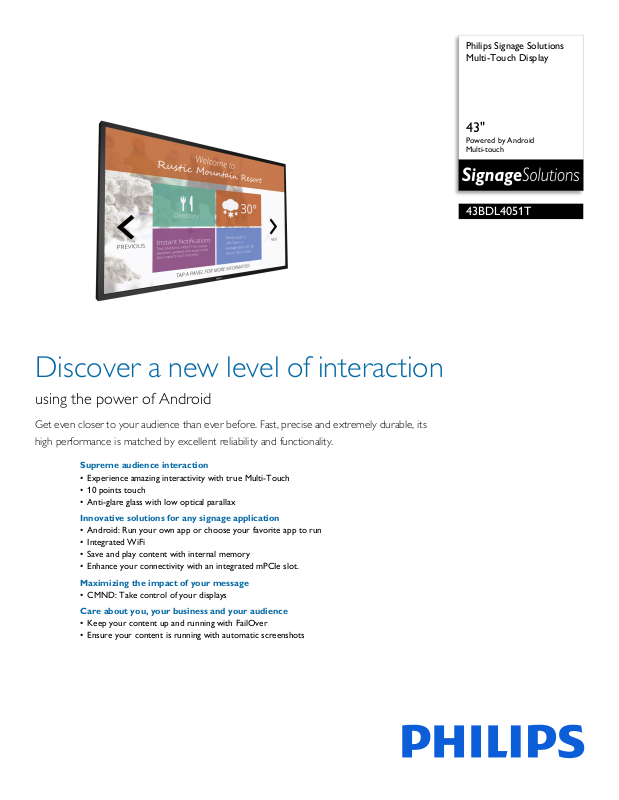

Page 1

Philips Signage Solutions Multi-Touch Display

43"

43BDL4051T

Discover a new level of interaction

using the power of Android

Get even closer to your audience than ever before. Fast, precise and extremely durable, its high performance is matched by excellent reliability and functionality.

Supreme audience interaction

• Experience amazing interactivity with true Multi-Touch

• 10 points touch

• Anti-glare glass with low optical parallax

Innovative solutions for any signage application

• Android: Run your own app or choose your favorite app to run

•Integrated WiFi

• Save and play content with internal memory

• Enhance your connectivity with an integrated mPCIe slot.

Maximizing the impact of your message

• CMND: Take control of your displays

Care about you, your business and your audience

• Keep your content up and running with FailOver

• Ensure your content is running with automatic screenshots

Page 2

43BDL4051T/00

Multi-Touch Display

43" Powered by Android, Multi-touch

Highlights

Plug & Play Multi-Touch

A brand new level of interactivity is now available thanks to integrated touch technology. More flexibility and optimum simultaneous touch performance coupled with excellent operability opportunities to give you the ultimate in user interaction. The Multi-Touch displays are enabled with automatic touch recognition. The USB connector is HID compliant, providing true plug-and-play operation.

Anti-glare glass

With this integrated touch display, the anti-glare glas

s with low optical parallax allows for the most immersive touch experience. With little to no glare and low reflection on the display, images are crystal clear with pure color and great clarity.

WIth Android OS integrated into the display, you can w the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With

ork with the most developed OS on

the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.

FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

Internal Memory

Save and play content with internal memory. Upload your media into the display and playback

content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

PCI Slot

With an integrated PCI slot, you can connect a WiFI/blue even greater communication with the display. Machine to machine communication is also enhanced, with numerous configurations available for customers to use, such as the ability to expand product features or signal-handling capability.

CMND

A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

tooth or 4G LTE module, allowing for

Plug & Play

Multi-Touch

Page 3

43BDL4051T/00

Multi-Touch Display

43" Powered by Android, Multi-touch

Specifications

Picture/Display

• Diagonal screen size: 42.5 inch / 108.0 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 450 cd/m²

• Contrast ratio (typical): 1100:1

• Dynamic contrast ratio: 500,000:1

• Surface treatment: Anti-G

• Aspect ratio: 16:9

• Response time (typical): 12 ms

• Pixel pitch: 0.49 x 0.49 mm

• Display colors: 16.7 million

• Viewing angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down,

mbfilter, Motion compens. deinterlacing,

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

lare coating

Interactivity

• Multi-touch technology: Infrared touch

• Touch points: 10 simultaneous touch points

• Plug and play: HID compliant

• Protection glass: 5 mm tempe

Glare, Anti-Reflective

red safety glass, Anti-

Connectivity

• Video input: DisplayPort (1.2), HDMI (x2), DVI-D,

USB, VGA (via DVI)

• Video output: DisplayPort, DVI-I, VGA (via DVI-D)

• Audio input: Audio Left/Right

• Audio output: Audio Left/R

speaker connector

• External control: RJ45, IR (in/out) 3.5 mm jack,

32C (in/out) 2.5 mm jack

RS2

• Other connections: micro SD,

USB power outlet (5 V. 2 amp)

(RCA), 3.5 mm jack

ight (RCA), External

micro USB, mPCIe,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 800 60Hz

1280 x 1024 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1440 x 900 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi Resolution Refresh rate 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

Convenience

• Placement: Landscape (24/7), Portrait (24/7)

• Signal Loop Through: RS232, VGA, IR Loopthrough, DisplayPort, DVI

• Network controllable: RS232, RJ45, One Wire

DMI-CEC), HDMI (One Wire)

• Picture performance: Advanced color control

• Picture in picture: PIP

• Screen saving functions: Pixel Shift, Low Brightness

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

• Energy saving functions: Smart Power

• Other convenience: Carrying handles

Dimensions

• Set dimensions (W x H x D):

1002.6 x 590.8 x 91.4 mm

• Set dimensions in inch (W x H x D):

x 23.26 x 3.60 inch

39.47

• Product weight: 19.4 kg

• Product weight (lb): 42.77 lb

• Bezel width: 29.2 mm

• VESA Mount: 400 x 400 mm, M6

Sound

• Built-in speakers: 2 x 10W

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

• Altitude: 0 ~ 3000 m

• Temperature range (storage): -20 ~ 60 °C

Power

• Mains power: 100 ~ 240 VAC, 50/60Hz

• Standby power consumption: <0.5W

• Consumption (Typical): 59 W

Accessories

• Included accessories: AC Power Cord, RS232 cable, USB cable, Remote Control, Batteries for remote control, Quick start guide

• Optional accessories: Co (CCK4601)

• Stand: BM05922 (Optional)

lourCalibrationKit

Miscellaneous

• On-Screen Display Languages: Arabic, English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: CE, CCC, FCC, Class B, UL/

, RoHS, CB, C-Tick, BSMI, EnergyStar 7.0,

cUL GOST, PSE, VCCI

• Warranty: 3 year warranty

Multimedia Applications

• USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM, M3U, M4A, MP3, MP4, WAV, WMA

• USB Playback Picture: BMP, GIF, JPEG, JPG, PDF

• USB Playback Video: M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS,

TTS, VOB, WMV

Internal Player

• CPU: Quad Core Cortex A9 1.8GHz

• GPU: ARM Mali400 Quad Core 533MHz

• Memory: 2GB DDR3

• Storage: 16GB EMMC

•

Issue date 2016-12-09

Version: 1.0.1

12 NC: 8670 001 37351 EAN: 87 12581 73967 6

Specifications are subject t Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

o change without notice.
