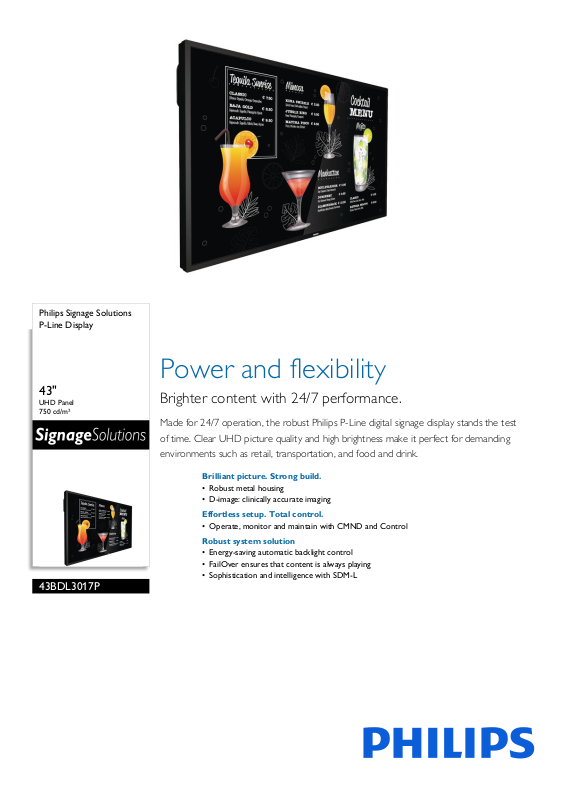

Page 1

Philips Signage Solutions P-Line Display

Power and flexibility

43"

UHD Panel 750 cd/m²

43BDL3017P

Brighter content with 24/7 performance.

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high brightness make it perfect for demanding environments such as retail, transportation, and food and drink.

Brilliant picture. Strong build.

• Robust metal housing

• D-image: clinically accurate imaging

Effortless setup. Total control.

• Operate, monitor and maintain with CMND and Control

Robust system solution

• Energy-saving automatic backlight control

• FailOver ensures that content is always playing

• Sophistication and intelligence with SDM-L

Page 2

43BDL3017P/00

P-Line Display

43" UHD Panel, 750 cd/m²

Highlights

D-image

This Philips Professional Display is factorycalibrated to meet clinical compliance standards for greyscale performance. The optimal image achieved by the display can be used to review medical images in consultation rooms or lecture theatres.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

CMND and Control

Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

SDM-L ready

An integrated Intel Smart Display Module Large adds scalabl display, enabling quick and cost-effective upgrades when you need to add new features and functionality. Its thin design provides the same level of intelligence and interoperability as OPS, whilst keeping the display as sleek as possible.

e sophistication to your

Page 3

43BDL3017P/00

P-Line Display

43" UHD Panel, 750 cd/m²

Specifications

Picture/Display

• Diagonal screen size: 42.5 inch / 108 cm

• Panel resolution: 3840 x 2160

• Optimum resolution: 3840 x 2160 @ 60 Hz

• Brightness: 750 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 8 ms

• Pixel pitch: 0.2451 x 0.2451 mm

• Display colours: 1.07 billion

• Viewing Angle (H / V): 178 / 178 degree

•Haze: 25%

• Panel technology: IPS

Connectivity

• Video input: Display Port1.2 (x 1), DVI-I (x 1), HDMI 2.0 (x 2), USB 2.0 (x 1)

• Video output: DisplayPort 1.2 (x 1), HDMI 2.0 (x 1)

• Audio input: 3.5 mm jack

• Audio output: 3.5 mm jack

• Other connections: SDM-L, Micro SD (x 1)

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

Supported Display Resolution

mputer formats

• Co Res

olution Refresh rate 1024 x 768 60, 70, 75 Hz 1152 x 864 75 Hz 1152 x 870 75 Hz 1280 x 1024 60 Hz 1280 x 720 60 Hz 1280 x 800 60 Hz 1440 x 900 60 Hz 1600 x 1200 60 Hz 1680 x 1050 60 Hz 1920 x 1080 60 Hz 640 x 480 60, 67, 72, 75 Hz 720 x 400 70 Hz 800 x 600 56, 60, 72, 75 Hz

deo formats

• Vi Res

olution Refresh rate 1080i 50, 60 Hz 1080p 50, 60 Hz 3840 x 2160 30Hz 3840 x 2160 60 Hz 480p 60 Hz

576p 50 Hz 720p 50, 60 Hz

Dimensions

•Set dimensions (W x H x D):

972.98 x 561.22 x 76.80 mm

• Set dimensions in inch (W x H x D): 1 x 22.1 x 3.02 inch

38.3

•Bezel width: 13.9 mm (Even bezel)

• Product weight (lb): 30.64 lb

• Product weight: 13.9 kg

• VESA Mount: 400 x 400 mm, M6

Convenience

• Placement: Landscape (24/7), Portrait (24/7)

• Tiled Matrix: Up to 15 x 15

• Keyboard control: Hidden, Lockable

• Signal loop through: IR Loop through, RS232,

layPort, HDMI

Disp

•

Network controllable: RJ45, RS232

• Energy-saving functions: Smart Power

• Screen-saving functions: Pixel Shift, Low Bright

• Ease of installation: Carrying Handles

Power

• Standby power consumption: <0.5 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (Typical): 100 W

Consumption (Max): 240 W

•

• Energy Label Class: G

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Altitude: 0 ~ 3000 m

• MTBF: 50,000 hour(s)

• Humidity range (operation)[RH]: 20~80% RH (No

nden

sation)

• Humidity range (storage) [RH]: 5~95% RH (No

sation)

conden

Sound

• Built-in speakers: 2 x 10 W RMS

Accessories

• Included Accessories: AC Switch Cover, Edge

Alignment Kit (1) - 1 pcs, Edge Alignment Kit (2) 2 pcs, IR sensor cable (1.8 m) (x 1), Philips logo (x 1), Power cable (x 3), Quick start guide (x 1),

mote control and AAA batteries, RS232 cable (3

Re m) (x 1), RS232 daisy chain cable (x 1), USB Cover (x 1), Wire Clamper (x 3)

• Stand: BM05922(optional)

Multimedia Applications

• USB Playback Audio: AAC, HEAAC, MPEG

• USB Playback Picture: JPEG, PNG, BMP

• USB Playback Video: H.264, Motion JPEG, MPEG1/ 2, WMV3

Miscellaneous

• On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: CE, CCC, BSMI, CB, VCCI,

EAC,

CECP,

•Warranty: 3 year warranty

•

PSB, EMF, ETL, FCC, Class A

Issue date 2022-04-21

Version: 6.1.1

12 NC: 8670 001 73315 EAN: 87 12581 77431 8
