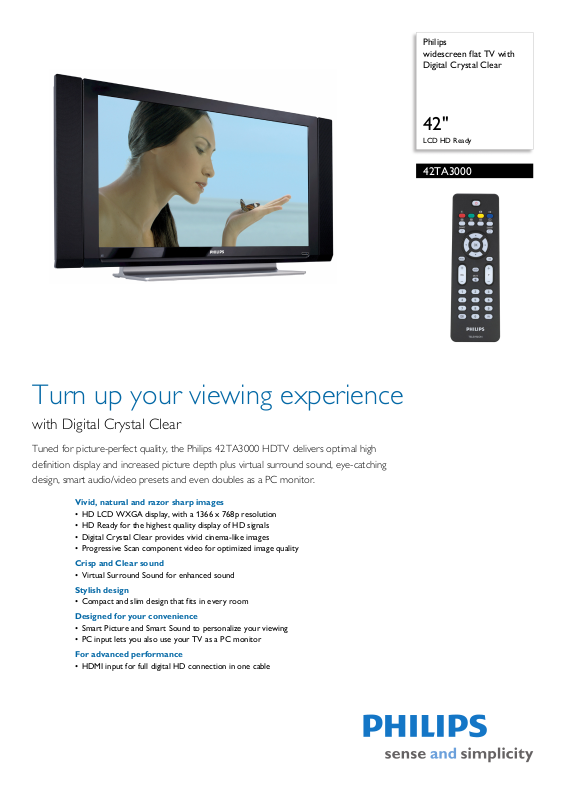

Page 1

Philips widescreen flat TV with Digital Crystal Clear

42"

LCD HD Ready

42TA3000

Turn up your viewing experience

with Digital Crystal Clear

Tuned for picture-perfect quality, the Philips 42TA3000 HDTV delivers optimal high definition display and increased picture depth plus virtual surround sound, eye-catching design, smart audio/video presets and even doubles as a PC monitor.

Vivid, natural and razor sharp images

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD Ready for the highest quality display of HD signals

• Digital Crystal Clear provides vivid cinema-like images

• Progressive Scan component video for optimized image quality

Crisp and Clear sound

• Virtual Surround Sound for enhanced sound

Stylish design

• Compact and slim design that fits in every room

Designed for your convenience

• Smart Picture and Smart Sound to personalize your viewing

• PC input lets you also use your TV as a PC monitor

For advanced performance

• HDMI input for full digital HD connection in one cable

Page 2

Widescreen flat TV with Digital Crystal Clear

42" LCD HD Ready

Highlights

42TA3000/93

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of High Definition pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or

HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Digital Crystal Clear

Digital Crystal Clear is a package of picture i

nnovations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinemalike images.

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Virtual surround sound

Virtual surround sound creates additional au

dio channels for a theater-like audio

experience.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound a single key on the remote control. You can select optimized picture and sound settings for the various picture and sound modes.

HDMI input

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

PC input

With PC input you can connect your TV to a c

omputer and use the TV as a PC monitor.

provide you with direct access via

Page 3

Widescreen flat TV with Digital Crystal Clear

42" LCD HD Ready

Specifications

42TA3000/93

Picture/Display

• Aspect ratio: 16:9

• Display screen type: LCD WXGA Active Matrix T

• Panel resolution: 1366 x 768p

• Picture enhancement: Digital C

2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Blue stretch, Black stretch, White stretch, Green enhancement, Progressive Scan, Smart Picture, Automatic skin tone correction

• Screen enhancement: Anti-Reflection coated

reen

rystal Clear, 3/2 - 2/

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 60Hz 1280 x 768 60Hz

deo formats

• Vi

Resolution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 60Hz 1080i 60Hz

Sound

• Output power (RMS): 2 x 10 W

• Sound Enhancement: Virtual Surround Sound

• Sound System: Mono, Nicam Stereo, Stereo

Loudspeakers

• Loudspeaker types: detachable

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer

• Ease of Installation: Autos

Digital Tuning, Sorting

• Ease of Use: Auto Volume Leveller (AVL), On

reen Display, Program List, Smart Picture, Smart

Sc Sound, Top Controls

tore, Fine Tuning, PLL

• Remote Control: TV

• Remote control type: RC2023611/01B

• Screen Format Adjustments: 4:3, Subtitle Zoom, erwide, Widescreen, Zoom 14:9, Zoom 16:9

Sup

• Picture in Picture: Picture in graphics

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL D/K

• Video Playback: NTSC, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: Audio L/R in, CVBS in, S-Video in

•AV 4: HDMI

•Front / Side connections: Audio

Headphone out, S-video in

• Other connections: Analog audio Left/Right out,

mposite video (CVBS) out, PC Audio in, PC-In

Co VGA, S/PDIF out (coaxial)

L/R in, CVBS in,

Power

• Ambient temperature: 0 °C to 40 °C

• Mains power: 90-264 VAC, 50/60 Hz

• Power consumption: < 275 W

• Standby power consumption: < 2 W

Accessories

• Included Accessories: Power cord, Quick start

guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

Dimensions

• Color cabinet: black, high gloss black strip

•Set dimensions (W x H x D):

20 x 645 x 102 mm

• Set dimensions with stand (W x H x D):

20 x 690 x 296 mm

• Product weight: 22.5 kg

• Product weight (+stand): 25.1 kg

•Box dimensions (W x H x D):

82 x 767 x 363

• Weight incl. Packaging: 33.3 kg

• VESA wall mount compatible: 400 x 200 mm

•

Issue date 2009-08-10

Version: 3.1.7

12 NC: 8670 000 31007 EAN: 87 12581 34224 1

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
