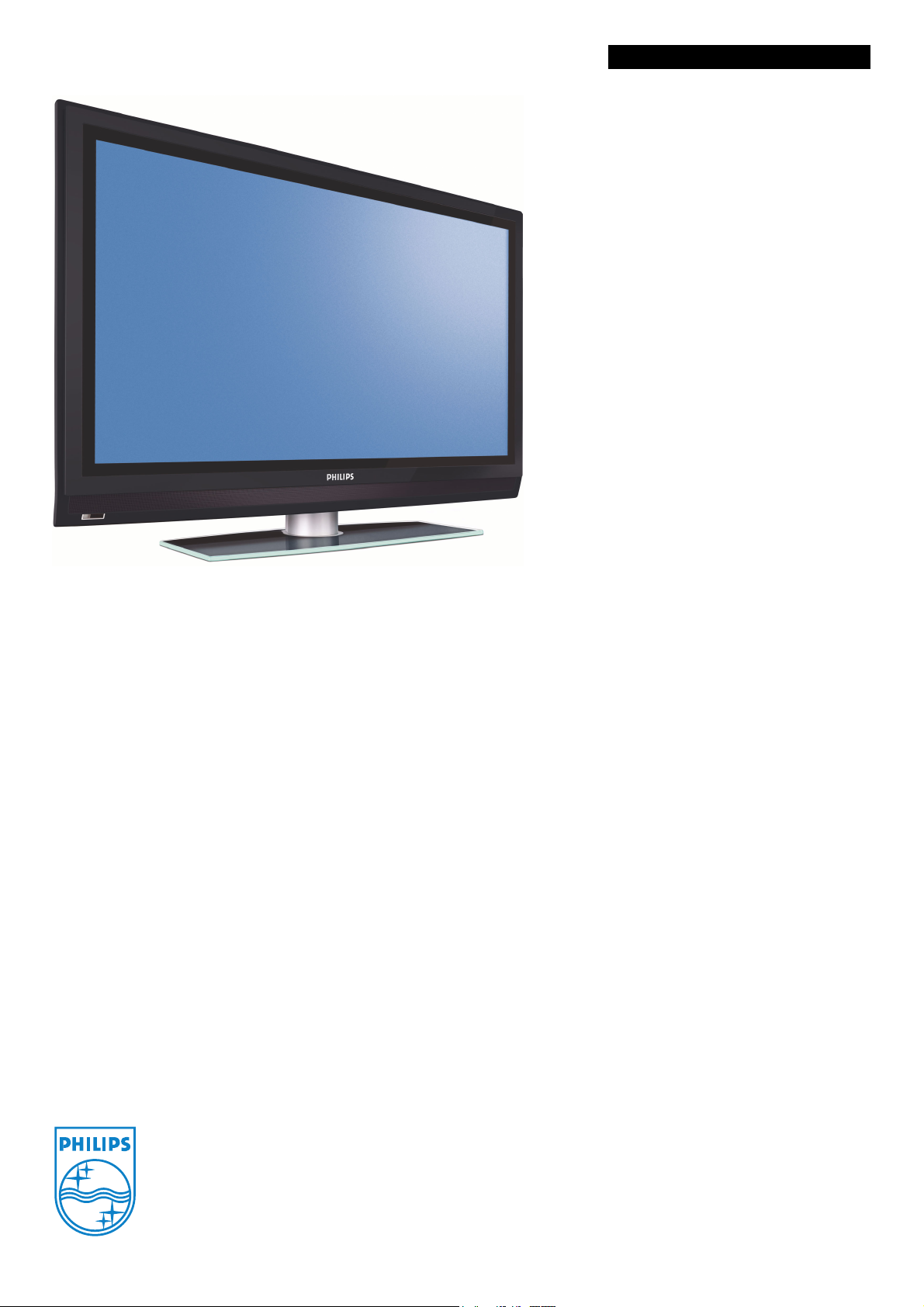

Philips widescreen flat TV with Pixel Plus HD

42"

plasma integrated digital

42PFP5532D

Turn up your viewing experience

with Integrated Digital Tuner

With this TV you can now enjoy the benefits of digital TV, Electronic Program Guide and digital quality content. At the same time, you can also watch superb pictures with Pixel Plus HD clarity and details

Vivid, natural and razor sharp images

• High-definition plasma WXGA display, 1024x768p

• Integrated Digital Tuner for DVB-T reception

• HD Ready for the highest quality display of HD signals

• Pixel Plus HD for better details, depth and clarity

• 3D combfilter separates colors for a razor-sharp image

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• 1000 page Hypertext for instant fast access to teletext

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Page 2

Widescreen flat TV with Pixel Plus HD

42" plasma integrated digital

Specifications

42PFP5532D/12

Picture/Display

• Aspect ratio: Widescreen, 16:9

• Brightness: 1500 cd/m²

• Dynamic screen contrast: 15000:1

• Response time (typical): <3 ms

• Viewing angle (H / V): >160 / >160 degree

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: WXGA Plasma panel

• Panel resolution: 1024 x 768p

• Picture enhancement: Pixel Plus HD, Luminance Transient Improver, Color Transient Improvement, Dynamic contrast enhancement, Contrast Plus, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control, Digital Noise Reduction, Jagged Line Suppression, Progressive Scan

• Screen enhancement: Anti ageing circuit

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 72, 75, 85Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz

• Video formats Resolution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50Hz, 60Hz

Sound

• Equalizer: 7-bands

• Output power (RMS): 2 x 10 W

• Sound Enhancement: Auto Volume Leveller, Incredible Surround, Dynamic Bass Enhancement

• Sound System: Nicam Stereo, Stereo

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Auto Program Naming, Automatic Channel Install(ACI), Automatic Tuning System (ATS), Autostore, Fine Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL), Easy toggle Dig/Analog modes, Program List, Side Control, Smart Picture Control, Smart Sound Control

• Electronic Program Guide: 8 day Electronic Program Guide

• Remote Control: TV

• Remote control type: RC2034301/01

• Screen Format Adjustments: 4:3, Movie expand 14:9, Movie expand 16:9, Subtitle Zoom, Super Zoom, Widescreen

• Picture in Picture: Text dual screen

• Teletext: 1000 page Hypertext

• Teletext enhancements: 4 favourite pages, Program information Line

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/ G, SECAM D/K, SECAM L/L', DVB COFDM 2K/ 8K

• Video Playback: NTSC, SECAM, PAL

• DVB: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 100

• Tuner Display: PLL

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

• Ext 3: S-video in, CVBS in, Audio L/R in

• Ext 4: YPbPr, Audio L/R in

• Ext 5: HDMI

• Ext 6: HDMI

• Number of Scarts: 2

• Other connections: Headphone out, Common Interface

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 220 - 240V, 50/60Hz

• Power consumption: 250 W

• Standby power consumption: < 1 W

Accessories

• Included Accessories: Table top stand, Power cord, Quick start guide, User Manual, Registration card, Warranty certificate, Remote Control, Batteries for remote control

• Optional accessories: Floor stand

Dimensions

• Color cabinet: Black cabinet High gloss deco front

• Set dimensions (W x H x D): 1047

x 701 x 107 mm

• Set dimensions with stand (W x H x D): 1047

x 764 x 264 mm

• Product weight: 31.5 kg

• Product weight (+stand): 41.5 kg

• Box dimensions (W x H x D): 1180

x 835 x 330 mm

• Weight incl. Packaging: 47 kg

• VESA wall mount compatible: 600 x 400 mm

•

Page 3

Widescreen flat TV with Pixel Plus HD

42" plasma integrated digital

42PFP5532D/12

Product highlights

Plasma WXGA Panel, 1024 x 768p

This state-of-the-art plasma screen technology gives you widescreen HD resolution of up to 1024 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated Digital DVB-T tuner

The integrated DVB-T tuner lets you receive Digital Terrestrial TV to watch or record. This means you do not need an additional set top box and also the additional cables.

HD Ready

Enjoy the exceptional picture quality of High Definition pictures and be fully prep ared for H D sources li ke HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Pixel Plus HD

Pixel Plus HD is a picture processing technology that enables viewer to watch contents that are vivid, natural and real. The result is a superbly razor sharp pictures with incredible details and depth from any HD source.

3D Combfilter

The 3D comb filter separates brightness and color signals better in 3D domain to eliminate cross-color, crossluminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital comb filter performs field-by-field comparisons of the television image to accurately separate the color from the blackand-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.

Issue date 2008-04-30

Version: 4.0.7

12 NC: 8670 000 26881 EAN: 87 12581 31504 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Compact and slim design

This design style emphasizes a slim, compact look that saves space and fits in anywhere.

2 HDMI inputs

HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest ou tp ut re solu tion wi th th e sou rce d evic e. Th e HDM I inp ut is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.
