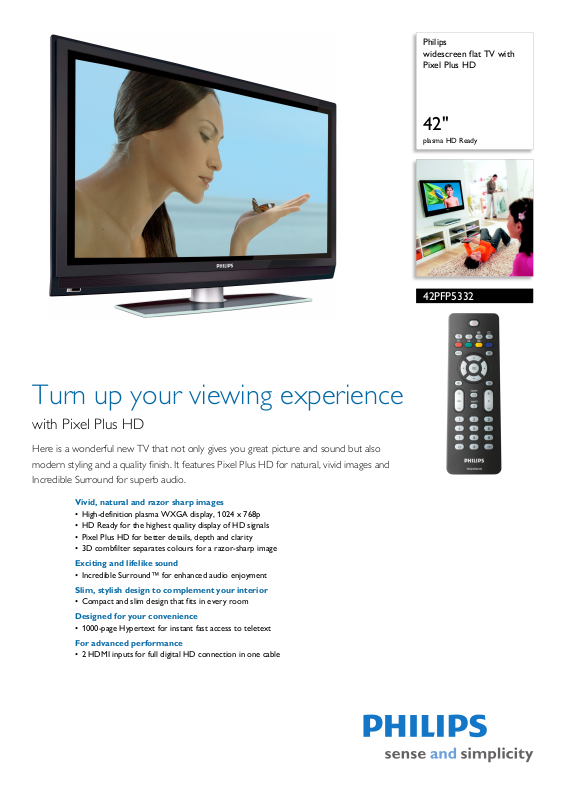

Philips widescreen flat TV with Pixel Plus HD

42"

plasma HD Ready

42PFP5332

Turn up your viewing experience

with Pixel Plus HD

Here is a wonderful new TV that not only gives you great picture and sound but also modern styling and a quality finish. It features Pixel Plus HD for natural, vivid images and Incredible Surround for superb audio.

Vivid, natural and razor sharp images

• High-definition plasma WXGA display, 1024 x 768p

• HD Ready for the highest quality display of HD signals

• Pixel Plus HD for better details, depth and clarity

• 3D combfilter separates colours for a razor-sharp image

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• 1000-page Hypertext for instant fast access to teletext

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Page 2

Widescreen flat TV with Pixel Plus HD

42" plasma HD Ready

Highlights

42PFP5332/10

Plasma WXGA Panel, 1024 x 768p

This state-of-the-art plasma screen technology gi

ves you widescreen HD resolution of up to 1024 x 768p pixels. It produces brilliant flickerfree progressive scan pictures with optimum brightness and superb colours. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of High Definition pictures and be fully prepared for HD sources like HDTV set-top boxes and Bluray discs. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer an HD screen that displays the benefits of the resolution and picture quality of a High

Definition signal. It has a universal connection for both analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60 Hz.

Pixel Plus HD

Pixel Plus HD is a picture processing technology that enables viewers to watch content that is vivid, natural and real. The results are superbly life-like pictures with incredible details and depth from any HD source.

3D Combfilter

The 3D combfilter separates brightness and c

olour signals better in 3D domain to eliminate cross-colour, cross-luminance and dot-crawl distortion - all of which detract from your

viewing pleasure. The 3D digital combfilter performs field-by-field comparisons of the television image to accurately separate the colour from the black-and-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.

Compact and slim design

This design style emphasises a slim, compact l

ook that saves space and fits in anywhere.

2 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD set-top box and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

Widescreen flat TV with Pixel Plus HD

42" plasma HD Ready

Specifications

42PFP5332/10

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 1500 cd/m²

• Dynamic screen contrast: 15000:1

• Response time (typical): 2 ms

• Viewing Angle (H / V): 178 / 178 degree

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: WXGA Plasma panel

• Panel resolution: 1024 x 768p

• Picture enhancement: Pixel Plus HD, Luminance ansient Improver, Colour Transient

Tr Improvement, Dynamic contrast enhancement, Contrast Plus, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control, Digital Noise Reduction, Jagged Line Suppression, Progressive Scan

• Screen enhancement: Anti-ageing circuit

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 72, 75, 85 Hz 800 x 600 60, 72, 75, 85 Hz 1024 x 768 60, 70, 75, 85 Hz

deo Formats

• Vi

Resolution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh 1920 x 1080p

Sound

• Equalizer: 7-bands

• Output power (RMS): 2 x 10 W

• Sound Enhancement: Auto Volume Leveller,

ynamic Bass Enhancement, Incredible Surround

• Sound System: Nicam Stereo, Stereo

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake-up Clock

• Ease of Installation: Auto Programme Naming, atic Channel Install (ACI), Automatic

Autom Tuning System (ATS), Autostore, Fine Tuning, Plug and Play, Programme Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL),

Programme L Smart Sound

• Remote Control: TV

• Remote control type: RC2023601/01

• Screen Format Adjustments: 4:3, Movie expand

9, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

• Picture in Picture: Text dual screen

• Teletext: 1000-page Hypertext

• Teletext enhancements: 4 favourite pages,

gramme information Line

Pro

ist, Side Control, Smart Picture,

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G,

SECAM D/K, SECAM L/L'

• Video Playback: NTSC, SECAM, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Pre-set Channels: 100

•Tuner Display: PLL

PAL D/K, SECAM B/G,

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

• Ext 3: S-video in, CVBS in, Audio L/R in

• Ext 4: YPbPr, Audio L/R in

• Ext 5: HDMI

• Ext 6: HDMI

•Number of Scarts: 2

• Other connections: Headphone out

Power

• Ambient temperature: 5°C to 40°C

• Mains power: 220 - 240 V, 50/60 Hz

• Power consumption: 250 W

• Standby power consumption: < 1 W

Accessories

• Included Accessories: Tabletop stand, RF antenna cable, Power cord, Quick start guide, User Manual, Registration card, Warranty certificate, Remote Control, Batteries for remote control

• Optional accessories: Floor stand

Dimensions

• Colour cabinet: Black cabinet High gloss deco front

•Set dimensions (W x H x D):

47 x 701 x 107 mm

• Set dimensions with stand (W x H x D):

47 x 764

• Product weight: 31.5 kg

• Product weight (+stand): 41.5 kg

•Box dimensions (W x H x D):

80 x 835 x 330 mm

• Weight incl. Packaging: 47 kg

• VESA wall mount compatible: 600 x 400 mm

•

x 264 mm

Issue date 2009-08-28

Version: 5.0.8

12 NC: 8670 000 25494 EAN: 87 12581 30326 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
