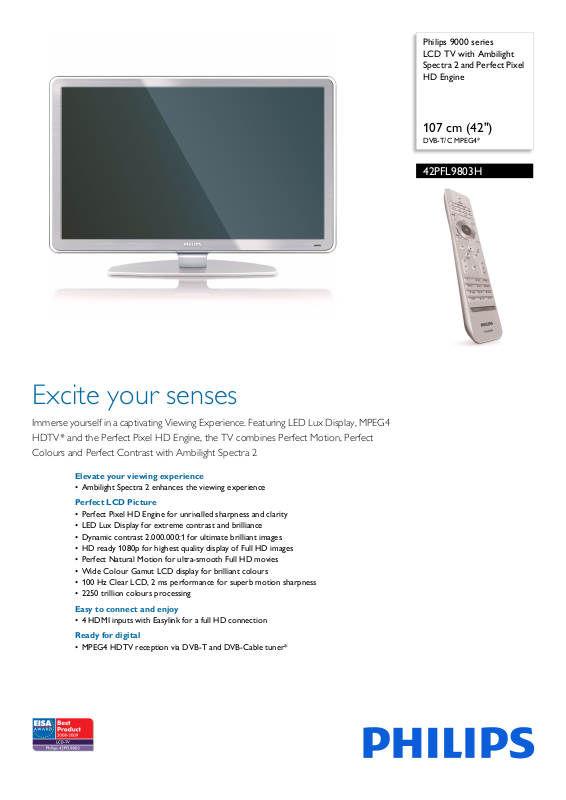

Page 1

Philips 9000 series LCD TV with Ambilight Spectra 2 and Perfect Pixel HD Engine

107 cm (42")

DVB-T/C MPEG4*

42PFL9803H

Excite your senses

Immerse yourself in a captivating Viewing Experience. Featuring LED Lux Display, MPEG4 HDTV* and the Perfect Pixel HD Engine, the TV combines Perfect Motion, Perfect Colours and Perfect Contrast with Ambilight Spectra 2

Elevate your viewing experience

• Ambilight Spectra 2 enhances the viewing experience

Perfect LCD Picture

• Perfect Pixel HD Engine for unrivalled sharpness and clarity

• LED Lux Display for extreme contrast and brilliance

• Dynamic contrast 2.000.000:1 for ultimate brilliant images

• HD ready 1080p for highest quality display of Full HD images

• Perfect Natural Motion for ultra-smooth Full HD movies

• Wide Colour Gamut LCD display for brilliant colours

• 100 Hz Clear LCD, 2 ms performance for superb motion sharpness

• 2250 trillion colours processing

Easy to connect and enjoy

• 4 HDMI inputs with Easylink for a full HD connection

Ready for digital

• MPEG4 HDTV reception via DVB-T and DVB-Cable tuner*

Page 2

42PFL9803H/10

LCD TV

107 cm (42") DVB-T/C MPEG4*

Highlights

Perfect Pixel HD Engine

Experience unrivalled sharpness and clarity w

ith Perfect Pixel HD Engine. Each pixel of the picture is enhanced to match the surrounding pixels better, resulting in a more natural picture. The result is a unique combination of sharpness, natural detail, vivid colours, superior contrast and smooth natural motion whatever you are watching. Clean and razor sharp images result from artefact and noise detection and reduction in all content sources — from multimedia to standard TV.

LED Lux Display

The LED Lux Display renders the highest av

ailable contrast with stunning brilliance and colours. The revolutionary new LED lights are used in a grid as backlight for the LCD display. Over a thousand LED's are operated selectively. They generate brilliant light in bright image areas, and are dimmed to lowest

levels in dark areas and scenes. It creates an image with deepest black alongside maximum light output and colour in bright areas. The result is a stunning picture with extreme contrast, sharpness and vibrant colour.

Full HD LCD display 1920 x 1080p

Enjoy the exceptional picture quality of Full High

Definition TV signals of HD sources like HDTV broadcast, or Blu-ray DVD. HD ready 1080p is a protected label that offers picture quality far beyond that of ordinary HD Ready. It conforms to strict standards laid out by EICTA to offer a Full HD screen that displays the benefits of resolution and picture quality of a Full HD 1920 x 1080p High Definition TV signal. It has a analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 1080p progressive signals at 24, 50 and 60 Hz.

universal connection for both

Perfect Natural Motion

Enjoy the action without any judder. Perfect Nat

ural Motion estimates motion in the picture and corrects juddering movements in both broadcast and pre-recorded movie material (including 1080p movies and 24p True Cinema on Blu-ray and DVD). The result is even smoother and quieter pictures with excellent sharpness. Enjoy motion performance that surpasses cinema quality!

100 Hz Clear LCD (2 ms)

100 Hz Clear LCD creates extreme motion s

harpness. The Double Frame Rate Insertion increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a performance with a response time of 2 milliseconds. Now you can enjoy clear images even with fast onscreen motion.

Page 3

42PFL9803H/10

LCD TV

107 cm (42") DVB-T/C MPEG4*

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 2.000.000:1

• Response time (typical): 2 (BEW equiv.) ms

• Viewing angle: 176º (H)/176º (V)

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD Full HD W-UXGA Act. matrix, LED Lux Display

• Panel resolution: 1920 x 1080p

• Picture enhancement: Per Perfect Natural Motion, Perfect Contrast, Perfect Colours, Wide Colour Gamut display, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control + Light sensor, 100 Hz Clear LCD, Jagged Line Suppression, Progressive scan, 1080p 24/25/30 Hz

essing, 1080p 50/60 Hz processing, Local

pro dimming LE

• Screen enhancement: Anti-Reflection coated scre

• Colour processing: 2250 t

• Colour cabinet: Satin Brushed Aluminium and Precision Silv

D backlight, Segmented LED backlight

ect Pixel HD Engine,

rillion colours 17bit RGB

Ambilight

• Ambilight Features: Ambilight Spectra 2, Lounge light mode

• Dimming Function: Manual and via Light Sensor

• Ambilight light system: LED-wide colour

Supported Display Resolution

mputer formats

• Co Res

olution Refresh rate 640 x 480 60 Hz 800 x 600 60 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1360 x 768 60 Hz 1920 x 1080i 60 Hz 1920 x 1080p 60 Hz

deo formats

• Vi Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 24, 50, 60 Hz 1080p 24, 25, 30 Hz

Sound

• Output power (RMS): 2 x 15 W

• Sound Enhancement: Auto Volume Leveller, Digital Signal Proc Graphic Equalizer, Smart Sound

• Sound System: Virtual Dolby Digital, BBE

essing, Dynamic Bass Enhancement,

Loudspeakers

• Built-in speakers: 4

• Loudspeaker types: 2 integrated subwoofers,

tweeter

Dome

Convenience

• Child Protection: Child Lock+Parental Control

• Ease of Installation: Auto Programme Naming,

• Ease of Use: 4 favourite lists, Auto Volume Leveller

• Electronic Programme Guide: Now + Next EPG,

• Picture in Picture: Text dual screen

• Remote Control: TV, Amp, DVD, DVD-R, Sat, STB

• Remote control type: RC4494

• Screen Format Adjustments: 4:3, Auto Format,

• Teletext: 1200-page Hypertext

• Teletext enhancements: Habit Watch, Programme

• Firmware upgradeable: Firmware auto upgrade

• Multimedia: Digital media reader (browser), USB

• Smart mode: Game, Movie, Personal, Energy

tic Channel Install (ACI), Automatic

Automa Tuning System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug and Play

), Delt

(AVL Interface, On-Screen Display, Programme List, Settings assistant Wizard, Side Control

8-day

(Set-Top System)

Mo and Heading Shift, Super Zoom, Widescreen, unscaled (1080p dot by dot)

info

wizard

autobr

ving, Standard, Vivid

a Volume per preset, Graphical User

Elec

tronic Programme Guide

Box

), Universal, HTS (Home Theatre

vie expand 14:9, Mo

rmat

ion Line

, Firmware upgradeable via USB

eak-in

vie expand 16:9, Subtitle

Multimedia Applications

• Multimedia connections: Ethernet-UTP5, USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG

ures, MPEG1, MPEG2

Still pict

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

Digital TV: DVB Terrestrial*, DVB-T MPEG4*,

• DVB-C MPEG

•

Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in, RGB

• Ext 2 Scart: Audio L/R, CVBS in, RGB

• Ext 3: YPbPr, Audio L/R in, VGA PC-in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System audio control, System standby

• Front/Side connections: HDMI v1.3, S-video in,

BS in, Audio L

• PC network link: DLNA 1.0 certified

• Other connections: Analogu S/PDIF out (coaxial), Common Interface

/R in, Headphones Out, USB

audio Left/Right out,

Power

• Ambient temperature: 5°C to 35°C

• Mains power: AC 220-240 V +/- 10%

• Power (Energy-saving mode): 153 W

• Power (IEC 62087 Edition 2): 201 W

• Standby power consumption: 0.15 W

Dimensions

•Set dimensions (W x H x D): 1027 x 627 x 108 mm

• Set dimensions with stand (H x D): 698 x 265 mm

• Stand width: 590 mm

• Weight incl. Packaging: 40 kg

• Product weight: 27.6 kg

• Product weight (+stand): 30.8 kg

•Box dimensions (W x H x D):

x 906 x 320 mm

• VESA wall mount compatible: 300 x 300 mm

Accessories

• Included accessories: Tabletop swivel stand, RF antenna cable, Power cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

Issue date 2019-11-12

Version: 8.0.8

12 NC: 8670 000 40001 EAN: 87 12581 42585 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* DVB-T, supported in selected countries only * DVB-T MPEG4 only for: France, Spain, Denmark, Norway, Finland,

Sweden. DVB-C MPEG4 only for selected providers: Denmark, Norway, Finland, Sweden. The most up-to-date information is available on the type plate of the TV, or via www.philips.com/support under the specific type number.
