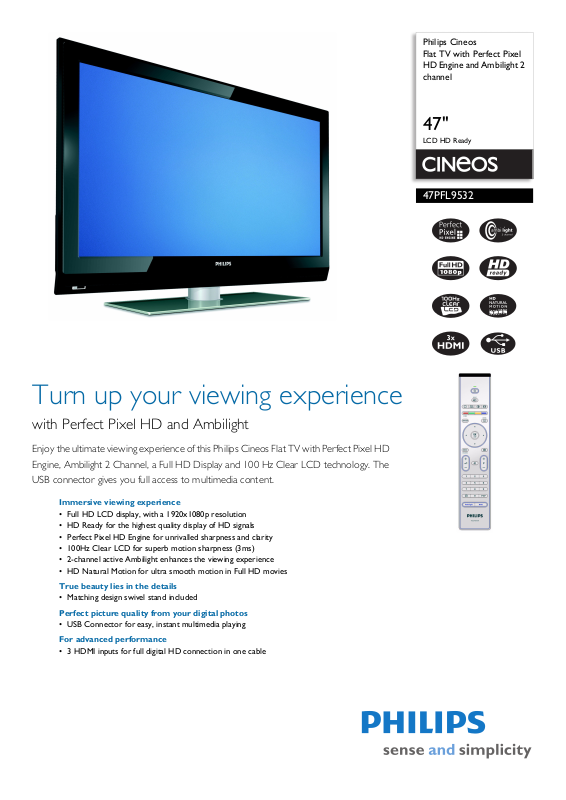

Page 1
Philips Cineos
Flat TV with Perfect Pixel
HD Engine and Ambilight 2
channel
47"
LCD HD Ready
47PFL9532
Turn up your viewing experience
with Perfect Pixel HD and Ambilight
Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Perfect Pixel HD
Engine, Ambilight 2 Channel, a Full HD Display and 100 Hz Clear LCD technology. The
USB connector gives you full access to multimedia content.
Immersive viewing experience
• Full HD LCD display, with a 1920x1080p resolution
• HD Ready for the highest quality display of HD signals
• Perfect Pixel HD Engine for unrivalled sharpness and clarity
• 100Hz Clear LCD for superb motion sharpness (3ms)
• 2-channel active Ambilight enhances the viewing experience
• HD Natural Motion for ultra smooth motion in Full HD movies
True beauty lies in the details
• Matching design swivel stand included
Perfect picture quality from your digital photos
• USB Connector for easy, instant multimedia playing
For advanced performance
• 3 HDMI inputs for full digital HD connection in one cable
Page 2
Flat TV with Perfect Pixel HD Engine and Ambilight 2 channel
47" LCD HD Ready
Specifications
47PFL9532/93
Picture/Display
• Aspect ratio: 16:9
• Diagonal screen size: 47 inch / 119 cm
• Display screen type: LCD Full HD W-UXGA Act.
matrix
• Panel resolution: 1920x1080p
• Color processing: 4 trillion colors (14bit RGB)
• Picture enhancement: Perfect Pixel HD Engine,
HD Natural Motion, Dynamic contrast
enhancement, 1080p 50/60Hz processing, 1080p
24/25/30Hz processing, 3/2 - 2/2 motion pull
down, 3D Combfilter, Active Control + Light
sensor, Jagged Line Suppres si on , P ro gr es si ve Scan ,
Pulse Killer Chip, Widescreen Plus, 100Hz Clear
LCD, Double frame rate
• Screen enhancement: Anti-Reflection coated
screen
Ambilight
• Ambilight Features: Ambilight 2 Channel, Auto
adaptive to video content, Full operation in standby, Efficient low energy lamp
• Ambilight light system: LED wide color
• Dimming Function: Manual and via Light Sensor
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz
• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 24Hz, 25Hz, 30 Hz
1080p 50Hz, 60Hz
Sound
• Output power (RMS): 2x8W
• Sound Enhancement: Digital Signal Processing,
Graphic Equaliser, Dynamic Bass Enhancement
• Sound System: Virtual Dolby Digital, BBE
Loudspeakers
• Built-in speakers: 2
• Loudspeaker types: Front Speakers, Dome
tweeter
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, PLL Digital
Tuning, Plug & Play
• Ease of Use: 4 favorite lists, Auto Volume Leveller
(AVL), Delta Volume per preset, Graphical User
Interface, On Screen Display, Program List,
Settings assistant Wizard, Side Control
• Remote Control: TV
• Remote control type: RC4450
• Screen Format Adjustments: unscaled (1080p dot
by dot), 4:3, 6 Widescreen Modes, Auto Format,
Movie expand 14:9, Movie expand 16:9, Subtitle
and Heading Shift, Super Zoom, Widescreen
• Picture in Picture: Text dual screen
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Program
information Line
• Firmware upgradeable: Firmware auto upgrade
wizard, Firmware upgradeable via USB
• Multimedia: Digital media reader (browser), USB
autobreak-in
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: MP3, Slideshow files (.alb),
JPEG Still pictures
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, SECAM B/G, SECAM
D/K
• Video Playback: NTSC, SECAM, PAL
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• AV 1: (1, 2, 3Fh autoranging), Audio L/R in, CVBS
in, S-Video, YPbPr
• AV 2: Audio L/R in, CVBS
• AV 3: (1, 2, 3Fh autoranging), Audio L/R in, YPbPr
• AV 4: HDMI, Audio L/R in
• AV 5: HDMI
• AV 6: HDMI
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, USB
• Other connections: Analog audio Left/Right out,
S/PDIF out (coaxial)
Power
• Ambient temperature: 5 °C to 35 °C
• Mains power: AC 200 - 240 V +/- 10%
• Power consumption: 275 W
• Standby power consumption: 0.8 W
Accessories
• Included Accessories: Tabletop swivel stand, RF
antenna cable
Dimensions
• Color cabinet: High Gloss Black
• Set dimensions (W x H x D):
1157
x 752 x 117 mm
• Set dimensions with stand (H x D): 820 x 305 mm
• Product weight: 32 kg
• Product weight (+stand): 41 kg
• Box dimensions (W x H x D):
1324
x 941 x 331 mm
• Weight incl. Packaging: 49 kg
• VESA wall mount compatible: 600 x 400 mm
•
Rear connectors
ANALOG AUDIO IN
MONITOR
DIGITAL AUDIO
OUT
VIDEO
DISPLAY SYNCHRONIZED
VGA / HDMI 1 / HDMI 2
IN
R
AUDIO
DISPLAY
SYNC.
OUTRL
L
SERVICE
AV 3
UART
L
AUDIO
R
S VIDEO
AV 1
YPbPr
VIDEO L RAUDIO
AV 2
VIDEO
Y
AUDIOLR
Pb Pr
Side
Page 3
Flat TV with Perfect Pixel HD Engine and Ambilight 2 channel
47" LCD HD Ready
47PFL9532/93
Product highlights
Full HD LCD display 1920x1080p
The Full HD screen has the widescreen resolution of
1920 x 1080p. This is the highest resolution of HD
sources for the best possible picture quality. It is fully
future proof as it supports 1080p signals from all
sources, including the most recent like Blu-ray and
advanced HD game consoles. The signal processing is
extensively upgraded to support this much higher signal
quality and resolution. It produces brilliant flicker-free
progressive scan pictures with superb brightness and
colors.
HD Ready
Enjoy the exceptional picture quality of High Definition
pictures and be fully prepa red for HD sour ces like HDT V
settop box or Blu-ray disc. HD Ready is a protected label
that offers picture quality beyond that of progressive
scan. It conforms to strict standards laid out by EICTA to
offer a HD screen that displays the benefits of resolution
and picture quality of a High Definition signal. It has a
universal connection for both analog YPbPr and
uncompressed Digital connection of DVI or HDMI,
supporting HDCP. It can display 720p, and 1080i signals
at 50 and 60Hz.
Perfect Pixel HD Engine
Perfect Pixel HD Engine offers the unique combination of
ultimate sharpness, natural detail, vivid colors and
smooth natural motion on all qualities of HD, standard
TV signals and multimedia content, for high definition
displays. Each pixel of the incoming picture is enhanced
to better match the surrounding pixels, resulting in a
more natural picture. Artifacts and noise in all sources
from multimedia to standard TV and also in highly
compressed HD content are detected and reduced
ensuring that the picture is clean and razor sharp.
Issue date 2008-07-03
Version: 9.0.13
12 NC: 8670 000 25098
EAN: 87 12581 30078 4
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
100Hz Clear LCD
100Hz Clear LCD cr eates extreme motion sharpness for
clear and vibrant images even with fast on-screen motion.
The Double Frame Rate Insertion works with a high
100Hz refresh rate. It increases the sharpness of motion
reproduction to more than twice that of conventional
LCD, resulting in a response time of 3 milliseconds
(measured in Perceived Blur-Edge-Width; BEW). This
unique Philips technology brings motion sharpness of LCD
displays to an unprecedented level.
Ambilight 2 channel
Ambilight makes an impressive contribution to the overall
viewing experience by producing ambient light to
com pl em en t t he co lo rs an d l ig ht in te ns it y o f t he on-s cr ee n
image. It adds a new dimension to the viewing
experience, completely immersing you into the content
you are watching. It creates ambiance, stimulates more
relaxed viewing, and improves perceived picture detail,
contrast and color. Ambilight automatically and
independently adapts its colors according to the changing
content on the screen.
HD Natural Motion
Philips invented HD Natural Motion to eliminate
juddering effects that are visible with movie based picture
content. HD Natural Motion estimates motion in the
picture and corrects juddering movements in both
broadcast and recorded movie material (such as DVD
and Blu-ray Disc). The resulting smooth motion
reproduction and excellent sharpness take the viewing
experience to a higher level. HD Natural Motion removes
judder from SD and HD pictures, including 1080p, for a
motion performance that surpasses the cinema!
USB Multimedia Connector
The USB connector allows access to multimedia jpg, mp3
and alb files of most USB-sticks and most digital cameras
(U SB 1.1 m emory- cla ss devi ce). Pl ug t he USB i nto the s lot
at the side of the TV and access your photos or music
files. This makes you easily viewing and sharing your
photos and music.
