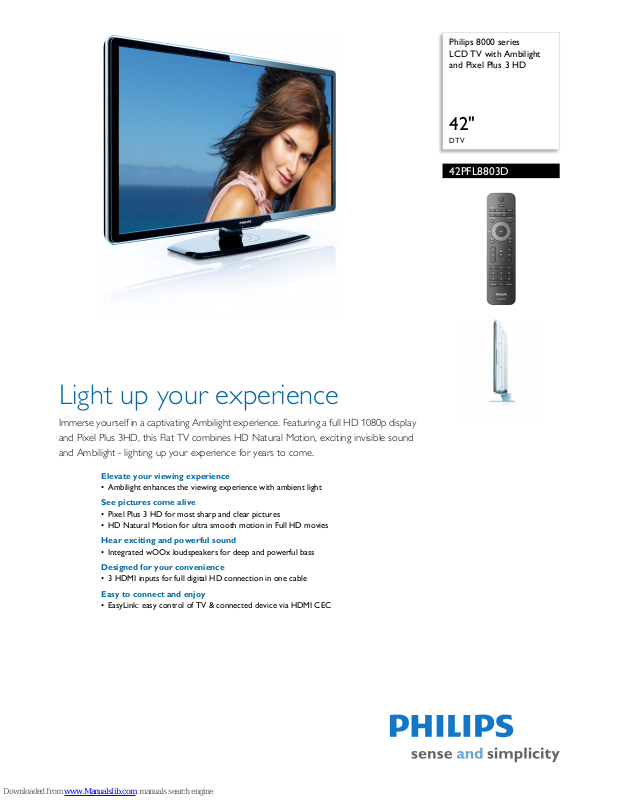

Page 1
Philips 8000 series
LCD TV with Ambilight
and Pixel Plus 3 HD
42"
DTV
42PFL8803D
Light up your experience
Immerse yourself in a captivating Ambilight experience. Featuring a full HD 1080p display
and Pixel Plus 3HD, this Flat TV combines HD Natural Motion, exciting invisible sound
and Ambilight - lighting up your experience for years to come.
Elevate your viewing experience
• Ambilight enhances the viewing experience with ambient light
See pictures come alive
• Pixel Plus 3 HD for most sharp and clear pictures
• HD Natural Motion for ultra smooth motion in Full HD movies
Hear exciting and powerful sound
• Integrated wOOx loudspeakers for deep and powerful bass
Designed for your convenience
• 3 HDMI inputs for full digital HD connection in one cable
Easy to connect and enjoy
• EasyLink: easy control of TV & connected device via HDMI CEC
Page 2
42PFL8803D/93
Highlights
LCD TV with Ambilight and Pixel Plus 3 HD
42" DTV
Ambilight
Ambilight makes an impressive contribution to
th
e overall viewing experience by producing
ambient light to complement the colors and
light intensity of the on-screen image. It adds a
new dimension to the viewing experience,
completely immersing you into the content
you are watching. It creates ambiance,
stimulates more relaxed viewing, and improves
perceived picture detail, contrast and color.
Ambilight automatically and independently
adapts its colors according to the changing
content on the screen.
Pixel Plus 3 HD
Pixel Plus 3 HD offers the unique combination
o
f ultimate sharpness, natural detail, vivid
colors and smooth natural motion on all
qualities of HD, standard TV signals and
multimedia content, for high definition displays.
Each pixel of the incoming picture is enhanced
to better match the surrounding pixels,
resulting in a more natural picture. Artifacts
and noise in all sources from multimedia to
standard TV and also in highly compressed HD
are detected and reduced ensuring that the
picture is clean and razor sharp.
HD Natural Motion
Philips invented HD Natural Motion to
minimize
juddering effects that are visible with
movie based picture content. The award
winning algorithm estimates motion in the
picture and corrects juddering movements in
both broadcast and recorded movie material
(such as DVD and Blu-ray Disc). The resulting
smooth motion reproduction and excellent
sharpness take the viewing experience to a
higher level.
Integrated digital tuner
The integrated digital tuner lets you receive
digit
al cable and terrestrial TV without an
additional set top box. Enjoy quality TV clutter
free.
Integrated wOOx loudspeakers
wOOx technology creates a superior bass
sound by cap
turing and enhancing low
frequency bass for a dramatically enhanced
bass and sound experience.
3 HDMI inputs
HDMI makes an uncompressed digital RGB
conne
ction from the source to the screen for
the ultimate picture quality. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources and
includes digital audio. HDMI uses HDCP copy
protection. With 2 HDMI inputs on the back
and 1 HDMI on the side of the TV you can
connect multiple HD sources, for instance an
HD settop box, a Blu-ray player, and game
console or digital Camcorder. Your TV is fully
prepared for the HD future.
EasyLink
EasyLink uses the HDMI CEC industry
standard proto
col to share functionality
between connected devices and the TV. With
EasyLink only one remote control is needed to
operate main functionalities on your TV and
connected devices. EasyLink uses the standard
HDMI cable to transfer system commands. It
works between all electronic devices equipped
with HDMI CEC.
Page 3
Issue date 2011-01-12
Version: 5.0.57
12 NC: 8670 000 36414
EAN: 87 12581 39001 3
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
HDMI 2
CVI AV INAV OUT
VIDEO
LRL
Pr
Pb
Y
SERV. C
R
L
R
VIDEO
HDMI 1
TV ANTENNA
75X
RL
AUDIO INSPDIF OUT VGA
42PFL8803D/93
Specifications
LCD TV with Ambilight and Pixel Plus 3 HD
42" DTV
Picture/Display
• Aspect ratio: Widescreen
• Diagonal screen size: 42 inch / 107 cm
• Display screen type: LCD Full HD W-UXGA Act.
matr
ix
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel Plus 3 HD, 3D
C
o
mbfilter, Active Control + Light sensor,
Contrast Plus, Digital Noise Reduction, Jagged Line
Suppression, Luminance Transient Improver,
Progressive scan, 100Hz LCD, HD Natural Motion
• Screen enhancement: Anti-Reflection coated
sc
re
en
Ambilight
• Ambilight Features: Ambilight 2 Channel
Supported Display Resolution
• Computer formats
Res
olution Refresh rate
640 x 480 60, 72, 75, 85Hz
720 x 400 70Hz
800 x 600 60, 72, 75, 85Hz
1024 x 768 60, 70, 75, 85Hz
1280 x 768 60Hz
1280 x 1024 60Hz
• Vi
deo formats
Res
olution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 24, 50, 60Hz
1080p 24, 25, 30Hz
Sound
• Equalizer: 7-bands
• Output power (RMS): 30W
• Sound Enhancement: Auto Volume Leveller,
Graphic
Equaliser, Incredible Surround
• Sound System: Mono, Stereo, BBE
Loudspeakers
• Built-in speakers: 2
• Loudspeaker types: wOOx loudspeakers
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: On main display, Sleep Timer, Wake Up
Time
r
• Connection Enhancement: Easy link
• Ease of Installation: Autostore, Fine Tuning,
Pro
g
ram Name, Sorting
• Ease of Use: 8 channel smart surf
list, Auto Volume
Leveller (AVL), Program List, Side Control
• Electronic Program Guide: Now + Next EPG
• On-Screen Display languages
:
English, Simplified
Chinese
• Remote Control: TV
• Remote control type: PF01A08B
• Screen Format Adjustments: 4:3, Movie expand
14:
9
, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Signal strength indication
• Smart mode: Game, Movie, Personal, Power saver,
Sta
n
dard, Vivid
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL
D/K, SECAM B/G,
SECAM D/K
• Video Playback: NTSC, SECAM, PAL
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Number of Preset Channels: 99
•Tuner Display: PLL
Connectivity
• AV 1: Audio L/R in, YPbPr
• AV 2: Audio L/R in, CVBS in
•HDMI 1: HDMI v1.3
•HDMI 2: HDMI v1.3
• EasyLink (HDMI-CEC): One touch play, System
inf
o
(menu language), System standby
•Front / Side connections: HDMI v1.3, S-vi
deo in,
CVBS in, Audio L/R in, Headphone out
• Other connections: PC-in VGA + Audio L/R in
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: 220-240V, 50/60Hz
• Power consumption: 230 W
• Standby power consumption: (typical) <0.15W
Dimensions
•Set dimensions (W x H x D):
10
46 x 645 x 108 mm
• Set dimensions with stand (W x H x D):
10
46
x 716 x 262 mm
• Weight incl. Packaging: 32
kg
• Product weight: 20.5 kg
• Product weight (+stand): 26 kg
•Box dimensions (W x H x D):
11
71
x 810 x 333 mm
• VESA wall mount compatible: 400 x 400 mm
Accessories
• Included accessories: Tabletop swivel stand, Power
cord, Quick start guide, User Manual, Warranty
certificate, Remote Control, Batteries for remote
control
•
