Philips 42PFL7962D/05B data sheet

Download

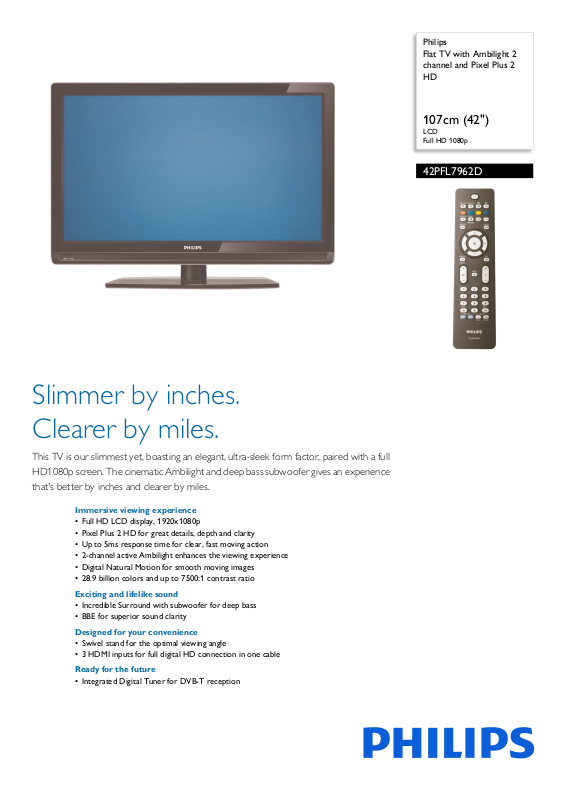

Page 1

Philips Flat TV with Ambilight 2 channel and Pixel Plus 2 HD

107cm (42")

LCD Full HD 1080p

42PFL7962D

Slimmer by inches. Clearer by miles.

This TV is our slimmest yet, boasting an elegant, ultra-sleek form factor, paired with a full HD1080p screen. The cinematic Ambilight and deep bass subwoofer gives an experience that's better by inches and clearer by miles.

Immersive viewing experience

• Full HD LCD display, 1920x1080p

• Pixel Plus 2 HD for great details, depth and clarity

• Up to 5ms response time for clear, fast moving action

• 2-channel active Ambilight enhances the viewing experience

• Digital Natural Motion for smooth moving images

• 28.9 billion colors and up to 7500:1 contrast ratio

Exciting and lifelike sound

• Incredible Surround with subwoofer for deep bass

• BBE for superior sound clarity

Designed for your convenience

• Swivel stand for the optimal viewing angle

• 3 HDMI inputs for full digital HD connection in one cable

Ready for the future

• Integrated Digital Tuner for DVB-T reception

Page 2

42PFL7962D/05

Flat TV

107cm (42") LCD, Full HD 1080p

Highlights

Full HD LCD display 1920x1080p

This display has a resolution that is referred to as

Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated Digital DVB-T tuner

The integrated Digital DVB-T tuner lets you receive

digital terrestrial TV without an additional set top box. Enjoy quality TV clutter free.

Pixel Plus 2 HD

Pixel Plus 2 HD offers the unique combination o

f ultimate sharpness, natural detail, increased depth, vivid colors and smooth and natural motion from standard TV, High Definition signals and multimedia sources. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts in compressed multimedia content are detected and reduced, ensuring that the picture is clean and razor sharp. Digital noise reduction ensures that the picture is perfectly smooth yet razor sharp.

Ambilight 2 channel

Ambilight makes an impressive contribution to th

e overall viewing experience by producing ambient light to complement the colors and light intensity of the on-screen image. It adds a new dimension to the viewing experience, completely immersing you into the content you are watching. It creates ambiance, stimulates more relaxed viewing, and improves perceived picture detail, contrast and color. Ambilight automatically and independently adapts its colors according to the changing content on the screen.

Digital Natural Motion

Philips invented Digital Natural Motion to e

liminate juddering effects that are visible with moving picture content. Digital Natural Motion estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

Incredible Surround subwoofer

Incredible Surround is an audio technology from Phi sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting, Incredible Surround mixes sounds from left and right in such a way that it expands the

lips that dramatically magnifies the

virtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sound dimension. Incredible Surround with integrated subwoofer now allows you to experience total surround with greater depth and bass ,width of sound with the use of an integrated subwoofer.

BBE

BBE high definition sound is the core sound e

nhancement technology (licensed by BBE Sound) that will enable you to experience real natural music, speech intelligibility with rich and clear audible vocals.

3 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 3 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

42PFL7962D/05

Flat TV

107cm (42") LCD, Full HD 1080p

Specifications

Picture/Display

• Color cabinet: High Gloss black deco front with Silver rim cabinet

• Aspect ratio: Widescreen, 16:9

• Brightness: 500 cd/m²

• Dynamic screen contrast: 7500:1

• Response time (typical): 5 ms

• Viewing angle (H / V): 178 / 178 degree

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD Full HD W-UXGA Act.

mat

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus 2 HD, Digital Natural Motion, Color Transient Improvement, Dynamic contrast enhancement, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control, Color Enhancement, Digital Noise Reduction

• Screen enhancement: Anti-Reflection coated

Lum

inance Transient Improver,

Ambilight

• Ambilight Features: Ambilight 2 Channel

• Preset modes: 4 Active Adaptive modes

Supported Display Resolution

• Computer formats Res

olution Refresh rate 640 x 480 60, 72, 75, 85Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz 1280 x 768 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz

deo formats

• Vi olution Refresh rate

Res 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 25, 30Hz 1080p 24, 50, 60Hz

Sound

• Equalizer: 7-bands

• Output power (RMS): 20W

• Sound Enhancement: Auto Volume Leveler, credible Surround, Dynamic Bass Enhancement

• Sound System: Stereo, BBE

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: Integrated subwoofer

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Auto Program Naming,

• Ease of Use: Auto Volume Leveller (AVL), Easy

• Electronic Program Guide: 8 day Electronic

• Remote Control: TV

• Remote control type: RC2034312/01

• Screen Format Adjustments: 4:3, Movie expand

• Picture in Picture: Text dual screen

• Teletext: 1200 page Hypertext

• Teletext enhancements: 4 favourite pages,

ic Channel Install(ACI), Automatic Tuning

Automat System (ATS), Autostore, Fine Tuning, Plug & Play, Program Name, Sorting

toggle Dig/Analog m Control, Smart Picture, Smart Sound

Program Guide

, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

Program info

des, Program List, Side

rmatio

n Line

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, PAL

SECAM D/K, SECAM L/L', DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 100

•Tuner Display: PLL

D/K, SECAM B/G,

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

•

•Number of Scarts: 2

• Ext 3: HDMI v1.3, CVBS in, Audio L/R in

• Ext 4: YPbPr, S-video in, Audio L/R in

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• Other connections: Headphone out, Common terfac

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 220 - 240V, 50/60Hz

• Power consumption: 170 W

• Standby power consumption: < 1 W

Accessories

• Included accessories: Table top stand, Power cord,

Quick start guide, User Manual, Registration card, Warranty certificate, Remote Control, Batteries for remote control

Dimensions

•Set dimensions (W x H x D):

1029 x 662 x 136 mm

• Set dimensions with stand (W x H x D):

1029 x 725 x 279 mm

• Product weight: 26.5 kg

• Product weight (+stand): 31 kg

•Box dimensions (W x H x D):

x 756 x 314 mm

• Weight incl. Packaging: 38.5 kg

• VESA wall mount compatible: 600 x 400 mm

•

Issue date 2020-05-07

Version: 5.0.10

12 NC: 8670 000 32656 EAN: 87 12581 35381 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
