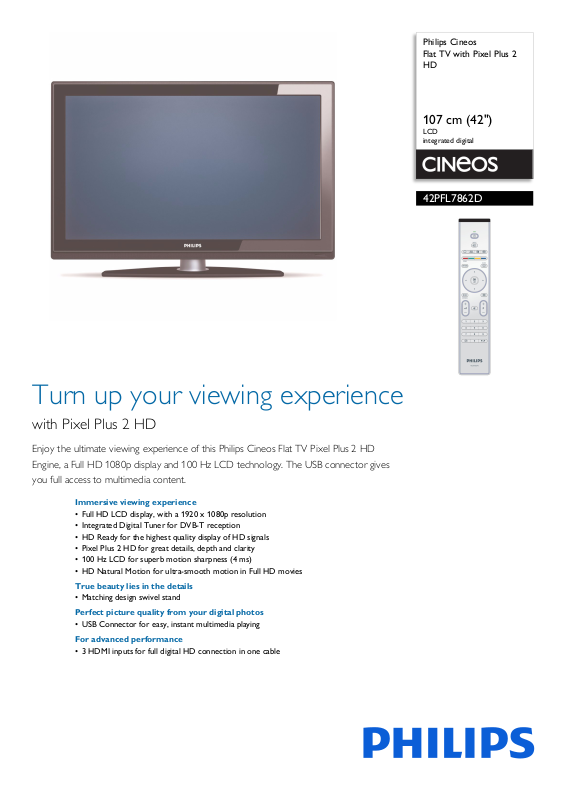

Page 1
Philips Cineos
Flat TV with Pixel Plus 2
HD
107 cm (42")
LCD
integrated digital
42PFL7862D
Turn up your viewing experience
with Pixel Plus 2 HD
Enjoy the ultimate viewing experience of this Philips Cineos Flat TV Pixel Plus 2 HD
Engine, a Full HD 1080p display and 100 Hz LCD technology. The USB connector gives
you full access to multimedia content.
Immersive viewing experience
• Full HD LCD display, with a 1920 x 1080p resolution
• Integrated Digital Tuner for DVB-T reception
• HD Ready for the highest quality display of HD signals
• Pixel Plus 2 HD for great details, depth and clarity
• 100 Hz LCD for superb motion sharpness (4 ms)
• HD Natural Motion for ultra-smooth motion in Full HD movies
True beauty lies in the details
• Matching design swivel stand
Perfect picture quality from your digital photos
• USB Connector for easy, instant multimedia playing
For advanced performance
• 3 HDMI inputs for full digital HD connection in one cable
Page 2
42PFL7862D/10
Flat TV
107 cm (42") LCD, integrated digital
Highlights
Full HD LCD display 1920 x 1080p
The Full HD screen has the widescreen
resolutio
resolution of HD sources for the best possible
picture quality. It is fully future-proof as it
supports 1080p signals from all sources,
including the most recent sources such as Bluray and advanced HD game consoles. The
signal processing is extensively upgraded to
support this much higher signal quality and
resolution. It produces brilliant flicker-free
progressive scan pictures with superb
brightness and colours.
Integrated Digital DVB-T tuner
The integrated Digital DVB-T tuner lets you
receive
additional set top box. Enjoy quality TV clutter
free.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
HD sources like HDTV set-top boxes and Bluray discs. HD Ready is a protected label that
offers picture quality beyond that of
progressive scan. It conforms to strict
standards laid out by EICTA to offer an HD
screen that displays the benefits of the
resolution and picture quality of a High
Definition signal. It has a universal connection
for both analogue YPbPr and uncompressed
Digital connection of DVI or HDMI, supporting
n of 1920 x 1080p. This is the highest
digital terrestrial TV without an
on pictures and be fully prepared for
HDCP. It can display 720p, and 1080i signals at
50 and 60 Hz.
Pixel Plus 2 HD
Pixel Plus 2 HD offers the unique combination
o
f ultimate sharpness, natural detail, increased
depth, vivid colours and smooth and natural
motion from standard TV, High Definition
signals and multimedia sources. Each pixel of
the incoming picture is enhanced to better
match the surrounding pixels, resulting in a
more natural picture. Artefacts in compressed
multimedia content are detected and reduced,
ensuring that the picture is clean and razor
sharp. Digital noise reduction ensures that the
picture is perfectly smooth yet razor sharp.
100 Hz LCD
100 Hz LCD creates superb motion sharpness
for clear and vibrant images even w
screen motion. The Double Frame Rate
Insertion works with a high 100 Hz refresh
rate.
It increases the sharpness of motion
reproduction to more than twice that of
conventional LCD (measured in Perceived
Blur-Edge-Width; BEW). This unique Philips
technology brings motion sharpness of LCD
displays to an unprecedented level.
Pre-mounted swivel stand
For maximum freedom of placement, this highqu
ality stand is designed specifically for this TV.
ith fast on-
The stand comes pre-mounted to the TV out
of the box. It allows easy placement of your
Flat TV without the hassle of building the stand
to the TV first. Enjoy the best viewing angle by
swivelling it to suit your personal preference.
USB Multimedia Connector
The USB connector allows access to
m
ultimedia jpg, mp3 and alb files of most USB
sticks and most digital cameras (USB 1.1
memory-class device). Plug the USB into the
slot at the side of the TV and access your
photos or music files. This makes it easy to
view and share your photos and music.
3 HDMI inputs
HDMI makes an uncompressed digital RGB
c
onnection from the source to the screen. By
eliminating conversion to an analogue signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backwards-compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection. With 3 HDMI inputs you can
connect multiple HD sources, such as an HD
set-top box and a Blu-ray player. Your TV is
fully prepared for the HD future.
Page 3
42PFL7862D/10
Flat TV
107 cm (42") LCD, integrated digital
Specifications
Picture/Display
• Colour cabinet: Anthracite dark
• Aspect ratio: 16:9
• Brightness: 550 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic screen contrast: 8000:1
• Response time (typical): 4 (BEW equiv.) ms
• Viewing angle: 176º (H)/176º (V)
• Diagonal screen size: 42 inch / 107 cm
• Display screen type: LCD Full HD W-UXGA Act.
ix
r
mat
• Panel resolution: 1920 x 1080p
• Colour processing: 4 trillion colours (14-bit RGB)
• Picture enhancement: Pixel Plus 2 HD, HD Natural
i
on, Dynamic contrast enhancement, 1080p
Mot
50/60 Hz processing, 1080p 24/25/30 Hz
essing, 3/2 - 2/2 motion pull down, 3D
proc
Combfilter, Active Control + Light sensor, Jagged
Line Suppression, Progressive scan, Pulse Killer
Chip, Widescreen Plus, 100 Hz LCD, Double
frame rate
• Screen enhancement: Anti-Reflection coated
en
re
sc
Supported Display Resolution
mputer formats
• Co
olution Refresh rate
Res
640 x 480 60 Hz
800 x 600 60 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1360 x 768 60 Hz
1920 x 1080i 60 Hz
1920 x 1080p 60 Hz
deo formats
• Vi
Res
olution Refresh rate
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 24, 25, 30 Hz
1080p 24, 50, 60 Hz
Loudspeakers
• Built-in speakers: 4
• Loudspeaker types: Integrated woofers with
wOOx,
Dome tweeter
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Programme Naming,
• Ease of Use: 4 favourite lists, Auto Volume Leveller
• Electronic Programme Guide: Now + Next EPG,
• Remote Control: TV
• Remote control type: RC4350
• Screen Format Adjustments: unscaled (1080p dot
• Picture in Picture: Text dual screen
• Teletext: 1200-page Hypertext
• Teletext enhancements: Habit Watch, Programme
• Firmware upgradeable: Firmware auto upgrade
• Multimedia: Digital media reader (browser), USB
tic Channel Install (ACI), Automatic
Automa
Tuning System (ATS), Autostore, PLL Digital
Tuning, Plug and Play
), Delt
(AVL
Interface, On-Screen Display, Programme List,
Settings assistant Wizard, Side Control
8-day
dot
by
Movie expand 14:9, Movie expand 16:9, Subtitle
and Heading Shift, Super Zoom, Widescreen
info
wizard
autobr
a Volume per preset, Graphical User
Elec
tronic Programme Guide
), 4:3, 6 Widescreen Modes, Auto Format,
ion Line
rmat
, Firmware upgradeable via USB
eak-in
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: MP3, Slideshow files (.alb), JPEG
Still pict
ures
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: DVB COFDM 2K/8K
• Video Playback: NTSC, SECAM, PAL
• Digital TV: DVB Terrestrial*
• Tuner bands: Hyperband, S-Channel, UHF, VHF
•
Ext 6: HDMI v1.3
• HDMI features: Cable equalization, Category 1 and
bles, Compressed audio, Multi-rate pref.
a
2 c
format support, PC format support, Resolutions
720p, 1080i, 1080p
• Front/Side connections: Audio L/R in, CVBS in,
• Other connections: Analogue
on
Headph
S/PDIF out (coaxial), Common Interface
es Out, S-video in, USB
audio Left/Right out,
Power
• Ambient temperature: 5°C to 35°C
• Mains power: AC 220-240 V +/- 10%
• Power consumption: 232 W
• Standby power consumption: 0.8 W
Accessories
• Included accessories: Tabletop swivel stand, RF
antenna cable
Dimensions
•Set dimensions (W x H x D):
1060 x 675 x 125 mm
• Set dimensions with stand (H x D): 740 x 256 mm
• Product weight: 26.6 kg
• Product weight (+stand): 30.2 kg
•Box dimensions (W x H x D):
60
x 881 x 310 mm
11
• Weight incl. Packaging: 37 kg
• VESA wall mount compatible: 600 x 400 mm
•
Sound
• Output power (RMS): 2 x 8 W
• Sound Enhancement: Digital Signal Processing,
• Sound System: Virtual Dolby Digital, BBE
Equalizer, Dynamic Bass Enhancement
Graphic
Issue date 2019-06-28
Version: 6.0.9
12 NC: 8670 000 30897
EAN: 87 12581 34126 8
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB
• Ext 3: YPbPr, Audio L/R in
• Ext 4: HDMI v1.3
• Ext 5: HDMI v1.3
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
