Colour Television Chassis

Q552.2E

19100_000_110214.eps

110929

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 11

4. Mechanical Instructions 15

5. Service Modes, Error Codes, and Fault Finding 44

6. Alignments 64

7. Circuit Descriptions 73

8. IC Data Sheets 80

9. Block Diagrams Wiring diagram Berlinale 32" 93 Wiring diagram Berlinale 40" - 46" 93 Wiring diagram Blockbuster 37" 96 Wiring diagram Blockbuster 40" - 55" 97 Wiring diagram Sundance 32" - 37" 100 Wiring diagram Sundance 42" - 47" - 55" 101 Block Diagram Video 102 Block Diagram Audio 103 Block Diagram Control & Clock Signals 104 Block Diagram I2C 105 Supply Lines Overview 106

10. Circuit Diagrams and PWB Layouts Drawing A 272217190318 PSL A 272217190319 - 272217190414 PSL 110 A 272217190321 PSL 113 A 272217190326 PSL 116 A 272217190361 PSL 119 A 272217190418 PSL 122 A 272217190477 PSL 125 B01 313912364954 128 B03 313912364954 148 B05 313912364954 161 B07 313912364954 166 B09 313912364954 169 B01 393912364955 172 B03 393912364955 192 B05 393912364955 205 B07 393912364955 210 B09 393912364955 213 B01 313912365192 216 B03 313912365192 236

107

PWB

108-109 111-112 114-115 117-118 120-121 123-124 126-127 170-171 170-171 170-171 170-171 170-171 214-215 214-215 214-215 214-215 214-215 259-260 259-260

B05 313912365192 249 B07 313912365192 254 B09 313912365192 257 B01 313912365351, 313912365371 261 B03 313912365351, 313912365371 281 B05 313912365351, 313912365371 294 B07 313912365351, 313912365371 299 B09 313912365351, 313912365371 302 B10 313912365371 303 E 27221719026x IR/LED/Key Board 308

E 27221719027x IR/LED/Key Board 309 E 27221719028x IR/LED/Key Board 310 E 272217190284/5 IR/LED/Key Board 311 E 27221719029x IR/LED/Key Board 312 E 272217190301 IR/LED/Key Board 313 E 272217190328 IR/LED Board 314 E 27221719033x IR/LED/Key Board 315 E 27221719046x IR/LED/Key Board 316 AL1 820400091254 317

AL1 820400091574 319 AL1 820400091575 321 AL3 820400091232 323 AL3 820400091242 324 AL3 820400091562 326 AL3 820400091583 327 AL3 820400091584 330 AL3 820400091592 333 TS1 313912365252 343

11. Styling Sheets Berlinale 32" 344 Berlinale 40" & 46" 345 Blockbuster 32" 346 Blockbuster 37" 347 Blockbuster 40" & 46" 348 Blockbuster 55" 349 Infinity 32" 350 Infinity 42" 351 Sundance 32" & 37" 352 Sundance 42", 47" & 55" 353

259-260 259-260 259-260 304-307 304-307 304-307 304-307 304-307 306-307

336-342 336-342 336-342 336-342 336-342 336-342 336-342 336-342 336-342

Copyright 2012 Koninklijke Philips Electronics N.V. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by ER/TY 1263 BG TV Quality, the Netherlands Subject to modification EN 3122 785 19109

2012-Mar-16

EN 2 Q552.2E LA1.

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Table 2-1

• Chapter 6: added Option codes at bit level; see section 6.4.6

• Chapter 11: added 55" styling sheet.

Manual xxxx xxx xxxx.2

• Chapter 2: Table 2-1

Manual xxxx xxx xxxx.3

• Chapter 2: added connection overview; see Figure 2-1

• Chapter 6: added White tone alignment values see Table

6-1 to Table 6-15.

• Chapter 7 + 10: revelation of detailed Power Supply Unit information to support component level repair; see Table 2-1

Manual xxxx xxx xxxx.4

• Chapter 2: Table 2-1

• Chapter 6: Added/changed alignment values; see section

White Point.

6.3.1

• Chapter 7 + 10: Removed detailed Power Supply Unit information for design protection reasons.

Manual xxxx xxx xxxx.5

updated (added CTNs).

Option Bit Overview.

updated (added CTNs).

Revision List

• Chapter 2: Table 2-1

• Chapter 5: Added section 5.2.4

updated (added CTNs).

Hotel mode.

• Chapter 10: Added Ambilight schematics and layouts applicable for the added CTNs.

Manual xxxx xxx xxxx.6

• Chapter 2: Table 2-1

updated (added CTNs).

• Chapter 2: removed video/audio out from SCART connector; see section 2.3.1

• Chapter 4: added section 4.7

Assy/Panel Removal

Berlinale styling (xxPFL5806K/xx).

• Chapter 9: added figures 9.1 and 9.2

Wiring diagram Berlinale 40" - 46".

Wiring diagram Berlinale 32"

Manual xxxx xxx xxxx.7

• Chapter 2: Table 2-1

updated (added CTNs).

Manual xxxx xxx xxxx.8

• Chapter 2: Table 2-1

updated (added CTNs).

• Chapter 11: Updated 32", 40"-46", and 55" Blockbuster styling sheet.

Manual xxxx xxx xxxx.9

• Chapter 5: modified SSB replacement procedure; see section 5.9.13

• Chapter 7: Changed PSU repair policy, see sections 5.8 and 7.2.

• Chapter 10: Added PSU schematics and layout drawings.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

Technical Specifications

2.1

2.2 Directions for Use

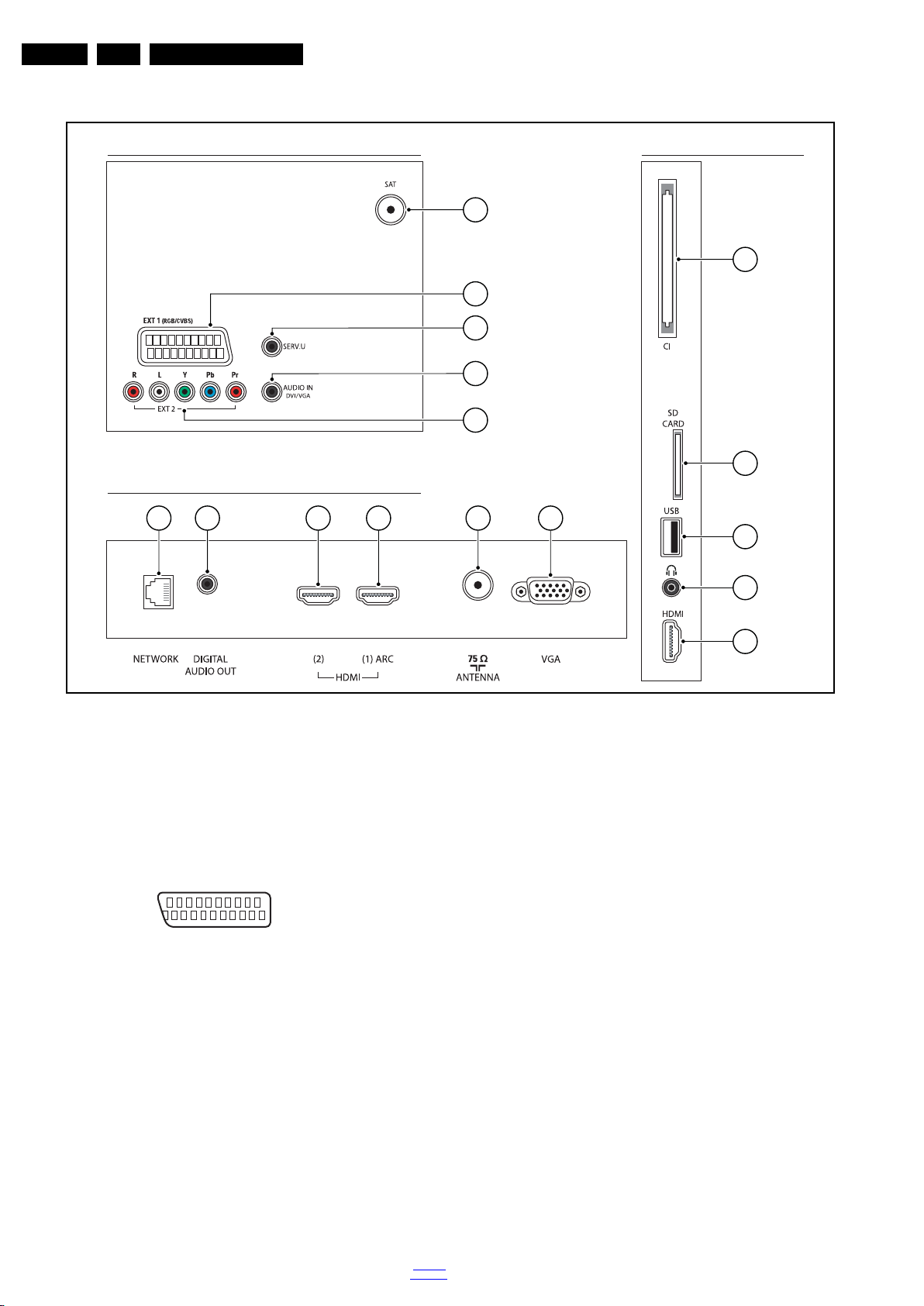

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

CTN Styling

32HFL5573D/10 Blockbuster

32PFL5806K/02 Berlinale

32HFL7406D/10 Sundance

32PDL7906H/12 Infinity

32PDL7906K/02 Infinity

32PDL7906M/08 Infinity

32PDL7906T/12 Infinity

32PFL6606H/12 Blockbuster

32PFL6606H/60 Blockbuster

11.3

11.1

11.9

11.7

11.3

SSB 2 4 7 9 10

64954 64955

64955 2-2 4-1 4.7 4.7.9 7.2 9.1 10.7 - 10.18 10.19 10.20 10.21 10.22 10.23 10.24 10.25 10.26 - 10.51 -

65192 2-1 4-9 4.9 4.9.8 7.2 9.8 - 10.61

65192 2-1 4-17 4.10 4.10.11 7.2 9.6 - 10.60

64954 64955

Mechanics Descriptions

3139 123 xxxxx

Connection Overview

Wire Dressing

Assembly Removal

2-2 4-4 4.8 4.8.7 7.2 9.3 - - 10.8

LCD Removal

PSU

Schematics

Wiring Diagram

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the CTN links in Table 2-1 getting started, user manuals, frequently asked questions and software & drivers.

A (PSU)

ALxx (Ambilight) LiteOn

B01 (Tuner)

10.18

10.28 10.29 10.30 10.31 10.32 10.33 10.34 10.35 10.36 10.37 10.55 -

10.65

10.28 10.29 10.30 10.31 10.32 10.33 10.34 10.35 10.36 10.37 10.51 -

10.63

10.28 10.29 10.30 10.31 10.32 10.33 10.34 10.35 10.36 10.37 10.51 -

10.63

10.28 10.29 10.30 10.31 10.32 10.33 10.34 10.35 10.36 10.37 10.51 -

10.63

10.28 10.29 10.30 10.31 10.32 10.33 10.34 10.35 10.36 10.37 10.51 -

10.63

10.18

. Here is product information available, as well as

B02 (PNX85500)

10.10

10.20

10.10

10.20

10.10

10.20

B03 (DC/DC / Class D)

10.11

10.21

10.11

10.21

10.11

10.21

10.9

10.19

10.9

10.19

10.9

10.19

B04 (I/O)

10.12

10.22

10.12

10.22

10.12

10.22

B05 (DDR)

10.13

10.23

10.13

10.23

10.13

10.23

B06 (non-DVBS-LVDS)

10.14

10.24

10.14

10.24

10.14

10.24

B07 (DVBS-FE)

B08 (DVBS-Supp.)

10.15

10.16

10.25

10.26

10.15

10.16

10.25

10.26

10.15

10.16

10.25

10.26

B09 (non-DVBS-conn.)

B10 (DVBT-2)

- 10.51 -

- 10.52 -

E (IR/LED/Key Board)

TS (Temperature Sensor)

2012-Mar-16

back to

div. table

Technical Specs, Diversity, and Connections

SSB 2 4 7 9 10

Mechanics Descriptions

Schematics
