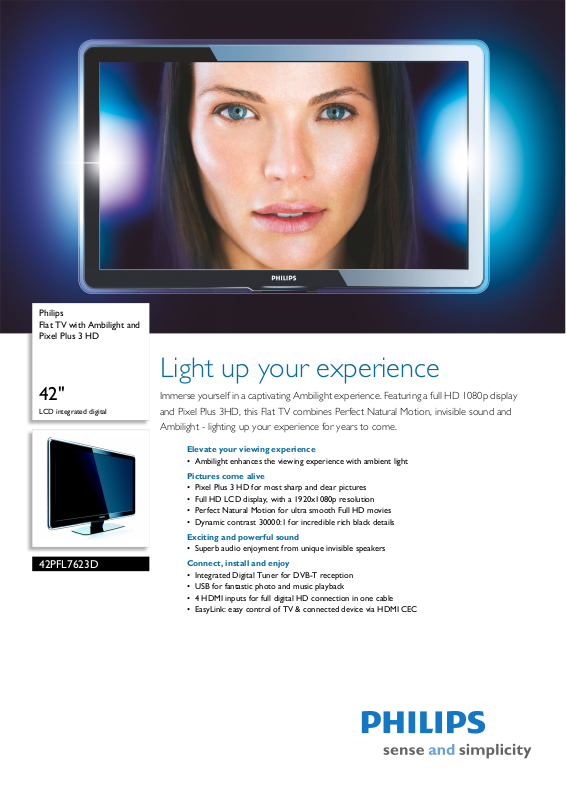

Philips 42PFL7623D User Manual

Philips
Flat TV with Ambilight and
Pixel Plus 3 HD

Light up your experience

42"

LCD integrated digital

42PFL7623D

Immerse yourself in a captivating Ambilight experience. Featuring a full HD 1080p display
and Pixel Plus 3HD, this Flat TV combines Perfect Natural Motion, invisible sound and
Ambilight - lighting up your experience for years to come.

Elevate your viewing experience

• Ambilight enhances the viewing experience with ambient light

Pictures come alive

• Pixel Plus 3 HD for most sharp and clear pictures

• Full HD LCD display, with a 1920x1080p resolution

• Perfect Natural Motion for ultra smooth Full HD movies

• Dynamic contrast 30000:1 for incredible rich black details

Exciting and powerful sound

• Superb audio enjoyment from unique invisible speakers

Connect, install and enjoy

• Integrated Digital Tuner for DVB-T reception

• USB for fantastic photo and music playback

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

Flat TV with Ambilight and Pixel Plus 3 HD

42" LCD integrated digital

Product highlights

42PFL7623D/10

Ambilight

Ambilight makes an impressive contribution to
the overall viewing experience by producing
ambient light to complement the colors and
light intensity of the on-screen image. It adds a
new dimension to the viewing experience,
completely immersing you into the content
you are watching. It creates ambiance,
stimulates more relaxed viewing, and improves
perceived picture detail, contrast and color.
Ambilight automatically and independently
adapts its colors according to the changing
content on the screen.

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination
of ultimate sharpness, natural detail, vivid
colors and smooth natural motion on all
qualities of HD, standard TV signals and
multimedia content, for high definition displays.
Each pixel of the incoming picture is enhanced
to better match the surrounding pixels,
resulting in a more natural picture. Artifacts
and noise in all sources from multimedia to
standard TV and also in highly compressed HD
are detected and reduced ensuring that the
picture is clean and razor sharp.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,

including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.

Perfect Natural Motion

Philips invented Perfect Natural Motion to
eliminate juddering effects that are visible with
movie based picture content. Perfect Natural
Motion estimates motion in the picture and
corrects juddering movements in both
broadcast and recorded movie material (such
as DVD and Blu-ray Disc). Perfect Natural
Motion results in even smoother and quieter
pictures with excellent sharpness. Perfect
Natural Motion removes judder from SD and
HD pictures, including 1080p movies and 24p
True Cinema, for a motion performance that
surpasses the cinema!

Dynamic contrast ratio 30000:1

You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlight
boosting technology results in vibrant images.
Dynamic Contrast will increase the contrast
with excellent blacklevel and accurate
rendition of dark shades and colors. It gives a
bright, lifelike picture with high contrast and
vibrant colors.

Integrated Digital DVB-T tuner

The integrated DVB-T tuner lets you receive
Digital Terrestrial TV to watch or record. This
means you do not need an additional set top
box and also the additional cables.

4 HDMI inputs

HDMI makes an uncompressed digital RGB
connection from the source to the screen for
the ultimate picture quality. HDMI intelligently
communicates the highest output resolution
wi th the sour ce de vice. The HDMI i nput is fu lly
backward compatible with DVI sources and
includes digital audio. HDMI uses HDCP copy
protection. With 3 HDMI inputs on the back
and 1 HDMI on the side of the TV you can
connect multiple HD sources, for instance an
HD settop box, a Blu-ray player, and game
console or digital Camcorder. Your TV is fully
prepared for the HD future.

EasyLink

EasyLink uses the HDMI CEC industry
standard protocol to share functionality
between connected devices and the TV. With
EasyLink only one remote control is needed to
operate main functionalities on your TV and
connected devices. EasyLink uses the standard
HDMI cable to transfer system commands. It
works between all electronic devices equipped
with HDMI CEC.

Flat TV with Ambilight and Pixel Plus 3 HD

42" LCD integrated digital

Specifications

42PFL7623D/10

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 30000:1

• Response time (typical): 5 (BEW equiv.) ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD Full HD W-UXGA Act.
matrix

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2
motion pull down, 3D Combfilter, Active Control
+ Light sensor, Color Enhancement, Color
Transient Improvement, Digital Noise Reduction,
Dynamic contrast enhancement, Luminance
Transient Improver, 1080p 24/25/30Hz
processing, 1080p 50/60Hz processing, HD
Natural Motion

• Screen enhancement: Anti-Reflection coated
screen

• Color processing: 4 trillion colors (14bit RGB)

Ambilight

• Ambilight Features: Ambilight 2 Channel

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60, 72, 75, 85Hz
800 x 600 60, 72, 75, 85Hz
1024 x 768 60, 70, 75, 85Hz
Via HDMI/DVI
input

• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50Hz, 60Hz
1080p 24Hz, 25Hz, 30 Hz

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: wOOx loudspeakers

Convenience

• Child Protection: Child Lock+Parental Control

• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tun in g S ys te m ( AT S) , A ut os tore , F in e T un in g, PL L
Digital Tuning, Plug & Play

• Ease of Use: 4 favorite lists, Auto Volume Leveller
(AVL), Delta Volume per preset, Graphical User
Interface, On Screen Display, Program List,
Settings assistant Wizard, Side Control

• Electronic Program Guide: Now + Next EPG, 8
day Electronic Program Guide

• Picture in Picture: Text dual screen

• Remote Control: TV

• Remote control type: RC4450

• Screen Format Adjustments: 4:3, Auto Format,
Movie expand 14:9, Movie expand 16:9, Subtitle
Zoom, Super Zoom, Widescreen, unscaled
(1080p dot by dot)

• Teletext: 1200 page Hypertext

• Teletext enhancements: 4 favourite pages,
Program information Line

• Smart mode: Game, Movie, Personal, Energy
saving, Standard, Vivid

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb),
JPEG Still pictures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L', DVB COFDM 2K/
8K

• Video Playback: NTSC, SECAM, PAL

• DVB: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Tuner Display: PLL

System audio control, System standby

• Front / Side connections: HDMI v1.3, S-video in,
CVBS in, Audio L/R in, Headphone out, USB

• Other connections: Analog audio Left/Right out,
S/PDIF out (coaxial), Common Interface

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: AC 220 - 240 V +/- 10%

• Power consumption: 210 W

• Standby power consumption: 0,15 W

Dimensions

• Set dimensions (W x H x D):
1046

x 644 x 111 mm

• Set dimensions with stand (H x D): 716 x 262 mm

• Weight incl. Packaging: 42 kg

• Product weight: 22.5 kg

• Product weight (+stand): 27 kg

• Box dimensions (W x H x D):
1151

x 793 x 333 mm

• Color cabinet: Black colour deco front & white
colour back cover

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included Accessories: Power cord, Quick start
guide, User Manual, Warranty certificate, Remote
Control, Batteries for remote control

•

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 15W

• Sound Enhancement: Auto Volume Leveller,
Graphic Equaliser

• Sound System: Nicam Stereo, Virtual Dolby
Digital, BBE

Issue date 2008-06-28

Version: 2.0.6

12 NC: 8670 000 41104
EAN: 87 12581 43343 7

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: YPbPr, Audio L/R in, VGA PC-in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• HDMI-control (CEC features): One touch play,
