Philips 42PFL7613D/12, 42PFL7613D Specifications

Download

Page 1

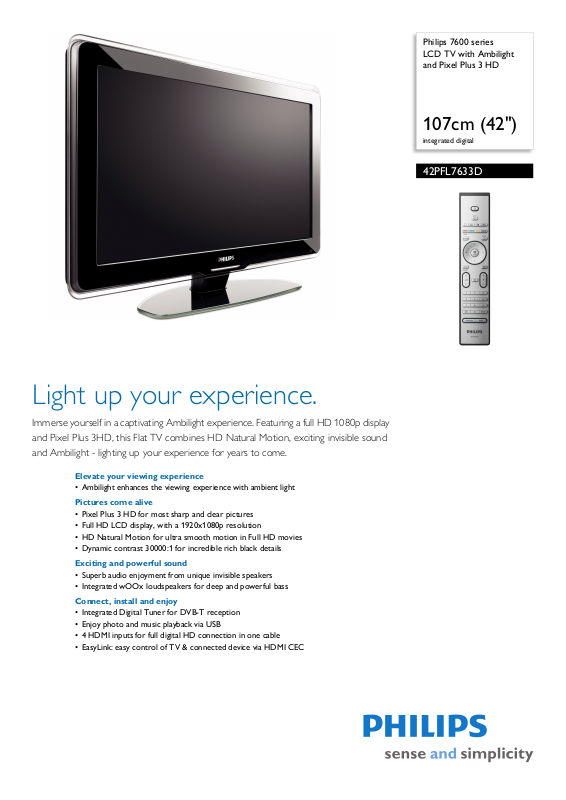

Philips 7600 series LCD TV with Ambilight and Pixel Plus 3 HD

107cm (42")

integrated digital

42PFL7633D

Light up your experience.

Immerse yourself in a captivating Ambilight experience. Featuring a full HD 1080p display and Pixel Plus 3HD, this Flat TV combines HD Natural Motion, exciting invisible sound and Ambilight - lighting up your experience for years to come.

Elevate your viewing experience

• Ambilight enhances the viewing experience with ambient light

Pictures come alive

• Pixel Plus 3 HD for most sharp and clear pictures

• Full HD LCD display, with a 1920x1080p resolution

• HD Natural Motion for ultra smooth motion in Full HD movies

• Dynamic contrast 30000:1 for incredible rich black details

Exciting and powerful sound

• Superb audio enjoyment from unique invisible speakers

• Integrated wOOx loudspeakers for deep and powerful bass

Connect, install and enjoy

• Integrated Digital Tuner for DVB-T reception

• Enjoy photo and music playback via USB

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

Page 2

LCD TV with Ambilight and Pixel Plus 3 HD

107cm (42") integrated digital

Highlights

42PFL7633D/12

Ambilight

Ambilight makes an impressive contribution to th

e overall viewing experience by producing ambient light to complement the colors and light intensity of the on-screen image. It adds a new dimension to the viewing experience, completely immersing you into the content you are watching. It creates ambiance, stimulates more relaxed viewing, and improves perceived picture detail, contrast and color. Ambilight automatically and independently adapts its colors according to the changing content on the screen.

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination o

f ultimate sharpness, natural detail, vivid colors and smooth natural motion on all qualities of HD, standard TV signals and multimedia content, for high definition displays. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts and noise in all sources from multimedia to standard TV and also in highly compressed HD are detected and reduced ensuring that the picture is clean and razor sharp.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolutio

n of 1920 x 1080p. This is the highest

resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

HD Natural Motion

Philips invented HD Natural Motion to minimize movie based picture content. The award winning algorithm estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

Integrated Digital DVB-T tuner

The integrated Digital DVB-T tuner lets you receive additional set top box. Enjoy quality TV clutter free.

juddering effects that are visible with

digital terrestrial TV without an

Integrated wOOx loudspeakers

wOOx technology creates a superior bass sound by cap frequency bass for a dramatically enhanced bass and sound experience.

4 HDMI inputs

HDMI makes an uncompressed digital RGB conne the ultimate picture quality. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources and includes digital audio. HDMI uses HDCP copy protection. With 3 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and game console or digital Camcorder. Your TV is fully prepared for the HD future.

EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

turing and enhancing low

ction from the source to the screen for

col to share functionality

Page 3

LCD TV with Ambilight and Pixel Plus 3 HD

107cm (42") integrated digital

Specifications

42PFL7633D/12

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 30000:1

• Response time (typical): 5 ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD Full HD W-UXGA Act.

mat

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2

tio

n pull down, 3D Combfilter, Active Control

mo + Light sensor, Color Enhancement, Color Transient Improvement, Digital Noise Reduction, Dynamic contrast enhancement, Luminance Transient Improver, 1080p 24/25/30Hz processing, 1080p 50/60Hz processing, HD Natural Motion

• Screen enhancement: Anti-Reflection coated

• Color cabinet: Black colour deco front & white

lour back cover

Ambilight

• Ambilight Features: Ambilight 2 Channel

• Preset modes: 4 Active Adaptive modes

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60, 72, 75, 85Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz 1920 x 1080i 60Hz 1920 x 1080p 60Hz Via HDMI/DVI

inpu

• Video formats

olution Refresh rate

Res 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz

1080p 24, 50, 60Hz 1080p 24, 25, 30Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 15W

• Sound Enhancement: Auto Volume Leveller, Equaliser

Graphic

• Sound System: Nicam Stereo, Virtual Dolby Digital,

BBE

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: wOOx loudspeakers

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Auto Program Naming,

ic Channel Install(ACI), Automatic Tuning

Automat System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug & Play

• Ease of Use: 4 favorite lists, Auto Volume Leveller

), Delt

(AVL

a Volume per preset, Graphical User Interface, On Screen Display, Program List, Settings assistant Wizard, Side Control

• Electronic Program Guide: Now + Next EPG, 8 am Gu

day Electronic Progr

ide

• Picture in Picture: Text dual screen

• Remote Control: TV

• Remote control type: RC4450

• Screen Format Adjustments: 4:3, Auto Format,

vie expand 14:9, Mo

vie expand 16:9, Subtitle

Zoom, Super Zoom, Widescreen

• Teletext: 1200 page Hypertext

• Teletext enhancements: 4 favourite pages,

rmatio

Program info

n Line

• Smart mode: Movie, Standard, Vivid

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG

Still pict

ures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, PA SECAM D/K, SECAM L/L', DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

•Tuner Display: PLL

L D/K, SECAM B/G,

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: YPbPr, Audio L/R in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

andb

• Front / Side connections: HDMI v1.3, S-video in, CVBS in, Audio L

/R in, Headphone Out, USB

• Other connections: Analog audio Left/Right out,

o in, S/PDIF out (coaxial), Common

PC Audi Interface

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: 220 - 240V, 50/60Hz

• Power consumption: 210 W

• Standby power consumption: 0.15 W

Dimensions

•Set dimensions (W x H x D): 1046 x 644 x 111 mm

• Set dimensions with stand (W x H x

D):

1046 x 716 x 265 mm

• Weight incl. Packaging: 42 kg

• Product weight: 22.5 kg

• Product weight (+stand): 27 kg

•Box dimensions (W x H x D):

x 793 x 333 mm

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included accessories: Power cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

SPDIF OUT

SERV. U

AUDIO OUT

AUDIO IN

HDMI 2HDMI 3

Issue date 2012-01-19

Version: 3.0.7

12 NC: 8670 000 40969 EAN: 87 12581 43254 6

EXT 2

EXT 1

EXT 3

(RGB/CVBS)

75X

TV ANTENNA

AUDIO IN:

LEFT / RIGHT

HDMI 1

HDMI 1 / DVI HDMI 2 / DVI HDMI 3 / DVI

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
