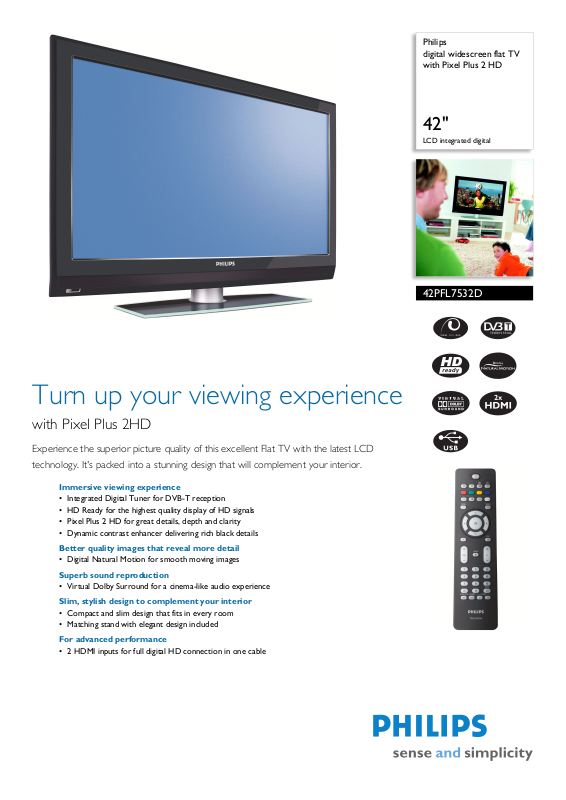

Philips 42PFL7532D User Manual

Philips
digital widescreen flat TV
with Pixel Plus 2 HD

42"

LCD integrated digital

42PFL7532D

Turn up your viewing experience

with Pixel Plus 2HD

Experience the superior picture quality of this excellent Flat TV with the latest LCD
technology. It's packed into a stunning design that will complement your interior.

Immersive viewing experience

• Integrated Digital Tuner for DVB-T reception

• HD Ready for the highest quality display of HD signals

• Pixel Plus 2 HD for great details, depth and clarity

• Dynamic contrast enhancer delivering rich black details

Better quality images that reveal more detail

• Digital Natural Motion for smooth moving images

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

• Matching stand with elegant design included

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Digital widescreen flat TV with Pixel Plus 2 HD

42" LCD integrated digital

Specifications

42PFL7532D/79

Picture/Display

• Aspect ratio: 16:9

• Brightness: 550 cd/m²

• Dynamic screen contrast: 7500:1

• Response time (typical): 5 ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD WXGA Active Matrix
TFT

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus 2 HD, Digital
Natural Motion, Dynamic contrast enhancement,
3/2 - 2/2 motion pull down, 3D Combfilter, Active
Control + Light sensor, Active Control, Jagged
Line Suppression, Progressive Scan, Widescreen
Plus

• Screen enhancement: Anti-Reflection coated
screen

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz

• Video Formats
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh

Sound

• Output power (RMS): 2x15W

• Sound Enhancement: Digital Signal Processing,
Graphic Equaliser, Dynamic Bass Enhancement

• Sound System: Virtual Dolby Digital

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: Dome tweeter

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, PLL Digital
Tuning, Plug & Play

• Ease of Use: 4 favorite lists, Auto Volume Leveller
(AVL), Delta Volume per preset, Graphical User
Interface, On Screen Display, Program List, Side
Control

• Electronic Program Guide: Now + Next EPG

• Remote Control: TV

• Remote control type: RC2034302/01

• Screen Format Adjustments: 4:3, 6 Widescreen

Modes, Auto Format, Movie expand 14:9, Movie
expand 16:9, Subtitle and Heading Shift, Super
Zoom, Widescreen

• Picture in Picture: Text dual screen

• Teletext: 1200 page Hypertext

• Teletext enhancements: Habit Watch, Program
information Line

Multimedia Applications

• Multimedia connections: USB (streaming video
capable)

• Playback Formats: MP3, Slideshow files (.alb),
JPEG Still pictures, MPEG2

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• DVB: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Sca rt: Audio L/R, CVBS in/out, RGB, S-video
in

• Ext 3: YPbPr

• Ext 4: HDMI

• Ext 5: HDMI

• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, USB

• Other connections: Analog audio Left/Right out,
S/PDIF in (coaxial), S/PDIF out (coaxial)

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: AC 220 - 240 V +/- 10%

• Power consumption: 255 W

• Standby power consumption: <1W

Accessories

• Included Accessories: Table top stand, Power
cord, User Manual, Registration card, Warranty
certificate, Remote Control, Batteries for remote
control

• Optional accessories: Floor stand

Dimensions

• Color cabinet: Black Cabinet with Hi Gloss Black
Deco Frame

• Set dimensions (W x H x D):
1046

x 686 x 118 mm

• Set dimensions with stand (W x H x D):
1046

x 748.6 x 264.5 mm

• Product weight: 26.35 kg

• Product weight (+stand): 33.5 kg

• Box dimensions (W x H x D):
1152

x 800 x 277 mm

• Weight incl. Packaging: 39.2 kg

• VESA wall mount compatible: 600 x 400 mm

•
