Philips 42PFL7433, 42PFL7433/60 Specifications

Download

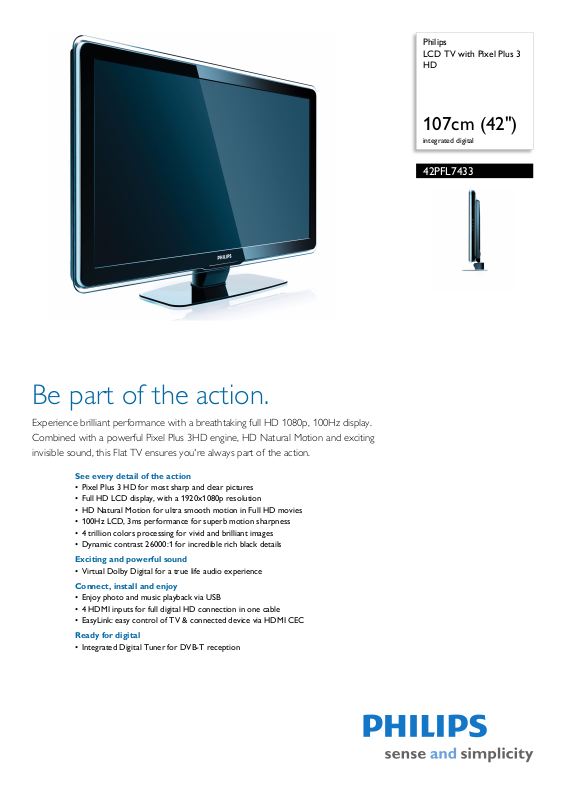

Page 1

Philips LCD TV with Pixel Plus 3 HD

107cm (42")

integrated digital

42PFL7433

Be part of the action.

Experience brilliant performance with a breathtaking full HD 1080p, 100Hz display. Combined with a powerful Pixel Plus 3HD engine, HD Natural Motion and exciting invisible sound, this Flat TV ensures you're always part of the action.

See every detail of the action

• Pixel Plus 3 HD for most sharp and clear pictures

• Full HD LCD display, with a 1920x1080p resolution

• HD Natural Motion for ultra smooth motion in Full HD movies

• 100Hz LCD, 3ms performance for superb motion sharpness

• 4 trillion colors processing for vivid and brilliant images

• Dynamic contrast 26000:1 for incredible rich black details

Exciting and powerful sound

• Virtual Dolby Digital for a true life audio experience

Connect, install and enjoy

• Enjoy photo and music playback via USB

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

Ready for digital

• Integrated Digital Tuner for DVB-T reception

Page 2

LCD TV with Pixel Plus 3 HD

107cm (42") integrated digital

Highlights

42PFL7433/60

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination o

f ultimate sharpness, natural detail, vivid colors and smooth natural motion on all qualities of HD, standard TV signals and multimedia content, for high definition displays. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts and noise in all sources from multimedia to standard TV and also in highly compressed HD are detected and reduced ensuring that the picture is clean and razor sharp.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolutio resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

HD Natural Motion

Philips invented HD Natural Motion to minimize movie based picture content. The award

n of 1920 x 1080p. This is the highest

juddering effects that are visible with

winning algorithm estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

100Hz LCD (3ms)

100Hz LCD creates extreme motion sharpness for cle with fast on-screen motion. The Double Frame Rate Insertion works with a high 100Hz refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a performance with a response time of 3 milliseconds (measured in Perceived BlurEdge-Width; BEW). This unique Philips technology brings motion sharpness of LCD displays to an unprecedented level.

Integrated Digital DVB-T tuner

The integrated Digital DVB-T tuner lets you receive

digital terrestrial TV without an additional set top box. Enjoy quality TV clutter free.

Virtual Dolby Di

Virtual Dolby Digital is a processing technology for e

nhancing surround sound effects. It will

ar and vibrant images even

gital

create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

4 HDMI inputs

HDMI makes an uncompressed digital RGB conne

ction from the source to the screen for the ultimate picture quality. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources and includes digital audio. HDMI uses HDCP copy protection. With 3 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and game console or digital Camcorder. Your TV is fully prepared for the HD future.

EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

col to share functionality

Page 3

LCD TV with Pixel Plus 3 HD

107cm (42") integrated digital

Specifications

42PFL7433/60

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 30.000:1

• Response time (typical): 3 (BEW equiv.) ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD Full HD W-UXGA Act. ix

mat

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2

tio

n pull down, 3D Combfilter, Active Control

mo + Light sensor, Dynamic contrast enhancement, Progressive scan, 100Hz LCD, 1080p 24/25/30Hz processing, 1080p 50/60Hz processing, HD Natural Motion

• Screen enhancement: Anti-Reflection coated

• Color processing: 4 trillion colors (14bit RGB)

• Color cabinet: High gloss b

black cabinet

lack deco

front with

Supported Display Resolution

• Computer formats

Resolution Ref 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1360 x 768 60Hz 1920 x 1080i 60Hz 1920 x 1080p 60Hz

deo formats

• Vi

olution Refresh rate

Res 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 50, 60Hz 1080p 24, 25, 30Hz

resh rate

Sound

• Output power (RMS): 2 x 15W

• Sound Enhancement: Auto Vo

Signal Processing, Dynamic Bass Enhancement, Graphic Equaliser, Smart Sound

• Sound System: Virtual Dolby Digital, BBE

lume Leveller, Digital

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Ease of Installation: Auto Program Naming,

• Ease of Use: 4 favorite lists, Au

ic Channel Install(ACI), Automatic Tuning

Automat System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug & Play

(AVL), Delta Volume per preset, Graphical User Interface, On Screen Display, Program List, Settings assistant Wizard, Side Control

Volume Leveller

• Electronic Program Guide: Now + Next EPG, 8 day Electronic Program Gu

• Picture in Picture: Text dual screen

• Remote Control: TV

• Remote control type: RC4452

• Screen Format Adjustments: 4:3, Auto Format,

vie expand 14:9, Mo

Mo and Heading Shift, Super Zoom, Widescreen, unscaled (1080p dot by dot)

• Teletext: 1200 page Hypertext

• Teletext enhancements: Habit Watch, Program

rmat

ion Line

info

• Firmware upgradeable: Firmware auto upgrade

, Firmware upgradeable via USB

wizard

• Multimedia: Digital media reader (browser), USB

eak-in

autobr

• Smart mode: Game, Movie, Personal, Energy

ving, Standard, Vivid

ide

vie expand 16:9, Subtitle

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG

ures, MPEG1, MPEG2

Still pict

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: YPbPr, Audio L/R in, VGA PC-in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

ontrol, System standby

dio c

•Front / Side connections: HDMI v1.3, S-vi CVBS in, Audio L/R in, Headphone Out, USB

• PC network link: DLNA 1.0 certified

• Other connections: Analog audio Left/Right out, Ethernet, PC Common Interface

Audio

in, S/PDIF out (coaxial),

deo in,

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: AC 220 - 240 V +/- 10%

• Power consumption: 110 W

• Power (Energy saving mode): 150 W

• Standby power consumption: 0,15 W

Dimensions

• Set dimensions (W x H x D): 1046 x 644 x 88 mm

• Set dimensions with stand (H x D): 716 x 262 mm

• Weight incl. Packaging: 42 kg

• Product weight: 21 kg

• Product weight (+stand): 25.5 kg

•Box dimensions (W x H x D):

x 793 x 333 mm

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included accessories: Power cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

Issue date 2013-01-28

Version: 1.0.4

12 NC: 8670 000 52004 EAN: 87 12581 47958 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
