Philips 42PFL7312/78 Specifications

Download

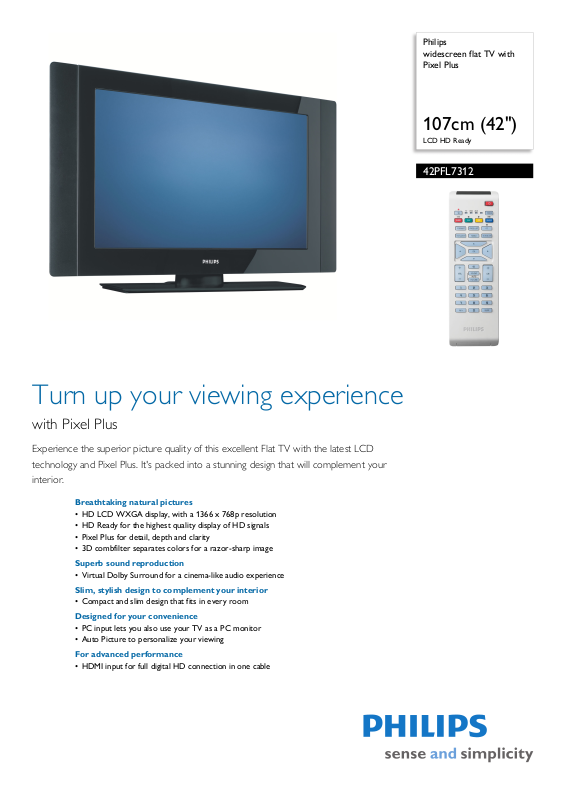

Page 1

Philips widescreen flat TV with Pixel Plus

107cm (42")

LCD HD Ready

42PFL7312

Turn up your viewing experience

with Pixel Plus

Experience the superior picture quality of this excellent Flat TV with the latest LCD technology and Pixel Plus. It's packed into a stunning design that will complement your interior.

Breathtaking natural pictures

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD Ready for the highest quality display of HD signals

• Pixel Plus for detail, depth and clarity

• 3D combfilter separates colors for a razor-sharp image

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• PC input lets you also use your TV as a PC monitor

• Auto Picture to personalize your viewing

For advanced performance

• HDMI input for full digital HD connection in one cable

Page 2

Widescreen flat TV with Pixel Plus

107cm (42") LCD HD Ready

Highlights

42PFL7312/78

HD Ready

Enjoy the exceptional picture quality of High Definiti

on pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Pixel Plus

Pixel Plus is a digital picture processing te

chnology that increases the number of lines and the number of pixels. The result is razor sharp pictures with incredible detail and depth, every time from any source.

3D Combfilter

The 3D comb filter separates brightness and c

olor signals better in 3D domain to eliminate cross-color, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital comb filter performs field-by-field comparisons of the television image to accurately separate the color from the black-and-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.

Virtual Dolby Surround

Virtual Dolby Surround is a processing te

chnology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

PC input

With PC input you can connect your TV to a c

omputer and use the TV as a PC monitor.

Auto Picture

Auto Picture button on the remote control e

nables one-touch selection of various preset optimized image settings to suit different TV program.

HDMI input

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

Page 3

Widescreen flat TV with Pixel Plus

107cm (42") LCD HD Ready

Specifications

42PFL7312/78

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 4000:1

• Response time (typical): 8 ms

• Viewing angle (H / V): 176 / 176 degree

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD WXGA Active Matrix T

TF Panel resolution: 1366 x 768p

•

• Picture enhancement: Pixel Plus, Luminance ans

ient Improver, Contrast Plus, 3/2 - 2/2

Tr motion pull down, 3D Combfilter, Active Control + Light sensor, Color Temperature Adjustment, Digital Noise Reduction, Jagged Line Suppression, Progressive scan, Sharpness Adjustment

• Screen enhancement: Anti-Reflection coated

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60, 70, 75Hz 1280 x 768 60Hz

deo Formats

• Vi

olution Refresh rate

Res 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p

20 x 1080i 2Fh

3Fh

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 15W RMS

• Sound Enhancement: Dynamic Bass Enhancement

• Sound System: Stereo, Virtual Dolby Surround,

SAP

• Ease of Use: 8 channel smart AutoSound, Graphical User Interface, Program List, Side Control

• On-Screen Display languages: En Portuguese, Spanish

• Remote Control: TV, Amp, DVD, Multi-functional

• Remote control type: RCFN05SPS00

• Screen Format Adjustments: 4:3, Movie expand

, Movie expand 16:9, Subtitle Zoom, Super

14: Zoom, Widescreen

• Picture in Picture: Picture in graphics

rf list, AutoPicture,

glish, Fren

ch,

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: NTSC, PAL N, PAL M

• Video Playback: NTSC, PAL (all versions)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 125

•Tuner Display: PLL

Connectivity

• AV 1: Audio L/R in, CVI, YPbPr (2fh)

• AV 2: Audio L/R in, CVBS, S-Video

• Number of AV connections: 5

•Front / Side connections: Audio Headphone Out, S-video in

• Other connections: HDMI, Monitor out L/R

h), PC-in VGA + Audio L/R in, HD input via

(Cinc VGA

L/R

in, CVBS in,

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 100-240V, 50-60Hz

• Power consumption: 230 W

• Standby power consumption: < 1W

Accessories

• Included accessories: Table top stand, Wall mounting bracket, VGA to YPbPr-Cinch cable, Power cord, Quick start guide, User Manual, Remote Control, Batteries for remote control

ox dimensions (W x H x D):

•B x 939 x 330 mm

1328

• Weight incl. Packaging: 40 kg

• VESA wall mount compatible: 800 x 400 mm

•

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Autostore, Fine Tuning

Issue date 2012-01-20

Version: 3.0.9

12 NC: 8670 000 26423 EAN: 87 12581 30870 4

Dimensions

•Set dimensions (W x H x D): 1249 x 697 x 111 mm

• Set dimensions with stand (W x H x D):

x 760 x 305 mm

1249 Product weight: 32 (with stand), 30 (without

•

stand)

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* For a maximum picture quality without distortion it is necessary a

high quality digital signal in widescreen format or to use a signal conversor/decoder.

* Avoid extensive use of the set in a volume higher than 85 decibel

because this may damage your hearing.
