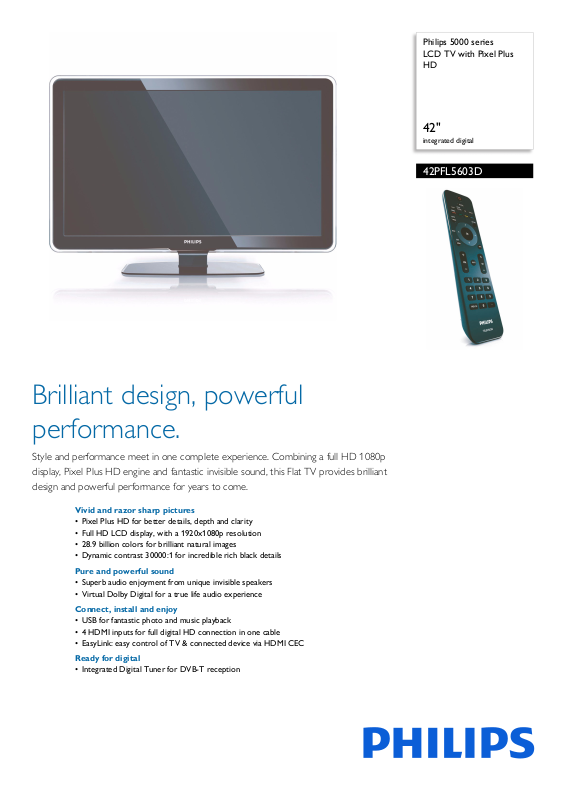

Page 1

Philips 5000 series LCD TV with Pixel Plus HD

42"

integrated digital

42PFL5603D

Brilliant design, powerful performance.

Style and performance meet in one complete experience. Combining a full HD 1080p display, Pixel Plus HD engine and fantastic invisible sound, this Flat TV provides brilliant design and powerful performance for years to come.

Vivid and razor sharp pictures

• Pixel Plus HD for better details, depth and clarity

• Full HD LCD display, with a 1920x1080p resolution

• 28.9 billion colors for brilliant natural images

• Dynamic contrast 30000:1 for incredible rich black details

Pure and powerful sound

• Superb audio enjoyment from unique invisible speakers

• Virtual Dolby Digital for a true life audio experience

Connect, install and enjoy

• USB for fantastic photo and music playback

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

Ready for digital

• Integrated Digital Tuner for DVB-T reception

Page 2

42PFL5603D/79

LCD TV

42" integrated digital

Highlights

Pixel Plus HD

Pixel Plus HD is a picture processing te

chnology that enables viewer to watch contents that are vivid, natural and real. The result is a superbly razor sharp pictures with incredible details and depth from any HD source.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolutio resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

Integrated Digital DVB-T tuner

The integrated DVB-T tuner lets you receive Digital T

n of 1920 x 1080p. This is the highest

errestrial TV to watch or record. This

means you do not need an additional set top box and also the additional cables.

Virtual Dolby Di

Virtual Dolby Digital is a processing technology for e

nhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

USB for photo & music playback

The USB connector allows access to jpeg ph

otos and mp3 music of most USB-sticks (USB memory-class device). Plug the USB into the slot at the side of the TV and access your photos or music files. You can easily view and share your photos and music.

4 HDMI inputs

HDMI makes an uncompressed digital RGB conne

ction from the source to the screen for the ultimate picture quality. HDMI intelligently communicates the highest output resolution

gital

with the source device. The HDMI input is fully backward compatible with DVI sources and includes digital audio. HDMI uses HDCP copy protection. With 3 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and game console or digital Camcorder. Your TV is fully prepared for the HD future.

EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

col to share functionality

Page 3

42PFL5603D/79

LCD TV

42" integrated digital

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 30000:1

• Response time (typical): 5 ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD Full HD W-UXGA Act. ix

mat

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus HD, 3/2 - 2/2

tio

n pull down, 3D Combfilter, Active Control

mo + Light sensor, Color Transient Improvement, Digital Noise Reduction, Dynamic contrast enhancement, Luminance Transient Improver, 1080p 24/25/30Hz processing, 1080p 50/60Hz processing

• Screen enhancement: Anti-Reflection coated

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60, 72, 75, 85Hz 800 x 600 60, 72, 75, 85Hz 1024 x 768 60, 70, 75, 85Hz Via HDMI/DVI

inpu

• Video formats

olution Refresh rate

Res 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 50, 60Hz 1080p 24, 25, 30Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 15W

• Sound Enhancement: Auto Volume Leveller,

• Sound System: Nicam Stereo, Virtual Dolby Digital,

Graphic

BBE

Equaliser

System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug & Play

• Ease of Use: 4 favorite lists, Auto Volume Leveller (AVL), Delt Interface, On Screen Display, Program List, Settings assistant Wizard, Side Control

• Electronic Program Guide: Now + Next EPG, 8 day Electronic Progr

• Picture in Picture: Text dual screen

• Remote Control: TV

• Remote control type: RCPF05E08B

• Screen Format Adjustments: 4:3, Auto Format, Mo Zoom, Super Zoom, Widescreen

• Teletext: 1200 page Hypertext

• Teletext enhancements: 4 favourite pages, Program info

• Smart mode: Movie, Standard, Vivid

a Volume per preset, Graphical User

am Gu

ide

vie expand 14:9, Mo

rmatio

vie expand 16:9, Subtitle

n Line

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG Still pict

ures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, PAL SECAM D/K, SECAM L/L', DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• DVB: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

D/K, SECAM B/G,

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: YPbPr, Audio L/R in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

andb

•Front / Side connections: HDMI v1.3, S-vi CVBS in, Audio L/R in, Headphone out, USB

• Other connections: Analog audio Left/Right out,

Audio in, S/PDIF out (coaxial), Common

PC Interface

deo in,

Dimensions

• Set dimensions (W x H x D): 1046 x 644 x 88 mm

• Set dimensions with stand (W x H x D): x 716 x 262 mm

1046

• Weight incl. Packaging: 42

• Product weight: 21 kg

• Product weight (+stand): 25.5 kg

•Box dimensions (W x H x D):

x 793 x 333 mm

• Color cabinet: Black cabinet with High Gloss deco

fron

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included Accessories: Power cord, Quick start

guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Auto Program Naming, ic Channel Install(ACI), Automatic Tuning

Automat

Issue date 2019-06-28

Version: 1.0.5

12 NC: 8670 000 41401 EAN: 87 12581 43544 8

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: 220 - 240V, 50/60Hz

• Power consumption: 200 W

• Standby power consumption: 0.15 W

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
