Philips 42PFL5603D/27 Leaflet

Download

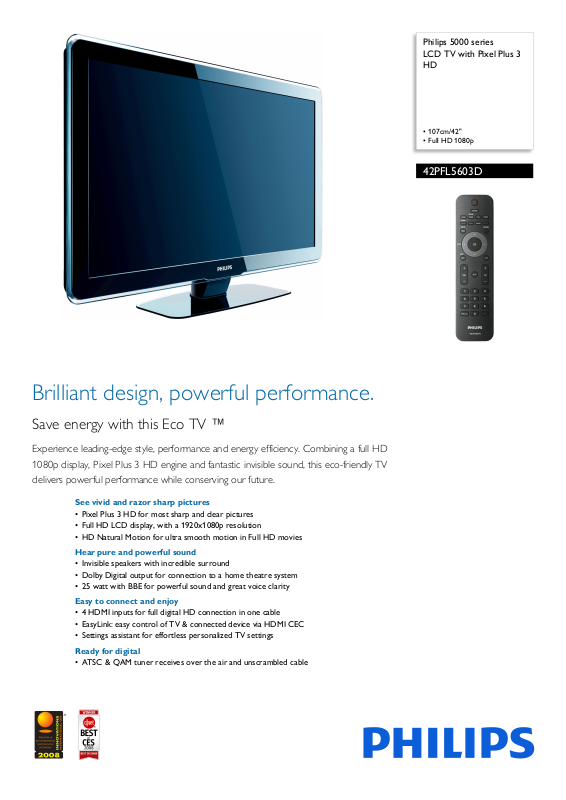

Page 1

Philips 5000 series LCD TV with Pixel Plus 3 HD

• 107cm/42"

• Full HD 1080p

42PFL5603D

Brilliant design, powerful performance.

Save energy with this Eco TV ™

Experience leading-edge style, performance and energy efficiency. Combining a full HD 1080p display, Pixel Plus 3 HD engine and fantastic invisible sound, this eco-friendly TV delivers powerful performance while conserving our future.

See vivid and razor sharp pictures

• Pixel Plus 3 HD for most sharp and clear pictures

• Full HD LCD display, with a 1920x1080p resolution

• HD Natural Motion for ultra smooth motion in Full HD movies

Hear pure and powerful sound

• Invisible speakers with incredible surround

• Dolby Digital output for connection to a home theatre system

• 25 watt with BBE for powerful sound and great voice clarity

Easy to connect and enjoy

• 4 HDMI inputs for full digital HD connection in one cable

• EasyLink: easy control of TV & connected device via HDMI CEC

• Settings assistant for effortless personalized TV settings

Ready for digital

• ATSC & QAM tuner receives over the air and unscrambled cable

Page 2

LCD TV with Pixel Plus 3 HD

107cm/42" Full HD 1080p

Highlights

42PFL5603D/27

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination o

f ultimate sharpness, natural detail, vivid colors and smooth natural motion on all qualities of HD, standard TV signals and multimedia content, for high definition displays. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts and noise in all sources from multimedia to standard TV and also in highly compressed HD are detected and reduced ensuring that the picture is clean and razor sharp.

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen resolutio resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources,

n of 1920 x 1080p. This is the highest

including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.

HD Natural Motion

Philips invented HD Natural Motion to minimize movie based picture content. The award winning algorithm estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

juddering effects that are visible with

Invisible speakers

An invisible sound system that blends perfectly w

ith the design of the cabinet. The Incredible Surround allows you to experience total surround with greater depth and width of sound. It gives a clear and spacious sound stage complementary to the rich viewing experience.

EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With EasyLink only one remote control is needed to operate main functionalities on your TV and connected devices. EasyLink uses the standard HDMI cable to transfer system commands. It works between all electronic devices equipped with HDMI CEC.

col to share functionality

Page 3

LCD TV with Pixel Plus 3 HD

107cm/42" Full HD 1080p

Specifications

42PFL5603D/27

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 29000:1

• Response time (typical): 5 ms

• Viewing angle: 178º (H) / 178º (V)

• Diagonal screen size: 42 inch / 107 cm

• Visible screen diagonal (inch): 42.02 inch

• Panel resolution: 1920x1080p

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2 n pull down, 3D Combfilter, Active Control

tio

mo + Light sensor, Dynamic contrast enhancement, Progressive scan, HD Natural Motion

Supported Display Resolution

mputer formats

• Co

Res

olution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 1024 60 1360 x 768 60Hz 1920 x 1080i 60Hz 1920 x 1080p 60Hz

deo formats

• Vi Res

olution Refresh rate 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz 1080p 60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 25W

• Sound Enhancement: Incredible Surround

• Sound System: Dolby Digital (AC-3), BBE

Loudspeakers

• Built-in speakers: 4

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display, Sleep Timer

• Ease of Installation: Autostore

• Ease of Use: 4 favorite lists, Au (AVL), Channel list, Settings assistant Wizard, Side Control

Volume Leveller

• Remote Control: TV

• Screen Format Adjustments: 4:3, Auto Format, i

e expand 14:9, Movie expand 16:9, Super

Mov Zoom, Widescreen, unscaled (1080p dot by dot)

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: MP3, JPEG Still pictures

• Playback enhancement: Picture slidesho

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

•Video Playback: NTSC

• Cable: Unscrambled Digital Cable QAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• AV 1: Audio L/R in, YPbPr

• AV 2: Audio L/R in, YPbPr

• AV 3: CVBS in, S-Video in

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

• HDMI 3: Analog audio L/R in, HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, Power

st standby

• Front / Side connections: HDMI, S-video in, CVBS

in, Audio L

• Audio Output - Digital: Coaxial (cinch)

stem info (menu language), System

atus, Sy

R in, Headphone Out, USB

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 110-240V, 50-60Hz

• Power consumption: 265 W

• Standby power consumption: < 1 W

Dimensions

• Set dimensions in inch (W x H x D):

41.19 x 25.39 x 3.48 inch

•Set dimensions with stand in inch (W

41.19 x 28.19 x 10.31 inch

• Weight incl. Packaging (lb): 66.25

•

Product weight (lb): 53.01 (with stand), 44.53

hout stand)

• Box dimensions in inch (W x H x D): 1 x 31.22 x 13.11 inch

45.3

• VESA wall mount compatible: 400 x 400 mm

x H x D):

Accessories

• Included accessories: Tabletop swivel stand, Power cord, Quick start guide, User Manual, Registration card, Remote Control

•

Issue date 2013-06-22

Version: 6.0.63

12 NC: 8670 000 34374 UPC: 6 09585 14524 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
