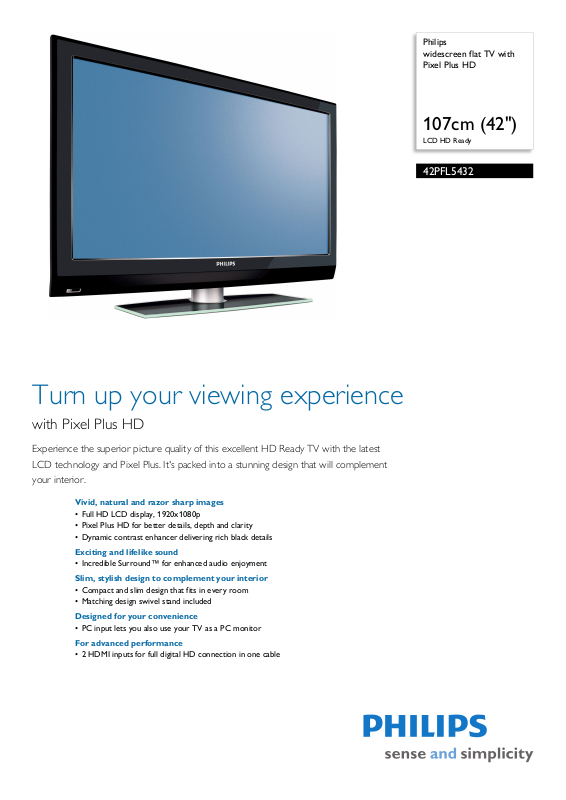

Philips
widescreen flat TV with
Pixel Plus HD
107cm (42")
LCD HD Ready
42PFL5432
Turn up your viewing experience
with Pixel Plus HD
Experience the superior picture quality of this excellent HD Ready TV with the latest
LCD technology and Pixel Plus. It's packed into a stunning design that will complement
your interior.
Vivid, natural and razor sharp images
• Full HD LCD display, 1920x1080p
• Pixel Plus HD for better details, depth and clarity
• Dynamic contrast enhancer delivering rich black details
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
• Matching design swivel stand included
Designed for your convenience
• PC input lets you also use your TV as a PC monitor
For advanced performance
• 2 HDMI inputs for full digital HD connection in one cable
Widescreen flat TV with Pixel Plus HD
107cm (42") LCD HD Ready
Highlights
42PFL5432/77
Full HD LCD display 1920x1080p
This display has a resolution that is referred to
as
Full HD. The state-of-the-art LCD screen
technology has the full high-definition
widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the
best possible picture quality for HD input
signals with up to 1080 lines. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
Pixel Plus HD
Pixel Plus HD is a picture processing
te
chnology that enables viewers to watch
content that is vivid, natural, and real. The
result means superbly life-like pictures with
incredible details and depth from any HD
source.
Dynamic contrast enhancer
You want the LCD flat display with the highest
contrast
and most vibrant images even at wide
viewing angle. The Philips dynamic contrast
enhancer uses video processing and unique
dimming backlight technology. This delivers
deep rich black levels with increased detail.
The dimming backlight increases the contrast
up to 5 times*, and at the same time improves
the viewing angle. It gives a bright, lifelike
picture with high contrast and vibrant colors,
(* factor between 2 and 5, screen type and
picture content dependant).
Incredible Surround™
Incredible Surround is an audio technology
from Phi
sound field to immerse you in the audio. Using
state-of-the-art electronic phase shifting,
Incredible Surround mixes sounds from left
and right in such a way that it expands the
virtual distance between the two speakers.
This wider spread greatly enhances the stereo
effect and creates a more natural sound
dimension. Incredible Surround allows you to
experience total surround with greater depth
lips that dramatically magnifies the
and width of sound, without the use of
additional speakers.
2 HDMI inputs
HDMI makes an uncompressed digital RGB
c
onnection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection. With 2 HDMI inputs you can
connect multiple HD sources, for instance an
HD settop box, and a Blu-ray player. Your TV
is fully prepared for the HD future.
PC input
With PC input you can connect your TV to a
c
omputer and use the TV as a PC monitor.
Widescreen flat TV with Pixel Plus HD
107cm (42") LCD HD Ready
Specifications
42PFL5432/77
Picture/Display
• Color cabinet: Black Cabinet with Black Hi Gloss
deco Frame
• Aspect ratio: Widescreen, 16:9
• Brightness: 500 cd/m²
• Dynamic screen contrast: 4000:1
• Response time (typical): 8 ms
• Viewing angle (H / V): 170 / 170 degree
• Diagonal screen size: 42 inch / 107 cm
• Display screen type: LCD WXGA Active Matrix
T
TF
Panel resolution: 1920x1080p
•
• Picture enhancement: Pixel Plus HD, Dynamic
nt
rast enhancement, Contrast Plus, 3/2 - 2/2
co
motion pull down, 3D Combfilter, Digital Noise
Reduction, Progressive scan
• Screen enhancement: Anti-Reflection coated
re
en
sc
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 72, 75, 85Hz
720 x 400 70Hz
1024 x 768 60, 70, 75, 85Hz
deo formats
• Vi
Res
olution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080p 24, 50, 60Hz
Sound
• Equalizer: 7-bands
• Output power (RMS): 2 x 10W
• Sound Enhancement: Auto Volume Leveller,
edible Surround
Incr
• Sound System: Stereo, SAP
Loudspeakers
• Built-in speakers: 2
• Loudspeaker types: Front Speakers, Dome
tweeter
Convenience
• Child Protection: Child Lock
• Clock: On main display, Sleep Tim
Clock
• Ease of Installation: Auto Program Naming,
store, Fine Tuning, Program Name, Sorting
Auto
• Ease of Use: 8 channel smart
er, Wake up
surf list, Auto Volume
Leveller (AVL), AutoPicture, AutoSound, Program
List, Side Control, Closed Captioning Full Text
• On-Screen Display languages: English, Portuguese,
Spanis
h
• Remote Control: TV
• Remote control type: RC2023606/01
• Screen Format Adjustments: 4:3, Movie expand
9
, Movie expand 16:9, Subtitle Zoom, Super
14:
Zoom, Widescreen
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• TV system: NTSC, PAL N, PAL M
• Video Playback: NTSC, PAL (all versions)
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Number of Preset Channels: 125
•Tuner Display: PLL
Connectivity
• AV 1: Audio L/R in, YPbPr
• AV 2: Audio L/R in, YPbPr
• AV 3: Audio L/R in, CVBS in, S-Video in
•AV 4: HDMI
•AV 5: HDMI
• Number of AV connections: 7
•Front / Side connections: Audio
Headphone Out, S-video in
• Other connections: Monitor out, CVBS, L/R
h), PC Audio in, PC-In VGA
(cinc
in, CVBS in,
L/R
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: 100-240V, 50/60Hz
• Power consumption: 240 W
• Standby power consumption: <1W
Accessories
• Included accessories: Tabletop swivel stand, Power
cord, Quick start guide, User Manual, Registration
card, Warranty certificate, Remote Control,
Batteries for remote control
Dimensions
•Set dimensions (W x H x D):
1046 x 686 x 265 mm
• Set dimensions with stand (W x H x D):
x 749 x 265 mm
1046
• Product weight: 26.5 kg
• Product weight (+stand): 33.5 kg
•Box dimensions (W x H x D):
26
x 780 x 277 mm
11
Weight incl. Packaging: 42 kg
•
• VESA wall mount compatible: 600 x 400 mm
•
Issue date 2012-01-20
Version: 2.0.4
12 NC: 8670 000 34135
EAN: 87 12581 36543 1
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
