PHILIPS 32HF9385D/10, 32PFL7862D/10, 32PFL9432D/79, 32PFL9632D/10, 37PFL9632D/10 Service manual & schematics

Colour Television Chassis

MS7

Q528.1E

LA

MS7

H_16800_000.eps

250407

Contents Page Contents Page

1. Technical Specifications, Connections, and Chassis
Overview 2

2. Safety Instructions, Warnings, and Notes 5

3. Directions for Use 7

4. Mechanical Instructions 8

5. Service Modes, Error Codes, and Fault Finding 17

6. Block Diagrams, Test Point Overview, and

Waveforms

Wiring Diagram 32” 39
Wiring Diagram 47” 40
Block Diagram Display & Platform Supply 32” 41
Block Diagram Video 42
Block Diagram Audio 43
Block Diagram Control & Clock Signals 44
Testpoint Overview Small Signal Board 45-50
I2C IC Overview 51
Supply Lines Overview 52

7. Circuit Diagrams and PWB Layouts Drawing PWB
Display Supply (32” & 37”): Part 1 (A1) 53 55-56
Display Supply (32” & 37”): Part 2 (A2) 54 55-56
AmbiLight (2 sided 6 LED) (AL1) 57 59
AmbiLight (2 sided 6 LED) (AL2) 58 59
Small Signal Board (B1-B11) 60-103 108-113
SSB: Diversity List 104
SSB: SRP List 105-107
Side I/O Panel (D) 114 115
Keyboard Control Panel (E) 116 116
IR & LED Panel (J) 117 117

8. Alignments 119

9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 122
Abbreviation List 143
IC Data Sheets 146

10. Spare Parts List 155

11. Revision List 166

©

Copyright 2007 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by EL 0765 BG CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 16800

EN 2 Q528.1E LA1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connections

1.3 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

1.1 Technical Specifications

1.1.1 Vision

Display type : LCD
Screen size : 32” (82 cm), 16:9

Resolution (HxV pixels) : 1366x768p (32”)

Light output (cd/m
Viewing angle (HxV degrees) : 176x176
Tuning system : PLL
Colour systems : NTSC

Video playback : NTSC

Cable : Unscrambled digital

Tuner bands : UHF, VHF, S, Hyper
Supported video formats : 480i @ 60 Hz

Supported computer formats (60 Hz) : 640x480

2

) : 550

: 47” (120 cm), 16:9

: 1920x1080p (47”)

: PAL
: SECAM
: DVB-T

: PAL
: SECAM

cable - QAM

: 480p @ 60 Hz
: 576i @ 50 Hz
: 576p @ 50 Hz
: 720p @ 50/60 Hz
: 1080i @ 50/60 Hz
: 1080p @ 24/25/30/

50/60 Hz

: 800x600
: 1024x768
: 1280x1024
: 1360x768
: 1920x1080i
: 1920x1080p

1.1.3 Multimedia

Supported file formats : JPEG

USB input : USB2.0

1.1.4 Miscellaneous

Power supply:

- Mains voltage (V

- Mains frequency (Hz) : 50 / 60

Ambient conditions:

- Temperature range (°C) : +5 to +35

Power consumption (values are indicative)

- Normal operation (W) : 132 (32”)

- Standby (W) : < 0.79

Dimensions (WxHxD in cm) : 82.9x54.3x12.5 (32”)

Weight (kg) : 18.2 (32”)

) : 220 - 240 ±10%

AC

: MPEG1, MPEG2
:MP3
: Slideshow (.alb)

: 293 (47”)

: 117.0x73.6x12.5 (47”)

: 33.2 (47”)

1.1.2 Sound

Maximum power (W

):2 x 8

RMS

Technical Specifications, Connections, and Chassis Overview

1.2 Connections

H_16800_105.eps

090507

EN 3Q528.1E LA 1.

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1.2.1 Side Connections

S-Video (Hosiden): Video Y/C - In

1 -Ground Y Gnd H
2 -Ground C Gnd H
3 -Video Y 1 V
4 -Video C 0.3 V

/ 75 ohm j

PP

/ 75 ohm j

PP

Cinch: Video CVBS - In, Audio - In

Rd -Audio R 0.5 V
Wh -Audio L 0.5 V
Ye - Video CVBS 1 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

/ 75 ohm jq

PP

Headphone (Output)

Bk -Headphone 32 - 600 ohm / 10 mW ot

USB2.0

1234

E_06532_022.eps

300904

Figure 1-2 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

Figure 1-1 Connection overview

Digital Audio Out: Cinch: S/PDIF - Out

Bk -Coaxial 0.4 - 0.6V

Digital Audio In: Cinch: S/PDIF - In

Bk -Coaxial 0.2 - 0.6V

HDMI 1, 2 & 3: Digital Video, Digital Audio - In

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

/ 75 ohm kq

PP

/ 75 ohm jq

PP

19

18 2

1

E_06532_017.eps

250505

Figure 1-3 HDMI (type A) connector

1.2.2 Rear Connections

Common Interface

68p-See diagram B07A jk

Cinch: Audio - Out

Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

/ 10 kohm kq

RMS

/ 10 kohm kq

RMS

Service Connector (UART)

1 -Ground Gnd H
2 -UART_TX Transmit k
3 -UART_RX Receive j

Aerial - In

- - IEC-type (EU) Coax, 75 ohm D

EN 4 Q528.1E LA1.

Technical Specifications, Connections, and Chassis Overview

EXT3: Cinch: Video YPbPr - In

Gn - Video Y 1 V
Bu - Video Pb 0.7 V
Rd -Video Pr 0.7 V

EXT3: Mini Jack: Audio - In

Bk -Audio Surround 0.5 V

EXT 2 & 1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out

20

21

Figure 1-4 SCART connector

1 -Audio R 0.5 V
2 -Audio R 0.5 V

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 75 ohm jq

PP

/ 10 kohm ok

RMS

2

E_06532_001.eps

RMS
RMS

1

050404

/ 1 kohm k
/ 10 kohm j

1.3 Chassis Overview

3 -Audio L 0.5 V
4 -Ground Audio Gnd H
5 -Ground Blue Gnd H
6 -Audio L 0.5 V
7 -Video Blue/C-out 0.7 V
8 -Function Select 0 - 2 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j
9 -Ground Green Gnd H
10 - Easylink P50 0 - 5 V / 4.7 kohm jk
11 - Video Green 0.7 V
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red/C 0.7 V
16 - Status/FBL 0 - 0.4 V: INT

1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
20 - Video CVBS/Y 1 V
21 - Shield Gnd H

/ 1 kohm k

RMS

/ 10 kohm j

RMS

/ 75 ohm jk

PP

/ 75 ohm j

PP

/ 75 ohm j

PP

/ 75 ohm k

PP

/ 75 ohm j

PP

MAIN

A

SUPPLY PANEL

KEYBOARD CONTROL

E

PANEL

IR & LED PANEL

J

PLATFORM
SUPPLY PANEL

Figure 1-5 PWB/CBA locations 32” sets

SMALL SIGNAL

BOARD

SIDE I/O PANEL

H_16800_137.eps

B

D

100507

KEYBOARD CONTROL

E

PANEL

IR & LED PANEL

J

Figure 1-6 PWB/CBA locations 47” sets

SMALL SIGNAL

BOARD

SIDE I/O PANEL

H_16800_106.eps

B

D

090507

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

EN 5Q528.1E LA 2.

Index of this chapter:

2.1 Safety Instructions

2.2 Warnings

2.3 Notes

2.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the "on" position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.

4. Switch "off" the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

2.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched "on".

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

2.3 Notes

2.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the “double-D symbol”, are
trademarks of Dolby Laboratories.

2.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).

• All capacitor values are given in micro-farads (μ= x10
nano-farads (n= x10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.

2.3.3 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: www.atyourservice.ce.philips.com (needs subscription,
not available for all regions). After login, select “Magazine”,
then go to “Repair downloads”. Here you will find Information
on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile,
which is coupled to the 12NC. For an overview of these profiles,
visit the website www.atyourservice.ce.philips.com (needs
subscription, but is not available for all regions)
You will find this and more technical information within the
"Magazine", chapter "Repair downloads".
For additional questions please contact your local repair help
desk.

2.3.4 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to

-9

), or pico-farads (p= x10

-12

-6

),

).

EN 6 Q528.1E LA2.

avoid mixed regimes. If this cannot be avoided, carefully

clear the solder-joint from old tin and re-solder with new tin.

2.3.5 Alternative BOM identification

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then
result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for

ordering the correct spare parts!

For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Safety Instructions, Warnings, and Notes

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production center (e.g.
AG is Bruges), digit 3 refers to the B.O.M. code, digit 4 refers
to the Service version change code, digits 5 and 6 refer to the
production year, and digits 7 and 8 refer to production week (in
example below it is 2006 week 17). The 6 last digits contain the
serial number.

MODEL :

PROD.NO:

32PF9968/10

AG 1A0617 000001

MADE IN BELGIUM

220-240V 50/60Hz

~

VHF+S+H+UHF

BJ3.0E LA

S

E_06532_024.eps

Figure 2-1 Serial number (example)

2.3.6 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

128W

130606

2.3.7 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3. Directions for Use

You can download this information from the following websites:

http://www.philips.com/support
http://www.p4c.philips.com

Directions for Use

EN 7Q528.1E LA 3.

EN 8 Q528.1E LA4.

Mechanical Instructions

4. Mechanical Instructions

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assy/Panel Removal

4.4 Set Re-assembly

Notes:

4.1 Cable Dressing

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

• Follow the disassemble instructions in described order.
They apply to the 47PFL9532D/10 (47” with AmbiLight),
unless stated otherwise.

Figure 4-1 Cable dressing 32” sets

H_16800_136.eps

100507

Mechanical Instructions

EN 9Q528.1E LA 4.

4.2 Service Positions

For easy servicing of this set, there are a few possibilities
created:

• The buffers from the packaging (see figure "Rear cover").

• Foam bars (created for Service).

• Aluminium service stands (created for Service).

4.2.1 Foam Bars

1

Required for sets

1

42”

Figure 4-2 Cable dressing 47” sets

The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. See figure “Foam
bars” for details. Sets with a display of 42” and larger, require
four foam bars [1]. Ensure that the foam bars are always
supporting the cabinet and never only the display.
Caution: Failure to follow these guidelines can seriously
damage the display!
By laying the TV face down on the (ESD protective) foam bars,
a stable situation is created to perform measurements and
alignments. By placing a mirror under the TV, you can monitor
the screen.

4.2.2 Aluminium Stands

H_16800_107.eps

090507

Figure 4-3 Foam bars

E_06532_018.eps

171106

E_06532_019.eps

170504

Figure 4-4 Aluminium stands (drawing of MkI)

The new MkII aluminium stands (not on drawing) with order
code 3122 785 90690, can also be used to do measurements,
alignments, and duration tests. The stands can be
(dis)mounted quick and easy by means of sliding them in/out
the "mushrooms". The new stands are backwards compatible
with the earlier models.

EN 10 Q528.1E LA4.

Important: For (older) FTV sets without these "mushrooms", it

is obligatory to use the provided screws, otherwise it is possible
to damage the monitor inside!

4.3 Assy/Panel Removal

4.3.1 Rear Cover

Warning: Disconnect the mains power cord before you remove

the rear cover.
Note: it is not necessary to remove the stand while removing
the rear cover.

Refer to next figures for details.

Mechanical Instructions

2

2

2

2 2

2

3

2

1 1

2

2

2

2

2 2

2

2

2

2

2

2

2

2

2

2 2

2

2

2

2

2

2

2

2

2

2

H_16800_108.eps

110507

Figure 4-5 Rear Cover Removal

1. Place the TV set upside down on a table top, using the
foam bars (see part “Foam Bars”).
Caution: do not put pressure on the display, but let the
monitor lean on the Front cover!

2. Remove the mushrooms [1].

3. Remove the screws [2].

4. Open the covers [3] on the back cover.

5. Unplug connectors [4].

6. Lift the rear cover from the TV. Make sure that wires and
flat coils are not damaged while lifting the rear cover from
the set.

Figure 4-6 Cover Removal -1-

4

H_16800_109.eps

090507

4

Figure 4-7 Cover Removal -2-

Mechanical Instructions

H_16800_110.eps

090507

4.3.2 Side I/O Board

Refer to next figures for details.

1. Slide the unit upwards.

2. Unplug connector [1] and take the PWB out of its casing.
When defective, replace the whole unit.

EN 11Q528.1E LA 4.

H_16800_111.eps

090507

4

Figure 4-8 Cover Removal -1- (32”)

H_16800_139.eps

100507

Figure 4-10 Side I/O Board -1-

Figure 4-11 Side I/O Board -2-

1

H_16800_112.eps

090507

4

Figure 4-9 Cover Removal -2- (32”)

H_16800_138.eps

100507

EN 12 Q528.1E LA4.

Mechanical Instructions

4.3.3 USB I/O Board

Refer to next figures for details.

1. Remove screw [1].

2. Lift clamp [2] and take the unit out of its casing.

When defective, replace the whole unit.

Figure 4-12 USB I/O Board -1-

1

H_16800_113.eps

090507

4.3.4 Keyboard Control Board

Refer to next figures for details.

1. Remove the screws [1] and turn the board upside-down.

2. Lift the clamps [2].

3. Take the PWB out of its casing.

4. Unplug the connector [3] and remove the board.
When defective, replace the whole unit.

1

2

Figure 4-13 USB I/O Board -2-

H_16800_114.eps

090507

Figure 4-14 Keyboard Control Board -1-

2

3

H_16800_115.eps

090507

H_16800_116.eps

090507

Figure 4-15 Keyboard Control Board -2-

Mechanical Instructions

s

7

EN 13Q528.1E LA 4.

4.3.5 IR & LED Board

Refer to next figure for details.

1. Release clip [1], lift the board and take it out.

2. Unplug connectors [2].

3. Lift the board and take it out of the set.
When defective, replace the whole unit.

1

2

Figure 4-16 IR & LED Board

4.3.6 Speakers

Refer to next figure for details.

1. Unplug connectors [1].

2. Remove screws [2].
Take the speakers out together with their casing. When
defective, replace the whole unit.

H_16800_117.eps

090507

4.3.7 Display Supply Panel - 47” sets

Refer to next figure for details.

1. Remove the fixation screws [1].

2. Unplug connectors [2].

3. Take the board out. It hinges on the right side.

1

2

1

1

2

1

1

2

1

1

2

2

1

Figure 4-17 Speakers

H_16800_118.eps

090507

1

Figure 4-18 Display Supply Panel - 47” sets

H_16800_022.ep

08050

EN 14 Q528.1E LA4.

Mechanical Instructions

4.3.8 Small Signal Board (SSB)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the SSB.

Refer to next figures or details.

1. Remove the tapping screws [1].

2. Unplug the connectors [2].

3. Unplug the LVDS connector [3]. Caution: be careful, as
this is a very fragile connector!

The SSB can now be taken out of the set, together with the
front shield.
To remove the shield:

4. Remove the parker screws [4].

5. Remove the tapping screws [5].

6. Remove the shield from the SSB.

2 2

3

1

2

1

2

1

1

1

4.3.9 AmbiLight Unit

The AmbiLight Units are located in the back cover. Refer to
next figure for details.

1. Remove the screws [1].

2. Unplug the connectors [2].

3. Slide the unit sideways and take it out of the backcover.

1

1

2

3

1

2

1

1

1

Figure 4-19 Small Signal Board -1-

44

Figure 4-20 Small Signal Board -2-

H_16800_119.eps

110507

555

H_16800_120.eps

090507

Figure 4-21 AmbiLight Unit

When defective, replace the whole unit.

4.3.10 LCD Panel

Refer to next figures for details.

1. Take the speakers out as earlier described.

2. Remove the LED/IR panel.

3. Unplug the connector [1].

4. Remove the Display Supply Panel, as earlier described.

5. Remove the parker screws [2].

6. Remove the tapping screws [3].

7. Unplug the LVDS connector [4] from the LCD panel.
Important: Be careful, as this is a very fragile connector!

8. Remove the cables out of their bracket [5].

9. Remove the fixation screw [6] from the side I/O panel.

10. Lift the central sub-frame from the set.

11. Lift the LCD panel from the front cabinet.

H_16770_094.eps

220307

Mechanical Instructions

EN 15Q528.1E LA 4.

2

2

5

2

2

2

2

3

4

3

3

1

3 3

2

3

2

2

2 2

Figure 4-22 LCD Panel

2

22

3

3

3

3

6

2

2

H_16800_121.eps

110507

Figure 4-23 Central Sub-frame

H_16770_097.eps

220307

EN 16 Q528.1E LA4.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See figure "Cable
dressing".

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

Mechanical Instructions

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

EN 17Q528.1E LA 5.

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Protections

5.8 Fault Finding and Repair Tips

5.9 Software Upgrading

5.1 Test Points

As most signals are digital, it will be difficult to measure
waveforms with a standard oscilloscope. However, several key
ICs are capable of generating test patterns, which can be
controlled via ComPair. In this way it is possible to determine
which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

Service Default mode (SDM) and Service Alignment Mode
(SAM) offers several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between the call centre and the customer.

This chassis also offers the option of using ComPair, a
hardware interface between a computer and the TV chassis. It
offers the abilities of structured troubleshooting, error code
reading, and software version read-out for all chassis.
(see also paragraph "ComPair").

– Picture mute (blue mute or black mute).
– Automatic volume levelling (AVL).
– Skip/blank of non-favourite pre-sets.

How to Activate SDM

For this chassis there are two kinds of SDM: an analogue SDM
and a digital SDM. Tuning will happen according table “SDM
Default Settings”.

• Analogue SDM: use the standard RC-transmitter and key
in the code “062596”, directly followed by the “MENU”
button.
Note: It is possible that, together with the SDM, the main
menu will appear. To switch it "off", push the “MENU”
button again.

• Digital SDM: use the standard RC-transmitter and key in
the code “062593”, directly followed by the “MENU” button.
Note: It is possible that, together with the SDM, the main
menu will appear. To switch it "off", push the “MENU”
button again.

• Analogue SDM can also be activated by shorting for a
moment the two solder pads [1] (see figure “Service mode
pads”) on the SSB, with the indication “SDM”. Activation
can be performed in all modes, except when the set has a
problem with the Stand-by Processor.

1

2

5.2.1 Service Default Mode (SDM)

Purpose

• To create a pre-defined setting, to get the same
measurement results as given in this manual.

• To override SW protections detected by stand-by
processor and make the TV start up to the step just before
protection (a sort of automatic stepwise start up). See
paragraph “Stepwise Start Up”.

• To override SW protections detected by MIPS. See also
paragraph “Error codes”.

• To start the blinking LED procedure (not valid for
protections detected by standby software).

Specifications

Table 5-1 SDM default settings

Region Freq. (MHz)

Europe, AP(PAL/Multi) 475.25 PAL B/G
Europe, AP DVB-T 546.00 PID

Video: 0B 06 PID
PCR: 0B 06 PID
Audio: 0B 07

• All picture settings at 50% (brightness, colour, contrast).

• All sound settings at 50%, except volume at 25%.

• All service-unfriendly modes (if present) are disabled, like:
– (Sleep) timer.
– Child/parental lock.

Default
system

DVB-T

Figure 5-1 Service mode pads

After activating this mode, “SDM” will appear in the upper right
corner of the screen (if you have picture).

How to Navigate

When you press the “MENU” button on the RC transmitter, the
set will toggle between the SDM and the normal user menu
(with the SDM mode still active in the background).

How to Exit SDM

Use one of the following methods:

• Switch the set to STAND-BY via the RC-transmitter.

• Via a standard customer RC-transmitter: key in “00”­sequence.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To perform (software) alignments.

• To change option settings.

• To easily identify the used software version.

• To view operation hours.

• To display (or clear) the error code buffer.

H_16770_100.eps

220307

EN 18 Q528.1E LA5.

Service Modes, Error Codes, and Fault Finding

How to Activate SAM

Via a standard RC transmitter: key in the code “062596”
directly followed by the “INFO” button. After activating SAM
with this method a service warning will appear on the screen,
you can continue by pressing the red button on the RC.

Contents of SAM:

• Hardware Info.
– A. SW Version. Displays the software version of the

main software (example: Q581E-1.2.3.4_12345 =
AAAAB_X.Y.W.Z_NNNNN).

• AAAA= the chassis name.

• B= the region: A= AP, E= EU, L= LatAm, U = US.
For AP sets it is possible that the Europe software
version is used.

• X.Y.W.Z= the software version, where X is the
main version number (different numbers are not
compatible with one another) and Y.W.Z is the sub
version number (a higher number is always
compatible with a lower number).

• NNNNN= last five digits of 12nc code of the
software.

– B. SBY PROC Version. Displays the software version

of the stand-by processor.

– C. Production Code. Displays the production code of

the TV, this is the serial number as printed on the back
of the TV set. Note that if an NVM is replaced or is
initialized after corruption, this production code has to
be re-written to NVM. ComPair will foresee in a
possibility to do this.

• Operation Hours. Displays the accumulated total of
operation hours (not the stand-by hours). Every time the
TV is switched "on/off", 0.5 hours is added to this number.

• Errors (followed by maximal 10 errors). The most recent
error is displayed at the upper left (for an error explanation
see paragraph “Error Codes”).

• Reset Error Buffer. When you press “cursor right” (or the
“OK button) and then the “OK” button, the error buffer is
reset.

• Alignments. This will activate the “ALIGNMENTS” sub­menu.

• Dealer Options. Extra features for the dealers.

• Options. Extra features for Service. For more info
regarding option codes, see chapter 8 “Alignments”.
Note that if you change the option code numbers, you have
to confirm your changes with the “OK” button before you
store the options. Otherwise you will loose your changes.

• Initialize NVM. The moment the processor recognizes a
corrupted NVM, the “initialize NVM” line will be highlighted.
Now, you can do two things (dependent of the service
instructions at that moment):
– Save the content of the NVM via ComPair for

development analysis, before initializing. This will give
the Service department an extra possibility for
diagnosis (e.g. when Development asks for this).

– Initialize the NVM.

Note: When you have a corrupted NVM, or you have replaced
the NVM, there is a high possibility that you will not have picture
anymore because your display code is not correct. So, before
you can initialize your NVM via the SAM, you need to have a
picture and therefore you need the correct display option. Refer
to chapter 8 for details. To adapt this option, you can use
ComPair (the correct HEX values for the options can be found
in chapter 8 “Alignments”) or a method via a standard RC
(described below).
Changing the display option via a standard RC: Key in the
code “062598” directly followed by the “MENU” button and
“XXX”, where XXX is the 3 digit decimal display code (see table
“Option code overview” in chapter 8 “Alignments”, or sticker on
the side/bottom of the cabinet). Make sure to key in all three
digits, also the leading zero’s. If the above action is successful,
the front LED will go out as an indication that the RC sequence
was correct. After the display option is changed in the NVM,

the TV will go to the Stand-by mode. If the NVM was corrupted
or empty before this action, it will be initialized first (loaded with
default values). This initializing can take up to 20 seconds.

Display Option

Code

39mm

040

PHILIPS

MODEL:

32PF9968/10

27mm

PROD.SERIAL NO:
AG 1A0620 000001

(CTN Sticker)

E_06532_038.eps

290107

Figure 5-2 Location of Display Option Code sticker

• Store. All options and alignments are stored when
pressing “cursor right” (or the “OK” button) and then the
“OK”-button.

• SW Maintenance.
– SW Events. Not useful for Service purposes. In case

of specific software problems, the development
department can ask for this info.

– HW Events. Not useful for Service purposes. In case

of specific software problems, the development
department can ask for this info.

• Test settings. For development purposes only.

• Upload to USB. To upload several settings from the TV to
a USB stick, which is connected to the Side I/O. The items
are “Channel list”, “Personal settings”, “Option codes”,
“Display-related alignments” and “History list”. First you
have to create a directory “repair” in the root of the USB
stick.To upload the settings you have to select each item
separately, press “cursor right” (or the “OK button), confirm
with “OK” and wait until “Done” appears. In case the
download to the USB stick was not successful “Failure” will
appear. In this case, check if the USB stick is connected
properly and if the directory “repair” is present in the root of
the USB stick. Now the settings are stored onto your USB
stick and can be used to download onto another TV or
other SSB. Uploading is of course only possible if the
software is running and if you have a picture. This method
is created to be able to save the customer’s TV settings
and to store them into another SSB.

• Download from USB. To download several settings from
the USB stick to the TV. Same way of working as with
uploading. To make sure that the download of the channel
list from USB to the TV is executed properly, it is necessary
to restart the TV and tune to a valid preset if necessary.
Note: The “History list item” can not be downloaded from
USB to the TV. This is a “read-only” item. In case of specific
problems, the development department can ask for this
info.

How to Navigate

• In SAM, you can select the menu items with the “CURSOR
UP/DOWN” key on the RC-transmitter. The selected item
will be highlighted. When not all menu items fit on the
screen, move the “CURSOR UP/DOWN” key to display the
next/previous menu items.

• With the “CURSOR LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.

• With the “OK” key, it is possible to activate the selected
action.

How to Exit SAM

Use one of the following methods:

• Press the “MENU” button on the RC-transmitter.

• Switch the set to STAND-BY via the RC-transmitter.

Service Modes, Error Codes, and Fault Finding

EN 19Q528.1E LA 5.

5.2.3 Customer Service Mode (CSM)

Purpose

When a customer is having problems with his TV-set, he can
call his dealer or the Customer Helpdesk. The service
technician can then ask the customer to activate the CSM, in
order to identify the status of the set. Now, the service
technician can judge the severity of the complaint. In many
cases, he can advise the customer how to solve the problem,
or he can decide if it is necessary to visit the customer.
The CSM is a read only mode; therefore, modifications in this
mode are not possible.
When in this chassis CSM is activated, a colour bar test pattern
will be visible for 5 seconds. This test pattern is generated by
the Pacific3. So if you see this test pattern you can determine
that the back end video chain (Pacific3, LVDS, and display) of
the SSB is working. In case of a set with DFI panel, an extra
test picture is generated. So you will see the Pacific3 test
picture for 3 seconds and then the DFI EPLD test picture for
another 3 seconds. With this extra test picture you can
determine if the DFI board is working properly.
Also new in this chassis: when you activate CSM and there is
a USB stick connected to the TV, the software will dump the
complete CSM content to the USB stick. The file (Csm.txt) will
be saved in the root of your USB stick. This info can be handy
if you do not have picture.

Another new item in this chassis is when CSM is activated, the
complete error-buffer content will be shown via the blinking
LED procedure.

How to Activate CSM

Key in the code “123654” via the standard RC transmitter.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

How to Navigate

By means of the “CURSOR-DOWN/UP” knob on the RC­transmitter, you can navigate through the menus.

Contents of CSM

• Set Type. This information is very helpful for a helpdesk/
workshop as reference for further diagnosis. In this way, it
is not necessary for the customer to look at the rear of the
TV-set. Note that if an NVM is replaced or is initialized after
corruption, this set type has to be re-written to NVM.
ComPair will foresee in a possibility to do this.

• Production Code. Displays the production code (the serial
number) of the TV. Note that if an NVM is replaced or is
initialized after corruption, this production code has to be
re-written to NVM. ComPair will foresee a in possibility to
do this.

• Code 1. Gives the last five errors of the error buffer. As
soon as the built-in diagnose software has detected an
error, the buffer is adapted. The last occurred error is
displayed on the leftmost position. Each error code is
displayed as a 2-digit number. When less than 10 errors
occur, the rest of the buffer is empty (00). See also
paragraph “Error Codes” for a description.

• Code 2. Gives the first five errors of the error buffer. See
also paragraph “Error Codes” for a description.

• Options 1. Gives the option codes of option group 1 as set
in SAM (Service Alignment Mode).

• Options 2. Gives the option codes of option group 2 as set
in SAM (Service Alignment Mode).

• 12NC SSB. Gives an identification of the SSB as stored in
NVM. Note that if an NVM is replaced or is initialized after
corruption, this identification number has to be re-written to
NVM. ComPair will foresee in a possibility to do this. This
identification number consists of 14 characters and is built
up as follows:

- Eight last characters of the 12NC of the SSB itself.

- the serial number of the SSB, which consists of six digits.
Both can be found on a sticker on the PWB of the SSB
itself. The format of the identification number is then as
follows: <last eight characters of 12NC of SSB><serial
number of SSB> (total fourteen characters).

• Installed date. Indicates the date of the first installation of
the TV. This date is acquired via time extraction.

• Digital Natural Motion. Gives the status of the Digital
Natural Motion setting as set by the customer. Remark : a
customer can choose between “OFF”, “MINIMUM” and
“MAXIMUM”, but in CSM this item will only show “OFF” or
“ON” (“ON” in case the customer has choosen “MINIMUM”
or “MAXIMUM”)

• Pixel Plus. Gives the last status of the Perfect Pixel HD
setting, as set by the customer. Possible values are “ON”
and “OFF”. See DFU on how to change this item.

• DNR. Gives the last status of the Noise reduction setting,
as set by the customer. Possible values are “OFF”,
“MINIMUM”, “MEDIUM” and “MAXIMUM”. See DFU on
how to change this item.

• Noise Figure. Gives an indication of the signal quality for
the selected transmitter. Possible values are “BAD”,
“AVERAGE”, “GOOD“ and “DIGITAL”. In case of a digital
channel, this item will never indicate : “BAD”, “GOOD” or
“AVERAGE” but only displays “DIGITAL”.

• 12NC Display. Shows the 12NC of the display.

• Headphone Volume. Gives the last status of the
headphone volume, as set by the customer. The value can
vary from 0 (volume is minimum) to 100 (volume is
maximum). See DFU on how to change this item.

• Surround Mode. Indicates the by the customer selected
sound mode (or automatically chosen mode). Possible
values are “STEREO” and “VIRTUAL DOLBY
SURROUND”. It can also have been selected
automatically by signalling bits (internal software). See
DFU on how to change this item.

• AVL. Indicates the last status of AVL (Automatic Volume
Level) as set by the customer: See DFU on how to change
this item.

• Delta Volume. Indicates the last status of the delta volume
for the selected preset as set by the customer: from “-12”
to “+12”. See DFU on how to change this item.

• Volume. Indicates the last status of the volume for the
selected preset as set by the customer: from “0” to “100”.
See DFU on how to change this item.

• Balance. Indicates the last status of the balance for the
selected preset as set by the customer: from “-10” to “+10”.
See DFU on how to change this item.

• Preset Lock. Indicates if the selected preset has a child
lock: “LOCKED” or “UNLOCKED”. See DFU on how to
change this item.

• Lock after. Indicates at what time the channel lock is set:
“OFF” or e.g. “18:45” (lock time). See DFU on how to
change this item.

• Parental rating lock. Indicates the “Parental rating” as set
by the customer. See DFU on how to change this item.

• Parental rating status.
transmitted by the broadcaster (if applicable). If the
parental rating status is indicating a higher age then the
parental rating lock as set by the customer, you will need to
enter the child lock code.

• TV ratings lock. Only applicable for US.

• Movie ratings lock. Only applicable for US.

• On timer. Indicates if the “On timer” is set “ON” or “OFF”
and when it is set to “ON”, also start time, start day and
program number is displayed. See DFU on how to change
this item.

• Location. Gives the last status of the location setting as
set via the installation menu. Possible values are “SHOP”
and “HOME”. If the location is set to “SHOP”, several
settings are fixed. So for a customer location must be set
to “HOME”. Can be changed via the installation menu (see
also DFU).

• HDMI key validity. Indicates if the HDMI keys (or HDCP
keys) are valid or not. In case these keys are not valid and

Indicates the “Parental rating” as

EN 20 Q528.1E LA5.

the customer wants to make use of the HDMI functionality,
the SSB has to be replaced.

• Tuner frequency. Indicates the frequency the transmitter
is tuned to.

• TV System. Gives information about the video system of
the selected transmitter. In case a DVBT signal is received
this item will also show ATSC.
– BG: PAL BG signal received
– DK: PAL DK signal received
– L/La: SECAM L/La signal received
– I: PAL I signal received
– M: NTSC M signal received
– ATSC: ATSC signal received
– DVB : DVBT signal received

• 12NC one zip SW. Displays the 12NC number of the one­zip file as it is used for programming software in production.
In this one-zip file all below software versions can be found.

• Initial main SW. Displays the main software version which
was initially loaded by the factory.

• Current main SW. Displays the built-in main software
version. In case of field problems related to software,
software can be upgraded. As this software is consumer
upgradeable, it will also be published on the Internet.
Example: Q581E_1.2.3.4.

• Flash utils SW. Displays the software version of the
software which contains all necessary components of the
download application. To program this software, EJTAG
tooling is needed. Example: Q581E_1.2.3.4.

• Standby SW. Displays the built-in stand-by processor
software version. Upgrading this software will be possible
via ComPair or via USB (see chapter Software upgrade).
Example: STDBY_3.0.1.2.

• MOP SW. Only applicable for US. At the time of release of
this manual, there was still a problem with this item, and
some rubbisch was displayed. Ignore this.

• Pacific 3 Flash SW. Displays the Pacific 3 software
version.

• NVM version. Displays the NVM version as programmed
by factory.

• Display parameters. for development purposes only.

• Private PQ parameters. for development purposes only.

• Public PQ parameters. for development purposes only.

• Ambilight parameters. for development purposes only.

• Acoustics parameters. for development purposes only.

• DFI software (if applicable). Displays the DFI EPLD
software.

• DFI ambilight software (if applicable). Displays the DFI
ambilight EPLD software.

Service Modes, Error Codes, and Fault Finding

How to Exit CSM

Press “MENU” on the RC-transmitter.

Service Modes, Error Codes, and Fault Finding

EN 21Q528.1E LA 5.

5.3 Stepwise Start-up

There are two possible situations: one for protections detected
by the stand-by software and one for protections detected by
the main software.
When the TV is in a protection state due to an error detected by
stand-by software (and thus blinking an error) and SDM is
activated via short-circuiting the pins on the SSB, the TV starts
up until it reaches the situation just before protection. So, this
is a kind of automatic stepwise start-up. In combination with the
start-up diagrams below, you can see which supplies are
present at a certain moment. Important to know is, that if e.g.
the 3V3 detection fails (and thus error 8 is blinking) and the TV
is restarted via SDM, the Stand-by Processor will enable the
3V3, but will not go to protection now. The TV will stay in this
situation until it is reset (Mains/AC Power supply interrupted).
Caution: in case the start up in this mode with a faulty FET
7U01 is done, you can destroy all IC’s supplied by the +3V3,

Mains

off

Off

Mains

on

due to overvoltage. It is recommended to measure first the FET
7U01 on short-circuit before activating SDM via the service
pads.
When the TV is in protection state due to an error detected by
main software (MIPS protection) and SDM is activated via
short cutting the service pads on the SSB, the TV starts up and
ignores the error.
In this chassis, only error “63” (power-ok) is a MIPS protection
and already displays the failure via blinking LED.

The abbreviations “SP” and “MP” in the figures stand for:

• SP: protection or error detected by the Stand-by
Processor.

• MP: protection or error detected by the MIPS Main
Processor.

- WakeUp requested

- Acquisition needed

- No data Acquisition
required

- tact SW pushed

- last status is hibernate
after mains ON

Tact switch

pushed

- Tact switch Pushed

- last status is hibernate
after mains ON

St by

Hibernate

On

In US region, hibernate state and tact switch are not available.
Here the local keyboard tact switch acts as standby button.

Figure 5-3 Transition diagram

Semi

St by

GoToProtection

WakeUp

requested

- St by requested

- tact SW pushed

WakeUp

requested

(SDM)

Protection

Active

GoToProtection

H_16770_116.eps

270307

EN 22 Q528.1E LA5.

Service Modes, Error Codes, and Fault Finding

Off/Stby to Semi

action holder: MIPS

action holder: St-by

autonomous action

The availability of the supplies is checked through detect
signals going to the st-by µP. These signals are available

for +12V and +5V (combined as AND function, called
detect-5V-12V) and for +1V2 and +3V3 (combined as

AND function, called detect-1V2-2V5-3V). A low to hi gh

transition of the signals should occur within a certain time

after toggling the standby line. If an observer is detected

before the time-out elapses, of course, the process

should continue in order to minimize start up time.

Off

Mains is applied

Standby Supply starts running.

All standby supply voltages become available.

st-by µP resets

All I/O lines have a High default state:

- Switch PNX8535 in reset (active LOW).

- NVM power line i s high, no NVM communication possible.

Initialise I/O pins of the st-by µP, start keyboard scanning, RC

because of the stby µP reset in an FHP set) which will start the

Switch ON Platform and display supply by s witching LOW the

- Keep the Audio-reset high.

detection. Wake up reasons are off.

PDPGO l ine is high (either HW wise in a non FHP set or

FHP PDP.

POD-MODE and the ON-MODE I/O lines.

+5V, and +12V are switched on

Wait 50ms and then start polling the detect-

5V-12V every 40ms.

detect-5V-12V received within

2900 ms after POD-mode I/O

line toggle?

Stand by or

Protection

If the protection state was left by short circuiting the
SDM pins, detecti on of a protection condition during

startup will stal l the startup. Protection condi tions in a

playing set will be ignored. The protection mode will

No

not be entered.

- Switch Audio-Reset high.

It is low in the standby mode if the standby

mode lasted longer than 10s.

Display supply is switched on
through the ON-mode I/O line

“5V 12V supply” error

Yes

activat e +5 V/+1 2V supp ly

detection algorithm. See CHS protecti ons.

Enable the +1V2 supply (ENABLE-1V2)

Wait 100ms

Enable the supply for

+1.8V and +3.3V (ENABLE-3V3)

Start polling the detect-1V2-2V5-3V3

every 40ms

Detection

received within

250 ms after enable-3V3

toggle?

Yes

Activate supply detection algorithms for DC-

DC outputs

Wait 20ms

SUPPLY-FAULT I/O line

is High?

SP

50ms is used in the Jaguar platform.
100ms is recommended by the
PNX8535 spec.

No separate enable is present
for the +1V8 supply in the
TV520.

Only one detect line is present
in the TV520: it detects +1V2
and +3V3

No

1V2 2V5 3V3 DCDC error

SP

No

Supply fault error

The supply fault line is an OR
functi on of DCDC , DCDC5050
and POD/CI supply switch.

H_16770_109a.eps

110507

Figure 5-4 “Off” to “Semi Stand-by” flowchart (part 1)

Service Modes, Error Codes, and Fault Finding

EN 23Q528.1E LA 5.

SUPPLY-FAULT I/O line

is High?

No

Switch LOW the RE SET-NVM_WP-NANDFLASH line. Add a 2ms delay before

trying to address the NVM to all o w correct NVM initialization.

(pulling pin of the probe interface to

ground by inserting EJTAG probe)

No

No

Release AVC system reset

Feed warm boot script

Yes

Enable the supply fault detection

algorithm

Set I²C slave address

of Standby µP to (A0h)

Detect EJTAG debug probe

EJTAG probe

connected ?

No

Cold boot?

Yes

Release AVC system reset

Feed cold boot script

No

Supply fault error

SP

This will allow access to NVM and
NAND FLASH and can not be done
earlier because the FLASH needs to
be in Write Protect as long as the
supplies are not available.

An EJTAG probe (e.g. WindPower ICE probe) can
be connected for Linux Kernel debuggi ng purposes.

Yes

Release AVC system reset
Feed initializing boot script

disable alive mechanis m

The supply fault line is an OR
functi on of DCDC , DCDC5050
and POD/CI supply switch.

No

Code = 5

Switch AVC PNX8535

in reset (active low)

Wait 10ms

Switch the NVM reset

line HIGH.

Disable all supply related protections and

switch off the +2V5, +3V3 DC/DC converter.

Wait 5ms

Boot process of the PNX5050 also starts at this point. For full details,

see PNX5050 System Design document of Peter Deckmyn.

Bootscript ready

in 1250 ms?

Yes

Set I²C slave address

of Standby µP to (60h)

RPC start (comm. protocol)

No

Code = 53

Flash to Ram image
transfer succeeded

within 3 0s?

Yes

No

SW initialization

succeeded
within 2 0s?

Yes

Enable Alive check mechanism

MIPS reads the wake up reason

from standby µP.

In case of an LCD set, check the

Power-OK display line

Wait until AVC starts to

communicate

3-th try?

switch off the remaining DC/DC

converters

Switch POD-MODE and ON-MODE

I/O line high.

Power-ok display high?

Yes

Reset the Pacific by pulling LOW the Pacific

hardw are res et li ne during 100ms .

No

Figure 5-5 “Off” to “Semi Stand-by” flowchart (part 2)

Log power-ok error and enter

protection

No

MP

H_16770_109b.eps

110507

EN 24 Q528.1E LA5.

Service Modes, Error Codes, and Fault Finding

switch off the remaining DC/DC

3-th try?

Yes

Blink Code as

error code

Switch POD-MODE and ON-MODE

SP

- Channeldecoder type TDA10060
cannot be reloaded without reset
of the channeldecoder.

- Channeldecoder type TDA10048
can be reloaded without reset .

converters

I/O line high.

Channel decoder

TDA 10048?

No

Third try? No

Power-ok display high? No

Yes

Reset the Pacific by pulling LOW the Pacific

hardw are res et li ne during 100ms .

Release Pacific reset

and wait 200ms

Ping the Paci fic through I²C

Pacific acknowledges?

Yes

Init Pacific according us e case:

- lvds or CMOS input and output

- panel config…
to be discussed with Stefan / SW if we will put this here or in
the display excel overview of Stefan or in …..

Enable the Pacific output by se nding the PanelConfig.PanelOn

to the Pacific in case of a DFI set

Start 4 seconds preheating timer in case of

an LPL scanning bac klight LCD set.

Initialize audio according FMS information :

YesNo

Download firmware into the channel

decoder

Downloaded

successfully?

Log power-ok error and enter

protection

No

MP

Third Pacific boot retry?No

Yes

Log Pacific error

This is needed here because the Pacific has to
deliver an output clock towards the DFI. Otherwis e
the DFI cannot deliver ambilight functionality in the
lampadaire mode. The presence of the DFI can be
determined via the display option.

Yes

Log channel decoder error

Yes

initialize tuner, Master IF and channel

decoder according FMS information

Initialize source selection according FMS

and CHS information

Wait until Cpipe delivers a stable output

Initialize video processing IC 's according FMS information:

- PNX5050 in /82

-scaler EPLD

initialize AutoTV by triggering CHS AutoTV Init interface

See appropriate CHS documents for further details.

Initialize Pacific or EPLD related Ambilight

Do not enter semi-standby state in case of an LPL
scanning bac klight LCD set before 4s preheating timer has
elapsed.

clock

Reset EPLD

Wait 100ms

Reset Pacific clock

settings (if applicable)

Initialize Ambilight with Lights off.

EPLD
and
Pacific
should
be reset
when a
stable
input
clock
become
s
available
at their
input.

Semi-Standby

Figure 5-6 “Off” to “Semi Stand-by” flowchart (part 3)

H_16770_109c.eps

110507

Service Modes, Error Codes, and Fault Finding

Semi Standby

Wait until previous on-state is left more than 2

seconds ago. (to prevent LCD display problems)

Assert RGB video blanki ng

and audio mute

EN 25Q528.1E LA 5.

action holder: AVC

action holder: St-by

autonomous action

Rewrite Pacific register 0x03 (output format):

this command is sometimes not processed properly by the

Pacific at initialisation time , resending it here solves the issue.

Switch on the displ ay by sending the

PanelConfig.PanelO n (I²C) command to the Pacific

wait 250ms (min. = 200ms)

Switch off the dimming bac klight feature and

make sure PW M output is set to 100%

Switch on LCD backli ght

The higher level requirement is that
audio and video should be demuted

without transient effects and that the

audio should be demuted maximum 1s

before or at the same time as the

unblanking of the video.

Initialize audio and video

processing IC's and functions

according needed use cas e.

Wait unti l valid and stable audio and video, corresponding to

the requested output is delivered by the AVC AND the

backlight PWM has been on for 1second.

Switch Audio-Reset low and wait 5ms

Release audi o mute and wait 100ms before any other audio

handling is done (e.g. volu me change)

Restore dimming backli ght feature, PWM output and unblank

the video.

Active

Figure 5-7 “Semi Stand-by” to “Active” flowchart non DFI

H_16770_110.eps

290307

EN 26 Q528.1E LA5.

Service Modes, Error Codes, and Fault Finding

action holder: AVC

action hol d er: St-by

autonomous action

Semi Standby

Wait until previous on-state is left more than 2

seconds ago. (to prevent LCD display problems)

Assert RGB video blanking

and audio mute

Setting the display related timings of the DFI is not needed: The

displ ay related timings are hardcoded in the DFI

Rewrite Pacific register 0x03 (output format) with TcuUpdate: this

command is sometimes not processed properly by the Pacific at

initialisation time, resending it here solves the issue.

Switch on the display panel and the lvds via

the OutputEnableDFI command

wait 250ms (min. = 200ms)

Switch off the dimming backlight feature and

make sure PWM output is set to 100%

Switch on LCD backlight

The higher level requirement is that
audio and vi deo should be demuted

without transient effects and that the

audio should be demuted maximum 1s

before or at the same time as the

unblanki ng of the video.

Initialize audio and video

processing IC's and functions

according needed use case.

Wait until valid and stable audio and video, corresponding to

the requested output is del ivered by the AVC AND the

backlight PWM has been on for 1second.

Switch Audio-Reset low and wait 5ms

Release audio mute and wai t 100ms before any other audio

handling is done (e.g. volume change)

Restore dimming backlight feature, PWM output and unblank

the video.

Active

Figure 5-8 “Semi Stand-by” to “Active” flowchart DFI

H_16770_111.eps

290307

Service Modes, Error Codes, and Fault Finding

EN 27Q528.1E LA 5.

Active

Mute all sound outputs via so ftmute

Wait 100ms

Set main amplifier mute (I/O: audio-mute)

Force ext audio outputs to ground

(I/O: audio reset)

And wait 5ms

switch off LCD backlight

action holder: AVC

action holder: St-by

autonomous action

Mute all video outputs

Wait 250ms (min. = 200ms)

Switch off the display by sending the

PanelConfig.PanelOff (I²C) command to the Pacific

switch off ambient light

Semi Standby

Figure 5-9 “Active” to “Semi Stand-by” flowchart (non-DFI)

H_16770_112.eps

260307

EN 28 Q528.1E LA5.

Service Modes, Error Codes, and Fault Finding

Active

Mute all sound outputs via s oftmute

Wait 100ms

Set main amplifier mute (I/O: audio-mute)

Force ext audio outputs to ground

(I/O: audio reset)

And wait 5ms

switch off LCD backl ight

action holder: MIPS

action holder: St-by

autonomous action

Mute all video outputs

Wait 250ms (min. = 20 0ms)

Switch off the displ ay by clearing the OutputEnable

control register in the DFI

switch off ambient light

Semi Standby

Figure 5-10 “Active” to “Semi Stand-by” flowchart (DFI)

H_16770_113.eps

260307

Service Modes, Error Codes, and Fault Finding

EN 29Q528.1E LA 5.

Semi Stand by

If ambientlight functionality was used in semi-standby

(l ampadaire mode), switch off ambient light

Delay transi tion until ramping down of ambient light is

finished. *)

transfer Wake up reasons to the Stand by µP.

Switch Memories to self-refresh (this creates a more

stable condition when switching off the power).

Switch AVC system in reset state

action holder: MIPS

action holder: St-by

autonomous action

*) If this i s not performed and the set is
switched to standby when the switch off of
the ambilights is still ongoing, the lights will
switch off abruptly when the supply is cut.

Important remark:

release reset audio 10 sec after

entering standby to save power

Wait 10ms

Switch the NVM reset line HIGH.

Disabl e all supply related protections and switch off

the +1V8 and the + 3 V3 DC/DC c onverter

Wait 5ms

switch off the +1V2 DC/DC converters

Switch OFF all supplies by switching HIG H the POD-

MODE and the ON-MODE I/O lines.

Stand by

For PDP this means
CPUGO becomes low.

H_16770_114.eps

260307

Figure 5-11 “Semi Stand-by” to “Stand-by” flowchart

EN 30 Q528.1E LA5.

Service Modes, Error Codes, and Fault Finding

action holder: MIPS

action holder: St-by

autonomous action

MP

Log the appropriate error and

set stand-by flag in NVM

Redefine wake up reasons for protection

state and transfer to stand-by µP.

Switch off LCD lamp supply

Wait 250ms (min. = 200ms)

Switch off LVDS signal

Switch off 12V LCD supply within a time frame of

min. 0.5ms to max. 50ms after LVDS switch off.

Ask stand-by µP to enter protection state

SP

Switch AVC in reset state

Wait 10ms

Switch the NVM reset line HIGH.

Disable all s upply related protections and switch off

the +1V8 and the +3V3 DC/DC converter.

Wait 5ms

switch off the +1V2 DC/DC converter

Switch OFF all supplies by switching HIGH the POD-

MODE and the ON-MODE I/O lines.

Flash the Protection -LED i n order to indicate

protection state* .

(*): This can be the standby LE D or the ON LED
depending on the availability in the set under
discussion.

Protection

Figure 5-12 “Protection” flowchart

H_16770_115.eps

290307

Service Modes, Error Codes, and Fault Finding

EN 31Q528.1E LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips
Consumer Electronics products. and offers the following:

1. ComPair helps you to quickly get an understanding on how
to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore
capable of accurately indicating problem areas. You do not
have to know anything about I2C or UART commands
yourself, because ComPair takes care of this.

3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the uP
is working) and all repair information is directly available.

4. ComPair features TV software upgrade possibilities.

Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The (new) ComPair II interface box is connected to the PC via
an USB cable. For the TV chassis, the ComPair interface box
and the TV communicate via a bi-directional cable via the
service connector(s).
The ComPair fault finding program is able to determine the
problem of the defective television, by a combination of
automatic diagnostics and an interactive question/answer
procedure.

How to Connect

This is described in the chassis fault finding database in
ComPair.

ComPair II

RC in

Optional

Switch

Power ModeLink/

Activity

RC out

I2C SERVICE

CONNECTOR

Multi

function

TO TV

TO

2

C

I

OR

RS232 /UART

TO

UART SERVICE

CONNECTOR

5.4.2 LVDS Tool

Introduction

This Service tool (also called “ComPair Assistant 1“) may help
you to identify, in case the TV does not show any picture,
whether the Small Signal Board (SSB) or the display of a Flat
TV is defective. Thus to determine if LVDS, RGB, and sync
signals are okay.

When operating, the tool will show a small (scaled) picture on
a VGA monitor. Due to a limited memory capacity, it is not
possible to increase the size when processing high-resolution
LVDS signals (> 1280x960). Below this resolution, or when a
DVI monitor is used, the displayed picture will be full size.

How to Connect

Connections are explained in the user manual, which is packed
with the tool. The LVDS cables included in the package cover
most chassis. For some chassis, a separate cable must be
ordered.

Note: To use the LVDS tool, you must have ComPair release
2004-1 (or later) on your PC (engine version >= 2.2.05).
For every TV type number and screen size, one must choose
the proper settings via ComPair. The ComPair file will be
updated regularly with new introduced chassis information.

How to Order

• LVDS tool (incl. two LVDS cables: 31p and 20p, covering
chassis BJx, EJx, FJx and LC4.1): 3122 785 90671.

• LVDS tool Service Manual: 3122 785 00810.

• LVDS cable 20p/DF -> 20p/DF (standard with tool):
3122 785 90731.

• LVDS cable 31p/FI -> 31p/FI (standard with tool):
3122 785 90662.

For other chassis, a separate LVDS cable must be ordered.
Refer to table “LVDS cable order number” for an overview of all
available cables.

Table 5-2 LVDS cable order number

PC

ComPair II Developed by Philips Brugge

Optional power

HDMI

2

I

C only

5V DC

G_06532_036.eps

260107

Figure 5-13 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in
between), as the ComPair interface acts as a level shifter. If
one connects the TV directly to the PC (via UART), ICs will be
blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• ComPair32 CD (update): 3122 785 60160.

• ComPair interface cable: 3122 785 90004.

• ComPair interface extension cable: 3139 131 03791.

• ComPair UART interface cable: 3122 785 90630.

• ComPair UART interface cable for Q52x.x
(using 3.5 mm Mini Jack connector): 3104 311 12742.

Note: If you encounter any problems, contact your local
support desk

Chassis LVDS cable order number Remarks

BJ2.4 3122 785 90662
BJ2.5 3122 785 90662
BJ3.0 3122 785 90662
BJ3.1 3122 785 90662
EJ2.0 3122 785 90662
EJ3.0 3122 785 90662
EL1.1 3122 785 90662 1 / 3122 785 90821
FJ3.0 3122 785 90662
FTL2.4 3122 785 90662
LC4.1 3122 785 90731 1 / 3122 785 90851
LC4.3 3122 785 90821
LC4.31 31 22 785 90821
LC4.41 31 22 785 90662
LC4.8 3122 785 90662
LC4.9 3122 785 90662
LC7.x t.b.d.
JL2.1 3122 785 90861
Q52x.x t.b.d.

1

1

1

1
1
1

1
1, 2

1, 2

/ 3122 785 90851 Only for 26 & 32” sets.

1, 2

/ 3122 785 90851

1, 2

/ 3122 785 90851 MFD variant only.

Notes:

1. Included in LVDS tool package.

2. Pins “27” and “28” must be grounded or not connected.

5.5 Error Codes

5.5.1 Introduction

The error code buffer contains all detected errors since the last
time the buffer was erased. The buffer is written from left to

EN 32 Q528.1E LA5.

Service Modes, Error Codes, and Fault Finding

right, new errors are logged at the left side, and all other errors
shift one position to the right.
When an error occurs, it is added to the list of errors, provided
the list is not full. When an error occurs and the error buffer is
full, then the new error is not added, and the error buffer stays
intact (history is maintained).
To prevent that an occasional error stays in the list forever, the
error is removed from the list after more than 50 hrs. of
operation.
When multiple errors occur (errors occurred within a short time
span), there is a high probability that there is some relation
between them.

Basically there are three kinds of errors:

• Errors detected by the Stand-by software. These errors
will always lead to protection and an automatic start of the
blinking LED for the concerned error (see paragraph “The
Blinking LED Procedure”). In these cases SDM can be
used to start up (see chapter “Stepwise Start-up”). Note
that it can take up to 90 seconds before the TV goes to
protection and starts blinking the error (e.g. error 53)

• Errors detected by main software that lead to
protection. In this case the TV will go to protection and the
front LED should also blink the concerned error. See also
paragraph “Error Codes” -> “Error Buffer” -> “Extra Info”.
For this chassis only error 63 is a protection error detected
by main software.

• Errors detected by main software that do not lead to
protection. In this case the error will be logged into the
error buffer and can be read out via ComPair, via blinking
LED method, or in case you have picture, via SAM.

Take notice that some errors need more than 90 seconds
before they start blinking or before they will be logged. So in
case of problems wait 2 minutes from start-up onwards, and
then check if the front LED is blinking or if an error is logged.

5.5.2 How to Read the Error Buffer

Use one of the following methods:

• On screen via the SAM (only if you have a picture). E.g.:
– 00 00 00 00 00: No errors detected
– 06 00 00 00 00: Error code 6 is the last and only

detected error

– 09 06 00 00 00: Error code 6 was first detected and

error code 9 is the last detected error

• Via the blinking LED procedure (when you have no
picture). See next paragraph.

•Via ComPair.

• Via CSM. when CSM is activated the blinking LED
procedure will start and the CSM content will be written to
a USB stick (if present).

5.5.3 How to Clear the Error Buffer

Use one of the following methods:

• By activation of the “RESET ERROR BUFFER” command
in the SAM menu.

• With a normal RC, key in sequence “MUTE” followed by
“062599” and “OK”.

• If the content of the error buffer has not changed for 50+
hours, it resets automatically.

5.5.4 Error Buffer

In case of non-intermittent faults, clear the error buffer before
you begin the repair (before clearing the buffer, write down the
content, as this history can give you significant information).
This to ensure that old error codes are no longer present.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
code and not the actual cause (e.g., a fault in the protection
detection circuitry can also lead to a protection).
There are several mechanisms of error detection:

• Via error bits in the status registers of ICs.

• Via polling on I/O pins going to the stand-by processor.

• Via sensing of analogue values on the stand-by processor
or the PNX8535.

• Via a “not acknowledge” of an I

2

C communication.

Service Modes, Error Codes, and Fault Finding

EN 33Q528.1E LA 5.

Table 5-3 Error code overview

Error Description Error/Prot Detected by Device Result

2

3I

C3 E MIPS PNX8535 Error logged
5 PNX8535 does not boot (HW cause) E Stby P PNX8535 Error blinking
6 5V, 12V supply P Stby P / Protection + Error blinking
8 1V2, 1V4, 2V5, 3V3 supply P Stby P / Protection + Error blinking
9 Supply fault P Stby P / Protection + Error blinking

2

C-MUX1 E MIPS PCA9540 Error logged

11 I

2

C-MUX2 E MIPS PCA9540 Error logged

12 I
22 PNX5050 E MIPS PNX5050 Error logged
23 HDMI mux E MIPS AD8190/AD8191 Error logged

2

C switch E MIPS PCA9540 Error logged

24 I
26 Master IF E MIPS TDA9898/9897/9890 Error logged

1)

28 MOP (Ambilight MOP on DFI panel)

E MIPS EP2CXXF484C7N Error logged
34 Tuner E MIPS TD1716 Error logged
37 Channel decoder E MIPS TDA10060/

Error logged

TDA10048
46 Pacific3 E MIPS T6TF4 Error blinking + Error logged
53 PNX 8535 does not boot (SW cause) E Stby P PNX8535 Error blinking
63 Power OK E/P MIPS / Error logged in case of a PDP set

Protection in case of an LCD set

65 DFI (EPLD on DFI panel)

1)

E MIPS / Error blinking + Error logged

Note

1). Where applicable.

Extra Info

• Rebooting. When a TV is constantly rebooting due to
internal problems, most of the time no errors will be logged
or blinked. This rebooting can be recognized via a ComPair
interface and Hyperterminal (for Hyperterminal settings,
see paragraph “Stand-by software upgrade). You will see
that the loggings which are generated by the main software
keep continuing. In this case (rebooting) diagnose has to
be done via ComPair.

• Error 3 (I

2

C bus 3 blocked). At the time of release of this
manual, this error was not working as expected (error 3 is
logged and can be read out). Current situation: when this
error occurs, the TV will constantly reboot due to the
blocked bus. The best way for further diagnosis here, is to
use ComPair (e.g. read out the NVM content). Instead of
error “3” it is possible you will see error “2” in the error
buffer.

• Error 5 (PNX8535 doesn’t boot). Indicates that the main
processor was not able to read his bootscript. This error will
point to a hardware problem around the PNX8535
(supplies not OK, PNX 8535 completely dead, I
between PNX and Stand-by Processor broken, etc...).
When error 5 occurs it is also possible that I
blocked (NVM). I

2

C2 can be indicated in the schematics as

2

C link

2

C2 bus is

follows : SCL-UP-MIPS, SDA-UP-MIPS, SCL-SLAVE,
SDA-SLAVE, SCL-2 or SDA-2.

• Error 11 (I

2

I

C-MUX1 bus. At the time of release of this manual, this

error was not working as expected.

• Error 12 (I

2

I

C-MUX2 bus. At the time of release of this manual, this

error was not working as expected.

• Error 24 (I

2

C MUX1). Indicates a blocked (short-circuited)

2

C MUX2). Indicates a blocked (short-circuited)

2

C switch). As a side effect of error 24 it is

possible that error 47(no existing error) will also be logged.

• Error 28 (DFI Ambilight MOP). It can take up to 2 minutes
or more before this error is logged. So if you suspect that
this MOP is defective: clear the error buffer, restart the TV
and wait for about 2 minutes before checking the error
buffer.

• Error 37 (Channel decoder). When this error occurs,
there probably will be no picture and sound from tuner
input. As a side effect of error 37 it is possible that error 4
(no existing error) is also logged.

• Error 46 (Pacific 3). When there is an actual problem with
or around the Pacific during start-up, you will have no
picture and error 46 will be blinked via the blinking LED
procedure. For further diagnosis you can always dump the
CSM content on USB stick (see CSM) or use ComPair.

• Error 53. This error will indicate that the PNX8535 has
read his bootscript (if this would have failed, error 5 would
blink) but initialization was never completed because of
hardware problems (NAND flash, ...) or software
initialization problems. Possible cause could be that there
is no valid software loaded (try to upgrade to the latest main
software version). Note that it can take up to 2 minutes
before the TV starts blinking error 53.

• Error 63 (POWER OK). When this error occurs, it means
that the POWER-OK line did not became “high”. This error
is only applicable for TV’s with an LCD display. For PDP
displays there will be no protection during a POWER-OK
line failure, but error 63 will be logged in the error buffer.
Caution: in case a PDP TV ends up into power-ok
protection, it can indicate that the display option code is set
to “LCD”. To change the display option code to “PDP” you
need to activate SDM via the service pads (see figure
“Service mode pads”). Then change the display option
code blindly via a standard RC : key in the code “062598”
directly followed by the “MENU” button and “XXX” (where
XXX is the 3 digit decimal display option code as
mentioned in figure “Display option code overview”).

• Error 65 (DFI EPLD error). When this error occurs it
means that there is a problem with the I

2

towards the EPLD (picture processing EPLD, not the
Ambilight EPLD) on the DFI panel.

5.6 The Blinking LED Procedure

5.6.1 Introduction

The blinking LED procedure can be split up into two situations:

• Blinking LED procedure in case of a protection. In this case
the error is automatically blinked. This will be only one
error, namely the one that is causing the protection.
Therefore, you do not have to do anything special, just read
out the blinks. A long blink indicates the decimal digit, a
short blink indicates the units.

• Blinking LED procedure in the “on” state. Via this
procedure, you can make the contents of the error buffer

C communication

EN 34 Q528.1E LA5.

Service Modes, Error Codes, and Fault Finding

visible via the front LED. This is especially useful for fault
finding, when there is no picture.

When the blinking LED procedure is activated in the “on” state,
the front LED will show (blink) the contents of the error-buffer.
Error-codes > 10 are shown as follows:

1. “n” long blinks (where “n” = 1 - 9) indicating decimal digit,

2. A pause of 1.5 s,

3. “n” short blinks (where “n”= 1 - 9),

4. A pause of approx. 3 s,

5. When all the error-codes are displayed, the sequence
finishes with a LED blink of 3 s,

6. The sequence starts again.

Example: Error 12 8 6 0 0.
After activation of the SDM, the front LED will show:

1. 1 long blink of 750 ms (which is an indication of the decimal
digit) followed by a pause of 1.5 s,

2. 2 short blinks of 250 ms followed by a pause of 3 s,

3. 8 short blinks followed by a pause of 3 s,

4. 6 short blinks followed by a pause of 3 s,

5. 1 long blink of 3 s to finish the sequence,

6. The sequence starts again.

5.6.2 How to Activate

Use one of the following methods:

• Activate the SDM or CSM. The blinking front LED will
show the entire contents of the error buffer (this works in
“normal operation” mode).

• Transmit the commands “MUTE” - “062500” - “OK”
with a normal RC. The complete error buffer is shown.
Take notice that it takes some seconds before the blinking
LED starts.

• Transmit the commands “MUTE” - “06250x” - “OK”
with a normal RC (where “x” is a number between 1 and

5). When x= 1 the last detected error is shown, x= 2 the

second last error, etc.... Take notice that it takes some

seconds before the blinking LED starts.

5.7 Protections

5.7.1 Software Protections

Most of the protections and errors use either the stand-by
microprocessor or the MIPS controller as detection device.
Since in these cases, checking of observers, polling of ADCs,
and filtering of input values are all heavily software based,
these protections are referred to as software protections.
There are several types of software related protections, solving
a variety of fault conditions:

• Protections related to supplies: check of the 12V, +5V,
+1V2, +1V4, 2V5 and +3V3.

• Protections related to breakdown of the safety check
mechanism. E.g. since the protection detections are done
by means of software, failing of the software will have to
initiate a protection mode since safety cannot be
guaranteed any more.

Remark on the Supply Errors

The detection of a supply dip or supply loss during the normal
playing of the set does not lead to a protection, but to a cold
reboot of the set. If the supply is still missing after the reboot,
the TV will go to protection.

Protections during Start-up

During TV start-up, some voltages and IC observers are
actively monitored to be able to optimise the start-up speed,
and to assure good operation of all components. If these
monitors do not respond in a defined way, this indicates a
malfunction of the system and leads to a protection. As the
observers are only used during start-up, they are described in
the start-up flow in detail (see paragraph “Stepwise Start-up").

5.7.2 Hardware Protections

The only real hardware protection in this chassis is (in case of
an audio problem) the audio protection circuit that will switch
“off” immediately the supply of the SSB. The supply will buzz
during the protection and +12VS drops to approx. 5V5 and +5V
Stand-by to approx. to 1V9. Other indication of the audio
protection is that the red LED lights up with an intensity of 50%.

Repair Tips

• It is also possible that you have an audio DC protection
because of an interruption in one or both speakers (the DC
voltage that is still on the circuit cannot disappear through
the speakers). Caution: (dis)connecting the speaker wires
during the ON state of the TV at high volume can damage
the audio amplifier.

5.8 Fault Finding and Repair Tips

Read also paragraph "Error Codes" -> "Error Buffer" -> "Extra
Info".

5.8.1 Ambilight

Due to a degeneration process of the ambilights, it is
recommended to change both ambilight units in case one unit
needs to be repaired.

5.8.2 Audio Amplifier

It is recommended to replace all components at once (7D06,
7D09, 3D01, 3D25) when a defective FET 7D10 needs to be
fixed. For the left channel (defective FET 7D35) of the audio
amplifier replace all components like 7D31, 7D34, 3D11, 3D28.

5.8.3 CSM

When you activate CSM and there is a USB stick connected to
the TV, the software will dump the complete CSM content to the
USB stick. The file (Csm.txt) will be saved in the root of your
USB stick. If this mechanism works you can conclude that a
large part of the operating system is already working (MIPS,
USB...)

5.8.4 DC/DC Converter

Introduction

• The best way to find a failure in the DC-DC converters is to
check their starting-up sequence at “power-on via the
mains cord”, presuming that the standby microprocessor is
operational.

• If the input voltage of DC-DC converters is around 12.7V
(measured on decoupling capacitors 2U03/2U93/2U6S
and 2U6R) and the enable signals are "low" (active) then
the output voltages should have their normal values. +12V
and +5V-POD supplies start-up first (enabled by POD­MODE signal from the standby microprocessor). There is a
supplementary condition for +12V to start-up: if +5V-POD
does not start up due to a local defect, then +12V will not
be available as well. +5V-ON supply is enabled by the ON­MODE signal (coming also from the standby
microprocessor) and is coming up a little bit later (20 ms)
due to the slower rise time needed to charge the USB
decoupling capacitor 2N31. +1V2 supply starts-up when
+12V appears, then at least 100 ms later, +1V8, +2V5 and
+3V3 will be activated via the ENABLE-3V3 signal from the
standby microprocessor. If +12V value is less than 10 V
then the last enumerated voltages will not show-up due to
the under-voltage detection circuit 6U10 + 7U10 and
surrounding components. Furthermore, if +12V is less than
8V then also +1V2 will not be available. The third DC-DC
convertor that delivers +1V4 out of +12V is started up when

Service Modes, Error Codes, and Fault Finding

EN 35Q528.1E LA 5.

the ENABLE-1V2 becomes active (low) and +12V is
present. The +Vtun generator (present only for the
analogue version of China platforms) will generate +33V
for the analogue tuner as soon as the 12V/3.3V DC-DC
converter will start to operate.

• The consumption of controller IC 7U00 is around 19 mA
(that means almost 200 mV drop voltage across resistor
3U01) and the consumption of controller IC 7U64 is around
12 mA.

• The current capability of DC-DC converters is quite high
(short-circuit current is 7 to 10 A), therefore if there is a
linear integrated stabiliser that, for example, delivers 1.8V
from +3V3 with its output overloaded, the +3V3 stays
usually at its normal value even though the consumption
from +3V3 increases significantly.

• The +1V8 and +2V5 supply voltages are obtained via linear
stabilizer made with discrete components that can deliver
a lot of current, therefore in case +1V8 or +2V5 are short­circuited to GND then +3V3 will not have the normal value
but much less.

• The SUPPLY-FAULT signal (active low) is an internal
protection (error 9) of the DC-DC convertor and will occur
if the output voltage of any DC-DC convertor is out of limits
(10% of the normal value).

Fault Finding

• Symptom: +1V2 not present (even for a short while
~10 ms)

1. Check 12 V availability (resistor 3U01, MOS-FETs

7U03 and 7U08), value of +12 V, +12 V switch (7U14
+ 7U16 and surrounding components) and +5V-POD.

2. Check the voltage on pin 9 (1.5 V),

3. Check for +1V2 output voltage short-circuit to GND that

can generate pulsed over-currents 7...10 A through coil
5U02.

4. Check the over-current detection circuit (2U20 or 3U40

interrupted).

• Symptom: +1V4 not present (even for a short while
~10ms) while +12V is okay (also across input capacitors
2U6S and 2U6R).

1. Check resistor 3U7B and power MOS-FETs 7U61-1/2

2. Check the voltage on pin 4 (4 V)

3. Check enable signal ENABLE-1V2 (active "low")

4. Check for +1V4 output voltage short-circuit to GND that

can generate pulsed over-currents 7...10 A through coil
5U60

5. Check the over-current detection reference(2U65 +

3U7C) and the boot components (2U66 + 6U60).

• Symptom: +1V2 present for about 100ms, +1V8, +2V5
and +3V3 not rising.

1. Check the ENABLE-3V3 signal (active "low"),

2. Check the voltage on pin 8 (1.5 V),

3. Check the under-voltage detection circuit (the voltage

on collector of transistor 7U10-1 should be less than

0.8 V),

4. Check for output voltages short-circuits to GND (+3V3,

+2V5 and +1V8) that can generate pulsed over­currents 7...10 A through coil 5U01,

5. Check the over-current detection circuit (2U18 or 3U31

interrupted).

• Symptom: +1V2 OK, +2V5 and +3V3 present for about
100 ms. Possible cause: SUPPLY-FAULT line stays “low”
even though the +3V3 and +1V2 is available - the standby
microprocessor is detecting that and switching "off" all
supply voltages.

1. Check the drop voltage across resistor 3U01 or 3U7B

(they could be too high, meaning a defective controller
IC or MOS-FETs),

2. Check if the boost voltage on pin 4 of controller IC

7U00 is less than 14 V (should be 19 V),

3. Check if +1V2 or +3V3 are higher than their normal

values - that can be due to defective DC feedback of
the respective DC-DC convertor (ex. 3U47, 3U77,
3U7L, 3U7J or 3U70).

• Symptom: +1V2, +1V4, +1V8, +2V5 or +3V3 shows a high
level of ripple voltage (audible noise can come from the
filtering coils 5U01, 5U02 or 5U60). Possible cause:
instability of the frequency and/or duty cycle of a DC-DC
converter or stabilizer.

1. Check the resistor 3U32 and 3U7D, capacitors 2U17

and 2U19, input and output decoupling capacitors.

2. Check a.c. feedback circuits

(2U23+2U24+3U55+3U63 for +1V2,
2U6D+2U6E+2U6G+3U6A+3U7E for +1V4 and
2U07+2U08+3U17+3U24 for +3V3), compensation
capacitors 2U25, 2U34, 2U36, 2U37, 2U40, 2U43,
2U68 and 2U6B.

• Symptom: +1V2, +1V4, +2V5 and +3V3 ok, no +Vtun
(analogue sets only). Possible cause: the “+VTUN
GENERATOR” circuit (7U24+7U26+surroundings
components) is defective: check transistor 7U24 (it has to
have gate voltage pulses of about 10 V amplitude and drain
voltage pulses of about 35 V amplitude) and surroundings
components. A high consumption (more than 6 mA) from
+Vtun voltage can cause also +Vtun voltage to be too low
or zero.

Note: when a pair of power MOSFETs(7U01+7U06,
7U03+7U08 or 7U61-1/2) becomes defective the controller IC
7U00 or 7U64 should be replaced as well.

5.8.5 Exit “Factory Mode”

When an "F" is displayed in the screen's right corner, this
means that the set is in "Factory" mode, and it normally
happens after a new SSB has been mounted.
To exit this mode, push the "VOLUME minus" button on the
TV's keyboard control for 5 seconds and restart the set.

5.8.6 Sanken display supply

The 47” sets in this chassis come with a Sanken buy-in supply.
The result of a failing Sanken display supply, e.g. one of the
following voltages is missing : +400V, +12V or +24V, will lead
to protection (blinking error 63). The set is switched off.
When the primary circuit of the on-board platform supply fails,
there is a high possibility that the main fuse of the Sanken
display supply will break. In this case the Sanken display
supply must not be replaced completely, just replace the
Sanken main value fuse and repair the on-board platform
supply. For safety reasons, make sure to use the correct fuse
type.

5.8.7 SSB service supply connector

Connector 1B40 can be used to apply external supply (+12V
and +5V). In this way you do not need mains supply for
troubleshooting on the SSB. e.g. component level repair.

5.8.8 Tuner

For access to the components located under the tuner itself,
you need to desolder the ground connections and bend the
tuner up. To maintain a good performing tuner you must make
a new ground connection to the SSB, for instance by use of a
wire.

Caution: In case you replace the tuner, always check the tuner
option!

5.8.9 UI over PCI bus

The UI is not integrated in the RGB signal but is sent from
PNX8535 to PNX5050 via the PCI bus. TXT and MHEG are
integrated in the RGB signal. So if you have TXT signal but no
UI, check the PCI bus.

EN 36 Q528.1E LA5.

5.8.10 Display option code

Caution: In case you have replaced the SSB, always check the

display option code in SAM, even if you have picture. With a
wrong display option code it is possible that you have picture,
but that in certain conditions you have unwanted side-effects.

5.8.11 Upgrade EDID NVM

To upgrade the EDID NVM you must short circuit pin 7 of the
EDID NVM to ground. Therefore some test points (EDID1,
EDID2 and EDID3) are foreseen (figure “EDID-NVM pins”).
See ComPair for further instructions.

5.9 Software Upgrading

Service Modes, Error Codes, and Fault Finding

Figure 5-14 EDID-NVM pins

H_16800_122.eps

090507

5.9.1 Introduction

The set software and security keys are stored in a NAND­Flash, which is connected to the PNX8535 via the PCI bus.

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set, without the need of an E-JTAG debugger. A
description on how to upgrade the main software can be found
in the DFU.

5.9.2 Main Software Upgrade

The software image resides in the NAND-Flash, and is
formatted in the following way (refer to figure “NAND-flash
content”):

Nand Flash content

JFFS2 partition 1
(application read write data)

JFFS2 partition 0
(Application read only once data)

JFFS2 partition 0
(Application read only upgradable data)

SQUASHFS partition

BFFS partition 2 (DVD OK)

BFFS partition 1 (DVD cursor down)

hC

wizard pictures, display file, cabinet file,
upgrade assistant, …

Main software (Mips)
Linux structure (root file system)

Default software upgrade application
TriMedia software
boot batch file 2

Back up software upgrade application
boot batch file 1
Linux kernel
JETT : needed for ComPair

Important: When the NAND-Flash must be replaced, a new
SSB must be ordered, due to the presence of the security
keys!!! (copy protection keys, MAC address, ...).
Perform the following actions after SSB replacement:

1. Set the correct option codes (see sticker inside the TV).

2. Update the TV software (see the DFU for instructions).

3. Perform the alignments as described in chapter 8 (section
“Reset of Repaired SSB”).

4. Check in CSM if the HDMI keys are valid.

For the correct order number of a new SSB, always refer to the
Spare Parts list!

ONE ZIP

FUS UPG UpgradeAll UPG

XXX… ,atad GPE ,elbat lenna

d pu kcab ,syek IMDH

XXX

XXXX

XXXX

XXXX

XX… ,elif yalpsi

FlashUtils UPG

margorpesaremargorpesaremargorpesaretnetnoCnoititraP

BFFS partition 0

Block 0

Jaguar Boot loader
boot batch file 0

µBTM
partition table

Figure 5-15 NAND-Flash content

XX

X

H_16770_099.eps

220307

Service Modes, Error Codes, and Fault Finding

EN 37Q528.1E LA 5.

• The above overview of the NAND Flash shows the content
of the different partitions. It also shows which part of the
one-zip file erases and programs which part of the NAND
Flash.

• Remark: the above does not mean that you can reprogram
your HDMI keys with the "UpgradeAll.upg" file from the one
zip file. This can only be done in a secure environment (e.g.
the factory).

• The "UpgradeAll.upg" file is only used in the factory.

• The "FlashUtils.upg" file is only used by service centra
which are allowed to do component level repair on the
SSB.

Automatic Software Upgrade

In "normal" conditions, so when there is no major problem with
the TV, the main software and the default software upgrade
application can be upgraded with the "AUTORUN.UPG" (FUS
part of the one-zip file: e.g. 3104 337 03801 _FUS _Q581E_

0.37.0.0_commercial.zip). This can also be done by the

consumers themselves, but they will have to get their software
from the commercial Philips website or via the Software Update
Assistant in the user menu (see DFU). The "autorun.upg" file
must be placed in the root of your USB stick.
How to upgrade:

1. Copy "AUTORUN.UPG" to the root of your USB stick.

2. Insert USB stick in the side I/O while the set is in ON
MODE. The set will restart and the upgrading will start
automatically. As soon as the programming is finished, you
will get the message that you can remove your USB stick
and restart the set.

Manual Software Upgrade

In case that the software upgrade application does not start
automatically, you can also start it manually.
How to start the software upgrade application manually:

1. Disconnect the TV from the Mains/AC Power.

2. Press the "OK" button on a Philips DVD RC-6 remote
control (it is also possible to use the TV remote in "DVD"
mode). Keep the "OK” button pressed while reconnecting
the TV to the Mains/AC Power.

3. The software upgrade application will start.

Attention!

In case that you have started the download application
manually, the "autorun.upg" will maybe not be recognized.
What to do in this case:

1. Create a directory "UPGRADES" on your USB stick.

2. Rename the "autorun.upg" to something else, e.g. to
"software.upg". Do not use long or complicated names,
keep it simple. Make sure that "AUTORUN.UPG" is no
longer present in the root of your USB stick.

3. Copy the renamed "upg" file into this directory.

4. Insert USB stick in the side I/O.

5. The renamed "upg" file will be visible and selectable in the
upgrade application.

Back-up Software Upgrade Application

If the default software upgrade application does not start (could
be due to a corrupted boot 2 sector) via the above described
method, you can try to activate the “back-up software upgrade
application”.
How to start the “back-up software upgrade application”
manually:

1. Disconnect the TV from the Mains/AC Power.

2. Press the “CURSOR DOWN” button on a Philips DVD RC­6 remote control (it is also possible to use the TV remote in
"DVD" mode). Keep the "cursor down" button pressed
while reconnecting the TV to the Mains/AC Power.

3. The software upgrade application will start.

5.9.3 Stand-by Software Upgrade

There are two methods now to upgrade stand-by software:

Upgrade via USB

In this chassis it is possible to upgrade the Stand-by software
via a USB stick. The method is similar to upgrading the main
software via USB.
Use the following steps:

1. Create a directory “UPGRADES” on your USB stick.

2. Copy the Stand-by software (part of the one-zip file, e.g.
StandbySW_CFT01_9.0.0.0.upg) into this directory.

3. Insert the USB stick into the TV.

4. Start the download application manually (see paragraph
“Manual start of the Software Upgrade Application”.

5. Select the appropriate file and press the "red" button to
upgrade.

Upgrade via PC and ComPair interface

It will be possible to upgrade the Stand-by software via a PC
and the ComPair interface. Check paragraph "ComPair" on
how to connect the interface. To upgrade the Stand-by
software, use the following steps:

1. Disconnect the TV from the Mains/AC Power.

2. Short circuit the SPI pins [2] on the SSB (see figure
“Service mode pads” earlier in this chapter).

3. Keep the SPI pins shorted while connecting the TV to the
Mains/AC Power.

4. Release the short circuit after approx. two seconds.

5. Start up HyperTerminal (can be found in every Windows
application via Programs -> Accessories ->
Communications -> HyperTerminal). Use the following
settings:
–COM1
– Bits per second = 38400 (9600)*
– Data bits = 8
– Parity = none
– Stop bits = 1
– Flow control = None

6. Press “Shift U” on your PC keyboard. You should now see
the following info:
– PNX2015 Loader V1.0
– 19-09-2003
– DEVID=0x05
–Erasing
– MCSUM=0x0000
–=

7. If you do not see the above info, restart the above
procedure, and check your HyperTerminal settings and the
connections between PC and TV.

8. Via “Transfer” -> “Send text file ...”, you can send the
proper upgrade file to the TV (e.g. *.hex).

9. After successful programming, you must see the following
info (this can take several minutes!):
– DCSUM=0xC67E
–:Ok
– MCSUM=0xC67E
– Programming
– PCSUM=0xC67E
–Finished

10. If you do not see this info, restart the complete procedure.

11. Close HyperTerminal.

12. Disconnect and connect Mains/AC Power again.

(*) When having problems with upgrading, use the values
between brackets.

5.9.4 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it.

• 1.1 Ambilight_PRFAM_x.x.x.x.zip. Not to be used by
Service technicians.

• 1.2 Cabinet_ACOUS_x.x.x.x.zip. Not to be used by
Service technicians.

• 1.3 Ceisp2padll_P2PAD_x.x.x.x.zip. Not to be used by
Service technicians. For ComPair development only.

EN 38 Q528.1E LA5.

• 1.4 Display_DISPT_x.x.x.x.zip. Not to be used by Service
technicians.

• 1.5 EDID_Q581X_x.x.x.x.zip. Contains the EDID content
of the different EDID NVM’s. See ComPair for further
instructions.
For sets with three HDMI connectors.

- For HDMI 1 NVM, use “*port 1*.bin

- For HDMI 2 NVM, use “*port 2*.bin

- For HDMI 3 NVM, use “*port 3*.bin

• 1.6 EJTAGDownload_Q581X_x.x.x.x.zip. Only used by
service centra which are allowed to do component level
repair.

• 1.7 Factory_Q581X_x.x.x.x_commercial.zip. Only for
production purposes, not to be used by Service
technicians.

• 1.8 FlashUtils_Q581X_x.x.x.x_commercial.zip. Not to
be used by Service technicians.

• 1.9 FUS_Q581X_x.x.x.x_commercial.zip. Contains the
“autorun.upg” which is needed to upgrade the TV main
software and the software download application.

• 2.0 MOP_IACXX_x.x.x.x.zip. Not to be used by Service
technicians. A programmed MOP device can be ordered
via your regional Service organization.

• 2.1 OpenSourceFile_Q581X_x.x.x.x.zip. Not to be used
by Service technicians.

• 2.2 Pacific3_P3FW0_x.x.x.x.zip. Not to be used by
Service technicians. A programmed PACIFIC device can
be ordered via your regional Service organization.

• 2.3 PQPrivate_U5207_x.x.x.x.zip. Not to be used by
Service technicians.

• 2.4 PQPublic_U5207_x.x.x.x.zip. Not to be used by
Service technicians.

• 2.5 ProcessNVM_Q531X_x.x.x.x.zip. Default NVM
content. Must be programmed via ComPair.

• 2.6 StandbySW_CFTxx_x.x.x.x_commercial.zip.
Contains the Stand-by software in “upg” and ”hex” format.

- The “StandbySW_xxxxx_prod.upg” file can be used to
upgrade the Stand-by software via USB.

- The “StandbySW_xxxxx.hex” file can be used to upgrade
the Stand-by software via ComPair.

-The files “StandbySW_xxxxx_exhex.hex” and
“StandbySW_xxxxx_dev.upg” may not be used by Service
technicians (only for development purposes).

• 2.7 UpgradeAll_Q531X_x.x.x.x_commercial.zip. Only
for production purposes, not to be used by Service
technicians.

Caution : Never try to use this file, because it will
overwrite the HDCP keys ! ! !

Service Modes, Error Codes, and Fault Finding

Block Diagrams, Test Point Overview, and Waveforms

6. Block Diagrams, Test Point Overview, and Waveforms

Wiring Diagram 32”

WIRING 32” Styling MS7

39Q528.1E LA 6.

AMBI-LIGHT UNIT (IN BACK COVER)

8509

DISPLAY SUPPLY

A

12P

14P

8319

1317

1320

1M12

4P

1M09

1P11

8738

(1004)

B

41P

1G50

SSB

4P

8P

8411

8402

LCD DISPLAY

LVD S

51P

8150

8559

17354P1P11

8738

8P

5P

1M59

8582

2P3

1P02

7P

1M82

5P

1M59

4P

1M09

11P

1M36

KEYBOARD CONTROL

E

1M01

(1110)

3P

8101

1M09

1M59

1M82

4P

5P

7P

INVERTER

8120

14P

1320

1P22

2P3

7P

1M20

4P

1H01

AMBI-LIGHT UNIT (IN BACK COVER)

2P3

1P02

1308

2P3

8408

INLET

8191

8192 UK

8136

8201

D

11P

SIDE I/O

(1115)

1M36

4P

USB

3P

1M01

7P

1M22

LED PANEL

J

(1112)

RIGHT SPEAKER LEFT SPEAKER

H_16800_097.eps

110507

Block Diagrams, Test Point Overview, and Waveforms

Wiring Diagram 47”

WIRING 47” Styling MS7

40Q528.1E LA 6.

AMBI-LIGHT UNIT (IN BACK COVER)

1M09

1M59

1M82

(1175)

4P

5P

7P

LCD DISPLAY

41P

1G50

SSB

8659

8150

17354P1P11

LVD S

51P

5P

8P

1M59

8316

8609

DISPLAY SUPPLY

(1050)

8319

12P

1317

14P
1319

INVERTER INVERTER

1M12

4P

1M09

4P

1P11

8P

8411

8738

B

(1004)

8738

8402

2P3

1P02

8682

11P

1M36

12P

1317

7P

1M82

5P

1M59

4P

1M09

KEYBOARD CONTROL

E

1M01

(1110)

3P

3P

1M01

7P

1M20

14P

1320

2P3

1P02

1308

2P3

8408

8191

8192 UK

8101

INLET

8120

RIGHT SPEAKER

LED PANEL

7P

J

(1112)

1M22

4P

1H01

(1176)

AMBI-LIGHT UNIT (IN BACK COVER)

SIDE I/O

D

(1115)

8136

LEFT SPEAKER

8201

11P

1304

4P

USB

H_16800_098.eps

110507

Block Diagrams, Test Point Overview, and Waveforms

Block Diagram Display & Platform Supply 32”

DISPLAY SUPPLY + PLATFORM SUPPLY 32"

MAINS FILTER + STANDBY

A1

1308

5401
5403
5405

1400

2

T5AH

1

MAINS
FILTER

1450

7801
7802

ON/OFF

STANDBY

COLD GROUND
HOT GROUND

STANDBY

A2

6807
TS6B

41Q528.1E LA 6.

SUPPLY

A2

14

7002

BIAS SUPPLY

6077

7007

7008

5009

HIGH
SIDE

DRIVE

LOW
SIDE

DRIVE

3033

2003

STP15NK50

STP15NK50

60786079

400V_HOT

7005

7006

VCC

3000

5017

5001

15

5015

14

OA

5016

12

OB

10

FI

6

7

4

2

10

9

3810

+

­5007

5008

25V_HOT

400V_HOT

7017
7018

SOFT

START

CURRENT

PROTECTION

3021

7001
MC34067PG

11

OSCC

3007

CONTROL

7

ERROR

11

SOST

5

2014

VREF

7004
7009

OVER

VOLTAGE

PROTECTION

+

3100

5010

2017

5040

2011

TCET1102

2

3

5002

8

5028

9

7

10

5

3

5027

11
13

12

5025

14

15

5026

16

6044

6044

6044

3057

2020

3022

2022

3024

7010
TS2431

K

R

A

3030

3025

VS Voltage
Adj.

3026

MAINS FILTER + STANDBY

A1

+12Vd

+24V

+12Vd

6024

7013

3052

+5V2

Power-Good = 5V
if +12V >10V

30773078

A1

N.C

1M09

5406

+12Vd

+5V2

A1

STANDBY

BOOST

ON-OFF

POWER-GOOD

DIM-CONTROL

1320

1317

1P11

1
2

1
2
3
4

5
11
12

1

2

3

4

5
11
12

8
7
6

5
4

3
2

1

TO

AMBI-LIGHT

TO

DISPLAY

TO

DISPLAY

TO 1P11

A2

SSB

1P02

22

11

B01A

1P02

SUPPLY

1B32

T1.6A

5B00

6B04
SS36

HOT GROUND COLD GROUND

3B61

2B48

6B07

2B51

6B08

6B06

2B46

6B05

2B45

7B50

CONTROL

1B33

2.5AT

AUDIO-PROT

B11C

7B06

+AUDIO-POWER

-AUDIO-POWER

+12VS

3B72

3B73

6B15

K

A

3B29

R

+5V-STANDBY

1B40

1

FOR SERVICE

2

TO PROVIDE

3

EXTERNAL
SUPPLY

4

H_16800_099.eps

110507

+

7B00

-

7B01

3B60

7B02

7B05

CONTROL

3B50

3B51

HOT GROUND COLD GROUND

5B01

5

3

2

1

7

8

9
10

11

12

14

7B04
TCET1102

2

3

Block Diagrams, Test Point Overview, and Waveforms

Block Diagram Video

VIDEO

MAIN TUNER

B03B

1T04
TD1716F/IHXP

MAIN HYBRID

TUNER

CHANNNEL DECODER

B03A

B08D

HDMI

1

18 2

19

HDMI 1

CONNECTOR

1

18 2

19

HDMI 2

CONNECTOR

1

18 2

19

HDMI 3

CONNECTOR

B08E

HDMI SWITCH

VTU

9

1B01

10
12
13
15
16

19

1B02

10
12
13
15
16

19

1B03

10
12
13
15
16

19

ARX2+
ARX2­ARX1+
ARX1­ARX0+
ARX0­ARXC+
ARXC­BRX2+
BRX2­BRX1+
BRX1­BRX0+
BRX0­BRXC+
BRXC­CRX2+
CRX2­CRX1+
CRX1­CRX0+
CRX0­CRXC+
CRXC-

IF-OUT2

IF-OUT1

RF-GAIN

XTAL_OUT

1
3
4
6
7
9

1
3
4
6
7
9

1
3
4
6
7
9

11
10

3
8

+5V-ON

ARX2+
ARX2­ARX1+
ARX1­ARX0+
ARX0­ARXC+
ARXC-

ARX-DCC-SCL
ARX-DCC-SDA

ARX-HOTPLUG

BRX2+
BRX2­BRX1+
BRX1­BRX0+
BRX0­BRXC+
BRXC-

BRX-DCC-SCL
BRX-DCC-SDA

BRX-HOTPLUG

CRX2+
CRX2­CRX1+
CRX1­CRX0+
CRX0­CRXC+
CRXC-

CRX-DCC-SCL
CRX-DCC-SDA

CRX-HOTPLUG

7JE3

7JA3

7J28

7J27
AD8191ASTZ

74
73
71
70
68
67
65
64
12
11

9
8
6
5
3

2
24
23
21
20
18
17
15
14

TUN-AGC
4-MHz

B04E

PCEC-HDMI

HOT-PLUG

PCEC-HDMI

HOT-PLUG

PCEC-HDMI

HOT-PLUG

HDMI

SWITCH

5T61

RESET-SYS-DETECT

B04A

B04H

B04A

B04H

B04A

B04H

34

OP0

33

ON0

37

OP1

36

ON1

40

OP2

39

ON2

43

OP3

42

ON3

44

1T55

1

4

2

5

SAW 37MHz

1T70

4

1
2

5

SAW 36MHz175

ANALOGUE EXTERNALS

B09B

EXT 3

ANALOGUE EXTERNALS

B09A

EXT 1

SCART1

EXT 2

SCART2

D

SIDE I/O MS7

VIDEO

S VIDEO

RESET-SYS-DETECT

TDA-IF-AGC

4-MHz

PR

PB

Y

1

7

11

15

16

20

21

1

7

11

15

16

20

21

IF-FILTN1

IF-FILTP1

IF-FILTN2

IF-FILTP2

1070

1030

16

1020

19

15

16

11

1302

1301

1

5

2

B04E

19
15

7

11
20

8

7

8

20

3

4

7T17
TDA10048HN

42

AGCT_CTL

7

XIN

41

CLR

7E13

7E07

7T57
TDA9898HL

7

IF1-B

6

IF1-A

PROCESSING

10

IF2-B

9

IF2-A

47

TAGC

46

FREF

36

AGC-DIN

AGC_TUN

DTV

RECEIVER

7E09

7E14

7E15

FRONT_Y_CVBS_IN

CVBS

IF

OUT1-A
OUT1-B

MPP-2

43
32
2

VI-M

3

VI-P

DAT A

7E10

14

AV1_Y-CVBS

AV1_STATUS

AV1_BLK

AV2_STATUS

AV2_Y-CVBS

AV2_BLK

AV2_FBL

FRONT_C_IN

AV4_PR

AV4_PB

AV4_Y

9,10,11

AV1_PR
AV1_PB

AV1_Y

AV3_Y

RXC+

RXC-

RX0+

RX0-

RX1+

RX1-

RX2+

RX2-

33

26
27

16

1

5

7T55

EF

3T68

TDA-IF-IN-N
TDA-IF-IN-P

TUN-AGC-MON

7T18

AGC-COMP
TDA-IF-IN-N
TDA-IF-IN-P

Y-CVBS-MON-OUT_SC

CVBS-TER-OUT

REGIBEAU_CVBS-SWITCH

7E02

12

14

2

15

1

9,10,11

7E03

1304

2

4

CVBS4

CVBS-TER-OUT

FE-DATA(0-7)

7E06

7E05

B09B

1M36

2

4

7E12

B04A

B04A

B04A

B04A

B04A

3T59
3T58

7EA0

B04

Y-CVBS-MON-OUT

FRONT_Y-CVBS

FRONT_C

B08D

PNX8535

IF-N
IF-P

AV3_PB

AV3_PR

AV2_C

HOT-PLUG

7H00
PNX8537E/M2A

ANALOGUE AV

B04K

J3

M1

M2

VIDEO

B04N

STREAMS

L1

ADC/MUX/SRC

R3

G3

A3

K2
P5
F2

H2

K3

R1

P1

J1

G1

J2

P2

B04H

D10
A10

A9

B7

HDMI-DVI RX/RX2DTL

RECEIVER

B6

DETECTION

MATRICING

A8
A7

B9
B8

SWITCH/

DIGITAL VIDEO
IN

42Q528.1E LA 6.

PNX8535

MSP
VMPG
MPEG

DEMUX

AND

DECODING

VIDEC, 3D COMB AND VBI

CAPTURING

MEMORY

CONTROLLER

MBVP-TV
SNR/TNR

EDDI

HV SCALER

MAIN

VIDEO OUT

VIDEO
LAYER

GFX LAYER

STILL

MPEG/PC

CPIPE-TV

GFX OSD

LAYER

CONTROL

B04F

PCI XIO

SDRAM

B04G

DDR

DIGITAL

B04O

VIDEO OUT
LVD S

VIDEO
OUTPUT
CONFIG

LVD S

TRANSMITTER

PNX8535: FLASH

B04Q

7HA0
NAND512W3A2BN6E

NAND

PCI --> NAND

B04G

DDR2-D(0-15)

DDR2-A(0-12)

(16-31)

B05C

FLASH
128Mx8

PNX 8535: SDRAM

7HG0
EDE2516ABSE

(0-12)

DDR2

SDRAM

4Mx16x4

7HG1
EDE2516ABSE

DDR2

SDRAM

4Mx16x4

PNX5050: VIDEO

7C00
PNX5050EH/M1

10-bit YUV 10-bit RGB

AG15
AH15

DV-Y(0-9)

DV-UV(0-9)

DV-HS
DV-VS

AC14
AF12

PNX5050

B05B

MM_DATA(0-15)

MM-A(0-12)

RxP3_R(0-9)

RxP3_G(0-9)

RxP3_B(0-9)

RxP3R(0-5)

PNX5050: SDRAM

(0-12)

(16-31)

7CA0
EDD1216AJTA

DDR

SDRAM

16Mx16

7CA1
EDD1216AJTA

DDR

SDRAM

16Mx16

B06C

PACIFIC 3

7GE2
T6TF4HFG

PACIFIC3

ENHANCEMENT


75
74

78
77
81
80

84
83
87
86
90
89

93
92

96
95

99
98

101
100

103
102

107
106

PACIFIC 3: LVDS

B06A

DUAL LVDS ONLY

TXEA-

TXEA+

TXEB-

TXEB+

TXEC-

TXEC+

TXECLK-

TXECLK+

TXED-

TXED+

TXEE-

TXEE+

TXOA-

TCOA+
TCOB-

TCOB+

TCOC-

TCOC+

TCOCLK-

TCOCLK+

TCOD-_

TCOD+

TCOE-

TCOE+

7GE1
M25P05

512K

FLASH

VDISP

5G00

5G01

5G02

5G03

5G04

5G05

5G06

5G07

5G08

5G09

5G10

5G11

1G50

41
40

39
38

32
31

30
29

28
27

25
24

22
21

20
19

17
16

15
14

13
12

10

9
7

6
5

4

LVDS

CONNECTOR

TO DISPLAY

H_16800_100.eps

080507

Block Diagrams, Test Point Overview, and Waveforms

Block Diagram Audio

AUDIO

MAIN TUNER

B03B

1T04
TD1716F/IHXP

MAIN HYBRID

TUNER

11

IF-OUT2

10

IF-OUT1

3

RF-GAIN

8

XTAL_OUT

FM-TRAP

VTU

9

+5V-ON

CHANNNEL DECODER

B03A

B08D

HDMI

1B01

1

ARX2+

3

ARX2-

4

1

19

HDMI 1

CONNECTOR

1

19

HDMI 2

CONNECTOR

1

19

HDMI 3

CONNECTOR

ARX1+

6

ARX1-

7

ARX0+

9

ARX0-

10

ARXC+

12

ARXC-

18 2

13
15

ARX-DCC-SCL

16

ARX-DCC-SDA

19

ARX-HOTPLUG

1B02

1

BRX2+

3

BRX2-

4

BRX1+

6

BRX1-

7

BRX0+

9

BRX0-

10

BRXC+

12

BRXC-

18 2

13
15
16

19

BRX-HOTPLUG

1B03

1

CRX2+

3

CRX2-

4

CRX1+

6

CRX1-

7

CRX0+

9

CRX0-

10

CRXC+

12

CRXC-

18 2

13
15
16

19

CRX-HOTPLUG

7JE3

BRX-DCC-SCL
BRX-DCC-SDA

7JA3

CRX-DCC-SCL
CRX-DCC-SDA

7J28

TUN-AGC
4-MHz

PCEC-HDMI

HOT-PLUG

PCEC-HDMI

HOT-PLUG

PCEC-HDMI

HOT-PLUG

B04E

B04A

B04H

B04A

B04H

B04A

B04H

1T70

1
2

SAW 36MHz175

RESET-SYS-DETECT

B09A

B09A

EXT 1

EXT 2

B08C

D

B08E

4-MHz

1

7

11

1

7

11

21

1JA1

1JA2

1030

1020

1040

10

9

47
46

36

42

7

41

1

3

2

6

1

3

2

6

(BOTTOM)

7J42

A-PLOP

IF-FILTN2

4

IF-FILTP2

5

TDA-IF-AGC

ANALOGUE EXTERNALS

ANALOGUE EXTERNALS

15

16

20

21

SCART1

15

16

20

SCART2

AUDIO IN

L+R

EXTERNALS A

AUDIO OUT

L+R

DIGITAL

AUDIO

IN/OUT

SIDE I/O MS7

1302

AUDIO IN

L+R

HDMI SWITCH

ARX2+
ARX2­ARX1+
ARX1­ARX0+
ARX0­ARXC+
ARXC­BRX2+
BRX2­BRX1+
BRX1­BRX0+
BRX0­BRXC+
BRXC­CRX2+
CRX2­CRX1+
CRX1­CRX0+
CRX0­CRXC+
CRXC-

7T57
TDA9898HL

IF

PROCESSING

IF2-B

IF2-A

TAGC
FREF

AGC-DIN

7T17
TDA10048HN

AGC_TUN
AGCT_CTL
XIN

DTV

RECEIVER

CLR

AP-SCART-OUT-R

AP-SCART-OUT-L

AUDIO-IN1-R

AUDIO-IN1-L

AP-SCART-OUT-R

AP-SCART-OUT-L

AUDIO-IN2-R

AUDIO-IN2-L

2

3
4

CVBS

OUT1-A
OUT1-B

MPP-2

GPIO-0

VI-M

VI-P

DAT A

AUDIO-IN3-L

AUDIO-IN3-R

AUDIO-OUT-L

AUDIO-OUT-R

A-PLOP

SPI-OUT

L_FRONT_IN

R_FRONT_IN

74
73
71
70
68
67
65
64
12
11

9
8
6
5
3

2
24
23
21
20
18
17
15
14

33

26
27
16

43
32
2

3

B09A

B04M

SPI

7J27
AD8191ASTZ

HDMI

SWITCH

7T55

EF

3T68

TDA-IF-IN-N
TDA-IF-IN-P

TUN-AGC-MON

AGC-COMP

CVBS-TER-OUT

7T18

ANALOGUE EXTERNALS

3EA8

3EA7

7EA1

A-PLOP

B04I

B08B

1

12

B09B

1304

1M36

6

6

8

8

34

OP0

33

ON0

37

OP1

36

ON1

40

OP2

39

ON2

43

OP3

42

ON3

RESET-SYS-DETECT

44

CVBS4

AUDIO-CL-R

AUDIO-CL-L

A-PLOP

7HM1

8

14

SPDIF

7J30

3T59
3T58

B04M

AUDIO

1

B04

B09A

FE-DATA(0-7)

B04I

7

1

11

12

4

11

B08D

B04E

7HM1

ADAC(5)

ADAC(6)

SPDIF-IN1

SPDIF-OUT

AUDIO-IN5-L

AUDIO-IN5-R

PNX8535

IF-N

IF-P

AUDIO

5

ADAC(8)

ADAC(7)

3

HOT-PLUG

RXC+

RXC-

RX0+

RX0-

RX1+
RX1-

RX2+

RX2-

7H00
PNX8537E/M2A

B04K

J3

M1

M2

B04N

B04L

AJ8

AK8

AK6

AJ6

AG5

AF5

AH5

AJ5

AJ10

AK9

AK15

AJ15

AJ4

AK4

B04H

D10

A10

HDMI-DVI RX/RX2DTL

A9

B7
B6

A8
A7

B9
B8

ANALOGUE AV

VIDEO
STREAMS

AUDIO

AIN1

AIN2

AIN3

AIN5

DIGITAL VIDEO
IN

RECEIVER

DETECTION

MATRICING

43Q528.1E LA 6.

PNX8535

ADC

DEMDEC

Main

Delayed

SPDIF DECODING,

MULTICHANNEL,

DOWNMIX AND SRC

SPDIF OUT

DELAYED

Main

PNX8535: FLASH

B04Q

7HA0

B04F

CONTROL

NAND512W3A2BN6E

NAND

PCI XIO

PCI --> NAND

B04G

SDRAM

B04G

DDR2-D(0-15)

DDR

DDR2-A(0-12)

(16-31)

B04I

AUDIO

B04L

ADAC(1)

AJ13

DAC

DAC

ADAC(2)

AK12

I²C

MEMORY
CONTROL

B04O

B04A

EPICS

DAC

DIGITAL VIDEO
OUT / LVDS

STANDBY
CONTROLLER

DAC

AH16

V3

AH11

AH10

P0.6

ADAC(3)

ADAC(4)

FLASH
128Mx8

PNX 8535: SDRAM

7HG0
EDE2516ABSE

(0-12)

7HG1
EDE2516ABSE

PNX 8535:
AUDIO

9HM1

9HM2

B08C

DDR

SDRAM 1

4Mx16x4

DDR

SDRAM 2

4Mx16x4

AUDIO LEFT / RIGHT

B11A

MUTE

7D00-2

7D00-3

MUTE

AUDIO-RESET

7HV0
TPA4411RTJ

18

HEADPHONE

13

15

DRIVER

+AUDIO-L

FEEDBACK

-AUDIO-R

FEEDBACK

AUDIO: PROTECTION/MUTE CONTROL

B11C

AUDIO LEFT / RIGHT

B04A

PNC8535: DEBUG

B04B

B04M

9H26

PNX 8535: AUDIO

7HVA

A-PLOP

7HV1

A-PLOP-HDPH

+AUDIO-POWER

7D10-1

7D10-2

CONTROL

-AUDIO-POWER

+AUDIO-POWER

7D35-1

7D35-2

CONTROL

-AUDIO-POWER

7D63÷7D64

CONTROL

DV-B3_AUDIO-MUTE

AUDIO-RESET

ANALOGUE EXTERNALS

B09B

AUDIO-HDPH-L-AP

9

11

AUDIO-HDPH-R-AP

6D15

5D00 5D10

FEEDBACK-LR

5DO7

FEEDBACK-RL

DC-SENCE

AUDIO-MUTE

1M36

5D11

10

11

7D00-1

7D00-4

D

1304

10

11

LEFT-SPEAKER

RIGHT-SPEAKER

7D70

AUDIO-PROT

CONTROL

SIDE I/O MS7

HEAD_PH_L

HEAD_PH_R

1303

B01A

2

3
4

1735

1

2

3

4

Speaker L

Speaker R

Headphone
Out 3.5mm

H_16800_101.eps

110507

Block Diagrams, Test Point Overview, and Waveforms

Block Diagram Control & Clock Signals

CONTROL + CLOCK SIGNALS

B05B

PNX5050: SDRAM

7CA0
K4D551638F

7CA1
K4D551638F

DDR

SDRAM 1/2

16Mx16

B05A

PNX5050: CONTROL

EN_PCI_ARb
0 : DISABLES
1 : ENABLES

MEM_SIZE
1 0 0 : 32MB Product SW
1 0 1 : 64MB Assert SW
1 1 0 : 128MB Assert SW

CAS_LATENCY
0:2.5 CLKS
1:3 CLKS

ROM_WIDTH
HC_FASTMODE
0:8-Bit ROM /100kHz
1:16-Bit ROM/400kHz

BOOTMODE
1 0 : HOST ASSISTED
1 1 : EEPROM

E

KEYBOARD CONTROL

ON / OFF

CHANNEL +
CHANNEL -

VOLUME +

VOLUME -

MENU

J

LED PANEL

+5V2-STBY

+5V2-STBY

+5V2-STBY

+5V2-STBY

MM_DATA(0-31)

MM_A(0-12)

46

MM_CLK_P

45

BOOTMODE7

BOOTMODE6

BOOTMODE5

BOOTMODE4

BOOTMODE3

BOOTMODE2

BOOTMODE1
BOOTMODE0

1016
1011

1012
1015
1014
1013

3061

3051

3040

MM_CLK_N

POWER SUPPLY

6051

6052

1040

7070

M1
M2

AC18

AD23

AF26
AF25

A4

A3

B3
B4

4321

USB 2.0

CONNECTOR

TO

LED1
BLUE

LED2

RED

IR

SENSOR

7C00
PNX5050EH/M1

SDRAM

B05B

PNX5050

CONTROL

B05A

VIDEO

B05C

B10B

1H01

1
2
3
4

B01B

1P11

1
2
3
5
6

7061

7051

+5V2-STBY
7071

D11

D9
E23

D18
A11

C7
F23

D24
H23
D26

H16

USB 2.0

7N30
RYC8620

8

USB20-1-DM

USB20-1-DP

SUPPLY

BACKLIGHT-OUT
POWER-OK-DISPLAY
LAMP-ON-OUT
BACKLIGHT-BOOST
STANDBY

1C05

OUTA

27M

PCI-CLK-PNX5050_CLK-MOP

RxP3CLK

RESET-SYS-DETECT

PCI-REQ-PNX5050

PCI-GNT-PNX5050

PCI-REQ-USB20

PCI-GNT-USB20

DV-CLK

USB20-PWE1

1

ENA_

2

FLGA

3

FLGB
ENB_

KEYBOARD

LED1

LED2

LIGHT_SENSOR

USB20-PWE2

4

B06B

B06B

N.C.

RC

B04E

B06C

B04E

1M01

1M01

1M22

2

2

7

6

4

3

1

B07A

POD: SUPPLY / CONTROL

PCMCIA

CONDITIONAL

ACCESS

PCI-AD(0-31)

B10A

USB 2.0

USB20-OC1

USB20-OC2

PCI-CLK-USB20

B04E

RESET-USB20

RESET-SYS-DETECT

B04D

PNX 8535: MISCELLANEOUS

POD-MODE

B04A

ON-MODE

B04A

+3V3-STANDBY

3HD3

B10C

LED PANEL CONNECTOR

1M20

7

6

4

3

1

LED1

LED2

1P00

1

COMMON INTERFACE

68

7N00
ISP1564HL

79
78
87

CONTROLLER

88

7

83
85

5

B04E

B01A

SUPPLY

7HD0
NCP303LSN

2

IN

3

GND

PCMCIA-D(0-7)

PCI

HOST

STANDBY

CONTROL

1

RST

KEYBOARD

LIGHT-SENSOR

B03A

B07A

PCMCIA-A(0-14)

9
8

RC

44Q528.1E LA 6.

CHANNEL DECODER

7T17
TDA10048HN

DVB-T
CHANNEL
DECODER

41

POD: BUFFERING

CA-MDI(0-7)

CA-MDO(0-7)

7P53

B04F

PNX8535: CONTROL

B04A

STANDBY CONTROLLER

7H22
7H21

19
18

17

RESET-SYS-DETECT

CA-DATADIR
CA-DATAEN

PCI-AD(24-31)

7P51
7P52

CA-ADDEN

DC-VLK

PCI-AD(0-31)

B04B
B04B
B04B

CTRL3-STBY_POWER-OK-DISP (P2.7)

9H01
9H02

SDM

9H03
9H08

SPI-PROG

B08D
B04A

B04A

B04E
B09A
B09A

B09A
B09A

9H05

9H06

FE-DATA(0-7)

FE-CLK

FE-VALID

FE-SOP

PCI-AD(0-14)

PCI-REQ-PNX8535

PCI-GNT-PNX8535

PCI-REQ-USB20

PCI-GNT-USB20

PSEN

SPI-PROG

CEC-HDMI

DETECT-1V2-2V5-3V3

DETECT-5V-12V (P2.5)

RESET-STBY

RESET-SYS-DETECT

AV1-BLK (P2.2)

AV2-BLK

AV1-STATUS

AV2-STATUS

KEYBOARD

LED1-3V3 (P0.0)

LED2-3V3

LIGHT-SENSOR

B04E

ALE

SDM

B08F

B08E

HDMI SWITCH

RESET-SYS-DETECT

B04E

B04Q

PNX 8535: FLASH

7HA3

RESET-NVM_WP-NANDFLASH-INV

B04C

PNX 8535: NVM / UART SWITCH

7HC3

B06B

PACIFIC 3: DISPLAY
INTERFACING

CTRL-DISP1

CTRL-DISP4

LAMP-ON-OUT

BACKLIGHT-OUT

CTRL4-P3

7

7GE1
M25P05-AVMN6P

6
3
1
5
2

1GE1

164

60M

165

B06C

178
168

172

7G53

CONTROL

PACIFIC 3

7GE2
T6TF4HFG

PACIFIC 3

7J27
AD8191ASTZ

HDMI

SWITCH

44

7HA0
NAND512W3A2BN6E

NAND

FLASH

(128Mx8)

7HC3
M24C64-WDW6P

8

EEPROM

(8Kx8)

RxP3CLK

MICRO

CONTROLLER

(AMBI LIGHT)

7GE1
M25P05-AVMN6P

512K

FLASH

H_16800_102.eps

19

B06A

B06A

B01B

B01B

B06B

B05C

1GE0

7

10M

6

080507

B04G

7H00
PNX8537E

SDRAM

B04G

VIDEO STREAMS

B04N

C5
D5

C4

PNX8535

D22

A22

B22

AK17

B04O

B04F

D21
E21
E22
E20

B04A

Y1

EA

RC

AA4

AC1

AE2

AB4
AB2

AA3

AC3

AC2

AF2
AF1

AF4

AA1

AA2

AF3

Y2

Y3

W1

W4

U5

B04F

B04E

DIGITAL VIDEO
OUT / LVDS

CONTROL

STANDBY CONTROLLER

CONTROL

CONTROL

N28
N29

A21

AK26

AJ26

T2

U4

AG1

AG2

Y4

V5

AD1
AE4
AE3
AD4
AE1

AD3

U3
U2
U1

V4
V3

W3

W2

PNX 8535: SDRAM

7HG0
EDE2516ABSE

DDR2-D(0-15)

DDR2-A(0-12)

DDR2-CLK_P
DDR2-CLK_N

B04F

PNX 8535: CONTROL

PCI-CLK-PNX8535

B04E

PNX 8535: CONTROL

PCI-CLK-OUT

+3V3-PER

RESET-NVM_WP-NANDFLASH (P0.1)

27M

1HF0

CTRL4-STBY_SELECT-PWM-ANA (P2.6)

CTRL1-STBY_LAMP-ON (P0.5)

CTRL2-STBY_BACKLIGHT-CTRL_RESET-P3

REGIMBEAU_CVBS-SWITCH (P0.3)

7HG1

EDE2516ABSE

SDRAM 1/2

P2
P3

PCI-CLK-PNX5050-CLK-MOP

RESET-SYS-DETECT

6HF0

CTRL1-MIPS_LCD-PWR-ON

SPI-CLK

SPI-WP

SPI-CSB

SPI-SDO

SPI-SDI

ENABLE-1V2 (P0.2)

ENABLE-3V3 (P0.4)

AUDIO-RESET (P0.6)
UART-SWITCH (P0.7)

ON_MODE (P2.3)

POD-MODE (P2.4)

DDR

4Mx16x4

PCI-CLK-DEBUG

PCI-CLK-PNX8535

PCI-CLK-USB20

7H02
M25P05-AVMN6P

6
3
1
5
2

PCI-AD(24-31) --> NAND-AD(0-7)

B08A

B05A

B10A

B03A

B04B

B04B

B04B

BACKLIGHT-CONTROL

512K

FLASH

B02A B02C B04B

B09B

B04B

B04B

B02A

B04M

B04B
B04B B04C B08C

B02B B04B B04D
B05B B11A

B02A B02B B04B

B10A

B04A

B04D

Block Diagrams, Test Point Overview, and Waveforms

SSB: Test Points (Overview Top Side)

Part 1

H_16800_081a.eps

Part 2

H_16800_081b.eps

45Q528.1E LA 6.

I60 A5
I65 A5
I66 A5
I67 A5
I68 A5
I69 A5
I133 D4
I148 D3
I238 G2
I240 G2
I737 D4
I738 E2
I739 E3
I740 E2
I741 E2
I742 E3
I743 E1
I744 F2
I745 E2
I746 A5
I747 A5
I748 E2
I749 E2
I750 E2
IC50 B4
IC50 B4
IG64 A5
IG64 A5
IG69 A5
IG69 A5
IGB1 B5
IGB1 B5
IGB2 B5
IGB2 B5
IGE8 A5
IGE8 A5
IGF4 A5
IGF7 A5
IGF7 A5
IGF8 A5
IGF9 A5
IGH2 A5
IGH3 A5
IGH4 A5
IGH5 A5
IGH6 A5
IGH6 A5
IGH9 A5
IH06 E3
IH06 E3
IH09 E2
IH09 E2
IHD0 E2
IHDA F2
IHF4 E2
IHF4 E2
IHF8 E2
IHF8 E2
IHF9 E1
IHR0 E3
IHR3 E3
IHR3 E3
IHR4 E2
IHR4 E2
IHR5 E2
IHR5 E2
IHR6 E2
IHR9 E2
IHR9 E2
IHRA E2
IHRB E2
IHRC E2
IHRD E3
IHRF E3
IHRF E3
IHRG E2
IHS4 E2
IHS4 E2
IHS5 E2
IHS6 E2
IHS6 E2
IHVA E1
IHVA E1
IHW7 F1
IHW7 F1
IJ44 E1
IJ44 E1
IJ45 D1
IJ45 D1
IJ49 E1
IJ49 E1
IU69 D4
IU8E D4
IU91 D4
IU91 D4

3104 313 6194.3

H_16800_081.eps

030507

Block Diagrams, Test Point Overview, and Waveforms

48Q528.1E LA 6.

SSB: Test Points (Overview Bottom Side)

A1 E3

F5 A4

I5 B4

F14 A4

F23 C1

F32 E5

F41 E5

A2 G3

F6 A5
F7 A4
F8 A4
F9 A4
I1 A5
I2 A4
I3 A4
I4 A4

I6 A5
I7 A5
I8 A4
I9 B5
F10 A4
F11 A4
F12 A3
F13 A3

A3 G5
A4 G4
A5 G3
F1 A5
F2 A4
F3 B5
F4 A4

3104 313 6194.3

F15 A3
F16 A4
F17 D1
F18 D1
F19 C1
F20 C1
F21 C1
F22 C1

F24 C1
F25 C1
F26 C1
F27 E5
F28 D5
F29 D5
F30 D5
F31 C5

F33 C5
F34 F5
F35 F5
F36 C5
F37 E5
F38 E5
F39 E5
F40 E5

F50 G2

F42 E5

F51 G2

F43 E5

F52 F2

F44 C5

F53 G2

F45 E5

F54 G2

F46 F5

F55 G2

F47 G3

F56 E5

F48 G3

F57 C2

F49 G2

F58 C1

H_16800_082a.eps

Part 2

H_16800_082b.eps

F59 C1
F60 E2
F61 E2
F62 D1
F63 C1
F64 C2
F65 D2
F66 C2
F67 C2

Part 1

F68 C2
F69 C2
F70 D2
F71 E2
F72 E1
F73 E2
F74 E2
F75 E2
F76 E1

F77 D1
F78 E1
F79 D2
F80 E2
F81 E2
F82 D2
F83 E2
F84 E2
F85 E2

F86 E2
F87 E2
F88 E2
F89 E1
F90 D2
F91 F4
F92 F4
F93 F4
F94 F3

F95 F4
F96 F4
F97 F4
F98 F3
F99 F4
I10 A4
I11 B4
I12 A5
I13 A5

I14 A5
I15 A5
I16 A4
I17 A4
I18 A5
I19 B4
I20 B4
I21 A5
I22 A4

I23 A5
I24 A4
I25 B5
I26 A4
I27 E1
I28 F1
I29 F1
I30 E1
I31 E1

I32 D1
I33 D1
I34 D1
I35 E1
I36 F1
I37 F1
I38 E1
I39 F1
I40 E1

I41 D1
I42 C1
I43 D1
I44 D1
I45 D1
I46 E1
I47 E1
I48 C1
I49 E1

I50 C1

I59 E2

I51 E1

I61 D2

I52 C1

I62 E1

I53 G1

I63 E2

I54 B5

I64 E2

I55 C5

I70 E1

I56 C5

I71 D2

I57 E1

I72 C2

I58 E2

I73 C2

H_16800_082.eps

070507

I74 C2
I75 C2
I76 D2
I77 D2
I78 D2
I79 E1
I80 E2
I81 C2
I82 C2
I83 C2
I84 C2
I85 C2
I86 D2
I87 C2
I88 C2
I89 C2
I90 C2
I91 D2
I92 D2
I93 D2
I94 D2
I95 C2
I96 C2
I97 C2
I98 C2
I99 C2
AHF0 E3
AT6 2 G 3
AT6 3 G 3
AT6 4 G 4
AT6 5 G 5
F100 F4
F101 F4
F102 G4
F103 G4
F104 F4
F105 G4
F106 G4
F107 G5
F108 F5
F109 F5
F110 F5
F111 G5
F112 G5
F113 F5
F114 G5
F115 F3
F116 G5
F117 A3
F118 A3
F119 A4
F120 A4
F121 A4
F122 A4
F123 F5
F124 C5
F125 C5
F126 E5
F127 F5
F128 E5
F129 E5
F130 D5
F131 D5
F132 D5
F133 E5
F134 D5
F135 E5
F136 D5
F137 E5
F138 E5
F139 E5
F140 D5
F141 D5
F142 D5
F143 D5
F144 D5
F145 C5
F146 D5
F147 D5
F148 F4
F149 E3
F150 E3
F151 E3
F152 E4
F153 E4
F154 D4
F155 E4
F156 E4
F157 E4
F158 E4
F159 E3
F160 F3
F161 F3
F162 F4
F163 F3
F164 E4
F165 E4
F166 E4
F167 E2
F168 D3
F169 E3
F170 E3
F171 E4
F172 B3
F173 E3
F174 E4
F175 F4
F176 F4
F177 C3
F178 C3

F179 E4
F180 E5
F181 E5
F182 C3
F183 C3
F184 D3
F185 C3
F186 C3
F187 D3
F188 E3
F189 E3
F190 A1
F191 A1
F192 A1
F193 A1
F194 A1
F195 A1
F196 A1
F197 A1
F198 A1
F199 A1
F200 A1
F201 A1
F202 A1
F203 A1
F204 B1
F205 A1
F206 A1
F207 A1
F208 A1
F209 A1
F210 A1
F211 A1
F212 A1
F213 A1
F214 B1
F215 B1
F216 A1
F217 G2
F218 G3
F219 G3
F220 E3
F221 E3
F222 E3
F223 F2
F224 F2
F225 G1
F226 G1
F227 G1
F228 G1
F229 G1
F230 G1
F231 G3
F232 G3
F233 F3
F234 G3
F235 F3
F236 G3
F237 G1
F238 G3
F239 G2
F240 G2
F241 G2
F242 G2
F243 F2
F244 G2
F245 F2
F246 G2
F247 G2
F248 G3
F249 G3
F250 G3
F251 G3
F252 F1
F253 G3
F254 F2
F255 F2
F256 G3
F257 G2
F258 F3
F259 G3
F260 F3
F261 G2
F262 F2
F263 C1
F264 B1
F265 B1
F266 B1
F267 B1
F268 B1
F269 B1
F270 B1
F271 C1
F272 C1
F273 C1
F274 B1
F275 B1
F276 B1
F277 A2
F278 B2
F279 B2
F280 B2
F281 A2
F282 A2
F283 A2
F284 A2
F285 B2
F286 B2
F287 D1
F288 D1

F289 D1
F290 G1
F291 G1
F292 F1
F293 F1
F294 D1
F295 E1
F296 D1
F297 D1
F298 C1
F299 C1
F300 G1
F301 G1
F302 C1
F303 B1
F304 B1
F305 B1
F306 B1
F307 A1
F308 A1
F309 A1
F310 A1
F311 A1
F312 A1
F313 A1
F314 A1
F315 A1
F316 A1
F317 A1
F318 A1
F319 A1
F320 A1
F321 A1
F322 A1
F323 A1
F324 A1
F325 A1
F326 A1
FB20 C1
FB21 C1
FB22 C1
FB23 C1
FB24 C1
FB25 C1
FB26 C1
FB27 C1
FB28 C1
FB30 G1
FB31 G1
FB32 C1
FB33 C1
FB34 D1
FB35 D1
FB36 E1
FB37 D1
FB38 F1
FB39 F1
FB40 D1
FB41 D1
FB42 D1
FB43 D1
FB44 D1
FB45 G1
FB46 G1
FC00 B2
FC01 B2
FC10 A2
FC11 A2
FC12 A2
FC13 A2
FC14 B2
FC16 B2
FCA2 B2
FCA3 A2
FD00 B1
FD01 B1
FD02 B1
FD03 C1
FD04 C1
FD05 C1
FD19 B1
FD25 B1
FD26 B1
FD27 B1
FD28 B1
FD49 B1
FD64 B1
FD65 C1
FE57 F2
FE58 G2
FE60 F3
FE61 G3
FE62 F3
FE63 G2
FE64 G3
FE65 G2
FE66 F2
FE67 F2
FE68 G3
FE69 F1
FE70 G3
FE71 G3
FE72 G3
FE73 G3
FE74 G2
FE75 G2
FE76 G2
FE77 F2
FE78 G2
FE79 F2

FE80 G2
FE81 G2
FE82 G2
FE83 G2
FE84 G2
FE85 G3
FE86 F1
FE88 G3
FE89 F3
FE90 G3
FE91 F3
FEA0 G3
FEA1 G3
FEA2 G1
FEA3 G1
FEA4 G1
FEA5 G1
FEA6 G1
FEA7 G1
FEA8 F2
FEA9 F2
FEB0 E3
FEB1 E3
FEB2 E3
FEB3 F2
FEC1 G2
FEC2 G2
FEC3 G2
FEC4 G3
FEC5 G3
FEC6 G3
FEC7 G3
FEC9 G2
FG00 A1
FG01 A1
FG02 A1
FG03 A1
FG04 A1
FG05 A1
FG06 A1
FG07 A1
FG08 A1
FG09 A1
FG10 A1
FG11 A1
FG12 A1
FG13 A1
FG14 A1
FG15 A1
FG16 A1
FG17 A1
FG18 A1
FG19 A1
FG20 A1
FG21 A1
FG22 A1
FG23 B1
FG24 B1
FG25 B1
FG26 B1
FG50 A1
FG51 A1
FG52 A1
FG53 A1
FG54 A1
FG55 A1
FG56 A1
FG57 A1
FG58 A1
FG59 B1
FG60 A1
FGE0 A1
FGE1 A1
FGE2 A1
FGE3 A1
FGE4 A1
FGE5 A1
FGE8 A1
FGF2 A1
FGF3 A1
FGG0 A1
FGG1 A1
FGG2 A1
FGG3 A1
FH00 E3
FH01 E3
FH02 D3
FH10 C3
FH11 C3
FH12 D3
FHC1 C3
FHC2 C3
FHC3 E5
FHC4 E5
FHC5 E4
FHC6 C3
FHC7 C3
FHD0 F4
FHD1 E4
FHD2 E4
FHD4 E3
FHG0 B3
FHK0 E4
FHM0 E3
FHM1 E3
FHM2 D3
FHM3 E2
FHP0 E4
FHP1 E4
FHP2 E4

FHP3 E3
FHP4 F4
FHPA F3
FHPB F3
FHPE E3
FHR0 E4
FHR1 E4
FHR2 E4
FHR3 D4
FHR4 D4
FHR5 E4
FHR6 E4
FHV1 E3
FHV2 E3
FHV3 E3
FHV4 F4
FJ11 F5
FJ12 F5
FJ13 F5
FJ14 D5
FJ30 E5
FJ31 C5
FJ32 E5
FJ33 E5
FJ34 E5
FJ35 E5
FJ36 E5
FJ37 E5
FJ38 E5
FJ39 E5
FJ40 C5
FJ41 C5
FJ42 C5
FJ43 E5
FJ52 D5
FJA0 D5
FJA1 D5
FJA2 C5
FJA3 C5
FJA4 E5
FJA5 C5
FJA6 D5
FJA7 D5
FJB0 D5
FJB1 D5
FJB3 E5
FJB4 E5
FJB5 E5
FJB6 E5
FJB7 E5
FJB8 D5
FJB9 E5
FJC1 D5
FJC2 D5
FJC3 D5
FJC4 E5
FJC5 E5
FJEA F5
FJEB E5
FJEC C5
FJED C5
FJEE F5
FN00 A3
FN30 A4
FN31 A3
FN32 A4
FN33 A3
FN34 A4
FN35 A4
FN36 A4
FN37 A4
FN53 A4
FN54 A4
FN55 A4
FN56 A4
FN57 A4
FN58 A3
FN59 A3
FP00 A5
FP01 A4
FP02 A4
FP03 B5
FP04 A4
FP05 A5
FT11 G5
FT15 F3
FT17 G5
FT36 F5
FT37 F5
FT38 F5
FT39 F5
FT40 F5
FT41 F5
FT42 F5
FT50 G4
FT51 G4
FT56 F4
FT57 F4
FT58 G4
FT59 F4
FT60 F4
FT61 F4
FT62 F4
FT63 F4
FT64 F4
FT65 F4
FT66 F3
FT67 F4
FT68 F4
FT76 F4

FU00 D2
FU01 E1
FU02 E2
FU03 E2
FU04 E2
FU05 E2
FU06 E2
FU07 E2
FU08 D2
FU11 E2
FU12 E2
FU20 D2
FU21 E1
FU22 D1
FU23 E1
FU24 E2
FU25 E2
FU26 E2
FU27 E1
FU28 E2
FU29 D2
FU60 C2
FU61 C2
FU65 C2
FU66 C2
FU6S D2
FU80 C2
FU81 C1
FU82 D1
FU83 E2
FU84 E2
FU87 C1
FU88 C1
FU8A C2
I100 D2
I101 C2
I102 C2
I103 C2
I104 C2
I105 C2
I106 C2
I107 C2
I108 D2
I109 D2
I110 C2
I111 C2
I112 C2
I113 C2
I114 D2
I115 C2
I116 E2
I117 E2
I118 E2
I119 C2
I120 C2
I121 D2
I122 D2
I123 D1
I124 E1
I125 E2
I126 E2
I127 E1
I128 E2
I129 D2
I130 E1
I131 C2
I132 E2
I134 E4
I135 E3
I136 E4
I137 E3
I138 E3
I139 C3
I140 E3
I141 E3
I142 E3
I143 E3
I144 E3
I145 E3
I146 E3
I147 E3
I148 D3
I149 E3
I150 E3
I151 E3
I152 D3
I153 E3
I154 E3
I155 E3
I156 E3
I157 E3
I158 E3
I159 D2
I160 E2
I161 D2
I162 E2
I163 E2
I164 D2
I165 D2
I166 D2
I167 D2
I168 E2
I169 E2
I170 E2
I171 E1
I172 E1
I173 D1
I174 E1
I175 E1
I176 E2

I177 E2
I178 E2
I179 D1
I180 D1
I181 D2
I182 D2
I183 D2
I184 D2
I185 E2
I186 D2
I187 E2
I188 D1
I189 E2
I190 E2
I191 E1
I192 E1
I193 E2
I194 E2
I195 E2
I196 E2
I197 E2
I198 D2
I199 E2
I200 D2
I201 E2
I202 D2
I203 D1
I204 E2
I205 E2
I206 E2
I207 D1
I208 D2
I209 D2
I210 D2
I211 E2
I212 D1
I213 E2
I214 E2
I215 D2
I216 E1
I217 D2
I218 E2
I219 E2
I220 E2
I221 G4
I222 G4
I223 G4
I224 F4
I225 G4
I226 F4
I227 G5
I228 G5
I229 G4
I230 F4
I231 F4
I232 F4
I233 F4
I234 G4
I235 G3
I236 F4
I237 G4
I238 G4
I239 F4
I240 G4
I241 G4
I242 F4
I243 F4
I244 F4
I245 G5
I246 G5
I247 G5
I248 G5
I249 G5
I250 G5
I251 G5
I252 G5
I253 G5
I254 G5
I255 G5
I256 F4
I257 F3
I258 G5
I259 G5
I260 G5
I261 G5
I262 F5
I263 F5
I264 F4
I265 F4
I266 F5
I267 F5
I268 F5
I269 F5
I270 F5
I271 F5
I272 G5
I273 G5
I274 G5
I275 F5
I276 F5
I277 F4
I278 A3
I279 A3
I280 B4
I281 B4
I282 B4
I283 A4
I284 A3
I285 A4
I286 B4

I287 B3
I288 B3
I289 B4
I290 A3
I291 B3
I292 B4
I293 B3
I294 B4
I295 A4
I296 A4
I297 B4
I298 A3
I299 B4
I300 B3
I301 B4
I302 A4
I303 B4
I304 E5
I305 E5
I306 C5
I307 C5
I308 C5
I309 D5
I310 E5
I311 E5
I312 D5
I313 D5
I314 D5
I315 D5
I316 E5
I317 D5
I318 C5
I319 C5
I320 C5
I321 C5
I322 C5
I323 C5
I324 C5
I325 C5
I326 B5
I327 C5
I328 F5
I329 C5
I330 E5
I331 C5
I332 E5
I333 C5
I334 E5
I335 C5
I336 C5
I337 E5
I338 E5
I339 E5
I340 D5
I341 E5
I342 D5
I343 D5
I344 E5
I345 D5
I346 C5
I347 E5
I348 C5
I349 C5
I350 C5
I351 B5
I352 E5
I353 E5
I354 E5
I355 E5
I356 E5
I357 D2
I358 F4
I359 D3
I360 D3
I361 D4
I362 D4
I363 C4
I364 D3
I365 D3
I366 D3
I367 D3
I368 D3
I369 D3
I370 D3
I371 D3
I372 F4
I373 D4
I374 D4
I375 D3
I376 C2
I377 F5
I378 F5
I379 F4
I380 E4
I381 E5
I382 E4
I383 D2
I384 D3
I385 E3
I386 E3
I387 D3
I388 D3
I389 D3
I390 D5
I391 D4
I392 C4
I393 D4
I394 D4
I395 D4
I396 D4

I397 D4
I398 E4
I399 D4
I400 E3
I401 E4
I402 D4
I403 E4
I404 E4
I405 D4
I406 E4
I407 D4
I408 D3
I409 E4
I410 E4
I411 E3
I412 E3
I413 E3
I414 E3
I415 E3
I416 E3
I417 E3
I418 E3
I419 D4
I420 E4
I421 D3
I422 E3
I423 E3
I424 E4
I425 E4
I426 E4
I427 D3
I428 F3
I429 D3
I430 C3
I431 C3
I432 C3
I433 C3
I434 C3
I435 C2
I436 C2
I437 C3
I438 C3
I439 C3
I440 C3
I441 C3
I442 D3
I443 D3
I444 D3
I445 D3
I446 D3
I447 C3
I448 E3
I449 C3
I450 D3
I451 C3
I452 D3
I453 E3
I454 D3
I455 E3
I456 C2
I457 D3
I458 D3
I459 D3
I460 E2
I461 E3
I462 C3
I463 D4
I464 D4
I465 D5
I466 D4
I467 D5
I468 C3
I469 C4
I470 D3
I471 C4
I472 D5
I473 C3
I474 D4
I475 D4
I476 D4
I477 C3
I478 E3
I479 E3
I480 E3
I481 E3
I482 E3
I483 E3
I484 C3
I485 C3
I486 C3
I487 C4
I488 C4
I489 E4
I490 E3
I491 E3
I492 E3
I493 E3
I494 A1
I495 A1
I496 B1
I497 A1
I498 B1
I499 B1
I500 B1
I501 B1
I502 B1
I503 A1
I504 A1
I505 A1
I506 B1

I507 B1
I508 A1
I509 B1
I510 A1
I511 B1
I512 B1
I513 B1
I514 B1
I515 B1
I516 B1
I517 A1
I518 A1
I519 A1
I520 A1
I521 A1
I522 A1
I523 A1
I524 A1
I525 A1
I526 B1
I527 B1
I528 A1
I529 B1
I530 B1
I531 B1
I532 A1
I533 B1
I534 B1
I535 B1
I536 B1
I537 B1
I538 B1
I539 A1
I540 A1
I541 A1
I542 A1
I543 A1
I544 A1
I545 A1
I546 A1
I547 A1
I548 A1
I549 A1
I550 A1
I551 A1
I552 A1
I553 A1
I554 A1
I555 A1
I556 B1
I557 B1
I558 B1
I559 B1
I560 B1
I561 G1
I562 G2
I563 G2
I564 F2
I565 F3
I566 F3
I567 F3
I568 F3
I569 F3
I570 E3
I571 E3
I572 F2
I573 E2
I574 F2
I575 F2
I576 G1
I577 G1
I578 G1
I579 G1
I580 F3
I581 F3
I582 F3
I583 F3
I584 G3
I585 G2
I586 G3
I587 G3
I588 G3
I589 G2
I590 G2
I591 G1
I592 F2
I593 F2
I594 G1
I595 G1
I596 G1
I597 G1
I598 G2
I599 G2
I600 G3
I601 G2
I602 G2
I603 G2
I604 G2
I605 G2
I606 G2
I607 G1
I608 G1
I609 G2
I610 G1
I611 F3
I612 G2
I613 G3
I614 G3
I615 F3
I616 F3

I617 G3
I618 G2
I619 B1
I620 B1
I621 B1
I622 B1
I623 B1
I624 B1
I625 B1
I626 B1
I627 B1
I628 B1
I629 B1
I630 B1
I631 B1
I632 B1
I633 B1
I634 B1
I635 B1
I636 B1
I637 B1
I638 B1
I639 B1
I640 B1
I641 B1
I642 B1
I643 B1
I644 B1
I645 B1
I646 B1
I647 B1
I648 B1
I649 B1
I650 C1
I651 B1
I652 B1
I653 B1
I654 B1
I655 B1
I656 B1
I657 B1
I658 C1
I659 B1
I660 B1
I661 C1
I662 B1
I663 B1
I664 B1
I665 B1
I666 B1
I667 C1
I668 B1
I669 B1
I670 B1
I671 B1
I672 B1
I673 B1
I674 B1
I675 B1
I676 B1
I677 B1
I678 B1
I679 B1
I680 B2
I681 B2
I682 B2
I683 B2
I684 B3
I685 B3
I686 B3
I687 B3
I688 B3
I689 B3
I690 B2
I691 B2
I692 B2
I693 A2
I694 B3
I695 B3
I696 B3
I697 B2
I698 B2
I699 B2
I700 B2
I701 B1
I702 A1
I703 D1
I704 E1
I705 D1
I706 E1
I707 E1
I708 D1
I709 E1
I710 E1
I711 E1
I712 D1
I713 E1
I714 E1
I715 E1
I716 D1
I717 E1
I718 E1
I719 E1
I720 E1
I721 E1
I722 E1
I723 E1
I724 E1
I725 E1
I726 E1

I727 E1
I728 E1
I729 F3
I730 G3
I731 G3
I732 G3
I733 G3
I734 G1
I735 G2
I736 G3
I751 F3
I752 G3
I753 F3
I754 G2
I755 G3
I756 G3
I757 G3
I758 G1
I759 G2
I760 G2
I761 B3
I762 B3
IB10 G1
IB11 C1
IB12 E1
IB13 C1
IB14 E1
IB15 C1
IB16 D1
IB17 D1
IB30 F1
IB31 E1
IB32 F1
IB33 F1
IB34 E1
IB35 E1
IB36 D1
IB37 D1
IB38 D1
IB39 D1
IB40 E1
IB41 D1
IB42 E1
IB43 F1
IB44 F1
IB45 E1
IB46 E1
IB47 E1
IB48 E1
IB49 E1
IB50 E1
IB51 E1
IB52 E1
IB53 E1
IB54 E1
IB55 E1
IB56 E1
IB60 D1
IB61 D1
IB63 E1
IB64 E1
IB65 E1
IB66 D1
IB67 D1
IB68 D1
IB69 E1
IB70 E1
IB71 E1
IB72 D1
IB73 E1
IB74 E1
IB75 D1
IB76 E1
IB77 D1
IB90 C1
IC00 A2
IC01 B2
IC04 B2
IC07 B2
IC43 B3
IC44 B3
IC47 B3
IC52 A2
IC53 B2
IC54 B2
IC55 B2
IC56 B3
IC57 B3
IC58 B3
IC59 B3
IC60 B3
IC61 B3
IC62 B3
IC70 A3
IC71 B2
IC72 B2
ICA0 B2
ICA1 B2
ID01 B1
ID02 B1
ID03 B1
ID04 B1
ID05 B1
ID06 B1
ID07 B1
ID08 B1
ID09 B1
ID10 B1
ID11 B1
ID12 B1

ID13 B1
ID14 B1
ID15 B1
ID16 B1
ID17 B1
ID18 B1
ID20 B1
ID21 B1
ID22 B1
ID23 B1
ID24 B1
ID25 B1
ID26 B1
ID27 B1
ID28 B1
ID29 B1
ID30 B1
ID31 C1
ID32 B1
ID33 B1
ID35 B1
ID36 B1
ID37 B1
ID38 B1
ID39 B1
ID40 B1
ID41 B1
ID42 B1
ID45 B1
ID46 B1
ID47 B1
ID57 B1
ID58 B1
ID59 B1
ID60 B1
ID61 B1
ID70 B1
ID72 B1
ID73 B1
ID75 B1
ID77 B1
ID78 B1
ID79 B1
ID80 B1
ID82 B1
ID84 B1
ID86 B1
ID87 B1
ID88 B1
IE01 F2
IE02 G2
IE03 G1
IE04 G3
IE05 G3
IE06 G3
IE07 G2
IE08 G2
IE09 G3
IE10 F3
IE11 G3
IE12 F3
IE13 G3
IE14 G2
IE15 G1
IE16 F3
IE17 F3
IE18 G3
IE19 G3
IE20 G3
IE21 G3
IE22 G3
IE23 G3
IE24 G2
IE25 F3
IE26 G1
IE27 G2
IE28 G1
IE29 G1
IE30 G2
IE31 G2
IE32 G2
IE33 G2
IE34 G2
IE35 G2
IE36 G3
IE37 G2
IE38 G2
IE39 G1
IE40 G1
IE41 G1
IE42 G1
IE43 F2
IE44 F2
IE45 G1
IE46 G2
IE47 G2
IE48 G3
IE49 G3
IE50 G3
IE51 F2
IE52 G3
IEA0 F3
IEA1 F3
IEA2 F3
IEA3 F3
IEA4 F3
IEA5 G1
IEA6 G1
IEA7 G1
IEA8 G1

IEA9 F2
IEB0 F2
IEB1 E2
IEB2 E2
IEB3 E3
IEB4 E3
IEB5 F3
IEB6 F3
IEB7 F3
IEB8 F3
IEB9 F3
IEC0 F2
IEC1 G2
IEC2 G2
IEC3 G1
IG50 B1
IG51 B1
IG52 B1
IG53 B1
IG54 B1
IG55 A1
IG58 A1
IG59 A1
IG60 A1
IG61 A1
IG62 A1
IG65 A1
IG66 A1
IG67 B1
IG68 A1
IG70 A1
IG71 A1
IG72 A1
IG73 A1
IG74 A1
IG75 A1
IG77 A1
IG78 A1
IG79 B1
IG80 B1
IG81 B1
IG82 B1
IG83 B1
IG84 B1
IG85 B1
IG86 B1
IG87 B1
IG88 B1
IG89 A1
IG90 B1
IG91 B1
IG92 A1
IG93 A1
IG94 A1
IG95 A1
IG96 A1
IG97 A1
IGA2 A1
IGA3 A1
IGA4 A1
IGA5 B1
IGA6 B1
IGA7 B1
IGA8 B1
IGA9 B1
IGB0 B1
IGB3 B1
IGE0 B1
IGE1 B1
IGE2 B1
IGE3 B1
IGE4 B1
IGE6 A1
IGE7 A1
IGE9 A1
IGF0 B1
IGF1 B1
IGF2 B1
IGF3 B1
IGF5 B1
IGF6 A1
IGH0 B1
IGH7 A1
IGH8 A1
IH00 D3
IH01 E3
IH02 E3
IH03 E3
IH04 E3
IH05 E3
IH07 D3
IH08 E3
IH10 E3
IH11 E3
IH12 E3
IH13 E3
IH14 E3
IH15 E3
IH16 E3
IH17 E3
IH18 E3
IH19 E3
IH20 E3
IH21 C3
IH25 E3
IH26 E3
IH30 E4
IH31 E3
IH32 E4
IH90 E3

IH91 E3
IH92 E3
IH93 E4
IHA0 C4
IHA1 B4
IHC0 C3
IHC1 C3
IHC2 C3
IHD2 E3
IHD4 E3
IHD5 E3
IHD6 E3
IHD7 E3
IHDE E3
IHF0 C3
IHF1 D4
IHF2 D4
IHF3 D4
IHF5 C3
IHF6 D5
IHF7 C4
IHG0 D3
IHG1 C4
IHG2 C3
IHK0 D5
IHK1 D4
IHK2 D5
IHK3 D4
IHK4 D4
IHM1 C3
IHM6 E3
IHM9 E2
IHMA D3
IHMB D3
IHMC D3
IHMG C2
IHMV D3
IHMW D3
IHMY E3
IHMZ D3
IHN0 C3
IHN3 D3
IHN4 C3
IHN6 D3
IHN8 C3
IHN9 D3
IHNA D3
IHNB D3
IHND D3
IHNE D3
IHNF C3
IHNG C3
IHNH C3
IHNJ C3
IHNK C3
IHP5 C2
IHP6 C2
IHP7 C3
IHP8 C3
IHP9 C3
IHPA C3
IHPB C3
IHPD D3
IHPF F3
IHPG D3
IHR1 E4
IHR8 E4
IHRE E4
IHRH E3
IHRJ E3
IHRK D3
IHRL E4
IHRM D4
IHRT E3
IHRU E3
IHRV E3
IHRW E3
IHRY E3
IHRZ E3
IHS0 E3
IHS1 E3
IHS2 E4
IHS3 E4
IHS7 D3
IHS8 C4
IHS9 E4
IHSA D4
IHSB D4
IHSC E4
IHSD D4
IHSE E4
IHSF E3
IHSG D4
IHSH D4
IHSK D4
IHSL C4
IHSM D4
IHSN D4
IHSP D4
IHSR C4
IHSS D4
IHST D5
IHSU D3
IHSV D3
IHSW D3
IHSX E3
IHSY E3
IHV0 C3
IHV1 D2
IHV3 D4

IHV5 E5
IHV6 E4
IHV7 F4
IHV9 F5
IHVB F5
IHVC C2
IHVD D3
IHVE D4
IHW0 D4
IHW8 F4
IHWA D3
IHWE D3
IHWJ D3
IHWL D3
IHWZ D3
IHY0 D3
IHY1 D3
IHY2 D3
IHY3 C4
IHY4 D4
IHY5 D4
IHY6 D3
IHY7 D3
IHY8 D3
IHY9 F4
IHYA D2
IJ30 E5
IJ31 E5
IJ32 E5
IJ33 E5
IJ34 E5
IJ35 B5
IJ36 C5
IJ37 C5
IJ38 C5
IJ39 E5
IJ40 C5
IJ41 D5
IJ42 E5
IJ43 D5
IJ46 C5
IJ47 E5
IJ48 D5
IJ50 E5
IJ51 E5
IJ52 E5
IJ53 C5
IJ54 C5
IJ55 E5
IJ56 C5
IJ57 E5
IJ58 C5
IJ59 C5
IJ60 E5
IJ61 C5
IJ62 F5
IJ63 B5
IJ64 B5
IJ65 C5
IJ66 B5
IJ67 C5
IJ68 C5
IJ69 C5
IJ70 C5
IJ71 C5
IJ72 C5
IJ73 C5
IJ74 C5
IJA0 D5
IJA2 E5
IJA4 E5
IJA5 D5
IJA6 C5
IJA7 C5
IJA8 E5
IJA9 E5
IJB3 E5
IJE1 C5
IJE3 B5
IJE4 C5
IJE6 E5
IJE9 E5
IN00 B4
IN01 A4
IN02 B4
IN03 B3
IN04 B4
IN05 A3
IN06 B4
IN07 A4
IN08 A4
IN09 B4
IN10 B3
IN11 B4
IN12 B3
IN13 A3
IN14 B4
IN15 B3
IN16 B3
IN17 B4
IN19 A4
IN30 A3
IN35 A4
IN50 B4
IN51 B4
IN52 B4
IN53 A3
IN54 A3
IP00 A4
IP01 A4

IP02 A4
IP03 A5
IP04 B4
IP05 B4
IP06 A5
IP07 A4
IP08 A4
IP09 A4
IP10 A5
IP11 A5
IP13 A5
IP14 A5
IP15 A5
IP18 B4
IP20 A4
IP50 B5
IP51 A4
IP52 A5
IP53 B5
IP54 A5
IP55 A5
IP56 B4
IP57 A4
IP58 A4
IT03 F4
IT05 F5
IT07 F5
IT08 G5
IT10 G5
IT11 G5
IT12 F5
IT14 F5
IT15 F5
IT16 F5
IT18 F5
IT22 F5
IT24 F4
IT25 F4
IT26 F5
IT27 F5
IT31 G5
IT32 G5
IT33 G5
IT36 F5
IT41 F3
IT42 F4
IT50 G5
IT51 G5
IT52 G5
IT53 G5
IT54 G5
IT55 G5
IT56 G5
IT66 G5
IT67 G5
IT68 G5
IT69 G5
IT70 F4
IT71 F4
IT72 F4
IT73 G4
IT74 G4
IT75 F4
IT76 F4
IT77 F4
IT78 F4
IT79 G3
IT81 G4
IT85 F4
IT86 F4
IT87 F4
IT88 F4
IT89 G4
IT90 G5
IT91 G5
IT92 F4
IT93 G4
IT94 F4
IT95 G4
IT96 G4
IT97 G4
IU00 E1
IU02 D2
IU03 E2
IU04 E2
IU05 E2
IU06 E2
IU07 E2
IU08 E1
IU09 D2
IU10 D2
IU11 E2
IU12 E2
IU13 E1
IU14 E1
IU15 C2
IU16 D2
IU17 E2
IU18 E2
IU19 D1
IU20 D2
IU21 D2
IU22 C2
IU23 D2
IU24 D2
IU25 D1
IU26 E2
IU27 E2
IU28 E2
IU29 D1

IU30 D2
IU31 E2
IU32 D2
IU33 D2
IU34 D2
IU35 E2
IU36 E2
IU37 D2
IU38 E2
IU39 E2
IU40 E2
IU41 E1
IU42 E1
IU43 D2
IU44 E1
IU45 E2
IU46 E2
IU47 D1
IU48 E2
IU49 D2
IU50 D2
IU51 E2
IU52 D2
IU53 D2
IU54 D2
IU55 D2
IU56 D1
IU57 C1
IU58 E2
IU59 E2
IU60 E2
IU61 E1
IU62 E1
IU63 D1
IU64 C2
IU65 E1
IU66 E1
IU67 E2
IU68 E2
IU6A C2
IU6E D2
IU6F D2
IU6J C2
IU6K C2
IU6L C2
IU6M C2
IU6N C2
IU6P C2
IU6R C2
IU6T C2
IU70 C2
IU71 C2
IU72 C2
IU73 E2
IU74 E1
IU75 E2
IU76 E2
IU77 E1
IU78 D1
IU79 D2
IU7B C2
IU7C C2
IU7E C2
IU7F D2
IU7H D2
IU7J D2
IU7K C2
IU7L C2
IU7M C2
IU7N C2
IU7P D2
IU7Q C2
IU7R C2
IU7T C2
IU7V C2
IU80 D2
IU81 C2
IU82 C2
IU83 E2
IU84 E2
IU85 E2
IU86 C2
IU87 D2
IU88 C2
IU89 C2
IU8A D2
IU8B D2
IU8C D2
IU8D C2
IU8F D2
IU8G C2
IU8H E2
IU8I E1
IU8J E2
IU90 D2
IU92 D2
IU93 D2
IU94 D2
IU95 E2
IU96 E2
IU97 D2
IU98 E2
IU99 D2

I2C IC Overview

I²C

PNX8535: CONTROL

B04E

Block Diagrams, Test Point Overview, and Waveforms

HDMI SWITCH

B08E

+3V3-PER

B08D

HDMI

51Q528.1E LA 6.

B06C

PACIFIC 3

CHANNEL DECODER

B03A

B03B

MAIN TUNER

I2C3-SDA
I2C3-SCL

B04H

DDC-SDA
DDC-SCL

7H00

PNX8537E

PNX8535

ERR

05

B04F

PCI XIO

B04G

SDRAM

I2C2-SDA
I2C2-SCL

B04A

I2C uP-SDA
I2C uP-SCL

STANDBY
CONTROL

I2C1-SCL

B04O

VID_OUT

B0_UART
B1_UART

HDMI

ERR

53

RXD
TXD

I2C1SDA

RXD
TXD

TTL

AJ27
AJ28

E10
C9

AK28
AK29

AH3
AG4

U4

V3

AB1
AC5

AH27
AK27

E27
D28

AF15
AK16

SDA3

SCL3

ERR

03

PNX8535: DIGITAL VIDEO IN

B04H

PNX8535: FLASH

B04Q

7HA0
NAND512W3A

NAND

PCI-AD

B04G

DDR2-D

DDR2-A

B04A

FLASH
(128x8)

PNX8535: SDRAM

7HG0
EDE2516ABSE

7HG1
EDE2516ABSE

DDR2

SDRAM

4Mx16x4

SDA2

SCL2

PNX8535: STANDBY CONTROLLER

7H02
M25P05

512K

FLASH

P0.1

P0.7

SDA1
SCL1

PNX8535: DIGITAL VIDEO OUT / LVDS

B04O

3HPJ
3HPH

3HPG
3HPF

3H41
3H38

3H59
3H61

3HPE
3HPD

9HWH
9HWG

3HPK

3HPM

FACTORY

USE ONLY

+3V3-STANDBY

3H02

3H03

SDA-SLAVE
SCL-SLAVE

1HP0

SDA-2
SCL-2

3
2

1

SDA-SSB
SCL-SSB

DDC-SDA
DDC-SCL

3HPB

3HPA

9HP8

9HP6

9HP7

9HP5

3J16

50 49

7J27

AD8191ASTZ

HDMI

89

SWITCH

90

ERR

23

7HP5
PCA9540BDP

2 CHANNEL

I2C

3HPQ

3HPT

B05A

B04C

RESET-NVM_WP-NANDFLASH

MULTIPLEXER

2

ERR

1

PNX5050: CONTROL

SDA-SSB

SCL-SSB

PNX8535: NVM / UART SWITCH

SDA-UP-MIPS
SCL-UP-MIPS

UART-SWITCH

RXD-UP

TXD-UP

RXD-MIPS
TXD-MIPS

DV-B0_UART2-RX

DV-B1_UART2-TX

9T21
9T22

BIN-5V

3JA5

3JB5

3JA7

3JC0

56

M24C02

EEPROM

9G53
9G54

PNX5050: SDRAM

7CA0
EDD1216AJTA

7CA1
EDD1216AJTA

DDR
SDRAM
16Mx16

13

R1-IN

14

R2-IN

8

7

3JE3

3JE2

3JE5

3JE4

7JA1

3JB4

3JB6

B06A

RXD2

TXD2

CIN-5V

3J02

3J06

56

7J29

M24C02

EEPROM

PACIFIC 3: LVDS

SDA-I2C4-DISP
SCL-I2C4-DISP

MAIN TUNER

B03B

9T85
9T86

3J03

ARX-DDC-SDA
ARX-DDC-SCL

BRX-DDC-SDA
BRX-DDC-SCL

CRX-DDC-SDA

CRX-DDC-SCL

3J05

SDA-MUX2-BUF

SCL-MUX2-BUF

1HE2

3

UART2

2

FOR

FACTORY

1

USE ONLY

9J06

9J07

3G52
3G53

9T51
9T52

1B01

1B02

1B03

1G50

16
15

16
15

16
15

1
2

3x HDMI

CONNECTOR

LVD S

COONECTOR

TO DISPLAY

3T77

76

1T04

TD1716F/IHXP

MAIN

TUNER

ERR

34

RXD-SERV

TXD-SERV

3T53

3GG3

3GG2

198 200

7GE2

T6TF4HFG

3J11

3J12

UART

PACIFIC 3

ERR

46

1M15

3

2

62

PWM-3

61

PWM-OR

68

69

UART

SERVICE

CONNECTOR

7GE1
M25P05

512K

FLASH

7GE0
P87LPC764BDH

MICRO

1

CONTROLER

8

18

17

PACIFIC 3: DISPLAY-INTERFACING

B06B

SDA-AMBI-3V3

SCL-AMBI-3V3

1

18 2

19

B08A

3J01

3C51

AIN-5V

3JA6

3JA0

3JB0

3J00

3JA8

56

7JA0

M24C02

EEPROM

B05B

MM_DATA

MM_A

7JE2
ST3232C

9

R2-OUT

T1-OUT

10

T2-IN

RS232

INTERFACE

T2-OUT

12

R1-OUT

11

T1-IN

UART

LEVEL ADAPTER

3J09

PARX-DDC-SDA

85

PARX-DDC-SCL

86

PBRX-DDC-SDA

93

PBRX-DDC-SCL

94

PCRX-DDC-SDA

98

PCRX-DDC-SCL

99

+3V3-STANDBY

ERR

ERR

3HPS
3HPR

11

3HPU

3HPW

12

4
5

24

7
8

3HPX

3HPY

+3V3-STANDBY

3HPZ

3HPC

B05C

9C08
9C07

7HC4

7HC1

SDA-PNX5050

SCL-PNX5050

7HC0
74HC4066PW

2
9

3

10

56

7HC3

M24C64

EEPROM

(MAIN NVM)

8

5

4
1
8

11

B08C

3HC3
3HC6

3JA1

3JC5

PACIFIC 3: DISPLAY-INTERFACING

B06B

SDA-SSB-MUX1
SCL-SSB-MUX1

SDA-SSB-MUX2
SCL-SSB-MUX2

PNX5050: VIDEO

3C50

C8 D8

7C00

PNX5050EH/M1

PNX5050

ERR

22

EXTERNALS

RXD
TXD

3JE1

3JE0

3T28

3T26

34 35

7T17

TDA10048HN

CHANNEL
DECODER

ERR

37

7G61-2

SDA-SSB1

SCL-SSB1

+3V3

3GA3

7G61-1

+5V-ON

3GA0

B01B

SDA-AMBI

SCL-AMBI

SUPPLY

3T57

3T56

23 24

7T57

TDA9898HL

IF

PROCESSING

ERR

26

3B59

3B58

5B10

5B12

LIGHT

H_16800_103.eps

080507

1M59

TO

AMBI

3

1

Block Diagrams, Test Point Overview, and Waveforms

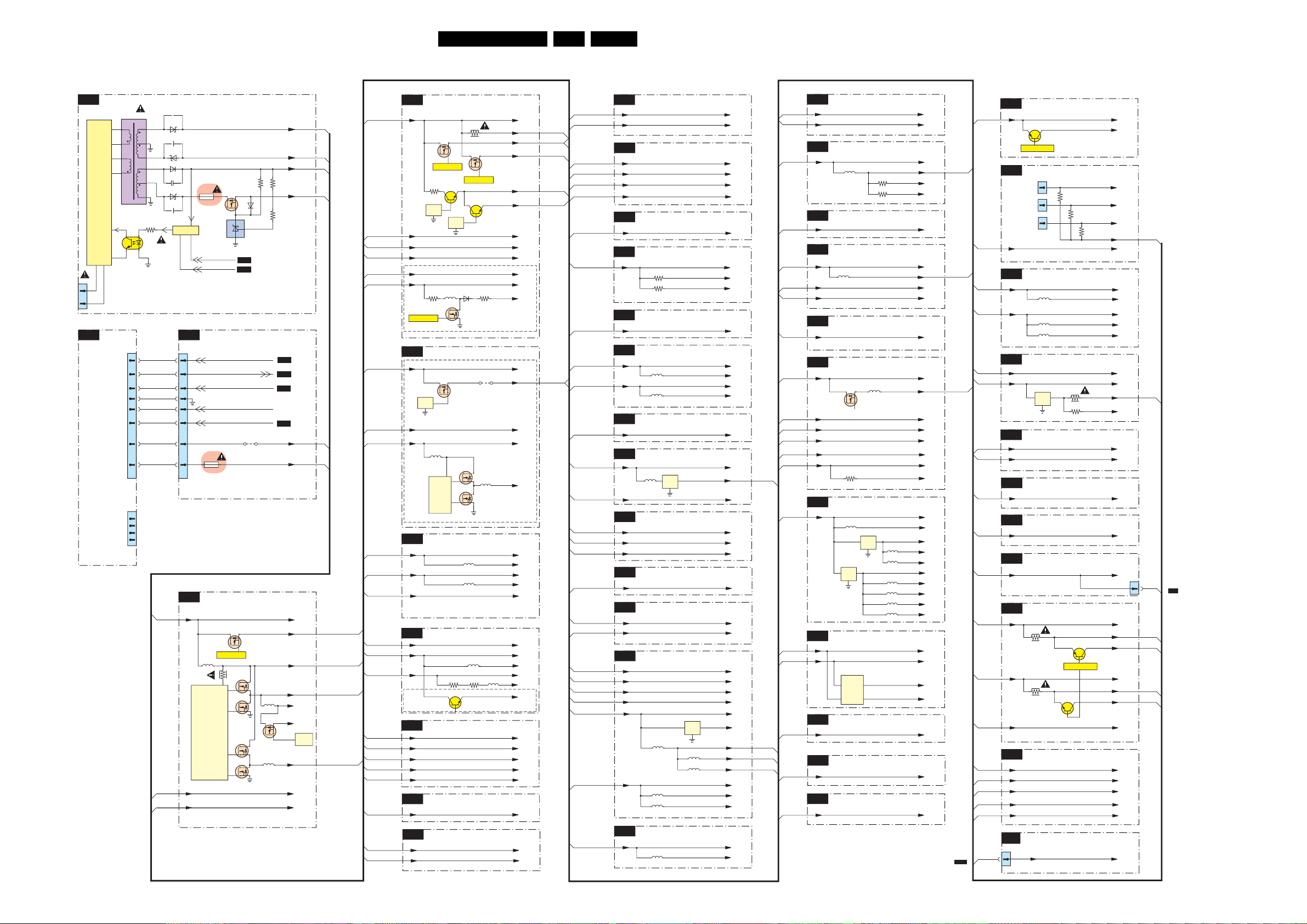

Supply Lines Overview

SUPPLY LINES OVERVIEW

SUPPLY

B01A

CONTROL

1P02

2

1

A

A

SEE ALSO BLOCK

DIAGRAM SUPPLY

DISPLAY
SUPPLY

5

3

2

1

1P11

1 1

2

3
4
5

6

7

8

1M09

1
2
3
4

5B01

11

3128

7B04
TCET1102

2143

AMBI-LIGHT

B01a

B02b

B02b

2B48

6B07

7

2B51

8

6B08

9

6B06

10

2B46

6B05

12

2B51

7B50

CONTROL

B01B

1P11

2

3
4
5

6

7

8

TO

B02A

+12VS

+5V-POD

1V2-STANDBY

1B33

2.5AT

AUDIO-PROT

STANDBY

SUPPLY

BACKLIGHT-OUT

POWER-OK-DISPLAY

LAMP-ON-OUT

BACKLIGHT-BOOST

STANDBY

1B50

T3A

DC/DC

5U00

7U00
NCP5422

Dual

Out-of-Phase

Synchronous

Buck Controller

+AUDIO-POWER

-AUDIO-POWER

3B72

B11C

B04D

R

9B06

6B15

3B73

3B29

+5V-STANDBY

12V/3V3

COVERTER

5U03

7U28

12V/1V2

COVERTER

5U02

1V2-STANDBY

7B06

K

A

SEE ALSO BLOCK DIAGRAM SUPPLY

7U16

7U14

POD-MODE

7U01

3U01

15

1

7U06

2

7U03

16

7U08

15

+12VS

+5V-STANDBY

B06B

B04A

B06B

N.C.

B04D

+12V-DISP

+12VS

+12V

+12VF

+3V3

+3V3F

+1V8

7U27

STAB .

+1V2

+5V-POD

52Q528.1E LA 6.

DC / DC

B02B

B01a,b

B11a

B11a

B02a,b,

b

B02b,B06

B01a
B11a

B11a

B02a
B02a

B02a

B02a

B02a

B02b

B06b,B04o

B02a

B02a

B02b

B02b,c,
B04a,B06b,
B09a,b

B02a
B02b

B02b,c

B02b

B02b,c,B3a,b,
B04a,e,l,m,p,q
B05a,b,c,d,B06b,
c,B07a,b,B08b,e,
B10a

1V8

B02b
B02a

B02c
B02a
B02b

B02b

B02b
B02b

B03a,B04e

+5V-STANDBY +5V-STANDBY

3U94

7U02-1

POD-MODE

7U19

7U18

5U09

7U24

7U8C

15

3T66

7T50

VOLT.
REG.

11

14

7U04-2

6U63

7U61-1

7U61-2

7U02-2

ON-MODE

7U20

5T08

5T08

5T53

3T67

7U04-1

3U86

7U17

VOLT.
REG.

+12VS +12VS
VP VP
VN VN

+12V
+12VF

3UB3

VSW

DC / DC

B02C

+3V3F +3V3F

7U8B

VOLT.

REG.

+12V

+12VF

5U68

7U64
L6910

STEP

DOWN

CONTR

CHANNEL DECODER

B03A

+3V3

+1V2

+5V-ON

MAIN TUNER

B03B

+3V3

+5V-ON

VTUN

PNX8535: STANDBY CONTROLLER

B04A

+3V3-STAN DB Y

+3V3

+2V5

+12V
+5V-ON

PNX8535: DEBUG

B04B

+3V3-STAN DB Y

PNX8535: NVM / UART SWITCH

B04C

+3V3-STAN DB Y

+5VS

3UB4

9U8A

5U60

5T52

ANTENNA-SUPPLY

+5VS

+5V-POD

+5V-ON

+3V3-STANDBY

+1V2-STANDBY

+12V

+12VF

+VTUN

(RESERVED)

+2V5

+12V

+12VF

+1V4

Only for Europe

+3V3

+3V3DVB

+1V2

+1V2DVB

+5V-ON

+3V3

+5V-ON

V1

VTUN

33VTUN

(RESERVED)

+3V3-STANDBY

+3V3

+2V5

+12V

+5V-ON

+3V3-STANDBY

+3V3-STANDBY

+5VS

B02b
B02b

B02b

B04p

B02a

B02a

B04p

B02a

B04p

B11a

B11a

B04p

B02b

B02a

B02b
B02a

B02b

B04p

B01b

B04p

B02a

B02a
B02b
B02b

B02a

B04l

B02a

B04c,d,l,m
B09a,B10c

B02a,B07a

B03a,B04a,b,
B06b,B10b

B04a,b,c,d,e,m,p,
B06b,B08a,c,B11a,c

B02a,B04p

B04a,B05b

PNX8535: MISCELANEOUS

B04D

+3V3-STANDBY

+5VS

PNX8535: CONTROL

B04E

+3V3-STAN DB Y

+3V3-PER

+3V3

+1V2

PNX8535: CONTROL

B04F

+3V3-PER

PNX8535: SDRAM

B04G

+1V8

B04H

B04I

VP

VN

B04K

+3V3-PER

B04L

+5VS

+3V3

B04M

+3V3-STANDBY

+3V3

+5VS

B04N

+3V3-PER

B04O

+12V-DISP
VDDA-LVDS

B04P

+1V2
+1V8
+3V3-STANDBY
+1V2-STANDBY

+3V3

VDDA-AUDIO

B04Q

+3V3

3HJ1
3HJ3

PNX8535: DIGITAL VIDEO IN

PNX8535: AUDIO

5HM0

5HM1

PNX8535: ANALOGUE AV

PNX8535: AUDIO

7HP0

5HP1

IN OUT

COM

PNX8535: AUDIO

PNX8535: VIDEO STREAMS

PNX8535: DIGITAL VIDEO OUT / LVDS

PNX8535: POWER

5HYA

5HY4
5HY7

PNX8535: FLASH

5HA0

7HK0

IN OUT

COM

5HK2
5HY1

+3V3-STANDBY

+5VS

+3V3-STANDBY

+3V3-PER

+3V3

RES

+1V2

+3V3-PER

+1V8

DDR2-VREF-CTRL

DDR2-VREF-DDR

RREF-PNX8535RREF-PNX8535

VP

AUDIO-VDD

VP

AUDIO-VEE

+3V3-PER

+5VS

VDDA-AUDIO

+3V3

+3V3-STANDBY

+3V3

+5VS

+3V3-PER

+12V-DISP

VDDA-LVDS

+1V2

+1V8
+3V3-STANDBY
+1V2-STANDBY

+3V3

+1V8-PNX

+3V3-PER

RREF-PNX8535

VDDA-LVDS

VDDA-AUDIO

VDDA-DAC

AUDIO-ADC

+3V3

+3V3-NAND

B02a
B05d

B02c

B02a

B02a

B02b
B05b

B06b

B02a

B01b

B02b
B02a

B02b

B02b
B02a

B02a

B02b
B02a

B02a

B02b

B02a

B04p

B04e,f,k,n

B04h

B04o

PNX5050: CONTROL

B05A

+3V3

+3V3-D

PNX5050: SDRAM

B05B

+2V5

5CA1

PNX5050: VIDEO

B05C

+3V3

PNX5050: SUPPLY

B05D

+3V3

5CD1

+1V4

+2V5-DDR

PACIFIC 3: LVDS

B06A

VDISP

PACIFIC 3: DISPLAY-INTERFACING

B06B

+12V-DISP

+3V3-STANDBY

+3V3

+5V-ON

+12V

PACIFIC 3

B06C

7GE5

IN OUT

POD: SUPPLY / C0NTROL

B07A

(POD IS THE EQUIVALENT OF COMMON INTERF.)

+5V-POD

+3V3

7P01
TPS2211AIDB

3,4

PC-CARD

POWER

SWITCH

5,6,9

POD: BUFFERING

B07B

+3V3

UART

B08A

+3V3-STANDBY

SPDIF

B08B

+3V3

7G54

3GC4

5GE2

COM

7GE3

IN OUT

COM

10

11,12,13

3CA1
3CA3

5G55

5GE0

5GE1

5GE3
5GE4
5GE5
5GE6

+3V3

+3V3-D

+2V5

+2V5-DDR
VREF-DDR
+2V5-STAB

+3V3

+3V3

+3V3-D

+1V4

+2V5-DDR

VDISP

+12V-DISP

VDISP

+3V3-STANDBY

+3V3

+5V-ON

+5V-STANDBY+5V-STANDBY

+12V

+8V2-PAS

+3V3+3V3

+3V3-P3

+2V5-PF
+2V5-P3

+2V5-PLL

+1V5

+1V5-P3

+1V5-PLL

+1V5-TX
+1V5-RX

+5V-POD

+3V3

PCMCIA-VPP

PCMCIA-VCC

+3V3

+3V3-STANDBY

+3V3

B02B

B02b

B08d

B02a

B08d
B02a

B09a
B02a

B02a

B02b

B02b

B01a

B01a

B02b

B02b

B11a
B11a

B11a
B11a

TO 1M20

B10C

SSB

B05d

B05a

B06a

EXTERNALS

B08C

+3V3-STANDBY

7J50

7J51

UART-SWITCH

HDMI

B08D

CONNECTOR

CONNECTOR

CONNECTOR

B08E

B09A

B09B

B10A

B10B

B10C

B11A

-AUDIO-POWER

B11C

1M22

5

1B01

HDMI

18

1B02

HDMI

HDMI

+5VS

18

1B03

18

3JC8

3JC7

3JH3

HDMI SWITCH

+5V-CON

+3V3

5JA5

5JA3
5JA4

ANALOGUE EXTERNALS

+5V-CON
+12V

7E70

3E70

IN OUT

COM

3E71

ANALOGUE EXTERNALS

+8V6
+12V

USB 2.0

+3V3

USB 2.0

+5V-ON

LED PANEL CONNECTOR

+5VS

AUDIO LEFT / RIGHT

+AUDIO-POWER

3D04

3D04

7D55

7D55

7D58

ON-MODE

ON-MODE

3D39

7D61

+3V3-STANDBY

AUDIO: PROTECTION/MUTE CONTROL

+3V3-STANDBY

VP

VN

VPP

VNN

LED PANEL

J

+5V2-STBY +5V2-STBY

+3V3-STANDBY

+3V3-UART

AIN-5V

BIN-5V

CIN-5V

+5V-CON

+5VS

+5V-CON
+5V-MUX

+3V3

+3V3-DIG

+3V3-ANA

+5V-CON

+12V

+8V6

VREF

+8V6
+12V

+3V3

+5V-ON

+5VS

+AUDIO-POWER

VPP

VP

VP

-AUDIO-POWER

VNN

VN

+3V3-STANDBY

+3V3-STANDBY

VP

VN

VPP

VNN

1M20

B08e,B09a

B09b

TO 1M20

5

J

IR/LED

B11c
B02b,B04i,

B11c

B11c
B02b,B04i,

B11c

H_16800_104.eps

110507

Circuit Diagrams and PWB Layouts

53Q528.1E LA 7.

7. Circuit Diagrams and PWB Layouts

Display Supply (32” & 37”): Part 1

123456

A1 A1

DISPLAY SUPPLY: PART1

A

1011

HEATSINK

123

B

MAINS FILTER

5403

1

4

2

MAINS INPUT

95-264Vac

C

1308

2
1

F410

F411

F412

3401

F415

F418

F413

F416

1400

F414

T5AH 250V

4M7

F419

D

4M7

3402

I419

E

HOT GROUND

3403

4M7

COLD GROUND

GND_COLD

F

1317

1
2
3

G

4
5
6
7
8

9
10
11
12

H

+12Vd

3430

10K

I

F417

2410

GND_COLD

6055

GND_COLD

I410

2400

2411

100p

GND_COLD

1320
1
2
3
4
5
6
7
8
9

10
11
12
13
14

3431

BZX384-C3V3

GND_COLD

470n

100p

GND_COLD

10R

3400

V

F401

F402

F427

6057

GND_COLD

9015

2

5405

1

9046

1403

500V

1404

V_NOM

1402

500V

1405

V_NOM

GND screw

I457

BZX384-C3V3

1006

3

4

DMF2405H60

I429

1

9070

9071

3459

10K

I443

23

14

22n

2403

DMF3547HB60

I431

1319

1
2
3
4
5
6
7
8
9
10
11
12
13
14

9072

+12Vd

9042

5401

2404

3405

220R

47p

+24V

9039

F404

F406

GND_COLD

F431

2401

9062

2407

GND_COLD

9040

I446

I430

470n

220p

9073

I411

I416

I455

6056

GND_COLD

3404
220R

I459

3433

BZX384-C3V3

GND_COLD

3

I440

I442

5402

2406

9003

3432

I412

4

47p

I414

I432

F429

F430

10K

+12Vd

23

1

DMF3547HB60

1K5

3450

1R0

9005

9001

3451

1R0

+5V2

ON-OFF

DIM-CONTROL

BOOST

3422

3423

GND_COLD

+12Vd

+15V

2408

GND_COLD

DIM-CONTROL
POWER-GOOD
ON-OFF

BOOST
STANDBY

3101 313 6154.4

123456789101112

7 8 9 1011121314

I445

100n

10K

I436

10K

BC847BW

GND_COLD

I437

7802

F420

3424

GND_COLD

9006

9007
5408

3u3

220R

+12Vd

I820

+12Vd

GND_COLD

I438

15K

3413

+5V2

F403

+12Vd

5409

80R

5410

80R

6461

BAS316

7801
BC817-25W

2n2

2402

GND_COLD

5406

3u3

GND_COLD

GND_COLD

F425

F426

1450

G5PA-1-5VDC

I424

3425

10K

F405

1P22

1
2

1P02

6460

BAS316

I439

BZX384-C2V7

1P11

1M09

1M12

1P15

2
1

9816
6469

1
2
3
4
5
6
7
8

1
2
3
4

1
2
3
4

1
2
3

F421

F428

TO

SSB

1M90

1
2
3
4
5
6

B6B-PH-K

400V_HOT

+12Vd

GND_COLD

STANDBY

I814

6809

1N5062

I830

6808

1N5062

I828

I815

22K

3807

I816

+5V2

POWER-GOOD

1M0

3800

3806

470R

20K

3804

2811

GND_COLD

9806

50V10u

RES

AVS1ACP08

I426

I427

47n

2805

I456

47n

2807

I408

I407

BC857BW

7013

I409

F407

GND_COLD

3810

12K

9810

7805

7

8

2

2802

3076

6024

3077

3078

MODE

VM

OSIN

I428

100p

+12Vd

470R

BZX384-C4V7

220R

2K2

VDD

VSS

2804

4

OSOUT

1

F423F422

6807

TS6B

56n

6

NC

5

VG

3

2806

47u

50V

25V_HOT

400V_HOT

I812

I811

I810

56n

2803

I817

I423

3803

I421

390R

I425

91K

3802

2808

9812

2816

2815

I418

330u

I420

AVS10CB

9808

9811

2810

100n

I825

100n

2809

I824

I826

4R7

3805

9814

I417

9813

330u

7806

47n

I422

33u

5804

HOT GROUND

COLD GROUND

13 14

H_16800_001.eps

170407

1006 F3

9811 D12

1011 A6

9812 F12

1308 C1

9813 D12

1317 G2

9814 D12

1319 G3

9816 G8

1320 G3

F401 G3

1400 C2

F402 G3

1402 D3

F403 H7

1403 D3

F404 G4
1404 D3
1405 E3
1450 E8
1M09 H8
1M12 H8
1M90 H8
1P02 C8
1P11 G8
1P15 I8
1P22 B8
2400 C2
2401 C4
2402 G7
2403 C3
2404 D4
2406 D5
2407 E4
2408 D7
2410 E2
2411 E3
2802 F10
2803 C11
2804 D10
2805 F10
2806 F11
2807 F10
2808 F12
2809 E12
2810 E12
2811 I10
2815 C12
2816 D12
3076 G10
3077 H10
3078 I10
3400 C3
3401 C2
3402 D2
3403 E2
3404 D5
3405 D4
3413 G7
3422 F6
3423 F6
3424 F7
3425 G8
3430 H2
3431 I2
3432 I5
3433 I5
3450 C6
3451 D6
3459 I3
3800 E9
3802 F11
3803 E11
3804 F9
3805 F12
3806 F9
3807 F9
3810 C10
5401 C4
5402 C5
5403 B5
5405 C3
5406 H8
5408 H7
5409 C7
5410 C7
5804 F12
6024 H10
6055 I2
6056 I5
6057 I3
6460 F8
6461 F8
6469 G8
6807 C11
6808 F9
6809 E9
7013 H10
7801 F7
7802 G7
7805 E10
7806 E12
9001 D6
9003 D5
9005 C6
9006 H7
9007 H7
9015 C3
9039 F4
9040 F4
9042 D4
9046 D3
9062 D4
9070 H3
9071 H3
9072 H4
9073 I5
9806 F10
9808 D13
9810 E10

F405 H8

F406 G4

F407 I10

F410 C1

F411 C1

F412 C1

F413 C2

F414 C2

F415 D1

F416 D2

F417 D2

F418 D2

F419 D2

F420 F7

F421 E8

F422 C11

F423 C11

F425 C8

F426 C8

F427 H3

F428 G8

F429 H5

F430 H5

F431 H4

I407 H10

I408 G10

I409 H10

I410 C3

I411 C5

I412 C6

I414 D6

I416 C5

I417 D12

I418 C12

I419 E2

I420 E12

I421 E12

I422 F12

I423 E11

I424 E8

I425 E11

I426 E10

I427 E10

I428 F10

I429 D3

I430 E5

I431 D4

I432 D6

I436 F7

I437 G7

I438 G7

I439 G8

I440 C5

I442 C6

I443 C4

I445 C7

I446 D5

I455 D5

I456 F10

I457 H3

I459 H5

I810 C11

I811 C11

I812 C11

I814 E9

I815 F9

I816 F9

I817 D11

I820 H7

I824 F12

I825 E12

I826 F12

I828 F9

I830 E9

A

B

C

D

E

F

G

H

I

Circuit Diagrams and PWB Layouts

54Q528.1E LA 7.

Display Supply (32” & 37”): Part 2

1 23456789

A2 A2

DISPLAY SUPPLY: PART2

HOT GROUND

BIAS SUPPLY

80R

5005

2000V

1n5

2000V

1n5

5040

4

3

TCET1102(G)

F029

1600V
15n

2017

7

6

5

3

80R

I114

2

1

15n

2011

1600V

F023

F300

I084

c001

A

25V_HOT

6081

B

VS-CONTROLLER

3002

39K

100K

3004

100p

2034

27K

2009

100p

100p

2035

2005

2040

560p

I103

3003

C

D

2K7

3048

3043

I104

10R

3009

E

3K3
2007

470n

3008

I021

330R

16V

F

2002

BZX384-C22

200p

2006

2004

I009

100p

630V

RES

6001

BAS316

3007

I028

1n0

10K

630V

470u

25V

3000

4R7

I008

I029

I006

I007

10K

3006

I010

400V_HOT

I096

5017

50R

I048

I027

3005

33K

3058

5M6

3050

820K

SOFTSTART

CONTROL

I018

2027

RES

I022

3066

I025

I047

CONTROL

MC34067P

9

1

2

3

16

6

8

7

11

I105

50V

15n

BC857BW
7017

10K

I023

3064

F007

3027

100K

2026

RES
6082

BAS316

9009

7001

3053

680K

I020

10K

50V
2n2

EN|UA

OSCC

OSCR

OSCCC

OS

EAO

Ip

In

SOST

3012

I097

15

4

7018
BC847BW

VCC

VREF

PGND

GND

2050

15K

6080

BYG22D

OA

OB

FI

1n0

I044

6079

BYG22D

RES9008

5

14

12

13

10

I012

3065

100K

68K

3061

CURRENT

PROTECTION

I024

16V

10K

2008

3013

470n

I095

6011

BAS316

6077

BYG22D

I033

6010

2003

2015

10n

BAS316

I099

80R

5016

80R

BAT54 COL

2016

100n16V

470p

470p

2064

5010
1m0

I108

F009

6004

4

2

I100

I101

I107

3

BAT54 COL

5001

S13932-04

2060

I043

3100

10R

F299

400V_HOT

F018

80R

5007

I001

I064

2061

2n2

I003

6007

BAS316

2n2

6003

3035

BAS316

I045

3016

3K3

6

3029

3K3

7

I039

9

6008

10

BAS316

3028

3K3

3020

3K3

3019

3K3

3K3

2062

2n2

I042

6027
BAS316

I109

I052

6028

BAS316

I145

HIGH SIDE

3014

I038

100R
2072

1n0

I046

2065

2n2

6002

BAS316

2071

1n0

I051

DRIVE

F002

47R

3015

6013

I037

BC857BW
7007

I004

LOW SIDE

100R

3017

47R

3018

I059

BC857BW
7008

I055

STP15NK50ZFP

1

DRIVE

STP15NK50ZFP

I057

6012

BZG05C15

9024

1

BZG05C15

9025

c002

7006

80R

5008

I002

7005

2

80R

3

I111

I294

2013

50R

5004

I110

F005

2

5013

3

I113

I112

2012

50R

5041

3033

I098

I049

1R0

1m0

6078

I053

I050

BYG22D

80R

9004

5009

2063

5015

F003

F004

6005

F008

I106

GND3

I036

50V

RES2018

15R

100n

3045

3001

100R

3046

I034

15R

15R

3021

2014

I081

2n2

2000V

G

I139

3070

2046

BC857BW

7009

I137

1K0

10K

3071

6006

3

31I

BAS316

47n

2048

3067

100R

I143

BAS316

H

6020

I

OVERVOLT AGE

PROTECTION

6009

I142

PDZ18-B

I141

2010

100u

470R

3010

3011

470R

6022

2019

BZX384-C4V7

BAS316

6051

3056

220R

3068

2K2

I136

I135

47R

10n

3047

431I

3075

1K0

I140

I138

2077

I132

1n0

6017

2n2

2047

10n

BAS316

I011

7004
BC847BW

3055
470R

6015

BAS316

I296

6014

BZX384-C22

I295

10K

3089

I131

HOT GROUND

7002

5002

8

BS51

2000

470p

COLD GROUND

1

2

I117

9

10

11

GND_COLD

12

13

14

GND_COLD

15

16

GND_COLD

F033

F032

1005

COLD GROUND

3101 313 6154.4

1 23456789101112

10 11 12 13

2K2

3069

I063

I116

I073

I076

I154

3.15A T

I155

6016

BYW29EX-200

1009

HEATSINK

GND_COLD

F021

I062

5027

I070

50R

3

50V

2025

1n0

6044

2

5028

5025

5026

50R

50R

50R

STPS20L45CT

1

2029

1n0

I074

2045

1n0

50V

I077

2020

50V

2028

I072

1n0

GND_COLD

I056

2001

50V

1n0

6021

3

STPS20H100CT

I054

2049

50V

1n0

6025

3

STPS20H100CT

ONLY 295V VERSION

6033

BYV27-600

6031

BYV27-600

2067

100p

2033

GND_COLD

HEATSINK

I156

25V2m2

+24V

1004

GND_COLD

STP16NF06FP

7012

2

3031
22K

BC847BW

GND_COLD

3057

50V

7014

F016

F028
F017

F027

BYV27-600

BYV27-600

3999

1K0

220R

2m2 25V

2021

GND_COLD

F012

2

2

2066

100p
6034

6032

3

1

I158

4K7

3032

I161

F022

2m2 25V

+24V

F025

F024

1

I151

1

6018

3044

3036

GND_COLD

+12Vd

35V1m8

2022

2039

GND_COLD

F006

PDZ15-B

I159

GND_COLD

1K0

I160

5K6

3022

35V1m8

3030

2052

680R

+24V

ON-OFF

+12Vd

6083

3081

BAT54 COL

56K

I082

I089

3023

15K

I085

7010

1

TS2431

K

18K

A

3

+15V

25V220u

2023

GND_COLD

3052

2024

220n

16V

R

2

2030

I153

1K2

3080

GND_COLD

470n

3082

F014

33K

Voltage

16V

100n

I094

+24V

2031

3037

3026
Vs

Adj.

1K2

10n

RES

I119

RES

15K

3025

GND_COLD

GND_COLD

1K2

3083

2032

I121

3038

1%

1K8

I093

470R

3034

13

+12Vd

+24V

9060

9061

2041

22n

15KMRS25 1%

3024

3040

8K2

I092

6023

BAS316

2K2

3041

1%

1002

GND screw

H_16800_002.eps

170407

F030

I152

I088

1002 G13
1004 H10
1005 F9
1009 H10
2000 E9
2001 D11
2002 B2
2003 A5
2004 C2
2005 D1
2006 C2
2007 E1

A

2008 G4
2009 D1
2010 H1
2011 E9
2012 E8
2013 D8
2014 F6
2015 F5
2016 E6
2017 C9
2018 G5

B

2019 H2
2020 C11
2021 C11
2022 D11
2023 A12
2024 E12
2025 B10
2026 G3
2027 F2
2028 C10
2029 D10
2030 F13

C

2031 D13
2032 D13
2033 G10
2034 C1
2035 C1

D

E

F

G

H

I

2039 D12
2040 C1
2041 D13
2045 E10
2046 I3
2047 I4
2048 I4
2049 E11
2050 E3
2052 G12
2060 C6
2061 B7
2062 D7
2063 C6
2064 D6
2065 D7
2066 E11
2067 F11
2071 E7
2072 C7
2077 H4
3000 A2
3001 G5
3002 C1
3003 C1
3004 D1
3005 C2
3006 D2
3007 E2
3008 E2
3009 E1
3010 H1
3011 H2
3012 F3
3013 G4
3014 C7
3015 C7
3016 C7
3017 D7
3018 E7
3019 E7
3020 E7
3021 G6
3022 B12
3023 E12
3024 E13
3025 F13
3026 F13
3027 G3
3028 E7
3029 C7
3030 F12
3031 G11
3032 H11
3033 A5
3034 F13
3035 C7
3036 H11
3037 E13
3038 E13
3040 E13
3041 F13
3043 D1
3044 H11
3045 G5
3046 G6
3047 H3
3048 D1
3050 E3
3052 E13
3053 E3
3055 I5
3056 I3
3057 A11
3058 E2
3061 E4

50V

2u2

8K2

33K

3064 F3
3065 E4
3066 F2
3067 H1
3068 H3
3069 A10
3070 H4
3071 H4
3075 G5
3080 H12
3081 E12
3082 H13
3083 H13
3089 H5
3100 A8
3999 A11
5001 C6
5002 D9
5004 D8
5005 C8
5007 B8
5008 B8
5009 B5
5010 A6
5013 E8
5015 C6
5016 D6
5017 A3
5025 D10
5026 E10
5027 B10
5028 C10
5040 D8
5041 E8
6001 D2
6002 D7
6003 C7
6004 D6
6005 D5
6006 I4
6007 C7
6008 D7
6009 H1
6010 G4
6011 F4
6012 E8
6013 C8
6014 H5
6015 H5
6016 G10
6017 I4
6018 G11
6020 H1
6021 D11
6022 H2
6023 E13
6025 E11
6027 C7
6028 E7
6031 F11
6032 F11
6033 F11
6034 F11
6044 B10
6051 H3
6077 A4
6078 A5
6079 A4
6080 A3
6081 B1
6082 A3
6083 E12
7001 C3
7002 A9
7004 H5
7005 C8
7006 D8
7007 C7
7008 E8
7009 H4
7010 F12
7012 G11
7014 H11
7017 F3
7018 F3
9004 B5
9008 A3
9009 A3
9024 D8
9025 E8
9060 C13
9061 C13
F002 C8
F003 D6
F004 D6
F005 D8
F006 G12
F007 F3
F008 D5
F009 D6
F012 D11
F014 F13
F016 B11
F017 C11
F018 B8
F021 A11
F022 A11
F023 F9
F024 D11
F025 D11
F027 C11
F028 C11
F029 C9
F030 C13
F032 F9
F033 F9

F299 B8
F300 F9
I001 B8
I002 C8
I003 C7
I004 D7
I006 B2
I007 C2
I008 C2
I009 D2
I010 D2
I011 I5
I012 E4
I018 E3
I020 F3
I021 E1
I022 F2
I023 F3
I024 F4
I025 F2
I027 C2
I028 G2
I029 G2
I033 F4
I034 F6
I036 F5
I037 C8
I038 C7
I039 D7
I042 C7
I043 A8
I044 A4
I045 C7
I046 C7
I047 A3
I048 A2
I049 A5
I050 A5
I051 E7
I052 D7
I053 A5
I054 E10
I055 E8
I056 D10
I057 E8
I059 E8
I062 A10
I063 A10
I064 B7
I070 B10
I072 C10
I073 D10
I074 D10
I076 E10
I077 E10
I081 F7
I082 E12
I084 F9
I085 E12
I088 D13
I089 E12
I092 E13
I093 F13
I094 F13
I095 A4
I096 A2
I097 A3
I098 A5
I099 A6
I100 A6
I101 A6
I103 C1
I104 D2
I105 E3
I106 E5
I107 C6
I108 D6
I109 C7
I110 D8
I111 C8
I112 E8
I113 E8
I114 E9
I116 B10
I117 C9
I119 E13
I121 E13
I131 I5
I132 I4
I133 I3
I134 I3
I135 H2
I136 H3
I137 H4
I138 H4
I139 G4
I140 H5
I141 H1
I142 H1
I143 H1
I145 E7
I151 D11
I152 C13
I153 H12
I154 E10
I155 G10
I156 G10
I158 G11
I159 G11
I160 H11
I161 H11
I294 C8
I295 H6
I296 H6
c001 G9
c002 F8

Circuit Diagrams and PWB Layouts

Layout Display Supply Panel (32” & 37”) (Top Side)

1002 A7
1004 C11
1005 B10
1006 A1
1009 B10
1011 C3
1308 A1
1317 A10
1319 A10

1320 A10
1400 B1
1402 A1
1403 A2
1404 B2
1405 A2
1450 A4
1M09 C10
1M12 C11

1M90 C10
1P02 C3
1P11 C9
1P15 C10
1P22 C3
2000 A8
2002 A7
2003 A7
2004 A6

2005 A7
2010 A8
2011 B7
2012 C8
2013 C7
2014 A8
2017 A7
2020 C9
2021 C9

2022 A9
2033 B10
2039 A9
2041 A11
2052 B11
2066 B11
2067 B11
2400 C1
2401 B2

2403 B1
2404 B1
2406 A3
2407 A1
2408 B3
2410 A1
2411 A1
2803 B4
2804 B5

2806 B5
2809 C5
2810 C5
2811 A11
2815 A4
2816 A6
3000 A5
3014 B6
3015 C6

3017 C7
3018 C7
3024 A10
3026 A11
3033 A7
3050 A5
3053 A5
3058 A5
3080 A10

3082 A9
3083 A9
3400 C1
3401 A1
3402 A1
3403 A1
3404 A3
3405 A2
3450 B3

3451 A3
3800 A5
3805 C5
3807 B5
3810 A4
5001 B7
5002 B9
5004 C7
5005 C7

5007 B6
5008 C6
5009 B8
5010 B7
5013 C8
5015 A7
5016 A6
5017 A5
5025 B10

55Q528.1E LA 7.

5026 A10
5027 B9
5028 B9
5040 B7
5041 B7
5401 B3
5402 A2
5403 A3
5405 B2

5406 C10
5408 C10
5409 C3
5410 C2
5804 B5
6016 B10
6021 B10
6025 B11
6031 A11

6032 B11
6033 A11
6034 B10
6044 C9
6807 C3
6808 B5
6809 A5
7001 A7
7002 A8

7005 C6
7006 C8
7012 C11
7805 B5
7806 C5
9001 A3
9002 C11
9003 A2
9004 A8

9005 B3
9006 C10
9007 C11
9015 B2
9016 A7
9017 A6
9018 A11
9019 A7
9020 B8

9021 A7
9024 C7
9025 B8
9030 C9
9031 A10
9032 A10
9033 A9
9035 B9
9036 B10

9037 B9
9039 A10
9040 A10
9042 A1
9043 A9
9044 C11
9046 B1
9047 B5
9048 A11

9049 A11
9052 A11
9054 A11
9056 C9
9061 A10
9062 A1
9080 B8
9083 A11
9092 A8

9093 A7
9098 B4
9101 A4
9102 A8
9808 B5
9809 C4
9811 B5
9812 C5
9813 B5

9814 A5

3101 313 6154.4

H_16800_003.eps

170407

Circuit Diagrams and PWB Layouts

Layout Display Supply Panel (32” & 37”) (Bottom Side)

2001 B1
2006 A6
2007 A6
2008 A6
2009 A5
2015 A6
2016 A6
2018 A5

2019 A6
2023 A2
2024 A1
2025 C2
2026 A7
2027 A6
2028 C3
2029 B1

2030 A2
2031 A2
2032 A2
2034 A6
2035 A6
2040 A6
2045 B1
2046 A5

2047 A5
2048 A5
2049 B1
2050 A6
2060 C6
2061 B6
2062 C5
2063 A5

2064 A5
2065 C5
2071 C5
2072 C6
2077 A5
2402 A3
2802 B7
2805 B7

2807 B7
2808 C7
3001 A5
3002 A6
3003 A6
3004 A5
3005 A6
3006 A6

3007 A6
3008 A6
3009 A6
3010 A4
3011 A6
3012 A6
3013 A6
3016 C6

3019 C5
3020 C5
3021 A6
3022 A1
3023 A1
3025 A1
3027 A7
3028 C5

3029 C6
3030 A2
3031 C1
3032 C1
3034 A1
3035 C6
3036 C1
3037 A2

3038 A2
3040 A1
3041 A1
3043 A6
3044 C2
3045 A6
3046 A6
3047 A5

3048 A6
3052 A2
3055 A5
3056 A5
3057 A2
3061 A6
3064 A6
3065 A6

3066 A6
3067 A4
3068 A5
3069 A4
3070 A5
3071 A5
3075 A5
3076 A1

56Q528.1E LA 7.

3077 A1
3078 A1
3081 A2
3089 A5
3100 A6
3413 A3
3422 A8
3423 A8

3424 A8
3425 A3
3430 A1
3431 A1
3432 A1
3433 A1
3459 A1
3802 B7

3803 B7
3804 B7
3806 B7
3999 B8
6001 A6
6002 C5
6003 C6
6004 A5

6005 A5
6006 A6
6007 B6
6008 C5
6009 A4
6010 A6
6011 A6
6012 C4

6013 C6
6014 A5
6015 A5
6017 A6
6018 C1
6020 A4
6022 A6
6023 A1

6024 A1
6027 C6
6028 C5
6051 A5
6055 A1
6056 A1
6057 A1
6077 A5

6078 B5
6079 A7
6080 A7
6081 A5
6082 A7
6083 A2
6460 A8
6461 A8

6469 A3
7004 A5
7007 C6
7008 C5
7009 A5
7010 A2
7013 A1
7014 C1

7017 A6
7018 A6
7801 A8
7802 A3
9008 A7
9009 A7
9060 A1
9070 A1

9071 A1
9072 A1
9073 A1
9104 A6
9105 A5
9106 A5
9107 A6
9806 B7

9810 B7
9816 A3

3101 313 6154.4

H_16800_004.eps

170407

AmbiLight (2 sided 6 LED)

0100 G2
0101 G4
2035 C13
2037 G8

3129 A13
3130 A13
3131 A13
3132 A13

3133 A13
3134 B13
3135 B13
3136 B13

3137 B13
3138 C13
3140 A15
3141 B15

123456789101112131415

Circuit Diagrams and PWB Layouts

3142 B15
3143 B15
3144 B15
3145 C15

3146 D13
3147 E13
3148 E13
3149 C12

3150 D11
3151 D11
3152 E11
3154 E11

3155 F11
3156 F12
3158 F11
3159 G11

3160 G12
3161 G12
3163 H12
3164 H12

3168 G7
3170 E9
3171 E9
3172 E9

3173 E9
3174 F9
3175 F9
3176 F9

3177 F9
3178 F9
3179 G9
3180 F10

3181 F10
3182 F10
3183 F10
3184 F10

57Q528.1E LA 7.

3185 G10
6002 C13
6003 G8
6004 D14

6006 E14
6008 E14
7001-1 E6
7001-2 D7

7002-1 E4
7002-2 D4
7003-1 E2
7003-2 D2

7004-1 B6
7004-2 A7
7005-1 B4
7005-2 A4

7006-1 B2
7006-2 A2
7064 H12
7065 G12

7066 E11
7067 D13
7068 H9
F101 D13

F102 A13
F103 B14
F104 B14
F105 B14

F106 B14
F107 C13
F108 C14
F110 E8

F111 F9
F112 F9
F113 F9
F114 G10

F115 G9
F116 G9
F117 G12
F118 F12

I117 D13
I118 E13
I119 E13
I120 D12

I136 H8
I141 E11
I142 H12
I145 G11

AL1 AL1

A

B

C

D

E

F

G

H

RAP-LED1 RAP-LED2

RAP-LED4 RAP-LED5

AMBILIGHT

7006-2

UE-HP660XA0-1XT

VIA-RAP

VIA-RAP

2122232425

7006-1

RAP

7

RAP-LED1

7003-2

UE-HP660XA0-1XT

461147

45

VIA-RAP

VIA-RAP

7003-1

RAP

7

RAP-LED4

404142434445461147

VIA-RAP

VIA-RAP

+12VF

+12VF

8
9
10

12
13

VIA-RAP

14
15
16
17

181920

UE-HP660XA0-1XT

4

GREEN
RED

5

BLUE

8
9
10

12
13

VIA-RAP

14
15
16
17

181920212223242526

UE-HP660XA0-1XT

4

GREEN
RED

5

BLUE

38

39

26

27

3

2

16

38394041424344

27

3

2

16

0100

EMC HOLE

180R

F102

3129

3146

3147

3148

180R

3130

180R

3131

180R

3132

180R

3133

F103

180R

3134

180R

180R

180R

180R

3135

3136

3137

3138

F107

F104

F105

F108

9

6

10

14

15

11

13

OUTR

OUTG

REXTR

REXTG

Φ

16

VCC

ENR

7067

3

DD313

I117

1K0

1K0

I118

I119

1K0

C

RESERVE

ENB

ENG

2

12

5

4

BZX384-C5V1

BZX384-C5V1

BZX384-C5V1

E

D

F106

7

OUTB

GND_HS

6004

6006

6008

8

REXTB

8R2
3140

8R2
3141

4R99

3142

4R99

3143
8R2

3144
8R2

3145

21
20

VIA

19
18

17

1

GND

7005-2

UE-HP660XA0-1XT

404142434445461147

38

39

VIA-RAP

4142434445

VIA-RAP

28
29
30
31
32
33
34
35
36
37

26

27

3

2

1

383940

28
29
30
31
32
33
34
35
36
37

26

27

3

2

1

28
29
30
31
32
33
34
35
36
37

28
29
30
31
32
33
34
35
36
37

8
9
10

12
13

VIA-RAP

14
15
16
17

181920

UE-HP660XA0-1XT

4

GREEN
RED

5

6

BLUE

461147

8
9
10

12
13

VIA-RAP

14
15
16
17

181920

UE-HP660XA0-1XT

4

GREEN
RED

5

6

BLUE

0101

EMC HOLE

VIA-RAP

VIA-RAP

2122232425

7005-1

RAP

7

RAP-LED2

7002-2

UE-HP660XA0-1XT

VIA-RAP

VIA-RAP

2122232425

7002-1

RAP

7

RAP-LED5

RAP-LED3

RAP-LED6

8
9
10

12
13
14
15
16
17

UE-HP660XA0-1XT

4

5

8
9
10

12
13
14
15
16
17

UE-HP660XA0-1XT

4

5

6

UE-HP660XA0-1XT

461147

VIA-RAP

VIA-RAP

VIA-RAP

19202122232425

18

7004-1

GREEN
RED

BLUE

UE-HP660XA0-1XT

461147

VIA-RAP

VIA-RAP

VIA-RAP

1819202122

7001-1

GREEN
RED

BLUE

7

RAP-LED3

434445

23

7

RAP-LED6

7004-2

RAP

7001-2

RAP

VIA-RAP

VIA-RAP

242526

39404142434445

38

28
29
30
31
32
33
34
35
36
37

26

27

3

2

16

+12VF

10K

BZX384-C5V6

I120

3161

7064
BC847BW

F101

100n

2035
6002

3839404142

27

+12VF

+12VF

10K

3156

7065
BC847BW

+3V3

I142

820R
3149

10K10K

3160

F117

3163

+12VF

+3V3

+12VF

28
29
30
31
32
33
34
35
36
37

3

2

1

BZX384-C5V6

I136

100n

2037
6003

820R

3168

F110

180R

3170

180R
3171

180R
3172

180R
3173

180R
3174

180R
3175

180R
3176

180R

3177

180R
3178

180R
3179

16

7068

F115

DD313

VCC

8R2

F114

6

7

OUTB

GND_HS

8

REXTB

3180

8R2

3181

4R99
3182

4R99
3183

8R2

3184

8R2

3185

21
20

VIA

19
18

17

1

GND

F111

F112

F113

F116

9

11

13

10

14

15

OUTR

OUTG

REXTR

REXTG

Φ

RESERVE

ENB

ENG

ENR

2

12

5

4

3

10K

3151

3152

3154

I145

3150

7066
BC847BW

+3V3

10K

10K

10K

3155

F118

3158

3159

10K

10K

I141

10K

A

B

C

D

E

F

G

H

3104 313 6215.3

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

10K

3164

E

D

C

PWM1_R

PWM1_G

PWM1_B

H_16800_133.eps

100507

Circuit Diagrams and PWB Layouts

1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
5
6
7
7
7
7
7
7
9
9
F
F
F
F
F
F
F
F
F
F

58Q528.1E LA 7.

AmbiLight (2 sided 6 LED)

1234567 8

AMBILIGHT

AL2 AL2

+3V3

3

2

3094

47K

2032

10n

3089
100R

2029

I105

+3V3

9002

7069

PDTC114EU

84

100p

2026

1

7063-1
LM393PT

1

10n

3100

1

4

I129

2030

10K

TEMP_SENSOR_L

3090

100R

100p

6019

BAS316

3088

10K

7070

NCP303LSN10T1

IN

RST

GND

NC

CD

A

B

C

D

E

3104 313 6215.3

1M09

1
2
3
4

6

5

S4B-PH-SM4-TB(LF)

1M59

1
2
3
4
5

67

S5B-PH-SM4-TB

1
2
3
4
5
6
7

89

S7B-PH-SM4-TB(LF)

F213

1M82

+3V3

8K2

3084

I125

10n

2025

+3V3

3085

I127

9001

TEMP_SENSOR_U
TEMP_SENSOR_L

5

6

2020

18p

2021

18p

10K

3086

3082

1004

16M9

3087

I123 I124

47K

2027

47K

10n

10K

10K

3083

P89LPC935F

F215

F216

3

2

1

F209

+12VF

+12V

F205

F206

F207

GNDS

GNDS

F214

GNDS

F210

F208

7061

LD1117DT33

2022

5010

F212

100n

10u

32

100n

2019

CONTROL_1
CONTROL_2

CONTROL_2

T

SCL

SDA

SCL

SDA

COM

1

1010

1.5A

OUTIN

I108

CONTROL_1
CONTROL_2

2023

F211

2034

100R

35V4u7

25V220u

2014

100n

3107

+3V3

2015

100R

100n

+12V

+12VF

3108

3109

2016

NTC_U+

10K

-T

NTC_U-

I106

100n

I107

1234

100R

3103

100p

I126

2031

I128

100R

3105

PWM1_B

+3V3

10n

100R

8K2

3091

10K

3092

3106

100R

PWM1_G

3093

I103

I104

47K

3

2

+3V3

2028

100n

84

TEMP_SENSOR_U

7

7063-2
LM393PT

7062

3

P0.0|CMP2|KBI0|AD01

26

P0.1|CIN2B|KBI1|AD10

25

P0.2|CIN2A|KBI2|AD11

24

P0.3|CIN1B|KBI3|AD12

23

P0.4|CIN1A|KBI4|DAC1

22

P0.5|CMPREF|KBI5

20

P0.6|CMP1|KBI6

19

P0.7|T1|KBI7

9

P3.0|XTAL2|CLKOUT

8

P3.1|XTAL1

2024

100n

21

VDD

Φ

8-BIT uCTRL

P1.3|INT0|SDA

P1.7|OCC|AD00

P2.0|ICB|DAC0|AD03

P2.1|OCD|AD02

VSS

7

NTC_L+

10K

3110

-T

NTC_L-

1M00

1
2
3

45

P1.0|TXD
P1.1|RXD

P1.2|T0|SCL

P1.4|INT1

P1.5|RST

P1.6|OCB

P2.2|MOSI
P2.3|MISO

P2.4|SS

P2.5|SPICLK

P2.6|OCA

P2.7|ICA

F200

F201

F202

18
17
12
11
10

6
5
4

1

2
13
14
15
16
27
28

3102

2017

100p

3098

PWM1_R

2018

100R

567 8

SCL

SDA

+3V3

3099

F217

2

3

I130

5

100n

3101

2033

H_16800_134.eps

100507

A

B

C

D

2K22K1

E

Circuit Diagrams and PWB Layouts

Layout AmbiLight (2 sided 6 LED) (Overview Top Side)

1004 --­1010 --­1M00 --­1M09 --­1M59 --­1M82 ---

2014 --­2015 --­2016 --­2017 --­2018 --­2019 ---

2020 --­2021 --­2022 --­2023 --­2024 --­2025 ---

2026 --­2027 --­2028 --­2029 --­2030 --­2031 ---

2032 --­2033 --­2034 --­2035 --­2037 --­3082 ---

3083 --­3084 --­3085 --­3086 --­3087 --­3088 ---

3089 --­3090 --­3091 --­3092 --­3093 --­3094 ---

3098 --­3099 --­3100 --­3101 --­3102 --­3103 ---

3105 --­3106 --­3107 --­3108 --­3109 --­3110 ---

3129 --­3130 --­3131 --­3132 --­3133 --­3134 ---

59Q528.1E LA 7.

3135 --­3136 --­3137 --­3138 --­3140 --­3141 ---

3142 --­3143 --­3144 --­3145 --­3146 --­3147 ---

3148 --­3149 --­3150 --­3151 --­3152 --­3154 ---

3155 --­3156 --­3158 --­3159 --­3160 --­3161 ---

3163 --­3164 --­3168 --­3170 --­3171 --­3172 ---

3173 --­3174 --­3175 --­3176 --­3177 --­3178 ---

3179 --­3180 --­3181 --­3182 --­3183 --­3184 ---

3185 --­5010 --­6002 --­6003 --­6004 --­6006 ---

6008 --­6019 --­7001 --­7002 --­7003 --­7004 ---

7005 --­7006 --­7061 --­7062 --­7063 --­7064 ---

7065 --­7066 --­7067 --­7068 --­7069 --­7070 ---

9001 --­9002 ---

Part 1

H_16800_035a.eps

3104 313 6215.3

Layout AmbiLight (2 sided 6 LED) (Part 1 Top Side)

Part 1

Part 2

H_16800_035b.eps

H_16800_135.eps

100507

H_16800_135a.eps

110507

Layout AmbiLight (2 sided 6 LED) (Part 2 Top Side)

Part 2

H_16800_135b.eps

110507

SSB: Supply

Circuit Diagrams and PWB Layouts

60Q528.1E LA 7.

1

2345678

9

SUPPLY

B01A B01A

A

1P02

2
1

B2P-VA-BF-BK

B

C

D

E

1B10

HEATSINK

F

9B01

GNDP

3104 313 6194.3

FB30

FB31

FB45

FB46

1B32

T1.6A-250V

2B30

IB65

220n

IB64

6B11

IB12

IB30

RS1D

3B71
220R

2B32

1n5

2B57

1u0

2B40

1u0

2B58

GNDV

5B00

4

1

IB10

1u0

1B30

IB42

2B39

GNDV

IB50

1B31

3B75

1K0

3B30

1K0

1K0

1u0

3

UF2327L

2

2B38

1u0

2B33

56p

IB71

IB51

3B76

1K0

3B31

1K0

3B683B67

1K0

IB76

BC817-25W

IB49

3B38

390R

3B39

390R

2B34

100p

IB46

7B00

IB69

3B35

3B40

3B41

3B42

GNDV

3B77

3B69

IB52

IB53

1K0
3B32

1K0

1K0

15R

390R

390R

390R

2B35

10p

DF06M

IB33

3B37

IB32

6B04

IB70

IB45

1K0

2

3B78

1K0
3B33

1K0

3B70

1K0

IB48

2B37

2B59

3B36
470R

GNDP

RES 1n0

3B43

IB73

470n

6B14

3

4

IB43

3B44

1

IB47

100K

4K7

IB14

PDZ5.6-B

3B60

3B34

2M2

7B02

7B01

2B31

GNDP

IB44

GNDV

450V
22u

IB35

2M2

BC857BW

2B56

GNDV

IB74

BC857BW

2B50

GNDP

47n

GNDV

IB31

2B36

3B46

FB38

450V68u

6B10

BZG05C15

RES

3B48

47p

1K0

3B47

3B45

IB54

2B41

10K

470R

3K3

2B44

220n

GNDP

3B49

2B60

10n

10n

1%18R

2B43

GNDV

6B03

7B05

STP5NK60ZFP

1

3B52

RES

47R

3B50

68R

1%

47n

cB04

GNDP

IB56

IB55

BZX384-C18

IB40

IB34

2

3

3B51

GNDP

1R0

GNDP

FB36

6B09

GNDP

HOT

5

3

2

1

BS28601-00

FB39

BZG05C6V8

7B04

TCET1102(G)

HOT

5B01

2B52

470p

COLD

7

8

9
10

11

12

GND

IB60

COLD

GNDSND

IB41

FB37

IB37

3B55

HEATSINK

IB75

IB36

PDZ5.6-B

6B13

IB16

1K2

2B42

1B11

9B02

GND

MBRS1100

IB68

BYW29-200

1n0

6B05

SS36

cB02

7B08

BC847BW

220n

2B51

1n0

6B08

2B46

1n0

6B06

2B45

FB35

3B25

1K2

3B61

1K0

GND

2m2 16V

IB61

IB17

GND

2B48

1n0

6B07

MBRS1100

1B33

2.5AT

7B07

TS2431

2B49

3

GND

47K

3B24

10n

2B28

7B50-1

BC847BPN

GND

3B66

3B62

6

1

PHD38N02LT

A

2

4K7

IB38

IB77

10K

IB39

2B47

cB01

K

R

PDZ5.6-B

6B02

5

2

25V1m0

7B06

1

FB27

GND

2B61

2n2

4
BC847BPN

7B50-2

3

3B63

IB72

3B64

-AUDIO-POWER

FB34

3B72

6B15

BZX384-C5V6

IB11

2B63

GND

+12VS

+5V-STANDBY

22K

3B65

10u

15K

2B55

+AUDIO-POWER

2K2

3B73

1K0 1%

IB15

47R

3B29

100n

IB13

3B54

10K

AUDIO-PROT

FB33

+12VS

FB32

+5V-STANDBY

1u0

2B62

GND

1%1K0

3B74

GND

STANDBY

1%

330R

IB63

1B40

GND

H_16800_031.eps

1
2
3
4

56

250407

A

B

C

D

E

F

1B10 E1
1B11 E7
1B30 A3
1B31 B3
1B32 A1
1B33 C8
1B40 D9
1P02 A1
2B30 B2
2B31 B5
2B32 C2
2B33 C3
2B34 C3
2B35 D4
2B36 D5
2B37 D4
2B38 E3
2B39 E3
2B40 E2
2B41 E5
2B42 E7
2B43 D6
2B44 E5
2B45 B8
2B46 B8
2B47 B8
2B48 A8
2B49 D8
2B50 B5
2B51 A8
2B52 C7
2B55 F9
2B56 D5
2B57 D2
2B58 E2
2B59 F4
2B60 B5
2B61 C8
2B62 B9
2B63 C9
3B29 C9
3B30 C3
3B31 C3
3B32 C4
3B33 C4
3B34 C4
3B35 D3
3B36 D4
3B37 D4
3B38 E3
3B39 E3
3B40 E3
3B41 E3
3B42 F3
3B43 E4
3B44 F4
3B45 E5
3B46 D5
3B47 D5
3B48 D5
3B49 D5
3B50 D6
3B51 D6
3B52 C6
3B54 D9
3B55 E7
3B60 C4
3B61 E8
3B62 E8
3B63 E8
3B64 F8
3B65 F9
3B66 E8
3B67 C3
3B68 C3
3B69 C4

3B70 C4
3B71 B2
3B72 B9
3B73 B9
3B74 C9
3B75 B3
3B76 B3
3B77 B4
3B78 B4
5B00 A2
5B01 A7
6B02 D8
6B03 E6
6B04 B4
6B05 C8
6B06 B8
6B07 A8
6B08 A8
6B09 D6
6B10 C5
6B11 C2
6B13 D7
6B14 F4
6B15 B9
7B00 D3
7B01 E4
7B02 D4
7B04 E7
7B05 C6
7B06 B8
7B07 C8
7B50-1 F8
7B50-2 E8
9B01 F1
9B02 F7
FB27 A8
FB30 A1
FB31 B1
FB32 B9
FB33 B9
FB34 A9
FB35 D8
FB36 D6
FB37 B7
FB38 A5
FB39 C6
FB45 B1
FB46 B1
IB10 B3
IB11 C9
IB12 D2
IB13 D9
IB14 F4
IB15 C9
IB30 A2
IB31 D5
IB32 A4
IB33 B4
IB34 B6
IB35 B5
IB36 B7
IB37 C7
IB38 E8
IB39 E8
IB40 A6
IB41 B7
IB42 C3
IB43 C4
IB44 C5
IB45 D4
IB46 D3
IB47 D4
IB48 D4
IB49 E3
IB50 E3
IB51 E3

IB52 E4
IB53 F4
IB54 E5
IB55 E6
IB56 E6
IB60 D7
IB61 D8
IB63 D9
IB64 B2
IB65 E2
IB68 A7
IB69 C3
IB70 C4
IB71 C3
IB72 F9
IB73 E4
IB74 E5
IB75 A7
IB76 C3
IB77 E8
cB01 B8
cB02 D8
cB04 D6

12345

6

7

89

Circuit Diagrams and PWB Layouts

61Q528.1E LA 7.

SSB: Supply

1

B01B B01B

SUPPLY

2

3

4

5

6

7

0198

A

BACKLIGHT-OUT

POWER-OK-DISPLAY

LAMP-ON-OUT

BACKLIGHT-BOOST

STANDBY

+5V-STANDBY
+5V-POD
+12V-DISP

B

C

TO

DISPLAY

SUPPLY

1P11

1
2
3
4
5
6
7
8

B8B-PH-K-S

FB28

FB20

FB21

FB22

FB23

FB24

FB25

FB26

1B20

1B21

1B22

1B23

1B24

1B25

1B26

2B20

2B21

2B22

2B23

2B24

2B25

2B26

100p

10n

10n

10n

10n

10n

100p

3B20
100R

3B22
100R

3B26
100R

3B23

100R

3B21
100R

9B06

9B07

1B50

T 3A 452

2B27

1u0

IB90

D

E

1M59

1

TO

2

AMBILIGHT

F

3
4
5

9B15
5B10

120R

9B16
5B11

120R

9B17
5B12

120R

9B18
5B13

120R

9B19
5B14

120R

FB40

FB41

FB42

2B53

100p

2B54

+5V-ON

FB43

100p

3B56

RES

9B10

FB44

100R

3B57

RES

9B11

100R

3B58

3B59

100R

100R

IB66

IB67

SCL-AMBI

SDA-AMBI

A

B

C

D

1B20 B4
1B21 B4
1B22 B4
1B23 B4
1B24 C4
1B25 C4
1B26 C4
1B50 C6
1M59 F3
1P11 B3
2B20 B5
2B21 B5
2B22 B5
2B23 B5
2B24 C5
2B25 C5
2B26 C5
2B27 B6
2B53 F6
2B54 F6
3B20 B6
3B21 B6
3B22 B6
3B23 C6
3B26 B6
3B56 F6
3B57 F6
3B58 F7
3B59 F7
5B10 E5
5B11 F5
5B12 F5
5B13 F5
5B14 F5
9B06 C6
9B07 C6
9B10 F6
9B11 F6
9B15 E5
9B16 E5
9B17 F5
9B18 F5
9B19 F5
FB20 B4
FB21 B4
FB22 B4
FB23 B4
FB24 C4
FB25 C4
FB26 C4
FB28 B4
FB40 F5
FB41 F5
FB42 F6
FB43 F6

E

FB44 F6
IB66 F7
IB67 F7
IB90 B6

F

G

H

3104 313 6194.3

G

H

H_16800_032.eps

250407

1

2

3

45678910

Circuit Diagrams and PWB Layouts

62Q528.1E LA 7.

SSB: DC / DC

4

F

56U

3U25

22K

47K

FU04

IU81

IU09

3U73

10R

3U77
120R 1%

+12VS

BZX384-C12

2U44

+1V2

IU82

+12V

4

3

IU8G

IU8H

6U01

BC847BS

IU93

U

41

I6

D 18
IU82 D14
IU83 E12
IU84 F14
IU85 F14
IU8G F14
IU8H F14
IU8I E4
IU8J D2
IU90 E8

FU23

5

7U14-2

1u0

3U57

68R

1%

SENSE+1V2-FPGA

SENSE+1V2-PNX8535

1K0

3U09

330R

3U18

3U78

22K

POD-MODE

SENSE+1V8

IU99

ENABLE-3V3

PROT-DC

ENABLE-1V2

IU91 F11
IU93 C14

IU94 F12
IU95 C8
IU96 D11
IU97 D11
IU98 E9
IU99 E15

IU14

2U14

OVP

2U00 A3
2U01 A5
2U02 A9
2U03 A5
2U04 B6
2U05 B4
2U06 B14
2U07 C8
2U08 B9
2U09 B9

2U10 B10
2U11 B11
2U12 B12
2U13 C8
2U14 B15
2U15 C7
2U16 C8
2U17 C2
2U18 D6
2U19 D4

2U20 D6
2U21 D9
2U22 D14
2U23 E8
2U24 E9
2U25 E12
2U26 E7
2U27 E8
2U28 E8
2U29 E6

1234

B02A B02A

DC / DC

A

B

C

D

3U34

33K

E

F

G

470R

3U74

1%

GND-SIG

GND-SIG

3U75

IU06

2U17

GND-SIG

IU44

3U38

GND-SIG

4K7

3U05

3U12

100n

33K

2U30 F6
2U31 F3
2U32 F13
2U33 E13
2U34 G2
2U35 G9
2U36 G2
2U37 H2
2U39 F13
2U40 E9

BC847BPN

7U13-2

10K

10K

7U05-1
BC847BS

2

4

3

IU12

0V

6

1

GND-SIG

+1V2-STANDBY

2U36

100p

IU8J

2

3U28

*

GND-SIG

2U41 E11
2U42 E11
2U43 E13
2U44 C14
2U53 D3
2U90 D9
2U91 D9
2U92 D9
2U93 A10
2U94 B9

2U00

5

6

*

3K3

100p

2U34

IU68

100n

2U37

100n

IU05

IU11

7U13-1
BC847BPN

1

7U09
BC847BW

*

2U53

100n

3U00

10K

BAS316

3U07
100R

3U35

10K

3U02

10K

6U00

GND-SIG

3U00 A3
3U01 A4
3U02 B3
3U03 B5
3U04 B13

3U06 B5
3U07 B3
3U08 B8
3U09 B15

FU02

3V3

IU45

3U39

3U61

10K

B 50U3

3U13

+1V2

5

22K

BC857BS

7U10-1

IU07

10K

1

6

2U31

3U10 E13
3U12 C2

3U13 C3
3U14 C3
3U15 C5
3U17 B8
3U18 B15
3U19 C6
3U20 C6

SUPPLY-FAULT

22K

3U14

3

7U05-2
BC847BS

4

GND-SIG

IU62

RES

100n

IU58

2

IU65

11U3

IU38

2U19

GND-SIG

BC857BS

3U60

01B

NCP5422ADR2G

FU03

IU28
IU31

IU35

IU39

100n

GND-SIG

IU8I

4

7U10-2

3

100K

12V UNDER-VOLTAGE DETECTION

3U21 C13
3U22 C10
3U23 C6
3U24 C8
3U25 C14
3U26 C6
3U27 C7
3U28 D2
3U29 C14
3U30 E4

2U05

GND-SIG

7U00

4

7

10

8

9

13

39K

3U32

3U30
330R

RES
3U67

10K

9U01

IU12 B2
IU13 B5
IU14 B15
IU16 B6
IU17 C8
IU18 C8
IU19 B13
IU20 C7
IU21 C5
IU23 C10

IU24 C11
IU25 C14 IU92 E12
IU26 C5
IU27 C8
IU28 C4
IU29 C13
IU30 C6
IU31 C4
IU32 C15
IU33 C6

2U12

12V SWITCH

+3V3F

IU49

2K2

PHD38N02LT

4V100u

IU92

6U09

STPS2L30A

9U03

7U28

6U05

BZX384-C6V8

STPS2L30A

6U07
9U02

*

GND-SIG

3U42

2U25

1n0

FU07

IU83

FU08

IU94

FU11

FU12

+3V3F

2U42

100u 4V

IU91

5U00

22u

7U29-1

3U22

FU26

7U15-1

BC847BS

F

10U
FU02 B3
FU03 C4
FU04 C14
FU05 D7
FU06 D9
FU07 E12
FU08 F12
FU11 G12
FU12 G12

10u

1

6

100K

6

1

IU59

5

3U64

8

B

FU20 F13
FU21 A8
FU22 A13
FU23 B15
FU24 C6
FU25 D6
FU26 D10
FU27 E4
FU28 E10
FU29 F8

+12VF

IU00

3U11

2

IU24

10R

3U41

2

IU51

1K0

3U50

3U59

3K3

2K2

1K0

IU96

2U11

5U03

IU00 A11
IU02 B5
IU03 B5
IU05 B3
IU06 B2
IU07 B3
IU08 B6
IU09 E14
IU10 E13
IU11 B3

1u0

IU97

10u

2U41

*

3U70

1%

1K0

6U06

FU05

56

BAS316

3UA3 B8
3UA4 B5
3UA5 C6
3UA6 C6
3

5

7A

B

U
3UA8 C7
3UA9 C6
5U00 A10
5U01 B8
5U02 D8

FU21

12V/3V3 CONVERSION

FU01

FDS4488

2U13

6U08

2U16

IU50

FU29

PDZ18-B

3U27

BAS316

6U04
3U45

3U48

2U26

100n

3UA1

470R
3U62

470R

+1V2

6K8

68R

68R

3U31 D6
3U32 D4
3U33 D6
3U34 D2
3U35 D3
3U36 D6
3U37 D7
3U38 D2
3U39 D3
3U40 D6

3U41 D10
3U42 D12
3U43 D5
3U44 D10
3U45 E7

3U47 E9
3U48 E7
3U49 E4
3U50 E10

5

22u

22u

10R

2U03

3U01

2U01

3U52

3U66

GATE

GATE

GND

2K2

TS2431

RES

IU02

22R

22R

3U06

3UA4

1

H1

IU21

2

L1

IU26

16

H2

15

L2

5

+1

6

-1

IS

12

+2

11

-2

IU48

IU41

RES

1

7U11

RES

K

R

2

A

RES

3

IU42

IU03

1u0

14

Φ

VCC

BST

1

VFB

2

1

COMP

2

ROSC

3

GND-SIG

1K0

3U49

5

FU27

6U10

PDZ9.1-B

10R

IU13

3U43

3U53

3U65

3U15

3K3

3U03

10R

3UA7

10R

8E 64U32

IU40

4R7

IU46

33K 1%

12K 1%

3U33

3U51 E13
3U53 E5

3U54 E6
3U55 E8
3U56 E13
3U57 E14
3U58 E9
3U59 E10
3U60 E4

3U61 E3

5E 25U3

3U62 E7
3
3U64 E10
3U65 F5
3U66 F5
3U67 F4
3U68 F8
3U69 F9
3U70 F10

3U71 G9
3U72 D10

36U

8

E

3U73 F14
3U74 H1
3U75 H2
3U76 E13
3U77 F14
3U78 C15
3UA1 E7
3UA2 E8

678

7U01

56

FDS4488

3UA6

6K8

2U20

3U54

2U30

IU08

IU61

4R7

IU30

1M0

3U20

100n

100n

3U36

RES

2U04

3n3

7U06

6

5

3UA9

22R

3UA5

22R

3U23

IU33

IU36

3U26

3K3

100n

2U18

FU25

1K0

3U40

RES

FDS4488

IU16

4R7

4R7

3K3

10R

3U19

10R

IU34
FU24

3U31

VSW

3UA8

IU20

7U08

FDS4488

6K8

2U29

2U15

3n3

3U37

6K8

IU54

1u0

BC817-25W

7U03

56

IU63

7U07

BOOSTER

11E 30U5

6U10 E4
7U00 B4

1

0U6

41B

7U01 A6
7U03 B7
7U05-1 D2
7U05-2 D4
7U06 B6
7U07 F7
7U08 C7
7U09 C3

5U01

10u

6K8

22R

3U17

IU18

100n

2U07

IU27

1K0

3U24

3U08

6U00 B3
6U02 B14

6U04 D7
6U05 E12
6U06 E7
6U07 F12
6U08 F7
6U09 E11

22R

IU17

1n0

IU95

1n0

3UA3

12V/1V2 CONVERSION

5U02

10u

6K8

22R

22R

3U55

3U46

3UA2

IU53

IU52

1n0

2U27

IU90

2U28

100n

2U23

IU60

1n0

1K0

3U63

4K7

3U68

GND-SIG

7U10-1 E3
7U10-2 E4
7U11 E5
7U13-1 B3
7U13-2 B2
7U14-1 C13
7U14-2 B14
7U15-1 E10
7U15-2 E10
7U16 B13

7U27 D13
7U28 E12
7U29-1 B10
7U29-2 C10

1E

10U9
9U02 F12
9U03 G12
9U04 A13
9U05 B13
FU00 A14

1

9101112

22u

2U93

2U02

100n

2U10

2U08

2U24

3n3

3n3

2U40

IU98

GND-SIG

2U09

FU06

3U47

3U69

IU67

2U35

22u

1u0

120R
1%

1K0
1%

2U21

2U94

470n

22u

3U71

22K

2U90

22u

2U91

22u

22u

4

3

2U92

7U29-2
BC857BS

22u

3U58

10K

*

3U72

FU28

7U15-2

BC847BS

5

IU23

10R

3

4

BC857BS

3U44

10K

4

C

3UI
IU35 C4
IU36 C6
IU38 C4
IU39 D4
I

5D 04U
IU41 E5
IU42 F5
IU44 D2
IU45 D3

13 14 15

9U04

*

9U05

*

SI4835BDY

100n

7U16

7U27
TS431AILT

3

K

12

NC NC

REF

2U43

3U10

4

1K0

1u0

FU20

IU10

IU55

3U56

3U76

2U32

IU19

A

IU46 D6
IU48 D5
IU49 D12
IU50 E8
IU51 E11
IU52 E8
IU53 E8
IU54 E7
IU55 E13
IU58 E4

BC847BS

1%

220R

220R

1u0

IU66

7U14-1

5

*

2U33

FU22

3U04

3U21

IU29

2U39

6

1

IU59 E10
IU60 E8
IU61 E6
IU62 E3
IU63 E7
I
IU66 F13
IU67 G9
IU68 G3
IU80 D14

FU00

1u0

1M0

2U06

6U02

BZX384-C12

47K

IU25

2

3U29

IU80

6.3V330u

2U22

*

+1V8 STABILIZER

3U51
560R

1%

+3V3

330u 6.3V

IU84

IU85

+1V8

1u0

*

H

100n

IU32

+5V-POD

A

B

C

D

E

F

G

H

3104 313 6194.3

1234 13 14

H_16800_033.eps

250407

5

6

789101112

15

SSB: DC / DC

Circuit Diagrams and PWB Layouts

63Q528.1E LA 7.

12 9

34

5678

DC / DC

B02B B02B

A

+5V-STANDBY

B

C

POD-MODE

D

ON-MODE

VSW

E

F

3104 313 6194.3

+12VS

+12V

3U81
100K

2U38

3U79
100K

*

1u0

3U93
100K

3U82

IU72

2

100K

IU70

2U45

6

7U04-1
BC847BS

1

100n

7

8

7U02-1
SI4936ADY

2

1

2U48

16V22u

3U83
100K

+12V

3U84

5

IU64

100K

3U80
220K

2U46

3

7U04-2
BC847BS

4

123

IU71

100n

IU76

3UB1

3UB9

1K0

10K

+5V-STANDBY

1K0

IU73

2U54

3U85

IU43

1

2U49

1n0

7U17

K

R

2

A

TS2431

31

220n

6U64

BZX384-C27

1u0

2U58

100K

3UA0

IU77

5

6

7U02-2
SI4936ADY

4

3

2U47

1

22u 16V

3

7U24
BSH112

2

FU80

FU83

IU75

2U56

5U09

IU04

+5V-ON

+5V-POD

220u

3UB2

33p

2U57

6U63

BAS316

IU74

68R

220p

3UB6

68R

3UB4
100R

3UB3

2K2

47R

3U86

3

7U19
BC817-25W

2

IU56

FU84

2U55

*

7U26
BC847BW

3U92

IU79

220n

47R

3U98

*

33K

*

FU81

3U87

3U88

3U99

3U90

330R1%1K0

33K

47R

IU78

+3V3-STANDBY

2U50

+VTUN

+12VF

1u0

TS431AILT

4567

3U89

IU47

*

2U51

1n0

7U18

12

K

NCNC

A

53

FU87

FU88

REF

IU57

4

VN

89

2K2

VP

3UB5

1

68K

1K0

3U91

3U94

1R0

3

7U20
BC817-25W

2

FU82

2U52

+5VS

+1V2-STANDBY

1u0

H_16800_034.eps

250407

A

B

C

D

E

F

2U38 A1
2U45 B2
2U46 B3
2U47 B4
2U48 C2
2U49 B6
2U50 B7
2U51 B8
2U52 B9
2U54 D5
2U55 D6
2U56 E5
2U57 E5
2U58 E5
3U79 B1
3U80 B3
3U81 C1
3U82 D1
3U83 C3
3U84 D3
3U85 A5
3U86 A6
3U87 B7
3U88 C7
3U89 A8
3U90 A7
3U91 C8
3U92 A6
3U93 B1
3U94 A8
3U98 D6
3U99 D7
3UA0 E6
3UB1 E3
3UB2 E5
3UB3 E6
3UB4 D6
3UB5 B8
3UB6 E5
3UB9 E3
5U09 D5
6U63 D5
6U64 D5
7U02-1 B2
7U02-2 B4
7U04-1 D2
7U04-2 D3
7U17 B5
7U18 C7
7U19 B6
7U20 B9
7U24 E4
7U26 E6
FU80 B4
FU81 B7
FU82 B9
FU83 B4
FU84 D6
FU87 D7
FU88 D7
IU04 E5
IU43 B5
IU47 B8
IU56 C6
IU57 C8
IU64 D3
IU70 B2
IU71 B3
IU72 D1
IU73 D5
IU74 E5
IU75 E5
IU76 E3
IU77 E6
IU78 B7
IU79 B6

Circuit Diagrams and PWB Layouts

64Q528.1E LA 7.

SSB: DC / DC

123456789101112

DC/DC

B02C B02C

A

B

C

D

E

F

G

3104 313 6194.3

12345678910

IU7J

IU7M

3U7A

2U63

3U7F

GND1V4

47K

1u0

2U60 1n0

2U61

GND1V4

47K

2U62

3U7D
100K

*

10n

100n

2U6M

BC847BS

2

10n

3U7B

2U64

IU6K

FU60

7U66-1

GND1V4

10R

100n

7U64

L6910

GND1V4

VREF

1

4

SS

2

OSC

IU6F

8

EAREF

6

1

12V / 1V4

CONVERTOR

3U7N 3U7P

22K

IU6J

IU7V

9

PGOOD

Protection & Ref

OSC

IU15

2U70

*

Monitor

1u0

3U6G

10K

IU22

IU6E

1n0

BAS316

COMP

5

3U7C

3

OCSET

IU7K

1K0

2U65

NC

16

GND1V4

6U62

15

VCC

22K

BOOT

HGATE

PHASE

LGATE

PGND

GND

VFB

IU7Q

IU7L

12

11

10

14

13

7

6

GND1V4

6U60

IU6M

PNX 5050 SUPPLY

22u

2U69

IU7B

IU7P

2U68

100n

IU6N

10R

4R7

IU6R

2U66

100n

3U6Y

3U95

4

7U66-2
BC847BS

2U6R

7U61-1

2

SI4936ADY

10R

IU6P

7U61-2

4

SI4936ADY

2K7

3U7H

IU7R
IU7C

5

2U6N

2n2

3U7G

IU6L

BAS316

3U6C

2U6B

9U60

3U6I

1K0

3U6M

22R

3U6B

22R

3U97

4R7

470p

22R

FU65

PROT-DC

SUPPLY-FAULT

+1V4

IU86

FU66

IU7H

SENSE+1V4

PROT-DC

ENABLE-1V2

OVP

SENSE+2V5

IU8D

3U8E
100R

3U8G

IU8E

1%

1K0

3U8F

100R

7U8A-2

BC857BS

1u0

2U8C

+12V

2

2U8B

1n0

3U8A

3U8C

1K0

IU69

2K2

7U8C

PHD38N02LT

6U8A

BZX384-C6V8

IU8F

+3V3F

+2V5 STABILIZER

6U8B

*

STPS2L30A

9U8A

IU87

2U8D

FU8A

1u0

2U8E

1

7U8A-1

100n

2U8A

3

3U8D

100R

TS2431

A

5

7U8B

IU8C

IU8A

R

2

BC857BS

K

3U16

1K0

3U8B

1

6

100K

IU8B

IU37

4

3

3U6L

*

IU6A

2U71

2U6K

22u 16V

3U6D

100R

+12VF

+12V

22R

3U96

IU7E

1%

1u0

100R

3U6E

*

3U7L

100R 1%

5U67

220R
5U68

220R
5U61

10u

22u

2U59

22u 16V

FU61

2U6H

1n0

5U60

10u

7

8

22n

2U6E

IU7N

1

56

3

1%

1K0

*

3

FU6S

3U7Q

IU7T

4K7

3U6J
470R

3U6K

10K

3U7E

3U6A

3U7J

6K8

2U6D

10n

1K0

GND1V4

1%

560R

2U6A

22u

2U6C

2U6G

2U6S

16V22u

2U6I

1n0

10n

2U72

22u

100n

2U67

IU6T

2U73

2U74

22u

22u

16V
22u

IU7F

*

11 12

+2V5

+2V5

1u0

IU89

IU88

H_16800_035.eps

250407

A

B

C

D

E

F

G

2U59 B5
2U60 C2
2U61 C2
2U62 D2
2U63 C1
2U64 C2
2U65 B3
2U66 C4
2U67 B6
2U68 E4
2U69 B4
2U6A B5
2U6B E4
2U6C C5
2U6D D5
2U6E D5
2U6G D5
2U6H C5
2U6I C6
2U6K B6
2U6M D2
2U6N D5
2U6R B5
2U6S B6
2U70 G2
2U71 E6
2U72 C6
2U73 C6
2U74 C6
2U8A E9
2U8B F10
2U8C F9
2U8D F11
2U8E F12
3U16 F9
3U6A D5
3U6B C4
3U6C D4
3U6D C6
3U6E E6
3U6G A3
3U6I F4
3U6J F5
3U6K F5
3U6L A7
3U6M C4
3U6Y D4
3U7A B1
3U7B B2
3U7C B3
3U7D C2
3U7E D5
3U7F D1
3U7G E5
3U7H E4
3U7J E5
3U7L E7
3U7N F2
3U7P F3
3U7Q E5
3U8A E10
3U8B E9
3U8C E10
3U8D F9
3U8E F8
3U8F F8
3U8G F8
3U95 D4
3U96 C7
3U97 D4
5U60 C5
5U61 B6
5U67 B6
5U68 B6
6U60 B4
6U62 B3
6U8A F10
6U8B F11
7U61-1 C5
7U61-2 D5
7U64 C2
7U66-1 D2
7U66-2 F4
7U8A-1 E10
7U8A-2 E9
7U8B E9
7U8C E10
9U60 E4
9U8A F11
FU60 D2
FU61 C5
FU65 D7
FU66 E7
FU6S F5

FU8A F12
IU15 F2
IU22 B3
IU37 F10
IU69 E10
IU6A E6
IU6E B4
IU6F D2
IU6J B2
IU6K C2
IU6L C4
IU6M D4
IU6N D4
IU6P D4
IU6R F4
IU6T C6
IU7B D4
IU7C E5
IU7E E7
IU7F E6
IU7H E7
IU7J C1
IU7K C3
IU7L C4
IU7M C1
IU7N D5
IU7P E4
IU7Q E4
IU7R E5
IU7T D5
IU7V B2
IU86 E7
IU87 F11
IU88 F12
IU89 F12
IU8A E9
IU8B F10
IU8C F9
IU8D F8
IU8E F8
IU8F F11

Circuit Diagrams and PWB Layouts

65Q528.1E LA 7.

SSB: Channel Decoder

123456789

B03A B03A

CHANNEL DECODER

A

B

C

D

E

F

G

H

+1V2

IT41

RES

1u0

2T25

3T05
220K

IT03

IT05

9T23

RES

3T15

330R

+3V3DVB

SDA-SSB1

SCL-SSB1

TUN-TDA-SDA

TUN-TDA-SCL

RESET-SYS-DETECT

TDA-IF-AGC

4-MHz

TUN-AGC

TUN-AGC-MON

AGC-COMP

TDA-IF-IN-N

TDA-IF-IN-P

FT42

3T19
100K RES

3T13
100K

2T31

IT15

9T20

RES

100n

+3V3

FT41

IT42

5T15

+1V2DVB

120R

IT11

4
BC847BPN

7T18-2

5

3

3T16

IT26

1K0

10K

3T21

SDA-SSB

SCL-SSB

2T17

100n

5

4

2

NC

7T13

3

74LVC1GU04GW

1

+3V3DVB

10K

100n

2T26

3T14

IT22

9T21

2

9T22

6

7T18-1
BC847BPN

1

SDA-SSB1

SCL-SSB1

IT27

I

3T20
100K

IT16

3T32

5T09

FT15

120R

6.3V

100n

2T01

2T32

22u

7T25

LD3985M122

1

IT24

3

5T08

120R

1K2

1K2

3T33

OUTIN

INH BP

COM

2

FT11

2T04

3T26

3T28

100n

2T05

2T24

100n

100R

100R

5

4

6.3V
22u

IT25

IT32

2T27

RES 2T29

100n

+1V2DVB

+3V3DVB

+1V2DVB

+3V3DVB

100n

2T08

100n

IT07

2T09

FT40

100n

7T17-1

2T36

4859

ANA_21_ADVANA_ASV

VDD33_ADC

7

XIN

8

XOUT

41

CLR

33

SADDR

35

SCL

34

SDA

39

TCK

38

TDI

40

TDO

37

TMS

36

TRST

2

M

3

VI

P

GND_HS

47

49

IT33

100n

100n

2T07

2T35

+5V-ON

+5V-ON

47K

3T06

1K0

1K0

100n

FT17

IT18

3T09

IT10

9T41
RES

2T18

3T31

22R

3T30

RES

100n

2T19

IT36

RES

RES

10K

3T07

3K3

3T29

2T23

9T42

3K3

FT36

FT37

FT38

FT39

IT14

10n

IT12

2T22

10n

3T08

IT08

3T10

10K

100n

100n

2T21

2T20

JTAG-TCK

JTAG-TD-PNX8535-FE

JTAG-TMS

JTAG-TRST

IT31

47p

47p

2T28

RES

3T11

10K

+3V3DVB

10 11 12 13

+3V3DVB

VDDE33

VSSE

+1V2DVB

AGC_IF

VDDI12

AGC_TUN

DO

GPIO<0:3>

OCLK

PSYNC

TUN

VSSIS

44

DEN

SDA

+1V2DVB

SCL

+1V2DVB

100n

2T12

100n

2T13

100n

2T14

3T17-4

3T17-2

3T22-4

3T22-2

100n

2T15

3T27-2

33R

33R

3T17-3

33R

3T17-1

33R

33R

33R

3T27-1

33R

3T22-3
3T22-1

33R

33R

33R

3T27-3

33R

100n

2T16

42

43

18

32

20

0

21

1

22

2

23

3

24

4

25

5

26

6

27

7

19

17

16
15

+1V2DVB

+1V2DVB

+3V3DVB

1112846123145

VDDA12_PLL

VDDA33_ADC

VDDA12_OSC

MAIN

TDA10048HN/C200

VSSA_ADC

VSSA_OSC

VSSA_PLL

4

6

1014291330

+3V3DVB

FE-VALID

AGC-COMP

FE-DATA0
FE-DATA1
FE-DATA2
FE-DATA3
FE-DATA4
FE-DATA5
FE-DATA6
FE-DATA7

FE-CLK

FE-SOP

3104 313 6194.3

12

34567

8910

11 12 13

H_16800_036.eps

250407

A

B

C

D

E

F

G

H

I

2T01 B5
2T04 D5
2T05 D5
2T07 D8
2T08 D9
2T09 D9
2T12 D11
2T13 D11
2T14 D11
2T15 D12
2T16 D11
2T17 E4
2T18 E8
2T19 E8
2T20 F6
2T21 F6
2T22 H8
2T23 H8
2T24 F5
2T25 C4
2T26 F3
2T27 C6
2T28 I6
2T29 I6
2T31 G2
2T32 B5
2T35 D8
2T36 D9
3T05 D4
3T06 E8
3T07 G8
3T08 E7
3T09 E7
3T10 E7
3T11 E7
3T13 F2
3T14 F4
3T15 G4
3T16 G3
3T17-1 G12
3T17-2 G11
3T17-3 G12
3T17-4 F11
3T19 F2
3T20 C5
3T21 G3
3T22-1 G12
3T22-2 G11
3T22-3 G12
3T22-4 G11
3T26 H5
3T27-1 G12
3T27-2 F12
3T27-3 G12
3T28 H5
3T29 G8
3T30 G8
3T31 G8
3T32 H5
3T33 H5
5T08 C5
5T09 B5
5T15 E3
7T13 E4
7T17-1 F9
7T18-1 G4
7T18-2 F3
7T25 B5
9T20 F2
9T21 H3
9T22 H3
9T23 F4
9T41 H8
9T42 G8
FT11 C5
FT15 B5
FT17 G7
FT36 H8
FT37 H8
FT38 H8
FT39 H8
FT40 F9
FT41 D3
FT42 F2
IT03 C4
IT05 D4
IT07 E9
IT08 E7
IT10 E7
IT11 F3
IT12 H8
IT14 H8
IT15 F2
IT16 F5
IT18 F7
IT22 G4
IT24 C5
IT25 C6
IT26 G3
IT27 G3
IT31 H6
IT32 H6
IT33 H9
IT36 G8
IT41 B4
IT42 E3

SSB: Main Tuner

1HE0 A14
1T04 D2
1T05 C2
1T06 A2
1T55 D5
1T65 C5
1T70 C5

1T71 E14
2T40 B8
2T41 C8
2T42 C10
2T45 G10
2T46 G13
2T47 H4

1234567

2T48 B9
2T49 B9
2T50 F3
2T51 F13
2T53 F3
2T58 H10
2T59 G3

2T60 F14
2T61 G2
2T62 F5
2T63 H11
2T64 E13
2T65 H11
2T66 G13

Circuit Diagrams and PWB Layouts

2T67 F1
2T68 G2
2T69 G3
2T70 F2
2T71 F2
2T72 G2
2T73 G13

2T74 G14
2T75 G14
2T76 H9
2T77 H11
2T78 F14
2T79 E12
2T80 G11

2T81 G11
2T82 G11
2T83 H11
2T84 E13
2T85 F1
2T86 G9
2T87 F9

2T88 F11
2T89 F11
2T90 F1
2T91 G4
2T92 H12
2T93 F5
2T94 F10

2T95 F11
2T96 F13
2T97 G11
2T99 E13
3T39 E9
3T40 G11
3T41 C9

3T42 C8
3T43 C9
3T44 C9
3T45 C10
3T46 D9
3T47 D9
3T48 D9

3T49 D9
3T50 E8
3T51 E9
3T53 G5
3T54 G10
3T55 G10
3T56 F13

3T57 F14
3T58 F9
3T59 F9
3T63 H8
3T64 H9
3T65 A8
3T66 A8

3T67 A9
3T68 H10
3T69 I9
3T70 I10
3T71 I9
3T74 G11
3T75 H10

66Q528.1E LA 7.

3T76 E14
3T77 F5
3T80 A12
3T81 A12
3T82 B12
3T83 H4
3T84 H4

3T85 I9
3T95 B12
5T52 A10
5T53 E12
5T54 E5
5T61 F4
6T40 C8

6T41 C10
6T55 B9
6T56 B8
6T57 B8
7T50 C9
7T51-1 D10
7T51-2 E10

7T55 I10
7T56-1 H9
7T56-2 H9
7T57 E12
7T58 H3
9T24 I9
9T51 F5

9T52 G5
9T53 F1
9T54 F2
9T55 D4
9T56 G2
9T57 G9
9T58 G2

9T59 F2
9T60 F2
9T61 F3
9T62 F2
9T63 E3
9T64 F3
9T65 G2

9T66 E3
9T67 G5
9T68 G5
9T70 G9
9T72 C14
9T73 B12
9T74 G7

9T75 G7
9T77 F3
9T80 F9
9T81 F9
9T82 C5
9T83 C5
9T85 I3

9T86 I3
AT6 2 F4
AT6 3 F4
AT6 4 F9
AT6 5 F9
FT50 F11
FT51 F11

FT56 I8
FT57 G14
FT58 A10
FT59 A14
FT60 B14
FT61 B14
FT62 B14

FT63 B14
FT64 B14
FT65 B14
FT66 B14
FT67 B14
FT68 B14
FT76 H8

IT50 C8
IT51 C9
IT52 D9
IT53 D9
IT54 E8
IT55 E9
IT56 E9

IT66 H2
IT67 H2
IT68 I4
IT69 H5
IT70 E12
IT71 E13
IT72 F10

IT73 G11
IT74 G11
IT75 H11
IT76 H12
IT77 H11
IT78 E14
IT79 A8

8 9 10 11 12 13 14 15

IT81 A9
IT85 H9
IT86 G12
IT87 H9
IT88 H9
IT89 F5
IT90 F4

IT91 G4
IT92 F13
IT93 G11
IT94 G11
IT95 G11
IT96 H11
IT97 H12

B03B B03B

A

B

C

D

E

ANTENNA-SUPPLY

F

9T53

10n

2T67

G

H

SDA-SSB-MUX2

SCL-SSB-MUX2

I

MAIN TUNER

1T06

*

*

2T85

UV1318S/A I H N-3

VA1Y9ED2001

*

TD1716/HXP-3

*

*

1u0

1u0

2T90

2T70

1T05

1T04

RF-IN

1u0

14

15

AGC3AS

1

14
15

RF-AGC3SCL6SDA

APO1AS5BM9IFOUT

NC1

2

14

NC14NC23RF_AGC6SCL7SDA

DC_PWR

15

2

1

9T54

10n

2T71

10n

2T61

10n

2T72

*

9T56

TUNER

TUNER

NC2

4

TUNER

*

9T58

IT66

5

9T62

*

2T68

AS

NC14SCL5SDA2TU

6

IT67

13

12

VS7VST

ADC

IF1

IF2|NC2

9

8

11

10

13

TMTM

12

NC3

4MHZ

11

7

8

10

13

MTMT

XTAL_OUT

+5V

IF_OUT111IF_OUT2

12

8

9

10

220n

*

9T63

2T50

9T77

2T53

9T59

9T60

9T65

10n

*

9T61

9T64

*

10n

*

2T69

+3V3

7T58

PCA9515ADP

RES

SDA0

3SDA16

SCL02 SCL1 7

EN5

GND

8

VCC

9T85

9T86

3T65
100R

9T75

3T66
100R

22n

2T41

ANTENNA-CTRL

+3V3

TDA-IF-IN-N

TDA-IF-IN-P

IF-N

IF-P

TUN-AGC

TUN-AGC
TUN-AGC-MON

CVBS-TER-OUT

CVBS4

3T42

IT79

6T56

6T57

PDZ33-B

2T40

IT50

1

4K7

6T40

BAS316

IT54

3T50

10K

FT76

FT56

+VTUN

1T70

1

I

2

IGND

3

GND

Audio + Dig.

9T83

1

I

*

2

9T82

9T55

*

9T66

*

+33VTUN

10n

AT6 2

AT6 3

*

2T91

*

150p

2T59

100n

2T47

RES

1

NC

4

560n

5T61

IT89

IT90

150p

IT91

4K7RES

3T83

3T84

RES 4K7

IT68

IGND

*

3

GND

1

I

2

IGND

3

GND

Analoog video

3T77

220R

3T53

220R

I2C-BUFFER

RES

IT69

X6874D
36M125

1T65

X6874D
36M125

Audio AP

1T55

X6874D
36M125

O1
O2

/ X6766D

O1
O2

*

O1
O2

/ X6768D

5T54

220R
2T62

100n
2T93

22u

9T51
9T67

9T68 RES
9T52

4
5

4
5

4
5

+5V-ON

RES

IF-FILTN2
IF-FILTP2

IF-FILTN3
IF-FILTP3

IF-FILTN1
IF-FILTP1

TUN-AGC

4-MHz

SDA-MUX2-BUF

TUN-TDA-SDA

TUN-TDA-SCL

SCL-MUX2-BUF

SDA-MUX2-BUF

SCL-MUX2-BUF

CA-OOB-CRX

CA-OOB-DRX

+8V6

9T74

100n

AT6 5

3T63

6T55

PDZ33-B

+5V-ON

2

3

3T51

2K7

AT64

6

1

1K0

4

7T50
BCP56

IT51

7T56-1

3T67

100R

BZG05C33

3T43

3T44

3T46

220R

27K

3T48

3T39

9T80

9T81

BC847BPN

9T24

3T69

2R2

2R2

IT87

2

IT81

5T52

FT58

30R

2T48

220n

220n

2T49

+5V-ON

3T41

100K

3T45

100K
+8V6

IT88

3

2

3

2

5

6

2T87

390R

100n

V1

7T55

BC847BW

220R

2T58

+8V6

1

84

8

4

7T51-1
LM393PT

7T51-2
LM393PT

10u

1

7

3T68
100R

3T70
100R

3T47

220R

IT52

IT53

27K

3T49

IT55

IT56

4K7

3p3

3T58

3T59

390R

3p3

2T86

9T57

9T70

RES

V1

2K2

2T76

3T64

IT85

7T56-2

BC847BPN

4

5

3

3T71

68R

RES

75R

3T85

*

+33VTUN

RESERVED

ANTENNA-SUPPLY

100n

2T42

6T41

BZX384-C6V8

RES

2T94

10n

2T95

RES

10n

IT72

ANTENNA-CTRL

3T54
330R

3T75

2T45

2p7

3T55

5K6

V1

IT73

2T81

2T82

IT95

3T74
470R

2T83

1K8

IT75

3T80

3T81

+3V3

3T95
100K

3T82

+3V3

9T73

RES

+5V-ON

5T53

V1

100n

2T79

7T57

TDA9898HL/V1

14
18

IC

42

2T88

10n

2T89

10n

FT50

FT51

3T40

RES

4K7

2T80

IT74

220n

47p

2T97

100n

2n2

IT94

IT77

IT96

4n7

22p

2T77

2T65

100n

2T63

DIV

PROCESSING

26

A

OUT1

27

B

29

A

OUT2

30

B

47

TAGC

31

AUD

33

CVBS

12

1

16

MPP

2

15

EXTFILO

13

VIF

IT93

19

LF

FM

38

SYN1

IT86

1

SYN2

20

CDEEM

8

CTAGC

5

CIFAGC

IT97

35

APCLC

IT76

34

470n

APCHC

GND GNDA

2T92

1n5

48

10K

10K

10K

JTAG-TD-PNX8535-FE

220R

IT70

43

44

VP

Φ

IF

GNDD

22

2T84

OPTXTAL

FREF

ADRSEL

IF1

IF2

IF3

EXT

AGC

TOP

41

EJTAG-TRSTN

EJTAG-TDI

EJTAG-TDI

EJTAG-TMS

EJTAG-TDO

2T64

22u

39

46

23

SDA

24

SCL

32

BVS

25

6

A

7

B

9

A

10

B

3

A

4

B

17

FILI

21

FMI

36

DIN

37

SWI

45

VIN

2

1

11

2

28

CAF

40

16V100u

EJTAG-TRSTN
EJTAG-DETECT
EJTAG-TDI

EJTAG-TDO

EJTAG-TMS

EJTAG-TCK

2T99

IT71

IT92

3T56

2T51

2T73

2T66

1HE0
FT59
FT60

FT61

FT62

FT63

FT64

FT65
FT66

FT67

FT68

1T71

IT78

*

2T60

2T74

2T75

3T76

3K3

FT57

*

4M0

2T78

100p
100R

10n

10n

*

10n

*

22p

2T96

100p

3T57

100R

10n

10n

*

10n

2T46

10n

+3V3

9T72

5-147279-3

SDA-SSB1
SCL-SSB1

IF-FILTP1
IF-FILTN1

IF-FILTP2
IF-FILTN2

IF-FILTP3
IF-FILTN3

TDA-IF-AGC

1
2
3
4
5

FOR FACTORY

6
7
8
9
10
11
12
13
14

4-MHz

USE ONLY

3104 313 6194.3

123456789

10 11 12 13 14 15

H_16800_037.eps

250407

A

B

C

D

E

F

G

H

I

Circuit Diagrams and PWB Layouts

67Q528.1E LA 7.

PNX 8535: Standby Controller

123456789101112

B04A B04A

A

+3V3-STANDBY

B

+3V3-STANDBY

+3V3-STANDBY

C

+3V3-STANDBY

D

E

F

G

H

I

PNX 8535: STANDBY CONTROLLER

+3V3-STANDBY

7H00-6

PNX8535

STANDBY CONTROL

AG1

I

XTAL

AG2

O

AA3

RESET_IN

U5

0

U4

1

U3

2

U2

3

U1

P0

4

V5

5

V4

6

V3

7

AA2

0

AA1

1

AB4

9H04

100R
3H63

100R

RST

NC

RST

NC

RST

NC

RST

NC

2

P1

AB3

3

AB2

7

V2

0

V1

1

W4

2

W3

3

W2

P2

4

W1

5

Y4

6

Y3

7

AB1

0

AC5

1

AC4

2

AC3

P3

3

AC2

4

AC1

5

AF4

0

AF3

1

AF2

P5

2

AF1

3

AE2

4

AE4

P6

5

SENSE+1V2-PNX8535

1

4

1

4

1

4

1

4

DETECT-1V2-2V5-3V3

DETECT-1V2-2V5-3V3

DETECT-1V2-2V5-3V3

DETECT-1V2-2V5-3V3

3H13

3H15
3H17

3H20

3H42

3H48

3H23

3H26
3H28

3H31

3H60

3H64

3H69

1HF0

27p

2HF1

3H78

3H86

3H92

+3V3-STANDBY

3H87

3H91

+3V3-STANDBY

3H94

3H98

3H25

3H29

3H33

100R

10R

4K7

180K

68K

22K

68K

22K

10R

4K7

180K

IH20

IH19

IH92

IH31

27M

AHF0

3H37

2H08

100n

2H90

100n

2H91

100n

2H11

100n

3H43

3H49

10K

3H61

3H66

100R
3H72

100R

3H74

100R

100R

100R

3HF1

100R

RES

IH90

IH05

IH93

IH32

3H40

100R

100R

3H52

100R

3H59

IH02

3H65

100R

3H68

3H71

100R
3H73
100R

3H35
100R

7H04

NCP303LSN10T1

2

IN

3

GND

5

CD

7H90

NCP303LSN10T1

2

IN

3

GND

5

CD

7H91

NCP303LSN10T1

2

IN

3

GND

5

CD

7H92

NCP303LSN10T1

2

IN

3

GND

5

CD

3H57
100R

27p

2HF0

10K

3H09

RESET-STBY-J

3H10

10K
3H14

4K7

10K

3H16

10K

10K

3H19

10K

10K

10K

3H39

10K
3H46

10K

10K

10K

10K

10K

10K

3H51

10K

3H21

10K
3H24

10K

10K

3H27

10K

10K
3H30

10K

10K

10K

3H58

10K

3H67

10K
3H70
680R

3H36

10K

+3V3-STANDBY

3H84

+3V3

10K

3H96

+2V5

8K2

+3V3-STANDBY

P0.1

P0.3

P0.5

P0.7

2H00

1n0

LED2-3V3

SUPPLY-FAULT

DETECT-1V2-2V5-3V3

P2.1

P2.3

P2.5

P2.7

TXD-UP

RESET-SYS-DETECT

SDM

2H01

100n

BOLT-ON-IO

K001K86

3H77

7H14
BC847BW

IH08

3H79

IH04

3H89
100K

IH91

3H97

47K

100K

3H18

IH30

68K

3H22

KEYBOARD

P0.0

P0.2

P0.4

P0.6

CEC-HDMI

P2.0

P2.2

P2.4

P2.6

RXD-UP

AV2-BLK

IH25

IH26

7H93
BC847BW

RC

6H00

BAS316

6H05

BAS316

P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7

RC
LED2-3V3
CEC-HDMI
SUPPLY-FAULT
DETECT-1V2-2V5-3V3

P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7

RXD-UP
TXD-UP
BOLT-ON-IO

RESET-SYS-DETECT
AV2-BLK
SDM
KEYBOARD
LIGHT-SENSOR
AV1-STATUS
AV2-STATUS

SPI-PROG
SPI-WP

SENSE+1V4

I2C uP

SCL-UP-MIPS

SDA-UP-MIPS

AD4

SDO

AE1

SDI

AD1

SPI

CLK

AE3

CSB

PWM

PSEN

AG4

SCL
SDA

0
1

ALE

EA

3H41

AH3

AD3
AD2

Y1

Y2

AA4

100R

3H50

100R

3H54
100R

DV-B3_AUDIO-MUTE

LED1-3V3

LED2-3V3

3H44

3H38

100R

CTRL2-STBY_BACKLIGHT-CTRL_RESET-P3

100R

3H53
100R

3H56
100R

FH02

IH09

IH18

CTRL5-STBY_BACKLIGHT-BOOST

6HW0

BAS316

6HW1

BAS316

9H05

9H06

SCL-UP-MIPS

SDA-UP-MIPS

IHWZ

SPI-SDO

SPI-SDI

SPI-SDI
SPI-CLK
SPI-CSB

SPI-PROG

SPI-WP

SCL-UP-MIPS

SDA-UP-MIPS

CTRL2-STBY_BACKLIGHT-CTRL_RESET-P3

CTRL5-STBY_BACKLIGHT-BOOST

PSEN

PSEN

ALE

ALE

EA

EA

SPI-SDO

SPI-CLK

SPI-CSB

SPI-WP

+3V3-STANDBY

3HW0

47K

AUDIO-MUTEAUDIO-RESET

LED1

LED2

9H09

9H10

M25P05-AVMN6

IH00

IH03

IH06

IH07

+5V-ON

FH10

FH11

FH12

+3V3-STANDBY

7H02

5

6

1

3

7

+3V3-STANDBY

D

FLASH

C

S

W

HOLD

84

VCC

Φ

512K

VSS

3H83

IH15

100K

3H88

Q

7H16
BC847BW

1K0

3H32

10K

3H00

3H02

3H04

10K

RES

3H06

10K

3H08

10K

2H10

IH01

2

+3V3-STANDBY

3H80

IH14

3H93

10K

4K7

100K

10K

100n

10K

4K7

10K

3H07

10K

SPI-SDI

+12V

3H01

3H03

3H05

+3V3-STANDBY

3H85

IH13

7H18
BC847BW

100K

3H90

27K

+3V3-STANDBY

POWER-OK-DISPLAY

IH11

3H95

IH12

10K

BAS316

6H01

7H22
PDTC114EU

+3V3-STANDBY

3H81

3H82

+3V3-STANDBY

68K

IH10

22K

3104 313 6194.3

12345

678910

11 12 13 14

13 14

FH00

SPI-PROG

FH01

SDM

10K

3H12

9H07

IH17

7H03

NCP303LSN10T1

2

IN

RST

3

GND

IHSF

2H05

5

NC

100n

CD

9H08

9H03

2H06

100p

2H07

100p

9H01

9H02

CTRL3-STBY_POWER-OK-DISP

3H11

100R

IH16

7H21
PDTC114EU

RES

1

DETECT-5V-12V

4

H_16800_038.eps

250407

1HF0 A3
2H00 B3
2H01 D3
2H05 G13
2H06 C14
2H07 C14
2H08 F4
2H10 C11
2H11 I4
2H90 G4
2H91 H4

A

2HF0 A3
2HF1 A3
3H00 B11
3H01 B11
3H02 B11
3H03 B11
3H04 B11
3H05 B11
3H06 B11
3H07 B11
3H08 C11
3H09 A3

B

3H10 B2
3H11 E14
3H12 E13
3H13 B1
3H14 B2
3H15 B1
3H16 B2
3H17 B1
3H18 I2
3H19 B2
3H20 B1
3H21 C2

C

3H22 I2
3H23 C1
3H24 C2
3H25 I3
3H26 C1
3H27 C2
3H28 C1
3H29 I3
3H30 C2
3H31 C1
3H32 A11

D

3H33 I3
3H35 D4
3H36 D2
3H37 D4
3H38 B7
3H39 B2
3H40 B4
3H41 B7
3H42 B1
3H43 B4
3H44 B7
3H46 B2

E

3H48 C1
3H49 C4
3H50 B7
3H51 C2
3H52 C4
3H53 B7
3H54 B7
3H56 C7
3H57 B4
3H58 C2
3H59 C4
3H60 C1

F

3H61 C4
3H63 D5
3H64 D1
3H65 D4
3H66 D4
3H67 D2
3H68 D4
3H69 D1
3H70 D2
3H71 D4
3H72 D4

G

3H73 D4
3H74 D4
3H77 E2
3H78 E3
3H79 F2
3H80 G11
3H81 G12
3H82 G12
3H83 H10
3H84 G2
3H85 H11
3H86 E3

H

3H87 F3
3H88 H10
3H89 G3
3H90 H11
3H91 G3
3H92 F3
3H93 H11
3H94 H3
3H95 H12
3H96 H2
3H97 H3
3H98 H3

I

3HF1 A4
3HW0 G8
6H00 G3
6H01 G12
6H05 H3
6HW0 G8
6HW1 G8
7H00-6 A5
7H02 D10
7H03 G13
7H04 E4

7H14 E3
7H16 H10
7H18 H11
7H21 F13
7H22 F12
7H90 F4
7H91 H4
7H92 I4
7H93 I3
9H01 C14
9H02 D14
9H03 C14
9H04 B5
9H05 H8
9H06 I8
9H07 E13
9H08 B14
9H09 A9
9H10 A9
AHF0 A4
FH00 C13
FH01 C13
FH02 G7
FH10 A10
FH11 A10
FH12 A10
IH00 D10
IH01 D11
IH02 D4
IH03 D10
IH04 G2
IH05 G4
IH06 D10
IH07 D10
IH08 E3
IH09 H7
IH10 G13
IH11 G12
IH12 H12
IH13 H11
IH14 H11
IH15 H10
IH16 E13
IH17 E13
IH18 I7
IH19 G4
IH20 E4
IH25 G3
IH26 H3
IH30 I3
IH31 I4
IH32 I4
IH90 F4
IH91 H2
IH92 H4
IH93 H4
IHSF G13
IHWZ G8

Circuit Diagrams and PWB Layouts

68Q528.1E LA 7.

PNX 8535: Debug

9H20 A3
9H21 A3
9H22 A3

9H23 B3
9H24 B3
9H25 B3

9H26 B3
9H27 B3
9H28 B3

1

9H29 B3
9H30 B3
9H31 B3

9H32 B3
9H33 B3
9H34 B3

2

9H35 B3
9H36 B3
9H37 C3

9H38 C3
9H39 C3
9H40 C3

9H41 C3

9H44 C3
9H42 C3
9H43 C3

34

PNX8535: DEBUG

B04B B04B

A

B

C

D

3104 313 6194.3

ROW_1

1H10-1

LED1-3V3

1

RESET-NVM_WP-NANDFLASH

3

ENABLE-1V2

5

REGIMBEAU_CVBS-SWITCH

7

ENABLE-3V3

9

CTRL1-STBY_LAMP-ON

11

AUDIO-RESET

13

UART-SWITCH

15
17

DV-B2_DEBUG-BREAK

19

EJTAG-DETECT

21

AV1-BLK

23

ON-MODE

25

POD-MODE

27

DETECT-5V-12V

29

CTRL4-STBY_SELECT-PWM-ANA

31

CTRL3-STBY_POWER-OK-DISP

33
35
37
39
41
43

RESET-STBY

45
47
49

FTSH-125-01-L-DV

+3V3-STANDBY

+3V3-STANDBY

RES
RES

9H20
9H21
9H22
9H23
9H24
9H25
9H26
9H27
9H28
9H29
9H30
9H31
9H32
9H33
9H34
9H35
9H36
9H37
9H38
9H39
9H40
9H41
9H42

RESET-STBY-J

ROW_2

1H10-2
P0.0
P0.1
P0.2
P0.3

P0.4
P0.5
P0.6
P0.7

P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7

ALE

PSEN

EA

FTSH-125-01-L-DV

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50

H_16800_039.eps

250407

A

B

C

D

PNX 8535: NVM / UART Switch

123

B04C B04C

A

B

PNX 8535: NVM /UART SWITCH

+3V3-STANDBY

9HC0

10K

3HC0

RESET-NVM_WP-NANDFLASH

FHC6

3HC2

10K

+3V3-STANDBY

IH21

IHC0

7HC3

M24C64

10K

3HC9

1

0

2

1

3

2SDA

9HC2

C

+5VS

7HC0-1

74HC4066PW

RXD

FHC3

3HC4

100R

3HC3

100R

D

UART-SWITCHn

TXD

3HC5

100R

3HC6

100R

+5VS

E

10K

3HC7

UART-SWITCHn

UART-SWITCH

1

FHC5

PDTC114EU

7HC1

FHC4

3

2

F

1

1

13

7HC0-2

74HC4066PW

4

5

7HC0-3

74HC4066PW

8

6

7HC0-4

74HC4066PW

11

12

3

7HC2
PDTC114EU

2

1

X1

1

X1

1

X1

1

X1

10K

3HC8

3104 313 6194.3

1

234

456

IHC2

9HC1

RES

100K

3HC1

7

WC

2HC1

100n

6

5

FHC1

RXD-UP

RXD-MIPS

TXD-UP

TXD-MIPS

FHC2

5

SCL-UP-MIPS

SDA-UP-MIPS

6

IHC1

(8Kx8)

EEPROM

ADR

MAIN NVM

1

714

14

1

7

1

714

10

1

714

BC857BW
7HC4

84

Φ

2

3

9

2HC0

100n

SCL

FHC7

H_16800_040.eps

250407

A

B

C

D

E

F

2HC0 B4
2HC1 C4
3HC0 A3
3HC1 A5
3HC2 A3
3HC3 D3
3HC4 D3
3HC5 D3
3HC6 E3
3HC7 E3
3HC8 F3
3HC9 B3
7HC0-1 C3
7HC0-2 D3
7HC0-3 E3
7HC0-4 E3
7HC1 F2
7HC2 F3
7HC3 B4
7HC4 A4
9HC0 A3
9HC1 A4
9HC2 C3
FHC1 B5
FHC2 B5
FHC3 D2
FHC4 E3
FHC5 F2
FHC6 A2
FHC7 C4
IH21 B3
IHC0 A3
IHC1 B4
IHC2 A4

1

23

4

Circuit Diagrams and PWB Layouts

PNX 8535: Miscellaneous

69Q528.1E LA 7.

12

PNX 8535:

MISCELLANEOUS

34567

8

B04D B04D

33K

*

+5VS

IHD2

10K

3HDL

IHD4

IHD7

5

3

7HD6-2
BC847BS

4

FHD2
0V3

3HDM

18K

7HD8

BC847BW

3HDN

1K0

BAS316

BAS316

6HD0

6HD1

0V

IHDE

FHD1

3HD3

3HD0

2K2

1K2

IHD0

2HD0

NCP303LSN10T1

2

3

5

100n

CD

7HD0

IN

GND

RST

NC

+3V3-STANDBY

YBDNA

TS-3V3+YBDNATS-3V3+

IHD6

0V3

3HDK

6

1

FHD4

10K

3HDP

9HD1

10K

3HDJ

3HD0

10K

3HD2

IHDA

1

4

FHD0

9HD0

*

1

RESET-STBY

3

7HD1
PDTC114EU

2

IHD5

2

7HD6-1

BC847BS

A

B

C

2HD0 D2
3HD0 D2
3HD2 C3
3HD3 C2
3HDJ C5
3HDK C6
3HDL C6
3HDM C6
3HDN C7
3HDP C6
6HD0 C7
6HD1 C7
7HD0 C3
7HD1 C4
7HD6-1 C5
7HD6-2 C6
7HD8 C7
9HD0 C3
9HD1 D6
FHD0 C4
FHD1 C1
FHD2 D6
FHD4 C6
IHD0 C2
IHD2 B7
IHD4 C6
IHD5 C5
IHD6 C5
IHD7 C6
IHDA C3
IHDE C8

3104 313 6194.3

POD-MODE

ON-MODE

D

STANDBY

E

F

H_16800_041.eps

250407

12345

67

8

PNX 8535: Control

Circuit Diagrams and PWB Layouts

70Q528.1E LA 7.

123456789

PNX8535: CONTROL

+3V3-PER

B04E B04E

10K

3HFH

33R

3HFR

33R

3HPC

4K7

IHPF

FHPA

FHPB

3HF3

6HF0

3HF9

3HFG

33R

IHF5

3HF2

33R

3HF4

33R

7HF1

CY2305S

1

4K7

3HPX

FHP3

SML-310

330R

PCI-CLK-DEBUGPCI-CLK-OUT

PCI-CLK-PNX5050_CLK-MOP

PCI-CLK-PNX8535

PCI-CLK-USB20

+3V3

6

VDD

Φ

ZERO

DELAY

BUFFER

REF

3HPY

4K7

CLK

CLKOUT

GND

4

+3V3-STANDBY

SCL-SSB-MUX1

SCL-SSB-MUX2

SDA-SSB-MUX1

SDA-SSB-MUX2

JTAG-TD-PNX8535-FE

JTAG-TD-PNX5050-PNX8535

2HF5

10n

2HF6

100n

2HF7

3

1

2

3

4

10p

2

5

7

8

3HFM

33R

15p

3HFP

33R

3HFN

33R

3HFK

33R

2HF8

PCI-CLK-PNX8535

PCI-CLK-DEBUG

PCI-CLK-PNX5050_CLK-MOP

PCI-CLK-USB20

A

B

+1V2

C

+3V3-PER

D

E

DS

S

S

LCS

1

S

2LCS

F

3104 313 6194.3

7H00-4

PNX8535

MIPS C0NTROL

IHF6

IHF7

RES

+3V3-PER

3HPA

AK1
AJ2
AK3
AJ3
AK2

AK27
AH27
AK29
AK28
AJ28
AJ27

AE27

T1
T2
T3
G27
E27
D28

100R

3HPB

3HPK

4K7

3HPQ

100R

TDI
TCK
TMS
TRST
TDO

SCL
SDA
SCL
SDA
SCL
SDA

VPP_ID

0
1
2

GPIO

3
4
5

FHP1

EJTAG

I2C1

I2C2

I2C3

100R

FHP0

FHP2

3HPM

4K7

3HPT
100R

3HP8

-LCS

10K

SS

SS-AD

2HF2

BSS-LCS
B

B

100n

EVALS-LCS

EVALS-A

CA-INT

3HPE

100R

3HPG

100R

3HPJ
100R

EJTAG-TDI
EJTAG-TCK
EJTAG-TMS
EJTAG-TRSTN
EJTAG-TDO

CA-CTRLEN_BOOTMODE
CTRL1-MIPS_LCD-PWR-ON
IRQ-PCI
CA-INT
RXD-MIPS
TXD-MIPS

CA-CTRLEN_BOOTMODE

9HP5
9HP6
9HP7
9HP8
9HPA

9HPB
9HPC
9HPD

3HPD

100R

3HPF

100R

3HPH

100R

S

S

S

SCL1
SDA1
SCL2
SDA2
SCL3
SDA3

9HF8

9HG1

9HG0

-

SPIM

PU-LC

SPIM-PU-AD
SPIM-PU-LCS2-LCS
SPIM-PU-ADS2-AD

1XUM-BSS-LC
2XUM-BSS-LCS
1XUM-BSS-ADSBSS-ADS
2XUM-BSS-ADS

EVALS-LCS

ADS1AD

EVALS-

2-LCS

2-ADS2ADS

BSS-LCS3LCS

BSS-ADS3ADS

IHS8

9HG2

3HFY

10K

SCL-SSB

SDA-SSB

123

IHF8

RESET-SYS-DETECT

RESET_SYS

27MHz_OUT

AJ26

AK26

IHS7

RESET-SYS-DETECT

3HF0

33R

PCI-CLK-OUT

IHF0

RESERVED

1HP0

IHF4

IHF9

+3V3-PER

1

SCL

2
3

SDA

45

2HP1

7HP5
PCA9540BDP

SCL

1

SDA

2

+3V3-STANDBY

100p

3

VDD

NULL

2

C

I

INP

-BUS

FIL

CTRL

VSS

6

SC0

SC1

SD0

SD1

5

8

4

7

PCI-CLK-OUT

3HPW

3HPS

100R

100R

3HPU

100R

3HPR

100R

3HPZ

4K7

456789

FHP4

H_16800_042.eps

250407

A

B

C

D

E

F

1HP0 D4
2HF2 C1
2HF5 C7
2HF6 D7
2HF7 D8
2HF8 D8
2HP1 E4
3HF0 B5
3HF2 C7
3HF3 A6
3HF4 C7
3HF9 B6
3HFG B7
3HFH B6
3HFK D8
3HFM E8
3HFN E8
3HFP D8
3HFR D6
3HFY C2
3HP8 C1
3HPA D3
3HPB D3
3HPC E6
3HPD E1
3HPE E1
3HPF E1
3HPG E1
3HPH E1
3HPJ F1
3HPK E3
3HPM F3
3HPQ F3
3HPR E6
3HPS F6
3HPT F3
3HPU F6
3HPW F6
3HPX E6
3HPY E7
3HPZ E6
6HF0 A6
7H00-4 A3
7HF1 D7
7HP5 E4
9HF8 B2
9HG0 C2
9HG1 C2
9HG2 C3
9HP5 D1
9HP6 D1
9HP7 D1
9HP8 D1
9HPA D1
9HPB D1
9HPC D1
9HPD D1
FHP0 D4
FHP1 D3
FHP2 D4
FHP3 E7
FHP4 B9
FHPA F6
FHPB F6
IHF0 B6
IHF4 D4
IHF5 B7
IHF6 C3
IHF7 C3
IHF8 D4
IHF9 D4
IHPF F6
IHS7 B4
IHS8 C2

PNX 8535: Control

Circuit Diagrams and PWB Layouts

71Q528.1E LA 7.

A

B

C

D

123

456

7

8

PNX 8535: CONTROL

B04F B04F

7H00-5
PNX8535

XIO-ACK
XIO-AD25

XIO-SEL-NAND

3HF5

PCI-AD0
PCI-AD1
PCI-AD2
PCI-AD3
PCI-AD4
PCI-AD5
PCI-AD6
PCI-AD7
PCI-AD8
PCI-AD9
PCI-AD10
PCI-AD11
PCI-AD12
PCI-AD13
PCI-AD14
PCI-AD15
PCI-AD16
PCI-AD17
PCI-AD18
PCI-AD19
PCI-AD20
PCI-AD21
PCI-AD22
PCI-AD23
PCI-AD24
PCI-AD25
PCI-AD26
PCI-AD27
PCI-AD28
PCI-AD29
PCI-AD30
PCI-AD31

100R

IHF2

IHF1

IHF3

A11
B10

B11
C11
D11
E11

A20
B20
C20
D20
A19
B19
C19
D19
E19
A18
B18
C18
D18
E18
A17
B17
E15
D15
C15
B15
A15
E14
D14
C14
B14
A14
E13
D13
C13
B13
A13
E12

ACK
AD25

0
1

XIO SEL

2
3

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

XIO

PCI AD

PCI AD

PCI XIO

PCI CTRL

CBE

PCI_CLK

DEVSEL

FRAME

IRDY
TRDY
STOP

IDSEL

PAR
PERR
SERR

REQ

GNT

REQ_B

GNT_B

INTA_OUT

PCI-DEVSEL

D12

0

C12

1

B12

2

A12

3

A21

A16
C17
D17
E17
B16
B21
E16
C16
D16

D21
E21
E22
E20

C21

3HEU

100R

PCI-CBE0
PCI-CBE1
PCI-CBE2
PCI-CBE3

PCI-CLK-PNX8535

PCI-DEVSEL

PCI-FRAME

PCI-IRDY
PCI-TRDY
PCI-STOP

PCI-AD24

PCI-PAR
PCI-PERR
PCI-SERR

PCI-REQ

PCI-GNT
PCI-REQ-B
PCI-GNT-B

PCI-INTA-OUT

PCI-FRAME
PCI-IRDY

PCI-TRDY
PCI-STOP

PCI-PERR
PCI-SERR

PCI-REQ
PCI-GNT

PCI-REQ-B
PCI-GNT-B

10K

10K

10K

10K

10K
10K

10K

3HES

3HET

3HFZ

3HFA

3HFB

3HFC

3HFD
3HFE
3HFF

3HEV

+3V3-PER

+3V3-PER

+3V3-PER

9HF6

9HF7

9HF4

9HF5

10K

10K

10K

PCI-REQ-PNX8535

PCI-GNT-PNX8535

+3V3-PER

PCI-REQ-USB20

PCI-GNT-USB20

A

B

C

D

3HES C7
3HET C7
3HEU C5
3HEV B8
3HF5 B2
3HFA B7
3HFB B8
3HFC B7
3HFD B7
3HFE B7
3HFF B7
3HFZ C7
7H00-5 A3
9HF4 C7
9HF5 C7
9HF6 C7
9HF7 C7
IHF1 B2
IHF2 B2
IHF3 B2

E

3104 313 6194.3

12345

67

E

H_16800_043.eps

250407

8

Circuit Diagrams and PWB Layouts

72Q528.1E LA 7.

PNX 8535: SDRAM

12345

B04G B04G

VTT-TERM-DDR

A

B

C

RES

RES

RES

RES

RES

RES 47R

RES

RES

RES

RES

3HKS

3HKT

3HKV

3HJ7
47R
3HJ9
47R
3HJB
47R

3HJD

47R
3HJF
47R

3HJH

3HJM

47R
3HJP
47R
3HJS
47R

RES

3HJU

47R

3HKR

10K

10K

10K RES

10K

PNX 8535: SDRAM

47R

3HJZ

1K0

100R

3HJ6
47R
3HJ8
47R
3HJA
47R
3HJC
47R

3HJE
47R

3HJG
47R RES

3HJJ

3HJK
47R

3HJN

47R
3HJR
47R

3HJT

47R

RES

3HJ0

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

RES

DDR2-A12

DDR2-A11

DDR2-A10

DDR2-A9

DDR2-A8

DDR2-A7

DDR2-A6

DDR2-A5

DDR2-A4

DDR2-A3

DDR2-A2

DDR2-A1

DDR2-A0

DDR2-BA0

DDR2-BA1

DDR2-CAS

DDR2-RAS

DDR2-CS
DDR2-WE
DDR2-CKE

DDR2-ODT

DDR2-CLK_P

DDR2-CLK_N

DDR2-DQS0_N

DDR2-DQS1_N

DDR2-DQS2_N

DDR2-DQS3_N

DDR2-DQS0_P
DDR2-DQS0_N
DDR2-DQS1_P
DDR2-DQS1_N
DDR2-DQS2_P
DDR2-DQS2_N
DDR2-DQS3_P
DDR2-DQS3_N

DDR2-DQM0
DDR2-DQM1
DDR2-DQM2
DDR2-DQM3

DDR2-CLK_P
DDR2-CLK_N
DDR2-ODT
DDR2-CKE
DDR2-WE
DDR2-CS
DDR2-RAS
DDR2-CAS

DDR2-BA0
DDR2-BA1

DDR2-A0
DDR2-A1
DDR2-A2
DDR2-A3
DDR2-A4
DDR2-A5
DDR2-A6
DDR2-A7
DDR2-A8
DDR2-A9
DDR2-A10
DDR2-A11
DDR2-A12

+1V8

2HH4

100n

3HJV

3HGN

3HGK

3HGH

3HGF

3HGD

3HGB

3HG9

3HG7

3HG5

3HG3

3HG1

3HJ5

5K6

3HJY
820R

IHG0

DDR2-VREF-CTRL

22R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

3HGE

3HJW

22R
3HGM

33R

3HGJ

33R

3HGG

33R

33R

3HGC

33R

3HGA

33R

3HG8

33R

3HG6

33R

3HG4

33R

3HG2

33R

100n

2HH5

D

E

2HG0

DDR2-A0
DDR2-A1

F

G

DDR2-A2
DDR2-A3
DDR2-A4
DDR2-A5
DDR2-A6
DDR2-A7
DDR2-A8
DDR2-A9
DDR2-A10
DDR2-A11
DDR2-A12

DDR2-BA0
DDR2-BA1

DDR2-CLK_P
DDR2-CLK_N
DDR2-CS
DDR2-CKE
DDR2-RAS
DDR2-CAS
DDR2-WE
DDR2-ODT

DDR2-DQM1
DDR2-DQM0

2HG1

2HG3

100n

100n

100n

2HG2

100n

100n

100n

2HG5

2HG4

3HKM

220R 220R

2HG6

100n

2HG7

100n

100n

2HG8

MT47H32M16BT-37E

7HG0

M1

VDDL

DDR2

SDRAM

8MX16X4

D9K9F1F3F7F9H9

Φ

D1H1M9R9V1

VDD

R8

0

R3

1

R7

2

T2

3

T8

4

T3

5

T7

A

6

U2

7

U8

8

U3

9

R2

10

U7

11

V2

12

P2

0

P3

1

BA

P1

2

M8

CK

N8

CK

P8

CS

N2

CKE

N7

RAS

P7

CAS

N3

WE

N9

ODT

E3

U

J3

DM

L

H

V3

RFU

V7

VSS

VSSDL

T1

U9M7D7

D3

H3

M3

I

3104 313 6194.3

1

2345678

67891011121314

7H00-2
PNX8535

DDR

T30

VREF

AE26

IREF

AA28

P

DQS0

AA29

N

Y28

P

DQS1

Y29

N

H28

P

DQS2

H29

N

G28

P

DQS3

G29

N

U29

0

U30

1

DQM

M30

2

M29

3

N28

P

CLK

N29

N

P27

ODT

U26

CKE

R28

WEB

P28

CSB

P29

RASB

P30

CASB

T27

0

BA

R29

1

P26

0

R30

1

N26

2

U28

3

M26

4

R27

5

M27

6

V26

7

A

M28

8

R26

9

T28

10

L26

11

U27

12

J27

NC

+1V8

1u0

2HHK

2HHM

330u 6.3V

100n

100n

2HG9

2HGA

K1K3K7

VDDQ

VSSQ

J2

E2

E8

H7

G2

G8

M2

VREF

K8

0

K2

1

L7

2

L3

3

L1

4

L9

5

J1

6

J9

7

F8

DQ

8

F2

9

G7

10

G3

11

G1

12

G9

13

E1

14

E9

15

E7

U

D8

U

DQS

J7

L

H8

L

A1
A2
A8
A9
D2
H2

NC

V8
AA1
AA2
AA8
AA9

J8

L8

L2

2HGB

3HGR

3HGT

3HGV

3HGY

3HH0

3HH2

3HH4

3HH6

3HH8

3HHA

DQ

DQ

100n

2HGC

33R

33R

V30

0

AD28

1

AB28

2

AB30

3

AD29

4

V29

5

AD27

6

V28

7

W30

8

AC30

9

AA30

10

AC28

11

AD30

12

W28

13

AC29

14

Y30

15

E30

16

L28

17

J29

18

J28

19

L29

20

E29

21

L27

22

E28

23

F30

24

K30

25

H30

26

K28

27

L30

28

F29

29

J30

30

F28

31

100n

100n

2HHA

100n

100n

33R

33R

33R

33R

33R

33R

33R

2HGD

2HGE

3HGP

3HGW33R

2HGF

DDR2-VREF-DDR

33R

3HGS

33R

3HGU

33R

33R

3HGZ

33R

3HH1

33R

3HH3

33R

3HH5

33R

3HH7

33R

3HH9

33R

100n

2HGG

DDR2-D0
DDR2-D1
DDR2-D3
DDR2-D2
DDR2-D6
DDR2-D5
DDR2-D4
DDR2-D7
DDR2-D8

DDR2-D9
DDR2-D10
DDR2-D11
DDR2-D12
DDR2-D13
DDR2-D14
DDR2-D15
DDR2-D16
DDR2-D17
DDR2-D19
DDR2-D18
DDR2-D22
DDR2-D23
DDR2-D20
DDR2-D21
DDR2-D24
DDR2-D30
DDR2-D26
DDR2-D25
DDR2-D28
DDR2-D31
DDR2-D27
DDR2-D29

22u

DDR2-D0

DDR2-D1

DDR2-D2

DDR2-D3

DDR2-D4

DDR2-D5

DDR2-D6

DDR2-D7

DDR2-D8

DDR2-D9
DDR2-D10
DDR2-D11
DDR2-D12
DDR2-D13
DDR2-D14
DDR2-D15

DDR2-DQS1_P

DDR2-DQS1_N

DDR2-DQS0_P

DDR2-DQS0_N

2HGH

DDR2-A0
DDR2-A1
DDR2-A2
DDR2-A3
DDR2-A4
DDR2-A5
DDR2-A6
DDR2-A7
DDR2-A8
DDR2-A9
DDR2-A10
DDR2-A11
DDR2-A12

DDR2-BA0
DDR2-BA1

DDR2-CLK_P
DDR2-CLK_N
DDR2-CS
DDR2-CKE
DDR2-RAS
DDR2-CAS
DDR2-WE
DDR2-ODT

DDR2-DQM3
DDR2-DQM2

100n

2HGJ

RESERVED

+1V8

100n

100n

100n

2HGK

2HGM

DDR2-VREF-CTRL

2HHS

2HHC

100n

2HGP

2HGN

3HKN

1u0

100n

2HHR

22u

100n

2HHD

100n

100n

2HGS

2HGR

MT47H32M16BT-37E

100n

IHG1

NCP5208

2HGT

R8
R3
R7
T2
T8
T3
T7
U2
U8
U3
R2
U7
V2

P2
P3
P1

M8
N8
P8
N2
N7
P7
N3
N9

E3
J3

V3
V7

7HG2

6

7

7HG1

100n

+1V8

3HJ1

3HJ2

AVIN

PVIN

0
1
2
3
4
5
6
7
8
9
10
11
12

0
1
2

CK
CK
CS
CKE
RAS
CAS
WE
ODT

U
L

RFU

BA

6.3V330u

560R

2HGX

560R

5

2

D1H1M9R9V1M1D9

VDDL

VDD

8MX16X4

A

DM

VSS

VSSDL

T1

U9M7D7

D3

H3

M3

DDR2-VREF-DDR

_SD

_POK

VTT

VFB

+1V8

6.3V330u

2HHN

F1F3F7F9H9K1K3

Φ

DDR2

SDRAM

E2

E8

2HHP

+1V8

3HHL

4

1

8

3

2HHE

1u0

K7

VDDQ

DQ

DQS

VSSQ

J2

J8

L2

H7

G2

G8

9 101112

+1V8

3HJ3

560R

IHG2

3HJ4

560R

10K

22u

K9

VREF

L8

FHG0

100n

100n

100n

2HHF

2HGU

M2

K8

0

K2

1
2
3
4
5
6
7
8
9

G7

10

G3

11

G1

12

G9

13

E1

14

E9

15

E7

U

D8

U

L

H8

L

A1
A2
A8
A9
D2
H2

NC

V8
AA1
AA2
AA8
AA9

2HHG

L7
L3
L1
L9
J1
J9
F8
F2

J7

100n

2HGV

2HHH

100n

2HHJ

2HGW

3HHC

3HHE

3HHG

3HHJ

3HHM

3HHP

3HHS

3HHU

3HHW

3HHZ

100n

100n

2HGY

33R

33R

2HH3

100n

100n

33R

33R

33R

33R

33R

33R

33R

33R

2HGZ

VTT-TERM-DDR

100n

100n

2HH1

2HH0

DDR2-VREF-DDR

3HHB

33R

3HHD

33R

3HHF

33R

3HHH

33R

3HHK

33R

3HHN

33R

3HHR

33R

3HHT

33R

3HHV

33R

3HHY

33R

100n

2HH2

13 14

22u

DDR2-D16
DDR2-D17
DDR2-D18
DDR2-D19
DDR2-D20
DDR2-D21
DDR2-D22
DDR2-D23
DDR2-D24
DDR2-D25
DDR2-D26
DDR2-D27
DDR2-D28
DDR2-D29
DDR2-D30
DDR2-D31

DDR2-DQS3_P
DDR2-DQS3_N
DDR2-DQS2_P
DDR2-DQS2_N

H_16800_044.eps

250407

A

B

C

D

E

F

G

H

I

2HG0 E3
2HG1 E3
2HG2 E3
2HG3 E3
2HG4 E3
2HG5 E4
2HG6 E4
2HG7 E4
2HG8 E4
2HG9 E6
2HGA E7
2HGB E7
2HGC E7
2HGD E7
2HGE E7
2HGF E8
2HGG E8
2HGH E9
2HGJ E9
2HGK E9
2HGM E9
2HGN E10
2HGP E10
2HGR E10
2HGS E10
2HGT E10
2HGU E12
2HGV E13
2HGW E13
2HGX A11
2HGY E13
2HGZ E13
2HH0 E13
2HH1 E14
2HH2 E14
2HH3 F13
2HH4 A4
2HH5 A5
2HHA F7
2HHC D10
2HHD D10
2HHE D12
2HHF D12
2HHG D12
2HHH D13
2HHJ D13
2HHK E6
2HHM E6
2HHN E11
2HHP E12
2HHR C10
2HHS C10
3HG1 D4
3HG2 D5
3HG3 D4
3HG4 D5
3HG5 C4
3HG6 C5
3HG7 C4
3HG8 C5
3HG9 C4
3HGA C5
3HGB C4
3HGC C5
3HGD C4
3HGE C4
3HGF C4
3HGG C5
3HGH B4
3HGJ B5
3HGK B4
3HGM B5
3HGN B4
3HGP F7
3HGR F7
3HGS F8
3HGT F7
3HGU F8
3HGV F7
3HGW F8
3HGY G7
3HGZ G8
3HH0 G7
3HH1 G8
3HH2 G7
3HH3 G8
3HH4 G7
3HH5 G8
3HH6 G7
3HH7 G8
3HH8 G7
3HH9 G8
3HHA G7
3HHB F13
3HHC F13
3HHD F14
3HHE F13
3HHF F14
3HHG F13
3HHH F14
3HHJ G13
3HHK G14
3HHL C12
3HHM G13
3HHN G14
3HHP G13
3HHR G14
3HHS G13
3HHT G14
3HHU G13
3HHV G14
3HHW G13
3HHY G14
3HHZ G13
3HJ0 C1
3HJ1 A11
3HJ2 B11

3HJ3 A12
3HJ4 B12
3HJ5 A4
3HJ6 A1
3HJ7 A1
3HJ8 A1
3HJ9 A1
3HJA A1
3HJB A1
3HJC A1
3HJD A1
3HJE A1
3HJF A1
3HJG A1
3HJH B1
3HJJ B1
3HJK B1
3HJM B1
3HJN B1
3HJP B1
3HJR B1
3HJS B1
3HJT B1
3HJU C1
3HJV B4
3HJW B5
3HJY A4
3HJZ B1
3HKM G4
3HKN G10
3HKR C1
3HKS C1
3HKT C1
3HKV D1
7H00-2 A6
7HG0 F5
7HG1 F11
7HG2 C11
FHG0 D13
IHG0 A4
IHG1 A10
IHG2 A12

Circuit Diagrams and PWB Layouts

PNX 8535: Digital Video In

73Q528.1E LA 7.

123

PNX 8535: DIGITAL VIDEO IN

B04H B04H

A

IHSM

7H00-3

PNX8535

B8
B9
A7
A8
B6
B7
A9
A10

C10
C9
E10
C7

P

RX_0

N
P

RX_1

N
P

RX_2

N
P

RX_C

N

CEC
SCL
SDA
RREF

DDC

HDMI

HOT_PLUG

D10

HOT-PLUG

B

C

RREF-PNX8535

RX2­RX2+
RX1­RX1+
RX0­RX0+
RXC­RXC+

CEC-HDMI
DDC-SCL
DDC-SDA

9HK0

3HK0

12K

Personal Notes:

3HK0 C2
7H00-3 B2
9HK0 C2
IHSM C2

A

B

C

D

E

3104 313 6194.3

1

H_16800_045.eps

23

250407

D

E

E_06532_012.eps

131004

Circuit Diagrams and PWB Layouts

G

A

74Q528.1E LA 7.

PNX 8535: Audio

12345678

B04I B04I

PNX 8535: AUDIO

ADAC(7)

IHMW

3HMG

5K6

B

AUDIO-VDD

2
BC857BW

2K2

IHNJ

IHNK

100n

22K

100n

22K

2

5

3HMY

IHN8

6

7HM2-1
BC847BS

1

AUDIO-VDD

3HMW

IHNF

3

7HM2-2
BC847BS

4

2K2

IHNH

IHNG

3HMA

3HMB

3HML

2K2

470R

3HMU

2K2

470R

C

IHN0

2HM3

2HM8

3HMZ

22K

9HM1

3HMV

22K

9HM2

4MH25MH2

CMH3DMH3

IHN4

3n3

3n3

ADAC(1)

VP

5HM0

220R

IHM6

D

VN

5HM1

220R

IHM9

2HMG

2HMH

AUDIO-VDD

1u0

AUDIO-VEE

1u0

ADAC(2)

E

F

7HM3

1

3

IHM1

+AUDIO-L

IHN3

IHNB

2HN1

3HMK

5K6

3HMP

5K6

3n3

ADAC(8)

2
BC857BW

7HM4

1

3

IHMG

-AUDIO-R

ADAC(5)

9101112

AUDIO-VDD

2HMJ

IHMY

100n

IHN6

IHNA

3

2

5

6

10

9

4

11

IHMZ

AUDIO-VEE

3HMF

2HMP

AUDIO-VDD

4

11

AUDIO-VEE

3HMJ

2HMT

AUDIO-VDD

4

11

AUDIO-VEE

3HMN

2HMW

10K

10K

10K

33p

33p

33p

7HM1-1
LM324

2HMN

100n

7HM1-2
LM324

7HM1-3
LM324

1

7

8

FHM0

FHM1

FHM2

AUDIO-CL-L

AUDIO-CL-R

AUDIO-OUT-L

IHMA

IHMV

3HME

10K

IHMB

3HMH

10K

IHMC

3HMM

10K

A

B

C

D

E

F

G

2HM3 D4
2HM4 D4
2HM5 E4
2HM8 E4
2HMG D2
2HMH D2
2HMJ A10
2HMN B10
2HMP C9
2HMT E9
2HMW G9
2HMY H8
2HMZ I9
2HN1 F8
3HMA D5
3HMB E5
3HMC D4
3HMD E4
3HME B9
3HMF B9
3HMG B9
3HMH E9
3HMJ E9
3HMK D9
3HML D6
3HMM G9
3HMN G9
3HMP F9
3HMR I9
3HMS I9
3HMT H9
3HMU E6
3HMV E4
3HMW D5
3HMY C5
3HMZ C4
5HM0 C2
5HM1 D2
7HM1-1 B9
7HM1-2 D9
7HM1-3 F9
7HM1-4 H9
7HM2-1 C5
7HM2-2 E5
7HM3 C6
7HM4 D6
9HM1 D4
9HM2 E4
FHM0 B11
FHM1 D11
FHM2 F11
FHM3 H11
IHM1 C6
IHM6 D1
IHM9 D1
IHMA B9
IHMB D9
IHMC F9
IHMG E6
IHMV B9
IHMW B8
IHMY A9
IHMZ B9
IHN0 C5
IHN3 D8
IHN4 E5
IHN6 D9
IHN8 C5
IHN9 H9
IHNA F9
IHNB F8
IHND H8
IHNE H9
IHNF D5
IHNG C5
IHNH E5
IHNJ D5
IHNK E5

H

I

3104 313 6194.3

ADAC(6)

IHND

2HMY

IHN9

3HMT

5K6

3n3

3HMR

10K

12345678

AUDIO-VDD

4

7HM1-4

IHNE

12

13

11

AUDIO-VEE

3HMS

10K

2HMZ

33p

LM324

14

FHM3

AUDIO-OUT-R

H_16800_046.eps

250407

9101112

H

I

Circuit Diagrams and PWB Layouts

75Q528.1E LA 7.

PNX 8535: Analogue AV

12345

B04K B04K

PNX 8535: ANALOGUE AV

A

B

7H00-9
PNX8535

VIDEO ANALOGUE

2HA2

R5

C

D

E

F

G

VSYNC_OUT SPARE10

ADC1

CVBS1_Y1_YC1
CVBS2_Y2_YC2

ADC2

CVBS3_Y3_YC3

ADC2

ADC3

ADC4

ADC4

CVBS1_Y

DAC1

DAC2

CVBS2_C

HSYNC_IN
VSYNC_IN

3V3_VIDEO_DAC

VDAC_BIAS

3V3_TEST_DAC

3V3_VIDEO_REF

Y1_G1
Y2_G2
Y3_G3
Y4_G4

REF1

SPARE20

CVBS4

REF2

SPARE30

Pr1_R1
Pr2_R2
Pr3_R3
Pr4_R4

REF3

SPARE40

Pb1_B1
Pb2_B2
Pb3_B3
Pb4_B4

REF4

IF_N

SPARE52
SPARE53

FM_P
FM_N

SPARE60

C1|YC1
C2|YC2
C3|YC3

REF6

AGC

IF_P

F1

F2
G1
G2
G3
G4

H1
H2

J1

J2

J3

J4

K1

K2

K3

K4

L1

L2

P4

P5
R1
R2
R3
R4

M1
M2
M3
M4
M5
N1

N2
N3

C4

N4

P1

P2

P3

A3

P

B3

N

A2

P

B2

N

F3

T4

A1

D4
C3

L4

K5

IHSA

IHSC

2HT6

2HSY
IHSH

IHSB

IHSE

IHSD

2HTH

2HT5

IHV3

IHSG

22n

22n

2HA3

22n

2HT7

2HA4

22n

22n

2HA5

22n

22n

2HTK

IHV6

2HST

IHVE

2HSW

22n

3HS6
75R

3HS7

75R

IHS9

3HS5

4K7

3HT9

4K7

22n

2HUN

100n

2HUP

2HSV

2HT2

2HT0

RES

100n

22n

2HT4

2HT1

22n

22n

22n

5HR7

30R

10u 16V

5HR6

30R

10u 16V

22n

22n

22n

2HUK

270p

2HKL

270p

FHR4

FHR3

2HSZ

H

I

6 7 8 9 10 11

5HRC

+3V3-PER

+3V3-PER

2HRZ

2HSB

2HSJ

2HS1

2HS7

FHR0

22n

47R

100p

3HSJ

2HTP

IHR0

22n

47R

100p

2HS2

3HRP

FHR1

22n

47R

100p

2HS8

3HRV

IHRD

22n

47R

330p

3HSQ

2HTW

IHR5

22n

47R

100p

3HS2

2HSK

2HSN

22n

3HSU

2HT8

IHR6

22n

220R

3HS8

2HU5

22n

2HT3

9HR1

330n

5HR0

330n

5HR2

330n

5HRJ

1u0

5HR5

330n

2HT9

9HR0

IHRE

47R

3HSZ

IHS3

2HTZ

150p

22n

2HTR

2HS3

2HS9

2HTY

2HSM

5HR8

2u2

IHS4

47R

100p

2HU6

100p

100p

100p

330p

100p

5HRL

330n

3HSH

27R

3HRR

27R

3HRU

27R

5HRK

100n

3HS1

27R

2HTA

100p

2HSU

IHS2

5HRS

330n

FHR5

2HU0

5HRM

82p

12p

470n

3HS3
390R

3HS4

390R

100p

2HU7

3HSF

FHR6

3HSP

27R

100p

2HSP

2HTB

22n

3HT0

27R

75R

2HU8

22n

2HSR

100n

2HSS

100n

3HSG

47R

IHRA

22n

3HSA

2HS0

2HSA

3HSR

27R

FHR2

3HT1

2HTL

2HSF

22n

IHRF

47R

3HT5

22n

2HS4

22n

2HSC

22n

2HTC

IHS5

47R

10p

2HU9

47R

3HSL

3HRT

22n

3HSN

3HRY

IHR4

3HS0

3HSV

5HR9

330n

100p

100p

2HUE

2HTM

100p

5HRB

1u0

IHRC

220R

5HRT

330n

100p

47R

IHRB

47R

IHR1

47R

47R

47R

2HSG

2HU1

5HRV

330n

2HS5

IHR3

2HSD

2HTD

2HTN

2HTS

2HTU

5HRE

5HRF

1u0

100n

100p

5HR1

1u0

5HRG

330n

5HR3

330n

3HSB

27R

100p

3HT2

27R

100p

2HSH

2HU2

2HTT

2HS6

2HTV

2HSE

3HSW

330p

82p

2HTE

22n

2HUB

22n

3HT6

27R

330p

330p

100p

100p

5HRP

470n

75R

5HRD

100n

5HRH

100n

3HSD

3HT3

3HSY
120R

IHR8

IHS6

47R

2HTF

47R

2HUC

330p

330p

100p

100p

5HR4

1u0

330p

5HRN

2u2

150p

2HUA

2HUF

IHR9

330p

3104 313 6194.3

1234

56

78910

11 12

12 13

3HSK

27R

3HRS

27R

3HSM

27R

3HRW

27R

3HRZ

27R

3HST

100R

3HS9
100R

330n

1u0

12p

RES

5HRR

2u2

2HTG

2HUD

330p

3HSE

27R

100p

5HRW

100n

2HU4

5HRA

100p

5HRU

330p

2HU3

IHRG

27p

3HT4

27R

AV1_PR

AV1_PB

AV1_Y-CVBS

AV3_PR

AV3_PB

AV2_Y-CVBS

FRONT_C

FRONT_Y-CVBS

G-VGA

AV4_PB

CVBS4

AV4_PR

Y-CVBS-MON-OUT

C-MON-OUT

H-SYNC-VGA

V-SYNC-VGA

13

AV1_C

AV1_Y

AV2_C

AV3_Y

R-VGA

B-VGA

AV4_Y

IF-N

IF-P

H_16800_048.eps

250407

A

B

C

D

E

F

G

H

I

2HA2 C4
2HA3 C4
2HA4 D4
2HA5 D4
2HKL F4
2HRZ A8
2HS0 A10
2HS1 A8
2HS2 B8
2HS3 B9
2HS4 B10
2HS5 B10
2HS6 B11
2HS7 B8
2HS8 B8
2HS9 B9
2HSA B10
2HSB C8
2HSC C10
2HSD C10
2HSE C11
2HSF C10
2HSG D10
2HSH D11
2HSJ C8
2HSK D8
2HSM D9
2HSN D9
2HSP D10
2HSR G10
2HSS H10
2HST E4
2HSU H9
2HSV E5
2HSW E4
2HSY F4
2HSZ G5
2HT0 G5
2HT1 G5
2HT2 G5
2HT3 G9
2HT4 G5
2HT5 D4
2HT6 E4
2HT7 D4
2HT8 E8
2HT9 E9
2HTA E9
2HTB E10
2HTC E10
2HTD E10
2HTE E11
2HTF E11
2HTG E12
2HTH C4
2HTK E4
2HTL I10
2HTM H10
2HTN I10
2HTP A9
2HTR A9
2HTS A11
2HTT A11
2HTU B11
2HTV B11
2HTW C9
2HTY C9
2HTZ D9
2HU0 D9
2HU1 D10
2HU2 D11
2HU3 I12
2HU4 I12
2HU5 E9
2HU6 F9
2HU7 F9
2HU8 F10
2HU9 F10
2HUA F11
2HUB F11
2HUC G11
2HUD G12
2HUE G10
2HUF G11
2HUK F4
2HUN E5
2HUP E5
3HRP B8
3HRR B9
3HRS B12
3HRT B10
3HRU B9
3HRV B8
3HRW C12
3HRY C10
3HRZ D12
3HS0 D10
3HS1 C9
3HS2 D8
3HS3 G9
3HS4 H9
3HS5 G4
3HS6 F4
3HS7 F4
3HS8 E8
3HS9 E12
3HSA E10
3HSB E11
3HSD E11
3HSE E12
3HSF I10
3HSG H10
3HSH A9
3HSJ A8

3HSK A12
3HSL A10
3HSM B12
3HSN B10
3HSP C10
3HSQ C8
3HSR D10
3HST D12
3HSU D9
3HSV D10
3HSW I11
3HSY I11
3HSZ F9
3HT0 F10
3HT1 F10
3HT2 F11
3HT3 G11
3HT4 F13
3HT5 G10
3HT6 G11
3HT9 G4
5HR0 A9
5HR1 B11
5HR2 B9
5HR3 C11
5HR4 C11
5HR5 C9
5HR6 G5
5HR7 G5
5HR8 E9
5HR9 E10
5HRA E12
5HRB H10
5HRC A9
5HRD B11
5HRE A11
5HRF A11
5HRG B11
5HRH C11
5HRJ C9
5HRK C9
5HRL D9
5HRM E9
5HRN D11
5HRP D11
5HRR H12
5HRS E9
5HRT F10
5HRU F12
5HRV G11
5HRW F12
7H00-9 C2
9HR0 I9
9HR1 I8
FHR0 A9
FHR1 B9
FHR2 E10
FHR3 G4
FHR4 G5
FHR5 I9
FHR6 I10
IHR0 A9
IHR1 B11
IHR3 C11
IHR4 C10
IHR5 C9
IHR6 E9
IHR8 E11
IHR9 H11
IHRA G10
IHRB A11
IHRC B10
IHRD C8
IHRE D9
IHRF D10
IHRG H12
IHS2 H9
IHS3 H9
IHS4 E9
IHS5 F10
IHS6 F11
IHS9 F4
IHSA C4
IHSB F4
IHSC D4
IHSD E4
IHSE F4
IHSG G4
IHSH F4
IHV3 E4
IHV6 E4
IHVE E4

Circuit Diagrams and PWB Layouts

76Q528.1E LA 7.

PNX 8535: Audio

1

2

345

6

7

8 9 10 11

PNX 8535: AUDIO

B04L B04L

A

B

33p

2HRE

2HRY

12K

12K

2HR8

1u0

RES

RES

IHSV

10u

2HR4

2HRA

33p

4

RES

RES

IHRM

3HRK

2HR0

33p

2HR6

33p

2HRD

2HRF

75R

1u0

33p

2HR2

33p

2HR9

2HRB

1u0

3HRM

1u0

IHRL

4K7

2HR5

2HR7

1u0

1u0

SPDIF-IN1

3HRN

2HR1

2HR3

1u0

1u0

4K7

1u0

IHSU

7H00-1

PNX8535

AK6
AJ6
AG5
AF5
AJ5
AH5
AH4
AK5
AK4
AJ4

AG6
AF6
AH8
AH7

AJ7
AK7

AH6
L5
L3
M6

AK15

AUDIO

R

AIN1

L
R

AIN2

L
R

AIN3

L
R

AIN4

L
R

AIN5

L

R

AADC

L

VREF

POS
NEG

POS

AADC1_VR

NEG

VCOM_ADC1
AOUT1
RES_REF
GND1

SPDIF_IN

VSSA_AUDIO_DAC1

3V3A_AUDIO_DAC1

DAC_CAP

SPDIF_OUT

ADAC1

ADAC2

ADAC3

ADAC4

ADAC5

ADAC6

ADAC

OSCLK

SD

SCK

WS

AG12

P

AK13

N

AH12

P

AJ12

N

AK11

P

AJ11

N

AF10

P

AG10

N

AG9

P

AK10

N

AH9

P

AJ9

N

AE10
AF11

AG7

R

AG8

L

AJ13

1

AK12

2

AH11

3

AH10

4

AJ10

5

AK9

6

AK8

7

AJ8

8

AJ15

AF14

AJ14
AK14
AH14

1

AG14

2

33R

3HP6

33R

3HP4

33R

3HP2

33R

3HP0

RES

2HP8

68R

67

33R

RES

3HT7

3HPN

100n

IHSW

2HP7

IHPD

33R

3HP3
33R

33R

100n

33R

3HP7
3HP5

33R

3HP1

2HP6

3HT8

100n

2HP5

ADAC(1)
ADAC(2)

5HP2

30R

100n

ADAC(8)
ADAC(7)

ADAC(3)
ADAC(4)
ADAC(5)
ADAC(6)
ADAC(7)
ADAC(8)

SPDIF-OUT

VDDA-AUDIO

FHPE

2HP4

ADAC(8)
ADAC(7)

10u

2HPB

LD2985BM33R

5

OUT IN

4

10n

2HRS

985

7HP0

COM

3n3

IHSX

IHSY

3HAH

22K

5HP1

30R

10u

2HPA

3HAG

22K

+5VS

+3V3

1

3

INHBP

2

3n3

2HRT

10 11

C

D

E

F

G

H

3104 313 6194.3

1

AUDIO-IN1-R

AUDIO-IN1-L

AUDIO-IN2-R

AUDIO-IN2-L

AUDIO-IN3-R

AUDIO-IN3-L

AUDIO-IN4-R

AUDIO-IN4-L

AUDIO-IN5-R

AUDIO-IN5-L

VDDA-AUDIO

2

3HRE

22K

3HRJ

22K

3HRG

22K

5HRZ

30R

3HRH

IHRT

IHRU

2HRM

100n

3HRA

3HRC

22K

3HRF

2HRN

3HR6

3HR8

3

22K

22K

12K

12K

100n

3HSC

3HR4

22K

22K

IHRW

3HRD

IHRV

2HRU

3HR1

22K

22K

3HR5

IHRZ

3HR9

IHRY

3HRB

2HRJ

RES

33p

2HRG

RES 33p

100n

2HRV

IHS1

IHS0

3HR7

12K

12K

3HR2

100n

IHRJ

IHRH
3HR3

IHRK

3HR0

12K

12K

2HRC

RES

RES 33p

2HRK

2HRH

2HRP

2HRW

12K

12K

RES 33p

RES

1u0

10u

100n

H_16800_049.eps

250407

A

B

C

D

E

F

G

H

2HP4 E9
2HP5 E8
2HP6 E8
2HP7 E8
2HP8 E7
2HPA E10
2HPB E9
2HR0 C4
2HR1 C5
2HR2 C4
2HR3 C5
2HR4 C4
2HR5 C4
2HR6 D4
2HR7 D4
2HR8 D4
2HR9 D4
2HRA D4
2HRB D4
2HRC D4
2HRD D4
2HRE E4
2HRF E4
2HRG E3
2HRH E4
2HRJ E3
2HRK E4
2HRM F3
2HRN F3
2HRP F4
2HRS F9
2HRT F9
2HRU F3
2HRV F3
2HRW G4
2HRY G4
3HAG E10
3HAH E9
3HP0 F7
3HP1 F8
3HP2 F7
3HP3 F8
3HP4 F7
3HP5 F8
3HP6 F7
3HP7 F8
3HPN F8
3HR0 C4
3HR1 C3
3HR2 C4
3HR3 C4
3HR4 C3
3HR5 D3
3HR6 D3
3HR7 D3
3HR8 D3
3HR9 D3
3HRA D3
3HRB D3
3HRC D3
3HRD E3
3HRE E2
3HRF E3
3HRG E2
3HRH E3
3HRJ E2
3HRK G4
3HRM G4
3HRN G4
3HSC C3
3HT7 F8
3HT8 F8
5HP1 D10
5HP2 D8
5HRZ E3
7H00-1 D6
7HP0 D9
FHPE D9
IHPD F8
IHRH C4
IHRJ C4
IHRK F4
IHRL F4
IHRM F4
IHRT E3
IHRU E3
IHRV E3
IHRW D3
IHRY D3
IHRZ D3
IHS0 D3
IHS1 C3
IHSU E5
IHSV E4
IHSW D8
IHSX D10
IHSY E9

Circuit Diagrams and PWB Layouts

77Q528.1E LA 7.

PNX 8535: Audio

123456789

PNX 8535: AUDIO

B04M B04M

A

+3V3

30R

5HV0

B

C

D

E

ADAC(3)

ADAC(4)

2HV6

A-PLOP-HDPH

3n3

IHWA

10u

100n

2HVB

2HVC

7HV0-1
TPA4411RTJ

2HVD

2HVE

1u0

3n3

2HVA

1u0

2HV9

IHWE

10u

IHWL

IHVC

IHVD

13

15

1

3

14

18

10

SVDD

HEADPHONE

L

DRIVER

IN

R

P

C1

N

SDR

SDL

VSS

S

P
5

7

IHV0

10u

2HV3

7HV0-2
TPA4411RTJ

22
23

GND
SP

VIA

Φ

17

HEATSINK

2

VIA

19

PVDD

DNC

21

VIA

OUT

NC

IHWJ

9

L

IHV1

11

R

4
6

8
12
16
20

9HV1

24
25

3HVP

33R

3HVN

33R

3HVS

33R

3HVR

33R

FHV2

FHV1

2HV2

2HV4

1n0

1n0

AUDIO-HDPH-L-AP

AUDIO-HDPH-R-AP

AUDIO-RESET

FHV3

3HVW

22K

IHVB

3HVX

22K

3HV4

6

7HVA-1
BC847BPN

1

+3V3

3HVY

3

7HV1
BC847BW

2

3HV7

IHVA

22K

+3V3-STANDBY

47K

47K

RES

3HVZ

IHV7

3HVT

IHW7

IHW8

3HV3

22K

1n0

2HVG

3HV8

22K

IHV9

2

1

12K

IHV5

22K

5

FHV4

+5VS

4

BC847BPN
7HVA-2

3

100n

2HV7

A-PLOP

A-PLOP-HDPH

A

B

C

D

E

2HV2 C4
2HV3 D2
2HV4 C4
2HV6 C1
2HV7 B8
2HV9 C2
2HVA C1
2HVB B3
2HVC B3
2HVD C2
2HVE C1
2HVG D6
3HV3 D7
3HV4 B8
3HV7 C8
3HV8 E7
3HVN C4
3HVP B4
3HVR C4
3HVS C4
3HVT E8
3HVW D6
3HVX D6
3HVY D7
3HVZ D8
5HV0 B3
7HV0-1 B2
7HV0-2 E3
7HV1 E8
7HVA-1 D8
7HVA-2 C8
9HV1 D3
FHV1 C4
FHV2 B4
FHV3 C6
FHV4 E8
IHV0 D2
IHV1 C4
IHV5 B8
IHV7 E8
IHV9 E7
IHVA C8
IHVB C6
IHVC C2
IHVD C2
IHW7 C7
IHW8 C7
IHWA B2
IHWE C2
IHWJ C4
IHWL C2

3104 313 6194.3

123456789

H_16800_050.eps

250407

Circuit Diagrams and PWB Layouts

PNX 8535: Video Streams

78Q528.1E LA 7.

12 678

345

PNX 8535: VIDEO STREAMS

B04N B04N

A

7H00-10

B

C

D

+3V3-PER

3HWK

4K7

IHW0

FE-ERR

CA-MDO0
CA-MDO1
CA-MDO2
CA-MDO3
CA-MDO4
CA-MDO5
CA-MDO6
CA-MDO7

CA-MOVAL
CA-MOSTRT
CA-MOCLK_VS2

CA-VS1
CA-CD1
CA-CD2

FE-VALID
FE-SOP
FE-CLK
FE-ERR

FE-DATA0
FE-DATA1

FE-DATA2
FE-DATA 3

FE-DATA4
FE-DATA 5
FE-DATA6

FE-DATA7

PNX8535

C25
D23
C23
C29
C30
D30
A28
A29

A24
D25
C24

A30
D29
B23

E5
A4
B4
C6
D6
E6
A5
B5

D5
C4
C5
A6

VIDEO STREAMS

0
1
2
3

CA_MDO

4
5
6
7

MOVAL
MOSTRT
VS2_MOCLK_CI

VS1
1

CD

2

0
1
2
3

FEDA TA TNR_TSDI

4
5
6
7

FEVAL
FESOP
FECLK
FEERR

CA_MDI

MIVAL

MISTRT

MICLK

RST

DATA_DIR

DATA_EN

OOB_EN

ADD_EN

VCCEN
VPPEN

33R

33R

3HWZ
33R

3HWW

33R

3HWU

33R

3HWS

33R

CA-RST

CA-DATADIR

CA-DATAEN

CA-OOBEN

CA-ADDEN
CA-VCCEN
CA-VPPEN

CA-MDI0
CA-MDI1
CA-MDI2
CA-MDI3
CA-MDI4
CA-MDI5
CA-MDI6
CA-MDI7

CA-MIVAL

CA-MISTRT

CA-MICLK

A26

0

C27

1

B27

2

A27

3

A25

4

D26

5

C26

6

B26

7

B25
B30
B28

B24
D22
A22
C22
B22
A23
D24

3HWY

33R

3HWV

33R

3HWT

33R

3HWR

33R

3HWN

33R

3HWM

3HWP

9

A

B

C

D

3HWK D2
3HWM C7
3HWN C7
3HWP C7
3HWR C7
3HWS C7
3HWT C7
3HWU C7
3HWV B7
3HWW B7
3HWY B7
3HWZ B7
7H00-10 B5
9HW0 D2
IHW0 D2

E

F

3104 313 6194.3

1

2

9HW0

5

E

F

H_16800_051.eps

84367

9

250407

PNX 8535: Digital Video

Circuit Diagrams and PWB Layouts

79Q528.1E LA 7.

A

B

C

D

12

3

45

67

PNX8535: DIGITAL VIDEO OUT / LVDS

B04O B04O

7H00-8

PNX8535

VID_OUT_TTL

9HW5
9HW4
9HW3

9HWZ
9HWY
9HWW
9HWV
9HWU

9HWT
9HWS
9HWR
9HWP
9HWN
9HWM
9HWK

9HWJ

9HWH
9HWG

9HWF
9HWE
9HWD
9HWC
9HWB
9HWA

9HW6

9HW7

9HW8

9HW9

DV-R0_Y2
DV-R1_Y3
DV-R2_Y4
DV-R3_Y5
DV-R4_Y6
DV-R5_Y7
DV-R6_Y8
DV-R7_Y9

DV-G0_UV2
DV-G1_UV3
DV-G2_UV4
DV-G3_UV5
DV-G4_UV6
DV-G5_UV7
DV-G6_UV8
DV-G7_UV9

DV-B0_UART2-RX
DV-B1_UART2-TX

DV-B2_DEBUG-BREAK

DV-B3_AUDIO-MUTE

DV-B4_UV0
DV-B5_UV1

DV-B6_Y0
DV-B7_Y1

DV-CLK

DV-VS
DV-HS

DV-FF_DE

LVDS

7H00-7

PNX8535

IREF

CLK

A

B

C

D

E

1F00

*

1

RES

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

3233

+12V-DISP

IHPG

AG21

AK23

P

AJ23

N

AK21

P

AJ21

N

AK22

P

AJ22

N

AH22

P

AG22

N

AH23

P

AG23

N

AK24

P

AJ24

N

3HP9

12K

VDDA-LVDS

Tx8535oCLK+

Tx8535oCLK-

Tx8535oA+

Tx8535oA-

Tx8535oB+

Tx8535oB-

Tx8535oC+

Tx8535oC-

Tx8535oD+

Tx8535oD-

Tx8535oE+

Tx8535oE-

9HP9

Tx8535oA­Tx8535oA+

Tx8535oB­Tx8535oB+

Tx8535oC­Tx8535oC+

Tx8535oCLK­Tx8535oCLK+

Tx8535oD­Tx8535oD+

Tx8535oE­Tx8535oE+

IHP5

IHP6
IHP7
IHP8
IHP9

IHPA
IHPB

FI-WE31P-HFE-E1500

R_OUT

G_OUT

B_OUT

R0_Y2
R1_Y3
R2_Y4
R3_Y5
R4_Y6
R5_Y7
R6_Y8
R7_Y9

G0_UV2
G1_UV3
G2_UV4
G3_UV5
G4_UV6
G5_UV7
G6_UV8
G7_UV9

B0_UART
B1_UART

B2_GPIO
B3_GPIO

B4_UV0
B5_UV1

B6_Y0
B7_Y1

CLK
VSYNC
HSYNC

AUX2

AJ19
AH19
AG19

AF19
AK20

AJ20
AH20
AG20

AG17

AF17
AK18

AJ18
AH18
AG18

AF18
AK19

AF15
AK16

AJ16
AH16
AG16

AF16

AJ17
AH17

AK17
AH15
AG15

AF20

1F00 B7
3HP9 C5
7H00-7 B4
7H00-8 A1
9HP9 B6
9HW3 B2
9HW4 B2
9HW5 B2
9HW6 D2

A

9HW7 D2
9HW8 D2
9HW9 D2
9HWA C2
9HWB C2
9HWC C2
9HWD C2
9HWE C2
9HWF C2
9HWG C2
9HWH C2
9HWJ C2

B

9HWK C2
9HWM C2
9HWN C2
9HWP B2
9HWR B2
9HWS B2
9HWT B2
9HWU B2
9HWV B2
9HWW B2
9HWY B2
9HWZ B2

C

IHP5 B7
IHP6 B7
IHP7 B7
IHP8 B7
IHP9 B7
IHPA D7
IHPB D7
IHPG C5

D

LVDS CONNECTOR

FOR

FACTORY

USE

E E

3104 313 6194.3

1

2 4567

3

ONLY

H_16800_052.eps

250407

Circuit Diagrams and PWB Layouts

80Q528.1E LA 7.

PNX 8535: Power

12345678910111213

B04P B04P

A

B

C

D

E

F

G

H

I

+3V3

3104 313 6194.3

PNX 8535: POWER

7H00-11

PNX8535

VDDA-ADC

100n

VDDA-DAC

2HYB

IHY6

AE7

AE6

AF7

AF8

J5

IHY4

J6
K6

AB27

J26

IHY5

IHY7

IHY8

100n

IHSP

P18
R18
T18
U18

G26

W27
F27

D7

C8

E7

F7

E8

AG24
AH24
AF23

AE22

AE21

P6

R6

+1V8

CHY0

1u0

2HYA

+1V8-PNX

+1V2

+1V8-PNX

+1V2

100n

2HKA

2HKC

+3V3-PER

7HK0

LD1117DT

32

OUTIN

COM

10u

2HKB

1

2HK9

600R RES

330u 6.3V

IHY9

4V47u

30R

3HK2

5HK5

600R
5HK0

30R

5HK6

5HK4

5HK2
120R

3HK1

15R

RES

FHK0

120R

IHK0

IHK1

IHK2

2HK7

+1V8-PNX

AJ1

AJ25

5HY2

30R

AE16

2HY0

1u0

AE15

100n

2HZA

2HY5

7H00-12

PNX8535

100n

5HY3

30R

1u0

2HY7

2HY6

SENSE+1V8

VDDA-LVDS

5HY6

+1V2

30R

1u0

100n

2HY4

+1V2

AB26

5HY8

30R

5HY5

30R

2HZT

5HY0

30R

1u0

H3H4H5N5N6

G5

VSSA VIDEO

1u0

2HY3

IHSN

1u0

100n

2HY9

2HY8

+1V2

100n

2HZN

+3V3-PER

F4

F5

E4

E1E2E3

D1D2D3

VSSA VIDEO

100n

100n

2HY1

2HY2

5HY9

30R

2HZJ

B1

C1

C2

AF9

AE9

VSSA AUDIO

+1V2

5HG0

+1V2

5HK1
120R

AG29

2HK5

AG27

AG28

RREF-PNX8535

100n

AF30

AG25

AG26

+3V3-PER

IHK4

2HK6

AF27

AF28

AF29

100n

VSSVSS

AF26

AF25

AF24

AF22

5HK3
120R

AF21

AF13

4V47u

100n

2HK0

2HK1

1u0

100n

2HK8

100n

2HK4

2HK3

47u 4V

AH2

AG3

AH25

AH26

AH28

AH29

AH30

AH21

AG30

VSS

IHSK

30R

100n

100n

2HH6

2HH9

AF12

IHSL

5HG130R

100n

2HH8

2HH7

IHK3

100n

2HK2

AE5

AD6

AD5

AE29

AE30

AE28

AE25

AE24

VSS

AB29

AB25

100n

AA27

+3V3-PER

AA26

AA25

+3V3-PER

J25

F26

W26

VSSA DDR DLL

VSS

VSS

Y26

Y27

W29

V13

V14

V15

V16

V17

V18

V27

U15

U16

U17

U6

T25

T26

T29T5T6

U13

U14

T15

T16

T17

VSS

R16

R17

R25

T13

T14

P17

P25

R13

R14

R15

VSS

P15

P16

N17

N18

N25

N27

N30

P13

P14

N16

VSS

K27

K29

M25

N13

N14

N15

F19

G30

H26

H27

VSS

E9

F12

F13

F18

C28

D27D8D9

E25

E26

AJ29

AJ30

AK25

AK30

B29

12345678910111213

1V2A AUDIO ADC

ADC

REF

3V3A AUDIO

DAC

1V2A VIDEO ADC

DLL0

1V2A DDR

DLL3

1V8_2V5 DDR

PLL

3V3A DDR

DLL1
DLL2

EQ

1V2A HDMI

PLL

PLLCCO

3V3A HDMI

BIAS

3V3 HDMI

3V3 LVDS

3V3A LVDS

3V3A LVDS PLL

1V2A CAB

3V3A 1.7 MCAB

VDDA-DAC

VDD

VDDA-LVDS

VDDA-ADC

2HZB

1V2 CORE

1V2 SB CORE

3V3 PER

3V3 SB PER

100n

2HZP

1u0

2HZC

NC

2HZR

2HZH

2HZV

1u0

IHY3

IHY2

100n

100n

100n

2HZD

AE12
AE13
AE14

AC26
AC27
AD26

AE17
AE18
AE19

AD25
AG11
AG13

AH13

F10
F21
F22

U25
V25

W25

AA5
AA6
AB5
AB6

F14
F15
F16
F17
F24
F25

G25

AH1

E23
E24
K25
K26

2HZS

1u0

1u0

1u0

1u0

2HYT

2HYS

2HYG

100n

2HZ2

2HYH

1u0

100n

2HYU

2HZ3

2HYJ

F9

F6

G6

V6
W5
W6

Y5

100n

IHY1

10n

2HZE

5HY7

30R

IHY0

CHY1

2HYC

1u0

2HZU

5HY4

30R

10n

10n

2HZF

2HZG

10u

2HZ7

10n

2HYD

1u0

5HY1

220R

10u

2HYE

2HZ8

SENSE+1V2-PNX8535

10u

10u

2HYF

100n

100n

2HZ9

+3V3-PER

VDDA-AUDIO

VDDA-AUDIO

+1V8

100n

2HYV

100n

2HYK

2HZ4

100n

2HYW

100n

2HYM

100n

100n

2HYY

2HYN

100n

100n

2HYZ

100n

100n

2HYP

+3V3-STANDBY

2HZ0

IHYA

2HYR

+1V2

100n

100n

2HZ1

+1V2-STANDBY

+3V3-PER

5HYA

+3V3

220R

100n

H_16800_053.eps

250407

A

B

C

D

E

F

G

H

I

2HH6 B4
2HH7 C4
2HH8 C5
2HH9 B5
2HK0 C2
2HK1 C3
2HK2 E4
2HK3 E3
2HK4 E3
2HK5 E3
2HK6 E3
2HK7 D2
2HK8 D2
2HK9 F1
2HKA D1
2HKB E1
2HKC D1
2HY0 B7
2HY1 B7
2HY2 B7
2HY3 B6
2HY4 E7
2HY5 E7
2HY6 A8
2HY7 A8
2HY8 C6
2HY9 C6
2HYA D8
2HYB D8
2HYC C11
2HYD C11
2HYE C11
2HYF C11
2HYG C12
2HYH C12
2HYJ C12
2HYK C12
2HYM C12
2HYN C13
2HYP C13
2HYR C13
2HYS A12
2HYT A12
2HYU A12
2HYV A12
2HYW A12
2HYY A13
2HYZ A13
2HZ0 A13
2HZ1 A13
2HZ2 B12
2HZ3 B12
2HZ4 B12
2HZ7 D11
2HZ8 D11
2HZ9 D11
2HZA D7
2HZB I9
2HZC I10
2HZD I10
2HZE I10
2HZF I10
2HZG I11
2HZH G10
2HZJ D7
2HZN D6
2HZP F10
2HZR F10
2HZS F10
2HZT D6
2HZU F11
2HZV H10
3HK1 E2
3HK2 F1
5HG0 B4
5HG1 C4
5HK0 C2
5HK1 D3
5HK2 D2
5HK3 D4
5HK4 C2
5HK5 B2
5HK6 C2
5HY0 B6
5HY1 E11
5HY2 E7
5HY3 A7
5HY4 G11
5HY5 C6
5HY6 D8
5HY7 H10
5HY8 D6
5HY9 D7
5HYA C13
7H00-11 A9
7H00-12 G7
7HK0 E1
CHY0 B8
CHY1 B11
FHK0 E2
IHK0 B2
IHK1 C2
IHK2 D2
IHK3 D4
IHK4 D3
IHSK B4
IHSL C4
IHSN C6
IHSP D9
IHY0 E10
IHY1 F10
IHY2 H10
IHY3 H10
IHY4 B8
IHY5 E8
IHY6 A8
IHY7 D8

IHY8 D8
IHY9 E1
IHYA B13

PNX 8535: Flash

Circuit Diagrams and PWB Layouts

81Q528.1E LA 7.

1

23 89

456

7

PNX 8535: FLASH

B04Q B04Q

A

B

C

+3V3

+3V3-NAND

5HA0

30R

3HA0

10K

+3V3-NAND

XIO-SEL-NAND

PCI-AD25
PCI-AD26
PCI-AD27
PCI-AD28
PCI-AD29
PCI-AD30
PCI-AD31

3HA4
3HA5
3HA6
3HA7
3HA8
3HA9
3HAA
3HAB

100R

100R
100R

100R
100R

100R
100R
100R

NAND-AD(0)
NAND-AD(1)
NAND-AD(2)
NAND-AD(3)
NAND-AD(4)
NAND-AD(5)
NAND-AD(6)
NAND-AD(7)

NAND-AD(0)PCI-AD24
NAND-AD(1)
NAND-AD(2)
NAND-AD(3)
NAND-AD(4)
NAND-AD(5)
NAND-AD(6)
NAND-AD(7)

+3V3-NAND

IHSR

100n

7HA0
NAND128W3A2BN6E

12

37

VCC

Φ

2HA0

NAND

29
30
31
32
41
42
43
44

26
27
28
33
34
35
38
39
40
45
46
47
48
6

FLASH

0

(128Mx8)

1
2
3

IO

4
5
6
7

NC

VSS

7

R

B

16

CLE

17

ALE

WE
WP

NC

NCNC

13

36

CE
RE

9

8
18
19

1

2

3

4

5
10
11
14
15
20
21
22
23
24
25

RESET-NVM_WP-NANDFLASH-INV

IHSS

IHST

2HA1

100n

XIO-SEL-NAND

XIO-ACK

NAND-CLE
NAND-ALE

NAND-REn

NAND-WEn

XIO-ACK

RESET-NVM_WP-NANDFLASH-INV

RESET-NVM_WP-NANDFLASH

3HA3

2K2

9HA0

RES

IHA1

1

IHA0

+3V3-NAND

10K

3HA2

3

7HA3
PDTC114EU

2

+3V3-NAND

A

B

C

2HA0 B7
2HA1 B7
3HA0 B2
3HA2 C9
3HA3 B8
3HA4 B4
3HA5 B4
3HA6 B4
3HA7 B4
3HA8 B4
3HA9 B4
3HAA C4
3HAB C4
3HAC D4
3HAD D4
3HAE D4
3HAF D4
5HA0 A2
7HA0 B6
7HA3 C9
9HA0 C8
IHA0 C9
IHA1 C9
IHSR A6
IHSS B7
IHST B7

D

E

3104 313 6194.3

PCI-AD0
PCI-AD1
PCI-CBE1
PCI-CBE2

12

3

3HAD

3HAE
3HAF

3HAC

100R

100R
100R
100R

NAND-CLE
NAND-ALE

NAND-WEn

NAND-REn

45

6

D

E

H_16800_054.eps

250407

789

Circuit Diagrams and PWB Layouts

82Q528.1E LA 7.

PNX5050: Control

123

B05A B05A

PNX5050: CONTROL

A

+3V3-D

3C21

2K2

B

FC01

3C22

IC01

1K2

2C03

2

3

5

100n

7C11

NCP303LSN10T1

IN

GND

CD

+3V3-D

10K

3C23

FC00

1

RST

4

NC

9C06

C

2C00

GND-PLL

1C05

27M

27p

2C01

GND-PLL

RESET-SYS-DETECT

27p

RESET-SYS-DETECT

D

E

F

+3V3-D

+3V3-D

3C37

RES

10K

45678910111213

RES

RES

100n

FC14

2C02

9C05

IC07

IC04

7C00-1

PNX505x(PNX1702)

D11

XTAL_IN

D9

XTAL_OUT

A11

POR_IN

C7

RESET_IN

E25

PCI_SYS_CLK

Φ

SYSTEM

RESERVED2

JTAG

SYS_RST_OUT_

TDO
TCK
TMS

PCI-CLK-PNX5050_CLK-MOP

PCI-AD0
PCI-AD1
PCI-AD2
PCI-AD3
PCI-AD4
PCI-AD5
PCI-AD6
PCI-AD7
PCI-AD8
PCI-AD9

+3V3-D

+3V3-D

10K

10K

3C20

3C32

AB23

A1

TDI

D6
B1
D5

D10

FC16

TDO
TCK
TMS

TDI

FC10
FC11
FC12
FC13

CC00

9C07

9C08

JTAG-TD-PACIFIC-PNX5050

JTAG-TD-PNX5050-PNX8535

PNX5050-RST-OUTn

SCL-SSB

SDA-SSB

SDA-PNX5050

SCL-PNX5050

PCI-AD10
PCI-AD11
PCI-AD12
PCI-AD13
PCI-AD14
PCI-AD15
PCI-AD16
PCI-AD17
PCI-AD18
PCI-AD19
PCI-AD20
PCI-AD21
PCI-AD22
PCI-AD23
PCI-AD24
PCI-AD25
PCI-AD26
PCI-AD27
PCI-AD28
PCI-AD29
PCI-AD30
PCI-AD31

+3V3

3C29

10K

7C00-4

PNX505x(PNX1702)

E23

PCI_CLK

Y23

0

W23

1

Y26

2

W24

3

W25

4

W26

5

V23

6

V26

7

U23

8

U24

9

T23

10

U26

11

T24

12

T25

13

T26

14

R26

15

M25

16

N23

17

M23

18

M24

19

L26

20

L25

21

L24

22

L23

23

J26

24

J25

25

K23

26

H26

27

H25

28

J23

29

G26

30

H24

31

AC20

XIO_ACK

8

AE26

9

AC19

10

Y25

11

Y24

12

AD25

13

AA26

14

AA25

15

GPIO<26:34>

PCI_XIO

PCI_AD<0:31>

XIO_D<8:15>

Φ

PCI_C_BE

PCI_PAR

PCI_FRAME_

PCI_IRDY_

PCI_TRDY_

PCI_STOP_

PCI_IDSEL

PCI_DEVSEL_

PCI_REQ_
PCI_GNT_

PCI_REQ_A_
PCI_GNT_A_

PCI_REQ_B_
PCI_GNT_B_

PCI_PERR_

PCI_SERR_

PCI_INTA_

XIO_AD

XIO_SEL

V25

0

R23

1

M26

2

K24

3

R24

N26

N25

N24

P24

K26

P26

F23
D24

G23
D25

H23
D26

P23

R25

D23

AA24AC22

AB26

0

AB25

1

AD26

2

AC23

3

AB24

4

100R

100R

100R

3C06

100R

3C00

3C02

3C04

RES

RES

100R

100R RES

100R

9C02

RES

3C01

3C03

RES

3C05

PCI-REQ-PNX5050

PCI-GNT-PNX5050

PCI-REQ-DEBUG
PCI-GNT-DEBUG

PCI-REQ-USB20

14

PCI-CBE0
PCI-CBE1
PCI-CBE2
PCI-CBE3

PCI-PAR

PCI-FRAME

PCI-IRDY

PCI-TRDY

PCI-STOP

PCI-AD25

PCI-DEVSEL

PCI-GNT-USB20

PCI-PERR

PCI-SERR

IRQ-PNX5050

A

B

C

D

E

F

1C05 D2
2C00 D2
2C01 D2
2C02 B4
2C03 C2
3C00 D13
3C01 D13
3C02 D13
3C03 D14
3C04 E13
3C05 E14
3C06 D13
3C07 G1
3C08 G1
3C09 G2
3C10 G2
3C11 H3
3C12 H2
3C13 I2
3C14 H1
3C15 G1
3C17 I2
3C20 D6
3C21 B1
3C22 C1
3C23 B3
3C27 H2
3C28 H2
3C29 E10
3C32 D6
3C37 F3
7C00-1 D5
7C00-4 B11
7C11 B2
9C02 E13
9C05 D4
9C06 B3
9C07 F7
9C08 F7
CC00 D7
FC00 B3
FC01 B1
FC10 D6
FC11 D6
FC12 D6
FC13 D6
FC14 D4
FC16 D6
IC00 H2
IC01 B2
IC04 B4
IC07 D4

3C07

G

3C08

H

I

3104 313 6194.3

12345

RES

10K

3C12

10K

3C11

10K

BOOTMODE7

BOOTMODE6

BOOTMODE5

BOOTMODE4

BOOTMODE3

BOOTMODE2

BOOTMODE1

BOOTMODE0

BOOTMODE7FUNCTION

EN_PCI_ARB

MEM_SIZE

6
5

4

CAS_LATENCY

3

ROM_WIDTH

2

HC_FASTMODE

1

BOOTMODE

0

0 : DISABLES
1 : ENABLES

1 0 0 : 32MB

1 0 1 : 64MB

110 : 128MB

0 : 2.5 CLKS
1 : 3 CLKS

0:8-bit ROM/100khz

1:16-bit ROM/400khz

1 0 : HOST-ASSISTED
1 1 : EEPROM

6

product SW

assert SW

G

H

I

H_16800_055.eps

010507

7 8 9 1011121314

+3V3-D

+3V3-D

10K

RES

10K

3C15

+3V3-D

10K

3C14

RES

3C27

3C28

10K

10K

10K

3C13

+3V3-D

3C17

10K

3C09

+3V3-D

+3V3-D

RES

10K

3C10

10K

IC00

Circuit Diagrams and PWB Layouts

83Q528.1E LA 7.

PNX5050: SDRAM

1

B05B B05B

PNX5050: SDRAM

A

MM_RAS

MM_CAS

B

C

D

MM_WE

MM_CKE

MM_BA0
MM_BA1

MM_A0
MM_A1
MM_A2
MM_A3
MM_A4
MM_A5
MM_A6
MM_A7
MM_A8
MM_A9
MM_A10
MM_A11
MM_A12

MM_DQM_0
MM_DQM_1
MM_DQM_2
MM_DQM_3

MM_DQS0
MM_DQS1
MM_DQS2
MM_DQS3

2CA0

E

F

G

+2V5

H

2CB2

RES

10V

100n

2CA4

330u

2 3 4 5 6 7 8 9 101112131415

7C00-3

VREF-PNX5050

1n0

5CA0

RES220R

5CA1

220R

ICA0

2CA5

PNX505x(PNX1702)

L1

M4

N3

J2

3CA0

1K0

N2

R4
P4

R2
P3
T3
U4
U3
T1
R1
P1
N4
L4
T4
K3
K4

K2
J4
V3
U2

J1
G1
Y1
V1

1n0

100p

2CA6

MM_RAS

MM_CAS

MM_WE

MM_CKE

AVREF

0

MM_BA

1

0
1
2
3
4
5

MM_ADDR<0:12>

6
7
8
9
10
11
12

0
1

MM_DQM

2
3

0
1

MM_DQS

2
3

+2V5-DDR

2CA1

100n

2CA7

Φ

MEMORIES

MM_DATA<0:31>

RES

2CA2

1u0

100n

2CA9

2CA8

RES

100n

100n

MM_CLK

MM_CLK

MM_CS

2CA3

2CAA

10n

100n

2CAF

100R

100n

MM_DATA_10
MM_DATA_11
MM_DATA_12
MM_DATA_13
MM_DATA_14
MM_DATA_15
MM_DATA_16
MM_DATA_17
MM_DATA_19
MM_DATA_18
MM_DATA_20
MM_DATA_22
MM_DATA_21
MM_DATA_23
MM_DATA_24
MM_DATA_25
MM_DATA_26
MM_DATA_27
MM_DATA_29
MM_DATA_28
MM_DATA_30
MM_DATA_31

2CAG

MM_CLK_P

MM_CLK_N

MM_CS0
MM_CS1

MM_DATA_0
MM_DATA_1
MM_DATA_3
MM_DATA_2
MM_DATA_4
MM_DATA_5
MM_DATA_6
MM_DATA_7
MM_DATA_8
MM_DATA_9

100n

2CAH

100n

2CAK

M1

9CA1

M2

9CA2

100n

2CAD

3CA9

RES

ICA1

VREF-PNX5050

100n

100n

2CAE

L3

0

V4

1

C2

0

C1

1

E2

2

D1

3

E1

4

F2

5

F1

6

H2

7

H4

8

G3

9

G4

10

F3

11

E3

12

E4

13

D3

14

C3

15

AD3

16

AC3

17

AB4

18

AB3

19

AA3

20

Y4

21

Y3

22

W4

23

W2

24

AA1

25

AA2

26

AB1

27

AC1

28

AB2

29

AD1

30

AD2

31

560R

3CA1

FCA2

560R

3CA2

100n

2CAB

2CAC

100n

2CAM

2CB7

MM_A0
MM_A1
MM_A2
MM_A3
MM_A4
MM_A5
MM_A6
MM_A7
MM_A8
MM_A9
MM_A10
MM_A11
MM_A12

MM_BA0
MM_BA1

MM_DQM_0
MM_DQM_1

VREF-DDR

MM_CLK_N

MM_CLK_P

MM_CKE
MM_CS0
MM_RAS
MM_CAS
MM_WE

100n

2CAN

10n

2CB8

100n

10n

K4H561638H-UCCC

2CBT 1n0

3CA6

220R

100n

2CAP

2CAR

100n

7CA0

29
30
31
32
35
36
37
38
39
40
28
41
42

26
27

20
47

49

46
45
44
24
23
22
21

0
1
2
3
4
5
6
7
8
9
10
11

AP
0
1

L
U

VREF

CKE
CS
RAS
CAS
WE

BA

DM

CK
CK

+2V5-DDR

1183339

Φ

DDR

SDRAM

16Mx16

A

VSS

6

344866

+2V5-DDR

3CA3

3CA4

2CB3

22u 16V

+2V5-DDR

VDDQVDD

VSSQ

125258

560R

560R

CCA0

155561

D

100p

2CB4

SENSE+2V5

DQS

+2V5-DDR

22u

1u0

100p

100p

2CBF

2CBB

2CBK

3CBB
3CBC
3CBD

3CBE

3CBF
3CBG
3CBH

3CBK
3CBM
3CBN

3CBP
3CBR

3CBS

3CBT

3CBV
3CBW

2CBH

14
17
19
25
43
50

22R

DQ(16)

22R

DQ(17)

22R

DQ(18)

22R

DQ(19)

22R

DQ(20)

22R

DQ(21)

22R

DQ(22)

22R

DQ(23)

22R

DQ(24)

22R

DQ(25)

22R

DQ(26)

22R

DQ(27)

22R

DQ(28)

22R

DQ(29)

22R

DQ(30)

22R

DQ(31)

22R

DQS2

22R3CAD

DQS3

DQ(16)
DQ(17)
DQ(18)
DQ(19)
DQ(20)
DQ(21)
DQ(22)
DQ(23)
DQ(24)
DQ(25)
DQ(26)
DQ(27)
DQ(28)
DQ(29)
DQ(30)
DQ(31)

DQS2
DQS3

53

2
4
5
7
8
10
11
13
54
56
57
59
60
62
63
65

16
51

55

61

NC

0
1
2
3
4
5
6
7

D
8
9
10
11
12
13
14
15

L

DQS

U

58

64

22u

1u0

100p

100p

2CBA

2CBG

2CBD

DQ(0)
DQ(1)
DQ(2)
DQ(3)
DQ(4)
DQ(5)
DQ(6)
DQ(7)
DQ(8)

DQ(9)
DQ(10)
DQ(11)
DQ(12)
DQ(13)
DQ(14)
DQ(15)

DQS0

DQS1

VREF-DDR

2CBC

DQ(0)
DQ(1)
DQ(2)
DQ(3)
DQ(4)
DQ(5)
DQ(6)
DQ(7)
DQ(8)
DQ(9)
DQ(10)
DQ(11)
DQ(12)
DQ(13)
DQ(14)
DQ(15)

DQS0
DQS1

3CAE
3CAF
3CAG
3CAH
3CAK
3CAM
3CAN
3CAP
3CAR
3CAS
3CAT
3CAV
3CAW
3CAY
3CAZ
3CBA

3CAA
3CAB

MM_DQS0
MM_DQS1

MM_DATA_16
MM_DATA_17
MM_DATA_18
MM_DATA_19
MM_DATA_20
MM_DATA_21
MM_DATA_22
MM_DATA_23
MM_DATA_24
MM_DATA_25
MM_DATA_26
MM_DATA_27
MM_DATA_28
MM_DATA_29
MM_DATA_31
MM_DATA_30

MM_DQS2
MM_DQS3

3CAC

MM_DATA_3

22R

MM_DATA_2

22R

MM_DATA_1

22R

MM_DATA_0

22R

MM_DATA_4

22R

MM_DATA_5

22R

MM_DATA_6

22R

MM_DATA_7

22R

MM_DATA_8

22R

MM_DATA_9

22R

MM_DATA_10

22R

MM_DATA_11

22R

MM_DATA_12

22R

MM_DATA_13

22R

MM_DATA_14

22R

MM_DATA_15

22R

22R
22R

14
17
19
25

NC

43
50
53

2

0

4

1

5

2

7

3

8

4

10

512

11

6

13

7

54

8

56

9

57

10

59

11

60

12

62

13

63

14

65

15

16

L

51

U

64

FCA3

1u0

100n

2CB5

2CB6

+2V5-DDR

+2V5-DDR

33

3

9

15

VDDQ VDD

Φ

DDR
SDRAM
16Mx16

VSSQ

6

66

12

52

18

A

VSS

48

7CA1
K4H561638H-UCCC

1

29

0

30

1

31

2

32

3

35

4

36

5

37

6

38

7

39

8

40

9

28

10

41

11

42

2

1

AP

26

0

27

BA

1

20

L

47

DM

U

49

VREF

46

CK

45

CK

44

CKE

24

CS

23

RAS

22

CAS

21

WE

34

2CBP

2CBS

VREF-DDR

10n

1n0

3CA5

MM_A0
MM_A1
MM_A2
MM_A3
MM_A4
MM_A5
MM_A6
MM_A7
MM_A8

MM_A9
MM_A10
MM_A11
MM_A12

MM_BA0

MM_BA1
MM_DQM_2
MM_DQM_3

2CBN

MM_CLK_N

220R

MM_CLK_P

MM_CKE

MM_CS0

MM_RAS

MM_CAS

MM_WE

2CA0 B2
2CA1 G3
2CA2 G4
2CA3 G4
2CA4 H1
2CA5 H2
2CA6 H2
2CA7 H3
2CA8 H4
2CA9 H4

A

2CAA H4
2CAB H4
2CAC H4
2CAD H5
2CAE H5
2CAF H5
2CAG H5
2CAH H5
2CAK H6
2CAM H6
2CAN H6
2CAP H6

B

2CAR H7
2CB2 H1
2CB3 H7
2CB4 G8
2CB5 G8
2CB6 G8
2CB7 A6
2CB8 A6
2CBA B9
2CBB B12
2CBC B9
2CBD B9

C

2CBF B11

D

E

F

G

H

2CBG B9
2CBH B12
2CBK B12
2CBN C15
2CBP B15
2CBS C15
2CBT C7
3CA0 B3
3CA1 F4
3CA2 G4
3CA3 F8
3CA4 G8
3CA5 D15
3CA6 D6
3CA9 B5
3CAA D10
3CAB D10
3CAC D11
3CAD D11
3CAE B10
3CAF C10
3CAG C10
3CAH C10
3CAK C10
3CAM C10
3CAN C10
3CAP C10
3CAR C10
3CAS C10
3CAT C10
3CAV C10
3CAW C10
3CAY C10
3CAZ C10
3CBA D10
3CBB B11
3CBC C11
3CBD C11
3CBE C11
3CBF C11
3CBG C11
3CBH C11
3CBK C11
3CBM C11
3CBN C11
3CBP C11
3CBR C11
3CBS C11
3CBT C11
3CBV C11
3CBW D11
5CA0 H2
5CA1 H2
7C00-3 A3
7CA0 B7
7CA1 B14
9CA1 B5
9CA2 B5
CCA0 H8
FCA2 F4
FCA3 F9
ICA0 H2
ICA1 B5

10n

I

3104 313 6194.3

1

2345678

I

H_16800_056.eps

010507

9

10 11 12 13 14 15

Circuit Diagrams and PWB Layouts

84Q528.1E LA 7.

PNX5050: Video

12345678

910

11

PNX5050: VIDEO

B05C B05C

A

B

C

D

E

F

G

+3V3

3C48

4K7

DV-DE

DV-CLK

DV-FF_DE
DV-B4_UV0
DV-B5_UV1
DV-G0_UV2
DV-G1_UV3
DV-G2_UV4
DV-G3_UV5
DV-G4_UV6
DV-G5_UV7
DV-G6_UV8
DV-G7_UV9
DV-B6_Y0
DV-B7_Y1
DV-R0_Y2
DV-R1_Y3
DV-R2_Y4
DV-R3_Y5
DV-R4_Y6
DV-R5_Y7
DV-R6_Y8
DV-R7_Y9
DV-VS
DV-HS

DV-DE

PNX5050-GPI044

BOOTMODE0
BOOTMODE1
BOOTMODE2
BOOTMODE3

BOOTMODE4
BOOTMODE5
BOOTMODE6
BOOTMODE7

3C54

3C56

3C58

IC56

+3V3

1K0

1K0

1K0

3C49

3C59

1K0

3C53
1K0

3C55

1K0

3C57

1K0

4K7

IC47

IC43
IC44

7C00-5

PNX505x(PNX1702)

AF7

1

AC6

VDI_CLK

2

AE4

0

AF3

1

AE3

2

AF4

3

AD5

4

AD6

5

AD7

6

AC7

7

AF5

8

AE5

9

AC8

10

AE8

11

AD8

12

AF6

13

AC9

14

AE7

15

AC10

16

1EA

AD20

VDI_D

17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1

VDI_V

2

GPIO<51:52>

GPIO<58:59>

AI_OSCLK
AI_SCK
AI_WS
0
1

AI_SD

2
3

GPIO<16:20>

SPDI
SPDO

GPIO<56:57>

LAN_TX_CLK
LAN_REF_CLK
LAN_RX_CLK
LAN_REF_CLK
LAN_CRS
LAN_CRS_DV
LAN_COL
0
1

LAN_RXD

2
3
LAN_RX_DV
LAN_RX_ER

GPIO<41:48>

0
1
2

CLOCK

3
4
5
6

WDOG_OUT

GPIO<0:11>
BOOT_MODE<0:7>

AC11
AD9
AF8
AE9
AD10
AC12
AF9
AE10
AF10
AD11
AC13
AF11
AE12
AF12
AC14
AE2
AC5
AF13

AF23

AD21
AE23
AF24
AC17
AD22

A6
AF22

AF14

AF16

AC24

AA23
AE16
AF17
AD16
AD17
AE15
AD15

B4
B3
A3
A4
A7
A8
B9
AE24
AF25
AF26
AD23
AC18

Φ

INTERFACES

VDO_CLK

GPIO<53:55>

FGPO_BUF_SYNC

FGPO_REC_SYNC

GPIO<21:25>

GPIO<49:50>

LAN_TX_EN

LAN_TXD

LAN_TX_ER

GPIO<35:40>

GPIO<12:15>

VDO_D

VDO_AUX

GPIO60

AO_OSCLK

AO_SCK

AO_WS

AO_SD

IIC_SDA
IIC_SCL

LAN_MDIO

LAN_MDC

LAN_CLK

GCLOCK

WAKEUP

R

2C50

10p

IC52

IC53

IC50

IC54
IC55

100R

IC61

IC62

3C62

3C63

3C65

3C67

3C69

3C71

3C73

3C75

3C77

3C79

3C81

3C83

3C85

3C87

3C89

3C91

3C93

3C95

3C98

3C50

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33R

33RRES

IC57
IC58
IC59
IC60

100R

D18

1

B19

2

A20

0

A21

1

B20

2

C19

3

D16

4

A22

5

B21

6

B22

7

C20

8

A23

9

C21

10

B23

11

C22

12

D17

13

A24

14

B24

15

A25

16

A26

17

C23

18

D21

19

D22

20

B26

21

C25

22

D19

23

G25

24

G24

25

F26

26

F25

27

F24

28

D20

29

E26

30

C26

31

B18

32

A19

33

B2

34

42

E

A18
C17

AD19

AE18
AE20
AF19

0

AE19

1

AF20

2

AF21

3

C8
D8

AC26
AC25

AD13

AE14

0

AC15

1

AD14

2

AF15

3

AE13
AF18

AC16

0

AE21

1

AE22

2

AC21

E

RSE

2C51

S

10p

3C64

33R

3C66

33R

3C68

33R

3C70

33R

3C72

33R

3C74

33R

3C76

33R

3C78

33R

3C80

33R

3C82

33R

3C84

33R

3C86

33R

3C88

33R

3C90

33R

3C92

33R

3C94

33R

3C96

33R

RES
3C97

33R RES

I2C-ADDRESS = 0XE4

3C51

RxP3CLK

RxP3oD+_B0

RxP3oD-_B1

RxP3oCLK-_B2

RxP3oCLK+_B3

RxP3oC+_B4

RxP3oC-_B5

RxP3oB+_B6

RxP3oB-_B7

RxP3oA+_B8

RxP3oA-_B9

RxP3eCLK-_G0

RxP3eCLK+_G1

RxP3eC+_G2

RxP3eC-_G3

RxP3eB+_G4

RxP3eB-_G5

RxP3eA+_G6

RxP3eA-_G7

RxP3oE+_G8

RxP3oE-_G9

RxP3R0
RxP3R1
RxP3R2
RxP3R3
RxP3R4
RxP3R5

RxP3eE+_R6

RxP3eE-_R7

RxP3eD+_R8

RxP3VS

RxP3HS_DE

RxP3FF

RxP3eD-_R9

RxP3FF

RxP3HS_DE
RxP3HS_DE

SDA-PNX5050
SCL-PNX5050

PNX5050-GPI036

PNX5050-GPI039

DV-B0_UART2-RX
DV-B1_UART2-TX

DV-B2_DEBUG-BREAK

DV-B3_AUDIO-MUTE

A

B

C

D

E

F

G

2C50 A8
2C51 A8
3C48 D3
3C49 D5
3C50 E8
3C51 E8
3C53 D5
3C54 E5
3C55 E5
3C56 E5
3C57 E5
3C58 E5
3C59 E5
3C62 A8
3C63 B8
3C64 B9
3C65 B8
3C66 B9
3C67 B8
3C68 B9
3C69 B8
3C70 B9
3C71 B8
3C72 B9
3C73 B8
3C74 B9
3C75 B8
3C76 B9
3C77 C8
3C78 C9
3C79 C8
3C80 C9
3C81 C8
3C82 C9
3C83 C8
3C84 C9
3C85 C8
3C86 C9
3C87 C8
3C88 C9
3C89 C8
3C90 C9
3C91 D8
3C92 D9
3C93 D8
3C94 D9
3C95 D8
3C96 D9
3C97 D9
3C98 D8
7C00-5 A6
IC43 E6
IC44 E6
IC47 D6
IC50 A8
IC52 D7
IC53 D7
IC54 D8
IC55 D8
IC56 D5
IC57 G8
IC58 G8
IC59 G8
IC60 G8
IC61 F8
IC62 F8

H

3104 313 6194.3

H

H_16800_057.eps

1

2345

67891011

010507

Circuit Diagrams and PWB Layouts

85Q528.1E LA 7.

PNX5050: Supply

123456789101112

B05D B05D

PNX5050: SUPPLY

A

IC71

5CD3

220R

CCD0

+1V4-PLL

2CDN

IC72

10n

100n

2CDT

2CDP

B

C

D

G

H

SENSE+1V4

+1V4

+2V5-DDR

IC70

+3V3-D

+3V3-D

22u 16V

2CFC

5CD1

220R

16V22u

+3V3

2CFB

E

F

5CD2

+3V3

220R

2CFA

GND-ANA

+3V3-A

10n

2CFD

GND-ANA

100n

GND-ANA

2CFE

100n

GND-ANA

2CFF

100n

GND-ANA

2CFG

10u

+1V4

7C00-2

PNX505x(PNX1702)

D12

C9

C6
C10
D13
B14
A17
A12
A15

J22

K22

N5

P5

VDD

R22

T22

AB9

AB16
AB15
AB10

E9
E16
E15
E10

K1

L2
V2
Y2

AC2
AC4

D4
D2

W5

G5
H5
G2

J3

L5
M5
N1
R3
U1
R5

T5
Y5

G22
H22

J24

V24

W22

Y22
AB20
AB19

AD24
AD18
AD12

AE6

A2
B6

C24

VCCPVCCA VCCM

C18

C12

E20

E19

AF2

E8

E7
E14
E13
N22
P22

AB14
AB13

AB8
AB7

B5

D7
D14
A16
C13
D15

VDDA

A10

10u

POWER

VSSA_1.2

VSSA VSS

B10
B7
C5
B12
C14
AB17
AB12
AB11
AA22
AB6
AB5
E22
E21
E18
E17
E12
E11
F22
AF1
AA4
AA5
L22
M22
U22
V22
F5
F4
J5
H3
M3
T2
U5
V5
C16
AB22
AB21
AB18
H1
K5
K25
P25
P2
U25
W3
W1
L16
L15
L14
L13
L12
L11
M16
M15
M14
M13
M12
M11
N16
N15
N14
N13
N12
N11
A9
A13
C15
AD4
AE25
AE17
AE11
B25
B17
B11
C4
E6
E5
P16
P15
P14
P13
P12
P11
R16
R15
R14
R13
R12
R11
T16
T15
T14
T13
T12
T11

B8
A5
A14
B16
B13
B15

C11

GND-PLL

10u

2CDU

GND-ANA

+1V4

2CDB

2CEB

2CF6

10n

10n

100n

2CDC

2CEC

2CF7

10n

10n

100n

2CDD

2CED

2CF8

10n

10n

100n

2CDE

2CEE

2CF9

10n

10n

100n

10u

100n

100n

2CD0

2CE0

100n

2CD1

2CE1

100n

2CDV

2CD2

2CE2

100n

100n

2CD3

2CE3

100n

100n

2CD4

2CE4

2CDX

100n

100n

10u

2CD5

2CE5

2CF0

100n

100n

100n

2CD6

2CE6

2CF1

100n

100n

100n

2CD7

2CE7

2CF2

100n

100n

100n

2CD8

2CE8

2CF3

100n

100n

100n

2CD9

2CE9

2CF4

100n

+2V5-DDR

100n

+3V3-D

100n

2CDA

2CEA

2CF5

10n

10n

100n

2CDF

2CEF

2CDY

10n

10n

2CDG

10n

10n

2CEG

10n

10n

2CDZ

2CDH

2CEH

10n

10n

10n

2CDK

2CEK

10n

2CDR

2CDM

10n

10n

2CEM

25V

220u

2CDS

330u 10V

2CD0 C7
2CD1 C8
2CD2 C8
2CD3 C8
2CD4 C8
2CD5 C8
2CD6 C9
2CD7 C9
2CD8 C9

A

2CD9 C9
2CDA C10
2CDB C10
2CDC C10
2CDD C10
2CDE C10
2CDF C11
2CDG C11
2CDH C11
2CDK C11
2CDM C12
2CDN H5
2CDP H5
2CDR C12

B

2CDS C12
2CDT H5
2CDU C7
2CDV C7
2CDW C12
2CDX F8
2CDY F11
2CDZ F11
2CE0 D7

C

D

E

F

2CE1 D8
2CE2 D8
2CE3 D8
2CE4 D8
2CE5 D8
2CE6 D9
2CE7 D9
2CE8 D9
2CE9 D9
2CEA D10
2CEB D10
2CEC D10
2CED D10
2CEE D10
2CEF D11
2CEG D11
2CEH D11
2CEK D11
2CEM D12
2CF0 F8
2CF1 F9
2CF2 F9
2CF3 F9
2CF4 F9
2CF5 F10
2CF6 F10
2CF7 F10
2CF8 F10
2CF9 F10
2CFA H3
2CFB D1
2CFC D1
2CFD H3
2CFE H3
2CFF H4
2CFG H4
5CD1 D2
5CD2 G3
5CD3 H5
7C00-2 A6
CCD0 A5
IC70 D2
IC71 G5
IC72 H5

2CDW

330u 10V

G

H

3104 313 6194.3

12

GND-PLL

34

GND-PLL

GND-PLL

56

78910

H_16800_058.eps

010507

11 12

Circuit Diagrams and PWB Layouts

86Q528.1E LA 7.

Pacific 3: LVDS

1

234

5678

9

10

1

12

PACIFIC 3: LVDS

B06A B06A

1G50

A

B

C

D

E

F

G

H

Single / Dual LVDS input only

RxP3oA+_B8

100R

3G00

RxP3oA-_B9

RxP3oB+_B6

100R100R

3G01

RxP3oB-_B7

RxP3oC+_B4

3G02

RxP3oC-_B5

RxP3oCLK-_B2

100R

3G03

RxP3oCLK+_B3

RxP3oD+_B0

100R

RxP3oD-_B1

RxP3oE+_G8

100R

3G05 3G04

RxP3oE-_G9

RxP3eA+_G6

100R

3G06

RxP3eA-_G7

RxP3eB+_G4

100R

3G07

RxP3eB-_G5

RxP3eC+_G2

100R

3G08

RxP3eC-_G3

RxP3eCLK-_G0

100R

3G09

RxP3eCLK+_G1

RxP3eD+_R8

100R

3G10

RxP3eD-_R9

RxP3eE+_R6

100R

3G11

RxP3eE-_R7

Dual LVDS input only

TXEA-

TXEA+

TXEB-

TXEB+

TXEC-

TXEC+

TXECLK-

TXECLK+

TXED-

TXED+

TXEE-

TXEE+

TXOA-

TXOA+

TXOB-

TXOB+

TXOC-

TXOC+

TXOCLK-

TXOCLK+

TXOD-

TXOD+

TXOE-

TXOE+

Dual LVDS only

4

3

5G00
1

2

4

3

5G01
1

2

3

4

5G02
1

2

4

3

5G03
1

2

4

3

5G041

2

4

3

5G05
1

2

4

3

5G061

2

3

4

5G071

2

4

3

5G08
1

2

4

3

5G09
1

2

4

3

5G101

2

4

3

5G11
1

2

2G00
2G01 4p7

DLW21S

2G02
2G03

DLW21S

2G04
2G05

DLW21S

2G06
2G07

DLW21S

2G08

DLW21SDLW21S

2G10

DLW21S

2G12
2G13

DLW21S

2G14
2G15

DLW21S

2G16

DLW21S

2G18
2G19 4p7

DLW21S

2G20
2G21

2G22
2G23 4p7

DLW21S

VDISP

CTRL-DISP1
CTRL-DISP2
CTRL-DISP3
CTRL-DISP4

FG02

FG15

FG17

FG24

FG13

3G52

100R

FG03

FG05

FG11

2G53

FG07

FG09

FG14

FG16

FG21

3G53

100R

100p

4p7

4p7
4p7

4p7
4p7

4p7
4p7

SCL-I2C4-DISP

4p7
4p72G09

4p7
4p72G11

4p7
4p7

4p7
4p7

4p7
4p72G17

4p7

4p7
4p7

4p7

SDA-I2C4-DISP

FG00

FG01

FG04

FG06

FG08

FG10

FG12

FG18

FG19

FG20

FG22

FG23

FG25

FG26

FI-RE41S-HF

LVDS CONNECTOR

100p

2G52

51

50

49

48

47

46

45

44

43

42

41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

41311

1G50 A13
2G00 B9
2G01 B9
2G02 C9
2G03 C9
2G04 C9
2G05 C9
2G06 D9
2G07 D9
2G08 D9

A

2G09 D9
2G10 E9
2G11 E9
2G12 E9
2G13 E9
2G14 F9
2G15 F9
2G16 F9
2G17 F9
2G18 G9
2G19 G9

B

2G20 G9
2G21 G9
2G22 H9
2G23 H9
2G52 E13
2G53 E12
3G00 B3
3G01 B3
3G02 C3
3G03 C3

C

3G04 D3
3G05 D3
3G06 E3
3G07 E3
3G08 F3
3G09 F3
3G10 G3
3G11 G3
3G52 D12
3G53 D13
5G00 B9

D

5G01 C9
5G02 C9
5G03 D9
5G04 D9
5G05 E9
5G06 E9
5G07 F9
5G08 F9
5G09 G9
5G10 G9

E

5G11 H9
FG00 A13
FG01 B13
FG02 B13
FG03 B13
FG04 B13
FG05 B13
FG06 B13
FG07 B13
FG08 C13

F

FG09 C13
FG10 C13
FG11 C13
FG12 C13
FG13 C12
FG14 C13
FG15 C12
FG16 C13
FG17 C12
FG18 C13
FG19 D13

G

FG20 D13
FG21 D13
FG22 D13
FG23 D13
FG24 D12
FG25 D13
FG26 D13

H

3104 313 6194.3

12

34

5678

H_16800_060.eps

010507

9

10

11

12

13 14

Circuit Diagrams and PWB Layouts

87Q528.1E LA 7.

Pacific 3: Display & Interfacing

12

B06B B06B

PACIFIC 3: DISPLAY-INTERFACING

3 135

46

7

8

A

100n
RES

9G50

RES

3G99

IG97

IG93

100K

*

IG83

2G76

3

2

7G57
BC847BW

5G55

220R
5G56

220R
3G56

2K2

16V

RES

10u

7G55

BC847BW

3G72

4K7

+3V3-STANDBY

2G50

10K

3G50

RES

9G61

RES

B

9G77

+5V-ON

IG54

9G78

9G79

9G80

RES

RES

+12V-DISP

C

CTRL4-P3

D

CTRL1-MIPS_LCD-PWR-ON

CTRL1-FPGA

CTRL2-FPGA

E

F

CTRL3-FPGA

CTRL4-FPGA

CTRL1-MIPS_LCD-PWR-ON

CTRL3-STBY_POWER-OK-DISP

CTRL5-STBY_BACKLIGHT-BOOST

CTRL1-STBY_LAMP-ON

CTRL2-STBY_BACKLIGHT-CTRL_RESET-P3

CTRL4-STBY_SELECT-PWM-ANA

POD-MODE

ON-MODE

3G63

7G52

SI4835BDY

RES

IG53

3G59

47K

2G57

47R

1u0

IG96

6G50

BZX384-C5V6

VDISP-SWITCH

IG72

IG73

IG75

IG59

IG77

IG78

IG79

3G71
100R

7G54

SI3441BDV

IG95

G

I2C-BUFFER

IG50

IG51

5G50

RES

120R

5G51

120R

RES

7G50

PCA9515ADP

RES

3SDA0 6

2 SCL0 7

5EN

IG80

8

VCC

GND

4

9G53

9G54

+5V-ON

H

SDA-SSB-MUX1

SCL-SSB-MUX1

+3V3

I

3G60

100R

3G80

47R

3G81

47R RES

3G84

3G85

47R RES

3G86

3G88

47R RES

3G90

47R

3G91

47R

3G93

47R

3G96

3G97

100K

3G98
100K

SDA1

SCL1

NC

IG92

3G64

47K

RES

RES

RES47R

47R

RES

RES

RES

47R

IG65

RES

2G51

1

100n

RES

3G51

1

3G94

IG71

10K

RES

FG50

2G54

100n

SML-310

3G67

10K

+3V3

4K7

6G52-1

1

RES

IG82

6G51

IG94

2G60

3G76

2G63

BAV99S

RES

47R

100p

6

100n

3G77

2G64

3G68

10K

+3V3

47R

100p

VDISP

3G78

2G65

IG81

2

RES

+3V3

3G79

47R

100p

2G66

5

BACKLIGHT-OUT

10K

FG51

FG52

FG53

FG54

RESERVED

NOTE : CAN BE

CAPACITOR OR

100p

WIRE BRIDGE

6G52-2

BAV99S

RES

3

CTRL-DISP1

CTRL-DISP2

CTRL-DISP3

CTRL-DISP4

4

3GB5

100R
RES

3GA8

100R

FHP

IRQ

PDWN

CPU-GO

PDP-GO

FG60

100p

2G69

RESET

SDA-I2C4-DISP

SCL-I2C4-DISP

TO DISPLAY

1D42

1
2
3
4
5

SDI

FG55

FG57

FG58

2G70

FG56

100p

2G71

100p

2G72

3GA7

3GA9
100R

3GB0

100R

1K0

SDA-I2C4-DISP

SCL-I2C4-DISP

100p

CTRL1-STBY_LAMP-ON

LAMP-ON-OUT

BACKLIGHT-CONTROL

CTRL4-STBY_SELECT-PWM-ANA

BACKLIGHT-OUT

CTRL5-STBY_BACKLIGHT-BOOST

CTRL2-STBY_BACKLIGHT-CTRL_RESET-P3

BACKLIGHT-BOOST

3104 313 6194.3

1

2

4

87653

9

10 11 12

RESERVED

P3-VS

SCL-AMBI-3V3

SDA-AMBI-3V3

+3V3

3GA5

IG52

1

7G51

BC847BW

RES

2

IG84

9G55

3G58

IG89

4K7

2G55

470p

+3V3

10K

3G69

3G73

RESERVED

9G49

9G48

RES

910

+3V3-STANDBY

+3V3-STANDBY

+5V-ON

10K

RES

3G54

3

IG91

IG88

47K

IGA9

3G87

RES

4K7

27K

3G57

IG86

3

1

7G53
BC847BW

2

2K2

RES

3G61

3G62

1K0
RES

+3V3

10K

3GA4

IGB3

6

2

7G59-1
BC847BS

1

IGA8

3GC0

4K7

2G78

470p

11 12

3GC1

+3V3

+3V3

3GA6

12K

2G61

470p

3G82

2G62

470p

5

10K

10K

3G70

2K2

RES

22K

IGB1

7G56
PDTC114EU

1

RES

3GC8

1K0
RES

IG58

IG62

3G95

IG66

3GA2

IG69

2G59

RES

IGB2
3

7G59-2
BC847BS

4

IGA6

BC847BS

BC847BS

2G67

BC847BS

4K7

3GA1

BC847BS

4K7

3GB8

7G60-1

7G60-2

470p
3G92

10K

7G61-1

2G68

470p

10K

7G61-2

RES

1u0

2G58

1u0

12K

3

7G65
BC847BW

2

IG87

3GB9

10K

2G79

3G65

1

4

1

4

9G57

9G58

9G59

RES

9G60
RES

5

15K

IG55

+5V-STANDBY

2

2K2

3G83

6

SCL-AMBI

IG60

+5V-STANDBY

IG61

5

2K2

3G89

SDA-AMBI

3

+5V-ON

IG64

2

2K2

3GA0

6

SCL-AMBI

IG67

+5V-ON

IG68

5

2K2

3GA3

SDA-AMBI

3

IG70

+12V

1R0

3GC4

FG59

RES

2G75

1u0

47K

IG85

2

4

BC847BPN
7G58-2

3

9G82
RES

33K

3GB7

IGA5
4
BC847BPN

7G66-2
3

6

7G58-1
BC847BPN

1

IG90

3G66

47K

2

1K0

6

7G66-1
BC847BPN

1

IGB0

1K0

3GC3

3G55

9G56
RES

IGA7

5

1u0

3GC2

13

+8V2-PAS

RES

6G55

BZX384-C8V2

+8V2-PAS

H_16800_061.eps

010507

A

B

C

D

E

F

G

H

I

1D42 B7
2G50 H4
2G51 H3
2G54 B4
2G55 E10
2G57 C2
2G58 G12
2G59 F12
2G60 C4
2G61 A11
2G62 A11
2G63 E4
2G64 E5
2G65 E5
2G66 E5
2G67 B12
2G68 C12
2G69 C6
2G70 C7
2G71 C8
2G72 C8
2G75 D13
2G76 B4
2G78 I11
2G79 I12
3G50 H4
3G51 H4
3G54 D10
3G55 E12
3G56 B4
3G57 E11
3G58 E10
3G59 C2
3G60 D3
3G61 E11
3G62 F11
3G63 C2
3G64 C3
3G65 F12
3G66 F13
3G67 C4
3G68 C5
3G69 F10
3G70 F11
3G71 D2
3G72 D4
3G73 G10
3G76 D4
3G77 D5
3G78 D5
3G79 D5
3G80 D3
3G81 E3
3G82 A11
3G83 A12
3G84 E3
3G85 E3
3G86 E3
3G87 A11
3G88 F3
3G89 B12
3G90 F3
3G91 F3
3G92 B12
3G93 F3
3G94 F4
3G95 B12
3G96 F3
3G97 G3
3G98 G3
3G99 G3
3GA0 B12
3GA1 C12
3GA2 C12
3GA3 C12
3GA4 G11
3GA5 D10
3GA6 E11
3GA7 B8
3GA8 B6
3GA9 B8
3GB0 C8
3GB5 B6
3GB7 H12
3GB8 H12
3GB9 H12
3GC0 H11
3GC1 I11
3GC2 I12
3GC3 I13
3GC4 D13
3GC8 I11
5G50 H2
5G51 H2
5G55 B4
5G56 B4
6G50 C2
6G51 B4
6G52-1 H4
6G52-2 H6
6G55 D13
7G50 H2

7G51 D10
7G52 B2
7G53 E11
7G54 B3
7G55 C4
7G56 F11
7G57 G4
7G58-1 E13
7G58-2 E12
7G59-1 G11
7G59-2 G12
7G60-1 A12
7G60-2 A12
7G61-1 B12
7G61-2 C12
7G65 H12
7G66-1 H13
7G66-2 H13
9G48 I10
9G49 H10
9G50 H3
9G53 I3
9G54 I3
9G55 E10
9G56 F12
9G57 A12
9G58 B12
9G59 C12
9G60 C12
9G61 B2
9G77 B1
9G78 B1
9G79 C1
9G80 C1
9G82 I12
FG50 B4
FG51 D5
FG52 E5
FG53 E5
FG54 E5
FG55 B7
FG56 B8
FG57 C7
FG58 C7
FG59 D13
FG60 B6
IG50 H2
IG51 I2
IG52 D10
IG53 C2
IG54 B2
IG55 A12
IG58 A12
IG59 F2
IG60 A12
IG61 A12
IG62 B12
IG64 B12
IG65 G3
IG66 C12
IG67 C12
IG68 C12
IG69 C12
IG70 D12
IG71 C4
IG72 D2
IG73 E2
IG75 E2
IG77 F2
IG78 F2
IG79 F2
IG80 H3
IG81 H5
IG82 I4
IG83 I4
IG84 E10
IG85 E12
IG86 E11
IG87 E12
IG88 E10
IG89 E10
IG90 F13
IG91 D10
IG92 B3
IG93 C4
IG94 C4
IG95 C3
IG96 C2
IG97 D4
IGA5 H13
IGA6 H12
IGA7 H12
IGA8 H11
IGA9 H11
IGB0 I13
IGB1 F11
IGB2 G12
IGB3 G11

Circuit Diagrams and PWB Layouts

88Q528.1E LA 7.

Pacific 3

12 9 101112

B06C B06C

A

B

+3V3

PACIFIC 3

5GE2

+3V3

120R

1u0

2GE0

7GE3

LD3985M25

2GJ5

1

3

100n

IN

INH BP

COM

2

OUT

5

4

FGE2

2GL1

IGF9

2GJ7

C

7GE5

IGH7

STPS2L30A

STPS2L30A

+3V3

D

6GE6
9GE4

6GE7

IGH8

2GK0

100n

LD1117DT

3

IN

GND

2

IN

OUT

OUT

COM

3GH3

1

IGH0

120R

3GH4

2GK3

120R

3GH5

E

7GE2-3
T6TF4HFG-0002

242

GND_HS

SUPPLY

SSCG_GND

PLL2_GNDA
PLL1_GNDA

PLL2_GNDD
PLL1_GNDD

VIA

GND

241
240
239
238
237
236
235
234
233
232
231
230
229
228
227
226
225
224
223
222
221
220
219
218
217

199
216
211
208
203
195
189
186
181
175
171
163
157
152
142
131
125
112
108
5

59

55
213

57
215

+2V5-PLL

F

+1V5-PLL

158

G

+3V3-P3

+2V5-P3

H

I

+1V5-P3

PLL2_VCCA_2V5

54

PLL1_VCCA_2V5

212

SSCG_VCC_1V5

58

PLL2_VCCD_1V5

56

PLL1_VCCD_1V5

214

210
201
196
184
180
174
167

150
144
138
130
124
118
113
110

VDD_2V5

166

6

209
197
190
182
176
156
147
136
119
111
105

94
85
72
65
43
39
33
24
21
12

VDD_3V3

VDD_1V5

3104 313 6194.3

123456

345678

10n

10n

1K0

1u0

2GE1

2GJ6

2GK1

10n

10n

2GE2

1u0

100n

2GK2

47u 4V

RxP3CLK
RxP3HS_DE

RxP3oA-_B9
RxP3oA+_B8

RxP3oB-_B7
RxP3oB+_B6

RxP3oC-_B5
RxP3oC+_B4

RxP3oCLK-_B2
RxP3oCLK+_B3

RxP3oD-_B1
RxP3oD+_B0

RxP3oE-_G9
RxP3oE+_G8

RxP3eA-_G7
RxP3eA+_G6

RxP3eB-_G5
RxP3eB+_G4

RxP3eC-_G3
RxP3eC+_G2

RxP3eCLK-_G0
RxP3eCLK+_G1

RxP3eD-_R9
RxP3eD+_R8

RxP3eE-_R7
RxP3eE+_R6

RxP3R5
RxP3R4
RxP3R3
RxP3R2
RxP3R1
RxP3R0

2GE3

10n

2GE4

+2V5-PF

+1V5

10n

2GE5

10n

10n

2GE7

2GE6

+1V5

7GE2-1

T6TF4HFG-0002

7
8

9
10

13
14

15
16

20
19

22
23

25
26

28
29

31
32

34
35

38
37

40
41

44
45

46
47
48
49
52
53

10n

2GE8

IGF5

+1V5-RX +1V5-TX

11

CLKI
HSI

N

ORX0

P

N

ORX1

P

N

ORX2

P

N

OCLK

P

N

ORX3

P

B<9:0>

N

ORX4

P

N

ERX0

P

N

ERX1

P

N

ERX2

P

N

ECLK

P

G<9:0>

N

ERX3

P

N

ERX4

P

R<9:0>

GND-RX

10n

2GE9

5GE3

220R

5GE4

220R

5GE5

220R

5GE6

220R

30

42

VDD_RX_1V5

10n

2GF0

2GF4

2GG7

GND-TX

637079

172736

10n

2GF1

4u7

2GF5

1u0

2GG8

2GH1

2GH6

GND-RX

+3V3-P3

91

VDD_TX_1V5

LVD S

GND

6071768297

51

GND-TX

10n

FGE4

10n

FGE8

10n

1u0

GND-TX

1u0

GND-RX

18

50

VDD_RX_3V3

2GF2

2GF6

2GG9

10n

2GF3

10n

2GF7

10n

2GH2

2GH7

647388

PWM

VDD_TX_3V3

OTX0

OTX1

PA<0:9>

OTX2

OTX3

OTX4

OTX5

ETX0

PB<0:9>

ETX1

ETX2

ETX3

ETX4

ETX5

PC<0:9>

10n

10n

104

+3V3-P3

10n

10n

2GF8

+1V5-PLL

GND-TX

GND-RX

3
4
5
6
7
8

P
N

P
N

P
N

P
N

P
N

P
N

P
N

P
N

P
N

P
N

P
N

P
N

2GH3

2GH8

100
101

102
103

106
107

+2V5-PF

10n

2GG6

IGA4

10n

10n

10n

2GK4

2GK6

2GK5

+1V5-TX

10n

10n

2GH5

GND-TX

IGA3

10n

TXEA+

TXEA-

TXEB+

TXEB-

TXEC+

TXEC-

TXECLK+
TXECLK-

TXED+

TXED-

TXEE+

TXEE-

TXOA+

TXOA-

TXOB+

TXOB-

TXOC+

TXOC-

TXOCLK+

TXOCLK-

TXOD+

TXOD-

TXOE+

TXOE-

+1V5-RX

10n

10n

2GF9

10n

2GH4

GND-TX

10n

2GH9

GND-RX

61
62
66
67
68
69

74
75

77
78

80
81

83
84

86
87

89
90

92
93

95
96

98
99

IGH9

5GE0

600R

2GG0

+1V5-P3

2

7GE1

M25P05-AVMN6

1u0

2GG1

+3V3-P3

Q

512K

FLASH

6GE0

6GE2

6GE3

0EGF

10n

10n

2GG2

10n

2GH0

8

VCC

Φ

D

C

S

W

HOLD

VSS

4

BAV70W

BAV70W

BAV70W

3GH2

789

+2V5-P3

5

6

1

3

7

IGF8

4K7

3GE2

100R

+3V3-P3

4K7

3GE5

100R

3GG0

RES

+2V5-PF

5GE1

600R

4K7

4K7

3GE6

IGA2

JTAG-TD-PACIFIC-PNX5050

3GE9

RES

JTAG-TD-CON-PACIFIC

3GH6

1K0

6GE5

PWM-3

PWM-3

PWM-OR

SDA-AMBI-3V3
SCL-AMBI-3V3

RES

9GE1

+3V3-P3

SML-310

2GG3

FGG1

IGF6

1u0

2GG4

3GG1

4K7

2GJ4

BAS316

6GE1
3GH0

2K2

+2V5-PLL

1EGF

10n

10n

2GG5

FGE3

RES

2GL2

10p

RxP3VS

CTRL4-P3

1GE0

10M

2GJ2

IG74

10n

100R

+3V3

IGE7

2GJ3

3GG5

JTAG-TCK
JTAG-TD-CON-PACIFIC
JTAG-TD-PACIFIC-PNX5050
JTAG-TMS
JTAG-TRST

RES
10p

IGE0

10K

FGE5

CTRL4-P3

RxP3FF

SDA-SSB
SCL-SSB

RES10p

FGG2

3GG4

3GH9

100R

3GF0

+3V3

3GH7

2

100R

10K

FGF2

3GF5
100R

60M

10K

2GL3

3GF1

100R

3GH8

FGG3

13

1GE1

RES

10p

3GF3

3GF8

3GG2

3GG3 100R

FGF3

P87LPC764BDH

10K

7

6

1
20
19
18
17
16
14
13

47R

100R

7GE0

3GE4

IGF3

1K0

100R

3GF9

IGE6

+3V3

CLKOUT
X2

CMP2
2B
2A
1B
1A
CMPREF
CMP1
T1

3GE3

IGE2

3GF7

IGE8

IGE9

9GE2

X1
P2<0:1>

CIN

P0<0:7>

+3V3-P3

1M0

165

164

172

193
191
192
194

4

FGG0

173
207
3

205

22R

1
2
206

177

178
179
183
185
187
188

198
200

202
204

114

Φ

uC

4Kb OTP

VSS

5

RES

3GE0

2GJ0

7GE2-2

T6TF4HFG-0002

OSC_Z

OSC_CLK_I

RSTN

SI
SCK
SO
CS

VSI

T1
TCK
TDI
TDO
TMS
TRST
TRIGOUT

MINTN

00
01
02
03
04
05
SCL
SDA

MSDA
MSCL

SSDA
SSCL

DEO

+5V-ON

RES

9GE3

15

VDD

INT

P1<0:7>

47K

TXD
RXD
SCL

SDA

RST

4u7

GPIO

3GE1
100R

CLKO

MISC

VSO
HSO

0

PWM

1
2

0
1
2
3
4

PD

5
6
7
8
9

0
1
2

PE

3
4
5
6

A<19:0>

RXD
RDN

TXD

PE<7:9>

7
6
5
4

D

3
2
1
0

PSEN

WRN

PF<0:9>

100n

2GJ1

IGH3

12
11
10

T0

IGH6

9

0

8

1

4
3

6

2

7

10 11 12 13

IGF4

13 14

CTRL2-STBY_BACKLIGHT-CTRL_RESET-P3

RES

9GE0

109

IGE1

115

IGE3

116

IGE4

168
169
170

117
120
121

RES
122
123
126
127
128

4K7
129
132

133
134
135
137
139
140
141

143
145
146

148
149
151
153
154
155
159
160
161
162

IGH4

3GE8

IGH2

3GF2

IGH5

IGF0
IGF1

IGF2

3GE7

RES

4K7

4K7

3GF4

3GF6

4K7

4K7

3GG6

1K0

IGF7

3GG7

4K7

3GG8

4K7

3GG9

4K7

3GH1

4K7

PWM-OR

RES

RES

RES

RES

BACKLIGHT-CONTROL

*

+3V3

+3V3

P3-VS

H_16800_062.eps

010507

14

A

B

C

D

E

F

G

H

I

1GE0 F10
1GE1 B11
2GE0 A2
2GE1 A3
2GE2 A3
2GE3 A3
2GE4 A3
2GE5 A3
2GE6 A4
2GE7 A4
2GE8 A4
2GE9 A4
2GF0 A5
2GF1 A5
2GF2 A5
2GF3 A5
2GF4 B5
2GF5 B5
2GF6 B5
2GF7 B5
2GF8 B5
2GF9 B6
2GG0 A7
2GG1 A8
2GG2 A8
2GG3 A9
2GG4 A9
2GG5 A10
2GG6 B6
2GG7 C5
2GG8 C5
2GG9 C5
2GH0 B8
2GH1 D5
2GH2 D5
2GH3 D5
2GH4 D6
2GH5 D6
2GH6 E5
2GH7 E5
2GH8 E5
2GH9 E6
2GJ0 B11
2GJ1 G12
2GJ2 H10
2GJ3 G10
2GJ4 G9
2GJ5 B1
2GJ6 B3
2GJ7 C2
2GK0 D2
2GK1 D3
2GK2 D3
2GK3 E2
2GK4 B6
2GK5 B6
2GK6 B6
2GL1 A2
2GL2 B10
2GL3 B10
3GE0 A11
3GE1 B12
3GE2 B8
3GE3 B11
3GE4 B11
3GE5 B8
3GE6 B9
3GE7 C13
3GE8 C12
3GE9 C8
3GF0 C10
3GF1 C11
3GF2 C13
3GF3 C11
3GF4 C13
3GF5 C11
3GF6 D13
3GF7 D11
3GF8 D11
3GF9 D11
3GG0 D8
3GG1 D9
3GG2 E11
3GG3 E11
3GG4 H10
3GG5 H10
3GG6 H13
3GG7 H13
3GG8 I13
3GG9 I13
3GH0 H9
3GH1 I13
3GH2 I8
3GH3 D2
3GH4 D2
3GH5 E2
3GH6 F9
3GH7 G10
3GH8 G11
3GH9 D10
5GE0 A7
5GE1 A9
5GE2 A2
5GE3 B4
5GE4 C4

5GE5 D4
5GE6 D4
6GE0 G8
6GE1 H9
6GE2 H8
6GE3 I8
6GE5 G9
6GE6 D1
6GE7 D1
7GE0 G11
7GE1 C7
7GE2-1 F4
7GE2-2 B12
7GE2-3 E1
7GE3 B2
7GE5 D2
9GE0 B13
9GE1 C9
9GE2 G11
9GE3 G11
9GE4 D1
FGE0 A8
FGE1 A9
FGE2 A2
FGE3 A10
FGE4 B5
FGE5 D10
FGE8 C5
FGF2 E10
FGF3 E11
FGG0 C11
FGG1 C9
FGG2 H10
FGG3 H11
IG74 H10
IGA2 C9
IGA3 D6
IGA4 D6
IGE0 B10
IGE1 B13
IGE2 B11
IGE3 B13
IGE4 C13
IGE6 D11
IGE7 D10
IGE8 E11
IGE9 E11
IGF0 D13
IGF1 D13
IGF2 E13
IGF3 E11
IGF4 H12
IGF5 B4
IGF6 H9
IGF7 I13
IGF8 H8
IGF9 B2
IGH0 D2
IGH2 H12
IGH3 H12
IGH4 H12
IGH5 H13
IGH6 H12
IGH7 D1
IGH8 D2
IGH9 A7

POD: Supply & Control

1P00 A7
1X02 E1
2P00 B6
2P10 A2
2P11 A2

2P12 E3
2P13 B2
2P14 B2
2P15 B1
2P16 C1

2P17 C1
2P18 E2
2P20 A3
2P21 A3
2P22 B3

1 2345678910

Circuit Diagrams and PWB Layouts

2P23 B3
3P00 B5
3P03 E10
3P05 D1
3P06 D3

3P08 C3
3P09 C4
3P10 D10
3P11 D10
3P12 D10

3P13 D10
3P14 D10
3P15 D10
3P20 C8
3P21 D3

3P22 D2
3P24 E6
3P25 E6
3P26 E6
3P27 E6

3P28 E6
3P29 E6
3P30 E7
3P31 E7
3P32 E7

3P33 E6
3P61 E10
6P00 C3
6P01 C3
6P02 D3

89Q528.1E LA 7.

7P01 B1
7P03-1 C6
7P03-2 D6
7P10 C3
7P11 D3

9P00 C3
9P01 D2
9P02 D2
9P03 C3
9P04 C2

9P05 A10
9P06 A10
9P07 A10
FP00 A3
FP01 B3

FP02 C1
FP03 D1
FP04 D1
FP05 E8
IP00 D10

IP01 D10
IP02 D10
IP03 D10
IP04 D10
IP05 D10

IP06 C3
IP07 D2
IP08 C5
IP09 D3
IP10 C3

IP11 C2
IP13 C2
IP14 D2
IP15 D3
IP18 C8

IP20 D2

POD: SUPPLY / CONTROL

CABLE CARD INTERFACE

B07A B07A

(POD IS THE EQUIVALENT OF COMMON INTERFACE)

A

FP00

PCMCIA-VPP

10u

100n

100n

7P10
PDTC114EU

100n

2P20

2P22

+3V3

IP09

2P12

10u

2P21

10u

2P23

IP06

3P06

10K

6P02

BAS316

100n

10u

9P03

BAS316

+3V3

3P21

10K

FP01

3P08

10K

6P00

BAS316
9P00
6P01

PCMCIA-VCC

+3V3

3P09

10K

IP10

CA-VCCEN

CA-VPPEN

IP15

SUPPLY-FAULT

CA-ADDEN

PCI-CBE2
PCI-CBE1
PCI-AD16
PCI-AD17

CA-ADDEN

PCI-AD19
PCI-AD22
PCI-AD23
CA-WAIT

10K

IP08

3P00

7P03-1

74LVC244APW

1

2
4
6
8

7P03-2

74LVC244APW

19

17
15
13
11

+3V3

100n

18
16
14
12

3
5
7
9

CA-MDO1

3P26 10K

2P00

CA-MDO2

10K3P27

CA-MDO3

10K3P29

10K3P28

CA-OE

CA-WE
CA-CE2
CA-CE1

CA-REG

CA-IORD
CA-IOWR
PCI-AD18

CA-MDO5

CA-MDO4

3P30 10K

CA-MDO6

10K3P32

3P31 10K

CA-MDO7

20

EN

10

+3V3

20

EN

10

CA-MDO0

CA-MOVAL

CA-MOSTRT

10K3P25

3P24 10K

3P33 10K

B

C

D

E

+5V-POD

+3V3

+5V-POD

2P15

2P16

2P17

100n

100n

100n

FP02

FP03

FP04

1X02

EMC HOLE

TPS2211AIDB

9

VPPI

3

3V3

4

5

5V

6

7P01

7

GND

16

3P05

+3V3

VCC

VCCD0_

VCCD1_

VPPD0

VPPD1

SHDN_

IP20

10K

VPP

OC_

2P10

2P11

10u 10V

10V10u

2P13

10

11

12

13

1

2

IP13

15

14

8

IP07

2P14

IP11

9P04

9P01
9P02

IP14

7P11

PDTC114EU

3P22
220R

2P18

1P00

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

717273

535660-2

PCMCIA-D3
PCMCIA-D4
PCMCIA-D5
PCMCIA-D6
PCMCIA-D7

CA-CE1

PCMCIA-A10

CA-OE

PCMCIA-A11
PCMCIA-A9_DRX
PCMCIA-A8_CRX

PCMCIA-A13

MOCLK-POD_A14-CI

PCMCIA-VCC
PCMCIA-VPP

IP18

PCMCIA-VCC

PCMCIA-VPP

74

FP05

CA-WE
CA-INT

CA-MIVAL
CA-MICLK

PCMCIA-A12
PCMCIA-A7_QTX

PCMCIA-A6_ETX

PCMCIA-A5_ITX

PCMCIA-A4_CTX

PCMCIA-A3
PCMCIA-A2
PCMCIA-A1
PCMCIA-A0
PCMCIA-D0
PCMCIA-D1
PCMCIA-D2

3P20

10K

PCMCIA-VCC

CA-CD1
CA-MDO3
CA-MDO4
CA-MDO5
CA-MDO6
CA-MDO7

CA-CE2

CA-VS1

CA-IORD

CA-IOWR

CA-MISTRT

CA-MDI0
CA-MDI1
CA-MDI2
CA-MDI3

CA-MDI4
CA-MDI5
CA-MDI6
CA-MDI7

MOCLK-CI

CA-RST

CA-WAIT

CA-INPACK

CA-REG

CA-MOVAL

CA-MOSTRT

CA-MDO0
CA-MDO1
CA-MDO2

CA-CD2

MOCLK-CI

MOCLK-POD_A14-CI

CA-INPACK

CA-WAIT

CA-INT

CA-CD1

CA-CD2

CA-VS1

CA-MOCLK_VS2

MOCLK-CI

IP00

IP01

IP02

IP03

IP04

IP05

9P06

9P07

9P05

*
*
*

3P10

3P11

3P12

3P13

3P14

3P15

3P61

10K

3P03

10K

CA-MOCLK_VS2

PCMCIA-A14

PCMCIA-VCC +3V3

10K

10K

10K

10K

10K

10K

A

B

C

D

E

3104 313 6194.3

1 234

H_16800_063.eps

010507

5678910

POD: Buffering

2P50 A3
2P51 B7
2P52 C7

2P53 E3
2P54 C3
3P50 A5

1

3P52 C6
3P53 D5
3P55 E2

Circuit Diagrams and PWB Layouts

3P56 E7
3P57 E7
3P58 E7

3P59 E5
3P60 E7
3P62 C5

7P50-1 C6
7P50-2 D6
7P51-1 A2

7P51-2 B2
7P52-1 C2

7P53 E2
7P54 B6
7P55 A5

9P50 F6
9P52 F6
9P54 F6

90Q528.1E LA 7.

9P56 F6
9P57 F6
9P58 F6

IP50 B6
IP51 A2
IP52 B6

IP53 D6
IP54 C6
IP55 E6

IP56 E2
IP57 E2
IP58 E27P52-2 D2

23456

789

B07B B07B

POD: BUFFERING

10K

3P59

10K

*

3P53

10K

*

-AI

+3V3

10K

3P50

74LVC257APW

IP50

IP52

IP54

10K

3P52

74LVC244APW

1

2
4
6
8

IP53

74LVC244APW

19

17
15
13
11

IP55

4A-AICMCP

7P54

1
15

2
3
5
6
11
10
14
13

7P50-1

7P50-2

+3V3

G1
EN

MUX

1
1

*

EN

+3V3

*

EN

9P50

9P52

9P54

9P56

9P57

9P58

16

8

+3V3

20

10

20

10

100n

2P51

4

7

9

12

18
16
14
12

3
5
7
9

*
*
*
*
*
*

PCMCIA-A4_CTX

PCMCIA-A8_CRX

PCMCIA-A9_DRX

100n

PCMCIA-A5_ITX

PCMCIA-A6_ETX

PCMCIA-A7_QTX

3P56

*

33R

*

33R

33R

CMCP8A-AICMCP

2P52

AICMCP

I

3P57

3P58

*

_5A-AICMCP5A-AICMCP

XTC_4A-

X

RC_8A-A

XRD_9A-AICMCP9A

XTI

XTE_6A-AICMCP6A-AICMCP

XTQ_7A-AICMCP7A-AICMCP

CA-OOB-ITX

CA-OOB-ETX

CA-OOB-QTX

10K

3P60

*

A

B

C

D

E

F

3104 313 6194.3

CA-ADDEN

PCI-AD10
PCI-AD11
PCI-AD13
PCI-AD12

CA-ADDEN

PCI-AD3
PCI-AD2
PCI-AD1
PCI-AD0

CA-ADDEN

PCI-AD8
PCI-AD9
PCI-AD4
PCI-AD5

CA-ADDEN

PCI-AD6
PCI-AD7
PCI-AD14

CA-DATADIR

CA-DATAEN

PCMCIA-D2

PCMCIA-D1
PCMCIA-D0
PCMCIA-D7
PCMCIA-D6
PCMCIA-D5
PCMCIA-D4
PCMCIA-D3

3P55

IP51

10K

IP57

IP58

7P51-1

74LVC244APW

1

2
4
6
8

7P51-2

74LVC244APW

19

17
15
13
11

7P52-1

74LVC244APW

1

2
4
6
8

7P52-2

74LVC244APW

19

17
15
13
11

IP56

7P53

74LVC245A

1

19

2

3
4
5
6
7
8
9

3EN1
3EN2
G3

2

EN

EN

EN

EN

+3V3

20

10

+3V3

20

10

+3V3

20

10

+3V3

20

10

+3V3

20

10

1

2P50

100n

2P54

100n

18
16
14
12

3
5
7
9

18
16
14
12

3
5
7
9

18

17
16
15
14
13
12
11

2P53

PCMCIA-A10
PCMCIA-A11
PCMCIA-A13
PCMCIA-A12

PCMCIA-A14

100n

PCMCIA-A3
PCMCIA-A2
PCMCIA-A1
PCMCIA-A0

PCMCIA-A8
PCMCIA-A9
PCMCIA-A4
PCMCIA-A5

PCMCIA-A6
PCMCIA-A7

PCI-AD26

PCI-AD25
PCI-AD24
PCI-AD31
PCI-AD30
PCI-AD29
PCI-AD28
PCI-AD27

CA-VCCEN

CA-ADDEN

PCMCIA-A4
CA-OOB-CTX

PCMCIA-A8
CA-OOB-CRX

PCMCIA-A9
CA-OOB-DRX

7P55
PDTC114EU

3P62

CA-ADDEN

PCMCIA-A5
PCMCIA-A6
PCMCIA-A7

CA-OOBEN
PCMCIA-A5_ITX

PCMCIA-A6_ETX
PCMCIA-A7_QTX

CMCP

A

B

C

D

E

F

H_16800_064.eps

010507

1234567

89

POD: Debug

1P01-A A5 1P01-B A5

Circuit Diagrams and PWB Layouts

1P01-C A6 1P01-D A3 9PB7 E3

91Q528.1E LA 7.

9PB8 E3 9PB9 E3 9PC3 E6 9PC4 E6

1234

56

78

POD: DEBUG

B07C B07C

A

B

C

D

1P01-D

D1
D2
D3
D4
D5
D6
D7
D8

D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35

SOLC-135-02-S-Q-A

PCI-AD13

PCI-AD14

PCI-AD15

PCI-CBE1

PCI-PAR
PCI-SERR
PCI-PERR

PCI-DEVSEL

PCI-IRDY

PCI-CBE2

PCI-AD17
PCI-AD19
PCI-AD21
PCI-AD23
PCI-AD25
PCI-AD27
PCI-AD29
PCI-AD31

PCI-GNT-DEBUG

PCI-CLK-DEBUG
PCI-CBE3
PCI-AD0
PCI-AD1

PCI-AD2
PCI-AD3
PCI-AD4
PCI-AD5
PCI-AD6
PCI-AD7
PCI-CBE0
PCI-AD8
PCI-AD9
PCI-AD10
PCI-AD11
PCI-AD12
PCI-STOP
PCI-TRDY
PCI-FRAME
PCI-AD16
PCI-AD18
PCI-AD20
PCI-AD22
PCI-AD24
PCI-AD26
PCI-AD28
PCI-AD30
PCI-INTA

PCI-REQ-DEBUG

1P01-A

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35

SOLC-135-02-S-Q-A

1P01-B

B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35

SOLC-135-02-S-Q-A

1P01-C

C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
C25
C26
C27
C28
C29
C30
C31
C32
C33
C34
C35

SOLC-135-02-S-Q-A

A

B

C

D

E

3104 313 6194.3

1

PCI-INTA

PCI-INTA-OUT

IRQ-PCI IRQ-PNX5050

2

9PB7

9PB8

9PB9

IRQ-PNX5050

PCI-INTA

34

9PC3

9PC4

PCI-REQ-PNX5050PCI-REQ-PNX8535

PCI-GNT-PNX5050PCI-GNT-PNX8535

H_16800_065.eps

010507

5678

E

Circuit Diagrams and PWB Layouts

SSB: UART

1J11 B3
1J12 B3 FJ11 B3

1M15 B4
2J11 B3

2J12 B3
3J11 B2

3J12 B2
6J11-1 A2

6J11-2 B2
9J08 B1

9J09 B1

1234

FJ12 B3
FJ13 B3

92Q528.1E LA 7.

Personal Notes:

B08A B08A

UART

BAV99S

6J11-2

BAV99S

6J11-1

6

3

RES

RES

2

3J11

3J12
100R

5

+3V3-STANDBY

FJ12

100R

FJ11

+3V3-STANDBY

1J12 1J11

2J11

2J12

100p

100p

FJ13

YKB21-5101A

1
8
7
3

2

4
5

1M15

UART
SERVICE
CONNECTOR

A

B

C

RXD-SERV

TXD-SERV

RXD

TXD

1

9J08

9J09

4

A

B

C

3104 313 6194.3

1234

H_16800_066.eps

010507

E_06532_012.eps

131004

Circuit Diagrams and PWB Layouts

93Q528.1E LA 7.

SSB: SPDIF

2J30 B2
2J31 B3

2J32 B3
2J33 C3

2J34 C6
2J35 C4

3J30 B3
3J31 B4

3J32 C3
3J33 C5

3J34 C6
3J35 C7

3J36 D7
7J30-1 B4

7J30-2 B6
7J30-3 D4

7J30-4 D6
7J30-5 C4

7J30-6 C5
FJ30 B3

12345

IJ30 B3
IJ31 B5

IJ32 C6
IJ33 C6

IJ34 B3

6789

SPDIF

B08B B08B

A

B

C

1n0

2J30

SPI

SPDIF-OUT

2J31

3J32

100n

IJ34

2J32

75R

10u

2J33

100n

IJ30

+3V3

3J30

2R2

FJ30

74HCU04PW

74HCU04PW

3J31

22K

7J30-1

14
1 1

7

2J35

100n

1
714

2

10

1

7J30-5

11

IJ31

3J33

47K

7J30-2

74HCU04PW

3

7J30-6

74HCU04PW

13

714

1
714

A

B

3J34

4

68R

SPDIF-IN1

C

IJ32

2J34

100n

12

IJ33

3J35

220R

3J36

SPI-OUT

120R

D

E

3104 313 6194.3

74HCU04PW

5

14
1 1

6

7

7J30-47J30-3

74HCU04PW

9

714

8

D

E

H_16800_067.eps

123 789

456

010507

Circuit Diagrams and PWB Layouts

94Q528.1E LA 7.

SSB: Externals A

12345678910111213

B08C B08C

A

B

C

D

E

F

G

H

I

EXTERNALS A

MONITOR - OUT

FJ42

1J52

6J46

6J47

FJ41

PDZ6.8-B

IJ66

PDZ6.8-B

3J57

100R

6J44

6J45

FJ40

PDZ6.8-B

IJ65

PDZ6.8-B

3J50
100R

3J60

SPDIF IN

SPDIF OUT

FJ52

LEFT

RIGHT

1JA2

YKC21-4225N

YKC21-4225N

1JA1

BLACK

3

12

BLACK

WHITE

12

3

RED

1J53

1J50

1J51

100K

IJ71

IJ72

3J54

2J66

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

2J62

100p

100K

IJ36 IJ37

6

7J42-1

100p

1

6J40

6J41

6J42

6J43

IJ54

7J42-2

BC847BS

3

4

3J58
150R

FJ31

BC847BS

IJ38

2

2J42

2J49

3J51
150R

IJ40

5J40

30R

22p

22p

IJ35

5

3J59

1K0

5J45

RES

2J65

22p

RES

2J41

IJ46

30R

RES

2J71

100p

IJ53

2J61

1u0

IJ57

3J53

1K0

1u0

SPI-OUT

AUDIO-OUT-L

A-PLOP

AUDIO-OUT-R

A-PLOP

SPI

UART-SWITCH

+3V3

6J30

BAS316

6J31

BAS316

+3V3-STANDBY +3V3-STANDBY

IJ62

10K

7J51
BC847B

3J22

3J21

100K

7J50
BC857BW

IJ59

10K

3J24

3JE0
100R

3JE1
100R

100K

IJE9

IJE6

+3V3-UART

2JE2

100n

2JE5

100n

IJ67

IJ68

7JE2

ST3232C

IJ58

IJ63

IJE3

IJ64

IJ74

+3V3-UART

100n

FJEC

16

VCC

Φ

RS232

1

C1+

3

C1-

4

C2+

5

C2-

T1

01

3

1

IN

T2

R1

IN OUT

R2

9JE0

RES

9JE1

RES

9JE3

RES

9JE4

OUT

GND
15

RES

2JE1

IJE1

2JE3

6

V-

V+

T1
T2

R1
R2

2JE4

100n

2

IJE4

100n

3JE3

100R

FJED

FJEE

FJEA

FJEB

IJ69

4111

IJ70

7

IJ73

21
98

3JE2
100R

3JE4

100R

3JE5

100R

TXD2

RXD2

1HE2

TXD2

RXD2

45

B3B-PH-SM4-TBT(LF)

1HE1

TXD

RXD

45

B3B-PH-SM4-TBT(LF)

MIPS/STBY

9J06

9J07

1
2

UART2

3

FOR

FACTORY

1
2
3

UART1

RXD-SERV

TXD-SERV

USE ONLY

3J20

IJ56

3J25

100K
RES

IJ61

2J20

100p

IJ60

3J23

10K

DEBUG / RS232 INTERFACE

DV-B1_UART2-TX

TXD

RXD

DV-B0_UART2-RX

1HE1 H12
1HE2 G12
1J50 A3
1J51 B3
1J52 D2
1J53 E2
1JA1 D2
1JA2 A2
2J20 B7
2J41 A4

A

2J42 A4
2J49 B4
2J61 C4
2J62 D3
2J65 D4
2J66 E3
2J71 B4
2JE1 F10
2JE2 G9
2JE3 G10
2JE4 G11

B

2JE5 G9
3J20 B8
3J21 B8
3J22 B8
3J23 B7
3J24 B9
3J25 B7
3J50 C3
3J51 C4
3J53 D4
3J54 D3
3J57 D3

C

3J58 D4
3J59 E4
3J60 E3
3JE0 G8
3JE1 H8
3JE2 G11
3JE3 G11
3JE4 H11
3JE5 H11
5J40 A4
5J45 B4
6J30 B6

D

6J31 B6
6J40 A3
6J41 B3
6J42 B3
6J43 C3
6J44 C3
6J45 D3
6J46 E2
6J47 E2
7J42-1 E3
7J42-2 D4
7J50 B9

E

7J51 B8
7JE2 F9
9J06 I12
9J07 I12
9JE0 H10
9JE1 I10
9JE3 I10
9JE4 I10
FJ31 B4
FJ40 A3
FJ41 C2

F

FJ42 D2
FJ52 B2
FJEA H12
FJEB H12
FJEC F10
FJED G12
FJEE G12
IJ35 D4
IJ36 D3
IJ37 D4
IJ38 E4
IJ40 A4

G

IJ46 B4
IJ53 C4
IJ54 C3
IJ56 B8
IJ57 D5
IJ58 G9
IJ59 B8
IJ60 B7
IJ61 B7
IJ62 A8
IJ63 G9
IJ64 G9

H

IJ65 D3
IJ66 E3
IJ67 G9
IJ68 G9
IJ69 G11
IJ70 G11
IJ71 B3
IJ72 C3
IJ73 G10
IJ74 H9
IJE1 G10

I

IJE3 G9
IJE4 G10
IJE6 G9
IJE9 H9

3104 313 6194.3

123456789101112

H_16800_068.eps

13

010507

Circuit Diagrams and PWB Layouts

95Q528.1E LA 7.

SSB: HDMI

1

2021

FJA7

HDMI

9JE9

FJA0

9JA4

FJA1
FJA2

FJA3

FJA5

B08D B08D

1B01

1

A

B

2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

FJA6

DC1R019HBA

HDMI CONNECTOR 1

C

D

9JE8

E

1B03

1
2
3
4
5
6

FJ35

7
8

9
10
11
12
13
14
15
16
17
18
19

DC1R019HBA

FJ39
FJ38

2021

FJ34

F

G G

HDMI CONNECTOR 3

H

I

3104 313 6194.3

123

2345

1JB1

1JB2

1K0

6JA1

4K7

1J41

HDMI 3

1K0

3J18

4K7

3J17

FJB0

FJB1

5JA1

30R

100n

2JA0

7JA0

M24C02-WDW6

1

0

2

ADR

1

3

2SDA

6JA2

3JB9

100K

BAS316

BAS316

FJ32

FJ33

1J42

2J01

100n

7J29

M24C02-WDW6

1
2
3

3J10

6J12

6J10

BAS316

BAS316

100n

2JA1

IJ43

84

Φ

(256x8)

WC

EEPROM

SCL

IJA6

3JB7

22R

7JE3

BC847BW

4n7

2JA7

1JB6

5J39
30R

2J02

100n

IJ50

84

Φ

(256x8)

WC

EEPROM

2J03

SCL

IJ51

3J08

22R

7J28

BC847BW

4n7

1J43

0

ADR

1
2SDA

100K

FJ36

FJ43

FJ37

9JF0

9JA0

9JA5

AIN-5V

9JE5

9JE6

IJ41

CIN-5V

PCEC-HDMI

ARX-DDC-SCL
ARX-DDC-SDA

ARX-HOTPLUG

IJ55

CRX-HOTPLUG

ARX2+

ARX-DDC-SCL

ARX2-

ARX-DDC-SDA PARX-DDC-SDA

ARX1+

AIN-5V

ARX1-

ARX0+

ARX0-

ARXC+

ARXC-

1JB0

EDID NVM

HDMI 1

ARX-HOTPLUG

3JA9

AIN-5V

3JC8

CRX-DDC-SCL PCRX-DDC-SCL

CRX-DDC-SDA

CIN-5V

1J40

CRX2+

CRX2-

CRX1+

CRX1-

CRX0+

CRX0-

CRXC+

CRXC-

PCEC-HDMI

CRX-DDC-SCL

CRX-DDC-SDA

+5V-CON

EDID NVM

CRX-HOTPLUG

CIN-5V

+5V-CON

4567891011

6 7 8 9 10 11 12 13

9JA2

IJA0

3JA0

100R

EDID1

IJ45

7

6

5

100R

3JA7

FJ14

3JA8
100R

10K

3JA4

47K

3JA6

3JA5

3JA1
100R

47K

PARX-DDC-SCL

IJA5

1B02

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
21

DC1R019HBA

1JB4

1JB5

0001-0015

M24C02-WDW6

FJC4

FJC5

5JA2

30R

100n

2JA2

0001-0015

7JA1

Φ

(256x8)

EEPROM

1

0

2

ADR

1

3

2SDA

IJB3

100n

2JA3

84

EDID2

IJ44

7

WC

6

SCL

5

3JB6
100R

FJB7

3JB3

10K

BRX-DDC-SCL

BRX2+

BRX-DDC-SDA

BRX2-

BRX1+

BIN-5V

BRX1-

BRX0+

BRX0-

BRXC+

BIN-5V

BRXC-

PCEC-HDMI

BRX-DDC-SCL

BRX-DDC-SDA

BRX-HOTPLUG

FJB3

9JA1

RES

FJB4

9JA6
9JA7

FJB5

FJB6

FJB8

20

FJB9

1JB3

0001-0015

EDID NVM

HDMI 2

3JC0
100R

3JB4

3JB0
100R

IJA2

100R

47K

47K

3JB5

3JC5

14

PBRX-DDC-SCL

IJA4

PBRX-DDC-SDA

HDMI CONNECTOR 2

IJA7

2JA4

EDID3

IJ49

7

3J05

6

100R

5

2J04

3JB8

10K

10n

IJ47

3J00
100R

10K

3J04

47K

3J03

FJA4

3J06
100R

IJ52

10n

3J02

3J07

10K

3J01
100R

47K

IJ48

HOT-PLUG

PCRX-DDC-SDA

HOT-PLUG

PCEC-HDMI

3J13

100R

IJ39

+5VS

9JE7

3J15

BRX-HOTPLUG

BIN-5V

BC847BW

7JA2

10K

+5V-CON

3JC3

3JC7

100R

1K0

6JA4

6JA3

3JC4

100K

BAS316

BAS316

4K7

3J14

IJA8

3JC1

22R

7JA3

BC847BW

4n7

1JB7

2JA6

IJA9

10n

2JA5

3JC2

10K

HOT-PLUG

CEC-HDMI

H_16800_069.eps

010507

12 13 14

A

B

C

D

E

F

H

I

1B01 A1
1B02 A8
1B03 F1
1J40 F3
1J41 F3
1J42 F4
1J43 H5
1JB0 A3
1JB1 A3
1JB2 A4
1JB3 A10
1JB4 A10
1JB5 A11
1JB6 D4
1JB7 D11
2J01 F4
2J02 F5
2J03 H4
2J04 H5
2JA0 A4
2JA1 A5
2JA2 A11
2JA3 A12
2JA4 C5
2JA5 D12
2JA6 D11
2JA7 D4
3J00 F6
3J01 F7
3J02 G6
3J03 G6
3J04 G6
3J05 G5
3J06 G6
3J07 H6
3J08 H5
3J10 H4
3J13 F9
3J14 F10
3J15 F9
3J17 I3
3J18 H3
3JA0 A6
3JA1 A6
3JA4 B5
3JA5 B6
3JA6 B6
3JA7 B5
3JA8 B5
3JA9 D3
3JB0 A13
3JB3 B12
3JB4 B13
3JB5 B13
3JB6 B12
3JB7 C4
3JB8 C6
3JB9 D4
3JC0 B13
3JC1 C11
3JC2 C13
3JC3 D10
3JC4 D11
3JC5 A14
3JC7 D10
3JC8 D3
5J39 F4
5JA1 A4
5JA2 A11
6J10 H4
6J12 H4
6JA1 D3
6JA2 D4
6JA3 D10
6JA4 D11
7J28 H5
7J29 G4
7JA0 B4
7JA1 B11
7JA2 F10
7JA3 C12
7JE3 C5
9JA0 B2
9JA1 B9
9JA2 A6
9JA4 B2
9JA5 B2
9JA6 B9
9JA7 B9
9JE5 F2
9JE6 G2
9JE7 E9
9JE8 E1
9JE9 A1
9JF0 G2
FJ14 B5
FJ32 F4
FJ33 F4
FJ34 G1
FJ35 G1
FJ36 G2
FJ37 G2
FJ38 G1
FJ39 G1
FJ43 F2
FJA0 B1
FJA1 B1
FJA2 B1
FJA3 B1
FJA4 G6
FJA5 B1
FJA6 B1
FJA7 B1
FJB0 A4
FJB1 A4
FJB3 B9
FJB4 B9
FJB5 B9

FJB6 B9
FJB7 B12
FJB8 B9
FJB9 B9
FJC4 A11
FJC5 A11
IJ39 F9
IJ41 B2
IJ43 B4
IJ44 B12
IJ45 B5
IJ47 F6
IJ48 F7
IJ49 G5
IJ50 F4
IJ51 H5
IJ52 H5
IJ55 F2
IJA0 A6
IJA2 A13
IJA4 A14
IJA5 A7
IJA6 C5
IJA7 C5
IJA8 C12
IJA9 C12
IJB3 A12

Circuit Diagrams and PWB Layouts

96Q528.1E LA 7.

SSB: HDMI Switch

1

B08E B08E

HDMI SWITCH

2345

6789

A

+5V-MUX

11322

82

AMUXVCCDVCC

7
19
57

AUX

PP

AUX

AUX

AUX

AUX

VTTI

VTTO

OTO

OCL

OP0
ON0

OP1
ON1

OP2
ON2

OP3
ON3

COM0
COM1
COM2
COM3

EN
EQ

C0
C1
C2
C3

D0
D1
D2
D3

69

35
41

100

48
76
77

34
33

37
36

40
39

43
42

90
89
88
87

99

A0

98

A1

97

A2

96

A3

94

B0

93

B1

92

B2

91

B3

86
85
84
83

81
80
79
78

+3V3-ANA

PCRX-DDC-SCL

PCRX-DDC-SDA

PBRX-DDC-SCL
PBRX-DDC-SDA

PARX-DDC-SCL
PARX-DDC-SDA

RXC+

RXC-

RX0+

RX0-

RX1+

RX1-

RX2+

RX2-

DDC-SCL

DDC-SDA

+3V3

+5V-CON

5JA3

12

220R

5JA4

220R

IJ42

5JA5

220R

2JA8

2JB1

10u

10u

2JA9

2JB2

2JC0

100n

100n

100n

2JB0

2JB3

2JC1

1n0

100n

1n0

2JB4

FJC1

FJC2

100n

2JB5

FJC3

100n

2JB6

2JE6

1n0

2JB7

100n

1n0

2JE7

2JB8

1n0

1n0

2JB9

1n0

+3V3-DIG

2JE8

+5V-MUX

100n

2JE9

100n

2JF0

1n0

2JF1

B

C

D

E

RESET-SYS-DETECT

SCL-SSB

SDA-SSB

CRXC­CRXC+
CRX0­CRX0+
CRX1­CRX1+
CRX2­CRX2+

BRXC­BRXC+
BRX0­BRX0+
BRX1­BRX1+
BRX2­BRX2+

ARXC­ARXC+
ARX0­ARX0+
ARX1­ARX1+
ARX2­ARX2+

9JA3

3J09

100R

3J16

100R

3J19

10K

RES

7J27

AD8191ASTZ

44

26
27
28

49
50

30
31

45
46

14
15
17
18
20
21
23
24

2
3
5
6
8
9
11
12

64
65
67
68
70
71
73
74

52
53
55
56
58
59
61
62

47

RESET

0
1

I2C_ADDR

2

SCL
SDA

0

PP_CH

1

0

PP_PRE

1

IN

A0

IP
IN

A1

IP
IN

A2

IP
IN

A3

IP

IN

B0

IP
IN

B1

IP
IN

B2

IP
IN

B3

IP

IN

C0

IP
IN

C1

IP
IN

C2

IP
IN

C3

IP

IN

D0

IP
IN

D1

IP
IN

D2

IP
IN

D3

IP

I2C

38

DVEE

+3V3-DIG

32

75

29

95

+3V3-ANA

54

63

AVCC

Φ

AVEE

4

10162551606672

1n0

+3V3-ANA

A

B

C

D

E

2JA8 D6
2JA9 D7
2JB0 D7
2JB1 D6
2JB2 D7
2JB3 D7
2JB4 D7
2JB5 D7
2JB6 D7
2JB7 D8
2JB8 D8
2JB9 D8
2JC0 E7
2JC1 E7
2JE6 D8
2JE7 D8
2JE8 D8
2JE9 D9
2JF0 D9
2JF1 D9
3J09 B1
3J16 C1
3J19 B2
5JA3 D6
5JA4 D6
5JA5 E6
7J27 B2
9JA3 B1
FJC1 D7
FJC2 D7
FJC3 E7
IJ42 E6

F

3104 313 6194.3

12

F

H_16800_070.eps

3

456789

010507

Circuit Diagrams and PWB Layouts

97Q528.1E LA 7.

SSB: Analogue Externals

12345

100n

100n

AP-SCART-OUT-R

AUDIO-IN2-R

AP-SCART-OUT-L

AUDIO-IN2-L

AV2-STATUS

P50

AV3_Y

AV2-FBL

AV2-BLK

AV2_Y-CVBS

B09A B09A

A

AV3_PB

B

C

D

E

F

G

H

I

AV3_PR

REGIMBEAU_CVBS-SWITCH

Y-CVBS-MON-OUT_SC

+12V

AV2_C

AV2-FBL

C-MON-OUT

AV2-FBL

CVBS-TER-OUT

FE90

2E40

ANALOGUE EXTERNALS

+8V6

IE24

7E06

BC847BW

IE25

1K0

3E75

2E35

100n

7E12

BC847BW

IE26

1K0

3E50

2E36

100n

7E05

BC847BW

IE29

1K0

3E53

IE31

3E20

47K

2E11

10u 10V

IE33

3E03
390R

1K8

3E72 100R

7E70

L78M08CDT

13

OUTIN

COM

2

1u0

3E74
100R

+8V6

IE27

3E76
100R

3E13

47K

+8V6

IE28

3E78
100R

3E08

4K7

+8V6

IE32

7E03
BC847BW

IE36

7E08
BC847BW

3E47

IE15

100p

2E04

+8V6

2E17

7E04
BC847BW

IE39

3E02

560R

FE91

1u0

2E41

IE30

7E11
BC847BW

+8V6

3E46

100n

IE03

3E70

1R0

3E71
680R

IE01

IE34

IE14

74HC4053PW

IE38

8K2

2E05

FE88

2E42

6E40

2E22

7E02

6

13
12
11

1
2
10

3
5
9

6E18

BAS316

100n

74HC4053PW

6

13
12
11

1
2
10

3
5
9

100n

2E43

2E45

BZX384-C2V7

220n

7E10

16V100u

FE89

10V22u

16

VDD

MDX

G4

1
2
4X1
4X2

VEE VSS

7

+8V6

22K

3E25

IE02

22K

3E29

+8V6

VDD

MDX

G4

1
2
4X1
4X2

VEE VSS

7

2E44

2E46

6E05

BAS316

14

15

4

8

IE35

100n

2E15

100n

2E23

16

14

15

4

8

+8V6

1u0

VREF

100n

FE57

FE58

+8V6

3E04

3E09

22K

FE69

22K

3E01
100R

3E42
100R

2E09

2E07

+8V6

7E01
BC847BW

100n

10u10V

3E23

+8V6

IE45

+8V6

IE41

6E06

2E14

1K0

7E07
BC847BW

7E13
BC847BW

100n

3E48

BAS316

2E08

10V 10u

3E06

68R

3E39

+8V6

9E05

3E05

3E10

IE40

390R

390R

2E03

22K
FE86

22K

2E37

2E12

100n

IE42

3104 313 6194.3

1234567 13 14

67891011

0001

0001

0001

FE68

0001

1E13

3E61

PDZ6.8-B

FE62

0001

1E16

FE60

FE61

SCART2

(AV2)

1020

1

2

3

4

5

6

FE63

7

FE64

8

9

FE65

10

FE66

11

12

13

14

FE67

15

FE76

16

17

18

FE77

19

FE78

20

21

FE79

PPTV/55

0001

75R

0001

1E26

AP-SCART-OUT-R

AUDIO-IN1-R

AP-SCART-OUT-L

AUDIO-IN1-L

AV1_PB_BO

AV1_PB

AV1-STATUS

AV1_Y_BO

AV1_Y

AV1_PR_BO

AV1_PR

AV1-BLK_BO

AV1-BLK

AV1_Y-CVBS

BC847BPN

7E09-2

IE52

100p

2E01

100K

3E12

IE22

100p

2E06

100K

3E27

100p

2E10

100K

3E30

IE23

100p

2E16

3E22

100K

IE19

3E36
100R

75R

3E28

6E20

PDZ6.8-B

IE18

3K3

330p

2E18

3E32

IE17

3E35
100R

75R

3E38

6E25

PDZ6.8-B

IE16

3E41
100R

75R

3E54

6E27

PDZ6.8-B

2K2

4

3

3E65

IE08

3E45

3E40

IE50

5

4K7

3E57
100R

68R

6E30

3E58

PDZ6.8-B

IE48

7E09-1

BC847BPN

22K

6E32

3E44

6

1

3E56

PDZ6.8-B

+8V6

9E15

7E15

BC847BW

BC847BPN

7E14-2

3E63
100R

6E04

8K2

VREF

3E62

PDZ6.8-B

IE10

6E10

PDZ6.8-B

IE11

I

6E14

PDZ6.8-B

IE12

6E19

PDZ6.8-B

IE13

0001

1E08

0001

1E09

0001

1E11

3E26
100R

IE44IE43

+5V-ON

4K7

2E13

3E73

6

2

1

IE46

2K2

3E81

75R

1E27

1E24

6E31

PDZ6.8-B

6E34

16V100n

6E08

6E12

6E16

6E21

6E02

3E69
100R

0001

0001

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

BZX384-C12

PDZ6.8-B

3E51

1E28

1E29

1E30

1E06

75R

6E36

100p

100K

3E24

2E29

IE20

3E11
100R

100p

2E30

3E18

100K

3E64
100R

100p

2E32

100K

3E21

IE21

3E14
100R

100p

3E34

100K

2E31

6E24

PDZ6.8-B

3E16

3K3

330p

2E33

3E17

3E66
100R

6E33

PDZ6.8-B

100n

2E19

22K

3E33

2E20

10u10V

1K0

3E60

3E67
100R

75R

6E35

3E55

PDZ6.8-B

2K2

3E77

IE47

4

3

IE51

3E79

3E49

100R

IE37

5

7E14-1

BC847BPN

22K

4K7

3E80

6E37

PDZ6.8-B

3E52
68R

8 9 10 11 12

1E12

1E18

12 13 14

3E37
100R

6E01

PDZ6.8-B

IE04

6E03

3E07
100R

6E07

PDZ6.8-B

IE05

6E09

3E15
100R

6E11

PDZ6.8-B

IE06

6E13

3E19
100R

6E15

PDZ6.8-B

IE07

6E17

0001

3E31

8K2

0001

6E22

1E14

0001

0001

1E19

+5V-ON

4K7

IE49

2K2

3E59

2E24

2E02

22u 10V

IE09

3E68

2

100R

75R

0001

1E25

0001

1E23

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

PDZ6.8-B

BZX384-C12

100n

1E00

1E31

1E07

1E10

6E29

0001

0001

0001

0001

PDZ6.8-B

3E43

FE70

1

FE71

2

FE72

3

4

FE81

FE82

FE83

FE84

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

FE85

FE73

FE74

FE75

FE80

75R

0001

1E22

SCART1

(AV1)

1030

PPTV/55

H_16800_071.eps

010507

G

A

B

C

D

E

F

H

I

1020 C9
1030 C14
1E00 A12
1E06 C8
1E07 C12
1E08 C7
1E09 D7
1E10 C12
1E11 E7
1E12 D11
1E13 F8
1E14 E12
1E16 G8
1E18 F11
1E19 G11
1E22 H13
1E23 I12
1E24 I7
1E25 I12
1E26 H8
1E27 I7
1E28 A8
1E29 A8
1E30 B8
1E31 B12
2E01 A11
2E02 G12
2E03 I5
2E04 F2
2E05 E3
2E06 B11
2E07 B4
2E08 B5
2E09 B4
2E10 C11
2E11 D2
2E12 B5
2E13 G7
2E14 C4
2E15 D3
2E16 C11
2E17 F2
2E18 E11
2E19 E6
2E20 F7
2E22 A3
2E23 F4
2E24 G12
2E29 A7
2E30 A7
2E31 C7
2E32 B7
2E33 D6
2E35 B1
2E36 B1
2E37 G5
2E40 I1
2E41 I2
2E42 H2
2E43 H3
2E44 H3
2E45 I3
2E46 I3
3E01 H4
3E02 G2
3E03 E2
3E04 A4
3E05 A5
3E06 D5
3E07 B11
3E08 C2
3E09 B4
3E10 B5
3E11 A7
3E12 A11
3E13 B2
3E14 C7
3E15 B11
3E16 D7
3E17 D7
3E18 A6
3E19 C11
3E20 C2
3E21 B6
3E22 C11
3E23 D4
3E24 A6
3E25 D3
3E26 F7
3E27 B11
3E28 D11
3E29 D3
3E30 C11
3E31 E11
3E32 E11
3E33 F7
3E34 C6
3E35 F11
3E36 D11
3E37 A11
3E38 F11
3E39 H5
3E40 G11
3E41 G11
3E42 I4
3E43 H13
3E44 G11
3E45 I11
3E46 E2
3E47 F2
3E48 I5
3E49 H6
3E50 B1
3E51 F8
3E52 I7
3E53 C1
3E54 G11

3E55 G7
3E56 H11
3E57 I11
3E58 H11
3E59 I11
3E60 F6
3E61 H8
3E62 I7
3E63 A7
3E64 B7
3E65 H10
3E66 E6
3E67 F6
3E68 H12
3E69 H8
3E70 H2
3E71 I2
3E72 G1
3E73 G7
3E74 A2
3E75 A1
3E76 B2
3E77 G6
3E78 C2
3E79 H6
3E80 H7
3E81 H7
6E01 A12
6E02 D7
6E03 A12
6E04 A7
6E05 B4
6E06 B4
6E07 B12
6E08 A7
6E09 B12
6E10 A7
6E11 C12
6E12 B7
6E13 C12
6E14 B7
6E15 C12
6E16 B7
6E17 D12
6E18 D3
6E19 C7
6E20 D11
6E21 C7
6E22 E12
6E24 C6
6E25 F11
6E27 G11
6E29 H12
6E30 I11
6E31 I7
6E32 I11
6E33 E6
6E34 F7
6E35 G6
6E36 H8
6E37 I6
6E40 I2
7E01 D4
7E02 B3
7E03 D2
7E04 G2
7E05 C1
7E06 A1
7E07 H4
7E08 F2
7E09-1 H11
7E09-2 H10
7E10 F3
7E11 E2
7E12 B1
7E13 I4
7E14-1 H7
7E14-2 H6
7E15 F6
7E70 H1
9E05 B5
9E15 F6
FE57 B4
FE58 B4
FE60 A8
FE61 A8
FE62 B8
FE63 D8
FE64 D8
FE65 D8
FE66 E8
FE67 E8
FE68 C8
FE69 A4
FE70 C13
FE71 C13
FE72 C13
FE73 D13
FE74 D13
FE75 D13
FE76 E8
FE77 F8
FE78 F8
FE79 F9
FE80 D13
FE81 E13
FE82 E13
FE83 F13
FE84 F13
FE85 F13
FE86 A5
FE88 H3
FE89 I3
FE90 I1
FE91 I2
IE01 B2
IE02 D3

IE03 G2
IE04 A12
IE05 B12
IE06 C12
IE07 C12
IE08 I11
IE09 H12
IE10 A7
IE11 A7
IE12 B7
IE13 C7
IE14 F2
IE15 F2
IE16 F10
IE17 F10
IE18 E11
IE19 D10
IE20 A6
IE21 B6
IE22 B11
IE23 C11
IE24 A2
IE25 A1
IE26 B1
IE27 B2
IE28 C2
IE29 C1
IE30 C2
IE31 C1
IE32 C2
IE33 D1
IE34 D2
IE35 C4
IE36 E2
IE37 G7
IE38 D2
IE39 G2
IE40 H5
IE41 I4
IE42 I5
IE43 F6
IE44 F7
IE45 G4
IE46 H7
IE47 G6
IE48 H11
IE49 H11
IE50 H11
IE51 H6
IE52 H10

Circuit Diagrams and PWB Layouts

98Q528.1E LA 7.

SSB: Analogue Externals

1234567

89

10 11

12 13

ANALOGUE EXTERNALS

B09B B09B

100n

100n

1EA2

2EB3

+12V

6EA4

+12V

6EA6

100n

6EA3

BAV99 COL

IEB1

PDZ6.8-B

6EA5

BAV99 COL

IEB4

PDZ6.8-B

IEB5

IEB6

+12V

6EA2

6EA1

BAV99 COL

IEB2

PDZ6.8-B

FEB1

1EB1

FEB2

1EB2

1070-1
GREEN

YKC21-5880N

1070-2

BLUE

YKC21-5880N

1070-3

RED

YKC21-5880N

12

34

56

2
3
1

YKB21-5157N

1040

A

B

C

D

E

F

G

TO BOLD ON MODULE

(OPTIONAL)

1R07

1
2
3
4
5
6
7
8

10

9

1R08

1
2
3
4
5
6
7
8
9

10

H

TO BOLD ON MODULE

3104 313 6194.3

12

FEC2

FEC1

FEC3

FEC4

FEC5

5EA1

30R

FEC7

100p

2EC2

(OPTIONAL)

FEC9

2EC0

FEC6

+5VS

100p

2EC3

3EC0

100p

100R

2EC4

3EC2

3EC3

100p

2EC1

100p

100R

IEA0

100n

FRONT_C

AUDIO-IN5-L

AUDIO-IN5-R

1u0

2EA3

Y-CVBS-MON-OUT_SC

100R

100R

3EC1

9E20
9E21

9E22
9E23

3EC5
100R

AV1_PB_BO

AV1_Y_BO
AV1_PR_BO
AV1-BLK_BO

AUDIO-IN1-L
AUDIO-IN1-R

DV-B0_UART2-RX
DV-B1_UART2-TX

RXD2

TXD2

BOLT-ON-IO

CVBS-TER-OUT

FEA2

2EA6

FEA3

2EA0

1u0

2EA1

1u0

100p

3EA0

3EA3

AUDIO-CL-L

AP-SCART-OUT-L

AUDIO-CL-R

AP-SCART-OUT-R

A-PLOP

100p

2EA7

FEA4

FEA7

2EA8

82K

IEA1

47K

FEA5

100p

2

2EA4

16V 1u0

2EA5

16V 1u0

9EA1

FEB3

FEA6

2EB1

IEA3

3EC6

2EA9

1M36

B11B-PH-K

2EB0

100p

3EA1

6

7EA0-1
BC847BPN

1

3EA4

IEC0

FEA0

IEC2

FEA1

9EA0

3EC7

100p

5EA2

30R

100p

5EA3

30R

1K0

IEA2

3EA5
330R

330R

3EA7
150R

3EA8
150R

100R

100R

1
2
3
4
5

TO SIDE I/O

6
7
8
9
10
11

5

IEA5

IEA6
IEA7

IEA8

6

1

3

4

3EA2

IEB9

4
BC847BPN

7EA0-2

3

3EA6

7EA1-1

BC847BS

7EA1-2

BC847BS

33R

IEA4

10K

IEC1

2

IEC3

5

FRONT_Y-CVBS

AUDIO-HDPH-L-AP

AUDIO-HDPH-R-AP

2EA2

3EA9

1K0

3EB0

1K0

345678

5EA0

220R

Y-CVBS-MON-OUT

+8V6

1X01

EMC HOLE

1X05

EMC HOLE

AV4_Y

AV4_PB

AV4_PR

AUDIO-IN3-L

AUDIO-IN3-R

IEA9

IEB0

IEB3

9EA4

9EA6

9EA5

2EB8

2EB9

2EB5

2EB7

2EB2

100p

100p

IEB7

100p

IEB8

100p

3EB6

3EB7

100p

FEA9

3EB2

FEB0

3EB3

100K

100K

3EB8

100R

3EB9

100R

FEA8

75R

3EB1

2EB4

75R

1EA1

2EB6

75R

1EA0

6EA7

PDZ6.8-B

6EA8

PDZ6.8-B

6EB0

PDZ6.8-B

6EB1

PDZ6.8-B

9 10111213

H_16800_072.eps

010507

A

B

C

D

E

F

G

H

1040 F13
1070-1 A13
1070-2 C13
1070-3 E13
1EA0 E11
1EA1 C11
1EA2 B12
1EB1 F12
1EB2 G12
1M36 F6
1R07 E1
1R08 G1
1X01 D9
1X05 E9
2EA0 B6
2EA1 B6
2EA2 A8
2EA3 A8
2EA4 C6
2EA5 D6
2EA6 E5
2EA7 F6
2EA8 F6
2EA9 F6
2EB0 H6
2EB1 H6
2EB2 B11
2EB3 A12
2EB4 C11
2EB5 C11
2EB6 E11
2EB7 E11
2EB8 F11
2EB9 G11
2EC0 F2
2EC1 F2
2EC2 H1
2EC3 H2
2EC4 H2
3EA0 A6
3EA1 A6
3EA2 A7
3EA3 B6
3EA4 B6
3EA5 B7
3EA6 B7
3EA7 C7
3EA8 D7
3EA9 D8
3EB0 D8
3EB1 B11
3EB2 C11
3EB3 E11
3EB6 F11
3EB7 G11
3EB8 F11
3EB9 G11
3EC0 F2
3EC1 F3
3EC2 G2
3EC3 G2
3EC5 G3
3EC6 F6
3EC7 F7
5EA0 A8
5EA1 G1
5EA2 H7
5EA3 H7
6EA1 A12
6EA2 B12
6EA3 C12
6EA4 D12
6EA5 E12
6EA6 F12
6EA7 F12
6EA8 G12
6EB0 G12
6EB1 G12
7EA0-1 B6
7EA0-2 B7
7EA1-1 C7
7EA1-2 D7
9E20 G3
9E21 G3
9E22 G3
9E23 G3
9EA0 E7
9EA1 E6
9EA4 A10
9EA5 C10
9EA6 E10
FEA0 C7
FEA1 D7
FEA2 F5
FEA3 F5
FEA4 F6
FEA5 F6
FEA6 H6
FEA7 H6
FEA8 A11
FEA9 C11
FEB0 E11
FEB1 F12
FEB2 G12
FEB3 G6
FEC1 F1
FEC2 F2

FEC3 F2
FEC4 G1
FEC5 G2
FEC6 G2
FEC7 G1
FEC9 G2
IEA0 A7
IEA1 B6
IEA2 A7
IEA3 B6
IEA4 B8
IEA5 E7
IEA6 E7
IEA7 F7
IEA8 F7
IEA9 A10
IEB0 C10
IEB1 D12
IEB2 B12
IEB3 E10
IEB4 F12
IEB5 F12
IEB6 G12
IEB7 F11
IEB8 G11
IEB9 A7
IEC0 C7
IEC1 C7
IEC2 D7
IEC3 D7

Circuit Diagrams and PWB Layouts

99Q528.1E LA 7.

SSB: USB 2.0

IN05 D6

1N01 D5
2N04 C9

2N05 C9
2N06 C10

2N07 A6
2N08 C6

2N09 C6
2N10 C6

2N11 C6
2N12 C7

2N13 D10
2N14 A6

2N15 A6
2N16 B6

2N17 B6
2N18 B7

2N19 C9

2N20 D9

2N21 D9
2N22 C5

2N23 D5
3N01 E2

3N03 F6
3N04 B3

3N05 G7
3N10 D6

3N13 E5
3N14 F2

3N15 G3
3N16 G3

3N17 G2
3N18 E2

3N19 F3
3N20 G2

5N00 A5
5N01 A5

5N02 B5
5N03 C5

5N04 A5
7N00 C7

7N01 B2
9N01 D6

9N02 G7
9N10 B2

FN00 C6
IN00 E6

12345678910

2N22

2N23

5N04

30R

5N00

30R

100n

2N07

5N01

30R

100n

100n

2N15

2N14

5N02

30R

100n

100n

2N17

2N16

5N03

30R

100n

100n

2N08

2N09

FN00

27p

27p

3N13

1N01

IN08

12M

IN05

9N01

4K7

100R

3N10

3N03

IN01

IN00

11K

IN07

+3V3

2N10

IN13

100n

IN15

2N11

100n

ISP1562BE

74

75

5

96
97

7
99

60

48

35

23

9
8
24
4
36
39
37
42
47
44
45
38
41

81

78
79
83
85

87
88
90
92

3N05

10K

9N02

2N18

2N12

100n

IN04

100n

7N00

IN17

IN03

11

1

XTAL

2

RST

SCL
SDA

PCICLK
PME

C0
BE0
C1
BE1
C2
BE2
C3
BE3
REQ
GNT
IDSEL
INTA
FRAME
DEVSEL
IRDY
CLKRUN
PAR
PERR
SERR
TRDY
STOP

RREF

OC1
PWE1
DM1
DP1

OC2
PWE2
DM2
DP2

6

IN14

2540557177981008693

AUX 1 2

VCCIO

ATX 1

ATX 2

GNDD

19324964769495

VDDA

AUX

Φ

PCI

HOST

CONTROLLER

1

2733

3V3

1V8

VAUX

GNDA GNDA

17466172808284

16

VREG3V3

VREG1V8

AD

AD

91

89

IN12

IN06

IN02

100n

2N06

2N192N21

22u 6.3V

100n

2N05

100n

2N04

IN09

100n

2N20

22u 6.3V

18
43
58

70

0

69

1

68

2

67

3

66

4

65

5

63

6

62

7

59

8

57

9

56

10

54

11

53

12

52

13

51

14

50

15

34

16

33

17

31

18

30

19

29

20

28

21

27

22

26

23

22

24

21

25

20

26

15

27

14

28

13

29

12

30

10

31

IN10

2N13

100n

PCI-AD0
PCI-AD1
PCI-AD2
PCI-AD3
PCI-AD4
PCI-AD5
PCI-AD6
PCI-AD7
PCI-AD8

PCI-AD9
PCI-AD10
PCI-AD11
PCI-AD12
PCI-AD13
PCI-AD14
PCI-AD15
PCI-AD16
PCI-AD17
PCI-AD18
PCI-AD19
PCI-AD20
PCI-AD21
PCI-AD22
PCI-AD23
PCI-AD24
PCI-AD25
PCI-AD26
PCI-AD27
PCI-AD28
PCI-AD29
PCI-AD30
PCI-AD31

B10A B10A

USB 2.0

A

+3V3

B

RESET-USB20

RESET-SYS-DETECT

9N10

IN16

7N01
PDTC114EU

IN11

3N04

10K

+3V3

C

IRQ-PCI

RESET-USB20

PCI-CLK-USB20

PCI-CBE0
PCI-CBE1

PCI-CBE2

PCI-CBE3

PCI-REQ-USB20
PCI-GNT-USB20
PCI-AD22
IRQ-PCI
PCI-FRAME
PCI-DEVSEL
PCI-IRDY

PCI-PAR
PCI-PERR
PCI-SERR
PCI-TRDY
PCI-STOP

USB20-OC1
USB20-PWE1
USB20-1-DM
USB20-1-DP

USB20-OC2
USB20-PWE2
USB20-2-DM
USB20-2-DP

D

E

+3V3

+3V3

3N18

3N01

10K

10K

PCI-GNT-USB20

IN19

F

3N19

3N15

USB20-OC1

10K

USB20-1-DM
USB20-1-DP

USB20-OC2

USB20-2-DM
USB20-2-DP

+3V3

+3V3

G

3N14

15K

15K

3N20

10K

3N16

15K

15K

3N17

IN03 B7

IN01 D6
IN02 C9

IN04 C7

11 12 13 14 15

IN06 C8

IN07 G6
IN08 G6

IN09 D9
IN10 D9

IN11 B2
IN12 C8

IN13 F6
IN14 A7

IN15 D6
IN16 C2

IN17 A7
IN19 E3

A

B

C

D

E

F

G

H

3104 313 6194.3

12345

6789

H_16800_073.eps

10 11 12 13 14 15

H

010507

SSB: USB 2.0

1H01 C8 1H03 C8

1234

Circuit Diagrams and PWB Layouts

2N30 A3 2N31 A3 2N32 B7

5N30 B6

7N30 B3 FN30 C8

FN31 C7 FN32 C8 FN33 B2

FN34 B2

100Q528.1E LA 7.

FN35 B2 FN36 B2 FN37 C7 IN30 A3 IN35 B6

5678910

B10B B10B

A

B

USB 2.0

USB20-PWE1

USB20-OC1

USB20-OC2

USB20-PWE2

FN33

FN34

FN35

FN36

+5V-ON

IN30

LM3526MX-LNOPB

7N30

1

2

3

4

ENA_

FLGA

FLGB

ENB_

2N30

GND

100n

2N31

220u 25V

7

IN

6

OUTA

OUTB

8

5

IN35

5N30

220R

2N32

47u 6.3V

USB

CONNECTOR

C

USB20-1-DM
USB20-1-DP

FN37

FN31

FN30

FN32

1H01
1
2
3
4

B4B-EH-A

1H03

56

292303-4

1
2
3
4

A

B

C

D

3104 313 6194.3

D

H_16800_074.eps

12 910

3

456

78

010507

Circuit Diagrams and PWB Layouts

SSB: LED Panel Connector

1M01 C5
1M20 B5

2N51 A4
2N52 B4

2N53 B4
2N54 C4

2N55 C4
2N56 C4

3N51 B4
3N52 B4

3N53 B4
3N54 C4

3N56 C4
5N31 C3

9N50 B4
FN53 B5

101Q528.1E LA 7.

FN54 C5
FN55 B4

FN56 B4
FN57 B5

FN58 C5
FN59 C5

IN50 B3
IN51 B3

IN52 B3
IN53 C3

IN54 C4

A

B

C

12345

67

LED PANEL CONNECTOR

B10C B10C

2N51

LIGHT-SENSOR

RC

LED2

LED1

KEYBOARD

+5VS

5N31

3u3

IN50

IN51

IN52

IN53

IN54

3N51
100R

3N52
100R

3N53
100R

9N50

3N54
100R

3N56

10R

FN55

100p

2N52

FN56

100p

2N53

100p

2N55

100p FN58

2N54

100p

2N56

100p

FN53

FN54

FN59

FN57

1M20

1M01

1
2
3
4
5
6
7

1
2
3

45

TO

LED PANEL

A

B

C

D

3104 313 6194.3

1234567

D

H_16800_075.eps

010507

SSB: Audio Left / Right

1735 F11
1738 F12
1D50 F11
1D51 G11
1D52 G11
1D53 G12
1D54 G12

1D55 F12
2D00 B6
2D01 B6
2D02 F7
2D03 F12
2D04 C1
2D05 C2

2D06 F13
2D07 C2
2D08 C5
2D09 C6
2D10 C3
2D11 B13
2D12 C8

2D13 D3
2D14 D10
2D15 C9
2D16 G12
2D17 C9
2D18 C6
2D19 C7

123

Circuit Diagrams and PWB Layouts

2D20 C13
2D21 C11
2D22 C12
2D23 C13
2D24 D7
2D25 H7
2D26 D6

2D27 F10
2D28 D13
2D29 D14
2D30 D2
2D31 D3
2D32 D4
2D33 D10

2D34 D10
2D35 D11
2D36 E3
2D37 E10
2D39 D15
2D40 C14
2D44 H11

2D57 G3
3D00 B3
3D01 B4
3D02 E10
3D03-1 B3
3D03-2 B5
3D03-3 C3

3D03-4 D5
3D04 F3
3D05 C1
3D06 C4
3D07 C2
3D08 G10
3D09 C5

4

102Q528.1E LA 7.

3D10 B10
3D11 B11
3D13-1 B11
3D13-2 D11
3D13-3 D12
3D13-4 B12
3D14-1 H11

3D14-2 H11
3D14-3 G10
3D14-4 H10
3D15 C3
3D16 C12
3D17 C12
3D18 C8

3D19 C11
3D20 C9
3D21 C11
3D22 C11
3D23 G12
3D25 D4
3D26 D11

3D27 D3
3D28 D4
3D29 D10
3D30 D11
3D31 E4
3D32 E11
3D35 C5

3D36 G12
3D37 E4
3D38 C4
3D39 H3
3D40 E11
3D55-1 F6
3D55-2 F6

3D55-3 H6
3D58 F4
3D61-1 G3
3D61-2 G3
3D61-3 F5
3D61-4 F5
5D00 B6

5D01 A6
5D02 D7
5D03 A13
5D04 D14
5D05 F11
5D06 F12
5D07 C13

5D10 B6
5D11 C14
6D15 H11
7D00-2 C3
7D00-3 C10
7D02-1 B4
7D02-2 C4

7D05 B4
7D06 B4
7D09 D4
7D10-1 B5
7D10-2 C5
7D30 B11
7D31 B11

7D32-1 B12
7D32-2 C11
7D34 D11
7D35-1 B12
7D35-2 C12
7D55 E6
7D58-1 G5

7D58-2 G6
7D59 G3
7D61 G6
9D02 A6
9D03 D7
9D04 D14
9D05 A13

FD00 F10
FD01 F11
FD02 F12
FD03 F13
FD04 F12
FD05 F12
FD19 C5

FD25 F11
FD26 F10
FD27 H7
FD28 F7
FD49 C12
ID01 C2
ID02 C2

ID03 C3
ID04 D3
ID05 B4
ID06 C4
ID07 B5
ID08 B5
ID09 C4

ID10 C5
ID11 C4
ID12 D5
ID13 E3
ID14 G6
ID15 D2
ID16 E4

ID17 A5
ID18 H11
ID20 C9
ID21 D10
ID22 E10
ID23 G10
ID24 G11

ID26 C4
ID27 F4
ID28 C11
ID29 H4
ID30 B6
ID31 C10
ID32 C14

ID33 D10
ID35 B11
ID36 C11
ID37 B12
ID38 C12
ID39 C11
ID40 C12

ID41 C11
ID42 D12
ID45 D10
ID46 E11
ID47 A12
ID57 F6
ID58 G4

ID59 G3
ID60 G6
ID61 G6

56789101112131415

B11A

A

B

C

D

E

F

G

H

MUTE

FEEDBACK

+AUDIO-L

ON-MODE

AUDIO LEFT / RIGHT

VP

3K3

2D04

3D05

10K

3D00

VP

10p

ID02

2D05

100n

GND

3D07

ID01

18K

2D07

GND

+AUDIO-POWER

ID15

-AUDIO-POWER

2D30

11

10

680p

3

12

VN

3D27

3K9

1n5

2D36

GND

7D00-2
LM339P

13

ID03

2D13

1n5

2D31

ID13

100n

3D04

10R

ID59

3D61-1

18

22K

3D61-2

27

GNDSND

3D39

10R

3D03-1

18

22K

2D10

10n

3D15

1M0

3D03-3

36

22K

22p

ID04

1u0

22K

2D57

ID26

1

7D59
BC847BW

ID05

ID16

GNDSND

ID29

7D05
BC847BW

ID06

3D38

2D32

3D37

GND

ID27

B11A

9D02

ID17

1K2

3D01

7D06
BC807-25W

2

3D06

5

ID09

22K

BC847BPN
7D02-2

1K2

ID11

7D09
BC817-25W

1K2

3D25

3D28
100K

1u0

3D31

10K

560R

VPP

3D58

ID58

3

2

VNN

47K

6

7D02-1
BC847BPN

1

4

3

2

22K

3D03-2

27

SI4532ADY
7D10-1

4

ID07

ID08

FD19

330R

3D35

GNDSND

ID10

2

7D10-2
SI4532ADY

22K

3D03-4

45

36

22K

3D61-3

45

22K

3D61-4

6

7D58-1
BC847BPN

1

GNDSND

3

5

6

4R7

3D09

7

8

2n2

2D08

1

ID12

2D01

GNDSND

2D09

2n2

1u0

GNDSND

ID60

5D01

30R

GNDSND

5D00

ID30

22u

2D18

GNDSND

2D24

470u

2D26

35V

GNDSND

7D55

BC807-25W

22K

3D55-1

18

ID57

22K

4

BC847BPN
7D58-2

5

3

36

22K

3D55-3

2D00

470n

1u0

2

3D55-2

7

ID14

ID61

7D61

BC817-25W

1m0 16V

5D10
220R

GND-SPK

5D02

30R

9D03

FEEDBACK-LR

LEFT-SPEAKER

2n2

2D19

FD28

FD27

2D02

GNDSND

2D25

GNDSND

100n

100n

+AUDIO-POWER

MUTE

2D12

FEEDBACK

VP

VN

-AUDIO-R

-AUDIO-POWER

10p

ID20

2D15

3D18

10K

100n

3D20

GND

ID31

5

4

18K

680p

2D17

GND

ID45

2D33

+AUDIO-L

LEFT-SPEAKER

GND

RIGHT-SPEAKER

-AUDIO-R

FEEDBACK

FEEDBACK-LR

FEEDBACK-RL

DC-SENSE

3D29

1n5

GND

VP

7D00-3

3

LM339P

12

VN

3K9

2D34

ID22

100n

2D37

3D02
100R

2D27

10n

3D08
100R

3D14-3

36

22K

22K

45

3D14-4

2

ID33

1n5

GND-SPK

VP

3D10

2D14

FD00

ID23

3K3

3D13-1

18

2D21

10n

3D22

1M0

7

3D13-2

22p

ID21

FD26

FD01

2D44

10p

ID35

22K

ID28

3D21

22K

2

ID46

GND

GND

FD25

5D05

220R

GND

GNDSND

ID18

6D15

BAS316

22K

3D14-2

27

GND

7D30
BC847BW

ID36

3D19
22K

1K2

ID41

3D26

2D35

3D40

560R

1D50

1D51

1K2

3D11

7D31
BC807-25W

ID39

BC847BPN
7D32-2

7D34
BC817-25W

1K2

3D30
100K

1u0

3D32

10K

1735
1
2
3
4

B4B-PH-K

L/R

1D52

GND
ID24

22K

3D14-1

18

GND

2

5

1738

B4B-PH-K

6

7D32-1
BC847BPN

1

4

3

GND

5

22K

3D13-4

4

SI4532ADY
7D35-1

ID37

ID38

3D16

330R

GNDSND

ID40

7D35-2
SI4532ADY

36

22K

3D13-3

1D55

1
2
3
4

1D53

GND GND

1D54

4

2

FD49

FD05

ID47

3

5

6

7

8

1

ID42

5D06

12

FD02

100R

2D16

1n0

12

100R

3D36

FD04

1

2

30R

2D03

3D23

2D22

3D17

1n0

2D06

1n0

4R7

2n2

2D11

GNDSND

2D23

2n2

GND

FD03

9D05

5D03

30R

1u0

FEEDBACK-RL

GND

ID32

2D20

GNDSND

1u0

5D11
220R

470n

5D04

30R

9D04

+3V3-STANDBY

2D40

GND-SPK

2D29

GNDSND

AUDIO-MUTE

AUDIO-PROT

RIGHT-SPEAKER

2n2

1m0
16V

5D07

22u

2D28

GNDSND

GND

2D39

GNDSND

+AUDIO-POWER

35V470u

-AUDIO-POWER

A

B

C

D

E

F

G

H

3104 313 6194.3

67

H_16800_076.eps

010507

2111019854321

31

14

15

Circuit Diagrams and PWB Layouts

103Q528.1E LA 7.

SSB: Audio Protection/Mute Control

12

AUDIO: PROTECTION/MUTE CONTROL

B11C B11C

A

VP

B

DC-SENSE

VN

C

D D

3D63
220K

3D90-4

22K

45

VNN

34

+3V3-STANDBY

VP

7D00-1

1K2

8

7

6

3D74

3D78

ID75

33K

47K

3

LM339P9

12

VN

VP

7D00-4

3

LM339P

12

VN

3D79

14

1

7D63-1

BC847BPN

2

100K

ID86

1

6

FD64

3D90-1

1

22K

GNDSND

ID73

8

GNDSND

2D72

ID70

1K2

3D62

1u0

3D71

GNDSND

22K

3D90-2

27

ID87

36

22K

3D90-3

VPP

3D75

ID77

567 9

+3V3-STANDBY

2D73

10u

4K7

6D63

BAS316

68K

ID88

3D80
100K

ID72

VP

22K

3D76-1

18

3D64

7D70
BC847BW

GNDSND

3D89
100K

FD65

AUDIO-PROT

AUDIO-MUTE

MUTE

8

A

B

C

2D72 B3
2D73 A5
2D74 F9
3D62 B3
3D63 B2
3D64 A6
3D71 C3
3D73 E5
3D74 D4
3D75 D5
3D76-1 D6
3D76-2 E6
3D76-3 F6
3D76-4 E7
3D78 D4
3D79 D4
3D80 A5
3D83 E4
3D89 C6
3D90-1 A3
3D90-2 A4
3D90-3 B5
3D90-4 C2
6D62 F4
6D63 A5
7D00-1 A4
7D00-4 C4
7D63-1 D4
7D63-2 E4
7D64-1 F6
7D64-2 E5
7D70 B6
FD64 C3
FD65 A7
ID25 E4
ID70 A3
ID72 A6
ID73 C3
ID75 D4
ID77 D5
ID78 E5
ID79 E4
ID80 F4
ID82 E6
ID84 E6
ID86 A4
ID87 A4
ID88 A5
cDA0 F9

E

F

3104 313 6194.3

ID25

BC847BPN

1568

234

3

7D63-2

5

ID79

4K7

3D83

ID80

6D62

BZX384-C18

VNN

4

4K7

3D73

4

3

7D64-2

BC847BPN

5

ID78

BC847BPN

ID82

7D64-1

GNDSND

3D76-2

6

1

22K

27

ID84

2

3D76-3

GNDSND

3D76-4

22K

22K

36

45

AUDIO-MUTE

7

GNDSND

GNDSND

RES

2D74

10n

cDA0

H_16800_078.eps

9

E

F

010507

SSB: Diversity List

ITEM

DIAGRAM

32PFL9632D/10

1B32 B01A X X
1B33 B01A X X
1B40 B01A X X
1P02 B01A X X
2B30 B01A X X
2B32 B01A X X
2B33 B01A X X
2B34 B01A X X
2B35 B01A X X
2B38 B01A X X
2B39 B01A X X
2B40 B01A X X
2B41 B01A X X
2B42 B01A X X
2B43 B01A X X
2B45 B01A X X
2B46 B01A X X
2B47 B01A X X
2B48 B01A X X
2B49 B01A X X
2B50 B01A X X
2B51 B01A X X
2B52 B01A X X
2B55 B01A X X
2B56 B01A X X
2B57 B01A X X
2B58 B01A X X
2B59 B01A X X
2B60 B01A X X
2B61 B01A X X
2B62 B01A X X
2B63 B01A X X
3B29 B01A X X
3B30 B01A X X
3B31 B01A X X
3B32 B01A X X
3B33 B01A X X
3B34 B01A X X
3B35 B01A X X
3B36 B01A X X
3B37 B01A X X
3B38 B01A X X
3B39 B01A X X
3B40 B01A X X
3B41 B01A X X
3B42 B01A X X
3B43 B01A X X
3B44 B01A X X
3B45 B01A X X
3B46 B01A X X
3B47 B01A X X
3B48 B01A X X
3B49 B01A X X
3B50 B01A X X
3B51 B01A X X
3B54 B01A X X
3B55 B01A X X
3B60 B01A X X
3B61 B01A X X
3B62 B01A X X
3B63 B01A X X
3B64 B01A X X
3B65 B01A X X
3B66 B01A X X
3B67 B01A X X
3B68 B01A X X
3B69 B01A X X
3B70 B01A X X
3B71 B01A X X
3B72 B01A X X
3B73 B01A X X
3B74 B01A X X
3B75 B01A X X
3B76 B01A X X
3B77 B01A X X
3B78 B01A X X
5B00 B01A X X
5B01 B01A X X
6B02 B01A X X
6B03 B01A X X
6B04 B01A X X
6B05 B01A X X
6B06 B01A X X
6B07 B01A X X
6B08 B01A X X
6B09 B01A X X
6B10 B01A X X
6B11 B01A X X
6B13 B01A X X
6B14 B01A X X
6B15 B01A X X
7B00 B01A X X
7B01 B01A X X
7B02 B01A X X
7B04 B01A X X
7B05 B01A X X
7B06 B01A X X
7B07 B01A X X
7B50 B01A X X
7B50 B01A X X
1B50 B01B X X
1M59 B01B X X
1P11 B01B X X
2B20 B01B X X
2B21 B01B X X
2B22 B01B X X
2B23 B01B X X
2B24 B01B X X
2B25 B01B X X
2B26 B01B X X
2B53 B01B X X
2B54 B01B X X
3B20 B01B X X
3B21 B01B X X
3B22 B01B X X
3B23 B01B X X
3B26 B01B X X
3B58 B01B X X
3B59 B01B X X
5B10 B01B X X
5B11 B01B X X
5B12 B01B X X
5B13 B01B X X
5B14 B01B X X
9B06 B01B X X
9B10 B01B X X
9B11 B01B X X
2U00 B02A X X
2U03 B02A X X
2U04 B02A X X
2U05 B02A X X
2U06 B02A X X
2U07 B02A X X
2U08 B02A X X
2U11 B02A X X
2U12 B02A X X
2U13 B02A X X
2U14 B02A X X
2U15 B02A X X
2U16 B02A X X
2U17 B02A X X
2U18 B02A X X
2U19 B02A X X
2U20 B02A X X
2U21 B02A X X
2U23 B02A X X
2U24 B02A X X
2U25 B02A X X
2U26 B02A X X
2U27 B02A X X
2U28 B02A X X
2U29 B02A X X
2U32 B02A X X
2U34 B02A X X
2U36 B02A X X
2U37 B02A X X
2U39 B02A X X
2U40 B02A X X
2U41 B02A X X
2U42 B02A X X
2U43 B02A X X
2U44 B02A X X
2U90 B02A X X

47PFL9532D/10

2U93 B02A X X
2U94 B02A X X
3U00 B02A X X
3U01 B02A X X
3U02 B02A X X
3U04 B02A X X
3U05 B02A X X
3U06 B02A X X
3U07 B02A X X
3U08 B02A X X
3U09 B02A X X
3U10 B02A X X
3U11 B02A X X
3U12 B02A X X
3U13 B02A X X
3U14 B02A X X
3U15 B02A X X
3U17 B02A X X
3U18 B02A X X
3U20 B02A X X
3U21 B02A X X
3U23 B02A X X
3U24 B02A X X
3U25 B02A X X
3U26 B02A X X
3U27 B02A X X
3U29 B02A X X
3U30 B02A X X
3U31 B02A X X
3U32 B02A X X
3U33 B02A X X
3U34 B02A X X
3U36 B02A X X
3U37 B02A X X
3U38 B02A X X
3U39 B02A X X
3U40 B02A X X
3U41 B02A X X
3U42 B02A X X
3U43 B02A X X
3U44 B02A X X
3U45 B02A X X
3U46 B02A X X
3U47 B02A X X
3U48 B02A X X
3U49 B02A X X
3U50 B02A X X
3U51 B02A X X
3U52 B02A X X
3U55 B02A X X
3U56 B02A X X
3U57 B02A X X
3U58 B02A X X
3U59 B02A X X
3U60 B02A X X
3U61 B02A X X
3U62 B02A X X
3U63 B02A X X
3U64 B02A X X
3U69 B02A X X
3U70 B02A X X
3U74 B02A X X
3U75 B02A X X
3U76 B02A X X
3U77 B02A X X
3U78 B02A X X
3UA1 B02A X X
3UA2 B02A X X
3UA3 B02A X X
3UA4 B02A X X
3UA5 B02A X X
3UA6 B02A X X
3UA7 B02A X X
3UA8 B02A X X
3UA9 B02A X X
5U00 B02A X X
5U01 B02A X X
5U02 B02A X X
6U00 B02A X X
6U01 B02A X X
6U02 B02A X X
6U04 B02A X X
6U05 B02A X X
6U06 B02A X X
6U07 B02A X X
6U08 B02A X X
6U09 B02A X X
6U10 B02A X X
7U00 B02A X X
7U01 B02A X X
7U03 B02A X X
7U05 B02A X X
7U05 B02A X X
7U06 B02A X X
7U07 B02A X X
7U08 B02A X X
7U10 B02A X X
7U10 B02A X X
7U13 B02A X X
7U13 B02A X X
7U14 B02A X X
7U14 B02A X X
7U15 B02A X X
7U16 B02A X X
7U27 B02A X X
7U28 B02A X X
9U03 B02A X X
2U38 B02B X X
2U45 B02B X X
2U46 B02B X X
2U47 B02B X X
2U48 B02B X X
2U49 B02B X X
2U50 B02B X X
2U51 B02B X X
2U52 B02B X X
3U79 B02B X X
3U80 B02B X X
3U81 B02B X X
3U82 B02B X X
3U83 B02B X X
3U84 B02B X X
3U85 B02B X X
3U86 B02B X X
3U87 B02B X X
3U88 B02B X X
3U89 B02B X X
3U90 B02B X X
3U91 B02B X X
3U92 B02B X X
3U94 B02B X X
7U02 B02B X X
7U02 B02B X X
7U04 B02B X X
7U04 B02B X X
7U17 B02B X X
7U18 B02B X X
7U19 B02B X X
7U20 B02B X X
2U59 B02C X X
2U60 B02C X X
2U61 B02C X X
2U62 B02C X X
2U64 B02C X X
2U65 B02C X X
2U66 B02C X X
2U67 B02C X X
2U68 B02C X X
2U6B B02C X X
2U6C B02C X X
2U6D B02C X X
2U6E B02C X X
2U6G B02C X X
2U6H B02C X X
2U6I B02C X X
2U6K B02C X X
2U6N B02C X X
2U6R B02C X X
2U6S B02C X X
2U70 B02C X X
2U71 B02C X X
2U72 B02C X X
2U8B B02C X X

2U8C B02C X X
2U8D B02C X X
2U8E B02C X X
3U16 B02C X X
3U6A B02C X X
3U6B B02C X X
3U6C B02C X X
3U6D B02C X X
3U6G B02C X X
3U6I B02C X X
3U6J B02C X X
3U6K B02C X X
3U6L B02C X X
3U6M B02C X X
3U6Y B02C X X
3U7B B02C X X
3U7C B02C X X
3U7D B02C X X
3U7E B02C X X
3U7F B02C X X
3U7G B02C X X
3U7H B02C X X
3U7J B02C X X
3U7L B02C X X
3U7N B02C X X
3U7P B02C X X
3U8A B02C X X
3U8C B02C X X
3U8D B02C X X
3U8E B02C X X
3U8G B02C X X
3U95 B02C X X
3U96 B02C X X
3U97 B02C X X
5U60 B02C X X
5U67 B02C X X
5U68 B02C X X
6U60 B02C X X
6U62 B02C X X
6U8A B02C X X
7U61 B02C X X
7U61 B02C X X
7U64 B02C X X
7U66 B02C X X
7U66 B02C X X
7U8B B02C X X
7U8C B02C X X
9U60 B02C X X
9U8A B02C X X
2T01 B03A X X
2T04 B03A X X
2T05 B03A X X
2T07 B03A X X
2T08 B03A X X
2T09 B03A X X
2T12 B03A X X
2T13 B03A X X
2T14 B03A X X
2T15 B03A X X
2T16 B03A X X
2T18 B03A X X
2T19 B03A X X
2T20 B03A X X
2T21 B03A X X
2T22 B03A X X
2T23 B03A X X
2T24 B03A X X
2T26 B03A X X
2T31 B03A X X
2T32 B03A X X
2T35 B03A X X
2T36 B03A X X
3T05 B03A X X
3T06 B03A X X
3T07 B03A X X
3T08 B03A X X
3T10 B03A X X
3T11 B03A X X
3T13 B03A X X
3T14 B03A X X
3T16 B03A X X
3T17 B03A X X
3T17 B03A X X
3T17 B03A X X
3T21 B03A X X
3T22 B03A X X
3T22 B03A X X
3T26 B03A X X
3T27 B03A X X
3T27 B03A X X
3T28 B03A X X
3T31 B03A X X
5T08 B03A X X
5T09 B03A X X
7T17 B03A X X
7T18 B03A X X
7T18 B03A X X
9T21 B03A X X
9T22 B03A X X
9T23 B03A X X
9T41 B03A X X
1T04 B03B X X
1T55 B03B X X
1T70 B03B X X
2T45 B03B X X
2T46 B03B X X
2T48 B03B X X
2T49 B03B X X
2T51 B03B X X
2T53 B03B X X
2T60 B03B X X
2T61 B03B X X
2T62 B03B X X
2T63 B03B X X
2T64 B03B X X
2T65 B03B X X
2T66 B03B X X
2T67 B03B X X
2T71 B03B X X
2T72 B03B X X
2T73 B03B X X
2T74 B03B X X
2T75 B03B X X
2T77 B03B X X
2T78 B03B X X
2T79 B03B X X
2T80 B03B X X
2T81 B03B X X
2T82 B03B X X
2T83 B03B X X
2T84 B03B X X
2T86 B03B X X
2T87 B03B X X
2T88 B03B X X
2T89 B03B X X
2T92 B03B X X
2T93 B03B X X
2T97 B03B X X
3T53 B03B X X
3T54 B03B X X
3T55 B03B X X
3T56 B03B X X
3T57 B03B X X
3T58 B03B X X
3T59 B03B X X
3T65 B03B X X
3T66 B03B X X
3T67 B03B X X
3T68 B03B X X
3T70 B03B X X
3T71 B03B X X
3T74 B03B X X
3T75 B03B X X
3T76 B03B X X
3T77 B03B X X
3T80 B03B X X
3T81 B03B X X
3T82 B03B X X
3T85 B03B X X
5T52 B03B X X
5T53 B03B X X
5T54 B03B X X
5T61 B03B X X

Circuit Diagrams and PWB Layouts

6T56 B03B X X
6T57 B03B X X
7T55 B03B X X
7T57 B03B X X
9T24 B03B X X
9T51 B03B X X
9T52 B03B X X
9T54 B03B X X
9T57 B03B X X
9T58 B03B X X
9T59 B03B X X
9T60 B03B X X
9T63 B03B X X
9T64 B03B X X
9T72 B03B X X
9T74 B03B X X
9T75 B03B X X
9T77 B03B X X
9T80 B03B X X
9T81 B03B X X
9T85 B03B X X
9T86 B03B X X
1HF0 B04A X X
2H00 B04A X X
2H01 B04A X X
2H05 B04A X X
2H06 B04A X X
2H07 B04A X X
2H08 B04A X X
2H10 B04A X X
2H11 B04A X X
2H90 B04A X X
2H91 B04A X X
2HF0 B04A X X
2HF1 B04A X X
3H00 B04A X X
3H01 B04A X X
3H02 B04A X X
3H03 B04A X X
3H04 B04A X X
3H05 B04A X X
3H06 B04A X X
3H07 B04A X X
3H08 B04A X X
3H09 B04A X X
3H10 B04A X X
3H11 B04A X X
3H12 B04A X X
3H13 B04A X X
3H14 B04A X X
3H15 B04A X X
3H16 B04A X X
3H17 B04A X X
3H18 B04A X X
3H19 B04A X X
3H20 B04A X X
3H21 B04A X X
3H22 B04A X X
3H23 B04A X X
3H25 B04A X X
3H26 B04A X X
3H27 B04A X X
3H28 B04A X X
3H29 B04A X X
3H30 B04A X X
3H31 B04A X X
3H32 B04A X X
3H33 B04A X X
3H35 B04A X X
3H38 B04A X X
3H39 B04A X X
3H40 B04A X X
3H41 B04A X X
3H42 B04A X X
3H43 B04A X X
3H44 B04A X X
3H46 B04A X X
3H48 B04A X X
3H49 B04A X X
3H50 B04A X X
3H51 B04A X X
3H52 B04A X X
3H53 B04A X X
3H54 B04A X X
3H56 B04A X X
3H57 B04A X X
3H58 B04A X X
3H59 B04A X X
3H60 B04A X X
3H61 B04A X X
3H63 B04A X X
3H64 B04A X X
3H65 B04A X X
3H66 B04A X X
3H68 B04A X X
3H69 B04A X X
3H70 B04A X X
3H71 B04A X X
3H72 B04A X X
3H73 B04A X X
3H74 B04A X X
3H77 B04A X X
3H78 B04A X X
3H79 B04A X X
3H80 B04A X X
3H81 B04A X X
3H82 B04A X X
3H83 B04A X X
3H84 B04A X X
3H85 B04A X X
3H86 B04A X X
3H87 B04A X X
3H88 B04A X X
3H89 B04A X X
3H90 B04A X X
3H91 B04A X X
3H92 B04A X X
3H93 B04A X X
3H94 B04A X X
3H95 B04A X X
3H96 B04A X X
3H97 B04A X X
3H98 B04A X X
3HF1 B04A X X
3HW0 B04A X X
6H00 B04A X X
6H01 B04A X X
6H05 B04A X X
6HW0 B04A X X
6HW1 B04A X X
7H00 B04A X X
7H02 B04A X X
7H03 B04A X X
7H04 B04A X X
7H14 B04A X X
7H16 B04A X X
7H18 B04A X X
7H21 B04A X X
7H22 B04A X X
7H90 B04A X X
7H91 B04A X X
7H92 B04A X X
7H93 B04A X X
9H04 B04A X X
9H05 B04A X X
9H06 B04A X X
9H09 B04A X X
9H10 B04A X X
9H20 B04B X X
9H21 B04B X X
9H22 B04B X X
9H23 B04B X X
9H24 B04B X X
9H25 B04B X X
9H26 B04B X X
9H27 B04B X X
9H28 B04B X X
9H29 B04B X X
9H30 B04B X X
9H31 B04B X X
9H32 B04B X X
9H33 B04B X X
9H34 B04B X X

9H35 B04B X X
9H36 B04B X X
9H37 B04B X X
9H40 B04B X X
9H41 B04B X X
9H42 B04B X X
2HD0 B04D X X
3HD0 B04D X X
3HD2 B04D X X
3HD3 B04D X X
3HDJ B04D X X
3HDK B04D X X
3HDL B04D X X
3HDM B04D X X
3HDN B04D X X
3HDP B04D X X
6HD0 B04D X X
6HD1 B04D X X
7HD0 B04D X X
7HD6 B04D X X
7HD6 B04D X X
7HD8 B04D X X
9HD0 B04D X X
1HP0 B04E X X
2HF2 B04E X X
2HP1 B04E X X
3HF0 B04E X X
3HF2 B04E X X
3HF3 B04E X X
3HF4 B04E X X
3HF9 B04E X X
3HFH B04E X X
3HFY B04E X X
3HP8 B04E X X
3HPA B04E X X
3HPB B04E X X
3HPC B04E X X
3HPD B04E X X
3HPE B04E X X
3HPF B04E X X
3HPG B04E X X
3HPH B04E X X
3HPJ B04E X X
3HPK B04E X X
3HPM B04E X X
3HPQ B04E X X
3HPR B04E X X
3HPS B04E X X
3HPT B04E X X
3HPU B04E X X
3HPW B04E X X
3HPX B04E X X
3HPY B04E X X
3HPZ B04E X X
6HF0 B04E X X
7H00 B04E X X
7HP5 B04E X X
9HF8 B04E X X
9HG0 B04E X X
9HG1 B04E X X
9HP5 B04E X X
9HP6 B04E X X
9HP7 B04E X X
9HP8 B04E X X
3HES B04F X X
3HET B04F X X
3HEU B04F X X
3HEV B04F X X
3HF5 B04F X X
3HFA B04F X X
3HFB B04F X X
3HFC B04F X X
3HFD B04F X X
3HFE B04F X X
3HFF B04F X X
3HFZ B04F X X
7H00 B04F X X
9HF4 B04F X X
9HF5 B04F X X
9HF6 B04F X X
9HF7 B04F X X
2HG0 B04G X X
2HG1 B04G X X
2HG2 B04G X X
2HG3 B04G X X
2HG4 B04G X X
2HG5 B04G X X
2HG6 B04G X X
2HG7 B04G X X
2HG8 B04G X X
2HG9 B04G X X
2HGA B04G X X
2HGB B04G X X
2HGC B04G X X
2HGD B04G X X
2HGE B04G X X
2HGF B04G X X
2HGG B04G X X
2HGH B04G X X
2HGJ B04G X X
2HGK B04G X X
2HGM B04G X X
2HGN B04G X X
2HGP B04G X X
2HGR B04G X X
2HGS B04G X X
2HGT B04G X X
2HGU B04G X X
2HGV B04G X X
2HGW B04G X X
2HGY B04G X X
2HGZ B04G X X
2HH0 B04G X X
2HH1 B04G X X
2HH2 B04G X X
2HH3 B04G X X
2HH4 B04G X X
2HH5 B04G X X
2HHA B04G X X
2HHM B04G X X
2HHP B04G X X
3HG1 B04G X X
3HG2 B04G X X
3HG3 B04G X X
3HG4 B04G X X
3HG5 B04G X X
3HG6 B04G X X
3HG7 B04G X X
3HG8 B04G X X
3HG9 B04G X X
3HGA B04G X X
3HGB B04G X X
3HGC B04G X X
3HGD B04G X X
3HGE B04G X X
3HGF B04G X X
3HGG B04G X X
3HGH B04G X X
3HGJ B04G X X
3HGK B04G X X
3HGM B04G X X
3HGN B04G X X
3HGP B04G X X
3HGR B04G X X
3HGS B04G X X
3HGT B04G X X
3HGU B04G X X
3HGV B04G X X
3HGW B04G X X
3HGY B04G X X
3HGZ B04G X X
3HH0 B04G X X
3HH1 B04G X X
3HH2 B04G X X
3HH3 B04G X X
3HH4 B04G X X
3HH5 B04G X X
3HH6 B04G X X
3HH7 B04G X X
3HH8 B04G X X
3HH9 B04G X X
3HHA B04G X X
3HHB B04G X X

3HHC B04G X X
3HHD B04G X X
3HHE B04G X X
3HHF B04G X X
3HHG B04G X X
3HHH B04G X X
3HHJ B04G X X
3HHK B04G X X
3HHM B04G X X
3HHN B04G X X
3HHP B04G X X
3HHR B04G X X
3HHS B04G X X
3HHT B04G X X
3HHU B04G X X
3HHV B04G X X
3HHW B04G X X
3HHY B04G X X
3HHZ B04G X X
3HJ0 B04G X X
3HJ1 B04G X X
3HJ2 B04G X X
3HJ3 B04G X X
3HJ4 B04G X X
3HJ5 B04G X X
3HJV B04G X X
3HJW B04G X X
3HJY B04G X X
3HJZ B04G X X
7H00 B04G X X
7HG0 B04G X X
7HG1 B04G X X
3HK0 B04H X X
7H00 B04H X X
2HM3 B04I X X
2HM8 B04I X X
2HMG B04I X X
2HMH B04I X X
2HMJ B04I X X
2HMN B04I X X
2HMP B04I X X
2HMT B04I X X
2HMW B04I X X
2HMY B04I X X
2HMZ B04I X X
2HN1 B04I X X
3HME B04I X X
3HMF B04I X X
3HMG B04I X X
3HMH B04I X X
3HMJ B04I X X
3HMK B04I X X
3HML B04I X X
3HMM B04I X X
3HMN B04I X X
3HMP B04I X X
3HMR B04I X X
3HMS B04I X X
3HMT B04I X X
3HMU B04I X X
5HM0 B04I X X
5HM1 B04I X X
7HM1 B04I X X
7HM1 B04I X X
7HM1 B04I X X
7HM1 B04I X X
9HM1 B04I X X
9HM2 B04I X X
2HA2 B04K X X
2HA3 B04K X X
2HA4 B04K X X
2HA5 B04K X X
2HKL B04K X X
2HRZ B04K X X
2HS0 B04K X X
2HS1 B04K X X
2HS2 B04K X X
2HS3 B04K X X
2HS4 B04K X X
2HS5 B04K X X
2HS6 B04K X X
2HS7 B04K X X
2HS8 B04K X X
2HS9 B04K X X
2HSA B04K X X
2HSB B04K X X
2HSC B04K X X
2HSD B04K X X
2HSE B04K X X
2HSF B04K X X
2HSG B04K X X
2HSH B04K X X
2HSJ B04K X X
2HSK B04K X X
2HSM B04K X X
2HSN B04K X X
2HSP B04K X X
2HSR B04K X X
2HSS B04K X X
2HST B04K X X
2HSU B04K X X
2HSW B04K X X
2HSY B04K X X
2HSZ B04K X X
2HT0 B04K X X
2HT1 B04K X X
2HT2 B04K X X
2HT3 B04K X X
2HT4 B04K X X
2HT5 B04K X X
2HT6 B04K X X
2HT7 B04K X X
2HT8 B04K X X
2HT9 B04K X X
2HTA B04K X X
2HTB B04K X X
2HTE B04K X X
2HTH B04K X X
2HTK B04K X X
2HTL B04K X X
2HTM B04K X X
2HTN B04K X X
2HTP B04K X X
2HTR B04K X X
2HTU B04K X X
2HTV B04K X X
2HTW B04K X X
2HTY B04K X X
2HU1 B04K X X
2HU2 B04K X X
2HU5 B04K X X
2HU6 B04K X X
2HU7 B04K X X
2HU8 B04K X X
2HU9 B04K X X
2HUA B04K X X
2HUB B04K X X
2HUC B04K X X
2HUD B04K X X
2HUE B04K X X
2HUF B04K X X
2HUK B04K X X
2HUN B04K X X
2HUP B04K X X
3HRP B04K X X
3HRR B04K X X
3HRS B04K X X
3HRT B04K X X
3HRU B04K X X
3HRV B04K X X
3HRW B04K X X
3HRY B04K X X
3HRZ B04K X X
3HS0 B04K X X
3HS1 B04K X X
3HS2 B04K X X
3HS3 B04K X X
3HS4 B04K X X
3HS5 B04K X X
3HS6 B04K X X
3HS7 B04K X X
3HS8 B04K X X
3HS9 B04K X X

3HSA B04K X X
3HSD B04K X X
3HSF B04K X X
3HSG B04K X X
3HSH B04K X X
3HSJ B04K X X
3HSL B04K X X
3HSM B04K X X
3HSN B04K X X
3HSP B04K X X
3HSQ B04K X X
3HST B04K X X
3HSU B04K X X
3HSV B04K X X
3HSW B04K X X
3HSZ B04K X X
3HT0 B04K X X
3HT1 B04K X X
3HT2 B04K X X
3HT3 B04K X X
3HT4 B04K X X
3HT5 B04K X X
3HT6 B04K X X
3HT9 B04K X X
5HR0 B04K X X
5HR1 B04K X X
5HR2 B04K X X
5HR3 B04K X X
5HR4 B04K X X
5HR5 B04K X X
5HR6 B04K X X
5HR7 B04K X X
5HR8 B04K X X
5HRB B04K X X
5HRC B04K X X
5HRD B04K X X
5HRG B04K X X
5HRH B04K X X
5HRJ B04K X X
5HRK B04K X X
5HRM B04K X X
5HRN B04K X X
5HRP B04K X X
5HRS B04K X X
5HRT B04K X X
5HRU B04K X X
5HRV B04K X X
5HRW B04K X X
7H00 B04K X X
9HR0 B04K X X
9HR1 B04K X X
2HP4 B04L X X
2HP5 B04L X X
2HP6 B04L X X
2HP7 B04L X X
2HP8 B04L X X
2HPA B04L X X
2HPB B04L X X
2HR1 B04L X X
2HR3 B04L X X
2HR5 B04L X X
2HR7 B04L X X
2HR9 B04L X X
2HRB B04L X X
2HRD B04L X X
2HRF B04L X X
2HRH B04L X X
2HRK B04L X X
2HRM B04L X X
2HRN B04L X X
2HRP B04L X X
2HRS B04L X X
2HRT B04L X X
2HRU B04L X X
2HRV B04L X X
2HRW B04L X X
2HRY B04L X X
3HAG B04L X X
3HAH B04L X X
3HP2 B04L X X
3HP3 B04L X X
3HP4 B04L X X
3HP5 B04L X X
3HP6 B04L X X
3HP7 B04L X X
3HPN B04L X X
3HR0 B04L X X
3HR1 B04L X X
3HR2 B04L X X
3HR3 B04L X X
3HR4 B04L X X
3HR5 B04L X X
3HR6 B04L X X
3HR7 B04L X X
3HR8 B04L X X
3HR9 B04L X X
3HRA B04L X X
3HRB B04L X X
3HRC B04L X X
3HRD B04L X X
3HRE B04L X X
3HRF B04L X X
3HRG B04L X X
3HRH B04L X X
3HRJ B04L X X
3HRK B04L X X
3HRM B04L X X
3HRN B04L X X
3HSC B04L X X
3HT7 B04L X X
3HT8 B04L X X
5HP1 B04L X X
5HP2 B04L X X
5HRZ B04L X X
7H00 B04L X X
7HP0 B04L X X
2HV2 B04M X X
2HV3 B04M X X
2HV4 B04M X X
2HV6 B04M X X
2HV7 B04M X X
2HV9 B04M X X
2HVA B04M X X
2HVB B04M X X
2HVC B04M X X
2HVD B04M X X
2HVE B04M X X
2HVG B04M X X
3HV3 B04M X X
3HV4 B04M X X
3HV7 B04M X X
3HV8 B04M X X
3HVN B04M X X
3HVP B04M X X
3HVR B04M X X
3HVS B04M X X
3HVT B04M X X
3HVW B04M X X
3HVX B04M X X
3HVY B04M X X
5HV0 B04M X X
7HV0 B04M X X
7HV0 B04M X X
7HV1 B04M X X
7HVA B04M X X
7HVA B04M X X
3HWK B04N X X
3HWM B04N X X
3HWN B04N X X
3HWP B04N X X
3HWR B04N X X
3HWS B04N X X
3HWT B04N X X
3HWU B04N X X
3HWV B04N X X
3HWW B04N X X
3HWY B04N X X
3HWZ B04N X X
7H00 B04N X X
3HP9 B04O X X
7H00 B04O X X
7H00 B04O X X
9HP9 B04O X X

9HW3 B04O X X
9HW4 B04O X X
9HW5 B04O X X
9HW6 B04O X X
9HW7 B04O X X
9HW8 B04O X X
9HW9 B04O X X
9HWA B04O X X
9HWB B04O X X
9HWC B04O X X
9HWD B04O X X
9HWE B04O X X
9HWF B04O X X
9HWG B04O X X
9HWH B04O X X
9HWJ B04O X X
9HWK B04O X X
9HWM B04O X X
9HWN B04O X X
9HWP B04O X X
9HWR B04O X X
9HWS B04O X X
9HWT B04O X X
9HWU B04O X X
9HWV B04O X X
9HWW B04O X X
9HWY B04O X X
9HWZ B04O X X
2HH6 B04P X X
2HH7 B04P X X
2HH8 B04P X X
2HH9 B04P X X
2HK0 B04P X X
2HK1 B04P X X
2HK2 B04P X X
2HK3 B04P X X
2HK4 B04P X X
2HK5 B04P X X
2HK6 B04P X X
2HK7 B04P X X
2HK8 B04P X X
2HKA B04P X X
2HKB B04P X X
2HY0 B04P X X
2HY1 B04P X X
2HY2 B04P X X
2HY3 B04P X X
2HY4 B04P X X
2HY5 B04P X X
2HY6 B04P X X
2HY7 B04P X X
2HY8 B04P X X
2HY9 B04P X X
2HYA B04P X X
2HYB B04P X X
2HYC B04P X X
2HYD B04P X X
2HYE B04P X X
2HYF B04P X X
2HYG B04P X X
2HYH B04P X X
2HYJ B04P X X
2HYK B04P X X
2HYM B04P X X
2HYN B04P X X
2HYP B04P X X
2HYR B04P X X
2HYS B04P X X
2HYT B04P X X
2HYU B04P X X
2HYV B04P X X
2HYW B04P X X
2HYY B04P X X
2HYZ B04P X X
2HZ0 B04P X X
2HZ1 B04P X X
2HZ2 B04P X X
2HZ3 B04P X X
2HZ4 B04P X X
2HZ7 B04P X X
2HZ8 B04P X X
2HZ9 B04P X X
2HZA B04P X X
2HZB B04P X X
2HZC B04P X X
2HZD B04P X X
2HZE B04P X X
2HZF B04P X X
2HZG B04P X X
2HZH B04P X X
2HZJ B04P X X
2HZN B04P X X
2HZP B04P X X
2HZR B04P X X
2HZS B04P X X
2HZT B04P X X
2HZU B04P X X
2HZV B04P X X
5HG0 B04P X X
5HG1 B04P X X
5HK0 B04P X X
5HK1 B04P X X
5HK2 B04P X X
5HK3 B04P X X
5HK4 B04P X X
5HY0 B04P X X
5HY1 B04P X X
5HY2 B04P X X
5HY3 B04P X X
5HY4 B04P X X
5HY5 B04P X X
5HY6 B04P X X
5HY7 B04P X X
5HY8 B04P X X
5HY9 B04P X X
5HYA B04P X X
7H00 B04P X X
7H00 B04P X X
2HA0 B04Q X X
2HA1 B04Q X X
3HA0 B04Q X X
3HA2 B04Q X X
3HA3 B04Q X X
3HA4 B04Q X X
3HA5 B04Q X X
3HA6 B04Q X X
3HA7 B04Q X X
3HA8 B04Q X X
3HA9 B04Q X X
3HAA B04Q X X
3HAB B04Q X X
3HAC B04Q X X
3HAD B04Q X X
3HAE B04Q X X
3HAF B04Q X X
5HA0 B04Q X X
7HA0 B04Q X X
7HA3 B04Q X X
1C05 B05A X X
2C00 B05A X X
2C01 B05A X X
3C00 B05A X X
3C01 B05A X X
3C02 B05A X X
3C03 B05A X X
3C04 B05A X X
3C05 B05A X X
3C06 B05A X X
3C08 B05A X X
3C09 B05A X X
3C10 B05A X X
3C11 B05A X X
3C12 B05A X X
3C13 B05A X X
3C14 B05A X X
3C20 B05A X X
3C27 B05A X X
3C29 B05A X X
3C32 B05A X X
7C00 B05A X X
7C00 B05A X X
9C05 B05A X X
9C07 B05A X X

104Q528.1E LA 7.

9C08 B05A X X
2CA0 B05B X X
2CA3 B05B X X
2CA4 B05B X X
2CA5 B05B X X
2CA6 B05B X X
2CA7 B05B X X
2CA8 B05B X X
2CA9 B05B X X
2CAA B05B X X
2CAB B05B X X
2CAC B05B X X
2CAD B05B X X
2CAE B05B X X
2CAF B05B X X
2CAG B05B X X
2CAH B05B X X
2CAK B05B X X
2CAM B05B X X
2CAN B05B X X
2CAP B05B X X
2CAR B05B X X
2CB3 B05B X X
2CB4 B05B X X
2CB5 B05B X X
2CB6 B05B X X
2CB7 B05B X X
2CB8 B05B X X
2CBA B05B X X
2CBB B05B X X
2CBC B05B X X
2CBD B05B X X
2CBF B05B X X
2CBG B05B X X
2CBH B05B X X
2CBK B05B X X
2CBN B05B X X
2CBP B05B X X
2CBS B05B X X
2CBT B05B X X
3CA1 B05B X X
3CA2 B05B X X
3CA3 B05B X X
3CA4 B05B X X
3CA9 B05B X X
3CAA B05B X X
3CAB B05B X X
3CAC B05B X X
3CAD B05B X X
3CAE B05B X X
3CAF B05B X X
3CAG B05B X X
3CAH B05B X X
3CAK B05B X X
3CAM B05B X X
3CAN B05B X X
3CAP B05B X X
3CAR B05B X X
3CAS B05B X X
3CAT B05B X X
3CAV B05B X X
3CAW B05B X X
3CAY B05B X X
3CAZ B05B X X
3CBA B05B X X
3CBB B05B X X
3CBC B05B X X
3CBD B05B X X
3CBE B05B X X
3CBF B05B X X
3CBG B05B X X
3CBH B05B X X
3CBK B05B X X
3CBM B05B X X
3CBN B05B X X
3CBP B05B X X
3CBR B05B X X
3CBS B05B X X
3CBT B05B X X
3CBV B05B X X
3CBW B05B X X
5CA1 B05B X X
7C00 B05B X X
7CA0 B05B X X
7CA1 B05B X X
9CA1 B05B X X
9CA2 B05B X X
2C50 B05C X X
3C48 B05C X X
3C49 B05C X X
3C50 B05C X X
3C51 B05C X X
3C53 B05C X X
3C54 B05C X X
3C55 B05C X X
3C56 B05C X X
3C57 B05C X X
3C58 B05C X X
3C59 B05C X X
3C62 B05C X X
3C63 B05C X X
3C64 B05C X X
3C65 B05C X X
3C66 B05C X X
3C67 B05C X X
3C68 B05C X X
3C69 B05C X X
3C70 B05C X X
3C71 B05C X X
3C72 B05C X X
3C73 B05C X X
3C74 B05C X X
3C75 B05C X X
3C76 B05C X X
3C77 B05C X X
3C78 B05C X X
3C79 B05C X X
3C80 B05C X X
3C81 B05C X X
3C82 B05C X X
3C83 B05C X X
3C84 B05C X X
3C85 B05C X X
3C86 B05C X X
3C87 B05C X X
3C88 B05C X X
3C89 B05C X X
3C90 B05C X X
3C91 B05C X X
3C92 B05C X X
3C93 B05C X X
3C94 B05C X X
3C95 B05C X X
7C00 B05C X X
2CD0 B05D X X
2CD1 B05D X X
2CD2 B05D X X
2CD3 B05D X X
2CD4 B05D X X
2CD5 B05D X X
2CD6 B05D X X
2CD7 B05D X X
2CD8 B05D X X
2CD9 B05D X X
2CDA B05D X X
2CDB B05D X X
2CDC B05D X X
2CDD B05D X X
2CDE B05D X X
2CDF B05D X X
2CDG B05D X X
2CDH B05D X X
2CDK B05D X X
2CDM B05D X X
2CDN B05D X X
2CDP B05D X X
2CDR B05D X X
2CDS B05D X X
2CDT B05D X X
2CDU B05D X X
2CDV B05D X X
2CDW B05D X X
2CDX B05D X X

2CDY B05D X X
2CDZ B05D X X
2CE0 B05D X X
2CE1 B05D X X
2CE2 B05D X X
2CE3 B05D X X
2CE4 B05D X X
2CE5 B05D X X
2CE6 B05D X X
2CE7 B05D X X
2CE8 B05D X X
2CE9 B05D X X
2CEA B05D X X
2CEB B05D X X
2CEC B05D X X
2CED B05D X X
2CEE B05D X X
2CEF B05D X X
2CEG B05D X X
2CEH B05D X X
2CEK B05D X X
2CEM B05D X X
2CF0 B05D X X
2CF1 B05D X X
2CF2 B05D X X
2CF3 B05D X X
2CF4 B05D X X
2CF5 B05D X X
2CF6 B05D X X
2CF7 B05D X X
2CF8 B05D X X
2CF9 B05D X X
2CFA B05D X X
2CFB B05D X X
2CFC B05D X X
2CFD B05D X X
2CFE B05D X X
2CFF B05D X X
2CFG B05D X X
5CD1 B05D X X
5CD2 B05D X X
5CD3 B05D X X
7C00 B05D X X
1G50 B06A X X
2G00 B06A X X
2G01 B06A X X
2G02 B06A X X
2G03 B06A X X
2G04 B06A X X
2G05 B06A X X
2G06 B06A X X
2G07 B06A X X
2G08 B06A X X
2G09 B06A X X
2G10 B06A X X
2G11 B06A X X
2G12 B06A X X
2G13 B06A X X
2G14 B06A X X
2G15 B06A X X
2G16 B06A X X
2G17 B06A X X
2G18 B06A X X
2G19 B06A X X
2G20 B06A X X
2G21 B06A X X
2G22 B06A X X
2G23 B06A X X
2G52 B06A X X
2G53 B06A X X
3G52 B06A X X
3G53 B06A X X
5G00 B06A X X
5G01 B06A X X
5G02 B06A X X
5G03 B06A X X
5G04 B06A X X
5G05 B06A X X
5G06 B06A X X
5G07 B06A X X
5G08 B06A X X
5G09 B06A X X
5G10 B06A X X
5G11 B06A X X
2G54 B06B X X
2G55 B06B X X
2G57 B06B X X
2G58 B06B X X
2G60 B06B X X
2G67 B06B X X
2G68 B06B X X
2G78 B06B X X
2G79 B06B X X
3G55 B06B X X
3G56 B06B X X
3G57 B06B X X
3G58 B06B X X
3G59 B06B X X
3G63 B06B X X
3G64 B06B X X
3G65 B06B X X
3G66 B06B X X
3G67 B06B X X
3G68 B06B X X
3G69 B06B X X
3G71 B06B X X
3G72 B06B X X
3G73 B06B X X
3G76 B06B X X
3G77 B06B X X
3G79 B06B X X
3G86 B06B X X
3G92 B06B X X
3G95 B06B X X
3G96 B06B X X
3GA0 B06B X X
3GA1 B06B X X
3GA2 B06B X X
3GA3 B06B X X
3GA4 B06B X X
3GA6 B06B X X
3GB7 B06B X X
3GB8 B06B X X
3GB9 B06B X X
3GC0 B06B X X
3GC2 B06B X X
3GC3 B06B X X
3GC4 B06B X X
5G55 B06B X X
5G56 B06B X X
6G50 B06B X X
6G51 B06B X X
7G53 B06B X X
7G54 B06B X X
7G55 B06B X X
7G58 B06B X X
7G58 B06B X X
7G59 B06B X X
7G59 B06B X X
7G61 B06B X X
7G61 B06B X X
7G65 B06B X X
7G66 B06B X X
9G49 B06B X X
9G53 B06B X X
9G54 B06B X X
9G55 B06B X X
9G77 B06B X X
9G78 B06B X X
1GE0 B06C X X
1GE1 B06C X X
2GE0 B06C X X
2GE1 B06C X X
2GE2 B06C X X
2GE3 B06C X X
2GE4 B06C X X
2GE5 B06C X X
2GE6 B06C X X
2GE7 B06C X X
2GE8 B06C X X
2GE9 B06C X X
2GF0 B06C X X
2GF1 B06C X X

2GF2 B06C X X
2GF3 B06C X X
2GF4 B06C X X
2GF5 B06C X X
2GF6 B06C X X
2GF7 B06C X X
2GF8 B06C X X
2GF9 B06C X X
2GG0 B06C X X
2GG1 B06C X X
2GG2 B06C X X
2GG3 B06C X X
2GG4 B06C X X
2GG5 B06C X X
2GG6 B06C X X
2GG7 B06C X X
2GG8 B06C X X
2GG9 B06C X X
2GH0 B06C X X
2GH1 B06C X X
2GH2 B06C X X
2GH3 B06C X X
2GH4 B06C X X
2GH5 B06C X X
2GH6 B06C X X
2GH7 B06C X X
2GH8 B06C X X
2GH9 B06C X X
2GJ0 B06C X X
2GJ1 B06C X X
2GJ2 B06C X X
2GJ5 B06C X X
2GJ6 B06C X X
2GJ7 B06C X X
2GK0 B06C X X
2GK1 B06C X X
2GK2 B06C X X
2GK3 B06C X X
2GK4 B06C X X
2GK5 B06C X X
2GK6 B06C X X
2GL1 B06C X X
3GE1 B06C X X
3GE2 B06C X X
3GE3 B06C X X
3GE4 B06C X X
3GE5 B06C X X
3GE6 B06C X X
3GF0 B06C X X
3GF1 B06C X X
3GF2 B06C X X
3GF3 B06C X X
3GF4 B06C X X
3GF5 B06C X X
3GF6 B06C X X
3GF7 B06C X X
3GF8 B06C X X
3GF9 B06C X X
3GG1 B06C X X
3GG2 B06C X X
3GG3 B06C X X
3GG4 B06C X X
3GG5 B06C X X
3GG6 B06C X X
3GH0 B06C X X
3GH2 B06C X X
3GH3 B06C X X
3GH4 B06C X X
3GH5 B06C X X
3GH6 B06C X X
5GE0 B06C X X
5GE1 B06C X X
5GE2 B06C X X
5GE3 B06C X X
5GE4 B06C X X
5GE5 B06C X X
5GE6 B06C X X
6GE0 B06C X X
6GE1 B06C X X
6GE2 B06C X X
6GE3 B06C X X
6GE5 B06C X X
6GE6 B06C X X
6GE7 B06C X X
7GE0 B06C X X
7GE1 B06C X X
7GE2 B06C X X
7GE2 B06C X X
7GE2 B06C X X
7GE3 B06C X X
7GE5 B06C X X
9GE2 B06C X X
1P00 B07A X X
2P00 B07A X X
2P11 B07A X X
2P12 B07A X X
2P14 B07A X X
2P15 B07A X X
2P16 B07A X X
2P17 B07A X X
2P18 B07A X X
2P20 B07A X X
2P22 B07A X X
3P00 B07A X X
3P03 B07A X X
3P05 B07A X X
3P06 B07A X X
3P08 B07A X X
3P09 B07A X X
3P10 B07A X X
3P11 B07A X X
3P12 B07A X X
3P13 B07A X X
3P14 B07A X X
3P15 B07A X X
3P20 B07A X X
3P21 B07A X X
3P22 B07A X X
3P24 B07A X X
3P25 B07A X X
3P26 B07A X X
3P27 B07A X X
3P28 B07A X X
3P29 B07A X X
3P30 B07A X X
3P31 B07A X X
3P32 B07A X X
3P33 B07A X X
6P00 B07A X X
6P01 B07A X X
6P02 B07A X X
7P01 B07A X X
7P03 B07A X X
7P03 B07A X X
7P10 B07A X X
9P02 B07A X X
9P03 B07A X X
9P05 B07A X X
9P06 B07A X X
2P50 B07B X X
2P53 B07B X X
2P54 B07B X X
3P55 B07B X X
7P51 B07B X X
7P51 B07B X X
7P52 B07B X X
7P52 B07B X X
7P53 B07B X X
9P50 B07B X X
9P52 B07B X X
9P54 B07B X X
9P56 B07B X X
9P57 B07B X X
9P58 B07B X X
9PC3 B07C X X
9PC4 B07C X X
1M15 B08A X X
2J11 B08A X X
2J12 B08A X X
3J11 B08A X X
3J12 B08A X X
6J11 B08A X X
6J11 B08A X X

2J30 B08B X X
2J31 B08B X X
2J32 B08B X X
2J33 B08B X X
2J34 B08B X X
3J30 B08B X X
3J31 B08B X X
3J32 B08B X X
3J33 B08B X X
3J34 B08B X X
3J35 B08B X X
3J36 B08B X X
7J30 B08B X X
7J30 B08B X X
7J30 B08B X X
7J30 B08B X X
7J30 B08B X X
7J30 B08B X X
1HE2 B08C X X
1JA1 B08C X X
1JA2 B08C X X
2J20 B08C X X
2J42 B08C X X
2J49 B08C X X
2J61 B08C X X
2J62 B08C X X
2J65 B08C X X
2J66 B08C X X
2JE1 B08C X X
2JE2 B08C X X
2JE3 B08C X X
2JE4 B08C X X
2JE5 B08C X X
3J20 B08C X X
3J21 B08C X X
3J22 B08C X X
3J23 B08C X X
3J24 B08C X X
3J25 B08C X X
3J50 B08C X X
3J51 B08C X X
3J53 B08C X X
3J54 B08C X X
3J57 B08C X X
3J58 B08C X X
3J59 B08C X X
3J60 B08C X X
3JE0 B08C X X
3JE1 B08C X X
3JE2 B08C X X
3JE3 B08C X X
3JE4 B08C X X
3JE5 B08C X X
5J40 B08C X X
5J45 B08C X X
6J30 B08C X X
6J31 B08C X X
6J40 B08C X X
6J41 B08C X X
6J42 B08C X X
6J43 B08C X X
6J44 B08C X X
6J45 B08C X X
6J46 B08C X X
6J47 B08C X X
7J42 B08C X X
7J42 B08C X X
7J50 B08C X X
7J51 B08C X X
7JE2 B08C X X
9J06 B08C X X
9J07 B08C X X
1B01 B08D X X
1B02 B08D X X
1B03 B08D X X
2J01 B08D X X
2J02 B08D X X
2J03 B08D X X
2J04 B08D X X
2JA0 B08D X X
2JA1 B08D X X
2JA2 B08D X X
2JA3 B08D X X
2JA4 B08D X X
2JA5 B08D X X
2JA6 B08D X X
2JA7 B08D X X
3J00 B08D X X
3J01 B08D X X
3J02 B08D X X
3J03 B08D X X
3J04 B08D X X
3J05 B08D X X
3J06 B08D X X
3J07 B08D X X
3J08 B08D X X
3J13 B08D X X
3J15 B08D X X
3J17 B08D X X
3J18 B08D X X
3JA0 B08D X X
3JA1 B08D X X
3JA4 B08D X X
3JA5 B08D X X
3JA6 B08D X X
3JA7 B08D X X
3JA8 B08D X X
3JA9 B08D X X
3JB0 B08D X X
3JB3 B08D X X
3JB4 B08D X X
3JB5 B08D X X
3JB6 B08D X X
3JB7 B08D X X
3JB8 B08D X X
3JC0 B08D X X
3JC1 B08D X X
3JC2 B08D X X
3JC3 B08D X X
3JC5 B08D X X
3JC7 B08D X X
3JC8 B08D X X
5J39 B08D X X
5JA1 B08D X X
5JA2 B08D X X
6J10 B08D X X
6J12 B08D X X
6JA1 B08D X X
6JA2 B08D X X
6JA3 B08D X X
6JA4 B08D X X
7J28 B08D X X
7J29 B08D X X
7JA0 B08D X X
7JA1 B08D X X
7JA2 B08D X X
7JA3 B08D X X
7JE3 B08D X X
9JA0 B08D X X
9JA1 B08D X X
9JA2 B08D X X
9JA4 B08D X X
9JA5 B08D X X
9JA6 B08D X X
9JA7 B08D X X
9JE5 B08D X X
9JE6 B08D X X
9JE8 B08D X X
9JE9 B08D X X
9JF0 B08D X X
2JA8 B08E X X
2JA9 B08E X X
2JB0 B08E X X
2JB1 B08E X X
2JB2 B08E X X
2JB3 B08E X X
2JB4 B08E X X
2JB5 B08E X X
2JB6 B08E X X
2JB7 B08E X X
2JB8 B08E X X
2JB9 B08E X X
2JC0 B08E X X

2JC1 B08E X X
2JE6 B08E X X
2JE7 B08E X X
2JE8 B08E X X
2JE9 B08E X X
2JF0 B08E X X
2JF1 B08E X X
3J09 B08E X X
3J16 B08E X X
5JA3 B08E X X
5JA4 B08E X X
5JA5 B08E X X
7J27 B08E X X
9JA3 B08E X X
1020 B09A X X
1030 B09A X X
2E01 B09A X X
2E02 B09A X X
2E03 B09A X X
2E04 B09A X X
2E05 B09A X X
2E06 B09A X X
2E07 B09A X X
2E08 B09A X X
2E09 B09A X X
2E10 B09A X X
2E12 B09A X X
2E13 B09A X X
2E14 B09A X X
2E16 B09A X X
2E17 B09A X X
2E18 B09A X X
2E19 B09A X X
2E20 B09A X X
2E22 B09A X X
2E23 B09A X X
2E24 B09A X X
2E29 B09A X X
2E30 B09A X X
2E31 B09A X X
2E32 B09A X X
2E33 B09A X X
2E35 B09A X X
2E36 B09A X X
2E37 B09A X X
2E40 B09A X X
2E41 B09A X X
2E42 B09A X X
2E43 B09A X X
2E44 B09A X X
2E45 B09A X X
2E46 B09A X X
3E01 B09A X X
3E02 B09A X X
3E04 B09A X X
3E05 B09A X X
3E06 B09A X X
3E07 B09A X X
3E08 B09A X X
3E09 B09A X X
3E10 B09A X X
3E11 B09A X X
3E12 B09A X X
3E13 B09A X X
3E14 B09A X X
3E15 B09A X X
3E16 B09A X X
3E17 B09A X X
3E18 B09A X X
3E19 B09A X X
3E20 B09A X X
3E21 B09A X X
3E22 B09A X X
3E23 B09A X X
3E24 B09A X X
3E26 B09A X X
3E27 B09A X X
3E30 B09A X X
3E31 B09A X X
3E32 B09A X X
3E33 B09A X X
3E34 B09A X X
3E35 B09A X X
3E36 B09A X X
3E37 B09A X X
3E39 B09A X X
3E40 B09A X X
3E41 B09A X X
3E42 B09A X X
3E43 B09A X X
3E44 B09A X X
3E45 B09A X X
3E46 B09A X X
3E47 B09A X X
3E48 B09A X X
3E49 B09A X X
3E50 B09A X X
3E51 B09A X X
3E52 B09A X X
3E53 B09A X X
3E55 B09A X X
3E56 B09A X X
3E57 B09A X X
3E58 B09A X X
3E60 B09A X X
3E61 B09A X X
3E63 B09A X X
3E64 B09A X X
3E65 B09A X X
3E67 B09A X X
3E68 B09A X X
3E69 B09A X X
3E70 B09A X X
3E71 B09A X X
3E72 B09A X X
3E73 B09A X X
3E74 B09A X X
3E75 B09A X X
3E76 B09A X X
3E77 B09A X X
3E78 B09A X X
3E79 B09A X X
3E80 B09A X X
3E81 B09A X X
6E01 B09A X X
6E02 B09A X X
6E03 B09A X X
6E04 B09A X X
6E05 B09A X X
6E06 B09A X X
6E07 B09A X X
6E08 B09A X X
6E09 B09A X X
6E10 B09A X X
6E11 B09A X X
6E12 B09A X X
6E13 B09A X X
6E14 B09A X X
6E15 B09A X X
6E16 B09A X X
6E17 B09A X X
6E19 B09A X X
6E20 B09A X X
6E21 B09A X X
6E22 B09A X X
6E24 B09A X X
6E25 B09A X X
6E27 B09A X X
6E29 B09A X X
6E30 B09A X X
6E31 B09A X X
6E32 B09A X X
6E34 B09A X X
6E35 B09A X X
6E36 B09A X X
6E37 B09A X X
6E40 B09A X X
7E02 B09A X X
7E03 B09A X X
7E04 B09A X X
7E05 B09A X X
7E06 B09A X X
7E07 B09A X X

7E08 B09A X X
7E09 B09A X X
7E09 B09A X X
7E10 B09A X X
7E12 B09A X X
7E13 B09A X X
7E14 B09A X X
7E14 B09A X X
7E15 B09A X X
7E70 B09A X X
9E05 B09A X X
9E15 B09A X X
1040 B09B X X
1070 B09B X X
1070 B09B X X
1070 B09B X X
1M36 B09B X X
2EA0 B09B X X
2EA1 B09B X X
2EA2 B09B X X
2EA3 B09B X X
2EA4 B09B X X
2EA5 B09B X X
2EA6 B09B X X
2EA7 B09B X X
2EA8 B09B X X
2EA9 B09B X X
2EB0 B09B X X
2EB1 B09B X X
2EB3 B09B X X
2EB4 B09B X X
2EB6 B09B X X
2EB8 B09B X X
2EB9 B09B X X
3EA0 B09B X X
3EA1 B09B X X
3EA2 B09B X X
3EA3 B09B X X
3EA4 B09B X X
3EA5 B09B X X
3EA6 B09B X X
3EA7 B09B X X
3EA8 B09B X X
3EA9 B09B X X
3EB0 B09B X X
3EB6 B09B X X
3EB7 B09B X X
3EB8 B09B X X
3EB9 B09B X X
3EC6 B09B X X
3EC7 B09B X X
5EA0 B09B X X
5EA2 B09B X X
5EA3 B09B X X
6EA1 B09B X X
6EA2 B09B X X
6EA3 B09B X X
6EA4 B09B X X
6EA5 B09B X X
6EA6 B09B X X
6EA7 B09B X X
6EA8 B09B X X
6EB0 B09B X X
6EB1 B09B X X
7EA0 B09B X X
7EA0 B09B X X
7EA1 B09B X X
7EA1 B09B X X
9EA0 B09B X X
9EA1 B09B X X
9EA4 B09B X X
9EA5 B09B X X
9EA6 B09B X X
1N01 B10A X X
2N04 B10A X X
2N05 B10A X X
2N06 B10A X X
2N07 B10A X X
2N08 B10A X X
2N09 B10A X X
2N10 B10A X X
2N11 B10A X X
2N12 B10A X X
2N13 B10A X X
2N14 B10A X X
2N15 B10A X X
2N16 B10A X X
2N17 B10A X X
2N18 B10A X X
2N19 B10A X X
2N20 B10A X X
2N21 B10A X X
2N22 B10A X X
2N23 B10A X X
2N25 B10A X X
3N01 B10A X X
3N03 B10A X X
3N04 B10A X X
3N10 B10A X X
3N13 B10A X X
3N14 B10A X X
3N15 B10A X X
3N16 B10A X X
3N17 B10A X X
3N18 B10A X X
3N19 B10A X X
3N20 B10A X X
5N00 B10A X X
5N01 B10A X X
5N02 B10A X X
5N03 B10A X X
5N04 B10A X X
7N00 B10A X X
9N01 B10A X X
9N02 B10A X X
9N04 B10A X X
9N10 B10A X X
1H01 B10B X X
2N30 B10B X X
2N31 B10B X X
2N32 B10B X X
5N30 B10B X X
7N30 B10B X X
1M01 B10C X X
1M20 B10C X X
2N51 B10C X X
2N52 B10C X X
2N53 B10C X X
2N54 B10C X X
2N55 B10C X X
2N56 B10C X X
3N51 B10C X X
3N52 B10C X X
3N53 B10C X X
3N54 B10C X X
3N56 B10C X X
5N31 B10C X X
9N50 B10C X X
1735 B11A X X
2D00 B11A X X
2D01 B11A X X
2D02 B11A X X
2D04 B11A X X
2D05 B11A X X
2D07 B11A X X
2D08 B11A X X
2D09 B11A X X
2D10 B11A X X
2D11 B11A X X
2D12 B11A X X
2D13 B11A X X
2D14 B11A X X
2D15 B11A X X
2D17 B11A X X
2D18 B11A X X
2D19 B11A X X
2D20 B11A X X
2D21 B11A X X
2D22 B11A X X
2D23 B11A X X
2D24 B11A X X
2D25 B11A X X
2D26 B11A X X

2D27 B11A X X
2D28 B11A X X
2D29 B11A X X
2D30 B11A X X
2D31 B11A X X
2D32 B11A X X
2D33 B11A X X
2D34 B11A X X
2D35 B11A X X
2D36 B11A X X
2D37 B11A X X
2D39 B11A X X
2D40 B11A X X
2D44 B11A X X
3D00 B11A X X
3D01 B11A X X
3D03 B11A X X
3D03 B11A X X
3D03 B11A X X
3D03 B11A X X
3D04 B11A X X
3D05 B11A X X
3D06 B11A X X
3D07 B11A X X
3D09 B11A X X
3D10 B11A X X
3D11 B11A X X
3D13 B11A X X
3D13 B11A X X
3D13 B11A X X
3D13 B11A X X
3D14 B11A X X
3D14 B11A X X
3D14 B11A X X
3D15 B11A X X
3D16 B11A X X
3D17 B11A X X
3D18 B11A X X
3D19 B11A X X
3D20 B11A X X
3D21 B11A X X
3D22 B11A X X
3D25 B11A X X
3D26 B11A X X
3D27 B11A X X
3D28 B11A X X
3D29 B11A X X
3D30 B11A X X
3D31 B11A X X
3D32 B11A X X
3D35 B11A X X
3D37 B11A X X
3D38 B11A X X
3D39 B11A X X
3D40 B11A X X
3D55 B11A X X
3D55 B11A X X
3D58 B11A X X
3D61 B11A X X
3D61 B11A X X
5D00 B11A X X
5D01 B11A X X
5D02 B11A X X
5D03 B11A X X
5D04 B11A X X
5D05 B11A X X
5D07 B11A X X
5D10 B11A X X
5D11 B11A X X
6D15 B11A X X
7D00 B11A X X
7D00 B11A X X
7D02 B11A X X
7D02 B11A X X
7D05 B11A X X
7D06 B11A X X
7D09 B11A X X
7D10 B11A X X
7D10 B11A X X
7D30 B11A X X
7D31 B11A X X
7D32 B11A X X
7D32 B11A X X
7D34 B11A X X
7D35 B11A X X
7D35 B11A X X
7D55 B11A X X
7D58 B11A X X
7D58 B11A X X
7D59 B11A X X
7D61 B11A X X
9D02 B11A X X
9D03 B11A X X
9D04 B11A X X
9D05 B11A X X
2D72 B11C X X
2D73 B11C X X
2D74 B11C X X
3D62 B11C X X
3D63 B11C X X
3D64 B11C X X
3D71 B11C X X
3D73 B11C X X
3D74 B11C X X
3D75 B11C X X
3D76 B11C X X
3D76 B11C X X
3D76 B11C X X
3D76 B11C X X
3D78 B11C X X
3D79 B11C X X
3D80 B11C X X
3D83 B11C X X
3D89 B11C X X
3D90 B11C X X
3D90 B11C X X
3D90 B11C X X
3D90 B11C X X
6D62 B11C X X
6D63 B11C X X
7D00 B11C X X
7D00 B11C X X
7D63 B11C X X
7D63 B11C X X
7D64 B11C X X
7D64 B11C X X
7D70 B11C X X
2HC0 BO4C X X
2HC1 BO4C X X
3HC0 BO4C X X
3HC1 BO4C X X
3HC2 BO4C X X
3HC3 BO4C X X
3HC4 BO4C X X
3HC5 BO4C X X
3HC6 BO4C X X
3HC7 BO4C X X
3HC8 BO4C X X
3HC9 BO4C X X
7HC0 BO4C X X
7HC0 BO4C X X
7HC0 BO4C X X
7HC1 BO4C X X
7HC2 BO4C X X
7HC3 BO4C X X
7HC4 BO4C X X
9HC0 BO4C X X
5U03 BO4C X X
