Philips 42PFL3557/V7 leaflet

Download

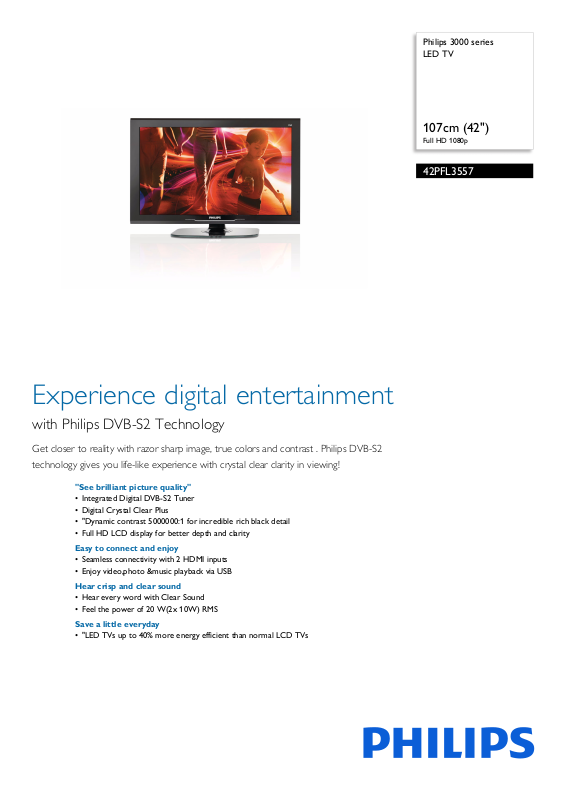

Page 1

Philips 3000 series LED TV

107cm (42")

Full HD 1080p

42PFL3557

Experience digital entertainment

with Philips DVB-S2 Technology

Get closer to reality with razor sharp image, true colors and contrast . Philips DVB-S2 technology gives you life-like experience with crystal clear clarity in viewing!

"See brilliant picture quality"

• Integrated Digital DVB-S2 Tuner

• Digital Crystal Clear Plus

• "Dynamic contrast 5000000:1 for incredible rich black detail

• Full HD LCD display for better depth and clarity

Easy to connect and enjoy

• Seamless connectivity with 2 HDMI inputs

• Enjoy video,photo &music playback via USB

Hear crisp and clear sound

• Hear every word with Clear Sound

• Feel the power of 20 W(2x 10W) RMS

Save a little everyday

• "LED TVs up to 40% more energy efficient than normal LCD TVs

Page 2

LED TV

107cm (42") Full HD 1080p

Highlights

42PFL3557/V7

DCC PLUS

The Integrated Digital DVB-S2 Tuner lets you recieve

digital TV without an additional set-top

box. Enjoy Quality TV Clutter free.

Full HD LCD display, 1920 x 10

"The Full HD screen has the widescreen resolution of 1920 x 1080p. This is the highest resolution of HD sources for the best possible picture quality. It is fully future proof as it supports 1080p signals from all sources, including the most recent like Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colors.. "

bright, lifelike picture with high contrast and vibrant colours.."

Clear Sound

Critical moments in a movie or your favourite show are too often missed. Clear Sound is an innovative audio technology that significantly increases the intelligibility of vocalisations, whether spoken or sang. It ensures you hear every word, so you can enjoy what you're watching to the fullest

Rich & clear sound experience

copy protection. With 2 HDMI inputs on the back of the TV you can connect multiple HD sources, for instance an HD settop box, a Bluray player, and Game Console or Digital Camcorder."

USB with video playback

The USB connector allows access to jpeg photos & music files of most USB-sticks (USB memory-class device).

Eco mode

Integrated DVB-S2 Tuner

The Integrated Digital DVB-S2 Tuner lets you recieve

digital TV without an additional set top

box. Enjoy quality TV clutter free.

"Dynamic contrast 5000000:1"

"You want the LED flat display with the highest contrast and most vibrant images. Philips advanced video processing combined with unique extreme dimming and backlightboosting technology results in vibrant images. Dynamic Contrast will increase the contrast with excellent black level and accurate rendition of dark shades and colours. It gives a

"Feel the power of the music beat and the atmosphere of the movies. The powerful 20 W RMS (2 x 10 W RMS) amplifiers create a lifelike soundstage. It gives a clear and spacious sound stage complementary to the rich viewing experience.."

2 HDMI inputs

"HDMI makes an uncompressed digital RGB connection from the source to the screen for the ultimate picture quality. HDMI uses HDCP

"Up to 40% more energy efficient than conventional flat TVs. Using the latest LED backlight technology, LED-backlit TVs are considered a more sustainable choice, with a longer life and far lower energy consumption than plasmas and conventional LCD TVs. Unlike CCFL backlights, LEDs do not use mercury in their manufacture. In addition, Philips TV designs have improved generation after generation resulting in an increase in material efficiency and a reduction in energy usage without compromising on safety and wellbeing. That's good news for you today your children tomorrow..."

Page 3

LED TV

107cm (42") Full HD 1080p

Specifications

42PFL3557/V7

Accessories

• Included accessories: Quick start guide, Remote Control, User Manual, Warranty certificate

Connectivity

•HDMI 2: HDMI

• Other connections: Antenna F-type, Component Video (YPbPr) inpu

• USB: USB

t, PC-in VGA + Audio L/R in

Convenience

• Ease of Installation: Autostore, Fine Tuning

• Ease of Use: Auto Volume Leveller (AVL),

aphical User Interface, On Screen Display

• On-Screen Display languages: English

Dimensions

• Product weight: 17.4 kg

• Product weight (+stand): 19.4 kg

• Set dimensions with stand (W x H):

x 667 mm

1017

• Set Width: 1017 mm

Loudspeakers

• Built-in speakers: 2

Picture/Display

• Diagonal screen size (inch): 42 inch

• Panel resolution: 1920x1080p

• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfi

• Response time (typical): 4 ms

lter, Digital Crystal Clear

Power

• Power consumption: 100 W

• Power supply: 100-240VAC, 50/60Hz

• Standby power consumption: Less than 1 watt

Sound

• Output power (RMS): 20W

• Sound Enhancement: Auto Volume Leveller

• Sound System: Stereo

Supported Display Resolution

• Computer formats Resolution Refresh rate 1024 x 768 60, 70, 75Hz 1280 x 1024 60, 70, 75Hz 640 x 480 60, 72, 75Hz 720 x 400 70Hz 800 x 600 56, 60Hz Via HDMI/DVI

inpu

• Video formats

solution Refresh rate

Re 1080i 50, 60Hz 1080p 50Hz 1080p 60Hz 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz

USB - Container

• Video: ASF, AVI, MKV, MP4, PS

USB - File Extension

• Video: *.avi, *.mkv, *.mov, *.mp4, *.mpg

USB - Video Decoder

• Compression Format: H.264, MPEG 1, MPEG 2, MPEG 4, VC-1

•

Issue date 2014-03-17

Version: 1.0.1

12 NC: 8670 000 91137 EAN: 87 12581 64851 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
