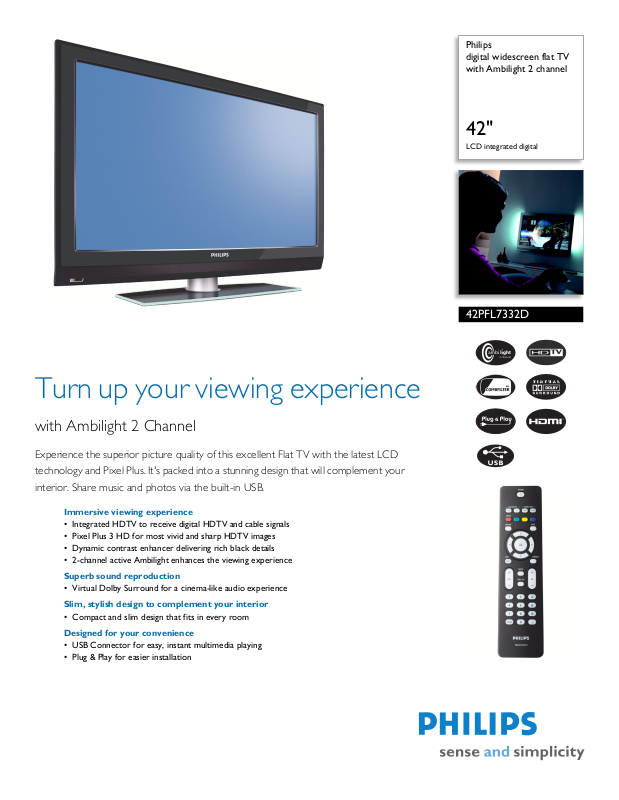

Page 1
For preview purpose only
Philips
digital widescreen flat TV
with Ambilight 2 channel
42"
LCD integrated digital
42PFL7332D
Turn up your viewing experience
with Ambilight 2 Channel
Experience the superior picture quality of this excellent Flat TV with the latest LCD
technology and Pixel Plus. It's packed into a stunning design t hat will complement your
interior. Share music and photos via the built-in USB.
Immersive viewing experience
• Integrated HDTV to receive digital HDTV and cable signals
• Pixel Plus 3 HD for most vivid and sharp HDTV images
• Dynamic contrast enhancer delivering rich black details
• 2-channel active Ambilight enhances the viewing experience
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• USB Connector for easy, instant multimedia playing
• Plug & Play for easier installation
Page 2
digital widescreen flat TV with Ambilight 2 channel
42" LCD integrated digital
Specifications
Picture/Display
• Aspect ratio: 16:9, Widescreen
• Brightness: 500 cd/m²
• Dynamic screen contrast: 4000:1
• Response time (typical): 8 ms
• Viewing angle (h / v): 176 / 176 degree
• Diagonal screen size: 42 inch / 107 cm
• Panel resolution: 1366 x 768p
• Picture enhancement: Pixel Plus 3 HD,
Dynamic contrast enhancement, 3/2 - 2/2
motion pull down, 3D Combfilter, Active
Control, Progressive Scan
• Screen enhancement: Anti-Reflection coated
screen
Ambilight
• Ambilight Features: Ambilight 2 Channel
• Preset modes: 4 Active Adaptive modes
Supported Display Resolution
• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
Sound
• Output power (RMS): 2 x 15W
• Sound System: Dolby Digital (AC-3), Virtual
Dolby Surround
Loudspeakers
• Built-in speakers: 2
Convenience
• Child Protection: Child Lock+Parental
Control
• Clock: On main display
• Ease of Installation: Autostore, PLL Digital
Tuning, Plug & Play
• Ease of Use: On Screen Display, Settings
assistant Wizard, Side Control
• Remote Control: TV
• Remote control type: RC2033602
• Screen Format Adjustments: 7 Widescreen
Modes, Auto Format
• VESA Mount: 600x400 mm
Multimedia Applications
• Digital Content Management: Digital Media
Reader
• Multimedia connections: USB memory class
device
• Playback Formats: MP3, Slideshow files (.alb),
JPEG Still pictures
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• TV system: ATSC, NTSC
• Video Playback: NTSC
• Cable: Unscrambled Digital Cable -QAM
• Tuner bands: Hyperband, S-Channel, UHF,
VHF
Connectivity
• AV 1: Audio L/R in, CVBS in, YPbPr
• AV 2: Audio L/R in, YPbPr
• AV 3: HDMI
• Front / Side connections: Audio L/R in, CVBS
in, Headphone out, S-video in, USB
• Audio Output - Digital: Coaxial (cinch)
• Other connections: HDMI
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: AC 110 - 240 V, 50/60 Hz
• Power consumption: 250 W
• Standby power consumption: < 1 W
Dimensions
• Set dimensions in inch (W x H x D):
41.2
• Set dimensions with stand in inch
(W
• Product weight (lb): 78.8 (with stand), 63
(without stand)
• Box dimensions in inch (W x H x D):
44.3
• Weight incl. Packaging (lb): 107.1
x 27 x 4.6 inch
x H x D): 41.2 x 29.5 x 10.4 inch
x 30.7 x 10.9 inch
42PFL7332D/37
Accessories
• Included Accessories: Tabletop swivel stand,
Power cord, Quick start guide, User Manual,
Registration card, Remote Control
•
Date of issue 2007-06-06
Version: 4.0
12 NC: 8670 000 26105
UPC: 6 09585 12338 0
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Page 3
digital widescreen flat TV with Ambilight 2 channel
42" LCD integrated digital
42PFL7332D/37
Product highlights
Pixel Plus 3 HD
Pixel Plus 3 HD offers the unique combination of ultimate
sharpness, natural detail, vivid colors and smooth natural
motion on all qualities of HD, standard TV signals and
multimedia content, for high definition displays. Each pixel
of the incoming picture is enhanced to better match the
surrounding pixels, resulting in a more natural picture.
Artifacts and noise in all sources from multimedia to
standard TV and also in highly compressed HD are
detected and reduced ensuring that the picture is clean
and razor sharp.
Ambilight 2 channel
Ambilight makes an impressive contribution to the overall
viewing experience by producing ambient light to
complement the colors and light intensity of the on-screen
image. It adds a new dimension to the viewing experience,
completely immersing you into the content you are
watching. It creates ambiance, stimulates more relaxed
viewing, and improves perceived picture detail, contrast
and color. Ambilight automatically and independently
adapts its colors according to the changing content on the
screen.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
ad dit ional rea r sp ea ker s. Y ou b ecome tot all y i mme rse d in
your television experience.
USB Multimedia Connector
The USB connector allows access to multimedia jpg, mp3
and alb files of most USB-sticks and most digital cameras
(U SB 1 .1 m emory -cl ass dev ice). Plu g th e USB i nto the slo t
a t t he si de of the TV a nd a cc e ss yo ur ph oto s o r m us ic fi les .
This makes you easily viewing and sharing your photos
and music.
Plug & Play
Plug & Play gives you the ability to install or add a new
component and have it work without having to perform
any complex installation procedure or technical analysis.
Dual HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an a na log sig nal , i t de liv er s an unb lem is hed ima ge . Th e
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
output resolution with the source device. The HDMI input
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
With 2 HDMI inputs you can connect multiple HD
sources, for instance an HD settop box, and a Blu-ray
player. Your TV is fully prepared for the HD future.
