Register your product and get support at
www.philips.com/welcome
46PFL3507
46PFL3507S
42PFL3507
42PFL3507S
42PFL3007
42PFL3007S
32PFL3507
32PFL3507S
32PFL3007
32PFL3007S
launam resU
Contents
1 Notice 2
2 Important 4
3 Your TV 7
TV controls 7
Remote control 7
Remote control usage 8
4 Use your TV 9
Switch your TV on 9
Switch your TV to standby 9
Switch your TV off 9
Switch channels 9
Watch connected devices 10
Adjust TV volume 11
Use teletext 11
6 Install channels 23
Automatically install channels 23
Manually install channels 23
Rename channels 24
Rearrange channels 24
7 Connect devices 25
Back connections 25
Side connections 26
Connect a computer 27
Use Philips EasyLink 28
Use a Kensington lock 29
8 Product information 30
Supported display resolutions 30
Multimedia 30
Tuner/Reception/Transmission 30
Remote control 30
Power 30
Suppor ted TV mounts 31
English
5 Use more of your TV 12
Access TV menus 12
Add device to the home menu 12
Rename devices from the home menu 12
Remove devices from the home menu 12
Change picture and sound settings 13
Use advanced teletext features 15
Create and use list of favorite channels 15
Display the TV clock 16
Use timers 16
Lock unsuitable content 17
Change language 17
View Scenea 18
Play photos, music, and videos on USB
storage devices 18
Update the TV software 20
Change TV preferences 21
Use options menu 21
Start a TV demo 22
Reset the TV to factory settings 22
9 Troubleshooting 32
General TV issues 32
TV channel issues 32
Picture issues 32
Sound issues 33
HDMI connection issues 33
Computer connection issues 33
Contact us 33
10 Index 34
EN
1
1 Notice
2012 © TP Vision Netherlands B.V. All rights
reserved. Specications are subject to change
without notice. Trademarks are the proper ty
of Koninklijke Philips Electronics N.V or their
respective owners. TP Vision Netherlands B.V.
reserves the right to change products at any
time without being obliged to adjust earlier
supplies accordingly.
The material in this manual is believed
adequate for the intended use of the system.
If the product, or its individual modules or
procedures, are used for purposes other
than those specied herein, conrmation of
their validity and suitability must be obtained.
TP Vision Netherlands B.V. warrants that
the material itself does not infringe any
United States patents. No further warranty is
expressed or implied.
TP Vision Netherlands B.V. cannot be held
responsible neither for any errors in the
content of this document nor for any problems
as a result of the content in this document.
Errors repor ted to Philips will be adapted and
published on the Philips support website as
soon as possible.
Terms of warranty
• Risk of injury, damage to TV or void of
warranty! Never attempt to repair the TV
yourself.
• Use the TV and accessories only as
intended by the manufacturer.
• The TV has one of the following caution
signs printed on the back.
The caution sign indicates risk of electric
shock. Never remove the TV cover. Always
contact Philips Customer Support for
service or repairs.
• Any operation expressly prohibited in
this manual, or any adjustments and
assembly procedures not recommended
or authorized in this manual shall void the
warranty.
Pixel characteristics
This LCD/LED product has a high number of
color pixels. Although it has effective pixels of
99.999% or more, black dots or bright points of
light (red, green or blue) may appear constantly
on the screen. This is a structural proper ty of
the display (within common industry standards)
and is not a malfunction.
Compliance with EMF
TP Vision Netherlands B.V. manufactures and
sells many products targeted at consumers,
which, like any electronic apparatus, in
general have the ability to emit and receive
electromagnetic signals.
One of Philips’ leading Business Principles is to
take all necessary health and safety measures
for our products, to comply with all applicable
legal requirements and to stay well within
the Electro Magnetic Field (EMF) standards
applicable at the time of producing the
products.
Philips is committed to develop, produce and
market products that cause no adverse health
effects. TP Vision conrms that if its products are
handled properly for their intended use, they
are safe to use according to scientic evidence
available today.
Philips plays an active role in the development
of international EMF and safety standards,
enabling Philips to anticipate further
developments in standardisation for early
integration in its products.
Copyright
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or other
countries.
2 EN
Manufactured under license from Dolby
Laboratories. Dolby and the double D symbol
are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
Kensington and Micro Saver are registered US
trademarks of ACCO World corporation with
issued registrations and pending applications in
other countries throughout the world.
All other registered and unregistered
trademarks are the proper ty of their respective
owners.
English
EN
3
2 Important
Read and understand all instructions before you
use your TV. If damage is caused by failure to
follow instructions, the warranty does not apply.
Safety
Risk of electric shock or re!
• Never expose the TV to rain or water.
Never place liquid containers, such as
vases, near the TV. If liquids are spilt on or
into the TV, disconnect the TV from the
power outlet immediately. Contact Philips
Consumer Care to have the TV checked
before use.
• Never place the TV, remote control or
batteries near naked ames or other heat
sources, including direct sunlight. To prevent
the spread of re, keep candles or other
ames away from the TV, remote control
and batteries at all times.
• Never insert objects into the ventilation
slots or other openings on the TV.
• Never expose the remote control or
batteries to rain, water or excessive heat.
• Avoid force coming onto power plugs.
Ensure that the power plug is fully inserted
into the power socket. Loose power plugs
can cause arcing or re.
• When the TV is swiveled, ensure that no
strain is exerted on the power cord. Strain
on the power cord can loosen connections
and cause arcing.
4 EN
• To disconnect the TV from the mains
power, the power plug of the TV must be
disconnected. When disconnecting the
power, always pull the power plug, never
the cord. Ensure that you have full access
to the power plug, power cord and outlet
socket at all times.
Risk of damage to the TV!
• Two people are required to lift and carry a
TV that weighs more than 25kg or 55lbs.
• When stand mounting the TV, use only the
supplied stand. Secure the stand to the TV
tightly. Place the TV on a at, level surface
that can support the combined weight of
the TV and the stand.
• When wall mounting the TV, use only a
wall mount that can support the weight
of the TV. Secure the wall mount to a wall
that can support the combined weight
of the TV and wall mount. TP Vision
Netherlands B.V. bears no responsibility
for improper wall mounting that results in
accident, injury or damage.
• If you need to store the TV, disassemble
the stand from the TV. Never lie the TV on
its back with the stand installed.
• Before you connect the TV to the power
outlet, ensure that the power voltage
matches the value printed on the back
of the TV. Never connect the TV to the
power outlet if the voltage is different.
• Parts of this product can be made of
glass. Handle with care to avoid injury and
damage.
Risk of injury to children!Follow these
precautions to prevent the TV from toppling
over and causing injury to children:
• Never place the TV on a surface covered
by a cloth or other material that can be
pulled away.
• Ensure that no part of the TV hangs over
the edge of the surface.
• Never place the TV on tall furniture, such
as a bookcase, without anchoring both the
furniture and TV to the wall or a suitable
support.
• Educate children about the dangers of
climbing on furniture to reach the TV.
Risk of swallowing batteries!
• The product/remote control may contain a
coin type battery, which can be swallowed.
Keep the battery out of reach of children
at all times!
Risk of overheating!
• Never install the TV in a conned space.
Always leave a space of at least 4 inches
or 10 cm around the TV for ventilation.
Ensure that curtains or other objects never
cover the ventilation slots on the TV.
Risk of injury, re or power cord damage!
• Never place the TV or any objects on the
power cord.
• Disconnect the TV from the power outlet
and aerial before lightning storms. During
lightning storms, never touch any part of
the TV, power cord or aerial cable.
Risk of hearing damage!
• Avoid using earphones or headphones at
high volumes or for prolonged periods of
time.
Low temperatures
• If the TV is transpor ted in temperatures
below 5°C or 41°F, unpack the TV and
wait until the TV temperature matches
room temperature before connecting the
TV to the power outlet.
Screen care
• Risk of damage to the TV screen! Never
touch, push, rub or strike the screen with
any object.
• Unplug the TV before cleaning.
• Clean the TV and frame with a soft damp
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the TV.
• To avoid deformations and color fading,
wipe off water drops as soon as possible.
• Avoid stationary images as much as
possible. Stationary images are images that
remain onscreen for extended periods of
time. Stationary images include onscreen
menus, black bars, time displays, etc. If you
must use stationary images, reduce screen
contrast and brightness to avoid screen
damage.
Disposal of your old product and
batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
EN
English
5
Environmental efforts
Philips continuously focus on lowering the
environmental impact of its innovative
consumer products. We aim our efforts
towards environmental improvements during
manufacturing, reduction of harmful substances,
energy-efcient use, end-of-life instructions and
product recycling.
To access energy-efcient settings:
1 While you watch TV, press the green
button on the remote control.
2 Select one of the following settings:
• [Energy saving]: Picture settings that
conserve the most energy.
• [Mute screen]: If you only want to
listen to audio from the TV, you can
turn off the TV display. Other functions
continue to operate normally.
Open source software
This product contains software licensed under
an open source license. For acknowledgements
and license texts, please refer to the electronic
in-product user manual or paper leaet. TP
Vision Netherlands B.V. hereby offers to
deliver, upon request, a copy of the complete
corresponding source code for the copyrighted
open source software packages used in this
product for which such offer is requested by
the respective licenses. This offer is valid up to
three years after product purchase to anyone
in receipt of this information. To obtain source
code, please send your request in English with
product number to
“Open Source Team, TP Vision Netherlands
B.V.,High Tech Campus 5, 5656 AE Eindhoven,
The Netherlands”.
6 EN
3 Your TV
Remote control
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your TV at
www.philips.com/welcome.
TV controls
VOL
CH
POWER
1
2
3
4
a VOL +/-: Adjust volume.
b CH : Switch channels.
c MENU: Access the home menu.
INPUT: Select connected devices.
d POWER: Switch the TV on or off.
20
19
18
17
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
English
a (Standby)
Switch the TV on or to standby.
b Play buttons
Control video or music.
c FORMAT
Change picture format.
d TV
Switch source to watch TV.
EN
7
e (Home)
Access the home menu.
f INFO
Display information about current activity.
g (Navigation buttons)
Navigate through menus and select items.
h OK
Conrm an entry or selection.
i OPTIONS
Access options for the current activity or
selection.
j (Back)
Return to the previous menu or exit a
function.
k CH +/- (Channel +/-)
Switch channels.
l (Mute)
Mute or restore audio.
m +/- (Volume)
Adjust volume.
n Color buttons
Select tasks or options.
o 0-9 (Numeric buttons)
Select channels.
p TEXT
Enable or disable teletext.
q SUBTITLE
Enable or disable subtitles.
r ADJUST
Access the menu to adjust settings.
s LIST
Access the TV channel list.
t SOURCE
Select connected devices.
Remote control usage
When you use the remote control, hold it close
to the TV and point it at the remote control
sensor. Make sure that the line-of-sight between
the remote control and TV is not blocked by
furniture, walls or other objects.
~5m
~30˚
8 EN
4 Use your TV
Switch your TV off
This section helps you perform basic TV
operations.
Switch your TV on
• Press the power switch on the TV.
» There is a short delay before the TV
responds.
POWER
If the TV is in standby
• Press (Standby-On) on the remote
control.
• Press the power switch on the TV again.
» The remote control sensor on the TV
switches off.
» Though the TV consumes very little
power when in standby, energy
continues to be consumed. When not
in use for an extended period of time,
disconnect the TV power cable from
the power outlet or turn off the power
switch.
Note
• If you cannot locate your remote control and want
to switch on the TV from standby, press CH on
the TV.
Switch channels
• Press CH+ or CH- on the remote control.
English
Switch your TV to standby
• Press (Standby-On) on the remote
control again.
» The remote control sensor on the TV
switches to red.
• Press CH on the TV.
CH
9
EN
Other ways to switch channels
• Enter a channel number using the Numeric
buttons.
• Press on the remote control to return
to the previous channel.
Note
• When you use a favorite list, you can only select those
channels in the list (see 'Create and use list of favorite
channels' on page 175).
View installed channel
You can view all available channels with the
channel grid.
Watch connected devices
Note
• Before you select a device as a source, switch the
device on.
Select a device from the source list
1 Press SOURCE on the remote control
or INPUT on the TV.
1 Press OK or LIST.
» The channel grid appears.
2 Press to select a channel.
3 Press OK to watch the selected channel.
4 Press to return to the previously
viewed channel.
10 EN
INPUT
» The source list appears.
2 Press to select a device.
3 Press OK to conrm your choice.
» The TV switches to the selected
device.
Adjust TV volume
Use teletext
• Press +/- on the remote control.
• Press +/- on the TV.
VOL
To mute or unmute sound
• Press to mute the sound.
• Press again to restore the sound.
English
1 Press TEXT.
» The main index page appears.
2 Select a page as follows:
• Press the Numeric buttons to enter a
page number.
• Press CH +/- to view the next or
previous page.
• Press the Color buttons to select a
color coded item.
• Press to return to a previously
viewed page.
3 Press TEXT to exit teletext.
EN
11
5 Use more of
your TV
Access TV menus
Menus help you to install channels, change
picture and sound settings and access other
features.
1 Press .
» The menu screen appears.
3 Follow the on-screen instructions to add
the device to the home menu.
» The device is displayed in the home
menu.
4 To watch the device, switch it on, then
select it in the home menu.
5 You can also select the device with the
source button. (see 'Select a device from
the source list' on page 10 )
Rename devices from the
home menu
After you add a new device to the home menu,
you can rename it to your preference.
Note
The device name can be up to 16 characters long.
•
1 Select one of the following, then press OK .
• [Watch TV] : If a source other than
antenna is selected, switch back to the
antenna source.
• [Browse USB] : If a USB device is
connected, access the content browser.
• [Scenea] : Switch on Scenea wallpaper.
• [Add new device] : Add new devices to
the home menu.
• [Setup] : Access menus to change
picture, sound and other settings.
2 Press to exit.
Add device to the home
menu
After you connect a device, add it to the home
menu.
1 Press .
2 Select [Add new device] .
12 EN
1 Press .
2 Select a device to rename.
3 Press OPTIONS .
» The options menu appears.
4 Select [Rename device] , then press OK .
» A text input box appears.
5 Select characters, then press OK to
confi rm.
• Press [abc] to change uppercase
letters to lowercase and vice versa.
6 When the new name is complete, select
[Done] , then press OK .
Remove devices from the
home menu
If a device is no longer connected to the TV,
remove it from the home menu.
1 Press .
2 Select a device to remove.
3 Press OPTIONS.
4 Select [Remove device], then press OK.
5 Select [Remove], then press OK.
» The selected device is removed from
the home menu.
Change picture and sound
settings
Change picture and sound settings to suit your
preferences. You can apply pre-dened settings
or change settings manually.
Note
• While you watch TV or external devices, press
ADJUST , then select [Smart picture] or
[Smart sound] for quick access to picture and sound
settings.
Use settings assistant
Use the settings assistant to guide you through
the picture and sound settings.
1 Press .
2 Select [Setup] > [Quick picture and
sound settings], then press OK.
3 Select [Continue], then press OK.
» The [Settings assistant] menu appears.
4 Follow the on-screen instructions to
choose your preferred picture settings.
Use smart picture
Use smart picture to apply pre-dened picture
settings.
1 While you watch TV, press ADJUST.
2 Select [Smart picture].
3 Select one of the following settings, then
press OK.
• [Personal]: Apply your customized
picture settings
• [Vivid]: Rich and dynamic settings, ideal
for daytime.
• [Natural]: Natural picture settings.
• [Cinema]: Ideal settings for movies.
• [Game]: Ideal settings for games.
• [Energy saving]: Settings that conserve
the most energy.
• [Standard]: Default settings that suit
most environments and types of video.
• [Photo]: Ideal settings for photos.
• [Custom]: Customize and store
your personal picture settings. Select
[Personal] to apply these settings.
Manually adjust picture settings
1 Press .
2 Select [Setup] > [TV settings] > [Picture],
then press OK.
3 Select one of the following settings, then
press OK.
• [Smart picture]: Access predened smart
picture settings.
• [Reset]: Reset to factory default settings.
• [Contrast]: Adjust the intensity of backlight
areas, while the video contents are kept
unchanged.
• [Brightness]: Adjust the intensity and
details of dark areas.
• [Color]: Adjust color saturation.
• [Sharpness]: Adjust sharpness in the image.
• [Noise reduction]: Filter and reduce noise
in an image.
• [Tint]: Adjust the color balance in an
image.
• [Custom tint]: Customize tint setting.
(Only available if [Tint] > [Custom] is
selected)
• [Digital Crystal Clear]/[Pixel Plus HD]:
Fine-tune each pixel to match surrounding
pixels. This setting produces a brilliant, high-
denition image.
• [HD Natural Motion]: Minimize
juddering effects and enhance picture
smoothness.
English
EN
13
• [Advance sharpness]: Enable superior
picture sharpness.
• [Dynamic contrast]: Enhance contrast.
[Medium] setting is recommended.
• [Dynamic backlight]: Adjust brightness
of the TV backlight to match lighting
conditions.
• [Color enhancement]: Make colors
more vivid and improves the details
in bright colors. You can switch this
feature on or off.
• [Gamma]: Adjust the midtone intensity
in the picture. Black and white are not
affected.
• [Picture format]: Change the picture
format.
• [Screen edges]: Adjust the viewing area.
(when set to maximum, you may see noise
or rough edge of an image).
• [Picture shift]: Adjust the picture position
for all picture formats except for [4:3],
[Unscaled], and [Wide screen].
Change picture format
1 Press .
2 Select [Setup] > [TV settings] > [Picture],
then press OK.
3 Select [Picture format], then press OK.
4 Select a picture format, then press OK.
Summary of picture formats
The following picture settings can be congured.
Note
• Depending on the format of the picture source, some
picture settings are not available.
[Super zoom]: (Not
for HD and PC mode.)
Remove the black bars on
the side of 4:3 broadcasts.
There is minimal distortion.
[4:3]: Show the classic 4:3
format.
14 EN
[Unscaled]: For HD and
PC mode only, and in
selected models only. Allow
maximum sharpness. Some
distortion may be present
due to the broadcaster's
systems. Set your PC
resolution to wide screen
mode for best results.
[Subtitle zoom]: Displays
4:3 pictures over the full
area of the screen with
subtitles visible. Part of
the top of the picture is
clipped off.
[Movie expand 14:9]: (Not
for HD and PC mode.)
Scales 4:3 format to 14:9.
[Movie expand 16:9]: (Not
for HD and PC mode.)
Scale 4:3 format to 16:9.
[Wide screen]: Scale 4:3
format to 16:9.
Use smart sound
Use smart sound to apply pre-dened sound
settings.
1 While you watch TV, press ADJUST.
2 Select [Smart sound].
3 Select one of the following settings, then
press OK.
• [Personal]: Apply the settings that
were customized in the sound menu.
• [Standard]: Settings that suit most
environments and types of audio.
• [News]: Ideal settings for spoken audio,
such as news.
• [Cinema]: Ideal settings for movies.
• [Game]: Ideal settings for games.
• [Drama]: Ideal settings for drama
programs.
• [Sports]: Ideal settings for spor ts
programs.
Manually adjust sound settings
1 Press .
2 Select [Setup] > [TV settings] > [Sound],
then press OK.
3 Select one of the following settings, then
press OK.
• [Smart sound]: Access predened smar t
sound settings.
• [Reset]: Reset to factory default settings.
• [Clear sound]: Enhance the sound clarity.
• [Bass]: Adjust the bass level.
• [Treble]: Adjust the treble level.
• [Surround]: Switch on spatial sound.
• [Auto volume leveling]: Automatically
reduce sudden volume changes, for
example, when switching channels.
• [Balance]: Adjust the balance of the right
and left speakers.
Use advanced teletext
features
Access the teletext options menu
Access the teletext features through the
teletext options menu.
1 Press TEXT.
» The teletext screen appears.
2 Press OPTIONS.
» The teletext options menu appears.
3 Select one of the following options, then
press OK.
• [Freeze page]/[Unfreeze page]: Freeze/
unfreeze the current page.
• [Dual screen]/[Full Screen]: Switch
between full screen and dual screen
teletext.
• [Enlarge]/[Normal view]: Switch
between enlarged and normal view of
teletext pages.
• [Reveal]: Hide or reveal hidden
information on a page, such as
solutions to riddles or puzzles.
• [Cycle subpage]: If subpages are
available, automatically display each
subpage in sequence.
Select teletext subpages
A teletext page can contain several subpages.
Subpages are displayed next to the main page
number.
1 Press TEXT .
» The teletext screen appears.
2 Press CH+/- to select a teletext page.
3 Press or to enter a subpage.
Use Teletext 1.5
If Teletext 1.5 is broadcast by a channel, it is
switched on by default.
1 Press .
2 Select [Setup] > [TV settings] >
[Preferences] > [Teletext 1.5].
3 Select [On] or [Off], then press OK to
conrm.
Create and use list of favorite
channels
You can create a list of your preferred TV
channels so that you can nd those channels
easily.
View only the list of favorite channels
1 While you watch TV, press LIST.
» The channel matrix menu is displayed.
2 Press OPTIONS.
English
EN
15
3 Select [Select list] > [Favorites], then
press OK.
» Only channels in the favorites list
appear in the channel grid.
Display the TV clock
You can display a clock on the TV screen,
showing the current time.
Note
• The favorites channel grid is empty until you add
channels into the favorites list.
View all channels
You can exit the favorites list, and view all
installed channels.
1 While you watch TV, press LIST.
» The channel matrix menu is displayed.
2 Press OPTIONS.
3 Select [Select list] > [All], then press OK.
» All channels are displayed in the
channel grid.
Note
• All favorite channels are marked by an asterisk, when
you view the channel grid.
Manage the favorites list
1 While you watch TV, press LIST.
» The channel matrix menu appears.
2 Press OPTIONS.
3 Select [Select list] > [All], then press OK.
4 Press OPTIONS.
5 Select [Mark as favorite] or [Unmark as
favorite], then press OK.
» The channel is added or removed from
the favorite list.
Note
• All favorite channels are marked by an asterisk in the
channel grid.
Set the TV clock manually
To set the clock manually:
1 Press .
2 Select [Setup] > [TV settings] >
[Preferences] > [Clock].
3 Select [Time] or [Date], then press OK.
4 Press the Navigation buttons to set the
time or date.
5 Select [Done], then press OK.
6 Press MENU to exit.
Note
• If you turn off the mains power, you will need to set the
clock again after switching on the power again.
Display the TV clock
1 While you watch TV, press OPTIONS.
» The options menu is displayed.
2 Select [Clock], then press OK.
» The clock is displayed.
Note
• To disable the clock, repeat the procedure.
Use timers
You can set timers to switch the TV to standby
at a specied time.
Tip
• Set the TV clock before you use timers.
16 EN
Automatically switch the TV to
standby (sleep timer)
Sleep timer switches the TV to standby after a
pre-dened duration.
Tip
• You can switch off your TV earlier or reset the sleep
timer during the countdown.
4 Enter your code using the Numeric
buttons.
» Follow the on-screen instructions to
create or change your PIN code.
Tip
• If you forget your code, enter ‘8888’ to override any
existing codes.
English
1 Press .
2 Select [Setup] > [TV settings] >
[Preferences] > [Sleep timer].
» The [Sleep timer] menu appears.
3 Select a value between zero and 180
minutes.
» The sleep timer can be set in steps
of ten minutes. If you select zero, the
sleep timer switches off.
4 Press OK to switch on the sleep timer.
» The TV switches to standby after the
specied time.
Lock unsuitable content
You can prevent your children from watching
certain programs or channels by locking the TV
controls.
Set or change code
1 Press .
2 Select [Setup] > [Channel settings] >
[Child lock].
3 Select [Set code] or [Change code].
» The [Set code] / [Change code] menu
appears.
Lock or unlock one or more channels
1 Press .
2 Select [Setup] > [Channel settings] >
[Child lock] > [Channel lock].
» A list of channels is displayed.
3 Select the channel that you want to lock or
unlock, then press OK.
» The rst time you lock or unlock a
channel, you are prompted to enter
your PIN code.
4 Enter your code and press OK.
» If the channel is locked, a lock icon
displayed.
5 Repeat the process to lock or unlock more
channels.
6 To activate the locks, switch the TV on and
off.
» When you switch channels with
CH+/-, the locked channels are
skipped.
» When you access the locked channels
from the channel grid, you are
prompted to enter your PIN code.
Change language
You can change the language of the onscreen
menu.
Depending on your broadcaster, you can change
the audio language, subtitle language, or both,
for a TV channel.
EN
17
Change menu language
Switch on Scenea
1 Press .
2 Select [Setup] > [TV settings] >
[Preferences] > [Menu language], then
press OK.
3 Select a language, then press OK.
Change audio language
You can choose an audio language if it is
available from your broadcaster. For digital
channels, multiple languages may be available.
For analog channels, two languages may be
available.
1 While you watch TV, press OPTIONS.
2 Select [Dual I-II], select the language, then
press OK.
Show or hide subtitles
1 While you watch TV, press SUBTITLE.
2 Select one of the following, then press OK.
• [Subtitles on]: Always display subtitles.
• [Subtitles off]: Never display subtitles.
• [On during mute]: When audio is
muted, display subtitles.
Note
• Repeat this procedure to enable subtitles on each
analog channel.
• Select [Subtitles] > [Subtitles off] to disable subtitles.
1 Press .
2 Select [Scenea], then press OK.
» If no picture has been set, the default
picture is displayed.
» If a customized Scenea picture is
loaded, that picture is displayed (see
'Customize the Scenea picture' on
page 18).
Customize the Scenea picture
You can load another picture as the wallpaper.
Note
• When you load a new Scenea picture, it overrides the
current Scenea picture.
• To use another picture as the wallpaper, you need a
USB storage device that contains a picture that is less
than 1 MB in size.
1 Load a picture smaller than 1MB in size
into a USB storage device.
2 Connect the USB storage device to the TV.
3 Press .
4 Select [Browse USB], then press OK.
5 Select a picture, then press OPTIONS.
6 Select [Set as Scenea], then press OK.
» A conrmation message is displayed.
7 Press OK to conrm, then press any
button to exit Scenea.
View Scenea
You can display a default picture as the
wallpaper on your TV. You can also load another
picture as the wallpaper.
If the sleeptimer is off, the wallpaper is displayed
for 240 minutes. Otherwise, it is displayed for
the duration of the sleeptimer.
18 EN
Play photos, music, and videos
on USB storage devices
Caution
• TP Vision is not responsible if the USB storage device is
not supported, nor is it responsible for damage or loss
of data from the device.
Connect a USB storage device to play photos,
music, or videos stored on it.
1 Switch on the TV.
2 Connect the USB device to the USB por t
on the side of your TV.
3 Press .
4 Select [Browse USB], then press OK.
» The USB browser appears.
• [Shufe off] / [Shufe on]: Disables or
enables random play of photos in the
slideshow.
• [Rotate image]: Rotate photo.
• [Set as Scenea]: Set the selected photo
as the TV wallpaper. (see 'View Scenea'
on page 18)
• [Show info]: Display the picture name,
date, size and next picture in the slide
show.
English
View photos
1 In the USB browser, select [Picture], then
press OK.
2 Select a photo or a photo album, then
press OK to view the photo enlarged to
ll the TV screen.
• To view the next or previous photo,
press or .
View a slide show of your photos
1 When a full screen image of a photo is
displayed, press OK.
» A slide show begins from the selected
photo.
2 Press the following buttons to control play:
• OK to play / pause. or to play the
previous or next photo.
Change slide show settings
1 While you view a slide show, press
OPTIONS.
» The slide show options menu is
displayed.
2 Select one of the following, then press OK.
• [Start slideshow] / [Stop slideshow]:
Start or stop slideshow.
• [Slideshow transitions]: Set the
transition from one picture to the next.
• [Slideshow frequency]: Select the
display time for each photo.
• [Play once] / [Repeat]: Play the
slideshow once or repeatedly.
Note
• [Rotate image] and [Show info] appear only when the
slideshow is paused.
Listen to music
1 In the USB browser, select [Music], then
press OK.
2 Select a music track or album, then press
OK to play.
Change music settings
1 While you play music, press OPTIONS
to access one of the following settings,
then press OK.
• [Stop playback] /[Start playback] :
Stop or start music play.
• [Play once] / [Repeat]: Play a song
once or repeatedly.
• [Shufe on]/[Shufe off] : Play songs in
sequence or at random.
• [Show info]: Display the le name.
• [Sound]: Change sound settings.
EN
19
View a slide show with music
You can view picture slide show with
background music.
1 Select an album of songs.
2 Press OK.
3 Press to return to the USB content
browser.
4 Select an album of pictures.
5 Press OK.
» The slideshow begins.
6 To exit, press .
Disconnect a USB storage device
Caution
• Follow this procedure to avoid damage to your USB
storage device.
1 Press to exit the USB browser.
2 Wait for ve seconds, then disconnect the
USB storage device.
Update the TV software
Watch video
1 In the USB browser, select [Video], then
press OK.
2 Press OK to play.
3 To control play, press the play buttons:
• OK to play or pause. or to search
backward or forward.
Change video settings
1 While you play video, press OPTIONS
to access one of the following settings,
then press OK.
• [Stop playback] / [Start playback]:
Stop or start video play.
• [Play once] / [Repeat]: Play once or
repeatedly.
• [Shufe on]/[Shufe off]: Play in
sequence or at random.
• [Subtitles]: If available, select whether
the subtitles are displayed.
• [Small screen] / [Full Screen]:Enable of
disable full screen viewing of video.
• [Show info]: Display the le name.
Philips continuously tries to improve its
products and we recommend that you update
the TV software when updates are available.
What you need
To update with a USB storage device, you need:
• An empty USB ash drive. The USB ash
drive must be FAT or DOS-formatted. Do
not use a USB hard drive.
• A computer with Internet access
• An archive utility that supports the ZIP
le format (for example, WinZip® for
Microsoft® Windows® or Stuft® for
Macintosh®).
Check the current software version
1 Press .
2 Select [Setup] > [Software settings] >
[Current software info].
» The current software information is
displayed.
3 Write down the software version number.
20 EN
Download and update the software
version
1 Connect a USB storage device to your PC.
2 On your PC, open a web browser and go
to www.philips.com/welcome.
3 Find the information and software related
to your TV, and locate the latest software
update le.
4 Compare the latest software version
number to the current version on your TV.
• If the current software version matches
the latest software update le, you do
not need to update your TV software.
• If the current software version is lower
than the latest software update le,
download the latest software update
le to the root directory of your USB
device.
5 Decompress the software update le and
copy it to the root directory of your USB
storage device.
6 Disconnect the USB storage device from
the computer.
7 Connect your USB storage device to the
TV.
» The TV detects the USB ash drive and
starts to scan for software version.
8 If a message prompts you to update the
software, follow the on-screen instructions
to update the TV software.
9 If the message is not displayed, press .
10 Select [Setup] > [Update software].
» The TV displays a list of upgrade les
on the USB ash drive.
11 Select the le that you downloaded, then
press OK to update the TV software.
12 Follow the on-screen instructions to
complete the update.
Note
• The TV restarts after the software update is complete.
Change TV preferences
Use the preferences menu to customize your
TV settings.
1 Press .
2 Select [Setup] > [TV settings] >
[Preferences].
3 Select one of the following, then press OK.
• [Menu language]: Select a menu
language.
• [Sleep timer]: Switch the TV to
standby after a pre-dened duration.
• [Location]: Optimize TV settings for
your location - home or shop.
• [E-sticker]: (For shop mode only)
Switch the e-sticker on or off.
• [Volume bar]: Display the volume bar
when you adjust the volume.
• [Auto switch off]: To conserve energy,
set the TV to switch off automatically
after a period of inactivity.
• [Channel information size]: Change
the type of information that is
displayed when you switch channels.
• [TV position]: Apply the best settings
for your TV based on how it is
mounted. Select [Wall mounted] or
[On a TV stand].
• [Teletext 1.5]: Enable or disable
Teletext 1.5.
• [Clock]: Display or remove the time
from the TV, and set clock options.
Use options menu
You can select settings related to the content
that is being shown on the TV screen.
1 While you watch TV, press OPTIONS.
2 Select one of the following settings, then
press OK.
• [Subtitles]: If available, select whether
the subtitles are displayed.
English
EN
21
• [Clock] : Enable or disable the time
display on the TV screen, and set clock
options.
• [Status] : Display program information.
• [Ecology] : Apply settings that consume
less energy.
Start a TV demo
You can use demonstrations to better
understand the features of your TV. Some
demos are not available on certain models.
Available demos are displayed in the menu list.
1 While you watch TV, press .
2 Select [Setup] > [Watch demo] , OK .
3 Select a demo and press OK to view it.
Reset the TV to factory
settings
You can restore the default picture and sound
settings of your TV. The channel installation
settings remain the same.
1 Press .
2 Select [Setup] > [TV settings] > [Factory
settings] , then press OK .
3 If you are prompted to enter a code, enter
the child-lock code using the Numeric
buttons (see 'Set or change code' on page
17 ) .
» A confi rmation message is displayed.
4 Select [Reset] and press OK to confi rm.
22 EN
6 Install channels
Step 1: Select your system
The rst time you setup your TV, you are
prompted to select a menu language and to
install TV channels. Afterward, you can re-install
channels and customize channels in other ways.
Automatically install channels
You can search and store channels automatically.
Step 1: Select your menu language
1 Press .
2 Select [Setup] > [TV settings] >
[Preferences] > [Menu language], then
press OK.
3 Select a language, then press OK.
Step 2: Search for channels
Start an automatic search for channels to install
on your TV. The available channels are installed
on the TV.
1 Press .
2 Select [Setup] > [Search for channels],
then press OK.
3 Select [Start], then press OK.
» All available channels are stored.
4 To exit, press OK.
Manually install channels
This section describes how to search and store
analog TV channels manually.
Note
• Skip this step if your system settings are correct.
1 Press .
2 Select [Setup] > [Channel settings]
> [Channel installation] > [Analogue:
Manual antenna installation], then press
OK.
3 Select [Color system], then press OK.
4 Select the correct system for your country
or region, then press OK.
Step 2: Search and store new TV
channels
1 Press .
2 Select [Setup] > [Channel settings]
> [Channel installation] > [Analogue:
Manual antenna installation] > [Find
channel], then press OK.
• If you know the three-digit frequency
of the channel, enter it.
• To search, select [Search], then press
OK.
3 When the channel is found, select [Done],
then press OK.
• To store the channel as a new number,
select [Store as new channel], then
press OK.
• To store the channel as the previously
selected channel, select [Store current
channel], then press OK.
Step 3: Fine-tune analog channels
1 Press .
2 Select [Setup] > [Channel settings]
> [Channel installation] > [Analogue:
Manual antenna installation] > [Fine tune],
then press OK.
3 Press or to ne-tune the channel.
English
EN
23
Rename channels
You can rename channels. The name appears
when you select the channel.
1 While you watch TV, press LIST.
» The channel matrix menu appears.
2 Select the channel to rename.
3 Press OPTIONS.
» The channel options menu appears.
4 Select [Rename channel], then press OK.
» A text input box appears.
5 Press or Numeric buttons to
select each character, then press OK.
6 When the name is complete, select
[Done], then press OK.
Tip
• Press [abc] to change uppercase letter to lowercase
letter and vice versa.
Rearrange channels
After you install channels, you can rearrange the
order in which they appear.
1 While you watch TV, press LIST.
» The channel matrix menu is displayed.
2 Press OPTIONS.
» The channel options menu appears.
3 Select [Reorder], then press OK.
4 Select the channel to rearrange, then press
OK.
» The selected channel is highlighted.
5 Move the highlighted channel to its new
location, then press OK.
6 Press OPTIONS.
7 Select [Done reordering], then press OK.
24 EN
7 Connect devices
b PC IN ( VGA and AUDIO IN )
Audio and video input from a computer.
This section describes how to connect devices
with different connectors. For the location of
these connectors on your TV, see the Quick
Start Guide. More examples of connections
with other devices are provided in the Quick
Start Guide.
Note
You can use different types of connectors to connect a
•
device to your TV.
Tip
After connection, for easy access to your device, add
•
it to the home menu: press MENU , then select [Add
new device] .

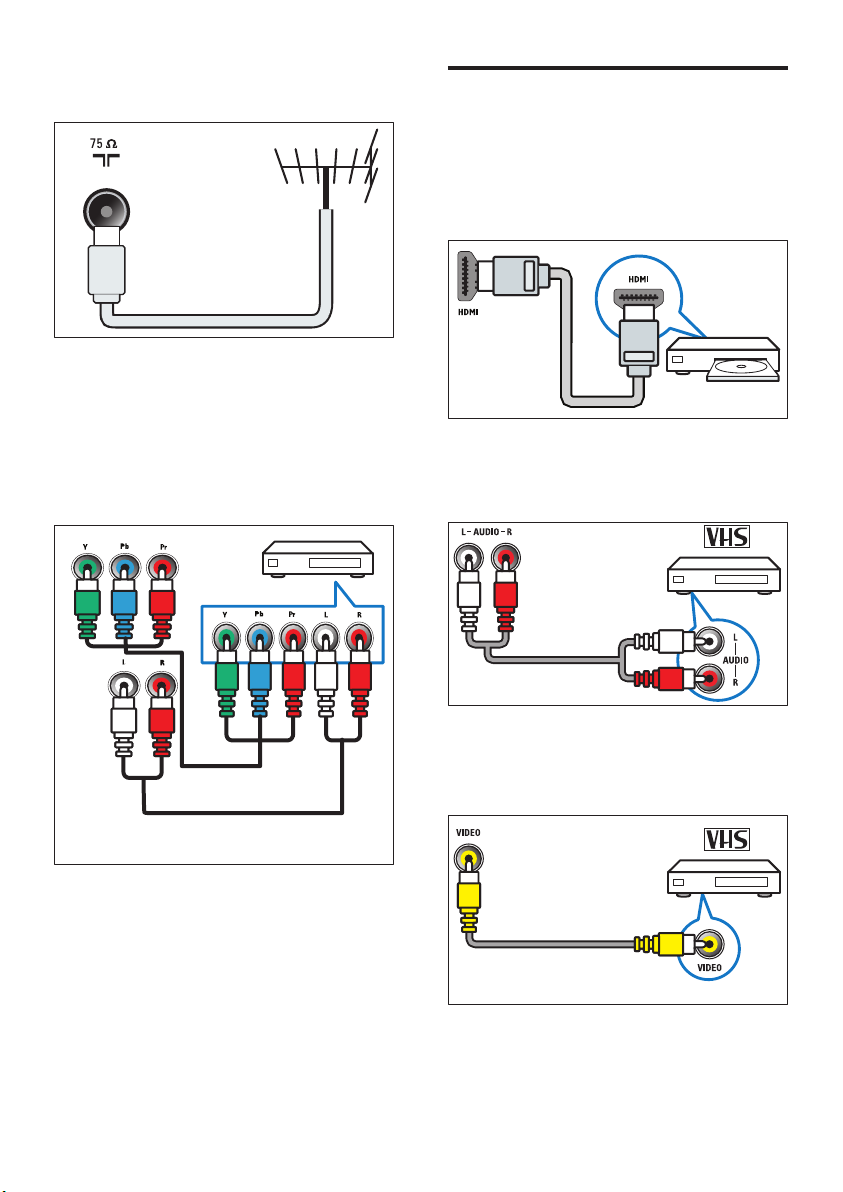

Back connections
a HDMI
Digital audio and video input from highdefi nition digital devices such as Blu-ray
players.
VGA
VGA AUD IO
c AUDIO L/R
PC IN
Audio input from analog devices
connected to VIDEO .
d VIDEO
Composite video input from analog
devices such as VCRs.
English
Connections via DVI or VGA require an
additional audio cable (see 'Connect a
computer' on page 27 ) .
EN
25
e TV ANTENNA
Signal input from an antenna.
TV ANTENNA
f SERV. U
For use by service personnel only.
g CVI 1/CVI 2 (Y Pb Pr and AUDIO L/R)
Analog audio and video input from analog
or digital devices such as DVD players or
game consoles.
Side connections
a HDMI
Digital audio and video input from high-
denition digital devices such as Blu-ray
players.
b AUDIO L/R
Audio input from analog devices
connected to VIDEO.
26 EN
c VIDEO
Composite video input from analog
devices such as VCRs.
d USB
Data input from USB storage devices.
• DVI-HDMI cable
e (Headphone)
Stereo audio output to headphones or
earphones.
Connect a computer
Before you connect a computer to the TV
• Set the screen refresh rate on your
computer to 60Hz.
• Select a supported screen resolution on
your computer.
Connect a computer with one of the following
connectors:
Note
• Connections via DVI or VGA require an additional
audio cable.
PC IN
AUDIO
• HDMI cable and HDMI-DVI adaptor
PC IN
AUDIO
• VGA cable
English
DVI
DVI
• HDMI cable
AUDIOVGA
PC IN
EN
VGA
27
Use Philips EasyLink
Get the most out of your HDMI-Consumer
Electronic Control (CEC) compliant devices
with Philips EasyLink enhanced control features.
If your HDMI-CEC compliant devices are
connected through HDMI, you can control
them at the same time with your TV remote
control.
To enable Philips EasyLink, you need to:
• Connect at least two HDMI-CEC
compliant devices through HDMI
• Congure each HDMI-CEC compliant
device properly
• Switch on EasyLink
Note
• The EasyLink-compliant device must be switched on
and selected as the source.
• Philips does not guarantee 100% interoperability with
all HDMI CEC devices.
Switch on or off EasyLink
When you play a HDMI-CEC compliant device,
the TV switches on from standby, and switches
to the correct source.
Note
• If you do not intend to use Philips EasyLink, switch it off.
1 Press .
2 Select [Setup] > [TV settings] >
[EasyLink] > [EasyLink].
3 Select [On] or [Off], then press OK.
Use one-touch play
1 After you switch on EasyLink, press play on
your device.
» The TV automatically switches to the
correct source.
Use one-touch standby
When you press on the TV remote control,
the TV and all HDMI-CEC compliant devices
switch to standby mode.
1 Press (Standby-On) on the TV's or
device's remote control.
» The TV and all connected HDMI
devices switch to standby.
Set TV speakers to EasyLink mode
If you connect an HDMI-CEC compliant device
that includes speakers, you can choose to hear
the TV from those speakers instead of the TV
speakers.
When you play content from an EasyLink
compliant home theater, if you want to mute
the TV speakers automatically, turn on EasyLink
mode.
1 Connect a HDMI-CEC compliant device
through the HDMI connector.
2 Connect an audio cable from the SPDIF
OUT connector to the EasyLink-compliant
device's AUDIO IN connector.
3 Congure the HDMI-CEC compliant
device properly (see the device user
manual).
4 Press .
5 Select [Setup] > [TV settings] >
[EasyLink] > [TV speakers].
6 Select one of the following, then press OK.
• [Off]: Switch off TV speakers.
• [On]: Switch on TV speakers.
• [EasyLink]: Stream TV audio through
the connected HDMI-CEC device.
Switch the TV audio to the connected
HDMI-CEC audio device through the
adjust menu.
• [EasyLink autostart]: Turn off TV
speakers automatically and streams TV
audio to the connected HDMI-CEC
audio device.
Note
• To mute the TV speakers, select [TV speakers] > [Off].
28 EN
Select speaker output with Options menu
If [EasyLink] or [EasyLink autostart] are
selected, access the Options menu to switch
the TV audio.
1 While you watch TV, press OPTIONS.
2 Select [Speakers], then press OK.
3 Select one of the following, then press OK:
• [TV]: On by default. Stream TV audio
through TV and the connected HDMICEC audio device until the connected
device switches to system audio
control. TV audio is then streamed
through the connected device.
• [Amplier]: Stream audio through
the connected HDMI-CEC device. If
system audio mode is not enabled on
the device, audio continue to stream
from the TV speakers. If [EasyLink
autostart] was enabled, the TV
prompts the connected device to
switch to system audio mode.
Use a Kensington lock
There is a Kensington security slot at the back
of the TV. Prevent theft by looping a Kensington
lock between the slot and a permanent object,
such as a heavy table.
English
EN
29
8 Product
Multimedia
information
Product information is subject to change
without notice. For detailed product
information, go to www.philips.com/suppor t.
Supported display resolutions
Computer formats
• Resolution - refresh rate:
• 640 x 480 - 60Hz
• 800 x 600 - 60Hz
• 1280 x 768 - 60Hz
• 1360 x 768 - 60Hz
• 1920 x 1080 - 60Hz (For full HD only)
Video formats
• Resolution - refresh rate:
• 480i - 60Hz
• 480p - 60Hz
• 576i - 50Hz
• 576p - 50Hz
• 720p - 50Hz, 60Hz
• 1080i - 50Hz, 60Hz
• 1080p - 24Hz, 25Hz, 30Hz, 50Hz,
60Hz.
• Supported storage device: USB (Only
FAT or FAT 32 USB storage devices are
supported)
• Supported multimedia le formats:
• Images: JPEG
• Audio: MP3
• Video: MPEG 2/MPEG 4, H.264
• RMVB, Xvid
Tuner/Reception/
Transmission
• Antenna input: 75 ohm coaxial (IEC75)
• TV system: PAL B/G, I, D/K, SECAM B/G
• Video playback: NTSC, SECAM, PAL
• Tuner Bands: UHF, VHF
Remote control
• Type: RC0
• Batteries: 2 x AAA (LR03 type)
Power
30 EN
• Mains power: 220-240 V, 50-60 Hz
• Standby power: ≤ 0.5 W
• Ambient temperature: 5 to 40 degrees
Celsius
• Power consumption:
• For 46PFL35x7: 160 W
• For 42PFL35x7: 140 W
• For 32PFL35x7: 90 W
• For 42PFL30x7: 200 W
• For 32PFL30x7: 160 W
Supported TV mounts
• For 32PFL35x7:
To mount the TV, purchase a Philips TV mount
or a compatible TV mount.
Warning
• Follow all instructions provided with the TV mount.
TP Vision Netherlands B.V. bears no responsibility for
improper TV mounting that results in accident, injury
or damage.
Before you mount, perform these steps:
1 To prevent damage to cables and
connectors, leave a clearance of at least
the following distance from the back of
the TV.
• For xxPFL35x7: 4.8 cm (1.9 inches)
• For xxPFL30x7: 8.8 cm (3.5 inches)
2 For 42PFL35x7, 32PFL35x7, and
xxPFL30x7: Unscrew the silver screws,
then remove the neck.
• For 42PFL35x7:
4x
English
3x
• For xxPFL30x7:
3 Make sure that your mounting bolts follow
these specications:
TV screen
size
(inches)
46 400 x 400 4 x M6 (16 mm)
42PFL35x7 400 x 400 4 x M6 (16 mm)
42PFL30x7 400 x 400 4 x M6 (11 mm)
32PFL35x7 200 x 100 4 x M4 (15 mm)
32PFL30x7 200 x 200 4 x M6 (11 mm)
Required
pitch (mm)
Required
mounting bolts
EN
31
9 Troubleshooting
This section describes commonly encountered
issues and accompanying solutions.
2. Select [Setup] > [TV settings] >
[Preferences] > [Location].
3. Select [Home] and press OK.
TV channel issues
General TV issues
The TV does not switch on:
• Disconnect the power cable from the
power outlet. Wait for one minute then
reconnect it.
• Check that the power cable is securely
connected.
The remote control is not working properly:
• Check that the remote control batteries
are correctly inserted according to the +/orientation.
• Replace the remote control batteries if
they are at or weak.
• Clean the remote control and TV sensor
lens.
The standby light on the TV blinks red:
• Disconnect the power cable from the
power outlet. Wait until the TV cools down
before reconnecting the power cable. If the
blinking reoccurs, contact Philips Consumer
Care.
You forgot the code to unlock the TV lock
feature
• Enter ‘8888’.
The TV menu is in the wrong language.
• Change the TV menu to your preferred
language.
When turning the TV on/off/to standby, you
hear a creaking sound from the TV chassis:
• No action is required. The creaking sound
is normal expansion and contraction of the
TV as it cools and warms up. This does not
impact performance.
Cannot remove 'e-sticker' banner displayed
on the TV.
• To remove the logos and images, set the
location of your TV to home.
1. Press .
Previously installed channels do not appear in
the channel list:
• Check that the correct channel list is
selected.
No digital channels were found during the
installation:
• Check that the TV supports DVB-T, DVB-T
Lite or DVB-C in your country.
Some channels are not automatically installed
on my TV:
• During installation, make sure that you
select the country where you are installing
the TV.
Picture issues
The TV is on, but there is no picture:
• Check that the antenna is properly
connected to the TV.
• Check that the correct device is selected
as the TV source.
There is sound but no picture:
• Check that the picture settings are
correctly set.
There is poor TV reception from an antenna
connection:
• Check that the antenna is properly
connected to the TV.
• Loud speakers, unearthed audio devices,
neon lights, high buildings and other large
objects can inuence reception quality.
If possible, try to improve the reception
quality by changing the antenna direction
or moving devices away from the TV.
• If reception on only one channel is poor,
ne tune this channel.
There is poor picture quality from connected
devices:
32 EN
• Check that the devices are connected
properly.
• Check that the picture settings are
correctly set.
The TV did not save your picture settings:
• Check that the TV location is set to the
home setting. This mode offers you the
exibility to change and save settings.
The picture does not t the screen; it is too
big or too small:
• Try using a different picture format.
The picture position is incorrect:
• Picture signals from some devices may not
t the screen correctly. Check the signal
output of the device.
Sound issues
There is picture but no sound from the TV:
• If the TV does not recognize the HDMI
device and no picture is displayed, try
switching the source from one device to
another and back again.
• If there are intermittent sound disruptions,
check that output settings from the HDMI
device are correct.
• If you use an HDMI-to-DVI adapter
or HDMI to DVI cable, check that an
additional audio cable is connected to
AUDIO IN (mini-jack only).
Computer connection issues
The computer display on the TV is not stable:
• Check that your PC uses the supported
resolution and refresh rate.
• Set the TV picture format to unscaled.
English
Note
• If no audio signal is detected, the TV automatically
switches the audio output off — this does not indicate
malfunction.
• Check that all cables are properly
connected.
• Check that the volume is not set to 0.
• Check that the sound is not muted.
There is picture but sound quality is poor:
• Check that the sound settings are correctly
set.
There is picture but sound comes from one
speaker only:
• Verify that sound balance is set to the
center.
HDMI connection issues
There are problems with HDMI devices:
• Note that HDCP (High-bandwidth Digital
Content Protection) support can delay the
time taken for a TV to display content from
a HDMI device.
Contact us
If you cannot resolve your problem, refer to the
FAQs for this TV at www.philips.com/support.
If the problem remains unresolved, contact
Philips Consumer Care in your country as listed
in this user manual.
Warning
• Do not attempt to repair the TV yourself. This may
cause severe injury, irreparable damage to your TV or
void your warranty.
Note
• Make a note of your TV model and serial number
before you contact Philips. These numbers are printed
on the back of the TV and on the packaging.
EN
33
10 Index
A
analog channels
ne-tune 25
language, change 20
audio language 20
C
channels
favourites 17
hide or unhide 17
install (automatic) 25
install (manual) 25
rearrange 26
rename 26
reorder 26
switch 11
channels, ne-tune (analog) 25
child lock 19
computer, see PC 29
connect
connect, PC 29
connect, USB 20
controls 9
D
demo 24
devices
add 14
watch 12
digital channels
language, change 20
subtitles 20
display, wallpaper 20
E
EasyLink
enable 30
environmental care
ecology 23
end of use 7
recycle 7
while you watch TV 8
F
factory settings 24
favorites list, add 17
H
home menu 14
home mode 23
I
install
install channels
install channels (automatic) 25
install channels (manual) 25
K
kensington lock 31
L
language
audio 20
menu 20
subtitles 20
location, home or shop 23
M
multimedia 20
multimedia, play les 20
P
PC, display resolutions 32
picture format 16
picture settings 15
position the TV 23
power 32
34 EN
R
recycle 7
reinstall TV 25
rename channels 26
reorder channels 26
S
Scenea, see screen saver 20
Scenea, switch on 20
screen saver 20
settings
assistant 15
picture 15
sound 16
shop mode 23
sleeptimer 19
smart picture 15
smart sound 16
sound settings 16
specications 32
standby 11
subtitles 20
T
teletext
dual screen 17
enlarge 17
subpages 17
teletext 1.5 17
troubleshoot 34
English
V
volume 13
EN
35
Specifications are subject to change without notice
© 2012 TP Vision Netherlands B.V.
All rights reserved.
Document order number: 000000000000
Loading...
