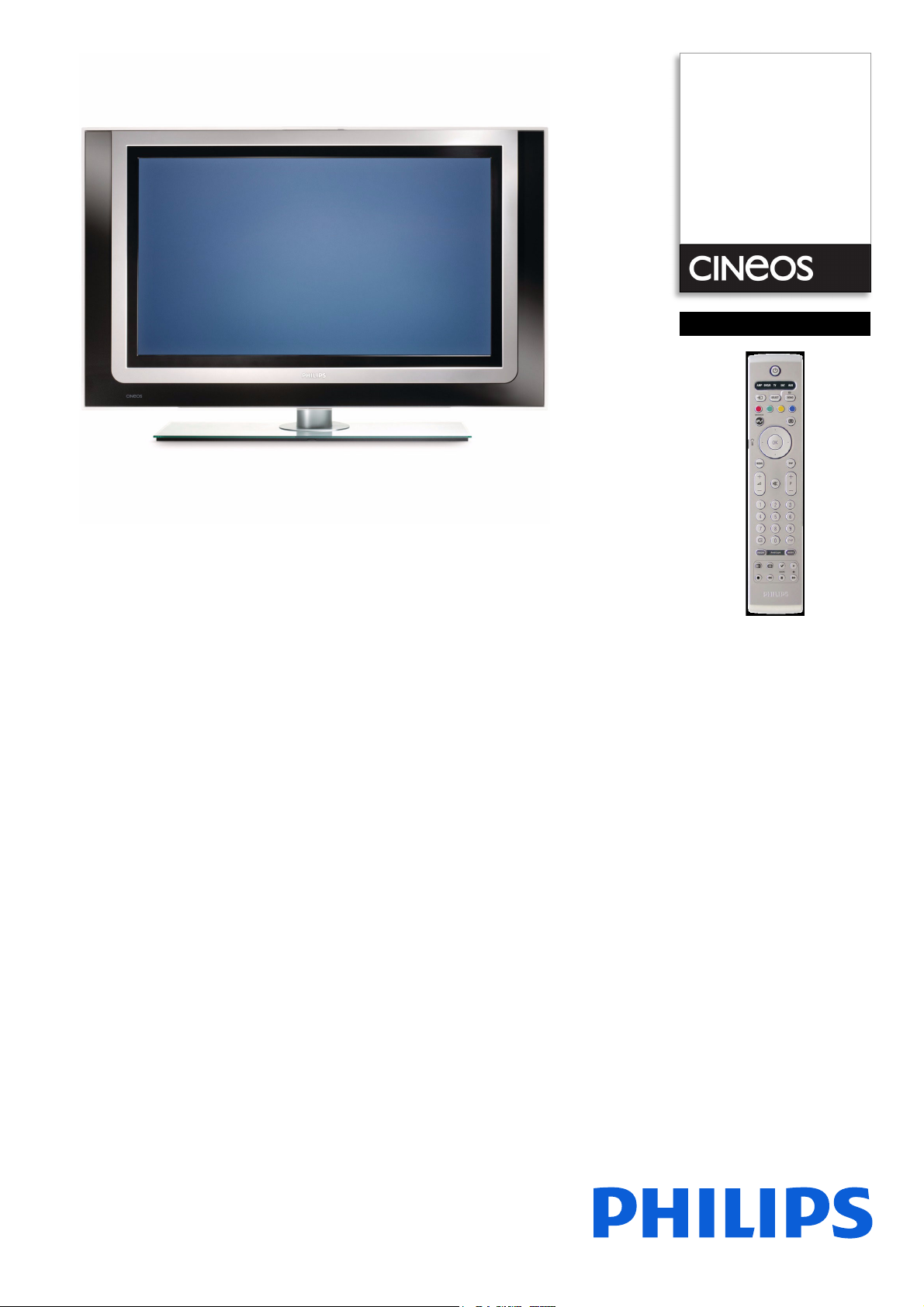

Philips Cineos
Widescreen flat TV with
Pixel Plus 2 HD and
Ambilight 2 channel
107 cm (42")
LCD
HD Ready
42PF9830
Turn up your viewing experience
with Pixel Plus 2 HD and Ambilight 2
Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Pixel Plus 2 HD,
Ambilight 2, true HD LCD technology and a motorised swivel stand. Connected Planet
technology gives you even wider access to multimedia content.
Be an eyewitness
• Full HD LCD display, 1920 x 1080p
• HD Ready for the highest quality display of HD signals
• Pixel Plus 2 HD for great details, depth and clarity
• 2-channel active Ambilight enhances the viewing experience
True beauty lies in the details
• 2 integrated NXT Monolith speakers with amazing performance
• Matching design stand with motorised swivel included
Perfect picture quality from your digital photos
• Access your photos, music and movies via PC-link
• USB and Memory Card slot for instantly playing multimedia
• Wireless prepared for connection to your PC
Advanced connection to your audio/video products
• Most modern and highest quality HDMI and DVI-I connectivity
Page 2
42PF9830/10
widescreen flat TV
107 cm (42") LCD, HD Ready
Highlights
Full HD LCD display 1920 x 1080p
This display has a resolution that is referred to
as
Full HD. The state-of-the-art LCD screen
technology has the full high definition
widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the
best possible picture quality for HD input
signals with up to 1080 lines. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colours.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
on pictures and be fully prepared for
HD sources like HDTV set-top boxes and Bluray discs. HD Ready is a protected label that
offers picture quality beyond that of
progressive scan. It conforms to strict
standards laid out by EICTA to offer an HD
screen that displays the benefits of the
resolution and picture quality of a High
Definition signal. It has a universal connection
for both analogue YPbPr and uncompressed
Digital connection of DVI or HDMI, supporting
HDCP. It can display 720p, and 1080i signals at
50 and 60 Hz.
Pixel Plus 2 HD
Pixel Plus 2 HD offers the unique combination
o
f ultimate sharpness, natural detail, increased
depth, vivid colours and smooth and natural
motion from standard TV, High Definition
signals and multimedia sources. Each pixel of
the incoming picture is enhanced to better
match the surrounding pixels, resulting in a
more natural picture. Artefacts in compressed
multimedia content are detected and reduced,
ensuring that the picture is clean and razor
sharp. Digital noise reduction ensures that the
picture is perfectly smooth yet razor sharp.
Ambilight 2 channel
Ambilight makes an impressive contribution to
th
e overall viewing experience by producing
ambient light to complement the colours and
light intensity of the on-screen image. It adds a
new dimension to the viewing experience,
completely immersing you into the content
you are watching. It creates ambience,
stimulates more relaxed viewing and improves
perceived picture detail, contrast and colour.
Ambilight automatically and independently
adapts its colours according to the changing
content on the screen.
Flat NXT Monolith Speakers
The ground-breaking NXT surface sound
principle
monolith speaker technology. It actually uses
the outer surface of the TV cabinet as the
speaker membrane. The speakers are now
virtually invisible, bringing a stunning design and
a pure and direct sound radiation.
Motorised swivel stand included
The high-quality stand is designed specifically
for thi
your Flat TV without drilling holes in the wall.
Enjoy the finger-tip convenience of finding the
best viewing angle and the magic effect of the
motorised swivel operated by the TV's remote
control. It rotates over a total range of 60
degrees (30 degrees each side), with memory
positions for the central and 'previous'
positions. Invisible Cable management is
included in the back. This stand is designed to
fit on the matching accessory floorstand.
PC-link
The PC-link provides fun and easy access to
y
content*. The widely used Ethernet (LAN) and
Wi-Fi open standards are used for wired and
(optional) wireless** connection and ensure
interoperability. Browse your PC collection of
digital photographs, multimedia videos and
music files via your home LAN network. The
intuitive user interface of the TV and the
Philips Multimedia Manager for your PC makes
it available at the push of a button (* see
has been further developed into the
s TV and facilitates easy placement of
our personal digital media files and multimedia
product for supported formats, PC-LAN
functionality required ** Additional 'Ethernetbridge' device required)
USB and Memory Card slot
Instantaneously view and share your movies,
p
hotos and music. The Memory Card slot will
accept cards of the following types: Compact
Flash I and II, Memory Stick, SD Card/Mini SD
Card, Smart Media, Micro Drive (up to 2 GB)
and Multi Media Card. Simply plug the memory
card into the slot at the side of the TV and
access the multimedia files stored on the card.
The USB connector allows access to
multimedia files on most USB sticks and most
digital cameras (USB memory-class device).
Wireless PC link prepared
Wi-Fi is the leading standard for wireless
b
roadband. With the wireless prepared
function* in the Philips TV you can share PC
multimedia content anywhere in your house,
without the hassle of wires. High Bandwidth
means you can enjoy high quality multimedia
pictures, music or video, over distances that
can reach up to 100 metres**. Access your
Wi-Fi PC or your home Wi-Fi network
(router). (*requires optional, Wi-Fi Ethernetbridge. **may vary under local conditions)
HDMI and DVI-I inputs
HDMI and DVI-I make an uncompressed digital
RGB co
nnection from the source to the
screen. By eliminating any conversion to an
analogue signal, it delivers an unblemished
image. The non-degraded signal has reduced
flicker and leads to a clearer picture. HDMI
intelligently communicates the highest output
resolution with the source device. The HDMI
input is fully backwards-compatible with DVI
sources but also includes digital audio. HDMI
and DVI-I use HDCP copy protection. The
DVI-I input is compatible with analogue
progressive scan, HDTV and PC (VGA) signals.
Page 3
42PF9830/10
widescreen flat TV
107 cm (42") LCD, HD Ready
Specifications
Picture/Display
• Aspect ratio: 16:9
• Brightness: 550 cd/m²
• Diagonal screen size: 42 inch / 107 cm
• Colour cabinet: Pearl - White Silver (11092)
• Display screen type: LCD Full HD W-UXGA Act.
r
ix
mat
• Picture enhancement: Progressive sc
Combfilter, Active Control + Light sensor, Digital
Natural Motion, Jagged Line Suppression, Movie
Plus, Widescreen Plus, Pixel Plus 2 HD, Dynamic
contrast enhancement
• Screen enhancement: Anti-Reflection coated
re
en
sc
• Viewing Angle (H / V): 176 / 176 degree
• Panel resolution: 1920 x 1080p
• Response time (typical): 8 ms
• Dynamic screen contrast: 4000:1
an, 3D
Ambilight
• Ambilight Features: Ambilight 2 Channel, Auto
adaptive to video content, 2 Channel Left/Right
control
• Colour Settings: Full Multi-Colour
• Dimming Function: Manual and via Light Sensor
• Pre-set modes: 2 Pre-set an
Active Adaptive modes
d 1
Personal colour, 4
Supported Display Resolution
mputer formats
• Co
Res
olution Refresh rate
640 x 480 60 Hz
800 x 600 60 Hz
1024 x 768 60 Hz
deo Formats
• Vi
Res
olution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Sound Enhancement: Auto Volume Leveller, Digital
Signal Processing, Dynamic Bass Enhancement,
Graphic Equalizer
• Sound System: Virtual Dolby Digital
• Output power (RMS): 3 x 15 W
Loudspeakers
• Built-in speakers: 3
• Loudspeaker types: Flat NXT Monolith Speakers,
Integrated subwoofer
Convenience
• Ease of Installation: Auto Programme Naming,
Automatic Channel Install (ACI), Automatic
Tuning System (ATS), Autostore, PLL Digital
Tuning, Plug and Play
• Ease of Use: On-Screen Display, Programme List,
Smart Pictur
•
Remote control type: RC4310
• Teletext: 1200-page Hypertext
• Teletext enhancements: Habit Watch, Programme
info
• Picture in Picture: Full dual screen (2 tuners),
Mozaic
• Remote Control: Amp, DVD, DVD-R, Sat,
Univers
• Screen Format Adjustments: 6 Wide
Auto Format, Subtitle and Heading Shift, Movie
expand 14:9, Movie expand 16:9, Widescreen, 4:3,
Super Zoom, Subtitle Zoom
• Clock: Smart Clock
• Child Protection: Child Lock+Parental Control
• Connection Enhancement: Easy link
e, Smart Sound
rmat
ion Line
, Text dual screen
al and Learnable, VCR
screen Modes,
Multimedia Applications
• Digital Content Management: Digital Media Reader
•Memory Card Types: Compact Flash type
Compact Flash type II, Memory Stick, Microdrive,
MultiMedia Card (MMC), Secure Digital Card (SD),
Smart Media Card
• Multimedia connections: Ethernet-UTP5, UPnP,
USB, Wi-F
• Playback Formats: DivX 5, JPEG Still pictures, MP3,
i (o
pt. Ethernet-bridge)
I,
MPEG
1, MPEG2, MPEG4, Slideshow files (.alb),
iD
Xv
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL, SECAM
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB, Y/C
• Ext 3 Scart: Audio L/R, CVBS in/out
• Ext 4: S/PDIF digital coaxial, YPbPr
• Ext 5: DVI-I with HDCP, YPbPr
• Ext 6: HDMI
• Ext 7: Ethernet RJ45
• Other connections: Analogu
S/PDIF in (coaxial), S/PDIF out (coaxial)
• Front/Side connections: 2 x USB, Audio L/R in,
CVBS in, Headpho
card reader, S-video in
nes Out, Multi-slot memory
audio Left/Right out,
e
Power
• Power consumption: 239 W
• Standby power consumption: 1 W
• Mains power: AC 220-240 V +/- 10%
• Ambient temperature: 5°C to 40°C
Dimensions
• Product weight: 36 kg
• Weight incl. Packaging: 58 kg
•Box dimensions (W x H x D):
• Set dimensions (W x H x D): 1238 x 755 x 96 mm
1330
960 x 330 mm
x
Accessories
• Included accessories: DVI-I to VGA adapter,
Motorised RC swivel stand, Wall mounting bracket
• Optional accessories: 5-in-1 connection cable,
or stand
Flo
•
