Philips 42PF7520D/10 Leaflet

Download

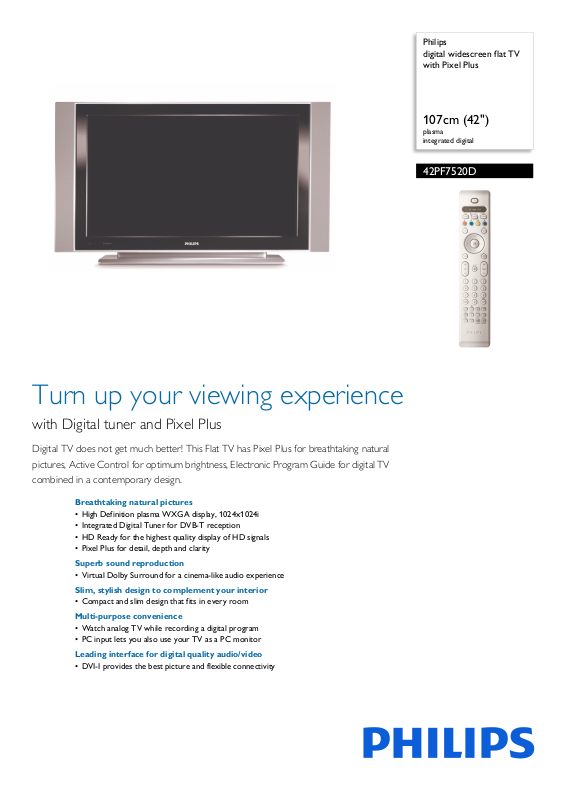

Page 1

Philips digital widescreen flat TV with Pixel Plus

107cm (42")

plasma integrated digital

42PF7520D

Turn up your viewing experience

with Digital tuner and Pixel Plus

Digital TV does not get much better! This Flat TV has Pixel Plus for breathtaking natural pictures, Active Control for optimum brightness, Electronic Program Guide for digital TV combined in a contemporary design.

Breathtaking natural pictures

• High Definition plasma WXGA display, 1024x1024i

• Integrated Digital Tuner for DVB-T reception

• HD Ready for the highest quality display of HD signals

• Pixel Plus for detail, depth and clarity

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Multi-purpose convenience

• Watch analog TV while recording a digital program

• PC input lets you also use your TV as a PC monitor

Leading interface for digital quality audio/video

• DVI-I provides the best picture and flexible connectivity

Page 2

42PF7520D/10

digital widescreen flat TV

107cm (42") plasma, integrated digital

Highlights

Plasma WXGA panel,1024 x 1024i

This state-of-the-art plasma screen technology gi

ves you widescreen HD resolution of 1024 x 1024i pixels. It produces brilliant flicker-free pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated Digital DVB-T tuner

The integrated Digital DVB-T tuner lets you receive

digital terrestrial TV without an additional set top box. Enjoy quality TV clutter free.

HD Ready

Enjoy the exceptional picture quality of High Definiti

on pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by

EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Pixel Plus

Pixel Plus is a digital picture processing te

chnology that increases the number of lines and the number of pixels. The result is razor sharp pictures with incredible detail and depth, every time from any source.

Virtual Dolby Surround

Virtual Dolby Surround is a processing te

chnology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

Watch analog, record digital

Watch analog TV while recording a digital pr

ogram

PC input

With PC input you can connect your TV to a c

omputer and use the TV as a PC monitor.

DVI-I Input

A DVI-I input connects the non-compressed h

igh-bandwidth digital RGB signal from source to screen. By eliminating the conversion of the digital signals to analog, it delivers an unblemished and noisefree image, that is clear and flickerfree. The DVI input supports HDCP copy protection that allows viewing of copy protected programs from Digital Settop boxes, DVD players and HD recorders. DVI-I is future proof as it can be be connected to all HDMI devices (a converter cable is required). The DVI-I input also supports analog PC-VGA signals.

Page 3

42PF7520D/10

digital widescreen flat TV

107cm (42") plasma, integrated digital

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 1200 cd/m²

• Contrast ratio (typical): 3000:1

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: Plasma HD panel, WXGA a pan

Plasm

• Picture enhancement: Pixel Plu

3/2 - 2/2 motion pull down, Digital Noise Reduction, Sharpness Adjustment, Pulse Killer Chip, Color Temperature Adjustment, Color Transient Improvement, 3D Combfilter, Active Control + Light sensor, Digital Crystal Clear

• Screen enhancement: Anti-Reflection coated

scre Viewing angle (H / V): 160 / 160 degree

•

• Response time (typical): 3 ms

• Panel resolution: 1024 x 1024i

• Color cabinet: Silver Frost

s, Progressive scan,

en, Anti ageing circuit

Supported Display Resolution

• Video Formats

Res

olution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Dynamic Bass Enhancement

• Sound System: Mono, Nicam Stereo, Virtual Dolby Surround Output power (RMS): 2 x 15W

•

• Equalizer: 5-bands

Picture, Smart Sound, Watch analogue/record digital

• Remote control type: RCFE05SLS05

• Teletext: 10 page Smart Text

• Teletext enhancements: 4 favourite pages, Program info

• Picture in Picture: Picture in graphics, Twin page text Screen Format Adjustments: 4:3, Movie expand

•

, Movie expand 16:9, Subtitle Zoom, Super

14:9 Zoom, Widescreen

• Clock: Sleep Timer

• VESA Mount: 800 x 400 mm by packed

• User Interface: 7 day Electronic program Guide

rmatio

n Line

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL, PAL B/G, PAL SECAM, SECAM B/G, SECAM D/K, SECAM L/L'

• Video Playback: NTSC, PAL, SECAM

• Aerial Input: 75 ohm coaxial (IEC75)

•Tuner Display: PLL

• Number of Preset Channels: 100

• Digital TV: DVB Terrestrial *

D/K, PAL I,

Connectivity

•Number of Scarts: 2

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

• Other connections: Antenna IEC75, DVI-I,

• Front / Side connections: Audio in, CVBS in,

• Audio Output - Digital: AC3 over S/PDIF (Optical)

• AV 3: DVI-I with HDCP, HDMI compatible, Audio

Commo

Headphon

R i

n, VGA PC-in

n I

nterface

e Out, S-video in

•

Dimensions (with base) (W x H x D):

x 720 x 280 mm

• Weight incl. Packaging: 45 kg

•Set dimensions (W x H x D): 36

x 680 x 104 mm

•Box dimensions (W x

1320 x 939 x 330 mm

H x D):

Accessories

• Included accessories: Power cord, Quick start

guide, Registration card, Remote Control, User Manual, Table top stand

Loudspeakers

• Built-in speakers: 2

•

Convenience

• Ease of Installation: Auto Program Naming, Automatic Channel Install(ACI), Automatic Tuning System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug & Play, Program Name, Sorting

• Ease of Use: Auto Volume Leveller (AVL), Easy toggle Dig/Analog m Interface, Program List, Smart Listening, Smart

des, Graphical User

Issue date 2019-06-28

Version: 21.0.24

12 NC: 8670 000 22351 EAN: 87 10895 89840 9

Power

• Power consumption: 450w W

• Standby power consumption: < 1 W

• Ambient temperature: 5 °C to 40 °C

• Mains power: 100-250V, 50-60Hz

Dimensions

• Product weight: 39 kg

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
