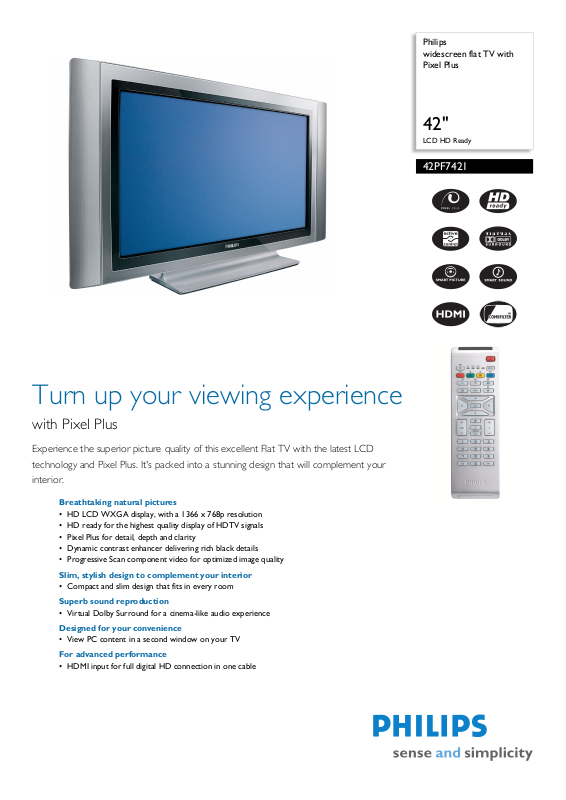

Page 1

Philips widescreen flat TV with Pixel Plus

42"

LCD HD Ready

42PF7421

Turn up your viewing experience

with Pixel Plus

Experience the superior picture quality of this excellent Flat TV with the latest LCD technology and Pixel Plus. It's packed into a stunning design that will complement your interior.

Breathtaking natural pictures

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD ready for the highest quality display of HDTV signals

• Pixel Plus for detail, depth and clarity

• Dynamic contrast enhancer delivering rich black details

• Progressive Scan component video for optimized image quality

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Designed for your convenience

• View PC content in a second window on your TV

For advanced performance

• HDMI input for full digital HD connection in one cable

Page 2

Widescreen flat TV with Pixel Plus

42" LCD HD Ready

Specifications

42PF7421/98

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 550 cd/m²

• Dynamic screen contrast: 2800:1

• Response time (typical): 8 ms

• Viewing angle (H / V): 178 / 178 degree

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD WXGA Active Matrix TFT

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control, Contrast Plus, Digital Noise Reduction, Jagged Line Suppression, Luminance Transient Improver, Progressive Scan

• Screen enhancement: Anti-Reflection coated screen

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60, 70, 75Hz

• Video Formats Resolution Refresh rate 640 x 480p 2Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 15W

• Sound Enhancement: Dynamic Bass Enhancement

• Sound System: Virtual Dolby Surround

Loudspeakers

• Built-in speakers: 4

• Loudspeaker types: Dome tweeter

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL, SECAM

• Video Playback: NTSC, PAL, SECAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Number of Preset Channels: 100

• Tuner Display: PLL

Connectivity

• AV 1: Audio L/R in, YPbPr (2fh)

• AV 2: Audio L/R in, CVBS

• AV 3: Audio L/R in, VGA PC-in, YPbPr (2Fh)

• AV 4: HDMI

• AV 5: HDMI

• Front / Side connections: Audio L/R in, CVBS in, Headphone out, S-video in

• Number of AV connections: 5

• Other connections: Antenna IEC75

Convenience

• Child Protection: Child Lock

• Clock: Sleep Timer, Wake up Clock

• Ease of Installation: Auto Program Naming, Autostore, Fine Tuning, Program Name, Sorting

• Ease of Use: Program List, Side Control, Smart Picture Control, Smart Sound Control

• Picture in Picture: Picture in graphics, Twin page text

• Remote Control: TV, DVD, Multi-functional

• Remote control type: RCFE06FRS00

• Screen Format Adjustments: 4:3, Movie expand 14:9, Movie expand 16:9, Subtitle Zoom, Super Zoom, Widescreen

• Teletext: 10 page Smart Text

• Teletext enhancements: 4 favourite pages, Program information Line

• VESA Mount: 800 x 400 mm

Accessories

• Included Accessories: Table top stand, Wall mounting bracket, Power cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

• Optional accessories: Floor stand

Dimensions

• Dimensions (with base) (W x H x D): 1249

x 760 x 305 mm

• Dimensions (without base) (W x H x D): 1249

x 697 x 111 mm

• Weight incl. Packaging: 47 kg

• Product weight: 32 kg

• Box dimensions (W x H x D): 1364

x 957 x 330 mm

• Color cabinet: Silver Frost Bi-Color with Tempered Glass Deco Front

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: AC 220 - 240 V +/- 10%

• Power consumption: 90 W Normal Operation W

• Standby power consumption: < 1 W

•

Page 3

Widescreen flat TV with Pixel Plus

42" LCD HD Ready

42PF7421/98

Product highlights

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD screen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of a true High De fin iti on TV sig nal a nd b e fully p rep are d for HD sourc es like HDTV broadcast, Blu-ray DVD or HD-DVD. HD ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that disp lays t he b enefits o f resolution and picture quality of a Hig h De fin iti on T V s igna l. It h as a uni ve rsal con ne cti on for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Pixel Plus

Pixel Plus is a digital picture processing technology that increases the number of lines and the number of pixels. The result is razor sharp pictures with incredible detail and depth, every time from any source.

Dynamic contrast enhancer

You want the LCD flat display with the highest contrast and most vibra nt images even at wi de v iewin g an gle. The Philips dynamic contrast enhancer uses video processing and unique dimming backlight technology. This delivers deep rich black levels with increased detail. The dimming backlight increases the contrast up to 5 times*, and at the same time improves the viewing angle. It gives a bright, lifelike picture with high contrast and vibrant colors, (* factor between 2 and 5, screen type and picture content dependant).

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of se nd ing a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Issue date 2007-12-28

Version: 9.0.12

12 NC: 8670 000 23198 EAN: 87 10895 94305 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Compact and slim design

This design style emphasizes a slim, compact look that saves space and fits in anywhere.

Virtual Dolby Surround

Virtual Dolby Surround is a processing technology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

Picture in Graphics

Picture-in-Graphics is a small window in the main picture, allowing to watch data/graphics in your main TV screen. It provides the ability to simultaneously watch data/ graphics and the TV.

HDMI input

HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest ou tp ut resolution with the sour ce device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.
