Philips 42PF7320/10 Leaflet

Download

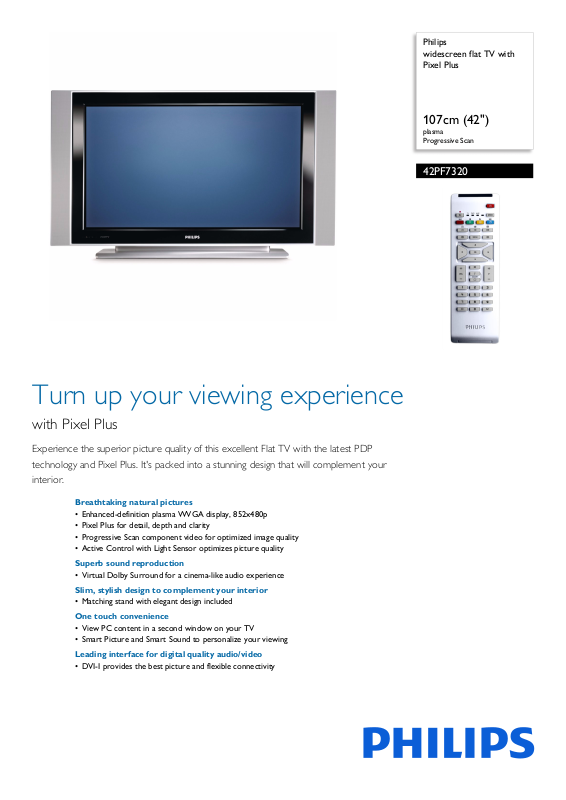

Page 1

Philips widescreen flat TV with Pixel Plus

107cm (42")

plasma Progressive Scan

42PF7320

Turn up your viewing experience

with Pixel Plus

Experience the superior picture quality of this excellent Flat TV with the latest PDP technology and Pixel Plus. It's packed into a stunning design that will complement your interior.

Breathtaking natural pictures

• Enhanced-definition plasma WVGA display, 852x480p

• Pixel Plus for detail, depth and clarity

• Progressive Scan component video for optimized image quality

• Active Control with Light Sensor optimizes picture quality

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Slim, stylish design to complement your interior

• Matching stand with elegant design included

One touch convenience

• View PC content in a second window on your TV

• Smart Picture and Smart Sound to personalize your viewing

Leading interface for digital quality audio/video

• DVI-I provides the best picture and flexible connectivity

Page 2

42PF7320/10

widescreen flat TV

107cm (42") plasma, Progressive Scan

Highlights

Plasma WVGA panel, 852 x 480p

This WVGA display with state-of-the-art pl

asma screen technology has an enhanced widescreen resolution of 852 x 480p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Pixel Plus

Pixel Plus is a digital picture processing te

chnology that increases the number of lines and the number of pixels. The result is razor sharp pictures with incredible detail and depth, every time from any source.

Progressive Scan

Progressive Scan doubles the vertical res

olution of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Active Control + Light Sensor

Active Control is a unique and intelligent way o

f optimizing picture quality by measuring and analyzing the incoming signal to automatically adjust picture quality settings. Active Control with Light Sensor uses a sensor to adjust the picture brightness depending on the room light conditions.

Virtual Dolby Surround

Virtual Dolby Surround is a processing te

chnology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

Bypacked tabletop stand

A table-top stand with matching design is pac

ked with the set.

Picture in Graphics

Picture-in-Graphics is a small window in the main picture, in your main TV screen. It provides the ability to simultaneously watch data/graphics and the TV.

allowing to watch data/graphics

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound a single key on the remote control. You can select optimized picture and sound settings for the various picture and sound modes.

DVI-I Input

A DVI-I input connects the non-compressed h

igh-bandwidth digital RGB signal from source to screen. By eliminating the conversion of the digital signals to analog, it delivers an unblemished and noisefree image, that is clear and flickerfree. The DVI input supports HDCP copy protection that allows viewing of copy protected programs from Digital Settop boxes, DVD players and HD recorders. DVI-I is future proof as it can be be connected to all HDMI devices (a converter cable is required). The DVI-I input also supports analog PC-VGA signals.

provide you with direct access via

Page 3

42PF7320/10

widescreen flat TV

107cm (42") plasma, Progressive Scan

Specifications

Picture/Display

• Aspect ratio: 16:9

• Brightness: 1500 cd/m²

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: WVGA Plasma panel

• Picture enhancement: Pixel Active Control + Light sensor, 3/2 - 2/2 motion pull down, Contrast Plus, Digital Noise Reduction, Dynamic contrast, 3D Combfilter, Jagged Line Suppression

• Color cabinet: Bicolour Black and Silver Frost

• Screen enhancement: Anti-Reflection coated

• Panel resolution: 852 x 480p

• Viewing angle: 160º (H) / 160º (V)

• Contrast ratio (typical): 13000:1

Plu

s, Progressive scan,

Supported Display Resolution

mputer formats

• Co Res

olution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60, 70, 75Hz 1280 x 1024 60Hz

deo Formats

• Vi olution Refresh rate

Res 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Dynamic Bass Enhancement

• Sound System: Virtual Dolby Surround

• Output power (RMS): 2 x 15W

• Equalizer: 5-bands

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Autostore, Plug & Play, Auto

Program Naming, Automatic Channel Install(ACI), Automatic Tuning System (ATS), Fine Tuning, Program Name, Sorting

• Ease of Use: Side Control, Smart Picture, Smart und, Auto

• Remote control type: RCFE05SPS00

• Teletext: Smart Text

• Picture in Picture: Picture in graphics, Twin page

•

Remote Control: Amp, DVD, Multi-functional, TV

• Screen Format Adjustments: Auto Format, 4:3,

Subtitl 14:9, Zoom 16:9, Subtitle and Heading Shift

• Clock: Sleep Timer

Volume Leveller (AVL), Program List

Zoom, Super Zoom, Widescreen, Zoom

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL, SECAM

• Video Playback: NTSC, PAL, SECAM

• Aerial Input: 75 ohm coaxial (IEC75)

•Tuner Display: PLL

• Number of Preset Channels: 100

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

• AV 3: DVI-I with HDCP, Audio-in mini jack 3.5mm

•Front / Side connections: Audio

Headphone Out, S-video in

L/R

in, CVBS in,

Power

• Power consumption: 230 W

• Standby power consumption: < 2 W

• Mains power: AC 220 - 240 V +/- 10%

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Product weight: 38 kg

• Weight incl. Packaging: 47 kg

•Set dimensions (W x H x D):

x 680 x 104 mm

1240

• VESA wall mount compatible: 800 x 400 mm

• Stand dimensions (W x H x D): 0 x

40 x 280 mm

Accessories

• Included accessories: Table top stand, Power cord, Quick start guide, Registration card, Remote Control, RF antenna cable, User Manual, Warranty certificate

• Optional accessories: Floor stand

•

Issue date 2019-06-26

Version: 21.0.27

12 NC: 8670 000 21623 EAN: 87 10895 88589 8

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
